Operation of the lane departure

alert function/lane departure

prevention function

●

Depending on the vehicle speed,

road conditions, lane departure

angle, etc., operation of the lane

departure prevention function may

not be felt or the function may not

operate.

●

Depending on the conditions, the

warning buzzer may operate even

if vibration is selected through a

customize setting.

●

If a course

is not clear or straight,

the lane departure alert function or

lane departure prevention function

may not operate.

●

The lane departure alert function

or lane departure prevention func-

tion may not operate if the system

judges that the vehicle is inten-

tionally being steered to avoid a

pedestrian or parked vehicle.

●

Vehicles with BSM: It may not be

possible for the system to judge if

there is danger of a collision with a

vehicle in an adjacent lane.

●

The steering assist operation of

the lane departure prevention

function can be overridden by the

steering wheel operation of the

driver.

: Boundary between the asphalt

and grass, soil, etc., or structures,
such as a curb, guardrail, etc.

■

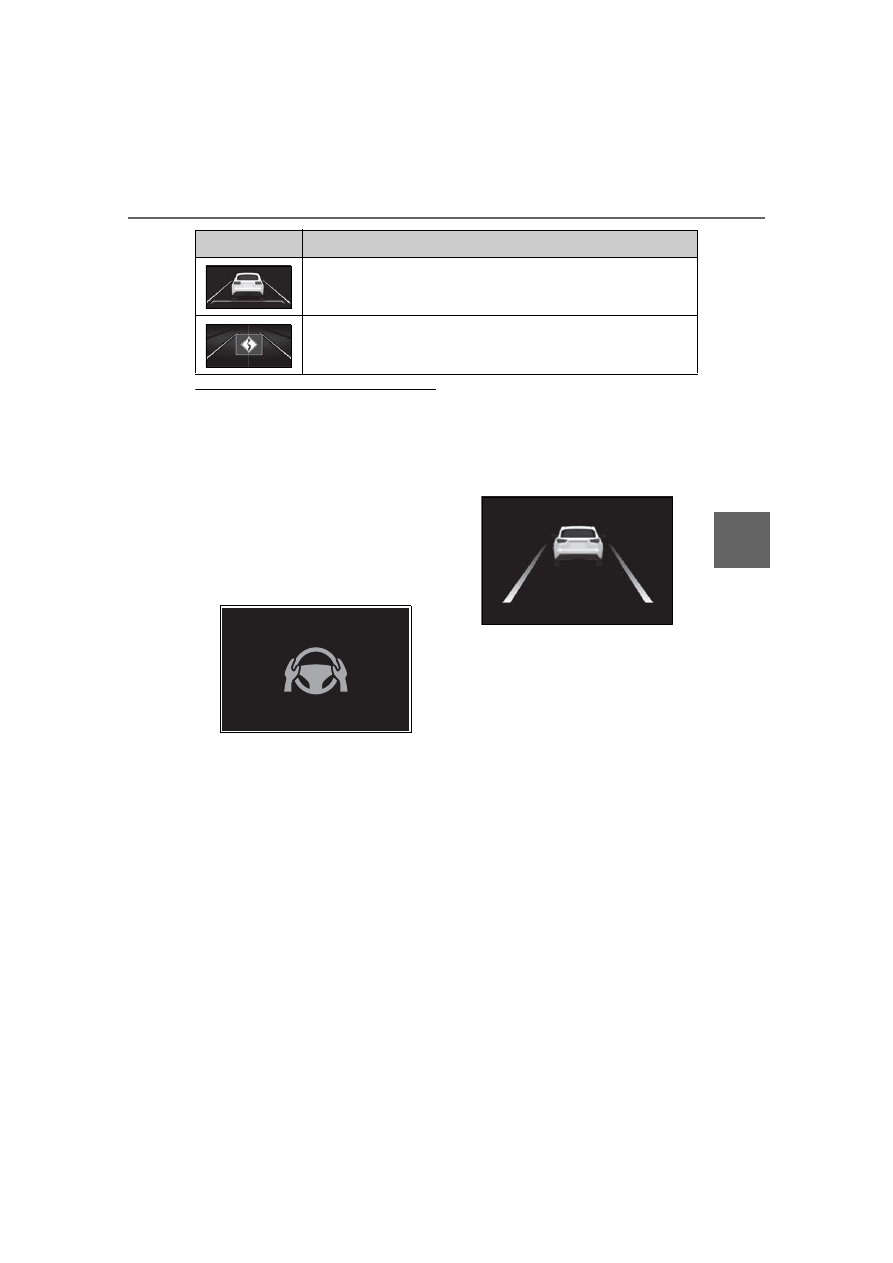

Hands off steering wheel warn-

ing operation

In the following situations, a mes-

sage urging the driver to operate the

steering wheel and an icon will be

displayed and a buzzer will sound to

warn the driver. When using the sys-

tem, make sure to grip the steering

wheel firmly, regardless of whether

the warning is operating or not.

226

4-5. Using the driving support systems

●

When the system determines that

the driver is not securely holding

the steering wheel, or the steering

wheel is not being operated when

the steering assist operation of the

lane departure prevention function

is operating

The length of time that the warning

buzzer operates will become longer

as the frequency of the steering

assist operating increases. Even if

the system judges that the steering

wheel has been operated, the warn-

ing buzzer will sound for a certain

amount of time.

■

Break suggestion function

If the vehicle is swaying, a message

will be displayed and a warning

buzzer will sound to urge the driver

to take a break.

Depending on the condition of the

vehicle and road surface, the break

suggestion function may not oper-

ate.



The LDA system can be
enabled/disabled through a
customize setting. (



The settings of the LDA can
be changed on the customize
settings. (



Changing LDA settings

WARNING

■

Situations in which the sys-

tem may not operate properly

In the following situations, the

system may not operate properly

and the vehicle may depart from

its lane. Do not overly rely on

these functions. The driver is

solely responsible for paying

attention to their surroundings

and operating the steering wheel

as necessary to ensure safety.

●

When the boundary between

the asphalt and grass, soil, etc.,

or structures, such as a curb,

guardrail, etc. is not clear or

straight

●

When the vehicle is struck by a

crosswind or the turbulence of

other nearby vehicles

●

Situations in which the lane may

not be detected:



●

Situations in which the sensors

may not operate properly:



●

Situations in which some or all

of the functions of the system

cannot operate:

●

When it is necessary to disable

the system:



P.201

227

4-5. Using the driving support systems

ing

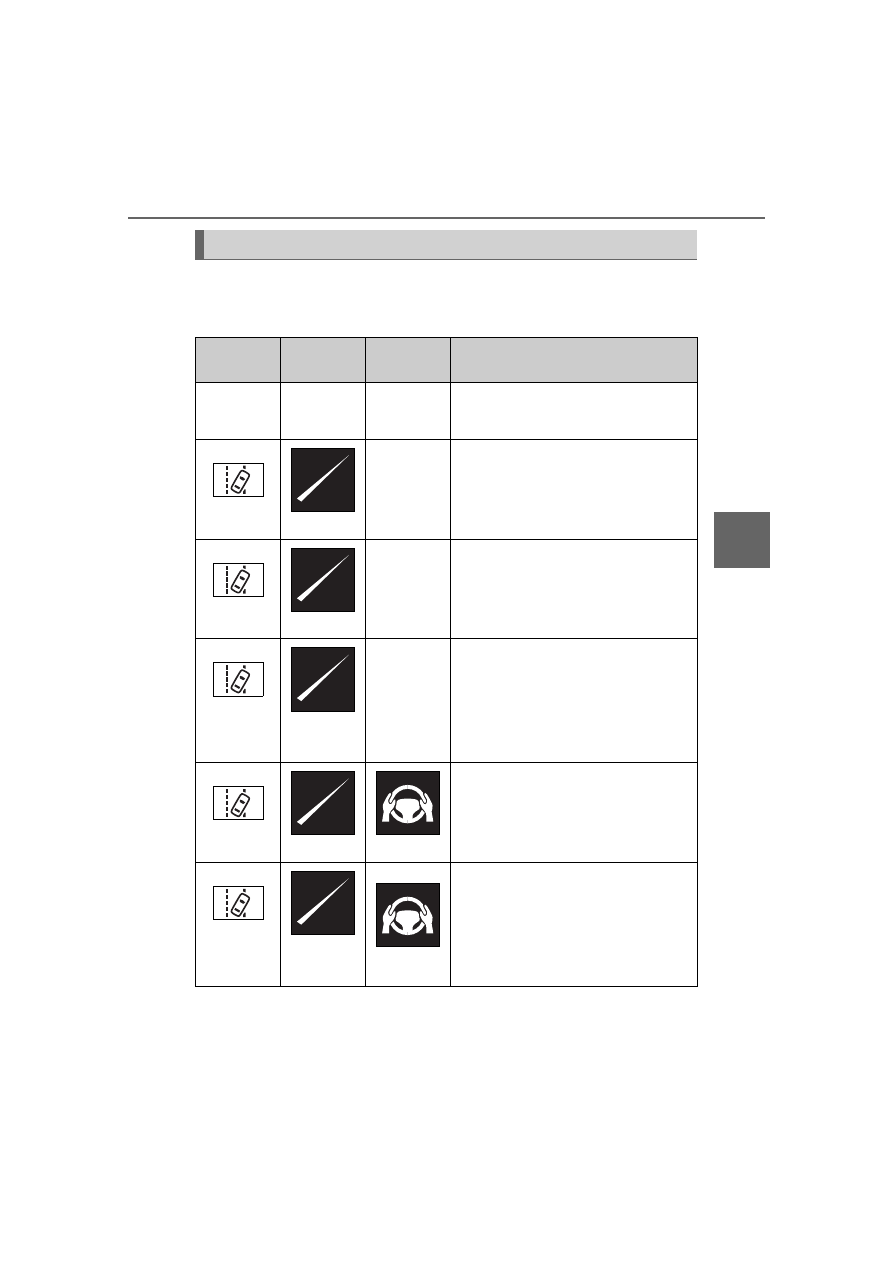

The operating state of the lane departure alert function and steering
assist operation of the lane departure prevention function are indi-
cated.

Displays and system operation

Indicator

Lane dis-

play

Steering

icon

Situation

Not illumi-

nated

Not illumi-

nated

Not illumi-

nated

System disabled

White

Gray

Not illumi-

nated

Lane lines are not detected by the
system

White

Not illumi-

nated

Lane lines are detected by the sys-
tem

Orange

Flashing

Orange

Flashing

Not illumi-

nated

Lane departure alert function is
operating for the side which the lane
display is flashing

Green

Lane departure prevention function
is operating for the side which the
lane display is illuminated

Orange

Flashing

Orange

Flashing

Green

Lane departure alert function/lane
departure prevention function is
operating for the side which the lane
display is flashing

228

4-5. Using the driving support systems

PDA (Proactive driv-

ing assist)

When a detectable object
(



P.229) is detected, the

proactive driving assist
operates the brakes and
steering wheel to help pre-
vent the vehicle from
approaching too close to
the object.

WARNING

■

For safe use

Driving safely is solely the respon-

sibility of the driver.

●

The proactive driving assist is

designed to provide some

assistance for regular braking

and steering operations, as well

as helping to prevent the vehicle

from approaching too close to a

detectable object. However, the

scope of this assistance is lim-

ited.

The driver should perform brake

and steering operations as neces-

sary. Read the following items

carefully. Do not overly rely on the

proactive driving assist and

always drive carefully.(



P.230)

●

The proactive driving assist is

not a system which reduces the

amount of attention necessary

for safe driving. Even if the sys-

tem is operating correctly, the

surrounding conditions as rec-

ognized by the driver and

detected by the system may dif-

fer. It is necessary for the driver

to pay attention, assess risks,

and ensure safety. Over-reli-

ance on this system to drive the

vehicle safely may lead to an

accident resulting in death or

serious injury.

●

Proactive driving assist is not a

system which allows for inatten-

tive driving and is not a system

which assists in poor visibility

conditions. The driver is solely

responsible for paying attention

to their surroundings and driving

safely.

■

When turning proactive driv-

ing assist off

●

Situations in which the sensors

may not operate properly



●

When it is necessary to disable

the system :



P.201

229

4-5. Using the driving support systems

ing

According to the driving conditions, the operation and detectable
objects of the proactive driving assist will change as follows.

System operating conditions and detectable objects

Function

Conditions

Operation

Detectable
objects

Obstacle
Anticipation
Assist

A detectable
object is detected
crossing the road

Assistance with
some brake opera-
tions is provided in
order to reduce the
possibility of a colli-
sion.



Pedestrians



Bicyclists

A detectable
object is detected
on the side of the
road

Assistance with
some brake and
steering wheel oper-
ations are provided
according to the sur-
rounding conditions
to help prevent the
vehicle from
approaching too
close to a detected
object.
Assistance with
steering wheel oper-
ations is provided
within a range that
the vehicle will not
deviate from its cur-
rent lane.



Pedestrians



Bicyclists



Parked vehi-
cles

Deceleration
Assist

A preceding or
adjacent vehicle
is detected as cut-
ting in front of the
vehicle

The vehicle is gently
decelerated so that
the vehicle-to-vehi-
cle distance is
excessively short.



Preceding vehi-
cles



Motorcycles

A curve is
detected ahead of
the vehicle

The vehicle is gently
decelerated if the
vehicle speed is
determined to be too
high for the curve
ahead.

None

230

4-5. Using the driving support systems

■

Vehicle speeds at which the

system can operate

●

Detectable object crossing the

road assistance

Approximately 20 to 35 mph (30 to
60 km/h)

●

Detectable object on the side of

the road assistance

Approximately 20 to 35 mph (30 to
60 km/h)

●

Preceding vehicle deceleration

assistance

Approximately 15 mph (20 km/h) or
more

●

Curve deceleration assistance

Approximately 15 mph (20 km/h) or
more

■

System operation will be can-

celed when

●

In the following situations, system

operation will be canceled :

• When the dynamic radar cruise

control is operating

• When the PCS is off

• Situations in which some or all of

the functions of the system cannot

operate :

• When the P, R or N shift position is

selected

When the vehicle speed falls below
approximately 9.3 mph (15 km/h)
Or when a certain vehicle speed
has been reached, as judged by the
system, according to the surround-
ing conditions

●

In the following situations, system

operation may be canceled :

• When the brake control or output

restriction control of a driving sup-

port system operates

(For example: PCS, drive-start

control)

• When the system determines that

a detected object has moved

away from the vehicle

●

In the following situations, system

assistance may be canceled :

• When lane lines can no longer be

detected

• When the brake pedal has been

depressed

• When the accelerator pedal has

been depressed

• When the steering wheel has

been operated with more than a

certain amount of force

• When the turn signal lever is oper-

ated to the left/right turn position

WARNING

■

Situations in which the sys-

tem may not operate properly

●

Situations in which the lane may

not be detected :

●

When a detectable object stops

immediately before entering the

path of the vehicle

●

When passing extremely close

to a detectable object behind a

guardrail, fence, etc.

●

When changing lanes while

overtaking a detectable objec

●

When passing a detectable

object that is changing lanes or

turning left/right

●

When there are objects (guard-

rails, power poles, trees, walls,

fences, poles, traffic cones,

mailboxes, etc.) in the surround-

ing area

●

When there are patterns or a

painting ahead of the vehicle

that may be mistaken for a

detectable object

●

When passing through a place

with a low structure above the

road (tunnel with a low ceiling,

traffic sign, signboard, etc.)

●

When driving on snowy, icy, or

rutted roads

231

4-5. Using the driving support systems

ing

WARNING

●

When a detectable object is

approaching your vehicle

●

When your vehicle or a detect-

able object is wandering

●

When the movement of a

detectable object changes

(change in direction, sudden

acceleration or deceleration,

etc.)

●

When suddenly approaching a

detectable object

●

When a preceding vehicle or

motorcycle is not directly in front

of your vehicle

●

When there is a structure above

a detectable object

●

When part of a detectable

object is hidden by another

object (large luggage, umbrella,

guardrail, etc.)

●

When multiple detectable

objects are overlapping

●

When a bright light, such as the

sun or headlights of another

vehicle, is reflecting off of the

detectable object

●

When the detectable object is

white and looks extremely bright

●

When the color or brightness of

the detectable object causes it

to blend in with its surroundings

●

When a detectable object cuts

in front of or emerges from

beside a vehicle

●

When approaching a vehicle

ahead which is perpendicular or

at an angle to the vehicle, or is

facing the vehicle

●

If a parked vehicle is perpendic-

ular or at an angle to the vehicle

●

When a bicycle is a child sized

bicycle, is carrying a large load,

is carrying an extra passenger,

or has an unusual shape (bicy-

cles equipped with a child seat,

tandem bicycles, etc.)

●

When a pedestrian or bicyclist is

shorter than approximately 3.2

ft. (1 m) or taller than approxi-

mately 6.5 ft. (2 m)

●

When the silhouette of a pedes-

trian or bicyclist is unclear (such

as when they are wearing a

raincoat, long skirt, etc.)

●

When a pedestrian or bicyclist is

bending forward or squatting

●

When a pedestrian or bicyclist is

moving at high speed

●

When a pedestrian is pushing a

stroller, wheelchair, bicycle or

other vehicle

●

When a detectable object

blends in with the surrounding

area, such as when it is dim (at

dawn or dusk) or dark (at night,

in a tunnel, etc.)

●

When the lane width is 13.1 ft.

(4 m) or more

●

When the lane width is 8.2 ft.

(2.5 m) or less

●

When the vehicle has not been

driven for a certain amount of

time after the hybrid system was

started

●

While turning left or right or a

few seconds after turning left or

right

●

While changing lanes or a few

seconds after changing lanes

●

When entering a curve, driving

around a curve and a few sec-

onds after driving around a

curve

232

4-5. Using the driving support systems



The proactive driving assist
can be enabled/disabled
through a customize setting.

(





The following settings of the
proactive driving assist can be
changed through customize
settings.(

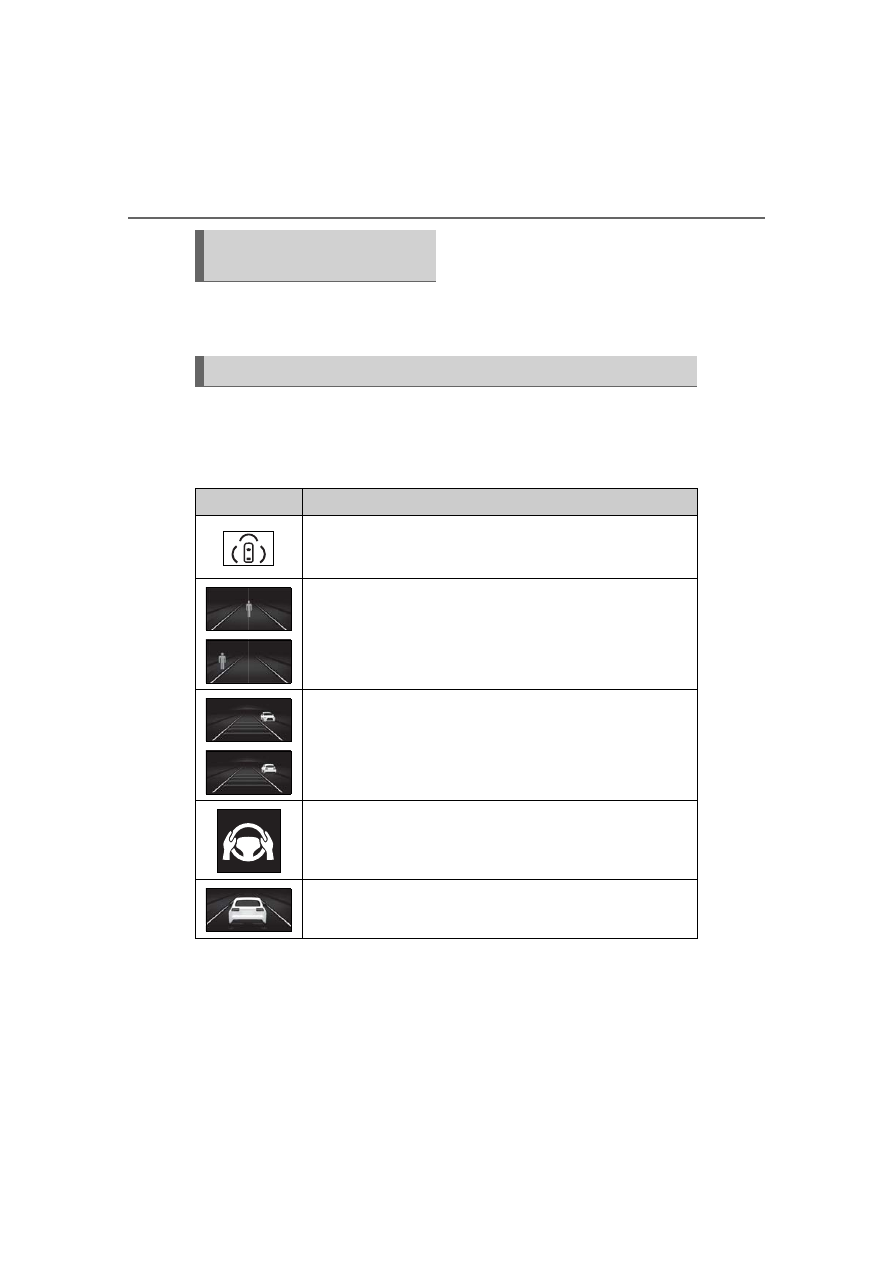

Depending on the situation, the following indicators or icons will be
displayed.
Some icons cannot be displayed unless the display is changed to
the driving safety support function information screen.

Changing proactive driv-
ing assist settings

System operation display

Icon

Meaning



White: Monitoring for detectable objects



Green: Detectable object crossing the road or detectable
object on the side of the road assistance operating

A pedestrian has been detected as crossing the road or on
the side of the road and brake or steering assistance is
operating

A vehicle has been detected on the side of the road and
brake or steering operation assistance is being performed

Steering operation assistance is being performed to pre-
vent the vehicle from approaching too close to a detectable
object on the side of the road

Preceding vehicle deceleration assistance is being per-
formed

233

4-5. Using the driving support systems

ing

■

Hands off steering wheel warn-

ing operation

In the following situations, a mes-

sage urging the driver to grip the

steering wheel and the icon shown

in the illustration will be displayed on

the display to warn the driver. If the

system detects that the steering

wheel is held, the warning will be

canceled. When using the system,

make sure to grip the steering wheel

firmly, regardless of whether the

warning is operating or not.

●

When the system determines the

driver is not holding the steering

wheel while the lane centering

function is operating

If no operations are detected for a
certain amount of time, a buzzer will
sound, the warning will operate.
This warning may also operate if the
driver only operates steering wheel
a small amount continuously.

■

Warning operation after preced-

ing vehicle deceleration assis-

tance has ended

After preceding vehicle decelera-

tion assistance has ended, if the

driver does not operate the brake

pedal or accelerator pedal and the

vehicle approaches the preceding

vehicle, the display will flash and a

buzzer will sound to urge the driver

to decelerate. If the system deter-

mines that the driver is operating the

brake pedal or accelerator pedal,

the warning will be canceled.

Warning to maintain appropriate vehicle-to-vehicle dis-
tance

Curve deceleration assistance is being performed

Icon

Meaning

234

4-5. Using the driving support systems

: If equipped



When the front camera

detects a sign or information
of a sign is available from the
navigation system, the sign
will be displayed on the dis-
play.



Multiple signs can be dis-
played.

Depending on the specifications of
the vehicle, the number of dis-
played signs may be limited.

■

Operating conditions of sign

display

Signs will be displayed when the fol-

lowing conditions are met:

●

The system has detected a sign

In the following situations, a dis-

played sign may stop being dis-

played:

●

When a new sign has not been

detected for a certain distance

●

When the system determines that

the road being driven on has

changed, such as after a left or

right turn

■

Situations in which the display

function may not operate prop-

erly

In the following situations, the RSA

system may not operate properly

and may not detect signs or may

display the incorrect sign. However,

this does not indicate a malfunction.

●

When a sign is dirty, faded, tilted

or bent

●

When the contrast of an electronic

sign is low

●

When all or part of a sign is hidden

by a tree, utility pole, etc.

●

When a sign is detected by the

front camera for a short amount of

time

●

When the driving state (turning,

changing lanes, etc.) is judged

incorrectly

RSA (Road Sign

Assist)

The RSA system detects
specific road signs using
the front camera and/or nav-
igation system (when speed
limit information is avail-
able) and warns the driver
via displays and buzzers.

WARNING

■

For safe use

●

Driving safely is solely the

responsibility of the driver. Pay

careful attention to the sur-

rounding conditions in order to

ensure safe driving.

●

Do not rely solely upon the

RSA. The RSA assists the

driver by providing road sign

information, but it is not a

replacement for the driver’s own

vision and awareness. Driving

safely is solely the responsibility

of the driver. Pay careful atten-

tion to the surrounding condi-

tions in order to ensure safe

driving.

■

Situations in which the RSA

should not be used

●

When it is necessary to disable

the system:

P.201

■

Situations in which the sys-

tem may not operate properly

●

Situations in which the sensors

may not operate properly:

Display Function

235

4-5. Using the driving support systems

ing

●

When a sign is immediately after a

freeway junction or in an adjacent

lane just before merging

●

When stickers are attached to the

rear of a preceding vehicle

●

When a sign similar to a system

compatible sign is detected as a

system compatible sign

●

When a speed limit sign for a

frontage road is within detection

range of the front camera

●

When driving around a round-

about

●

When a sign intended for trucks,

etc. is detected

●

When the navigation system map

data is out of date

●

When the navigation system can-

not be used

In this case, the speed limit signs

displayed on the multi-information

display and navigation system dis-

play may differ.

In the following situations, the
RSA system will output a warn-
ing to notify the driver.



If the vehicle speed exceeds
the speed warning threshold
of the speed limit sign dis-
played on the display, the sign
display will be emphasized
and a buzzer will sound.



When the RSA system
detects a do not enter sign
and determines that the vehi-
cle has entered a no-entry
area, the do not enter sign
displayed on the display will
flash and a buzzer will sound.

■

Operating conditions of the

notification functions

●

Excess speed notification function

This function will operate when the

following condition is met:

• A speed limit road sign is recog-

nized by the system.

●

No entry notification function

This function will operate when all of

the following conditions are met:

• More than one no entry road signs

are recognized by the system

simultaneously.

• The vehicle is passing between no

entry road signs recognized by the

system.



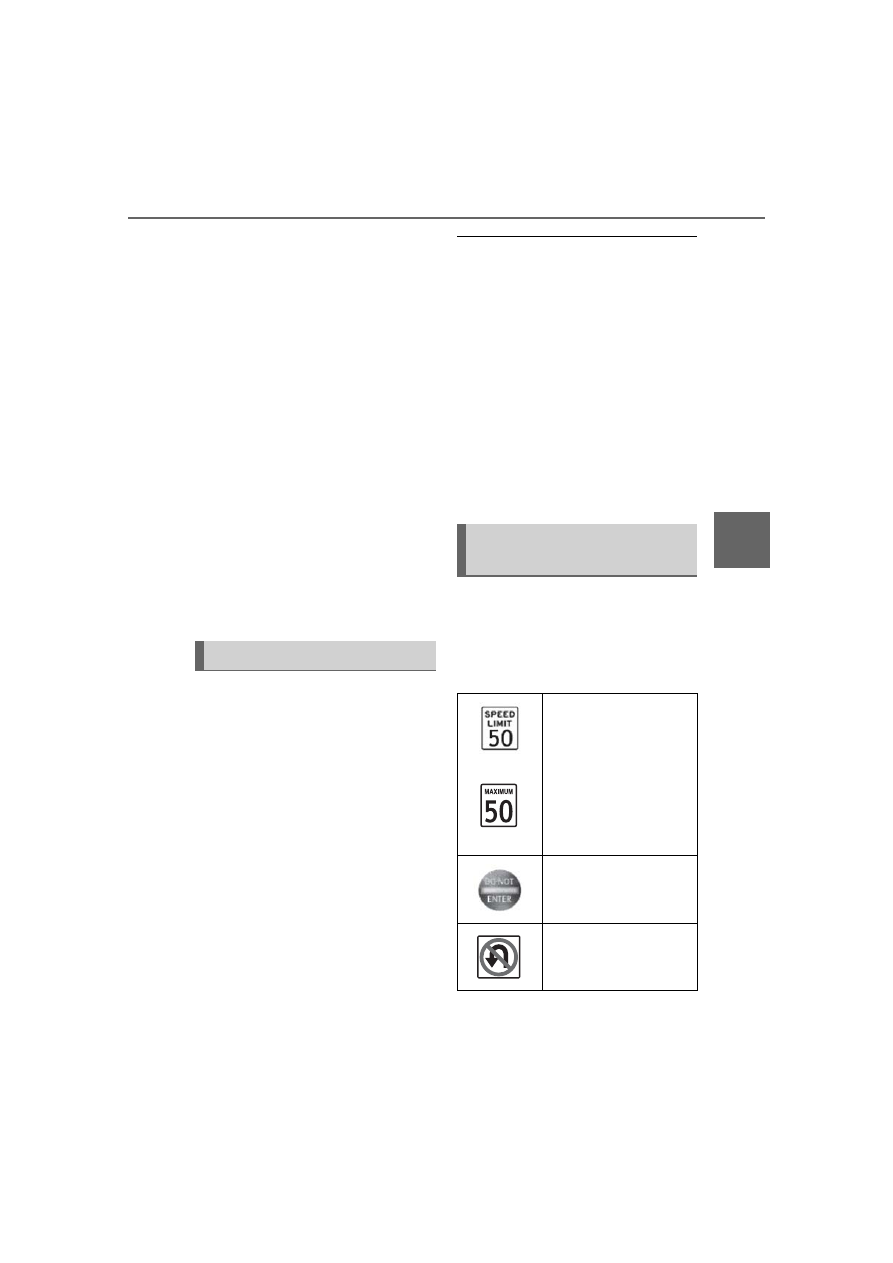

The following types of road
signs can be displayed.

However, non-standard or recently
introduced traffic signs may not be
displayed.

Notification function

Types of road signs sup-
ported

(U.S.A.)

(Canada)

Speed limit

Do Not Enter

No U-turn

236

4-5. Using the driving support systems



Depending on the specifica-
tions of the vehicle, signs may
be displayed overlapping.

The following settings of the
RSA can be changed through
customize settings. (



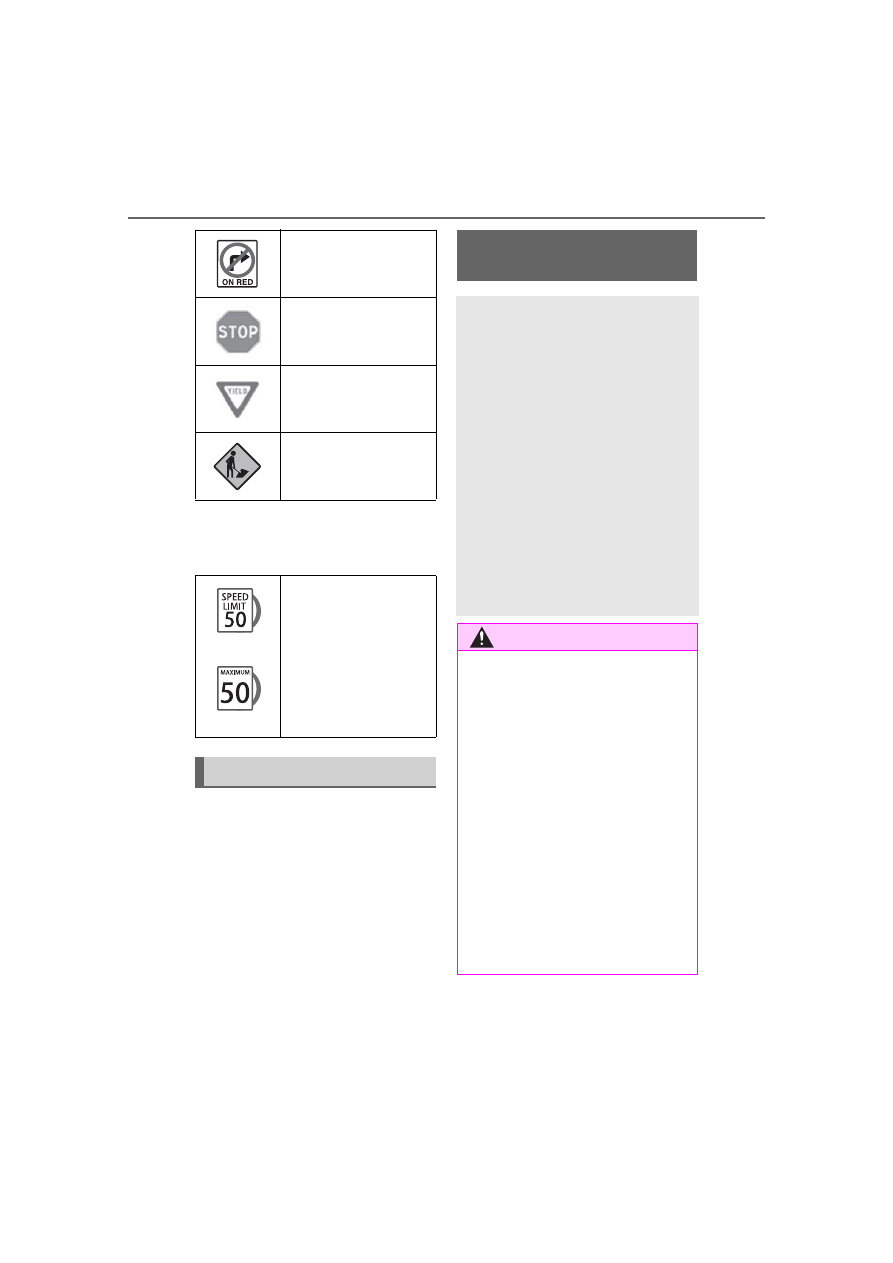

No Turn On Red

Stop

Yield

Warning

(U.S.A.)

(Canada)

Duplicate display
example

Changing RSA settings

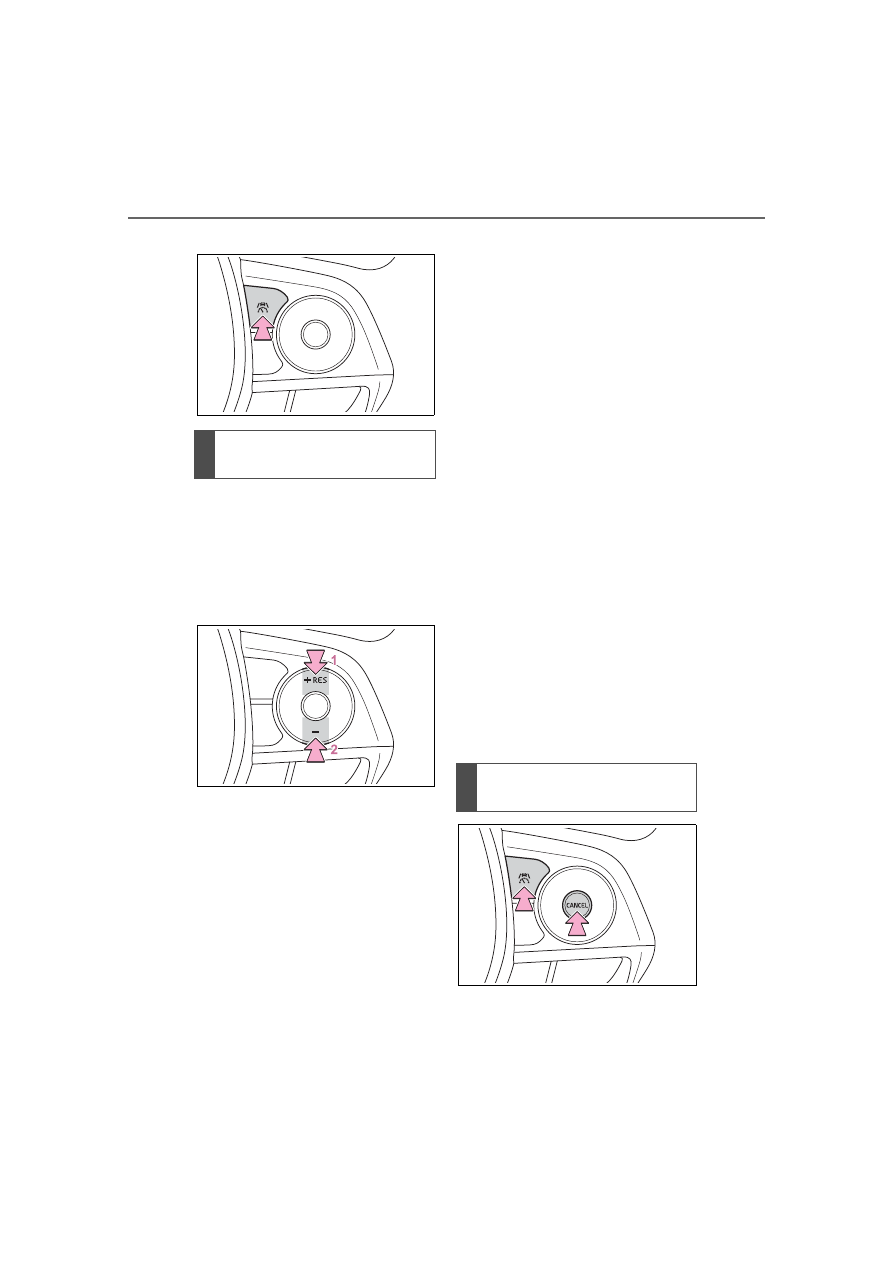

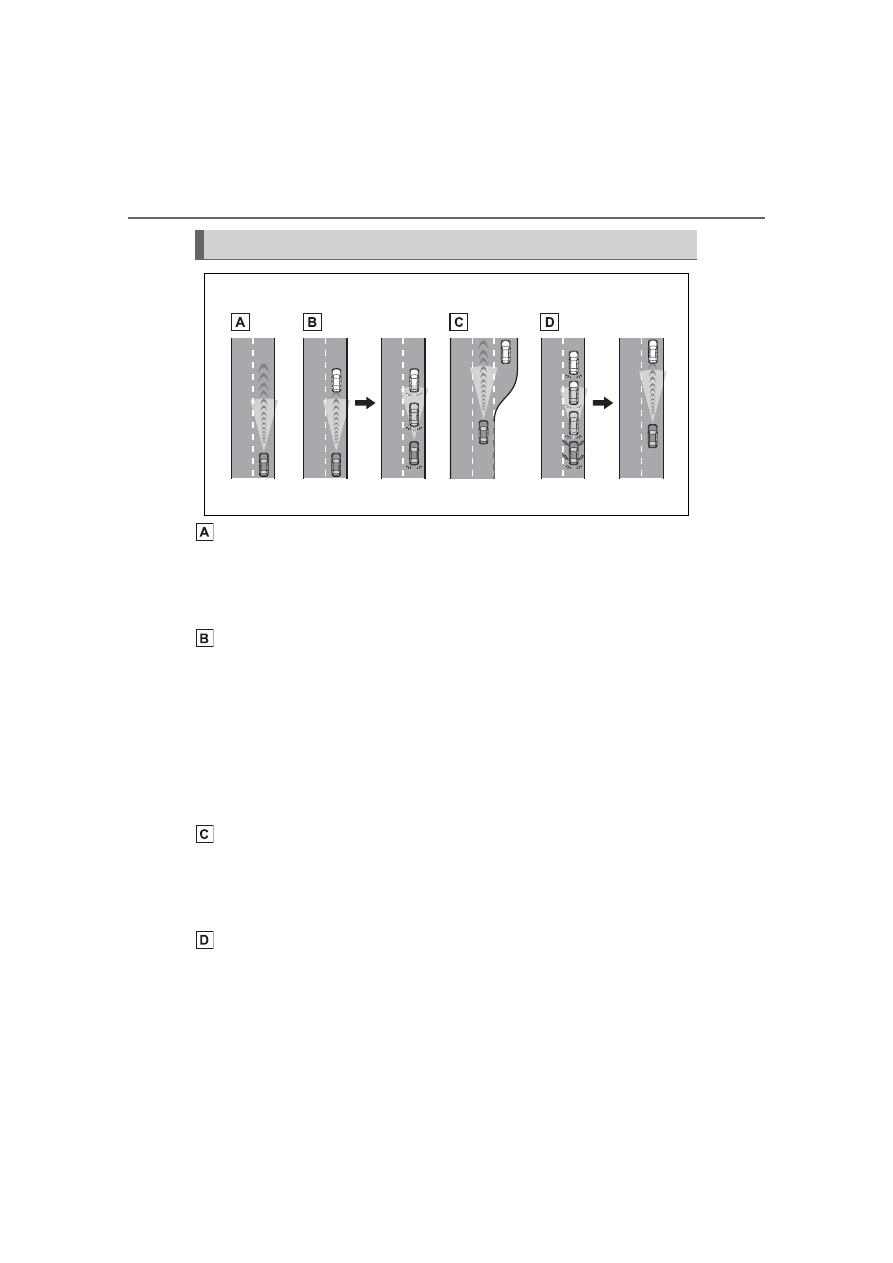

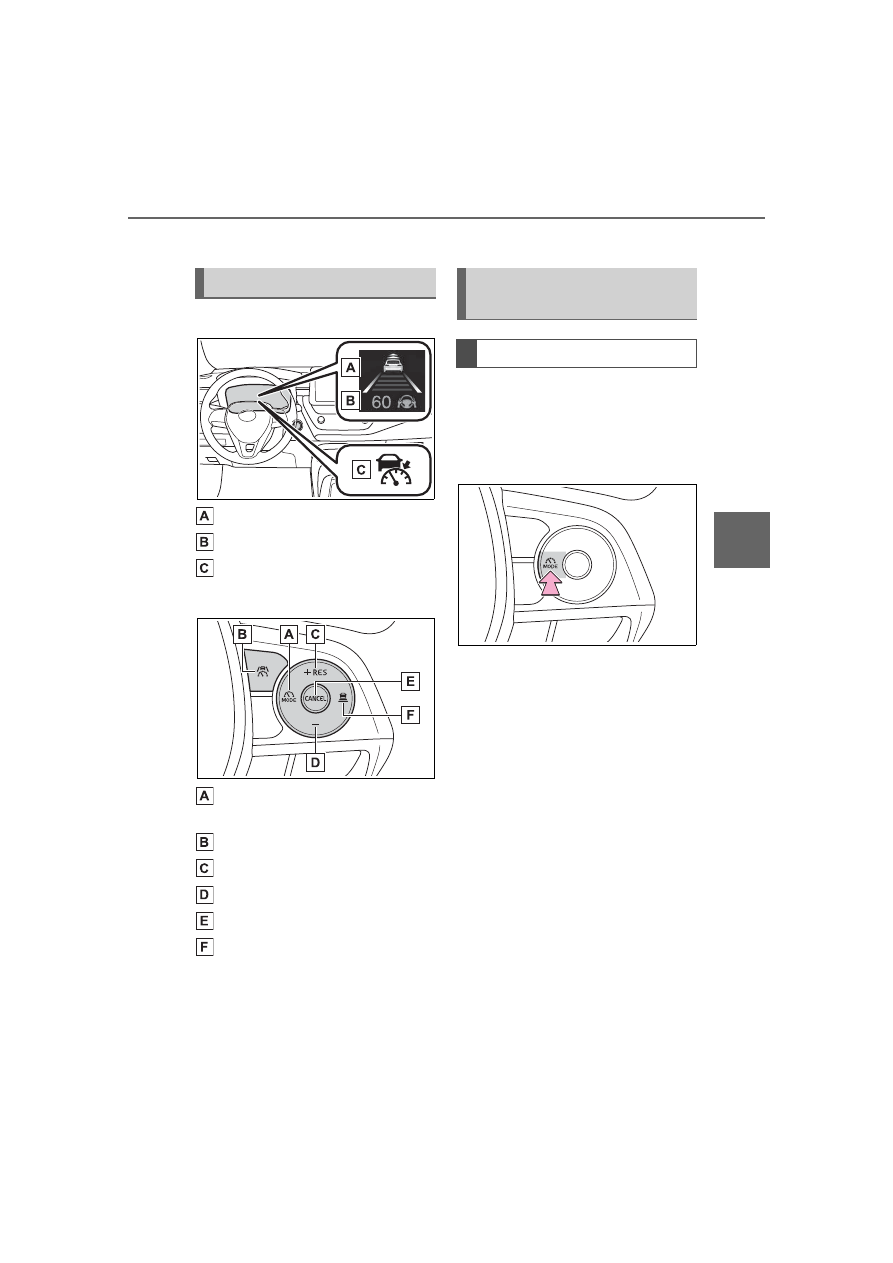

Dynamic radar cruise

control

This dynamic radar cruise
control detects the pres-
ence of vehicles ahead,
determines the current vehi-
cle-to-vehicle distance, and
operates to maintain a suit-
able distance from the vehi-
cle ahead. The desired
vehicle-to-vehicle distance
can be set by operating the
vehicle-to-vehicle distance
switch.

Use the dynamic radar
cruise control only on high-
ways and expressways.

WARNING

■

For safe use

●

Driving safely is solely the

responsibility of the driver. Do

not overly rely on this system,

and pay careful attention to the

surrounding conditions in order

to ensure safe driving.

●

The dynamic radar cruise con-

trol provides driving assistance

to reduce the driver’s burden.

However, there are limitations to

the assistance provided.

Read the following items carefully.

Do not overly rely on this system

and always drive carefully.

Conditions under which the sys-

tem may not operate correctly:

P.242

237

4-5. Using the driving support systems

ing

WARNING

●

Set the speed appropriately

according to the speed limit,

traffic flow, road conditions,

weather conditions, etc. The

driver is responsible for confirm-

ing the set speed.

●

Even if the system is operating

correctly, the condition of a pre-

ceding vehicle as recognized by

the driver and detected by the

system may differ. Therefore, it

is necessary for the driver to

pay attention, assess risks, and

ensure safety. Over-reliance on

this system to drive the vehicle

safely may lead to an accident

resulting in death or serious

injury.

■

Precautions for the driving

assist systems

Observe the following precau-

tions, as there are limitations to

the assistance provided by the

system. Over-reliance on this sys-

tem may lead to an accident

resulting in death or serious injury.

●

Details of support provided for

the driver’s vision

The dynamic radar cruise control

is only intended to help the driver

in determining the distance

between the driver’s own vehicle

and a designated preceding vehi-

cle. It is not a system which allows

for careless or inattentive driving,

and is not a system which assists

in poor visibility conditions.

The driver must pay attention to

their surroundings, even when the

vehicle stops.

●

Details of support provided for

the driver’s judgement

The dynamic radar cruise control

determines whether the distance

between the driver’s own vehicle

and a designated preceding vehi-

cle is within a set range. It is not

capable of making any other type

of judgement. Therefore, it is

absolutely necessary for the

driver to remain vigilant and to

determine whether or not there is

a possibility of danger.

●

Details of support provided for

the driver’s operation

The dynamic radar cruise control

does not include functions which

will prevent or avoid collisions

with vehicles ahead of your vehi-

cle. Therefore, if there is ever any

possibility of danger, the driver

must take immediate and direct

control of the vehicle and act

appropriately in order to ensure

safety.

■

Situations in which the

dynamic radar cruise control

should not be used

Do not use the dynamic radar

cruise control in the following situ-

ations. As the system will not be

able to provide appropriate con-

trol, using it may lead to an acci-

dent resulting in death or serious

injury.

●

Roads where there are pedes-

trians, cyclists, etc.

●

When driving on a highway or

expressway entrance or exit

●

When the approach warning

sounds frequently

●

Situations in which the sensors

may not operate properly:



●

Situations in which the lane may

not be detected:
