Toyota Corolla Hybrid (2023 year). Manual in english - page 7

P.114)



Average fuel economy (after
start)

Displays the average fuel con-
sumption since hybrid system start.



Average fuel economy (after
refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

■

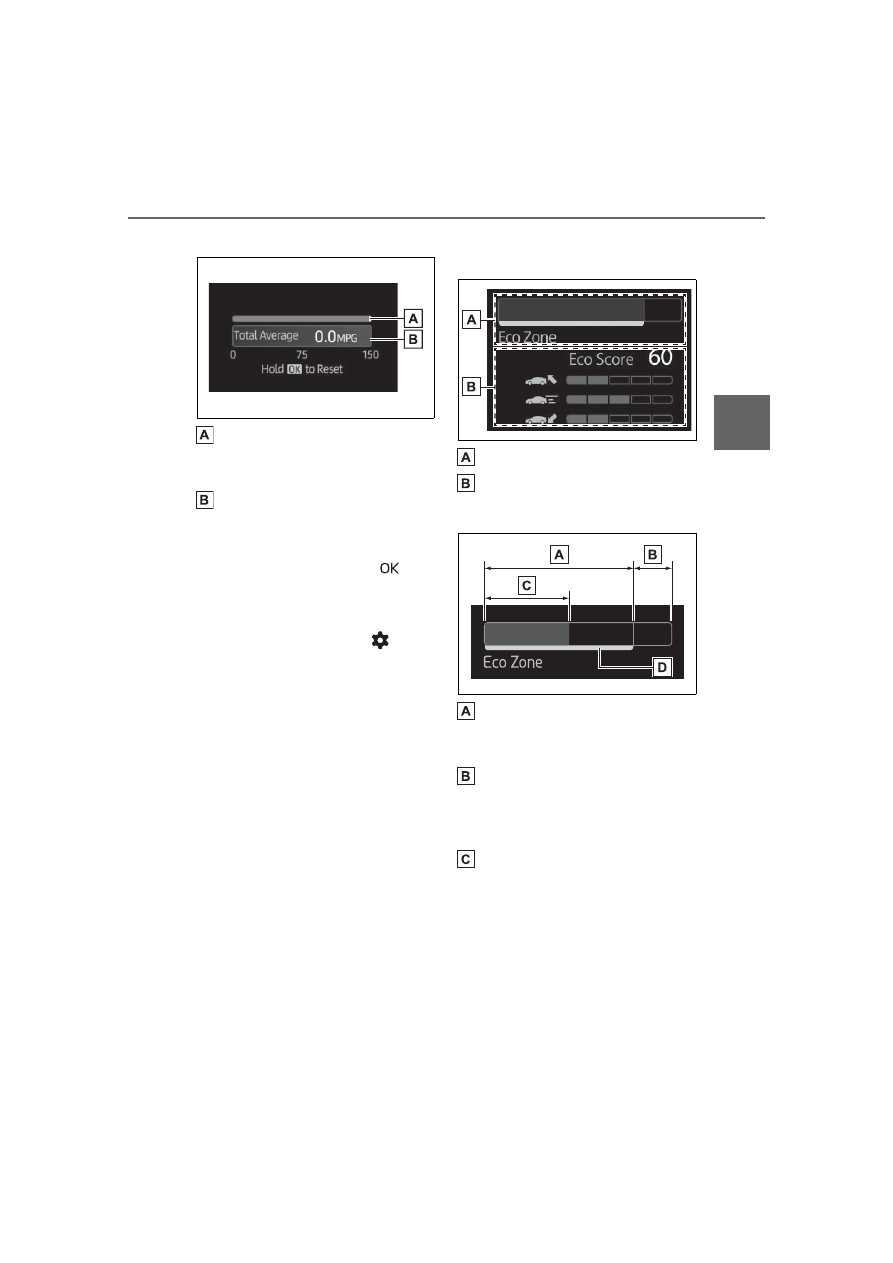

ECO Accelerator Guid-
ance/Eco score

ECO Accelerator Guidance
Eco score



ECO Accelerator Guidance

Eco area

Indicates that the vehicle is being
driven in an Eco-friendly manner.

Power area

Indicates that the Eco-friendly driv-
ing range is being exceeded
(during full power driving, etc.)

Current accelerator pedal
operation

Displayed as a green bar when
within the Eco area.
Eco-friendly acceleration can be
achieved by keeping the accelera-
tor pedal operation display within
the range indicated by the blue bar.
(



P.160)

112

2-1. Instrument cluster

Zone of Eco acceleration

Displayed as a blue bar, and rep-
resents an estimated suitable
accelerator pedal operation range
for the current driving conditions,
such as starting off or cruising.
This display changes according to
situation, such as when starting off
or cruising.



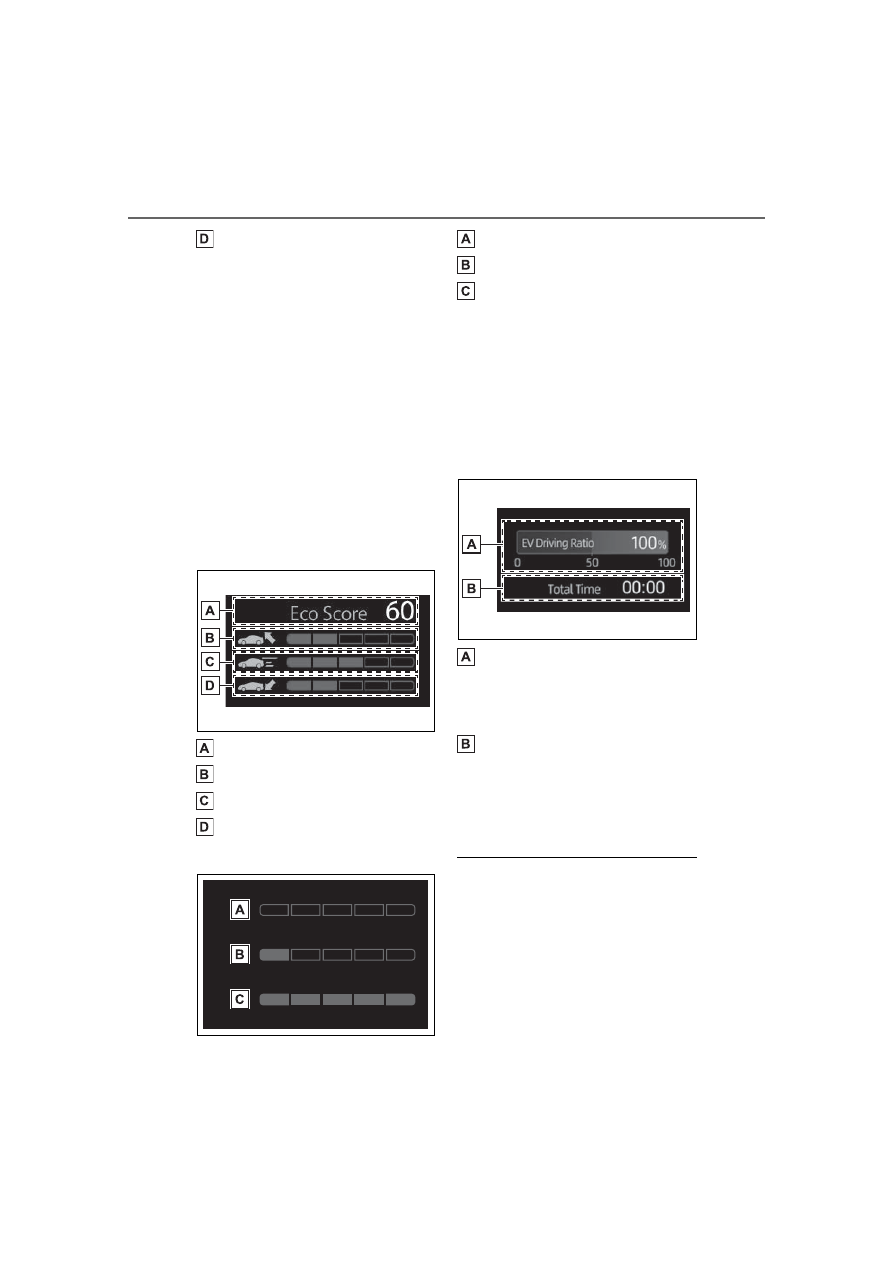

Eco score

The following 3 Eco driving meth-
ods are evaluated in 5 levels:
Smooth start-off acceleration, driv-
ing without sudden acceleration,
and smooth stopping. When the
vehicle is stopped, an Eco score
out of 100 points will be displayed.

Score result
Eco start status
Eco cruise status
Eco stop status

How to read the bar display

Not yet evaluated
Low
High

• After the hybrid system is started,

the Eco score will not be dis-
played until the vehicle speed
exceeds approximately 19 mph
(30 km/h).

• The Eco score will be reset each

time the hybrid system is started.

■

EV Ratio/EV Driving Ratio

EV driving ratio after starting

Displays the percentage of EV driv-
ing since the hybrid system was
started.

Elapsed time after starting

Displays the elapsed time since
hybrid system was started.

: It is reset each time the hybrid

system stops.

■

The ECO Accelerator Guid-

ance/Eco score will not operate

when

The ECO Accelerator Guidance/Eco

score will not operate in the follow-

ing situations:

●

The Hybrid System Indicator is not

operating.

●

The vehicle is being driven using

the cruise control or dynamic

113

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

radar cruise control.

■

Driving support system
information

Select to display the operational
status of the following systems:



Dynamic radar cruise control
(

P.236)



LTA (Lane Tracing Assist)
(

P.218)



LDA (Lane Departure Alert)
(

P.223)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation:



Route guidance to destination



Compass display (head-
ing-up display)

Select to enable selection of an
audio source or track on the
meter using the meter control
switches.

This menu icon can be set to be
displayed/not displayed in

■

Display items



Drive information



Energy monitor (

P.116)



AWD Control (if equipped)

■

Drive information

Displays drive information such as
the following:

Drive information 1
Drive information 2

Displays the following depend-
ing on which drive information
type and drive information items
were selected in

. (

P.114)



After start

• Distance: Displays the distance

driven since hybrid system start

• Elapsed time: Displays the

elapsed time since hybrid system
start

• Average vehicle speed: Displays

the average vehicle speed since
hybrid system start



After reset

• Distance: Displays the distance

driven since the display was

Driving support system
information display

Audio system-linked dis-
play

Vehicle information dis-
play

114

2-1. Instrument cluster

reset

• Elapsed time: Displays the

elapsed time since the display
was reset

• Average vehicle speed: Displays

the average vehicle speed since
the display was reset

: To reset, display the desired item

and press and hold the

meter control switch.

■

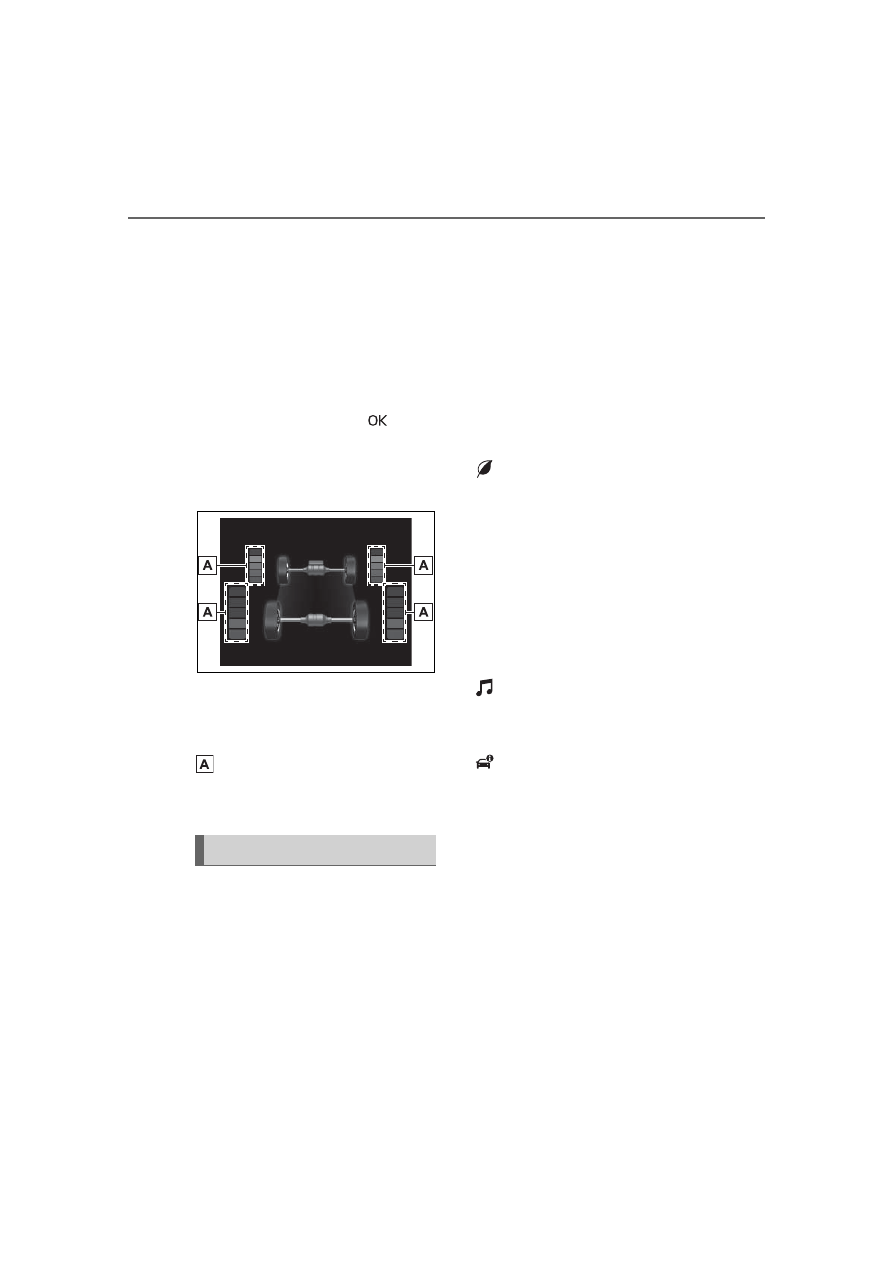

AWD operation status dis-
play (AWD models)

The illustration used is intended as
an example, and may differ from the
image that is actually displayed on
the multi-information display.

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

■

Meter display settings that
can be changed



Language

Select to change the language dis-
played.



Units

Select to change the units of mea-

sure displayed.



Meter Type

Select to change the meter type.



Dial Type

Select to change the display of the
speedometer, tachometer or Hybrid
System Indicator.



EV indicator

Select to enable/disable the EV
indicator.



• Fuel economy display
Select to change the average fuel
consumption display to any of the
following: trip average/total aver-
age/tank average. (



P.110)

• Hybrid system display
Select to display/not display the
zone of Eco acceleration of the Eco
Accelerator Guidance. (

P.111)



Select to display/not display the
audio system linked display.



Select to change the displayed con-
tent of the following:
• Display contents
Select to display/not display the
energy monitor. (

P.116)

• Drive information type
Select to change the drive informa-
tion type display between trip infor-
mation/total information.
• Drive information items
Select to set the first and second
items of the drive information dis-

Settings display

115

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

play to any of the following: aver-
age vehicle
speed/distance/elapsed time.



Pop-up display

Select to enable/disable pop-up
displays for each relevant system.



Multi-information display off

Select to turn the multi-information
display off.
To turn the multi-information display
on again, press any of the following
meter control switches



Default setting

Select to reset the meter display
settings to the default setting.

■

Vehicle functions and set-
tings that can be changed



P.442

■

Suspension of the settings dis-

play

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe

place.

●

If a warning message is displayed,

operation of the settings display

will be suspended.

WARNING

■

Cautions during setting up

the display

If the hybrid system is operating

while changing certain settings on

the settings display, ensure that

the vehicle is parked in a place

with adequate ventilation. In a

closed area such as a garage,

exhaust gases including harmful

carbon monoxide (CO) may col-

lect and enter the vehicle. This

may lead to death or a serious

health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

116

2-1. Instrument cluster

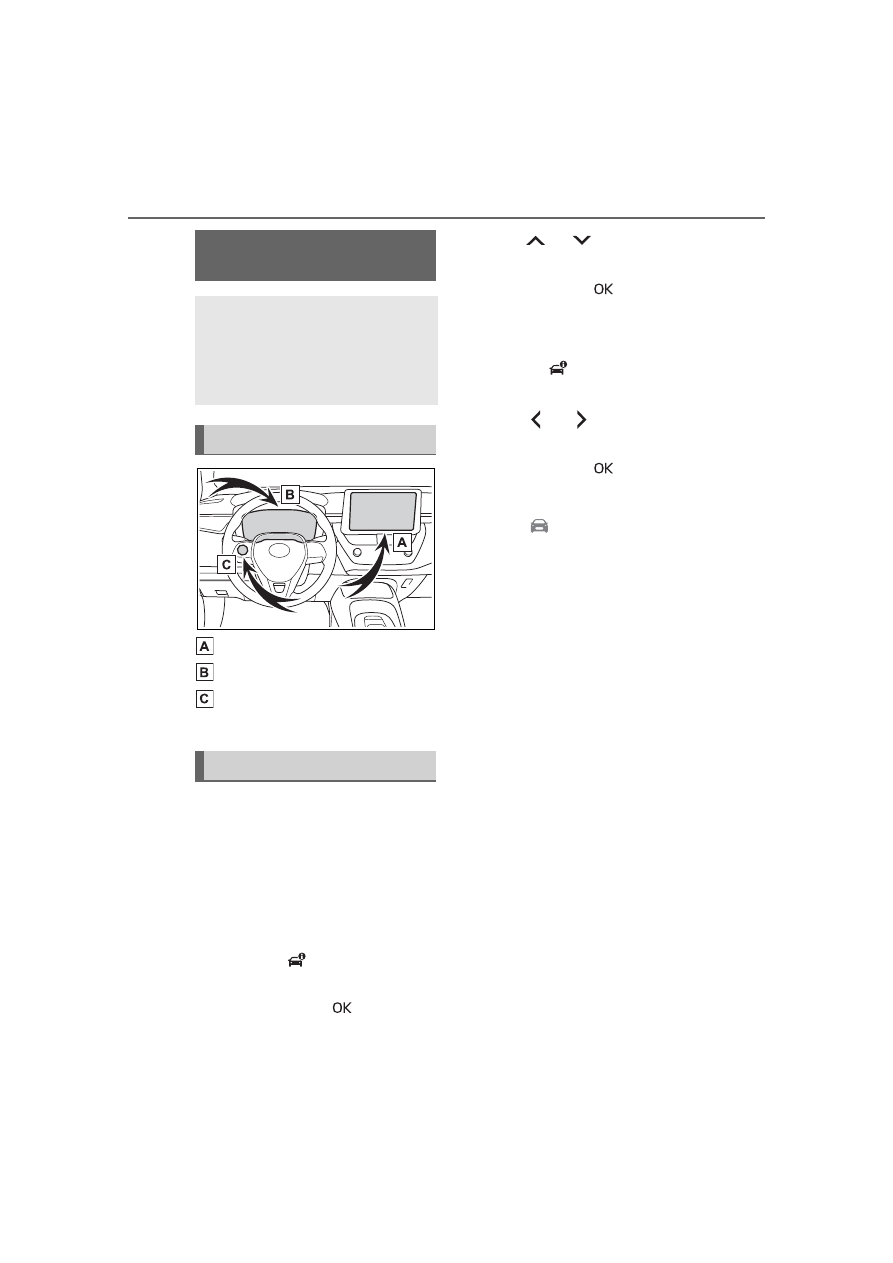

Audio system screen
Multi-information display
Meter control switches
(



P.103, 110)

The energy monitor can be used
to check the vehicle drive status,
hybrid system operation status
and energy regeneration status.

■

Display procedure



Multi-information display
(4.2-inch display)

Select of

the multi-infor-

mation display and then

press and hold

Press

to select

“Energy Monitor” and then

press and hold



Multi-information display
(7-inch display)

Select of

the multi-infor-

mation display.

Press

to select

“Energy Monitor” and then

press and hold



Audio system screen

Select

on the main menu.

Select “Energy flow”.

■

Reading the display

The arrows will appear in accor-
dance with the energy flow.
When there is no energy flow,
arrows will not be displayed.

The color of the arrows will change
as follows
Green or blue: When the hybrid
battery (traction battery) is regener-
ated or charged.
Yellow or orange: When the hybrid
battery (traction battery) is in use.
Red: When the gasoline engine is
in use.

The image shows all the arrows
as an example. The actual dis-
play will vary depending on con-
ditions.

Energy monitor/con-

sumption screen

You can view the status of
your hybrid system on the
multi-information display
and the audio system
screen.

System components

Energy monitor

117

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator



Multi-information display
(4.2-inch display)

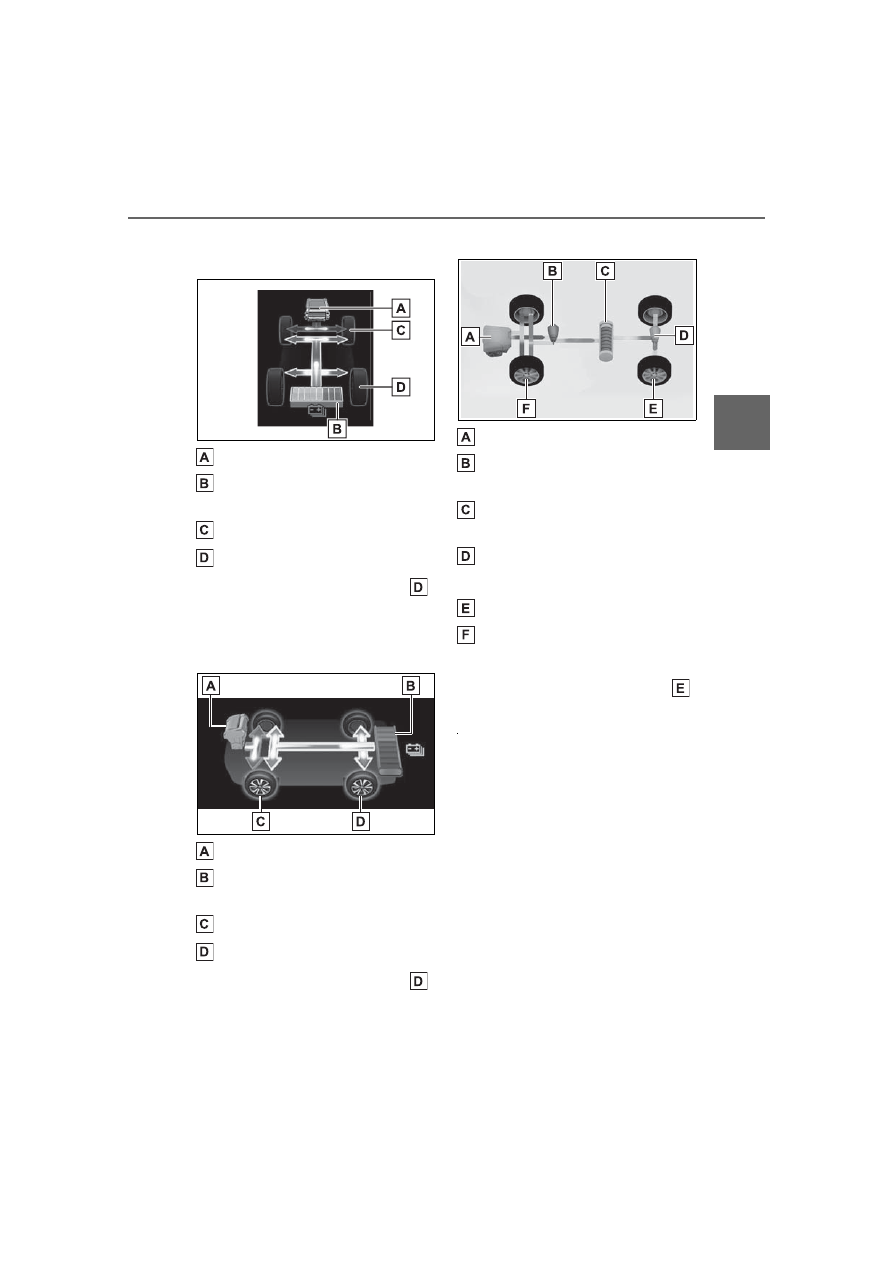

Gasoline engine
Hybrid battery (traction bat-
tery)
Front tires

Rear tires

: For FF vehicles, the arrows to

are not displayed.



Multi-information display
(7-inch display)

Gasoline engine
Hybrid battery (traction bat-
tery)
Front tires

Rear tires

: For FF vehicles, the arrows to

are not displayed.



Audio system screen

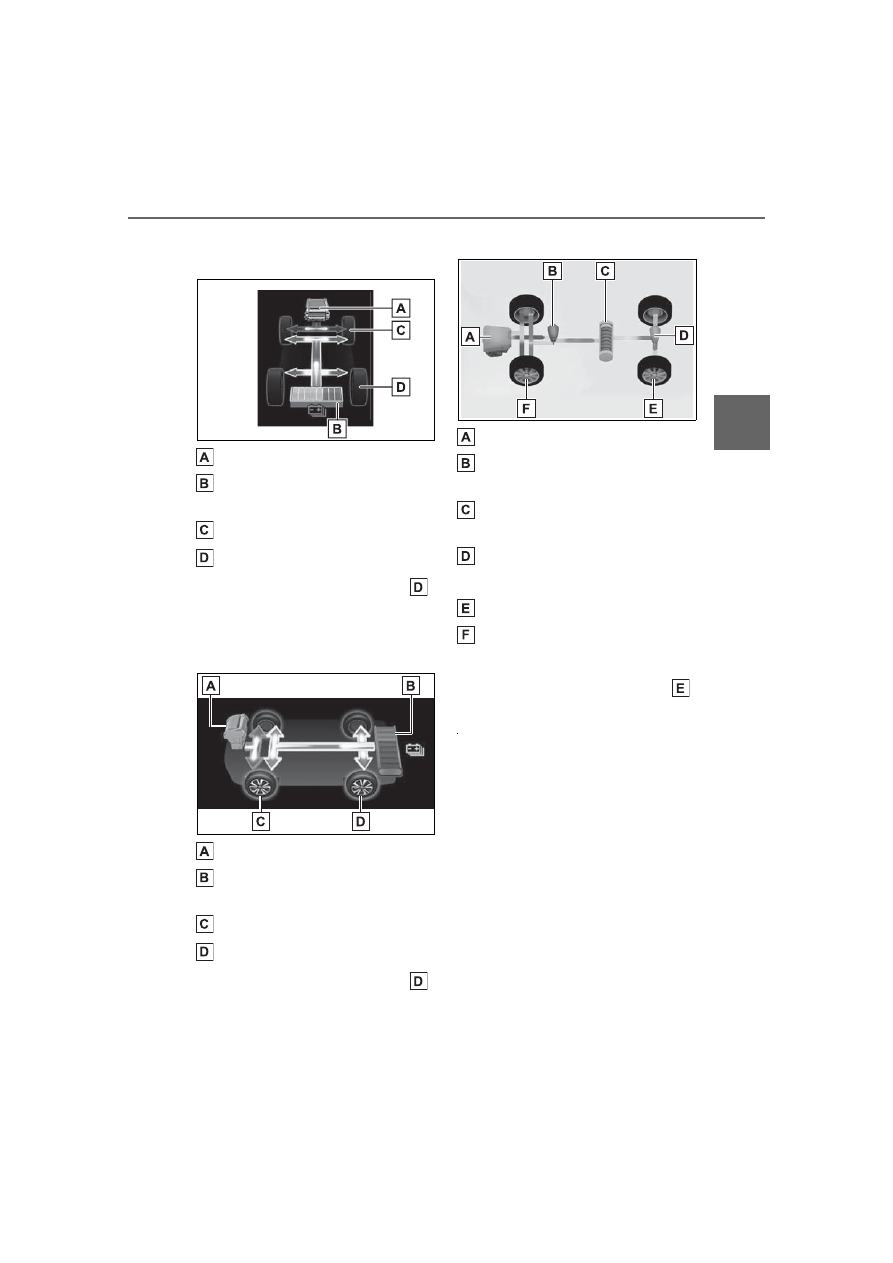

Gasoline engine
Front electric motor (traction
motor)
Hybrid battery (traction bat-
tery)
Rear electric motor (traction
motor)

Rear tires

Front tires

:AWD models only

:For FF vehicles, the arrows to

are not displayed.

■

Color of the hybrid battery

(traction battery) on the audio

system screen

It will be green when the hybrid bat-

tery (traction battery) is being

charged, and yellow when the

hybrid battery (traction battery) is

being used.

■

Remaining charge amount

warning of hybrid battery (trac-

tion battery)

●

The buzzer sounds intermittently

when the hybrid battery (traction

battery) remains without charging

while the shift lever is in N, or the

remaining charge amount drops

below a certain level. If the

remaining charge amount drops

further, the buzzer sounds contin-

118

2-1. Instrument cluster

uously.

●

When a warning message is

shown on the multi-information

display and the buzzer sounds,

follow the instructions displayed

on the screen to perform trouble

shooting.

■

Hybrid battery (traction bat-
tery) status



Multi-information display
(4.2-inch display)

Low
High

These images are examples only,
and may vary slightly from actual
conditions.



Multi-information display
(7-inch display)

Low
High

These images are examples only,
and may vary slightly from actual

conditions.



Audio system screen

Low
High

■

Trip information

Select

on the main menu.

Select “Trip information”.

If a screen other than “Current” is

displayed, select “Current”.

The image is an example only, and
may vary slightly from actual condi-
tions.

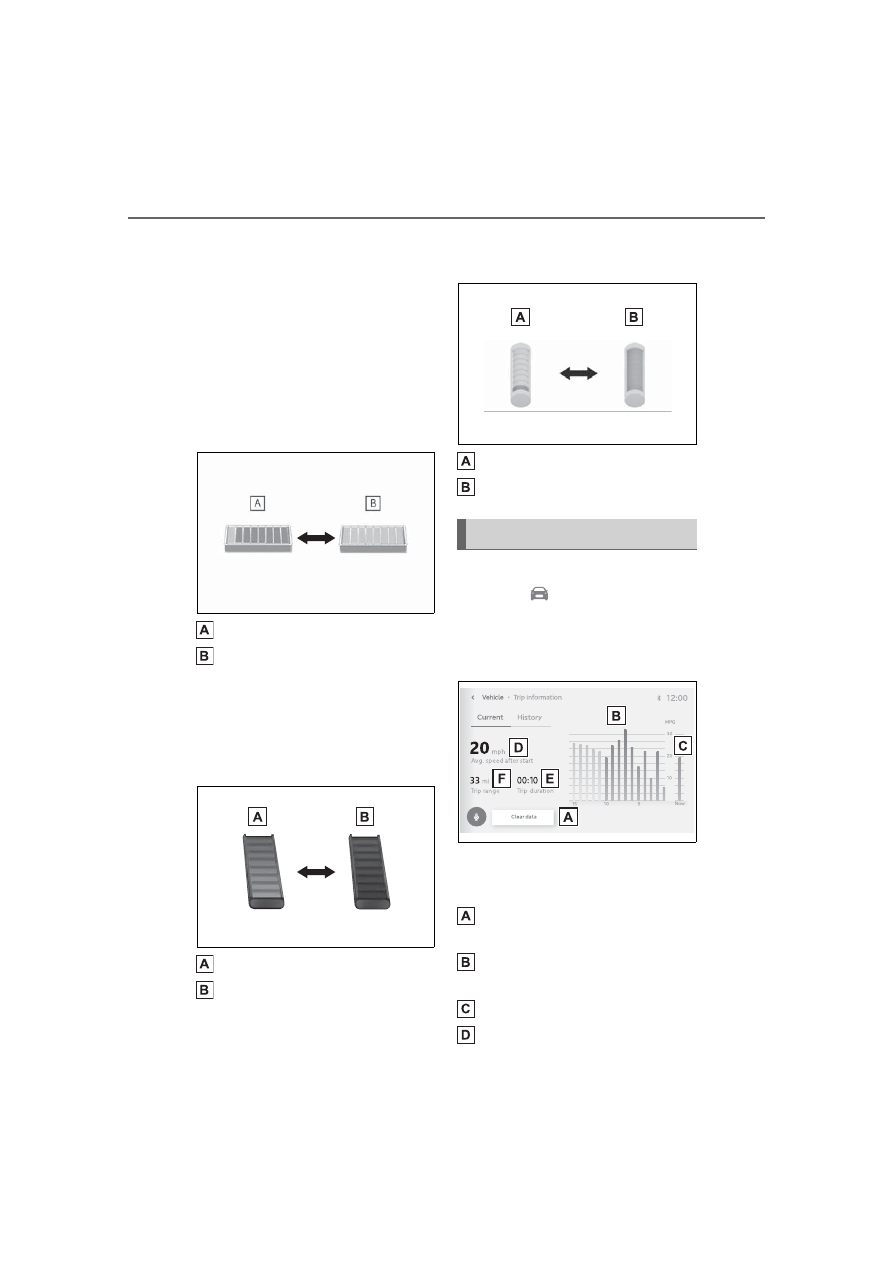

Resetting the consumption
data
Fuel consumption in the past
15 minutes
Current fuel consumption
Average vehicle speed since

Consumption

119

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

the hybrid system was
started.
Elapsed time since the hybrid
system was started.
Cruising range

Average fuel consumption for
the past 15 minutes is divided
by color into past averages and
averages attained since the
power switch was last turned to
ON. Use the displayed average
fuel consumption as a refer-
ence.

■

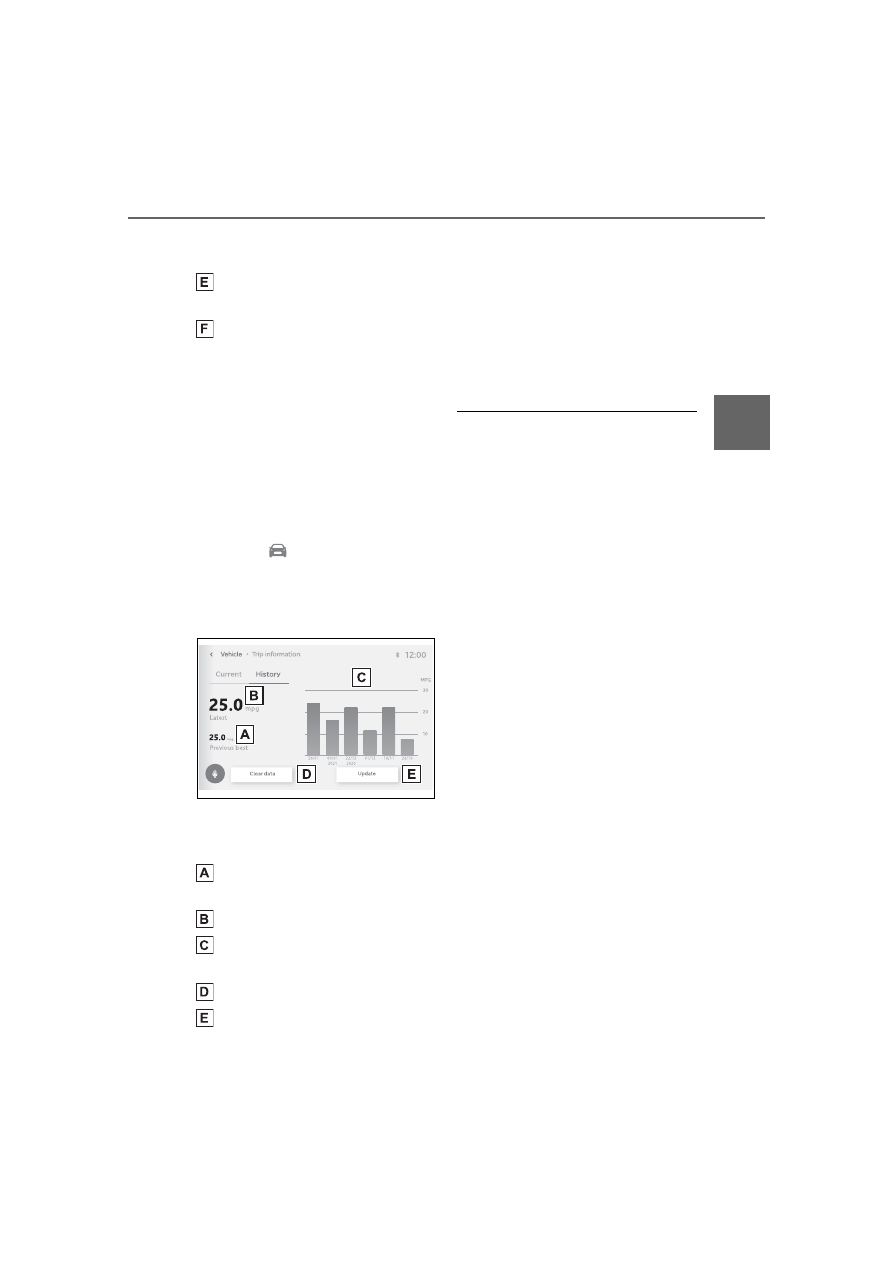

History

Select

on the main menu.

Select “Trip information”.

If a screen other than “History” is

displayed, select “History”.

The image is an example only, and
may vary slightly from actual condi-
tions.

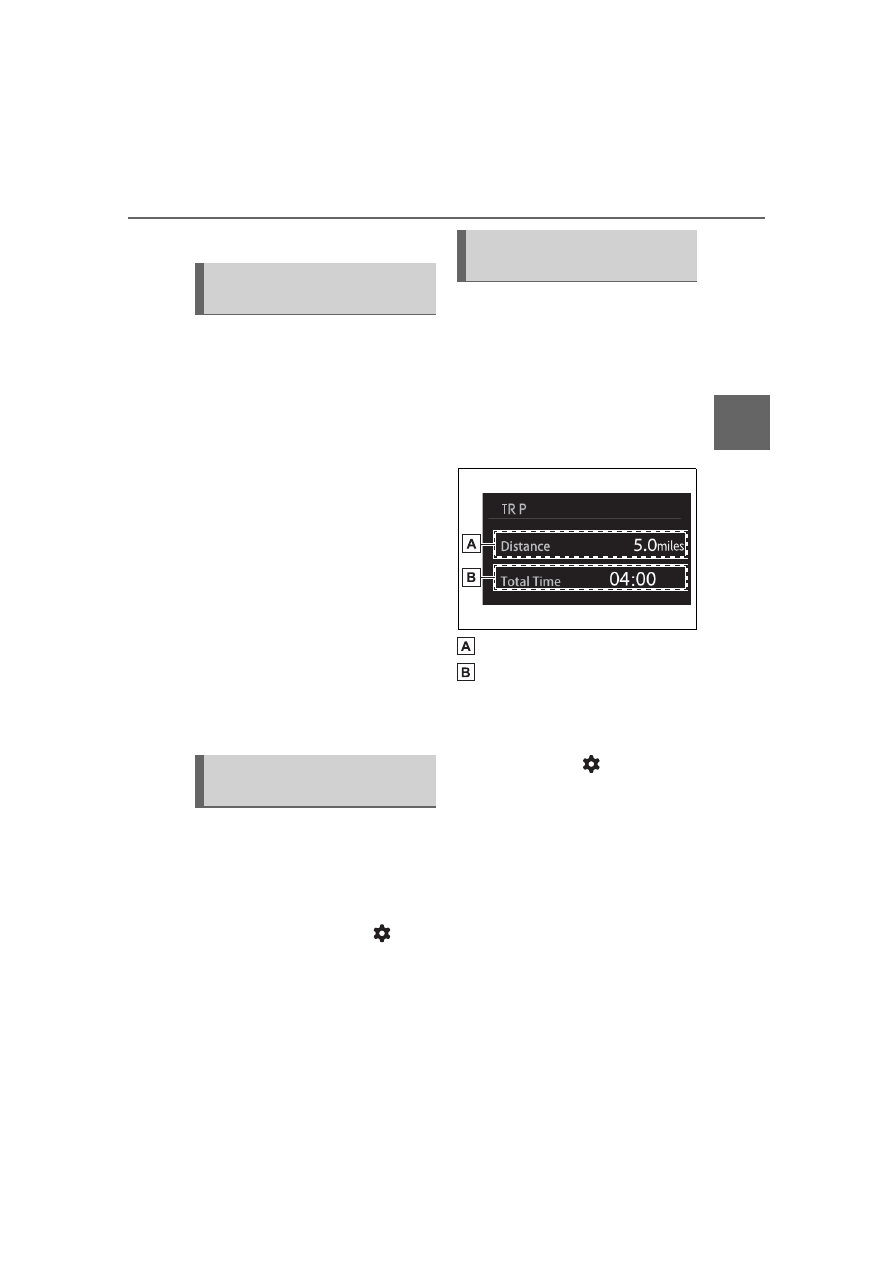

Best recorded fuel consump-
tion
Latest fuel consumption
Previous fuel consumption
record
Resetting the history data
Updating the latest fuel con-

sumption data

The average fuel consumption
history is divided by color into
past averages and the average
fuel consumption since the last
updated. Use the displayed
average fuel consumption as a
reference.

■

Updating the history data

Update the latest fuel consumption

by selecting “Update” to measure

the current fuel consumption again.

■

Resetting the data

The fuel consumption data can be

deleted by selecting “Clear data”.

■

Cruising range

Displays the estimated maximum

distance that can be driven with the

quantity of fuel remaining.
This distance is computed based on

your average fuel consumption.

As a result, the actual distance that

can be driven may differ from that

displayed.

121

Before driv

ing

Before driving

3-1. Key information

Keys ............................

122

3-2. Opening, closing and

locking the doors

Doors ..........................

127

Trunk ...........................

133

Smart key system .......

136

3-3. Adjusting the seats

Front seats ..................

141

Rear seats...................

142

Head restraints............

144

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ............

146

Inside rear view mirror

..................................

147

Outside rear view mirrors

..................................

148

3-5. Opening and closing the

windows

Power windows ...........

150

Moon roof....................

153

3-6. Favorite settings

My Settings .................

156

122

3-1. Key information

3-1.Key information

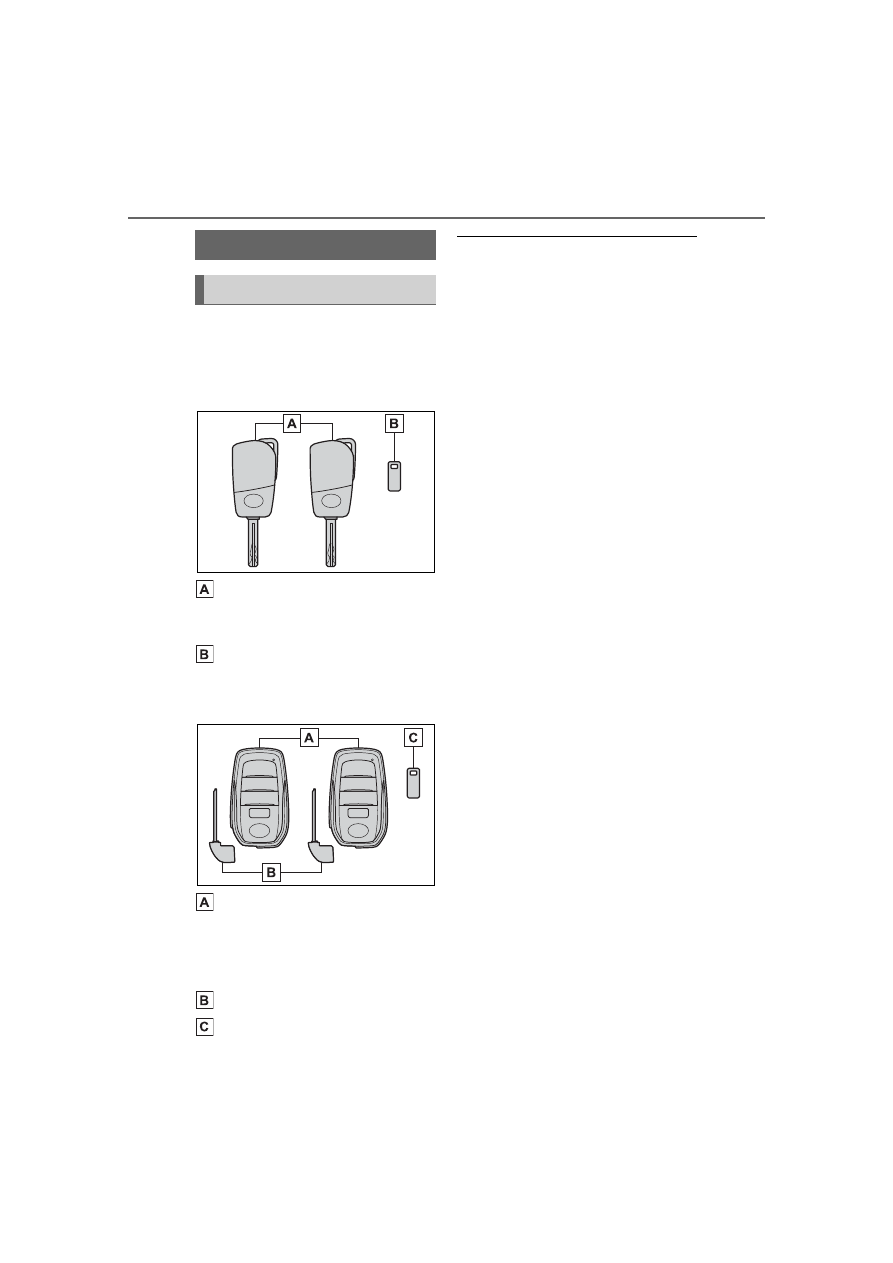

The following keys are provided
with the vehicle.



Vehicles without a smart key
system

Keys

Operating the wireless remote con-
trol function (



Key number plate



Vehicles with a smart key sys-
tem

Electronic keys

• Operating the smart key system

(

P.136)

• Operating the wireless remote

control function (



Mechanical keys
Key number plate

■

When riding in an aircraft

When bringing a key or an elec-

tronic key onto an aircraft, make

sure you do not press any buttons

on the key or the electronic key

while inside the aircraft cabin. If you

are carrying a key or an electronic

key in your bag, etc., ensure that the

buttons are not likely to be pressed

accidentally. Pressing a button may

cause the key or the electronic key

to emit radio waves that could inter-

fere with the operation of the air-

craft.

■

Electronic key battery depletion



Vehicles without a smart key sys-

tem

●

The standard battery life is 1 to 2

years.

●

The battery will become depleted

even if the key is not used. The

following symptoms indicate that

the key battery may be depleted.

Replace the battery when neces-

sary. (

P.350)

• The wireless remote control does

not operate.

• The detection area becomes

smaller.



Vehicles with a smart key system

●

The standard battery life is 1 to 2

years.

●

If the battery becomes low, an

alarm will sound in the cabin and a

message will be shown on the

multi-information display when the

hybrid system is stopped.

●

To reduce key battery depletion

when the electronic key is to not

be used for long periods of time,

set the electronic key to the bat-

tery-saving mode. (



P.137)

●

As the electronic key always

receives radio waves, the battery

will become depleted even if the

electronic key is not used. The fol-

lowing symptoms indicate that the

electronic key battery may be

depleted. Replace the battery

Keys

The keys

123

3-1. Key information

Before driv

ing

when necessary. (



P.350)

• The smart key system or the wire-

less remote control does not oper-

ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

●

To avoid serious deterioration, do

not leave the electronic key within

3 ft. (1 m) of the following electri-

cal appliances that produce a

magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones

and battery chargers

• Recharging cellular phones or

cordless phones

• Table lamps

• Induction cookers

●

If the electronic key is near the

vehicle for longer than necessary,

even if the smart key system is not

operated, the key battery may

become depleted faster than nor-

mal.

■

Replacing the battery

P.350

■

The electronic key function is

suspended when (vehicles with

a smart key system)

The electronic key function may be

suspended when the electronic key

is kept unmoved in a same location

for a certain period, such as it is left

on a same place. This is to reduce

battery consumption. The function

will be restored automatically when

the electronic key is moved, such as

it is picked up.

■

If “A New Key has been Regis-

tered Contact Your Dealer for

Details” is shown on the

multi-information display (vehi-

cles with a smart key system)

This message will be displayed

each time the driver’s door is

opened when the doors are

unlocked from the outside for

approximately 10 days after a new

electronic key has been registered.

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer to

check if an unknown electronic key

(other than those in your posses-

sion) has been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks or bend

them.

●

Do not expose the keys to high

temperatures for long periods of

time.

●

Do not get the keys wet or wash

them in an ultrasonic washer

etc.

●

Vehicles with a smart key sys-

tem: Do not attach metallic or

magnetic materials to the keys

or place the keys close to such

materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or any-

thing else to the surface of the

key.

●

Vehicles with a smart key sys-

tem: Do not place the keys near

objects that produce magnetic

fields, such as TVs, audio sys-

tems and induction cookers.

●

Vehicles with a smart key sys-

tem: Do not place the keys near

medical electrical equipment

such as low-frequency therapy

equipment or microwave ther-

apy equipment, and do not

receive medical attention with

the keys on your person.

124

3-1. Key information

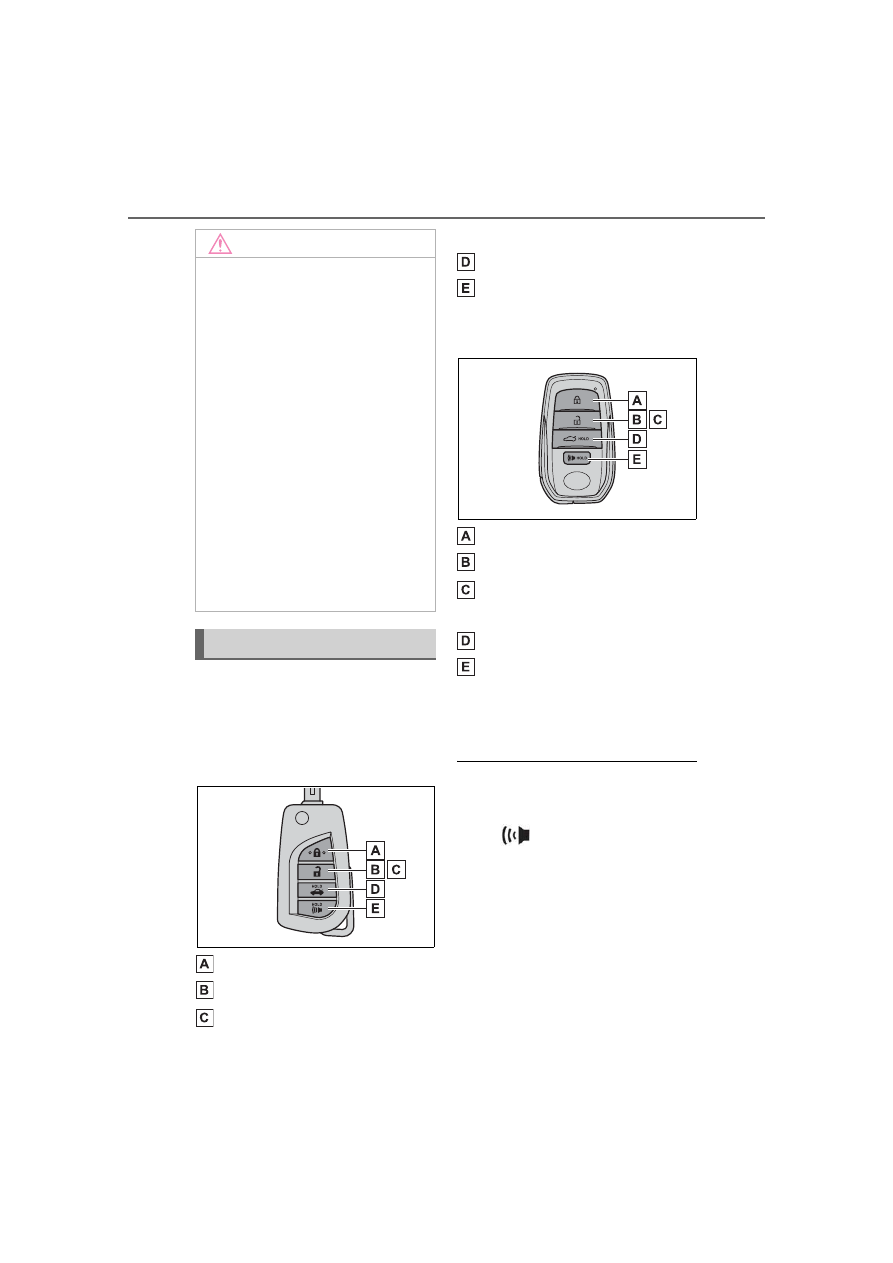

The keys are equipped with the
following wireless remote con-
trol:



Vehicles without a smart key
system

Locks the doors (

Unlocks the doors (



Opens the windows

(

Opens the trunk (



P.134)

Sounds the alarm (





Vehicles with a smart key sys-
tem

Locks the doors (



Unlocks the doors (

Opens the windows

and

moon roof

*1, 2

(



Opens the trunk (



P.134)

Sounds the alarm (



:This setting must be customized

at your Toyota dealer.

:If equipped

■

Panic mode



Vehicles without a smart key sys-

tem

When

is pressed for longer

than about one second, an alarm

will sound intermittently and the

vehicle lights will flash to deter any

person from trying to break into or

damage your vehicle.
To stop the alarm, press any button

on the wireless remote control.

NOTICE

■

Carrying the electronic key

on your person (vehicles with

a smart key system)

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other

key-related problems (vehi-

cles with a smart key system)



P.408

■

When an electronic key is lost

(vehicles with a smart key

system)



P.407

Wireless remote control

125

3-1. Key information

Before driv

ing



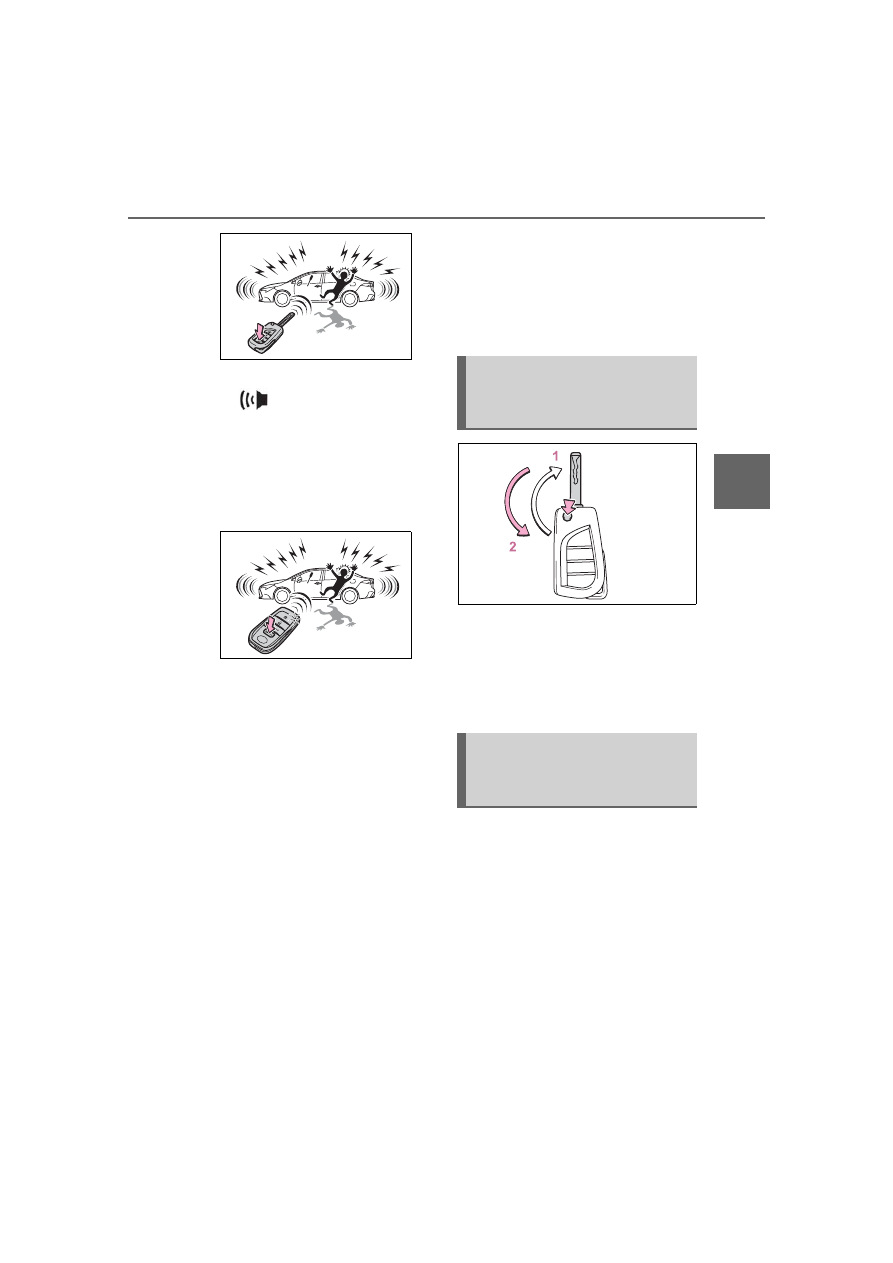

Vehicles with a smart key system

When

is pressed for longer

than about one second, an alarm

will sound intermittently and the

vehicle lights will flash to deter any

person from trying to break into or

damage your vehicle.
To stop the alarm, press any button

on the electronic key.

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control



Vehicles without a smart key sys-

tem

The wireless remote control function

may not operate normally in the fol-

lowing situations:

●

When the wireless key battery is

depleted

●

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

●

When carrying a portable radio,

cellular phone or other wireless

communication devices

●

When the wireless key is in con-

tact with, or is covered by a metal-

lic object

●

When a wireless key (that emits

radio waves) is being used nearby

●

If window tint with a metallic con-

tent or metallic objects are

attached to the rear window



Vehicles with a smart key system



P.137

Releasing

To release the key, press the button

Folding

To stow the key, press the button
then fold the key.

To take out the mechanical key,
slide the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one
side. If the key cannot be
inserted in a lock cylinder, turn it
over and re-attempt to insert it.
After using the mechanical key,

Using the key (vehicles
without a smart key sys-
tem)

Using the mechanical key
(vehicles with a smart key
system)

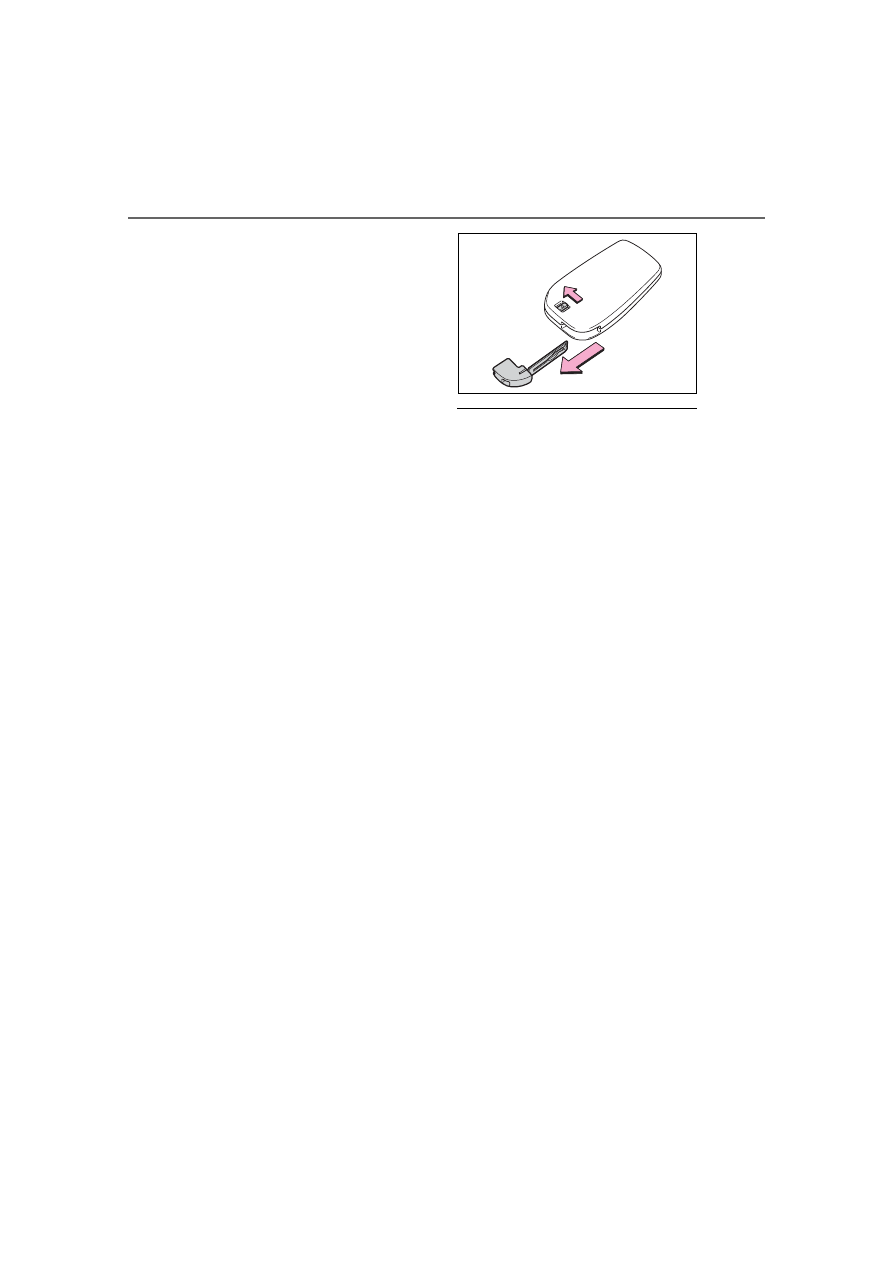

126

3-1. Key information

store it in the electronic key.
Carry the mechanical key
together with the electronic key.
If the electronic key battery is
depleted or the entry function
does not operate properly, you
will need the mechanical key.
(

P.408)

■

If you lose your mechanical

keys



P.407

■

If a wrong key is used

The key cylinder rotates freely, iso-

lated from the internal mechanism.

■

Certification for the wireless remote control
