P.412

■

After the 12-volt battery has dis-

charged or when the terminal

has been removed and installed

during exchange, etc.

The gasoline engine may not stop

even if the vehicle is being driven by

the hybrid battery (traction battery).

If this continues for a few days, con-

tact your Toyota dealer.

■

Sounds and vibrations specific

to a hybrid vehicle

There may be no engine sound or

vibration even though the vehicle is

able to move with the “READY” indi-

cator is illuminated. For safety, apply

the parking brake and make sure to

shift the shift lever to P when

parked.
The following sounds or vibrations

may occur when the hybrid system

is operating and are not a malfunc-

tion:

●

Motor sounds may be heard from

the engine compartment.

●

Sounds may be heard from the

hybrid battery (traction battery)

under the rear seats when the

hybrid system starts or stops.

●

Relay operating sounds such as a

snap or soft clank will be emitted

from the hybrid battery (traction

battery), under the rear seats,

when the hybrid system is started

or stopped.

●

Sounds from the hybrid system

may be heard when the trunk lid is

open.

●

Sounds may be heard from the

transmission when the gasoline

engine starts or stops, when driv-

ing at low speeds, or during idling.

●

Engine sounds may be heard

when accelerating sharply.

●

Sounds may be heard due to

regenerative braking when the

brake pedal is depressed or as

the accelerator pedal is released.

●

Vibration may be felt when the

gasoline engine starts or stops.

●

Cooling fan sounds may be heard

from the air intake vent on the side

of the lower part of the rear left

seat.

■

Maintenance, repair, recycling,

and disposal

Contact your Toyota dealer regard-

ing maintenance, repair, recycling

and disposal. Do not dispose of the

vehicle yourself.

■

Customization

Some functions can be customized.

(



P.442)

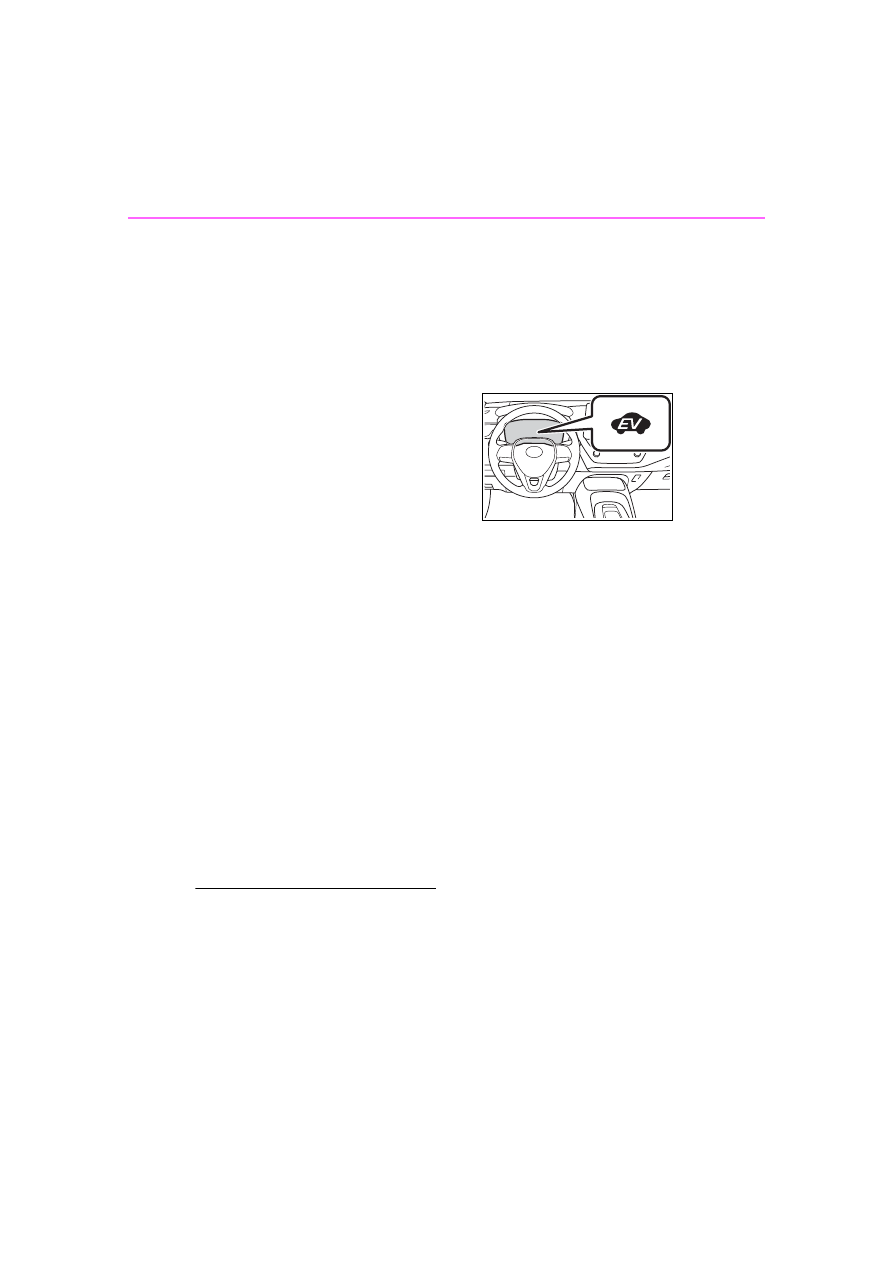

When driving with the gasoline
engine stopped, a sound, which
changes in accordance with the
driving speed, will be played in
order to warn people nearby of
the vehicle’s approach. The
sound will stop when the vehicle
speed exceeds approximately
22 mph (35 km/h).

■

Vehicle proximity notification

system

In the following cases, the vehicle

proximity notification system may be

difficult for surrounding people to

hear.

●

In very noisy areas

●

In the wind or the rain

Also, as the vehicle proximity notifi-

cation system is installed on the

front of the vehicle, it may be more

difficult to hear from the rear of the

Vehicle proximity notifica-
tion system

1-4. Hybrid system

vehicle compared to the front.

: This function can only be used in

the mainland U.S.A. It cannot be
used in other states and territo-
ries, including Alaska and Hawaii.

This system operates based on
the driving situation and traffic
information to enhance fuel
economy.
For details about Predictive effi-
cient drive, refer to the “MULTI-
MEDIA OWNER’S MANUAL”.

■

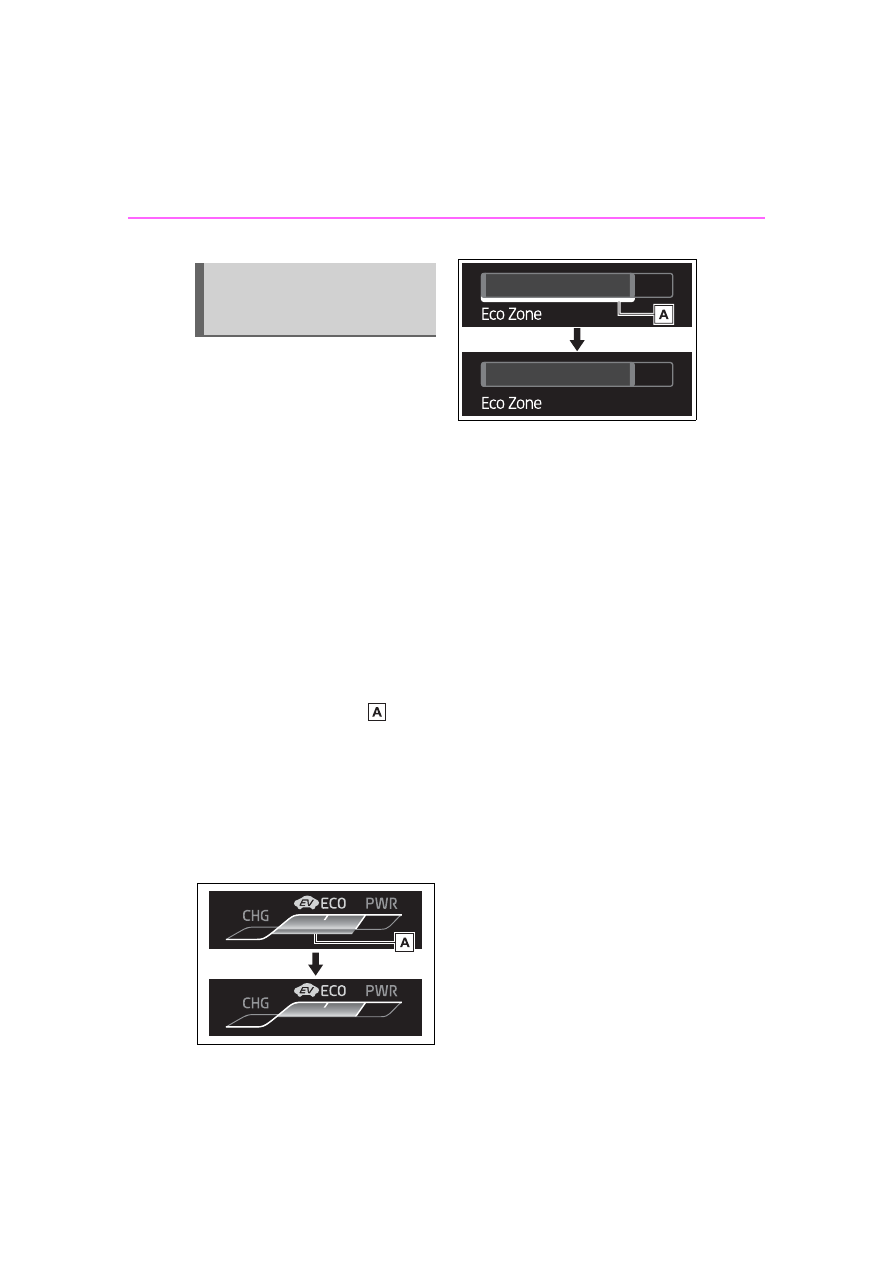

Predictive deceleration sup-
port



When the vehicle approaches
to predictive deceleration sup-
port points registered in the
navigation system, the “Zone
of Eco acceleration” ( ) of
the ECO Accelerator Guid-
ance (→P.104, 111) on the
multi-information display will
be turned off to encourage the
driver to reduce excessive
acceleration.



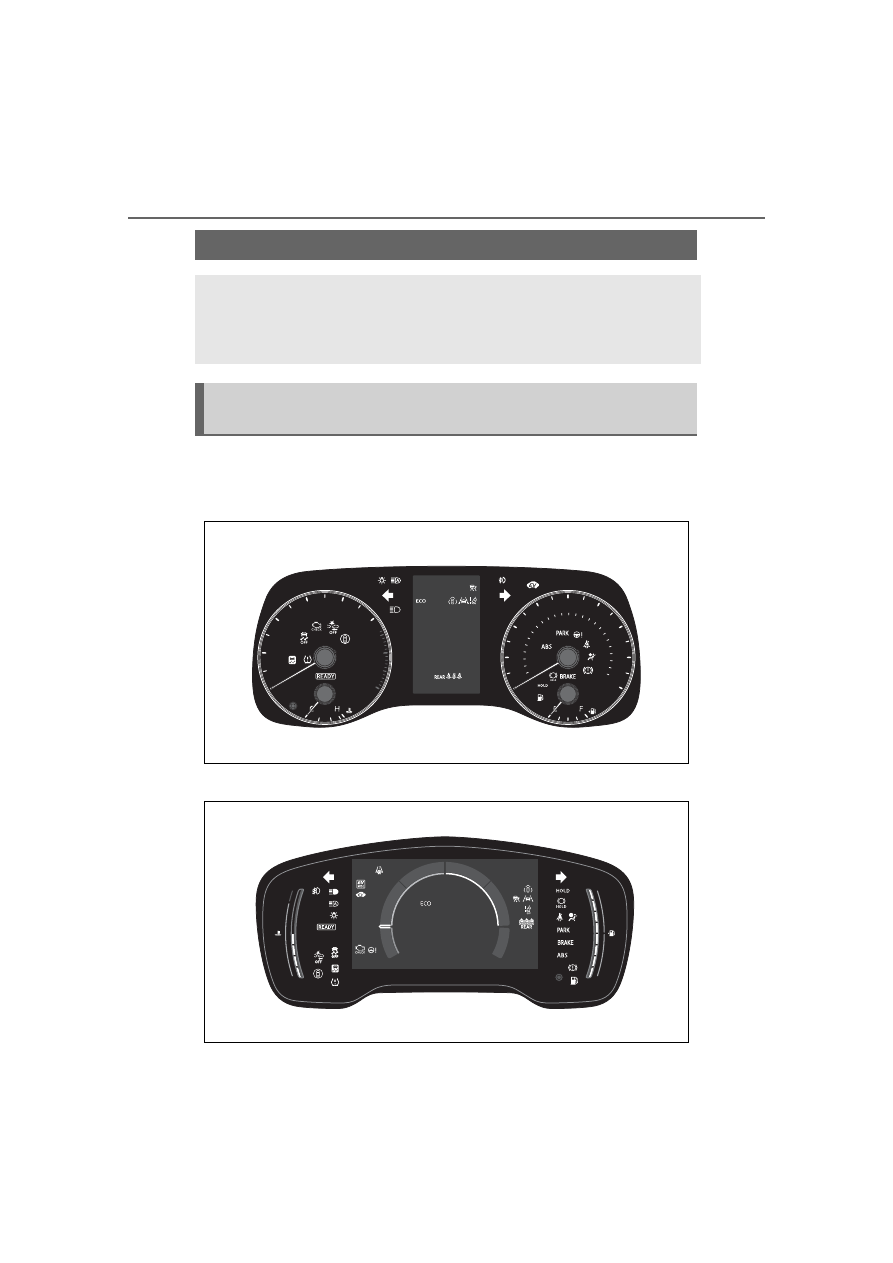

4.2-inch display



7-inch display



The engine braking force will
be increased according to the
driving conditions to more effi-
ciently charge the hybrid bat-
tery (traction battery) after the
accelerator pedal is released.

■

Predictive SOC

control

The following types of control
are performed based on data
such as road and traffic informa-
tion during route guidance by
the navigation system to help
ensure that the vehicle effi-
ciently uses electricity.



When there is a long downhill
slope along the route, the sys-
tem reduces the hybrid bat-
tery (traction battery) level
before reaching the slope to
help ensure charging capacity
for regenerative braking while
traveling downhill.



When traffic congestion is
predicted along the route, the
system helps ensure a certain
battery level before reaching
congested roads to reduce
the frequency of starting the
engine to charge the hybrid

Predictive efficient drive
(vehicles with navigation
system)

1-4. Hybrid system

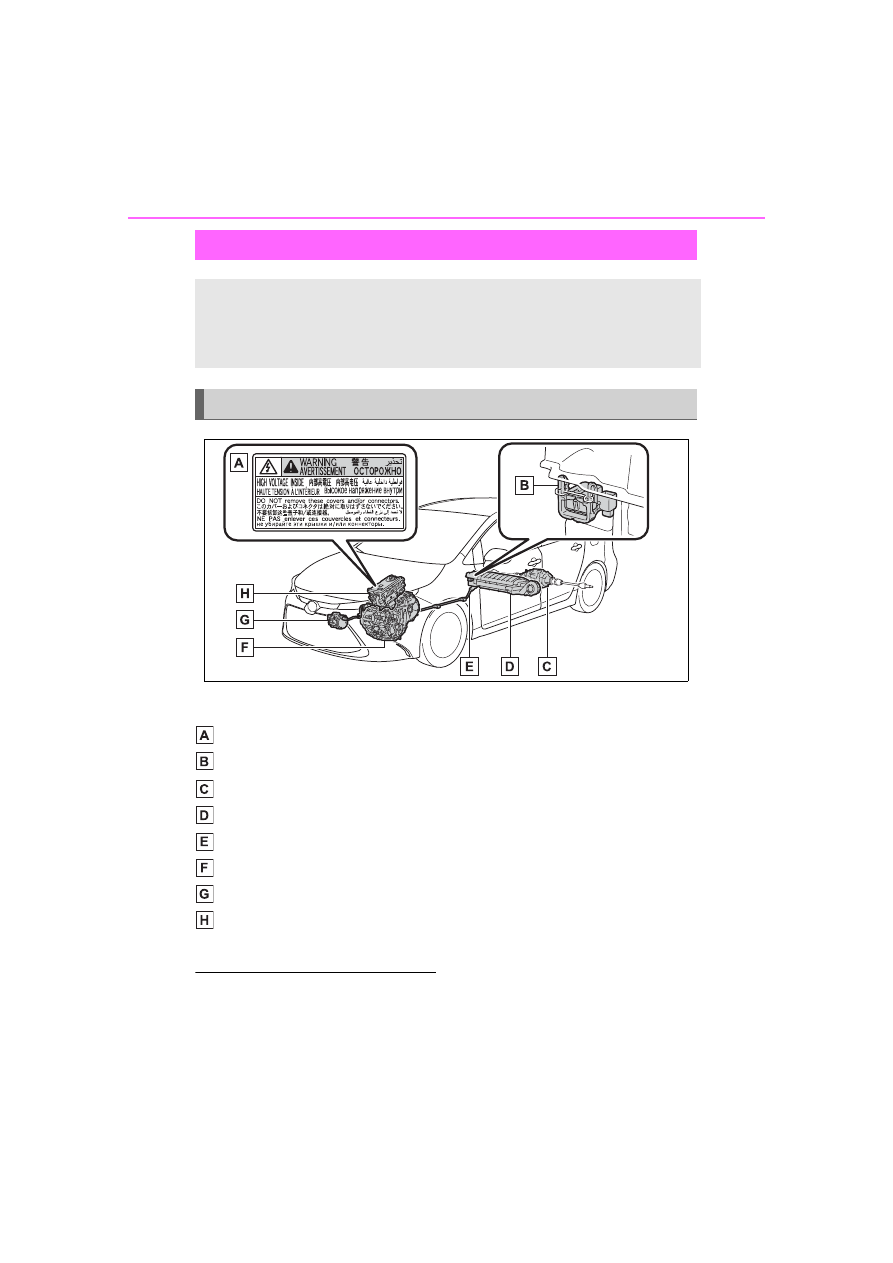

The illustration is an example for explanation and may differ from the actual
item.

Warning label
Service plug

Rear electric motor (traction motor)

Hybrid battery (traction battery)
High voltage cables (orange)
Front electric motor (traction motor)
Air conditioning compressor
Power control unit

: AWD models only

■

Running out of fuel

When the vehicle has run out of fuel

and the hybrid system cannot be

started, refuel the vehicle with at

least enough gasoline to make the

low fuel level warning light (



go off. If there is only a small

amount of fuel, the hybrid system

may not be able to start. (The stan-

dard amount of fuel is about 2.0 gal.

[7.6 L, 1.7 Imp. gal.] (2WD models)

Hybrid system precautions

Take care when handling the hybrid system, as it is a high
voltage system (about 600 V at maximum) as well as contains
parts that become extremely hot when the hybrid system is
operating. Obey the warning labels attached to the vehicle.

System components

1-4. Hybrid system

For safety and secu

rity

or 1.6 gal. [6.0 L, 1.3 Imp. gal.]

(AWD models) when the vehicle is

on a level surface. This value may

vary when the vehicle is on a slope.

Add extra fuel when the vehicle is

inclined.)

■

Electromagnetic waves

●

High voltage parts and cables on

hybrid vehicles incorporate elec-

tromagnetic shielding, and there-

fore emit approximately the same

amount of electromagnetic waves

as conventional gasoline pow-

ered vehicles or home electronic

appliances.

●

Your vehicle may cause sound

interference in some third

party-produced radio parts.

■

Hybrid battery (traction battery)

The hybrid battery (traction battery)

has a limited service life. The lifes-

pan of the hybrid battery (traction

battery) can change in accordance

with driving style and driving condi-

tions.

■

Starting the hybrid system in an

extremely cold environment

When the hybrid battery (traction

battery) is extremely cold (below

approximately -22°F [-30°C]) under

the influence of the outside tem-

perature, it may not be possible to

start the hybrid system. In this case,

try to start the hybrid system again

after the temperature of the hybrid

battery increases due to the outside

temperature increasing, etc.

WARNING

■

High voltage precautions

This vehicle has high voltage DC

and AC systems as well as a

12-volt system. DC and AC high

voltage is very dangerous and

can cause severe burns and elec-

tric shock that may result in death

or serious injury.

●

Never touch, disassemble,

remove or replace the high volt-

age parts, cables or their con-

nectors.

●

The hybrid system will become

hot after starting as the system

uses high voltage. Be careful of

both the high voltage and the

high temperature, and always

obey the warning labels

attached to the vehicle.

●

Never try to open the service

plug access hole located under

the right side of the rear seat.

The service plug is used only

when the vehicle is serviced

and is subject to high voltage.

■

Road accident cautions

Observe the following precautions

to reduce the risk of death or seri-

ous injury:

●

Pull your vehicle off the road,

apply the parking brake, shift

the shift lever to P, and turn the

hybrid system off.

●

Do not touch the high voltage

parts, cables and connectors.

●

If electric wires are exposed

inside or outside your vehicle,

an electric shock may occur.

Never touch exposed electric

wires.

1-4. Hybrid system

WARNING

●

If a fire occurs in the hybrid

vehicle, leave the vehicle as

soon as possible. Never use a

fire extinguisher that is not

meant for electric fires. Using

even a small amount of water

may be dangerous.

●

If your vehicle needs to be

towed, do so with front wheels

(2WD models) or four wheels

(AWD models) raised. If the

wheels connected to the electric

motor (traction motor) are on

the ground when towing, the

motor may continue to generate

electricity.This may cause a fire.

(

P.366)

●

Carefully inspect the ground

under the vehicle. If you find

that liquid has leaked onto the

ground, the fuel system may

have been damaged. Leave the

vehicle as soon as possible.

●

Do not touch the battery if liquid

is leaking from or adhering to it.

If electrolyte (carbonic-based

organic electrolyte) from the

hybrid battery (traction battery)

comes into contact with the

eyes or skin, it could cause

blindness or skin wounds. In the

unlikely event that it comes into

contact with the eyes or skin,

wash it off immediately with a

large amount of water, and seek

immediate medical attention.

●

If electrolyte is leaking from the

hybrid battery (traction battery),

do not approach the vehicle.

Even in the unlikely event that

the hybrid battery (traction bat-

tery) is damaged, the internal

construction of the battery will

prevent a large amount of elec-

trolyte from leaking out. How-

ever, any electrolyte that does

leak out will give off a vapor.

This vapor is an irritant to skin

and eyes and could cause acute

poisoning if inhaled.

●

Do not bring burning or

high-temperature items close to

the electrolyte.

The electrolyte may ignite and

cause a fire.

■

Hybrid battery (traction bat-

tery)

●

Your vehicle contains a sealed

lithium-ion battery.

●

Never resell, hand over or mod-

ify the hybrid battery. To prevent

accidents, hybrid batteries that

have been removed from a dis-

posed vehicle are collected

through Toyota dealer. Do not

dispose of the battery yourself.

Unless the battery is properly col-

lected, the following may occur,

resulting in death or serious

injury:
• The hybrid battery may be ille-

gally disposed of or dumped,

and it is hazardous to the envi-

ronment or someone may touch

a high voltage part, resulting in

an electric shock.

1-4. Hybrid system

For safety and secu

rity

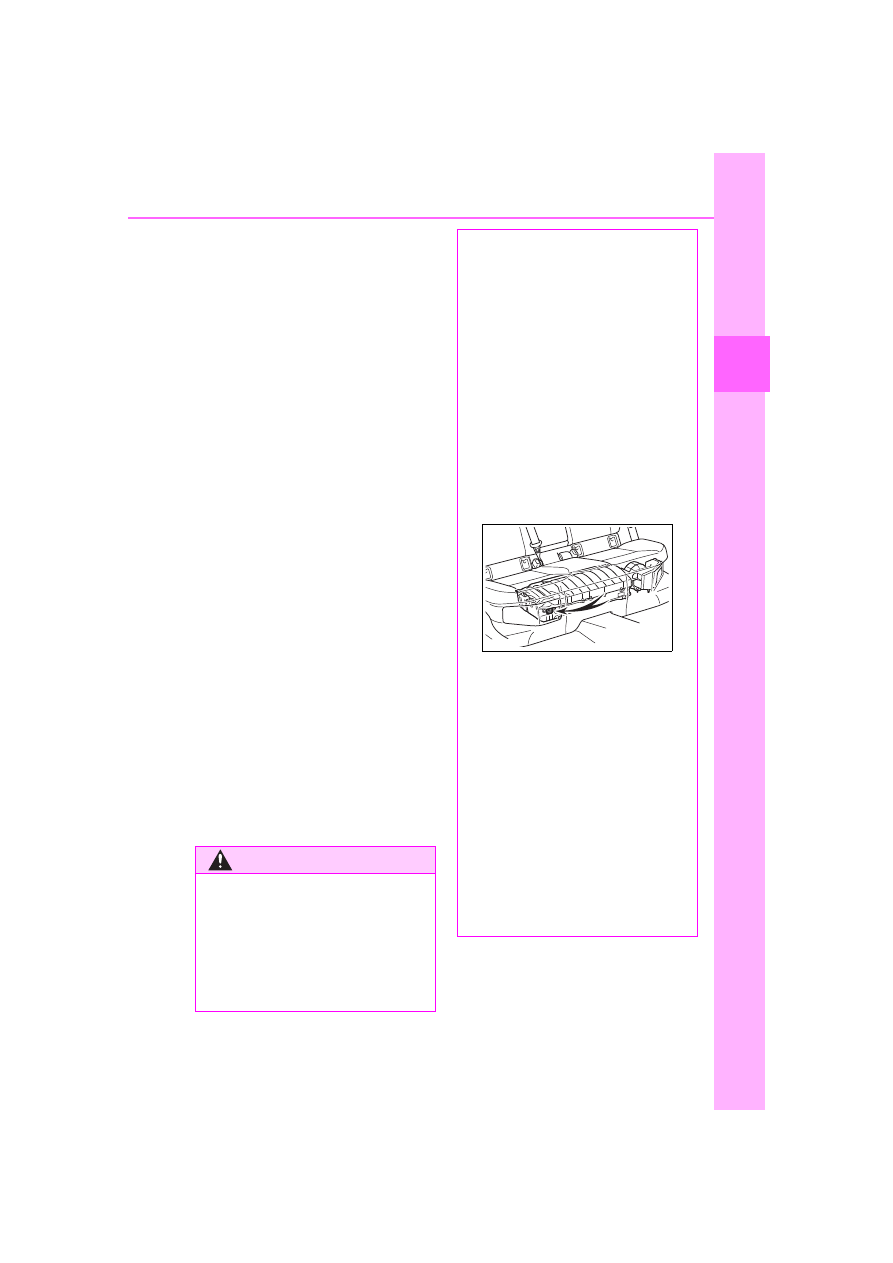

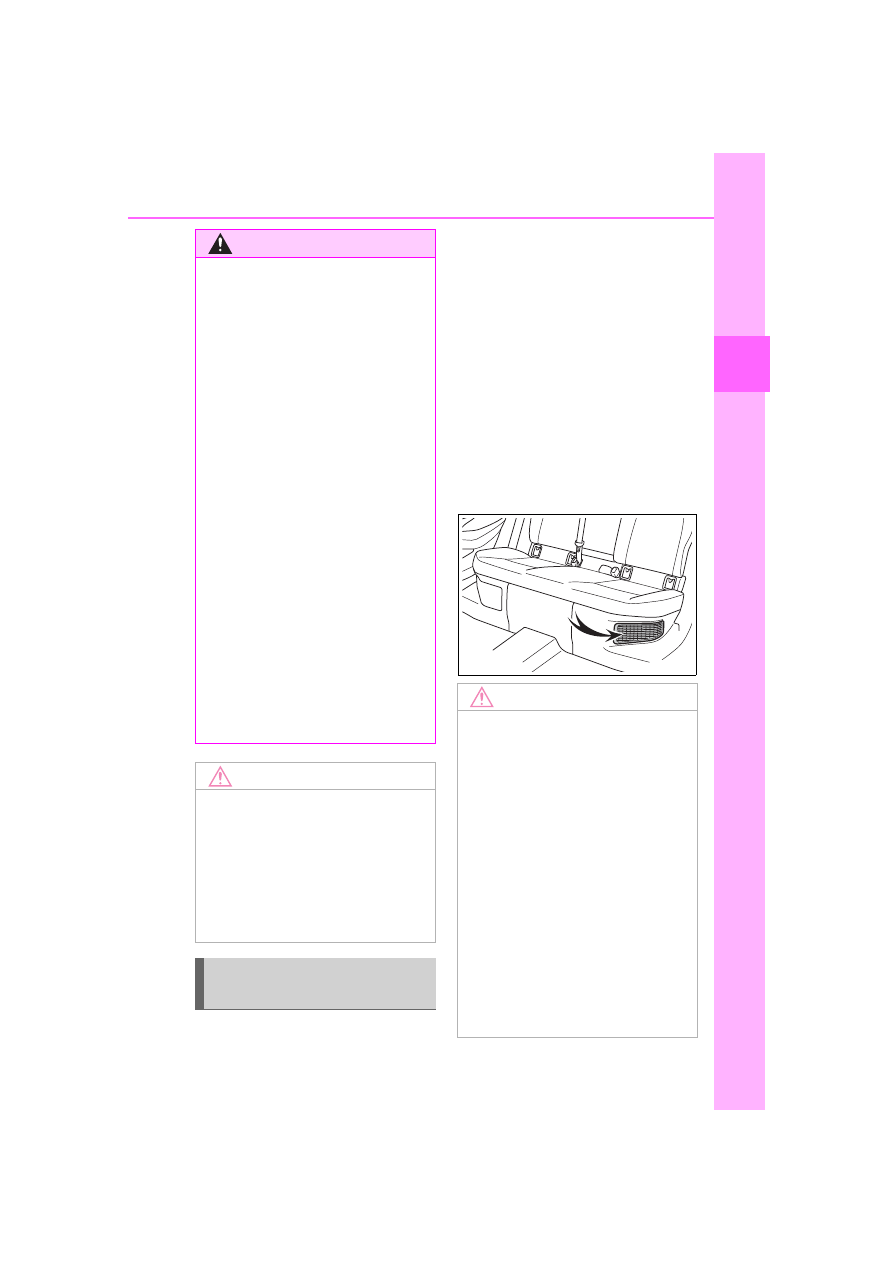

There are air intake vents under

the left side of the rear seat with
the purpose of cooling the
hybrid battery (traction battery).
If the vents are blocked, it may
interfere with the cooling of the
hybrid battery (traction battery).
If input/output of the hybrid bat-
tery (traction battery) becomes
limited and the distance that the
vehicle can be driven using the
electric motor (traction motor) is
reduced, the fuel economy may
be reduced.

WARNING

• The hybrid battery is intended to

be used exclusively with your

hybrid vehicle. If the hybrid bat-

tery is used outside of your

vehicle or modified in any way,

accidents such as electric

shock, heat generation, smoke

generation, an explosion and

electrolyte leakage may occur.

When reselling or handing over

your vehicle, the possibility of an

accident is extremely high

because the person receiving the

vehicle may not be aware of these

dangers.

●

If your vehicle is disposed of

without the hybrid battery hav-

ing been removed, there is a

danger of serious electric shock

if high voltage parts, cables and

their connectors are touched. In

the event that your vehicle must

be disposed of, the hybrid bat-

tery must be disposed of by

your Toyota dealer or a qualified

service shop. If the hybrid bat-

tery is not disposed of properly,

it may cause electric shock that

can result in death or serious

injury.

NOTICE

■

Hybrid battery (traction bat-

tery)

Do not carry large amounts of

water such as water cooler bottles

in the vehicle. If water spills onto

the hybrid battery (traction bat-

tery), the battery may be dam-

aged. Have the vehicle inspected

by your Toyota dealer.

Hybrid battery (traction
battery) air intake vent

NOTICE

■

Hybrid battery (traction bat-

tery) air intake vent

●

Make sure not to block the air

intake vent with anything, such

as a seat cover, plastic cover, or

luggage.

The input/output of the hybrid

battery (traction battery) may be

restricted, leading to a reduction

in hybrid battery (traction bat-

tery) output and a malfunction.

●

Periodically clean the air intake

vents to prevent them from clog-

ging. (

P.347)

●

Do not get water or foreign

materials in the air intake vents

as this may cause a short circuit

and damage the hybrid battery

(traction battery).

1-5. Theft deterrent system

For safety and secu

rity

1-5.Theft deterrent system



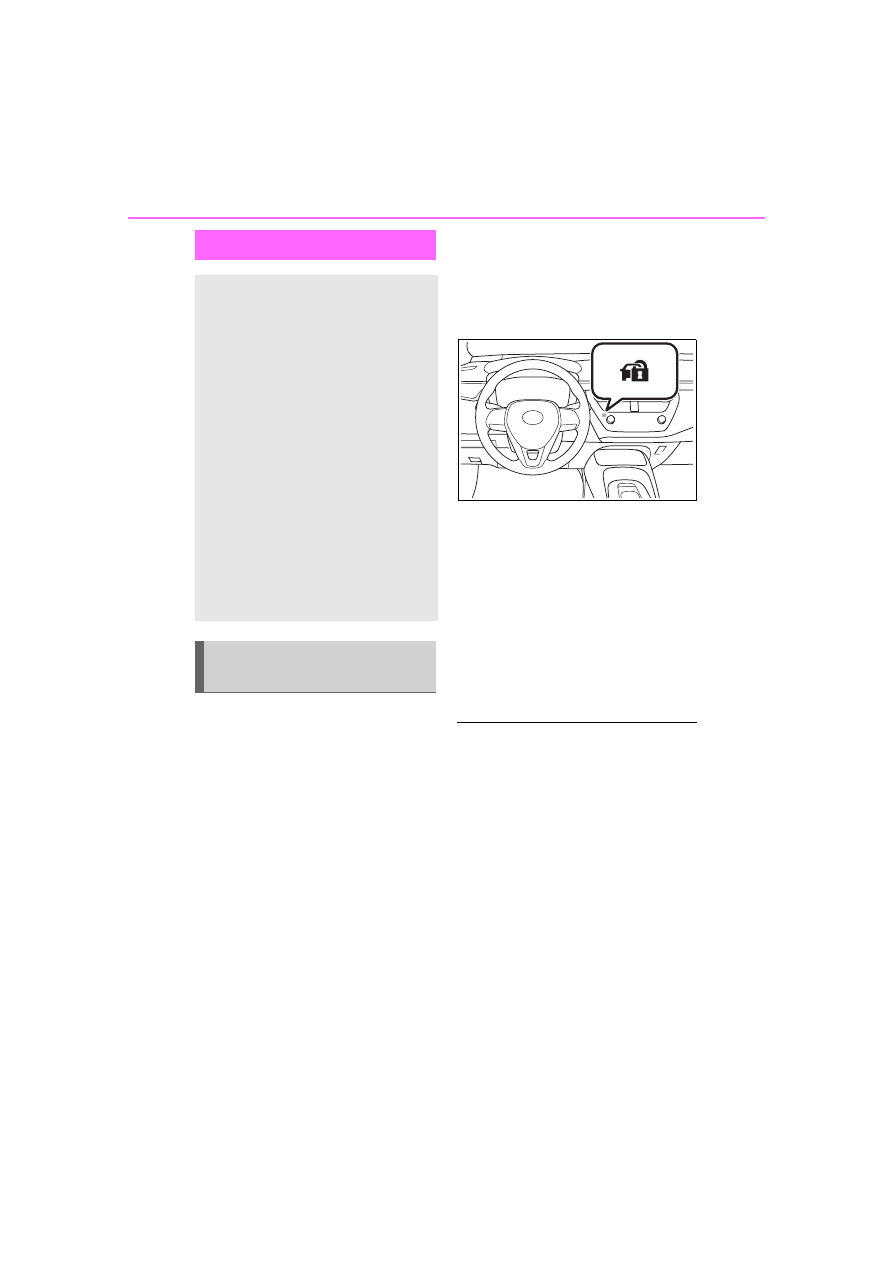

Vehicles without a smart key
system

The indicator light flashes after
the key has been removed from
the power switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has
been inserted into the power
switch to indicate that the sys-

tem has been canceled.



Vehicles with a smart key sys-
tem

The indicator light flashes after
the power switch has been
turned off to indicate that the
system is operating.
The indicator light stops flashing
after the power switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.

■

System maintenance

The vehicle has a mainte-

nance-free type immobilizer system.

■

Conditions that may cause the

system to malfunction

●

If the grip portion of the key is in

contact with a metallic object

●

If the key is in close proximity to or

touching a key to the security sys-

tem (key with a built-in transpon-

der chip) of another vehicle

Immobilizer system

The vehicle’s keys have
built-in transponder chips
that prevent the hybrid sys-
tem from starting if a key
has not been previously
registered in the vehicle’s
on-board computer.

Never leave the keys inside
the vehicle when you leave
the vehicle.

This system is designed to
help prevent vehicle theft
but does not guarantee
absolute security against all
vehicle thefts.

Operating the system

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

1-5. Theft deterrent system

■

Items to check before lock-
ing the vehicle

To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:



Nobody is in the vehicle.



The windows and moon roof
(if equipped) are closed
before the alarm is set.



No valuables or other per-
sonal items are left in the
vehicle.

■

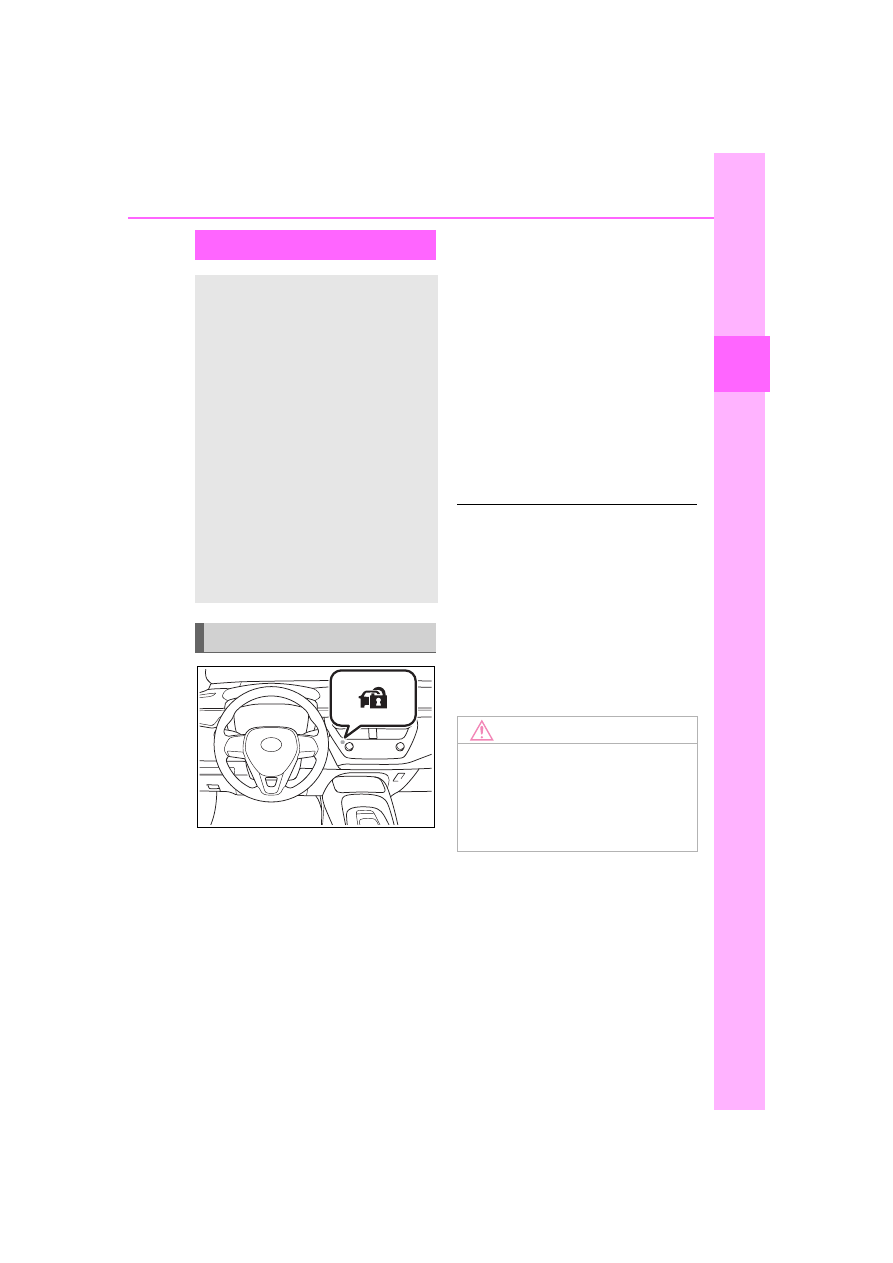

Setting

Close the doors, trunk and
hood, and lock all the doors.

The system will set automati-
cally after 30 seconds.

The indicator light changes from
being on to flashing when the sys-
tem is set.

■

Deactivating or stopping

Do one of the following to deac-
tivate or stop the alarms:



Unlock the doors.



Turn the power switch to ACC
or ON, or start the hybrid sys-
tem. (The alarm will be deacti-
vated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a mainte-

nance-free type alarm system.

■

Triggering of the alarm

The alarm may be triggered in the

following situations:

(Stopping the alarm deactivates the

alarm system.)

●

A person inside the vehicle opens

a door, the trunk or hood, or

unlocks the vehicle using a door

lock switch or inside lock button.

Alarm

The alarm uses light and
sound to give an alert when
an intrusion is detected.
The alarm is triggered in the
following situations when
the alarm is set:



A locked door or trunk is
unlocked or opened in any
way other than using the
entry function (if equipped),
wireless remote control,
mechanical key (if
equipped) or key (if
equipped). (The doors will
lock again automatically.)



The hood is opened.

Setting/deactivating/stop-
ping the alarm system

1-5. Theft deterrent system

For safety and secu

rity

●

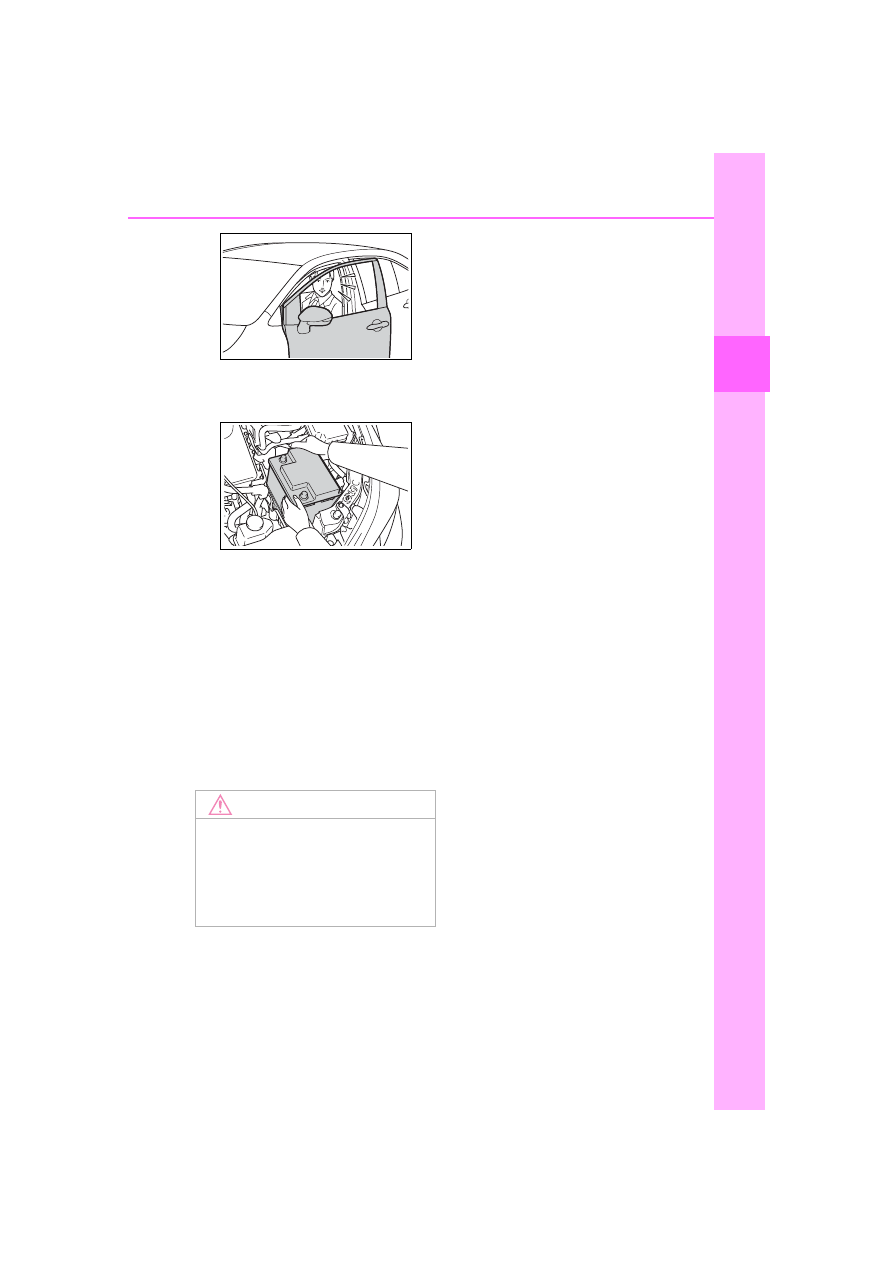

The 12-volt battery is recharged or

replaced when the vehicle is

locked. (



P.412)

■

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

●

When a person remaining in the

vehicle unlocks the door and the

alarm is activated.

●

While the alarm is activated, a

person remaining in the vehicle

unlocks the door.

●

When recharging or replacing the

12-volt battery

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

Vehicle

statu

s information an

d in
dicator

Vehicle status information

and indicators

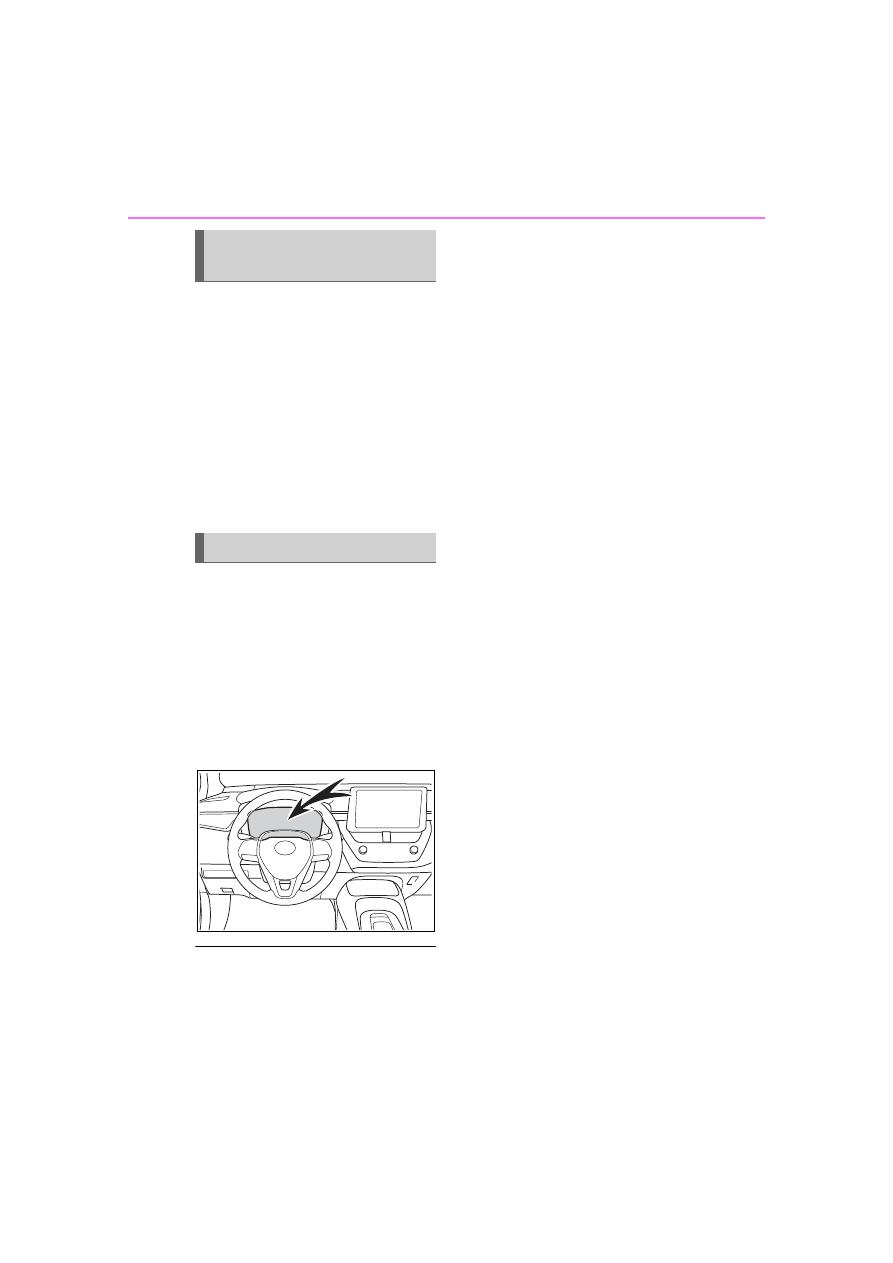

2-1. Instrument cluster

Warning lights and indica-

tors ...............................

Gauges and meters

(4.2-inch display)..........

Gauges and meters (7-inch

display).........................

Multi-information display

(4.2-inch display).......

102

Multi-information display

(7-inch display)..........

109

Energy monitor/consump-

tion screen.................

116

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

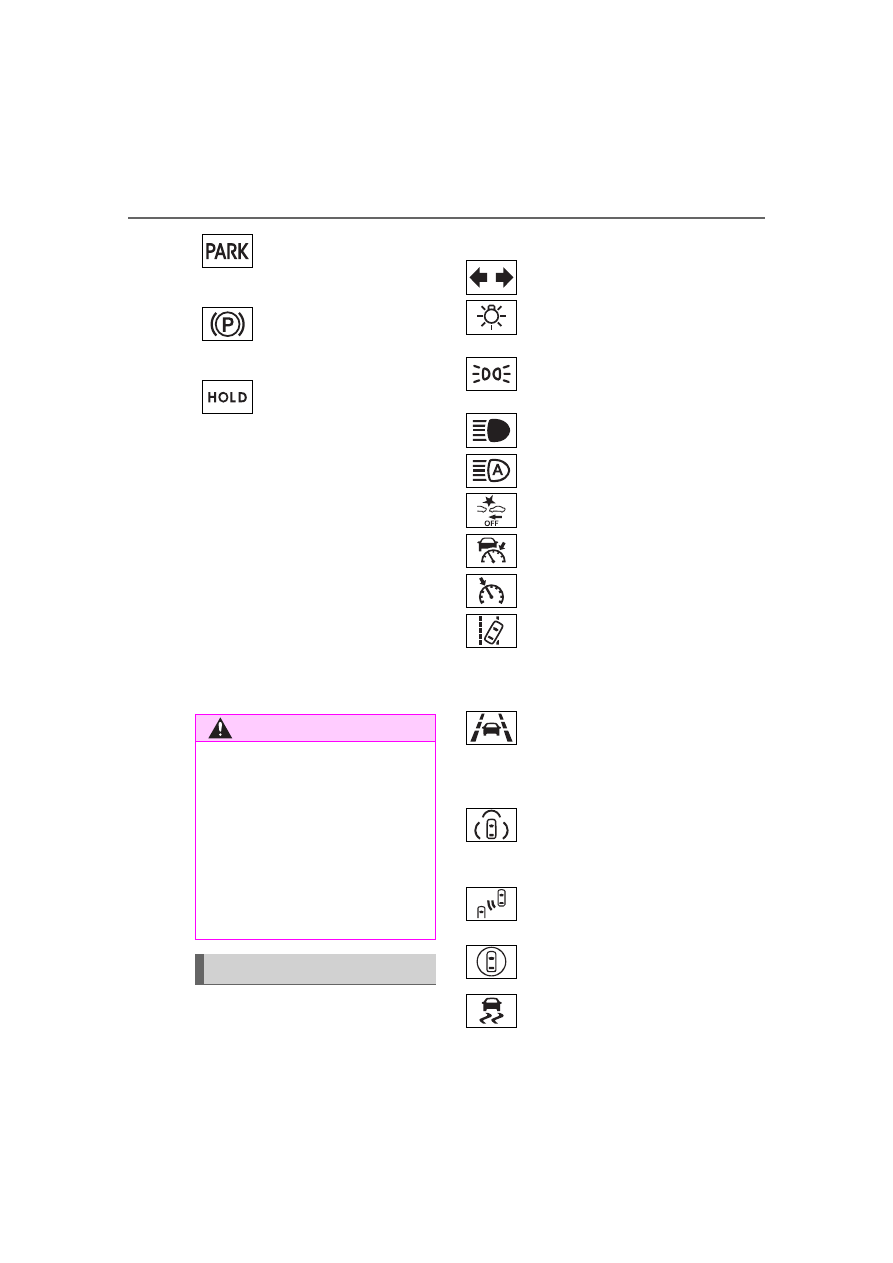

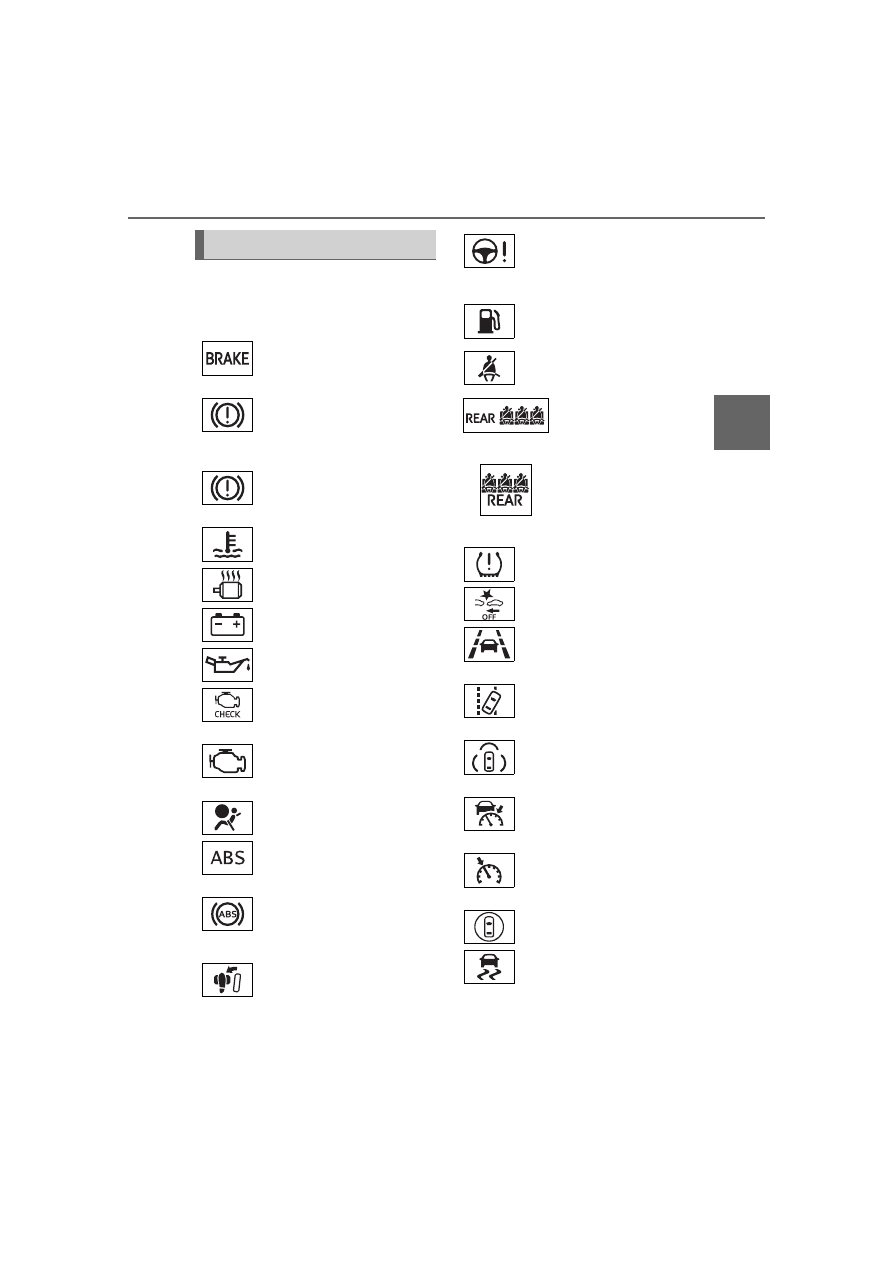

Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.

Warning lights

(U.S.A.)

Brake system warning
light

(



(Red)

(Canada)

Brake system warning
light

(



(Yellow)

Brake system warning
light

(



High coolant temperature
warning light

(

Hybrid system overheat
warning light

(

Charging system warning
light

(



Low engine oil pressure
warning light

(

(U.S.A.)

Malfunction indicator
lamp

(



(Canada)

Malfunction indicator
lamp

(



SRS warning light

(



(U.S.A.)

ABS warning light

(



(Canada)

ABS warning light

(



Inappropriate pedal opera-
tion warning light

(



(Red/yel-

low)

Electric power steering
system warning light

(



Low fuel level warning
light (



Driver’s and front passen-
ger’s seat belt reminder
light (



Rear passengers’
seat belt reminder
lights (



P.376)

Tire pressure warning
light

(

P.376)

PCS warning light

(



(Orange)

LTA indicator (

(Orange)

LDA indicator (

(Orange)

PDA indicator (



(Orange)

Dynamic radar cruise con-
trol indicator (



(Orange)

Cruise control indicator
(



P.378)

Driving assist information
indicator

(

P.378)

Slip indicator

(
