Toyota Corolla Cross (2023 year). Manual in english - page 25





401

7-2. Steps to take in an emergency

7

W

he

tro

ub

le

 ar

is

es

Warning messages

The warning messages explained

below may differ from the actual

messages according to operation

conditions and vehicle specifica-

tions.

Warning buzzer

A buzzer may sound when a mes-

sage is displayed.

The buzzer may not be audible if the

vehicle is in a noisy location or if the

audio system volume is high.

If “Engine Oil Level Low Add or

Replace” is displayed

The engine oil level is low. Check

NOTICE

To ensure the tire pressure

warning system operates

properly

Do not install tires with different

specifications or makers, as the

tire pressure warning system may

not operate properly.

If a warning message

is displayed

The multi-information dis-
play shows warnings for
system malfunctions and
incorrectly performed oper-
ations, and messages that
indicate a need for mainte-
nance. When a message is
displayed, perform the
appropriate corrective
action for the message.

If a warning message is dis-
played again after the
appropriate actions have
been performed, contact
your Toyota dealer.

Additionally, if a warning
light comes on or flashes at
the same time that a warn-
ing message is displayed,
take the appropriate correc-
tive action for the warning
light. (

P.391)

402

7-2. Steps to take in an emergency

the level of the engine oil, and add if

necessary.
This message may appear if the

vehicle is stopped on a slope. Move

the vehicle to a level surface and

check to see if the message disap-

pears.

If “Engine Stopped Steering

Power Low” is displayed

This message is displayed if the

engine is stopped while driving.
When steering wheel operations are

heavier than usual, grip the steering

wheel firmly and operate it using

more force than usual.

If “Auto power off to conserve

battery” is displayed

Power was cut off due to the auto-

matic power off function. Next time

when starting the engine, increase

the engine speed slightly and main-

tain that level for approximately 5

minutes to recharge the battery.

If “Headlight System Malfunc-

tion Visit Your Dealer” is dis-

played

The following systems may be mal-

functioning. Have the vehicle

inspected by your Toyota dealer

immediately.

The LED headlight system

AFS (Adaptive Front-lighting Sys-

tem) (if equipped)

The automatic headlight leveling

system (if equipped)

Automatic High Beam

If “AWD System Malfunction

2WD Mode Engaged Visit Your

Dealer” or “AWD System Over-

heated Switching to 2WD

Mode” is displayed

This message may be displayed

when driving under extremely high

load conditions.
Drive the vehicle at low speeds and

stop the vehicle in a safe place with

the engine operating until the mes-

sage is cleared.

If the message is not cleared, have

the vehicle inspected by your Toyota

dealer.

If “System Malfunction Visit

Your Dealer” is displayed

Indicates one of the following sys-

tems is disabled.

PCS (Pre-Collision System)

LTA (Lane Tracing Assist)

LDA (Lane Departure Alert)

AHB (Automatic High Beam)

Dynamic radar cruise control

 RSA (Road Sign Assist) (if

equipped)

 BSM (Blind Spot Monitor) (if

equipped)

 RCTA (Rear Cross Traffic

Alert) (if equipped)

 Safe Exit Assist (if equipped)

Intuitive parking assist (if

equipped)

PKSB (Parking Support Brake)

(if equipped)

Have the vehicle inspected by your

Toyota dealer immediately.

If a message that indicates the

need for visiting your Toyota

dealer is displayed

The system or part shown on the

multi-information display is malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer immediately.

If “System Stopped See

Owner's Manual” is displayed

Indicates one of the following sys-

tems is disabled.

PCS (Pre-Collision System)

LDA (Lane Departure Alert)

LTA (Lane Tracing Assist)

AHB (Automatic High Beam)

Dynamic radar cruise control

403

7-2. Steps to take in an emergency

7

Whe

n tr

ouble

 ar

ises

 RSA (Road Sign Assist) (if

equipped)

 BSM (Blind Spot Monitor) (if

equipped)

 RCTA (Rear Cross Traffic

Alert) (if equipped)

 Safe Exit Assist (if equipped)

Intuitive parking assist (if

equipped)

 PKSB (Parking Support

Brake) (if equipped)

Follow the following correction

methods.
• Check the voltage of the battery
• Check the sensors that the Toyota

Safety System 3.0 uses for foreign

matter covering them. Remove

them if any. (

P.192)

• Remove any dirt or foreign matter

from the rear side radar sensors

• Close the back door
Indicates the sensors may not be

operating properly. (

P.192)

When problems are solved and the

sensors are operational, this indica-

tion may disappear by itself.

If “System Stopped Front Cam-

era Low Visibility See Owner’s

Manual” is displayed

Indicates one of the following sys-

tems is disabled.

PCS (Pre-Collision system)

LTA (Lane Tracing Assist)

LDA (Lane Departure Alert)

AHB (Automatic High Beam)

Dynamic radar cruise control

RSA (Road Sign Assist) (if

equipped)

Follow the following correction

methods.
• Using the windshield wipers,

remove the dirt or foreign matter

from the windshield.

• Using the air conditioning system,

defog the windshield.

• Close the hood, remove any stick-

ers,etc. to clear the obstruction

infront of the front camera.

If “System Stopped Front Cam-

era Out of Temperature Range

Wait until Normal Temperature”

is displayed

Indicates one of the following sys-

tems is disabled.

PCS (Pre-Collision system)

LTA (Lane Tracing Assist)

LDA (Lane Departure Alert)

AHB (Automatic High Beam)

Dynamic radar cruise control

RSA (Road Sign Assist) (if

equipped)

Follow the following correction

methods.
• If the front camera is hot, such as

after the vehicle is parked in the

sun, use the air conditioning sys-

tem to decrease the temperature

around the front camera

• If a sunshade was used when the

vehicle was parked, depending on

its type, the sunlight reflected from

the surface of the sunshade may

cause the temperature of the front

camera to become excessively

high

• If the front camera is cold, such

after the vehicle is parked in an

extremely cold environment, use

the air conditioning system to

increase the temperature around

the front camera

If “System Stopped Front Radar

Sensor Blocked Clean Radar

Sensor” is displayed

Indicates one of the following sys-

tems is disabled.

PCS (Pre-Collision system)

LTA (Lane Tracing Assist)

404

7-2. Steps to take in an emergency

LDA (Lane Departure Alert)

AHB (Automatic High Beam)

Dynamic radar cruise control

Follow the following correction

methods.
• Check if there is any foreign mat-

ter attached to the radar sensor or

radar sensor cover and clean

them if necessary (

P.192)

• This message may be displayed

when driving in an open area with

few nearby vehicles or structures,

such as a desert, grasslands, sub-

urbs, etc.

The message may be cleared by

driving the vehicle in an area with

structures, vehicles, etc., nearby.

If “System Stopped Front Radar

Sensor Out of Temperature

Range Wait until Normal Tem-

perature” is displayed

Indicates one of the following sys-

tems is disabled.

PCS (Pre-Collision system)

LTA (Lane Tracing Assist)

LDA (Lane Departure Alert)

AHB (Automatic High Beam)

Dynamic radar cruise control

The temperature of the radar senso-

ris outside of the operating range.

Wait for the temperature to become

appropriate.

If “System Stopped Front Radar

In Self Calibration See Owner’s

Manual” is displayed

Indicates one of the following sys-

tems is disabled.

PCS (Pre-Collision system)

LTA (Lane Tracing Assist)

LDA (Lane Departure Alert)

AHB (Automatic High Beam)

Dynamic radar cruise control

Follow the following correction

methods.
• Check if there is any foreign mat-

ter attached to the radar sensor or

radar sensor cover and clean

them if necessary (

P.192)

• The radar sensor may be mis-

aligned and will be adjusted auto-

matically while driving. Continue

driving for a while.

If “Cruise Control Unavailable

See Owner's Manual” is dis-

played

Indicates one of the following sys-

tems is disabled.

Dynamic radar cruise control

Cruise control

A message is displayed when the

driving assist switch is pushed

repeatedly.
Press the driving assist switch

quickly and firmly.

If “Maintenance Required

Soon” is displayed

Indicates that all maintenance

according to the driven distance on
the maintenance schedule

*

 should

be performed soon.
Comes on approximately 4500

miles (7200 km) after the message

has been reset. If necessary, per-

form maintenance. Please reset the

message after the maintenance is

performed. (

P.428)

*

: Refer to the separate “Scheduled

Maintenance” or “Owner’s Man-
ual Supplement” for the mainte-
nance interval applicable to your
vehicle.

If “” is displayed

Indicates that all maintenance is

required to correspond to the driven

distance on the maintenance sched-
ule

*

.

Comes on approximately 5000

miles (8000 km) after the message

has been reset. (The indicator will

not work properly unless the mes-

sage has been reset.) Perform the

405

7-2. Steps to take in an emergency

7

W

he

tro

ub

le

 ar

is

es

necessary maintenance. Please

reset the message after the mainte-

nance is performed. (

P.428)

*

: Refer to the separate “Scheduled

Maintenance” or “Owner’s Man-
ual Supplement” for the mainte-
nance interval applicable to your
vehicle.

If a message that indicates the

need for referring to Owner’s

Manual is displayed

If “Engine Coolant Temp High” is

displayed, follow the instructions

accordingly. (

P.423)

If the following message is dis-

played on the multi-information

display, it may indicate a malfunc-

tion. Have the vehicle inspected

by your Toyota dealer immedi-

ately.

• “Smart Key System malfunction”

If any of the following messages

are displayed on the multi-infor-

mation display, it may indicate a

malfunction. Immediately stop the

vehicle and contact your Toyota

dealer.

• “Braking Power Low”

• “Oil Pressure Low”

Stop the vehicle in a safe
place on a hard, flat surface.

Set the parking brake.

Shift the shift lever to P.

Stop the engine.

Turn on the emergency flash-
ers.

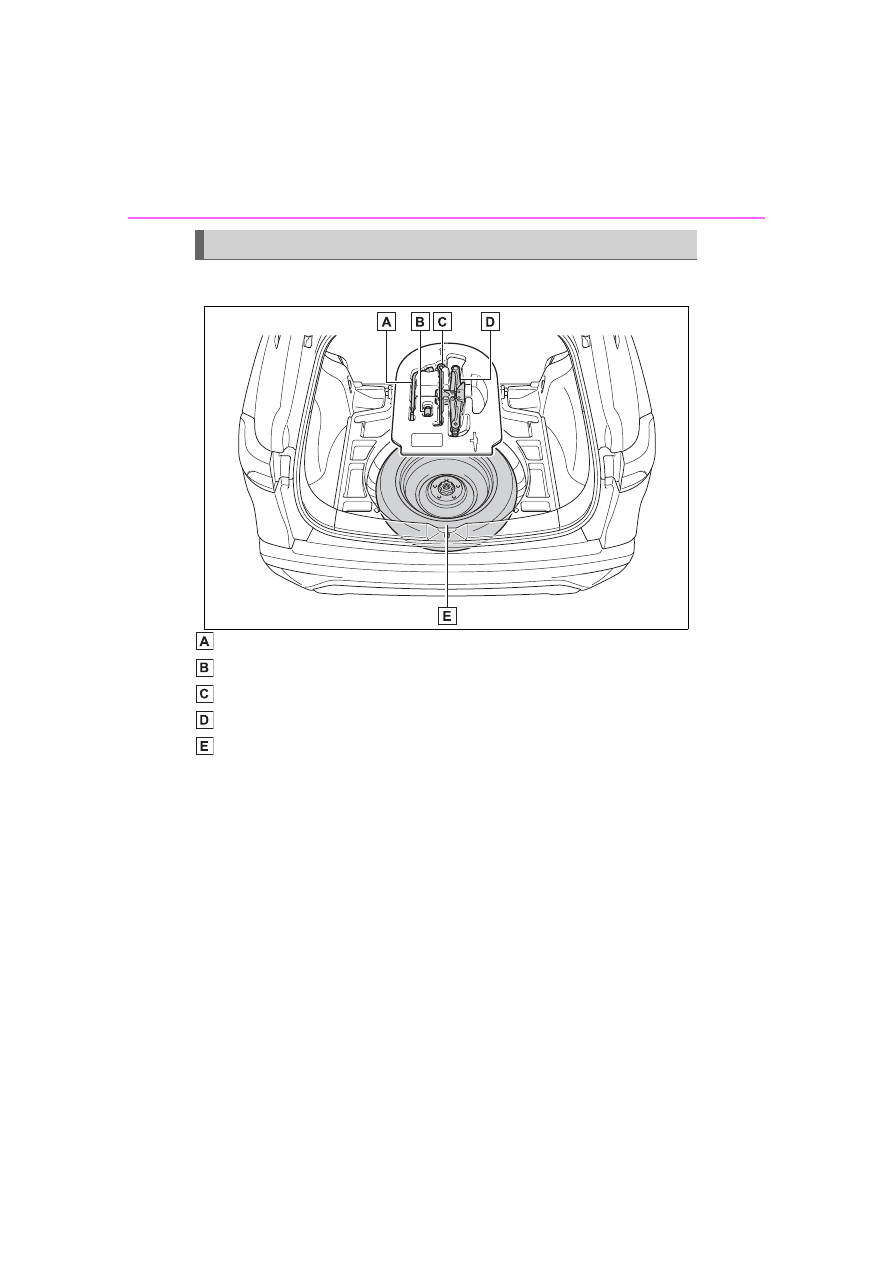

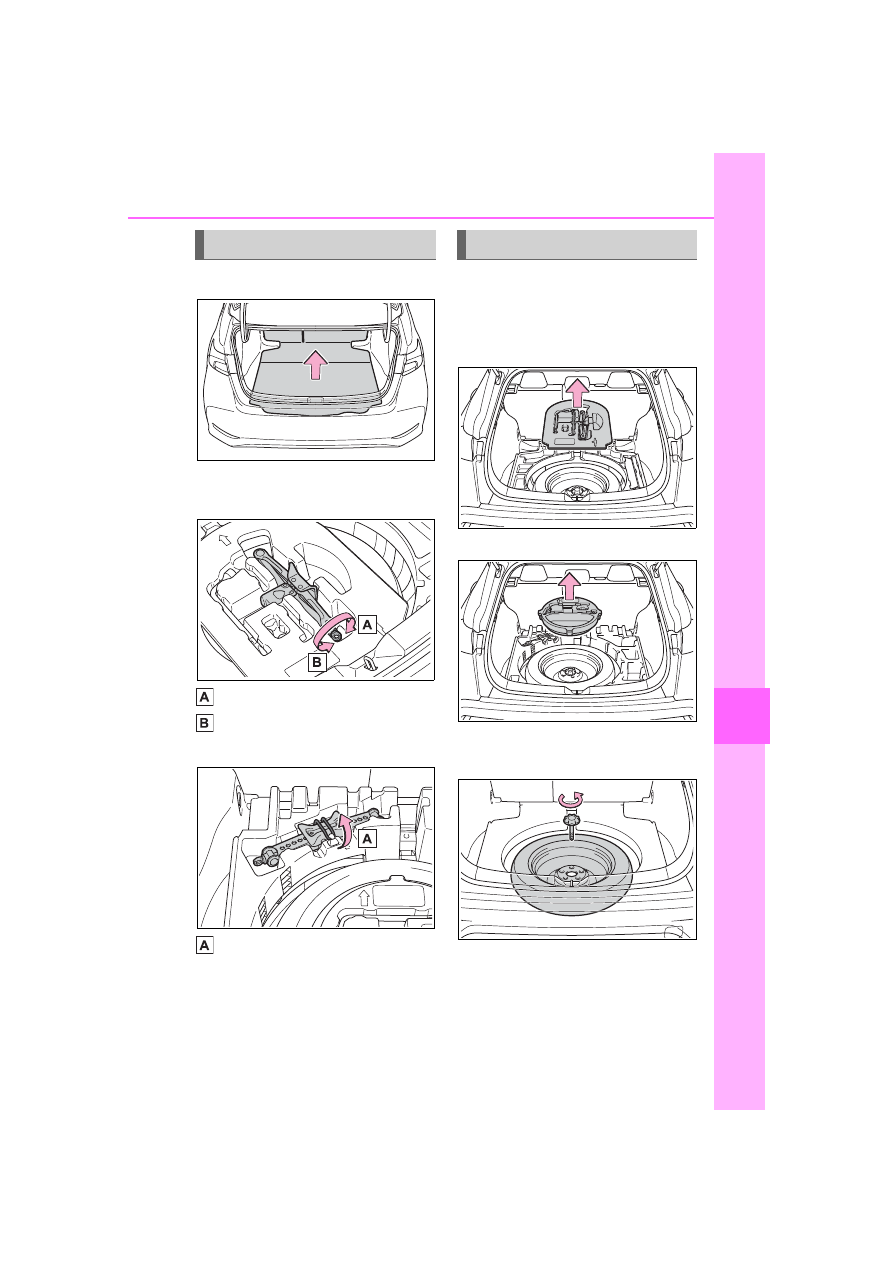

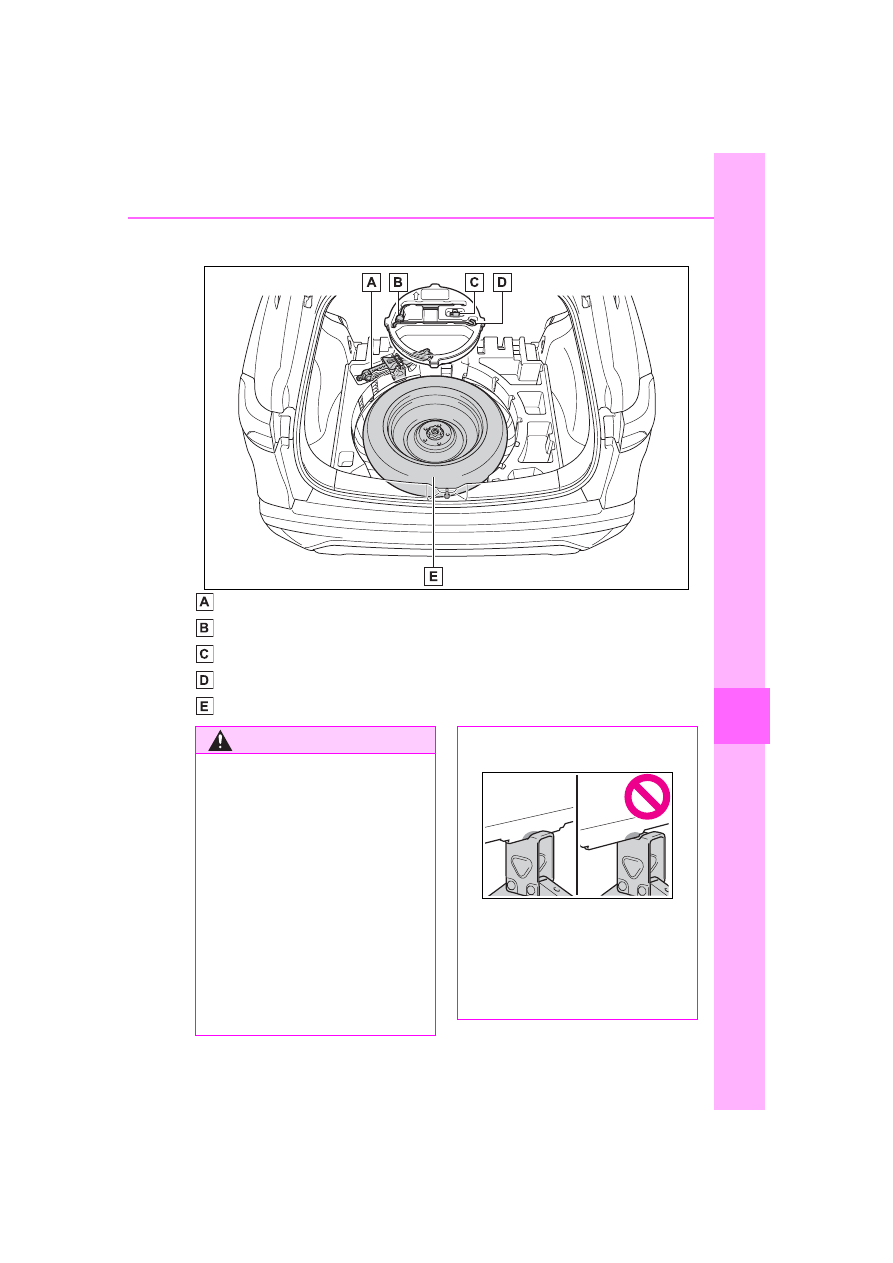

If you have a flat tire

Your vehicle is equipped
with a spare tire. The flat tire
can be replaced with the
spare tire.

For details about tires:

P.351

WARNING

If you have a flat tire

Do not continue driving with a flat

tire. Driving even a short distance

with a flat tire can damage the tire

and the wheel beyond repair,

which could result in an accident.

Before jacking up the
vehicle

406

7-2. Steps to take in an emergency

2WD models

Wheel nut wrench
Wheel lock key (if equipped)
Jack handle
Jack
Spare tire

Location of the spare tire, jack and tools

407

7-2. Steps to take in an emergency

7

W

he

tro

ub

le

 ar

is

es

AWD models

Jack
Wheel nut wrench
Wheel lock key (if equipped)
Jack handle
Spare tire

WARNING

Using the tire jack

Observe the following precau-

tions. Improper use of the tire jack

may cause the vehicle to sud-

denly fall off the jack, leading to

death or serious injury.

Do not use the tire jack for any

purpose other than replacing

tires or installing and removing

tire chains.

Only use the tire jack that

comes with this vehicle for

replacing a flat tire. Do not use it

on other vehicles, and do not

use other tire jacks for replacing

tires on this vehicle.

Put the jack properly in its jack

point.

Do not put any part of your body

under the vehicle while it is sup-

ported by the jack.

Do not start the engine or drive

the vehicle while the vehicle is

supported by the jack.

408

7-2. Steps to take in an emergency

When replacing tires on a vehi-
cle with wheel lock nuts, use the
following procedures to remove
and install the wheel lock nuts.
The wheel lock key is stored in
the tray inside the luggage com-
partment. Always return the
wheel lock key to its original
position after use, so that it does
not get lost. (

P.406)

Removal

For ease of removal, the wheel
lock nut should always be the
first one loosened.

1

Place the wheel lock key on
top of the wheel lock nut,
turning until the wheel lock
key and wheel lock nut pat-
terns engage.

2

Place the wheel nut wrench
on the wheel lock key, and
while applying pressure on
the wheel lock key, loosen
the wheel lock nut.

Installation

For ease of installation, the
wheel lock nut should always be
the last one tightened.

1

By hand, install a wheel lock
nut on the wheel to be
installed.

2

Place the wheel lock key on
top of the wheel lock nut,
turning until the wheel lock
key and wheel lock nut pat-
terns engage.

3

Place the wheel nut wrench
on the wheel lock key, and
while applying pressure on
the wheel lock key, tighten
the wheel lock nut to the rec-
ommended torque.

WARNING

Do not raise the vehicle while

someone is inside.

When raising the vehicle, do not

put an object on or under the

jack.

Do not raise the vehicle to a

height greater than that required

to replace the tire.

Use a jack stand if it is neces-

sary to get under the vehicle.

When lowering the vehicle,

make sure that there is no-one

near the vehicle. If there are

people nearby, warn them

vocally before lowering.

Wheel lock nut (if
equipped)

NOTICE

When using a wheel lock key

(if equipped)

Do not use an impact wrench.

Using an impact wrench may

cause permanent damage to

wheel lock nut and wheel lock

key. If in doubt about wheel lock

application, contact your Toyota

dealer.

409

7-2. Steps to take in an emergency

7

Whe

n tr

ouble

 ar

ises

1

Remove the deck mat.

2

Take out the jack.

2WD models:

For tightening
For loosening

AWD models:

Disengage the tightening
strap.

1

Remove the deck mat.
(

P.409)

2

Remove the tool tray.

2WD models:

AWD models:

3

Loosen the center fastener
that secures the spare tire.

Taking out the jack

Taking out the spare tire

410

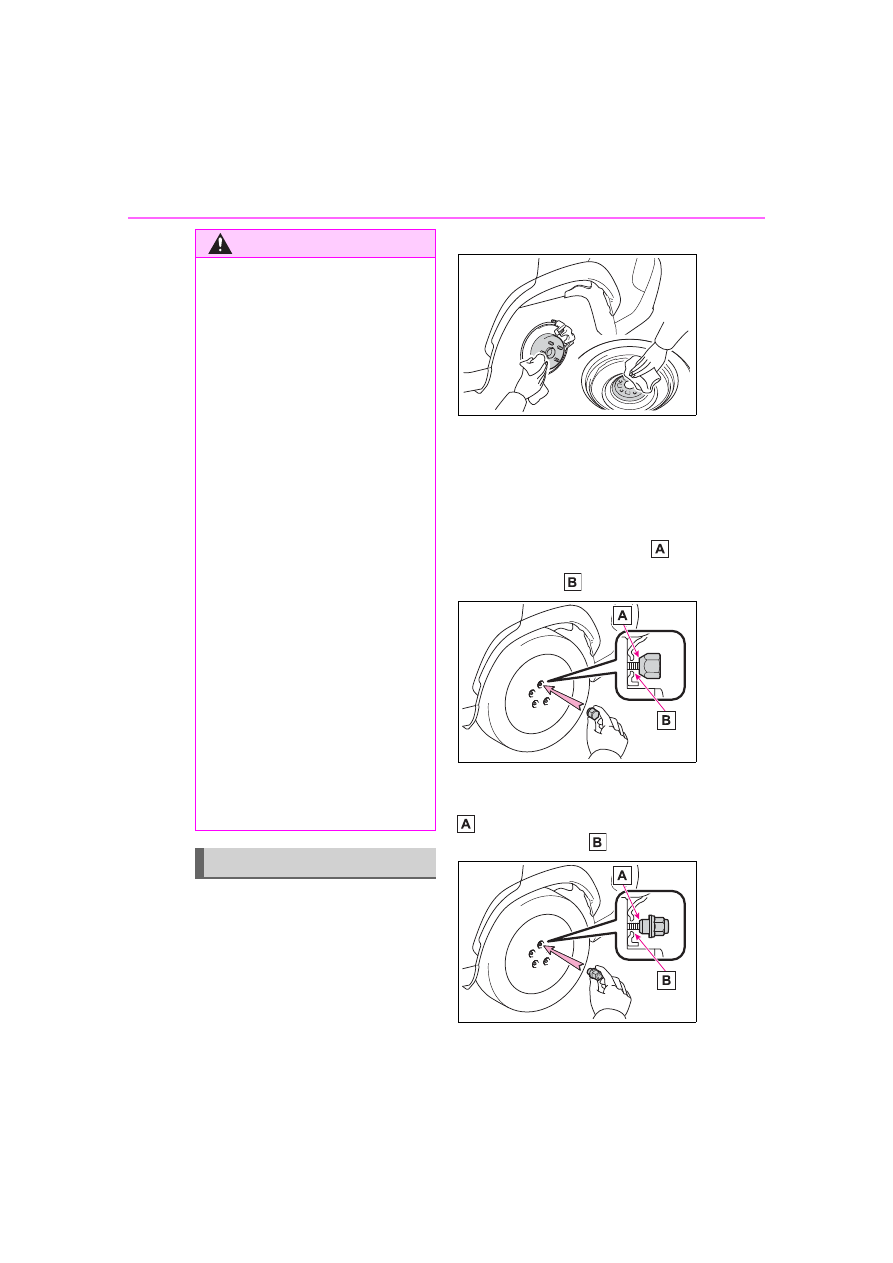

7-2. Steps to take in an emergency

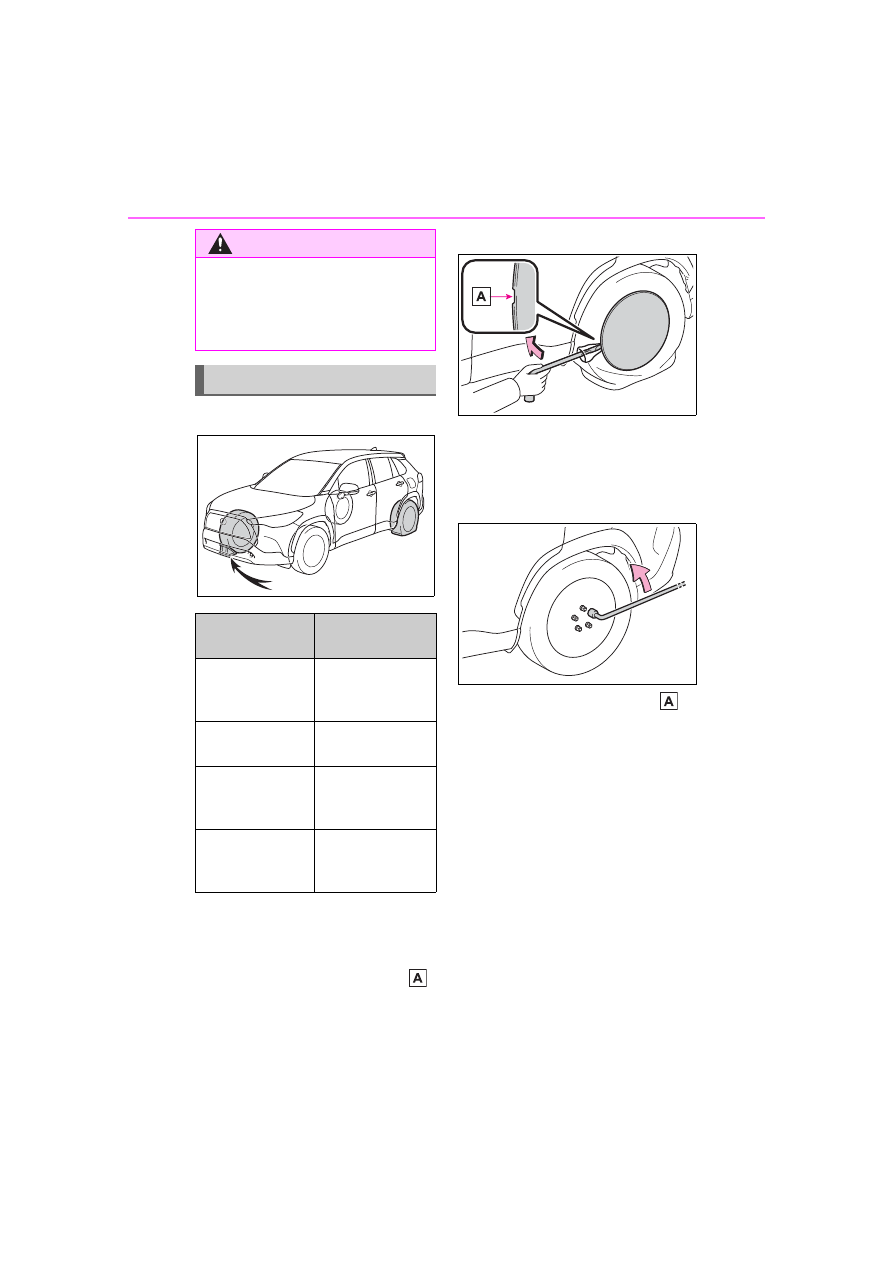

1

Chock the tires.

2

Vehicles with a steel wheel:
Remove the wheel ornament
using the wrench.

Insert the wrench into the notch



on the wheel cap.

To protect the wheel ornament,

place a rag between the wrench

and the wheel ornament.

3

Slightly loosen the wheel
nuts (one turn).

Vehicles with wheel locks: Use the

wheel lock key to loosen the wheel

lock.

4

Turn the tire jack portion
by hand until the center of the
recessed portion of the jack

WARNING

When storing the spare tire

Be careful not to catch fingers or

other body parts between the

spare tire and the body of the

vehicle.

Replacing a flat tire

Flat tire

Wheel chock

positions

Front left-hand
side

Behind the rear
right-hand side
tire

Front right-hand
side

Behind the rear
left-hand side tire

Rear left-hand
side

In front of the
front right-hand
side tire

Rear right-hand
side

In front of the
front left-hand
side tire

411

7-2. Steps to take in an emergency

7

W

he

tro

ub

le

 ar

is

es

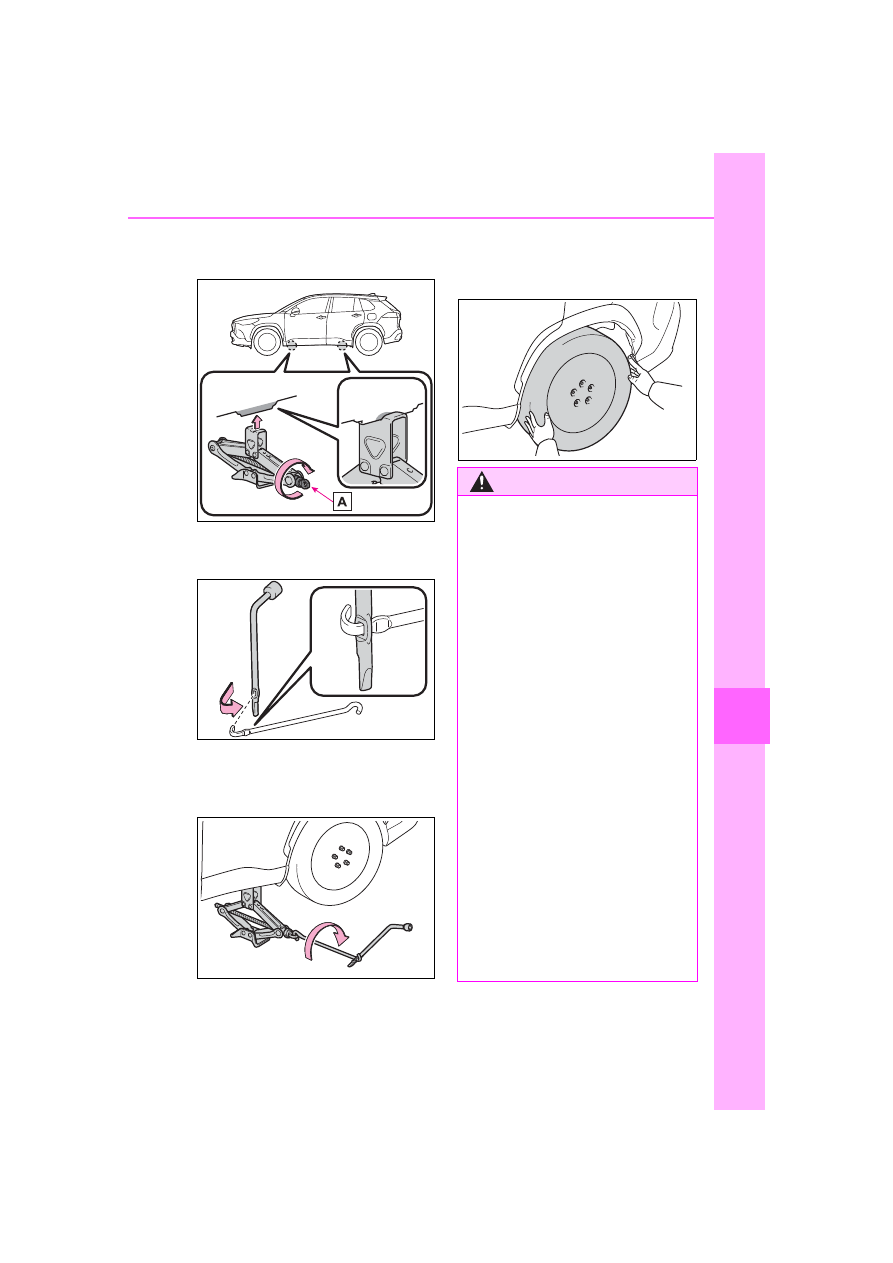

is in contact with the center of
the jack point.

5

Assemble the jack handle
extension.

6

Raise the vehicle until the tire
is slightly raised off the
ground.

7

Remove all the wheel nuts
and the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

WARNING

Replacing a flat tire

Do not touch the disc wheels or

the area around the brakes

immediately after the vehicle

has been driven. After the vehi-

cle has been driven the disc

wheels and the area around the

brakes will be extremely hot.

Touching these areas with

hands, feet or other body parts

while changing a tire, etc. may

result in burns.

Failure to follow these precau-

tions could cause the wheel

nuts to loosen and the tire to fall

off, resulting in death or serious

injury.

• Never use oil or grease on the

wheel bolts or wheel nuts.

Oil and grease may cause the

wheel nuts to be excessively

tightened, leading to bolt or disc

wheel damage. In addition, the

oil or grease can cause the

wheel nuts to loosen and the

wheel may fall off, causing an

accident and resulting in death

or serious injury. Remove any

oil or grease from the wheel

bolts or wheel nuts.

412

7-2. Steps to take in an emergency

1

Remove any dirt or foreign
matter from the wheel con-
tact surface.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come off.

2

Install the tire and loosely
tighten each wheel nut by
hand by approximately the
same amount.

When replacing a steel wheel with

a steel wheel, tighten the wheel
nuts until the tapered portion



comes into loose contact with the
disc wheel seat

.

When replacing an aluminum wheel

with a steel wheel, tighten the

wheel nuts until the tapered portion

 comes into loose contact with

the disc wheel seat

.

WARNING

• Have the wheel nuts tightened

with a torque wrench to 76 ft•lbf

(103 N•m, 10.5 kgf•m) as soon

as possible after changing

wheels.

• Do not attach a heavily dam-

aged wheel ornament, as it may

fly off the wheel while the vehi-

cle is moving.

• When installing a tire, only use

wheel nuts that have been spe-

cifically designed for that wheel.

• If there are any cracks or defor-

mations in the bolt screws, nut

threads or bolt holes of the

wheel, have the vehicle

inspected by your Toyota

dealer.

• When installing the wheel nuts,

be sure to install them with the

tapered ends facing inward.

Replacing a flat tire for vehi-

cles with power back door (if

equipped)

In cases such as when replacing

tires, make sure to canceling the

power back door system

(

P.116). Failure to do so may

cause the back door to operate

unintentionally if the power back

door switch is accidentally

touched, resulting in hands and

fingers being caught and injured.

Installing the spare tire

413

7-2. Steps to take in an emergency

7

W

he

tro

ub

le

 ar

is

es

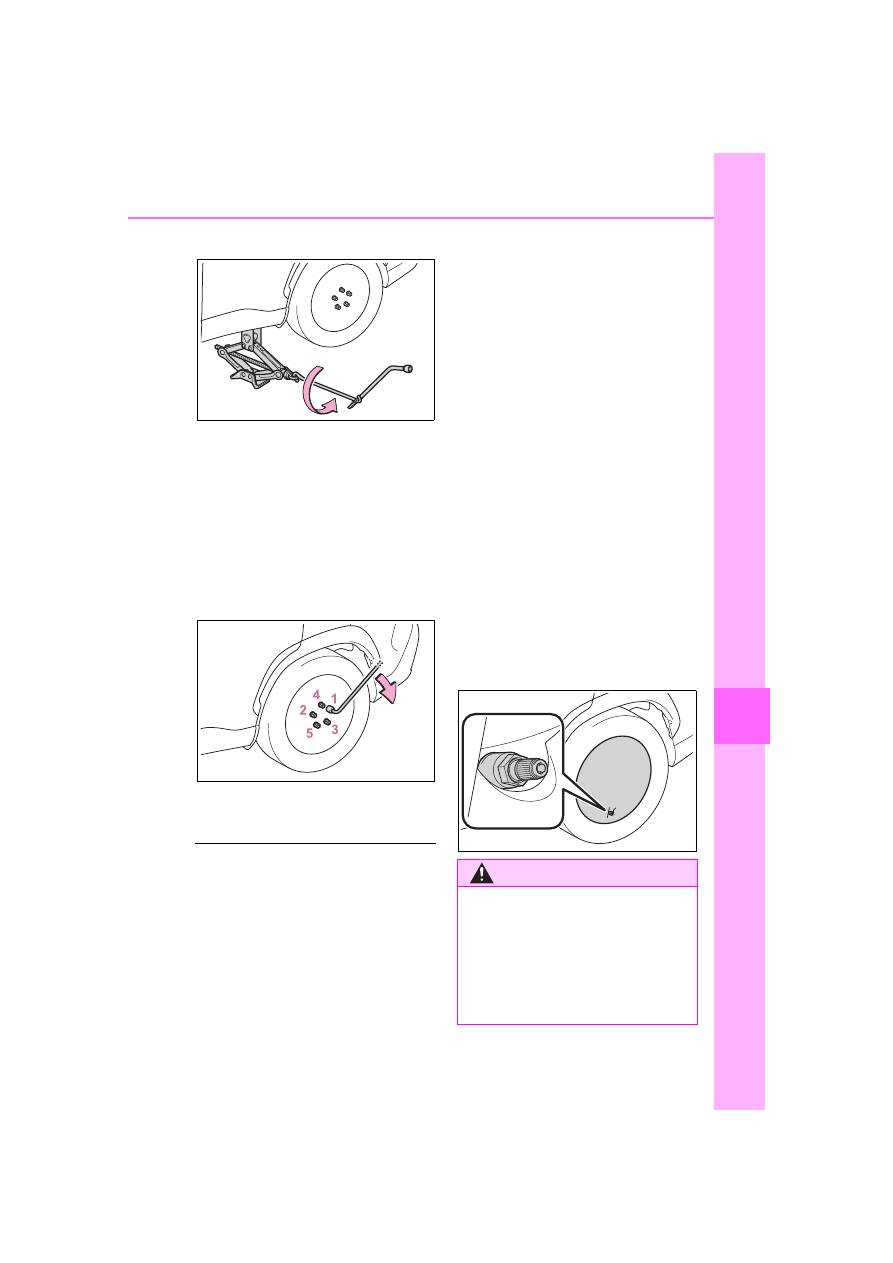

3

Lower the vehicle.

4

Firmly tighten each wheel nut
two or three times in the
order shown in the illustra-
tion.

Vehicles with wheel locks: Tighten

the wheel lock using the wheel lock

key after tightening the other wheel

nuts.
Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

5

Stow the flat tire, tire jack and
all tools.

The compact spare tire

The compact spare tire is identi-

fied by the label “TEMPORARY

USE ONLY” on the tire sidewall.

Use the compact spare tire tempo-

rarily, and only in an emergency.

Make sure to check the tire infla-

tion pressure of the compact

spare tire. (

P.434)

When the compact spare tire is

equipped

The vehicle becomes lower when

driving with the compact spare tire

compared to when driving with stan-

dard tires.

After completing the tire

change

The tire pressure warning system

must be reset. (

P.356)

When using the compact spare

tire

As the compact spare tire is not

equipped with a tire pressure warn-

ing valve and transmitter, low infla-

tion pressure of the spare tire will

not be indicated by the tire pressure

warning system. Also, if you replace

the compact spare tire after the tire

pressure warning light comes on,

the light remains on.

When reinstalling the wheel

ornament (steel wheels except

compact spare tire)

Align the cutout of the wheel orna-

ment with the valve stem as shown

in the illustration.

WARNING

When using the compact

spare tire

Remember that the compact

spare tire provided is specifi-

cally designed for use with your

vehicle. Do not use your com-

pact spare tire on another vehi-

cle.

414

7-2. Steps to take in an emergency

WARNING

Do not use more than one com-

pact spare tires simultaneously.

Replace the compact spare tire

with a standard tire as soon as

possible.

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

When the compact spare tire

is attached

The vehicle speed may not be

correctly detected, and the follow-

ing systems may not operate cor-

rectly:

• ABS & Brake assist

• VSC

• TRAC

• Automatic High Beam

• AFS (Adaptive Front-lighting

System) (if equipped)

• Dynamic radar cruise control

with full-speed range

• EPS

• PCS (Pre-Collision System)

• LTA (Lane Tracing Assist)

• Tire pressure warning system

• Intuitive parking assist (if

equipped)

• PKSB (Parking Support Brake)

(if equipped)

• BSM (Blind Spot Monitor) (if

equipped)

• RCTA (Rear Cross Traffic Alert)

function (if equipped)

• SEA (Safe Exit Assist) (if

equipped)

• Rear view monitor system

Also, not only can the following

system not be utilized fully, but it

may even negatively affect the

drive-train components:

• AWD system (AWD models)

Speed limit when using the

compact spare tire

Do not drive at speeds in excess

of 50 mph (80 km/h) when a com-

pact spare tire is installed on the

vehicle.

The compact spare tire is not

designed for driving at high

speeds. Failure to observe this

precaution may lead to an acci-

dent causing death or serious

injury.

After using the tools and jack

Before driving, make sure all the

tools and jack are securely in

place in their storage location to

reduce the possibility of personal

injury during a collision or sudden

braking.

NOTICE

Be careful when driving over

bumps with the compact

spare tire installed on the

vehicle.

The vehicle becomes lower when

driving with the compact spare tire

compared to when driving with

standard tires. Be careful when

driving over uneven road sur-

faces.

Driving with tire chains and

the compact spare tire

Do not fit tire chains to the com-

pact spare tire. Tire chains may

damage the vehicle body and

adversely affect driving perfor-

mance.

415

7-2. Steps to take in an emergency

7

W

he

tro

ub

le

 ar

is

es

One of the following may be the
cause of the problem:

There may not be sufficient
fuel in the vehicle’s tank.
Refuel the vehicle.

The engine may be flooded.
Try to restart the engine again
following correct starting pro-
cedures. (

P.162, 163)

There may be a malfunction
in the engine immobilizer sys-
tem. (

P.68)

One of the following may be the
cause of the problem:

The battery may be dis-
charged. (

P.419)

NOTICE

When replacing the tires

When removing or fitting the

wheels, tires or the tire pressure

warning valve and transmitter,

contact your Toyota dealer as the

tire pressure warning valve and

transmitter may be damaged if not

handled correctly.

To avoid damage to the tire

pressure warning valves and

transmitters

When a tire is repaired with liquid

sealants, the tire pressure warn-

ing valve and transmitter may not

operate properly. If a liquid seal-

ant is used, contact your Toyota

dealer or other qualified service

shop as soon as possible. Make

sure to replace the tire pressure

warning valve and transmitter

when replacing the tire.

If the engine will not

start

If the engine will not start
even though correct starting
procedures are being fol-
lowed (

P.162, 163), con-

sider each of the following
points:

The engine will not start
even though the starter
motor operates normally.

The starter motor turns
over slowly, the interior
lights and headlights are
dim, or the horn does not
sound or sounds at a low
volume.

416

7-2. Steps to take in an emergency

The battery terminal connec-
tions may be loose or cor-
roded. (

P.348)

The engine starting system may
be malfunctioning due to an
electrical problem such as elec-
tronic key battery depletion or a
blown fuse. However, an interim
measure is available to start the
engine. (

P.416)

One of the following may be the
cause of the problem:

The battery may be dis-
charged. (

P.419)

One or both of the battery ter-
minals may be disconnected.
(

P.348)

Contact your Toyota dealer if the
problem cannot be repaired, or if
repair procedures are unknown.

When the engine does not start,
the following steps can be used

as an interim measure to start
the engine if the engine switch is
functioning normally.
Do not use this starting proce-
dure except in case of emer-
gency.

1

Set the parking brake.
(

P.172)

2

Check that the shift lever is in
P.

3

Turn the engine switch to
ACC

*

.

4

Press and hold the engine
switch for about 15 seconds
while depressing the brake
pedal firmly.

Even if the engine can be started
using the above steps, the system
may be malfunctioning. Have the
vehicle inspected by your Toyota
dealer.

*

: ACC mode can be enabled/dis-

abled on the customize menu.
(

P.449)

The starter motor does
not turn over (vehicles
with a smart key system)

The starter motor does
not turn over, the interior
lights and headlights do
not turn on, or the horn
does not sound.

Emergency start function
(vehicles with a smart key
system)















Content      ..     23      24      25      26     ..
