7-2. Steps to take in an emergency

tro

■

When the electronic key does

not work properly

●

Make sure that the smart key sys-

tem has not been deactivated in

the customization setting. If it is

off, turn the function on. (Custom-

izable features:



P.449)

●

Check if battery-saving mode is

set. If it is set, cancel the function.

(



P.119)

●

The electronic key function may

be suspended. (



P.98)

If you lose your keys

New genuine keys can be
made by your Toyota dealer
using the other key (vehi-
cles without a smart key
system) or mechanical key
(vehicles with a smart key
system) and the key number
stamped on your key num-
ber plate.

Keep the plate in a safe
place such as your wallet,
not in the vehicle.

NOTICE

■

When an electronic key is lost

(vehicles with a smart key

system)

If the electronic key remains lost,

the risk of vehicle theft increases

significantly. Visit your Toyota

dealer immediately with all

remaining electronic keys that

were provided with your vehicle.

If the electronic key

does not operate prop-

erly (vehicles with a

smart key system)

If communication between
the electronic key and vehi-
cle is interrupted (



P.119)

or the electronic key cannot
be used because the battery
is depleted, the smart key
system and wireless remote
control cannot be used. In
such cases, the doors can
be opened and the engine
can be started by following
the procedure below.

NOTICE

■

In case of a smart key system

malfunction or other

key-related problems

Take your vehicle with all the elec-

tronic keys provided with your

vehicle to your Toyota dealer.

418

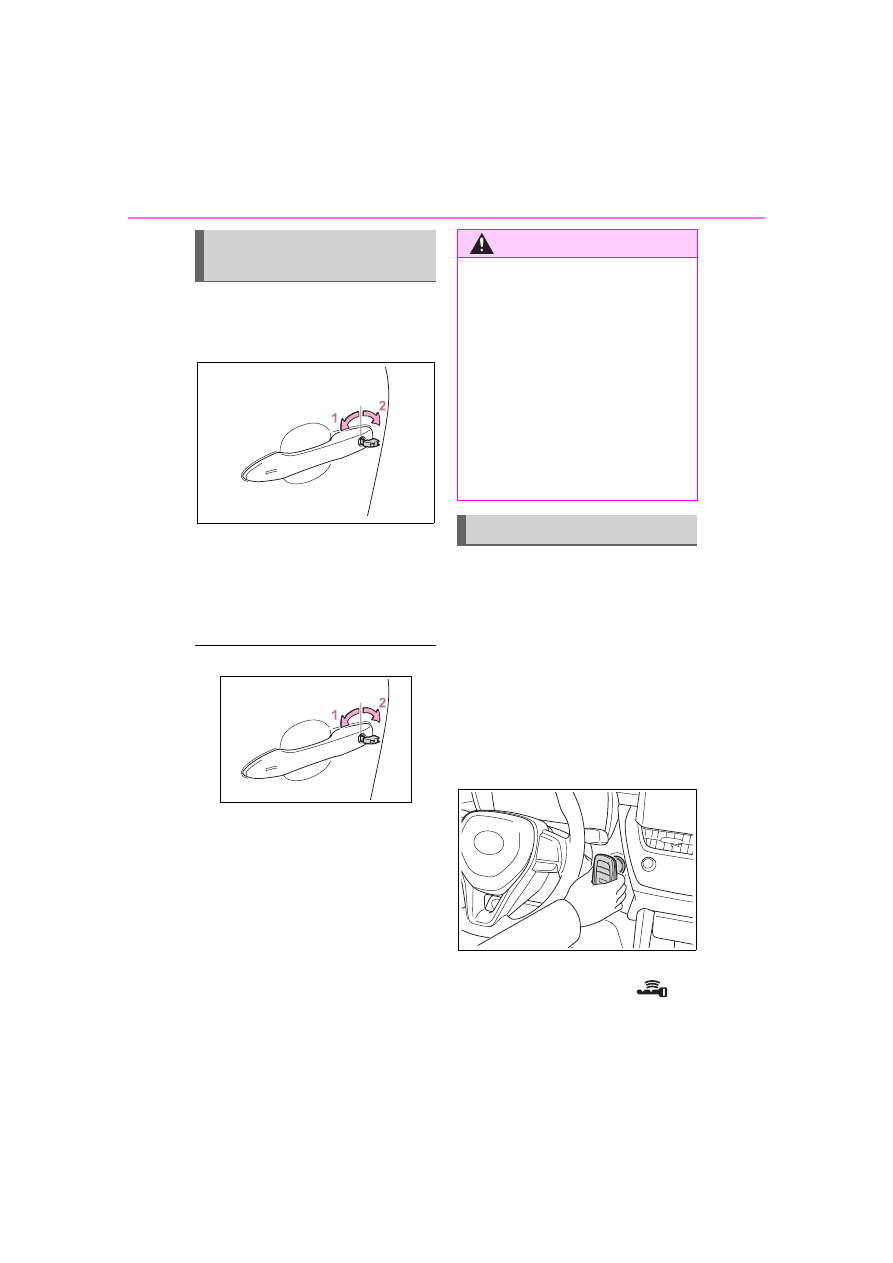

7-2. Steps to take in an emergency

Use the mechanical key
(



P.101) in order to perform the

following operations:

Locks all the doors

Unlocks all the doors

Turning the key unlocks the driver’s
door. Turning the key again unlocks
the other doors.

■

Key linked functions

Closes the windows and moon
roof

(turn and hold)

Opens the windows and moon
roof

(turn and hold)

:If equipped

:This setting must be customized

at your Toyota dealer.

Ensure that the shift lever is
in P and depress the brake
pedal.

Touch the electronic key to
the engine switch.

When the electronic key is

detected, a buzzer sounds and the

engine switch will turn to ON.
When the smart key system is

deactivated in customization set-

ting, the engine switch will turn to

ACC.

Firmly depress the brake
pedal and check that

shown on the multi-informa-
tion display.

Locking and unlocking
the doors

WARNING

■

When using the mechanical

key and operating the power

windows or moon roof (if

equipped)

Operate the power window or

moon roof after checking to make

sure that there is no possibility of

any passenger having any of their

body parts caught in the window

or moon roof.

Also, do not allow children to

operate the mechanical key. It is

possible for children and other

passengers to get caught in the

power window or moon roof.

Starting the engine

419

7-2. Steps to take in an emergency

Whe

n tr

ouble

ises

Press the engine switch
shortly and firmly.

In the event that the engine still
cannot be started, contact your
Toyota dealer.

■

Stopping the engine

Shift the shift lever to P and press

the engine switch as you normally

do when stopping the engine.

■

Electronic key battery

As the above procedure is a tempo-

rary measure, it is recommended

that the electronic key battery be

replaced immediately when the bat-

tery is depleted. (



P.368)

■

Alarm (if equipped)

If a door is unlocked using the

mechanical key when the alarm sys-

tem is set, the alarm may be trig-

gered. (



P.69)

■

Changing engine switch modes

Release the brake pedal and press

the engine switch in step

above.

The engine does not start and

modes will be changed each time

the switch is pressed. (



P.166)

If the vehicle battery

is discharged

The following procedures
may be used to start the
engine if the vehicle’s bat-
tery is discharged.
You can also call your Toy-
ota dealer or a qualified
repair shop.

420

7-2. Steps to take in an emergency

If you have a set of jumper (or
booster) cables and a second
vehicle with a 12-volt battery,
you can jump start your vehicle
by following the steps below.

Vehicles with an alarm
(



P.69): Confirm that the

electronic key is being car-
ried.

When connecting the jumper (or

booster) cables, depending on the

situation, the alarm may activate

and doors locked. (

Open the hood. (

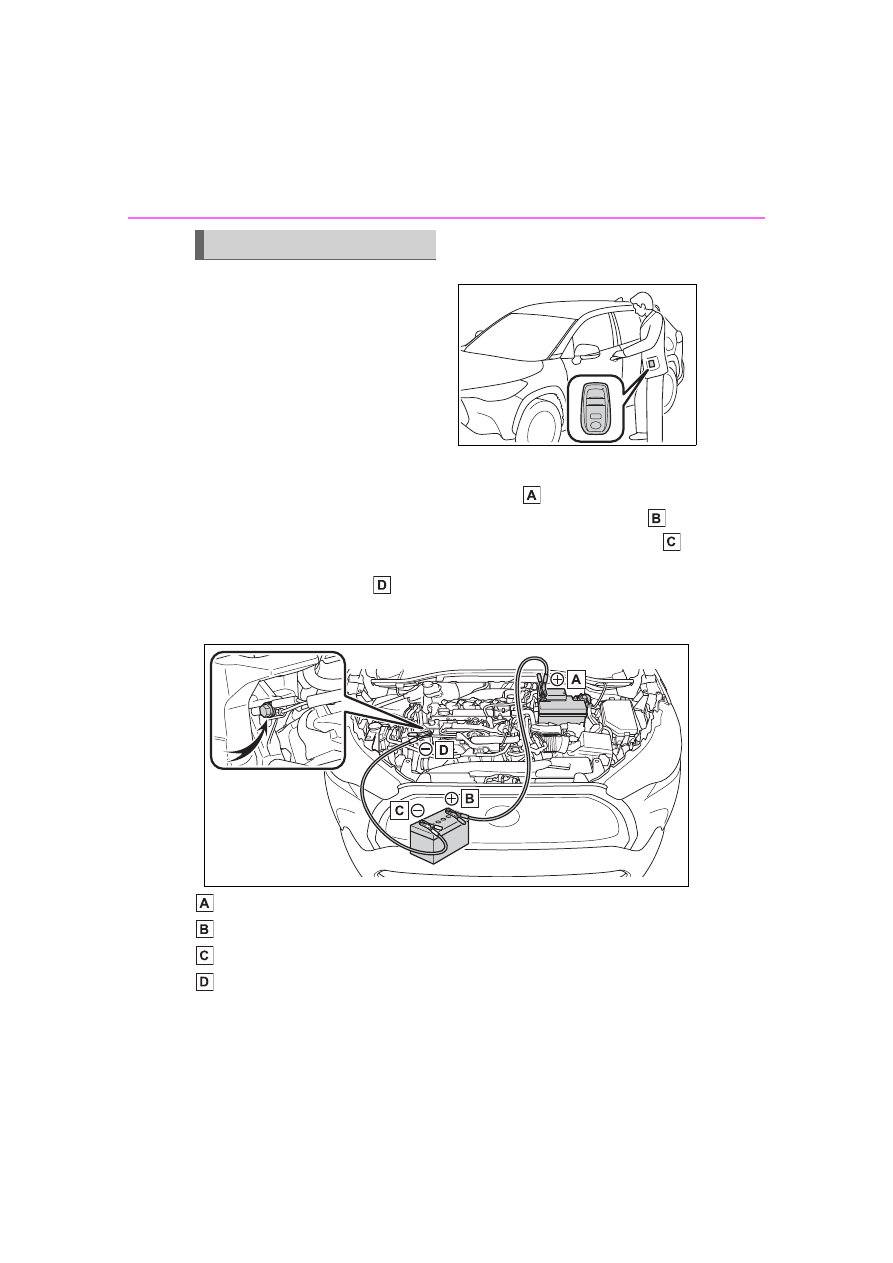

Connect a positive jumper cable clamp to   on your vehicle and
connect the clamp on the other end of the positive cable to   on
the second vehicle. Then, connect a negative cable clamp to
on the second vehicle and connect the clamp at the other end of
the negative cable to  .

Use jumper cables that can reach

the specified terminals and con-

necting point.

Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Metallic point shown in the illustration

Start the engine of the sec-
ond vehicle. Increase the

engine speed slightly and
maintain at that level for

Restarting the engine

421

7-2. Steps to take in an emergency

Whe

n tr

ouble

ises

approximately 5 minutes to
recharge the battery of your
vehicle.

Vehicles with a smart key
system: Open and close any
of the doors of your vehicle
with the engine switch OFF.

Maintain the engine speed of
the second vehicle and start
the engine of your vehicle by
turning the engine switch to
ON.

Once the vehicle’s engine
has started, remove the
jumper cables in the exact
reverse order from which
they were connected.

Once the engine starts, have the
vehicle inspected at your Toyota
dealer as soon as possible.

■

Starting the engine when the

battery is discharged

The engine cannot be started by

push-starting.

■

To prevent battery discharge

●

Turn off the headlights and the

audio system while the engine is

off.

●

Turn off any unnecessary electri-

cal components when the vehicle

is running at a low speed for an

extended period, such as in heavy

traffic.

■

When the battery is removed or

discharged

●

Information stored in the ECU is

cleared. When the battery is

depleted, have the vehicle

inspected at your Toyota dealer.

●

Some systems may require initial-

ization. (



P.459)

■

When removing the battery ter-

minals

When the battery terminals are

removed, the information stored in

the ECU is cleared. Before remov-

ing the battery terminals, contact

your Toyota dealer.

■

Charging the battery

The electricity stored in the battery

will discharge gradually even when

the vehicle is not in use, due to nat-

ural discharge and the draining

effects of certain electrical appli-

ances. If the vehicle is left for a long

time, the battery may discharge,

and the engine may be unable to

start. (The battery recharges auto-

matically during driving.)

■

When recharging or replacing

the battery (vehicles with a

smart key system)

●

In some cases, it may not be pos-

sible to unlock the doors using the

smart key system when the bat-

tery is discharged. Use the wire-

less remote control or the

mechanical key to lock or unlock

the doors.

●

The engine may not start on the

first attempt after the battery has

recharged but will start normally

after the second attempt. This is

not a malfunction.

●

The engine switch mode is memo-

rized by the vehicle. When the

battery is reconnected, the system

will return to the mode it was in

before the battery was dis-

charged. Before disconnecting the

battery, turn the engine switch off.

If you are unsure what mode the

engine switch was in before the

battery discharged, be especially

careful when reconnecting the

battery.

●

Vehicles with power back door:

The power back door must be ini-

tialized. (



P.114)

■

When replacing the battery

●

Use a battery that conforms to

422

7-2. Steps to take in an emergency

European regulations.

●

Use a genuine battery specifically

designed for use with the Stop &

Start system or a battery with

equivalent specifications to a gen-

uine battery. If an unsupported

battery is used, Stop & Start sys-

tem functions may be restricted to

protect the battery.

Also, battery performance may

decrease and the engine may not

be able to restart. Contact your

Toyota dealer for details.

●

Use a battery that the case size is

same as the previous one (LN3),

20 hour rate capacity (20HR) is

equivalent (65Ah) or greater, and

performance rating (CCA) is

equivalent (603A) or greater.

• If the sizes differ, the battery can-

not be properly secured.

• If the 20 hour rate capacity is low,

even if the time period where the

vehicle is not used is a short time,

the battery may discharge and the

engine may not be able to start.

●

For details, consult your Toyota

dealer.

WARNING

■

When removing the battery

terminals

Always remove the negative (-)

terminal first. If the positive (+) ter-

minal contacts any metal in the

surrounding area when the posi-

tive (+) terminal is removed, a

spark may occur, leading to a fire

in addition to electrical shocks

and death or serious injury.

■

Avoiding battery fires or

explosions

Observe the following precautions

to prevent accidentally igniting the

flammable gas that may be emit-

ted from the battery:

●

Make sure each jumper cable is

connected to the correct termi-

nal and that it is not unintention-

ally in contact with any other

than the intended terminal.

●

Do not allow the other end of

the jumper cable connected to

the “+” terminal to come into

contact with any other parts or

metal surfaces in the area, such

as brackets or unpainted metal.

●

Do not allow the + and - clamps

of the jumper cables to come

into contact with each other.

●

Do not smoke, use matches,

cigarette lighters or allow open

flame near the battery.

■

Battery precautions

The battery contains poisonous

and corrosive acidic electrolyte,

while related parts contain lead

and lead compounds. Observe

the following precautions when

handling the battery:

●

When working with the battery,

always wear safety glasses and

take care not to allow any bat-

tery fluids (acid) to come into

contact with skin, clothing or the

vehicle body.

●

Do not lean over the battery.

●

In the event that battery fluid

comes into contact with the skin

or eyes, immediately wash the

affected area with water and

seek medical attention. Place a

wet sponge or cloth over the

affected area until medical

attention can be received.

●

Always wash your hands after

handling the battery support,

terminals, and other bat-

tery-related parts.

●

Do not allow children near the

battery.

423

7-2. Steps to take in an emergency

tro

Stop the vehicle in a safe
place and turn off the air con-
ditioning system, and then
stop the engine.

If you see steam: Carefully lift
the hood after the steam sub-
sides.
If you do not see steam:
Carefully lift the hood.

NOTICE

■

When handling jumper cables

When connecting the jumper

cables, ensure that they do not

become entangled in the cooling

fan or engine drive belt.

■

When connecting jumper

cables

Make sure to connect jumper

cables to the specified terminals

and connecting point. Failure to

do so may adversely affect the

electronic devices or damage to

them.

If your vehicle over-

heats

The following may indicate
that your vehicle is over-
heating.



The engine coolant tem-
perature gauge (



P.76, 79)

is in the red zone or a loss
of engine power is experi-
enced. (For example, the
vehicle speed does not
increase.)



“Engine Coolant Temp High
Stop in a Safe Place See
Owner’s Manual” is shown
on the multi-information dis-
play.



A loss of engine power is
experienced. (For example,
the vehicle speed does not
increase.)



Steam comes out from
under the hood.

Correction procedures

424

7-2. Steps to take in an emergency

After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radi-
ator) for any leaks.

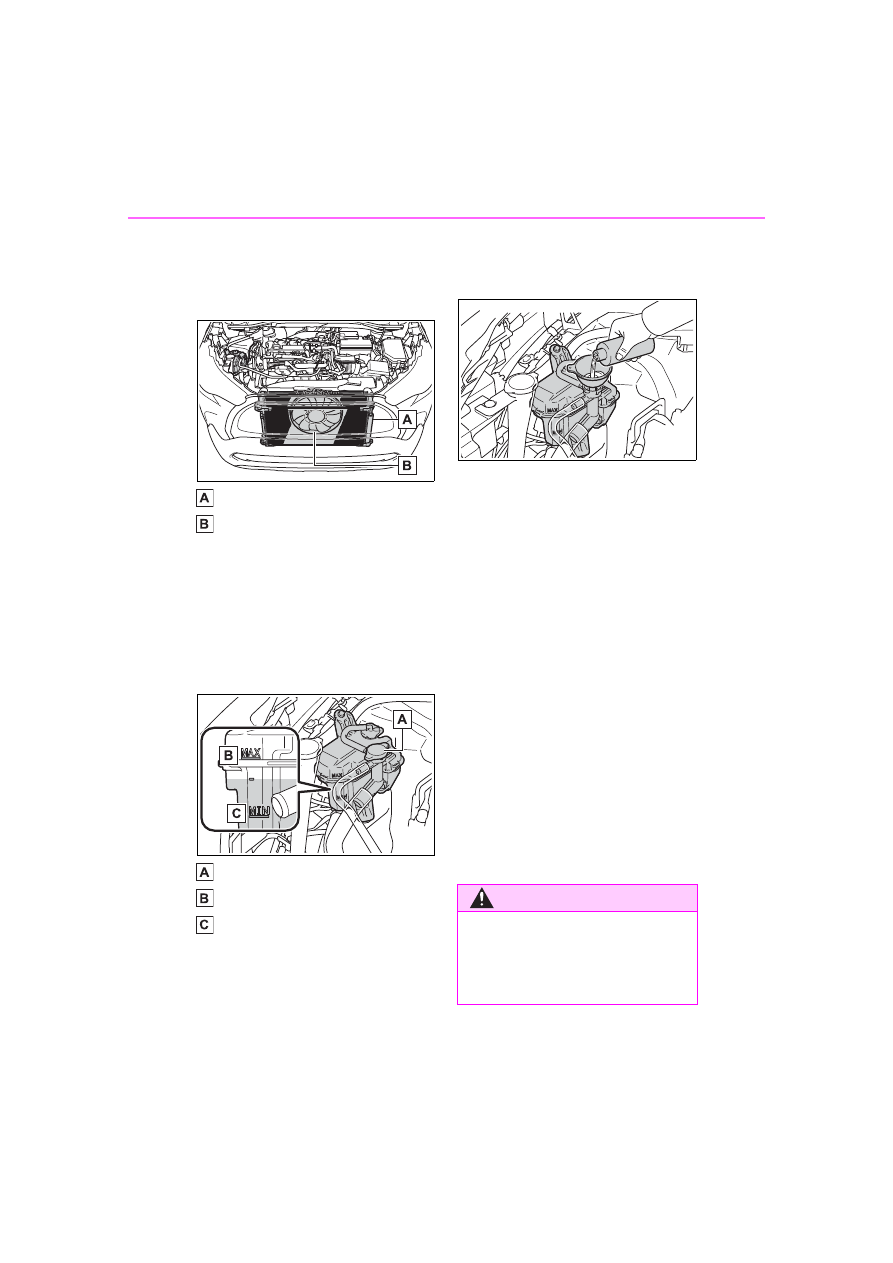

Radiator
Cooling fan

If a large amount of coolant leaks,
immediately contact your Toyota
dealer.

The coolant level is satisfac-
tory if it is between the “MAX”
and “MIN” lines on the reser-
voir.

Reservoir cap
“MAX” line
“MIN” line

Add engine coolant if neces-
sary.

Water can be used in an emer-

gency if engine coolant is unavail-

able.

If water was added in an emer-

gency, have the vehicle inspected

at your Toyota dealer as soon as

possible.

Start the engine and turn the
air conditioning system on to
check that the radiator cool-
ing fan operates and to check
for coolant leaks from the
radiator or hoses.

The fan operates when the air con-

ditioning system is turned on imme-

diately after a cold start. Confirm

that the fan is operating by check-

ing the fan sound and air flow. If it is

difficult to check these, turn the air

conditioning system on and off

repeatedly. (The fan may not oper-

ate in freezing temperatures.)

If the fan is not operating:
Stop the engine immediately
and contact your Toyota
dealer.
If the fan is operating: Have
the vehicle inspected at the
nearest Toyota dealer.

WARNING

■

When inspecting under the

hood of your vehicle

Observe the following precau-

tions. Failure to do so may result

in serious injury such as burns.

425

7-2. Steps to take in an emergency

tro

Stop the engine. Set the
parking brake and shift the
shift lever to P.

Do not press the shift lever button

after shifting the shit position to P.

Remove the mud, snow or
sand from around the front
wheels.

Place wood, stones or some
other material under the front
wheels to help provide trac-
tion.

Restart the engine.

Shift the shift lever to D or R
and release the parking
brake. Then, while exercising
caution, depress the acceler-
ator pedal.

■

When it is difficult to free the

vehicle

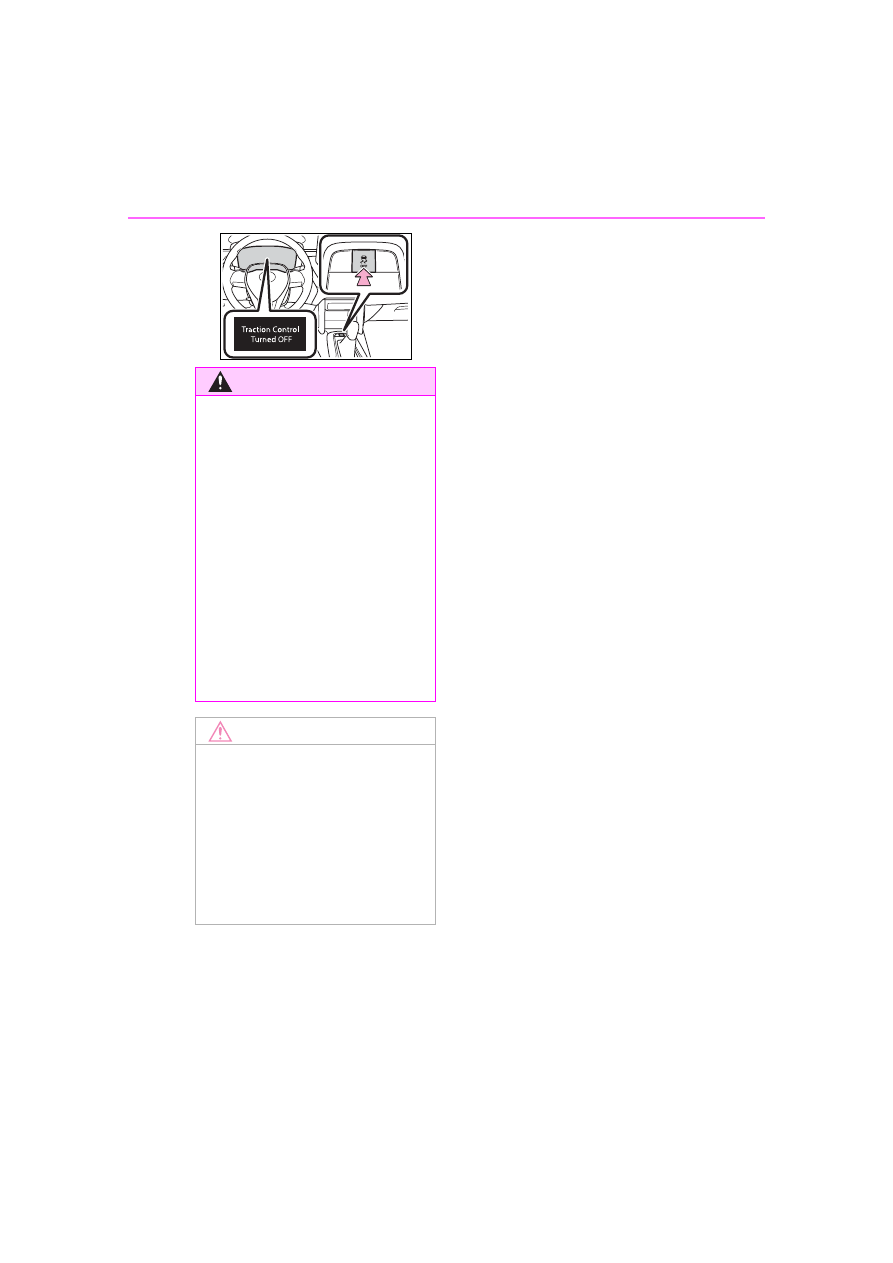

Press the

switch to turn off

TRAC.

WARNING

●

If steam is seen coming from

under the hood, do not open the

hood until the steam has sub-

sided. The engine compart-

ment may be very hot.

●

Keep hands and clothing (espe-

cially a tie, a scarf or a muffler)

away from the fan and belts.

Failure to do so may cause the

hands or clothing to be caught,

resulting in serious injury.

●

Do not loosen the coolant reser-

voir cap while the engine and

radiator are hot.

High temperature steam or

coolant could spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the

engine has cooled down suffi-

ciently. Adding cool coolant to a

hot engine too quickly can cause

damage to the engine.

■

To prevent damage to the

cooling system

Observe the following precau-

tions:

●

Avoid contaminating the coolant

with foreign matter (such as

sand or dust etc.).

●

Do not use any coolant additive.

If the vehicle becomes

stuck

Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:

Recovering procedure

426

7-2. Steps to take in an emergency

WARNING

■

When attempting to free a

stuck vehicle

If you choose to push the vehicle

back and forth to free it, make

sure the surrounding area is clear

to avoid striking other vehicles,

objects or people. The vehicle

may also lunge forward or lunge

back suddenly as it becomes free.

Use extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift

lever with the accelerator pedal

depressed.

This may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident

resulting in death or serious injury.

NOTICE

■

To avoid damaging the trans-

mission and other compo-

nents

●

Avoid spinning the front wheels

and depressing the accelerator

pedal more than necessary.

●

If the vehicle remains stuck

even after these procedures are

performed, the vehicle may

require towing to be freed.

427

Vehicle

specificatio

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil

level, etc.)..................

428

Fuel information ..........

436

Tire information ...........

438

8-2. Customization

Customizable features

..................................

449

8-3. Initialization

Items to initialize .........

459

428

8-1. Specifications

8-1.Specifications

:Unladen vehicles

:Vehicles with 215/65R17 tires

:Vehicles with 225/55R18 tires

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

175.6 in. (4460 mm)

Overall width

71.9 in. (1825 mm)

Overall height

64.8 in. (1645 mm)

Wheelbase

103.9 in. (2640 mm)

Tread

Front



2WD models

61.6 in. (1565 mm)

61.2 in. (1555 mm)



AWD models

61.7 in. (1566 mm)

61.3 in. (1556 mm)

Rear



2WD models

62.2 in. (1580 mm)

61.8 in. (1569 mm)



AWD models

61.6 in. (1564 mm)

61.2 in. (1554 mm)

Vehicle capacity weight
(Occupants + luggage)

940 lb. (425 kg)

Trailer Weight Rating
(Trailer weight + cargo weight)

1500 lb. (680 kg)

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

429

8-1. Specifications

Vehicle

specificatio

■

Vehicle identification num-
ber

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.

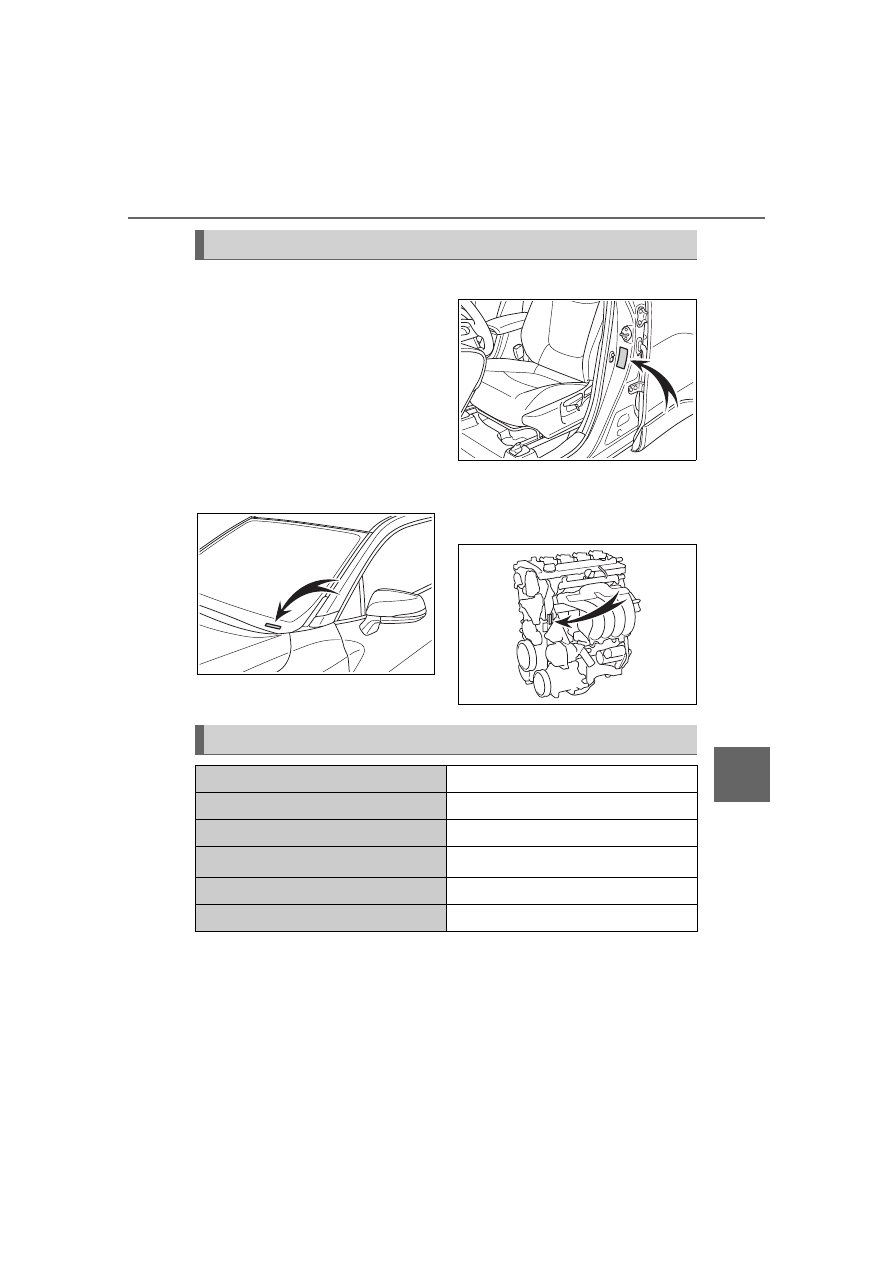

This number is stamped on the
top left of the instrument panel.

This number is also on the Certi-

fication Label.

■

Engine number

The engine number is stamped
on the engine block as shown.

Vehicle identification

Engine

Model

2.0 L 4-cylinder (M20A-FKS)

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.17



3.84 in. (80.5



97.6 mm)

Displacement

121.3 cu. in. (1987 cm

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

430

8-1. Specifications

■

Oil capacity (Drain and refill
[Reference

])

: The engine oil capacity is a refer-

ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 5 minutes, and check the oil
level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-6B multi-
grade engine oil
Recommended viscosity: SAE
0W-16

Outside temperature

SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.
However, it must be replaced
with SAE 0W-16 at the next oil
change.
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates

the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.

• The 16 in 0W-16 indicates the

viscosity characteristic of the

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

87 (Research Octane Number 91) or
higher

Fuel tank capacity
(Reference)



2WD models

12.4 gal. (47.0 L, 10.3 Imp. gal.)



AWD models

13.2 gal. (50.0 L, 11.0 Imp. gal.)

Lubrication system

With filter

4.4 qt. (4.2 L, 3.7 Imp.
qt.)

Without

filter

4.1 qt. (3.9 L, 3.4 Imp.
qt.)

431

8-1. Specifications

Vehicle

specificatio

oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.

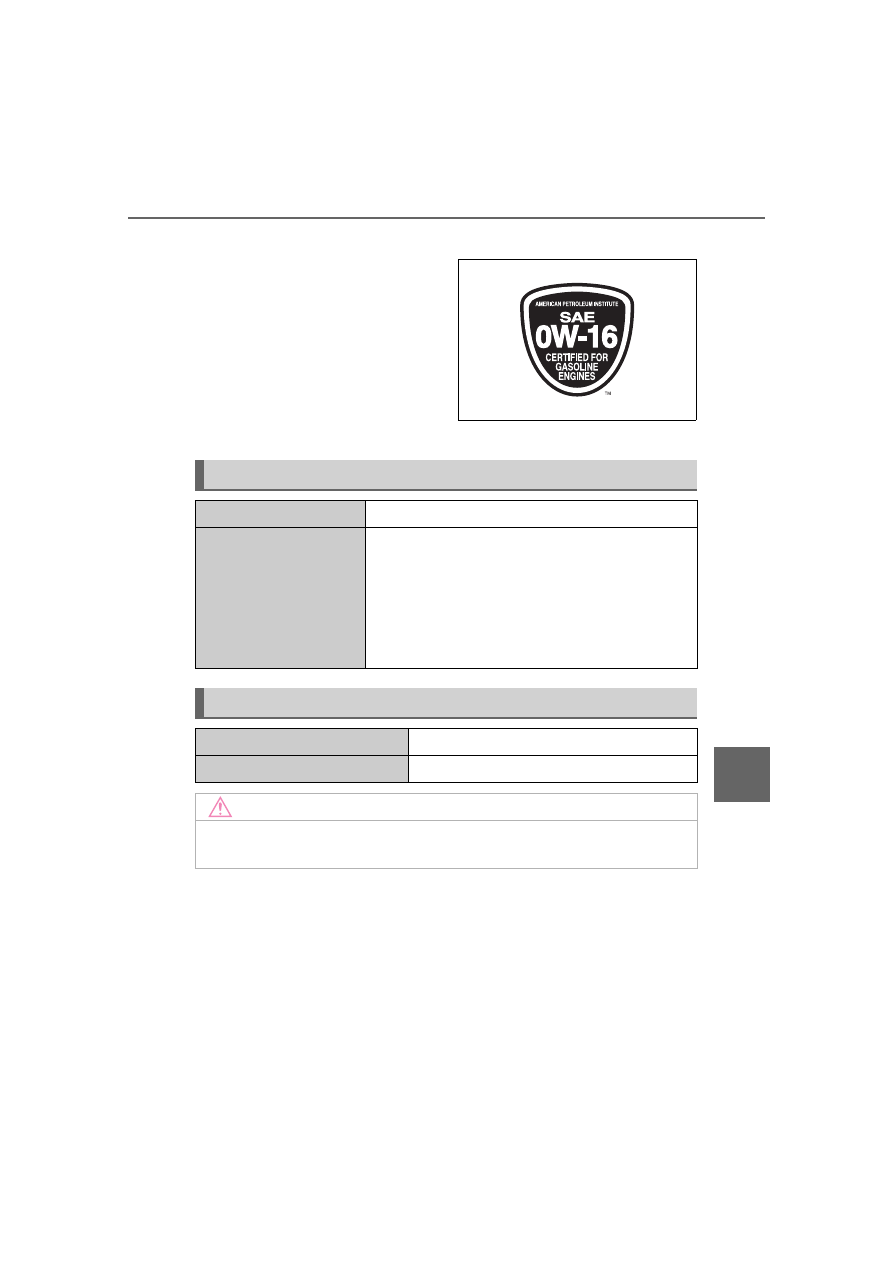

How to read oil container label:
API registered mark is added to
some oil containers to help you

select the oil you should use.

Cooling system

Capacity (Reference)

6.7 qt. (6.3 L, 5.5 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid organic
acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make

DENSO FC20HR-Q8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

432

8-1. Specifications

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

Electrical system (battery)

Open voltage at 68°F (20°C):

12.3 V or higher
(Turn the engine switch off and turn on the
high beam headlights for 30 seconds.)

Specific gravity reading at 68°F
(20°C):

1.25 or more
If the specific gravity is lower than the stan-
dard value, charge the battery.

Charging rate

5 A max.

Continuously variable transmission

Fluid capacity

8.7 qt. (8.2 L, 7.2 Imp. qt.)

Fluid type

Toyota Genuine CVT Fluid FE

NOTICE

■

Continuously variable transmission fluid type

Using continuously variable transmission fluid other than the above type

may cause abnormal noise or vibration, or damage the continuously vari-

able transmission of your vehicle.

Transfer (AWD models)

Oil capacity

0.47 qt. (0.45 L, 0.39 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent

NOTICE

■

Transfer oil type precaution

Using transfer oil other than the specified oil may cause abnormal noise

or vibration, or damage the transfer of your vehicle.

Content .. 24 25 26 27 ..
