6-1. Using the air conditioning system and defogger

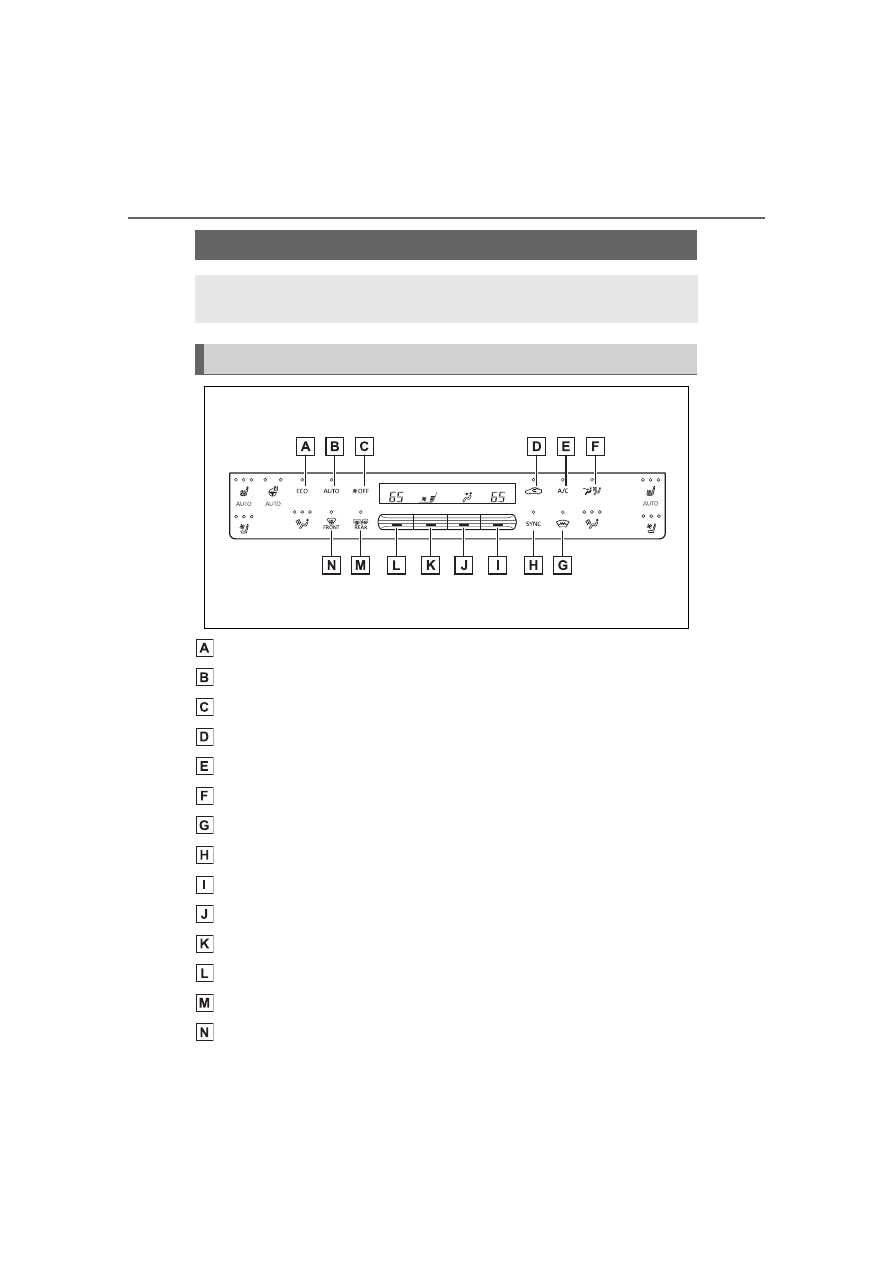

ALL AUTO (“ECO”) switch (



P.400)

Automatic mode switch

“OFF” switch

Outside/recirculated air mode switch

“A/C” switch

Front seat concentrated airflow mode (S-FLOW) switch

Windshield wiper de-icer switch (if equipped)

“SYNC” switch

Right-hand side temperature control switch

Airflow mode control switch

Fan speed control switch

Left-hand side temperature control switch

Rear window and outside rear view mirror defogger switch

Windshield defogger switch

Automatic air conditioning system

Air outlets and fan speed are automatically adjusted accord-
ing to the temperature setting.

Air conditioning controls

403

6-1. Using the air conditioning system and defogger

Interior

featur

■

Adjusting the temperature
setting

Operate the temperature con-
trol switch upwards to increase
the temperature and downwards
to decrease the temperature.

If “A/C” is not pressed, the system
will blow ambient temperature air or
heated air.

■

Setting the fan speed

Operate the fan speed control
switch upwards to increase the
fan speed and downwards to
decrease the fan speed.

Press the “OFF” switch to turn off
the fan.

■

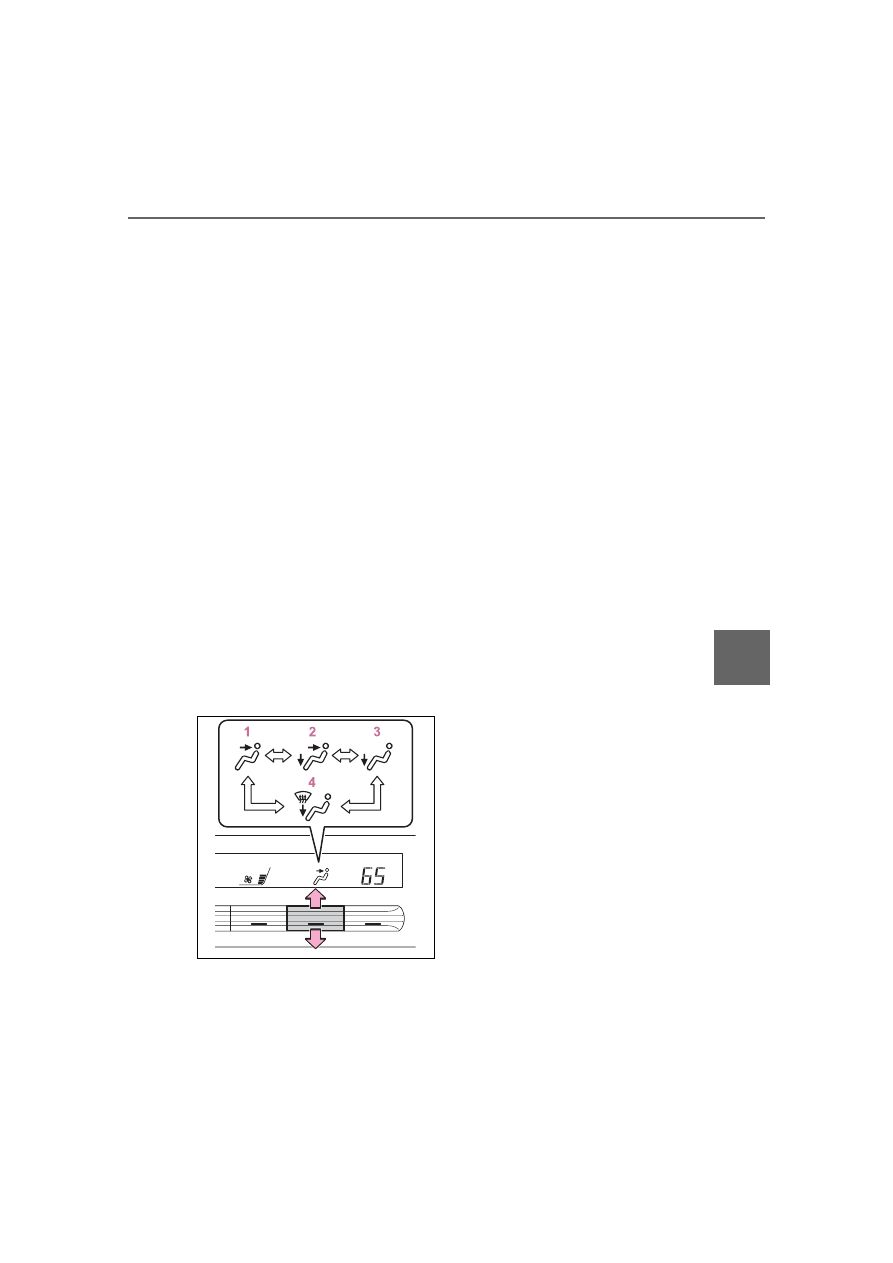

Change the airflow mode

Operate the airflow mode con-
trol switch upwards or down-
wards.

The mode changes as follows each
time the switch is operated.

Air flows to the upper body.

Air flows to the upper body
and feet.

Air flows to the feet.

Air flows to the feet and the
windshield defogger oper-
ates.

■

Switching between outside
air and recirculated air
modes

Press the outside/recirculated
air mode switch.

The mode switches between out-
side air mode (the indicator is off)
and recirculated air mode (the indi-
cator is on) each time the switch is
pressed.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.

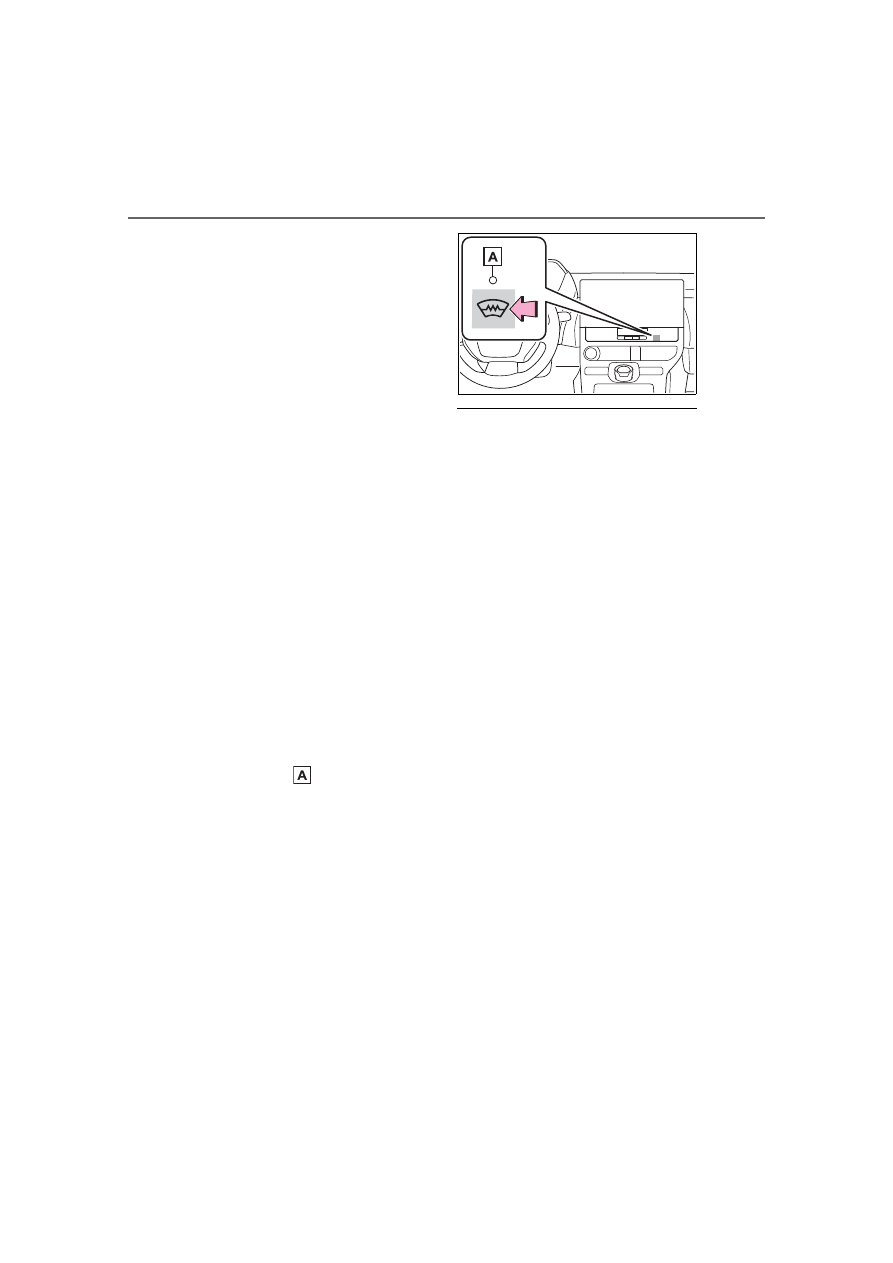

Press the windshield defogger
switch.
Set the outside/recirculated air
mode switch to outside air mode
if the recirculated air mode is
used. (It may switch automati-
cally.)
To defog the windshield and the
side windows quickly, turn the
air flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the wind-
shield is defogged.

404

6-1. Using the air conditioning system and defogger

When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defog-
ger switch.

■

Defogging the rear window
and outside rear view mir-
rors

Defoggers are used to defog the
rear window and to remove rain-
drops, dew and frost from the
outside rear view mirrors.
Press the rear window and out-
side rear view mirror defogger
switch.
The defoggers will automati-
cally turn off after a period of
time.

■

Windshield wiper de-icer (if
equipped)

This feature is used to prevent
ice from building up on the wind-
shield and wiper blades.
Press the windshield wiper de-
icer switch.

The indicator comes on when
the windshield wiper de-icer is
on.
The windshield wiper de-icer will
automatically turn off after a
period of time.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning “A/C” switch on will

dehumidify the air from the outlets

and defog the windshield effec-

tively.

●

If you turn “A/C” switch off, the

windows may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode and

the fan speed to any setting except

off.

■

Outside/recirculated air mode

●

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

●

Outside/recirculated air mode may

automatically switch depending on

the temperature setting or the

inside temperature.

■

When the outside temperature

exceeds 75°F (24°C) and the air

conditioning system is on

●

In order to reduce the air condi-

tioning power consumption, the air

conditioning system may switch to

405

6-1. Using the air conditioning system and defogger

Interior

featur

recirculated air mode automati-

cally. This may also reduce elec-

tricity consumption.

●

Recirculated air mode is selected

as a default mode when the power

switch is turned to ON.

●

It is possible to switch to outside

air mode at any time by pressing

the outside/recirculated air mode

switch.

■

When the outside temperature

falls to nearly 32°F (0°C)

The dehumidification function may

not operate even when “A/C” switch

is pressed.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

To reduce potential odors from

occurring:

• It is recommended that the air

conditioning system be set to out-

side air mode prior to turning the

vehicle off.

• The start timing of the blower may

be delayed for a short period of

time immediately after the air con-

ditioning system is started in auto-

matic mode.

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

■

Air conditioning filter



P.494

■

Air conditioning system refrig-

erant

●

A label regarding the refrigerant of

the air conditioning system is

attached to the hood at the loca-

tion shown in the following illustra-

tion.

●

The meaning of each symbol on

the label are as follows:

■

Noise from air conditioning sys-

tem

Approximately 90 seconds after the

power switch turned to OFF, you

may hear sound coming from air

conditioning system. This is the

sound of a air conditioning system

initialize and, it does not indicate a

malfunction.

■

Customization

Some functions can be customized.

(Customizable features:



P.575)

Caution

Air conditioning system

Air conditioning system
lubricant type

Requires registered
technician to service air
conditioning system

Flammable refrigerant

406

6-1. Using the air conditioning system and defogger

Press the automatic mode
switch.

The dehumidification function

begins to operate. Air outlets and

fan speed are automatically

adjusted according to the tempera-

ture setting and humidity.

Adjust the temperature set-
ting.

To stop the operation, press
the “OFF” switch.

If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.
Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch is pressed.

To turn on the “SYNC” mode,
perform any of the following pro-
cedures:



Press the “SYNC” mode
switch.



Adjust the front passenger’s
side temperature setting.

The indicator comes on when the
“SYNC” mode is on.

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

■

To prevent burns

●

Do not touch the rear view mir-

ror surfaces when the outside

rear view mirror defoggers are

on.

●

Vehicles with windshield wiper

de-icer: Do not touch the glass

at lower part of the windshield

or to the side of the front pillars

when the windshield wiper de-

icer is on.

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the air conditioning

system on longer than necessary

when the EV system is off.

■

When repairing/replacing

parts of the air conditioning

system

Have repair/replacement per-

formed by your Toyota dealer.

When a part of the air conditioning

system, such as the evaporator, is

to be replaced, it must be

replaced with a new one.

Using automatic mode

Adjusting the temperature
for driver and front pas-
senger seats separately
(“SYNC” mode)

407

6-1. Using the air conditioning system and defogger

Interior

featur

■

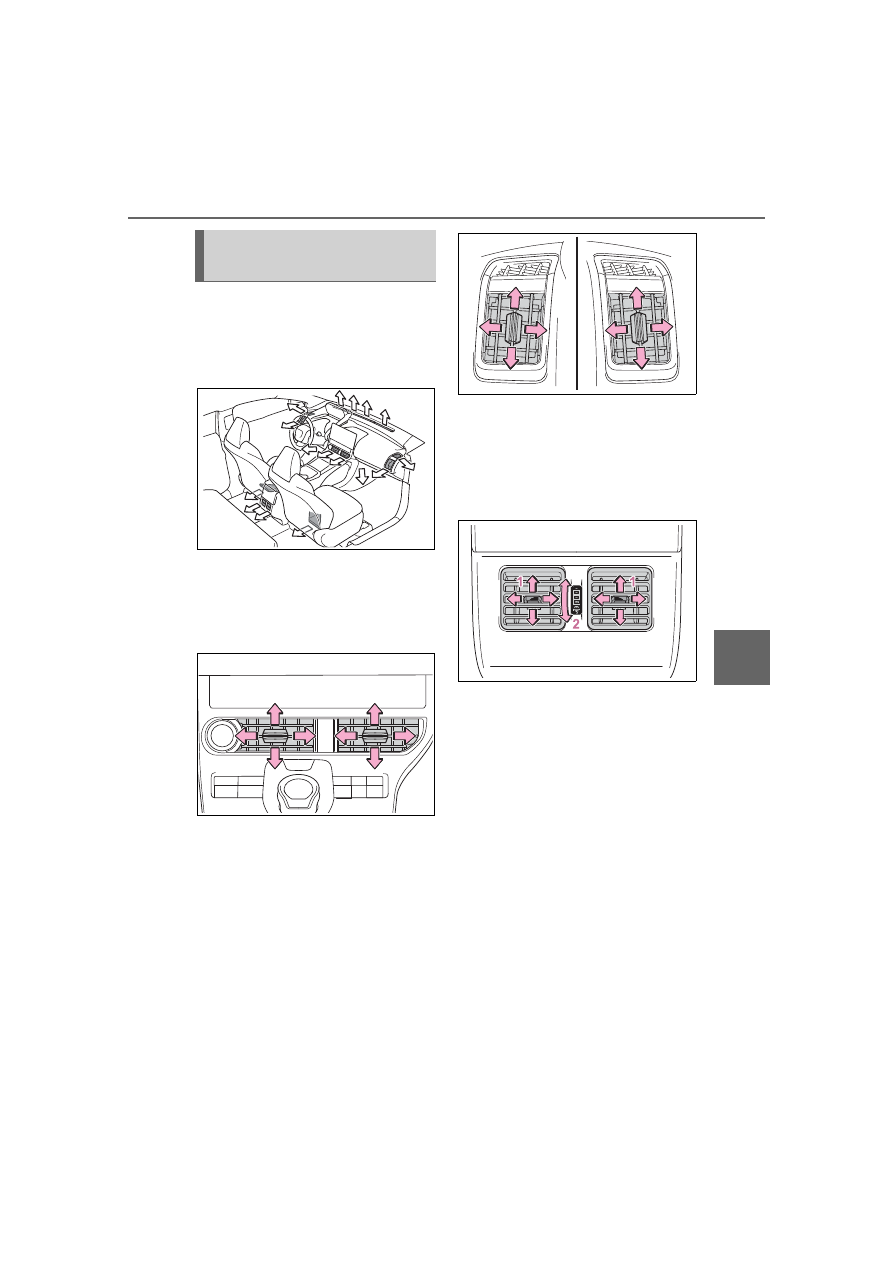

Location of air outlets

The air outlets and air volume
change according to the
selected air flow mode.

■

Adjusting the air flow direc-
tion and opening/closing
the air outlets



Front

Direct air flow to the left or right, up
or down

Move the knob fully to the out-
side to close the vent.

Direct air flow to the left or right, up
or down

Move the knob fully downward
to close the vent.



Rear

Direct air flow to the left or
right, up or down

Turn the knob to open or
close the vent

Air outlet layout and oper-
ations

408

6-1. Using the air conditioning system and defogger

This function automatically con-
trols the air conditioning airflow
so that priority is given to the
front seats. Unnecessary air
conditioning is suppressed, con-
tributing to increased electricity
consumption efficiency.
Front seat concentrated airflow
mode operates in the following
situations.



No passengers are detected
in the rear seats



The windshield defogger is
not operating

While operating,

illuminates.

■

Manually turning front seat
concentrated airflow mode
on/off

In front seat concentrated air-
flow mode, directing airflow to
the front seats only and to all
seats can be switched via switch
operation. When the mode has
been switched manually, auto-
matic airflow control stops oper-
ating.

Press

on the air conditioning

operation panel and switch the
airflow.



Indicator illuminated: Airflow
to the front seats only



Indicator off: Airflow to all the
seats

■

Operation of automatic airflow

control

●

In order to maintain a comfortable

interior, airflow may be directed to

seats without passengers immedi-

ately after the EV system is

started and at other times depend-

ing on the outside temperature.

●

After the EV system is started, if

passengers move around inside

or enter/exit the vehicle, the sys-

tem cannot accurately detect the

presence of passengers and auto-

matic airflow control will not oper-

ate.

■

Operation of manual airflow

control

Even if the function is manually

switched to directing airflow to only

the front seats, when a rear seat is

occupied, it may automatically direct

airflow to all seats.

WARNING

■

To not interrupt the wind-

shield defogger from operat-

ing

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.

Front seat concentrated
airflow mode (S-FLOW)

409

6-1. Using the air conditioning system and defogger

Interior

featur

■

To return to automatic airflow

control

With the indicator off, turn the

power switch off.

After 60 minutes or more elapse,

turn the power switch to ON.

Check the temperature setting
of the air conditioning system.
(



P.403)

The Remote Air Conditioning Sys-
tem will operate in accordance with
the temperature settings of the air
conditioning system.

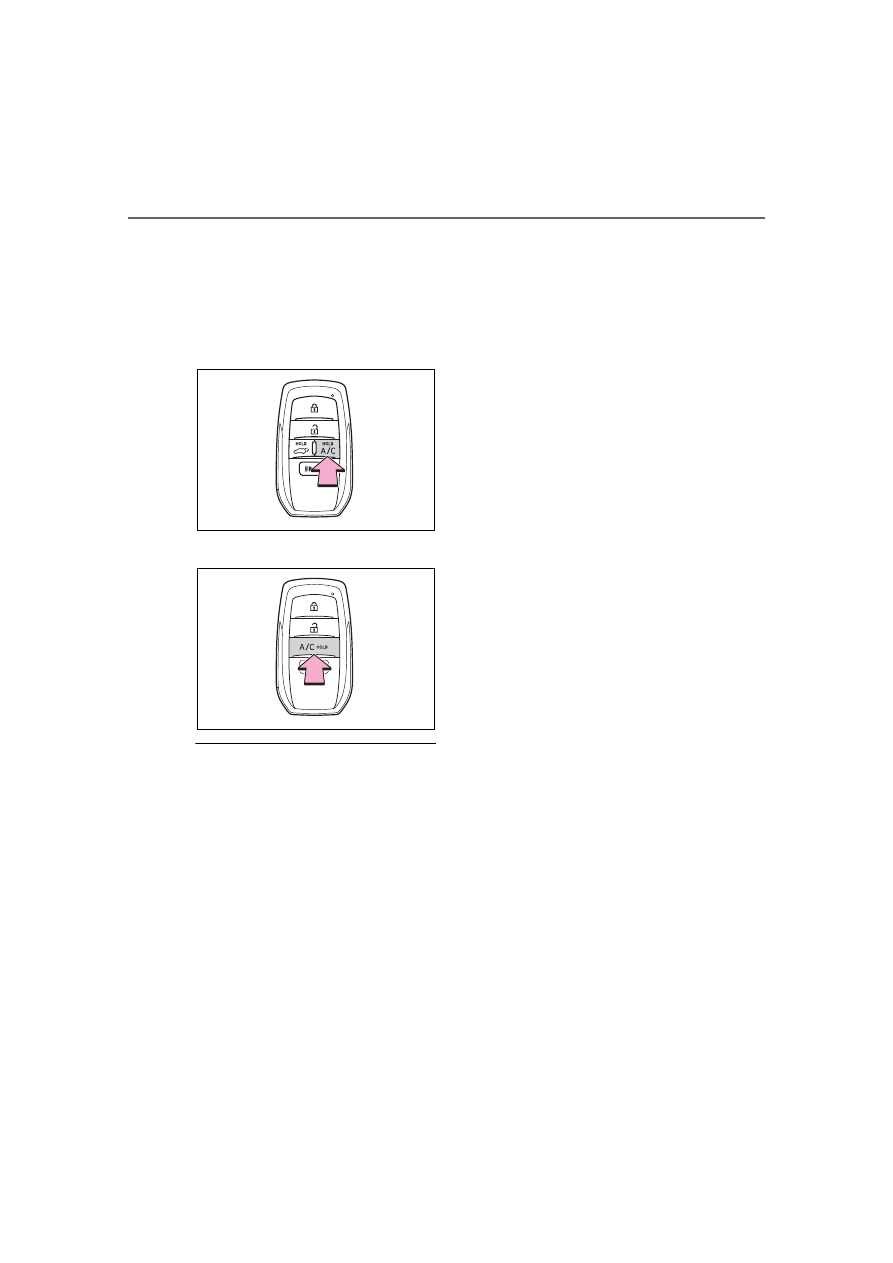

Press and hold “A/C” on the
wireless remote control to oper-
ate the Remote Air Conditioning

Remote Air Condition-

ing System

The Remote Air Condition-
ing System uses electrical
energy stored in the trac-
tion battery and allows the
air conditioning to be oper-
ated by remote control.

If the Remote Air Condition-
ing System is used while
the charging cable is con-
nected to the vehicle, the
reduction of charge in the
traction battery will be sup-
pressed to allow you to use
electricity from an external
power source.

Charging will be conducted
automatically after the
Remote Air Conditioning Sys-
tem is stopped.

Before leaving the vehicle

Activating the Remote Air
Conditioning System

410

6-1. Using the air conditioning system and defogger

System.

The system will shut off if a door is
opened.
The system can be stopped by
pressing “A/C” twice.



Type A



Type B

■

Operating conditions

The system will only operate if all of

the following conditions are met:

●

The power switch is OFF.

●

All doors are closed.

●

The hood is closed.

■

Remote Air Conditioning Sys-

tem automatic shut-off

The system will automatically shut

off under the following conditions:

●

About 20 minutes have passed

since operation began

●

Any one of the operating condi-

tions is not met

The system may also shut off if the

charge level of the traction battery

drops to low.

■

Conditions affecting operation

The system may not start in the fol-

lowing situations:

●

The charge level of the traction

battery is low

●

When the EV system is cool (for

example, after being left for a long

time in low temperatures)

■

Windshield defogger

When defogging the windshield

using the Remote Air Conditioning

System, defogging may be insuffi-

cient due to the power being

restricted more than during normal

air conditioning operation. Also, the

outside of the windshield may fog up

due to the outside temperature,

humidity or air conditioning set tem-

perature.

■

Security feature

Any unlocked doors will be automat-

ically locked when the system is

operating. The emergency flashers

flash to indicate that the doors have

been locked.

■

Conditions affecting operation



P.188

■

While the Remote Air Condi-

tioning System is operating

●

Depending on the operating con-

dition of the Remote Air Condition-

ing System, the electric fan may

spin and an operating noise may

be heard.

However, this does not indicate a

malfunction.

●

The Remote Air Conditioning Sys-

tem may stop operating temporar-

ily if other features that use

electricity (for example, the seat

heater, lights, windshield wipers)

are in operation or if the charge

level of the 12-volt battery

becomes low.

●

The headlights, windshield wiper,

meter, etc. will not operate.

411

6-1. Using the air conditioning system and defogger

Interior

featur

■

Electronic key battery depletion



P.162

■

When the electronic key bat-

tery is fully depleted



P.497

■

Customization

Setting (e.g. Operation using “A/C”

on the wireless remote control) can

be changed. (Customizable fea-

tures:



P.575)

: If equipped

WARNING

■

Precautions for the Remote

Air Conditioning System

●

Do not use the system if people

are in the vehicle.

Even when the system is in use,

the internal temperature may

still reach a high or low level

due to features such as the

automatic shut-off. Children and

pets left inside the vehicle may

suffer heatstroke dehydration or

hypothermia, or could result in

death or serious injury.

●

Depending on the surrounding

environment, signals from the

wireless switch may transmit

further than expected. Pay

appropriate attention to the

vehicle’s surroundings and use

the switch only when necessary.

●

Do not operate “A/C” if the hood

is open. The air conditioning

may operate unintentionally and

objects may be drawn into the

electrical cooling fan.

NOTICE

■

To prevent the traction bat-

tery from being discharged

through incorrect operation

Use “A/C” only when necessary.

Heated steering

wheel

/seat heat-

ers

/seat ventila-

tors

/radiant heater



Heated steering wheel

Warms up the grip of the
steering wheel



Seat heaters

Warm up the seat upholstery



Seat ventilators

Maintain good airflow on the
seat upholstery by sucking air
into the seats



Radiant heaters

Warm up the feet of the front
seats

WARNING

■

To prevent minor burn inju-

ries

Care should be taken if anyone in

the following categories comes in

contact with the steering wheel or

seats when the heater is on:

●

Babies, small children, the

elderly, the sick and the physi-

cally challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alco-

hol or drugs that induce sleep

(sleeping drugs, cold remedies,

etc.)

412

6-1. Using the air conditioning system and defogger

Turns the heated steering wheel
on/off

Each time the switch is pressed,
the operation condition changes as
follows.
AUTO (lit)



Hi (2 segments lit)



Lo (1 segment lit)



Off

The AUTO indicator

and/or level

indicator

illuminates during

operation.

■

The heated steering wheel can

be used when

The power switch is in ON.

■

Front

Turns the seat heaters on/off

Each time the switch is pressed,
the operation condition changes as
follows.
AUTO (lit)



Hi (3 segments lit)



Mid (2 segments lit)



Lo (1 seg-

ment lit)



Off

The AUTO indicator

and/or level

indicator

illuminates during

operation.

■

Rear (outboard rear seats)

Each time the switch is pressed,
the operation condition changes
as follows.
Hi (3 segments lit)



Mid (2

segments lit)



Lo (1 segment

lit)



Off

When not in use, put the switch
in the neutral position. The indi-
cator will turn off.

NOTICE

■

To prevent damage to the

seat heaters and seat ventila-

tors

Do not put heavy objects that

have an uneven surface on the

seat and do not stick sharp

objects (needles, nails, etc.) into

the seat.

■

To prevent 12-volt battery dis-

charge

Do not use the functions when the

EV system is off.

Heated steering wheel

Seat heaters

413

6-1. Using the air conditioning system and defogger

Interior

featur

■

The seat heaters can be used

when

The power switch is in ON.

Turns the seat ventilators on/off

Each time the switch is pressed,
the operation condition changes as
follows.
AUTO (lit)



Hi (3 segments lit)



Mid (2 segments lit)



Lo (1 seg-

ment lit)



Off

The AUTO indicator

and/or level

indicator

illuminates during

operation.

■

The seat ventilators can be

used when

The power switch is in ON.

■

Air conditioning system-linked

control mode

When the seat ventilator fan speed

level is Hi, the seat ventilator fan

speed becomes higher according to

the fan speed of the air conditioning

system.

Front passenger’s side radi-
ant heater

Driver’s side radiant heater

Turns the radiant heater on/off

Each time the switch is pressed,
the operation condition changes as

WARNING

■

To prevent causes of over-

heating and minor burn inju-

ries

Observe the following precautions

when using a seat heater

●

Do not cover the seat with a

blanket or cushion when using

the seat heater.

●

Do not use seat heater more

than necessary.

Seat ventilators (front
seats)

Radiant heaters

414

6-1. Using the air conditioning system and defogger

follows.
Hi (3 segments lit)



Mid (2 seg-

ments lit)



Lo (1 segment lit)



Off

The level indicator

illuminates

during operation.

■

The radiant heater can be used

when

The power switch is in ON.

●

The power may be turned off auto-

matically be continually touching

the heater section. In that case,

turn the radiant heater switch on

again.

●

It may take some time for the

heater temperature to rise.

WARNING

■

To prevent causes of over-

heating and minor burn inju-

ries

Observe the following precautions

when using a radiant heater

●

Do not use radiant heater more

than necessary.

●

Do not let blankets, cushions,

luggage, etc., to touch the radi-

ant heater. Do not use.

■

Use while driving

Do not touch the radiant heater or

hold your hand or foot over it by

releasing a hand from the handle

or a foot from the pedal.
Doing so may cause the driver to

mishandle the vehicle and cause

an accident, resulting in death or

serious injury.

NOTICE

■

To prevent damage to the

radiant heater

Do not pierce with uneven objects

or sharp objects such as wires or

needles.

415

6-2. Using the interior lights

Interior

featur

6-2.Using the interior lights

Outer foot lights (if equipped)

Inside door handle lights (if equipped)

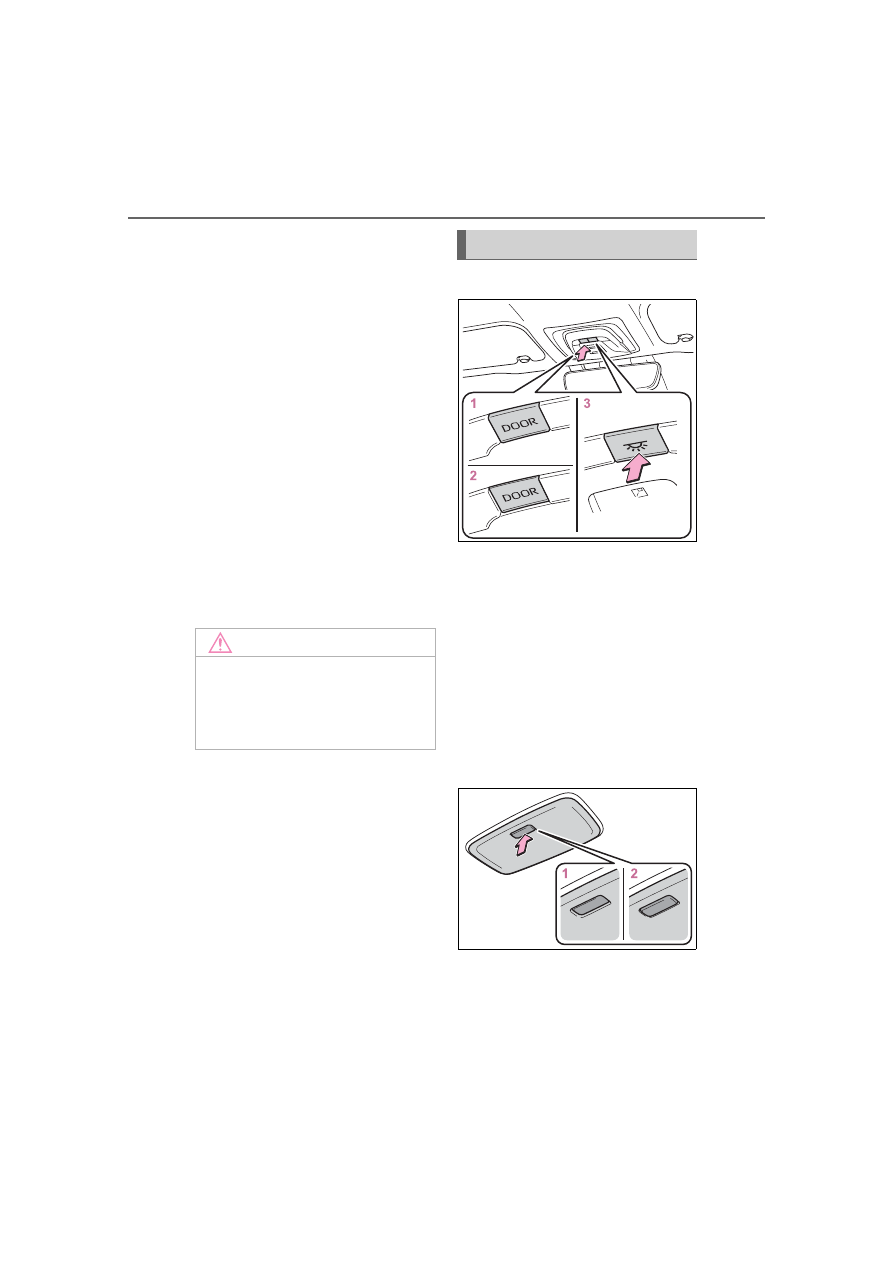

Rear interior light (



P.416)

Footwell lights (if equipped)

Front interior lights/personal lights (



P.416, 417)

Shift lights

Auxiliary box lights (if equipped)/Wireless charger tray lights (if
equipped)

Center console light (if equipped)

Door trim ornament lights (if equipped)

■

Personal lights/interior lights

automatic on/off

●

Illuminated entry system: The

lights automatically turn on/off

according to power switch mode,

the presence of the electronic key,

whether the doors are

locked/unlocked, and whether the

doors are opened/closed.

●

If the interior lights remain on

when the power switch is turned

Interior lights list

Location of the interior lights

416

6-2. Using the interior lights

off, the lights will go off automati-

cally after 20 minutes.

■

The interior lights will turn on

automatically when

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the interior lights will

turn on automatically. The interior

lights will turn off automatically after

approximately 20 minutes.
The interior lights can be turned off

manually. However, in order to help

prevent further collisions, it is rec-

ommended that they be left on until

safety can be ensured.
(The interior lights may not turn on

automatically depending on the

force of the impact and conditions of

the collision.)

■

Customization

Setting (e.g. the time elapsed before

the lights turn off) can be changed.

(Customizable features:



P.575)

■

Front interior lights

Turns the door-linked func-
tion off

Turns the door-linked func-
tion on (door position)

The lights turn on/off according to
the opening/closing of the doors.

Turns the lights on/off

Press the switch to turn on/off the
front interior lights/personal lights
and rear interior lights.

■

Rear interior light

Turns the light on

Turns the door-linked func-
tion on (door position)

The light turns on/off according to

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the lights on longer

than necessary when the EV sys-

tem is off.

Operating interior lights

Toyota bZ4X (2023 year). Manual in english - page 25
