NOTICE

■

To prevent damage to the engine and its components

●

Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (



P. 567)

2. Instrument cluster

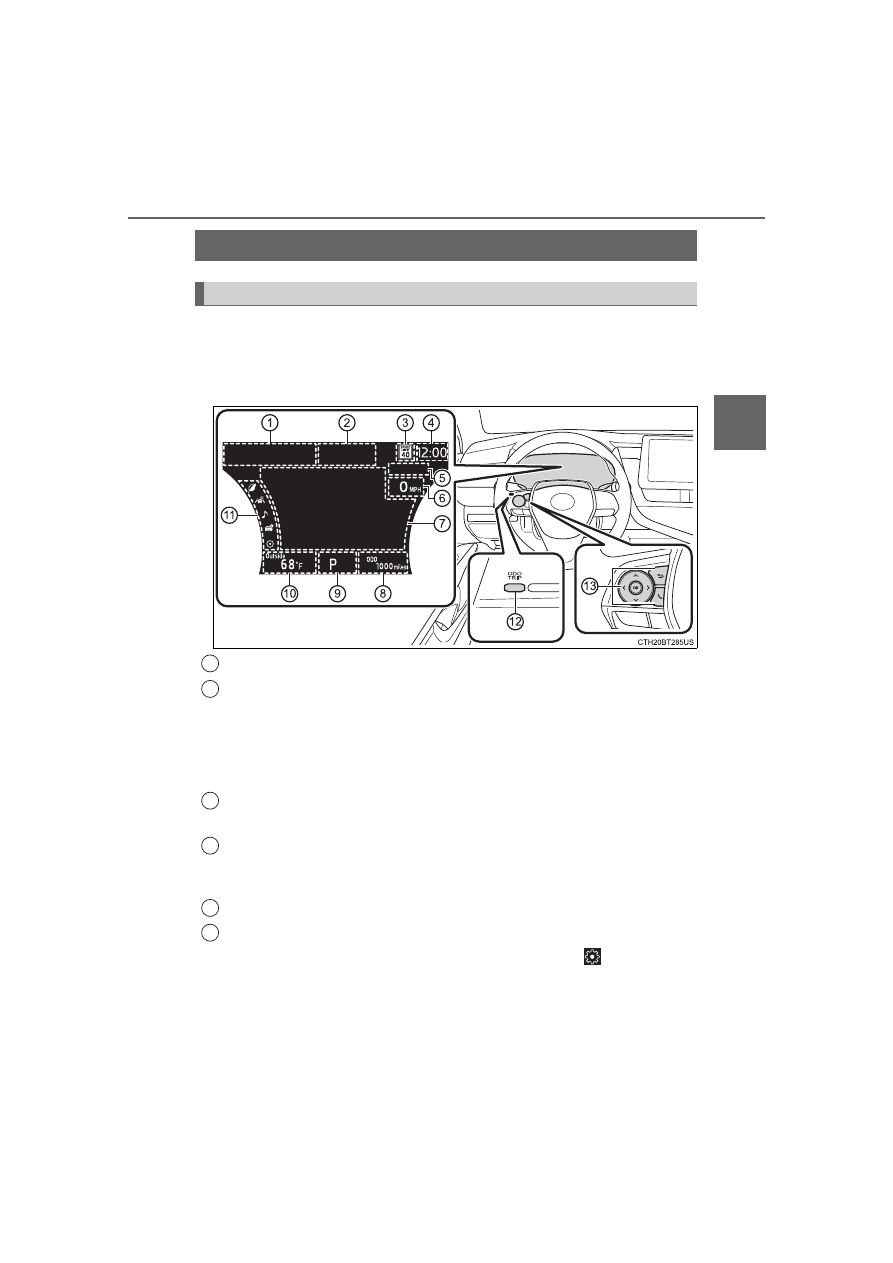

The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display can also be used to change the display settings
and other settings.

Shift position (



P. 217)

Menu icon display area

Displays the following items.
When a menu icon is not selected, the outside temperature and clock are
displayed.

• Menu icons (



P. 100)

• Outside temperature (



P. 94)

• Clock

: For clock settings, refer to “NAVIGATION AND MULTIMEDIA SYSTEM

OWNER’S MANUAL”.

Content display area

A variety of information can be displayed by selecting a menu icon. Addi-
tionally, warning or suggestion/advice pop-up displays will be displayed in
some situations.

• Menu icon content (



P. 100)

• Suggestion function (

• Warning message (

Odometer/trip meter (



P. 108)

Indicators (



P. 88)

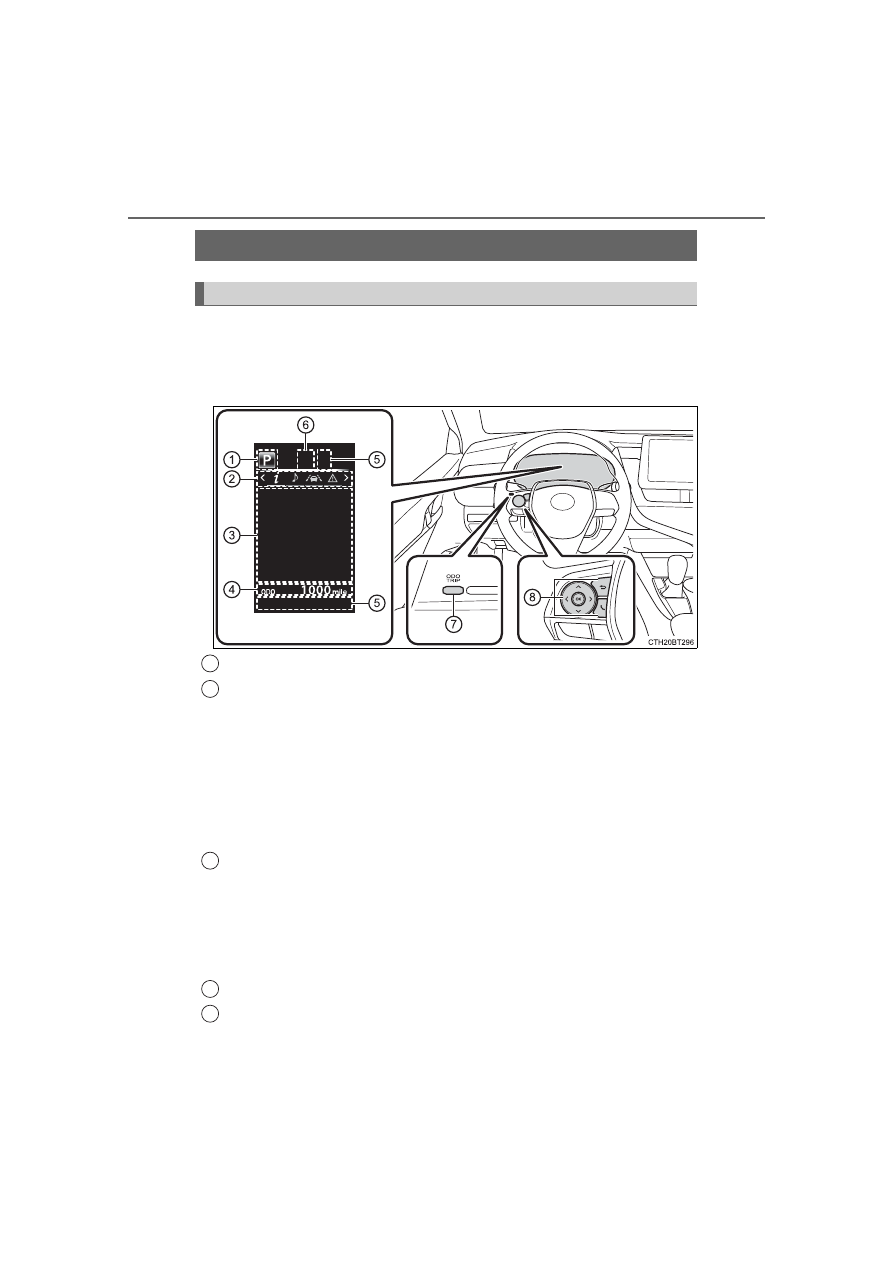

Multi-information display (4.2-inch display)

Summary of functions

2. Instrument cluster

Instru

me
nt clu

ster

RSA (Road Sign Assist) (if equipped) (



P. 285)

“ODO/TRIP” switch (



P. 99)

Meter control switches (



P. 99)

◆

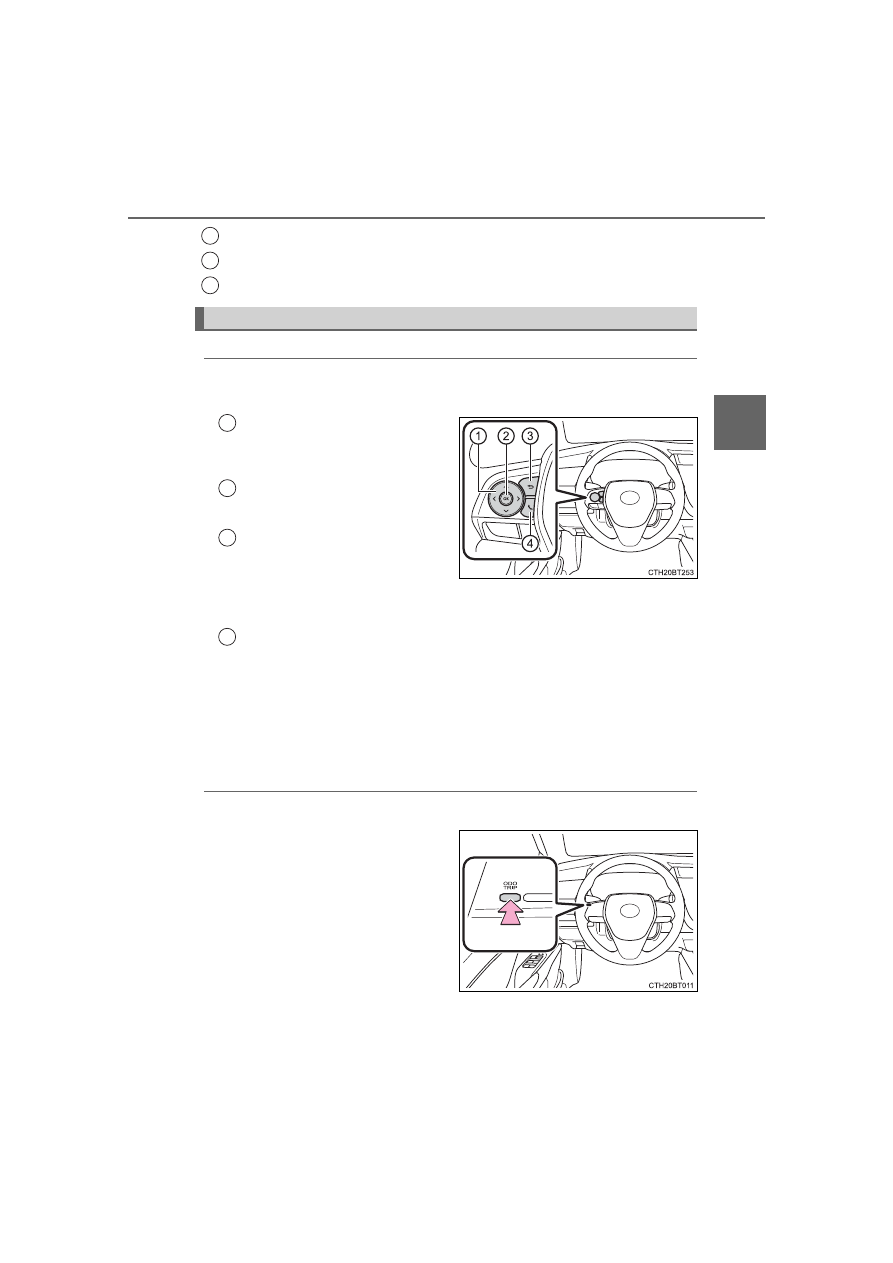

Using the content display area

The content display area is operated using the meter control
switches.

Scroll screens

, change the

displayed content

and move

the cursor
Press: Enter/Set
Press and hold: Reset
Return to the previous
screen

Pressing and holding the switch
will display the first screen of the
selected menu icon.

Call sending/receiving and history display

Linked with the hands-free system, sending or receiving call is dis-
played. For details regarding the hands-free system, refer to “NAVIGA-
TION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

: When the screen can be scrolled or different content can be displayed,

a mark, such as an arrow, will be displayed to suggest which switch to
operate.

◆

Using the odometer/trip meter

Items in this area are operated using the “ODO/TRIP” switch.
Press: Change displayed item

Each time the switch is pressed,
the displayed item will be
changed.

Press and hold: Reset

Display the desired trip meter
and press and hold the switch to
reset the trip meter.

Using the multi-information display

100

2. Instrument cluster

Select a menu icon to display its content.

Drive information (



P. 101)

Select to display various drive data.

Audio system-linked display

Select to enable selection of an audio source or track on the meter
using the meter control switches.

Driving assist system information

Select to display the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (if equipped)

(



P. 290)

• Dynamic radar cruise control (if equipped) (



P. 306)

• LTA (Lane Tracing Assist) (



P. 270)

• RSA (Road Sign Assist) (if equipped) (



P. 285)

Warning message display (



P. 538)

Select to display warning messages and measures to be taken if a mal-
function is detected.

Settings display (



P. 103)

Select to change the meter display settings and other settings.

Menu icons

101

2. Instrument cluster

Instru

me
nt clu

ster

■

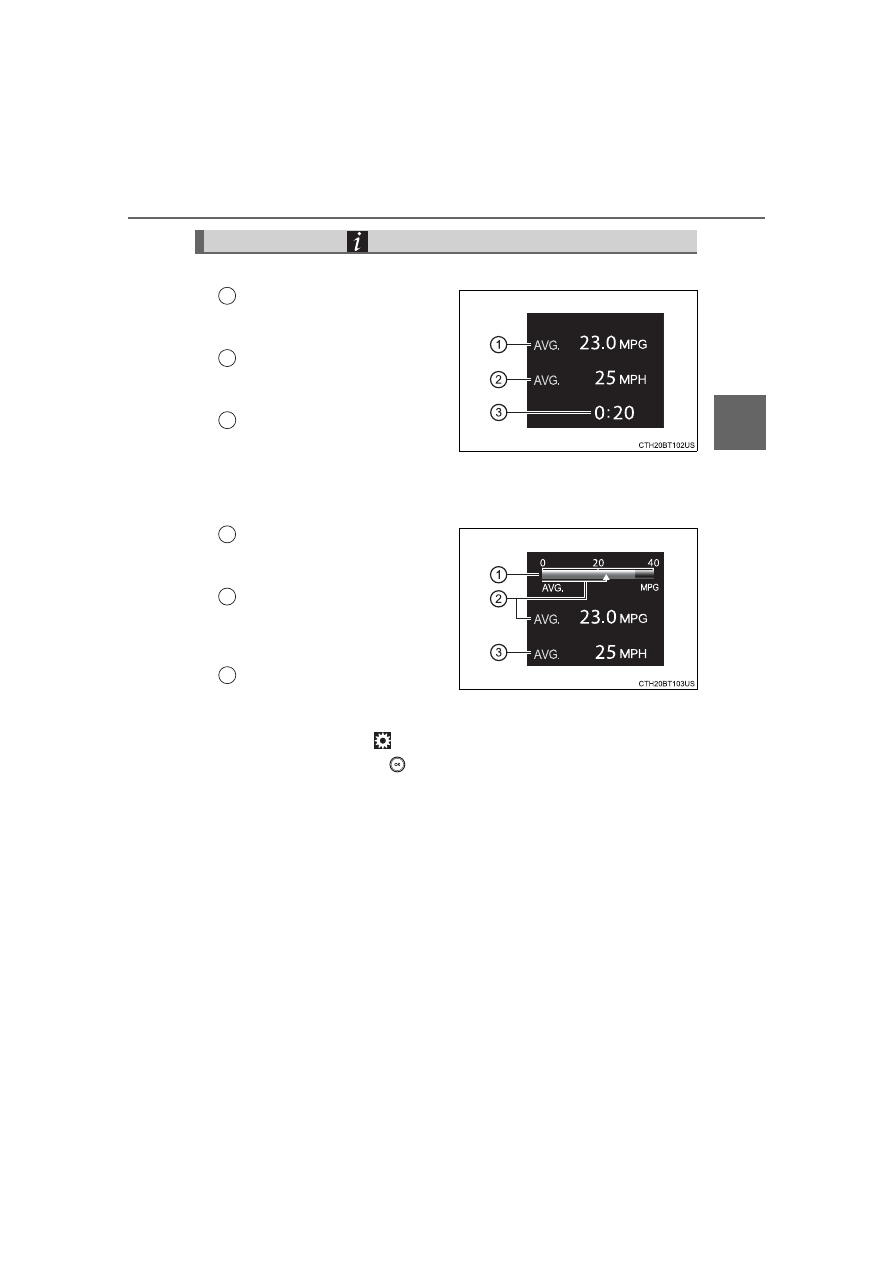

Trip (after start)

Average fuel economy

Displays the average fuel con-
sumption since engine start.

Average vehicle speed

Displays the average vehicle
speed since engine start.

Elapsed time

Displays the time elapsed since
engine start.

: Use the displayed fuel consumption as a reference only.

■

Total (after reset)

Current fuel consumption

Displays the instantaneous cur-
rent fuel consumption.

Average fuel economy

1, 2

Displays the average fuel con-
sumption since the display was
reset.

Average

vehicle

speed/

Elapsed time

Displays the average vehicle speed since reset or elapsed time since
reset, as selected in

. (



P. 103)

: Pressing and holding

will reset the average fuel consumption and

average vehicle speed/elapsed time.

: Use the displayed fuel consumption as a reference only.

Drive information (

)

102

2. Instrument cluster

■

Tank (after refuel)

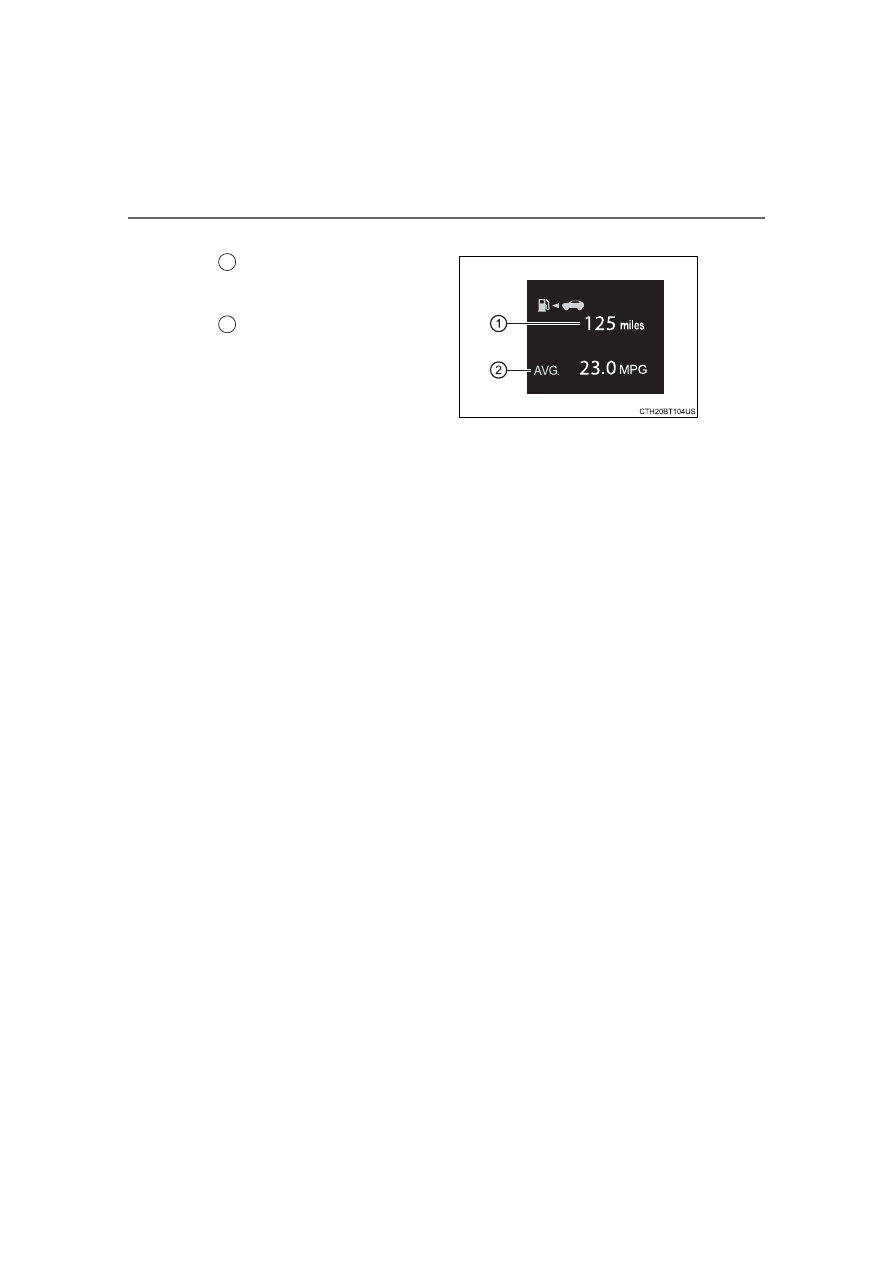

Driving range

1, 2

Displays the driving range with
remaining fuel.

Average fuel economy

1, 3

Displays the average fuel con-
sumption since the vehicle was
refueled.

: When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.

: This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-
played.

: Use the displayed fuel consumption as a reference only.

■

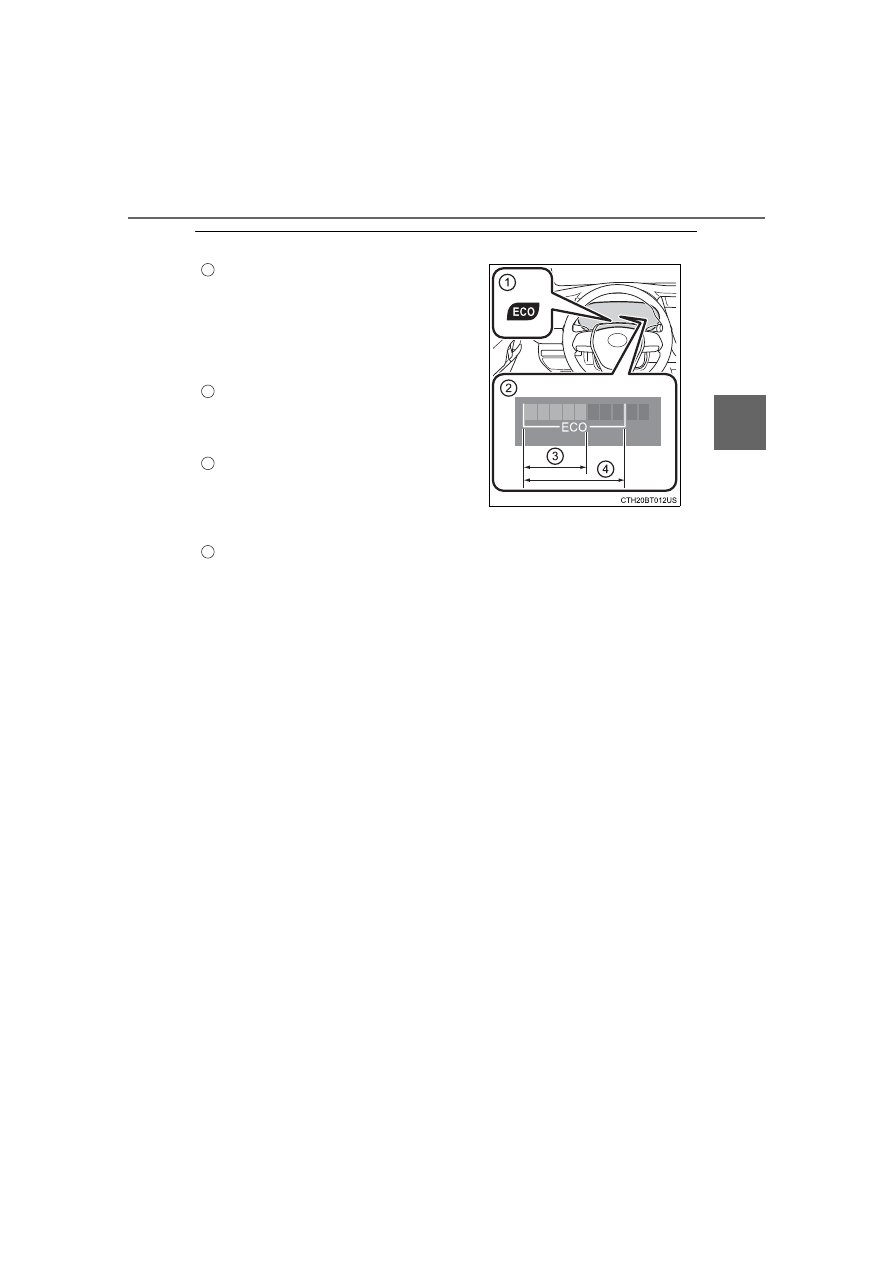

Eco Driving Indicator



P. 109

■

Speedometer

Displays the vehicle speed.

■

Tire pressure (vehicles with a tire inflation pressure display
function)



P. 474

■

Blank (No items)

Displays no drive information contents.

103

2. Instrument cluster

Instru

me
nt clu

ster

◆

Changing settings

Use the meter control switches on the steering wheel to change
settings.

Press

to select

Operate the switches to select a desired item.
Change the setting by referring to the message displayed on the
screen.

◆

Setting items

■

LTA (Lane Tracing Assist) (



P. 270)

The following LTA system settings can be changed:

Settings display (

)

Item

Settings

Details

Lane center

Select to enable/disable the lane
centering function.

Off

Alert sensitivity

High

Select to set the warning sensi-
tivity.

Std.

Sway warning

Select to enable/disable the vehi-
cle sway warning.

Off

Sway sensitivity

High

Select to set the vehicle sway
warning sensitivity.

Std.

Low

104

2. Instrument cluster

■

PCS (Pre-Collision System) (



P. 254)

The following pre-collision system settings can be changed:

■

DRCC (Dynamic Radar Cruise Control) (



P. 290, 306)

■

BSM (Blind Spot Monitor) function (if equipped) (



P. 330)

■

RCTA (Rear Cross Traffic Alert) function (if equipped)
(



P. 345)

■

RCD (Rear Camera Detection) function (if equipped) (



P. 354)

Item

Settings

Details

PCS

Select to enable/disable the pre-
collision system.

Off

Warning sensitivity

Early

Select to change the warning
timing.

Middle

Late

Item

Settings

Details

Curve

speed

reduction

Strong

Select to change the vehicle
speed reduction strength.

Weak

Off

Item

Settings

Details

BSM

Select to enable/disable the
Blind Spot Monitor function.

Off

Item

Settings

Details

RCTA

Select to enable/disable the Rear
Cross Traffic Alert function.

Off

Item

Settings

Details

RCD

Select to enable/disable the rear
camera detection.

Off

105

2. Instrument cluster

Instru

me
nt clu

ster

■

RSA (Road Sign Assist) (if equipped) (



P. 285)

The following RSA settings can be changed:

Item

Settings

Details

RSA

Select to enable/disable the
RSA.

Off

Notification method

Excess

speed

notification

Select a notification method used
to warn the driver if the vehicle
speed exceeds the speed dis-
played on the speed limit sign on
the multi-information display.
Available methods:
• No notification
• Display only
• Display and buzzer

Other notifications

Select a notification method used
to  warn  the  driver  if  the  system
detects  the  vehicle  approaching
to  the  no-entry  road  when  a  do
not enter sign is displayed on the
multi-information display.
Available methods:
• No notification
• Display only
• Display and buzzer

Excess speed noti-
fication level

5 mph (10 km/h)

Select  a  speed  threshold  over
which the excess speed notifica-
tion  will  start  to  operate  when  a
speed  limit  sign  is  displayed  on
the multi-information display.

3 mph (5 km/h)

1 mph (2 km/h)

106

2. Instrument cluster

■

Vehicle settings

Item

Settings

Details

BSM (Blind Spot Monitor) (if equipped) (



P. 330)

Outside rear view
mirror

indicator

brightness

Bright

Select to change the brightness
of the outside rear view mirror
indicators.

Dim

Notification  timing
for  presence  of
approaching  vehi-
cle (sensitivity)

Early

Select to change the notification
timing for an approaching vehi-
cle.

Middle

Late

Only when vehicle
detected in blind
spot

RCTA (Rear Cross Traffic Alert) (if equipped) (



P. 345)

RCTA buzzer vol-
ume

1 (Low)

Select to change the volume of
the RCTA buzzer.

2 (Medium)

3 (Loud)

TPWS (Tire pressure warning system) (



P. 474)

Set pressure (tire pressure warning sys-
tem initialization)

Select to initialize the tire pres-
sure warning system. To per-
form initialization, press and hold
the

switch.

Before performing initialization,
make sure to adjust the inflation
pressure of each tire to the spec-
ified level. (



P. 475)

Change  wheel  (change  the  tire  pres-
sure  warning  system  sensor  ID  code
set)
(vehicles  without  a  tire  inflation  pres-
sure display function)

Select  to  change  the  tire  pres-
sure  warning  system  sensor  ID
code set.
To enable this function, a second
set of tire pressure warning sys-
tem  sensor  ID  codes  must  be
registered  by  a  Toyota  dealer.
For information regarding chang-
ing  the  registered  ID  code  set,
contact your Toyota dealer.
(



P. 477)

107

2. Instrument cluster

Instru

me
nt clu

ster

■

Meter settings

Change wheel (register tire pressure
warning system sensor ID codes)
(vehicles with a tire inflation pressure
display function)

Select to register the ID codes of
the tire pressure sensors to the
tire pressure warning system.
To register the ID codes, press
and hold the

switch.

(



P. 477)

Rear seat reminder
(



P. 154)

Select to enable/disable the rear
seat reminder.

Off

Scheduled maintenance display (if equipped)

Maintenance data reset

Select to reset the message indi-
cating maintenance is required,
after the required maintenance is
performed. (



P. 448)

Item

Settings

Details

Item

Settings

Details

Language

Select to change the language
displayed.

Units

Select to change the units of
measure displayed.

(Eco Driving

Indicator Light)

Select to enable/disable the Eco
Driving Indicator Light. (



P. 109)

Off

Drive information
(total [after reset])

Average vehicle
speed

Select to change the display
between average speed/elapsed
time.

Elapsed time

Pop-up display

Incoming calls

Select to enable/disable the pop-
up display.

Brightness adjust-
ment

Default setting

Select to reset the meter display
settings to the default setting.

108

2. Instrument cluster

■

Odometer

Displays the total distance the vehicle has been driven.

■

Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.

To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.

Displays suggestions to the driver in the following situations. To select
a response to a displayed suggestion, use the meter control switches.

The suggestion function can be turned on/off.
(Customizable features:



P. 606)

■

Suggestion to turn off the headlights

If the headlights are left on for a certain amount of time after the
engine switch has been turned off, if the headlight switch is in the
“AUTO” position, a suggestion message will be displayed asking if
you wish to turn the headlights off. To turn the headlights off, select
“Yes”.

If a front door is opened after the engine switch is turned off, this sug-
gestion message will not be displayed.

Odometer/trip meter

Suggestion function

109

2. Instrument cluster

Instru

me
nt clu

ster

■

Eco Driving Indicator

Eco Driving Indicator will not operate under the following conditions:

●

The shift lever is in any position other than D.

●

A paddle shift switch (if equipped) is operated.

●

The vehicle speed is approximately 80 mph (130 km/h) or higher.

■

Suspension of the settings display

●

Some settings cannot be changed while driving. When changing settings,
park the vehicle in a safe place.

●

If a warning message is displayed, operation of the settings display will be
suspended.

■

Tire pressure (vehicles with a tire inflation pressure display function)

●

It may take a few minutes to display the tire inflation pressure after the
engine switch is turned to the “ON” position (vehicles without a smart key
system) or IGNITION ON mode (vehicles with a smart key system). It may
also take a few minutes to display the tire inflation pressure after inflation
pressure has been adjusted.

●

“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.

■

Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Customization

Some functions can be customized. (



P. 103, 606)

Eco Driving Indicator Light
During  Eco-friendly  acceleration  (Eco
driving), the Eco Driving Indicator Light
will  turn  on.  When  the  acceleration
exceeds  the  Zone  of  Eco  driving,  or
when  the  vehicle  is  stopped,  the  light
turns off.
Eco Driving Indicator Zone Display
Suggests  the  Zone  of  Eco  driving  with
current  Eco  driving  ratio  based  on
acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of
Eco  driving,  the  right  side  of  the  Eco
Driving  Indicator  Zone  Display  will  illu-
minate.
Zone of Eco driving

110

2. Instrument cluster

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.

■

Cautions during setting up the display

As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.

NOTICE

■

While setting up the display

To prevent battery discharge, ensure that the engine is running while setting
up the display features.

111

2. Instrument cluster

Instru

me
nt clu

ster

Indicators (



P. 91)

Driving assist system status display area

Displays the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (if equipped)

(



P. 290)

• Dynamic radar cruise control (if equipped) (



P. 306)

• LTA (Lane Tracing Assist) (



P. 270)

Speed limit display (vehicles with a navigation system)
(U.S.A. only) /RSA (Road Sign Assist) (if equipped) (



P. 285)

Clock

For clock settings, refer to “NAVIGATION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

RSA (Road Sign Assist) (if equipped) (



P. 285)

Speedometer

The speedometer display can be enabled/disabled in

on the multi-

information display. (



P. 117)

Multi-information display (7-inch display)

Summary of functions

112

2. Instrument cluster

Content display area

A variety of information can be displayed by selecting a menu icon. Addi-
tionally, warning or suggestion/advice pop-up displays will be displayed in
some situations.

• Menu icon content (



P. 114)

• Suggestion function (

• Warning message (

Odometer/trip meter (



P. 125)
