8-1. Specifications

Chassis lubrication

Propeller shafts

Spider

Lithium base chassis grease, NLGI No.2

Slide yoke

Molybdenum-disulfide lithium base chas-
sis grease, NLGI No.2 or lithium base
chassis grease, NLGI No.2

Steering

Free play

Less than 1.2 in. (30 mm)

Power steering fluid type

Automatic transmission fluid DEXRON

or III

Tires and wheels

Tire size

P265/70R17 113S, P245/60R20 107H

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Front:

32 psi (220 kPa, 2.2 kgf/cm

or bar)

Rear:

32 psi (220 kPa, 2.2 kgf/cm

or bar)

Spare:

32 psi (220 kPa, 2.2 kgf/cm

or bar)

Wheel size



7J, 17



7 1/2J, 20



Wheel nut torque

Steel wheels:

83 ft•lbf (112 N•m, 11.4 kgf•m)

Aluminum wheels:

76 ft•lbf (103 N•m, 10.5 kgf•m)

533

8-1. Specifications

Vehi

e specificatio

Light bulbs

Light bulbs

Bulb No.

Type

Exterior

Headlight

high

beam

(if

equipped) /daytime running
lights

9005

Front turn signal and parking
lights

7444NA

28/8

Front side marker lights



Rear turn signal lights



Back-up lights



License plate lights



Interior

Front personal/ front interior
lights



Rear interior light



Vanity lights



Door courtesy lights

168

Luggage compartment lights



A: HB3 halogen bulbs

B: Wedge base bulbs (clear)

C: Wedge base bulbs (amber)

D: Double end bulbs

534

8-1. Specifications

■

Gasoline quality

In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.

Fuel information

You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.

At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..

535

8-1. Specifications

Vehi

e specificatio

■

Recommendation of the use of gasoline containing detergent additives

●

Toyota recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA's lowest additives concen-
tration program.

●

Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.

■

Recommendation of the use of low emissions gasoline

Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.

■

Non-recommendation of the use of blended gasoline

●

If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.

●

Toyota does not recommend the use of gasoline containing methanol.

●

Use only gasoline containing up to 15%
ethanol.
DO  NOT  use  any  flex-fuel  or  gasoline
that could contain more than 15% etha-
nol,  including  from  any  pump  labeled
E30,  E50,  E85  (which  are  only  some
examples  of  fuel  containing  more  than
15% ethanol).

DO NOT use gasoline
containing more than
15% ethanol.

(30% ethanol)

(50% ethanol)

(85% ethanol)

536

8-1. Specifications

■

Non-recommendation of the use of gasoline containing MMT

Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper fuels are used, the engine will be
damaged.

●

Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.

●

Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.

●

Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.

■

Fuel-related poor driveability

If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It can damage your vehicle’s paint.

537

8-1. Specifications

Vehi

e specificatio

Tire size

(



P. 539)

Summer tires or all season tires

(



P. 434)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S”
is a summer tire.

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

DOT and Tire Identification Number (TIN)

(



P. 538)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

Location of treadwear indicators

(



P. 427)

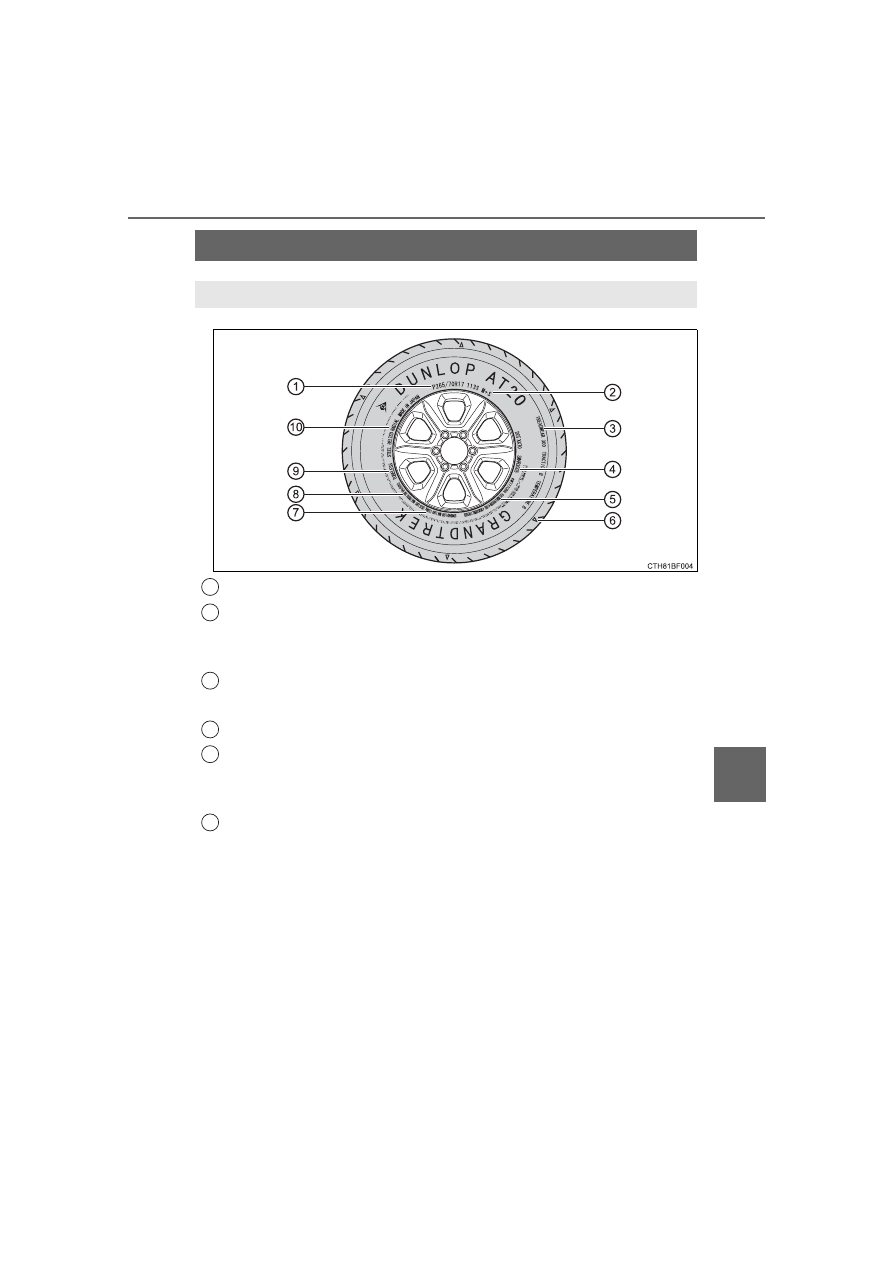

Tire information

Typical tire symbols

538

8-1. Specifications

Load limit at maximum cold tire inflation pressure

(



P. 543)

Maximum cold tire inflation pressure

(



P. 543)

This means the pressure to which a tire may be inflated.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire.
A tube type tire has a tube inside the tire and the tube maintains the air
pressure.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL”
is a bias-ply tire.

DOT symbol

Tire Identification Number (TIN)
Tire manufacturer's identification mark
Tire size code
Manufacturer's optional tire type code (3 or 4 letters)
Manufacturing week
Manufacturing year
Manufacturer's code

: The DOT symbol certifies that the tire conforms to applicable Federal

Motor Vehicle Safety Standards.

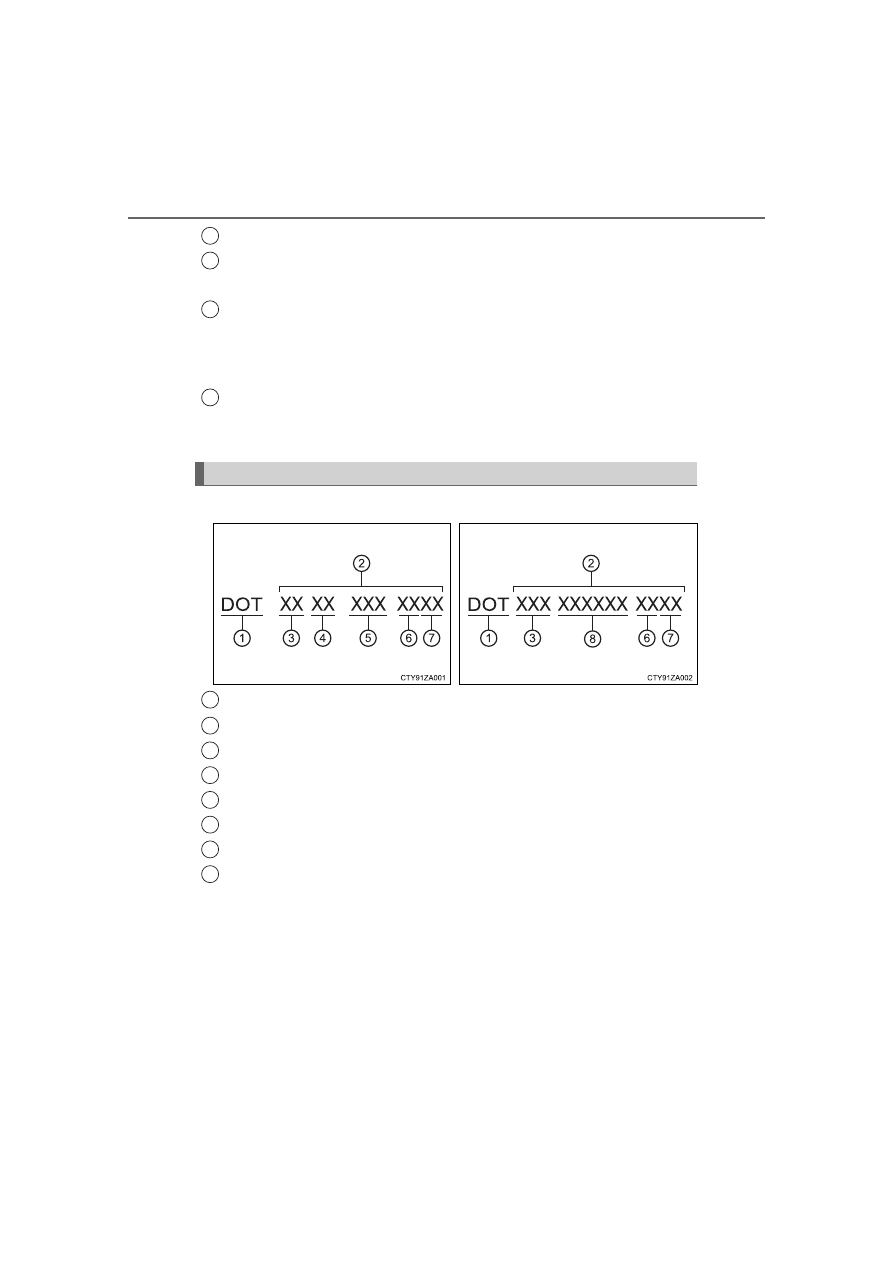

Typical DOT and Tire Identification Number (TIN)



Type A



Type B

539

8-1. Specifications

Vehi

e specificatio

■

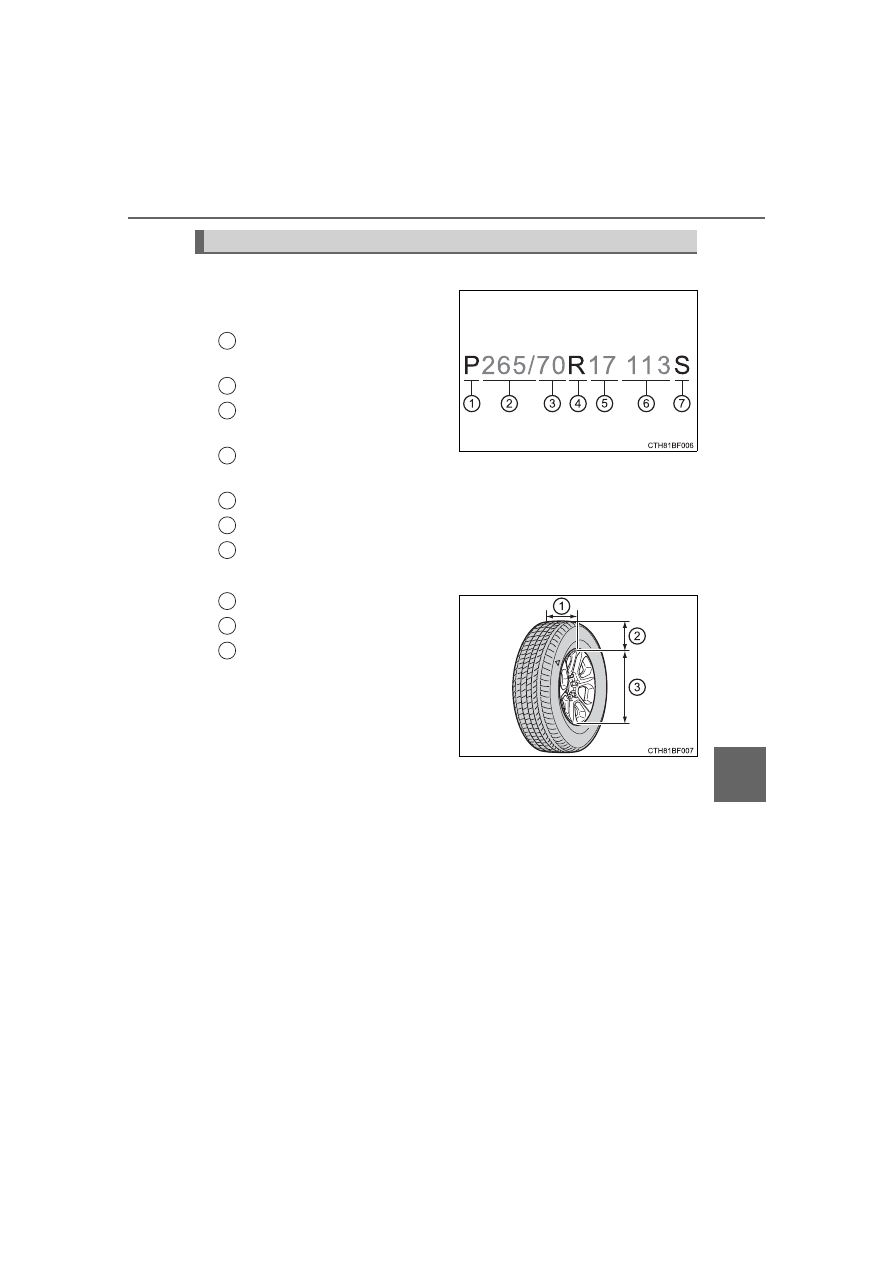

Typical tire size information

The illustration indicates typical
tire size.

Tire use (P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol (alphabet with one letter)

■

Tire dimensions

Section width
Tire height
Wheel diameter

Tire size

540

8-1. Specifications

Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer

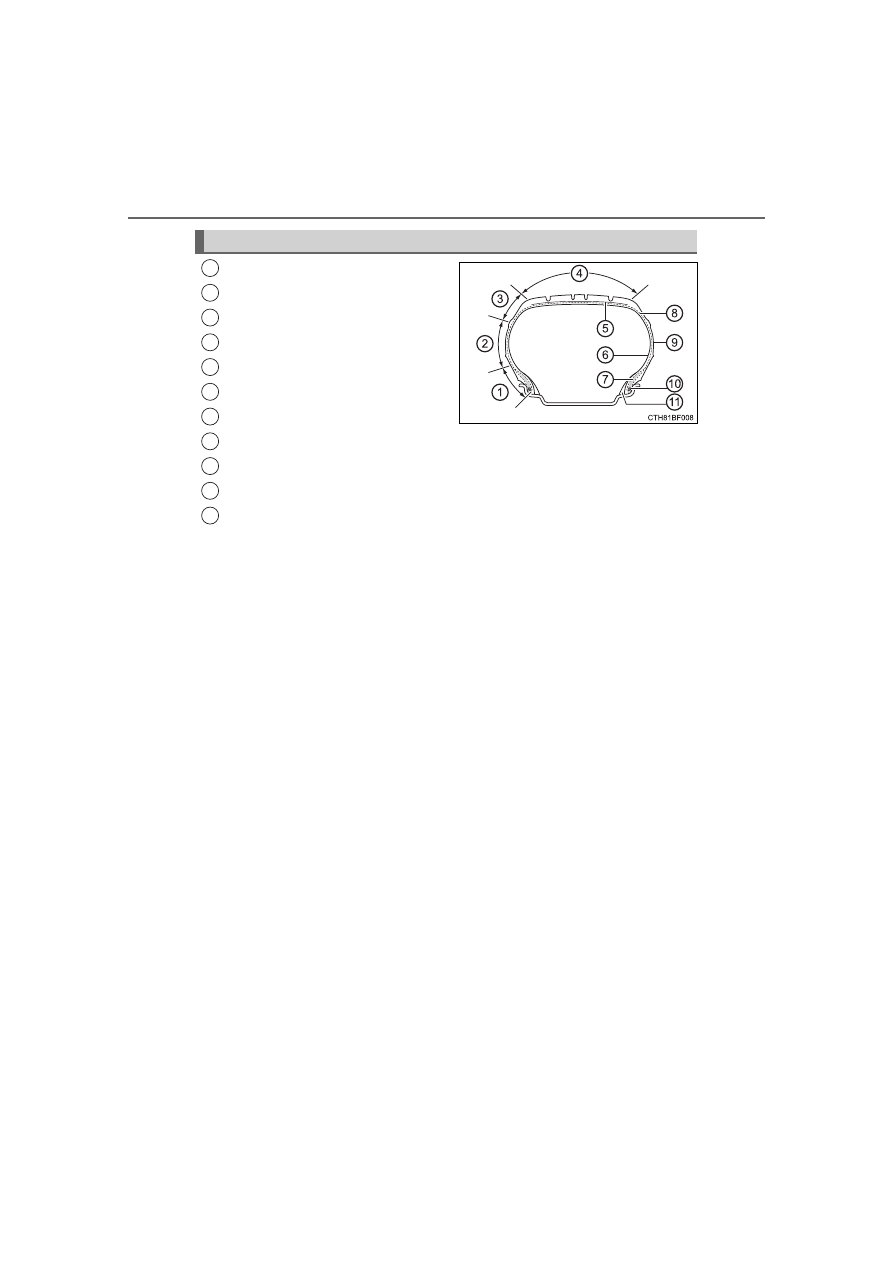

Tire section names

541

8-1. Specifications

Vehi

e specificatio

This  information  has  been  prepared  in  accordance  with  regulations
issued  by  the  National  Highway  Traffic  Safety Administration  of  the
U.S. Department of Transportation.
It  provides  the  purchasers  and/or  prospective  purchasers  of  Toyota
vehicles with information on uniform tire quality grading.

Your Toyota dealer will help answer any questions you may have as
you read this information.

■

DOT quality grades

All passenger vehicle tires must conform to Federal Safety Require-
ments in addition to these grades. Quality grades can be found
where applicable on the tire sidewall between tread shoulder and
maximum section width.

For example: Treadwear 200 Traction AA Temperature A

■

Treadwear

The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.

For example, a tire graded 150 would wear one and a half (1 - 1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual condi-
tions of their use. Performance may differ significantly from the norm
due to variations in driving habits, service practices and differences
in road characteristics and climate.

■

Traction AA, A, B, C

The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ability to stop on wet pavement as
measured under controlled conditions on specified government test
surfaces of asphalt and concrete.

A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turn-
ing) traction.

Uniform Tire Quality Grading

542

8-1. Specifications

■

Temperature A, B, C

The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the generation of heat and its ability to dissi-
pate heat when tested under controlled conditions on a specified
indoor laboratory test wheel.

Sustained  high  temperature  can  cause  the  material  of  the  tire  to
degenerate and reduce tire life, and excessive temperature can lead
to sudden tire failure.
Grade C corresponds to a level of performance which all passenger
car  tires  must  meet  under  the  Federal  Motor  Vehicle  Safety  Stan-
dard No. 109.
Grades B and A represent higher levels of performance on the labo-
ratory test wheel than the minimum required by law.
Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately  or  in  combination,  can  cause  heat  buildup  and  possible  tire
failure.

543

8-1. Specifications

Vehi

e specificatio

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation pres-
sure

Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition

Maximum

inflation

pressure

The maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire

Recommended infla-
tion pressure

Cold tire inflation pressure recommended by a
manufacturer

Accessory weight

The combined weight (in excess of those stan-
dard  items  which  may  be  replaced)  of  auto-
matic  transmission,  power  steering,  power
brakes,  power  windows,  power  seats,  radio
and heater, to the extent that these items are
available  as  factory-installed  equipment
(whether installed or not)

Curb weight

The  weight  of  a  motor  vehicle  with  standard
equipment, including the maximum capacity of
fuel,  oil  and  coolant,  and  if  so  equipped,  air
conditioning  and  additional  weight  optional
engine

Maximum loaded vehi-
cle weight

The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

Normal

occupant

weight

150 lb. (68 kg) times the number of occupants

specified in the second column of Table 1

that follows

Occupant distribution

Distribution of occupants in a vehicle as speci-

fied in the third column of Table 1

below

544

8-1. Specifications

Production

options

weight

The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess  of  the  standard  items  which  they
replace,  not  previously  considered  in  curb
weight  or  accessory  weight,  including  heavy
duty  brakes,  ride  levelers,  roof  rack,  heavy
duty battery, and special trim

Rim

A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated

Rim diameter
(Wheel diameter)

Nominal diameter of the bead seat

Rim size designation

Rim diameter and width

Rim type designation

The industry manufacturer’s designation for a
rim by style or code

Rim width

Nominal distance between rim flanges

Vehicle

capacity

weight

(Total

load

capacity)

The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity

Vehicle maximum load
on the tire

The load on an individual tire that is deter-
mined by distributing to each axle its share of
the maximum loaded vehicle weight, and
dividing by two

Vehicle normal load on
the tire

The load on an individual tire that is deter-

mined by distributing to each axle its share of

curb weight, accessory weight, and normal

occupant weight (distributed in accordance

with Table 1

below), and dividing by two

Weather side

The surface area of the rim not covered by the
inflated tire

Bead

The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim

Bead separation

A breakdown of the bond between compo-
nents in the bead

Tire related term

Meaning

545

8-1. Specifications

Vehi

e specificatio

Bias ply tire

A  pneumatic  tire  in  which  the  ply  cords  that
extend  to  the  beads  are  laid  at  alternate
angles  substantially  less  than  90  degrees  to
the centerline of the tread

Carcass

The tire structure, except tread and sidewall
rubber which, when inflated, bears the load

Chunking

The breaking away of pieces of the tread or
sidewall

Cord

The strands forming the plies in the tire

Cord separation

The parting of cords from adjacent rubber
compounds

Cracking

Any parting within the tread, sidewall, or inner-
liner of the tire extending to cord material

A  pneumatic  tire  with  an  inverted  flange  tire
and  rim  system  in  which  the  rim  is  designed
with  rim  flanges  pointed  radially  inward  and
the  tire  is  designed  to  fit  on  the  underside  of
the  rim  in  a  manner  that  encloses  the  rim
flanges inside the air cavity of the tire

Extra load tire

A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire

Groove

The space between two adjacent tread ribs

Innerliner

The layer(s) forming the inside surface of a
tubeless tire that contains the inflating medium
within the tire

Innerliner separation

The parting of the innerliner from cord material
in the carcass

Intended

outboard

sidewall

(a) The sidewall that contains a whitewall,

bears  white  lettering,  or  bears  manufac-
turer,  brand,  and/or  model  name  molding
that  is  higher  or  deeper  than  the  same
molding on the other sidewall of the tire, or

(b) The outward facing sidewall of an asym-

metrical tire that has a particular side that
must always face outward when mounted
on a vehicle

Tire related term

Meaning

546

8-1. Specifications

Light truck (LT) tire

A tire designated by its manufacturer as pri-
marily intended for use on lightweight trucks
or multipurpose passenger vehicles

Load rating

The maximum load that a tire is rated to carry
for a given inflation pressure

Maximum load rating

The load rating for a tire at the maximum per-
missible inflation pressure for that tire

Maximum permissible
inflation pressure

The maximum cold inflation pressure to which
a tire may be inflated

Measuring rim

The rim on which a tire is fitted for physical
dimension requirements

Open splice

Any parting at any junction of tread, sidewall,
or innerliner that extends to cord material

Outer diameter

The overall diameter of an inflated new tire

Overall width

The linear distance between the exteriors of
the sidewalls of an inflated tire, including ele-
vations due to labeling, decorations, or protec-
tive bands or ribs

Passenger car tire

A tire intended for use on passenger cars,
multipurpose passenger vehicles, and trucks,
that have a gross vehicle weight rating
(GVWR) of 10,000 lb. or less.

Ply

A layer of rubber-coated parallel cords

Ply separation

A parting of rubber compound between adja-
cent plies

Pneumatic tire

A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid
that sustains the load

Radial ply tire

A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread

Reinforced tire

A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire

Tire related term

Meaning

547

8-1. Specifications

Vehi

e specificatio

Table 1



Occupant loading and distribution for vehicle normal load for

various designated seating capacities

Section width

The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands

Sidewall

That portion of a tire between the tread and
bead

Sidewall separation

The parting of the rubber compound from the
cord material in the sidewall

Snow tire

A tire that attains a traction index equal to or
greater  than  110,  compared  to  the ASTM  E-
1136  Standard  Reference  Test  Tire,  when
using  the  snow  traction  test  as  described  in
ASTM  F-1805-00,  Standard  Test  Method  for
Single  Wheel  Driving  Traction  in  a  Straight
Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol (

)

on at least one sidewall

Test rim

The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire

Tread

That portion of a tire that comes into contact
with the road

Tread rib

A tread section running circumferentially
around a tire

Tread separation

Pulling away of the tread from the tire carcass

Treadwear indicators
(TWI)

The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread

Wheel-holding fixture

The fixture used to hold the wheel and tire
assembly securely during testing

Tire related term

Meaning

Toyota 4Runner (2023 year). Manual in english - page 33
