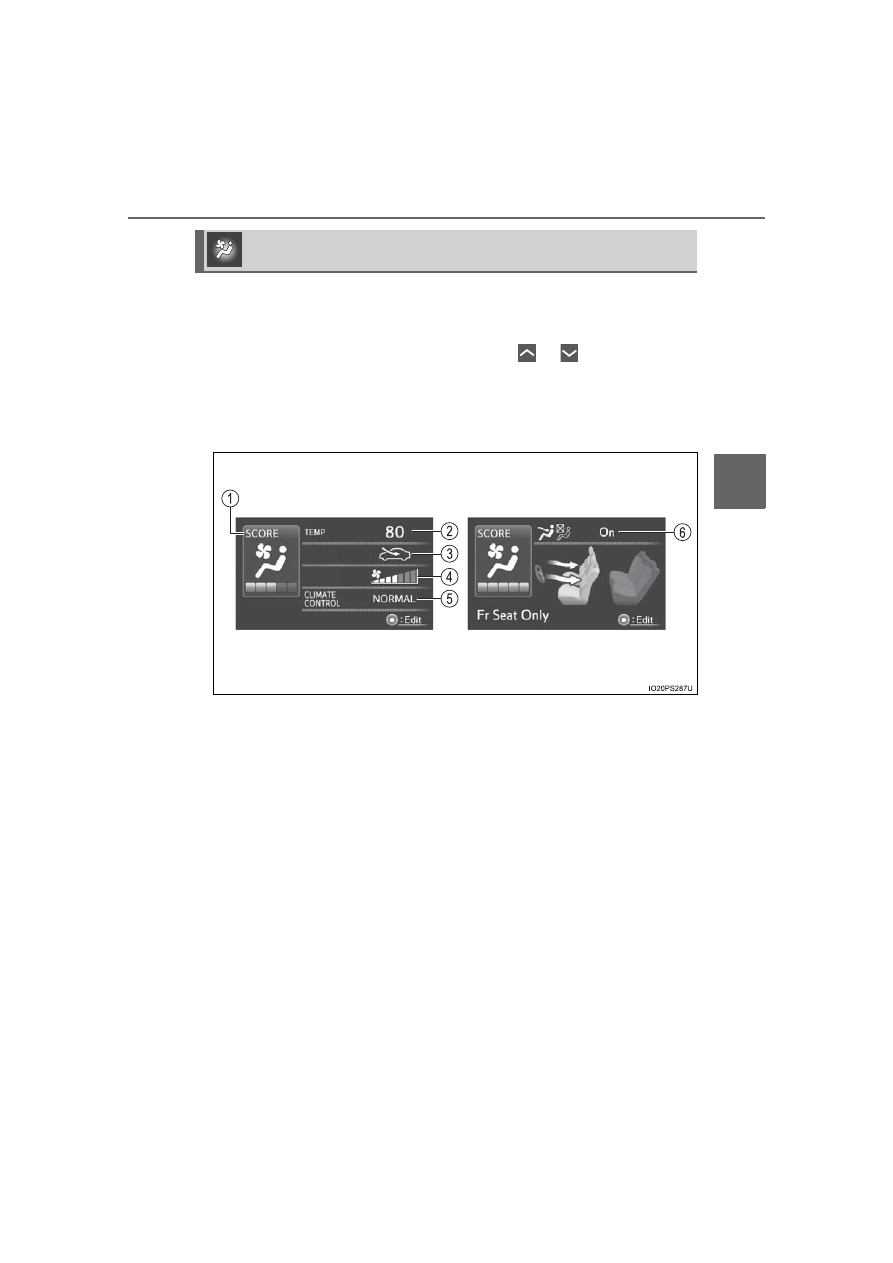

: “LO” is displayed if the temperature is adjusted to the lowest setting, and

“HI” is displayed if the temperature is adjusted to the highest setting.

: The selectable modes differ depending on whether a passenger is present.

(

P. 510, 522)

■

Adjusting the settings

Press

to display the cursor.

Press

of the meter control switches to select the

desired item to set.

Press

of the meter control switches to select the set-

ting item or setting value.

The air conditioning system cannot be stopped by performing opera-
tions on the air conditioning settings screen. Please use the air condi-
tioning switch or navigation system

to stop the air conditioning system.

: Vehicles with 11.6-inch display only

Item

Settings

Eco score
(A/C score)

P. 243

Temperature
setting

Changes according to operation of the meter control

switches

Outside air and
recirculated air
modes

(Outside air mode)

(Recirculated air mode)

Fan speed

1 to 7

“CLIMATE
CONTROL”

“NORMAL”

“ECO”

Front seat
concentrated
airflow

mode

(S-FLOW)

“On (Driver

Priority)”

“On (Fr Seat

Only)”

“Off (All seat)”

243

Instrument clus

■

Eco score (A/C score)

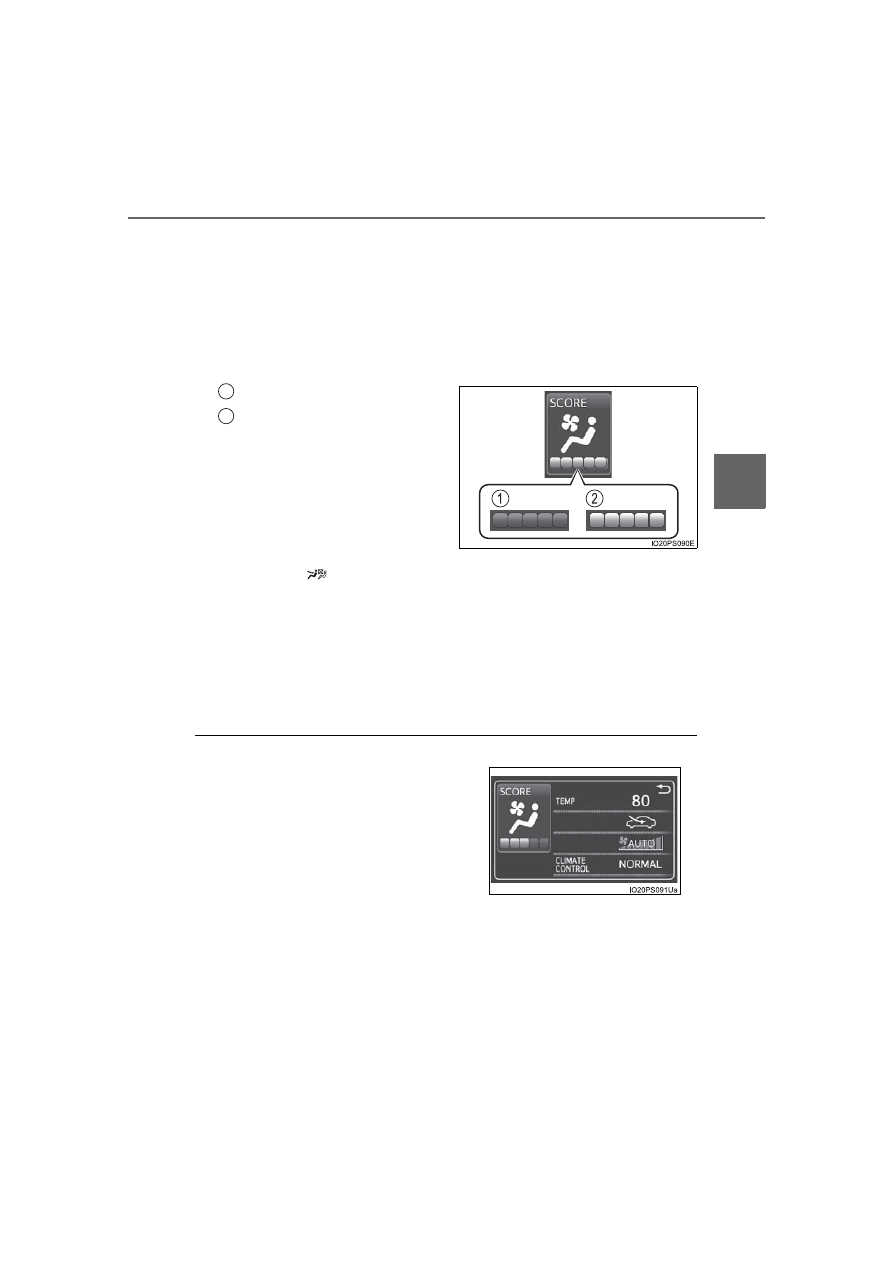

The current air conditioning system usage status is evaluated in 5
levels to determine whether it is Eco-friendly.
The evaluation changes according to the air conditioning system
usage status. When the power switch is turned off, the current total
driving score

and advice

related to using the air conditioning

system are displayed. (



P. 196)

Low score

High score

Avoiding  excessive  use  of  the
air  conditioning  system  and
using  the  air  conditioning  sys-
tem  at  the  appropriate  setting
according  to  the  ambient  tem-
perature and number of passen-
gers  and  with  the  front  seat
concentrated  airflow  mode  (S-
FLOW)  (

) and “CLIMATE

CONTROL” will result in a high
evaluation.

: The Eco score (A/C score) is not evaluated for approximately 1 minute

after the power switch is turned to ON mode.

: This advice may not be displayed depending on the situation.

: For items not evaluated with an Eco score (A/C score), the display

■

Operating switches of the air conditioning system operation panel

●

The pop-up display function that displays when the air conditioning settings
are changed using the air conditioning system switches can be turned off in
the “Meter Customize” settings. (



P. 248)

1
2

●

When  the  air  conditioning  system
switches are operated to change the air
conditioning  settings  while  a  screen
other  than  the  air  conditioning  system
settings screen is displayed on the multi-
information display, a pop-up display for
the  air  conditioning  settings  contents  is
displayed.  However,  air  conditioning
system  settings  cannot  be  changed  on
the pop-up display.

244

■

Eco score (A/C score)

●

The setting status of the following air conditioning system functions are
reflected in the score.
• Temperature setting
• Fan speed setting
• Outside air and recirculated air modes
• “A/C” button
• Front seat concentrated airflow mode (S-FLOW)
• “CLIMATE CONTROL”

●

The Eco score (A/C score) is evaluated according to the ambient tempera-
ture and cabin temperature. Accordingly, even if the same settings are
always used for the air conditioning system, the evaluation will change
according to such factors as the season and weather.

●

When the air conditioning system is not being used or the airflow mode is
set to

, the Eco score (A/C score) is not evaluated. (While the

air conditioning system is not evaluated, its usage status is not reflected in
the total Eco score result.)

●

The Eco score (A/C score) is a function that helps select an air conditioning
system setting which reduces electricity and fuel consumption, not a func-
tion that satisfies both comfortability and low fuel consumption.

245

Instrument clus

The operation status of driving
support system such as the LTA
(Lane

Tracing Assist)

and

dynamic radar cruise control with
full-speed range and warning
information are displayed.

For details regarding the driving
support functions, refer to the page
for the corresponding function.

The warning messages that have
been displayed since the power
switch was turned to ON mode
can be checked.

When multiple warning messages
have been displayed, the display
can be switched by pressing

of the meter control switches.

Warning messages that have been currently cleared and some warning
messages are not displayed. Also, when there are no warning messages
that can be checked, the display indicates that there are no messages.

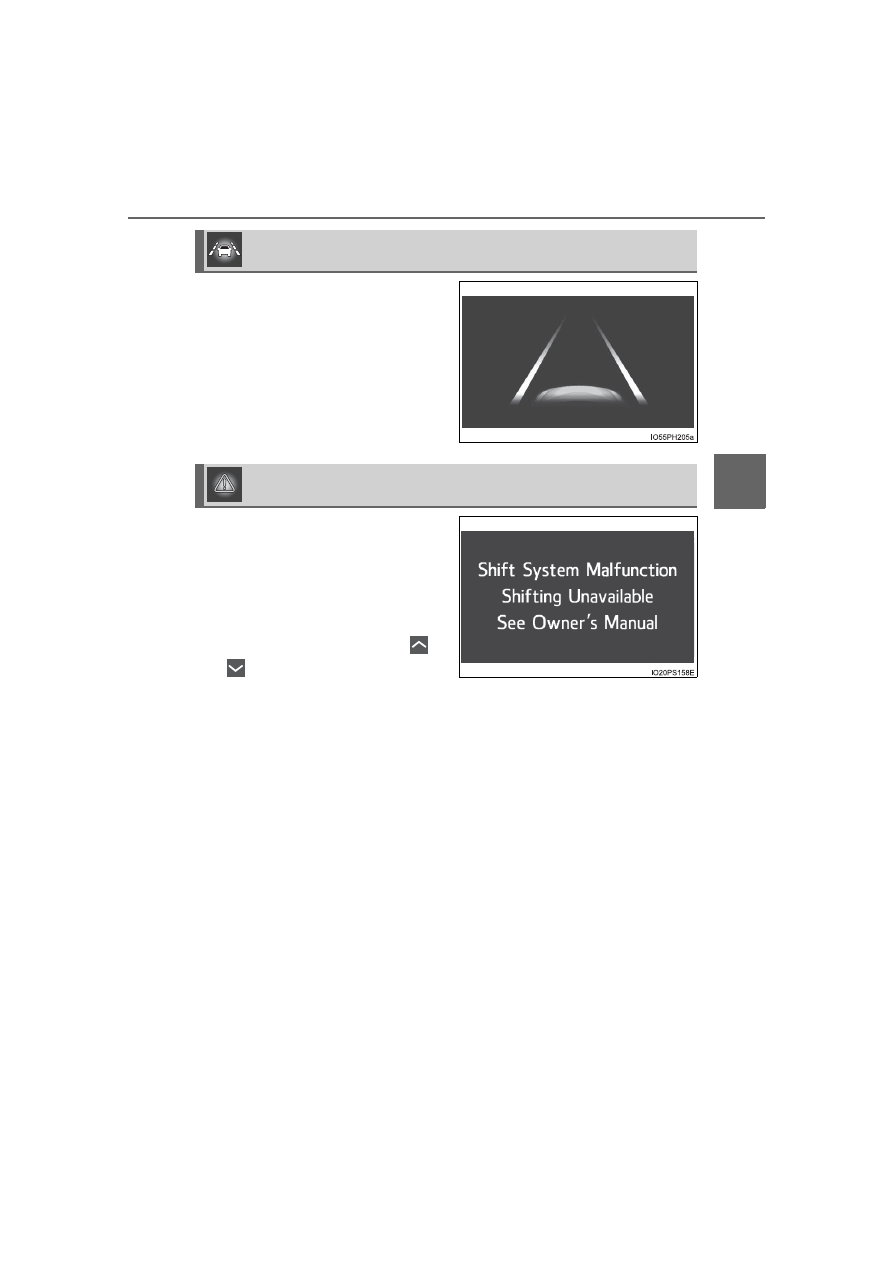

Driving assist system information

Warning message display

246

The operation contents of the driving support systems and settings
related to the combination meter display can be changed.

Driving support systems such as the PCS (Pre-Collision System) and Blind
Spot Monitor (if equipped) is turned on and off by simply pressing

Make sure not to cancel the systems accidentally.

■

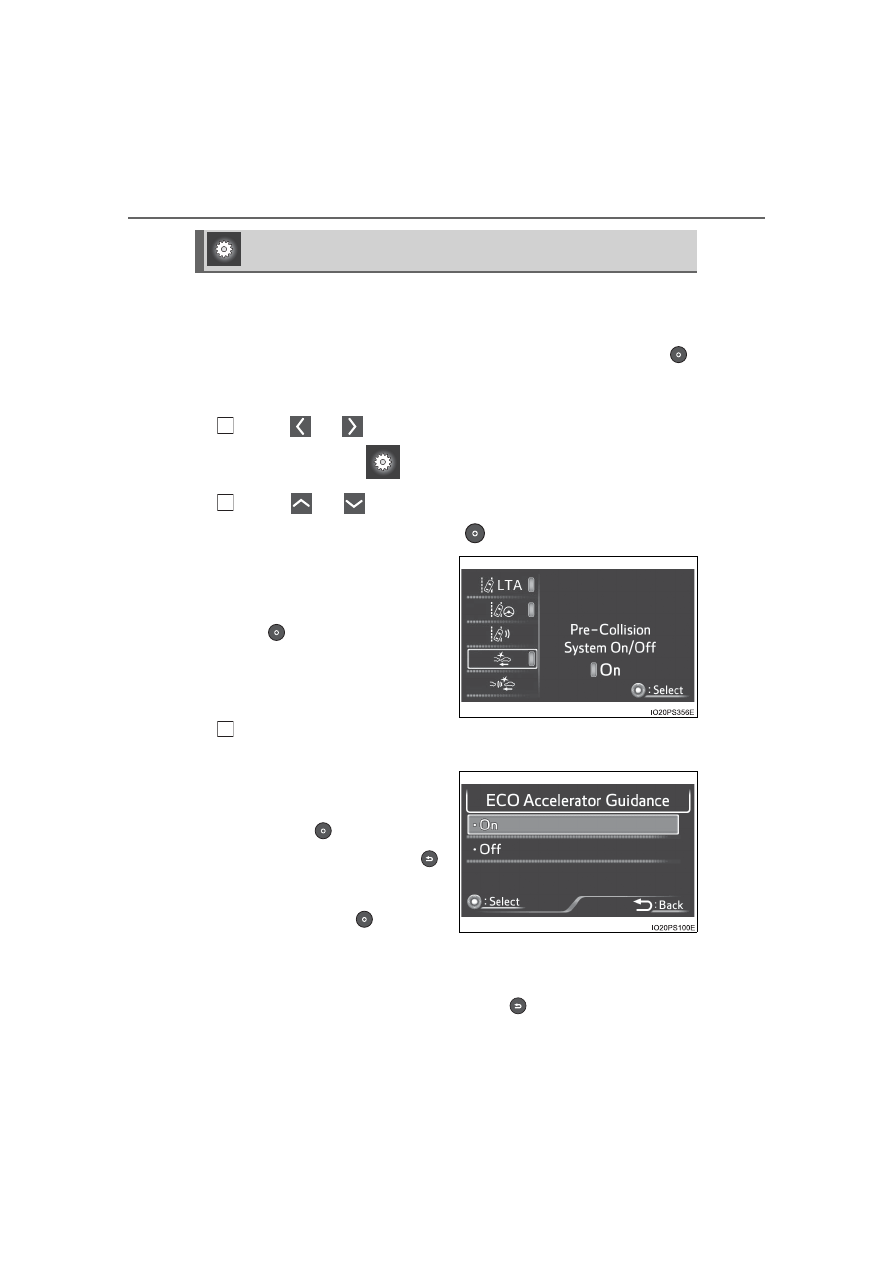

Setting procedure

Press

of the meter control switches on the steering

wheel and select

Press

of the meter control switches and select the

item to change, and then press

If  the  function  is  turned  on  and
off  or  the  sensitivity,  etc.  is
changed  on  the  setting  screen,
the setting is changed each time
the

is pressed.

For functions that allow opera-
tion contents, display contents,
etc., of a function to be selected,
the setting screen is displayed.

When the setting screen is displayed, select the setting or
desired value (time, etc.) with the meter control switches.

1, 2

For selectable operation con-
tents and setting values, select
the desired setting or value, and
then press

To stop the selection, press

When the setting check screen
is displayed, select proceed or
cancel and press

: Depending on the items, a subsequent setting screen may be displayed

after selecting an item.

: For items which set the adjustment level or time, after the item is set,

the setting screen remains displayed until

is pressed.

Settings display

247

Instrument clus

■

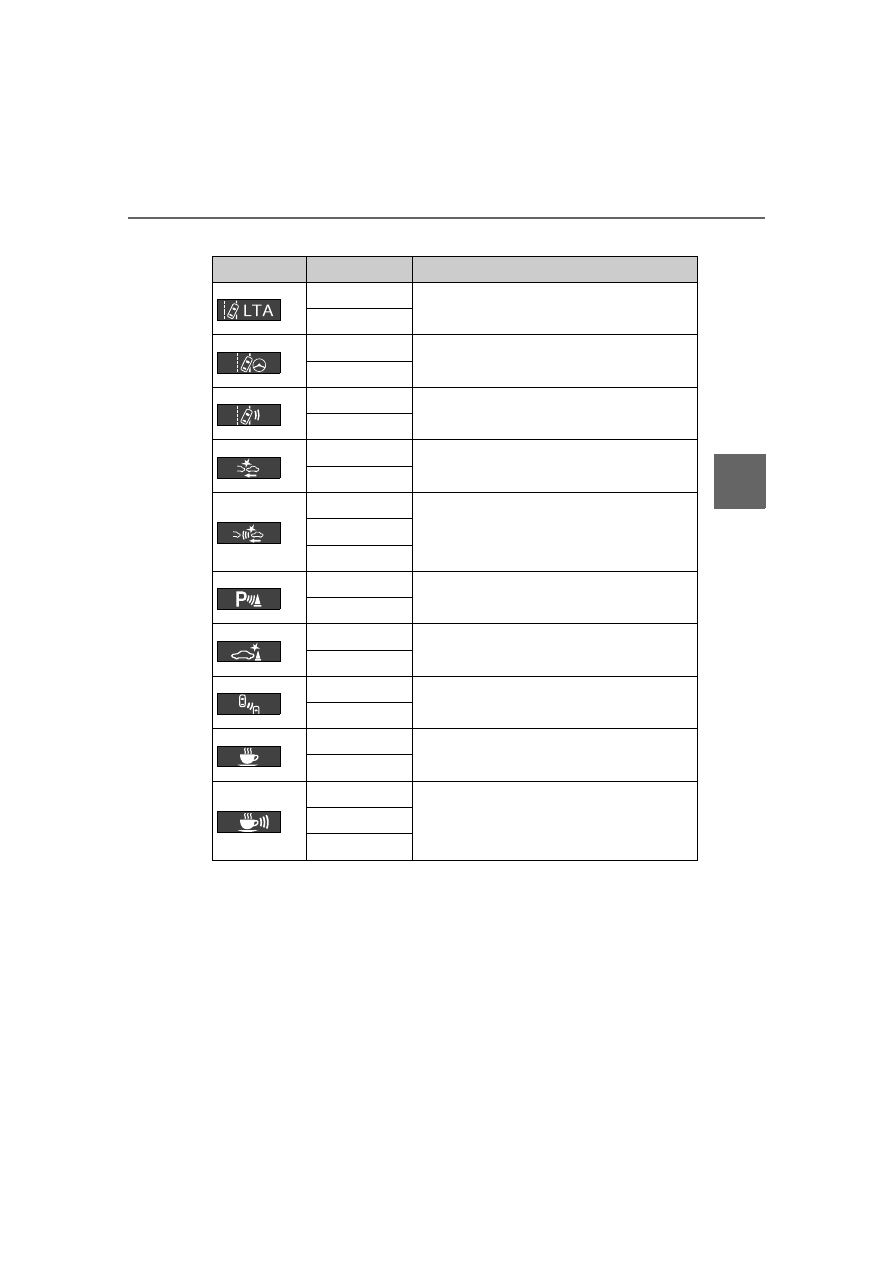

Settings table

Item

Settings

Setting result

“On”

Turns the LTA (Lane Tracing Assist) lane
centering function on and off. (



“Off”

“On”

Turns the LTA (Lane Tracing Assist) steer-
ing assist function on and off. (



“Off”

“High”

Switches the LTA (Lane Tracing Assist)
alert sensitivity. (



“Standard”

“On”

Turns the PCS (Pre-Collision System) on
and off. (



P. 383)

“Off”

Early

Switches the PCS (Pre-Collision System)
warning timing. (

P. 383)

Middle

Late

“On”

Turns the Intuitive parking assist on and off.
(

P. 441)

“Off”

“On”

Turns the Parking Support Brake function
on and off. (

P. 453)

“Off”

“On”

Turns the Blind Spot Monitor on and off.
(

P. 428)

“Off”

“On”

Turns the LTA (Lane Tracing Assist) vehicle
sway warning on and off. (



“Off”

“High”

Switches the LTA (Lane Tracing Assist)
vehicle sway warning sensitivity. (

“Standard”

“Low”

248

: If equipped

■

“Meter Customize” settings (

)

Height

Changes the display position and bright-
ness of the head-up display. (

P. 256)

Brightness

“On”

Turns the RSA (Road Sign Assist) on and
off. (



P. 405)

“Off”

“km/h”

Switches the speed unit used by the screen
display.

“MPH”

“Meter Customize” settings:

P. 248

“Vehicle Settings” settings:

P. 749

Item

Settings

Setting result

Item

Settings

Setting result

“Simple/Split
Screen”

“Simple”

Switches the display mode of
the main display. (



P. 215)

“Split”

“Screen
OFF”

“Yes”

Turns the multi-information dis-
play off.

“No”

“HV System
Indicator”
(



P. 225)

“ECO Acceler-
ator Guidance”

“On”

Turns the “ECO Accelerator
Guidance” on and off.

“Off”

“EV Indicator
Light On/Off”

“On”

Turns the EV indicator on and
off.

“Off”

“EV Drive
Monitor”

“EV
Energy”

Switches the information dis-
play in the left upper corner of
the Hybrid System Indicator.
(



P. 230)

“EV
Dis-
tance”

“Blank”

249

Instrument clus

“Pop-up Display
On/Off”

“Navigation”

“On”

Turns the pop-up display of the
selected item on the multi-
information display on and off.

“Off”

“Instrument
Panel Light”

“On”

“Off”

“Climate
Settings”

“On”

“Off”

“Cruise
Control
Operation
Display”

“On”

“Off”

“HUD
Settings”

“On”

“Off”

“Driving Mode
Select”

“On”

“Off”

“Multimedia
Menu”

“On”

“Off”

“Traction
Battery
Cooler”

“On”

“Off”

“Speed
Limit”

1, 3

(



P. 258)

“Off”

Switches the operation con-
tents of the speed limit func-
tion.

“Only Display”

“With Caution”

“Language”

“English” (English)

Switches the language dis-
played on the screen.

“Français” (French)

“Español” (Spanish)

“Calendar”

Month/Day/Year

Changes the date used for the
electricity and fuel consump-
tion record and the charging
schedule function.

Day/Month/Year

Item

Settings

Setting result

250

: If equipped

: When the screen is turned off, pressing

displays the setting screen

again.

: U.S.A. only

: Except for Canada

: For Canada

“History
Reset”

“Eco-Diary
(Daily)”

“Yes”

Deletes data of “Eco-Diary
(Daily)”. (



P. 238)

“No”

“Eco-Diary
(Monthly)”

“Yes”

Deletes data of “Eco-Diary
(Monthly)”. (



P. 238)

“No”

“Electricity
Consumption
Reset”

“Yes”

Deletes the data of the total
average electricity consump-
tion. (



P. 217, 237)

“No”

“Initialization”

“Yes”

Returns the combination meter
settings to their initial settings.

“No”

Item

Settings

Setting result

251

Instrument clus

■

Setting items

●

“Meter Customize” and “Vehicle Settings” setting items are not selectable
during driving and cannot be operated.
Also, the settings screen is temporarily canceled in the following situations.
• A warning message is displayed.
• The vehicle starts off.

●

Settings for functions not equipped to the vehicle are not displayed.

●

When a function is turned off, the related settings for that function are not
selectable.

■

Calendar setting

Calendar setting contents are linked to the recorded information of “Eco-
Diary” (



P. 238). When the calendar date is changed, “Eco-Diary” record is

processed as follows:

: Month/date information not recorded is set to “0” or “0.0”.

Contents of date change

“Eco-Diary” record

Date changed to future date

Not cleared

Date changed to before last month

All cleared

Date changed to earlier date within
current month

Only “Daily” data cleared

252

WARNING

■

Cautions while setting up the display

As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.

NOTICE

■

While setting up the display

To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

253

Instrument clus

Head-up display



The units used on the display may differ depending on the target region.



: If equipped

The head-up display can display the current vehicle speed and
Hybrid System Indicator in front of the driver. Also, it can display
various types of information to assist the driver.

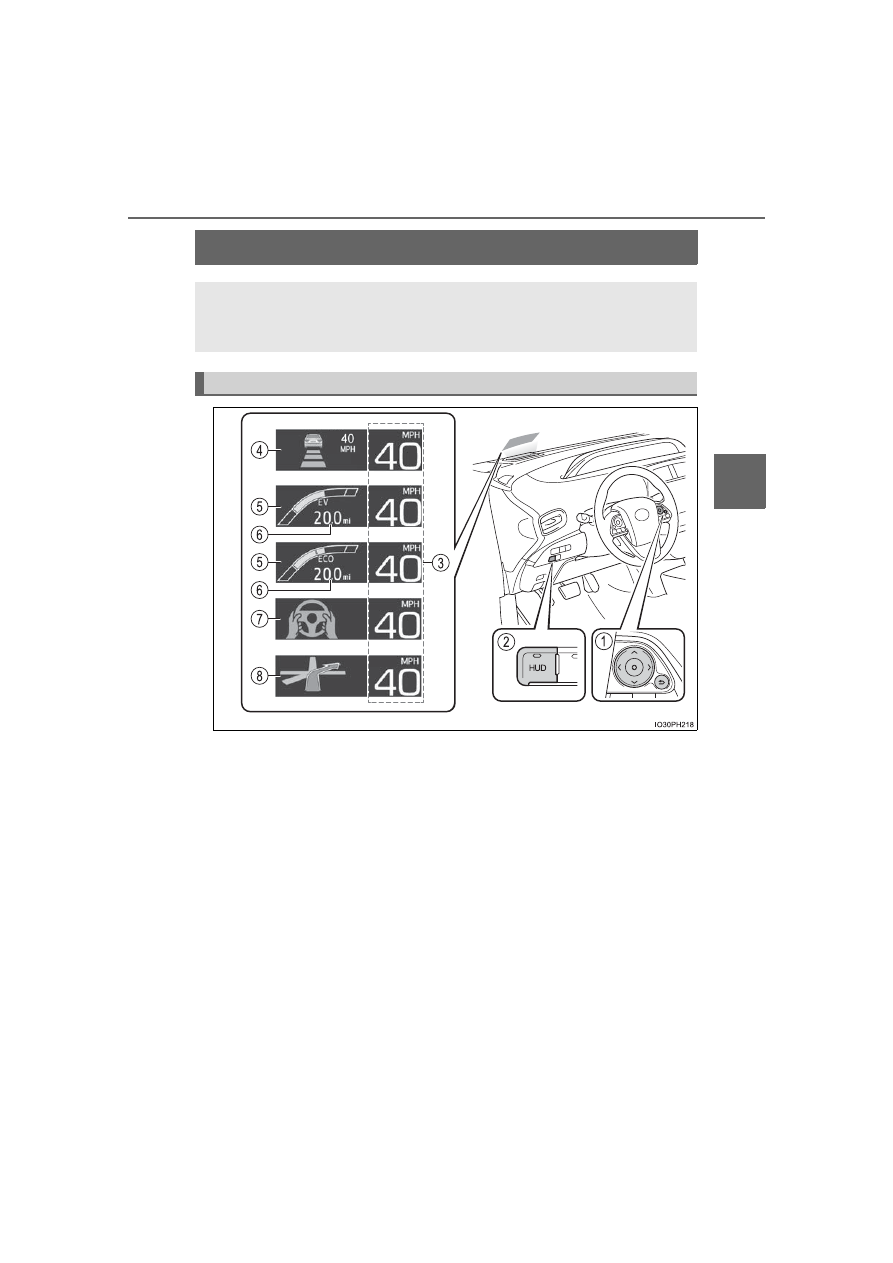

Operation switches and display contents

254

Meter control switches

These switches are used when adjusting the display position and bright-
ness of the head-up display. (

P. 256)

“HUD” (Head-up display) switch

(

P. 255

)

Vehicle speed display
Cruise control display

(



P. 409

)

Hybrid System Indicator (



P. 225)

The display contents of the Hybrid System Indicator are different in EV
mode and HV mode.

EV driving range

Indicates the estimated distance that can be driven using the current
remaining hybrid battery (traction battery). (

P. 109)

When the air conditioning system is operating, the driving range with the
air conditioning system on is displayed.
The EV driving range may shorten even when not driving due to power
consumption by the system.

Insert display

(



P. 257

)

This display inserts information from each driving support system accord-
ing to driving conditions.

Route guidance display (

P. 258)

This display is automatically shown when the navigation system is per-
forming route guidance.

2
3
4
5

255

Instrument clus

The “HUD” switch can be used to turn the head-up display on and off,
or switch the display contents.

■

When the head-up display is off

Pressing the “HUD” switch
turns the head-up display on
and starts the display.

The indicator light on the “HUD”
switch comes on.
The display position and bright-
ness adjustment screen is auto-
matically displayed on the multi-
information display. (



P. 256)

■

When the head-up display is on

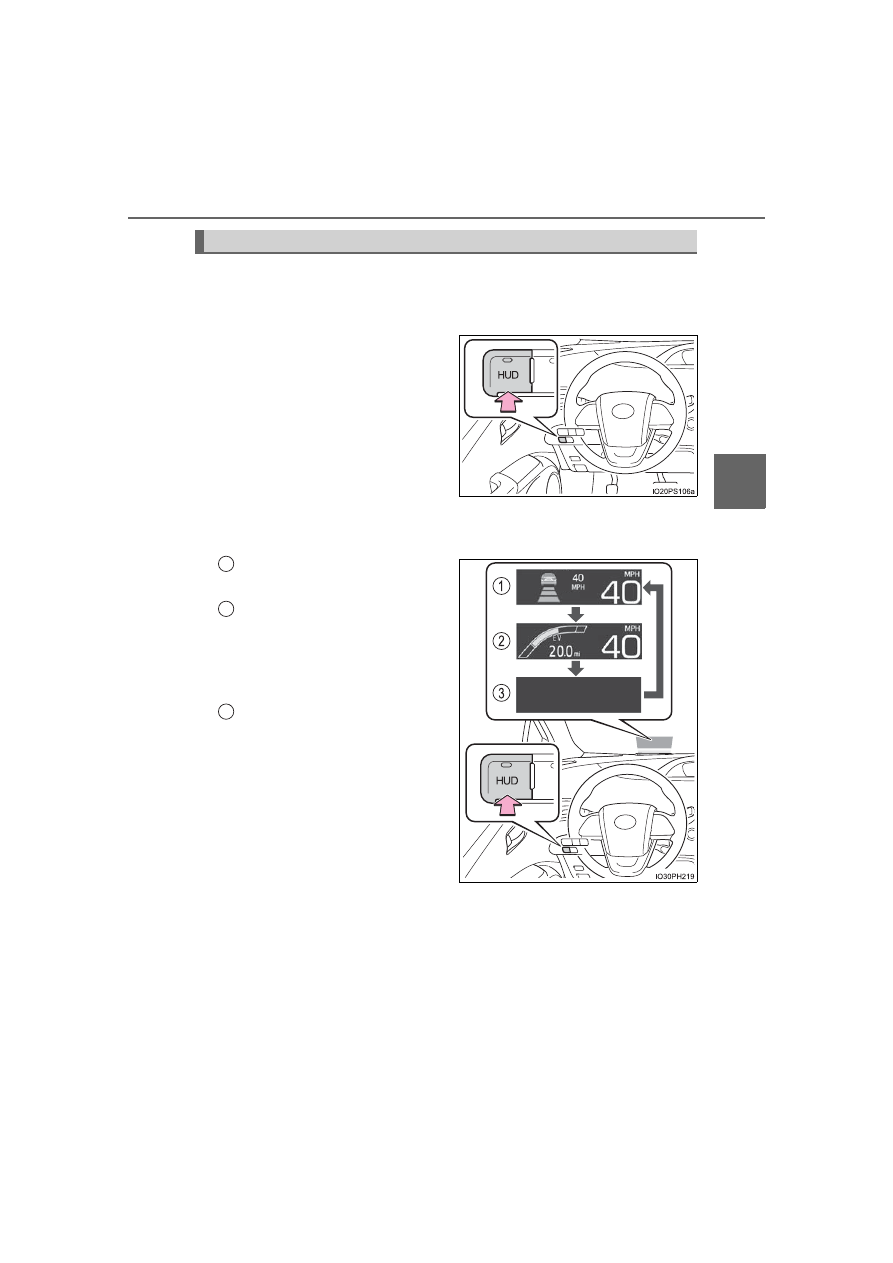

Display items can be switched by pressing the “HUD” switch.

Vehicle speed display and
cruise control display

Vehicle speed display/Hybrid
System Indicator

1, 2

/EV driv-

ing range

Refer to P. 225 for details of the
Hybrid System Indicator.

No display (head-up display
is off)

The indicator light on the “HUD”
switch turns off.

: When the insert display of each

driving support system is dis-
played, the display is temporar-
ily turned off.

: The display contents of the

Hybrid System Indicator are dif-
ferent in EV mode and HV
mode.

“HUD” (Head-up display) switch

256

In order to improve the visibility of the head-up display, the display
position and brightness can be adjusted.

Displaying the adjustment screen on the multi-information display.
When the head-up display is on:

Select

on the

screen of the multi-information dis-

play, and then press

. (

P. 246)

When the head-up display is off:

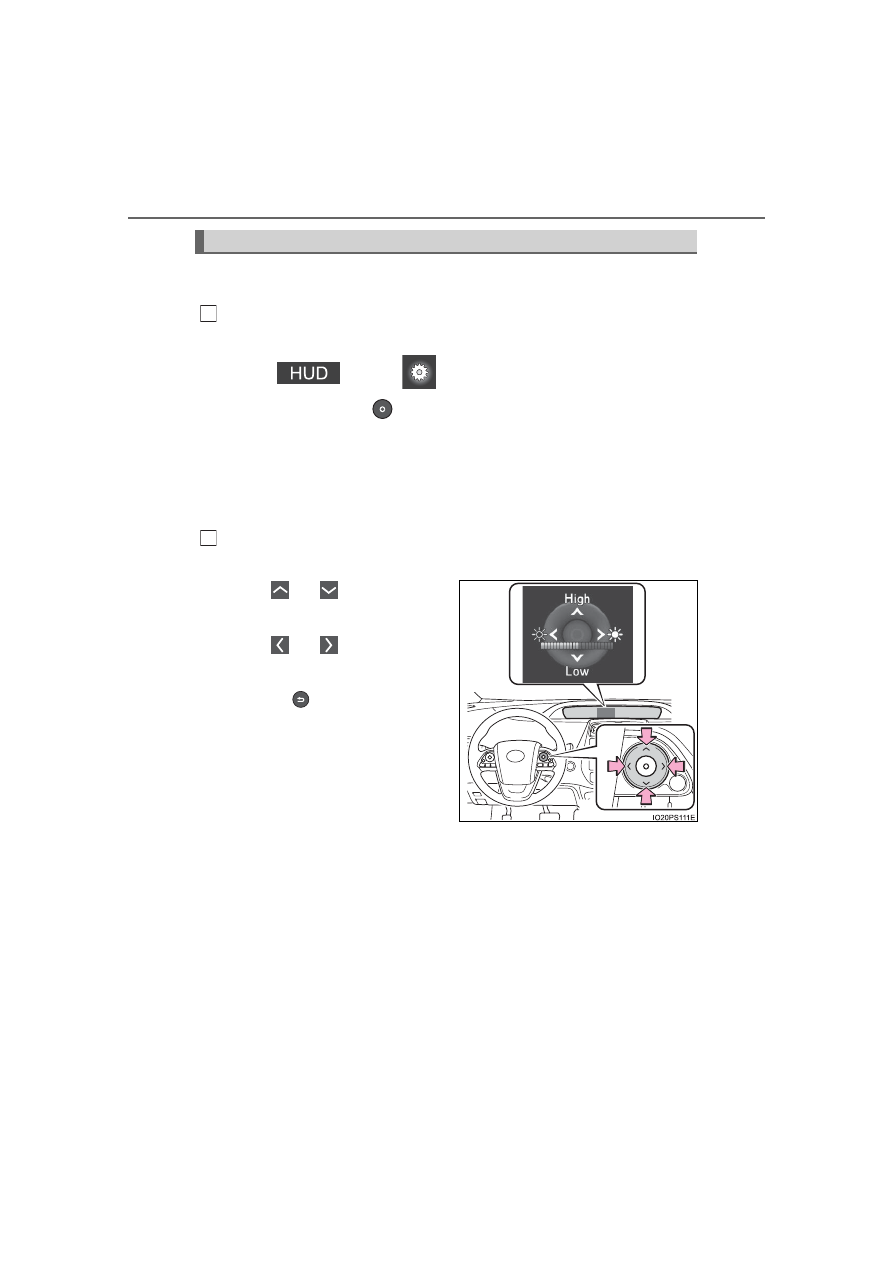

When the “HUD” switch is pressed, the adjustment screen for the
head-up display automatically displays.

If an adjustment operation is not performed for approximately 6 seconds

the multi-information display automatically returns to the previous screen.

Adjusting the display position and brightness by operating the
meter control switches.

When

is pressed, the

position of the head-up display
changes.
When

is pressed, the

brightness of the head-up display
changes.
When the

is pressed, the multi-

information display returns to the
previous screen.

: This function can be turned off. (
