Plug-



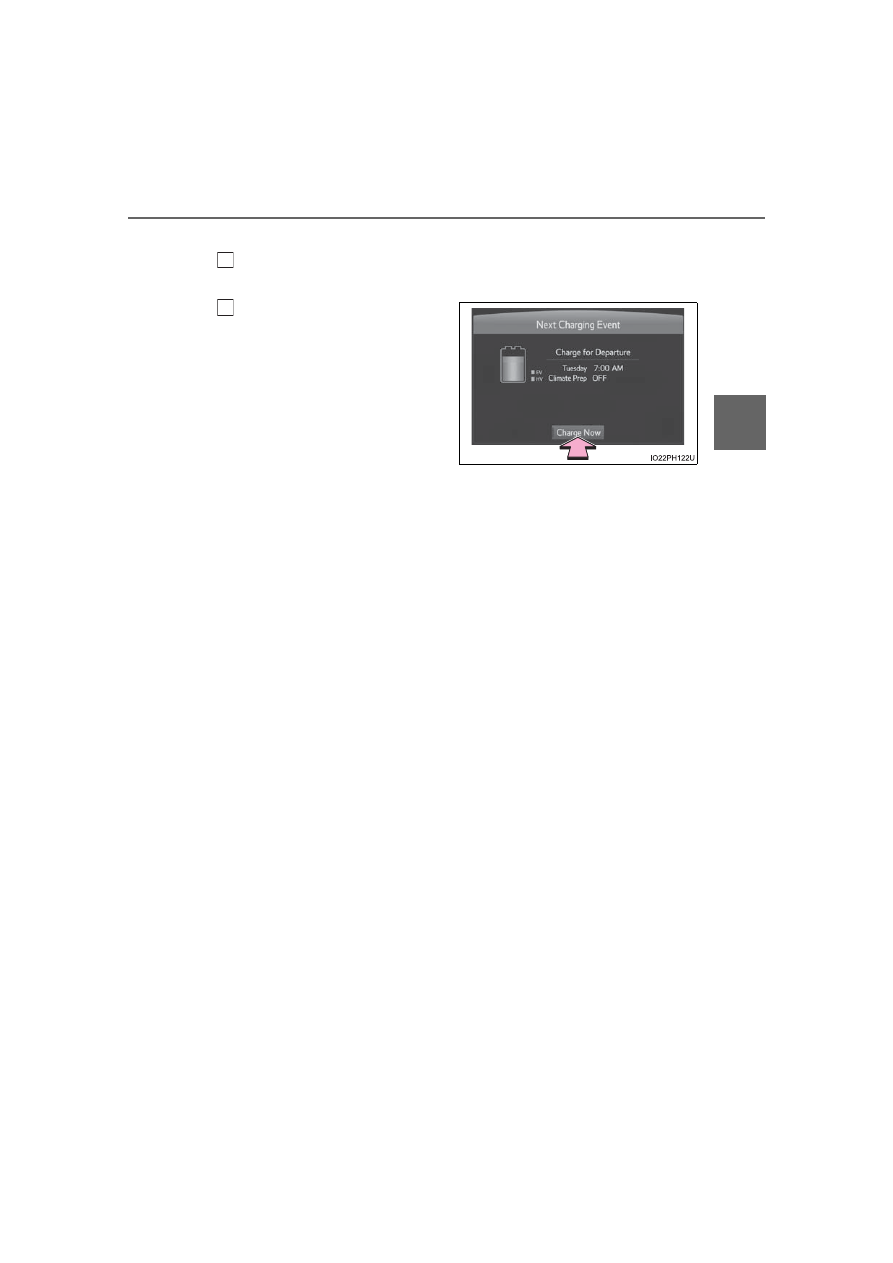

Operation on ending screen
Turn the power switch off.

The ending screen is displayed on the 11.6-inch display.

While the ending screen is
displayed, press “Charge
Now”.

Each time the button is pressed,
“Charge Now” switches between
on and off and the indicator on
the button turns on and off.

After setting operations are complete, charging starts when the
charging cable is connected. (

P. 147)

178

■

Changing “Next Charging Event”

: When “Charge Now” is turned on etc., the registered “Next Charging

Event” cannot be changed.

Display the “Charge Schedule” screen. (



P. 171)

“Next Charging Event” is displayed on the “Charge Schedule” screen
with an orange icon.

To change “Next Charging Event”, press the orange

The settings screen will display on the bottom of the screen.

: Icons are displayed differently according to the type of charging mode.

(

P. 173)

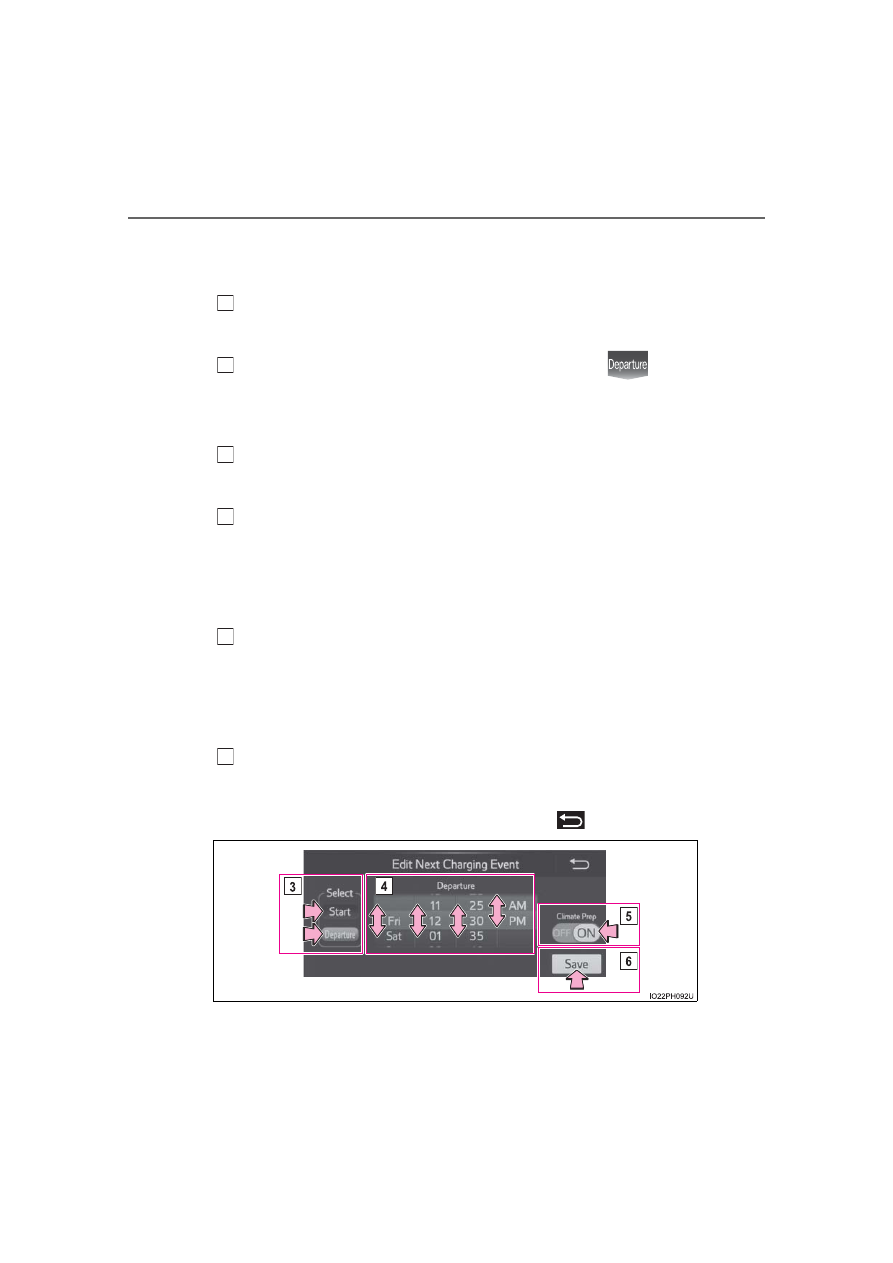

Select the desired charging mode.

Press “Start” or “Departure” to turn the button (charging mode) on and
highlight the button.

Operate the day setting wheel and time setting wheels up and
down to set the charging day and start (or departure) time.

Operate each wheel up and down to display the desired date and time
in the center.
When the charging mode is “Start”, set the charging start time. When it
is “Departure”, set the charging end time.

When the charging mode is set to “Departure”, set the “Climate
Prep” (



P. 158) to on or off.

To operate the air conditioning, press the “Climate Prep” button to set
the function to “ON”.
Each time the button is pressed, the function switches between “ON”
and “OFF”.

After setting operations are complete, press “Save”.

The charging schedule settings are saved and icons are added to the
charge schedule.
To cancel changing “Next Charging Event”, press

179

Plug-

■

When charging schedule setting operations are canceled

When the vehicle is in the following conditions, charging schedule setting
operations are canceled.

●

The power switch is turned off before the settings are confirmed

●

The vehicle starts off

●

A display with a higher priority than that of the charging schedule setting is
shown

■

“Next Charging Event”

After charging completes, the “Next Charging Event” displayed on the display
will not change until the charging cable is removed, even after charging is
performed according to the “Next Charging Event” schedule.

■

To return to original setting after changing “Next Charging Event” set-
ting

Turning the setting of “Charge Now” on and then off can return the setting of
“Next Charging Event” to its original setting.

■

When “Next Charging Event” is changed while charging

●

When the charging mode is “Departure”, the current charging is interrupted
or continued depending on the remaining time until the charging is com-
pleted.

●

When the charging mode is “Start”, the current charging is interrupted, the
next charging will start at the set time.

■

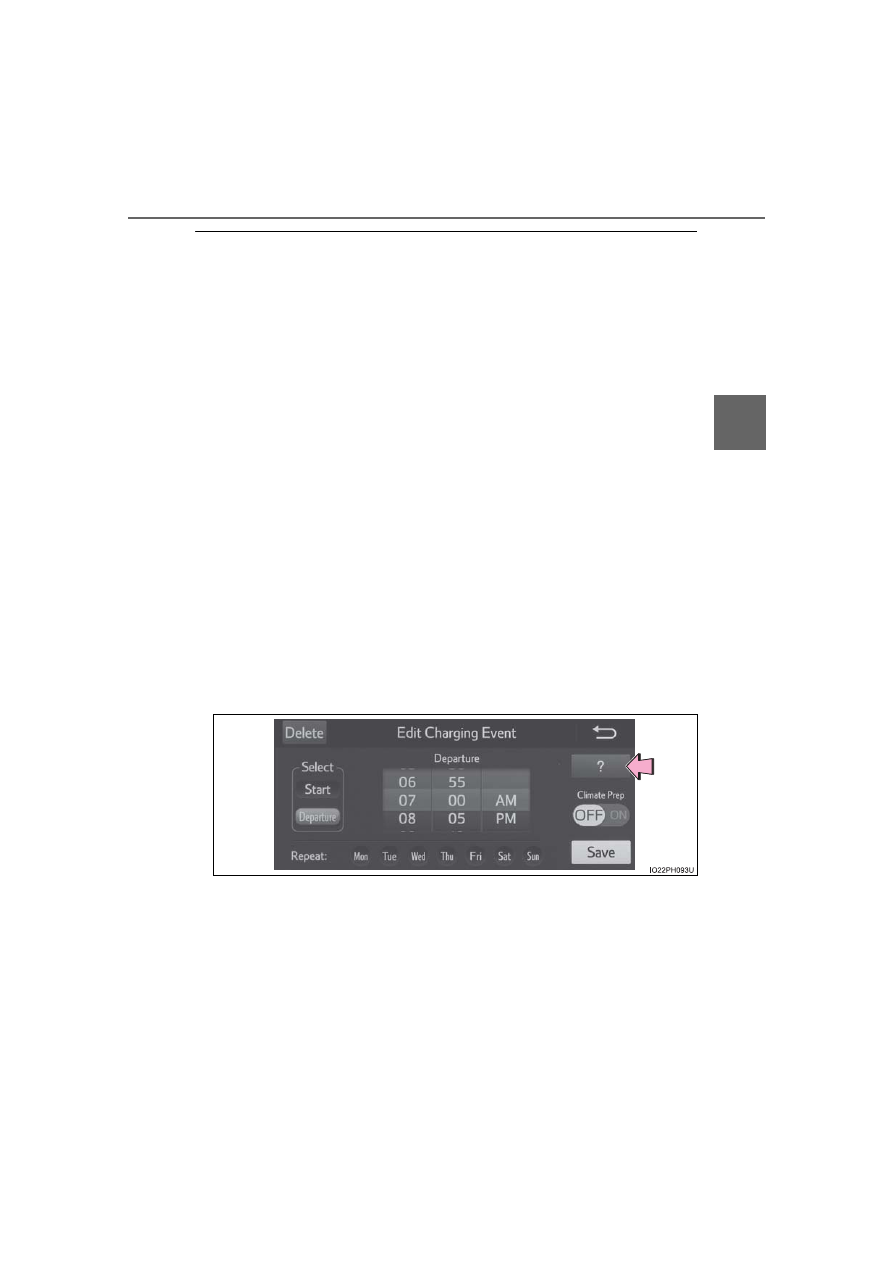

Displaying advice related to charge schedule settings

When “?” is pressed on the “Edit Charging Event” screen (

P. 174), an

explanation of the setting item on the “Edit Charging Event” screen will dis-
play.

180

■

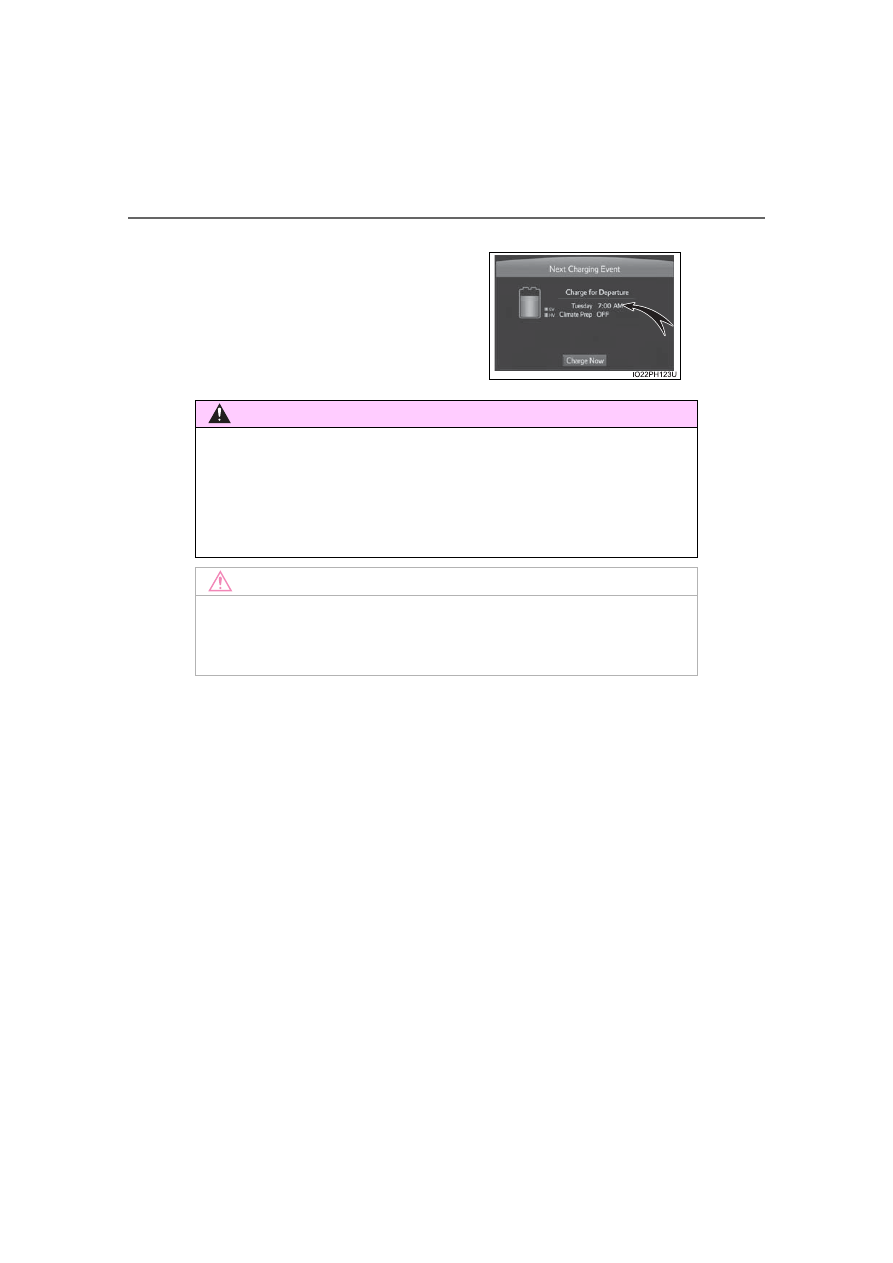

When the power switch is turned off

The next charge schedule (“Next
Charging Event”) can be checked on the
ending screen

that is displayed when the

power switch is turned off.

: The ending screen may not be dis-

played during charging.

WARNING

■

Cautions performing the setting operation

As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.

NOTICE

■

While performing the setting operation

To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

181

Plug-

When normal charging cannot be carried

out

Refer to the following table and carry out the appropriate correction
procedure.

When charging does not start, even though the normal proce-
dure is followed, check each of the following items.

If a message is shown on the multi-information display, also refer to
P. 186.

When normal charging cannot be carried out

Likely cause

Correction procedure



The power source indicator on the CCID (Charging Circuit Interrupting
Device) does not illuminate, even though the plug is connected to an
external power source.

Plug is not properly con-
nected to outlet

Check that the plug is properly connected to
the outlet.

Power is out

After power is restored, carry out the
charging procedure again.

Building breaker is tripped
and power is cut off

Check that the breaker is connected and if
there is no malfunction, check if the vehicle
can be charged through another outlet.
If charging is possible, the first outlet may
have a malfunction. Contact the building or
facility manager, or an electrician.

Short circuit between CCID
(Charging Circuit Interrupting
Device) and plug

Immediately stop charging and contact your
Toyota dealer.

182



The error warning indicator on the CCID (Charging Circuit Interrupting
Device) flashes.

Electrical leakage detection
function or self- diagnostic
function operates and power
is cut off

When the voltage is insufficient, the error
warning indicator may flash when there is
noise interference. Perform a reset and con-
nect to a proper power source. (

P. 119)

If charging does not start, immediately stop
charging and contact your Toyota dealer.



Charging indicator does not illuminate, even though charging connector
is connected.

The plug is not properly con-
nected to the outlet

Check whether the plug is properly con-
nected to the outlet.

Charging connector is not
securely

connected

charging inlet

Check the connection status of the charging
connector.
• When connecting the charging connec-

tor,  make  sure  not  to  touch  the  latch
release  button.  Insert  the  charging  con-
nector securely until you hear a click. The
charging connector may not be connected
correctly  if  the  latch  release  button  is
pressed while inserting.

• After connecting the charging connector,

check that the latch release button is not
pressed and the charging indicator is
turned on.

If the charging indicator does not illuminate,
even  though  the  charging  connector  is
securely  connected,  there  may  be  a  mal-
function  in  the  system.  Immediately  stop
charging and contact your Toyota dealer.

Hybrid battery (traction bat-
tery) is already fully charged

When the hybrid battery (traction battery) is
fully charged, charging is not performed.

The charger does not oper-
ate

Please contact the facility manager when
there is a problem with charger.

Likely cause

Correction procedure

183

Plug-

: Refer to P. 115 for details regarding charging indicator illumination and

flashing.

Refer to the following table and carry out the appropriate correction
procedure.



Charging indicator flashes and charging cannot be carried out.

When charging indicator
flashes

Charge schedule is regis-
tered

When you wish to charge according to the
charging schedule, wait until the set time.
To start charging, set “Charge Now” to “On”.
(



P. 167, 176)

When charging indicator rap-
idly flashes

Malfunction occurred in an
external power source or the
vehicle

Start the hybrid system and follow the
instructions displayed by the message on
the multi-information display. (

P. 186)

When charging schedule function does not operate normally

Likely cause

Correction procedure



Cannot charge at desired time

Vehicle clock is not properly
adjusted

Check the clock settings and adjust it to the
proper time. (

P. 197)

The vehicle calendar is not
set correctly.

Check the calendar setting and set it to the
correct date. (

P. 199)

Charging cable is not con-
nected to vehicle

Before using the charging schedule, con-
nect the charging cable.

Incorrect charging mode
selected

Check the charging mode setting. (

P. 158)

When the charging mode is “Start”, charging
starts at the set time, but when it is “Depar-
ture”, charging is completed by the set time.
(The charging start time is automatically
controlled by the system.)



Cannot change charging schedule from smartphone application (vehi-
cles with 11.6-inch display)

Smartphone is outside its
coverage area

Check the signal strength. If the smart-
phone is outside its coverage area, move to
a place with a better signal.

Likely cause

Correction procedure

184



Charging starts, even though charge schedule is registered

“Charge Now” is set to “On”

When charging according to the charging
schedule, set “Charge Now” to “Off”.
(

P. 167, 176)

Charge schedule is set to
“Off”

Check that charge schedule is not set to
“Off”. (

P. 165, 175)

Charging  mode  is  set  to
“Departure”  and  schedule
departure  time  is  close  to
current time

When the system determines that there is
no time to finish charging by the set sched-
uled departure time, it starts charging.
Check the charge schedules.

Charging

cable

was

removed

and

reinserted

while charging indicator was
flashing

If the charging cable is removed and rein-
serted while the charging indicator is flashing,
the charging schedule is canceled (

P. 150).

Temporarily remove the charging cable, and
then reconnect it.

The Remote Air Conditioning
System was operated

When the Remote Air Conditioning System
is  operated,  the  system  will  start  charging,
even if the charge schedule is registered. To
carry  out  charging  using  the  charging
schedule, stop the Remote Air Conditioning
System,  and  then  reconnect  the  charging
cable.

“Traction Battery Heater”
(



P. 136) operated

When the charging mode is set to “Depar-
ture”, “Traction Battery Heater” may operate
before charging starts. Check the status of
the charging indicator. (

P. 115)

Outside  temperature  is  low
and  hybrid  battery  (traction
battery)  warming  control
(



P. 137) operated

(Alaska and Canada only)

When  hybrid  battery  (traction  battery)
warming  control  operates,  the  charging
schedule are ignored and charging starts. In
order  to  protect  the  hybrid  battery  (traction
battery), allow charging to continue.

Likely cause

Correction procedure

185

Plug-

: In order to use the smartphone application, it is necessary to apply to

Entune App Suite.
For details about Entune App Suite, refer to http://www.toyota.com/entune/.



Charging ends earlier than time set in “Departure”

Charging  end  time  does  not
match  estimated  end  time
due  to  condition  of  power
source  or  outside  tempera-
ture

If  sudden  changes  in  temperature  or
changes  in  the  condition  of  the  power
source occur while charging, charging may
end  earlier  than  the  time  estimated  by  the
system.



Charging is not complete, even though it is time set in “Departure”

“Climate Prep” is set to “On”

When “Climate Prep” is set to “On”, the air
conditioning operates until the set departure
time. Therefore, charging may not complete
by the set time due to charging conditions.
To have the hybrid battery (traction battery)
fully charged, allow charging to continue.

Charging  end  time  does  not
match  estimated  end  time
due  to  condition  of  power
source  or  outside  tempera-
ture

If sudden changes in temperature or
changes in the condition of the power
source occur while charging, charging may
not end exactly at the time estimated by the
system.



Charging does not start, even though it is time set in “Start”

Charging cable was con-
nected after set time

Connect the charging cable before the time
set in “Start”.

Likely cause

Correction procedure

186

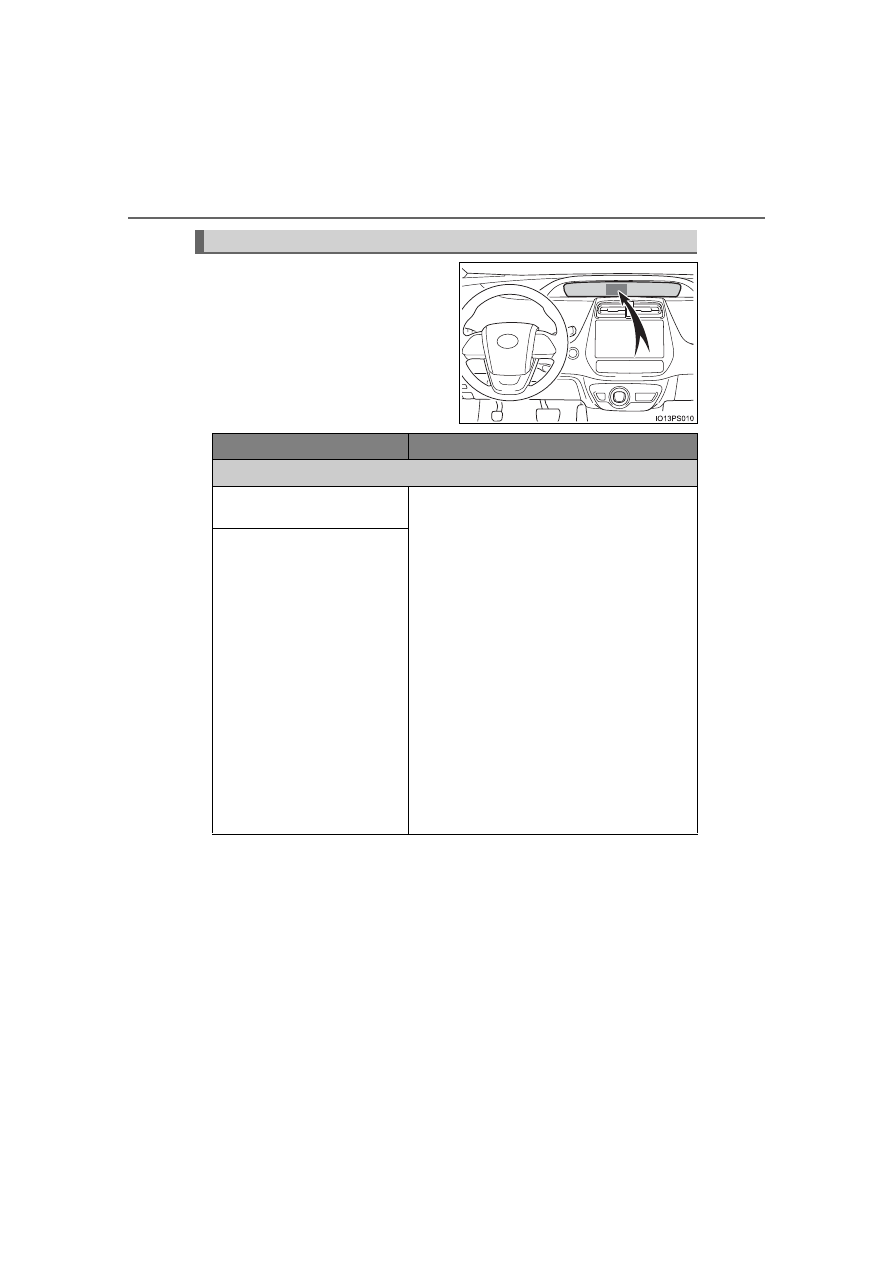

When the hybrid system is started
after charging, a message is dis-
played in the multi-information dis-
play.

When this occurs, follow the
instructions displayed on the
screen.

When charging-related message is displayed

Likely cause

Correction procedure



If “Charging Stopped Due to Pulled Charging Connector” is shown

Charging

connector

removed while charging

When the charging connector is removed
while charging, charging stops. If you want
to fully charge the hybrid battery (traction
battery), reconnect the charging connector.

After the hybrid battery (trac-
tion battery) is fully charged,
the  charging  connector  is
removed  while  the  hybrid
battery  (traction  battery)  is
being

recharged

again

because electricity-consum-
ing functions

have been

used and the remaining
charge is now reduced.

:Electricity is consumed

when operating “Traction
Battery Heater” (



P. 136),

the air conditioning-linked
function (

P. 158) or

Remote Air Conditioning
System (



P. 531).

187

Plug-



If “Charging Stopped Due to Pulled Charging Connector” is shown

Charging connector is not
securely connected

Check the connection status of the charging
connector.
• When connecting the charging connec-

• After connecting the charging connector,

check that the latch release button is not
pressed and the charging indicator is
turned on.

If  charging  cannot  be  carried  out,  even
though  the  proper  procedures  were  fol-
lowed,  have  the  vehicle  inspected  by  your
Toyota dealer.

Latch release button of
charging

connector

was

pressed while charging

When the latch release button is pressed
while charging, charging stops. To continue
charging, reconnect the charging connector.



If “Charging Complete Limited Due to Battery Temp” is shown

Charging  was  stopped  to
protect  the  hybrid  battery
(traction battery) as it contin-
ued  to  remain  hot  for  a  cer-
tain period of time.

Allow the hybrid battery (traction battery) to
cool down and perform charging again if the
charging amount has not reached the
desired amount.

Likely cause

Correction procedure

188



If “Charging Stopped Check Charging Source” is shown (1)

Problem in power supply
from external power source

Check the following items.
• Plug is not disconnected
• Power source indicator on the CCID

(Charging Circuit Interrupting Device) is
illuminated

• The circuit breaker has not tripped
If there is no problem with any of the above
items, there may be a problem with the out-
let  of  the  building.  Contact  an  electrician
and  request  an  inspection.  (Contact  the
facility  manager  of  the  charging  station
when there is a problem with charging sta-
tion.)
If  charging  cannot  be  carried  out,  even
though  there  is  no  problem  with the  power
source path, there may be a malfunction in
the  system.  Have  the  vehicle  inspected  by
your Toyota dealer.
Furthermore,  if  the  error  warning  indicator
on  the  CCID  (Charging  Circuit  Interrupting
Device) is flashing, there may be an electri-
cal leakage. Consult your Toyota dealer.

Charger

has

stopped

charging

• Charging may be canceled by an interrup-

tion of power supply depending on specifi-
cations of a charger. Refer to the
instructions of the charger.
• When charging is stopped using the

charger

• Equipment with charging schedule func-

tion

• Equipment that is not compatible with

the charging schedule function of the
vehicle

• Check if it is possible to charge with the

charging cable equipped to the vehicle.
If charging cannot be carried out, even
when using the genuine charging cable,
consult your Toyota dealer.

Likely cause

Correction procedure

189

Plug-



If “Charging Stopped Check Charging Source” is shown (2)

Charger is not compatible
with vehicle

Check  if  it  is  possible  to  charge  with  the
charging cable equipped to the vehicle.
If  charging  cannot  be  carried  out,  even
when  using  the  genuine  charging  cable,
consult your Toyota dealer.

Charger

has

stopped

charging



If “Charging Stopped Check Charging Source” is shown (3)

Problem in power supply
from external power source

Check the following items.
• Plug is securely inserted
• Extension cord is not used and outlet is

not overloaded

• Connected to a dedicated power line
• Electrical leakage has occurred or not
If there is no problem with any of the above
items, there may be a problem with the out-
let of the building. Contact an electrician to
request an inspection.
If  charging  cannot  be  carried  out,  even
though  there  is  no  problem  with the  power
source path, there may be a malfunction in
the  system.  Have  the  vehicle  inspected  by
your Toyota dealer.

Charger

has

stopped

charging

Likely cause

Correction procedure

190



If “Charging Stopped High Energy Use See Owner’s Manual” is shown

Power is being consumed by
electrical components of
vehicle

Check the following items, and then carry
out charging again.
• If the headlights and audio are turned on,

turn them off.

• Turn the power switch off.
If charging cannot be carried out, even after
performing the above, the auxiliary battery
may not be sufficiently charged. Operate
the hybrid system for approximately 15 min-
utes or more to charge the auxiliary battery.



If “Charging System Malfunction See Owner’s Manual” is shown

Malfunction

occurred

charging system

Have the vehicle inspected by your
Toyota dealer.



If “The Traction Battery became low temperature System put priority on
charging to preserve battery condition” is shown (Alaska and Canada
only)

The Hybrid battery (traction
battery) warming control was
operated (



P. 137)

When  the  hybrid  battery  (traction  battery)
warning  control  operates,  the  charging
schedule  is  not  used  and  charging  is  per-
formed.  This  is  a  control  to  protect  the
hybrid  battery  (traction  battery),  and  not  a
malfunction.

Likely cause

Correction procedure

191

Instrument cluster

Combination meter............ 192
Warning lights and

indicators ........................ 201

Main display ...................... 209
Multi-information

display............................. 220

Head-up display ................ 253
Energy monitor/

consumption screen
(vehicles with 7-inch
display) ........................... 261

Energy monitor/

consumption screen/
detail screen (vehicles
with 11.6-inch display) .... 266

192

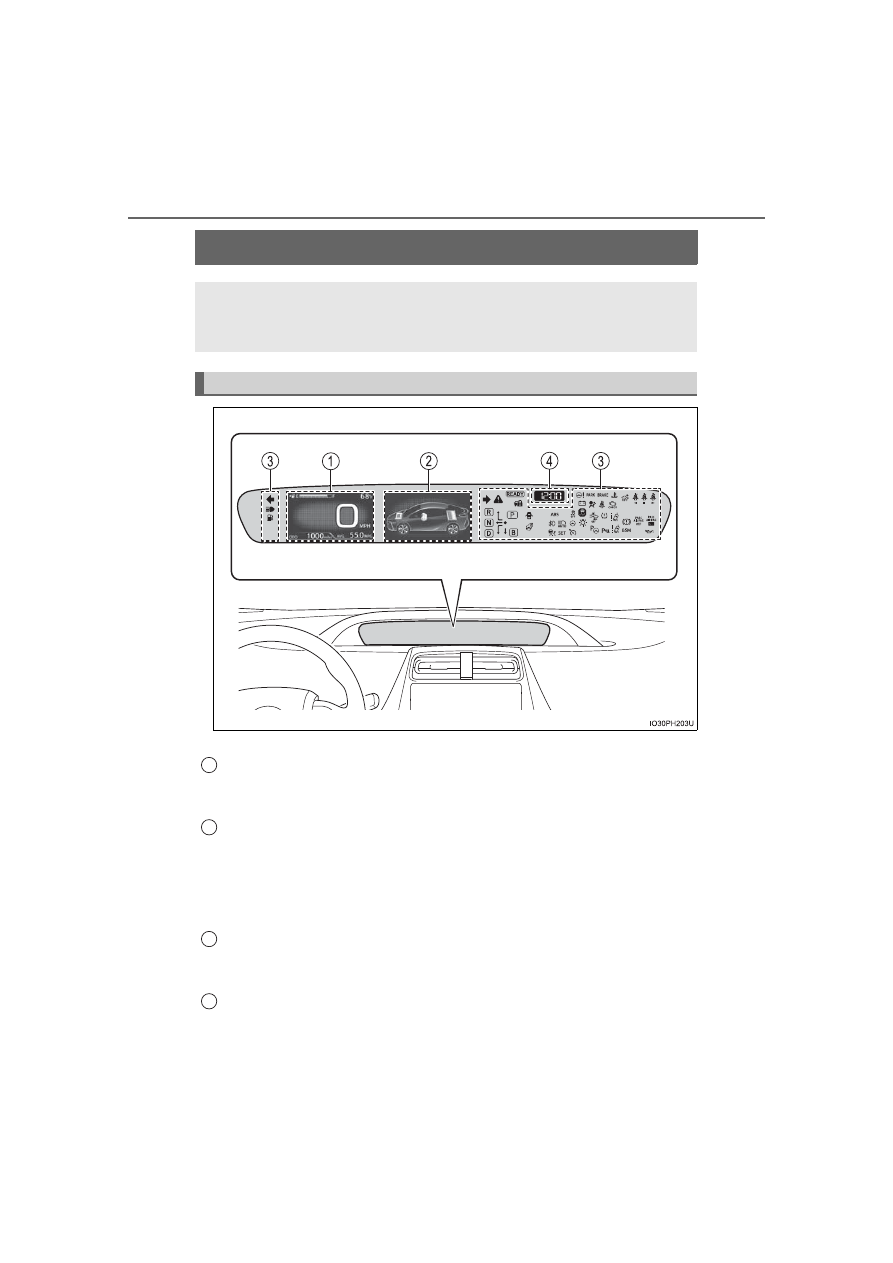

3. Instrument cluster

Combination meter

The units used on the display may differ depending on the target region.

Main display (



P. 209)

The main display shows basic information related to driving, such as the
vehicle speed and remaining fuel amount.

Multi-information display (

P. 220)

The multi-information display shows information which makes the vehicle
convenient-to-use, such as the hybrid system operation condition, electric-
ity consumption and fuel consumption history. Also, the operation contents
of the driving support systems and the combination meter display settings
can be changed by switching to the settings screen.

Warning lights and indicators (
