161

2-2. Charging

2

Plug-

in hybrid system

■

When charging schedules are ignored

When the following operations are performed while the charging schedule is
on  standby,  charging  schedule  is  temporarily  canceled  and  charging  is
started.

●

When the Remote Air Conditioning System (



P. 531) is operated

●

When turning “Charge Now” on (



P. 167, 176)

●

When  an  operation  that  temporarily  cancels  charging  using  the  charging
schedule is performed (



P. 150)

■

Effects of outside temperature

When  the  charging  mode  is  set  to  “Departure”,  charging  schedule  may  be
ignored due to the outside temperature and charging may start.

■

“Traction Battery Cooler” (



P. 137)

When charging is carried out using the charging schedule, the hybrid battery
(traction battery) cooling function may operate according to the temperature
of the hybrid battery (traction battery).

●

When the charging mode is set to “Start”, cooling starts at the set charging
start time.

●

When the charging mode is set to “Departure”, cooling starts approximately
30 minutes before the charging start time. However, if there is no time to fin-
ish charging by the charging schedule, the hybrid battery (traction battery)
cooling time may be shortened and “Traction Battery Cooler” may not oper-
ate.

162

2-2. Charging

When operating charging schedule, use the charging schedule switch
and meter control switches.

Charging schedule switch
Meter control switches
(



P. 193)

Multi-information display

■

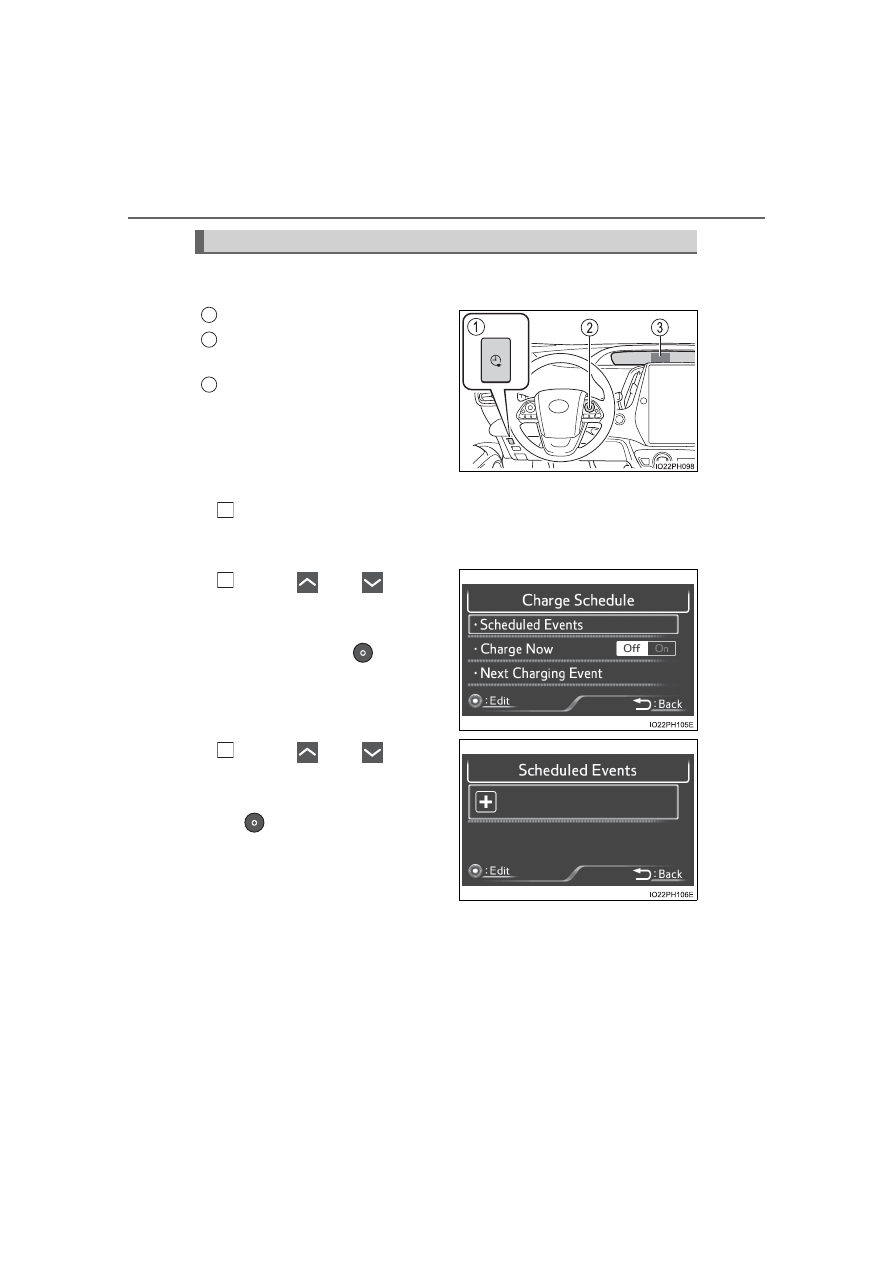

Registering the charge schedule

Press the charging schedule switch.

The “Charge Schedule” screen will display on the multi-information dis-
play.

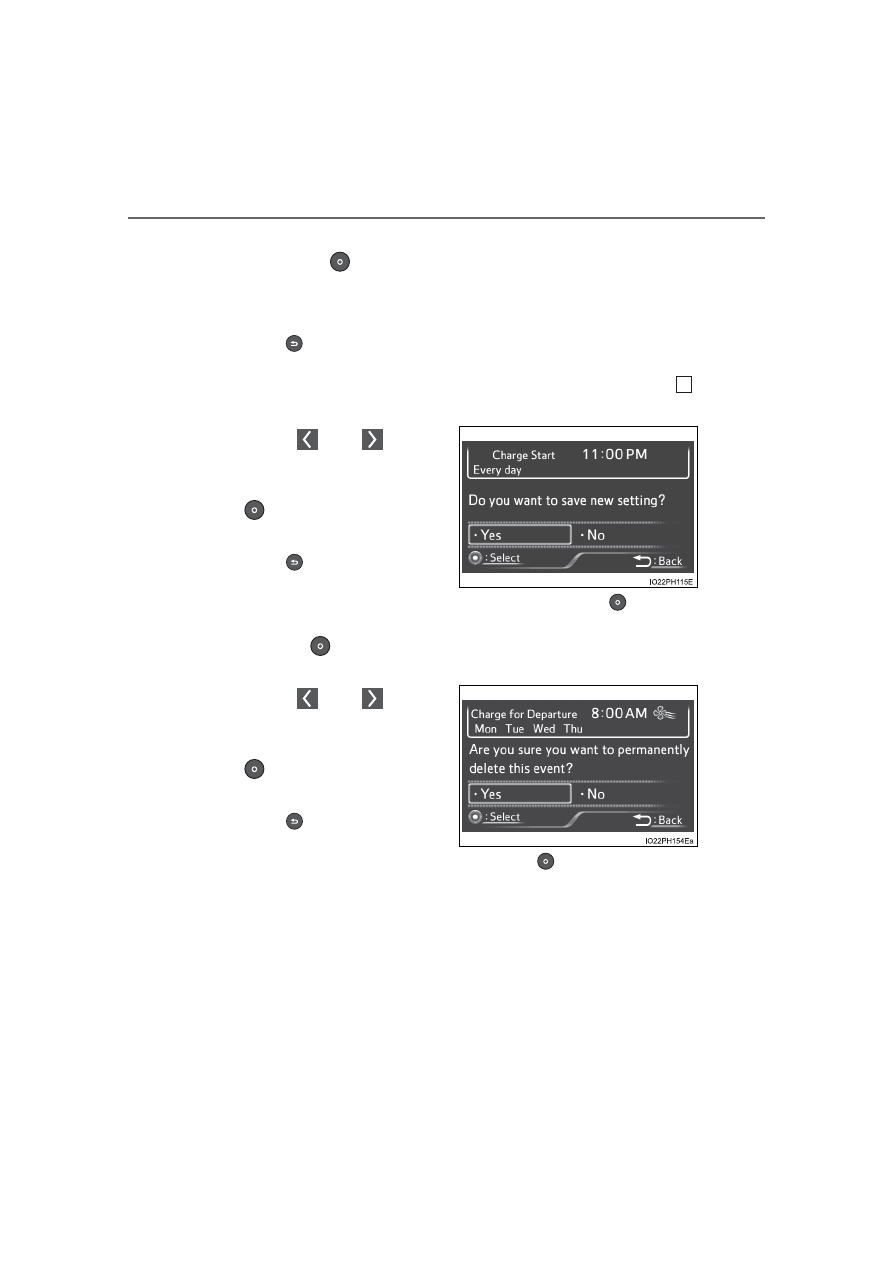

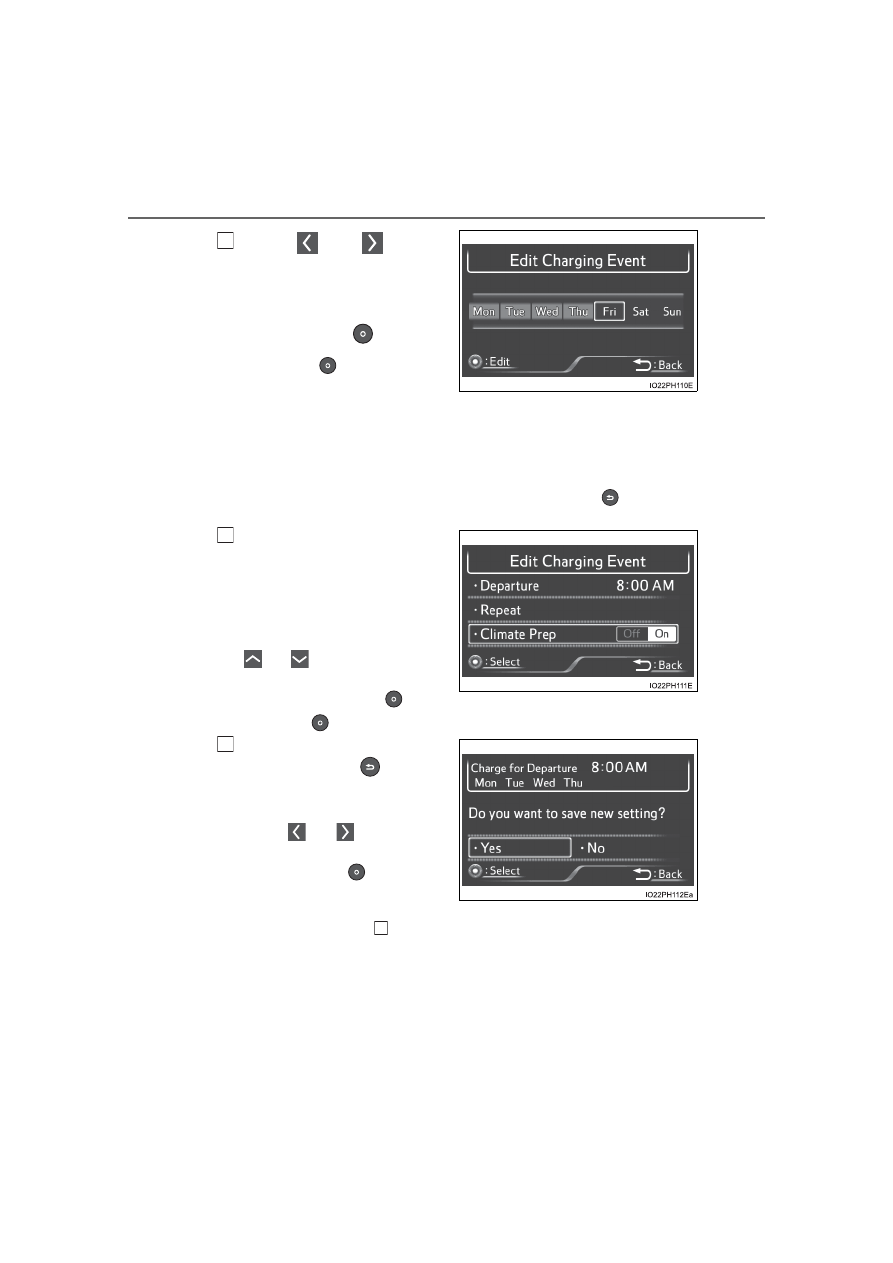

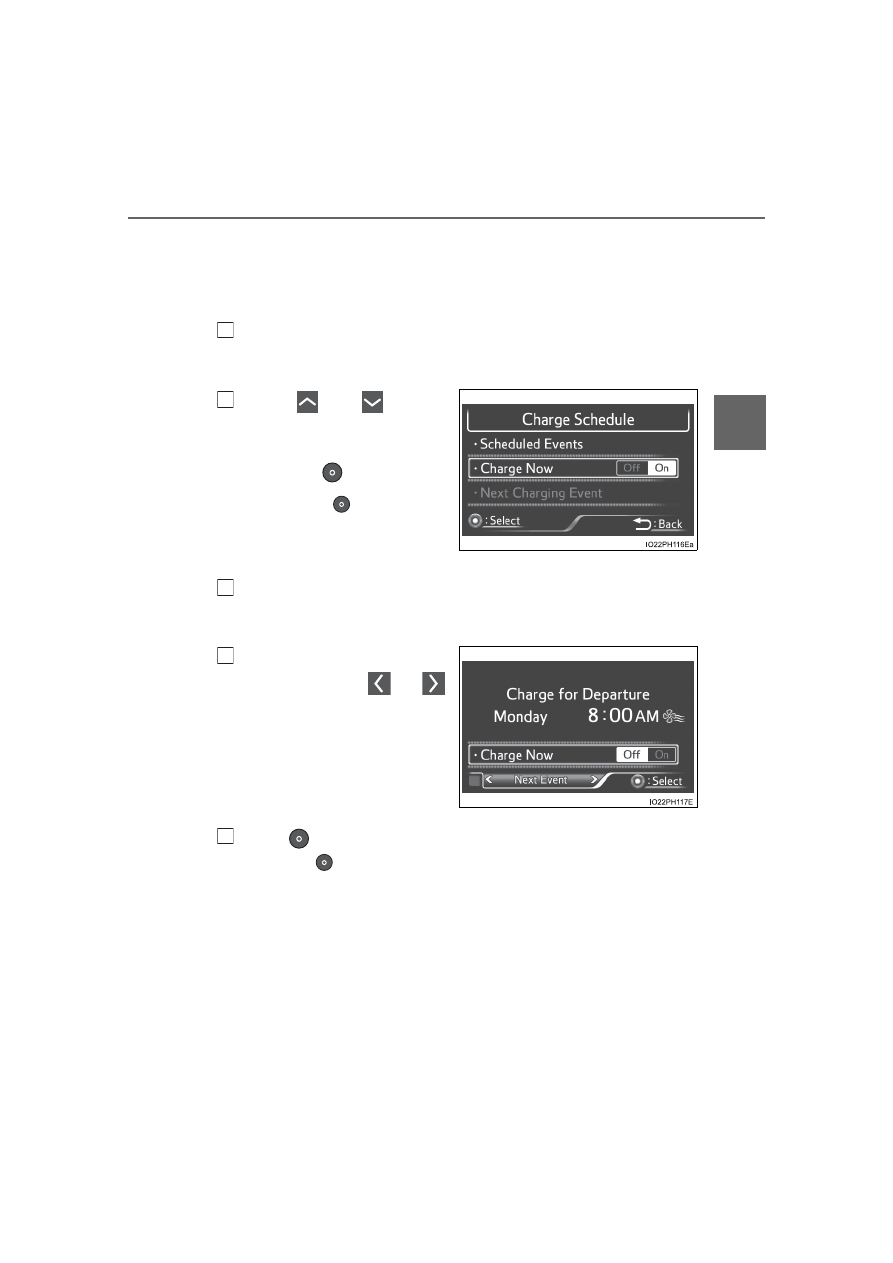

Press

  or

  of  the

meter  control  switches  to
select  “Scheduled  Events”,
and then press

.

The “Scheduled  Events” screen
will display.

Press

  or

  of  the

meter  control  switches  to

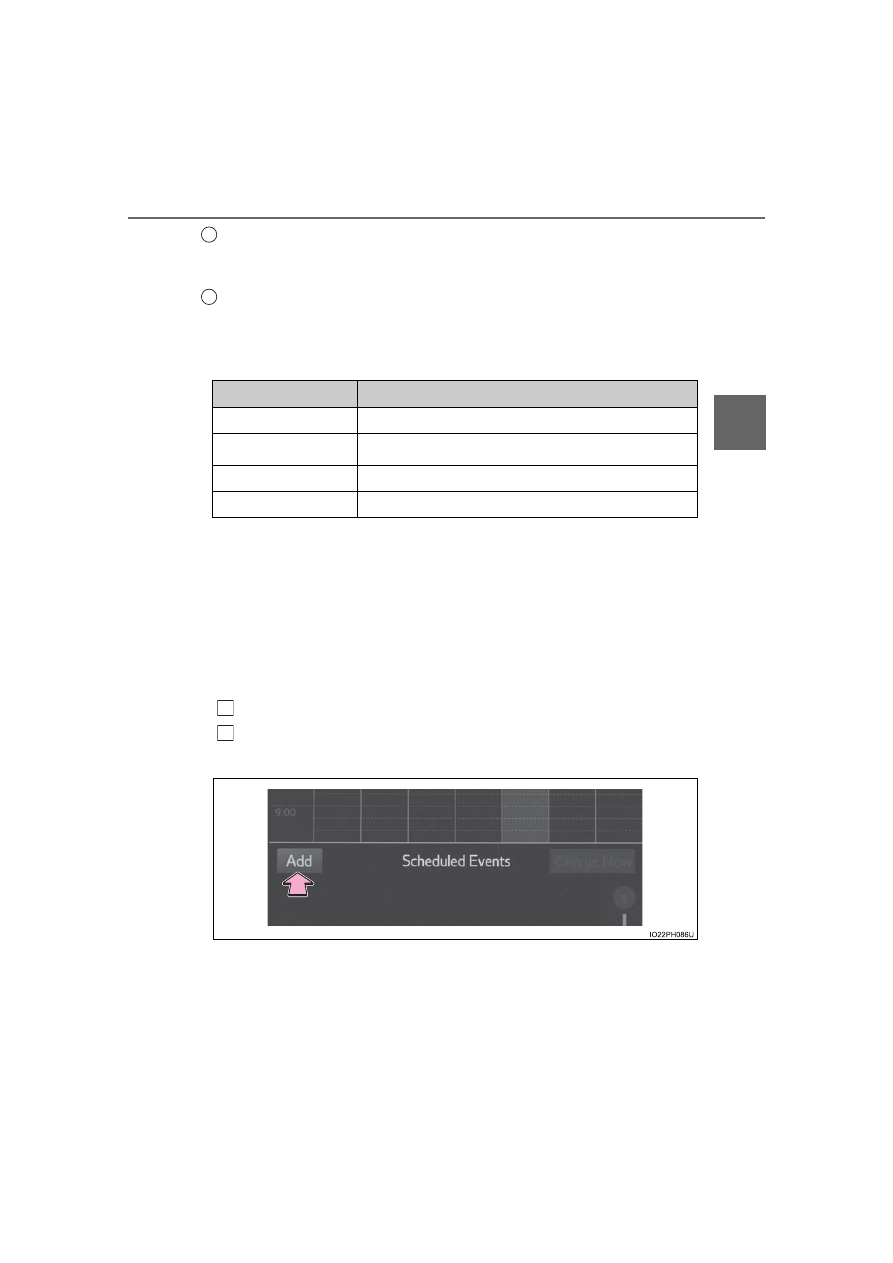

select  “+”,  and  then  press

.

The  “Edit  Charging  Event”
screen will display.

Setting operations on multi-information display

1
2

3

1

2

3

163

2-2. Charging

2

Plug-

in hybrid system

Press

  or

  of  the

meter  control  switches  to
select  the  charging  mode/
time  settings  row,  and  then
press

.

The  charging  mode/time  set-
tings screen will display.
The  clock  display  (12-hour  dis-
play/24-hour  display)  changes
according  to  the  clock  settings.
(



P. 197)

Press

  or

  of  the

meter  control  switches  to
select  the  item  to  change
with  the  cursor,  and  then
press

  or

  to  change

the setting.

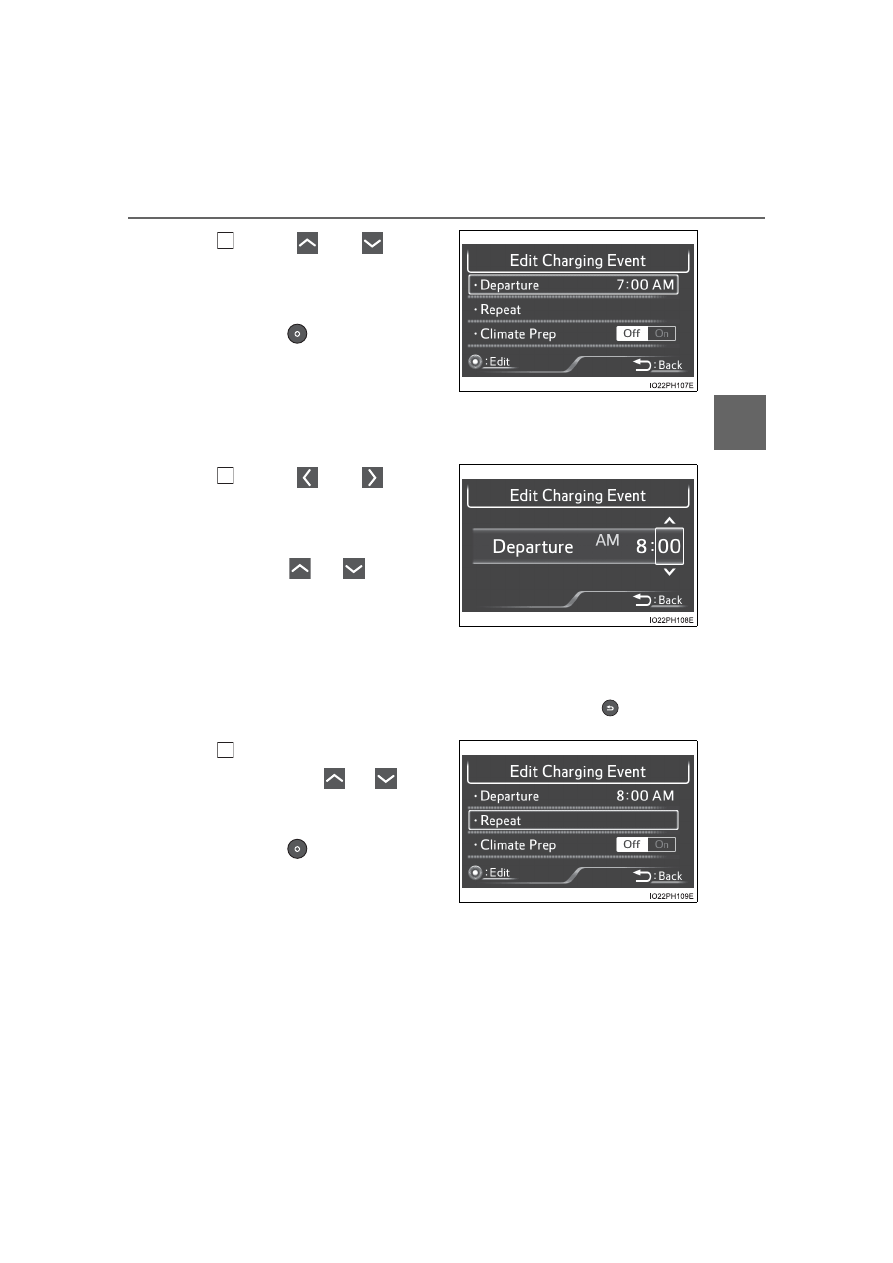

Set  the  desired  charging  mode
and charging start (or departure)
time.
When  the  charging  mode  is  “Start”,  this  sets  the  charging  start  time.
When it is “Departure”, this sets the charging end time.
After changing the settings to the desired settings, press

 to return to

the previous screen.

To activate the repeated set-
ting, press

 or

 of the

meter  control  switches  to
select  “Repeat”,  and  then
press

.

A  screen  where  the  repeated
day can be selected will display.

4

5

6

164

2-2. Charging

Press

  or

  of  the

meter  control  switches  to
select the desired day to acti-
vate for the repeated setting,
and then press

.

Each  time

  is  pressed,  the

repeated

setting

switches

between on and off.
When set to on, the selected day is highlighted and the charging sched-
ule is repeated on that day. It is possible to set more than one day to on.
If no days are set to on, charging is only carried out once according to
the charging schedule for the next 24 hours.
After changing the settings to the desired settings, press

 to return to

the previous screen.

When  the  charging  mode  is
set  to  “Departure”,  set  the
“Climate  Prep”  (



P.  158)  to

on or off.

To turn the function on and oper-
ate  the  air  conditioning,  press

  or

  of  the  meter  control

switches  to  select  “Climate
Prep”, and then press

.

Each time

 is pressed, the function switches between on and off.

After  setting  operations  are
complete, press

.

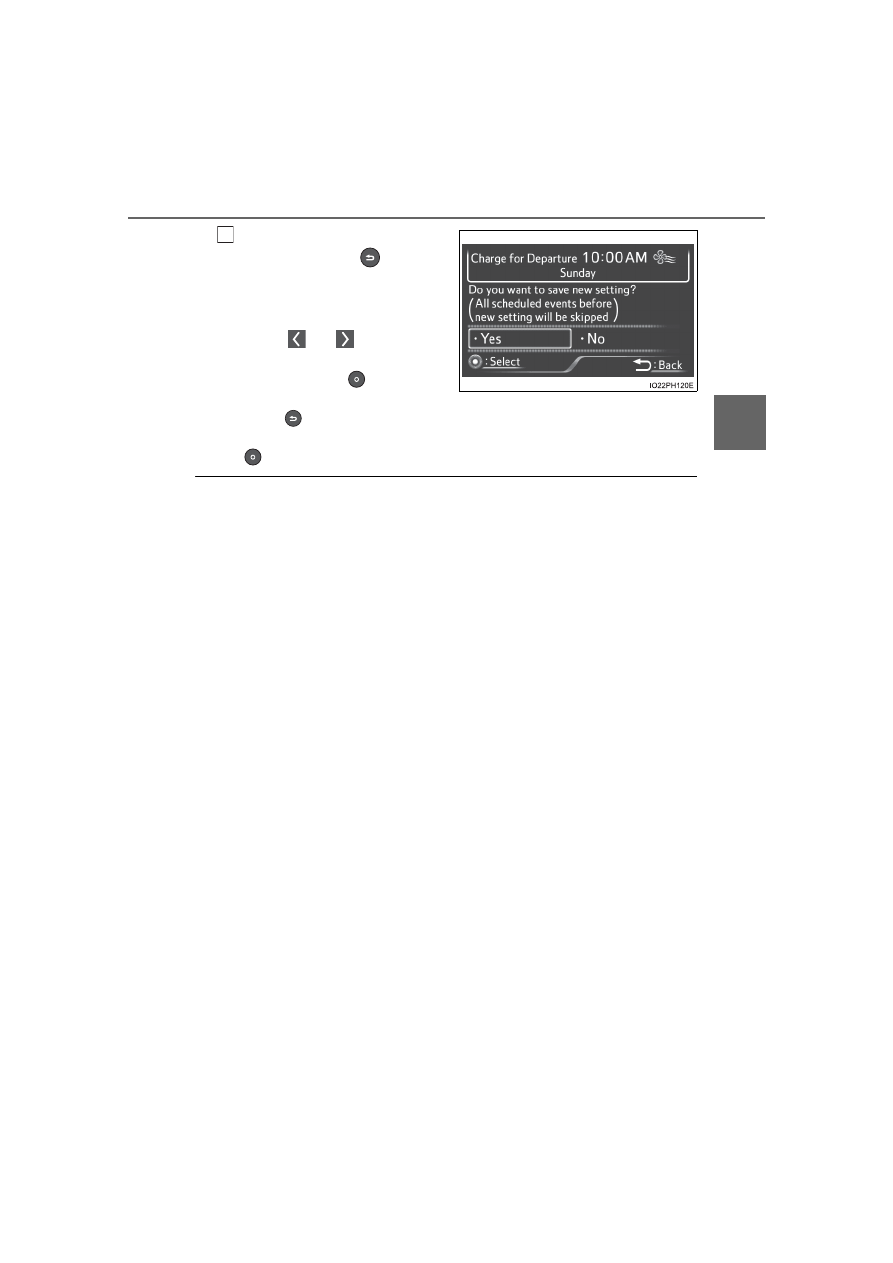

A screen where the settings can
be saved will display.

Press

  or

  of  the  meter

control switches to select “Yes”,
and  then  press

  to  save  the

settings.
If you wish to change the settings, select “No” and perform the setting
procedure from step   again.
After setting operations are complete, when the charging cable is con-
nected  to  the  vehicle,  charging  will  be  carried  out  according  to  the
charging schedule settings.

7

8

9

3

165

2-2. Charging

2

Plug-

in hybrid system

■

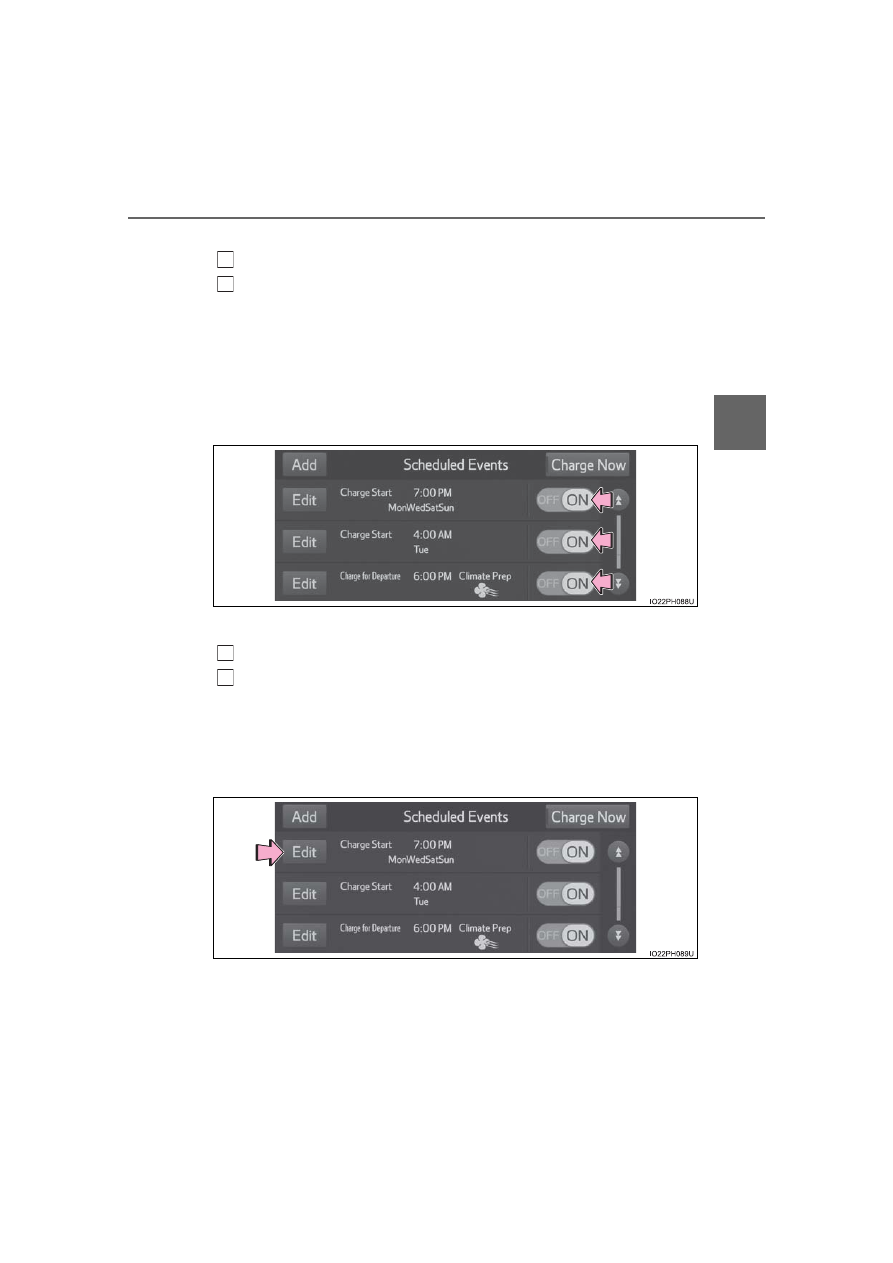

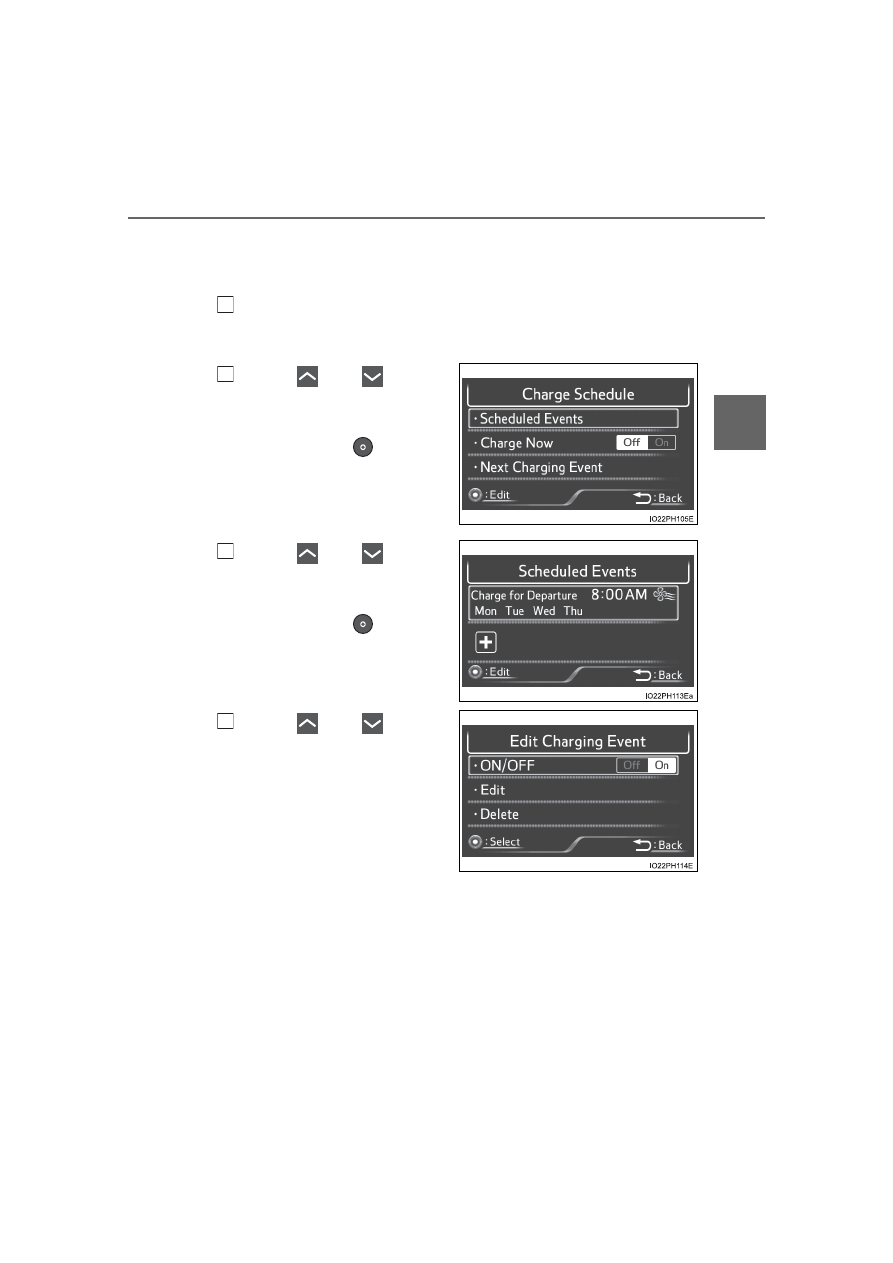

Changing the registered charge schedules

The registered charge schedules can be turned on, off, deleted or
modified.

Press the charging schedule switch.

The “Charge Schedule” screen will display on the multi-information dis-
play.

Press

  or

  of  the

meter  control  switches  to
select  “Scheduled  Events”,
and then press

.

The “Scheduled  Events” screen
is  displayed,  which  displays  a
list  of  the  registered  charge
schedule.

Press

  or

  of  the

meter  control  switches  to
select  the  item  to  change,
and then press

.

The  “Edit  Charging  Event”
screen will display.

Press

  or

  of  the

meter  control  switches  to
select  the  item  to  operate
and  perform  the  necessary
operation.

1

2

3

4

166

2-2. Charging

●

“ON/OFF”
Each  time

  of  the  meter  control  switch  is  pressed,  the

selected charge schedule switches between “On” and “Off”.

When set to “Off”, a charging schedule is ignored and charging accord-
ing to the charging schedule is not carried out.
When

 is pressed, setting is complete.

●

“Edit”
Change the desired settings as described starting from step
of the “Registering the charge schedule” procedure. (



P. 162)

Press

  or

  of  the

meter  control  switches  to
select  “Yes”,  and  then  press

  to  save  the  charging

schedule.

Press

 to return to the previ-

ous screen.
When canceling any changes, select “No” and then press

.

●

“Delete”

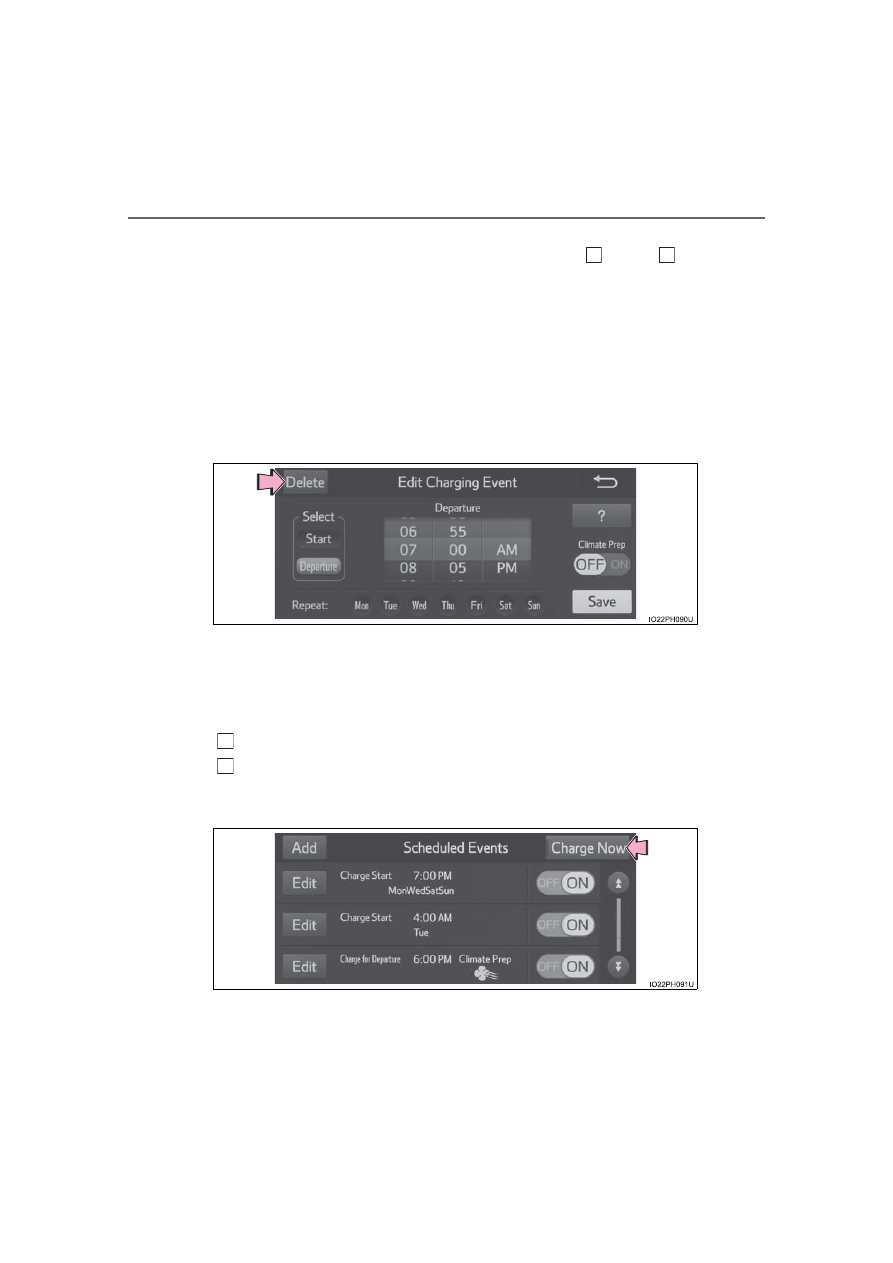

Pressing

 of the meter control switch displays a deletion con-

firmation screen.

Press

  or

  of  the

meter  control  switches  to
select  “Yes”,  and  then  press

  to  delete  the  selected

charge schedule.

Press

 to return to the previ-

ous screen.
To cancel deletion, select “No” and then press

.

4

167

2-2. Charging

2

Plug-

in hybrid system

■

Setting “Charge Now” to “On”

The “Charge Now” setting can be changed by performing one of the
two following procedures.



Operation on “Charge Schedule” screen
Press the charging schedule switch.

The “Charge Schedule” screen will display on the multi-information dis-
play.

Press

  or

  of  the

meter  control  switches  to

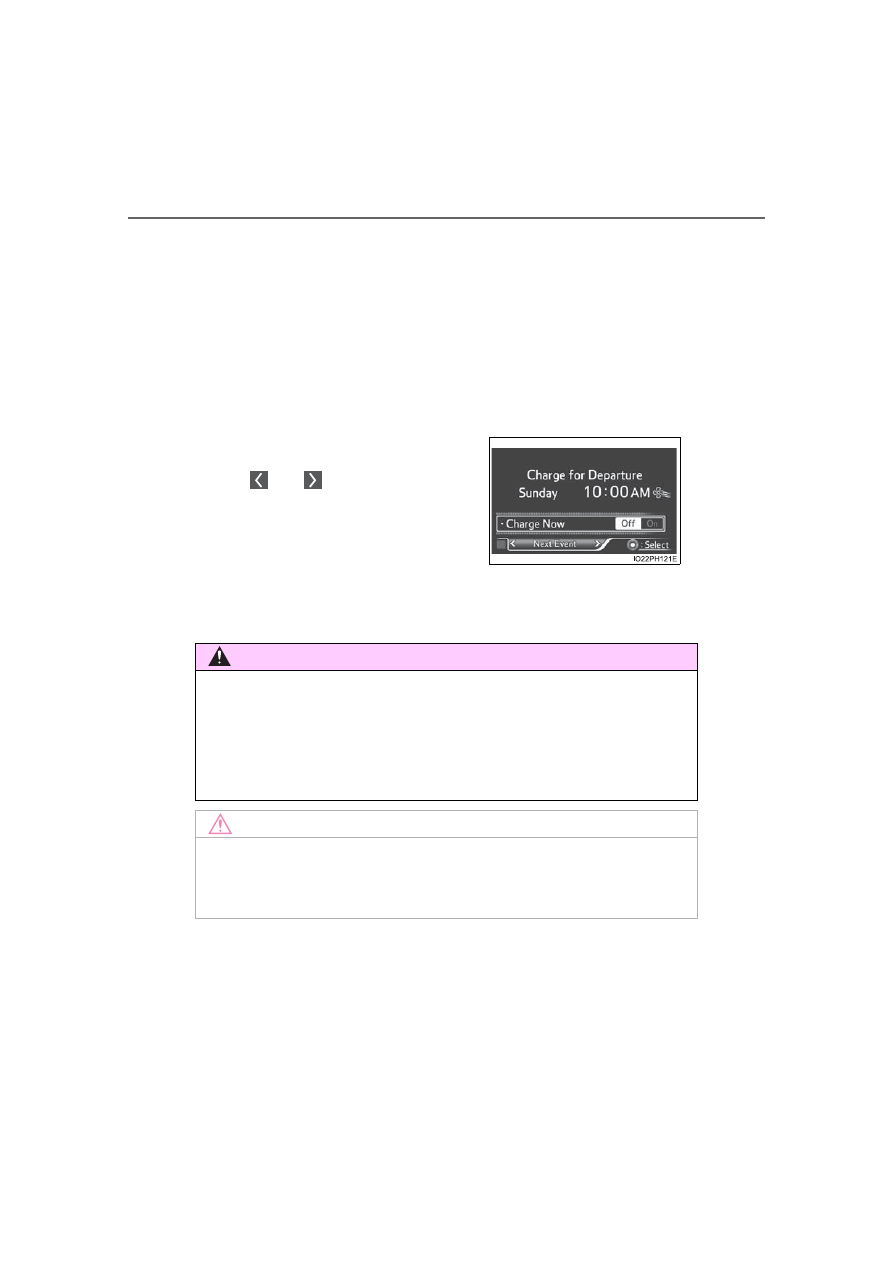

select  “Charge  Now”,  and
then press

.

Each  time

  is  pressed,

“Charge Now” switches between
“On” and “Off”.



Operation on “Ending” screen
Turn the power switch off.

The “Ending” screen is displayed on the multi-information display.
(



P. 196)

While the  “Ending”  screen  is
displayed,  press

  or

of the meter control switches
to  display  the  “Next  Event”
screen.

*

*

: When the power switch is turned

off,  the  “Charge  Now”  setting
screen may be displayed.

Press

 to set “Charge Now” to “On”.

Each  time

  is  pressed,  “Charge  Now”  switches  between  “On”  and

“Off”.

After  setting  operations  are  complete,  charging  starts  when  the
charging cable is connected. (



P. 147)

1

2

1

2

3

168

2-2. Charging

■

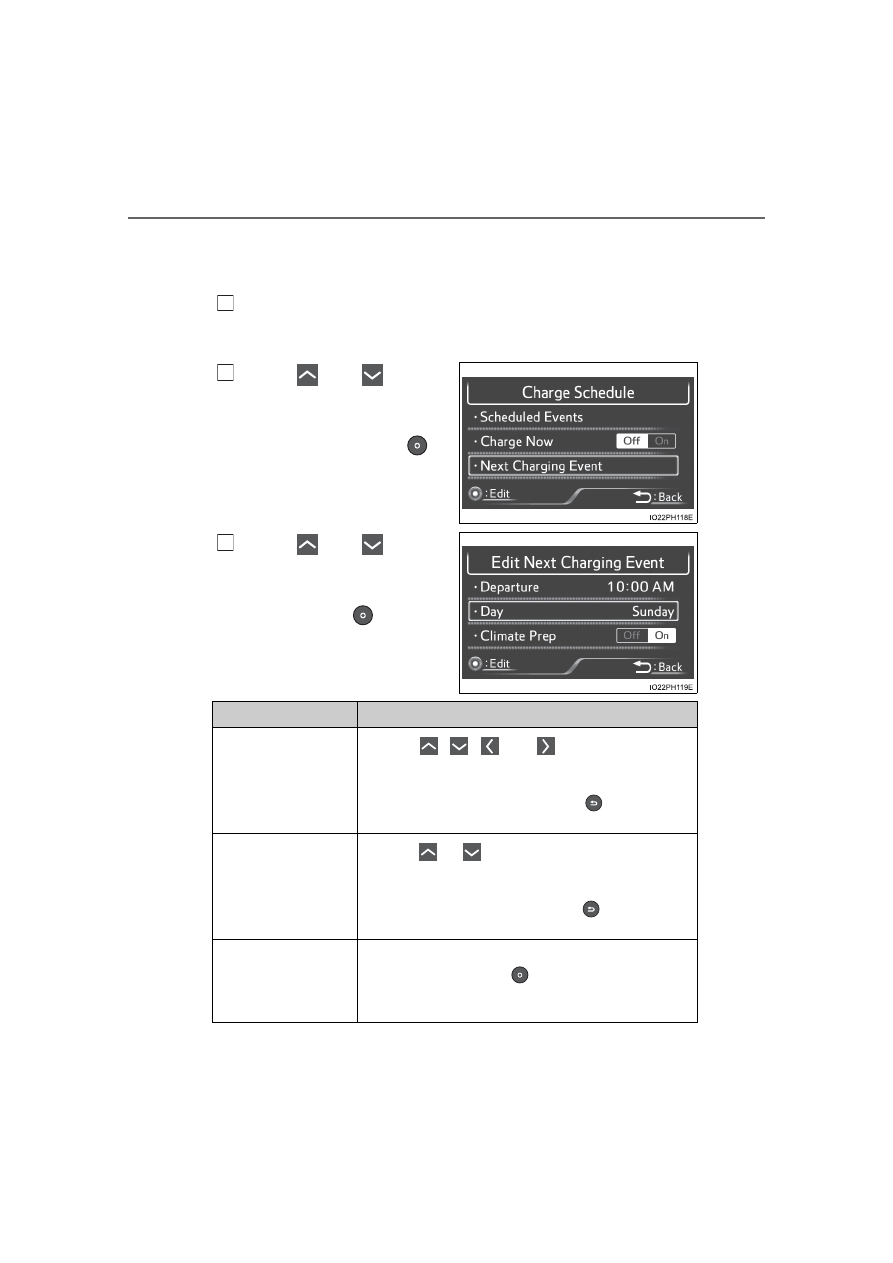

Changing “Next Charging Event”

*

*

: When “Charge Now” is set to “On” etc., it is not possible to change the reg-

istered “Next Charging Event”.

Press the charging schedule switch.

The “Charge Schedule” screen will display on the multi-information dis-
play.

Press

  or

  of  the

meter  control  switches  to
select

“Next

Charging

Event”, and then press

.

The “Edit  Next  Charging  Event”
screen will display.

Press

  or

  of  the

meter  control  switches  to
select  the  item  to  change,
and then press

.

Change  the  registered  settings
in accordance with the following
table.

1

2

3

Setting

Operation

Charging Mode/Time

Operate

,

,

 and

 of the meter control

switches  to  set  the  charging  mode  (“Start”  or
“Departure”) and charging start (or departure) time.
After changing the settings, press

 to return the

previous screen.

“Day”

Operate

 or

 of the meter control switches to

select the day to carry out charging according to the
charging schedule.
After  changing  the  setting,  press

  to  return  the

previous screen.

“Climate Prep”

This  can  be  set  when  the  charging  mode  is  set  to
“Departure”. Each time

 is pressed, air condition-

ing-linked  operation  switches  between  “On”  and
“Off”.

169

2-2. Charging

2

Plug-

in hybrid system

After  setting  operations  are
complete, press

.

A confirmation screen of chang-
ing  “Next  Charging  Event”  will
display.

Press

  or

  of  the  meter

control switches to select “Yes”,
and  then  press

  to  save  the

charging schedule.
Press

 to return to the previous screen.

When canceling the “Next Charging Event”, select “No” and then press

.

■

Charging schedule switch

●

The  charging  schedule  switch  functions  regardless  of  the  condition  of  the
power switch.
However,  when  the  charging  schedule  switch  is  pressed  while  the  power
switch is not turned to ON mode, if the meter control switches are not oper-
ated for a certain amount of time after the charging schedule setting screen
is displayed, the display automatically turns off.

●

The charging schedule switch cannot be used while driving.

■

When charging schedule setting operations are canceled

When  the  vehicle  is  in  the  following  conditions,  charging  schedule  setting
operations are canceled.

●

A message is displayed while performing a setting operation

●

The power switch is operated before the settings are confirmed

●

The vehicle starts off

●

A display with a higher priority than that of the charging schedule setting is
shown

■

Charging schedule

The “Charge Schedule” screen can be displayed and setting operations can
be performed from the “Vehicle Settings” setting on the multi-information dis-
play. (



P. 749)

■

“Next Charging Event”

After charging completes, the “Next Charging Event” displayed on the multi-
information display will not change until the charging cable is removed, even
after charging is performed according to the “Next Charging Event” schedule.

4

170

2-2. Charging

■

To return to original setting after changing “Next Charging Event” set-
ting

Turning the setting of “Charge Now” on and then off can return the setting of
“Next Charging Event” to its original setting.

■

When “Next Charging Event” is changed while charging

●

When the charging mode is “Departure”, the current charging is interrupted
or  continued  depending  on  the  remaining  time  until  the  charging  is  com-
pleted.

●

When the charging mode is “Start”, the current charging is interrupted, the
next charging will start at the set time.

■

When the power switch is turned off

*

2

: When the power switch is turned off, the “Next Charging Event” confirma-

tion screen may be displayed.

It  is  possible  to  check  the  next  charge
schedule (“Next Charging Event”) by oper-
ating

  or

  of  the  meter  control

switches while the power switch is turned
off and the “Ending” screen

*

1

 (



P. 196) is

displayed.

*

2

*

1

: The  “Ending”  screen  may  not  be  dis-

played during charging.

WARNING

■

Cautions while performing the setting operation

When performing the setting operation while the hybrid system is operated,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed  area  such  as  a  garage,  exhaust  gases  including  harmful  carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.

NOTICE

■

While performing the setting operation

When performing the setting operation while the hybrid system is stopped,
be careful that the 12-volt battery will not be discharged.

171

2-2. Charging

2

Plug-

in hybrid system

Setting operations related to the charging schedule are performed on
the “Charge Schedule” screen.

For details on how to operate the 11.6-inch display, refer to “NAVIGATION
SYSTEM OWNER’S MANUAL”.

■

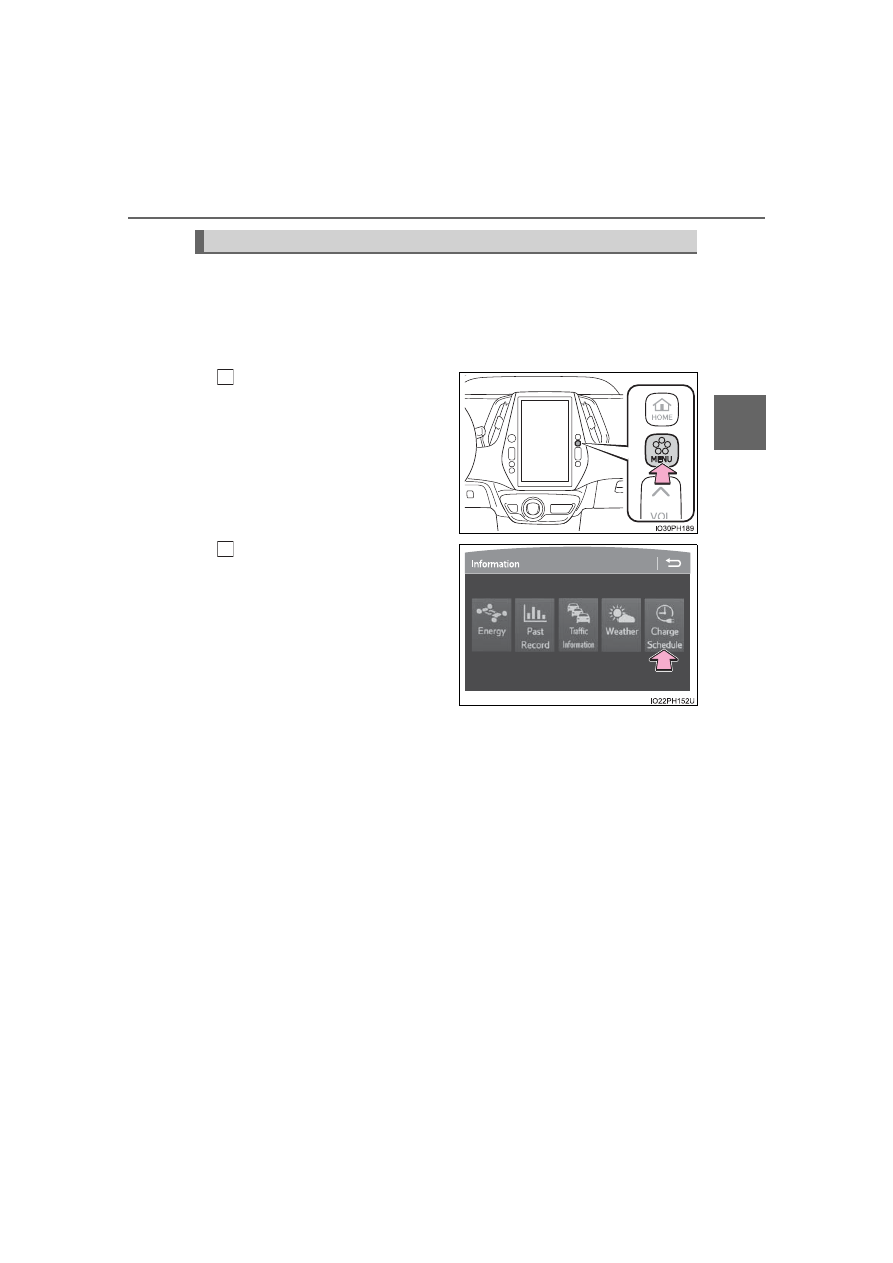

Displaying the “Charge Schedule” screen

Press  the  “MENU”  button  to
display the menu screen.

Select  “Info”  and  “Charge
Schedule”, in that order.

The  “Charge  Schedule”  screen
will display.

Setting operations on the 11.6-inch display (if equipped)

1

2

172

2-2. Charging

■

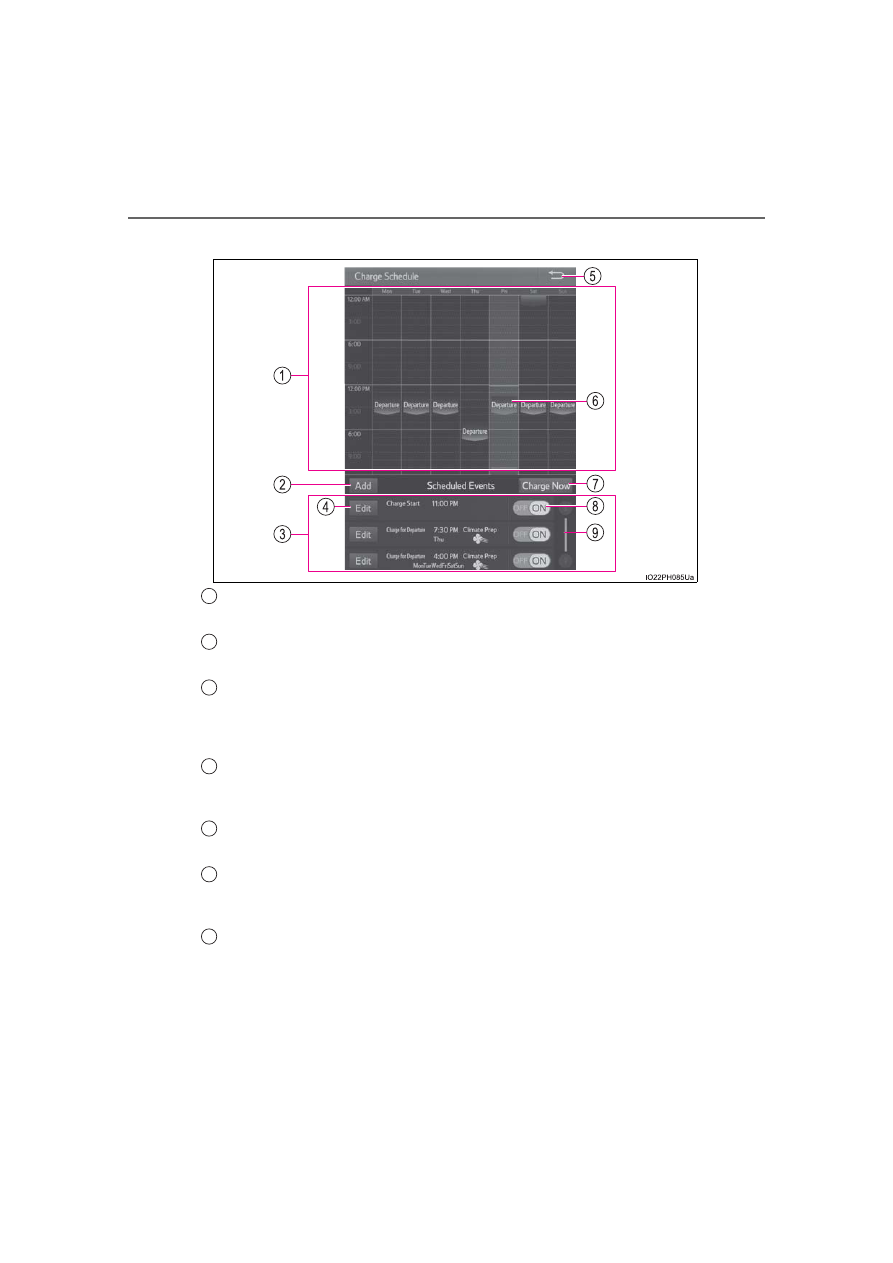

How to read the “Charge Schedule” screen

Charge schedules (calendar display)

Displays the week-long registered charge schedule in a list using icons.

“Add” button

Press to add a new item to the charge schedule. (



P. 173)

Charge schedules (list display)

A list of items on the registered charge schedule is displayed. If there are
more  than  3  registered  items,  the  list  can  be  scrolled  up  and  down  to
change the displayed items.

“Edit” button

Press to change or delete registered items on the charge schedule.
(



P. 175)

Return button

Press to close the “Charge Schedule” screen.

Charge schedules (icon display)

When an item is registered on the charge schedule, an icon is displayed
on the calendar.

“Charge Now” button

Press to set “Charge Now” to on. (



P. 176)

1

2

3

4

5

6

7

173

2-2. Charging

2

Plug-

in hybrid system

“ON”/“OFF” button

The  charge  schedule  switches  between  “ON”  and  “OFF”  each  time  this
button is pressed. (



P. 175)

Scroll bar

When  the  number  of  registered  charge  schedules  exceeds  3,  the  dis-
played contents can be changed by operating the button.

Main content displayed on the calendar:

*

1

: A row with a red line indicates the current time.

*

2

: While a registered setting is being changed, the icon of the related setting

is highlighted (except when the icon overlaps with another icon).

*

3

: When “Charge Now” (



P. 176) is set to on, the orange icon moves to the

position of the red line and changes to display “Charge Now”.

*

4

: The content of the charge schedule that corresponds to the “Next Charging

Event” is not displayed in the list.

■

Registering the charge schedule

Display the “Charge Schedule” screen. (



P. 171)

Press “Add”.

The settings screen will display on the bottom of the screen.

8

9

Display

Content

Red line

*

1

Current time

Orange icon

*

2, 3

Charge schedule for “Next Charging Event”

*

4

Green icon

*

2

The charging mode is set to “Departure”

Blue icon

*

2

The charging mode is set to “Start”

1

2

174

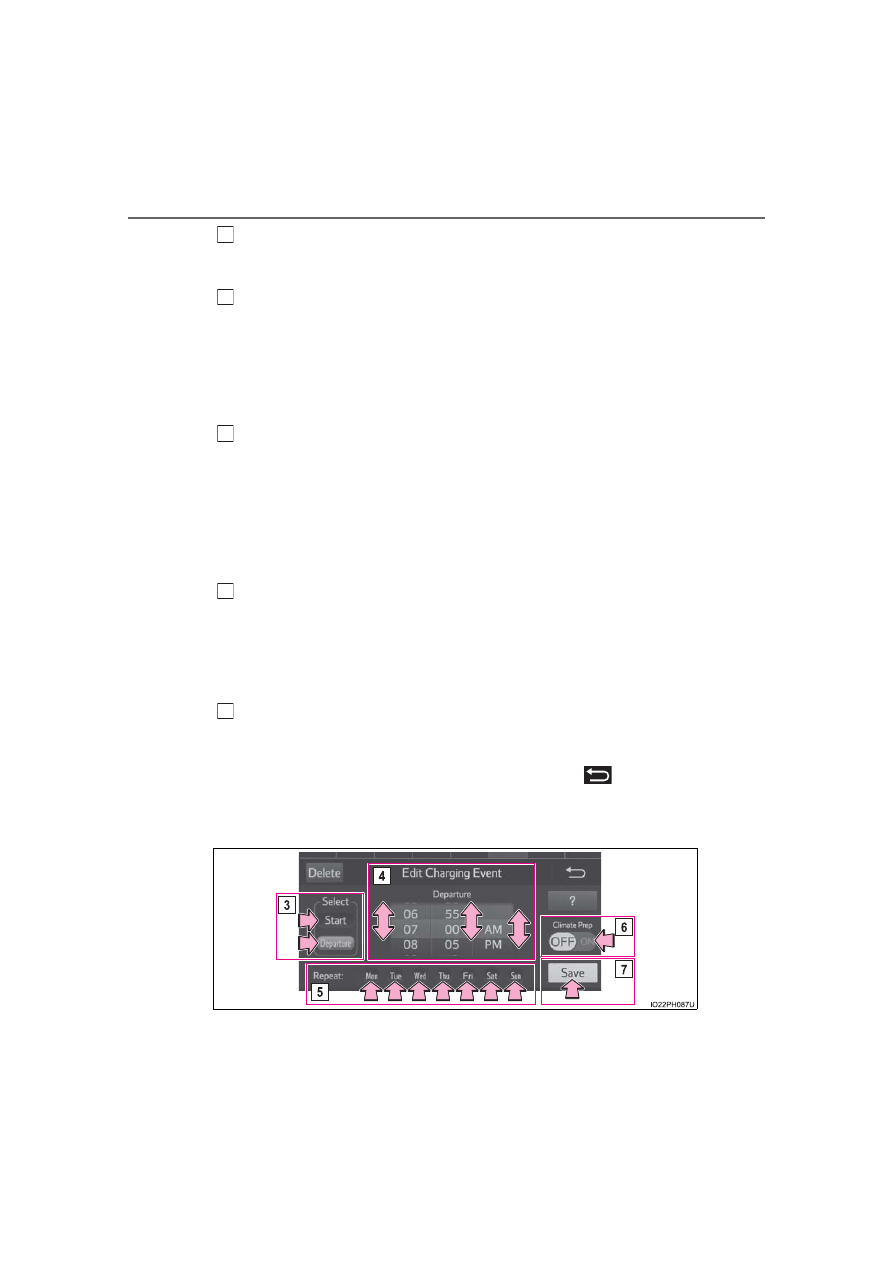

2-2. Charging

Select the charging mode.

Press “Start” or “Departure” to turn the button (charging mode) on and
highlight the button.

Operate  the  time  setting  wheel  to  set  the  start  (or  departure)
time.

When  the  charging  mode  is  “Start”,  set  the  charging  start  time  (start
time).  When  it  is  “Departure”,  set  the  charging  end  time  (departure
time).
Operate the each wheel up and down to display the desired time in the
center.

When activating the repeated settings, press the desired day but-
ton.

Each time the button is pressed, the repeated setting for the selected
day switches between on and off.
When turned on, the button is highlighted and the charging schedule is
repeated on that day. It is possible to turn more than one day on.
If no buttons are turned on, charging is only carried out once according
to the charging schedule for the next 24 hours.

When the charging mode is set to “Departure”, set the “Climate
Prep” (



P. 158) to on or off.

To operate the air conditioning, press the “Climate Prep” button to set
the function to “ON”.
Each  time  the  button  is  pressed,  the  function  switches  between  “ON”
and “OFF”.

After setting operations are complete, press “Save”.

The charge schedule is added to the list and an icon is added to the cal-
endar.
To cancel registration of the charging schedule, press

.

After setting operations are complete, when the power switch is turned
off and the charging cable is connected to the vehicle, charging is car-
ried out according to the charging schedule settings.

3

4

5

6

7

175

2-2. Charging

2

Plug-

in hybrid system

■

Switching charge schedules between “ON” and “OFF”

Display the “Charge Schedule” screen. (



P. 171)

From the items in the list displayed on the bottom of the screen,
press “ON” or “OFF” in the row of the charge schedule you wish
to change.

Setting “ON” or “OFF” is possible by sliding the bar to the left or right.
If the charge schedule you wish to change is not displayed on the bot-
tom of the screen, scroll the list up and down to display it.
Each time the button is pressed, the charge schedule switches between
“ON” and “OFF”.

■

Changing the registered charge schedules

Display the “Charge Schedule” screen. (



P. 171)

From  the  items  displayed  on  the  bottom  of  the  screen,  press
“Edit” in the row of the charge schedule you wish to change.

The settings screen will display on the bottom of the screen.
It is also possible to display the settings screen by pressing the icon of
the  charge  schedule  you  wish  to  change  from  those  displayed  on  the
calendar.

1

2

1

2

176

2-2. Charging

●

Changing registered items:
Change the desired settings as described in step

 to step

 of

the “Registering the charge schedule” procedure. (



P. 173)

When a setting is changed, its icon on the calendar also changes.

●

Deleting registered items:
Press “Delete”.

A deletion confirmation message will display.
Press “Yes” to delete the selected charge schedule.
To cancel deletion, press “No”.
When a charge schedule is deleted, its icon is also deleted from the cal-
endar.

■

Turning “Charge Now” on

The “Charge Now” setting can be changed by performing one of the
two following procedures.



Operations on “Charge Schedule” screen
Display the “Charge Schedule” screen. (



P. 171)

Press “Charge Now”.

Each  time  the  button  is  pressed,  “Charge  Now”  switches  between  on
and off and the indicator on the button turns on and off.

3

7

1

2
