2. Instrument cluster

2

Instru

me
nt clu

ster

■

Main display and multi-information display

*

: The displayed indicator changes according to the current driving mode.

■

Multi-information display (symbol display

*

)

*

: These symbols are displayed along with a message. Also, the symbol dis-

plays listed here are only an example, and different symbols may be dis-
played according to the contents of the multi-information display.

Indicators and symbols displayed on the display

Indicators

Pages

EV drive mode indicator

P. 246

*

“ECO MODE” indicator

P. 342

*

“PWR MODE” indicator

P. 342

EV Indicator

P. 130

Symbol display

Pages

Smart key system

P. 239

Inappropriate pedal operation

P. 592

LTA (Lane Tracing Assist) (if equipped)

P. 315

P. 315

Low engine oil pressure warning
(Canada only)

P. 592

114

2. Instrument cluster

■

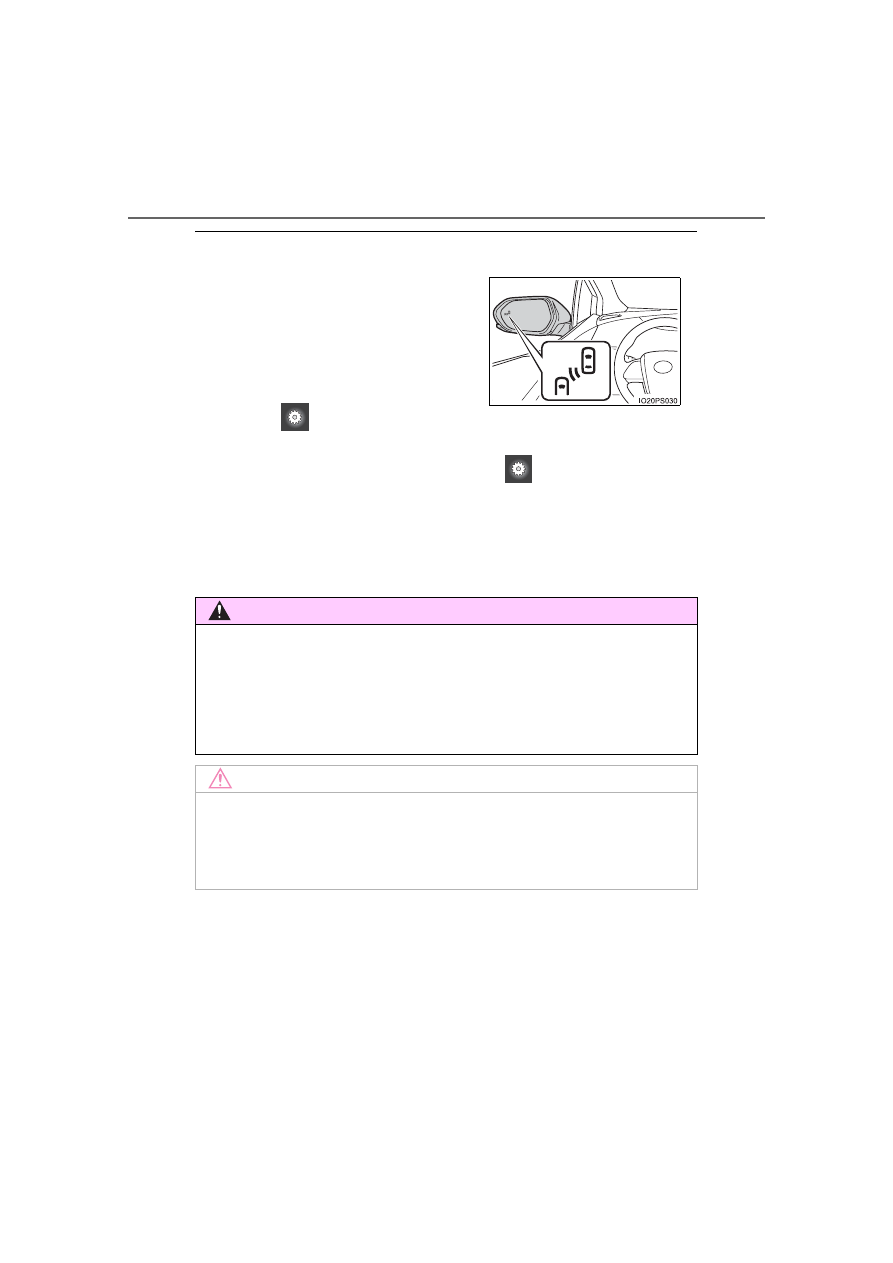

BSM (Blind Spot Monitor) outside rear view mirror indicators
(if equipped) (



P. 344)

• When the BSM function is enabled on the

 screen of the multi-infor-

mation display, the power switch is turned to ON mode.

If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view  mirror  indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota dealer.

●

Indicators are also displayed on the out-
side rear view mirrors.

●

In  order  to  confirm  operation,  the  BSM
outside rear view mirror indicators illumi-
nate in the following situations:
• When  the  power  switch  is  in  ON

mode,  the  BSM  function  is  enabled

on the

 screen of the multi-infor-

mation display.

WARNING

■

If a safety system warning light does not come on

Should a  safety  system light  such as  the ABS and  SRS  warning  light  not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

NOTICE

■

To prevent damage to the engine and its components

The  engine  may  be  overheating  if  the  high  coolant  temperature  warning
light  comes  on  or  flashes.  In  this  case,  immediately  stop  the  vehicle  in  a
safe place, and check the engine after it has cooled completely. (



P. 652)

115

2. Instrument cluster

2

Instru

me
nt clu

ster

Main display

The units used on the display may differ depending on the target region.

The main display shows basic information, such as the vehicle
speed and remaining fuel amount. Also, the displayed informa-
tion can be switched according to user preference.

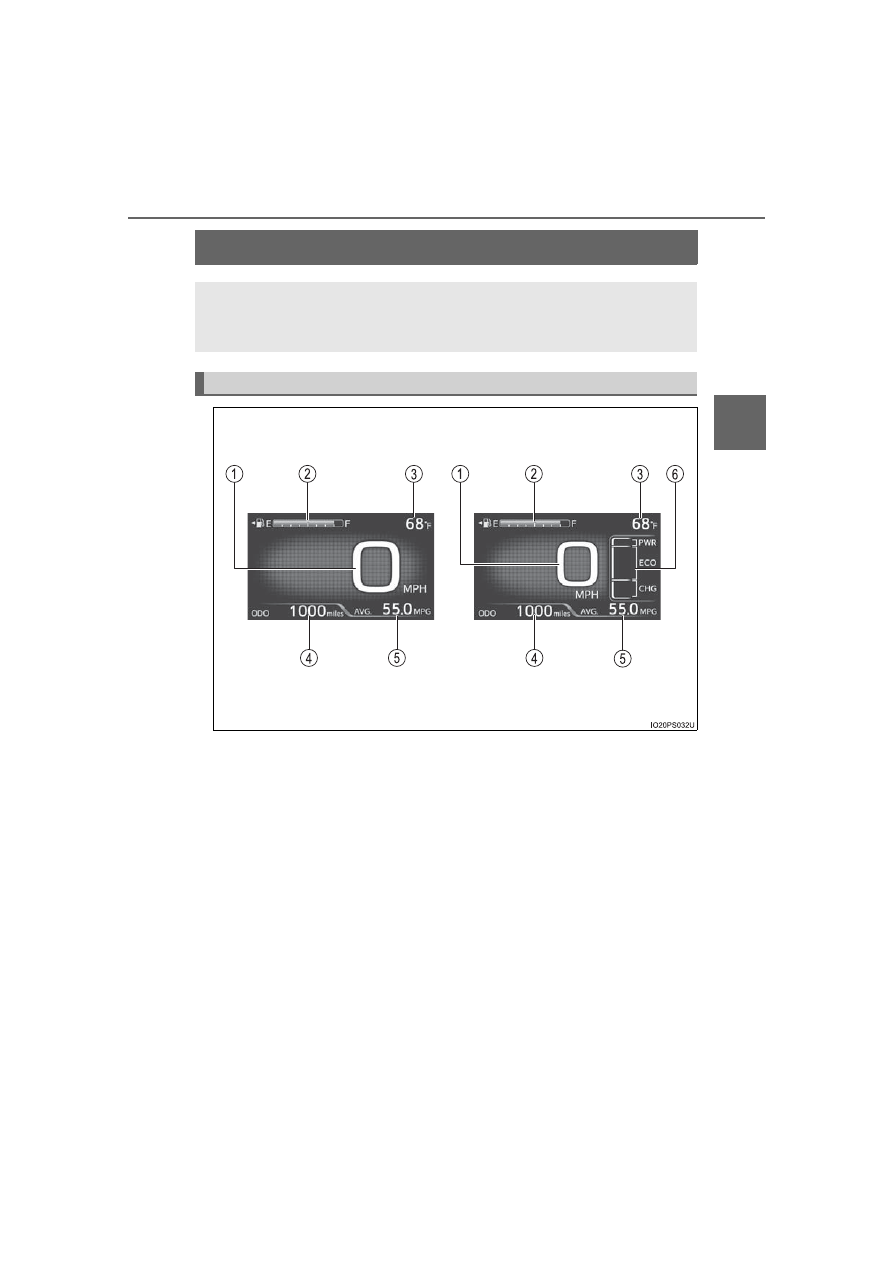

Display contents (vehicles without RSA [Road Sign Assist])

Simple screen

*

Split screen

*

*

: Refer to P. 121 for details on how to change the screen display.

116

2. Instrument cluster

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Outside temperature

Displays  the  outside  temperature  within  the  range  of  -40°F  (-40°C)  to
122°F (50°C).
The temperature display flashes for approximately 10 seconds when the
outside temperature drops to approximately 37



F (3



C) or less, and then

stops flashing.

Mileage display (odometer/trip meters/driving range)

The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. (



P. 119)

Average fuel consumption display

The average fuel consumption that is linked with the contents of the mile-
age display can be displayed. (



P. 119)

Sub-screen

When split screen is selected for the main display, information such as the
Hybrid  System  Indicator and  current  fuel consumption  can be  displayed.
(



P. 121)

1

2

3

4

5

6

117

2. Instrument cluster

2

Instru

me
nt clu

ster

The units used on the display may differ depending on the target region.

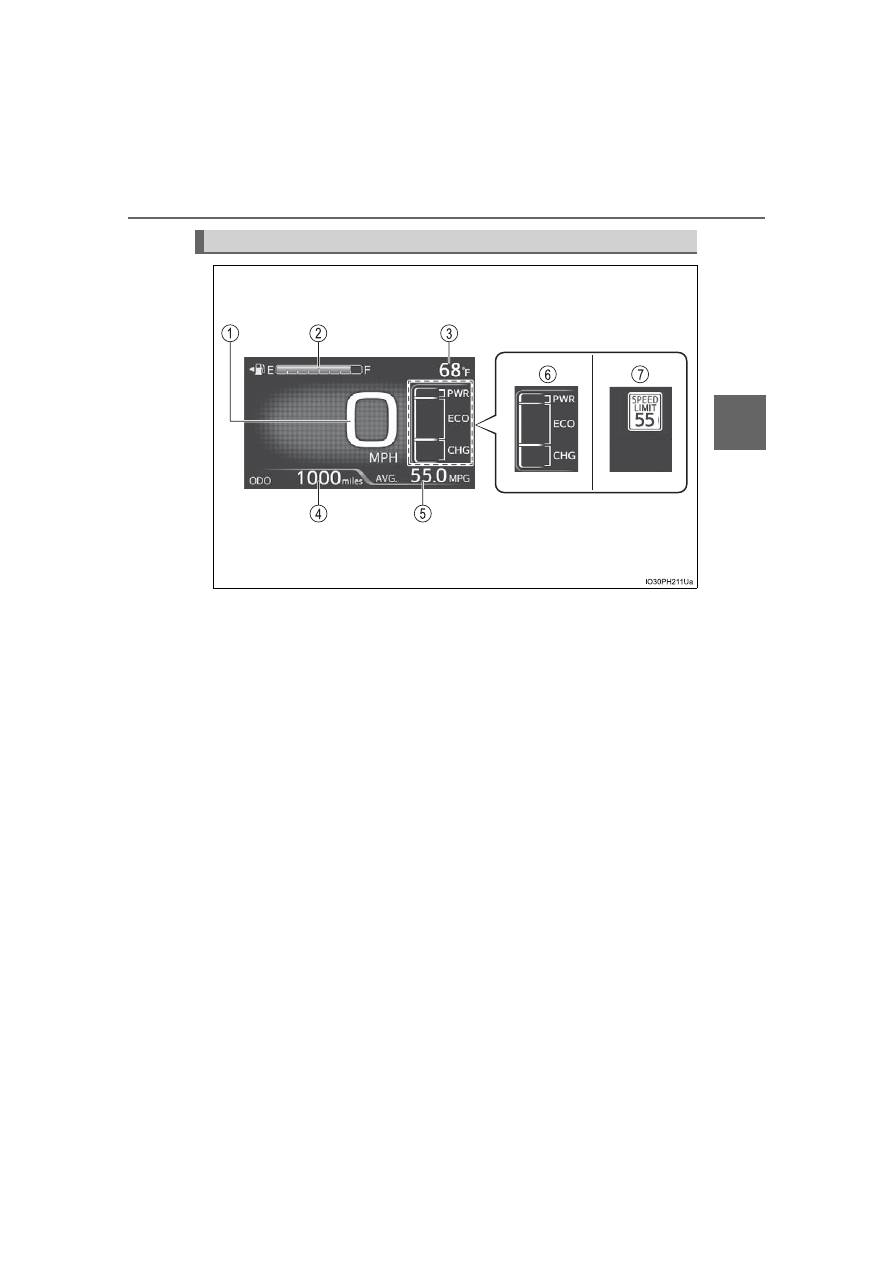

Display contents (vehicles with RSA [Road Sign Assist])

118

2. Instrument cluster

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Outside temperature

Displays  the  outside  temperature  within  the  range  of  -40°F  (-40°C)  to
122°F (50°C).
The temperature display flashes for approximately 10 seconds when the
outside temperature drops to approximately 37°F (3°C) or less, and then
stops flashing.

Mileage display (odometer/trip meters/driving range)

The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. (



P. 119)

Average fuel consumption display

The average fuel consumption that is linked with the contents of the mile-
age display can be displayed. (



P. 119)

Sub-screen (when RSA [Road Sign Assist] is off)

Information  such  as  the  Hybrid  System  Indicator  and  current  fuel  con-
sumption can be displayed. (



P. 122)

Sub-screen (when RSA [Road Sign Assist] is on)

Displays information related to RSA (Road Sign Assist)

*

. (



P. 317)

*

: When RSA (Road Sign Assist) information is displayed in the

 screen

of the multi-information display (



P. 150), RSA (Road Sign Assist) infor-

mation is not displayed on the sub-screen.

1

2

3

4

5

6

7

119

2. Instrument cluster

2

Instru

me
nt clu

ster

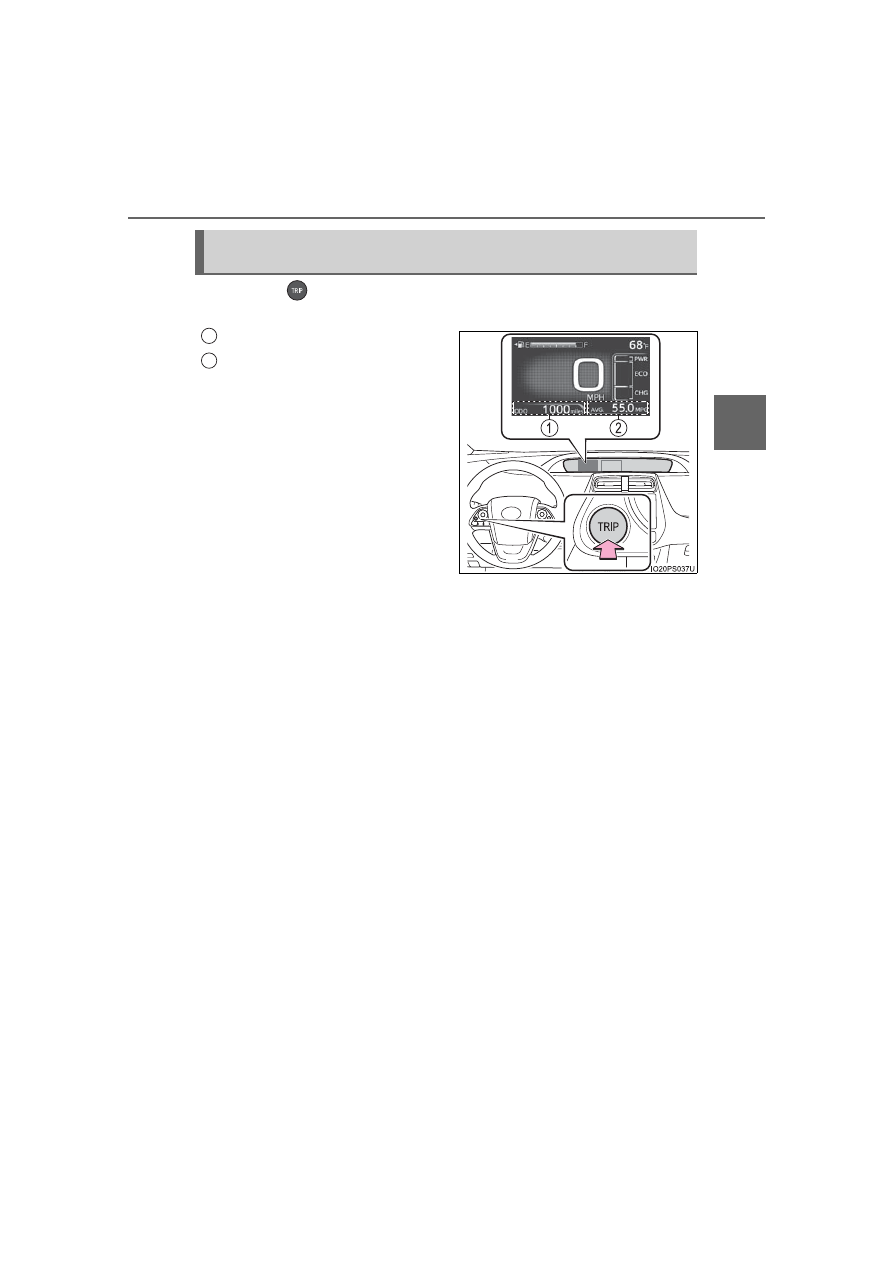

Each time

 is pressed, the mileage display and fuel consumption

display change in the following order from 1 to 6.

Mileage display
Average  fuel  consumption  dis-
play

After 1 to 6 are displayed, the dis-
plays return to 1.
Use  the  displayed  average  fuel
consumption as a reference.

Switching  the  mileage  display  and  average  fuel  consumption
display

1

2

120

2. Instrument cluster

*

1

: If

 is pressed and held while this item is displayed, the information is

reset.

*

2

: This item is reset each time the hybrid system starts.

 Mileage display

 Average fuel consumption display

1

ODO (Odometer)

Total mileage

Average fuel consumption since
last reset

Average fuel  consumption  since
last reset

*

1

2

TRIP A (Trip meter A)

Mileage since last reset

*

1

TRIP A average fuel consumption

Average fuel  consumption  since
TRIP A was reset

*

1

3

TRIP B (Trip meter B)

Mileage since last reset

*

1

TRIP B average fuel consumption

Average fuel  consumption  since
TRIP B was reset

*

1

4

 (Mileage since hybrid sys-

tem was started)

Mileage  since  hybrid  system
started

*

2

Average  fuel  consumption  after
hybrid system started

Average fuel  consumption  since
hybrid system was started

*

2

5

 (Distance to empty)

Approximate  distance  vehicle
can  travel  based  on  current
remaining fuel amount

Blank screen

6

Blank screen

Blank screen

1

2

121

2. Instrument cluster

2

Instru

me
nt clu

ster

Simple screen or split screen can be selected for the main display.

When split screen is selected, a variety of information can be displayed on
a sub-screen in addition to the contents of the simple screen.

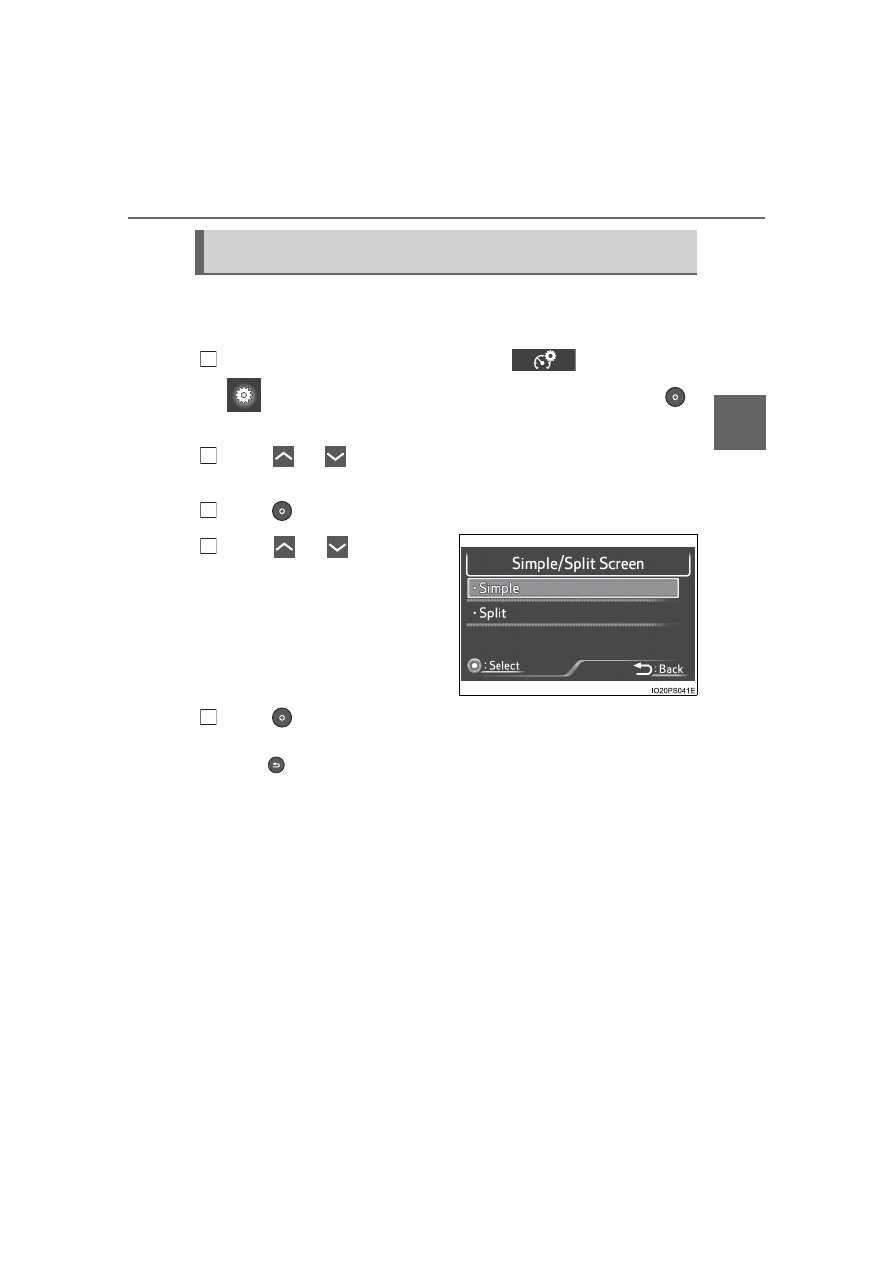

Select the “Meter Customize” settings (

 ) screen on the

 screen of the multi-information display, and then press

.

(



P. 151)

Press

 or

  of the meter  control switches to select  “Simple/

Split Screen”.

Press

 to display the setting screen.

Press

  or

  of  the  meter

control switches to select a dis-
play mode.

Press

.

The contents of the main display switch to the selected display mode.
Press

 to return to the previous screen.

Switching  the  display  mode  (vehicles  without  RSA  [Road  Sign
Assist])

1

2

3

4

5

122

2. Instrument cluster



Vehicles without RSA (Road Sign Assist)

When split screen is selected for the main display, display contents on
the sub-screen can be selected.



Vehicles with RSA (Road Sign Assist)

When RSA is off, display contents on the sub-screen can be selected.

Press

  or

  of  the  meter

control switches and select the
sub-screen.

When  the  sub-screen  is  selected,

  is  displayed  on  the  sub-

screen.

Press

 or

 of the meter control switches to select the display

item.

One of the following 3 items can be displayed.

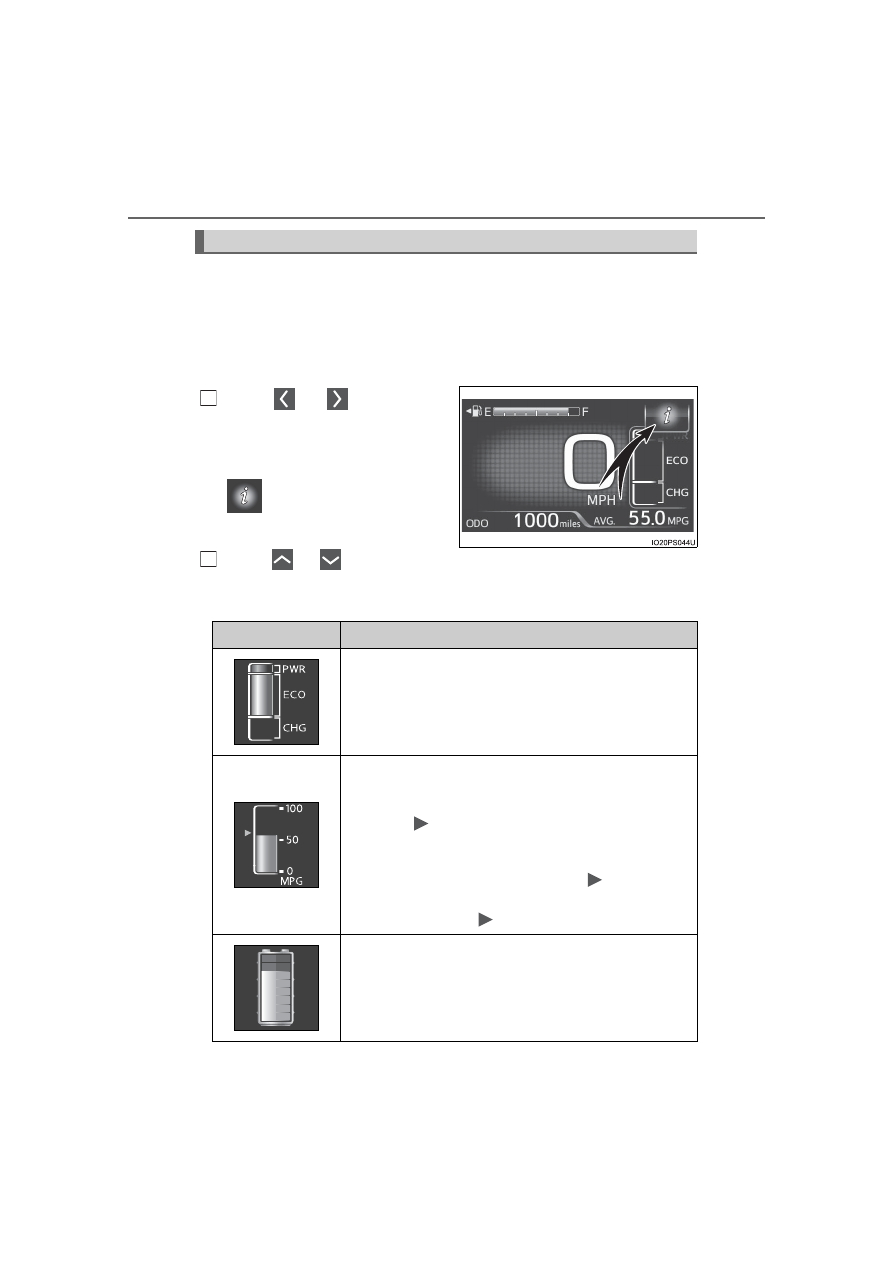

Switching contents displayed on the sub-screen

1

2

Display contents

Detail

Hybrid System Indicator

A convenient Hybrid System Indicator is displayed.
Refer to P. 129 for details on how to read the Hybrid
System Indicator.

Current fuel consumption

The  current  fuel  consumption  during  driving  is  dis-
played.

• The

 mark indicates the value displayed in the

average  fuel  consumption  display  (



P.  119).

Switching  the  average  fuel  consumption  display
also changes the position of the

 mark.

• When the average fuel consumption is reset, the

position of the

 mark is reset to 0.

Hybrid battery (traction battery) status

The  same  contents  as  the  hybrid  battery  (traction
battery) status on the energy monitor are displayed.
(



P. 128)

123

2. Instrument cluster

2

Instru

me
nt clu

ster

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/

exit of a garage, tunnel, etc.)

●

When “-” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.

■

Distance to empty

●

This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.

●

When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the power switch off. If the vehicle is refueled without
turning the power switch off, the display may not be updated.

■

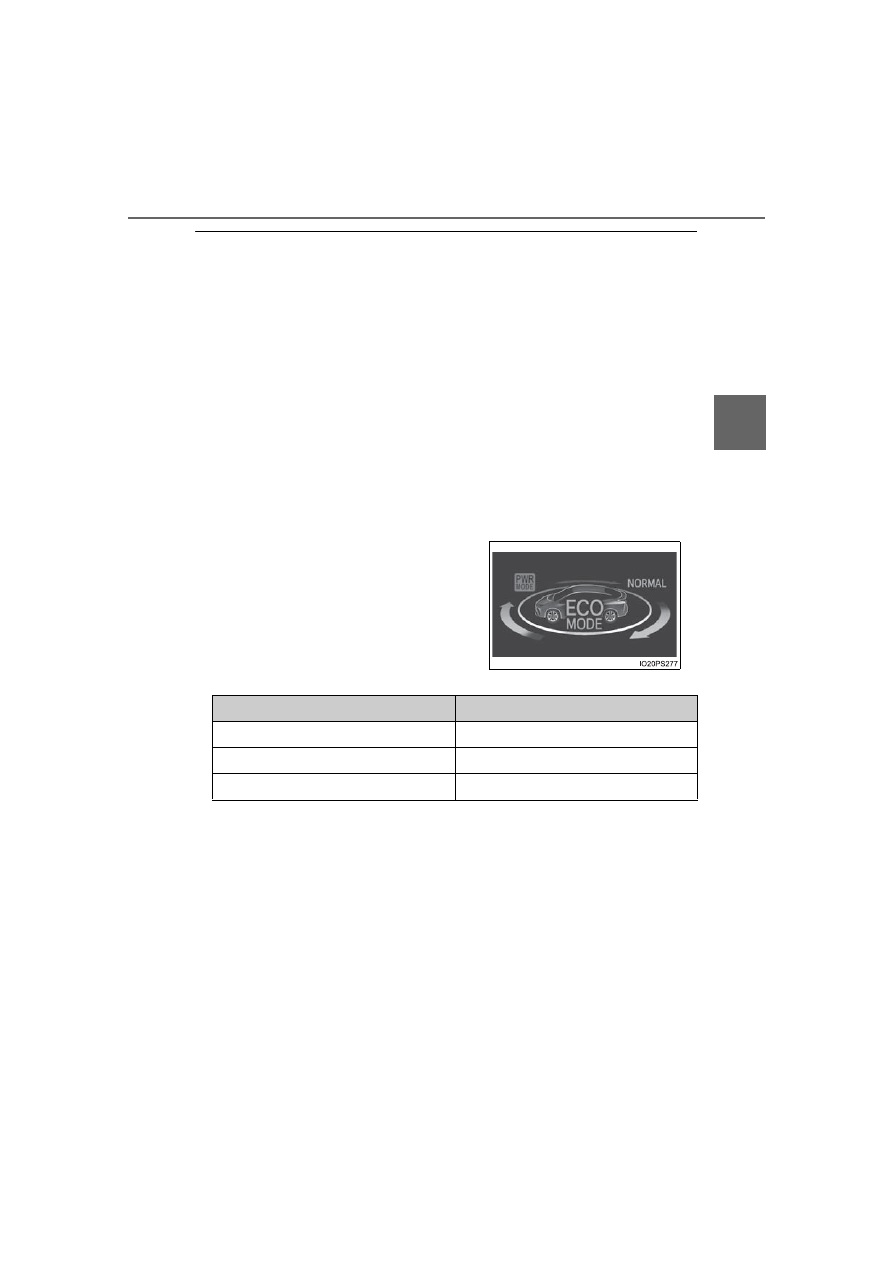

Switching the driving mode (



P. 342)

*

: The animation displayed when the driving mode is switched can be turned

off in the “Meter Customize” settings. (



P. 153)

When  the  driving  mode  is  switched,  the
driving  mode  indicator  changes  and  an
animation

*

 is displayed on the multi-infor-

mation display.
Also,  the  background  color  of  the  main
display,  energy  monitor  (



P.  127)  and

Hybrid  System  Indicator  (



P.  129)

change as follows.

Driving modes

Background color

Normal mode

Green

Power mode

Red

Eco drive mode

Blue

124

2. Instrument cluster

Multi-information display

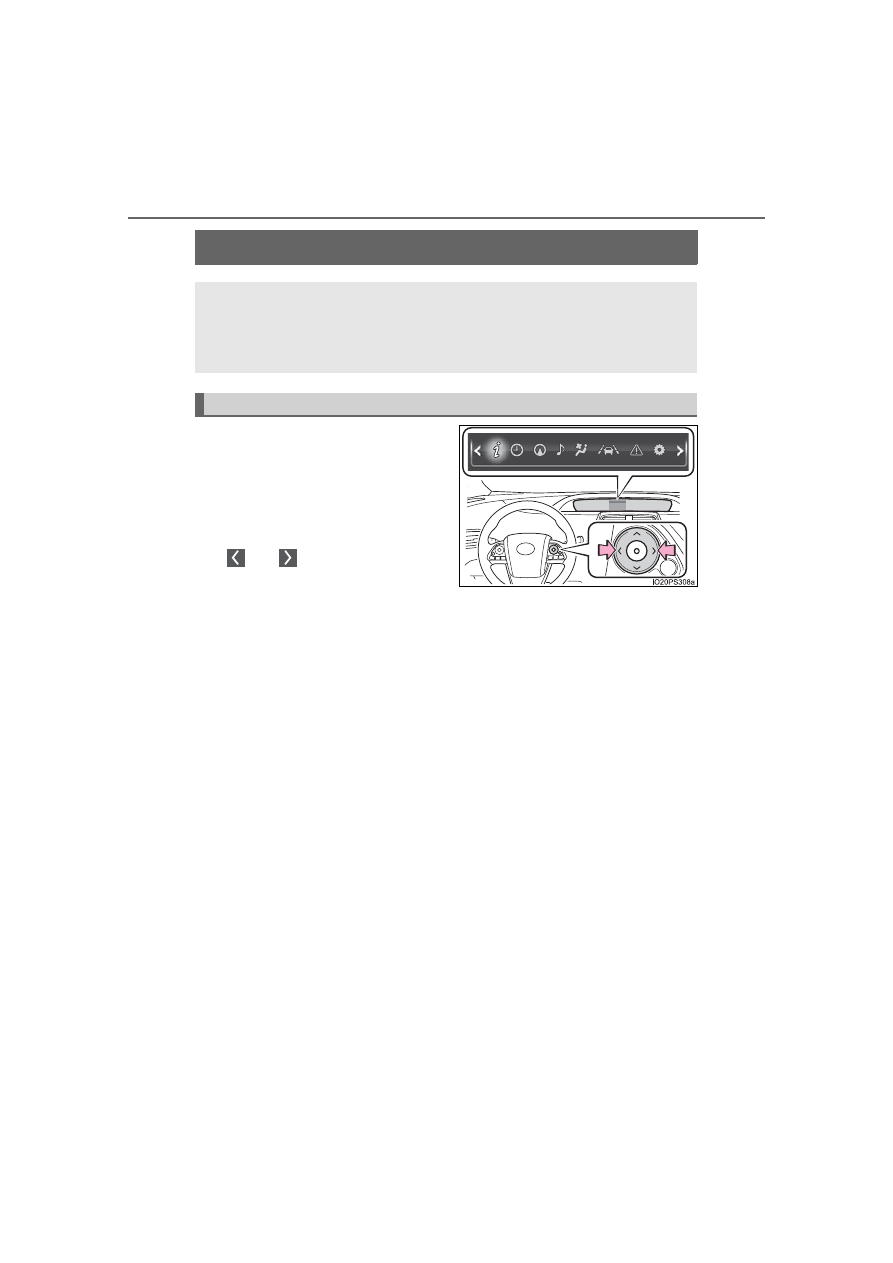

Information  related  to  each  icon
on the upper portion of the multi-
information  display  can  be  dis-
played  by  operating  the  meter
control switches to select the icon.

Icons are displayed when pressing

  or

  of  the  meter  control

switches  and  turn  off  shortly  after
pressing the switch.
Screens  linked  with  vehicle  functions  may  be  automatically  displayed
according to the operation status of the corresponding functions.

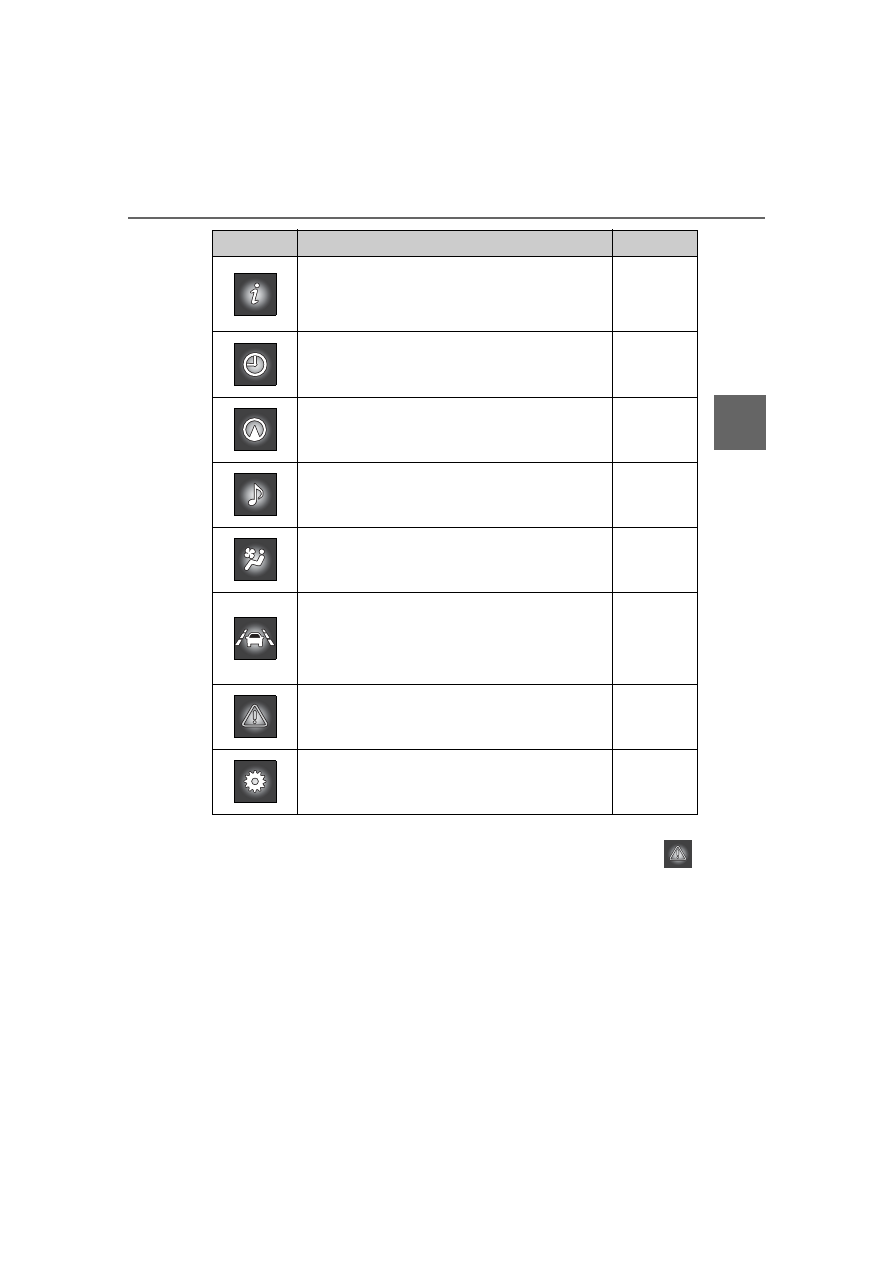

A variety of information related to the vehicle can be displayed,
including the operation status of each system and data related
to Eco driving, and the settings of each system can be changed
according to user preference.

Display contents

125

2. Instrument cluster

2

Instru

me
nt clu

ster

*

1

: If equipped

*

2

: When there is a warning message that can be displayed, the color of

changes to amber.

Menu icons

Contents

Pages

Drive information

The energy monitor that shows the operation
status of the hybrid system, or other informa-
tion such as fuel consumption is displayed.

P. 126

Clock setting display

The clock settings can be changed.

P. 144

Navigation system-linked display

*

1

The information related to the navigation sys-
tem is displayed.

P. 145

Audio system-linked display

*

1

The audio system settings can be changed.

P. 145

Air conditioning system settings screen

The  air  conditioning  system  settings  can  be
changed.

P. 146

Driving assist system information

The  information  related  to  driving  assist  sys-
tems such as the LTA (Lane Tracing Assist)

*

1

and  dynamic  radar  cruise  control  with  full-
speed range

*

1

 is displayed.

P. 150

Warning message display

*

2

The warning messages are displayed.

P. 150

Settings display

The  settings  of  the  vehicle  functions,  meter
display, etc. can be changed.

P. 151

126

2. Instrument cluster

Press

 or

 of the meter control switches and select the icon

of the desired item.

The selected icon is highlighted and the display switches to the information
screen.
When split screen display is selected for the main display or RSA (Road
Sign  Assist)

*

  is  off,  the  sub-screen  of  the  main  display  can  also  be

selected. (



P. 122)

*

: If equipped

Press

 or

 of the meter control switches to switch the con-

tents of the display.
Press

  on  screens  where  it

is  necessary  to  select  or  con-
firm an item.

On  screens  with  tab  displays,
pressing

  selects  the  tab  dis-

play, and the screen display can be
changed by pressing

 or

 of

the meter control switches.

Press

 to return to the previous screen.

When

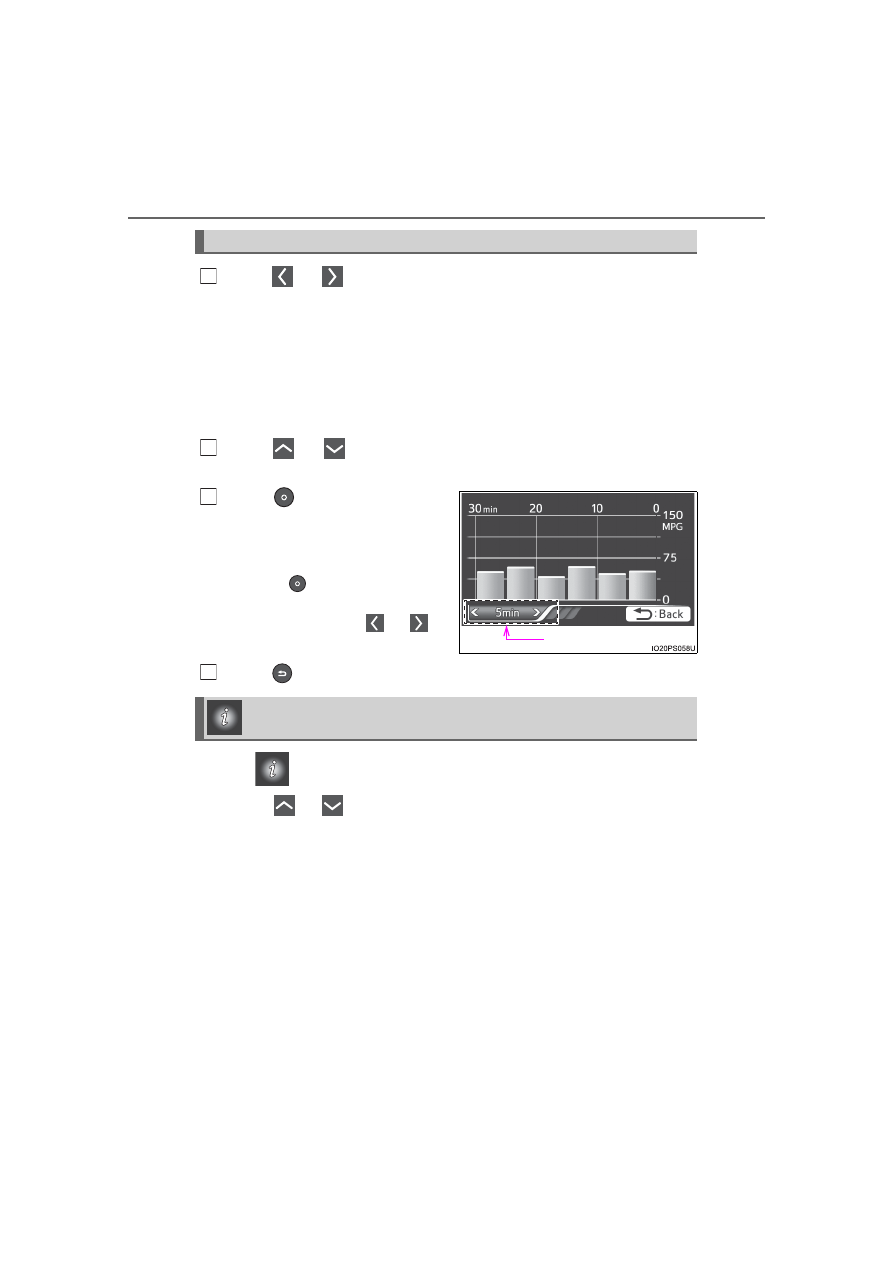

 is selected, the following information can be displayed by

pressing

 or

 of the meter control switches.

●

Energy monitor (



P. 127)

●

Hybrid System Indicator (



P. 129)

●

“Fuel Consumption Record” (



P. 133)

●

“Drive Monitor” (



P. 137)

●

“Eco Savings” (



P. 138)

●

“Eco-Diary” (



P. 141)

●

AWD display (for AWD vehicles only) (



P. 143)

Basic Operations

1

2

Tab display

3

 Drive information

4

127

2. Instrument cluster

2

Instru

me
nt clu

ster

◆

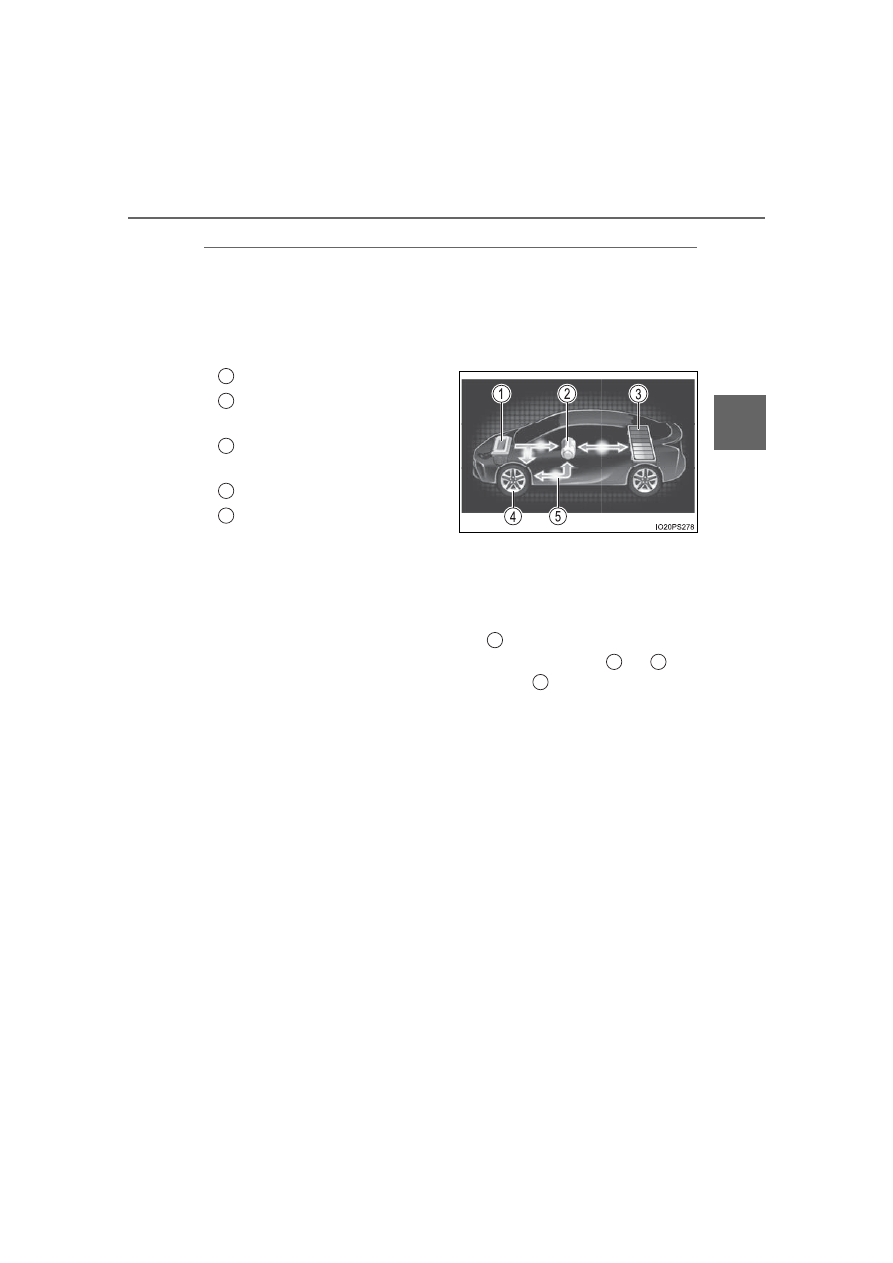

Energy monitor

The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light is not displayed.

Gasoline engine
Electric motor
(traction motor)
Hybrid battery
(traction battery)
Tire
Bright  point  of  light  showing
the flow of energy

As an example, all arrows are shown in the illustration, but the actual con-
tents of the display will differ.

(Display example)

●

When the hybrid battery (traction battery) is being charged, the
bright point of light moves towards

.

●

During driving, the bright point of light moves from

 or

 (or

both depending on the situation) towards

.

*

●

During driving, the image of the tires rotates.

*

: The display may differ depending on the driving status.

1

2

3

4

5

3

1

2

4

128

2. Instrument cluster

■

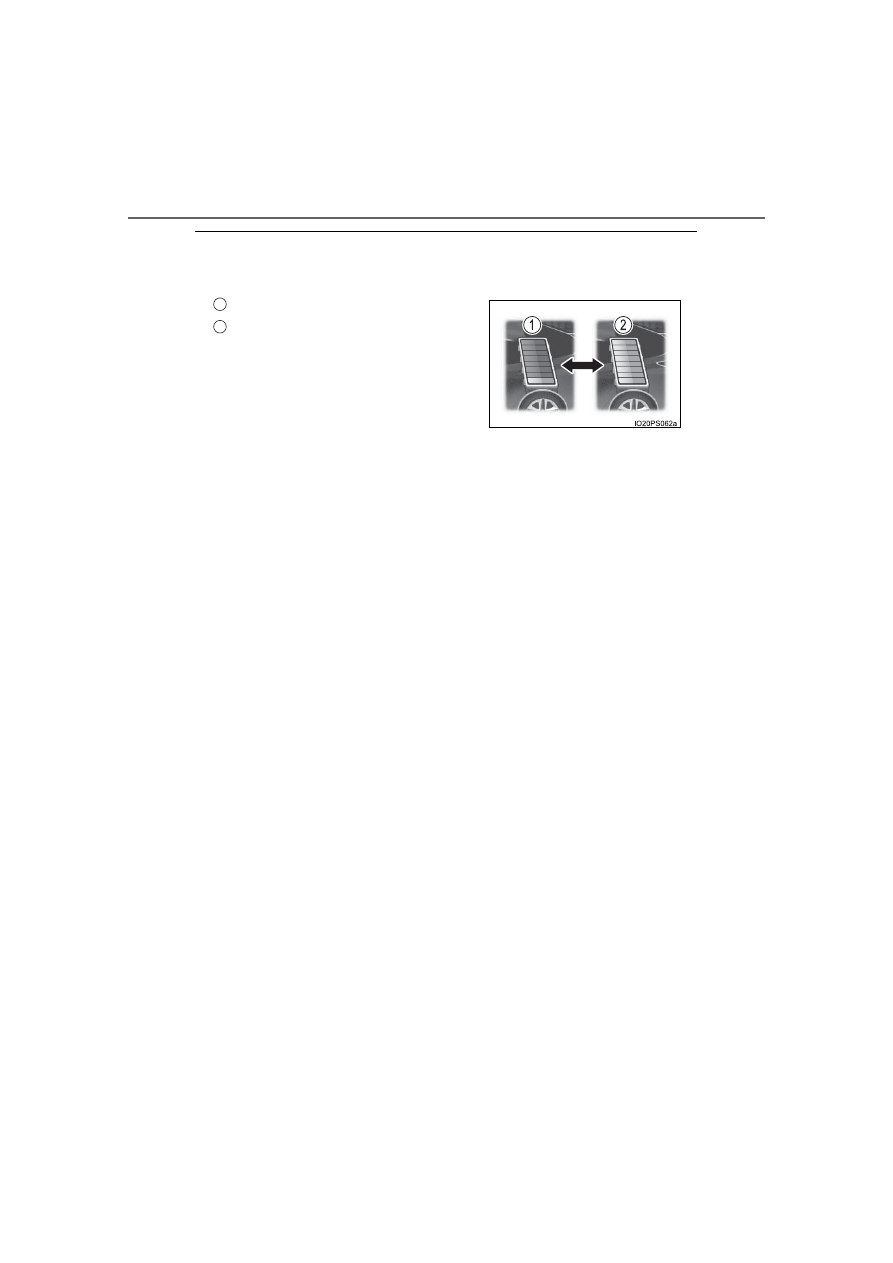

Hybrid battery (traction battery) status

●

The display changes in 8 levels according to the remaining charge amount
of the hybrid battery (traction battery).

●

The hybrid battery (traction battery) status is also displayed on the following
screen, but the contents of the display are the same.
• Sub-screen of the main display (



P. 122)

• Hybrid System Indicator (



P. 129)

• Head-up display (if equipped) (



P. 158)

●

The charge amount of the hybrid battery (traction battery) is automatically
controlled by the hybrid system. For this reason, even if electricity is recov-
ered via the regenerative braking, or electricity is generated via the gasoline
engine, the displayed hybrid battery (traction battery)  charge  amount  may
not reach the highest level (level 8). However, this does not indicate a mal-
function.

■

Remaining charge amount warning of hybrid battery (traction battery)

●

The buzzer sounds intermittently when the hybrid battery (traction battery)
remains  without  charging  while  the  shift  position  is  in  N,  or  the  remaining
charge amount drops below a certain level.
If  the  remaining  charge  amount  drops  further,  the  buzzer  sounds  continu-
ously.

●

When a warning message is shown on the multi-information display and the
buzzer  sounds,  follow  the  instructions  displayed  on  the  screen  to  perform
troubleshooting.

Low
High

1

2
