97

Instrument cluster

2

2.

Instrument cluster

Combination meter.............. 98
Warning lights and

indicators ........................ 107

Main display ...................... 115
Multi-information

display............................. 124

Head-up display ................ 158
Energy monitor/

consumption screen
(vehicles with 7-inch
display) ........................... 165

Energy monitor/

consumption screen
(vehicles with
11.6-inch display)............ 170

98

2. Instrument cluster

Combination meter

The units used on the display may differ depending on the target region.

Main display (

P. 115)

The main display shows basic information related to driving, such as the
vehicle speed and remaining fuel amount.

Multi-information display (

P. 124)

The multi-information display shows information which makes the vehicle
convenient-to-use, such as the hybrid system operation condition and fuel
consumption  history. Also,  the  operation  contents  of  the  driving  support
systems  and  the  combination  meter  display  settings  can  be  changed  by
switching to the settings screen.

Warning lights and indicators (

P. 107)

The warning lights and indicators comes on or flashes to indicate problems
with the vehicle or to show the operation status of the vehicle’s systems.

Clock (

P. 103)

The large meter uses 2 liquid crystal displays to display informa-
tion such as the vehicle condition, driving status and fuel con-
sumption.

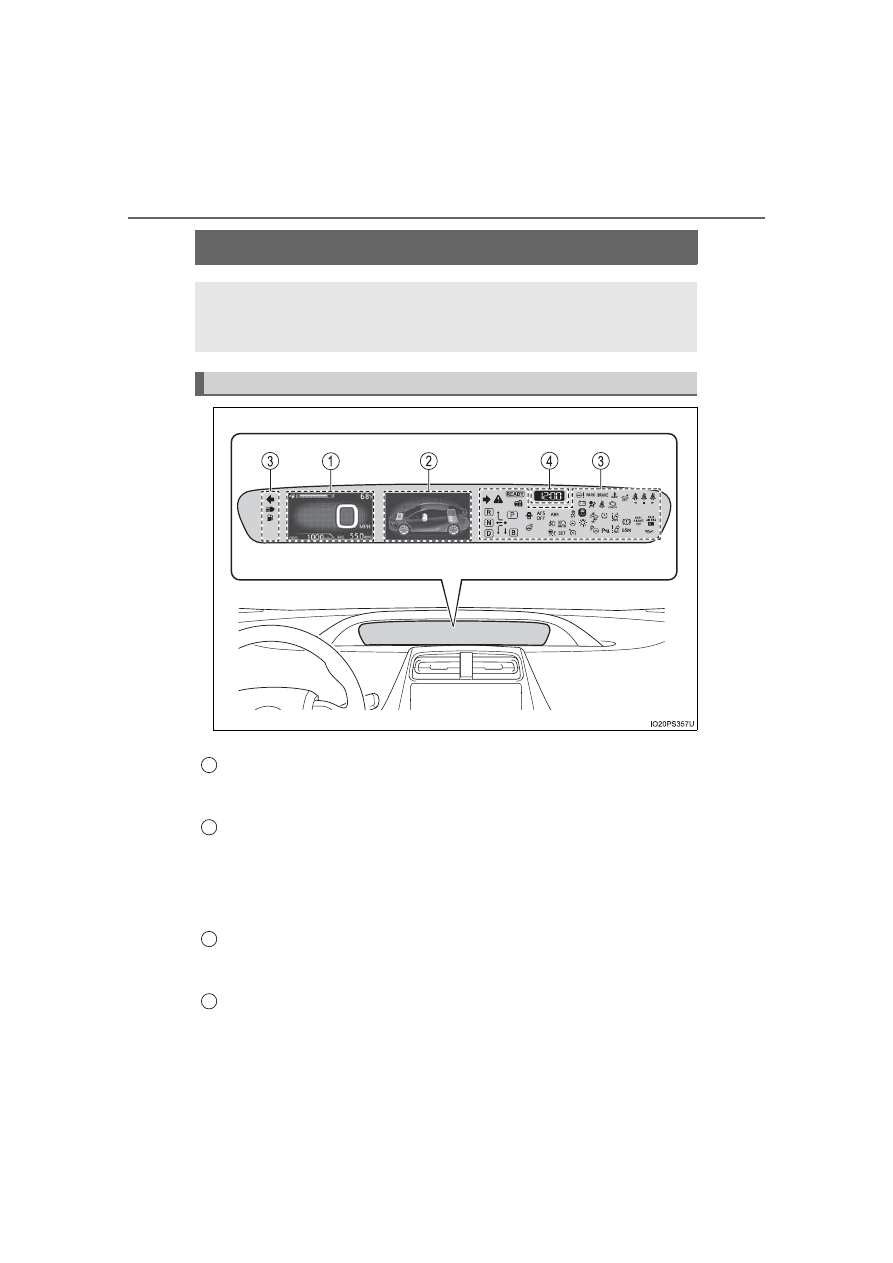

Combination meter layout

1

2

3

4

99

2. Instrument cluster

2

Instru

me
nt clu

ster

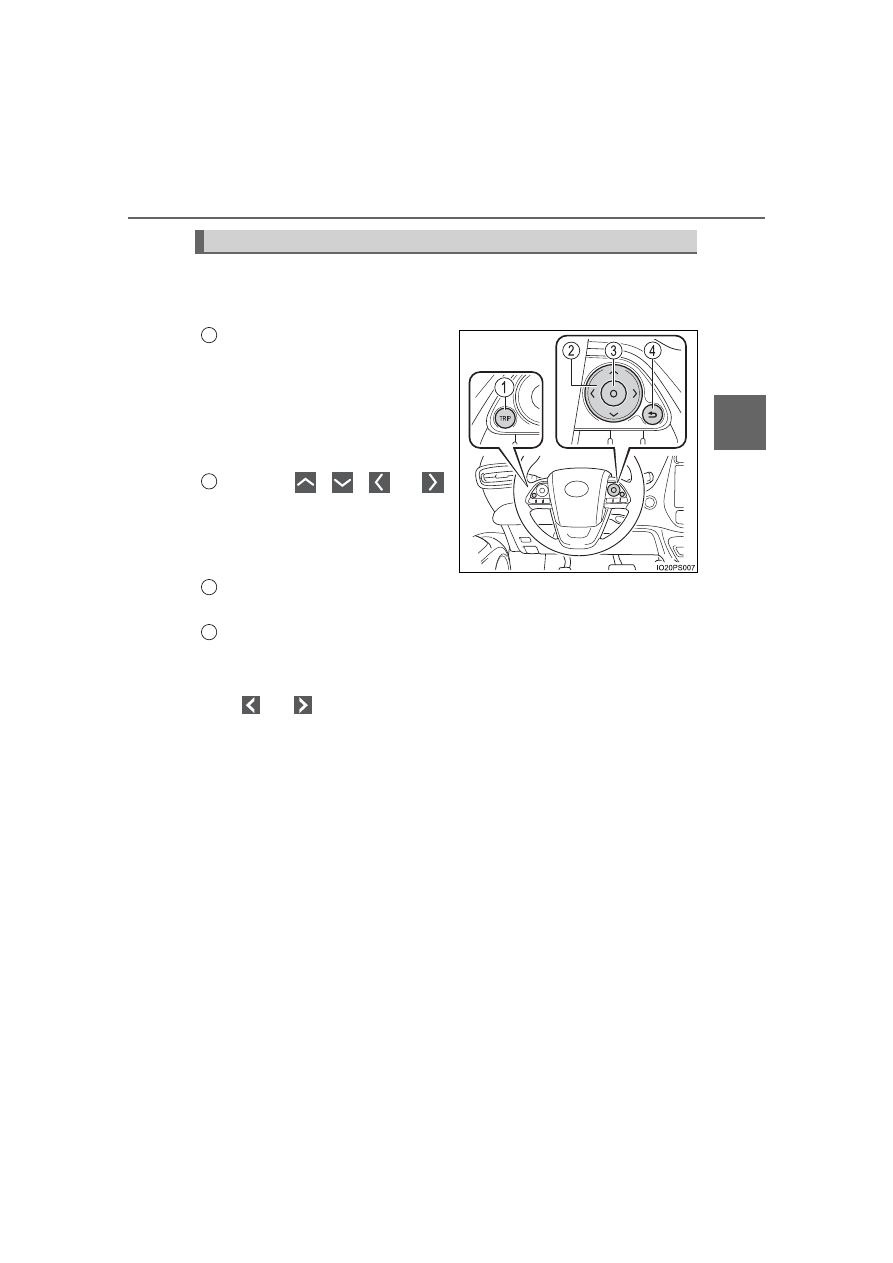

The  meter  control  switches  equipped  on  the  steering  wheel  can  be
used to switch the screen display and change settings related to func-
tions displayed on the screen.

Each  time  the  button  is
pressed,  the  mileage  display
switches  among  odometer,  trip
meters,  etc.,  and  the  fuel  con-
sumption  information  for  each
distance switches as well.
(

 P. 119)

Pressing

  or

performs  such  operations  as
scrolling the screen

*

, switching

the contents of the display

*

 and

moving the cursor.
This button is used to perform such operations as selecting the cur-
rent item or switching between on and off.
When pressed, the display returns to the previous screen.

*

: On  screens  where  the  screen  can  be  scrolled  and  the  display  can  be

switched, marks are displayed to indicate the direction of operation (such
as

 and

).

Operations related to the combination meter

1

2

3

4

100

2. Instrument cluster

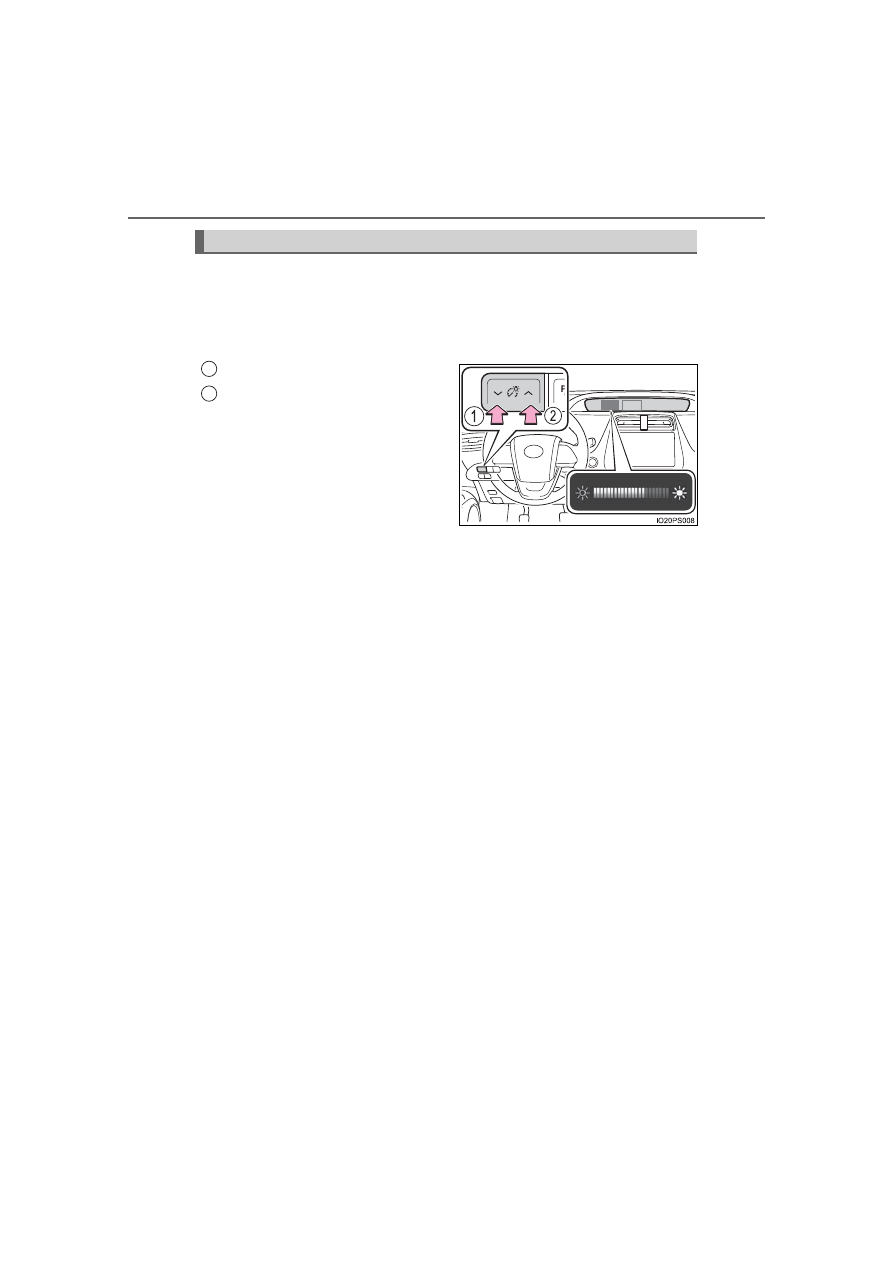

When the switches are pressed, the instrument cluster light changes
as follows.

The  instrument  cluster  brightness  levels  that  can  be  selected  differ
depending on whether the tail lights are on and surrounding brightness lev-
els. (

P. 104)

Darker
Brighter

When  the  switches  are  pressed,
the  adjustment  level  check  screen
(pop-up  display

*

)  is  displayed  on

the main display.
When the instrument cluster light is
adjusted,  the  brightness  of  the
instrument

panel

light

also

changes.

*

: A short time after the operation is completed, the pop-up display turns off.

Furthermore,  the  pop-up  display  can  be  turned  on  and  off  in  the  “Meter
Customize” settings. (

P. 153)

Instrument cluster light control

1

2

101

2. Instrument cluster

2

Instru

me
nt clu

ster

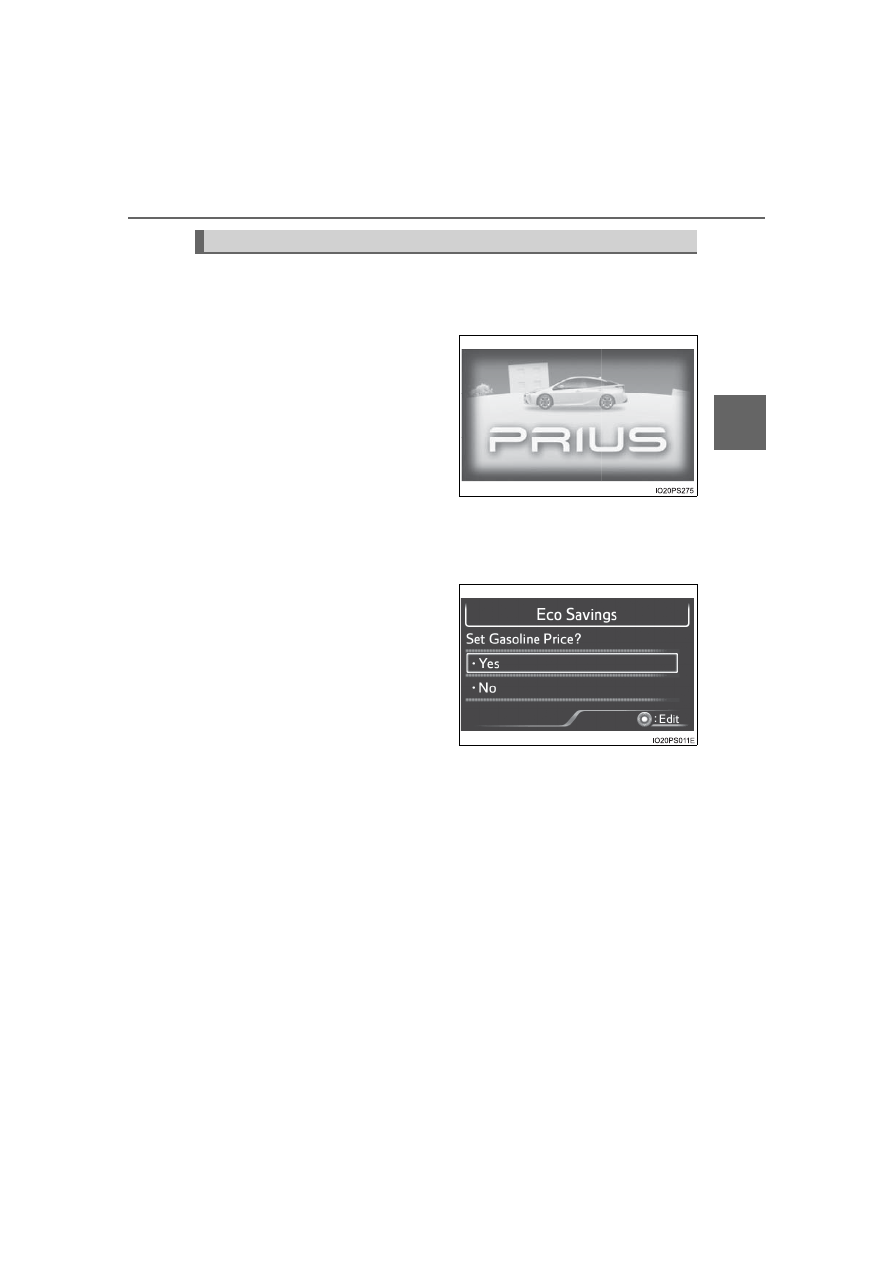

Some information will be displayed automatically according to power
switch operation, vehicle condition, etc.

When starting the hybrid system

When the hybrid system starts,
an  opening  animation  is  dis-
played on the 2 displays.

After  the  animation  ends,  the
screens  switch  to  the  normal
screen.
The  opening  animation  will  be
stopped  in  any  of  the  following
situations.

• When the shift position is changed to other than P
• When the Simple Advanced Parking Guidance System (if equipped)

is turned on

After refueling

When  the  power  switch  is
turned to ON mode after refuel-
ing,  the  gasoline  price  setting
screen*  is  displayed  on  the
multi-information display.

After  refueling,  always  set  the
gasoline  price  so  that  the  “Eco
Savings” function (

P. 138) may

operate properly.
Settings  related  to  the  “Eco  Savings”  function  can  be  changed  in  the
“Meter Customize” settings. (

P. 153)

*

: If the amount of fuel that the vehicle is refueled with is too small, this

screen may not be displayed. (

P. 123)

When the driving assist systems are operating

When  using  driving  assist  systems  such  as  the  dynamic  radar
cruise control with full-speed range

*

 (

P. 321) and LTA (Lane Trac-

ing Assist)

*

 (

P. 302), information related to each system is auto-

matically  displayed  on  the  multi-information  display  depending  on
the situation.

For details regarding the displayed information and the contents of the
display, refer to the explanation page of each system.

*

: If equipped

Information automatically displayed

102

2. Instrument cluster

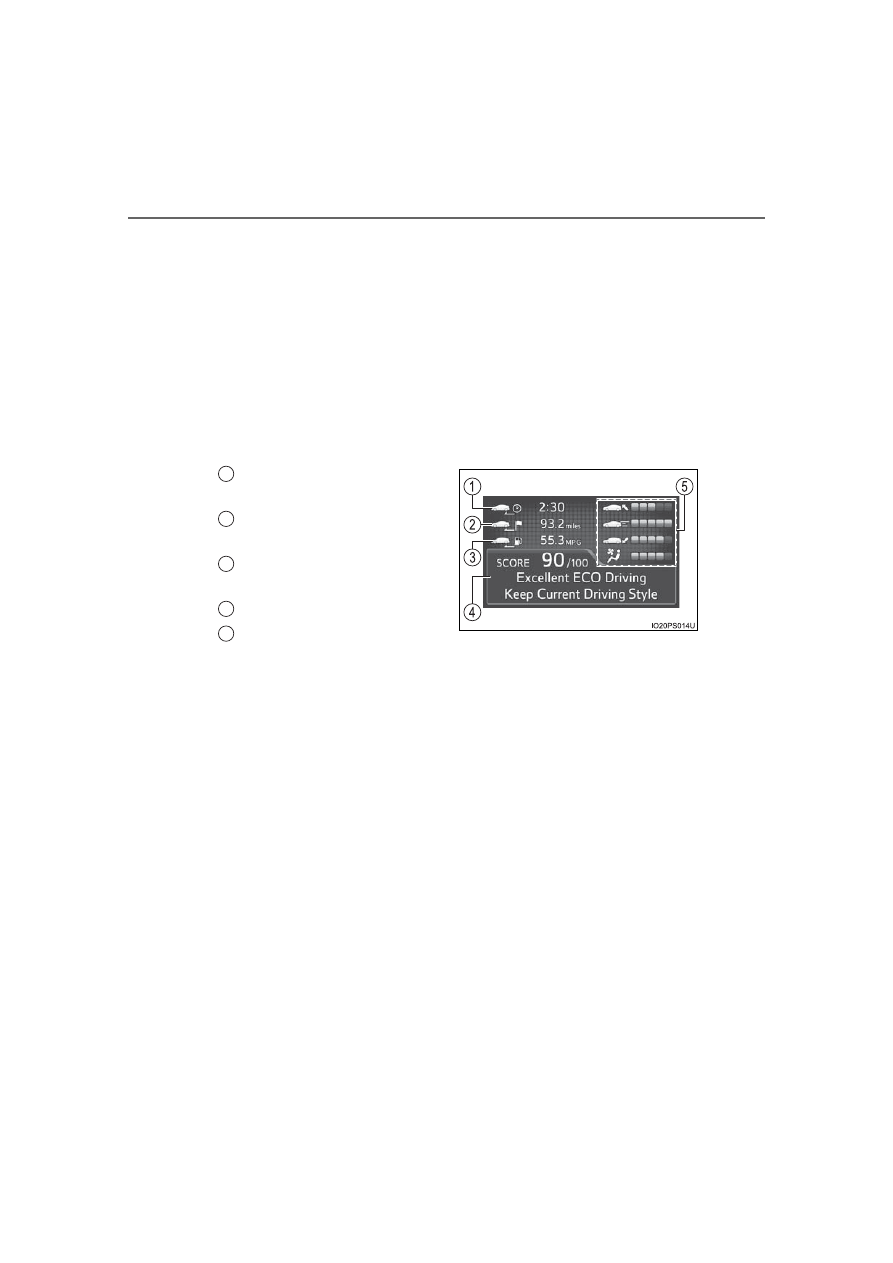

When there is information to be notified about the vehicle

When a shift position is mistakenly selected or a problem occurs in
a  vehicle  system,  a  warning  message  (or  image)  is  displayed  on
the multi-information display.

When a warning message is displayed, follow the instructions displayed
on the display. (

P. 599)

When stopping the hybrid system

From the time the hybrid system is started until it is turned off, the
driving time, distance traveled, average fuel consumption and Eco
score (

P. 131, 148) result are displayed on the multi-information

display approximately every 30 seconds.

Driving time since hybrid sys-
tem started
Distance

traveled

since

hybrid system started
Average  fuel  consumption
after hybrid system started
Eco score result and advice
Score  display  for  each  Eco
score item (

P. 131, 148)

1

2

3

4

5

103

2. Instrument cluster

2

Instru

me
nt clu

ster

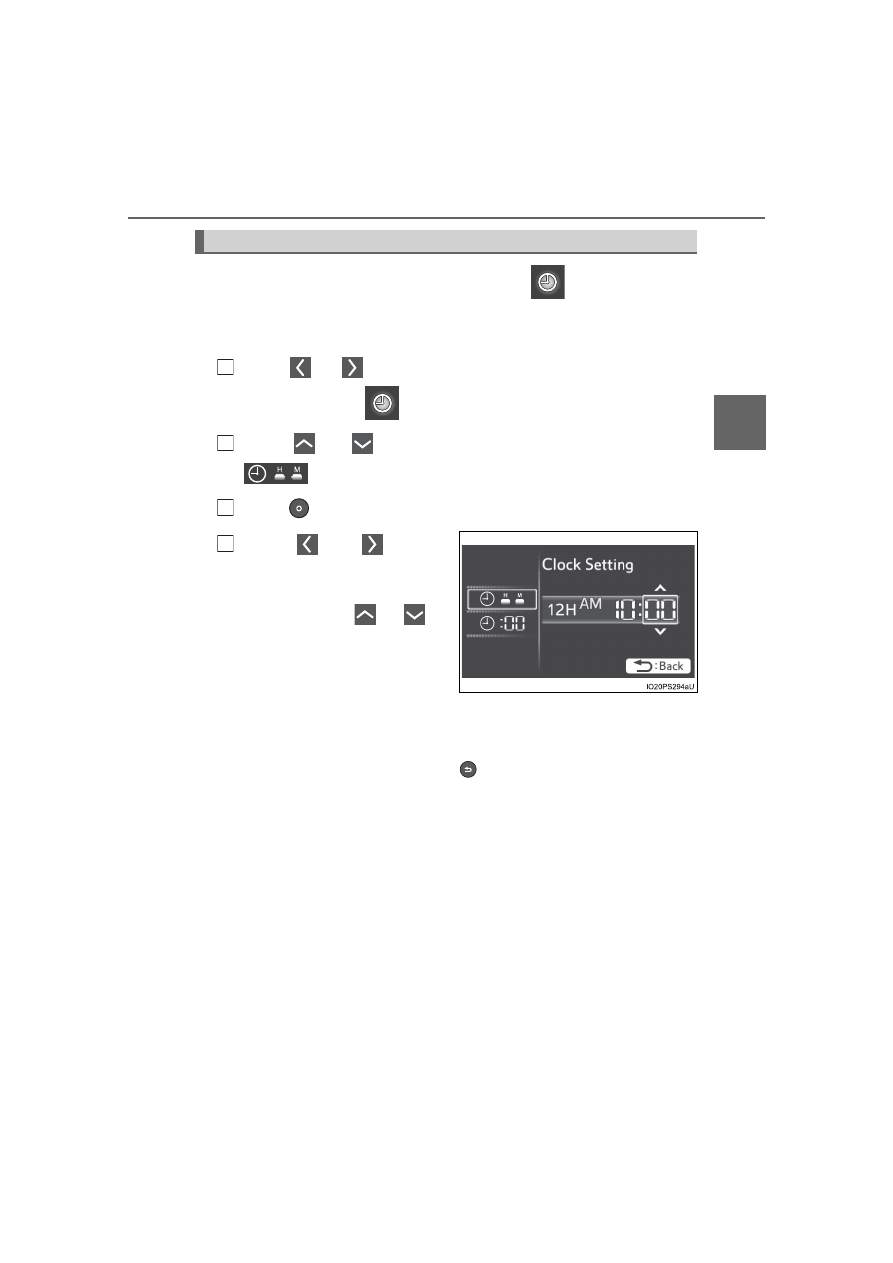

To adjust the time, perform operations on the

 screen (

P. 144)

of the multi-information display.

Adjusting the time

Press

 or

 of the meter control switches on the steering

wheel and select

.

Press

  or

  of  the  meter  control  switches  and  select

.

Press

 to display the cursor.

Press

  or

  of  the

meter  control  switches  to
adjust  the  cursor  position,

and then press

 or

 to

change the setting.

When  the  12-hour  display  is
selected,  “12H”  is  displayed,
and when the 24-hour display is
selected, “24H” is displayed.
When  adjusting  minutes,  operation  automatically  starts  from  00  sec-
onds.
After changing the settings, press

 to return to the previous screen.

Clock adjustment

1

2

3

4

104

2. Instrument cluster

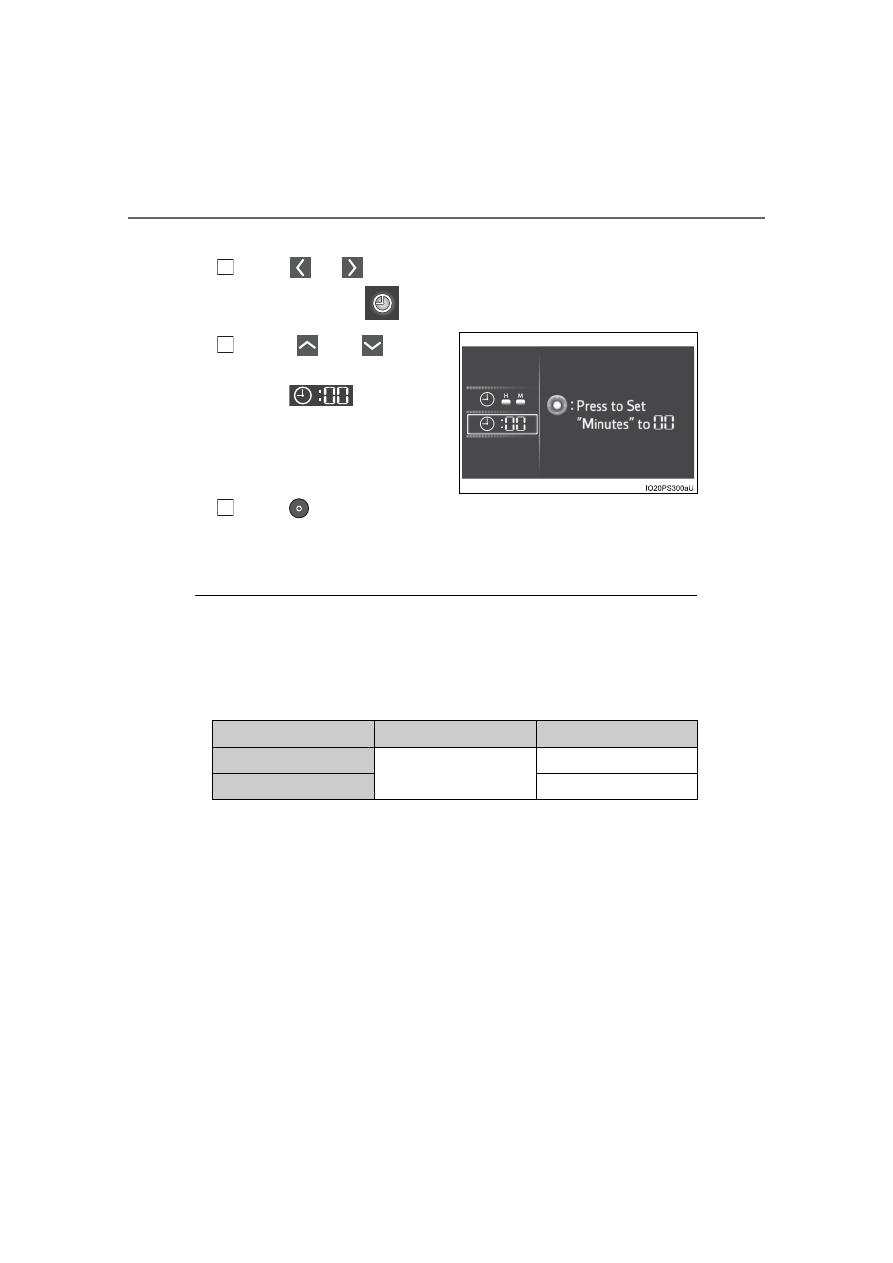

Resetting the minutes display

Press

 or

 of the meter control switches on the steering

wheel and select

.

Press

  or

  of  the

meter  control  switches  and

select

.

Press

.

The minutes display switches to “00”.

*

*

: e.g. 1:00 to 1:29

 1:00

1:30 to 1:59

 2:00

The meters and display illuminate when

The power switch is in ON mode.

Adjusting the instrument cluster brightness (

P. 100)

The brightness levels that can be selected differ depending on whether the
tail lights are on and surrounding brightness levels, as shown in the table
below.

*

: 22 levels of the brightness are displayed on the setting screen. However,

the brightness setting will be the brightest when other than 1st level (the
darkest) is selected. If other than 1st or 22nd level is selected, when the
tail lights are turned on in a dark place, the instrument cluster brightness
setting will be the selected level.

If the taillights are illuminated in a dark environment, the instrument cluster
light dims. However, when the brightness of the instrument cluster is set to
minimum  or  maximum  (1st  or  22nd  level  of  the  instrument  cluster  bright-
ness),  even  if  the  taillights  are  illuminated,  the  instrument  cluster  light  will
not dim.

1

2

3

The tail lights are off

The tail lights are on

In a bright place

2 levels

*

2 levels

*

In a dark place

22 levels

105

2. Instrument cluster

2

Instru

me
nt clu

ster

When disconnecting and reconnecting 12-volt battery terminals

The settings of the clock will be reset.

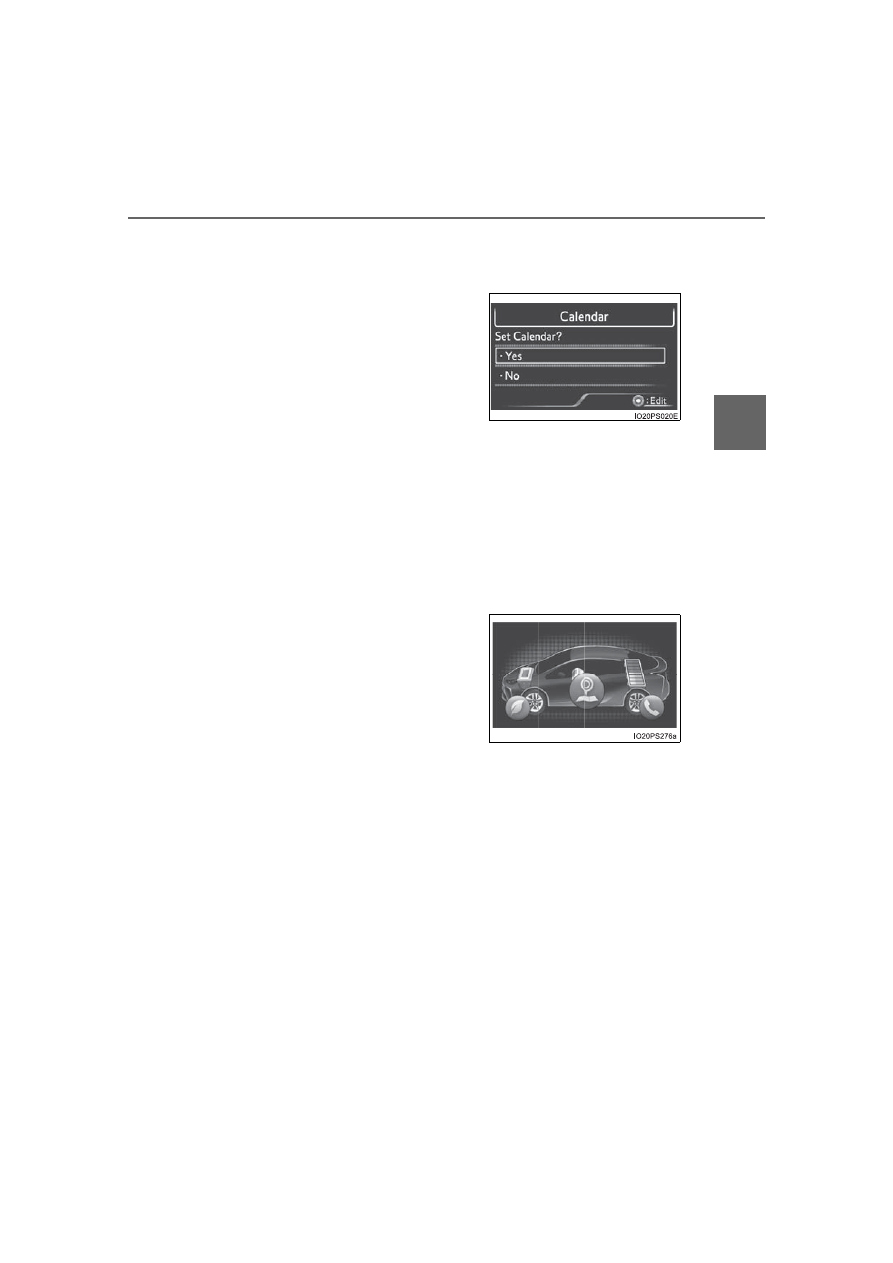

Calendar settings

Until the calendar settings are set, the check screen is displayed every time
the power switch is turned to ON mode.

After the calendar information is set, it can be changed in the “Meter Cus-
tomize” settings. (

P. 153)

When the menu screen on the navigation system is operated (vehicles
with 11.6-inch display)

Liquid crystal display

Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

Pop-up display

Some functions, such as the driving mode select switch and air conditioning
system, are operation-linked and display pop-up screens on the multi-infor-
mation display. If the pop-up screens of these functions are not desired, they
can be turned off in the “Meter Customize” settings. (

P. 153)

If calendar recording is interrupted due to
replacement  of  the  12-volt  battery  or  12-
volt  battery  discharge,  etc.,  when  the
power switch is turned to ON mode after
maintenance, the calendar settings check
screen  is  automatically  displayed  on  the
multi-information display.

If  date  information  is  not  set,  the  fuel
consumption  record  cannot  be  stored
correctly.  When  the  calendar  settings
check screen is displayed, make sure to
always set the settings. (

P. 151)

A pop-up display of the menu screen icon
is  displayed  on  the  multi-information  dis-
play.

*

*

: The  pop-up  display  on  the  navigation

system  can  be  turned  off  in  the  “Meter
Customize” settings. (

P. 153)

106

2. Instrument cluster

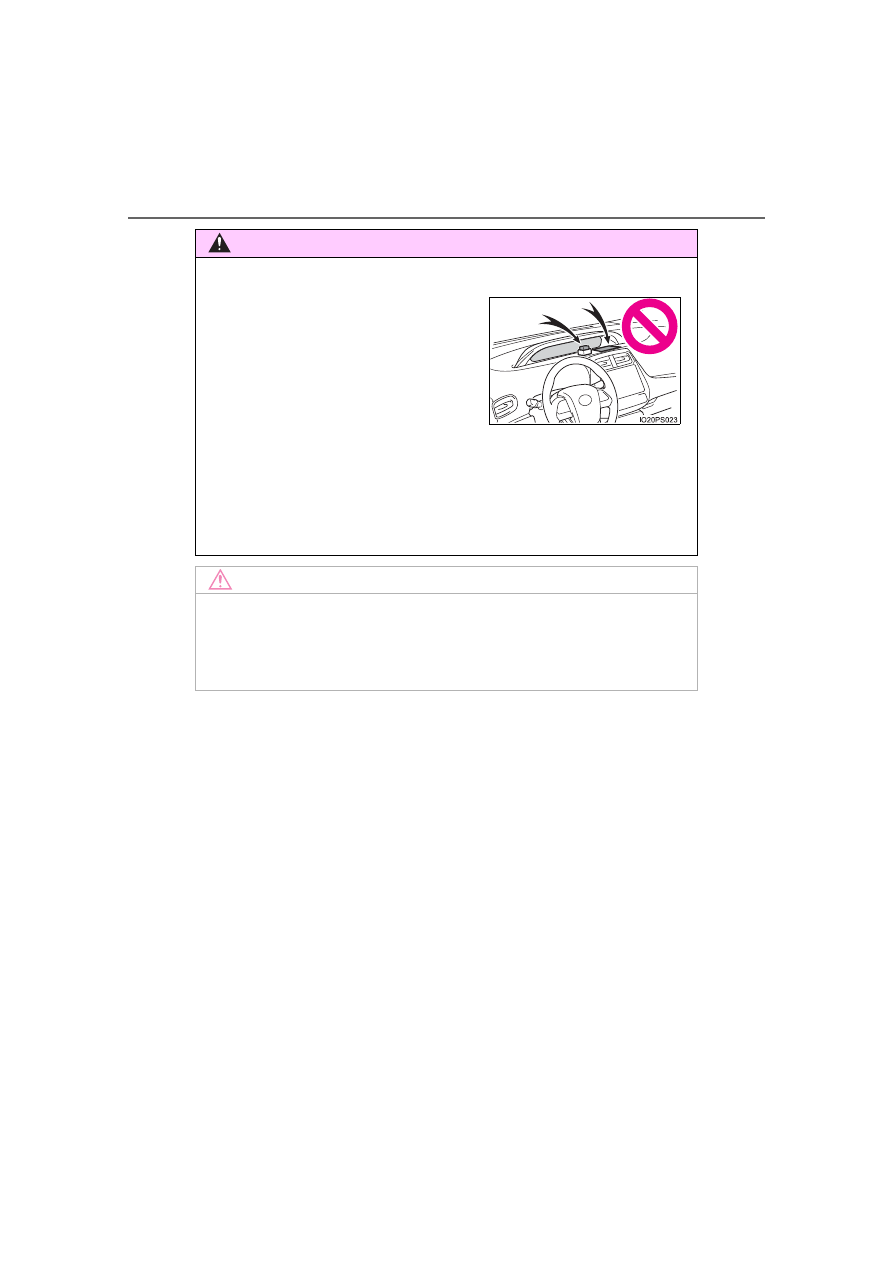

WARNING

To prevent an accident

Caution for use while driving

For safety, avoid operating the meter control switch while driving as much
as  possible,  and  do  not  look  continuously  at  the  multi-information  display
while driving. Stop the vehicle and operate the meter control switch. Failure
to do so may cause a steering wheel operation error, resulting in an unex-
pected accident.

NOTICE

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

Do not place anything or attach a sticker
in front of the instrument cluster. The item
may  obscure  or  obstruct  the  display,  or
could  reflect  off  the  display,  possibly
causing an accident.

107

2. Instrument cluster

2

Instru

me
nt clu

ster

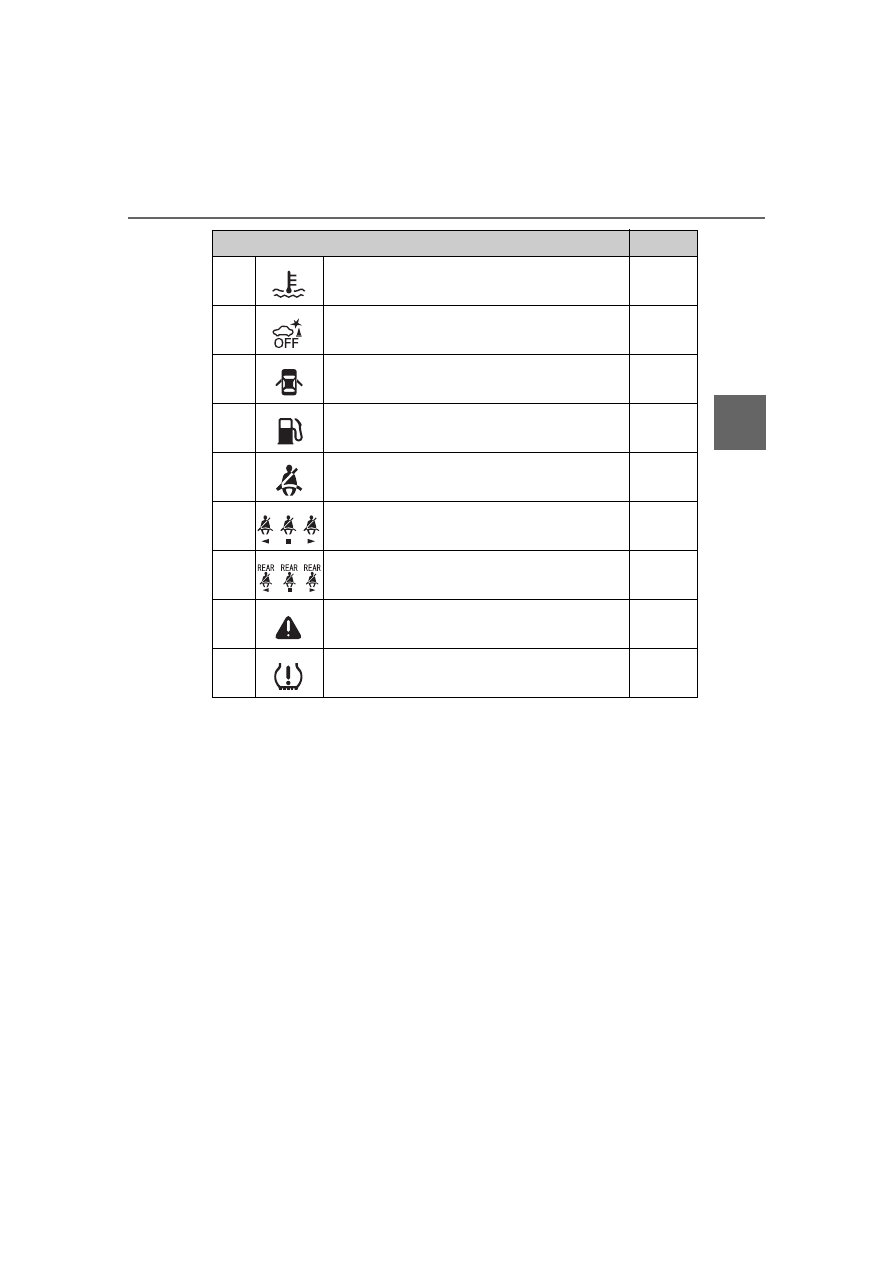

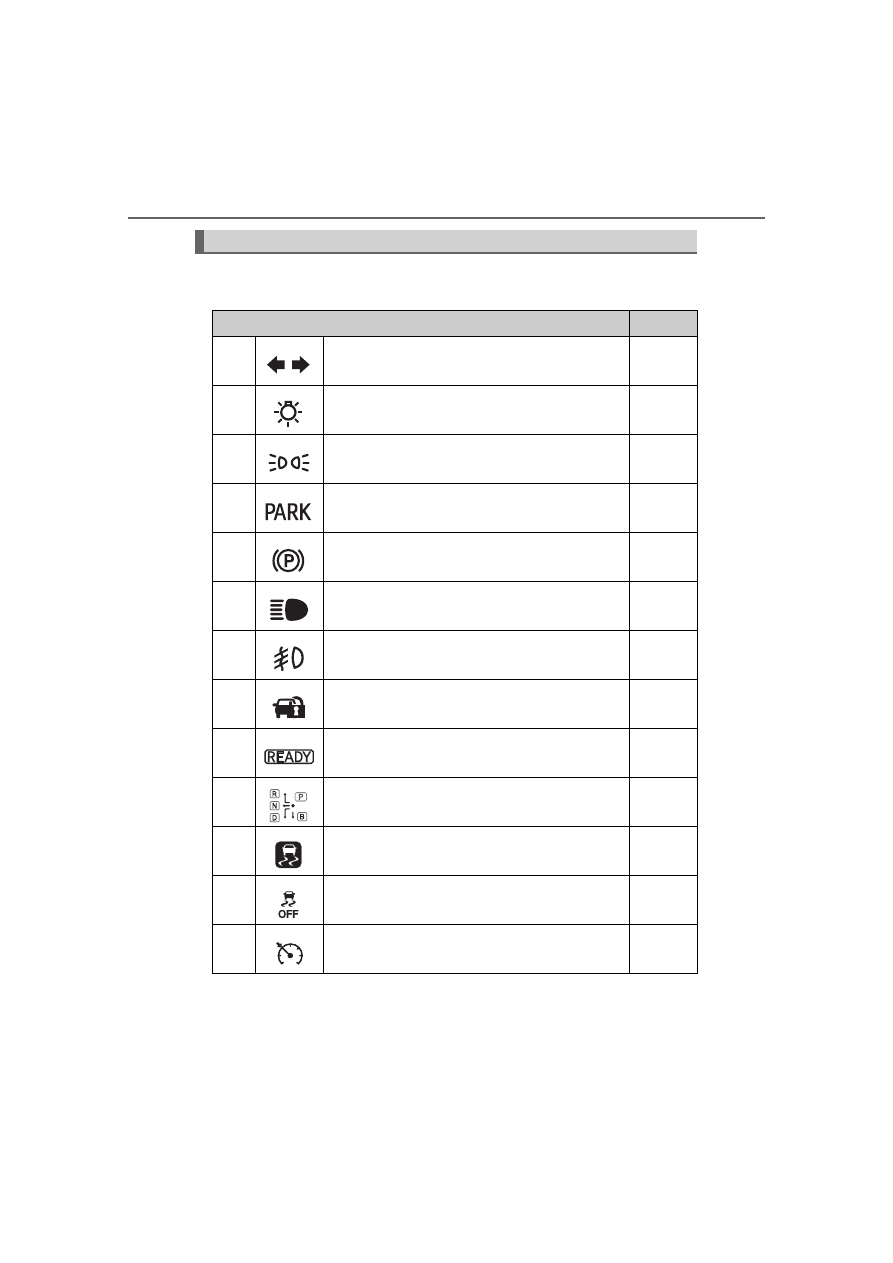

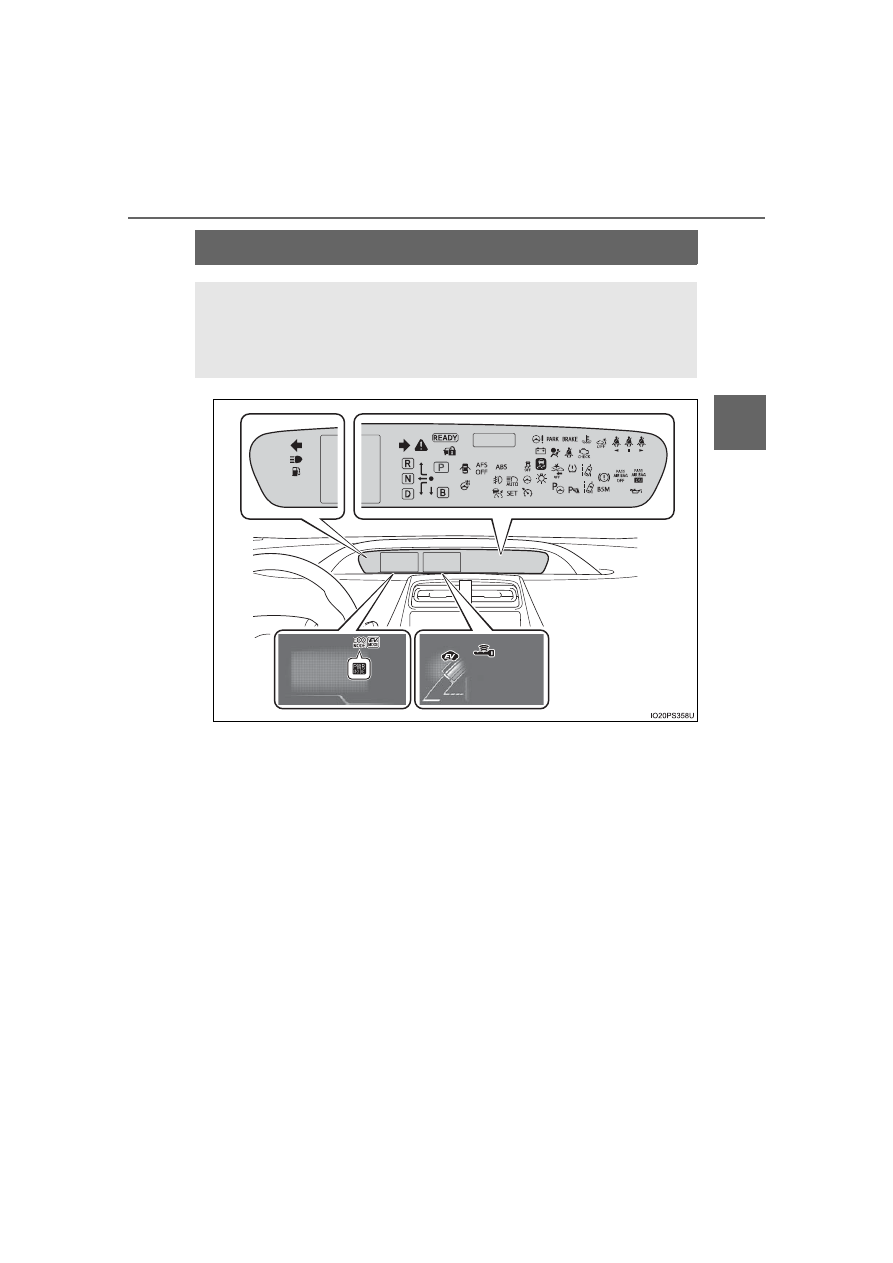

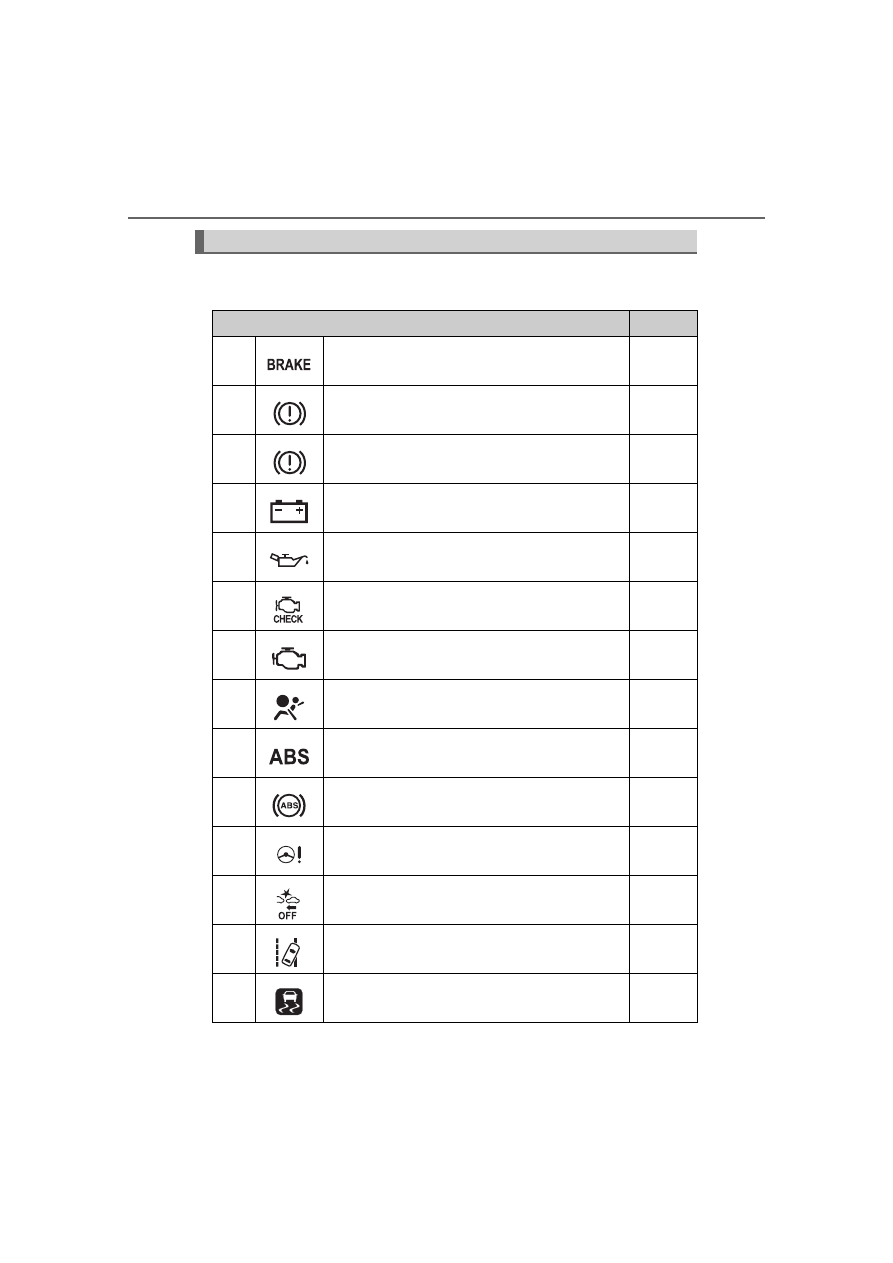

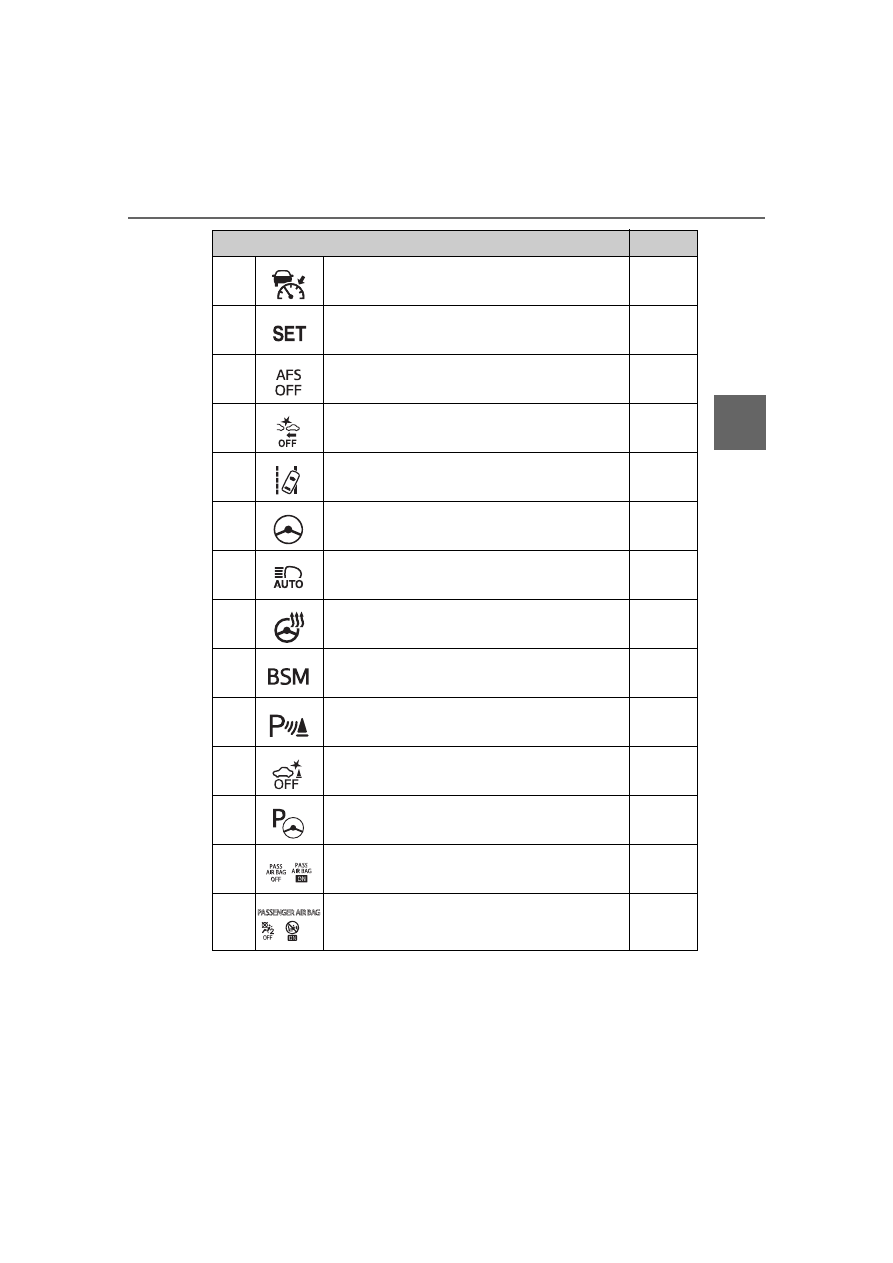

Warning lights and indicators

The warning lights and indicators inform the driver of the status
of the vehicle’s various systems.
For  the  purpose  of  explanation,  the  following  illustration  dis-
plays all indicators and warning lights illuminated.

108

2. Instrument cluster

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.

Warning lights

Warning lights

Pages

*

1

Brake system warning light (U.S.A.)

P. 588

*

1

Brake system warning light (Canada)
(Red)

P. 588

*

1

Brake system warning light
(Yellow)

P. 588

*

1

Charging system warning light

P. 588

*

1

Low engine oil pressure warning light

P. 588

*

1

Malfunction indicator lamp (U.S.A.)

P. 588

*

1

Malfunction indicator lamp (Canada)

P. 588

*

1

SRS warning light

P. 589

*

1

ABS warning light (U.S.A.)

P. 589

*

1

ABS warning light (Canada)

P. 589

*

1

Electric power steering system warning light
(Red/yellow)

P. 589

*

1,2

PCS warning light (if equipped)

P. 589

LTA indicator (Orange) (if equipped)

P. 589

*

1

Slip indicator light

P. 590

109

2. Instrument cluster

2

Instru

me
nt clu

ster

*

1

: These lights turn on when the power switch is turned to ON mode to indi-

cate  that  a  system  check  is  being  performed. They  will  turn  off  after  the
hybrid system is on, or after a few seconds. There may be a malfunction in
a  system  if  a  light  does  not  come  on,  or  turn  off.  Have  the  vehicle
inspected by your Toyota dealer.

*

2

: The light flashes or illuminates to indicate a malfunction.

*

3

: The light flashes to indicate a malfunction.

*

1

High coolant temperature warning light

P. 590

*

1, 3

PKSB OFF indicator (if equipped)

P. 590

Open door warning light

P. 590

Low fuel level warning light

P. 590

Driver’s  and  front  passenger’s  seat  belt
reminder light

P. 591

Rear passengers’ seat belt reminder light
(U.S.A.)

P. 591

Rear passengers’ seat belt reminder light
(Canada)

P. 591

*

1

Master warning light

P. 591

*

1

Tire pressure warning light

P. 591

Warning lights

Pages

110

2. Instrument cluster

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Indicators

Pages

Turn signal indicator

P. 255

Headlight indicator (U.S.A.)

P. 257

Tail light indicator (Canada)

P. 259

Parking brake indicator (U.S.A.)

P. 256

Parking brake indicator (Canada)

P. 256

Headlight high beam indicator

P. 259

Fog light indicator (if equipped)

P. 267

Security indicator

P. 96

“READY” indicator

P. 239

Shift position indicators

P. 249

*

1, 2

Slip indicator light

P. 416

*

1, 3

VSC OFF indicator

P. 417

Cruise control indicator

P. 332,

337

111

2. Instrument cluster

2

Instru

me
nt clu

ster

Dynamic  radar  cruise  control  indicator  (if
equipped)

P. 321

Cruise control “SET” indicator

P. 321,

337

AFS OFF indicator (if equipped)

P. 259,

591

*

1, 3

PCS warning light (if equipped)

P. 295

*

4

LTA indicator (if equipped)

P. 311

Steering control indicator (if equipped)

P. 311

Automatic High Beam indicator (if equipped)

P. 262

Heated steering wheel indicator (if equipped)

P. 451

“BSM” indicator (if equipped)

P. 344

Intuitive parking assist indicator (if equipped)

P. 358

*

1, 3

PKSB OFF indicator (if equipped)

P. 372

*

1

S-APGS indicator (if equipped)

P. 385

*

1

“AIR BAG ON/OFF” indicator (U.S.A.)

P. 49

*

1

“AIR BAG ON/OFF” indicator (Canada)

P. 49

Indicators

Pages

112

2. Instrument cluster

*

1

: These lights turn on when the power switch is turned to ON mode to indi-

cate  that  a  system  check  is  being  performed. They  will  turn  off  after  the
hybrid system is on, or after a few seconds. There may be a malfunction in
a  system  if  a  light  does  not  come  on,  or  turn  off.  Have  the  vehicle
inspected by your Toyota dealer.

*

2

: The light flashes to indicate that the system is operating.

*

3

: The light comes on when the system is turned off.

*

4

: Depending  on the  operating  condition,  the color  and  illuminating/flashing

state of the light change.















Content      ..     4      5      6      7     ..
