4-2. Driving procedures

ing

■

When changing the driving

mode (vehicles with an auto-

matic transmission)

When the driving mode is changed,

the sound of the active sound con-

trol will be stopped for approxi-

mately 1 second, this is not a

malfunction.

■

Customization

Some functions can be customized.

(



P.400)

NOTICE

■

When parking the vehicle

Before you leave the vehicle, set

the parking brake, shift the shift

lever to P (automatic transmis-

sion) or N (manual transmission)

and make sure that the vehicle

does not move.

■

Before driving

Fully release the parking brake.

Driving the vehicle with the park-

ing brake set will lead to brake

components overheating, which

may affect braking performance

and increase brake wear.

ASC (Active Sound

Control)

The active sound control
provides dynamic engine
sounds. When driving with
sport mode

(



P.258)

selected, the engine sounds
will be particularly loud.

: If equipped

158

4-3. Operating the lights and wipers

4-3.Operating the lights and wipers

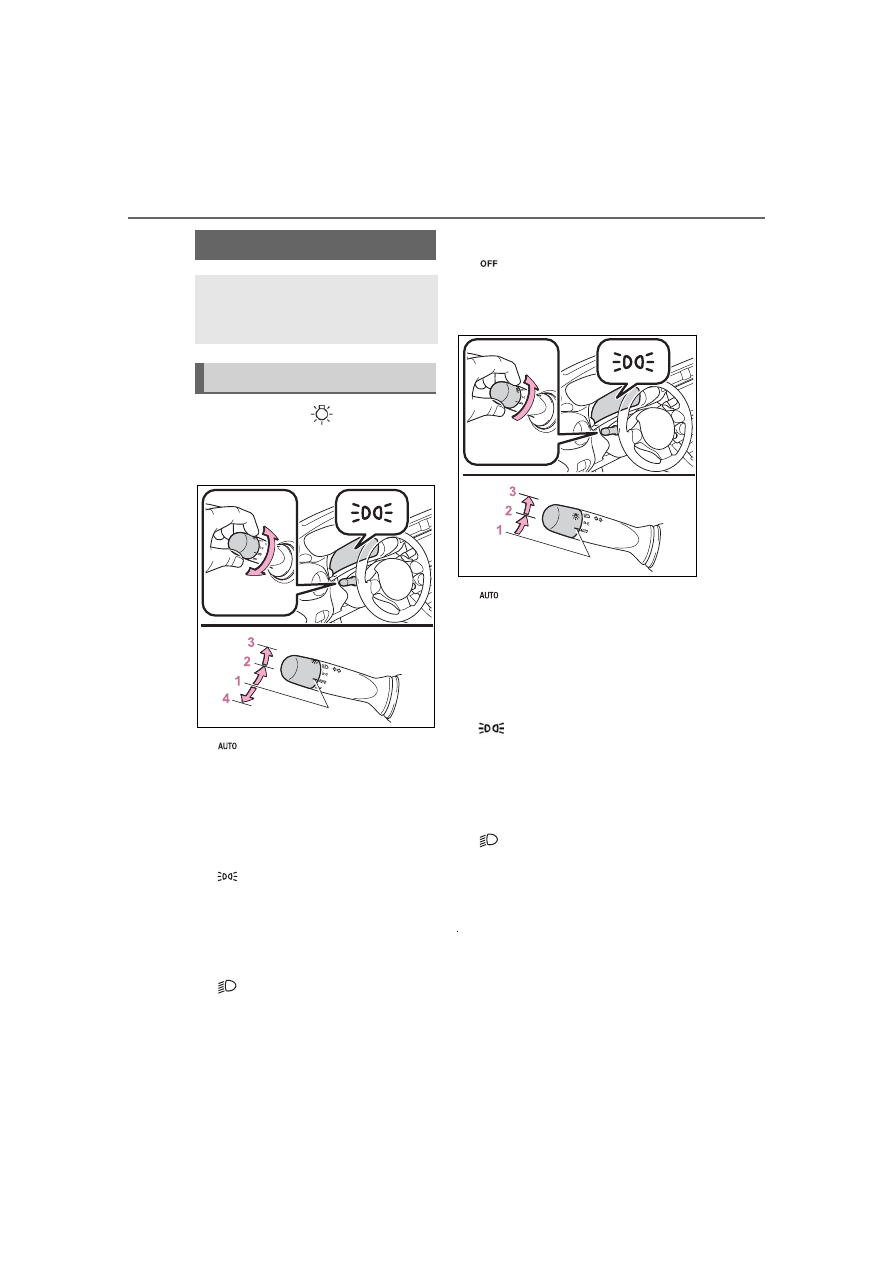

Operating the

switch

turns on the lights as follows:



For the U.S.A.

The headlights, park-

ing/daytime running lights
(



P.158) and all the lights

listed above turn on and off
automatically. (When the
engine switch is in ON.)

The side marker, park-

ing, tail, license plate, instru-
ment panel lights and
daytime running lights
(



P.158) turn on.

The headlights and all

lights listed above (except
daytime running lights) turn

on.

The daytime running

lights turn on. (



P.158)



For Canada

The headlights, park-

ing/daytime running lights
(



P.158) and all the lights

listed above turn on and off
automatically. (When the
engine switch is in ON.)

The side marker, park-

ing, tail, license plate, instru-
ment panel lights and
daytime running lights
(



P.158) turn on.

The headlights and all

lights listed above (except
daytime running lights) turn
on.

■

AUTO mode can be used when

The engine switch is in ON.

■

Daytime running light system

●

The daytime running lights illumi-

nate using the same lights as the

Headlight switch

The headlights can be oper-
ated manually or automati-
cally.

Operating instructions

159

4-3. Operating the lights and wipers

ing

parking lights and illuminate

brighter than the parking lights.

●

To make your vehicle more visible

to other drivers during daytime

driving, the daytime running lights

turn on automatically when all of

the following conditions are met.

(The daytime running lights are

not designed for use at night.)

• The engine is running

• The shift lever is shifted out of P

(vehicles with an automatic trans-

mission)

• The parking brake is released
• The headlight switch is in the

(U.S.A. only),

position

: When the surroundings are bright

The daytime running lights remain

on after they illuminate, even if the

parking brake is set again.

●

When the turn signal indicators

are flashing, the daytime running

light on the side that the turn sig-

nals are flashing will turn off.

●

When the emergency flashers are

flashing, both daytime running

lights will turn off.

●

Compared to turning on the head-

lights, the daytime running light

system offers greater durability

and consumes less electricity, so

it can help improve fuel economy.

■

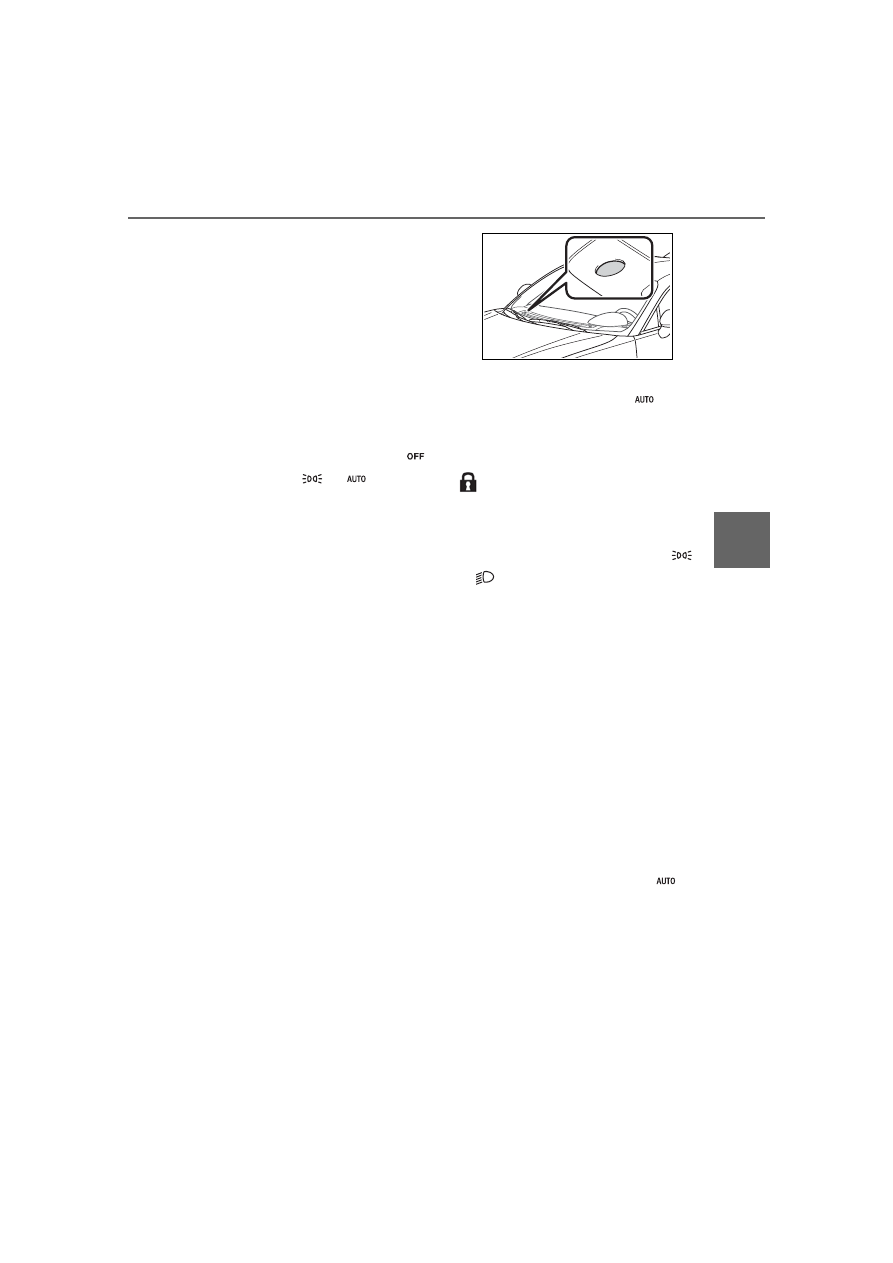

Headlight control sensor

In the following situations, the auto-

matic light control system may not

operate correctly.

●

When an object is placed on the

sensor or something which blocks

the sensor is affixed to the wind-

shield

●

When the surrounding area is lit

by light other than natural light

■

Automatic light off system

When the light switch is in

: The

headlights and tail lights turn off 30

seconds after a door is opened and

closed if the engine switch is turned

off. (The lights turn off immediately if

on the key is pressed twice after

both side doors are closed.)
To turn the lights on again, turn the

engine switch to ON, or turn the light
switch off once and then back to

(except for Canada).

■

Light reminder buzzer

A buzzer sounds when the engine

switch is turned off and the driver’s

door is opened while the lights are

turned on.

■

Automatic headlight leveling

system

The level of the headlights is auto-

matically adjusted according to the

number of passengers and the load-

ing condition of the vehicle to

ensure that the headlights do not

interfere with other road users.

■

Windshield wiper linked head-

light illumination

When driving during daytime with
the headlight switch turned to

, if

the windshield wipers are used, the

headlights will turn on automatically

after several seconds to help

enhance the visibility of your vehi-

cle.

■

Battery-saving function

In order to prevent the battery of the

vehicle from discharging, if the

headlights and/or tail lights are on

160

4-3. Operating the lights and wipers

when the engine switch is turned off

the battery saving function will oper-

ate and automatically turn off all the

lights after approximately 20 min-

utes.

When any of the following are per-

formed, the battery-saving function

will be disabled.

●

When the engine switch is turned

to ACC or ON

●

When the headlight switch is in
the

position (U.S.A. only)

●

When a door is opened or closed

■

Welcome light illumination con-

trol

The headlights and tail lights auto-

matically turn on at night when the

doors are unlocked using the wire-

less remote control if the light switch
is in the

position. The headlights

and tail lights will turn off automati-

cally after approximately 30 sec-

onds.

■

Customization

Some functions can be customized.

(



P.400)

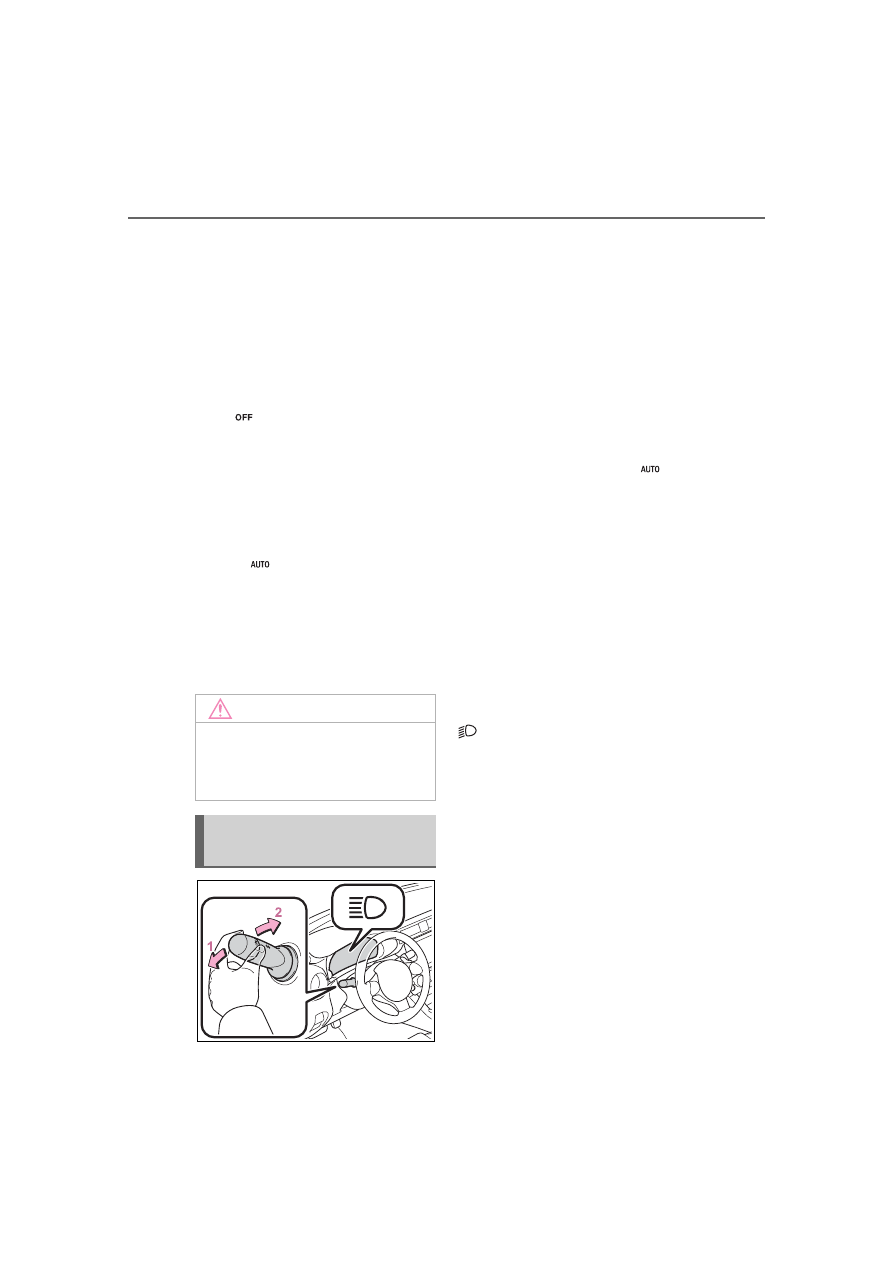

With the headlights on, push
the lever away from you to
turn on the high beams.

Vehicles without high beam assist:
If the lever is pushed and released,
the high beam headlights will turn
on. Pull and release the lever to
turn off the high beam headlights
and turn on the low beam head-
lights.
Vehicles with high beam assist: If
the lever is pushed and released
with the headlight switch in

position, the high beam assist will
turn on. When the high beam assist
is operating, the headlights will
automatically change between the
high beams and low beams accord-
ing to the conditions. If the lever is
pushed forward and released
again, the high beam assist will turn
off and the high beam headlights
will turn on.
To manually turn the high beam
headlights on, push and release the
lever with the headlight switch in

position. If the lever is pulled

and released, the high beam head-
lights will turn off and the low beam
headlights will turn on.

Illuminate the high beam
headlights while the lever is
pulled

Even if the lights are off, the high
beam headlights will illuminate.
When the lever is released, the
headlights will return to the low
beam headlights or will turn off.

NOTICE

■

To prevent battery discharge

Do not leave the lights on longer

than necessary when the engine

is not running.

Turning on the high beam
headlights

161

4-3. Operating the lights and wipers

ing

: If equipped

The SRH (Steering Responsive
Headlights) is a function which,
according to the steering wheel
operation and vehicle speed
when the vehicle is being driven
forward, automatically adjusts
the angle of the headlights to
illuminate intersections and cor-
ners, improving visibility.

This function operates when the
vehicle speed is 5 mph (8 km/h) or
higher.

■

Turning SRH off

The SRH can be turned off
through a setting on the meter.
(



P.400)

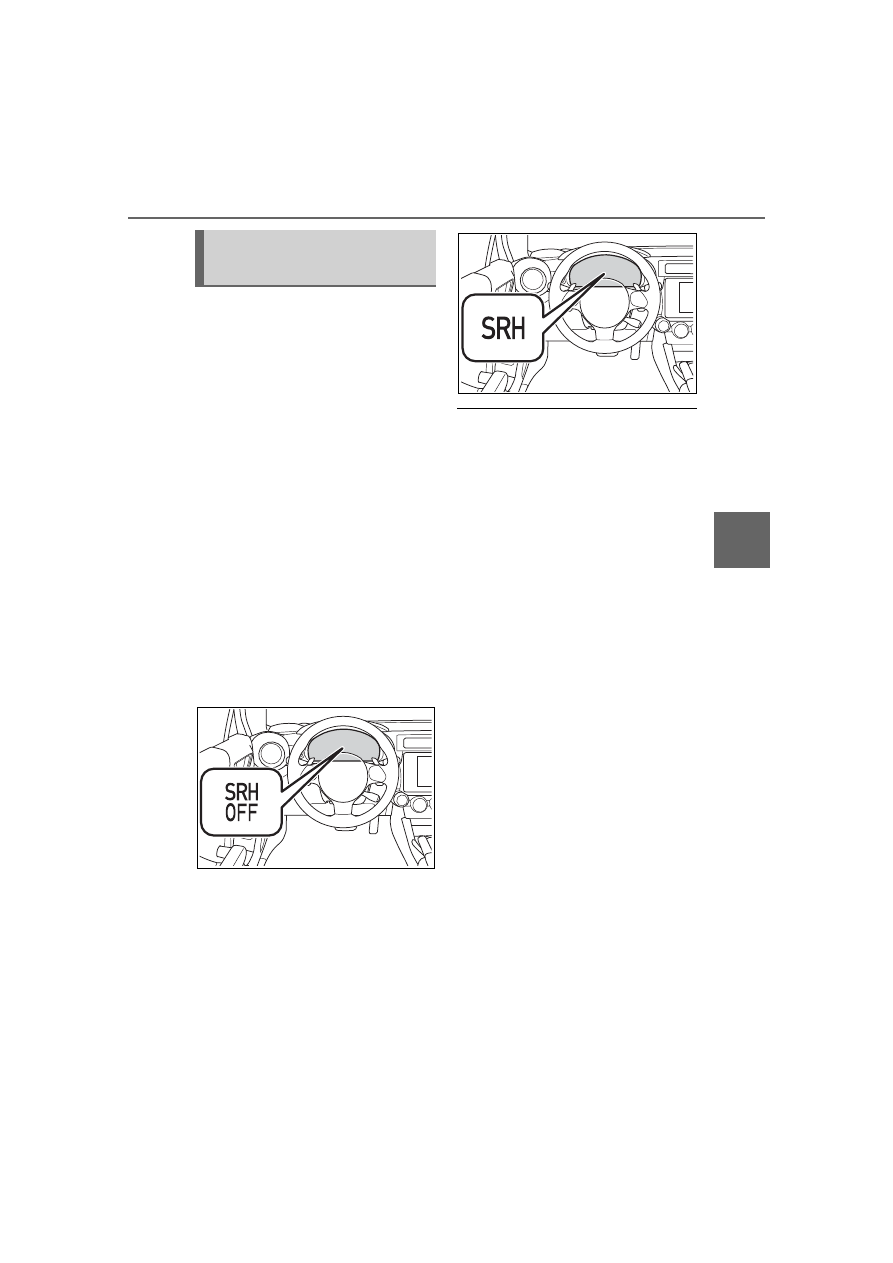

When the SRH is off, the SRH OFF
indicator will illuminate.

■

SRH warning light

If the SRH malfunctions, the
SRH warning light will illuminate
and a message will be displayed
on the multi-information display.
Have the vehicle inspected by
your Toyota dealer as soon as
possible. (



P.357)

■

Customization

Some functions can be customized.

(



P.400)

SRH (Steering Respon-
sive Headlights)

162

4-3. Operating the lights and wipers

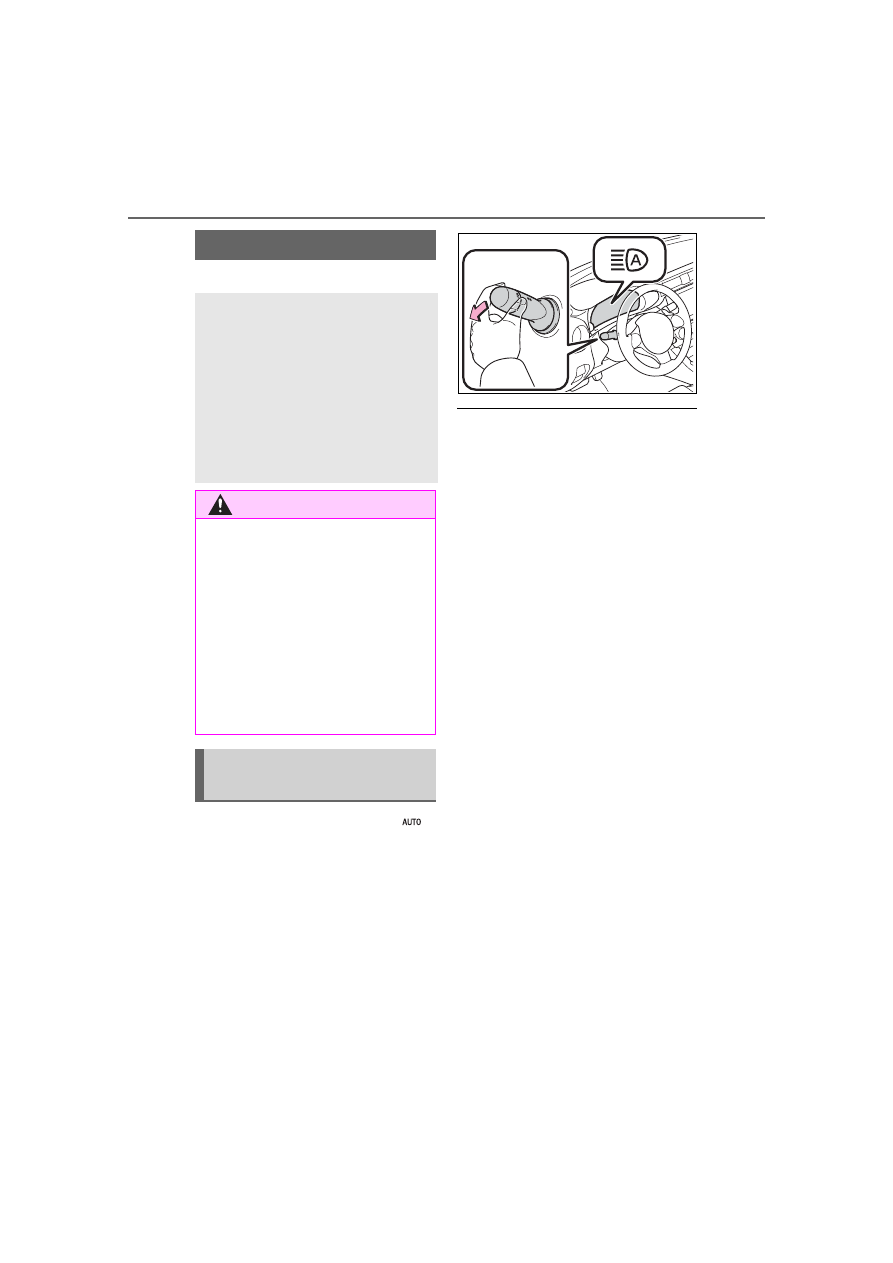

: If equipped

Turn the headlight switch to

position and push the lever for-
ward.

After the lever is operated, it will
immediately return to its original
position.
The high beam assist will turn on
and the high beam assist indicator
will illuminate.

■

Conditions to turn the high

beams on/off automatically

●

When all of the following condi-

tions are met, the high beams will

be turned on automatically (after

approximately 1 second):

• The vehicle speed is approxi-

mately 20 mph (32 km/h) or more.

• The area ahead of the vehicle is

dark.

• There are no vehicles ahead with

headlights or tail lights turned on.

• There are few streetlights on the

road ahead.

●

If any of the following conditions is

met, the high beams will turn off

automatically:

• The vehicle speed is below

approximately 10 mph (16 km/h).

• The area ahead of the vehicle is

not dark.

• Vehicles ahead have their head-

lights or tail lights turned on.

• There are many streetlights on the

road ahead.

■

Stereo camera detection infor-

mation

●

If EyeSight is malfunctioning or

temporarily disabled, the high

beam assist will not operate, and

the low beam headlights will turn

on.

●

The high beams may not be auto-

matically turned off in the following

situations:

• When a vehicle suddenly appears

from around a curve

• When the vehicle is cut in front of

by another vehicle

• When vehicles ahead cannot be

High Beam Assist

The high beam assist uses
the stereo camera located
behind the upper portion of
the windshield to assess the
brightness of the lights of
vehicles ahead, street-
lights, etc., and automati-
cally turns the high beams
on or off as necessary.

WARNING

■

Limitations of the high beam

assist

Do not overly rely on the high

beam assist. Always drive safely,

taking care to observe your sur-

roundings and turning the high

beams on or off manually if nec-

essary.

■

To prevent incorrect opera-

tion of the high beam assist

system

Do not overload the vehicle.

Activating the high beam
assist

163

4-3. Operating the lights and wipers

ing

detected due to repeated curves,

road dividers or roadside trees

• When vehicles ahead appear in a

faraway lane on a wide road

• When the lights of vehicles ahead

are not on

●

The high beams may be turned off

if a vehicle ahead that is using fog

lights without its headlights turned

on is detected.

●

House lights, street lights, traffic

signals, and illuminated billboards

or signs and other reflective

objects may cause the high

beams to change to the low

beams, or the low beams to

remain on.

●

The following factors may affect

the amount of time taken for the

high beams to turn on or off:

• The brightness of the headlights,

fog lights, and tail lights of vehi-

cles ahead

• The movement and direction of

vehicles ahead

• When a vehicle ahead only has

operational lights on one side

• When a vehicle ahead is a

two-wheeled vehicle

• The condition of the road (gradi-

ent, curve, condition of the road

surface, etc.)

• The number of passengers and

amount of luggage in the vehicle

• When there is a lag in response

due to the limitations of the detec-

tion range of the stereo camera

●

The high beams may turn on or off

unexpectedly.

●

Bicycles or similar vehicles may

not be detected.

●

In the following situations the sys-

tem may not be able to correctly

detect the surrounding brightness

level. This may cause the low

beams to remain on or the high

beams to flash or dazzle pedestri-

ans or vehicles ahead. In such a

case, it is necessary to manually

switch between the high and low

beams.

• When driving in inclement weather

(heavy rain, snow, fog, sand-

storms, etc.)

• When the windshield is obscured

by fog, mist, ice, dirt, etc.

• When the windshield is cracked or

damaged

• When the stereo camera is

deformed or dirty

• When the temperature of the ste-

reo camera is extremely high

• When the surrounding brightness

level is equal to that of headlights,

tail lights or fog lights

• When headlights or tail lights of

vehicles ahead are turned off,

dirty, changing color, or not aimed

properly

• When the vehicle is hit by water,

snow, dust, etc. from a preceding

vehicle

• When driving through an area of

intermittently changing brightness

and darkness

• When frequently and repeatedly

driving ascending/descending

roads, or roads with rough, bumpy

or uneven surfaces (such as

stone-paved roads, gravel roads,

etc.)

• When frequently and repeatedly

taking curves or driving on a wind-

ing road

• When there is a highly reflective

object ahead of the vehicle, such

as a sign or mirror

• When the back of a preceding

vehicle is highly reflective, such as

a container on a truck

• When the vehicle’s headlights are

damaged or dirty, or are not aimed

properly

• When the vehicle is listing or titling

due to a flat tire, a trailer being

towed, etc.

• Immediately after the engine is

started

• When the headlights are changed

between the high beams and low

beams repeatedly in an abnormal

manner

• When the driver believes that the

high beams may be flashing or

dazzling pedestrians or other driv-

ers

164

4-3. Operating the lights and wipers

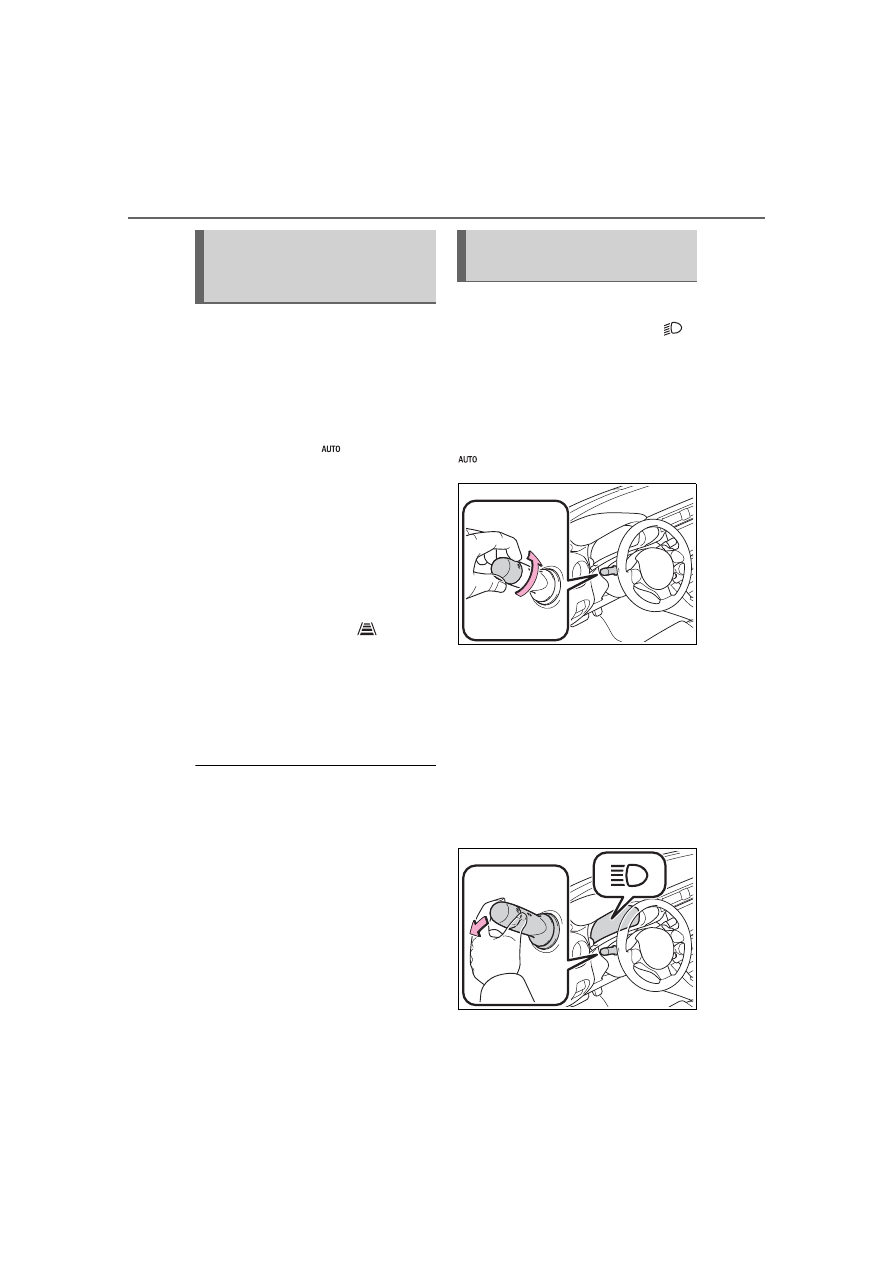

The sensitivity of the high beam
assist function can be lowered
by using the following opera-
tions.

After turning the engine
switch to ON, turn the head-
light switch to

position

and push the lever forward.

After the high beam assist
indicator on the meter will
illuminate, turn the engine
switch off.

Turn the engine switch to ON
and within approximately 15
seconds, press the

switch

more than 10 times consecu-
tively.

When the sensitivity of the high

beam assist function is lowered, the

high beam assist indicator on the

meter will flash.

■

The sensitivity of the high beam

assist function

●

The sensitivity of the high beam

assist function cannot be lowered

in the following conditions:

• Adaptive Cruise Control or Con-

ventional Cruise Control indicator

is illuminated.

• The EyeSight warning light is illu-

minated.

●

The sensitivity of the high beam

assist function returns to normal

level the next time the engine

switch is turned off and the engine

is restarted.

■

Switching to the low beams

Turn the headlight switch to

position.

The high beam assist indicator will
turn off.
To turn the high beam assist on
again, turn the headlight switch to

position.

■

Switching to the high
beams

Push the lever forward.

The high beam assist indicator will
turn off and the high beam indicator
will illuminate.
To turn the high beam assist on
again, push the lever forward
again.

How to temporarily lower
the sensitivity of the high
beam assist function

Turning the high beams
on/off manually

165

4-3. Operating the lights and wipers

ing

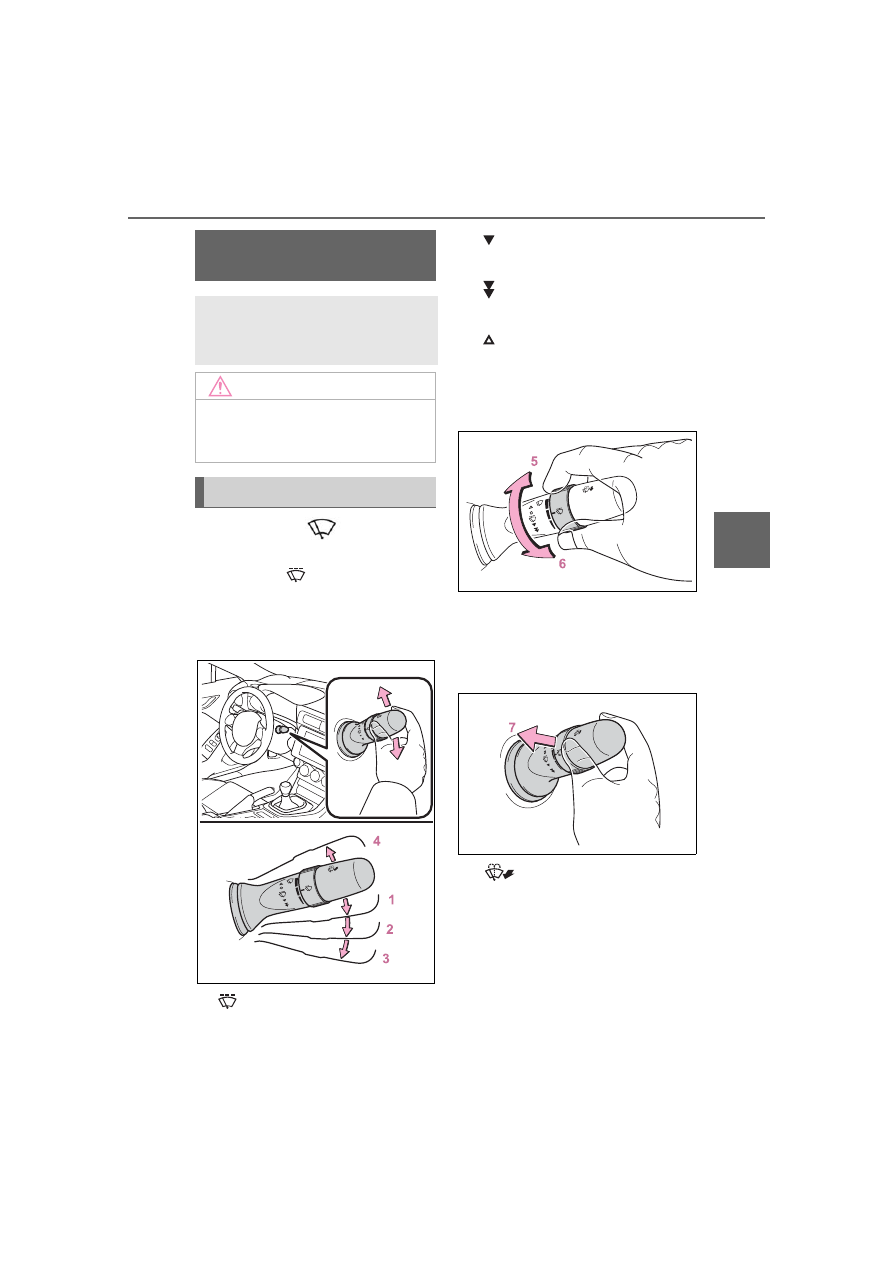

Operating the

lever oper-

ates the wipers or washer as fol-
lows. When

is selected, the

wipers will operate automatically
in accordance with the vehicle
speed.

Intermittent windshield

wiper operation

Low speed windshield

wiper operation

High speed windshield

wiper operation

Temporary operation

Wiper intervals can be adjusted
when intermittent operation is
selected.

Decreases the intermittent
windshield wiper frequency

Increases the intermittent
windshield wiper frequency

Washer/wiper dual

operation

Pulling the lever operates the wip-
ers and washer.
Wipers will automatically operate a
couple of times after the washer
squirts.

Windshield wipers and

washer

Operating the lever can use
the windshield wipers or the
washer.

NOTICE

■

When the windshield is dry

Do not use the wipers, as they

may damage the windshield.

Operating the wiper lever

166

4-3. Operating the lights and wipers

■

The windshield wiper and

washer can be operated when

The engine switch is in ON.

■

If no windshield washer fluid

sprays

Check that the washer nozzles are

not blocked if there is washer fluid in

the windshield washer fluid reser-

voir.

WARNING

■

Caution regarding the use of

washer fluid

When it is cold, do not use the

washer fluid until the windshield

becomes warm. The fluid may

freeze on the windshield and

cause low visibility. This may lead

to an accident, resulting in death

or serious injury.

NOTICE

■

When the washer fluid tank is

empty

Do not operate the switch continu-

ally as the washer fluid pump may

overheat.

■

When a nozzle becomes

blocked

In this case, contact your Toyota

dealer. Do not try to clear it with a

pin or other object. The nozzle will

be damaged.

167

4-4. Refueling

ing

4-4.Refueling



Close both side doors and
windows, and turn the engine
switch off.



Confirm the type of fuel.

■

Fuel types



P.388

■

Fuel tank opening for unleaded

gasoline

To help prevent incorrect fueling,

your vehicle has a fuel tank opening

that only accommodates the spe-

cial nozzle on unleaded fuel pumps.

■

If the malfunction indicator

lamp illuminates

The malfunction indicator lamp may

illuminate erroneously if refueling is

performed repeatedly when the fuel

tank is nearly full.

Opening the fuel tank

cap

Perform the following steps
to open the fuel tank cap:

Before refueling the vehi-
cle

WARNING

■

When refueling the vehicle

Observe the following precautions

while refueling the vehicle. Failure

to do so may result in death or

serious injury.

●

Do not handle fuel indoors.

●

After exiting the vehicle and

before opening the fuel door,

touch an unpainted metal sur-

face to discharge any static

electricity. It is important to dis-

charge static electricity before

refueling because sparks result-

ing from static electricity can

cause fuel vapors to ignite while

refueling.

●

Always hold the grips on the

fuel tank cap and turn it slowly

to remove it.

A whooshing sound may be

heard when the fuel tank cap is

loosened. Wait until the sound

cannot be heard before fully

removing the cap. In hot

weather, pressurized fuel may

spray out the filler neck and

cause injury.

●

Do not allow anyone that has

not discharged static electricity

from their body to come close to

an open fuel tank.

●

Do not allow anyone to

approach the area of the vehicle

near the fuel filler pipe while

refueling is in progress.

●

Do not inhale vaporized fuel.

Fuel contains substances that

are harmful if inhaled.

●

Do not smoke while refueling

the vehicle.

Doing so may cause the fuel to

ignite and cause a fire.

●

Do not return to the vehicle or

touch any person or object that

is statically charged.

This may cause static electricity

to build up, resulting in a possi-

ble ignition hazard.

■

When refueling

Observe the following precautions

to prevent fuel overflowing from

the fuel tank:

168

4-4. Refueling

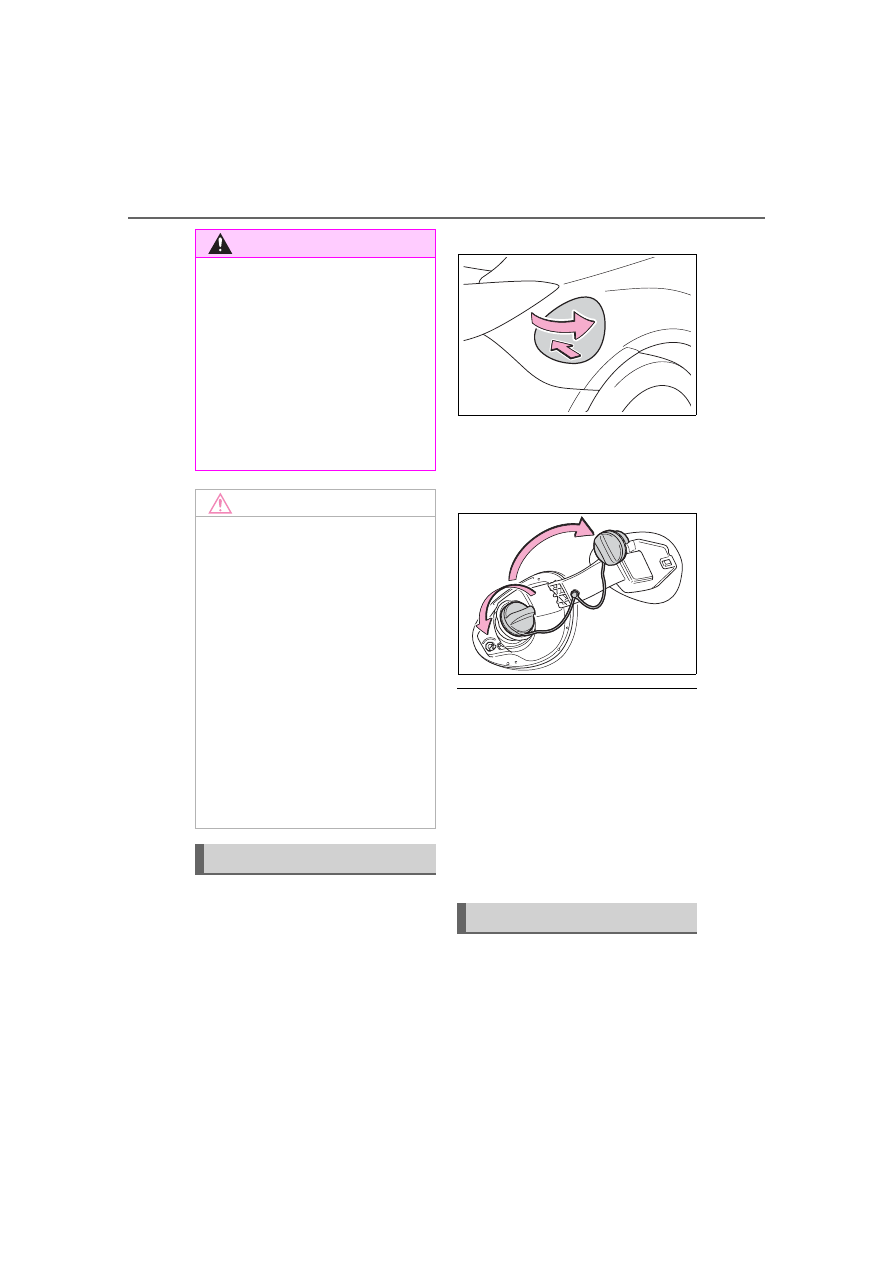

With the doors unlocked,
press the center of the rear
edge of the fuel filler door.

Push until you hear a click and take

your hand away to slightly open the

fuel filler door. Then open the door

fully by hand.

Turn the fuel tank cap slowly
and remove it, then put it into
the holder on the fuel filler
door.

■

When opening the fuel filler

door

The fuel filler door cannot be

opened if the doors have been

unlocked using a inside lock button.
Unlock the doors using the entry

function, wireless remote control, or

door lock switch. (



P.105, 106)

■

If the fuel filler door cannot be

opened



P.369

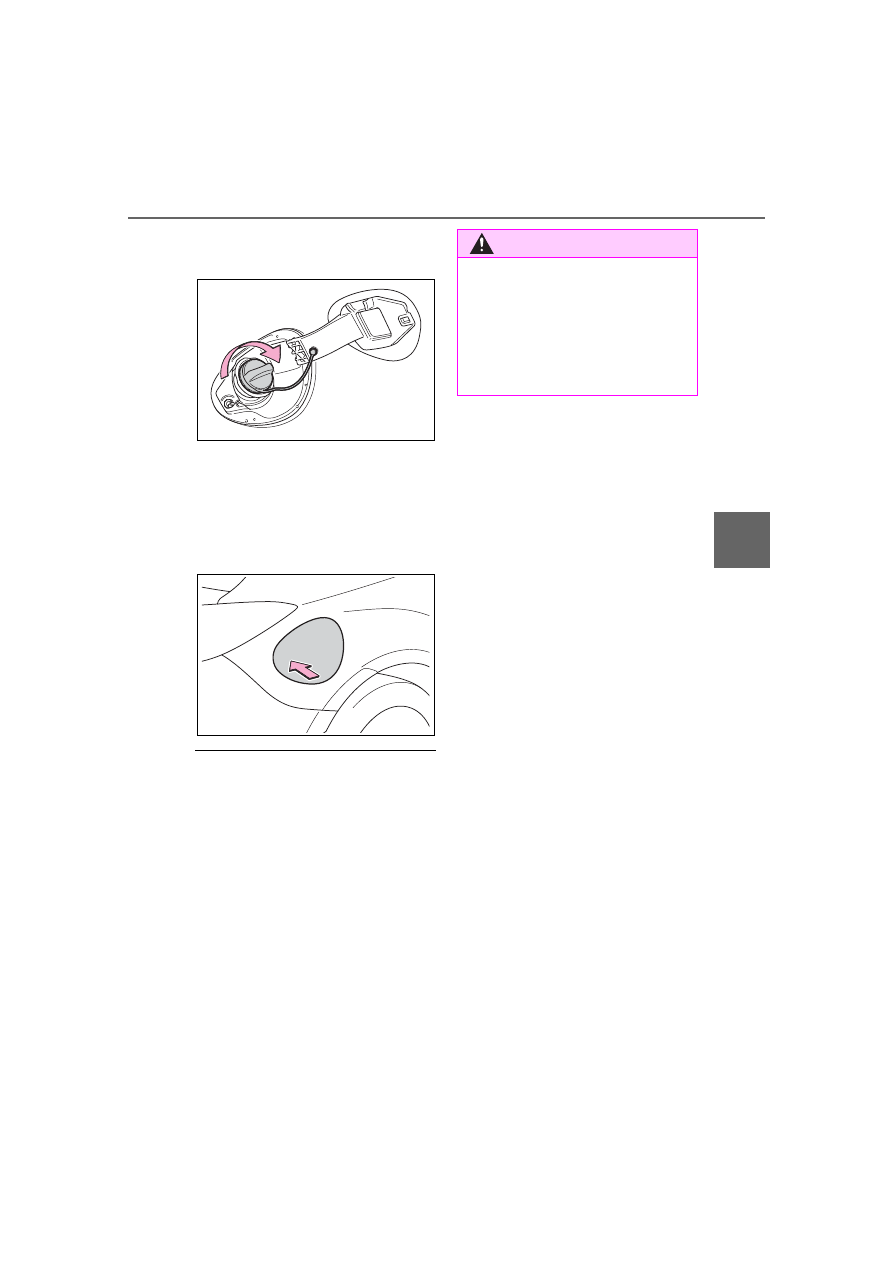

After refueling, turn the fuel
tank cap until you hear a
click. Once the cap is

WARNING

●

Securely insert the fuel nozzle

into the fuel filler neck.

●

Stop filling the tank after the fuel

nozzle automatically clicks off.

●

Do not top off the fuel tank.

●

Turn the cap to the right until it

clicks to ensure that it is fully

tightened. If the cap is not

securely tightened, fuel spillage

could occur in the event of an

accident, creating a fire hazard.

NOTICE

■

Refueling

●

Do not spill fuel during refueling.

Doing so may damage the vehi-

cle, such as causing the emis-

sion control system to operate

abnormally or damaging fuel

system components or the vehi-

cle’s painted surface.

●

Never add any cleaning agents

to the fuel tank. The addition of

a cleaning agent may cause

damage to the fuel system.

●

Immediately put fuel in the tank

whenever the low fuel warning

light illuminates. Engine misfires

as a result of an empty tank

could cause damage to the

engine.

Opening the fuel tank cap

Closing the fuel tank cap

169

4-4. Refueling

ing

released, it will turn slightly in
the opposite direction.

Close the fuel filler door, and
press the center of the rear
edge of the fuel filler door
until you hear a click.

When you lock the doors, the fuel

filler door will also lock.

■

When closing the fuel filler door

Do not lock the doors before closing

the fuel filler door, as the fuel filler

door cannot be closed if the doors

are locked. If the doors are locked

and the fuel filler door cannot be

closed, unlock the doors and then

close the fuel filler door.

WARNING

■

When replacing the fuel tank

cap

Do not use anything but a genu-

ine Toyota fuel tank cap designed

for your vehicle. Doing so may

cause a fire or other incident

which may result in death or seri-

ous injury.

170

4-5. EyeSight

4-5.EyeSight

:If equipped

:EyeSight is a registered trade-

mark of SUBARU CORPORA-
TION.

EyeSight records and stores the fol-

lowing data when Pre-Collision

Braking System is operated. It does

not record conversations or other

audio data.

●

Stereo camera image data

●

Distance from the vehicle in front

●

Vehicle speed

●

Steering wheel turning angle

●

Lateral movement with regards to

the direction of travel

●

Accelerator pedal operation status

●

Brake pedal operation status

●

Shift lever position

●

Odometer reading

●

Data related to ABS, VSC and

TRAC

Toyota and third parties contracted

by Toyota may acquire and use the

recorded data for the purpose of

vehicle research and development.

Toyota and third parties contracted

by Toyota will not disclose or pro-

vide the acquired data to any other

third party except under the follow-

ing conditions.

• The vehicle owner has given

his/her consent.

• The disclosure/provision is based

on a court order or other legally

enforceable request.

• Data that has been modified so

that the user and vehicle cannot

be identified is provided to a

research institution for statistical

processing or similar purposes.

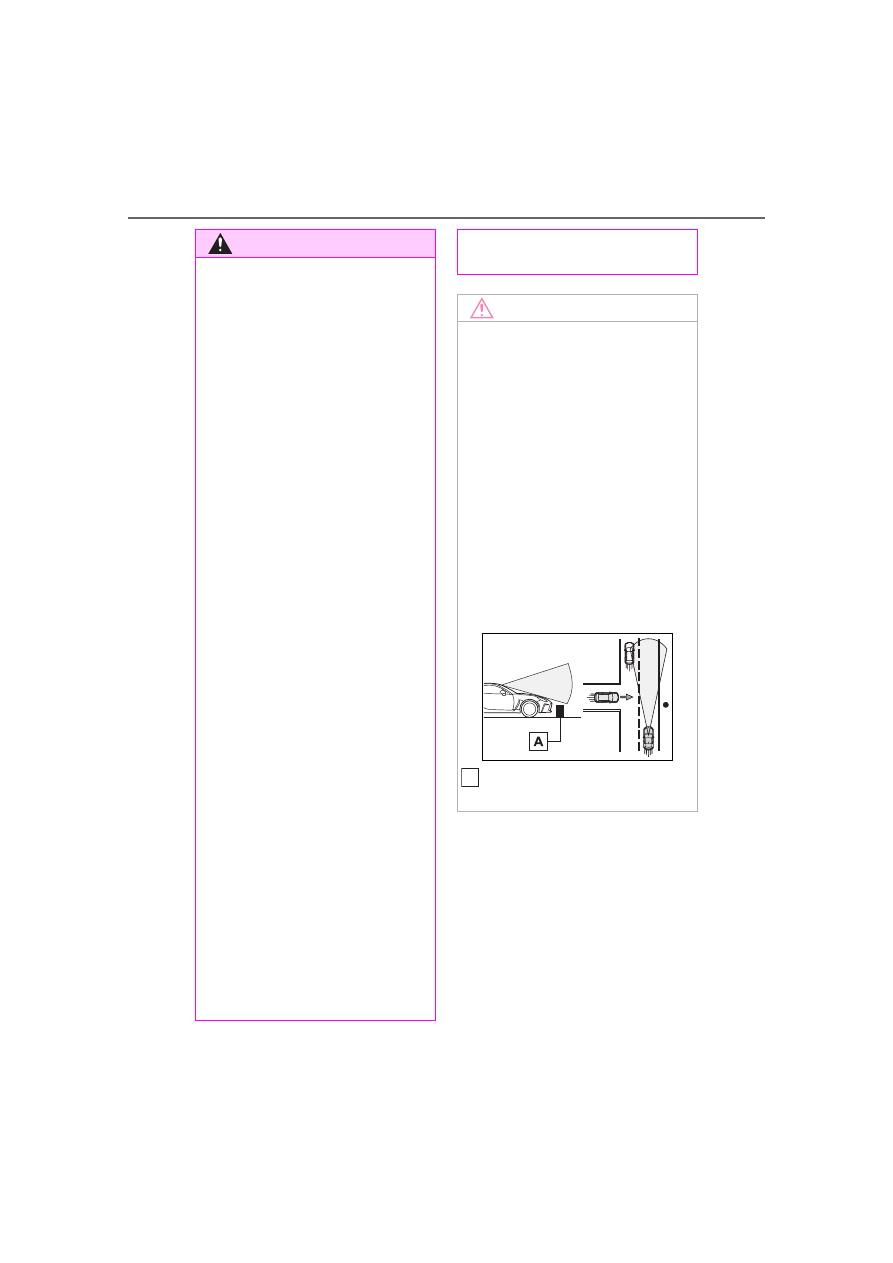

EyeSight

*1, 2

EyeSight is a driving sup-
port system that uses a
range of functions to assist
the driver in making deci-
sions in order to provide for
more safe and comfortable
driving and to reduce driver
fatigue. Making use of
images created by the ste-
reo camera, EyeSight
detects vehicles, obstacles,
traffic lanes and other items
ahead.

WARNING

Drivers are responsible for driving

safely. Always comply with all traf-

fic rules and regulations regard-

less of the fact that your vehicle is

equipped with EyeSight. Always

maintain a safe following dis-

tance between your vehicle and

the vehicle in front of you, pay

attention to your surroundings

and driving conditions, and take

necessary actions in order to

maintain a safe following dis-

tance.

Never attempt to drive relying on

EyeSight alone.

EyeSight is intended to assist the

driver in making decisions in order

to reduce the risk of accidents or

damage and lessen the burden on

the driver.

When an EyeSight warning is

activated, pay attention to what is

in front of you and to your sur-

roundings, and take necessary

actions. This system is not

designed to support driving in

poor visibility or in extreme

weather conditions, or to protect

against careless driving when the

driver is not paying complete

attention to the road ahead. It also

cannot prevent collisions from

occurring in all driving conditions.

171

4-5. EyeSight

ing

WARNING

There are limits to the EyeSight

recognition performance and con-

trol performance. Be sure to read

the instructions for each function

before using the system, and

always use it properly. Improper

use may lead to failure of control

performance, which could cause

an accident.

Refer to the following pages for

each function:

●

For Pre-Collision Braking Sys-

tem, refer to P.179.

●

For Adaptive Cruise Control,

refer to P.190.

●

For Conventional Cruise Con-

trol, refer to P.207.

●

For Pre-Collision Throttle Man-

agement, refer to P.215.

●

For Lane Departure Warning,

refer to P.220.

●

For Lane Sway Warning, refer

to P.222.

●

For Lead Vehicle Start Alert,

refer to P.224.

In left-hand drive vehicles, Eye-

Sight is configured for driving on

the right-hand side of the road.

However, it can be reconfigured

by changing the driving lane set-

ting for driving on the left-hand
side.

(



P.400)

If the setting for the traffic lane

(driving side of the road) does not

match the traffic lane, full Eye-

Sight performance may not be

available.

: Characteristics and settings that

are affected by specific differ-
ences between right-hand drive
and left-hand drive vehicles
cannot be changed.

●

The system may not operate

correctly under the conditions

listed below. When these condi-

tions occur, turn off Pre-Colli-

sion Braking System. Also, do

not use Adaptive Cruise Control

or Conventional Cruise Control.

• The tire pressure is not cor-

rect.

• The temporary spare tire is

installed.

• Tires that are unevenly worn or

tires with uneven wear patterns
are installed.

• Tires that are the wrong size are

installed.

• A flat tire has been fixed tempo-

rarily with a tire repair kit.

• The suspension has been modi-

fied (including a genuine Toyota

suspension that has been modi-

fied).

• An object that obstructs the ste-

reo camera’s view is installed

on the vehicle.

• Tire chains are installed.

• The headlights are dirty or they

have snow and ice or dirt on

them. (Objects are not correctly

illuminated and are difficult to

detect.)

• The optical axes are not aligned

correctly. (Objects are not cor-

rectly illuminated and are diffi-

cult to detect.)

172

4-5. EyeSight

WARNING

• The lights including headlights

and fog lights have been modi-

fied.

• Vehicle operation has become

unstable due to an accident or

malfunction.

• The brake system warning light

is illuminated in red.

• A heavy cargo is inside the

vehicle.

• The maximum number of occu-

pants is exceeded.

• The meter is not operating prop-

erly; such as when the lights do

not illuminate, the beeps do not

sound, the display is different
from when it is normal, etc.

●

The system will not operate cor-

rectly in the following condi-

tions. Do not use Adaptive

Cruise Control or Conventional

Cruise Control.

• The wheels are out of balance

(e.g., the balance weight is
removed or misaligned).

• The wheels are out of align-

ment.

• A trailer or another vehicle, etc.

is being towed.

:The wheels and tires have

functions that are critically
important. Be sure to use the
correct ones. (



P.386)

:If the brake system warning

light (red) does not turn off,
immediately pull the vehicle
over in a safe place and con-
tact a Toyota dealer to have the
system inspected.

:For details about the meter,

refer to P.88.

NOTICE

●

The characteristics of the stereo

camera are similar to those of

human eyes. For this reason,

conditions that make it difficult

for the driver to see in the for-

ward direction have the same

effect on the stereo camera.

They also make it difficult for the

system to detect vehicles,

obstacles, and traffic lanes.

●

Detection by the EyeSight sys-

tem is limited to objects that are

within the range of the stereo

camera’s field of view. Also,

after an object enters the range

of the camera’s field of view, it

may take some time for the sys-

tem to detect it as a controllable

target and to warn the driver.

Low objects surrounding the
vehicle cannot be detected.

Content .. 8 9 10 11 ..
