501

5-17. Connected Services overview

5

Audio

Service Connect uses DCM to
collect and transmit vehicle data
that allows Toyota to provide:



Vehicle Health Report (VHR)
(Safety Recalls, Service Cam-
paigns, Current Vehicle
Alerts, Required Mainte-
nance, and Vehicle Condition
Status)



Maintenance Notifications



Vehicle Alert Notifications

■

Availability of function



Service Connect is available
in the contiguous United
States, Washington D.C. and
Alaska.

●

Availability of functions of the Ser-

vice Connect is dependent on net-

work reception level.

Service Connect

502

5-18. Connected Services operation

5-18.Connected Services operation



From the “MENU” button

1

Press the “MENU” button.

2

Select “Apps”.

3

Follow the steps in “From the
“APPS” button” from step

2

.

(



P.502)



From the “APPS” button

1

Press the “APPS” button.



If a specific application screen
is displayed, press the
“APPS” button again.

2

Select the desired application
screen button.

: Select to activate an applica-

tion.
“Update”: Select to update the

applications. (



P.502)

: Displays the number of new

notifications for the application

When the Toyota Apps is acti-
vated, an application may need
to be updated. To update an
application, it is necessary to
download update data and
install it.

■

Downloading update

If an update is available,
“Update” can be selected.

1

Select “Update” on the appli-
cation screen. (



P.502)

2

Check that downloading
starts.

Toyota Apps

Toyota Apps is a function
that enables certain apps
installed on a smartphone
or the system to be dis-
played on and operated
from the system screen.
Before the Toyota Apps can
be used, some setup needs
to be performed. (



P.496)

For details about the func-
tions and services provided
by each application, refer to
http://www.toyota.com/conn
ected-services
in the United States.

Using Toyota Apps

Updating an application

503

5-18. Connected Services operation

5

Audio

“Download in Background”: Select

to operate other functions while

downloading.
“Cancel”: Select to cancel updating.

3

Check that downloading is
complete.

“Later”: Select to install later. When

this screen button is selected, the

screen will return to the last dis-

played screen. To install the update

data: (



P.503)

“See Detail”: Select to display

detailed information on the update

data.
“Install”: Select to install the update

data. Follow the steps in “Installing

the update data” from step

2

.

(



P.503)

■

Installing the update data

After the downloading is com-
plete, “Update” will be changed
to “Install”.

1

Select “Install” on the appli-
cation screen. (



P.502)

2

Select “Continue”.

“Later”: Select to postpone the

installation of the update data and

go back to the previous screen.

3

Check that installing is
started.

“Install in Background”: Select to

operate other functions while

installing.

4

Select “OK” after the install-
ing is complete.

●

The Toyota Apps cannot be oper-

ated while installing.

When problems occur with start-

ing the application player, a
message will appear on the
screen. Referring to the table
below, identify the problem and
take the suggested corrective
action.



“When it is safe and legal to
do so, please ensure your
Toyota mobile application is
running and logged in on your
phone.”

The Toyota mobile application can-
not be connected to Bluetooth

®



SPP.
Refer to
http://www.toyota.com/
connected-services
in the United States, to confirm if
the phone is Bluetooth

®

 SPP com-

patible or not, and then activate the
Toyota mobile application.



“Installation failed, please try
again”

Installation can be attempted again
by changing to the application
screen and pressing the “Install”
switch.



“Application download error.
Please try again later.”

Downloading can be attempted
again by checking the communica-
tion status, changing to the applica-
tion screen and pressing the
“Download” switch again.



“Download error, some
Toyota mobile application
functions may not work as
expected. Please reinitiate
the download process.”

If a message appears on
the screen

504

5-18. Connected Services operation

The Toyota mobile application can-
not be connected to Bluetooth

®



SPP.
Refer to
http://www.toyota.com/
connected-services
in the United States, to confirm if
the phone is Bluetooth

®

 SPP com-

patible or not, and then activate the
Toyota mobile application.
Please ensure your Toyota mobile
application is running and logged in
on your phone while vehicle is not
moving.



“To use the services, Toyota
mobile application needs to
be running on your phone.
For more information, please
visit toyota.com or call 1-800-
331-4331 in the United
States.”

The Toyota mobile application can-
not be connected to Bluetooth

®



SPP.
Refer to
http://www.toyota.com/
connected-services
in the United States, to confirm if
the phone is Bluetooth

®

 SPP com-

patible or not, and then activate the
Toyota mobile application.



“Communication unsuccess-
ful. Please try again.”

Communication was disconnected.
After a few moments, retry the
operation.

A keyword can be entered to an
application by the software key-
board or voice recognition func-
tion. For details about the
functions and services provided
by each application, refer to
http://www.toyota.com/connecte
d-services
in the United States.



The keyboard layout can be
changed. (



P.410)

1

Display the application
screen. (



P.502)

2

Select the desired application
screen button.

3

Select the character entering
space.

4

Enter a search term, and
then select “OK”.

5

Entering characters will be
reflected on the character
entering space.



For details on operating the
keyboard:



P.381

1

Display the application
screen. (



P.502)

Entering keyword opera-
tion

Entering a keyword using
the software keyboard

Entering a keyword using
the voice recognition func-
tion

505

5-18. Connected Services operation

5

Audio

2

Select the desired application
screen button.

3

Press the talk switch.
(



P.454)

4

Say the desired keyword.



Completion of the keyword
will be detected automatically.

5

Search results will be dis-
played on the screen.

506

5-19. Setup

5-19.Setup

1

Press the “MENU” button.

2

Select “Setup”.

3

Select “Apps”.

4

Select the desired items to
be set.

Select to set the pop up
reminder for smartphone
data usage. (



P.506)

Select to detect iPhone app
automatically on/off.

Select to turn on/off the
enhanced USB connection
mode.

• When an iPhone is connected

while this setting is “On”, commu-
nication with any devices con-
nected to the other USB port is
not possible. Also, depending on
the device, charging may not be
possible.

Select to reset all setup items
to default setting

The data usage notification pop-
up, which indicates that the sys-
tem will use an internet connec-
tion, can be enabled/disabled.

1

Display the Toyota Apps set-
tings screen. (



P.506)

2

Select “Data Usage Mes-
sage”.

3

Change the setting as
desired.

Toyota Apps settings

Toyota Apps settings can
be changed.

Displaying the Toyota
Apps settings screen

Toyota Apps settings
screen

A

B

Data usage notification
pop-up settings

C

D

507

6

6

Interior

 featur

es

Interior features

6-1. Using the air conditioning

system and defogger

Manual air conditioning sys-

tem ............................

508

Automatic air conditioning

system.......................

514

Heated steering wheel/seat

heaters/seat ventilators

..................................

521

6-2. Using the interior lights

Interior lights list ..........

524

6-3. Using the storage features

List of storage features

527

Luggage compartment fea-

tures ..........................

531

6-4. Using the other interior

features

Other interior features .

536

Garage door opener....

546

508

6-1. Using the air conditioning system and defogger

6-1.Using the air conditioning system and defogger

*

: If equipped

Fan speed control switch

Temperature control switch

On/off switch

Windshield defogger switch

Rear window defogger and outside rear view mirror defoggers

*



switch

Airflow mode control switch

Outside/recirculated air mode switch

“A/C” switch

“MAX A/C” switch

*

: If equipped

■

Adjusting the temperature
setting

To adjust the temperature set-
ting, turn the temperature con-
trol switch clockwise (warm) or
counterclockwise (cool).

If “A/C” switch is not pressed, the
system will blow ambient tempera-
ture air or heated air.

■

Fan speed setting

To adjust the fan speed, turn the
fan speed control switch clock-
wise (increase) or counterclock-
wise (decrease).

Pressing the on/off switch turns off
the fan.
When the fan is off, pressing the
on/off switch or turning the fan
speed control switch will turn on the

Manual air conditioning system

*

Air conditioning controls

A

B

C

D

E

F

G

H

I

509

6-1. Using the air conditioning system and defogger

6

Interior

 featur

es

fan.

■

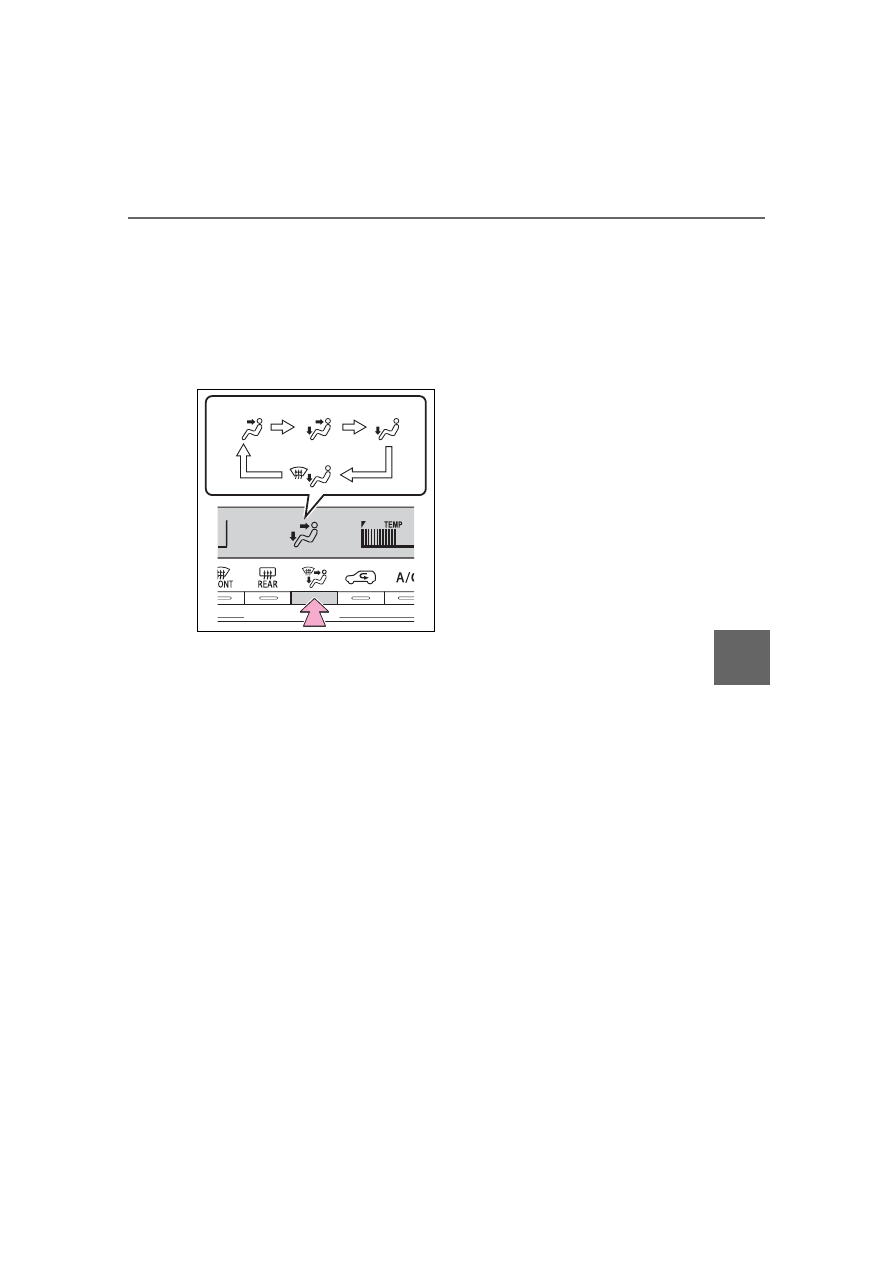

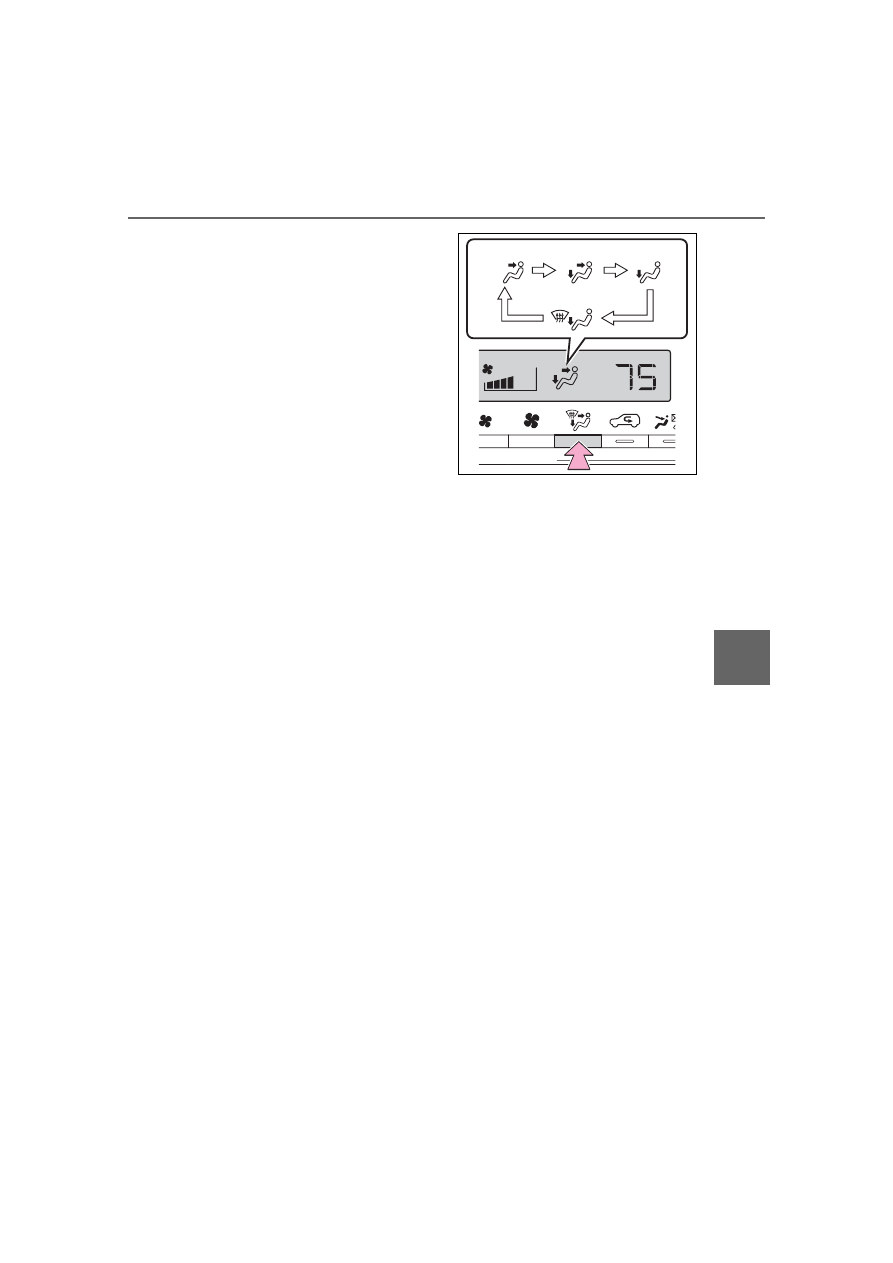

Change the airflow mode

Press the airflow mode control
switch.

The airflow mode changes as fol-
lows each time the switch is
pressed.

1

Upper body

2

Upper body and feet

3

Feet

4

Feet and the windshield
defogger operates

■

Switching between outside
air and recirculated air
modes

Press the outside/recirculated
air mode switch.
The mode switches between
outside air mode and recircu-
lated air mode each time the
switch is operated.

When recirculated air mode is
selected, the indicator illuminates
on the outside/ recirculated air
mode switch.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used.
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors (if equipped)

Defoggers are used to defog the
rear window, and to remove
raindrops, dew and frost from
the outside rear view mirrors (if
equipped).
Press the rear window defogger
and outside rear view mirror
defoggers switch.

When the rear window defogger
and outside rear view mirror defog-

1

1

2

2

3

3

4

4

510

6-1. Using the air conditioning system and defogger

gers switch is on, the indicator illu-
minates on the rear window
defogger and outside rear view mir-
ror defoggers switch.
The rear window defogger and mir-
ror heater automatically turn off
after approximately 60 minutes.
However, the rear window defogger
and mirror heater might automati-
cally turn off after approximately 15
minutes depending on conditions
including the outside temperature
and charging system conditions.

■

For quick cooling

Press the “MAX A/C” switch.

The air conditioning will automati-

cally turn on.
At this time, the following will occur:

●

The recirculated air mode will be

set

●

The windshield defogger will turn

off

●

The air flow mode will change to

the upper body mode

■

Operation of the air condition-

ing system in Eco drive mode

In Eco drive mode, the air condition-

ing system is controlled to prioritize

fuel efficiency by regulating the

engine speed and compressor oper-

ation to restrict the heating/cooling

capacity.
To improve air conditioning perfor-

mance, perform the following opera-

tions:

●

Adjust the fan speed

●

Adjust the temperature setting

●

Turn off Eco drive mode (



P.347)

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning the “A/C” switch on

will dehumidify the air from the

outlets and defog the windshield

effectively.

●

If you turn the “A/C” switch off, the

windows may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode

and the fan speed to any setting

except off.

■

Outside/recirculated air mode

Setting to the recirculated air mode

temporarily is recommended in pre-

venting dirty air from entering the

vehicle interior and helping to cool

the vehicle when the outside air

temperature is high.

■

When the outside temperature

falls to nearly 32°F (0°C)

The dehumidification function may

not operate even when the “A/C”

switch is pressed.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

To reduce potential odors from

occurring:

It is recommended that the air

conditioning system be set to out-

side air mode prior to turning the

vehicle off.

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

511

6-1. Using the air conditioning system and defogger

6

Interior

 featur

es

■

Air conditioning system opera-

tions when the engine is

stopped due to the Stop & Start

system (vehicles with Stop &

Start system)

When the engine is stopped due to

the Stop & Start system operations,

the air conditioning cooling, heating

and dehumidification functions turn

off and only ambient temperature air

is blown, and there is a possibility

that the blowing of ambient tem-

perature air will stop. To prevent the

air conditioning system from turning

off, press the Stop & Start cancel

switch to deactivate the system.

■

When the windshield is fogged

up and the engine is stopped

due to the Stop & Start system

(vehicles with Stop & Start sys-

tem)

Press the windshield defogger

switch to restart the engine and

defog the windshield.
If the windshield continuously fogs

up, press the Stop & Start cancel

switch and refrain from using the

Stop & Start system.

■

When an odor comes from the

air conditioning system while

the engine is stopped due to the

Stop & Start system (vehicles

with Stop & Start system)

Press the Stop & Start cancel switch

to restart the engine.

■

Air conditioning filter



P.592

■

Air conditioning system refrig-

erant

●

A label regarding the refrigerant of

the air conditioning system is

attached to the hood at the loca-

tion shown in the following illustra-

tion.

●

The meaning of each symbol on

the label are as follows:

Caution

Air conditioning system

Air conditioning system
lubricant type

Requires registered tech-
nician to service air con-
ditioning system

Flammable refrigerant

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

■

When the outside rear view

mirror defoggers are operat-

ing (if equipped)

Do not touch the rear view mirror

surfaces when the outside rear

view mirror defoggers are on.

512

6-1. Using the air conditioning system and defogger

■

Location of air outlets

The air outlets and air volume
change according to the
selected airflow mode.

■

Adjusting the air flow direc-
tion and opening/closing
the air outlets



Front

1

Direct air flow to the left or
right, up or down.

2

Open the vent

3

Close the vent



Rear

1

Direct air flow to the left or
right, up or down

2

Open the vent

3

Close the vent

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning

system on longer than necessary

when the engine is off.

■

When repairing/replacing

parts of the air conditioning

system

Have repair/replacement per-

formed by your Toyota dealer.

When a part of the air condition-

ing system, such as the evapora-

tor, is to be replaced, it must be

replaced with a new one.

Air outlet layout and oper-
ations

513

6-1. Using the air conditioning system and defogger

6

Interior

 featur

es

WARNING

■

To not interrupt the wind-

shield defogger from operat-

ing

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.

514

6-1. Using the air conditioning system and defogger

Automatic mode switch

Left-hand side temperature control knob

Right-hand side temperature control knob

“SYNC” switch

“OFF” switch

Windshield defogger switch

Rear window defogger and outside rear view mirror defoggers
switch

Eco air conditioning mode switch

Fan speed decrease switch

Fan speed increase switch

Airflow mode control switch

Outside/recirculated air mode switch

S-FLOW mode switch

“A/C” switch

■

Adjusting the temperature
setting

Turn driver’s side temperature

control dial clockwise to
increases the temperature and
turn the dial counterclockwise to

Automatic air conditioning system

Air outlets and fan speed are automatically adjusted accord-
ing to the temperature setting.

Air conditioning controls

A

B

C

D

E

F

G

H

I

J

K

L

M

N

515

6-1. Using the air conditioning system and defogger

6

Interior

 featur

es

decreases the temperature.

The air conditioning system
switches between individual and
simultaneous modes each time the
“SYNC” switch is pressed.
Simultaneous mode (the indicator
on the “SYNC” switch is on):
The driver’s side temperature con-
trol dial can be used to adjust the
temperature for the driver’s and
passenger’s side. At this time,
operate the passenger’s side tem-
perature control dial to enter indi-
vidual mode.
Individual mode (the indicator on
the “SYNC” switch is off):
The temperature for the driver’s
and passenger’s side can be
adjusted separately.

■

Setting the fan speed

Press the fan speed increase
switch to increase the fan speed
and the fan speed decrease
switch to decrease the fan
speed.

Pressing the “OFF” switch to turns
off the fan.

■

Change the airflow mode

Press the airflow mode control
switch.

The airflow mode changes as fol-
lows each time the switch is
pressed.

1

Upper body

2

Upper body and feet

3

Feet

4

Feet and the windshield
defogger operates

■

Switching between outside
air and recirculated air
modes

Press the outside/recirculated
air mode switch.

The mode switches between out-
side air mode and recirculated air
mode each time the switch is oper-
ated.
When recirculated air mode is
selected, the indicator illuminates
on the outside/ recirculated air
mode switch.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Eco air conditioning mode

The air conditioning is controlled
with low fuel consumption priori-

1

1

2

2

3

3

4

4

516

6-1. Using the air conditioning system and defogger

tized such as reducing fan
speed, etc.
Press the eco air conditioning
mode switch.

When the eco air conditioning
mode is on, the indicator illumi-
nates on the eco air conditioning
mode switch.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors (if equipped)

Defoggers are used to defog the
rear window and to remove rain-
drops, dew and frost from the
outside rear view mirrors (if
equipped).
Press the rear window defogger
and outside rear view mirror

defoggers switch.

The rear window defogger and mir-
ror heater automatically turn off
after approximately 60 minutes.
However, the rear window defogger
and mirror heater might automati-
cally turn off after approximately 15
minutes depending on conditions
including the outside temperature
and charging system conditions.
When the rear window defogger
and outside rear view mirror defog-
gers switch is on, the indicator illu-
minates on the rear window
defogger and outside rear view mir-
ror defoggers switch.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning “A/C” switch on will

dehumidify the air from the outlets

and defog the windshield effec-

tively.

●

If you turn “A/C” switch off, the

windows may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode

and the fan speed to any setting

except off.

■

Outside/recirculated air mode

●

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

●

Outside/recirculated air mode may

automatically switch depending on
