Toyota RAV4 (2022 year). Manual in english

289

4-5. Using the driving support systems

ing

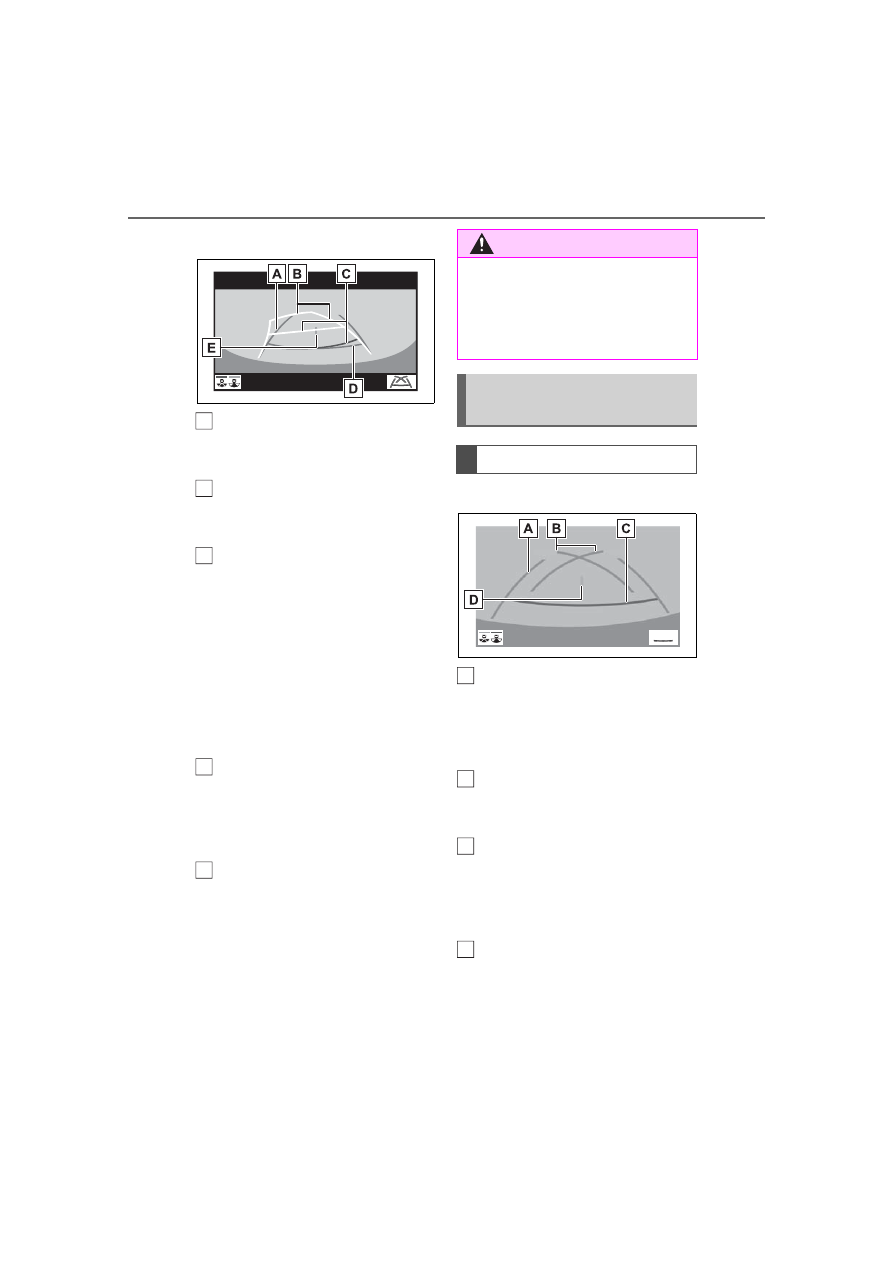

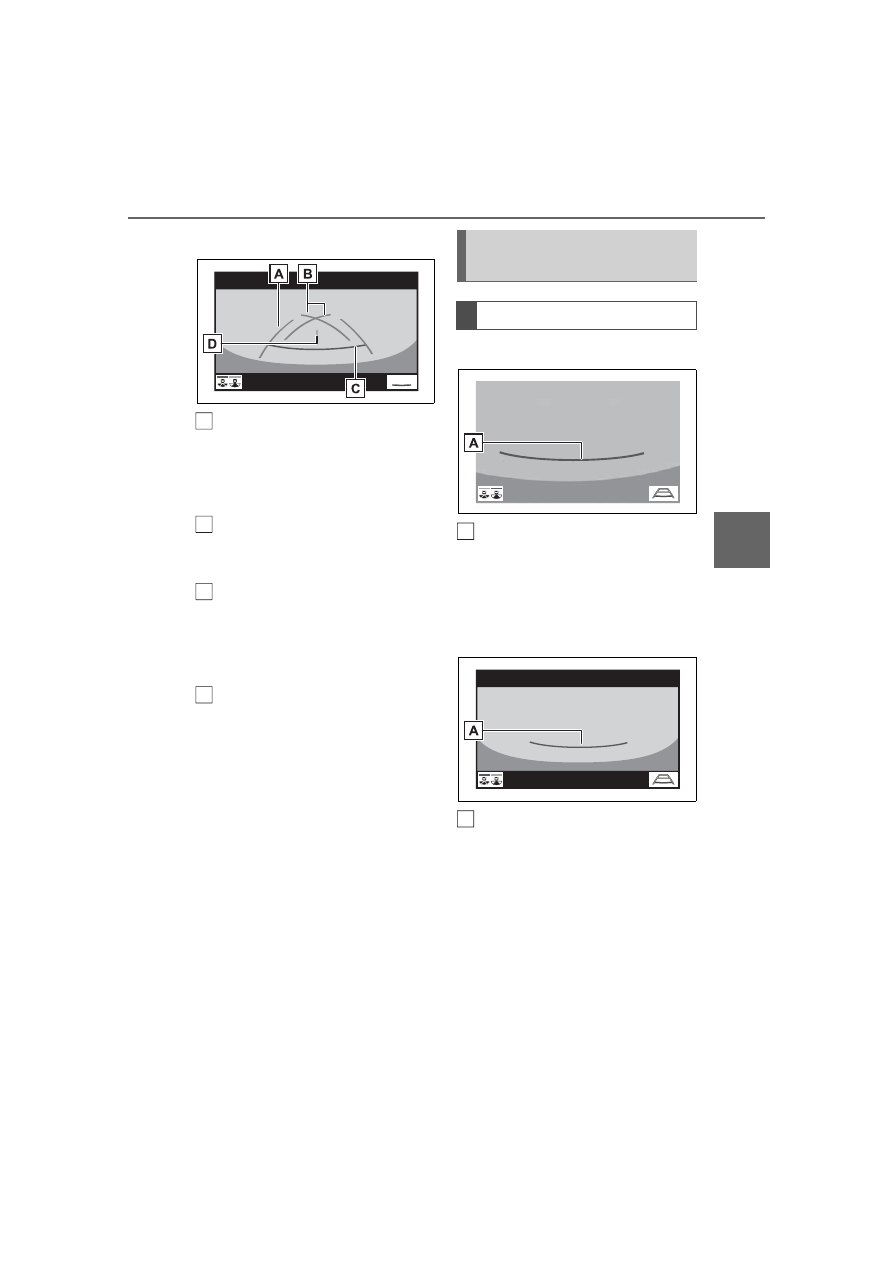

The rear view monitor system
screen will be displayed if the
shift lever is shifted to the “R”
position while the engine switch
is in ON.

Vehicle width guide line

Displays a guide path when the
vehicle is being backed straight up.
• The displayed width is wider than

the actual vehicle width.

Vehicle center guide line

This line indicates the estimated
vehicle center on the ground.

Distance guide line

Shows distance behind the vehicle.
• Displays a point approximately

1.5 ft. (0.5 m) (red) from the edge
of the bumper.

Distance guide line

Shows distance behind the vehicle.
• Displays a point approximately 3

ft. (1 m) (blue) from the edge of
the bumper.

The rear view monitor system is
canceled when the shift lever is
shifted into any position other
than the “R” position.

The rear view monitor system
displays an image of the view
from the bumper of the rear area
of the vehicle.

WARNING

●

In low temperatures, the screen

may darken or the image may

become faint. The image could

distort when the vehicle is mov-

ing, or you may become unable

to see the image on the screen.

Be sure to visually check all

around the vehicle both directly

and using the mirrors before

proceeding.

●

If the tire sizes are changed, the

position of the fixed guide lines

displayed on the screen may

change.

●

The camera uses a special lens.

The distances between objects

and pedestrians that appear in

the image displayed on the

screen will differ from the actual

distances. (



P.291)

Screen description

Canceling rear view moni-
tor system

Rear view monitor system
precautions

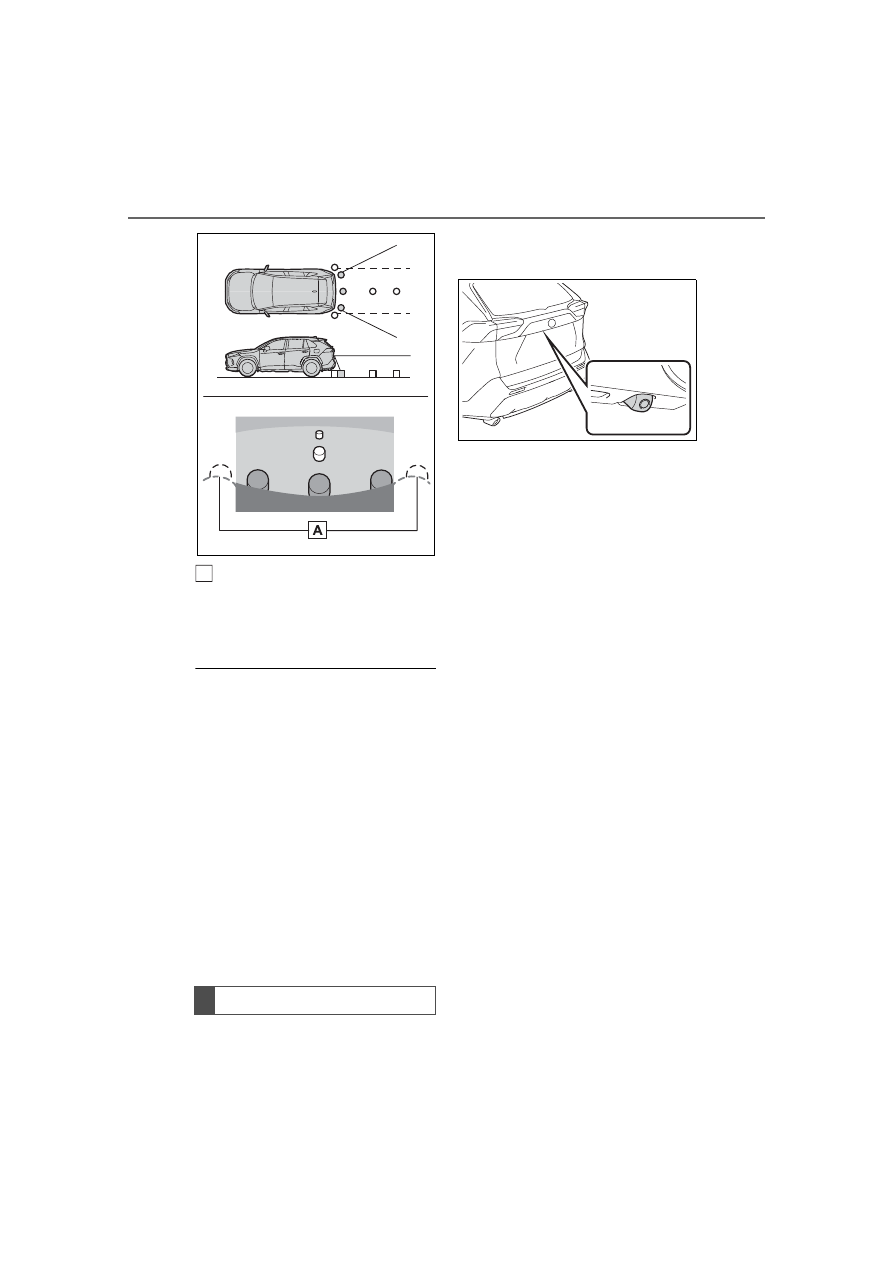

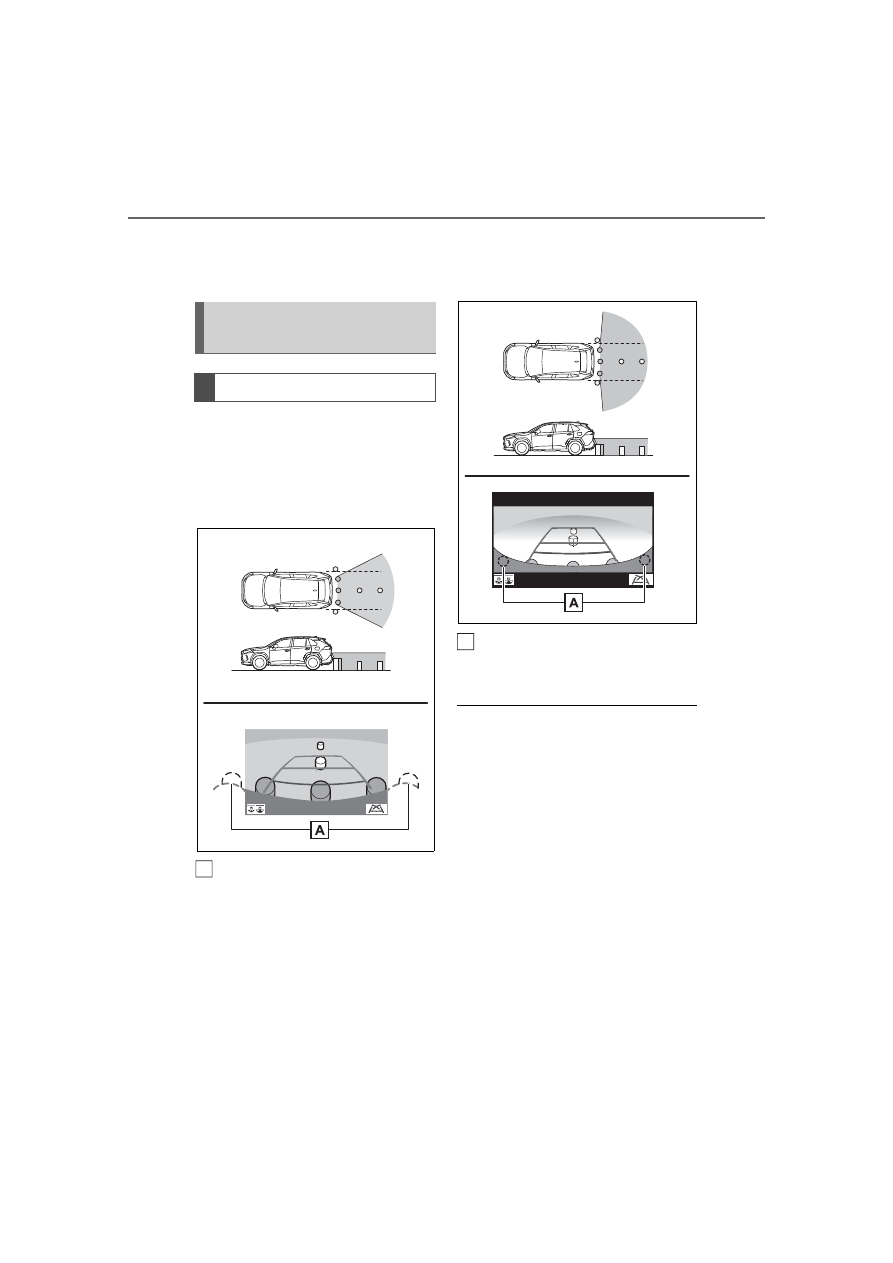

Area displayed on screen

290

4-5. Using the driving support systems

Corners of bumper



The area around both corners
of the bumper will not be dis-
played.

●

The image adjustment procedure

for the rear view monitor system

screen is the same as the proce-

dure for adjusting the screen.

(



P.384)

●

The area displayed on the screen

may vary according to vehicle ori-

entation conditions.

●

Objects which are close to either

corner of the bumper or under the

bumper cannot be displayed.

●

The camera uses a special lens.

The distance of the image that

appears on the screen differs from

the actual distance.

●

Items which are located higher

than the camera may not be dis-

played on the monitor.

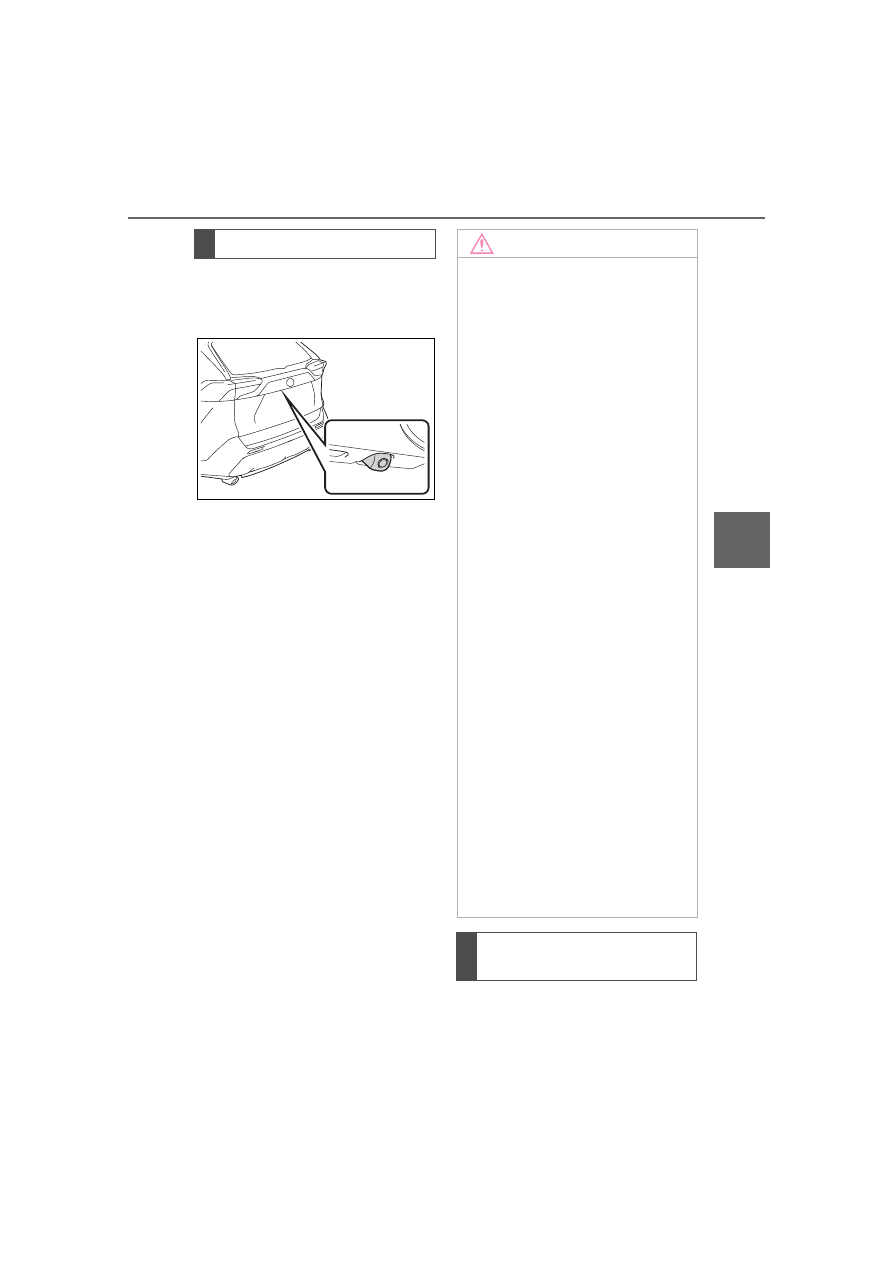

The camera for the rear view

monitor system is located as
shown in the illustration.

■

Using the camera

If dirt or foreign matter (such as
water droplets, snow, mud, etc.)
is adhering to the camera, it
cannot transmit a clear image.
In this case, flush it with a large
quantity of water and wipe the
camera lens clean with a soft
and wet cloth.

The camera

291

4-5. Using the driving support systems

ing



The distance guide lines and
the vehicle width guide lines

may not actually be parallel
with the dividing lines of the
parking space, even when
they appear to be so. Be sure
to check visually.



The distances between the
vehicle width guide lines and
the left and right dividing lines
of the parking space may not
be equal, even when they
appear to be so. Be sure to
check visually.



The distance guide lines give
a distance guide for flat road
surfaces. In any of the follow-
ing situations, there is a mar-
gin of error between the guide
lines on the screen and the
actual distance/course on the
road.

■

When the ground behind
the vehicle slopes up
sharply

The distance guide lines will
appear to be closer to the vehi-
cle than the actual distance.
Because of this, objects will
appear to be farther away than
they actually are. In the same
way, there will be a margin of
error between the fixed guide
lines and the actual dis-
tance/course on the road.

NOTICE

●

The rear view monitor system

may not operate properly in the

following cases.

• If the back of the vehicle is hit,

the position and mounting angle

of the camera may change.

• As the camera has a water

proof construction, do not

detach, disassemble or modify

it. This may cause incorrect

operation.

• When cleaning the camera lens,

flush the camera with a large

quantity of water and wipe it

with a soft and wet cloth.

Strongly rubbing the camera

lens may cause the camera lens

to be scratched and unable to

transmit a clear image.

• Do not allow organic solvent,

car wax, window cleaner or a

glass coating to adhere to the

camera. If this happens, wipe it

off as soon as possible.

• If the temperature changes rap-

idly, such as when hot water is

poured on the vehicle in cold

weather, the system may not

operate normally.

• When washing the vehicle, do

not apply intensive bursts of

water to the camera or camera

area. Doing so may result in the

camera malfunctioning.

●

Do not expose the camera to

strong impact as this could

cause a malfunction. If this hap-

pens, have the vehicle

inspected by your Toyota dealer

as soon as possible.

Differences between the
screen and the actual road

292

4-5. Using the driving support systems

■

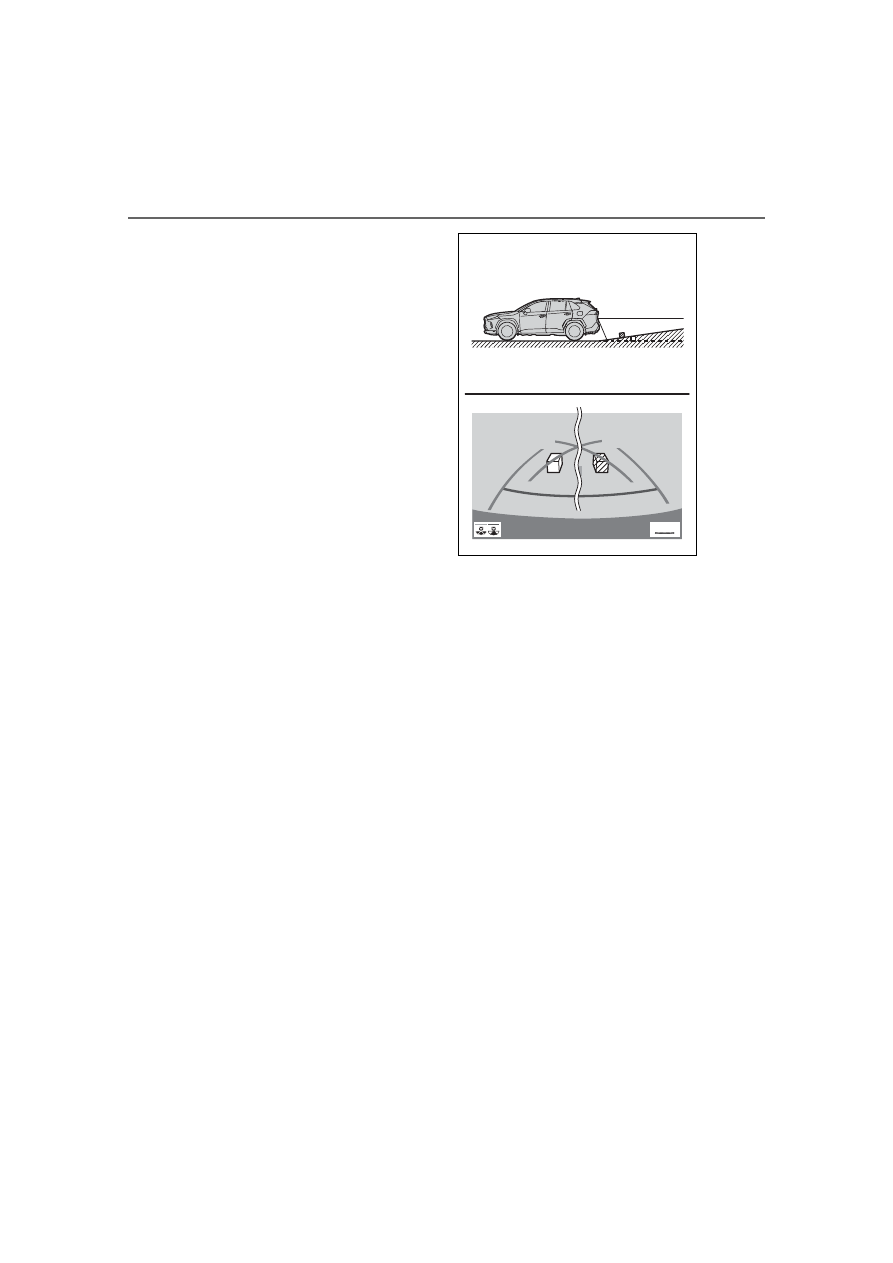

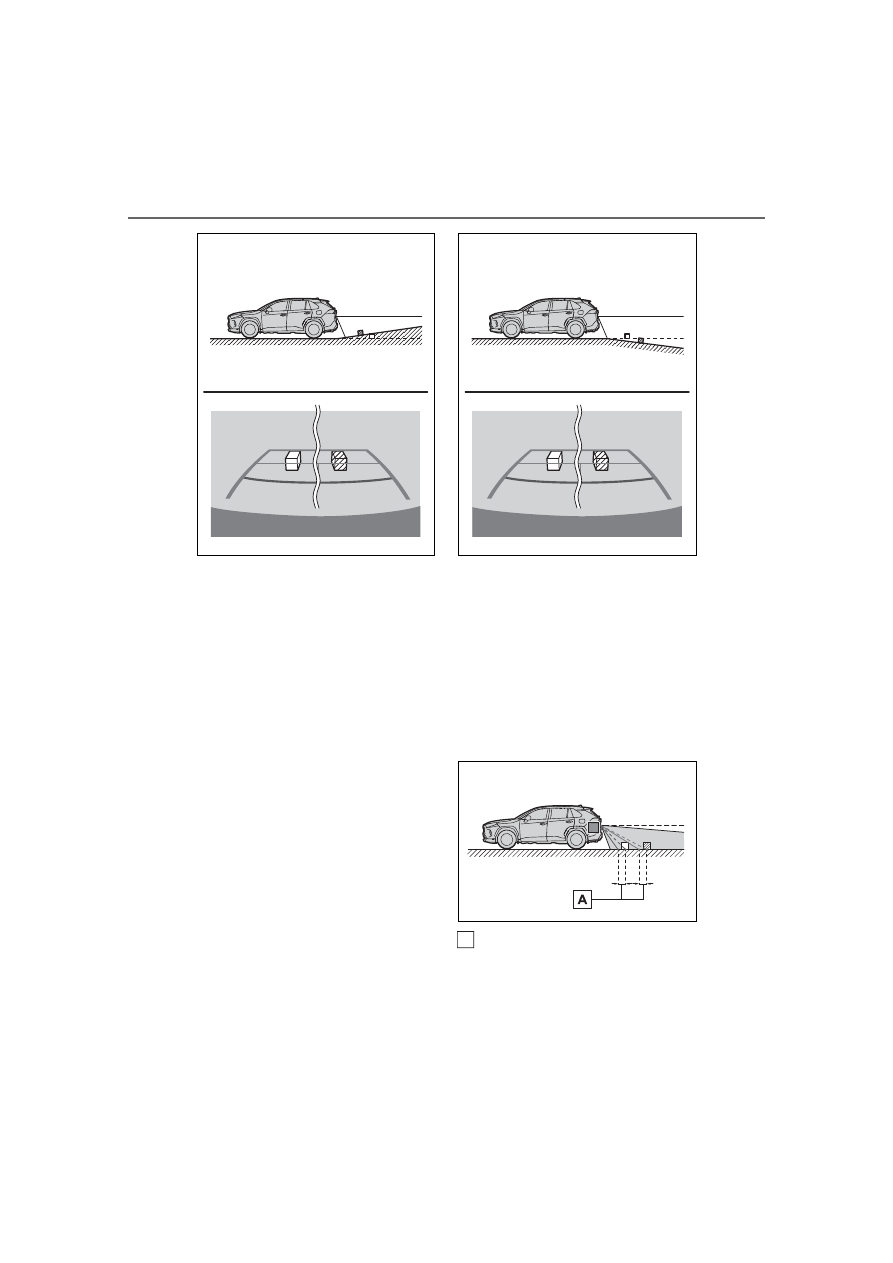

When the ground behind
the vehicle slopes down
sharply

The distance guide lines will
appear to be farther from the
vehicle than the actual distance.
Because of this, objects will
appear to be closer than they
actually are. In the same way,
there will be a margin of error
between the guide lines and the
actual distance/course on the
road.

■

When any part of the vehi-
cle sags

When any part of the vehicle
sags due to the number of pas-
sengers or the distribution of the
load, there is a margin of error
between the fixed guide lines on
the screen and the actual dis-
tance/course on the road.

A margin of error

293

4-5. Using the driving support systems

ing

The distance guide lines are dis-
played according to flat surfaced
objects (such as the road). It is
not possible to determine the
position of three-dimensional
objects (such as vehicles) using
the vehicle width guide lines and
distance guide lines. When
approaching a three-dimen-
sional object that extends out-
ward (such as the flatbed of a
truck), be careful of the follow-
ing.

■

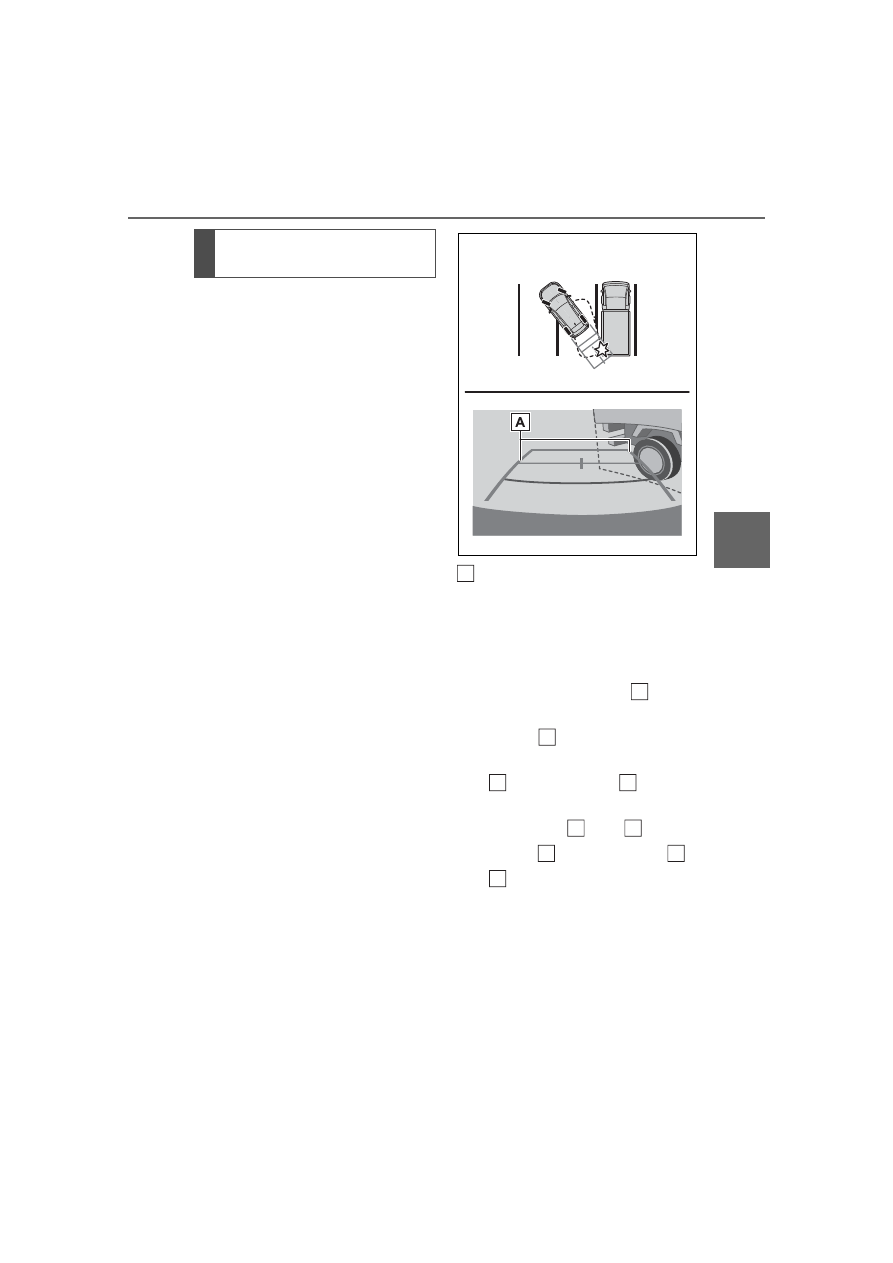

Vehicle width guide lines

Visually check the surroundings
and the area behind the vehicle.
In the case shown below, the
truck appears to be outside of
the vehicle width guide lines and
the vehicle does not look as if it
hits the truck. However, the rear
body of the truck may actually
cross over the vehicle width
guide lines. In reality if you back
up as guided by the vehicle
width guide lines, the vehicle
may hit the truck.

Vehicle width guide lines

■

Distance guide lines

Visually check the surroundings
and the area behind the vehicle.
On the screen, it appears that a
truck is parking at point

However, in reality if you back
up to point

, you will hit the

truck. On the screen, it appears
that

is closest and

is far-

thest away. However, in reality,
the distance to

and

is the

same, and

is farther than

and

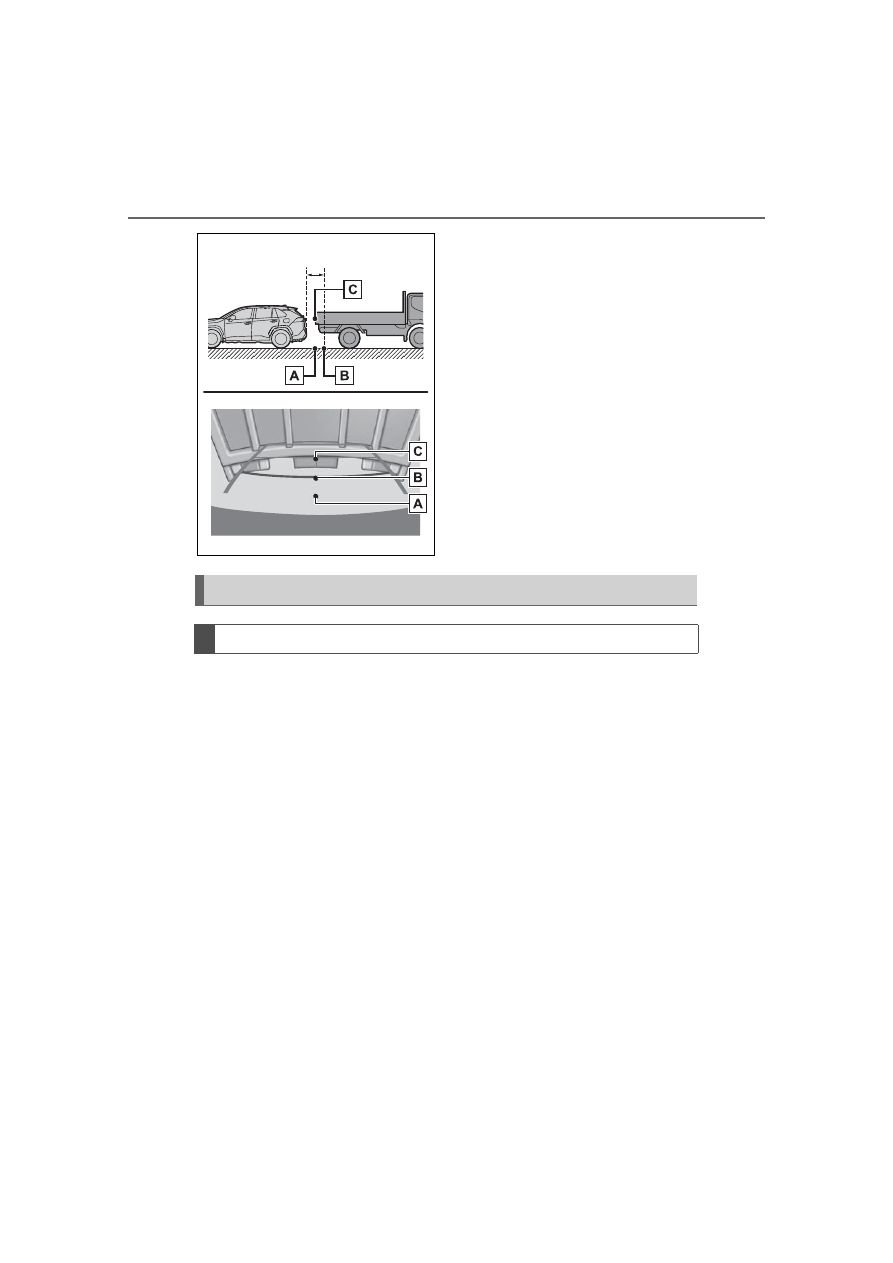

When approaching three-
dimensional objects

295

4-5. Using the driving support systems

ing

Symptom

Likely cause

Solution

The image is difficult to
see



The vehicle is in a dark
area



The temperature
around the lens is
either high or low



The outside tempera-
ture is low



There are water drop-
lets on the camera



It is raining or humid



Foreign matter (mud
etc.) is adhering to the
camera



Sunlight or headlights
are shining directly
into the camera



The vehicle is under
fluorescent lights,
sodium lights, mer-
cury lights etc.

Back up while visually
checking the vehicle’s
surroundings. (Use the
monitor again once con-
ditions have been
improved.)
The procedure for
adjusting the picture
quality of the rear view
monitor system is the
same as the procedure
for adjusting the screen.
(



P.384)

The image is blurry

Dirt or foreign matter
(such as water droplets,
snow, mud etc.) is
adhering to the camera.

Flush the camera with a
large quantity of water
and wipe the camera
lens clean with a soft
and wet cloth.

The image is out of
alignment

The camera or sur-
rounding area has
received a strong
impact.

Have the vehicle
inspected by your
Toyota dealer.

The fixed guide lines
are very far out of
alignment

The camera position is
out of alignment.

Have the vehicle
inspected by your
Toyota dealer.



The vehicle is tilted
(there is a heavy load
on the vehicle, tire
pressure is low due to
a tire puncture, etc.)



The vehicle is used on
an incline.

If this happens due to
these causes, it does
not indicate a malfunc-
tion.
Back up while visually
checking the vehicle’s
surroundings.

296

4-5. Using the driving support systems

: If equipped

●

The screen illustrations used in

this text are intended as exam-

ples, and may differ from the

image that is actually displayed on

the screen.

The parking assist monitor is a
supplemental device intended to
assist the driver when backing
up. When backing up, be sure to
visually check all around the
vehicle both directly and using
the mirrors before proceeding. If
you do not, you may hit another
vehicle, and could possibly
cause an accident.
Pay attention to the following
precautions when using the
parking assist monitor.

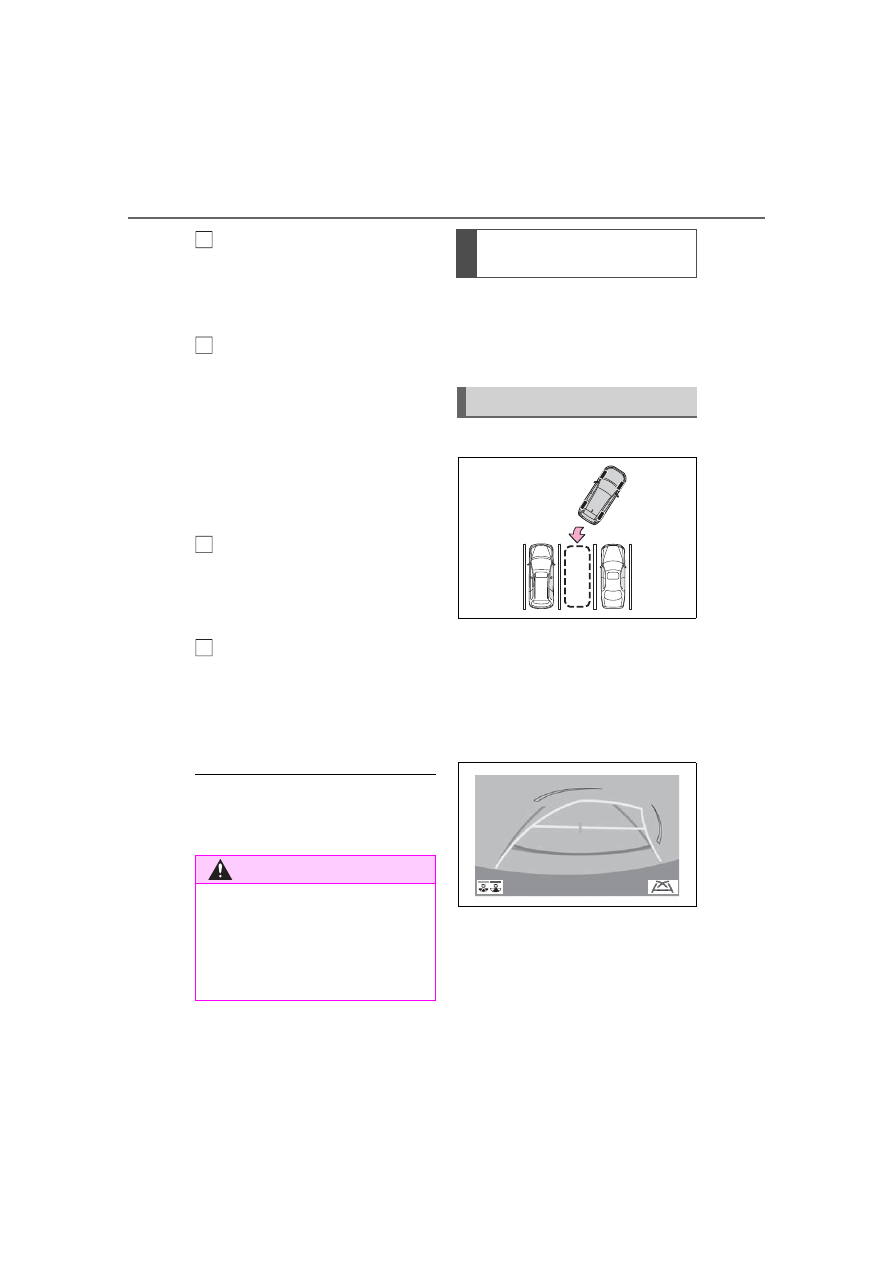

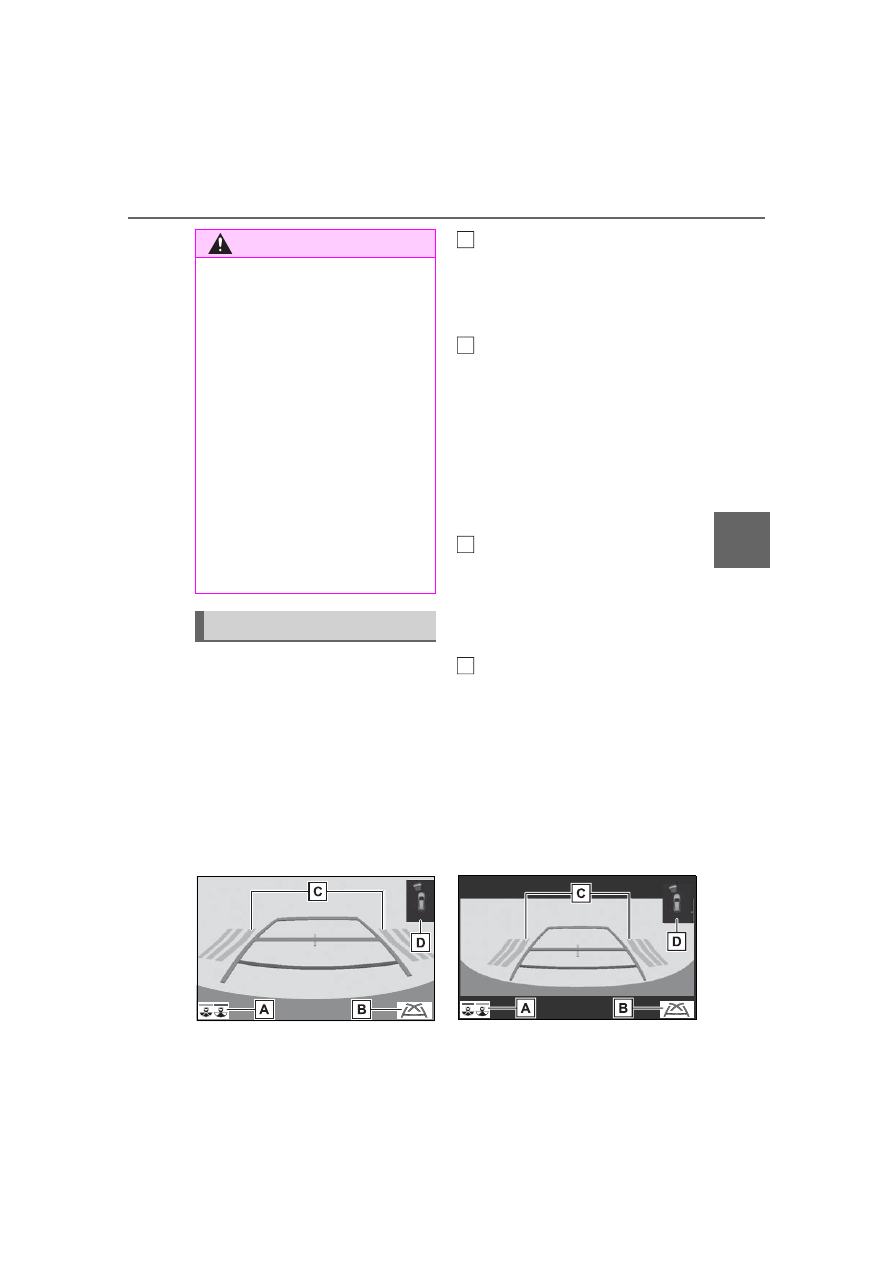

Toyota parking assist

monitor

The parking assist monitor
assists the driver by dis-
playing an image of the view
behind the vehicle while
backing up, for example
while parking.

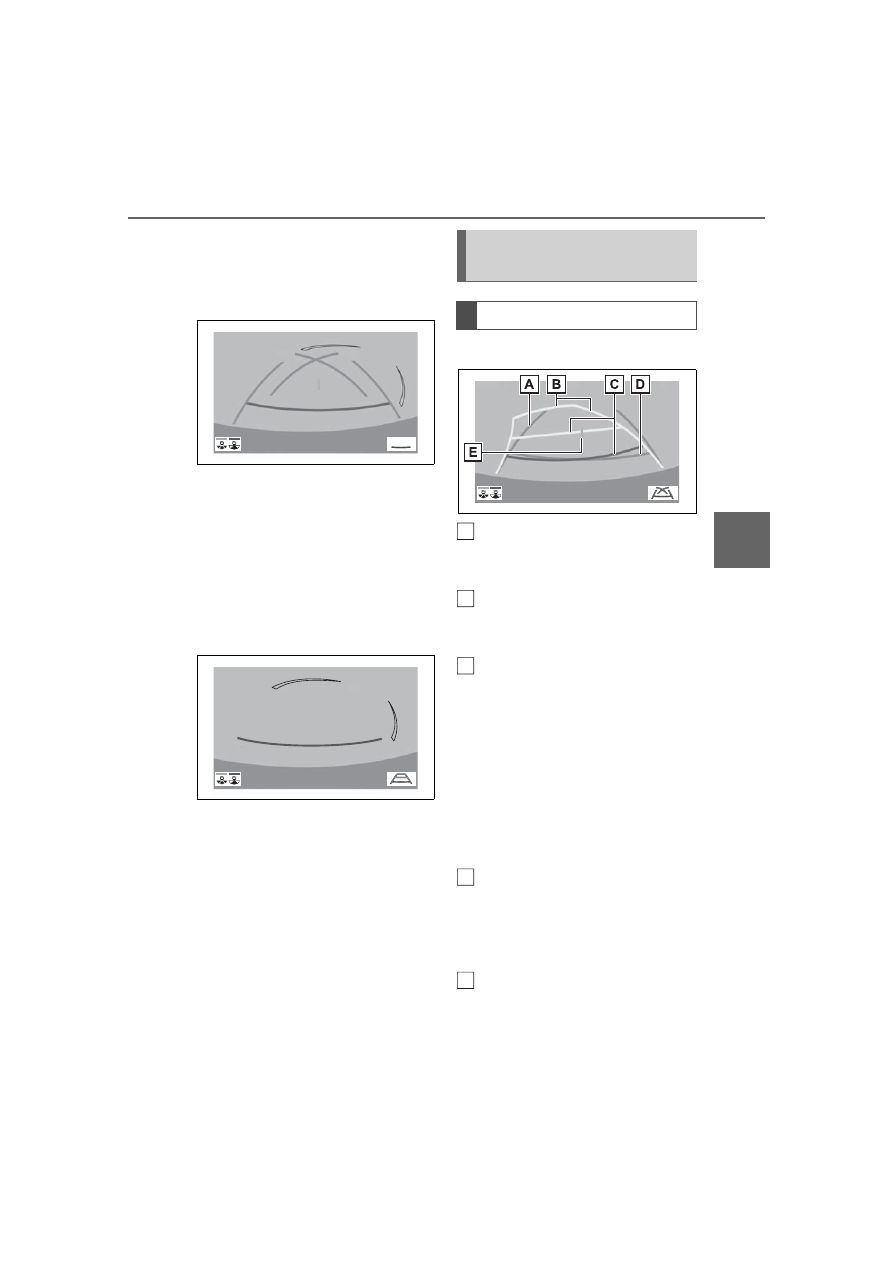

When the display is
changed to the wide rear
view mode, a wider lateral
view behind the vehicle will
be displayed.

Driving precautions

WARNING

●

Never depend on the parking

assist monitor entirely when

backing up. The image and the

position of the guide lines dis-

played on the screen may differ

from the actual state.

Use caution, just as you would

when backing up any vehicle.

●

Be sure to back up slowly,

depressing the brake pedal to

control vehicle speed.

●

If you seem likely to hit nearby

vehicles, obstacles, people or

mount the shoulder, depress

the brake pedal to stop the vehi-

cle.

●

The instructions given are only

guidelines. When and how

much to turn the steering wheel

will vary according to traffic con-

ditions, road surface condi-

tions, vehicle condition, etc.

when parking. It is necessary to

be fully aware of this before

using the parking assist system.

●

When parking, be sure to check

that the parking space will

accommodate your vehicle

before maneuvering into it.

●

Do not use the parking assist

monitor in the following cases:

• On icy or slick road surfaces, or

in snow

• When using tire chains or emer-

gency tires

• When the back door is not

closed completely

• On roads that are not flat or

straight, such as curves or

slopes

• If the suspension has been

modified or tires of a size other

than specified are installed

297

4-5. Using the driving support systems

ing

The parking assist monitor
screen will be displayed if the
shift lever is shifted to the “R”
while the engine switch is in ON.
Each time the display mode
switching button is selected, the
mode will change as follows:



Rear view

Displays the rear view of the vehi-
cle.

Display mode switching but-
ton

Each time the button is selected,
the rear view mode and the wide
rear view mode are switched.

Guide line switching button

Select to switch the guide line
mode. (



P.298)

• Each time the button is selected,

the display mode changes in the
following order:

Estimated course line display mode



Parking assist guide line display

mode



Distance guide line dis-

play mode.

Rear Cross Traffic Alert

When a sensor detects a vehicle
approaching from the rear, the
direction of the vehicle approaching
from the rear is displayed and the
buzzer sounds.

Intuitive parking assist

When a sensor detects a stationary
object, the direction of and the
approximate distance to the a sta-
tionary object are displayed and the
buzzer sounds.

: If equipped



Wide rear view

Displays a near 180° image from
the rear view camera.

WARNING

●

In low temperatures, the screen

may darken or the image may

become faint. The image could

distort when the vehicle is mov-

ing, or you may become unable

to see the image on the screen.

Be sure to visually check all

around the vehicle both directly

and using the mirrors before

proceeding.

●

If the tire sizes are changed, the

position of the guide lines dis-

played on the screen may

change.

●

The camera uses a special lens.

The distances between objects

and pedestrians that appear in

the image displayed on the

screen will differ from the actual

distances. (



P.303)

Screen display

298

4-5. Using the driving support systems

Display mode switching but-
ton

Each time the button is selected,
the rear view mode and the wide
rear view mode are switched.

Guide line switching button

Select to switch the guide line
mode. (



P.298)

• Each time the button is selected,

the display mode changes in the
following order:

Estimated course line display mode



Parking assist guide line display

mode



Distance guide line dis-

play mode.

Rear Cross Traffic Alert

When a sensor detects a stationary
object, the direction of stationary
object is displayed and the buzzer
sounds.

Intuitive parking assist

When a sensor detects an obsta-
cle, the direction of and the approx-
imate distance to the obstacle are
displayed and the buzzer sounds.

: If equipped

●

For details about the Rear Cross

Traffic Alert function (



P.266)

and intuitive parking assist.

(



P.270)

The parking assist monitor is
canceled when the shift lever is
shifted into any position other
than the “R”.

Use any of the following modes.



Estimated course line display
mode (



P.299)

Estimated course lines are dis-
played which move in accor-
dance with the operation of the
steering wheel.



Parking assist guide line dis-
play mode (



P.300)

The steering wheel return points
(parking assist guide lines) are
displayed.
This mode is recommended for

WARNING

●

As the Rear Cross Traffic Alert

display is displayed over the

camera view, it may be difficult

to see the Rear Cross Traffic

Alert display depending on the

color and brightness of the sur-

rounding area.

Canceling Toyota parking
assist monitor

Using the system

299

4-5. Using the driving support systems

ing

those who are comfortable with
parking the vehicle without the
aid of the estimated course
lines.



Distance guide line display
mode (



P.301)

Distance guide lines only are
displayed.
This mode is recommended for
those who are comfortable with
parking the vehicle without the
aid of the guide lines.



Rear view

Vehicle width guide line

Displays a guide path when the
vehicle is being backed straight up.

Estimated course lines

Show an estimated course when
the steering wheel is turned.

Distance guide lines

Show distance behind the vehicle
when the steering wheel is turned.
• The guide lines move in conjunc-

tion with the estimated course
lines.

• The guide lines display points

approximately 1.5 ft. (0.5 m) (red)
and approximately 3 ft. (1 m) (yel-
low) from the center of the edge
of the bumper.

Distance guide line

Shows distance behind the vehicle.
• Displays a point approximately

1.5 ft. (0.5 m) (blue) from the
edge of the bumper.

Vehicle center guide line

Indicates the estimated vehicle
center on the ground.

Estimated course line dis-
play mode

Screen description

300

4-5. Using the driving support systems



Wide rear view

Vehicle width guide line

Displays a guide path when the
vehicle is being backed straight up.

Estimated course lines

Show an estimated course when
the steering wheel is turned.

Distance guide lines

Show distance behind the vehicle
when the steering wheel is turned.
• The guide lines move in conjunc-

tion with the estimated course
lines.

• The guide lines display points

approximately 1.5 ft. (0.5 m) (red)
and approximately 3 ft. (1 m) (yel-
low) from the center of the edge
of the bumper.

Distance guide line

Shows distance behind the vehicle.
• Displays a point approximately

1.5 ft. (0.5 m) (blue) from the
edge of the bumper.

Vehicle center guide line

Indicates the estimated vehicle
center on the ground.



Rear view

Vehicle width guide line

Displays a guide path when the
vehicle is being backed straight up.
• The displayed width is wider than

the actual vehicle width.

Parking assist guide lines

Show the path of the smallest turn
possible behind the vehicle.

Distance guide line

Shows distance behind the vehicle.
• Displays points approximately 1.5

ft. (0.5 m) (red) from the edge of
the bumper.

Vehicle center guide line

Indicates the estimated vehicle
center on the ground.

WARNING

●

If the steering wheel is straight

and the vehicle width guide

lines and the estimated course

lines are not in alignment, have

the vehicle inspected by your

Toyota dealer.

Parking assist guide line
display mode

Screen description

301

4-5. Using the driving support systems

ing



Wide rear view

Vehicle width guide line

Displays a guide path when the
vehicle is being backed straight up.
• The displayed width is wider than

the actual vehicle width.

Parking assist guide lines

Show the path of the smallest turn
possible behind the vehicle.

Distance guide line

Shows distance behind the vehicle.
• Displays points approximately 1.5

ft. (0.5 m) (red) from the edge of
the bumper.

Vehicle center guide line

Indicates the estimated vehicle
center on the ground.



Rear view

Distance guide lines

Shows distance behind the vehicle.
• Displays points approximately 1.5

ft. (0.5 m) (red) from the edge of
the bumper.



Wide rear view

Distance guide lines

Shows distance behind the vehicle.

Distance guide line dis-
play mode

Screen description

302

4-5. Using the driving support systems

• Displays points approximately 1.5

ft. (0.5 m) (red) from the edge of
the bumper.

The parking assist monitor dis-
plays an image of the view from
the bumper of the rear area of
the vehicle.



Rear view

Corners of bumper

• The area around both corners of

the bumper will not be displayed.



Wide rear view

Corners of bumper

• The area around both corners of

the bumper will not be displayed.

●

The image adjustment procedure

for the parking assist monitor

screen is the same as the proce-

dure for adjusting the screen dis-

play. (



P.384)

●

The area displayed on the screen

may vary according to vehicle ori-

entation conditions.

●

Objects which are close to either

corner of the bumper or under the

bumper cannot be displayed.

●

The camera uses a special lens.

The distance of the image that

appears on the screen differs from

the actual distance.

●

Items which are located higher

than the camera may not be dis-

played on the monitor.

Toyota parking assist
monitor precautions

Area displayed on screen

303

4-5. Using the driving support systems

ing

The camera for the parking
assist monitor is located as
shown in the illustration.

■

Using the camera



The distance guide lines and
the vehicle width guide lines

The camera

NOTICE

●

The parking assist monitor may

not operate properly in the fol-

lowing cases.

• If the back of the vehicle is hit,

the position and mounting angle

of the camera may change.

• As the camera has a water

proof construction, do not

detach, disassemble or modify

it. This may cause incorrect

operation.

• When cleaning the camera lens,

flush the camera with a large

quantity of water and wipe it

with a soft and wet cloth.

Strongly rubbing the camera

lens may cause the camera lens

to be scratched and unable to

transmit a clear image.

• Do not allow organic solvent,

car wax, window cleaner or a

glass coating to adhere to the

camera. If this happens, wipe it

off as soon as possible.

• If the temperature changes rap-

idly, such as when hot water is

poured on the vehicle in cold

weather, the system may not

operate normally.

• When washing the vehicle, do

not apply intensive bursts of

water to the camera or camera

area. Doing so may result in the

camera malfunctioning.

●

Do not expose the camera to

strong impact as this could

cause a malfunction. If this hap-

pens, have the vehicle

inspected by your Toyota dealer

as soon as possible.

Differences between the
screen and the actual road

304

4-5. Using the driving support systems

may not actually be parallel
with the dividing lines of the
parking space, even when
they appear to be so. Be sure
to check visually.



The distances between the
vehicle width guide lines and
the left and right dividing lines
of the parking space may not
be equal, even when they
appear to be so. Be sure to
check visually.



■

When the ground behind
the vehicle slopes up
sharply

The distance guide lines will
appear to be closer to the vehi-
cle than the actual distance.
Because of this, objects will
appear to be farther away than
they actually are. In the same
way, there will be a margin of
error between the guidelines
and the actual distance/course
on the road.

■

When the ground behind
the vehicle slopes down
sharply

Toyota RAV4 (2022 year). Manual in english - page 18
