5-7. Media operation

Reconnect the portable player

manually.

●

Bluetooth

device information is

registered when the Bluetooth

device is connected to the Blue-
tooth

audio system. When selling

or disposing of the vehicle,
remove the Bluetooth

audio

information from the system.

(



P.297)

●

In some situations, sound output
via the Bluetooth

audio system

may be out of sync with the con-

nected device or output intermit-

tently.

To use the Bluetooth

audio

system, it is necessary to regis-
ter a Bluetooth

device with the

system.



Registering an additional
device

Display the Bluetooth

audio

control screen. (



P.318)

Select “Connect”.

Select “Add Device”.



When another Bluetooth

device is connected, a confir-
mation screen will be dis-
played. To disconnect the
Bluetooth

device, select

“Yes”.

Follow the steps in “Register-
ing a Bluetooth

phone for

the first time” from step

(



P.270)



Selecting a registered device

Display the Bluetooth

audio

control screen. (



P.318)

Select “Connect”.

Select the desired device to
be connected.

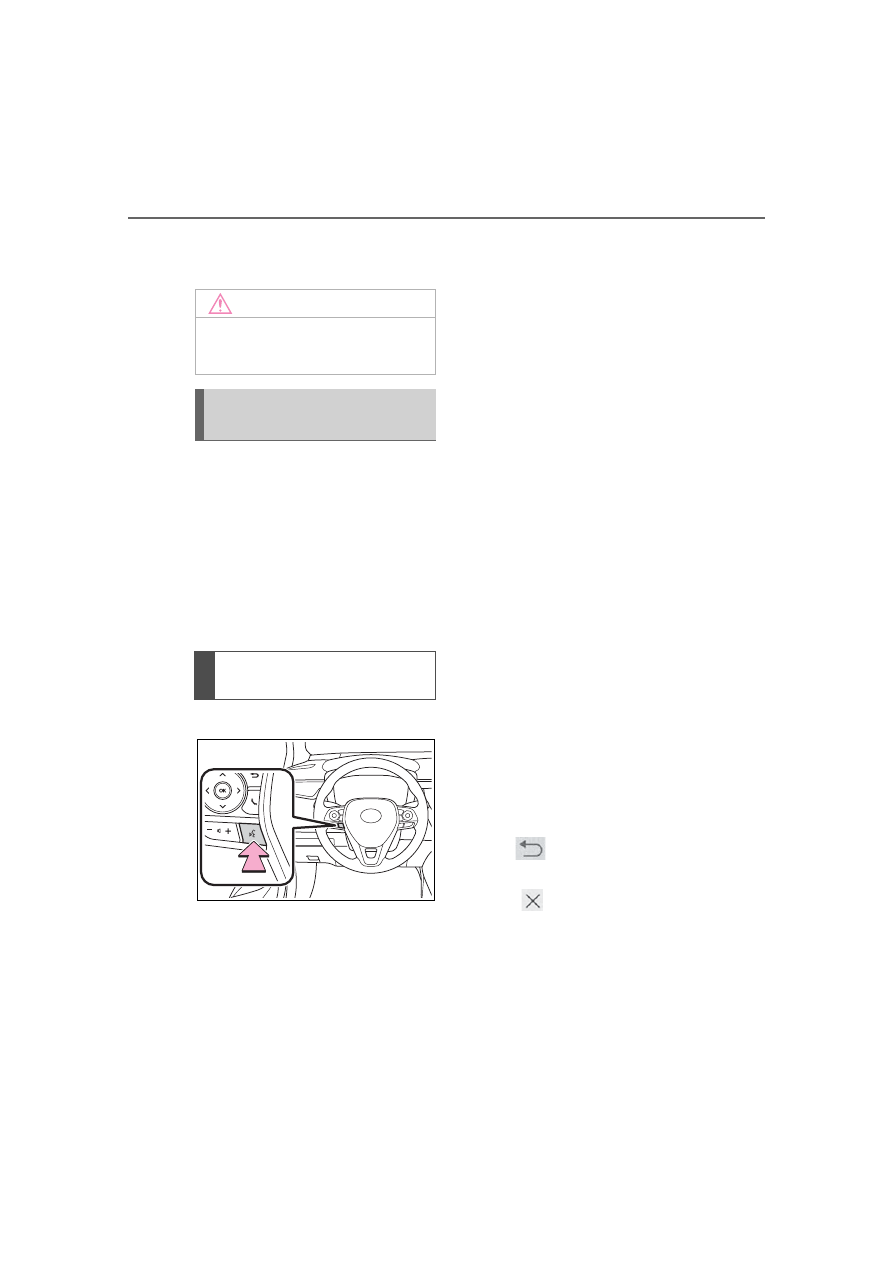

WARNING

●

Do not operate the player’s con-

trols or connect to the Blue-
tooth

audio system while

driving.

●

Your audio unit is fitted with
Bluetooth

antennas. People

with implantable cardiac pace-

makers, cardiac resynchroniza-

tion therapy-pacemakers or

implantable cardioverter defibril-

lators should maintain a reason-

able distance between
themselves and the Bluetooth

antennas. The radio waves may

affect the operation of such

devices.

●

Before using Bluetooth

devices, users of any electrical

medical device other than

implantable cardiac pacemak-

ers, cardiac resynchronization

therapy-pacemakers or implant-

able cardioverter defibrillators

should consult the manufacturer

of the device for information

about its operation under the

influence of radio waves. Radio

waves could have unexpected

effects on the operation of such

medical devices.

NOTICE

Do not leave your portable player

in the vehicle. In particular, high

temperatures inside the vehicle

may damage the portable player.

Registering/Connecting a
Bluetooth

device

322

5-8. Audio/visual remote controls

5-8.Audio/visual remote controls

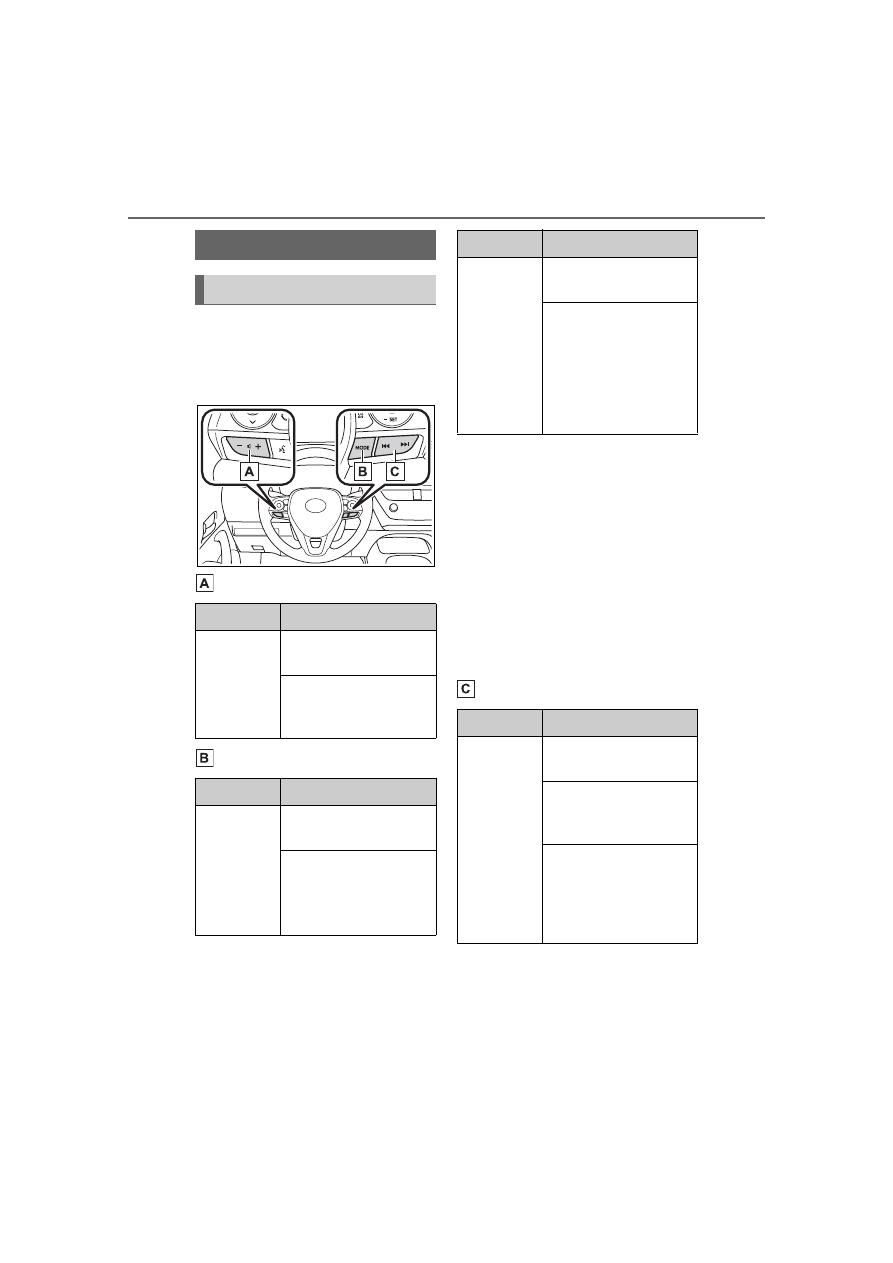

Some parts of the audio/visual
system can be adjusted using
the switches on the steering
wheel.

Volume control switch

“MODE” switch

:If equipped

:If cached radio is enabled, press-

ing and holding the “MODE”
switch pauses the broadcast.
(Press and hold again to play
back the cached radio program.)

:When an Apple CarPlay is estab-

lished, this function will be
unavailable.

:When an Android Auto is estab-

lished, this function will be
unavailable.

Seek switch

Steering switches

Steering switch operation

Mode

Operation/function

All

Press: Volume
up/down

Press and hold (0.8
sec. or more): Volume
up/down continuously

Mode

Operation/function

AM/FM/

SXM

Press: Change audio
modes

Press and hold (0.8
sec. or more): Mute

(Press and hold again
to resume the sound.)

USB

*3, 4

iPod/iPhon

Android

Auto

Bluetooth

audio

*3, 4

APPS

*3, 4

Press: Change audio
modes

Press and hold (0.8
sec. or more): Pause
(Press and hold again
to resume the play
mode.)

Mode

Operation/function

AM/FM

Press: Preset chan-
nel up/down

Press and hold (0.8
sec. or more): Seek
up/down

Press and hold (1.5
sec. or more): Seek
up/down continuously
while the switch is
being pressed

Mode

Operation/function

323

5-8. Audio/visual remote controls

Audio

:If equipped

:When an Apple CarPlay is estab-

lished, this function will be
unavailable.

:When an Android Auto is estab-

lished, this function will be
unavailable.

●

In the APPS mode, some opera-

tion may be done on the screen

depend on the selected APPS.

SXM

Press: Preset chan-
nel up/down

Press and hold (0.8
sec. or more): Seek
for stations in the rele-
vant program
type/channel category

Press and hold (1.5
sec. or more): Fast
channel up/down

USB

*2, 3

iPod/iPhon

, Blue-

tooth

audio

*2, 3

Press: Track/file
up/down

Press and hold (0.8
sec. or more): Fast
forward/rewind

Android

Auto

Press: Track up/down

Mode

Operation/function

324

5-9. Audio settings

5-9.Audio settings

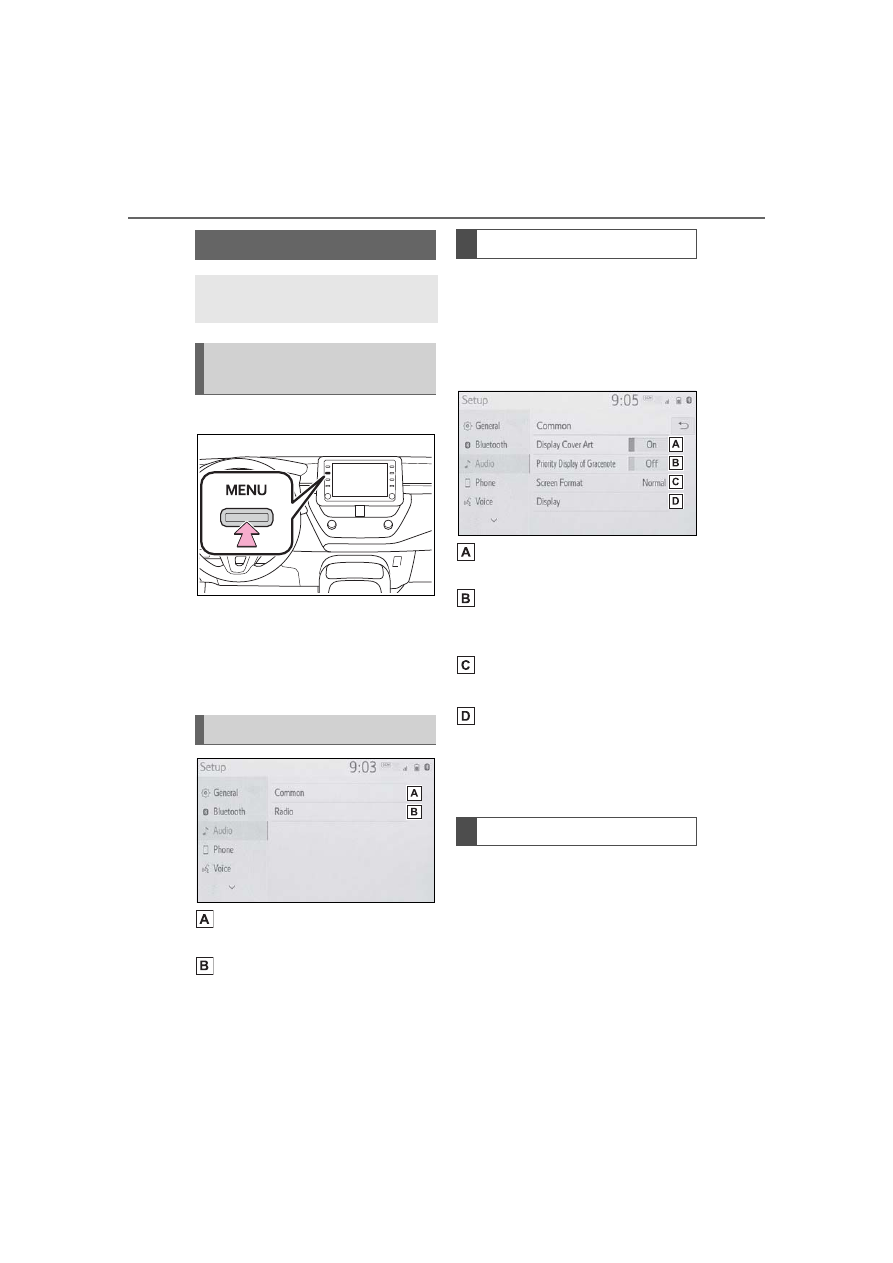

Press the “MENU” button.

Select “Setup”.

Select “Audio”.

Select the desired items to
be set.

Select to set the common
settings. (



P.324)

Select to set the radio set-
tings. (



P.324)

Display the audio settings
screen. (



P.324)

Select “Common”.

Select the desired items to
be set.

Select to set the cover art
display on/off.
Select to prioritize the display
of information from the Gra-
cenote database.
Select to change the screen
size.

(



P.304)

Select to display the image
quality adjustment screen.

(



P.305)

: Only in USB video mode

Display the audio settings
screen. (



P.324)

Select “Radio”.

Select the desired number of
preset radio stations dis-
played on the screen.

Setup

Detailed audio settings can
be programmed.

Displaying the audio set-
tings screen

Audio settings screen

Common settings

Radio settings

325

5-10. Tips for operating the audio/visual system

5-10.Tips for operating the audio/visual system

●

The use of a cellular phone inside

or near the vehicle may cause a

noise from the speakers of the

audio/visual system which you are

listening to. However, this does

not indicate a malfunction.

Usually, a problem with radio
reception does not mean there
is a problem with the radio



is just the normal result of condi-
tions outside the vehicle.
For example, nearby buildings
and terrain can interfere with FM
reception. Power lines or phone
wires can interfere with AM sig-
nals. And of course, radio sig-
nals have a limited range. The
farther the vehicle is from a sta-
tion, the weaker its signal will
be. In addition, reception condi-
tions change constantly as the
vehicle moves.
Here, some common reception
problems that probably do not
indicate a problem with the radio
are described.

■

Fading and drifting stations:
Generally, the effective range of

FM is about 25 miles (40 km).
Once outside this range, you
may notice fading and drifting,
which increase with the distance
from the radio transmitter. They
are often accompanied by dis-
tortion.
Multi-path: FM signals are
reflective, making it possible for
2 signals to reach the vehicle’s
antenna at the same time. If this
happens, the signals will cancel
each other out, causing a
momentary flutter or loss of
reception.
Static and fluttering: These
occur when signals are blocked
by buildings, trees or other large
objects. Increasing the bass
level may reduce static and flut-
tering.
Station swapping: If the FM sig-
nal being listened to is inter-
rupted or weakened, and there
is another strong station nearby
on the FM band, the radio may
tune in the second station until
the original signal can be picked
up again.

■

Fading: AM broadcasts are
reflected by the upper atmo-
sphere



especially at night.

These reflected signals can
interfere with those received
directly from the radio station,
causing the radio station to
sound alternately strong and
weak.

Operating information

NOTICE

●

To avoid damage to the

audio/visual system:

• Be careful not to spill beverages

over the audio/visual system.

Radio

326

5-10. Tips for operating the audio/visual system

Station interference: When a
reflected signal and a signal
received directly from a radio
station are very nearly the same
frequency, they can interfere
with each other, making it diffi-
cult to hear the broadcast.
Static: AM is easily affected by
external sources of electrical
noise, such as high tension
power lines, lightening or electri-
cal motors. This results in static.

■

SiriusXM



Cargo loaded on the roof lug-
gage carrier, especially metal
objects, may adversely affect
the reception of SiriusXM Sat-
ellite Radio.



Alternation or modifications
carried out without appropri-
ate authorization may invali-
date the user’s right to
operate the equipment.

■

Certification



For vehicles sold in the
U.S.A., Guam and Puerto
Rico



For vehicles sold in Canada



Use of the Made for Apple
badge means that an acces-
sory has been designed to
connect specifically to the
Apple product(s) identified in
the badge, and has been cer-
tified by the developer to meet
Apple performance stan-
dards. Apple is not responsi-
ble for the operation of this
device or its compliance with
safety and regulatory stan-
dards. Please note that the
use of this accessory with an
Apple product may affect
wireless performance.



iPhone

, iPod

, iPod clas-

sic

, iPod nano

, iPod

touch

, and Lightning are

trademarks of Apple Inc., reg-
istered in the U.S. and other
countries.

■

Compatible models

The following iPod nano

, iPod

touch

and iPhone

devices

can be used with this system.
Made for
• iPhone X
• iPhone 8
• iPhone 8 Plus

iPod

327

5-10. Tips for operating the audio/visual system

Audio

• iPhone 7
• iPhone 7 Plus
• iPhone SE
• iPhone 6s
• iPhone 6s Plus
• iPhone 6
• iPhone 6 Plus
• iPhone 5s
• iPhone 5c
• iPhone 5
• iPod touch (6th generation)
• iPod touch (5th generation)

●

This system only supports audio

playback.

●

Depending on difference between

models or software versions etc.,

some models might be incompati-

ble with this system.

This device supports high-reso-
lution sound sources.
The definition of high-resolution
is based on the standards of
groups such as the CTA (Con-
sumer Technology Association).
Supported formats and play-
able media are as follows.

■

Supported formats

WAV, FLAC, ALAC

■

Playable media

USB memory

: USB video only

High-resolution sound
source

File information

Compatible USB devices

USB communi-
cation formats

USB 2.0 HS (480
Mbps)

File formats

FAT 16/32

Correspon-
dence class

Mass storage
class

Compatible audio format

Compatible compressed files

Item

USB

Compatible file

format

MP3/WMA/AAC

WAV(LPCM)/FL

AC/ALAC/OGG

Vorbis

MP4/AVI/WMV

Compatible file

format (video)

MP4/AVI/WMV

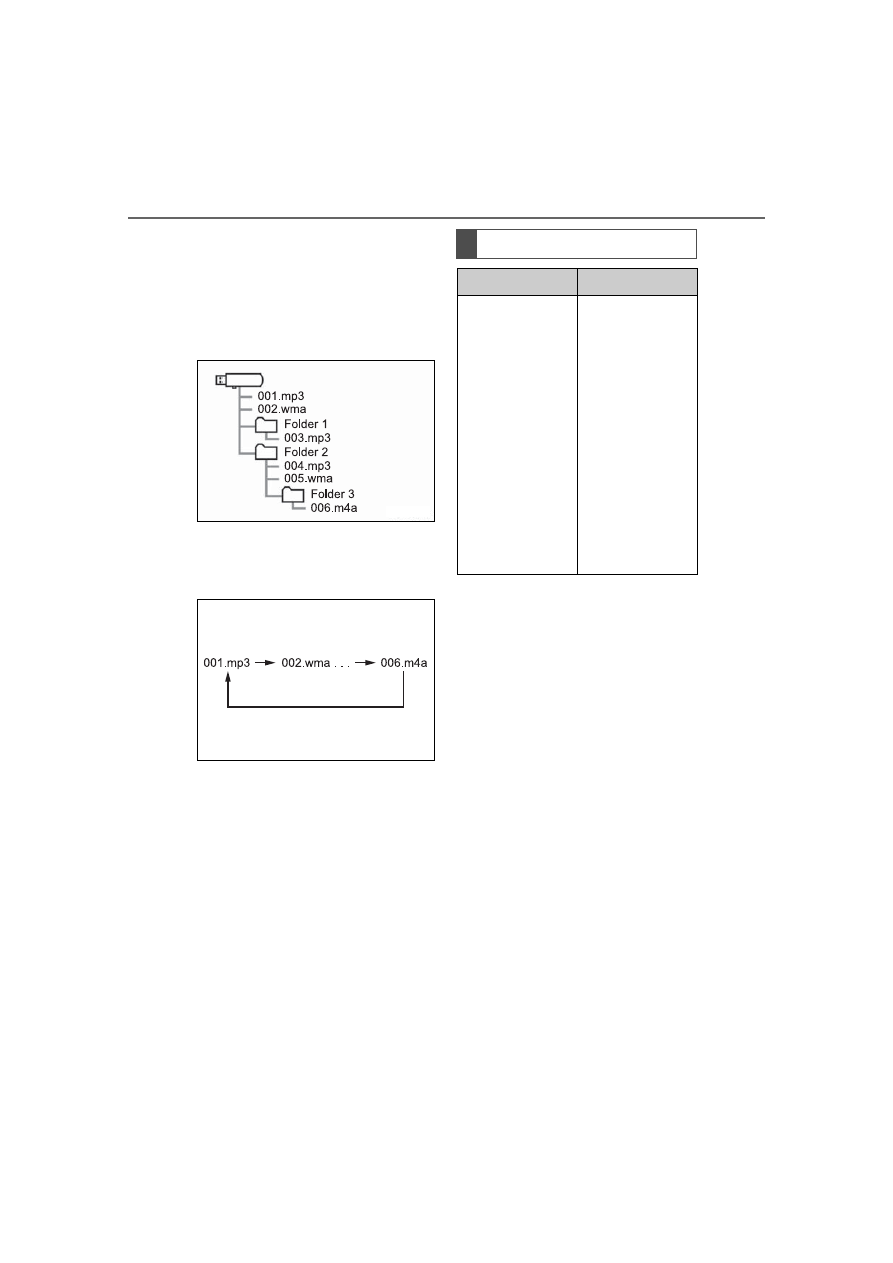

Folders in the

device

Maximum

3000

Files in the

device

Maximum

9999

Files per folder

Maximum

255

328

5-10. Tips for operating the audio/visual system

:Only compatible with Windows

Media Audio Standard

:Sound source of 48kHz or more

is down-converted to
48kHz/24bit.

:Variable Bit Rate (VBR) compati-

ble

:Only compatible with Windows

Media Audio Standard

Corresponding sampling fre-
quency

File type

Frequency (kHz)

MP3 files:
MPEG 1 LAYER
3

32/44.1/48

MP3 files:
MPEG 2 LSF
LAYER 3

16/22.05/24

WMA files:
Ver. 7, 8, 9

(9.1/9.2)

32/44.1/48

AAC files:
MPEG4/AAC-LC

11.025/12/16/

22.05/24/32/

44.1/48

WAV (LPCM)
files

8/11.025/12/16/

22.05/24/32/

44.1/48/88.2/
96/176.4/192

FLAC

8/11.025/12/16/

22.05/24/32/

44.1/48/88.2/
96/176.4/192

ALAC

8/11.025/12/16/

22.05/24/32/

44.1/48/64/

88.2/96

OGG Vorbis

8/11.025/16/

22.05/32/44.1/

Corresponding bit rates

File type

Bit rate (kbps)

MP3 files:
MPEG 1 LAYER
3

32 - 320

MP3 files:
MPEG 2 LSF
LAYER 3

8 - 160

WMA files: Ver.
7, 8

CBR 48 - 192

WMA files:
Ver. 9

(9.1/9.2)

CBR 48 - 320

AAC files:
MPEG4/AAC-LC

8 - 320

OGG Vorbis

32-500

File type

Quantization bit

rate (bit)

WAV (LPCM)
files

16/24

FLAC

ALAC

Compatible channel modes

File type

Channel mode

MP3 files

Stereo, joint ste-
reo, dual chan-
nel and
monaural

WMA files

2ch

329

5-10. Tips for operating the audio/visual system

Audio



MP3 (MPEG Audio Layer 3),
WMA (Windows Media Audio)
and AAC (Advanced Audio
Coding) are audio compres-
sion standards.



This system can play
MP3/WMA/AAC files on USB
memory.



MP4, WMV and AVI files can
use the following resolutions:
128x96, 160x120, 176x144
(QCIF), 320x240 (QVGA),
352x240 (SIF), 352x288
(CIF), 640x480 (VGA),
720x480 (NTSC), 720x576
(PAL)



When naming an
MP3/WMA/AAC file, add an
appropriate file extension
(.mp3/.wma/.m4a).



This system plays back files
with .mp3/.wma/.m4a file
extensions as
MP3/WMA/AAC files respec-
tively. To prevent noise and
playback errors, use the
appropriate file extension.



MP3 files are compatible with
the ID3 Tag Ver. 1.0, Ver. 1.1,
Ver. 2.2 and Ver. 2.3 formats.
This system cannot display

disc title, track title and artist
name in other formats.



WMA/AAC files can contain a
WMA/AAC tag that is used in
the same way as an ID3 tag.
WMA/AAC tags carry infor-
mation such as track title and
artist name.



The emphasis function is
available only when playing
MP3 files.



This system can play back
AAC files encoded by iTunes.



The sound quality of
MP3/WMA files generally
improves with higher bit rates.



m3u playlists are not compati-
ble with the audio player.



MP3i (MP3 interactive) and
MP3PRO formats are not
compatible with the audio
player.



The player is compatible with
VBR (Variable Bit Rate).



When playing back files
recorded as VBR (Variable Bit
Rate) files, the play time will
not be correctly displayed if
the fast forward or reverse
operations are used.



It is not possible to check fold-
ers that do not include
MP3/WMA/AAC files.



MP3/WMA/AAC files in fold-
ers up to 8 levels deep can be
played. However, the start of
playback may be delayed

AAC files

1ch, 2ch (Dual
channel is not
supported)

WAV (LPCM)/

FLAC/ALAC/

OGG Vorbis

2ch

File type

Channel mode

330

5-10. Tips for operating the audio/visual system

when using USB memory
containing numerous levels of
folders. For this reason, we
recommend creating USB
memory with no more than 2
levels of folders.



The play order of the USB
memory with the structure
shown above is as follows:



The order changes depending
on the personal computer and
MP3/WMA/AAC encoding
software you use.

Compatible video format

Format

Codec

MPEG-4

Video codec:



H.264/MPEG-4
AVC



MPEG4

Audio codec:



AAC



MP3

Corresponding
screen size:



MAX
1920



1080

Corresponding
frame rate:



MAX 60i/30p

331

5-10. Tips for operating the audio/visual system

Audio

■

ID3 tag



This is a method of embed-

ding track-related information
in an MP3 file. This embed-
ded information can include
the track number, track title,
the artist’s name, the album
title, the music genre, the year
of production, comments,
cover art and other data. The
contents can be freely edited
using software with ID3 tag
editing functions. Although
the tags are restricted to a
number of characters, the
information can be viewed
when the track is played back.

■

WMA tag



WMA files can contain a
WMA tag that is used in the
same way as an ID3 tag.
WMA tags carry information
such as track title and artist
name.

■

MP3



MP3 is an audio compression
standard determined by a
working group (MPEG) of the
ISO (International Standard
Organization). MP3 com-
presses audio data to about
1/10 the size of that on con-
ventional discs.

■

WMA



WMA (Windows Media Audio)
is an audio compression for-
mat developed by Microsoft

It compresses files into a size
smaller than that of MP3 files.
The decoding formats for

AVI Container

Video codec:



H.264/MPEG-4
AVC



MPEG4



WMV9



WMV9
Advanced pro-
file

Audio codec:



AAC



MP3



WMA9.2
(7,8,9.1,9.2)

Corresponding
screen size:



MAX
1920



1080

Corresponding
frame rate:



MAX 60i/30p

Windows Media
Video

Video codec:



WMV9



WMV9
Advanced pro-
file

Audio codec:



WMA9.2
(7,8,9.1,9.2)

Corresponding
screen size:



MAX
1920



1080

Corresponding
frame rate:



MAX 60i/30p

Terms

Format

Codec

332

5-10. Tips for operating the audio/visual system

WMA files are Ver. 7, 8 and 9.



Trademark Acknowledgement
Windows Media is either a
registered trademark or trade-
mark of Microsoft Corpora-
tion in the United States
and/or other countries.
This product includes technol-
ogy owned by Microsoft Cor-
poration and cannot be used
or distributed without a
license from Microsoft Licens-
ing, Inc.

■

AAC



AAC is short for Advanced
Audio Coding and refers to an
audio compression technol-
ogy standard used with
MPEG2 and MPEG4.

■

USB

■

iPod

■

Bluetooth

audio

●

If the malfunction is not rectified:

Take your vehicle to your Toyota

dealer.

Error messages

Message

Explanation

“USB Error”

This indicates a
problem in the
USB memory or
its connection.

“No music files
found.”

This indicates
that no
MP3/WMA/AAC
files are included
in the USB mem-
ory.

“No video files
found.”

This indicates
that no video
files are included
in the USB mem-
ory.

Message

Explanation

“iPod Error.”

This indicates a
problem in the
iPod or its con-
nection.

“No music files
found.”

This indicates
that there is no
music data in the
iPod.

“Please check
the iPod firm-
ware version.”

This indicates
that the software
version is not
compatible. Per-
form the iPod
firmware
updates and try
again.

“Unable to
authorize the
iPod.”

This indicates
that it failed to
authorize the
iPod.
Please check
your iPod.

Message

Explanation

“Music tracks not
supported.
Please check
your portable
player.”

This indicates a
problem in the
Bluetooth

device.

337

5-11. Voice command system operation

Audio

5-11.Voice command system operation

■

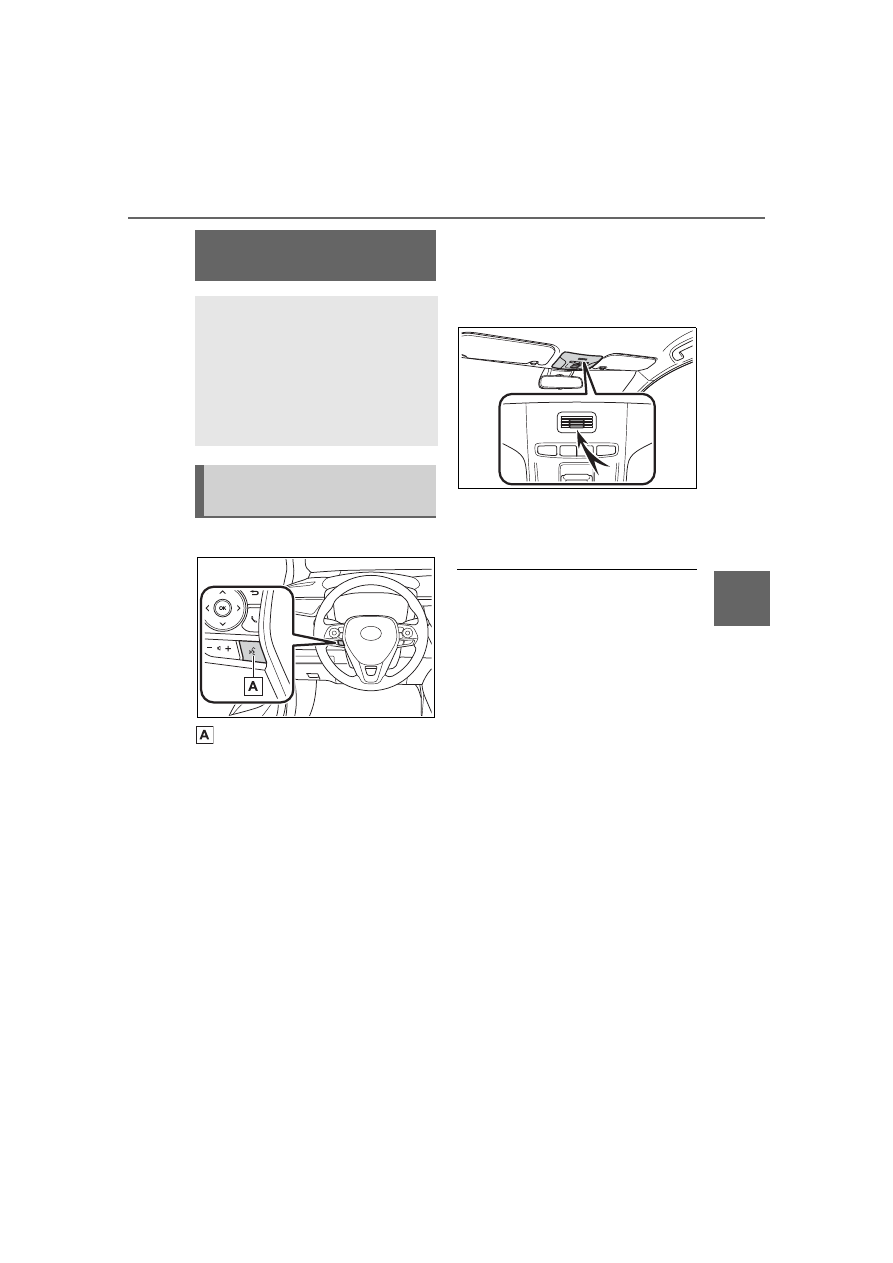

Steering switch

Talk switch



Voice command system



Press the talk switch to start
the voice command system.
To cancel voice command,
press and hold the talk switch.



When an Apple Car-
Play/Android Auto connec-
tion is established:



Press and hold the talk switch
to start Siri/Google Assistant.
To cancel Siri/Google Assis-
tant, press the talk switch.



Press the talk switch to start

the voice command system.

: This function is not made avail-

able in some countries or areas.

■

Microphone



It is unnecessary to speak
directly into the microphone
when giving a command.

●

Voice commands may not be rec-

ognized if:

• Spoken too quickly.

• Spoken at a low or high volume.

• The windows are open.

• Passengers are talking while

voice commands are spoken.

• The fan speed of the air condition-

ing system is set at high.

• The air conditioning vents are

turned towards the microphone.

●

In the following conditions, the

system may not recognize the

command properly and using

voice commands may not be pos-

sible:

• The command is incorrect or

unclear. Note that certain words,

accents or speech patterns may

be difficult for the system to recog-

nize.

• There is excessive background

noise, such as wind noise.

●

Normally, it is necessary to wait

for a beep before saying a com-

mand. To enable the ability to talk

over prompts and say commands

before the beep, enable the voice

prompt interrupt function.

(



P.298)

Voice command sys-

tem

The voice command sys-
tem enables the radio,
phone dialing, etc. to be
operated using voice com-
mands. Refer to the com-
mand list for samples of
voice commands. (



P.340)

Using the voice command
system

338

5-11. Voice command system operation

●

This system may not operate

immediately after the engine

switch is in ACC or ON.

The voice command system is
operated by saying commands
which correspond to a sup-
ported function. To display
examples of commands for sup-
ported functions, select a func-
tion button on the screen after
starting the voice command sys-
tem.

Press the talk switch.



Voice guidance for the voice
command system can be
skipped by pressing the talk
switch.

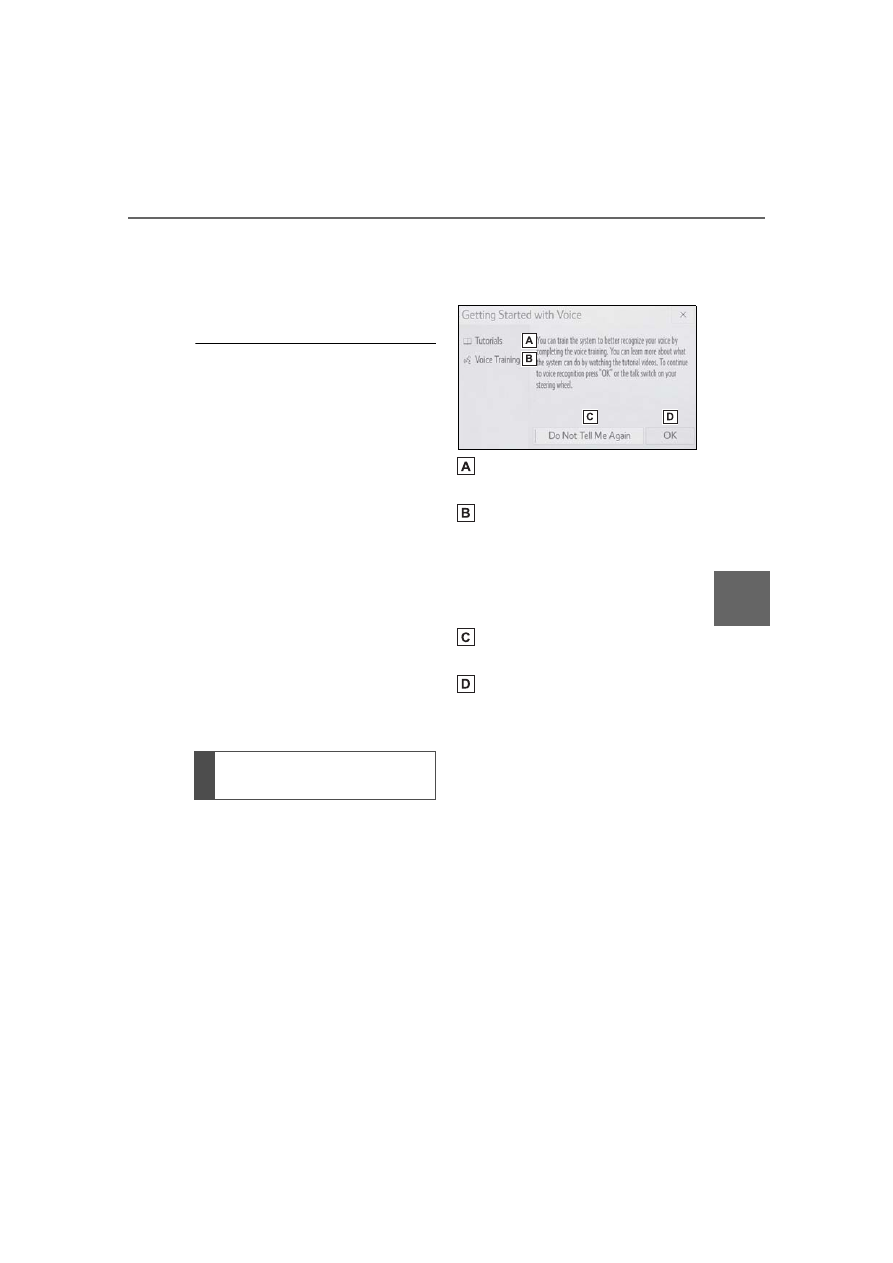

If “Getting Started with Voice”
screen is displayed, select

“OK” or press the talk switch.
(



P.339)

After hearing a beep, say a
supported command.



To display sample commands
of the desired function, say
the desired function or select
the desired function button. To
display more commands,
select “More Commands”.



Selecting “Help” or saying
“Help” prompts the voice com-
mand system to offer exam-
ples of commands and
operation methods.



Registered POIs, registered
names in the contacts list etc.,
can be said in the place of the
“<>” next to the commands.
(



P.340)

For example: Say “Find a restau-
rant”, “Call John Smith” etc.



If a desired outcome is not
shown, or if no selections are
available, perform one of the
following to return to the pre-
vious screen:

• Say “Go back”.

• Select



To cancel voice recognition,
select

, say “Cancel”, or

press and hold the talk switch.



To perform the voice com-
mand operation again, select
“Start Over” or say “Start
over”.



To suspend voice command

NOTICE

●

Do not touch and put a sharp

object to the microphone. It may

cause failure.

Voice command system
operation

Operation from the main
menu

339

5-11. Voice command system operation

Audio

operation, select “Pause” or
say “Pause”. To resume the
voice command operation,
select “Resume” or press the
talk switch.

●

If the system does not respond or

the confirmation screen does not

disappear, press the talk switch

and try again.

●

If a voice command cannot be rec-

ognized, voice guidance will say

“Sorry, could you repeat that?”

and voice command reception will

restart.

●

If a voice command cannot be rec-

ognized 3 consecutive times,

voice recognition will be canceled.

●

The amount of spoken feedback

received from the system while

using the voice command system

(voice recognition prompts) can

be changed on the voice settings

screen. (



P.298)

●

Some voice guidance can be can-

celed by setting voice prompts to

off. Use this setting when it is

desirable to say a command

immediately after pressing the talk

switch and hearing a beep.

To increase voice recognition
performance, use the “Tutori-
als” and “Voice Training” func-
tions on the “Getting Started
with Voice” screen. These func-
tions are only available when
the vehicle is not moving.
The “Tutorials” and “Voice Train-
ing” functions can also be
started on the voice settings
screen. (



P.298)

Press the talk switch.

Select the desired item to be
set.

Select to display the voice
command tutorials.
Select to train the voice com-
mand system.

The user will be asked to say 10
sample phrases. This will help the
voice command system adapt to
the user’s accent.

Select to prevent the screen
from being displayed again.
Select to proceed to the
voice command screen.

Increasing the voice rec-
ognition performance

Toyota Corolla Hatchback (2022 year). Manual in english - page 20
