8-2. Steps to take in an emergency

If the vehicle battery is discharged

The following procedures may be used to start the engine if the

vehicle’s battery is discharged.

You can also call any authorized Toyota retailer or Toyota autho-

rized repairer, or any reliable repairer or a qualified repair shop.

If you have a set of jumper (or booster) cables and a second vehicle

with a 12-volt battery, you can jump start your vehicle by following the

steps below.

1

Open the hood. (P. 484)

2

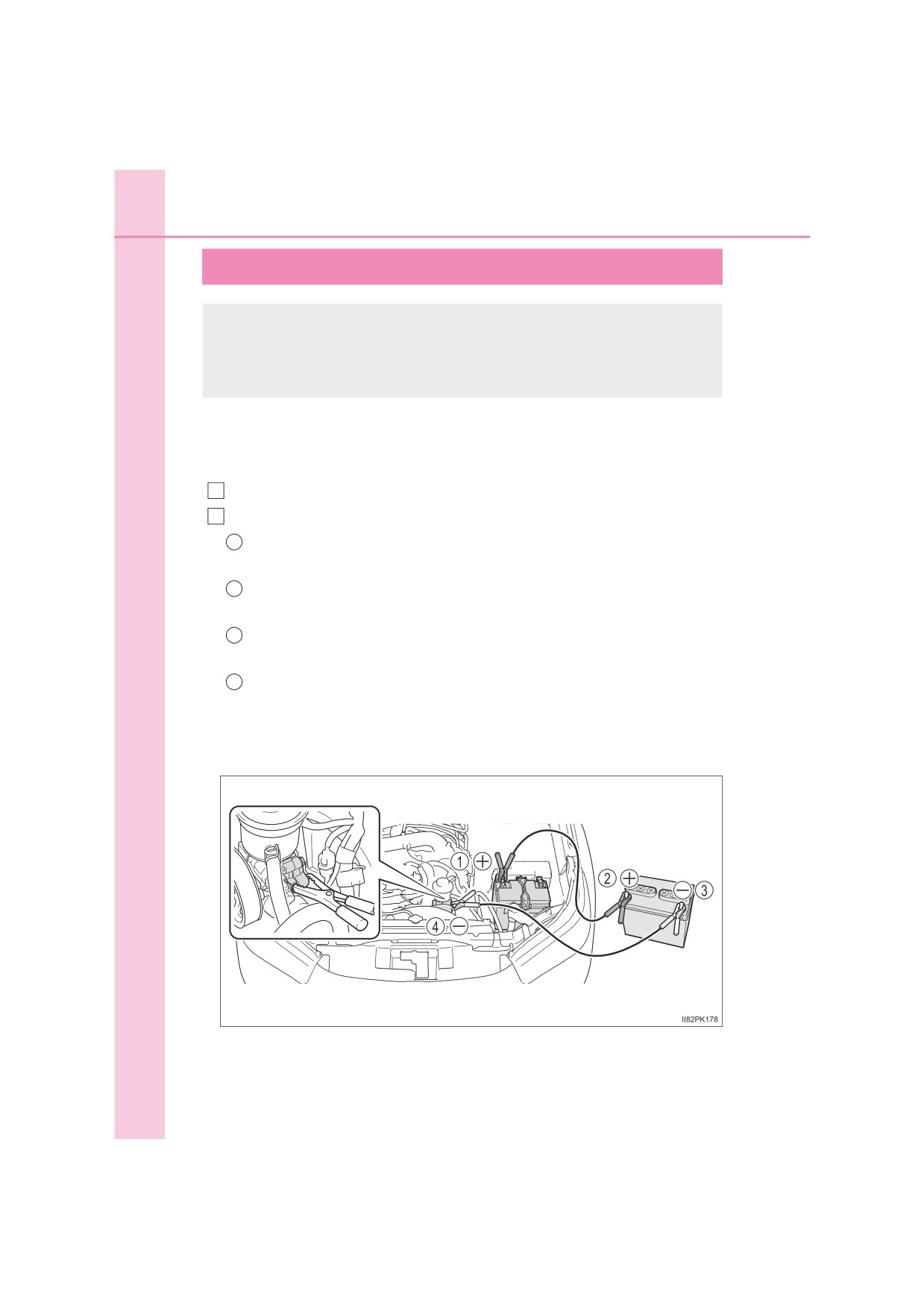

Connect the jumper cables according to the following procedure:

1

Connect a positive jumper cable clamp to the positive (+) battery

terminal on your vehicle.

Connect the clamp on the other end of the positive cable to the

2

positive (+) battery terminal on the second vehicle.

Connect a negative cable clamp to the negative (-) battery termi-

3

nal on the second vehicle.

Connect the clamp at the other end of the negative cable to a

4

solid, stationary, unpainted metallic point away from the battery

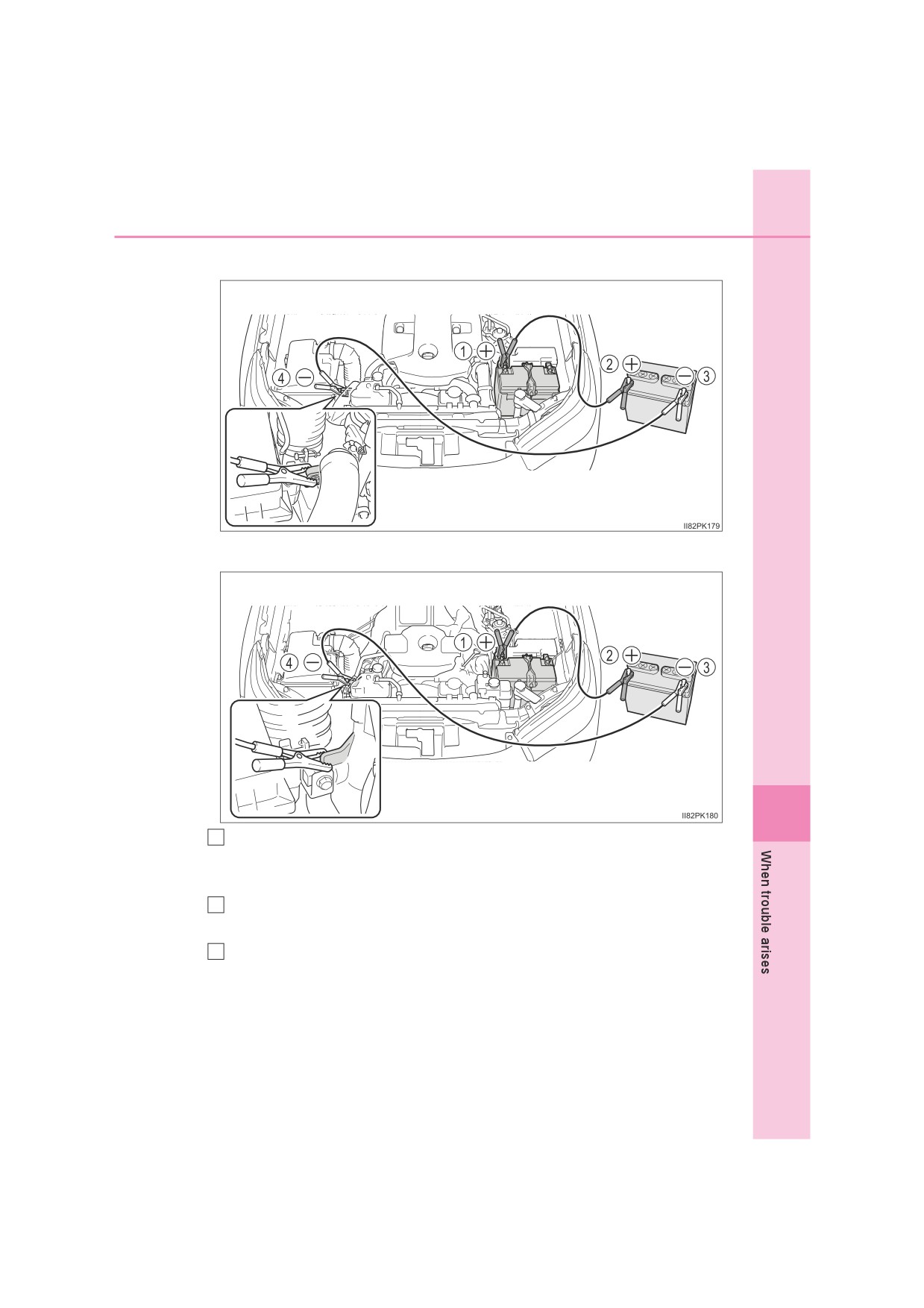

and any moving parts, as shown in the illustration.

 Gasoline engine

8-2. Steps to take in an emergency

605

 Diesel engine (vehicles without water-cooled intercooler)

 Diesel engine (vehicles with water-cooled intercooler)

8

Start the engine of the second vehicle. Increase the engine speed

3

slightly and maintain at that level for approximately 5 minutes to

recharge the battery of your vehicle.

4

Vehicles with smart entry & start system: Open and close any of the

doors with the engine switch off.

Maintain the engine speed of the second vehicle and start the

5

engine of your vehicle by turning the engine switch to the “ON”

position (vehicles without smart entry & start system) or IGNITION

ON mode (vehicles with smart entry & start system).

610

8-2. Steps to take in an emergency

If your vehicle overheats

The following may indicate that your vehicle is overheating.

O The needle of the engine coolant temperature gauge (P. 130)

enters the red zone or a loss of engine power is experienced.

(For example, the vehicle speed does not increase.)

O Vehicles with multi-information display: “Engine Coolant Temp

High Stop in a Safe Place See Owner’s Manual” is shown on the

multi-information display.

O Steam comes out from under the hood.

Correction procedures

1

Stop the vehicle in a safe place and turn off the air conditioning sys-

tem, and then stop the engine.

2

If you see steam:

Carefully lift the hood after the steam subsides.

If you do not see steam:

Carefully lift the hood.

3

After the engine has cooled down sufficiently, inspect the hoses and

radiator core (radiator) for any leaks.

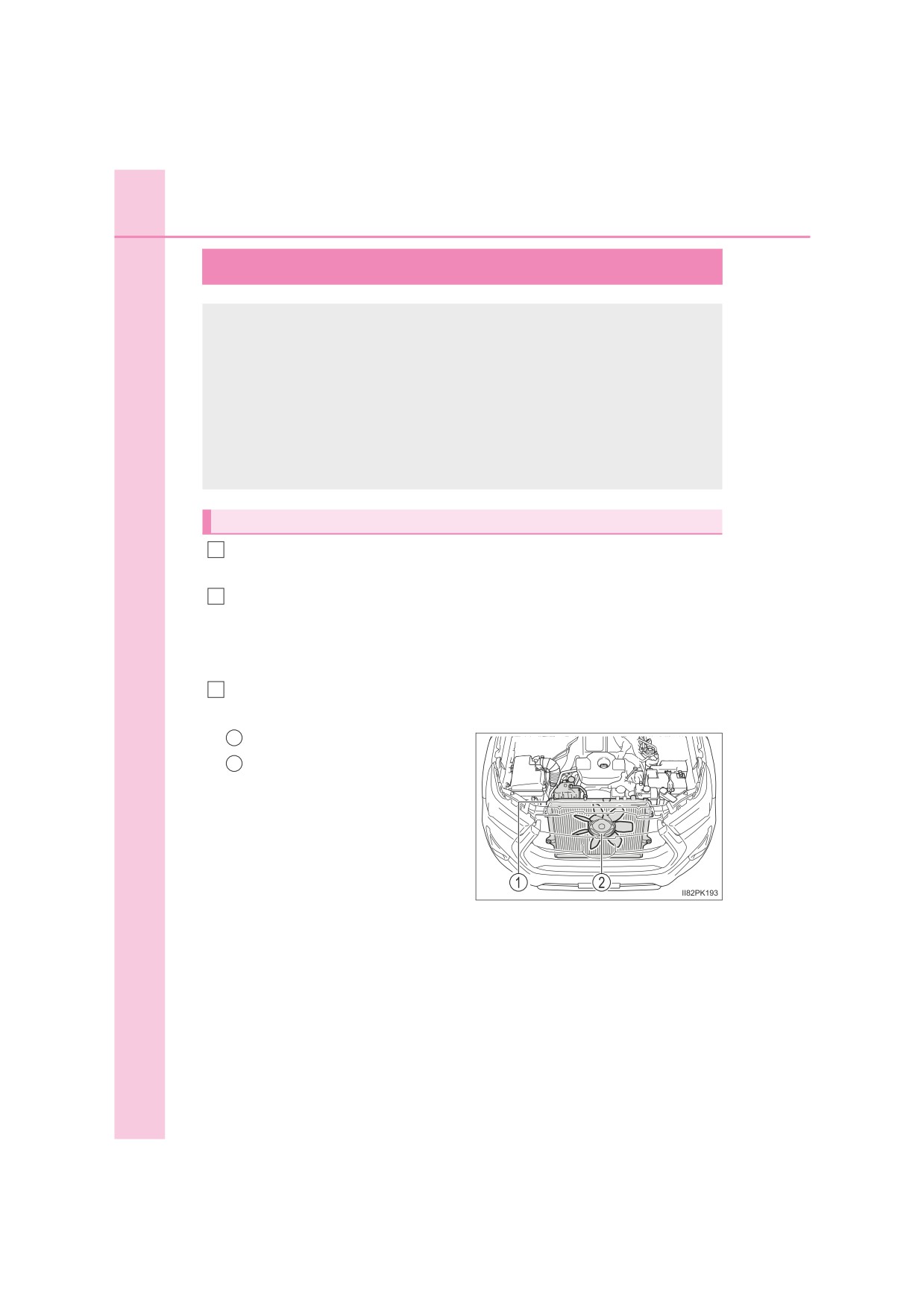

1

Radiator

2

Cooling fan

If a large amount of coolant

leaks, immediately contact any

authorized Toyota retailer or

Toyota authorized repairer, or

any reliable repairer.

8-2. Steps to take in an emergency

611

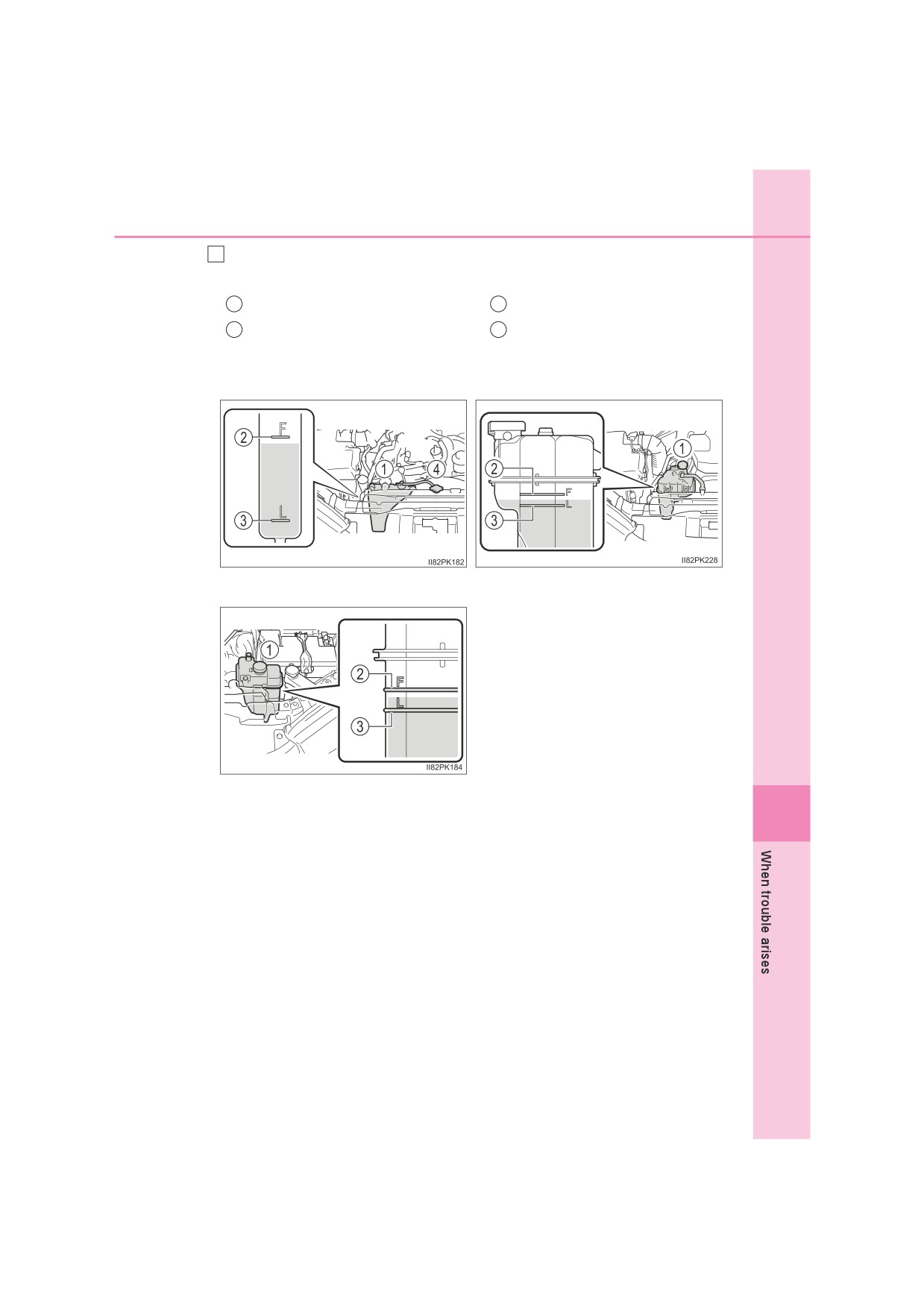

4

The coolant level is satisfactory if it is between the “F” and “L” lines

on the reservoir.

1

Reservoir

3

“L” line

2

“F” line

4

Radiator cap (if equipped)

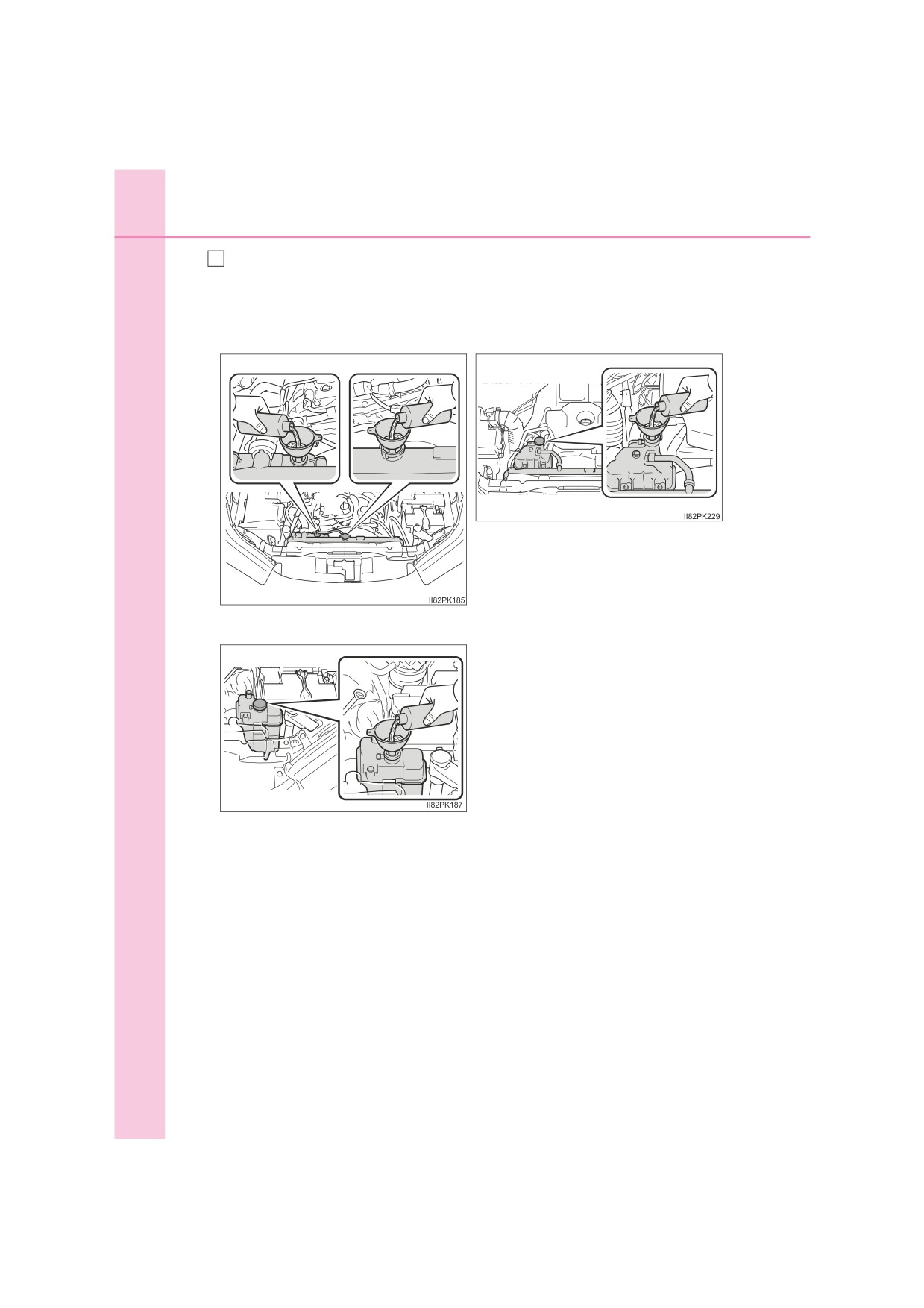

 Engine coolant

(gasoline

 Engine coolant (diesel engine)

engine)

 Intercooler coolant (if

equipped)

8

612

8-2. Steps to take in an emergency

5

Add engine coolant if necessary. (P. 634)

Water can be used in an emergency if engine coolant is unavailable.

 Engine coolant

(gasoline

 Engine coolant (diesel engine)

engine)

 Intercooler coolant (if equipped)

8-2. Steps to take in an emergency

613

6

Start the engine to check that the radiator cooling fan operates and

to check for coolant leaks from the radiator or hoses.

7

If the fan is not operating:

Stop the engine immediately and contact any authorized Toyota

retailer or Toyota authorized repairer, or any reliable repairer.

If the fan is operating:

Have the vehicle inspected at the nearest authorized Toyota retailer

or Toyota authorized repairer, or any reliable repairer.

WARNING

Q When inspecting under the hood of your vehicle

Observe the following precautions.

Failure to do so may result in serious injury such as burns.

OIf steam is seen coming from under the hood, do not open the hood until

the steam has subsided. The engine compartment may be very hot.

O Keep hands and clothing (especially a tie, a scarf or a muffler) away from

the fans and belts. Failure to do so may cause the hands or clothing to be

caught, resulting in serious injury.

ODo not loosen the radiator cap (if equipped), the engine coolant reservoir

cap or intercooler coolant reservoir cap (if equipped) while the engine and

radiator are hot. High temperature steam or coolant could spray out.

NOTICE

Q When adding engine coolant

Add coolant slowly after the engine has cooled down sufficiently. Adding

cool coolant to a hot engine too quickly can cause damage to the engine.

8

Q To prevent damage to the cooling system

Observe the following precautions:

O Avoid contaminating the coolant with foreign matter (such as sand or dust

etc.).

ODo not use any coolant additive.

614

8-2. Steps to take in an emergency

If you run out of fuel and the engine stalls

(diesel engine only)

If you run out of fuel and the engine stalls:

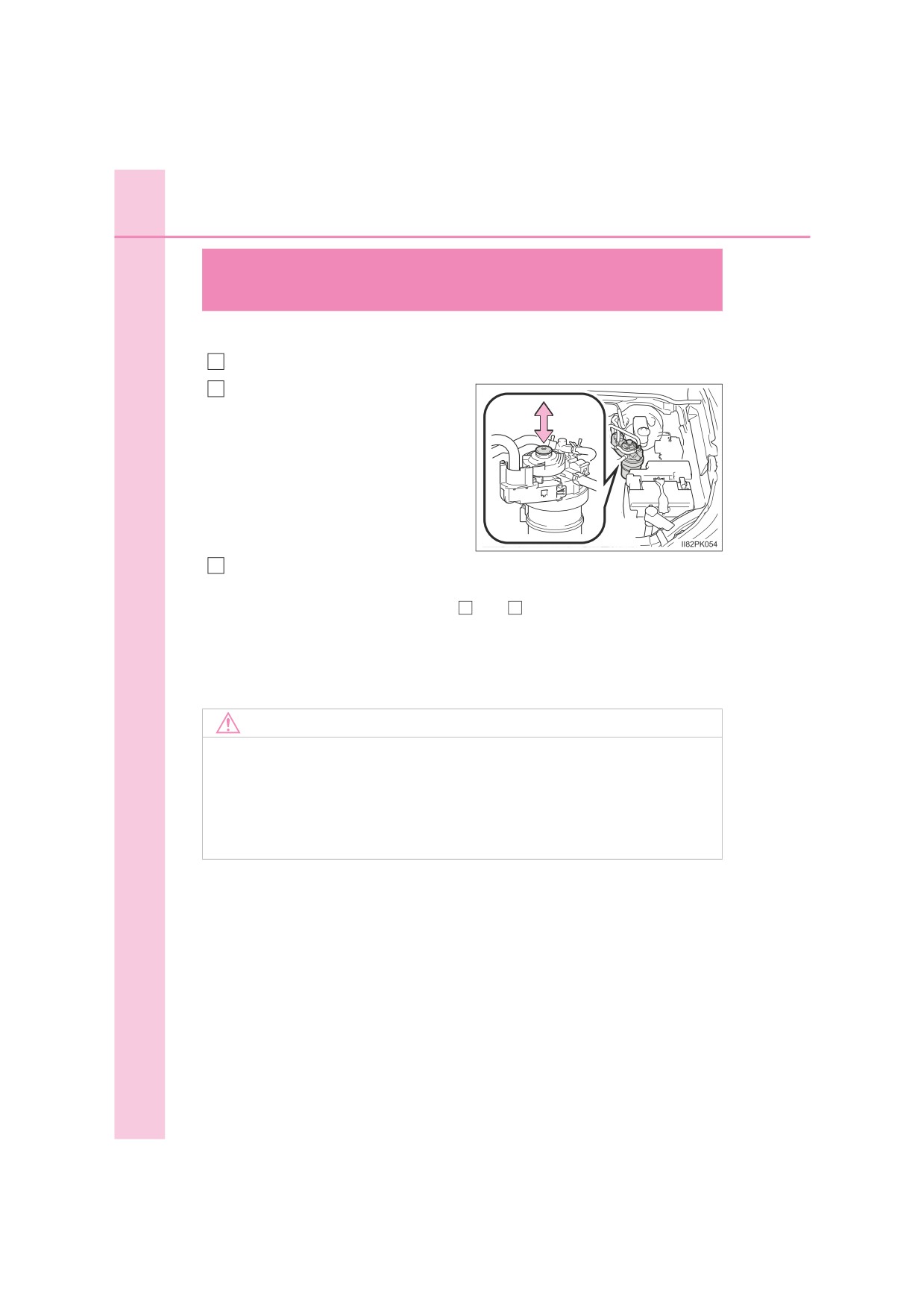

1

Refuel your vehicle.

2

To bleed the fuel system, oper-

ate the priming pump until you

feel more resistance.

3

Start the engine. (P. 220, 223)

If the engine does not start after the above

steps

have been performed,

wait for 10 seconds and try steps

2

and

3

again. If

the engine still does

not start, contact any authorized Toyota retailer or Toyota authorized

repairer, or any reliable repairer.

After starting the engine, depress the accelerator pedal lightly until the

engine runs smoothly.

NOTICE

Q When restarting the engine

ODo not crank the engine before refueling and operating the priming pump.

This may damage the engine and fuel system.

ODo not crank the engine for more than 30 seconds at a time. This may

overheat the starter and wiring system.

616

8-2. Steps to take in an emergency

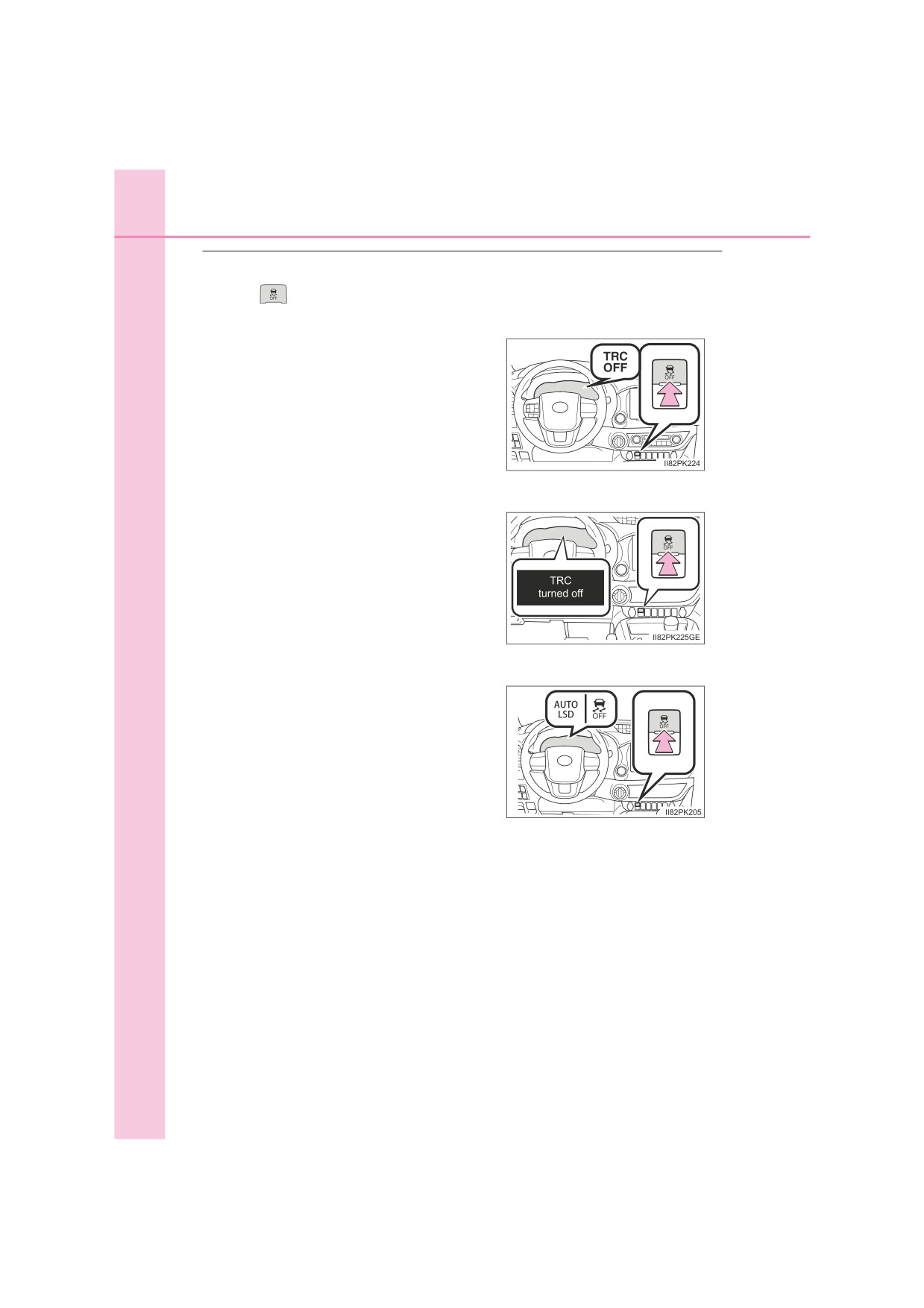

Q When it is difficult to free the vehicle (vehicles with TRC/A-TRC system)

Press

to turn off TRC/A-TRC.

 Vehicles without AUTO LSD system (without multi-information display)

 Vehicles without AUTO LSD system (with multi-information display)

 Vehicles with AUTO LSD system

8-2. Steps to take in an emergency

617

WARNING

Q When attempting to free a stuck vehicle

If you choose to push the vehicle back and forth to free it, make sure the

surrounding area is clear to avoid striking other vehicles, objects or people.

The vehicle may also lunge forward or lunge back suddenly as it becomes

free. Use extreme caution.

Q When shifting the shift lever

For vehicles with automatic transmission, be careful not to shift the shift

lever with the accelerator pedal depressed.

This may lead to unexpected rapid acceleration of the vehicle that may

cause an accident resulting in death or serious injury.

NOTICE

Q To avoid damage to the transmission and other components

O Avoid spinning the wheels and depressing the accelerator pedal more

than necessary.

O If the vehicle remains stuck even after these procedures are performed,

the vehicle may require towing to be freed.

O Vehicles with automatic transmission: When a warning message for the

automatic transmission fluid temperature is displayed while attempting to

free a stuck vehicle, immediately remove your foot from the accelerator

pedal and wait until the warning message disappears. Otherwise, the

transmission may become damaged. (P. 238)

8

620

9-1. Specifications

Maintenance data (fuel, oil level, etc.)

Dimensions

5265 mm (207.3 in.)*²

Without rear bumper

Without

5285 mm (208.1 in.)*³

over fender

With rear bumper

5335 mm (210.0 in.)

Overall length

5255 mm (206.9 in.)*²

Without rear bumper

With

5275 mm (207.7 in.)*³

over fender

With rear bumper

5325 mm (209.6 in.)

1800 mm (70.9 in.)*⁴

Without over fender

1815 mm (71.5 in.)*⁵

Overall width

1855 mm (73.0 in.)*⁶

With over fender

1900 mm (74.8 in.)*⁷

1910 mm (75.2 in.)*⁸

1855 mm (73.0 in.)*¹⁰

Single-cab models

1795 mm (70.7 in.)*¹¹

Overall

1860 mm (73.2 in.)*¹⁰

Smart-cab models

height*¹

1810 mm (71.3 in.)*¹¹

1865 mm (73.4 in.)*¹⁰

Double-cab models

1815 mm (71.5 in.)*¹¹

Wheelbase

3090 mm (121.7 in.)

1505 mm (59.3 in.)*¹²

Front tread

1495 mm (58.9 in.)*¹³

1535 mm (60.4 in.)*¹⁴

1520 mm (59.8 in.)*¹²

Rear tread

1510 mm (59.4 in.)*¹³

1550 mm (61.0 in.)*¹⁴

¹: Unladen vehicle

^*2: With tailgate type A (P. 160)

^*3: With tailgate type B (P. 160)

^*4: Without side step

^*5: With side step

^*6: With exterior type A*⁹

^*7: With exterior type B*⁹

^*8: With exterior type C*⁹

9-1. Specifications

621

^*9: See “How to identify exterior type” to check the type of your vehicle.

(P. 621)

^*10: Without short pole antenna

^*11: With short pole antenna

^*12: With 205R16C tires

^*13: With 225/70R17C tires

^*14: With 265/65R17 or 265/60R18 tires

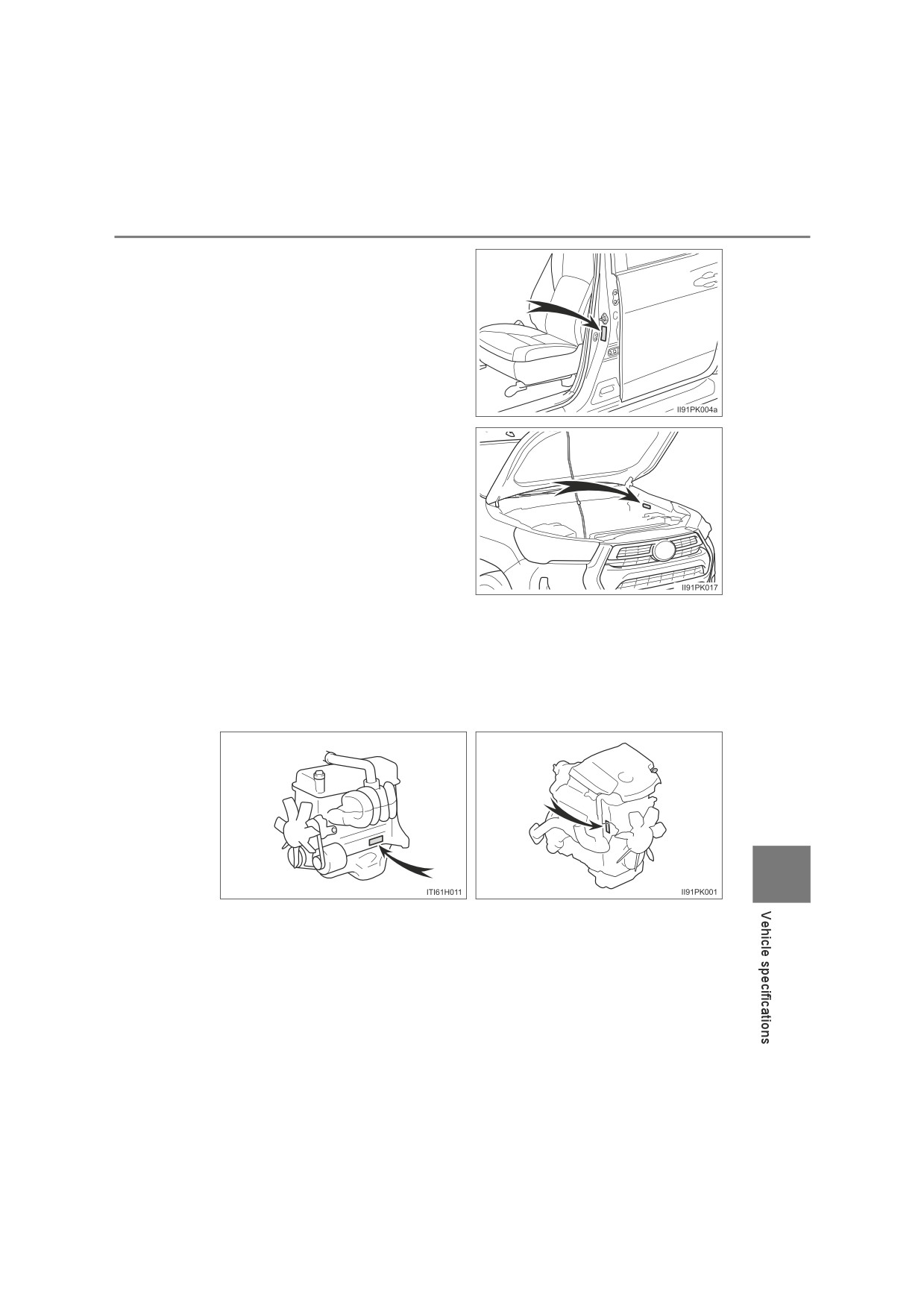

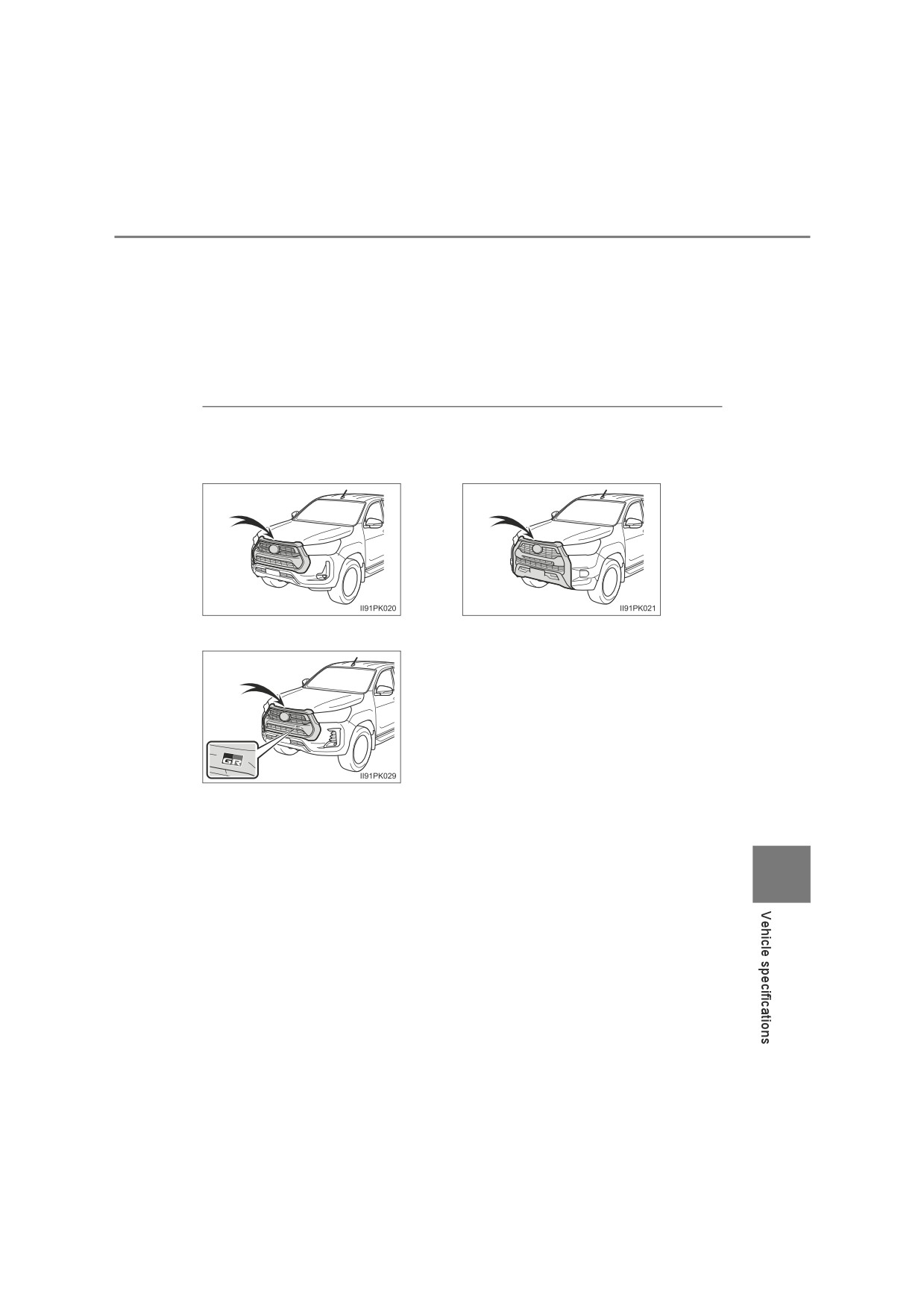

Q How to identify exterior type

Check the type of the exterior in the following illustrations.

 Type A

 Type B

 Type C

9

622

9-1. Specifications

Weights (with towing hitch)

 Models for model code destination W*¹

4WD

3080 kg (6790 lb.)*²

Single-

models

3100 kg (6834 lb.)*³

cab

models

Pre

3000 kg (6614 lb.)

Runner

4WD

3150 kg (6945 lb.)

Smart-

models

cab

models

Pre

3000 kg (6614 lb.)

Runner

Gross vehicle

Models made in South Africa*¹

mass

3210 kg (7077 lb.)

4WD

Models made in Thailand*¹

models

2910 kg (6415 lb.)*⁵

Double-

3130 kg (6900 lb.)*⁶

cab

models

Models made in South Africa*¹

Pre

3050 kg (6724 lb.)

Runner

Models made in Thailand*¹

3030 kg (6680 lb.)

Front

1450 kg (3197 lb.)

Single-

cab

1850 kg (4079 lb.)

models

Smart-

cab

1920 kg (4233 lb.)

Maximum

models

permissible axle

Rear

 Except for GUN126L-DTTSXW

capacity

and GUN126L-DTTHXW mod-

els*⁴

Double-

1920 kg (4233 lb.)

cab

 For GUN126L-DTTSXW and

models

GUN126L-DTTHXW models*⁴

1650 kg (3638 lb.)*⁸

1920 kg (4233 lb.)*⁹

4WD models

140 kg (309 lb.)

Drawbar load

Pre Runner

120 kg (265 lb.)

9-1. Specifications

623

Without brake

750 kg (1653 lb.)

4WD

3500 kg (7716 lb.)

Towing capacity

models

With

brake

Pre

3000 kg (6614 lb.)

Runner

^*1: See “Checking your vehicle’s model” if you are not sure of which model

your vehicle is. (P. 12)

^*2: Except for GUN125R-BNFSXW3 model*⁴

^*3: For GUN125R-BNFSXW3 model*⁴

^*4: The model code is indicated on the manufacturer’ plate or label.

(P. 624)

^*5: Except for EURO VI models*⁷ for Israel and Turkey

^*6: For EURO VI models*⁷ for Israel and Turkey

^*7: EURO VI is an emission standard. If it is not clear that your vehicle meets

relevant standards, contact any authorized Toyota retailer or Toyota

authorized repairer, or any reliable repairer.

^*8: Except for EURO VI models*⁷ for Israel, Turkey and Ukraine

^*9: For EURO VI models*⁷ for Israel, Turkey and Ukraine

 For Kazakhstan

Gross vehicle mass

2800 kg (6173 lb.)

Front

1400 kg (3086 lb.)

Maximum permissible

axle capacity

Rear

1650 kg (3638 lb.)

Drawbar load

100 kg (220 lb.)

Without brake

750 kg (1653 lb.)

Towing capacity

With brake

2500 kg (5512 lb.)

9

624

9-1. Specifications

Vehicle identification

Q Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for

your vehicle. This is the primary identification number for your

Toyota. It is used in registering the ownership of your vehicle.

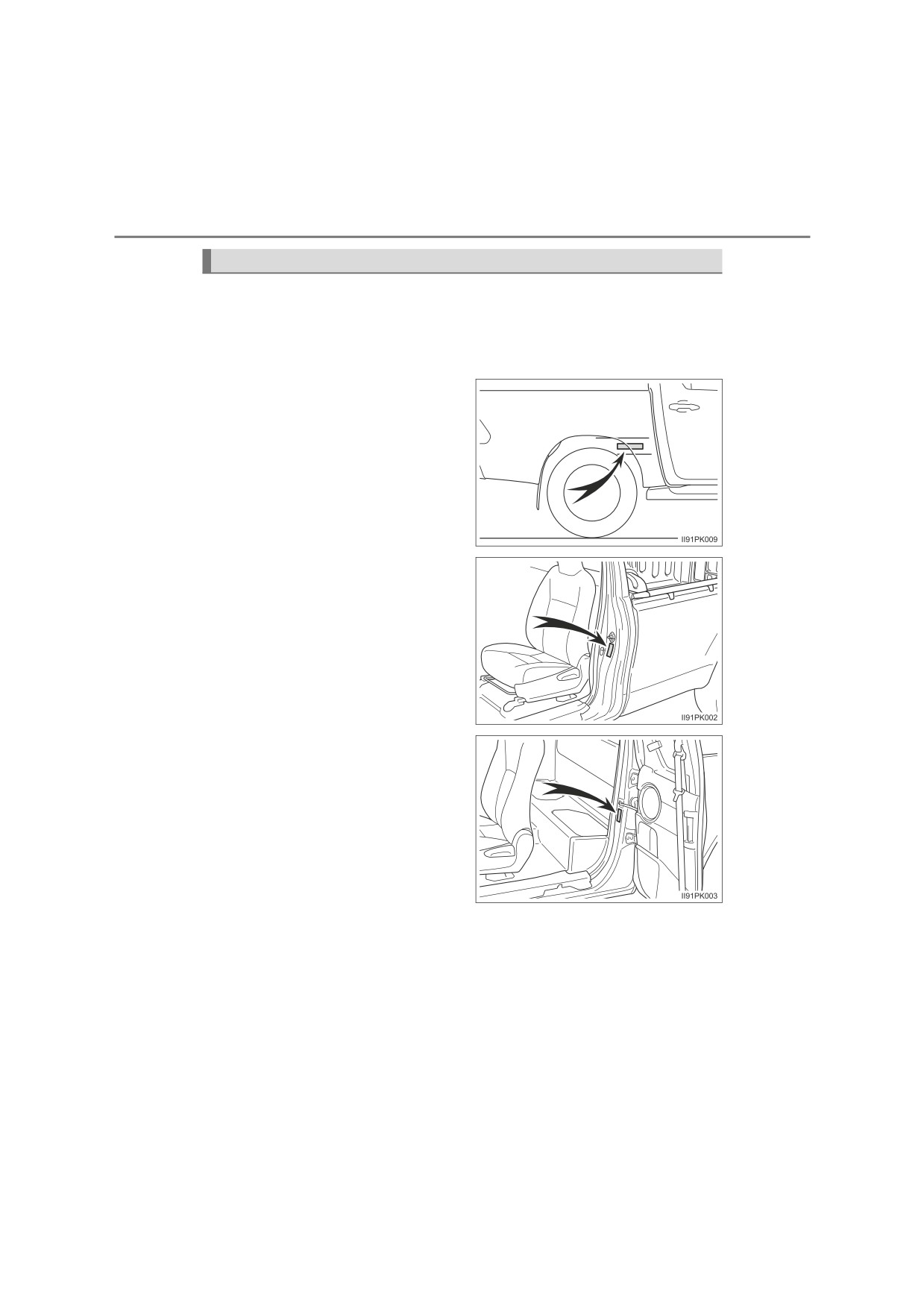

This number is stamped on the

rear right frame.

Single-cab models

(models

made in South Africa*):

This number is also on the

manufacturer’s label.

Smart-cab models

(models

made in South Africa*):

This number is also on the

manufacturer’s label.

9-1. Specifications

625

Double-cab models

(models

made in South Africa*):

This number is also on the

manufacturer’s label.

Models made in Thailand*:

This number is also on the

manufacturer’s plate.

*: See “Checking your vehicle’s model” if you are not sure of which model

your vehicle is. (P. 12)

Q Engine number

The engine number is stamped on the engine block as shown.

 Gasoline engine

 Diesel engine

9

626

9-1. Specifications

Engine

 2TR-FE engine

Model

2TR-FE

Type

4 cylinder in line, 4 cycle, gasoline

Bore and stroke

95.0  95.0 mm (3.74  3.74 in.)

Displacement

2694 cm³ (164.4 cu.in.)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

 1GD-FTV engine

Model

1GD-FTV

4 cylinder in line, 4 cycle, diesel

Type

(with turbocharger)

Bore and stroke

92.0  103.6 mm (3.62  4.08 in.)

Displacement

2755 cm³ (168.1 cu.in.)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

 2GD-FTV engine

Model

2GD-FTV

4 cylinder in line, 4 cycle, diesel

Type

(with turbocharger)

Bore and stroke

92.0  90.0 mm (3.62  3.54 in.)

Displacement

2393 cm³ (146.0 cu.in.)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

9-1. Specifications

627

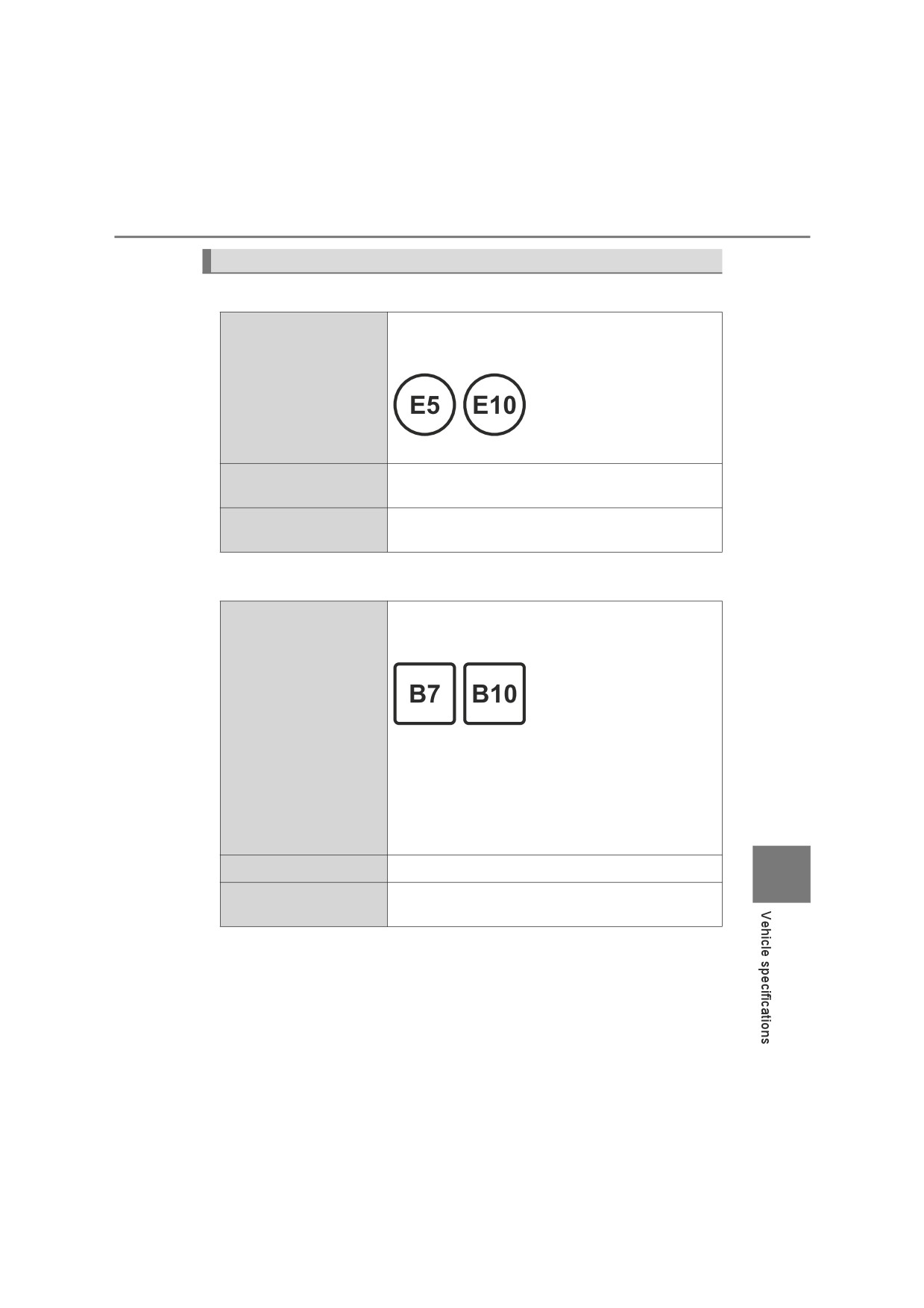

Fuel

 Gasoline engine

When you find these types of fuel label at the gas

station, use only the fuel with one of the following

labels.

Fuel type

Unleaded gasoline only

Research Octane

91 or higher

Number

Fuel tank capacity

80 L (21.1 gal., 17.6 Imp.gal.)

(Reference)

 Diesel engine

When you find these types of fuel label at the gas

station, use only the fuel with one of the following

labels.

Fuel type

EU area:

Diesel fuel conforming to European standard

EN590 or EN16734

Except EU area (vehicles without DPF system):

Diesel fuel only

Except EU area (vehicles with DPF system):

Diesel fuel that contains 10 ppm or less of sulfur

Cetane number

48 or higher

9

Fuel tank capacity

80 L (21.1 gal., 17.6 Imp.gal.)

(Reference)

628

9-1. Specifications

Lubrication system

 Gasoline engine

Oil capacity

(Drain and refill  reference*)

With filter

5.6 L (5.9 qt., 4.9 Imp.qt.)

Without filter

5.3 L (5.6 qt., 4.7 Imp.qt.)

*: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up and turn off the engine, wait more than 5 minutes,

and check the oil level on the dipstick.

Q Engine oil selection

“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use

Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy

the following grade and viscosity.

Oil grade:

0W-20, 5W-20, 5W-30 and 10W-30:

API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN

“Resource-Conserving”, SN PLUS “Resource-Conserving” or SP

“Resource-Conserving”; or ILSAC GF-6A multigrade engine oil

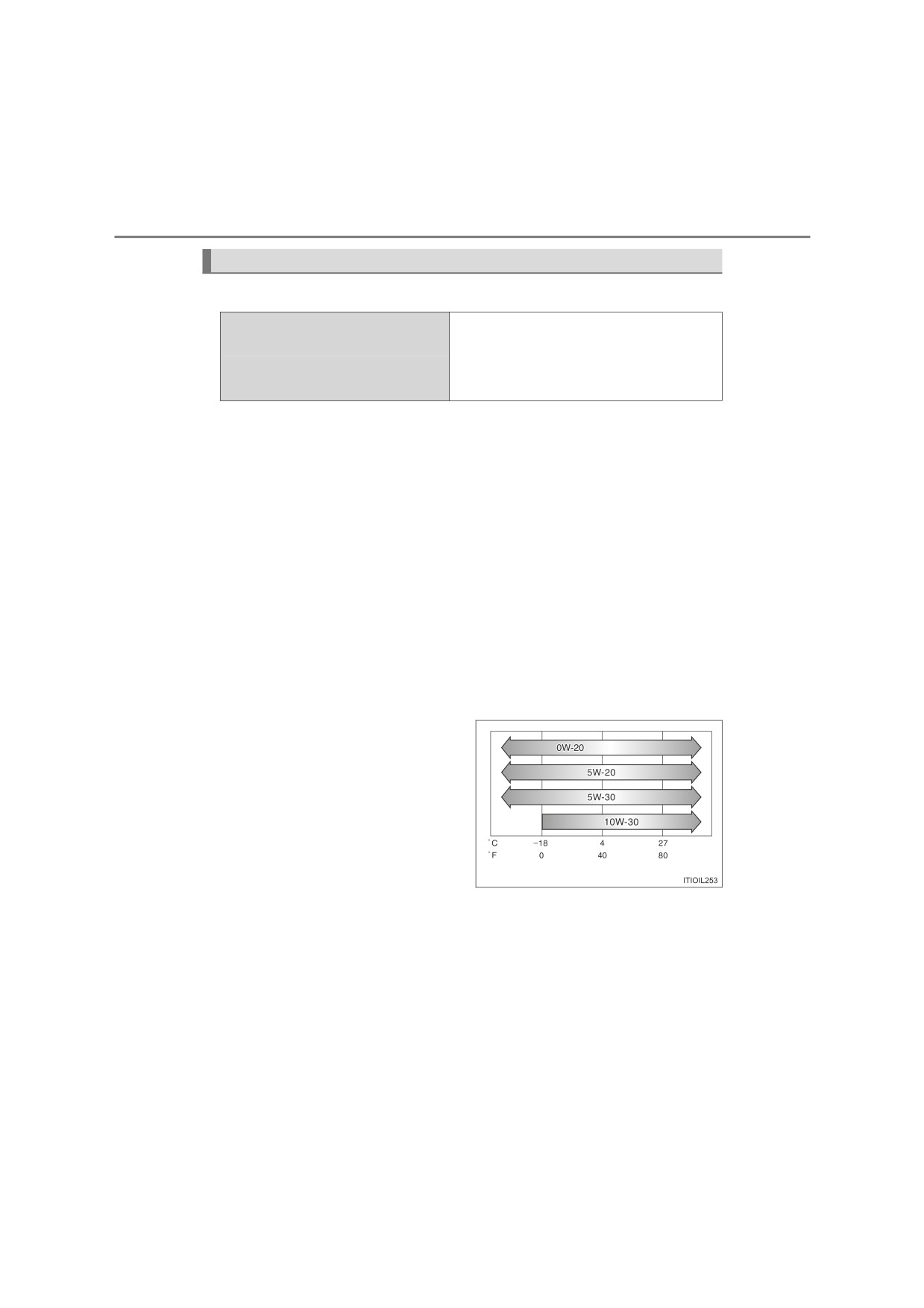

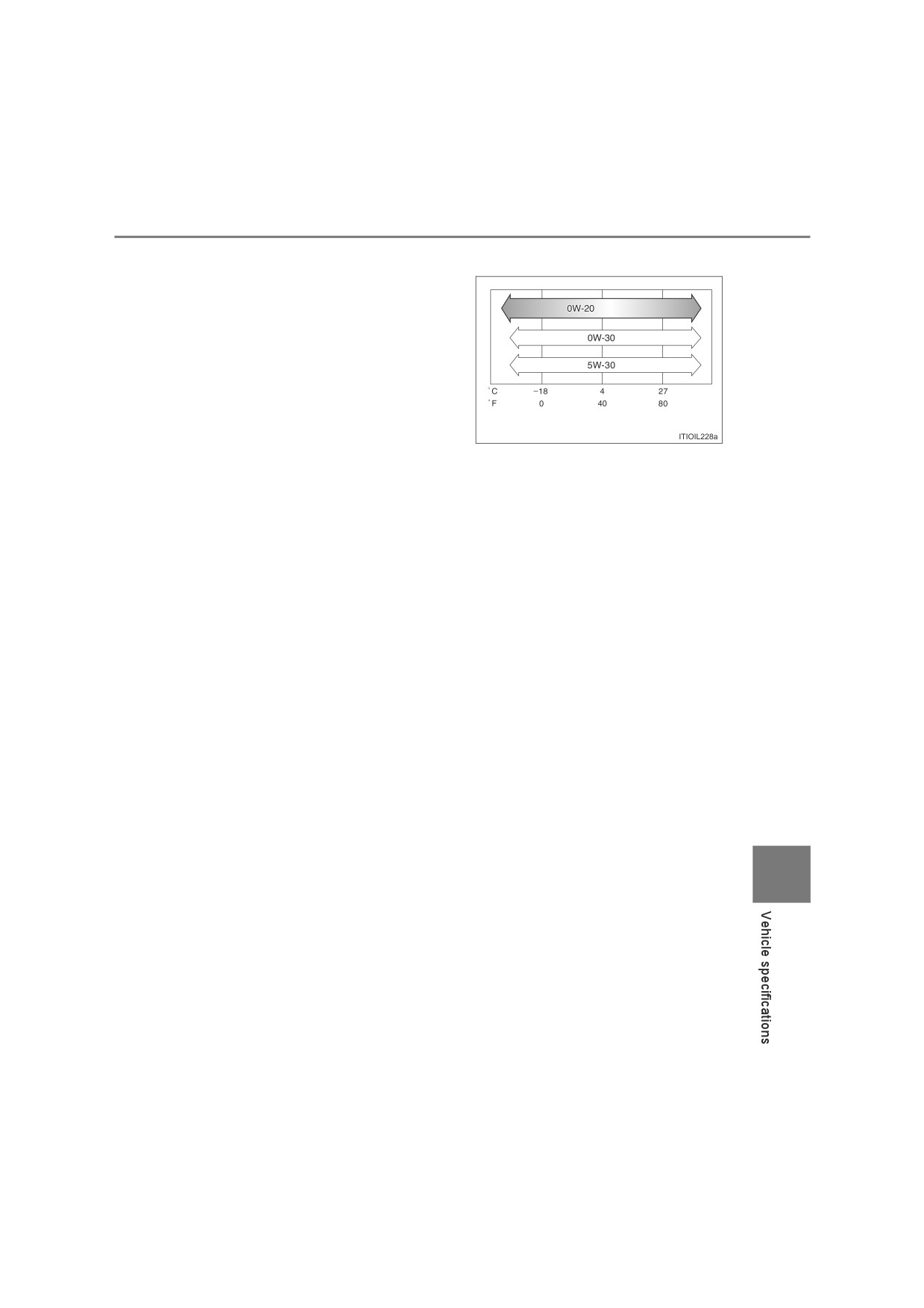

Recommended viscosity (SAE):

SAE 0W-20 is filled into your

Toyota vehicle at manufactur-

Preferred

ing, and the best choice for

good fuel economy and good

starting in cold weather.

If you use SAE 10W-30 or a

higher viscosity engine oil in

Temperature range anticipated

extremely low temperatures,

before next oil change

the engine may become difficult

to start, so SAE 0W-20, 5W-20

or 5W-30 engine oil is recom-

mended.

9-1. Specifications

629

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which

allows cold startability. Oils with a lower value before the W allow

for easier starting of the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil

when the oil is at high temperature. An oil with a higher viscosity

(one with a higher value) may be better suited if the vehicle is

operated at high speeds, or under extreme load conditions.

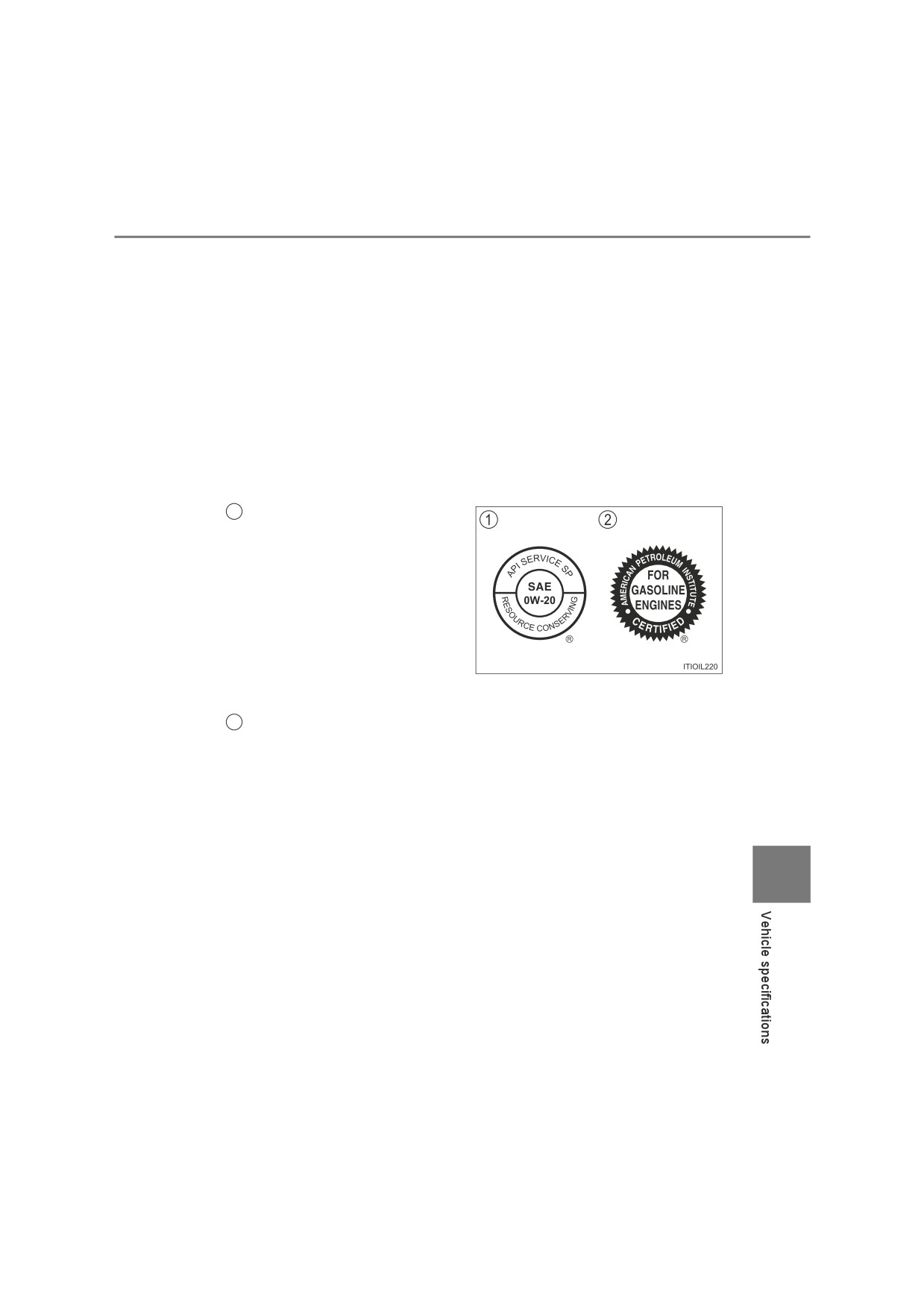

How to read oil container labels:

Either or both API registered marks are added to some oil contain-

ers to help you select the oil you should use.

API Service Symbol

1

Top portion: “API SERVICE SP”

means the oil quality designa-

tion by American Petroleum Ins-

titute (API).

Center portion:

“SAE

0W-20”

means the SAE viscosity grade.

Lower portion: “Resource-Con-

serving” means that the oil has

fuel-saving and environmental

protection capabilities.

ILSAC Certification Mark

2

The International Lubricant Specification Advisory Committee (ILSAC)

Certification Mark is displayed on the front of the container.

9

630

9-1. Specifications

 Diesel engine (except for EURO V and VI models*¹)

Oil capacity

(Drain and refill — reference*²)

With filter

7.5 L (7.9 qt., 6.6 Imp.qt.)

Without filter

7.0 L (7.4 qt., 6.2 Imp.qt.)

^*1: EURO V and VI are emission standards. If it is not clear that your vehicle

meets relevant standards, contact any authorized Toyota retailer or Toyota

authorized repairer, or any reliable repairer.

^*2: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up and turn off the engine, wait more than 5 minutes,

and check the oil level on the dipstick.

Q Engine oil selection

“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use

Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat-

isfy the following grade and viscosity.

Oil grade: API CF-4, CF or ACEA B3, B4, B5 or JASO DL-0

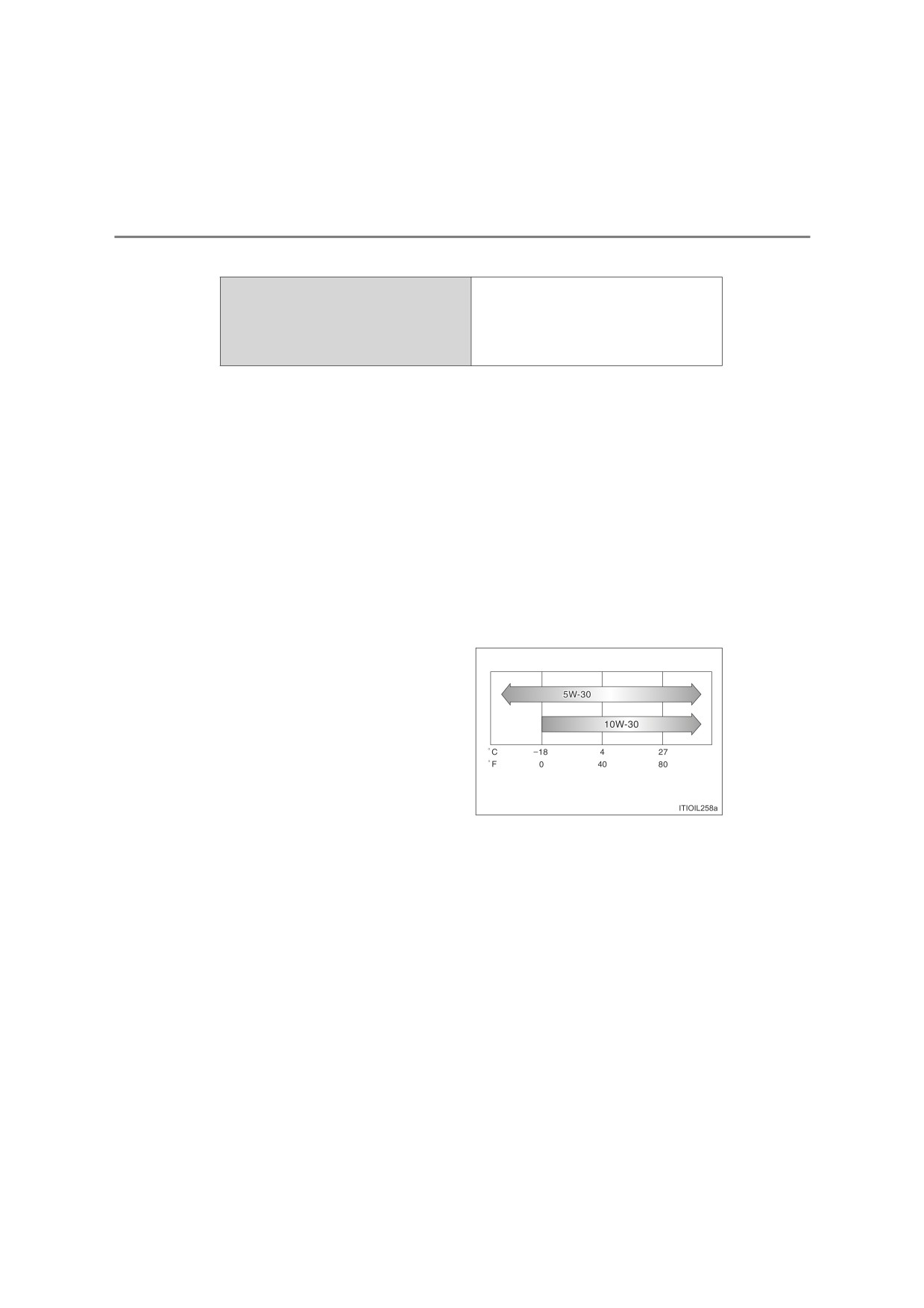

Recommended viscosity (SAE):

SAE 5W-30 is the best choice

for good fuel economy and

good starting in cold weather.

Preferred

If you use SAE 10W-30 or a

higher viscosity engine oil in

extremely low temperatures,

Temperature range anticipated

the engine may become difficult

before next oil change

to start, so SAE 5W-30 engine

oil is recommended.

9-1. Specifications

631

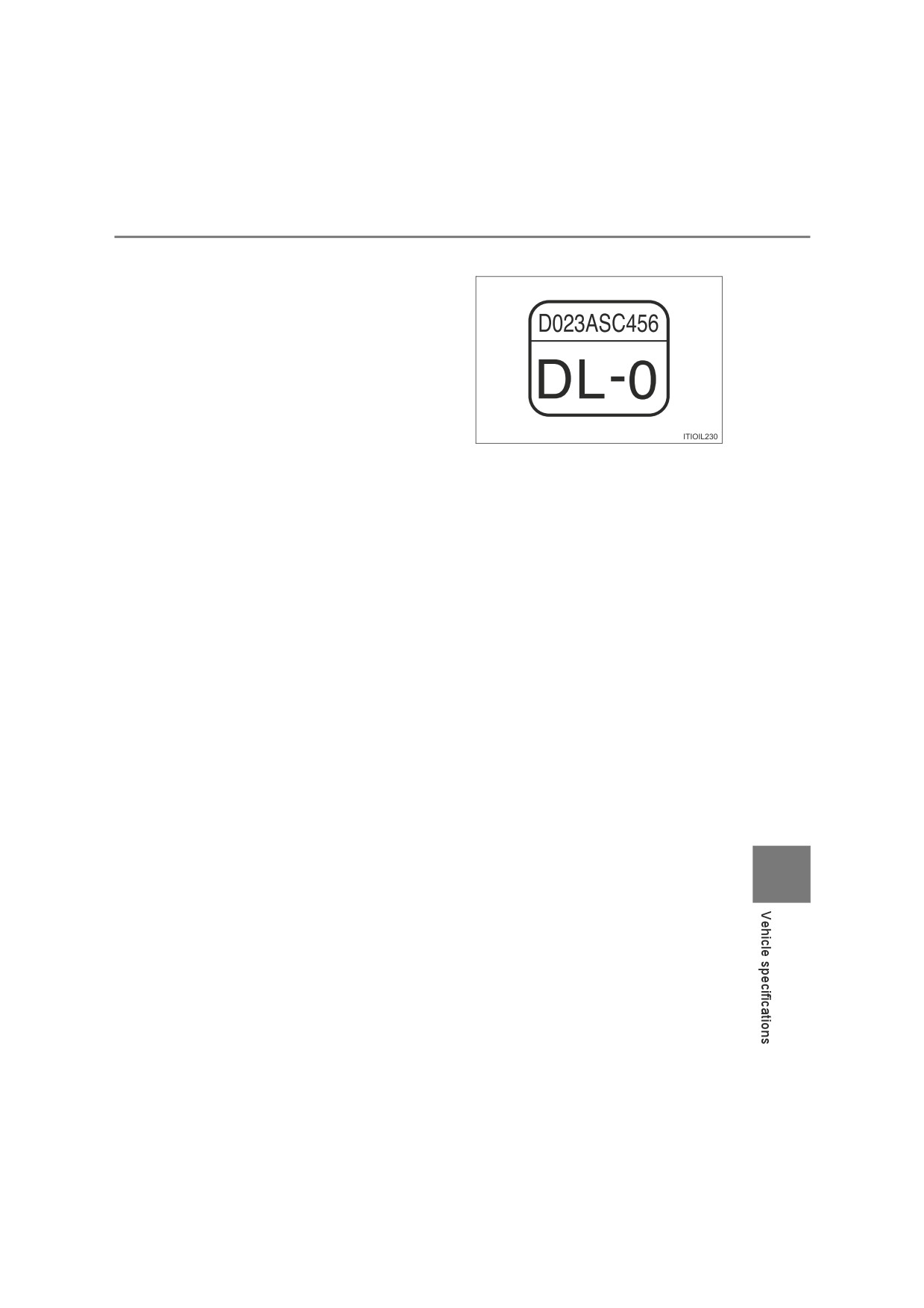

How to read oil container label:

The Japanese Automobile

Standard Organization (JASO)

DL-0 Mark is added to some oil

containers to help you select

the oil you should use.

Oil viscosity (5W-30 is explained here as an example):

• The 5W in 5W-30 indicates the characteristic of the oil which

allows cold startability. Oils with a lower value before the W allow

for easier starting of the engine in cold weather.

• The 30 in 5W-30 indicates the viscosity characteristic of the oil

when the oil is at high temperature. An oil with a higher viscosity

(one with a higher value) may be better suited if the vehicle is

operated at high speeds, or under extreme load conditions.

9

9-1. Specifications

633

Recommended viscosity (SAE):

SAE 0W-20 is filled into your

Toyota vehicle at manufactur-

Preferred

ing, and the best choice for

good fuel economy and good

starting in cold weather.

Temperature range anticipated

before next oil change

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which

allows cold startability. Oils with a lower value before the W allow

for easier starting of the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil

when the oil is at high temperature. An oil with a higher viscosity

(one with a higher value) may be better suited if the vehicle is

operated at high speeds, or under extreme load conditions.

9

634

9-1. Specifications

Cooling system

 With automatic transmission

8.1 L (8.6 qt., 7.1 Imp.qt.)

Gasoline engine

 With manual transmission

7.8 L (8.2 qt., 6.9 Imp.qt.)

Except for

Engine

EURO IV,

8.2 L (8.7 qt., 7.2 Imp.qt.)*²

coolant

V and VI

8.6 L (9.1 qt., 7.6 Imp.qt.)*³

capacity

models*¹

Diesel

 With automatic transmission

engine

For

9.8 L (10.4 qt., 8.6 Imp.qt.)

EURO IV,

V and VI

 With manual transmission

models*¹

8.7 L (9.2 qt., 7.7 Imp.qt.)*²

9.3 L (9.8 qt., 8.2 Imp.qt.)*³

Intercooler coolant capacity

(if

2.95 L (3.12 qt., 2.60 Imp.qt.)

equipped)

Use either of the following:

•

“Toyota Super Long Life Coolant”

• Similar high-quality ethylene gly-

col-based non-silicate, non-amine,

Coolant type

non-nitrite, and non-borate coolant

with long-life hybrid organic acid

technology

Do not use plain water alone.

¹: EURO IV, V and VI are emission standards. If it is not clear that your vehi-

cle meets relevant standards, contact any authorized Toyota retailer or

Toyota authorized repairer, or any reliable repairer.

^*2: Without power heater

^*3: With power heater

Content      ..     19      20      21      22     ..
