3-1. Key information

NOTICE

Q To prevent key damage

ODo not drop the keys, subject them to strong shocks or bend them.

ODo not expose the keys to high temperatures for long periods of time.

ODo not get the keys wet or wash them in an ultrasonic washer etc.

ODo not attach metallic or magnetic materials to the keys or place the keys

close to such materials.

ODo not disassemble the keys.

ODo not attach a sticker or anything else to the surface of the electronic key.

ODo not place the keys near objects that produce magnetic fields, such as

TVs, audio systems and induction cookers, or medical electrical equip-

ment, such as low-frequency therapy equipment.

Q Carrying the electronic key on your person (vehicles with smart entry

& start system)

Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-

ances that are turned on. Radio waves emitted from electric appliances

within 10 cm (3.9 in.) of the electronic key may interfere with the key, caus-

ing the key to not function properly.

Q In case of a smart entry & start system malfunction or other key-related

problems (vehicles with smart entry & start system)

Take your vehicle with all the electronic keys provided with your vehicle to

any authorized Toyota retailer or Toyota authorized repairer, or any reliable

repairer.

Q When an electronic key is lost (vehicles with smart entry & start sys-

tem)

If the electronic key remains lost, the risk of vehicle theft increases signifi-

cantly. Visit any authorized Toyota retailer or Toyota authorized repairer, or

any reliable repairer immediately with all remaining electronic keys that

were provided with your vehicle.

3-2. Opening, closing and locking the doors

153

Side doors

The vehicle can be locked and unlocked using the entry func-

tion, wireless remote control, key or door lock switch.

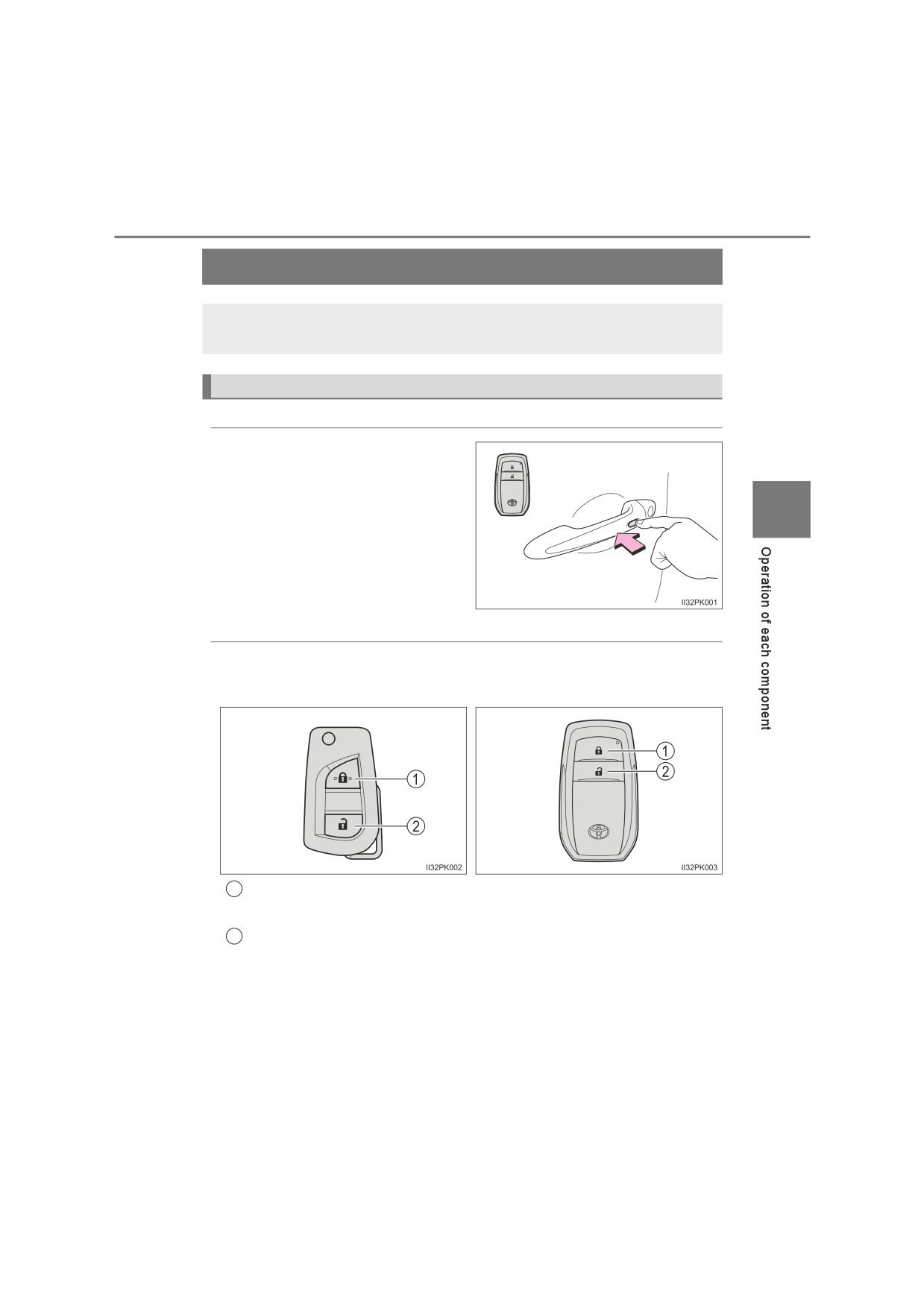

Locking and unlocking the doors from outside

X Smart entry & start system (if equipped)

While carrying the electronic

key, press the button to lock

and unlock.

After locking, check that the

door is securely locked.

X Wireless remote control (if equipped)

 Vehicles without smart entry &

 Vehicles with smart entry &

start system

Locks all the doors

Check that the door is securely locked.

Unlocks all the doors

154

3-2. Opening, closing and locking the doors

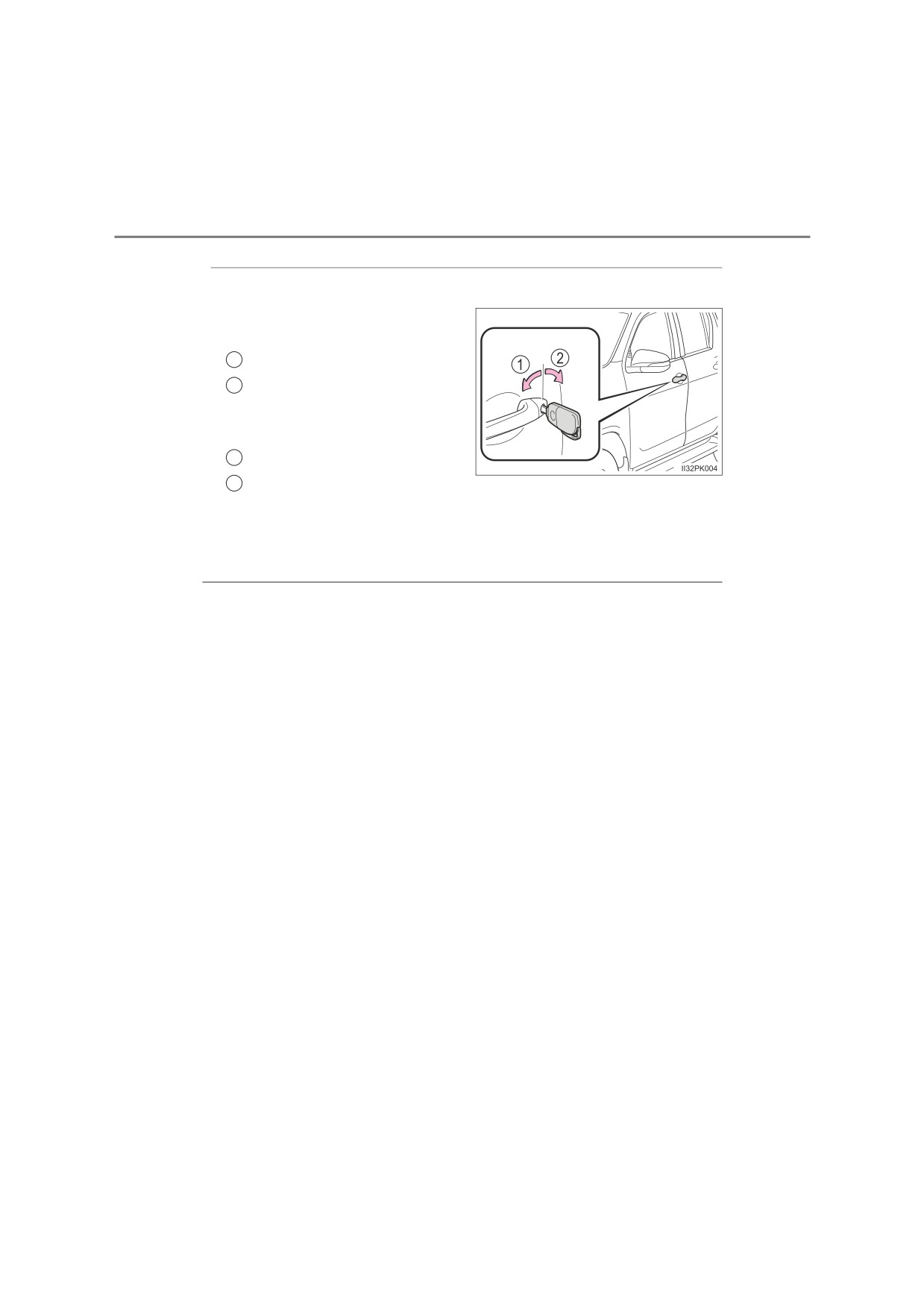

X Key

 Vehicles without smart entry & start system

Vehicles without power door

lock system:

Locks the door

Unlocks the door

Vehicles with power door lock

system:

Locks all the doors

Unlocks all the doors

 Vehicles with smart entry & start system

The doors can also be locked and unlocked with the mechanical

key. (P. 600)

Q Operation signals

A buzzer (if equipped) sounds and the emergency flashers flash to indicate

that the doors have been locked/unlocked using the smart entry & start sys-

tem or the wireless remote control. (Locked: once; Unlocked: twice)

Q Security feature

If a door is not opened within approximately 30 seconds after the vehicle is

unlocked using the smart entry & start system or the wireless remote control,

the security feature automatically locks the vehicle again.

Q Door lock buzzer (vehicles with wireless remote control and smart entry

& start system)

If an attempt to lock the doors is made when a door is not fully closed, a

buzzer sounds continuously for 5 seconds. Fully close the door to stop the

buzzer, and lock the vehicle once more.

Q If the entry function (vehicles with smart entry & start system) or the

wireless remote control (if equipped) does not operate properly

O Vehicles without smart entry & start system: Use the key to lock and unlock

the doors. (P. 154)

O Vehicles with smart entry & start system: Use the mechanical key to lock

and unlock the doors. (P. 600)

O Replace the battery with a new one if it is depleted. (P. 516)

3-2. Opening, closing and locking the doors

155

Q Setting the alarm (if equipped)

Locking the doors will set the alarm system. (P. 117)

Q If a symbol indicating one or more doors are open is shown on the multi-

information display

One or more of the doors is not fully closed. The system also indicates which

doors are not fully closed. If the vehicle reaches a speed of 5 km/h (3 mph),

master warning light flashes and a buzzer sounds to indicate that the door(s)

are not yet fully closed.

Make sure that all the doors are closed.

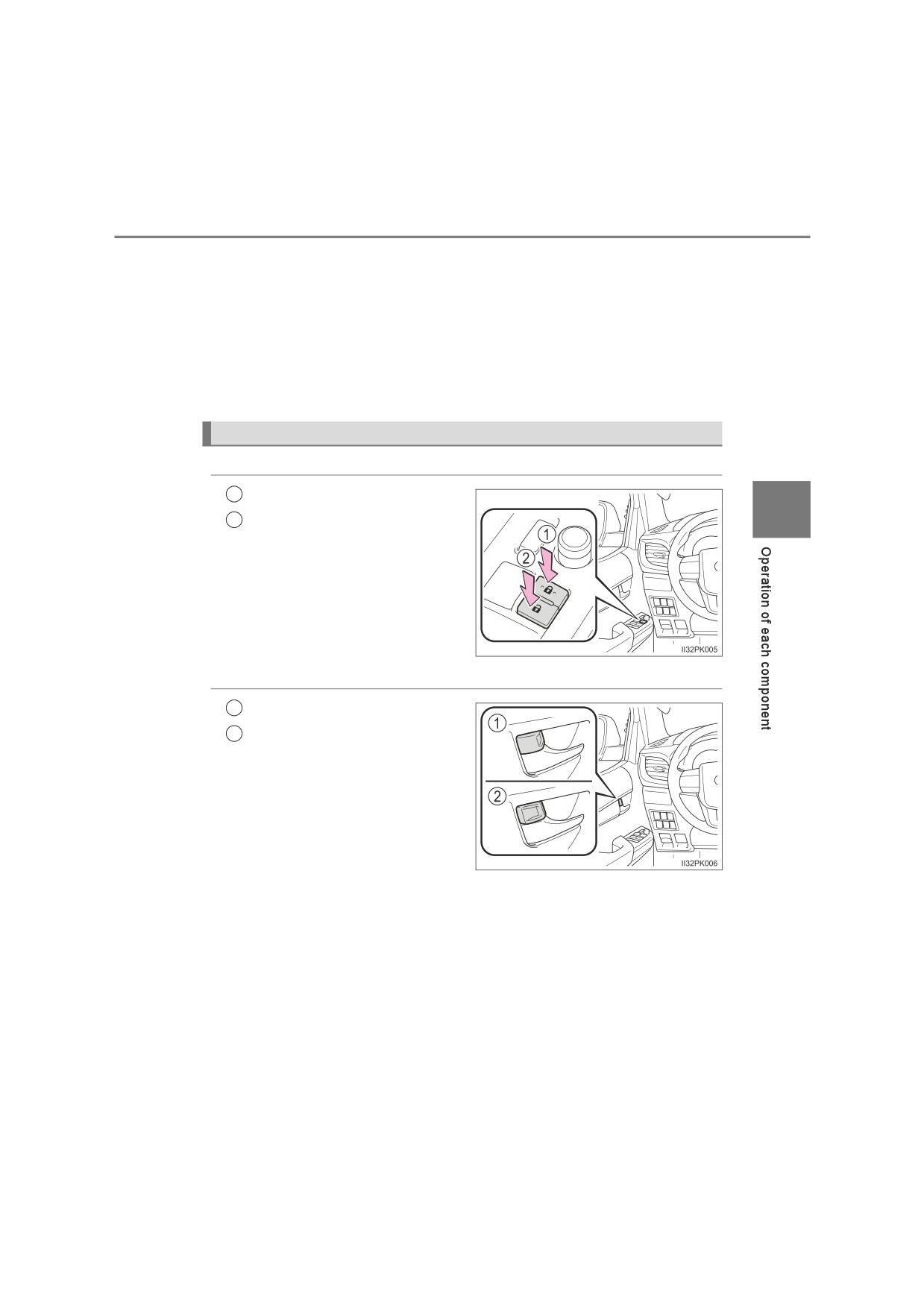

Locking and unlocking the doors from inside

X Door lock switch (if equipped)

Locks all the doors

Unlocks all the doors

X Inside lock button

Locks the door

Unlocks the door

The driver’s door can be opened

by pulling the inside handle

even if the lock button is in the

lock position.

156

3-2. Opening, closing and locking the doors

Locking the front doors from the outside without a key

Move the inside lock button to the lock position.

Close the door while pulling the door handle.

Vehicles without smart entry & start system (vehicles with power door

lock system): The driver’s door cannot be locked if either of the door is

open and the key is in the engine switch.

Vehicles with smart entry & start system: The door cannot be locked if

the engine switch is in ACCESSORY or IGNITION ON mode, or the

electronic key is left inside the vehicle.

However, the key may not be detected correctly and the door may be

locked.

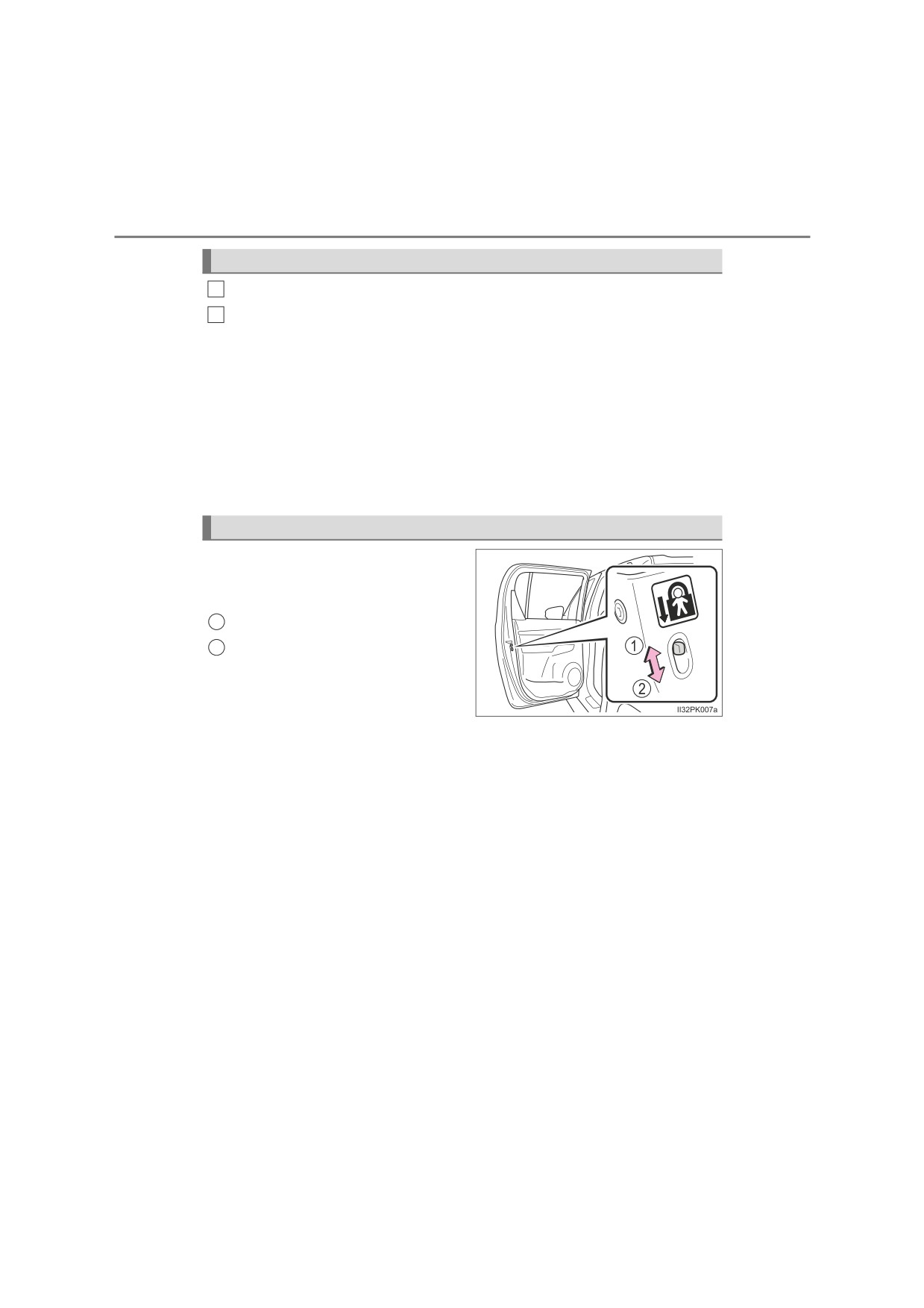

Rear door child-protector lock (double-cab models only)

The door cannot be opened from

inside the vehicle when the lock is

set.

Unlock

Lock

These locks can be set to prevent

children from opening the rear

doors. Push down on each rear

door switch to lock both rear doors.

3-2. Opening, closing and locking the doors

157

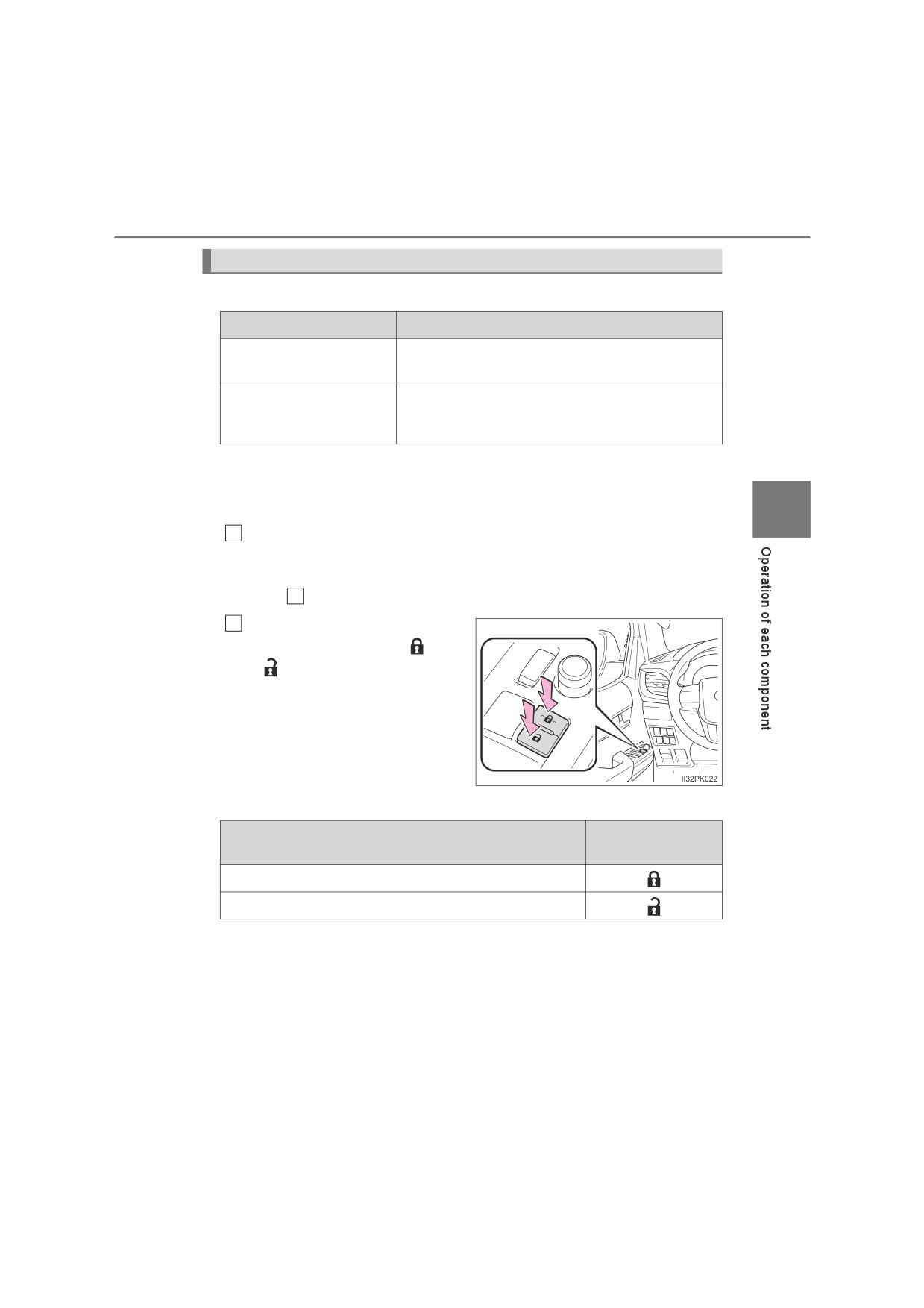

Automatic door locking and unlocking systems (if equipped)

The following functions can be set or canceled:

Function

Operation

Speed linked door lock-

All the doors are locked when the vehicle speed

ing function

is approximately 20 km/h (12 mph) or higher.

All the doors are unlocked when the driver’s

Driver’s door linked door

door is opened within approximately 45 seconds

unlocking function

after turning the engine switch off.

Q Setting and canceling the functions

To switch between setting and canceling, follow the procedure

below.

Close all the doors and turn the engine switch to the “ON” posi-

tion (vehicles without smart entry & start system) or IGNITION

ON mode (vehicles with smart entry & start system). (Perform

step

within 20 seconds.)

Press and hold the driver’s

door lock switch

(

) for approximately

seconds and then release.

The switch positions corre-

sponding to the desired function

to be set are shown in the fol-

lowing table.

Use the same procedure to can-

cel the function.

Driver’s door lock

Function

switch position

Speed linked door locking function

Driver’s door linked door unlocking function

When the setting or canceling operation is complete, all the doors are

locked and then unlocked after the driver’s door lock switch is

released.

158

3-2. Opening, closing and locking the doors

Q Impact detection door lock release system (if equipped)

In the event that the vehicle is subject to a strong impact, all the doors are

unlocked. Depending on the force of the impact or the type of accident, how-

ever, the system may not operate.

Q Conditions affecting operation

 Vehicles without smart entry & start system

The wireless remote control function may not operate normally in the follow-

ing situations:

O Near a TV tower, radio station, electric power plant, airport or other facility

that generates strong radio waves

O When carrying a portable radio, cellular phone or other wireless communi-

cation device

O When multiple wireless keys are in the vicinity

O When the wireless key is in contact with, or is covered by a metallic object

O When a wireless key (that emits radio waves) is being used nearby

O When the wireless key has been left near an electrical appliance such as a

personal computer

 Vehicles with smart entry & start system

P. 166

WARNING

Q To prevent an accident

Observe the following precautions while driving the vehicle.

Failing to do so may result in a door opening and an occupant falling out,

resulting in death or serious injury.

O Ensure that all doors are properly closed and locked.

ODo not pull the inside handle of the doors while driving.

Be especially careful for the driver’s door, as the door may be opened

even if the inside lock button is in locked position.

O Set the rear door child-protector locks when children are seated in the rear

seats.

3-2. Opening, closing and locking the doors

159

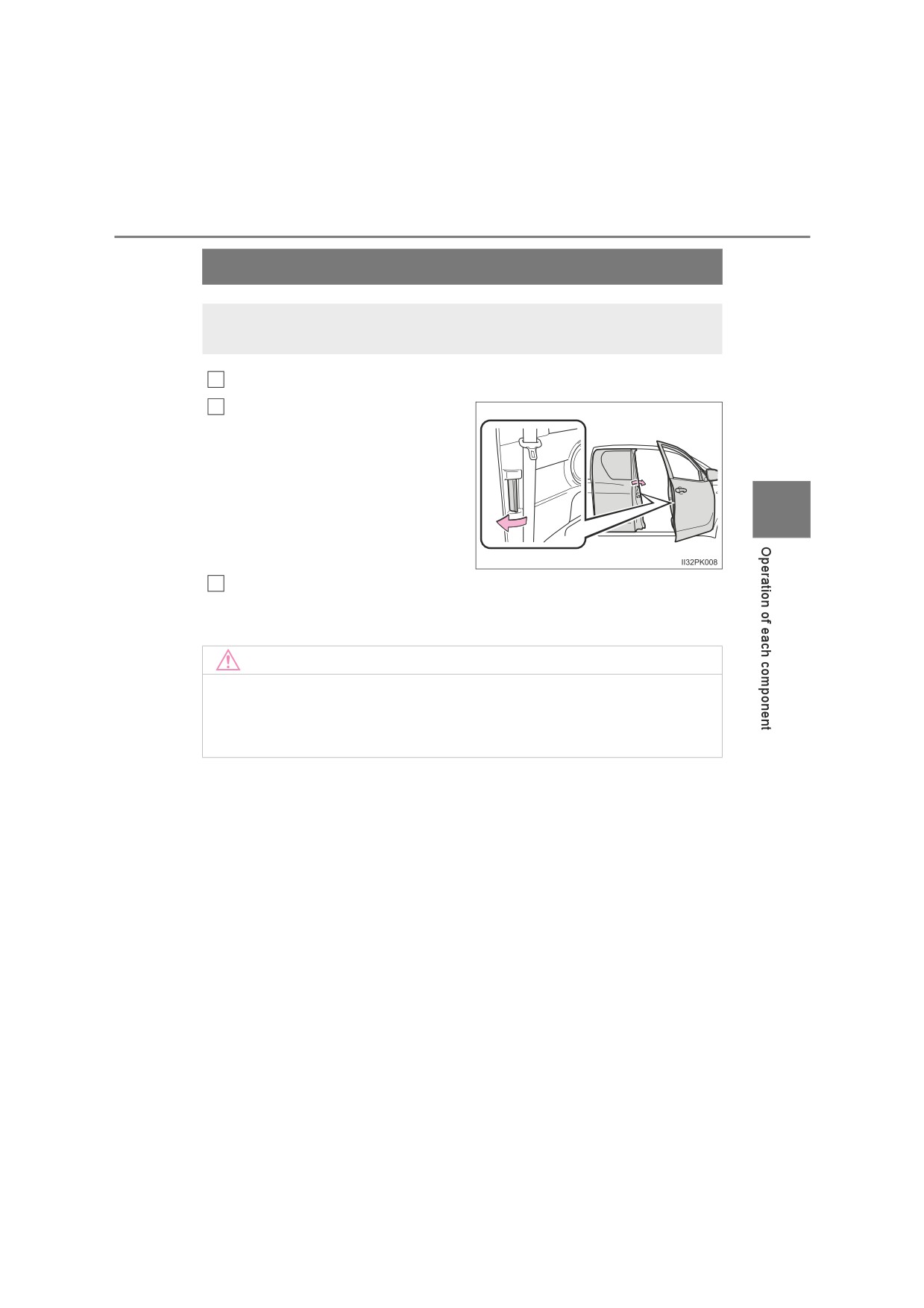

Access panels (smart-cab models only)

The access panels (rear door) can be opened using the inside

handle.

Open the front door widely.

Pull (from the outside) or push

(from the inside) the inside han-

dle of the access panels.

Open the access panels.

You can open and close the access panels only when the front door is

widely opened.

NOTICE

Q When opening or closing the front door and access panels

The front door and access panels could be damaged if they hit each other

when being opened or closed.

160

3-2. Opening, closing and locking the doors

Tailgate^

The tailgate can be locked/unlocked and opened by the follow-

ing procedures.

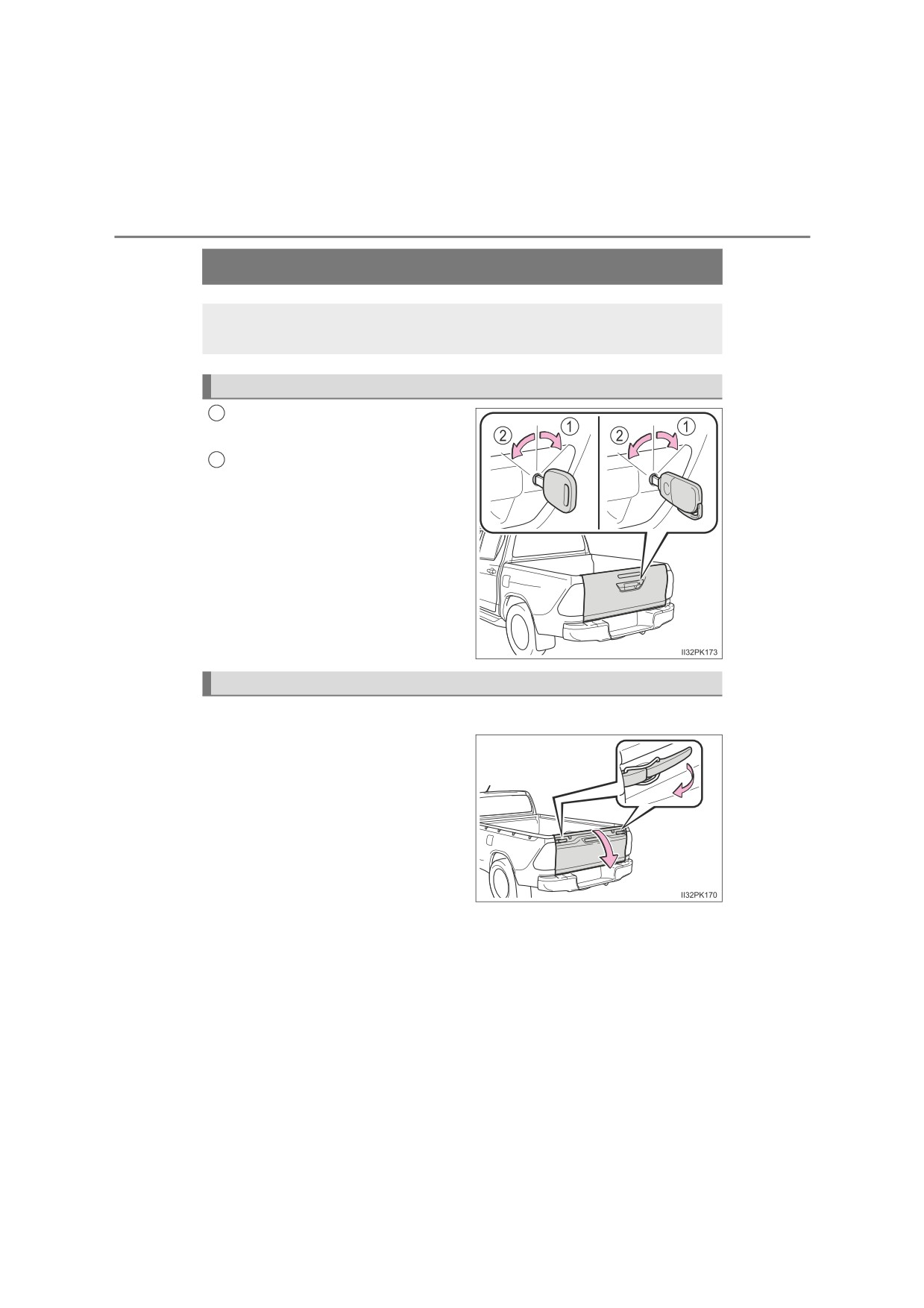

Locking and unlocking the tailgate (vehicles with key hole)

Lock with the master key or the

mechanical key

Unlock with the master key or

the mechanical key

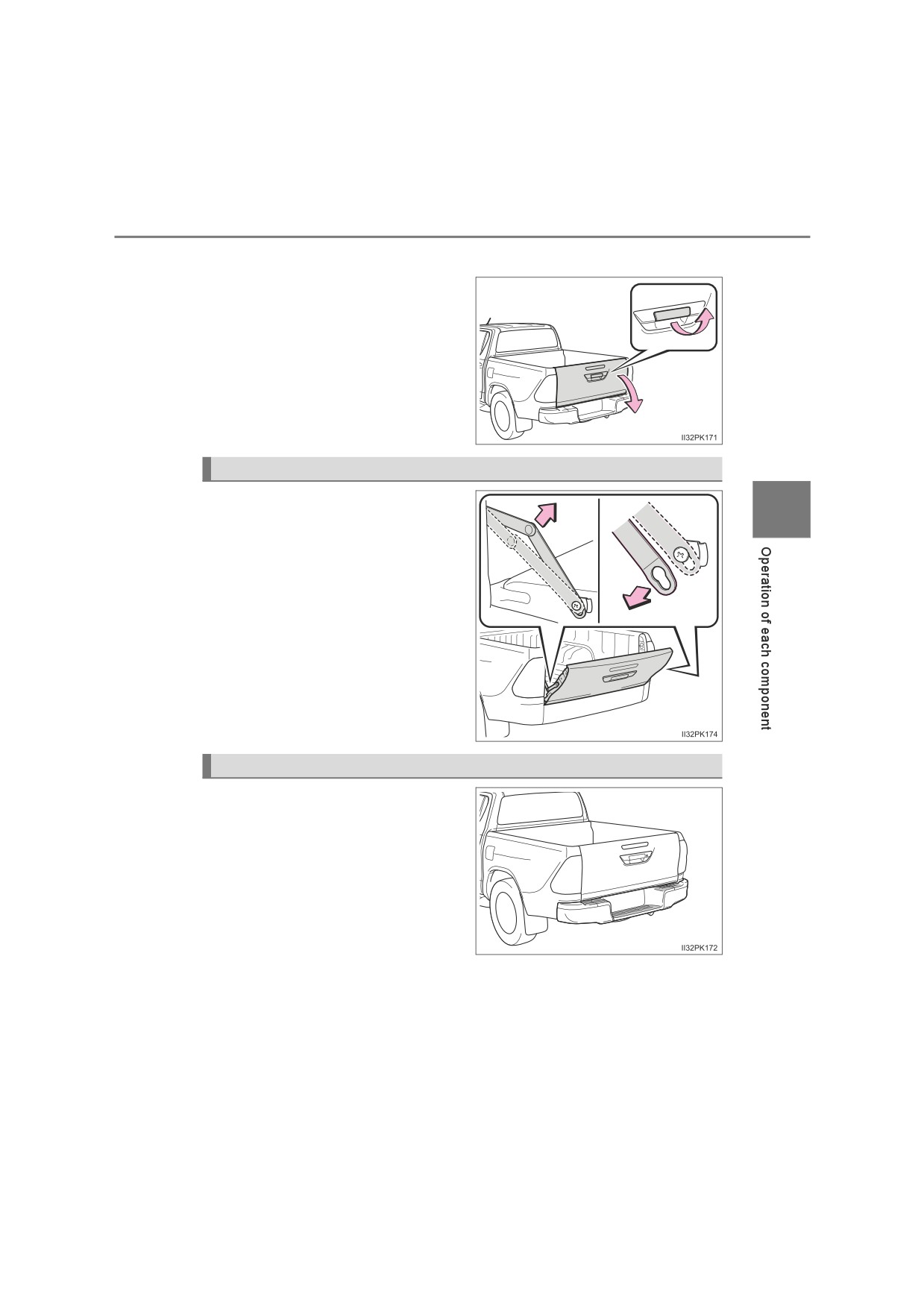

Opening the tailgate

 Type A

Unlock the latches and open the

tailgate slowly.

The support stays will hold the tail-

gate horizontal.

After closing the tailgate, try pulling

it toward you to make sure it is

securely locked.

: If equipped

3-2. Opening, closing and locking the doors

161

 Type B

Pull the handle and open the tail-

gate slowly.

The support stays will hold the tail-

gate horizontal.

After closing the tailgate, try pulling

it toward you to make sure it is

securely locked.

Lowering the tailgate (vehicles without rear bumper)

Release the brackets on the sup-

port stays from the lugs on both

sides as shown in the illustration.

Rear step bumper (if equipped)

The rear step bumper is for rear

end protection and easier step-up

162

3-2. Opening, closing and locking the doors

WARNING

Observe the following precautions.

Failure to do so may result in death or serious injury.

Q Caution while driving

ODo not drive with the tailgate open.

ODo not get on the rear step bumper.

Q When opening or closing the tailgate

OCheck the safety of the surrounding area, and be careful not to catch fin-

gers etc. in the tailgate.

ODo not allow a child to open or close the tailgate. Doing so may cause the

child’s hand, head, arm or neck to be caught in the tailgate, resulting in

death or serious injury.

OOn an incline, it may be more difficult to open or close the tailgate than on

a level surface.

Also, the tailgate may suddenly open or close. Be careful not to catch fin-

gers etc. in the tailgate.

OWhen pulling the handle or releasing the support stays, hold and operate

them properly. Failure to do so may cause the hands etc. to be caught,

resulting in serious injury or an unexpected accident.

OBe careful when opening or closing the tailgate in windy weather, as it may

forcefully move.

OAfter closing the tailgate, make sure it is securely locked.

NOTICE

Q To prevent damage to the rear step bumper

Do not allow more than one person to get on the rear step bumper at a time.

Q Handling of the tailgate (vehicles with rear bumper)

If the support stays are removed, the tailgate comes into contact with the

rear bumper and may be damaged.

164

3-2. Opening, closing and locking the doors

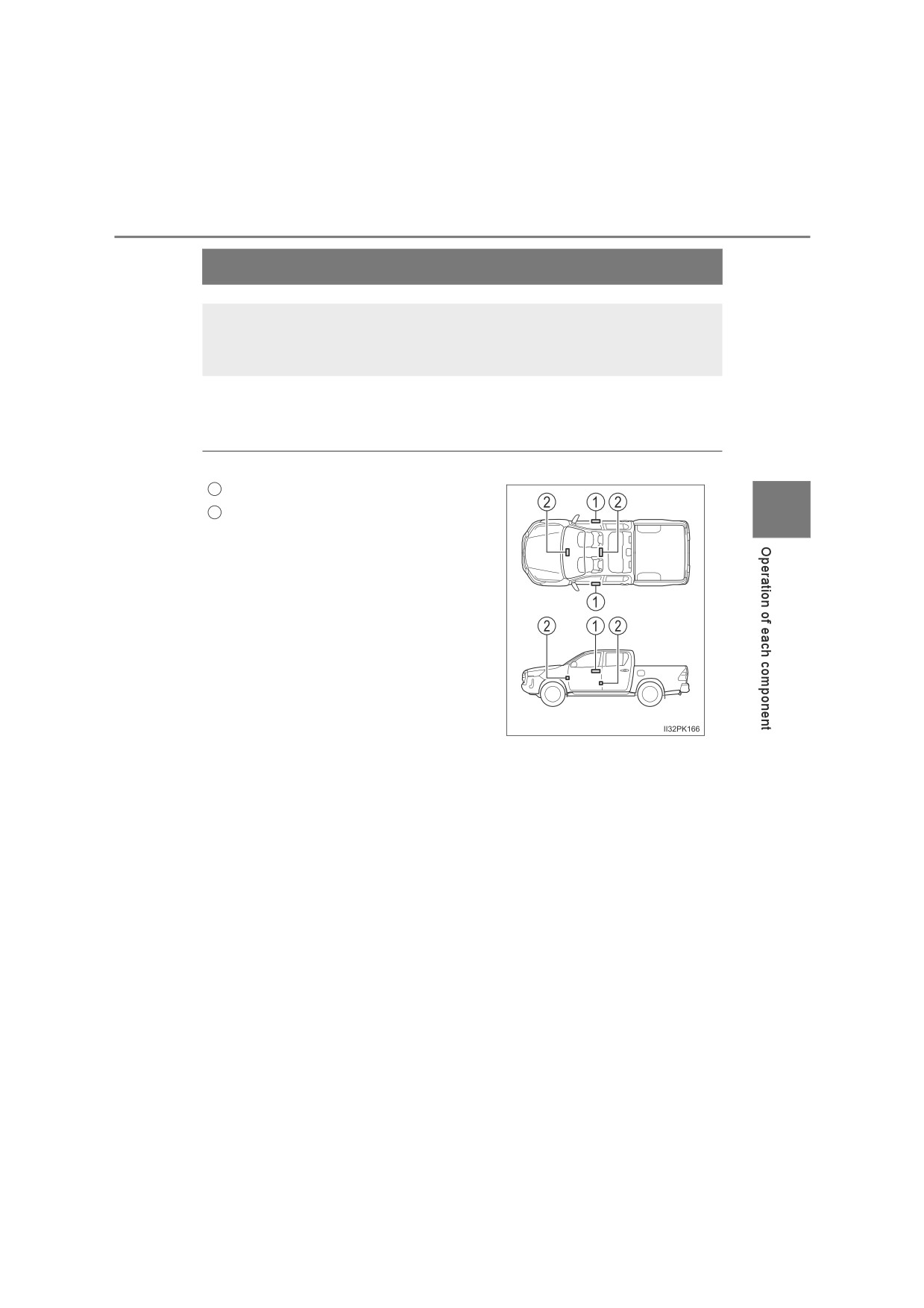

Q Effective range (areas within which the electronic key is detected)

When locking or unlocking the doors

The system can be operated when the

electronic key is within about 0.7 m (2.3

ft.) of either of the lock/unlock button on

the outside door handle.

(Only the

doors detecting the key can be oper-

ated.)

When starting the engine or changing engine switch modes

The system can be operated when the electronic key is inside the vehicle.

(The electronic key is not detected when it is on the floor or on the instru-

ment panel.)

Q Battery-saving function

The battery-saving function will be activated in order to prevent the battery

from being discharged while the vehicle is not in operation for a long time.

Q Electronic Key Battery-Saving Function

When battery-saving mode is set, battery depletion is minimized by stopping

the electronic key from receiving radio waves.

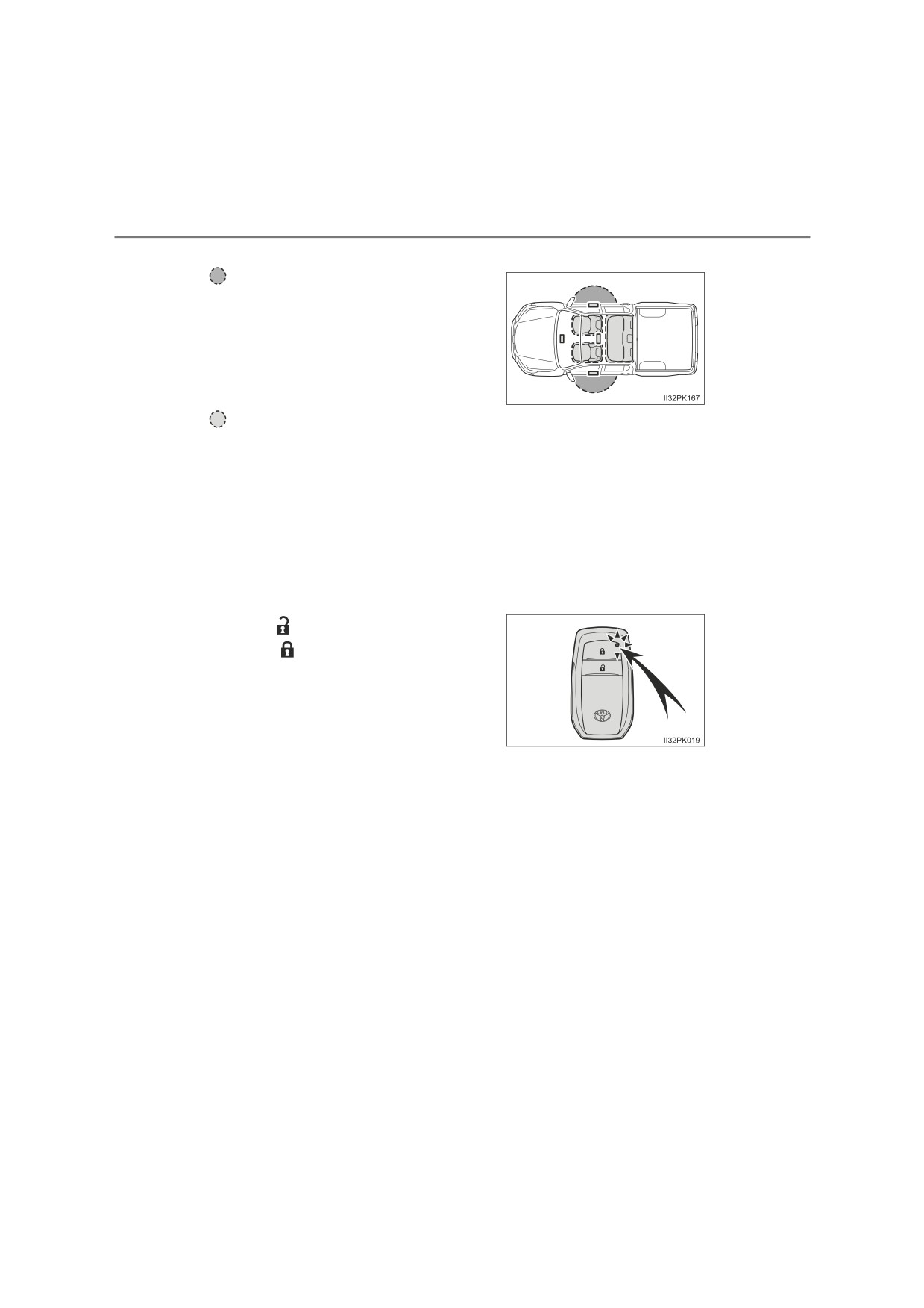

Press

twice while pressing and

holding

. Confirm that the electronic

key indicator flashes 4 times.

While the battery-saving mode is set, the

smart entry & start system cannot be

used. To cancel the function, press any of

the electronic key buttons.

3-2. Opening, closing and locking the doors

165

Q Alarms and warning indicators

A combination of exterior and interior alarms as well as warning messages

shown on the multi-information display are used to prevent theft of the vehicle

and accidents resulting from erroneous operation. Take appropriate mea-

sures in response to any warning message on the multi-information display.

The following table describes circumstances and correction procedures when

only alarms are sounded.

Alarm

Situation

Correction procedure

Exterior

alarm

An attempt was made to lock

Close all of the doors

sounds once for 5

the vehicle while a door was

and lock the doors

seconds

open.

again.

The engine switch was

turned to ACCESSORY

Interior

alarm

mode while the driver’s door

Turn the engine switch

pings

continu-

was open

(or the driver’s

off

and close the

ously

door was opened while the

driver’s door.

engine switch was in

ACCESSORY mode).

166

3-2. Opening, closing and locking the doors

Q Conditions affecting operation

The smart entry & start system uses weak radio waves. In the following situa-

tions, the communication between the electronic key and the vehicle may be

affected, preventing the smart entry & start system, wireless remote control

and engine immobilizer system from operating properly.

(Ways of coping: P. 600)

O When the electronic key battery is depleted

O Near a TV tower, electric power plant, gas station, radio station, large dis-

play, airport or other facility that generates strong radio waves or electrical

noise

O When carrying a portable radio, cellular phone, cordless phone or other

wireless communication device

O When the electronic key is in contact with, or is covered by the following

metallic objects

• Cards to which aluminum foil is attached

• Cigarette boxes that have aluminum foil inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

O When multiple electronic keys are in the vicinity

O When other wireless keys (that emit radio waves) are being used nearby

O When carrying the electronic key together with the following devices that

emit radio waves

• Another vehicle’s electronic key or a wireless key that emits radio waves

• Personal computers or personal digital assistants (PDAs)

• Digital audio players

• Portable game systems

OIf window tint with a metallic content or metallic objects are attached to the

rear window

O When the electronic key is placed near a battery charger or electronic devices

3-2. Opening, closing and locking the doors

167

Q Note for the entry function

OEven if the electronic key is within the effective range (detection areas)

when locking or unlocking the doors, the system may not operate properly if

the electronic key is too close to the window or outside door handle, near

the ground, or in a high place.

O Do not leave the electronic key on top of the instrument panel or near the

door pockets when exiting the vehicle. Depending on the radio wave recep-

tion conditions, it may be detected by the antenna outside the cabin and the

doors will become lockable from the outside, possibly trapping the electronic

key inside the vehicle.

O As long as the electronic key is within the effective range, the doors may be

locked or unlocked by anyone. However, only the doors detecting the elec-

tronic key can be used to unlock the vehicle.

OEven if the electronic key is not inside the vehicle, it may be possible to start

the engine if the electronic key is near the window.

OIf the wireless remote control is used to lock the doors when the electronic

key is near the vehicle, there is a possibility that the door may not be

unlocked by the entry function. (Use the wireless remote control to unlock

the doors.)

OPulling the outside door handle while pressing the lock/unlock button on the

outside door handle may prevent the doors from being unlocked. In this

case, return the door handle to the original position, press the lock/unlock

button again, and check that the doors unlock before pulling the door handle

again.

OUnlocking the vehicle may take more time if another electronic key is within

the effective range.

Q When the vehicle is not driven for extended periods

O To prevent theft of the vehicle, do not leave the electronic key within 2 m

(6 ft.) of the vehicle.

O The smart entry & start system can be deactivated in advance. Ask any

authorized Toyota retailer or Toyota authorized repairer, or any reliable

repairer for details.

Q To operate the system properly

Make sure to carry the electronic key when operating the system. Do not get

the electronic key too close to the vehicle when operating the system from the

outside of the vehicle.

Depending on the position and holding condition of the electronic key, the key

may not be detected correctly and the system may not operate properly. (The

alarm may go off accidentally, or the door lock prevention function may not

operate.)

168

3-2. Opening, closing and locking the doors

Q If the smart entry & start system does not operate properly

OLocking and unlocking the doors: Use the mechanical key. (P. 600)

O Starting the engine: P. 601

Q Electronic key battery depletion

O The standard battery life is 1 to 2 years.

O If the battery becomes low, an alarm will sound in the cabin when the engine

stops.

O As the electronic key always receives radio waves, the battery will become

depleted even if the electronic key is not used. The following symptoms indi-

cate that the electronic key battery may be depleted. Replace the battery

when necessary. (P. 516)

• The smart entry & start system or the wireless remote control does not

operate.

• The detection area becomes smaller.

• The LED indicator on the key surface does not turn on.

O To avoid serious deterioration, do not leave the electronic key within 1 m (3

ft.) of the following electrical appliances that produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and battery chargers

• Recharging cellular phones or cordless phones

• Table lamps

• Induction cookers

Q If “Key left inside vehicle” is shown on the multi-information display

An attempt was made to lock the doors using the smart entry & start system

while the electronic key was still inside the vehicle, or an attempt was made

to lock either front door by opening a door and putting the inside lock button

into the lock position, then closing the door by pulling on the outside door

handle with the electronic key still inside the vehicle.

Retrieve the electronic key from the vehicle and lock the doors again.

Q Customization that can be configured at any authorized Toyota retailer

or Toyota authorized repairer, or any reliable repairer

Settings (e.g. smart entry & start system) can be changed.

(Customizable features: P. 646)

Q If the smart entry & start system has been deactivated in a customized

setting

O Locking and unlocking the doors:

Use the wireless remote control or mechanical key. (P. 153, 600)

O Starting the engine and changing engine switch modes: P. 601

O Stopping the engine: P. 225

3-2. Opening, closing and locking the doors

169

WARNING

Q Caution regarding interference with electronic devices

OPeople with implantable cardiac pacemakers, cardiac resynchronization

therapy-pacemakers or implantable cardioverter defibrillators should main-

tain a reasonable distance between themselves and the smart entry &

start system antennas. (P. 163)

The radio waves may affect the operation of such devices. If necessary,

the entry function can be disabled. Ask any authorized Toyota retailer or

Toyota authorized repairer, or any reliable repairer for details, such as the

frequency of radio waves and timing of the emitting radio waves. Then,

consult your doctor to see if you should disable the entry function.

OUsers of any electrical medical device other than implantable cardiac

pacemakers, cardiac resynchronization therapy-pacemakers or implanta-

ble cardioverter defibrillators should consult the manufacturer of the

device for information about its operation under the influence of radio

waves.

Radio waves could have unexpected effects on the operation of such

medical devices.

Ask any authorized Toyota retailer or Toyota authorized repairer, or any reli-

able repairer for details on disabling the entry function.

3-3. Adjusting the seats

171

WARNING

Q When adjusting the seat position

O Take care when adjusting the seat position to ensure that other passen-

gers are not injured by the moving seat.

ODo not put your hands under the seat or near the moving parts to avoid

injury.

Fingers or hands may become jammed in the seat mechanism.

Q Seat adjustment

O To reduce the risk of sliding under the lap belt during a collision, do not

recline the seat more than necessary.

If the seat is too reclined, the lap belt may slide past the hips and apply

restraint forces directly to the abdomen, or your neck may contact the

shoulder belt, increasing the risk of death or serious injury in the event of

an accident.

Adjustments should not be made while driving as the seat may unexpect-

edly move and cause the driver to lose control of the vehicle.

OManual seat: After adjusting the seat, make sure that the seat is locked in

position.

172

3-3. Adjusting the seats

Rear seats^

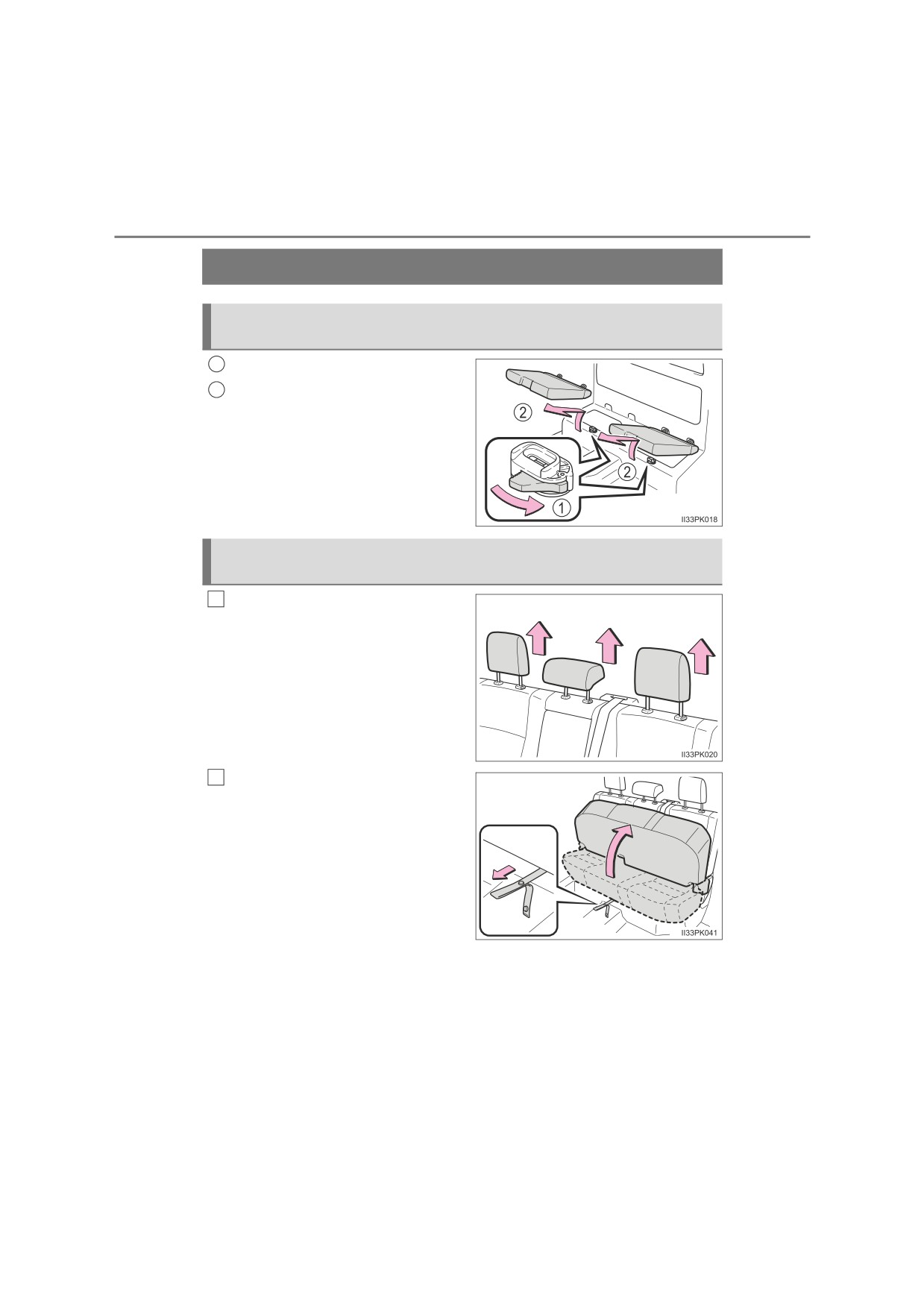

Removing the rear seat cushions (if equipped for smart-cab

models)

Unhook the lock release lever.

Pull the seat cushions up and

then pull toward the front of

vehicle.

The seat cushions can be removed

separately.

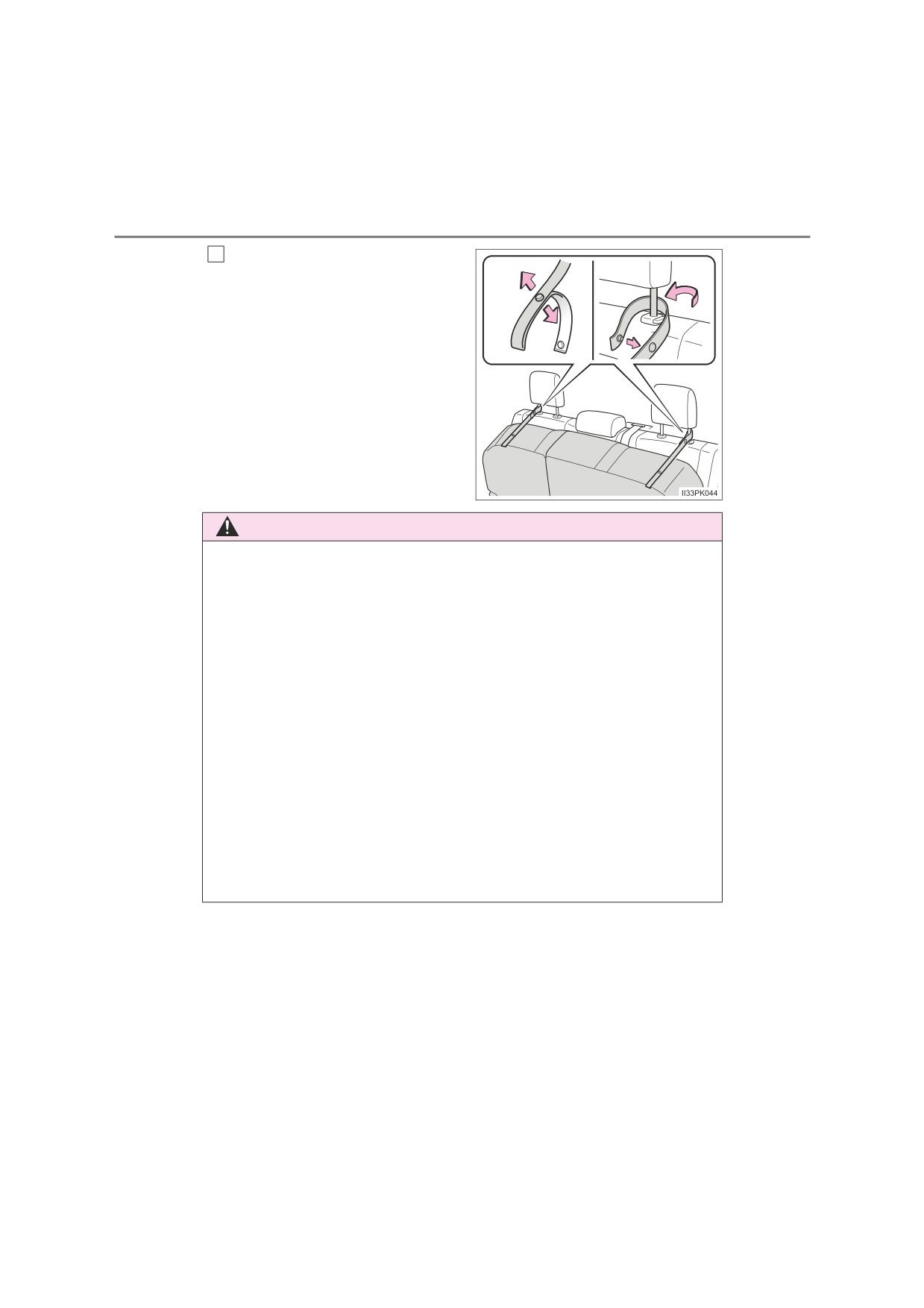

Raising the bottom cushion (double-cab models with integrated

type rear seat)

Pull the head restraint up.

Pull the strap and raise the bot-

tom cushion.

The latch under the bottom cush-

ion will release allowing the bottom

cushion to be raised.

: If equipped

174

3-3. Adjusting the seats

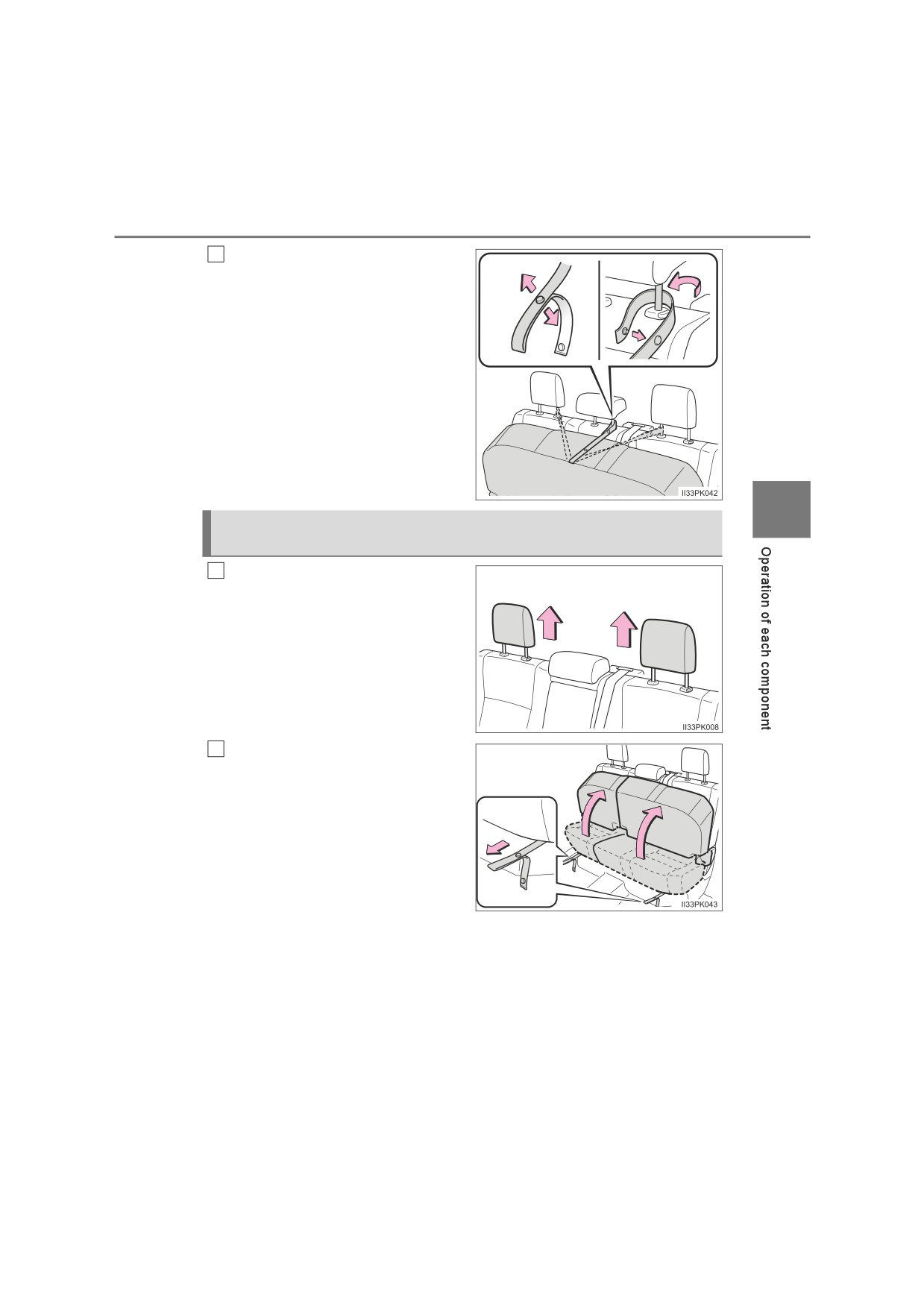

Anchor the straps to the head

restraints.

WARNING

Observe the following precautions. Failure to do so may result in death or

serious injury.

Q When removing the rear seat cushions or raising the bottom cushion

ODo not operate the rear seat cushions or bottom cushion while driving.

OStop the vehicle on level ground, apply the parking brake firmly and shift

the shift position to P (automatic transmission) or N (manual transmission).

Q When the rear seat cushions are removed

Be careful not to hit the removed rear seat cushions against a person or

drop it on yourself.

Q When reinstalling the rear seat cushions or returning the bottom cush-

ions to their original position

O Be careful not to get your hands or feet pinched in the seat.

O Make sure there are no obstacles under the seat which would prevent the

seat from properly locking into place.

O Make sure the rear seat cushions and bottom cushion are securely locked

by pushing it upward and downward.

OCheck that the seat belts are not twisted or caught in the bottom cushions.

3-3. Adjusting the seats

175

Head restraints

Head restraints are provided for all seats.

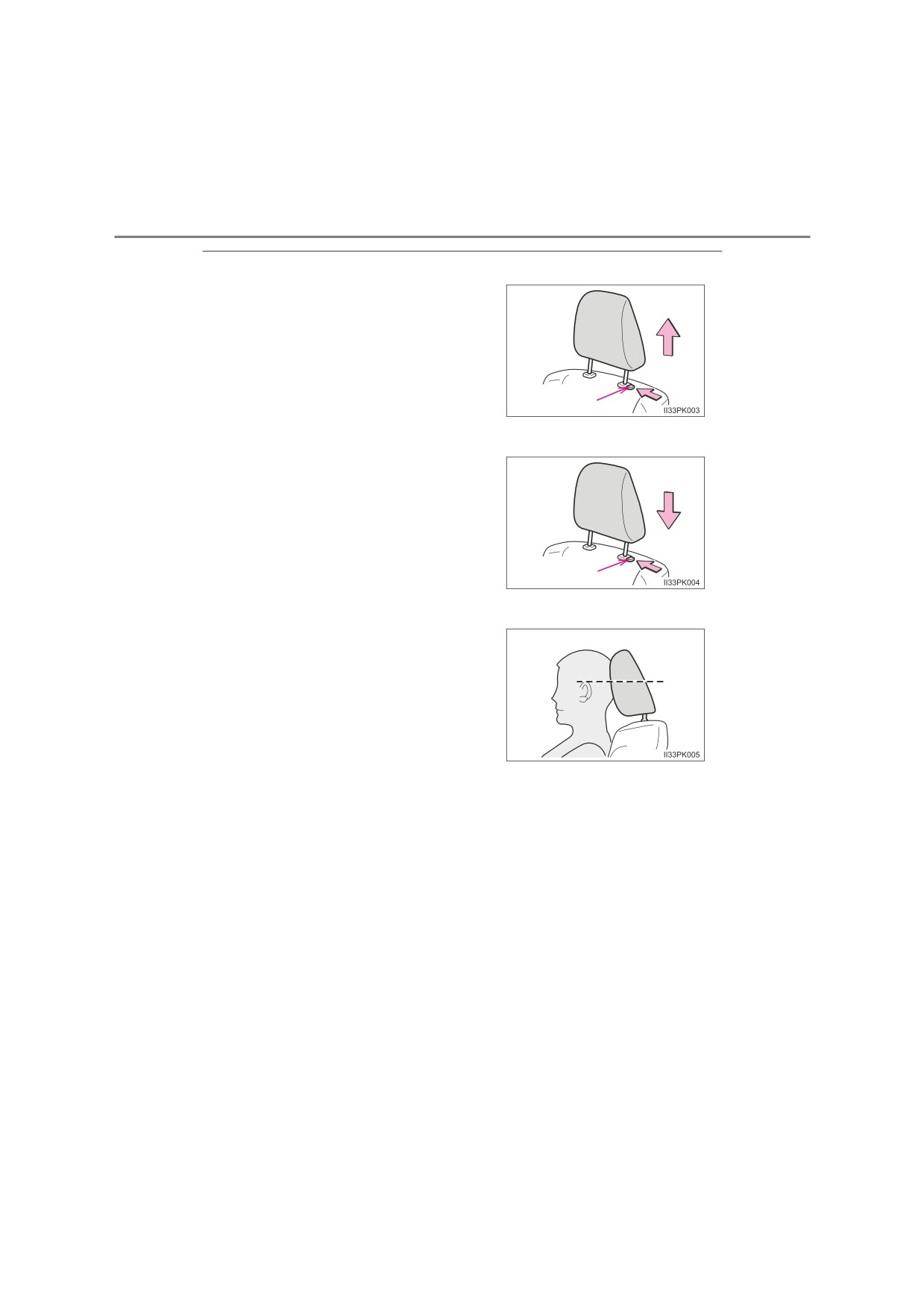

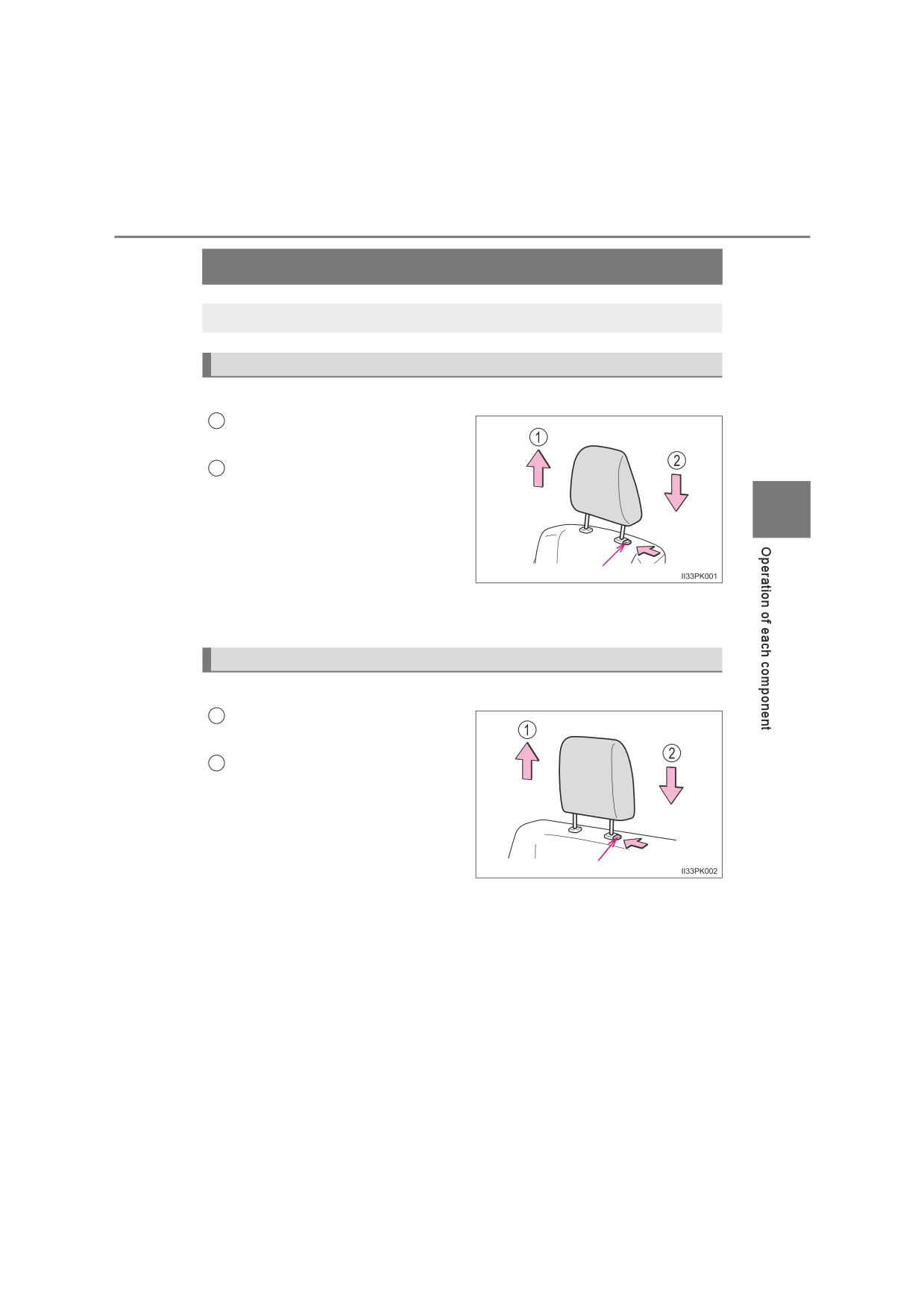

Front seats

 Adjustable type

Pull the head restraints up.

Down

Push the head restraint down while

pressing the lock release button.

Lock release button

 Integrated type

Head restraints cannot be adjusted and removed.

Rear seats (if equipped)

 Adjustable type

Pull the head restraints up.

Down

Push the head restraint down while

pressing the lock release button.

Lock release button

 Integrated type

Head restraints cannot be adjusted and removed.

176

3-3. Adjusting the seats

Q Removing the head restraints

Pull the head restraint up while pressing

the lock release button.

Lock release

button

Q Installing the head restraints

Align the head restraint with the installa-

tion holes and push it down to the lock

position.

Press and hold the lock release button

when lowering the head restraint.

Lock release

button

Q Adjusting the height of the head restraints

Make sure that the head restraints are

adjusted so that the center of the head

restraint is closest to the top of your ears.

Q Adjusting the rear center seat head restraint (if equipped)

Always raise the head restraint one level from the stowed

position when

using.

3-4. Adjusting the steering wheel and mirrors

179

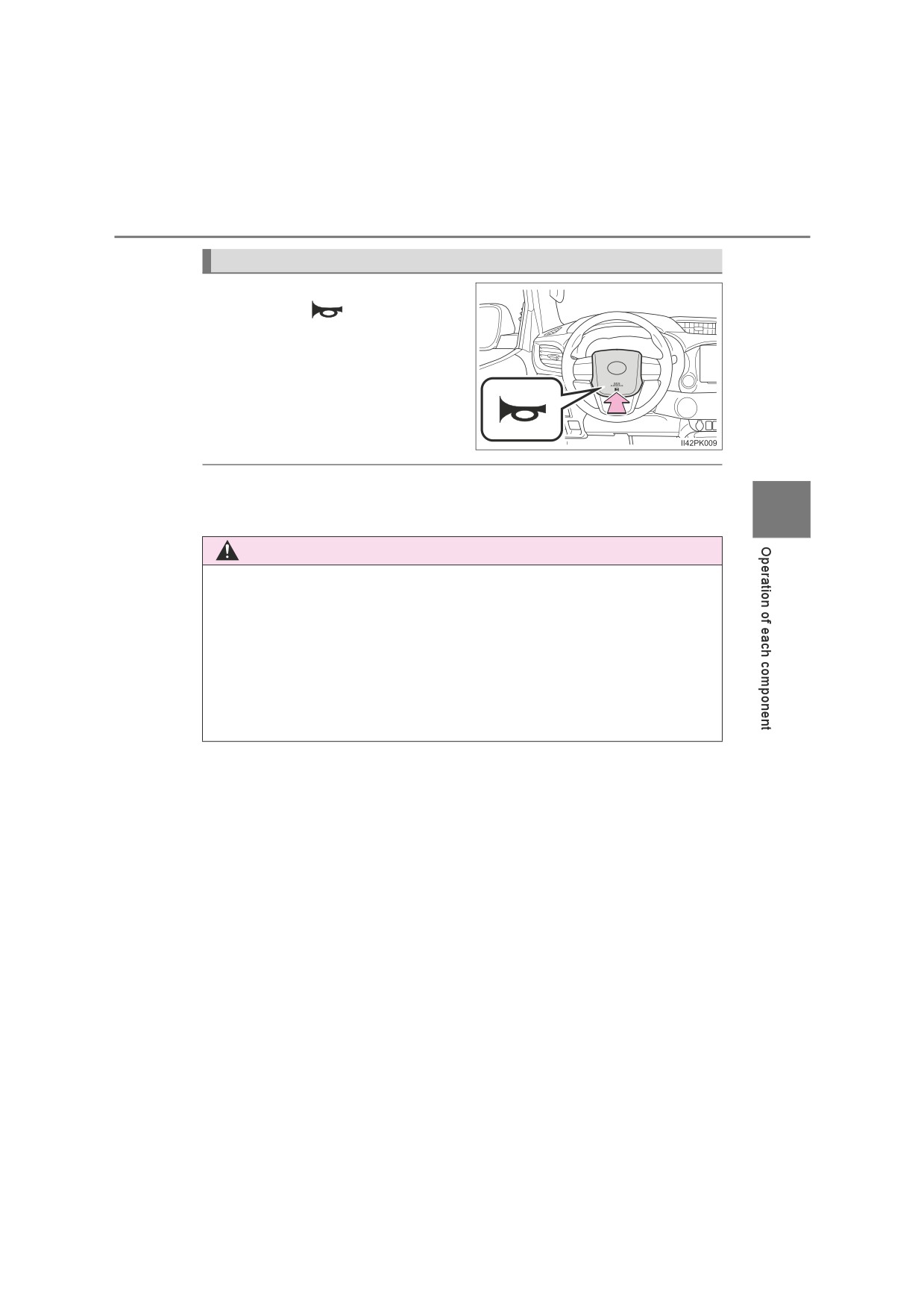

Horn

To sound the horn, press on or

close to the

mark.

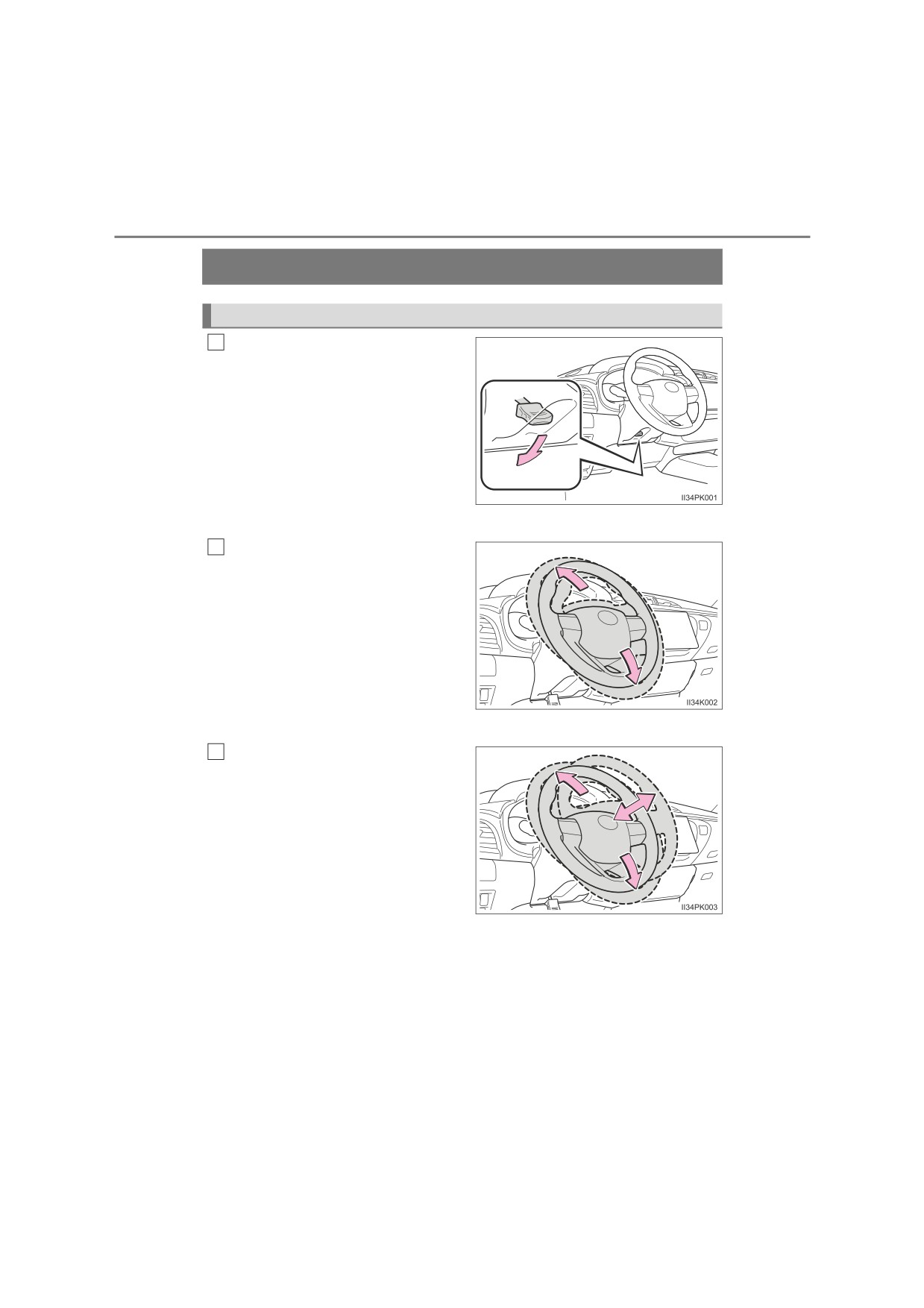

Q After adjusting the steering wheel

Make sure that the steering wheel is securely locked.

The horn may not sound if the steering wheel is not securely locked.

WARNING

Q Caution while driving

Do not adjust the steering wheel while driving.

Doing so may cause the driver to mishandle the vehicle and cause an acci-

dent, resulting in death or serious injury.

Q After adjusting the steering wheel

Make sure that the steering wheel is securely locked.

Otherwise, the steering wheel may move suddenly, possibly causing an

accident, and resulting in death or serious injury.

180

3-4. Adjusting the steering wheel and mirrors

Inside rear view mirror

The rear view mirror’s position can be adjusted to enable suffi-

cient confirmation of the rear view.

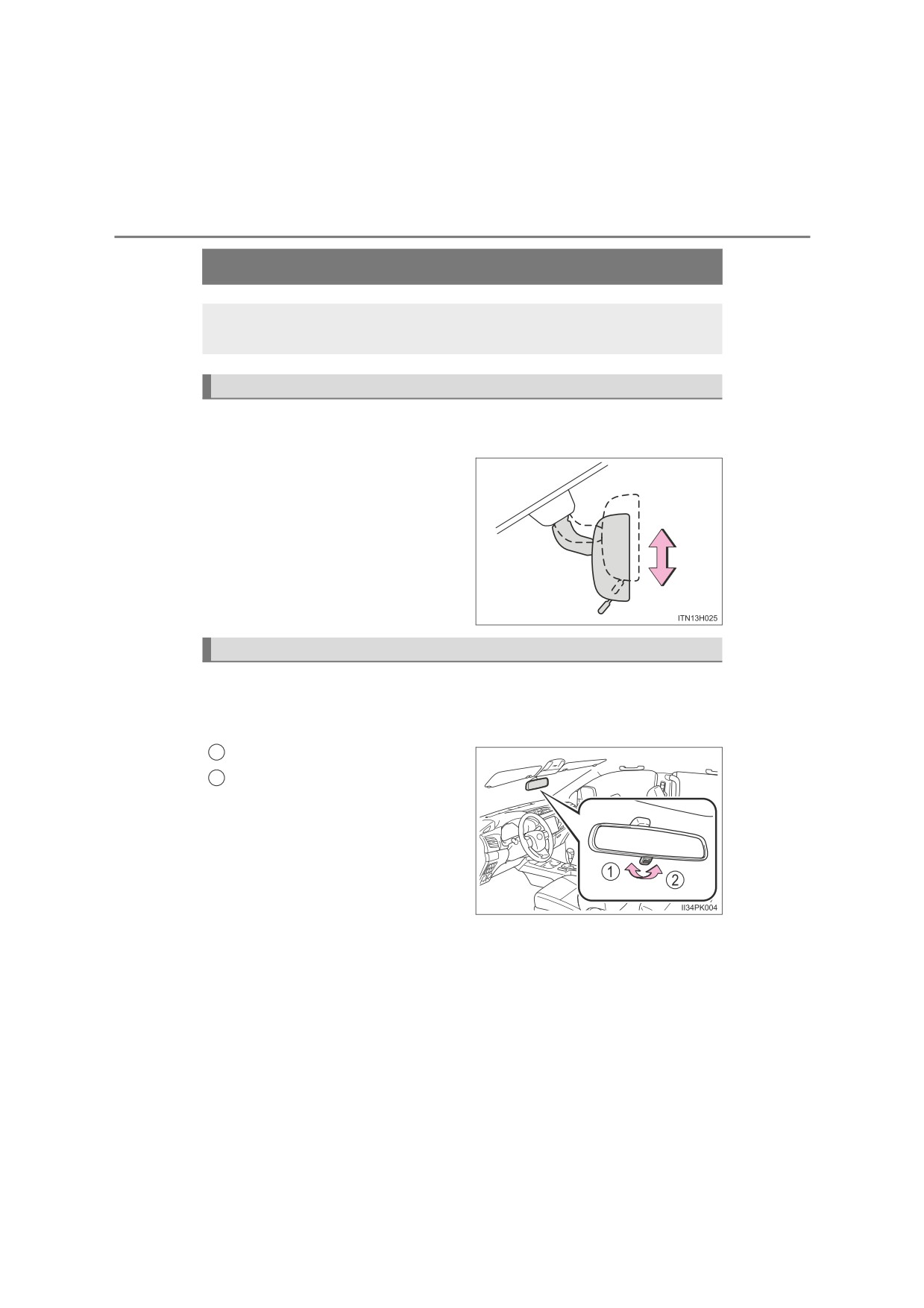

Adjusting the height of rear view mirror

The height of the rear view mirror can be adjusted to suit your driving

posture.

Adjust the height of the rear view

mirror by moving it up and down.

Anti-glare function

 Manual anti-glare inside rear view mirror

Reflected light from the headlights of vehicles behind can be reduced

by operating the lever.

Normal position

Anti-glare position

3-4. Adjusting the steering wheel and mirrors

181

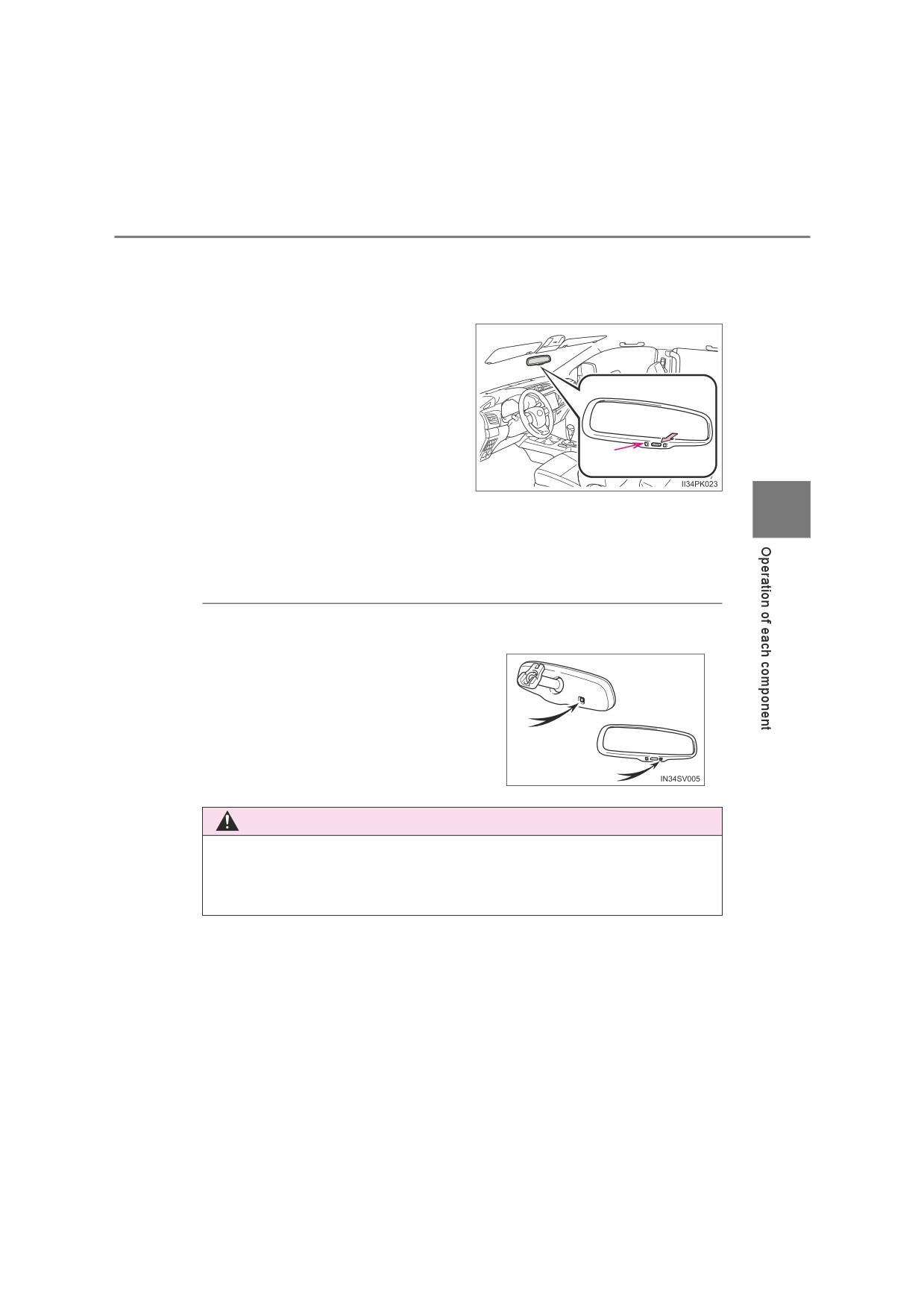

 Auto anti-glare inside rear view mirror

Responding to the level of brightness of the headlights of vehicles

behind, the reflected light is automatically reduced.

Changing automatic anti-glare

function mode

ON/OFF

When the automatic anti-glare

function is in ON mode, the indica-

tor illuminates.

The function will set to ON mode

Indicator

each time the engine switch is

turned to

“ON” position (vehicles

without smart entry & start system)

or IGNITION ON mode (vehicles

with smart entry & start system).

Pressing the button turns the function to OFF mode. (The indicator also

turns off.)

Q To prevent sensor error (vehicles with auto anti-glare inside rear view

mirror)

To ensure that the sensors operate prop-

erly, do not touch or cover them.

WARNING

Do not adjust the position of the mirror while driving.

Doing so may lead to mishandling of the vehicle and cause an accident,

resulting in death or serious injury.

Toyota Hilux (2022 year). Manual in english - page 6
