2. Instrument cluster

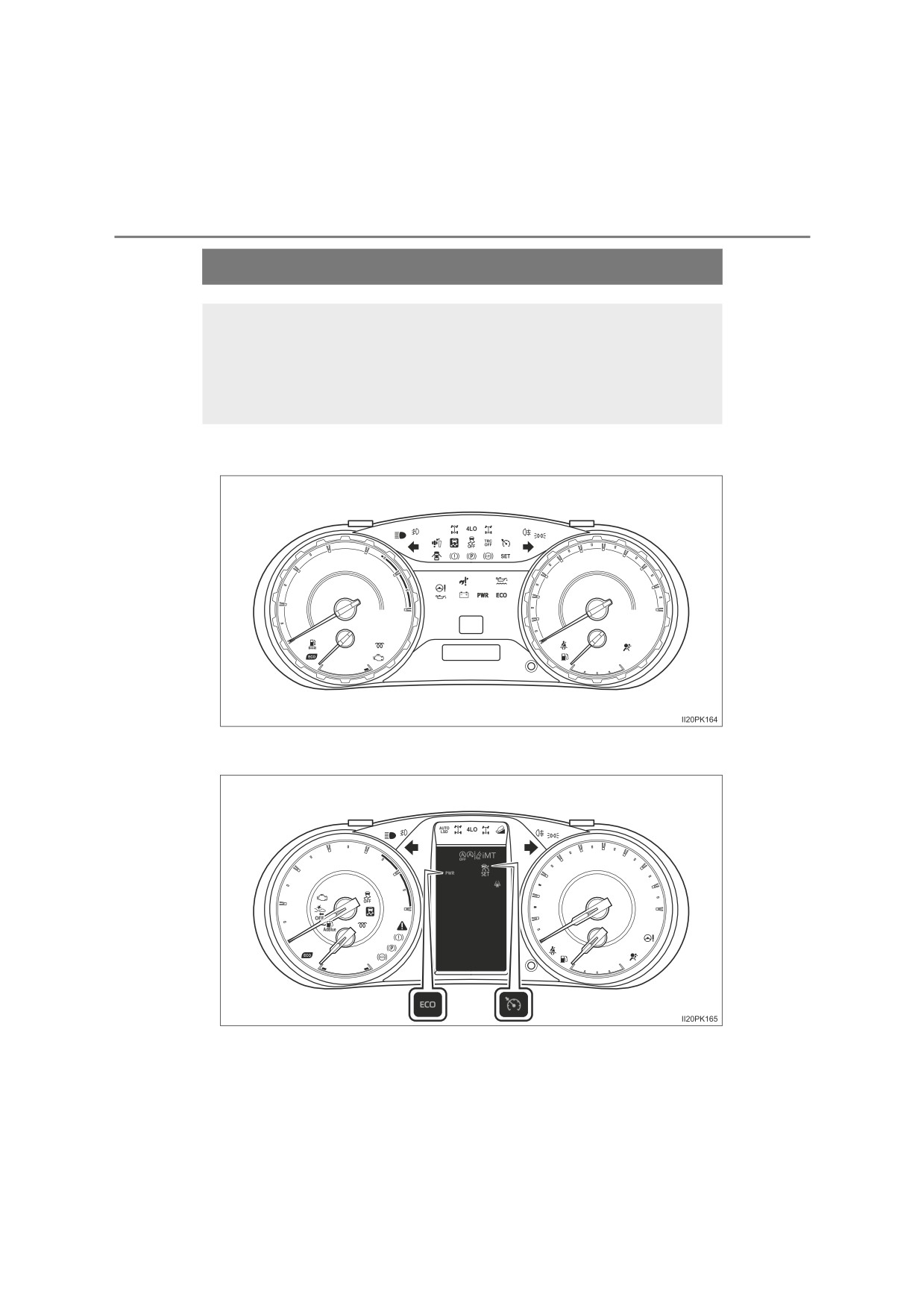

Warning lights and indicators

The warning lights and indicators on the instrument cluster and

center panel inform the driver of the status of the vehicle’s vari-

ous systems.

For the purpose of explanation, the following illustrations dis-

play all warning lights and indicators illuminated.

 Vehicles without multi-information display

 Vehicles with multi-information display

The positions of some warning lights and indicators differ depending on

vehicles.

2. Instrument cluster

123

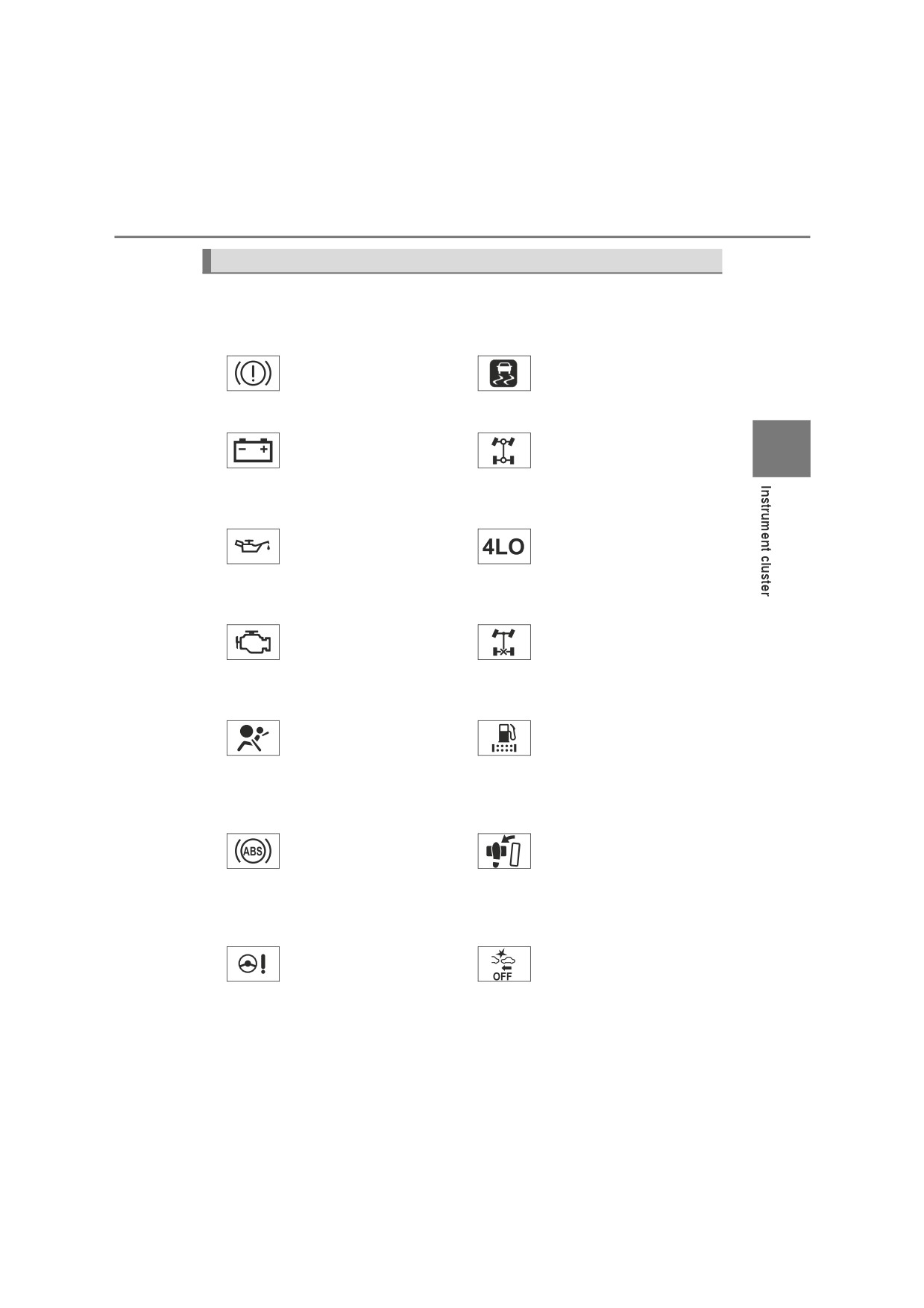

Warning lights

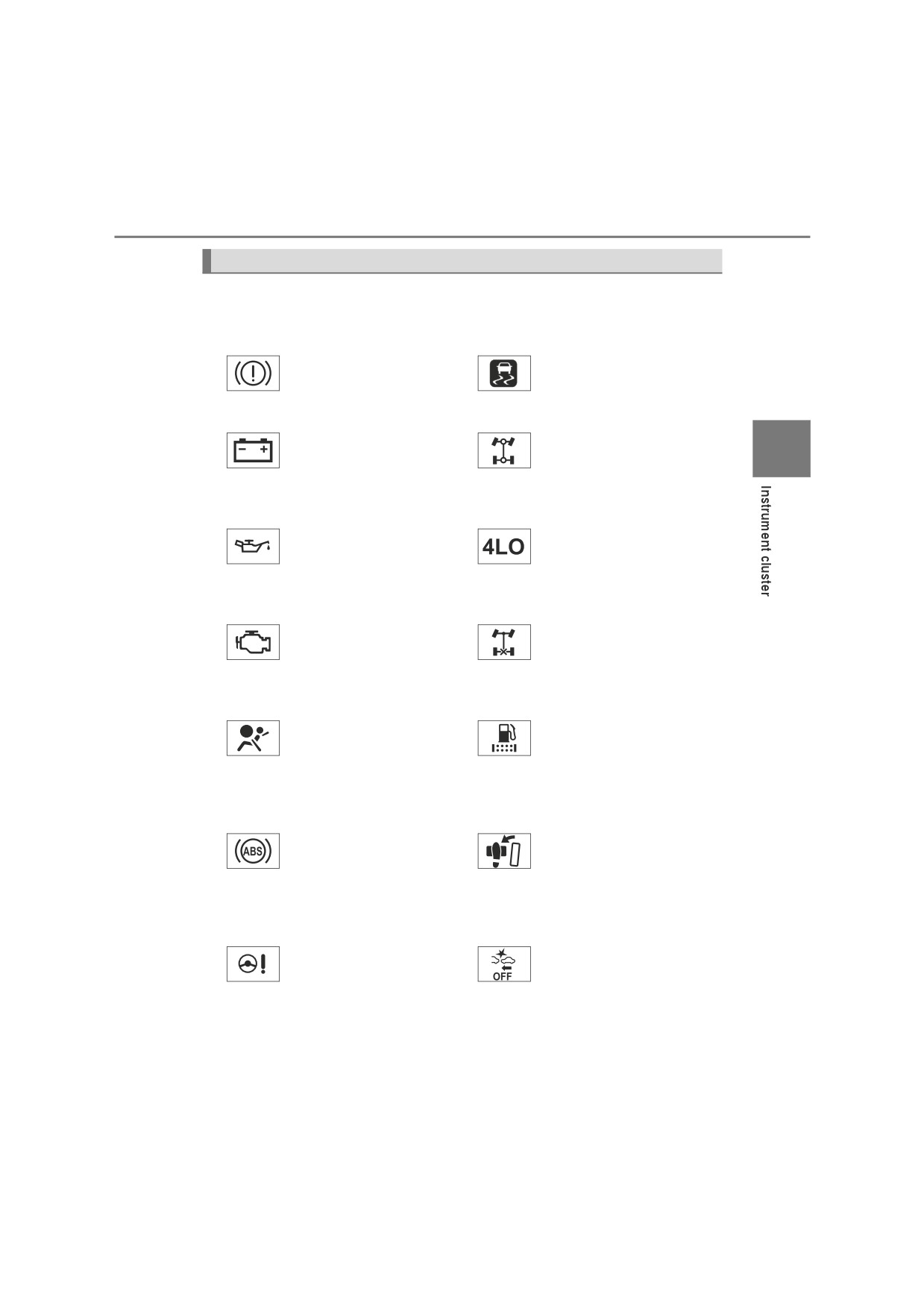

Warning lights inform the driver of malfunctions in the indicated vehi-

cle’s systems.

*1

*1

Brake system warning

Slip indicator (P. 568)

light (P. 566)

(if equipped)

*1, 2

*4

Charging system

Four-wheel drive

2

warning light (P. 566)

indicator light (P. 568)

(if equipped)

(Flashes)

(if equipped)

*1, 2

*4

Low speed four-wheel

Low engine oil pressure

drive indicator light

warning light (P. 566)

(P. 568)

(if equipped)

(Flashes)

(if equipped)

*1, 3

*4

Malfunction indicator

Rear differential lock

lamp (P. 567)

indicator light (P. 568)

(Flashes or

(Flashes)

illuminates)

(if equipped)

*1

*1

SRS warning light

Fuel system warning

(P. 567)

light (P. 569)

(Flashes or

illuminates)

(if equipped)

*1

*1, 2, 5

ABS warning light

Brake Override System

(P. 567)

warning light (P. 569)

(Flashes or

illuminates)

(if equipped)

*1

*1

Power steering system

PCS warning light

warning light (P. 567)

(P. 569)

(if equipped)

(Flashes or

illuminates)

(if equipped)

124

2. Instrument cluster

*1

Low engine oil level

LDA indicator (P. 570)

(Yellow)

warning light (P. 570)

(if equipped)

(if equipped)

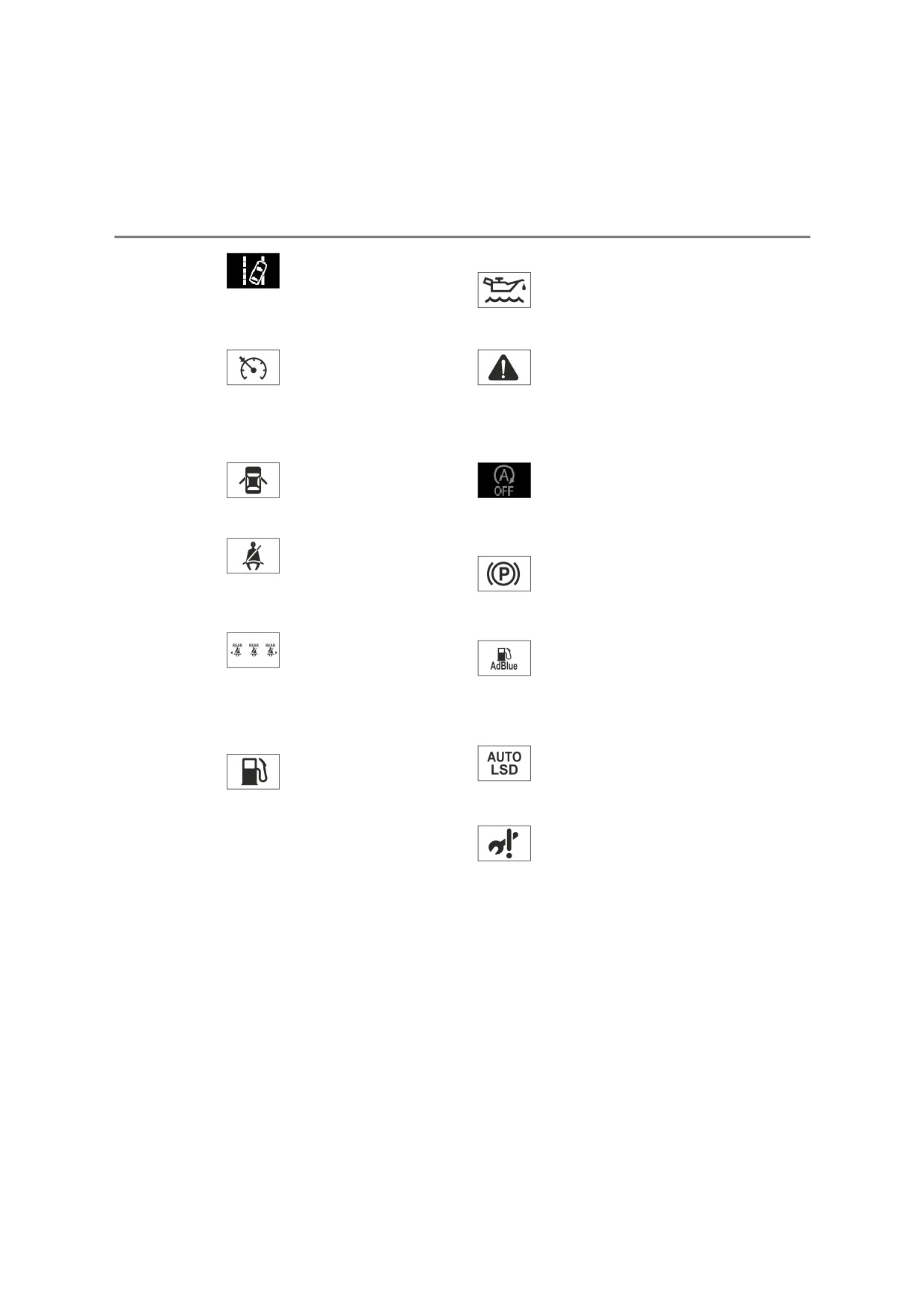

*6

*1

Cruise control indicator

Master warning light

(P. 569)

(P. 570)

(if equipped)

(Flashes or

illuminates)

(if equipped)

*2

*1, 5

Open door warning light

Stop & Start cancel

(P. 570)

indicator (P. 570)

(if equipped)

(Flashes)

(if equipped)

Driver’s and front

Parking brake indicator

passenger’s seat belt

(Flashes or

light (P. 571)

reminder light (P. 570)

illuminates)

*7

Rear passengers’ seat

Low AdBlue™ level

belt reminder lights

warning light (P. 571)

(Flashes or

(P. 570)

(if equipped)

illuminates)

(if equipped)

*1

Low fuel level warning

“AUTO LSD” indicator

light (P. 570)

(P. 571)

(Flashes)

(if equipped)

Go to service warning

light (P. 571)

(if equipped)

¹: These lights turn on when the engine switch is turned to the “ON” position

(vehicles without smart entry & start system) or IGNITION ON mode (vehi-

cles with smart entry & start system) to indicate that a system check is

being performed. They will turn off after the engine is started, or after a few

seconds. There may be a malfunction in a system if a light does not come

on, or if the lights do not turn off. Have the vehicle inspected by any autho-

rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.

^*2: Vehicles with multi-information display: a indicator is displayed on the

multi-information display.

126

2. Instrument cluster

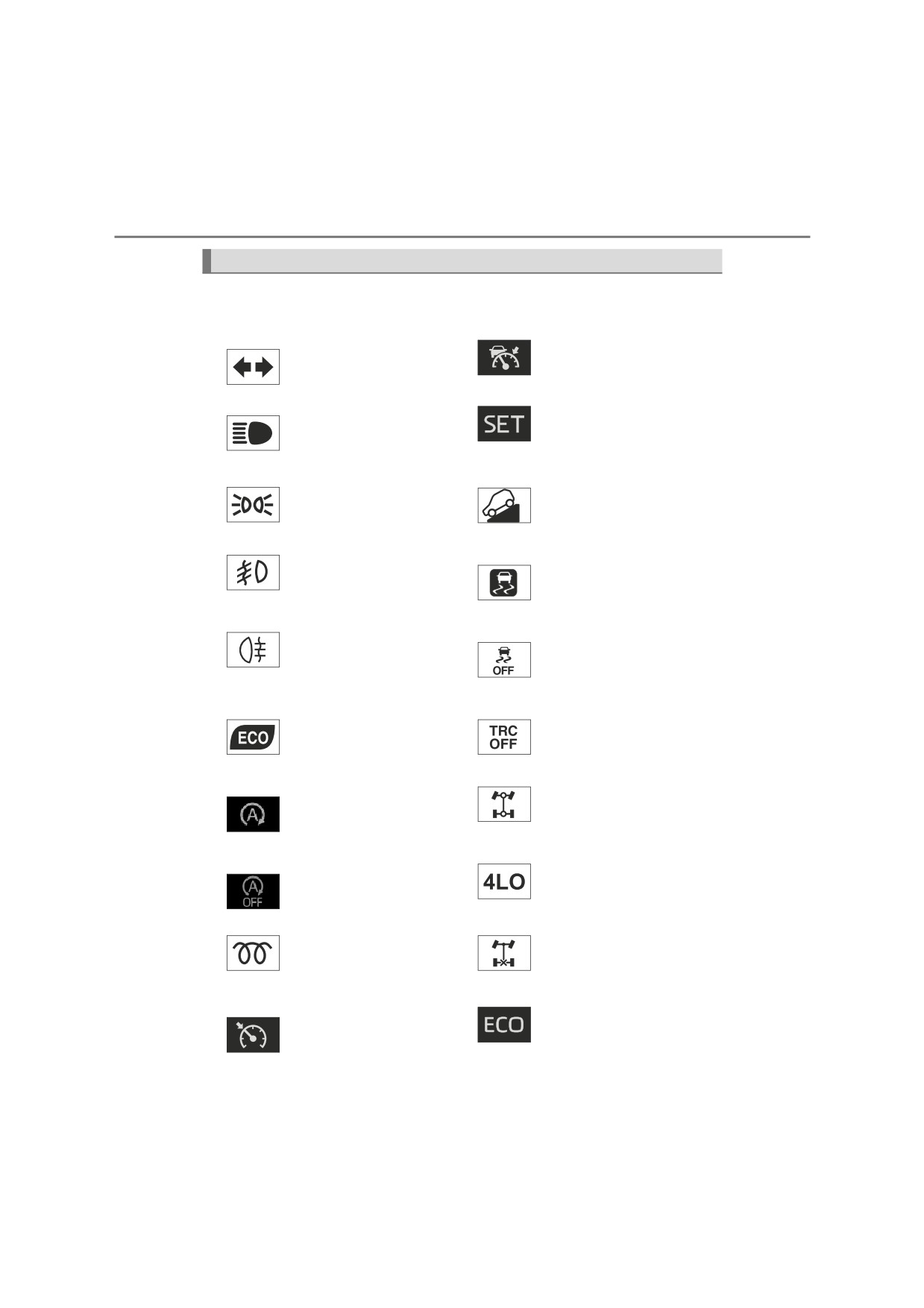

Indicators

The indicators inform the driver of the operating state of the vehicle’s

various systems.

Dynamic radar cruise

Turn signal indicator

control indicator

(P. 246)

(P. 301)

(if equipped)

Headlight high beam

Cruise control “SET”

indicator (P. 250)

indicator (P. 301, 317)

(if equipped)

*1

Downhill assist control

Tail light indicator

system indicator

(P. 248)

(P. 364)

(if equipped)

*1, 3

Front fog light indicator

Slip indicator (P. 356)

(P. 255)

(if equipped)

(if equipped)

*1, 2

Rear fog light indicator

VSC OFF indicator

(P. 256)

(P. 357)

(if equipped)

(if equipped)

*1

*1, 2

Eco Driving Indicator

“TRC OFF” indicator

Light (P. 128)

(P. 357)

(if equipped)

*1

Stop & Start indicator

Four-wheel drive

(P. 345)

indicator (P. 331)

(4WD models)

(if equipped)

*1, 2

Low speed four-wheel

Stop & Start cancel

drive indicator light

indicator (P. 346)

(P. 331)

(4WD models)

(if equipped)

Engine preheating

Rear differential lock

indicator (P. 220, 223)

indicator (P. 341)

(diesel engine)

(if equipped)

*6

Cruise control indicator

“ECO” indicator

(P. 301, 317)

(P. 233, 240)

(if equipped)

(if equipped)

2. Instrument cluster

127

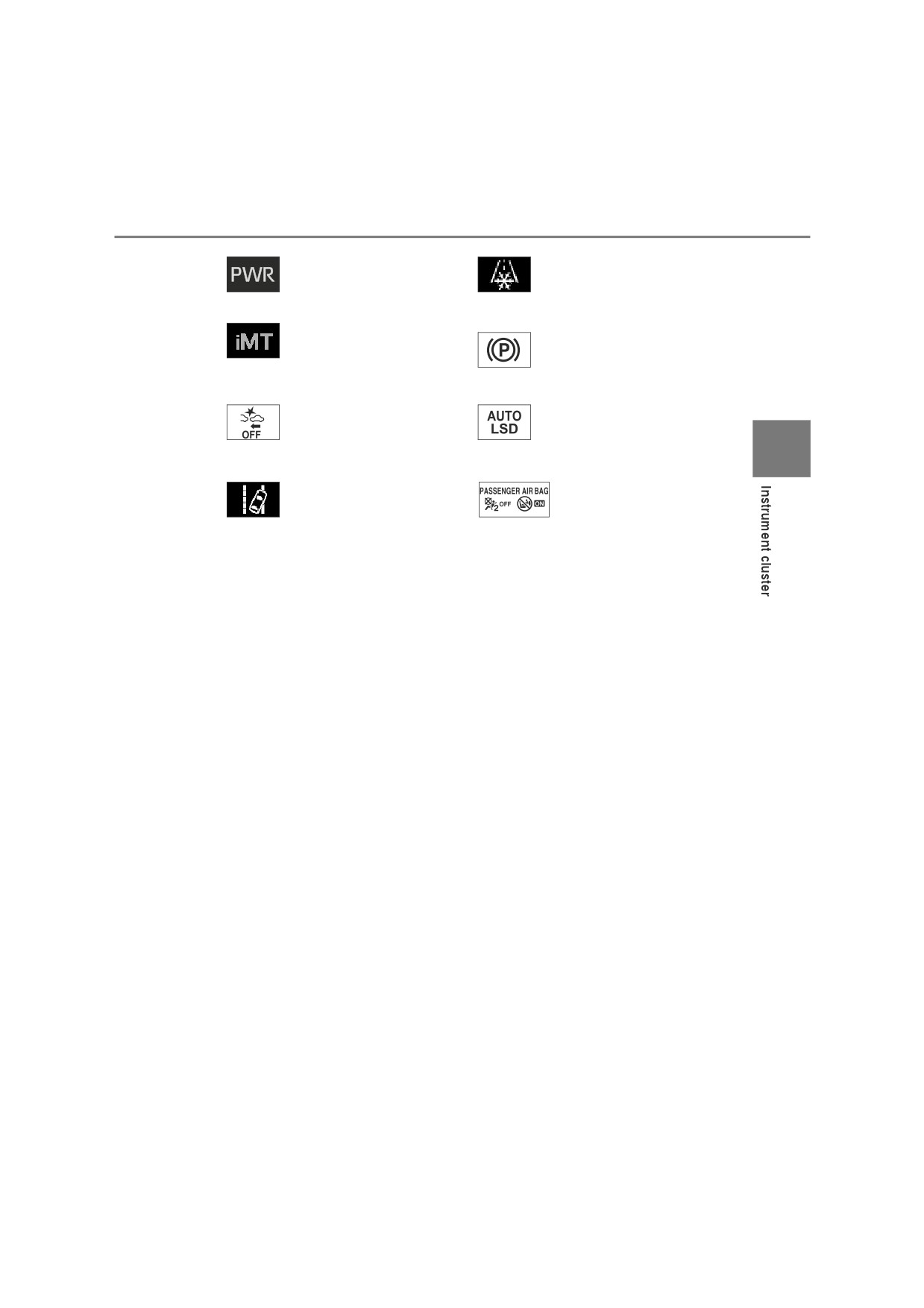

Low outside

“PWR” indicator

temperature indicator

(P. 233, 240)

(if equipped)

(if equipped)

(P. 131)

“iMT” indicator

Parking brake indicator

(P. 241)

light (P. 247)

(if equipped)

*1, 2

*1

PCS warning light

“AUTO LSD” indicator

(P. 273)

(P. 367)

2

(if equipped)

(if equipped)

*4

*1, 5

“PASSENGER AIR

LDA indicator (P. 290)

BAG” indicator

(P. 57, 62)

(if equipped)

(if equipped)

^*1: These lights turn on when the engine switch is turned to the “ON” position

(vehicles without smart entry & start system) or IGNITION ON mode (vehi-

cles with smart entry & start system) to indicate that a system check is

being performed. They will turn off after the engine is started, or after a few

seconds. There may be a malfunction in a system if a light does not come

on, or if the lights do not turn off. Have the vehicle inspected by any autho-

rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.

^*2: The light turns on when the system is turned off.

^*3: The light flashes to indicate that the system is operating.

^*4: Depending on the operating condition, the color and illuminating/flashing

state of the light change.

^*5: The light illuminates on the center panel.

^*6: The light turns to green.

128

2. Instrument cluster

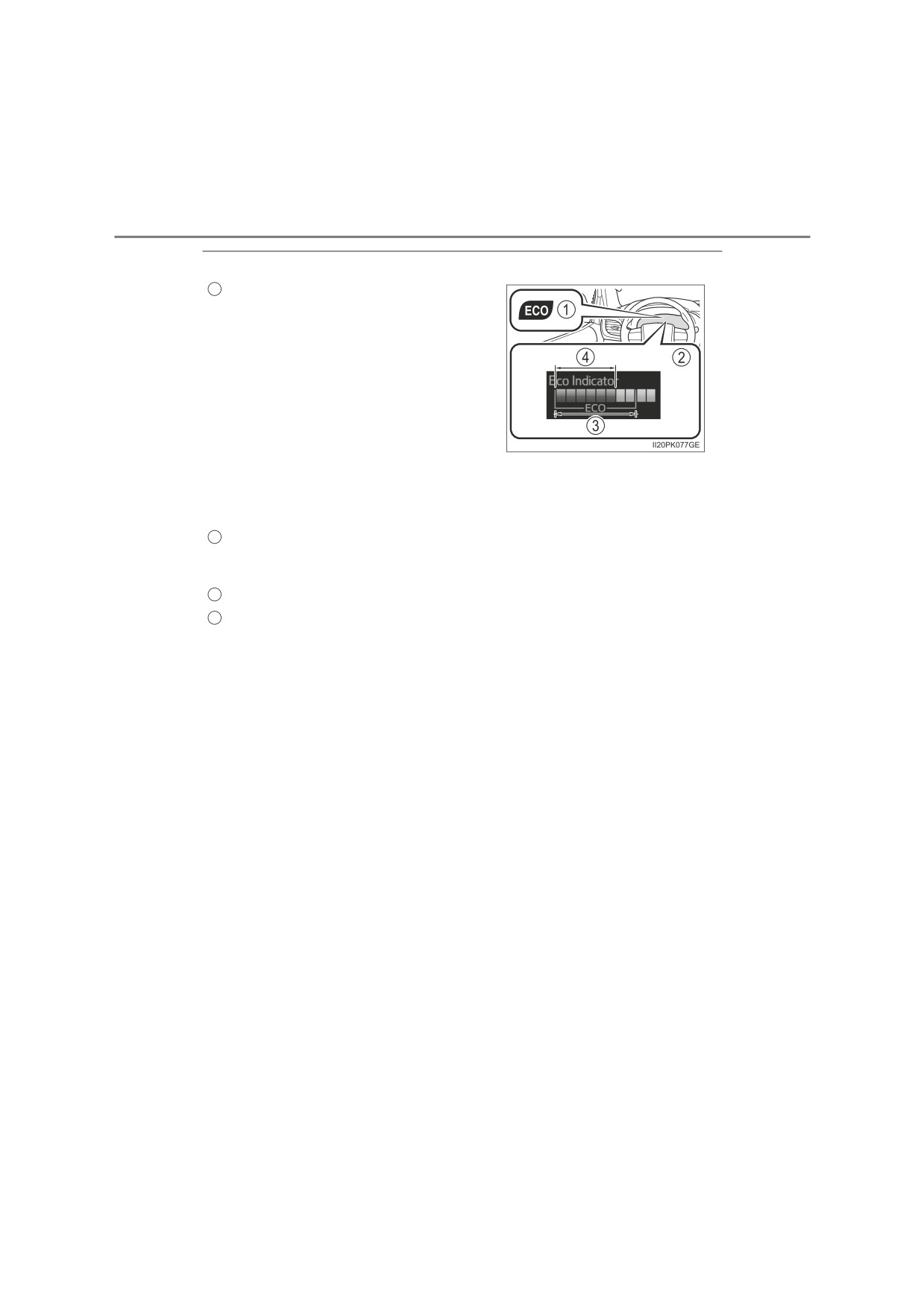

QEco Driving Indicator

Eco Driving Indicator Light

1

Vehicles with automatic transmission:

During Eco-friendly acceleration

(Eco

driving), Eco Driving Indicator Light will

turn on. When the accelerator pedal is

depressed excessively, or when the

vehicle is stopped, the light turns off.

Vehicles with manual transmission:

During Eco-friendly acceleration or in

Eco-friendly shift position (Eco driving),

Eco Driving Indicator Light will turn on.

When the accelerator pedal is

depressed excessively, or when the

vehicle is stopped, the light turns off.

2

Eco Driving Indicator Zone Display (if equipped)

Suggests Zone of Eco driving with current Eco driving ratio based on accel-

eration.

3

Zone of Eco driving

4

Eco driving ratio based on acceleration

If the vehicle exceeds Zone of Eco driving, the right side of Eco Driving Indi-

cator Zone Display will illuminate.

Eco Driving Indicator Light and Eco Driving Indicator Zone Display will not

operate in the following conditions:

O The shift lever is in anything other than D. (vehicles with automatic transmis-

sion)

O The shift lever is in R. (vehicles with manual transmission)

O A paddle shift switch is operated. (vehicles with paddle shift switches)

O The vehicle is in the power mode. (if equipped) (P. 233, 240)

O Downhill assist control system is operating. (if equipped) (P. 364)

O Front-wheel drive control switch is in L4. (if equipped) (P. 331)

O The vehicle speed is approximately 130 km/h (81 mph) or higher.

2. Instrument cluster

129

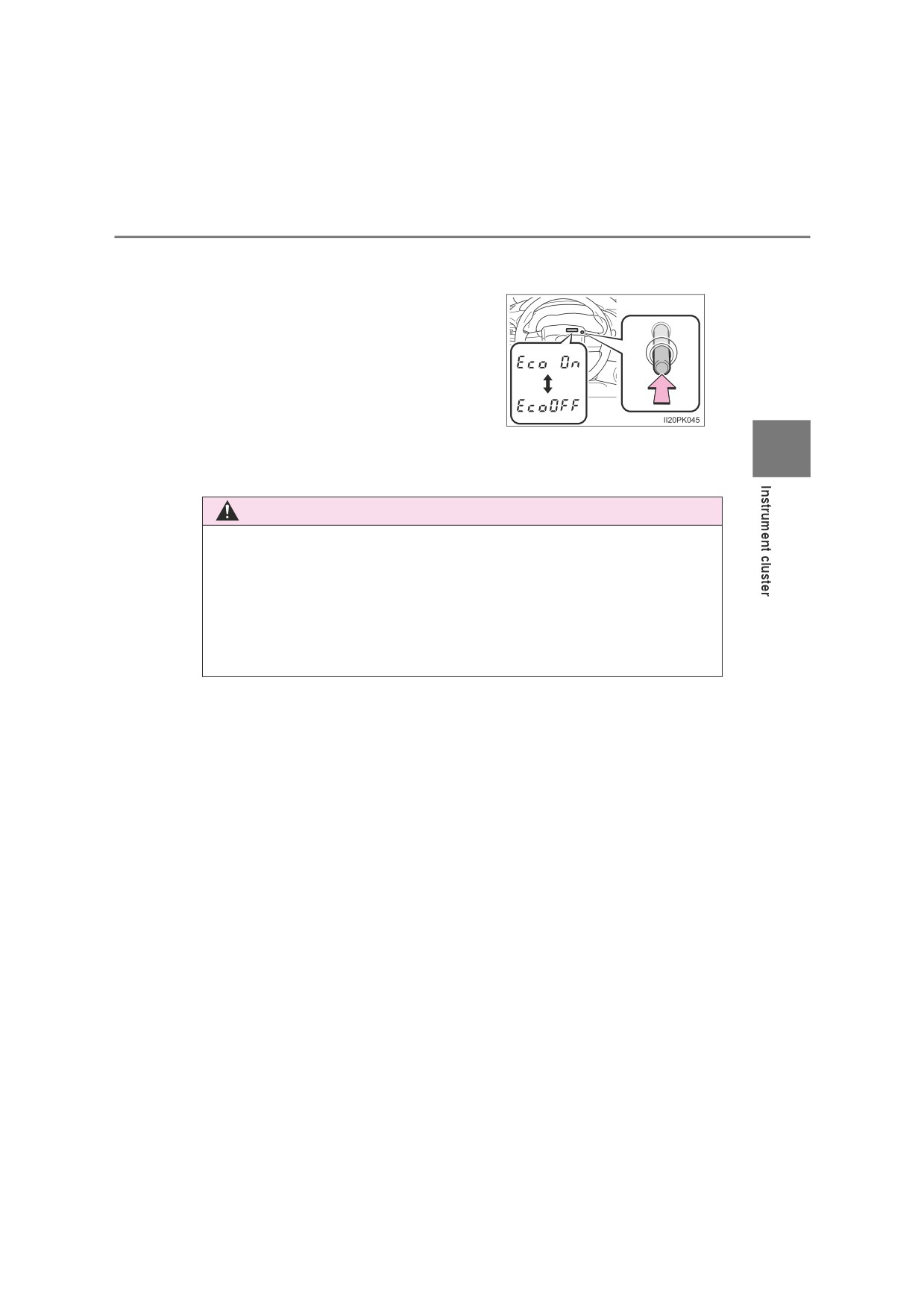

Eco Driving Indicator Light can be activated or deactivated.

Vehicles without multi-information display:

While the odometer is being displayed,

press and hold the odometer/trip meter

display change button to display the Eco

Driving Indicator Light customization

screen.

Press the odometer/trip meter display

change button to set Eco Driving Indicator

Light to on or off.

Press and hold the odometer/trip meter display change button

for more than

2

2 seconds to complete the setting.

Vehicles with multi-information display:P. 647

WARNING

Q If a safety system warning light does not come on

Should a safety system light such as ABS and the SRS warning light not

come on when you start the engine, this could mean that these systems are

not available to help protect you in an accident, which could result in death

or serious injury. Have the vehicle inspected by any authorized Toyota

retailer or Toyota authorized repairer, or any reliable repairer immediately if

this occurs.

130

2. Instrument cluster

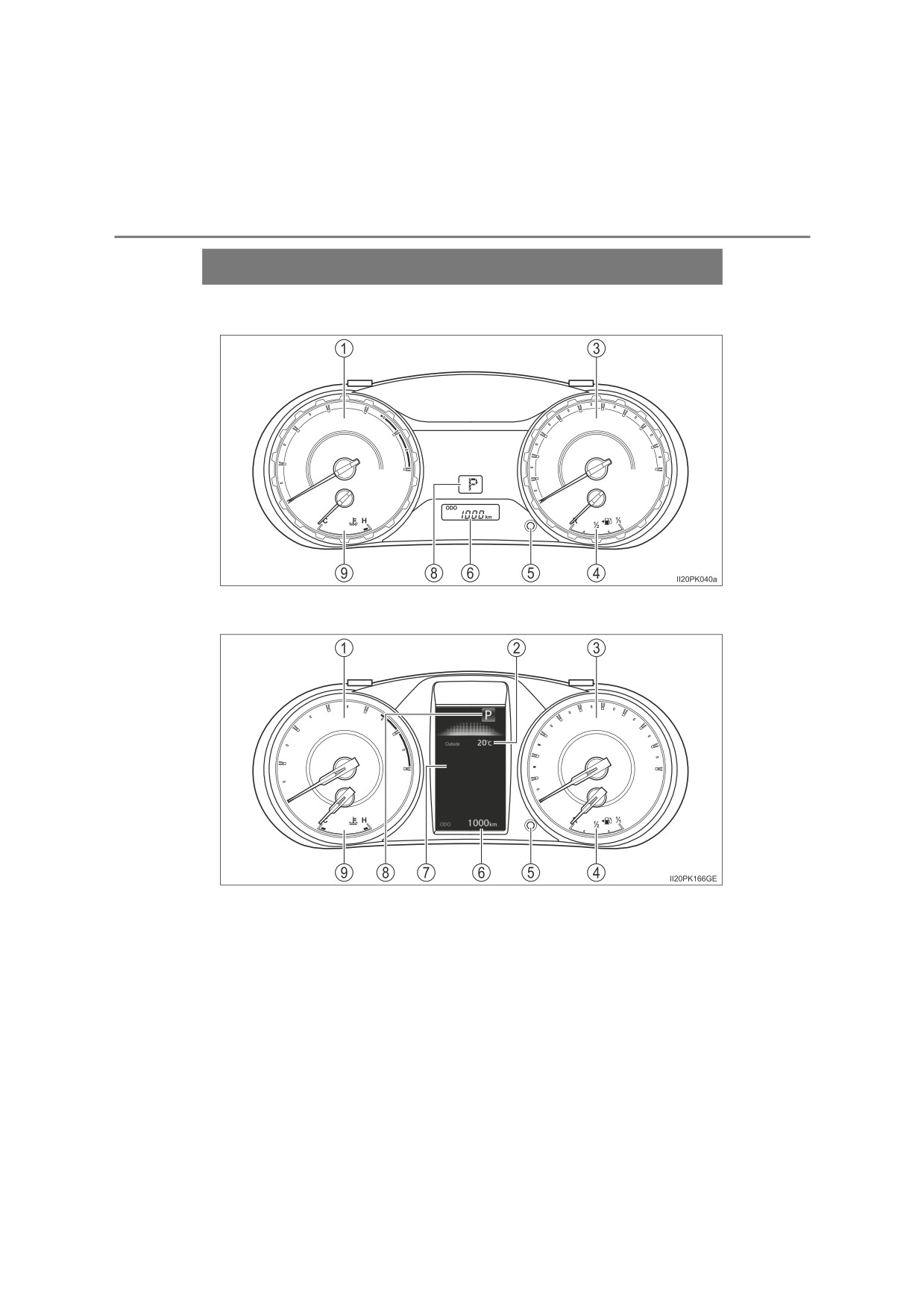

Gauges and meters

 Vehicles without multi-information display

 Vehicles with multi-information display

The units used on the speedometer may differ depending on the target

region, and the positions of the outside temperature and shift position indi-

cators differ depending on vehicles.

132

2. Instrument cluster

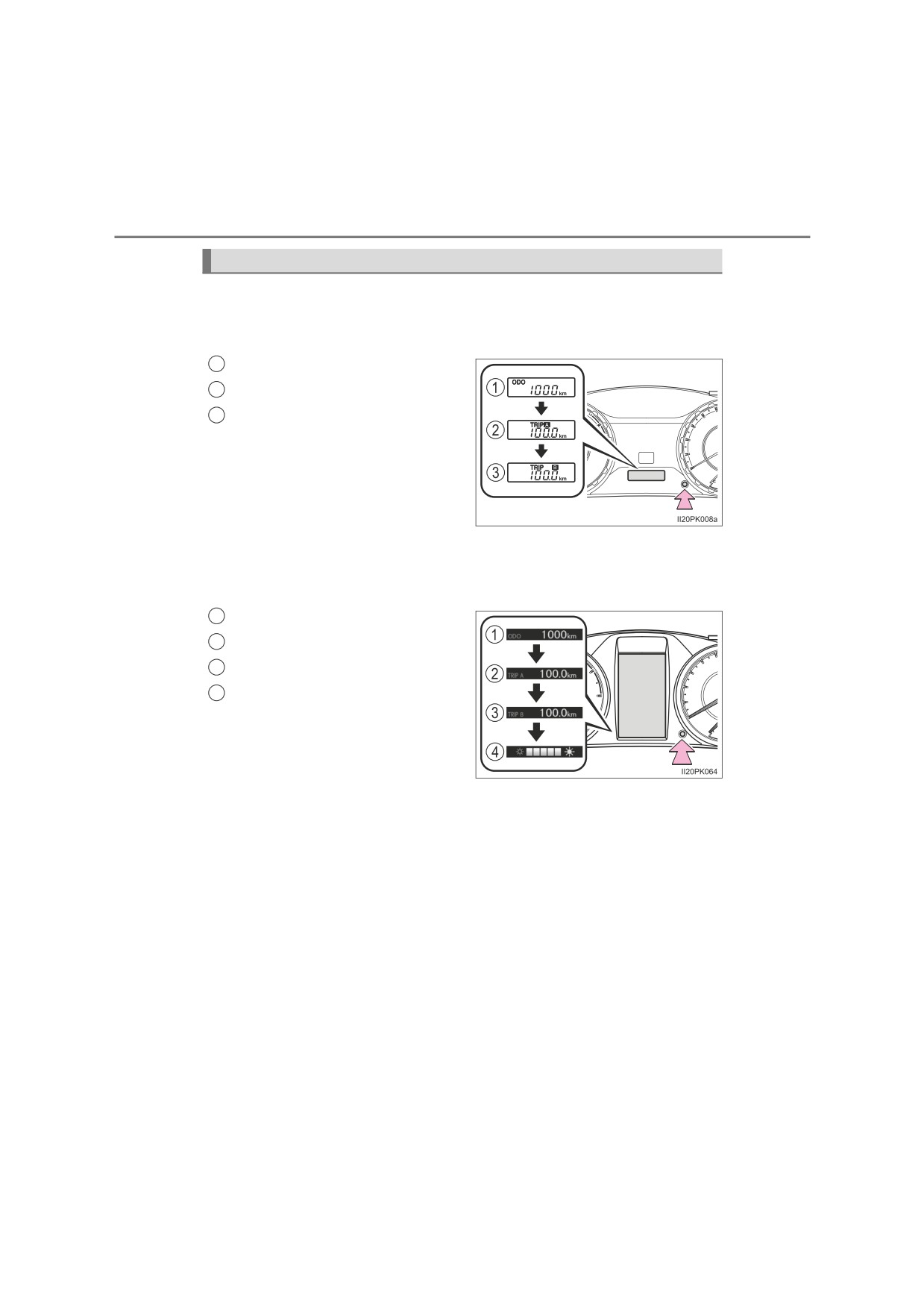

Changing the display

 Vehicles without multi-information display

Pressing this button switches between odometer and trip meter dis-

plays.

1

Odometer

2

Trip meter A*

3

Trip meter B*

*: Pressing and holding the button

will reset the trip meter.

 Vehicles with multi-information display

Pressing this button switches among odometer, trip meter and instru-

ment panel light control displays.

1

Odometer

2

Trip meter A*¹

3

Trip meter B*¹

4

Instrument panel light control

display*²

^*1: Pressing and holding the button

will reset the trip meter.

^*2: Pressing and holding the button

will adjust brightness of the instru-

ment panel lights.

2. Instrument cluster

135

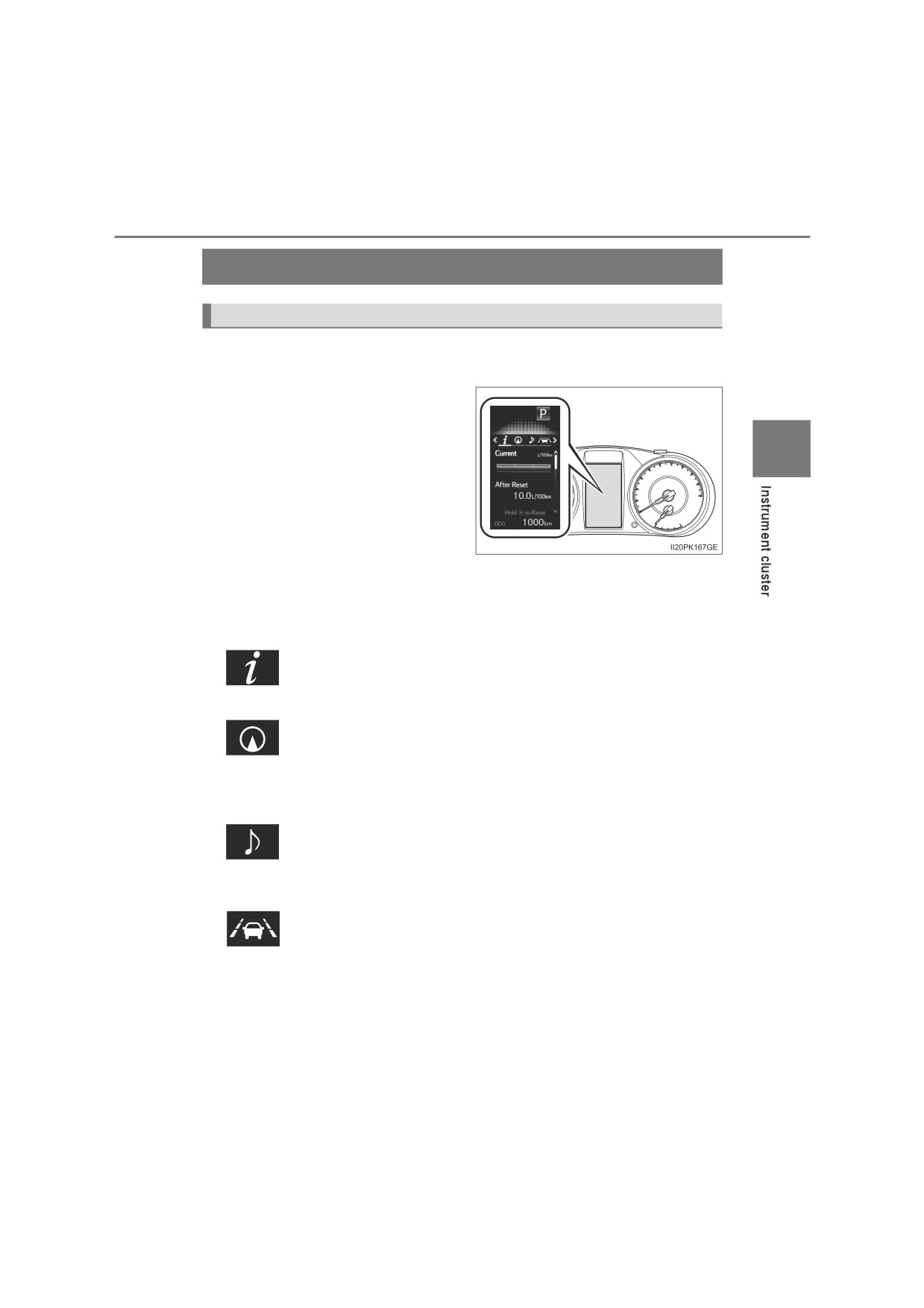

Multi-information display^

Display contents

The multi-information display presents the driver with a variety of vehi-

cle data.

The following information will be

displayed when a menu icon is

selected.

2

Menu icons are displayed for a

few seconds when the meter con-

trol switches (P. 136) are oper-

ated.

On the area, normally the outside

temperature is displayed.

(P. 130)

Some of the information may be displayed automatically depending

on the situation.

Drive information

Select to display various drive data. (P. 137)

Navigation system-linked display (if equipped)

Select to display the following navigation system-linked information.

• Route guidance

• Compass display

Audio system-linked display (if equipped)

Select to enable selection of an audio source or track on the meter

using the meter control switches.

Driving support system information (if equipped)

Select to display the operational status of the following systems:

• LDA (Lane Departure Alert With Yaw Assist Function) (P. 284)

• RSA (Road Sign Assist) (P. 295)

• Dynamic radar cruise control (P. 301)

: If equipped

136

2. Instrument cluster

Warning message display

Select to display warning messages and measures to be taken if a

malfunction is detected. (P. 575)

Settings display

Select to change the meter display settings. (P. 647)

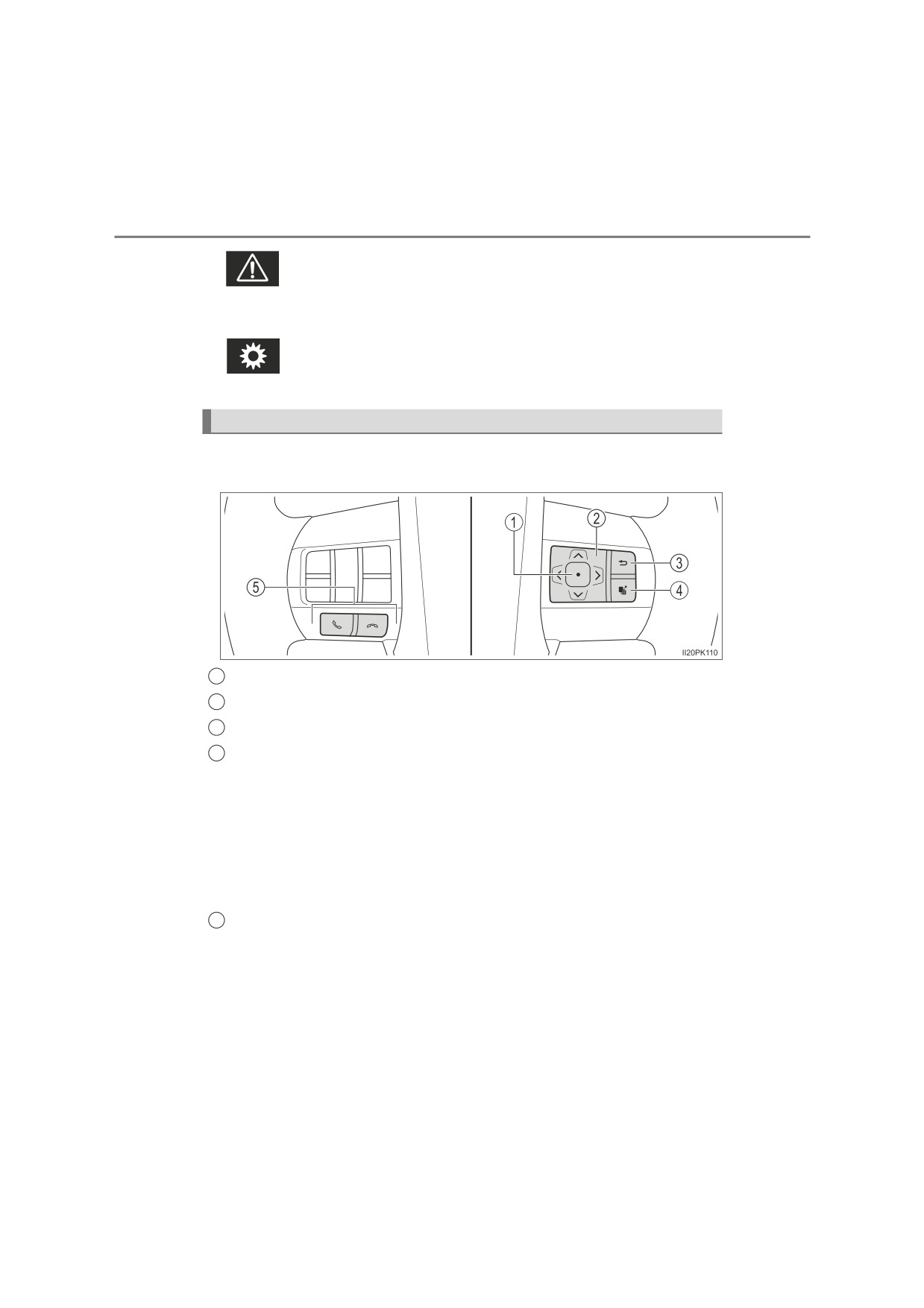

Operating the meter control switches

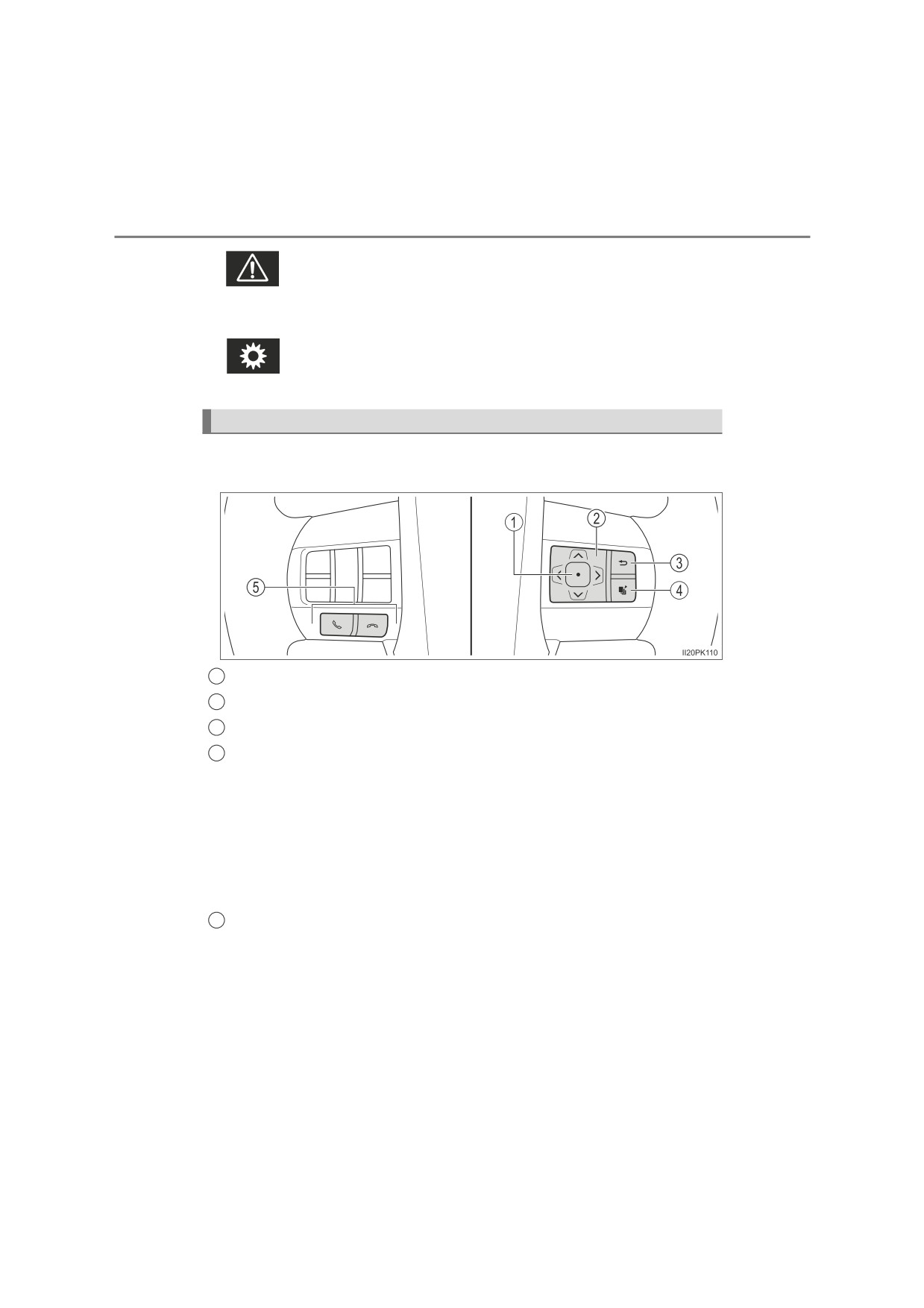

The multi-information display is operated using the meter control

switches.

1

Enter/Set

2

Select an item/Change pages

3

Return to the previous screen

4

Press: Displays the screen registered as the top screen

When no screen has been registered, the drive information screen will be

displayed.

Press and hold: Registers the currently displayed screen as the top

screen

When the confirmation screen is displayed, select yes to register the

screen. If the selected screen cannot be registered, a registration failure

message will be shown.

Incoming call display (if equipped)

5

Linked with the hands-free system, incoming call is displayed. For details

regarding the hands-free system, refer to “Navigation and multimedia sys-

tem Owner’s manual” or “Multimedia Owner’s Manual”.

2. Instrument cluster

137

Drive information

Items displayed can be switched by pressing “<” or “>” of the meter

control switches to select

and pressing “” or “”.

Q Drive information 1 and 2

O Current fuel economy (bar type/value type)*^{1, 2}

Displays the current rate of fuel consumption.

O Average fuel economy (after reset*³/after start/after refuel)*^{1, 2}

Displays the average fuel consumption since the function was

2

reset, the engine was started and the vehicle was refueled

respectively.

O Average speed (after reset*³/after start)*¹

Displays the average vehicle speed since function was reset and

the engine was started respectively.

O Elapsed time (after reset*³/after start)*¹

Displays the elapsed time since the function was reset and the

engine was started respectively.

O Distance (range/after start)*¹

Displays the estimated maximum distance that can be driven

with the quantity of fuel remaining and the distance driven after

the engine was started respectively.

• This distance is computed based on your average fuel con-

sumption. As a result, the actual distance that can be driven

may differ from that displayed.

• When only a small amount of fuel is added to the tank, the dis-

play may not be updated.

When refueling, turn the engine switch off. If the vehicle is

refueled without turning the engine switch off, the display may

not be updated.

¹: Can be registered to drive information 1 and 2. (P. 139)

^*2: Use the displayed fuel consumption as a reference.

^*3: Resetting procedures:

• Select a function to be reset using the meter control switches and

then press and hold

to reset.

• If there is more than one function that can be reset, check boxes will

be displayed next to those functions.

2. Instrument cluster

141

O Eco Saving

Select to set or change the fuel consumption comparison and

fuel price.

O Initialization

Registered or changed meter settings will be deleted or returned

to their default setting.

QPop-up display

The pop-up display is displayed on the multi-information display according to

2

the operating conditions of the following functions:

O Route guidance display of the navigation system-linked system (if equipped)

OIncoming call display of the hands-free phone system (if equipped)

O Stop & Start system operation time (if equipped)

O Stop & Start system operation status (if equipped)

The pop-up display function can be set on/off. (P. 647)

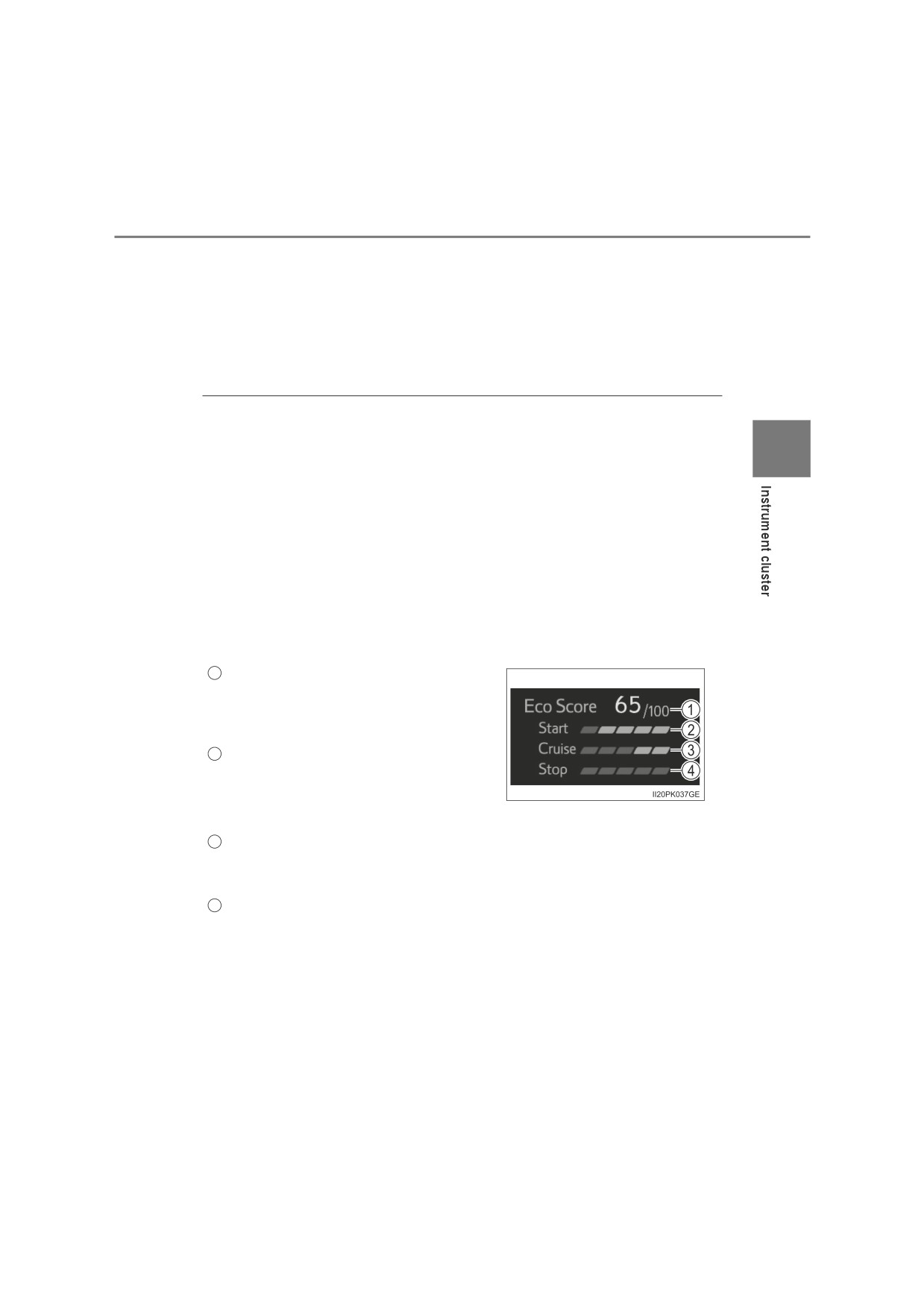

QEco Score

Driving conditions are displayed in 5 stages and divided into 3 categories:

start, cruise and stop. Every time the vehicle is stopped, the score is dis-

played. (Every time the vehicle is accelerated the score that was last dis-

played is reset. Accumulative scores are not calculated.)

1

Eco Score

Totals the counts of the eco start, eco

cruise and eco stop, and displays the

result.

2

Eco start

Displays the eco level calculated from

degree of acceleration when starting

the vehicle

3

Eco cruise

Displays the eco level calculated from acceleration operation amount when

driving the vehicle

4

Eco stop

Displays the eco level calculated from time between releasing the accelera-

tor pedal and vehicle stop

142

2. Instrument cluster

If the accelerator pedal is not depressed, such as when the vehicle is driven

using cruise control

(if equipped) or dynamic radar cruise control

(if

equipped), the driven distance is not included in the Eco Score.

The Eco Score evaluation differs depending on the driving conditions and

environmental factors. The Eco Score may not be linked to fuel consumption.

The Eco Score will not operate in the following conditions:

O The vehicle speed is approximately 130 km/h (80 mph) or higher.

O The shift lever is in a position other than D. (vehicles with automatic trans-

mission)

O A paddle shift switch is operated. (vehicles with paddle shift switches)

O Front-wheel drive control switch is in L4. (if equipped)

ODownhill assist control system is operating. (if equipped)

O The vehicle is in the power mode. (if equipped)

QEco Saving

Displays the fuel consumption comparison, the average fuel consumption

after reset, and the cost of the consumed fuel.

Fuel consumption comparison

1

Displays the set fuel consumption that

is compared with the actual fuel con-

sumption.

Average fuel consumption after reset

2

Displays the average fuel consumption

since the function was reset.

• The function can be reset by pressing

more than 1 second when the

average fuel consumption after reset is displayed

• Use the average fuel consumption as a reference

3

Savings/fuel cost

Displays the possible savings if the fuel consumption comparison is set,

and displays the actual fuel cost if the fuel consumption comparison is not

set.

Use the displayed fuel cost and savings as a reference. Depending on refuel-

ing methods, driving conditions and environmental factors, the displayed fuel

cost may differ from the actual fuel cost, and in some cases, the fuel cost and

savings may not be linked to the Eco Score evaluation.

QEco Saving setting

The fuel price and fuel consumption comparison settings can be set in the

settings display. Use the meter control switches to select

while the vehicle

is stopped and press

, and select “Eco Saving” and press

2. Instrument cluster

143

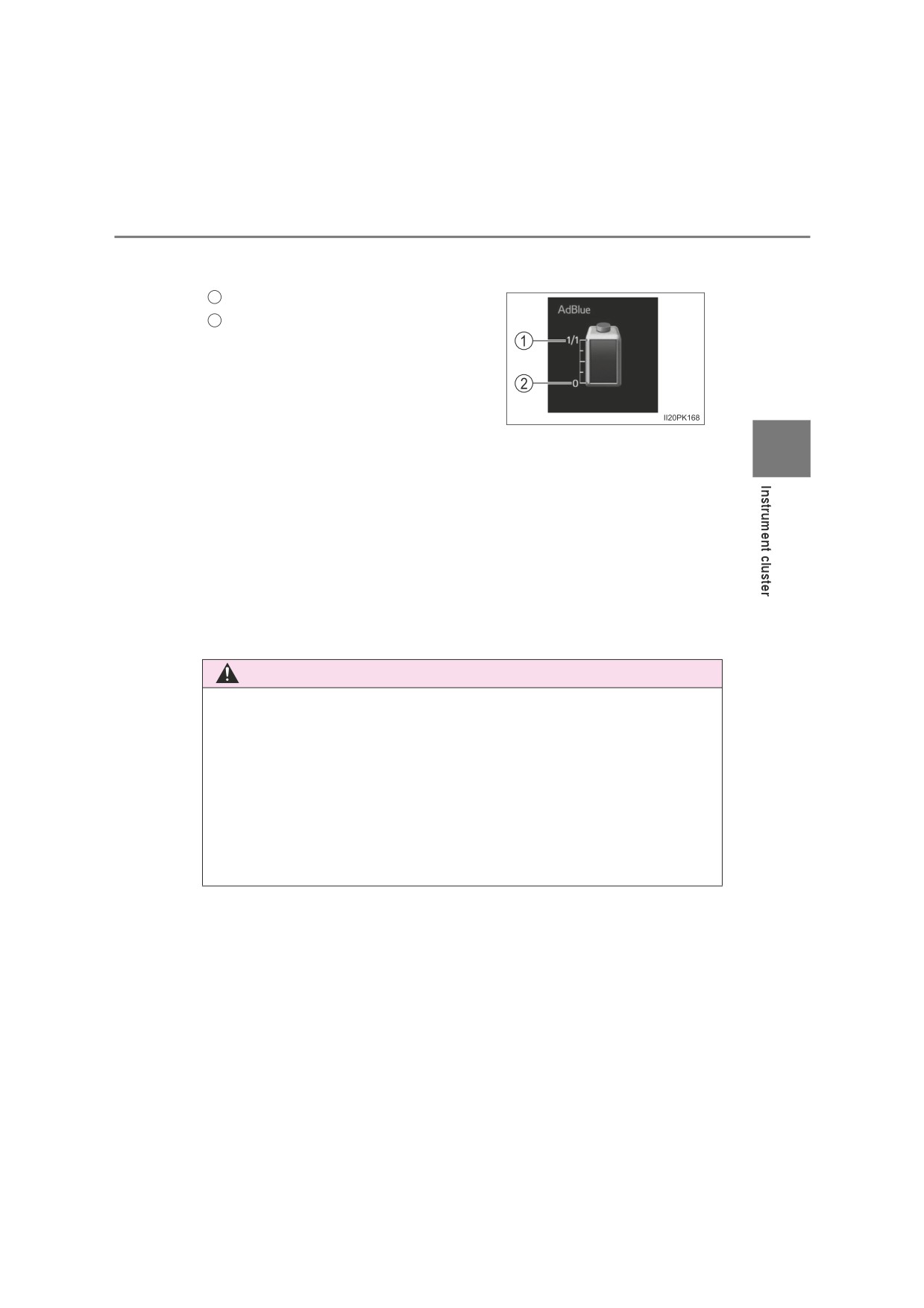

Q AdBlue™ gauge (if equipped)

Displays the quantity of AdBlue™ remaining in the tank.

1

Full

2

Empty

Q Setting display automatic cancelation

2

In the following situations, setting display in which the settings can be

changed through the meter control switches will automatically be turned off.

OIf a warning message appears while the setting display is displayed

O When the vehicle begins to move while the setting display is displayed

Q When disconnecting and reconnecting battery terminals

The drive information data and settings will be reset.

Q Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is

characteristic of liquid crystal displays, and there is no problem continuing to

use the display.

WARNING

Q Caution for use while driving

O When operating the multi-information display while driving, pay extra

attention to the safety of the area around the vehicle.

ODo not look continuously at the multi-information display while driving as

you may fail to see pedestrians, objects on the road, etc. ahead of the

vehicle.

Q Eco Score

Use the Eco Score as a reference. Always drive safely in accordance with

road and traffic conditions.

144

2. Instrument cluster

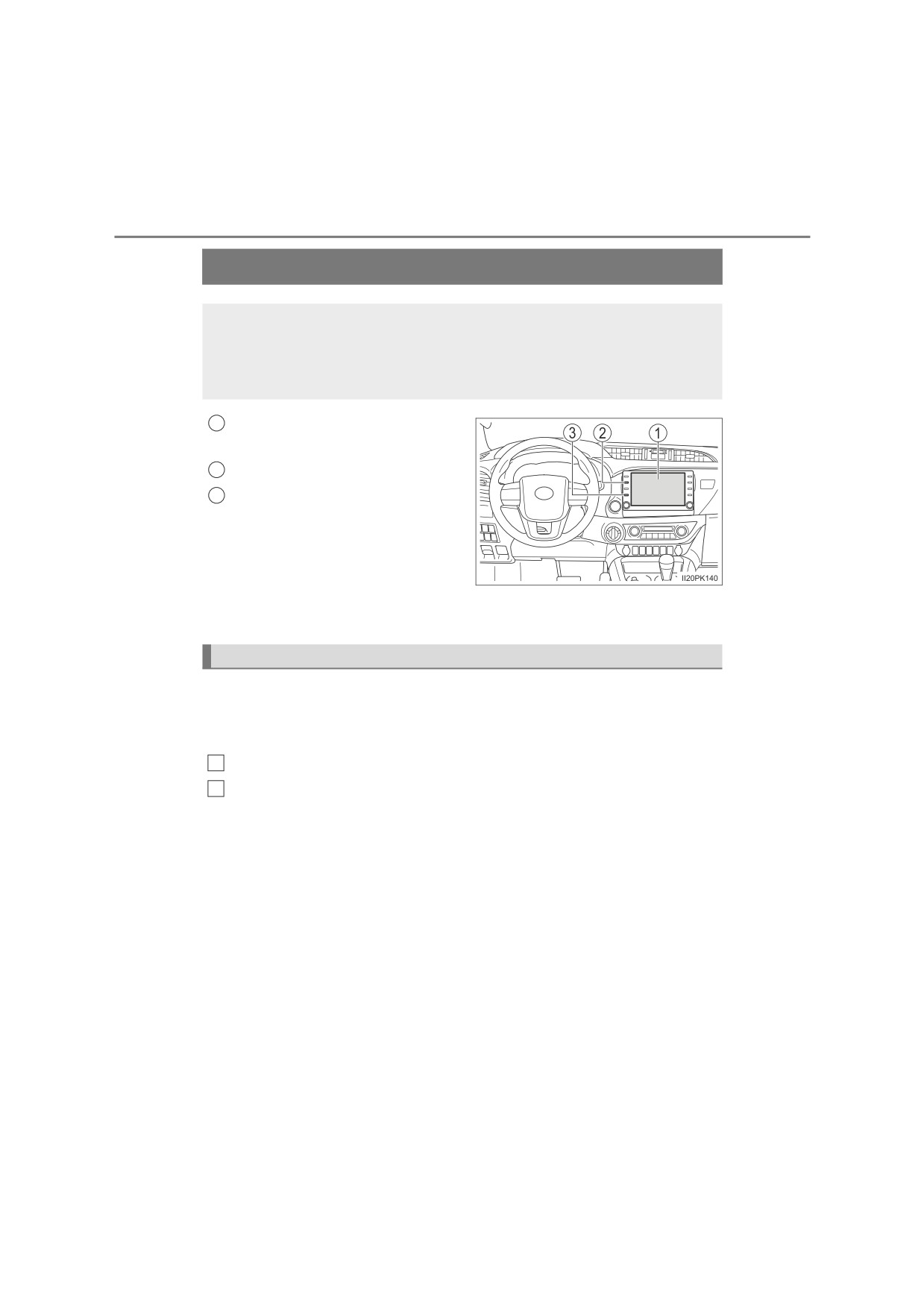

Fuel consumption information^

The fuel consumption information can be displayed on the navi-

gation system or multimedia system type A* screen.

*: See “How to identify multimedia system type” to check the type of your

multimedia system. (P. 146)

1

Navigation system or multime-

dia system screen

2

“MENU” button

3

“INFO” button (if equipped)

This illustration is for a left-hand drive vehicle. These button positions

are reversed for right-hand drive vehicles.

Displaying trip information or history screen

 When using “INFO” button

Press the “INFO” button.

 When using “MENU” button

1

Press the “MENU” button.

2

Select “Info” on the “Menu” screen.

: If equipped

2. Instrument cluster

145

Fuel consumption

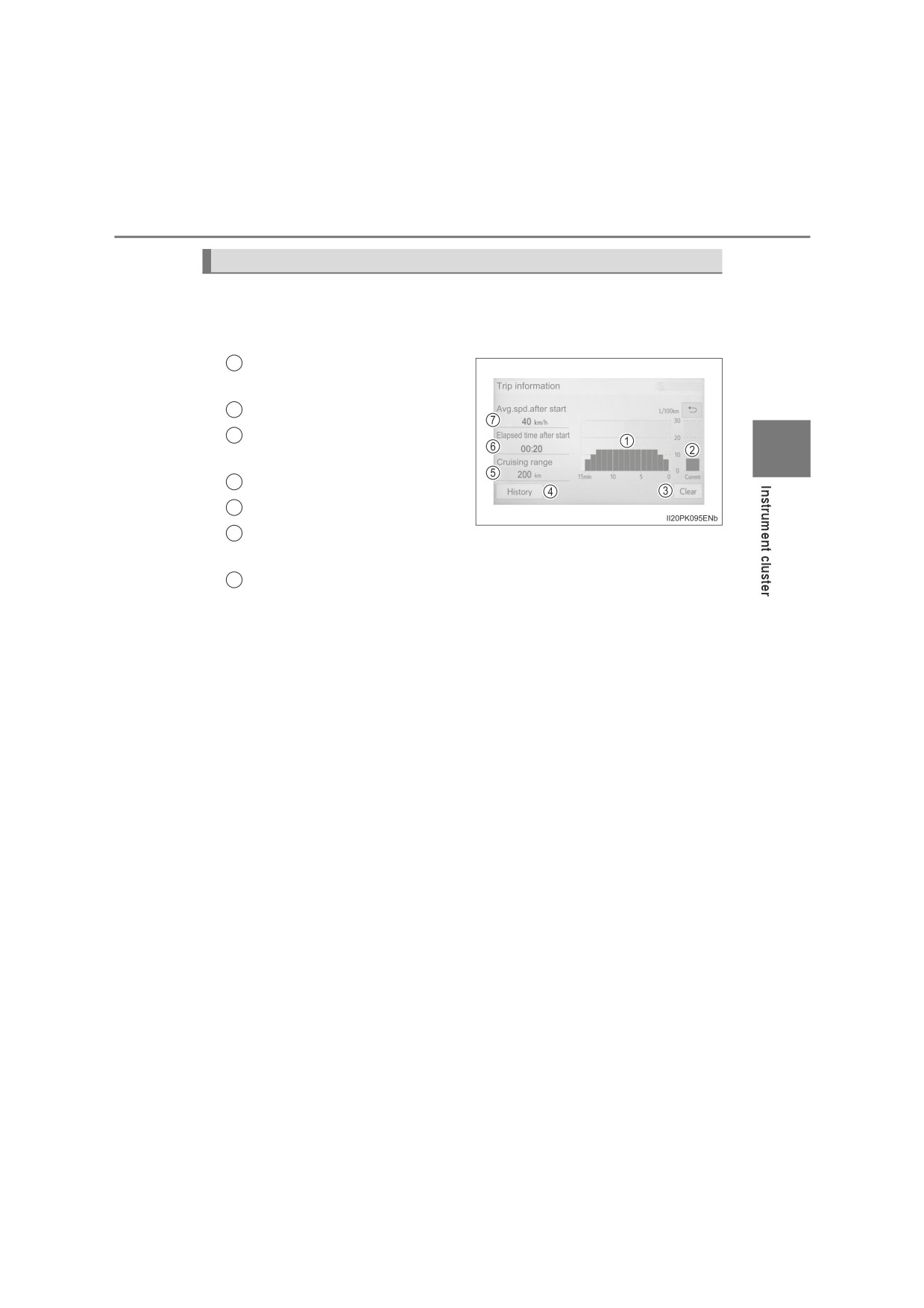

Q Trip information

If the trip information screen does not appear, select “Trip Informa-

tion”.

1

Fuel consumption in the past

15 minutes

2

Current fuel consumption

3

Reset the trip information

2

data

4

“History” screen appears

5

Cruising range

6

Elapsed time since the

engine was started

Average vehicle speed since the engine was started

7

Average fuel consumption for the past 15 minutes is divided by

color into past averages and averages attained since the engine

switch was last turned to the “ON” position (vehicles without smart

entry & start system) or IGNITION ON mode (vehicles with smart

entry & start system). Use the displayed average fuel consumption

as a reference.

These images are examples only, and may vary slightly from actual

conditions.

146

2. Instrument cluster

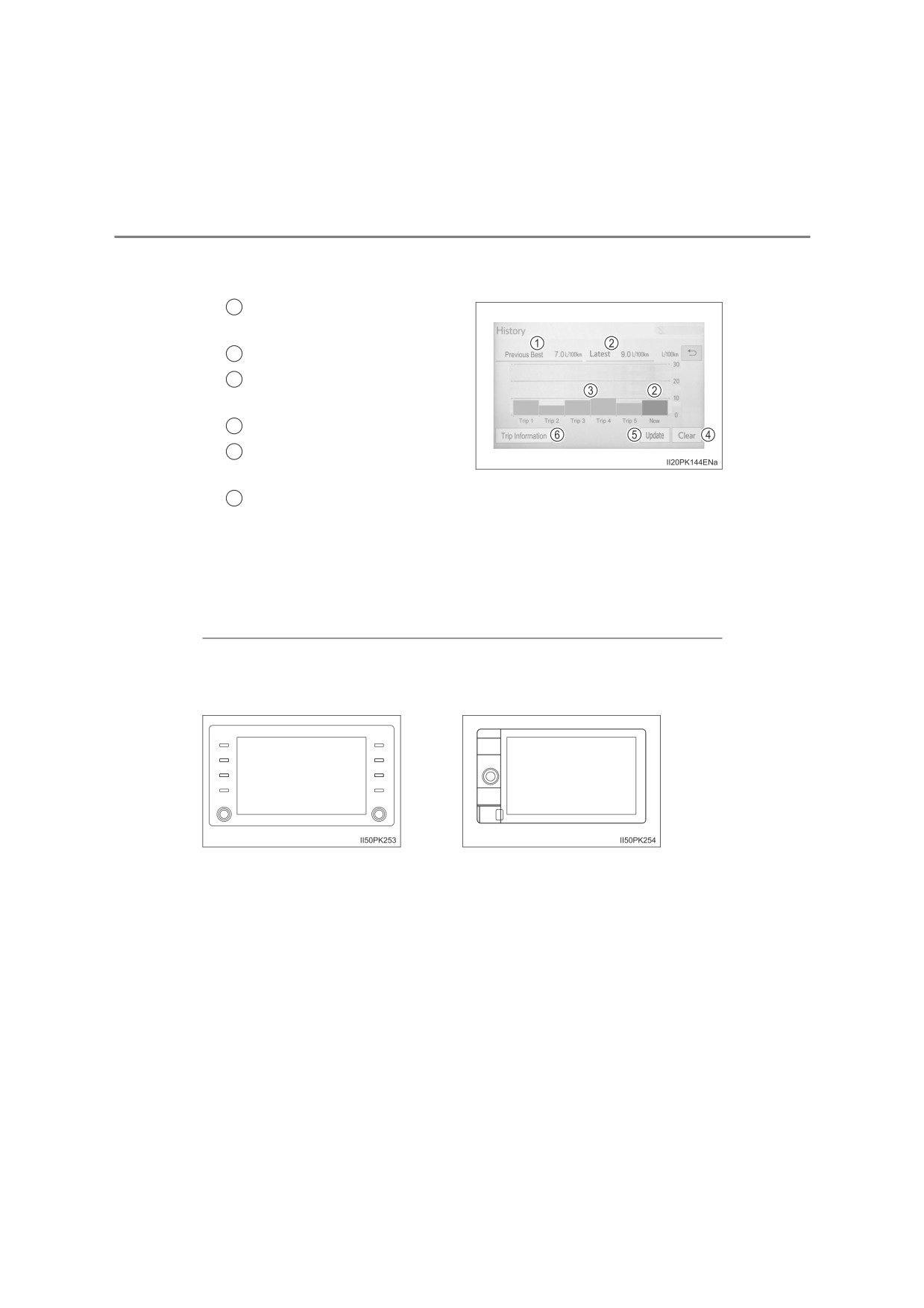

Q History

If the history screen does not appear, select “History”.

1

Best recorded fuel consump-

tion

2

Latest fuel consumption

3

Previous fuel consumption

record

4

Reset the history data

5

Update the latest fuel con-

sumption data

“Trip Information” screen appears

6

The average fuel consumption history is divided by color into past

averages and the average fuel consumption since the last updated.

Use the displayed average fuel consumption as a reference.

These images are examples only, and may vary slightly from actual

conditions.

Q How to identify multimedia system type

Check the type of the multimedia system in the following illustrations.

 Type A

 Type B

Q Updating the history data

Update the latest fuel consumption by selecting “Update” to measure the cur-

rent fuel consumption again.

Q Resetting the data

The fuel consumption data can be deleted by selecting “Clear”.

Q Cruising range

Displays the estimated maximum distance that can be driven with the quan-

tity of fuel remaining.

This distance is computed based on your average fuel consumption. As a

result, the actual distance that can be driven may differ from that displayed.

148

3-1. Key information

Keys

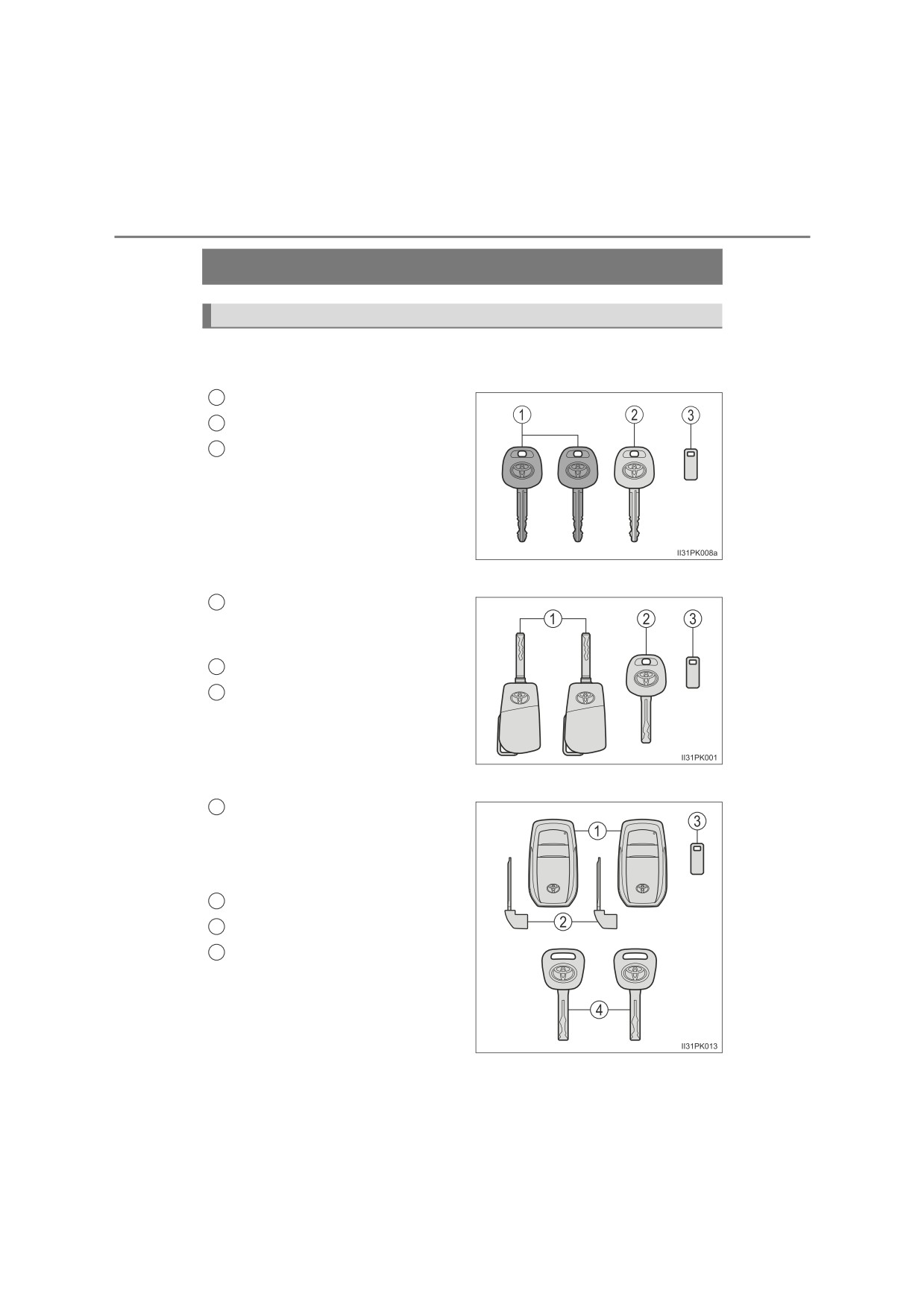

The keys

The following keys are provided with the vehicle.

 Type A

1

Master keys

2

Valet key

3

Key number plate

 Type B

1

Master keys

Operating the wireless remote con-

trol function (P. 149)

2

Valet key

3

Key number plate

 Type C (vehicles with smart entry & start system)

1

Electronic keys

• Operating the smart entry & start

system (P. 163)

• Operating the wireless remote

control function (P. 149)

2

Mechanical keys

3

Key number plate

4

Mechanical keys

(supplemen-

tary keys)

Locking and unlocking the tailgate

(P. 160)

3-1. Key information

149

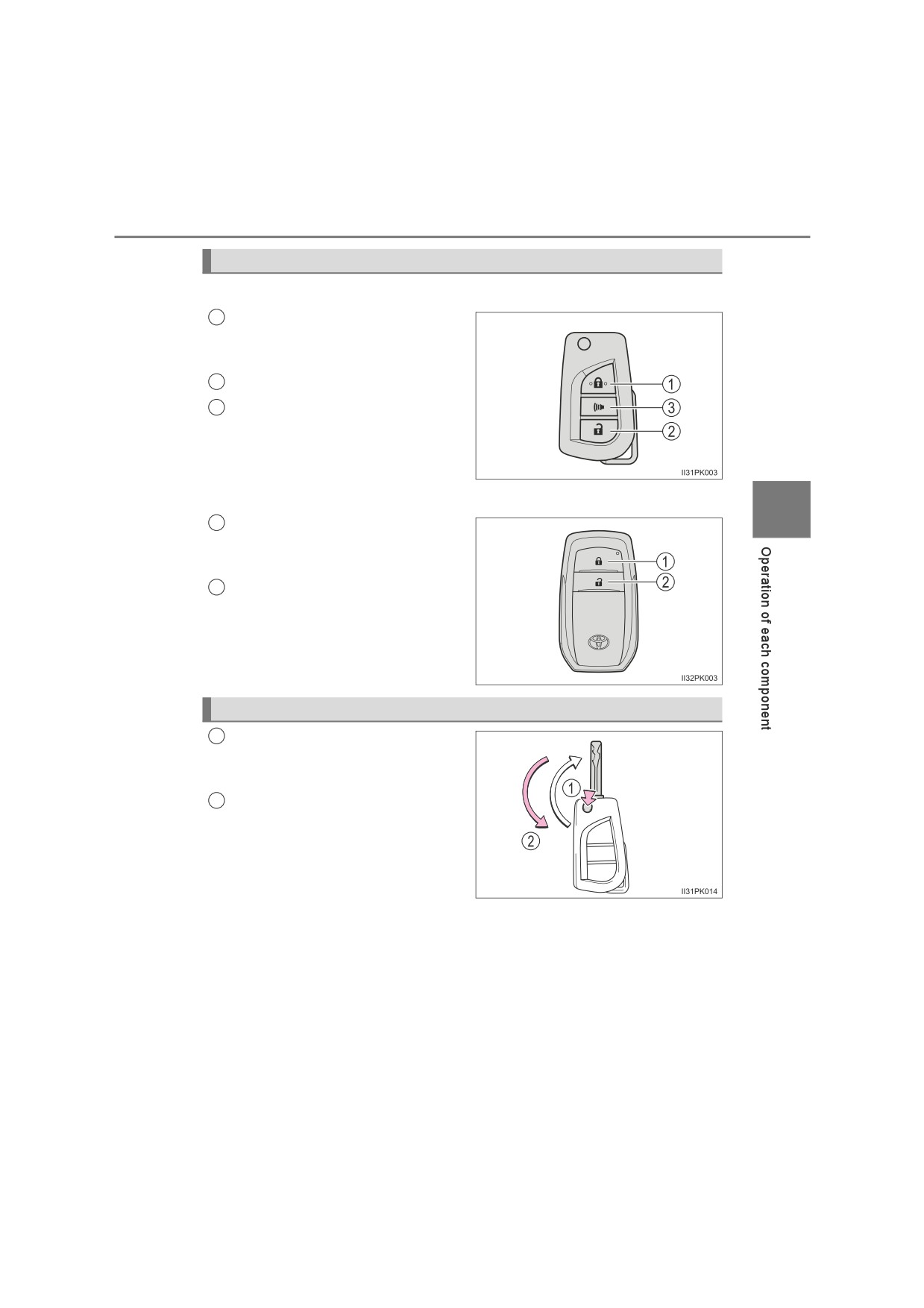

Wireless remote control (if equipped)

 Vehicles without smart entry & start system

1

Locks all the doors (P. 153)

Check that the door is securely

locked.

2

Unlocks all the doors (P. 153)

3

Sounds the alarm* (P. 150)

*: If equipped

 Vehicles with smart entry & start system

3

Locks all the doors (P. 153)

1

Check that the door is securely

locked.

Unlocks all the doors (P. 153)

2

Using the master key (type B)

1

Releasing

To release the key, press the but-

ton.

2

Folding

To stow the key back in its case,

push the key back to the stowed

position while pressing the button.

150

3-1. Key information

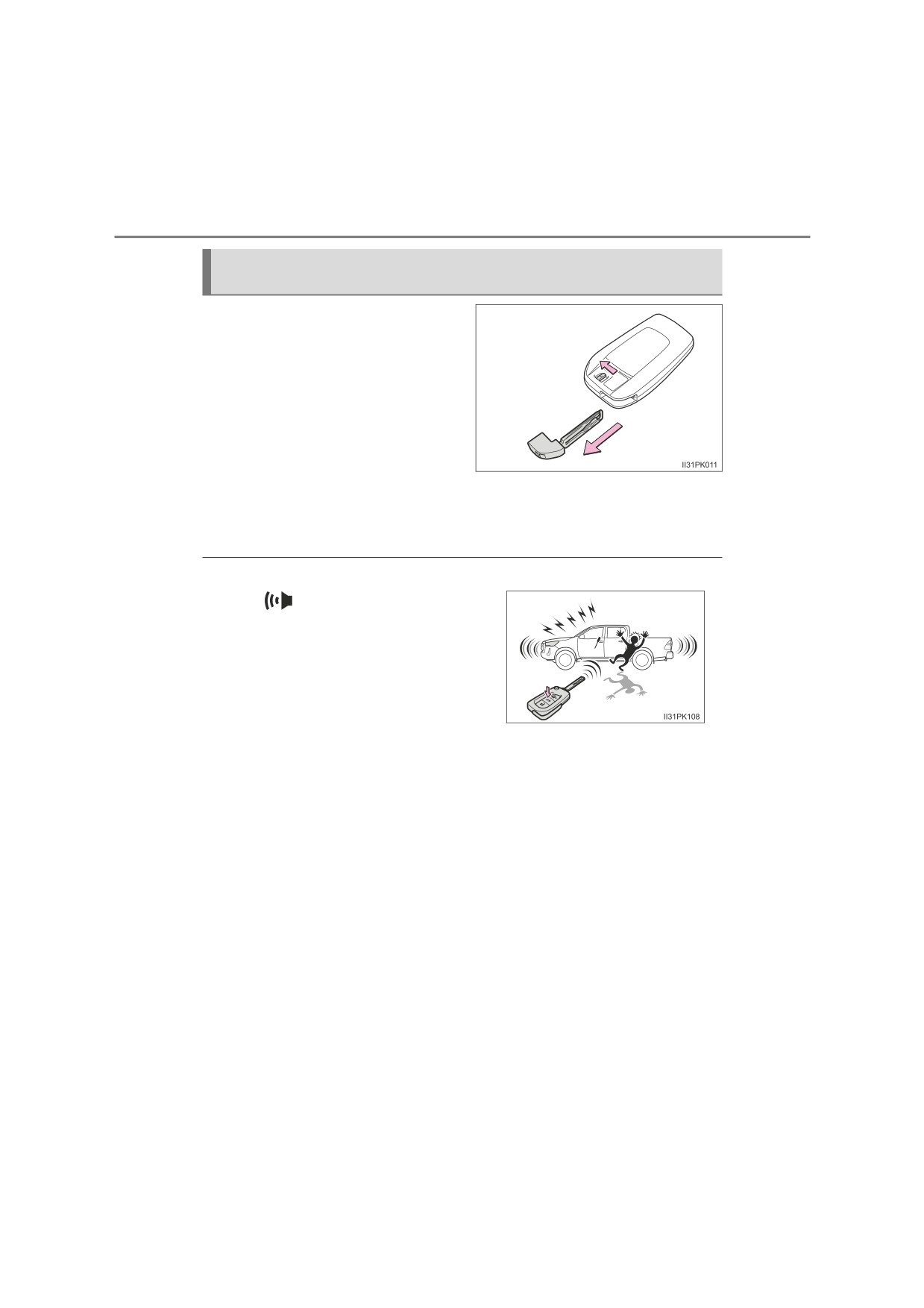

Using the mechanical key (vehicles with smart entry & start sys-

tem)

To take out the mechanical key,

slide the release lever and take

the key out.

The mechanical key can only be

inserted in one direction, as the

key only has grooves on one side.

If the key cannot be inserted in a

lock cylinder, turn it over and re-

attempt to insert it.

After using the mechanical key, store it in the electronic key. Carry the

mechanical key together with the electronic key. If the electronic key bat-

tery is depleted or the entry function does not operate properly, you will

need the mechanical key. (P. 600)

QPanic mode (if equipped)

When

is pressed for longer than

about one second, an alarm will sound

intermittently and the vehicle lights will

flash to deter any person from trying to

break into or damage your vehicle.

To stop the alarm, press any button on the

wireless remote control.

Q When required to leave the vehicle’s key with a parking attendant

Lock the glove box as circumstances demand. (P. 457)

 Vehicles without smart entry & start system

Carry the master key for your own use and provide the attendant with the

valet key.

 Vehicles with smart entry & start system

Remove the mechanical key for your own use and provide the attendant with

the electronic key only. If there is the supplementary key, carry the supple-

mentary key for your own use as well as the mechanical key.

Content      ..     3      4      5      6     ..
