7-3. Do-it-yourself maintenance

■

The tire pressure warning
system must be initialized
in the following circum-
stances:



When rotating the tires.



When changing the tire.



After registering the ID codes.
(



P.593)

When the tire pressure warning
system is initialized, the current
tire inflation pressure is set as
the benchmark pressure.

■

How to initialize the tire
pressure warning system



Vehicles without tire inflation
pressure display function

1

Park the vehicle in a safe
place and stop the engine.

Initialization cannot be performed

while the vehicle is moving.

2

Adjust the tire inflation pres-
sure to the specified cold tire
inflation pressure level.
(



P.671)

Make sure to adjust the tire pres-

sure to the specified cold tire infla-

tion pressure level. The tire

pressure warning system will oper-

ate based on this pressure level.

3

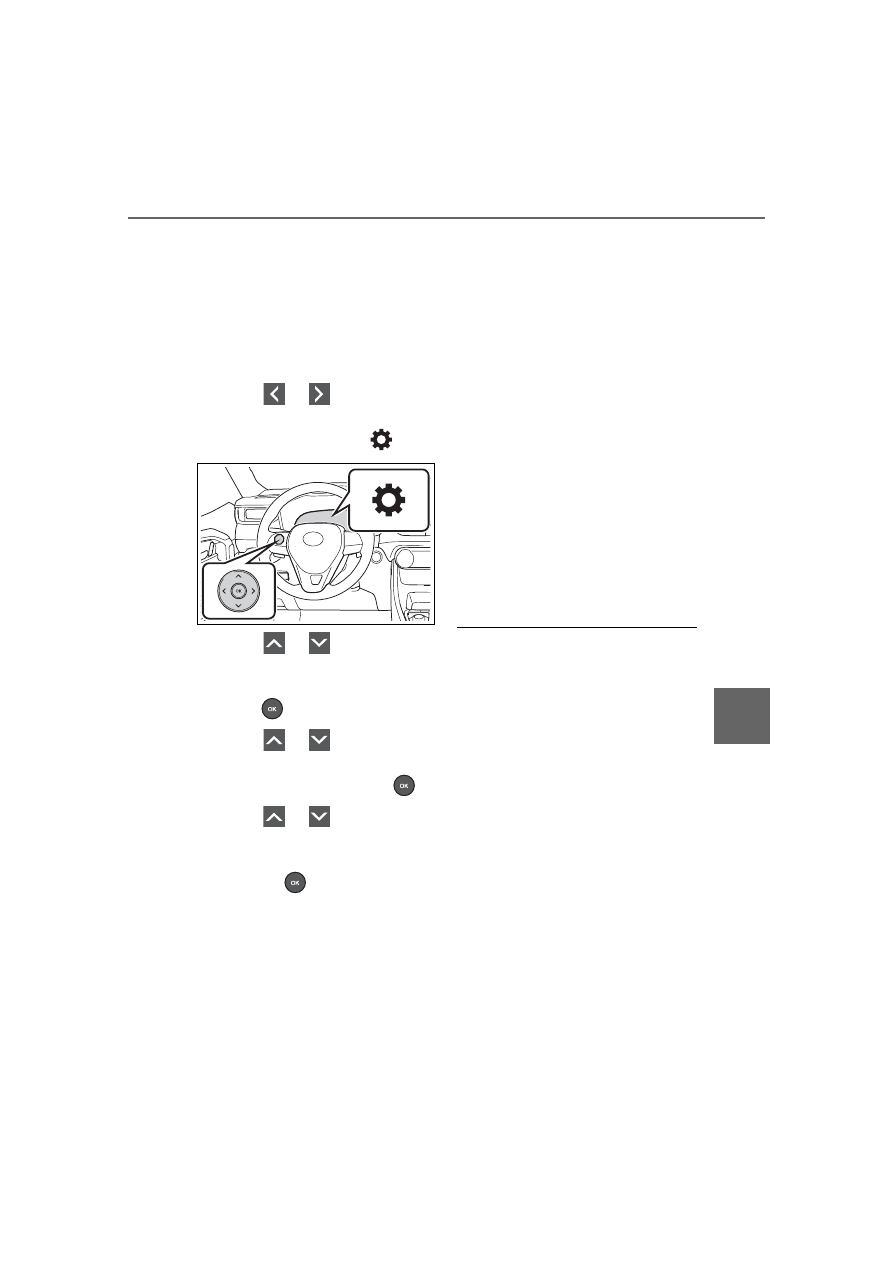

Turn the engine switch to
ON.

4

Press

 or

 of the meter

control switches on the steer-
ing wheel and select

.

5

Press

 or

 of the meter

control switches, select
“Vehicle Settings” and then
press

.

6

Press

 or

 of the meter

control switches, select
“TPWS” and then press

.

7

Press

 or

 of the meter

control switches, select the
“Set Pressure”. Then press
and hold

.

“Setting Tire Pressure Warning

System” will be displayed on the

multi-information display and the

tire pressure warning light will blink

3 times.

When the message disappears, ini-

tialization is complete.



Vehicles with tire inflation
pressure display function

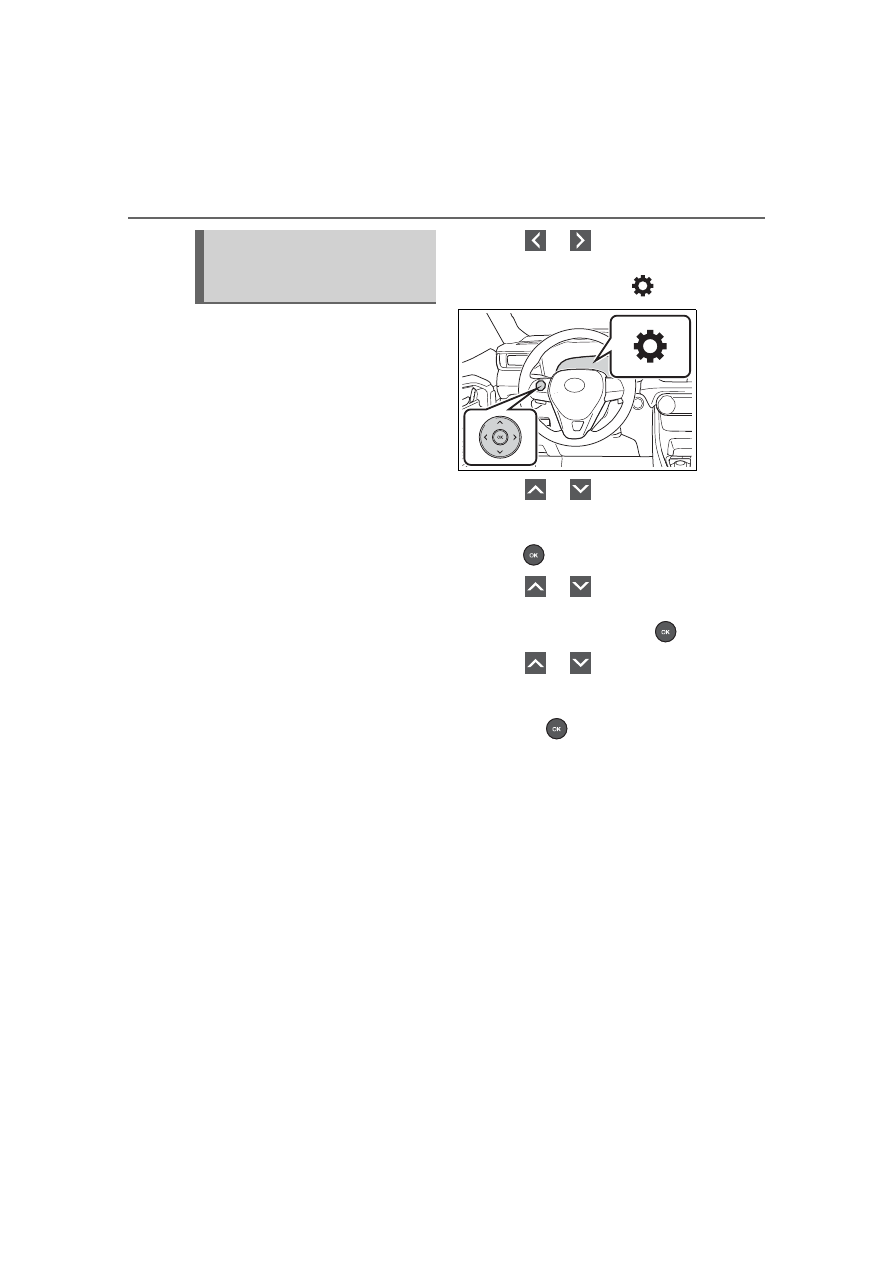

1

Park the vehicle in a safe
place and stop the engine for
20 minutes or more.

Initialization cannot be performed

while the vehicle is moving.

2

Adjust the tire inflation pres-
sure to the specified cold tire

Initializing the tire pres-
sure warning system (if
equipped)

591

7-3. Do-it-yourself maintenance

7

Maintena

nce
 a

nd ca

re

inflation pressure level.
(



P.671)

Make sure to adjust the tire pres-

sure to the specified cold tire infla-

tion pressure level. The tire

pressure warning system will oper-

ate based on this pressure level.

3

Start the engine.

4

Press

 or

 of the meter

control switches on the steer-
ing wheel and select

.

5

Press

 or

 of the meter

control switches, select
“Vehicle Settings” and then
press

.

6

Press

 or

 of the meter

control switches, select
“TPWS” and then press

.

7

Press

 or

 of the meter

control switches, select the
“Set Pressure”. Then press
and hold

.

“Setting Tire Pressure Warning

System” will be displayed on the

multi-information display and the

tire pressure warning light will blink

3 times.
When the message disappears, ini-

tialization is complete.
A message is displayed on the

multi-information display. Also, “--”

is displayed for inflation pressure of

each tire on the multi-information

display while the tire pressure

warning system determines the

position.

8

Drive the vehicle at approxi-
mately 25mph (40 km/h) or
more for approximately 10 to
30 minutes.

When initialization is complete, the

inflation pressure of each tire will be

displayed on the multi-information

display.
Even if the vehicle is not driven at

approximately 25 mph (40 km/h) or

more, initialization can be com-

pleted by driving for a long time.

However, if initialization does not

complete after driving for 1 hour or

more, park the vehicle in a safe

place for approximately 20 minutes

and then drive the vehicle again.

■

When initializing

●

Vehicles with tire inflation pres-

sure display function only: Initial-

ization is performed while driving

at a vehicle speed of approxi-

mately 25 mph (40 km/h) or more.

●

Make sure to carry out initializa-

tion after adjusting the tire inflation

pressure. Also, make sure the

tires are cold before carrying out

initialization or tire inflation pres-

sure adjustment.

●

Vehicles with tire inflation pres-

sure display function only: The tire

pressure warning system can be

initialized by yourself, but depend-

ing on the driving conditions and

driving environment, initialization

may take some time to complete.

■

The initialization operation

●

If you have accidentally turned the

engine switch to OFF during ini-

tialization, it is not necessary to

restart the initialization again as

initialization will restart automati-

592

7-3. Do-it-yourself maintenance

cally when the engine switch has

been turned to ON for the next

time.

●

If you accidentally perform the ini-

tialization when initialization is not

necessary, adjust the tire inflation

pressure to the specified level

when the tires are cold, and con-

duct initialization again.

●

Vehicles with tire inflation pres-

sure display function only: While

the position of each tire is being

determined and the inflation pres-

sures are not being displayed on

the multi-information display, if the

inflation pressure of a tire drops,

the tire pressure warning light will

come on.

■

When initialization of the tire

pressure warning system has

failed (vehicles without tire

inflation pressure display func-

tion)

Initialization can be completed in a

few minutes. However, in the follow-

ing cases, the settings have not

been recorded and the system will

not operate properly. If repeated

attempts to record tire inflation pres-

sure settings are unsuccessful,

have the vehicle inspected by your

Toyota dealer.

●

When operating the tire pressure

warning reset switch, the tire pres-

sure warning light does not blink 3

times.

●

After driving for a certain period of

time since the initialization has

been completed, the warning light

comes on after blinking for 1 min-

ute.

■

If the tire pressure warning sys-

tem is not initialized properly

(vehicles with tire inflation pres-

sure display function)

In the following situations, initializa-

tion may take longer than usual to

be completed or may not be possi-

ble. Normally, initialization com-

pletes within approximately 30

minutes.

• Vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more

• Vehicle is driven on unpaved

roads

• Vehicle is driven near other vehi-

cles and system cannot recog-

nize tire pressure warning valve

and transmitters of your vehicle

over those of other vehicles.

If initialization does not complete

after driving for 1 hour or more, park

the vehicle in a safe place for

approximately 20 minutes and then

drive the vehicle again.

●

If the vehicle is reversed during

initialization, the data up to that

point is reset, so perform the ini-

tialization procedure again from

the beginning.

●

In the following situations, initial-

ization will not be started or was

not completed properly and the

system will not operate properly.

Perform the initialization proce-

dure again.

• If, when attempting to start initial-

ization, the tire pressure warning

light does not blink 3 times.

• If, when the vehicle has been

driven for about 20 minutes after

performing initialization, the tire

pressure warning light blinks for

approximately 1 minute and then

illuminates.

If the inflation pressure of each tire
is still not displayed, have the vehi-
cle inspected by your Toyota dealer.

593

7-3. Do-it-yourself maintenance

7

Maintena

nce
 a

nd ca

re



For models made in Japan

*1



without tire inflation pressure
display function

Every tire pressure warning
valve and transmitter has a
unique ID code. In addition to
the set of tire pressure warning
system sensor ID codes initially
registered to the vehicle, a sec-
ond set of ID codes can be reg-
istered. A second set of tire
pressure warning system sensor
ID codes can be registered at
your Toyota dealer. When 2 sets
of ID codes have been regis-
tered, either ID code set can be
selected.

*1

:The country of production is writ-

ten on the Certification Regula-
tion label. (



P.665)



Except for models made in
Japan

*2

 without tire inflation

pressure display function

*2

:The country of production is writ-

ten on the Certification Regula-
tion label. (



P.665)

Every tire pressure warning
valve and transmitter has a
unique ID code. When replacing
a tire pressure warning valve
and transmitter, it is necessary
to register the ID code.
When registering the ID codes,
perform the following procedure.

1

Park the vehicle in a safe
place, wait for approximately
20 minutes, and then start
the engine.

2

Press

 or

 of the meter

control switches on the steer-
ing wheel and select

.

3

Press

 or

 of the meter

control switches and select
“Vehicle Settings”, and then
press

.

4

Press

 or

 of the meter

control switches and select
“TPWS”, and then press

.

5

Press

 or

 of the meter

control switches and select
“Change Wheel”. Then press
and hold

 until the tire

pressure warning light starts
slowly blinking 3 times.

The change wheel set mode is acti-

vated and registration is started.
Vehicles with a tire inflation pres-

sure display function only: Then a

message will be displayed on the

multi-information display. When

registration is being performed, the

tire pressure warning light will blink

WARNING

■

When initializing the tire pres-

sure warning system

Do not initializing tire inflation

pressure without first adjusting

the tire inflation pressure to the

specified level. Otherwise, the tire

pressure warning light may not

come on even if the tire inflation

pressure is low, or it may come on

when the tire inflation pressure is

actually normal.

Registering ID codes
(vehicles with tire pres-
sure warning system)

594

7-3. Do-it-yourself maintenance

for approximately 1 minute then illu-

minate and “--” will be displayed for

the inflation pressure of each tire on

the multi-information display.

6

Drive the vehicle at approxi-
mately 25mph (40 km/h) or
more for approximately 10 to
30 minutes.

When registration is completed, the

tire pressure warning light will go off

and the inflation pressure of each

tire will be displayed on the multi-

information display.
Even if the vehicle is not driven at

approximately 25 mph (40 km/h) or

more, registration can be com-

pleted by driving for a long time.

However, if registration does not

complete after driving for 1 hour or

more, perform the procedure again

from the beginning.

7

Initialize the tire pressure
warning system. (



P.590)

■

When registering ID codes

●

ID code registration is performed

while driving at a vehicle speed of

approximately 25 mph (40 km/h)

or more.

●

Before performing ID code regis-

tration, make sure that no wheels

with tire pressure warning valve

and transmitters installed are near

the vehicle.

●

Make sure to initialize the tire

pressure warning system after

registering the ID codes. If the

system is initialized before regis-

tering the ID codes, the initialized

values will be invalid.

●

ID codes can be registered by

yourself, but depending on the

driving conditions and driving

environment, registration may

take some time to complete.

■

Canceling ID code registration

●

To cancel ID code registration

after it has been started, turn the

engine switch off before driving

the vehicle. If the vehicle is driven

after ID code registration is

started, to cancel registration, per-

form the ID code registration start

procedure again and turn the

engine switch off before driving.

●

If ID code registration has been

canceled, the tire pressure warn-

ing light will blink for approxi-

mately 1 minute when the engine

switch is turned to ON and then

illuminate. The tire pressure warn-

ing system will be operational

when the tire pressure warning

light turns off.

●

If the warning light does not turn

off even after several minutes

have elapsed, ID code registration

may not have been canceled cor-

rectly. To cancel registration, per-

form the ID code registration start

procedure again and then turn the

engine switch off before driving.

■

If ID codes are not registered

properly

In the following situations, ID code

registration may take longer than

usual to be completed or may not be

possible. Normally, registration com-

pletes within approximately 30 min-

utes.
• Vehicle is not parked for approxi-

mately 20 minutes or more before

driving

• Vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more

• Vehicle is driven on unpaved

roads

595

7-3. Do-it-yourself maintenance

7

Maintena

nce
 a

nd ca

re

• Vehicle is driven near other vehi-

cles and system cannot recog-

nize tire pressure warning valve

and transmitters of your vehicle

over those of other vehicles

• Wheel with tire pressure warning

valve and transmitter installed is

inside or near the vehicle

If registration does not complete

after driving for 1 hour or more, per-

form the ID code registration proce-

dure again from the beginning.

●

If the vehicle is reversed during

registration, the data up to that

point is reset, so perform the reg-

istration procedure again from the

beginning.

●

In the following situations, ID code

registration will not be started or

was not completed properly and

the system will not operate prop-

erly. Perform the ID code registra-

tion procedure again.

• If, when attempting to start ID

code registration, the tire pressure

warning light does not blink slowly

3 times.

• If, when the vehicle has been

driven for about 20 minutes after

performing ID code registration,

the tire pressure warning light

blinks for approximately 1 minute

and then illuminates.

If the ID codes cannot be registered

even when performing the above

procedure, contact your Toyota

dealer.

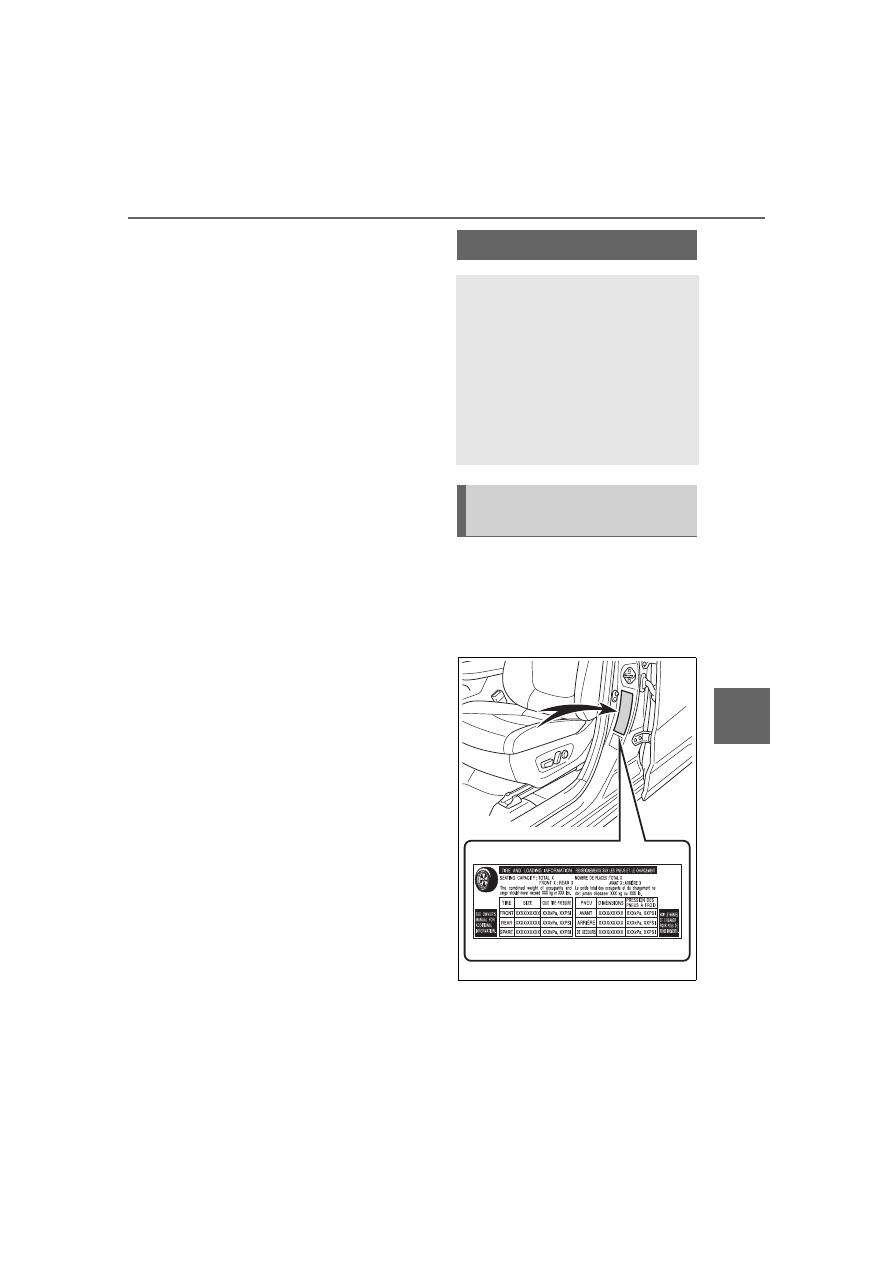

The recommended cold tire
inflation pressure and tire size
are displayed on the tire and
loading information label.
(



P.671)

Tire inflation pressure

Make sure to maintain the
proper tire inflation pres-
sure. Tire inflation pressure
should be checked at least
once per month. However,
Toyota recommends that
tire inflation pressure be
checked once every two
weeks. (



P.671)

Checking the specified
tire inflation pressure

596

7-3. Do-it-yourself maintenance

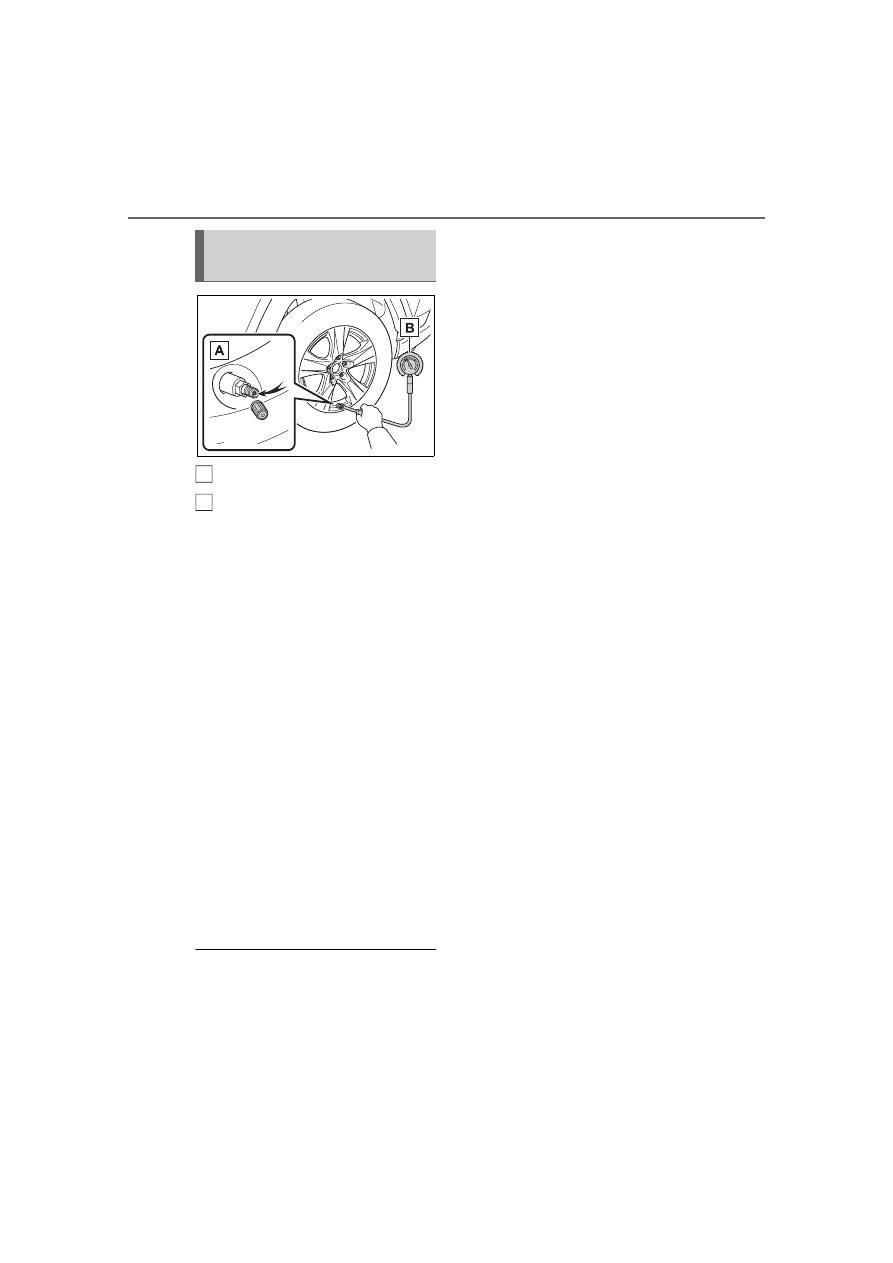

Tire valve

Tire pressure gauge

1

Remove the tire valve cap.

2

Press the tip of the tire pres-
sure gauge onto the tire
valve.

3

Read the pressure using the
gauge gradations.

4

If the tire inflation pressure is
not at the recommended
level, adjust the pressure. If
you add too much air, press
the center of the valve to
deflate.

5

After completing the tire infla-
tion pressure measurement
and adjustment, apply soapy
water to the valve and check
for leakage.

6

Put the tire valve cap back
on.

■

Tire inflation pressure check

interval

You should check tire inflation pres-

sure every two weeks, or at least

once a month.

Do not forget to check the spare.

■

Effects of incorrect tire inflation

pressure

Driving with incorrect tire inflation

pressure may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor

handling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drive train

If a tire needs frequent inflating,

have it checked by your Toyota

dealer.

■

Instructions for checking tire

inflation pressure

When checking tire inflation pres-

sure, observe the following:

●

Check only when the tires are

cold.

If your vehicle has been parked for

at least 3 hours or has not been

driven for more than 1 mile or 1.5

km, you will get an accurate cold

tire inflation pressure reading.

●

Always use a tire pressure gauge.

It is difficult to judge if a tire is

properly inflated based only on its

appearance.

●

It is normal for the tire inflation

pressure to be higher after driving

as heat is generated in the tire. Do

not reduce tire inflation pressure

after driving.

●

Never exceed the vehicle capacity

weight. Passengers and luggage

weight should be placed so that

the vehicle is balanced.

Inspection and adjust-
ment procedure

A

B

597

7-3. Do-it-yourself maintenance

7

Maintena

nce
 a

nd ca

re

When replacing wheels, care
should be taken to ensure that
they are equivalent to those
removed in load capacity, diam-
eter, rim width and inset

*

.

Replacement wheels are avail-
able at your Toyota dealer.

*

: Conventionally referred to as off-

set.

Toyota does not recommend
using the following:



Wheels of different sizes or
types



Used wheels



Bent wheels that have been
straightened

■

When replacing wheels (vehi-

cles with tire pressure warning

system)

The wheels of your vehicle are

equipped with tire pressure warning

valves and transmitters that allow

the tire pressure warning system to

provide advance warning in the

event of a loss in tire inflation pres-

sure. Whenever wheels are

replaced, tire pressure warning

valves and transmitters must be

installed. (



P.584, 598)

WARNING

■

Proper inflation is critical to

save tire performance

Keep your tires properly inflated.

If the tires are not properly

inflated, the following conditions

may occur which could lead to an

accident resulting in death or seri-

ous injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting

from overheated tires

●

Air leaking from between tire

and wheel

●

Wheel deformation and/or tire

damage

●

Greater possibility of tire dam-

age while driving (due to road

hazards, expansion joints,

sharp edges in the road, etc.)

NOTICE

■

When inspecting and adjust-

ing tire inflation pressure

Be sure to put the tire valve caps

back on.

If a valve cap is not installed, dirt

or moisture may get into the valve

and cause an air leak, resulting in

decreased tire inflation pressure.

Wheels

If a wheel is bent, cracked or
heavily corroded, it should
be replaced. Otherwise, the
tire may separate from the
wheel or cause a loss of
handling control.

Wheel selection

598

7-3. Do-it-yourself maintenance



Use only Toyota wheel nuts
and wrenches designed for
use with your aluminum
wheels.



When rotating, repairing or
changing your tires, check
that the wheel nuts are still
tight after driving 1000 miles
(1600 km).



Be careful not to damage the
aluminum wheels when using
tire chains.



Use only Toyota genuine bal-
ance weights or equivalent
and a plastic or rubber ham-
mer when balancing your
wheels.

WARNING

■

When replacing wheels

●

Do not use wheels that are a dif-

ferent size from those recom-

mended in the Owner’s Manual,

as this may result in a loss of

handling control.

●

Never use an inner tube in a

leaking wheel which is designed

for a tubeless tire. Doing so may

result in an accident, causing

death or serious injury.

■

When installing the wheel

nuts

●

Be sure to install the wheel nuts

with the tapered ends facing

inward. (



P.647) Installing the

nuts with the tapered ends fac-

ing outward can cause the

wheel to break and eventually

cause the wheel to come off

while driving, which could lead

to an accident resulting in death

or serious injury.

●

Never use oil or grease on the

wheel bolts or wheel nuts. Oil

and grease may cause the

wheel nuts to be excessively

tightened, leading to bolt or disc

wheel damage. In addition, the

oil or grease can cause the

wheel nuts to loosen and the

wheel may fall off, causing an

accident and resulting in death

or serious injury. Remove any

oil or grease from the wheel

bolts or wheel nuts.

■

Use of defective wheels pro-

hibited

Do not use cracked or deformed

wheels.
Doing so could cause the tire to

leak air during driving, possibly

causing an accident.

NOTICE

■

Replacing tire pressure warn-

ing valves and transmitters

(vehicles with tire pressure

warning system)

●

Because tire repair or replace-

ment may affect the tire pres-

sure warning valves and

transmitters, make sure to have

tires serviced by your Toyota

dealer or other qualified service

shop. In addition, make sure to

purchase your tire pressure

warning valves and transmit-

ters at your Toyota dealer.

●

Ensure that only genuine Toyota

wheels are used on your vehi-

cle.

Tire pressure warning valves

and transmitters may not work

properly with non-genuine

wheels.

Aluminum wheel precau-
tions

599

7-3. Do-it-yourself maintenance

7

Maintena

nce
 a

nd ca

re

1

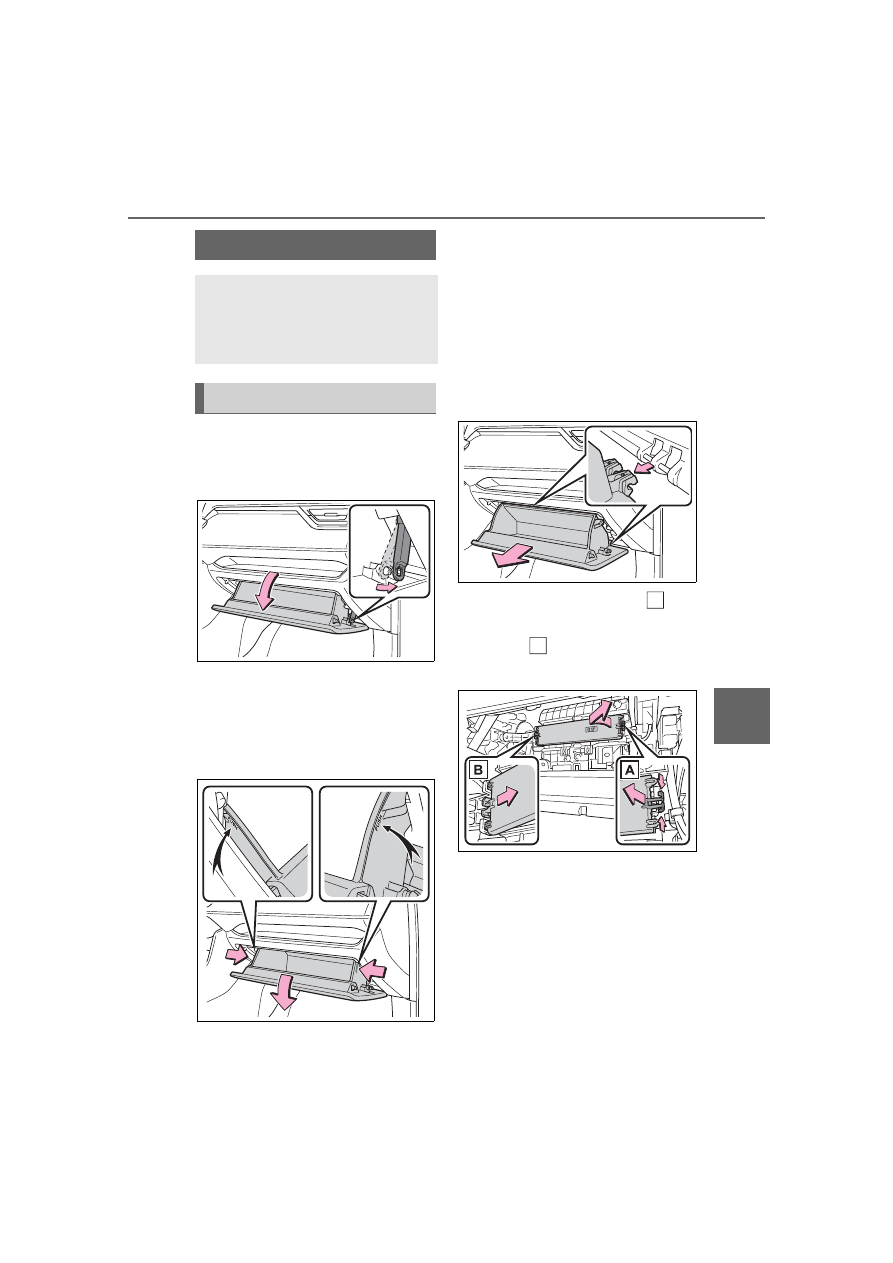

Turn the engine switch off.

2

Open the glove box and slide
off the damper.

3

Push in each side of the
glove box to disconnect the
claws, and then slowly and
fully open the glove box while
supporting it.

4

With the glove box fully open,
slightly lift up the glove box
and pull toward the seat to
detach the bottom of the
glove box.

Do not use excessive force if the

glove box does not detach when

lightly pulled. Instead, pull toward

the seat while slightly adjusting the

height of the glove box.

5

Unlock the filter cover (

),

pull the filter cover out of the
claws (

), and remove the

filter cover.

Air conditioning filter

The air conditioning filter
must be changed regularly
to maintain air conditioning
efficiency.

Removal method

A

B

600

7-3. Do-it-yourself maintenance

6

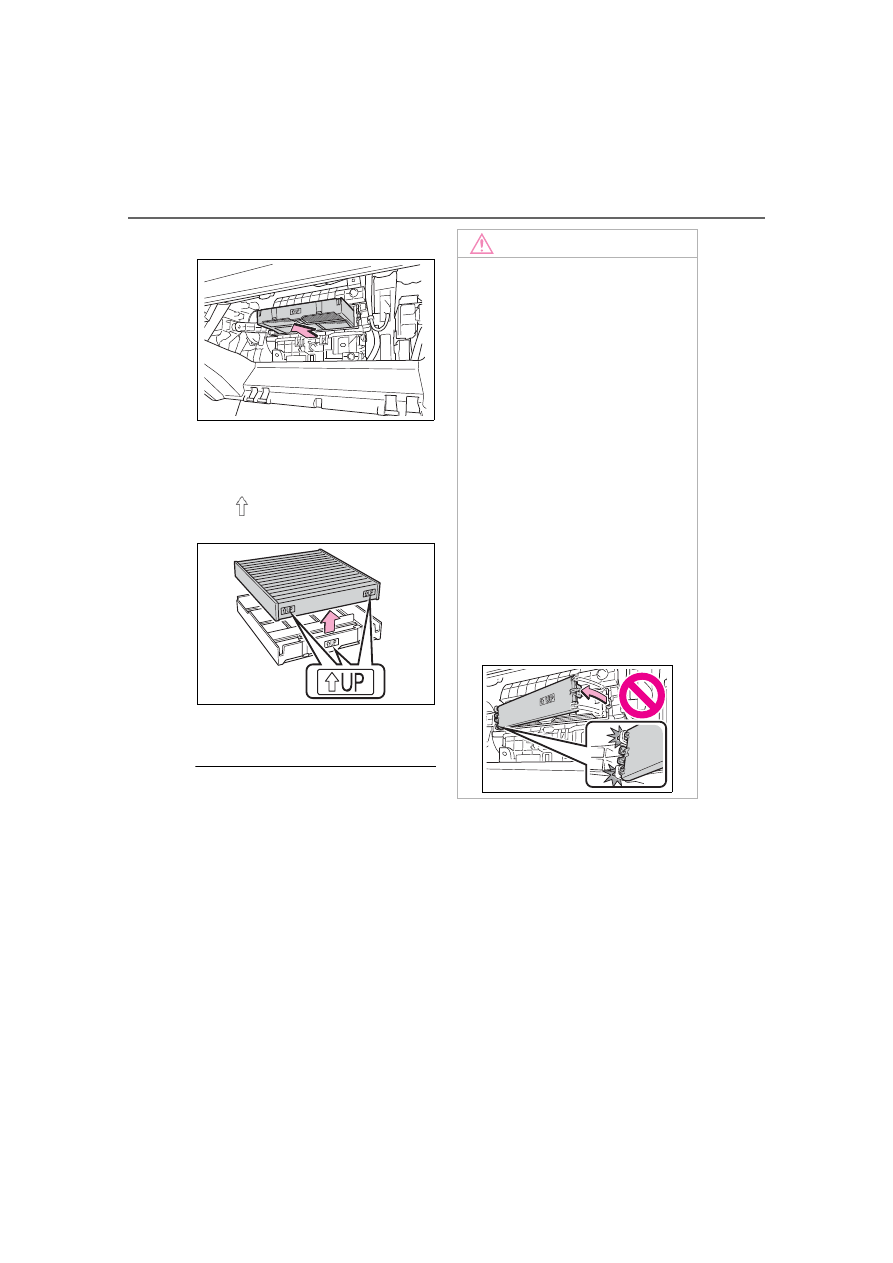

Remove the filter case.

7

Remove the air conditioning
filter from the filter case and
replace it with a new one.

The “

UP” marks shown on the

filter should be pointing up.

8

When installing, reverse the
steps listed.

■

Checking interval

Inspect and replace the air condi-

tioning filter according to the mainte-

nance schedule. In dusty areas or

areas with heavy traffic flow, early

replacement may be required. (For

scheduled maintenance information,

please refer to the “Owner’s Manual

Supplement” or “Scheduled Mainte-

nance”.)

■

If air flow from the vents

decreases dramatically

The filter may be clogged. Check

the filter and replace if necessary.

NOTICE

■

When using the air condition-

ing system

Make sure that a filter is always

installed.
Using the air conditioning system

without a filter may cause damage

to the system.

■

When removing the glove box

Always follow the specified proce-

dure to remove the glove box

(



P.599). If the glove box is

removed without following the

specified procedure, the hinge of

the glove box may become dam-

aged.

■

To prevent damage to the fil-

ter cover

When moving the filter cover in

the direction of arrow to release

the fitting, pay attention not to

apply excessive force to the

claws. Otherwise, the claws may

be damaged.

601

7-3. Do-it-yourself maintenance

7

Maintena

nce
 a

nd ca

re

■

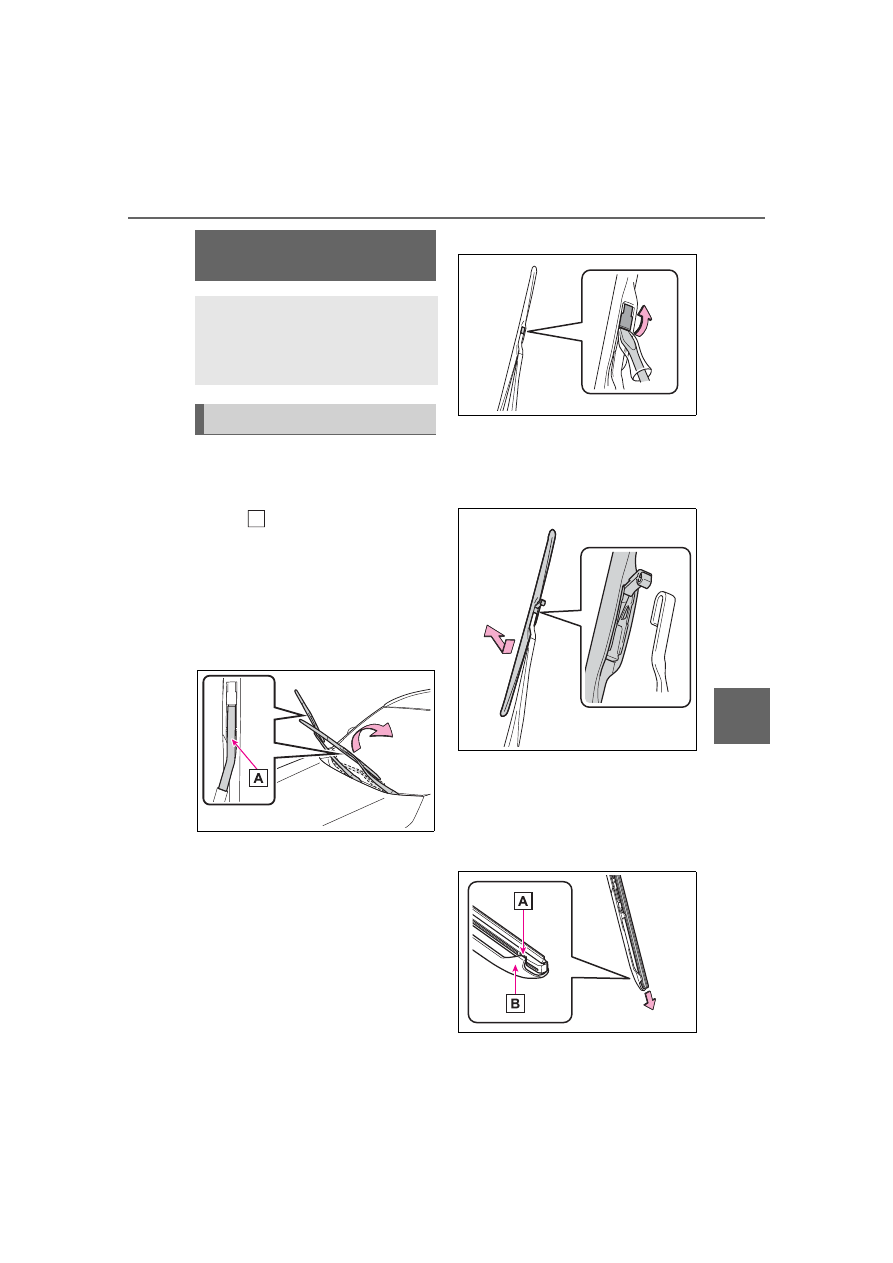

Windshield wiper blade
removal and installation

1

While holding the hook por-
tion

 of the wiper arm, first

lift up the driver side, and
then lift up the passenger
side.

When returning the wiper arms to

their original positions, first lower

the passenger side, and then lower

the driver side.

2

Lift the stopper using a flat-
head screwdriver as shown
in the illustration.

To prevent damage to the wiper

arm, protect the tip of the screw-

driver with a rag.

3

Slide the wiper blade to
remove it from the wiper arm.

When installing, reverse the steps

listed.

■

Wiper insert replacement

1

Pull the wiper insert to
remove the claw of the wiper
blade from the stopper, and
pull out the wiper insert.

Wiper insert replace-

ment

When replacing the wiper
insert, perform the following
procedure to operate each
wiper.

Windshield wipers

A

602

7-3. Do-it-yourself maintenance

Stopper

Claw

2

Remove the 2 metal plates
from the wiper insert pulled
out, and install the plates to a
new wiper insert.

Make sure that the cutout location

and warp direction of the metal

blades are same as the original.

3

Install the wiper insert to the
wiper blade from the side
without the stopper.

4

Secure the stopper of the
wiper insert with the claw of
the wiper blade.

1

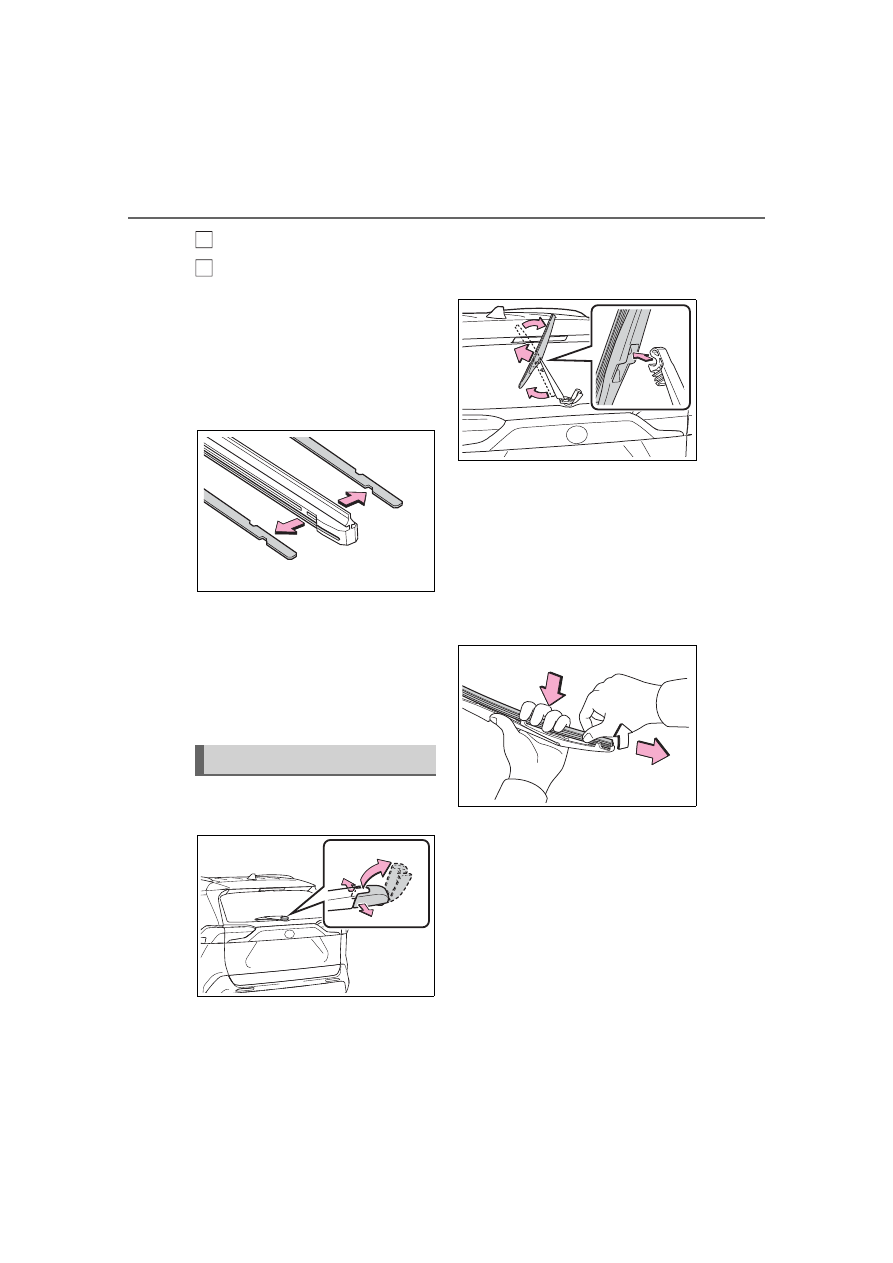

Lift up the rear window wiper
arm head cap.

2

Move the wiper blade until a
click sound can be heard and

the claw detaches, and then
remove the wiper blade from
the wiper arm.

3

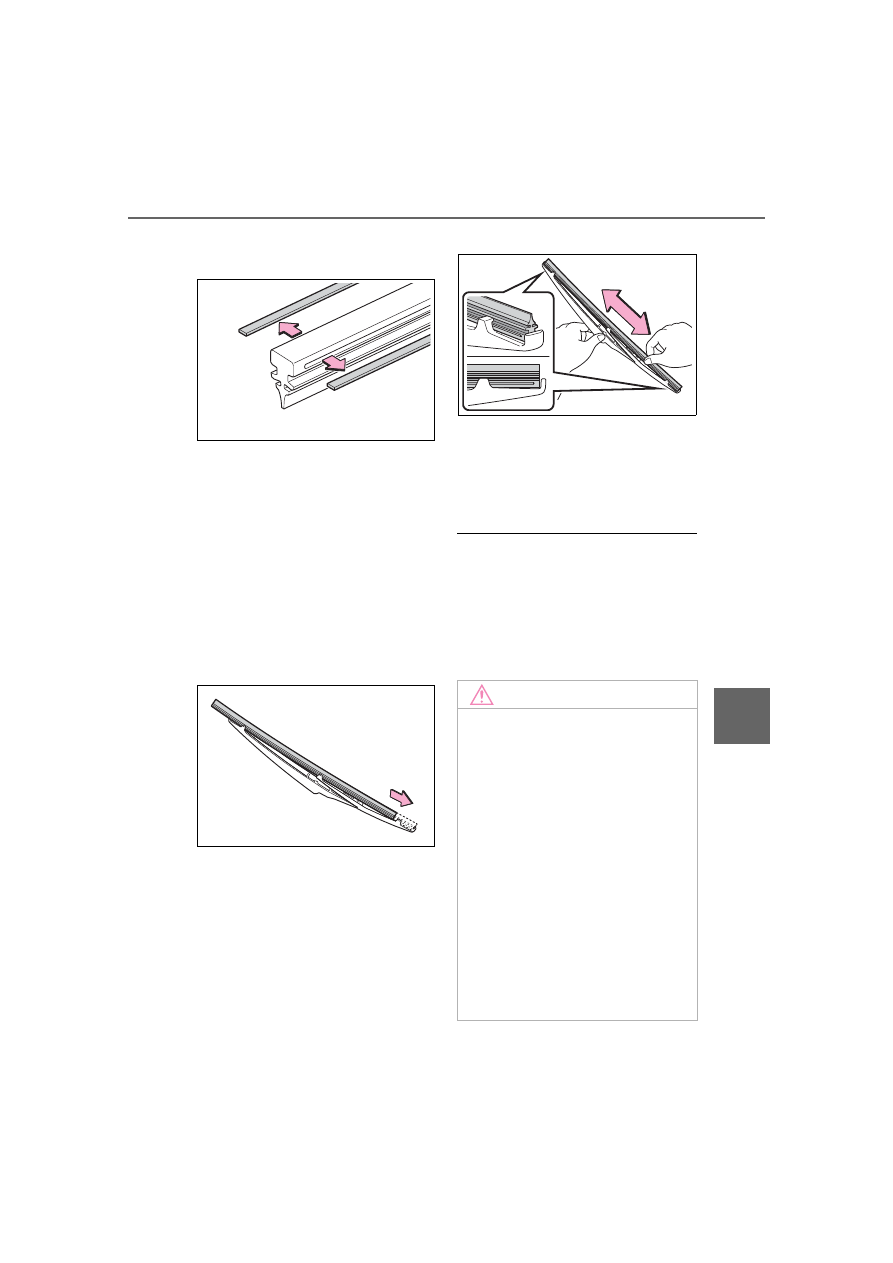

Pull the wiper insert out past
the stopper on the wiper
blade, and then continue to
pull until it is completely
removed.

Lightly grasp between the claws of

the wiper blade to allow the wiper

insert to lift up, making it easier to

remove.

4

Remove the 2 metal plates
from the old wiper insert and

Rear window wiper

A

B

603

7-3. Do-it-yourself maintenance

7

Maintena

nce
 a

nd ca

re

install them to the replace-
ment wiper insert.

5

Insert the wiper insert starting
from the claw at the center of
the wiper blade. Pass the
wiper insert through the 3
claws so that it sticks out
from the stopper, and then
pass the wiper insert through
the final remaining claw.

Applying a small amount of washer

fluid to the wiper insert can make it

easier to insert the claws into the

grooves.

6

Check that the wiper blade
claws are fitted in the
grooves of the wiper insert.

If the wiper blade claws are not fit-

ted in the grooves of the wiper

insert, grasp the wiper insert and

slide it back and forth multiple times

to insert the claws into the grooves.
Lightly lift up the center of the wiper

insert to make the rubber easier to

slide.

7

When installing a wiper
blade, reverse the procedure
in step

1

.

After installing the wiper blade,

check that the connection is locked.

■

Wiper blade and wiper insert

handling

Improper handling may result in

damage to the wiper blades or wiper

insert. If you have any concerns

about replacing the wiper blades or

wiper insert yourself, contact your

Toyota dealer.

NOTICE

■

When lifting the windshield

wipers

●

When raising the wiper arms off

the windshield, lift up the driver

side first, and then lift up pas-

senger side. When returning the

wipers to their original position,

return the passenger side first.

●

Do not lift a windshield wiper by

the wiper blade. Otherwise, the

wiper blade may be deformed.

●

Do not operate the wiper lever

when the windshield wipers are

lifted. Otherwise, the wind-

shield wipers may contact the

hood, possibly resulting in dam-

age to the windshield wipers

and/or hood.

604

7-3. Do-it-yourself maintenance

■

If the key battery is depleted

The following symptoms may occur:

●

The smart key system (if

equipped) and wireless remote

control will not function properly.

●

The operational range will be

reduced.

Prepare the following before
replacing the battery:



Flathead screwdriver



Small flathead screwdriver



Lithium battery CR2032

■

Use a CR2032 lithium battery

●

Batteries can be purchased at

your Toyota dealer, local electrical

appliance shops or camera stores.

●

Replace only with the same or

equivalent type recommended by

the manufacturer.

●

Dispose of used batteries accord-

ing to the local laws.



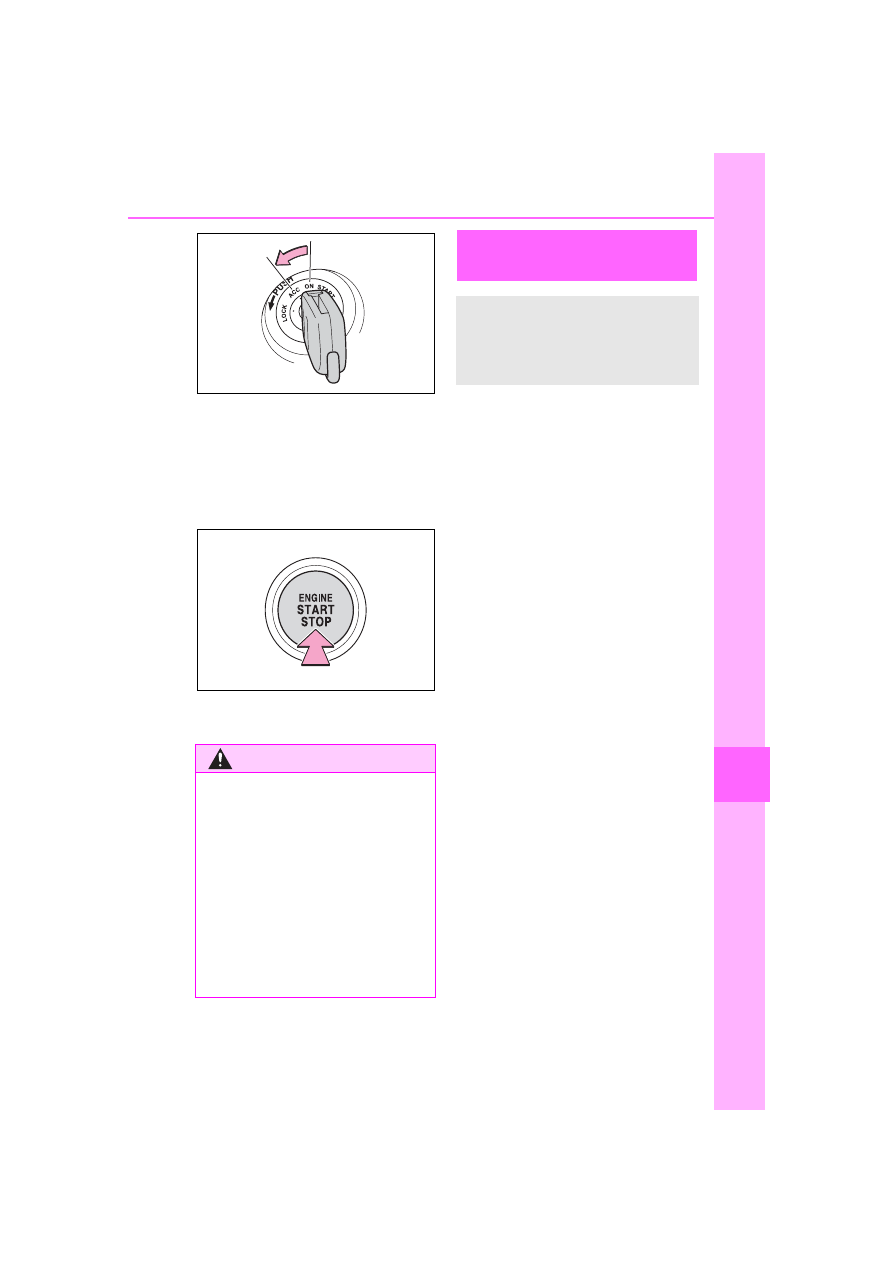

Vehicles without smart key
system

1

Remove the cover.

Use a screwdriver of an appropriate

size. Forcedly prying may cause

the cover damaged.

NOTICE

■

To prevent damage

●

Be careful not to damage the

claws when replacing the wiper

insert.

●

After the wiper blade is removed

from the wiper arm, place a

cloth, etc., between the rear

window and wiper arm to pre-

vent damage to the rear win-

dow.

●

Be sure not to pull excessively

on the wiper insert or deform its

metal plates.

Wireless remote con-

trol/electronic key bat-

tery

Replace the battery with a
new one if it is depleted.

Items to prepare

Replacing the battery

605

7-3. Do-it-yourself maintenance

7

Maintena

nce
 a

nd ca

re

To prevent damage to the key,

cover the tip of the screwdriver with

a rag.

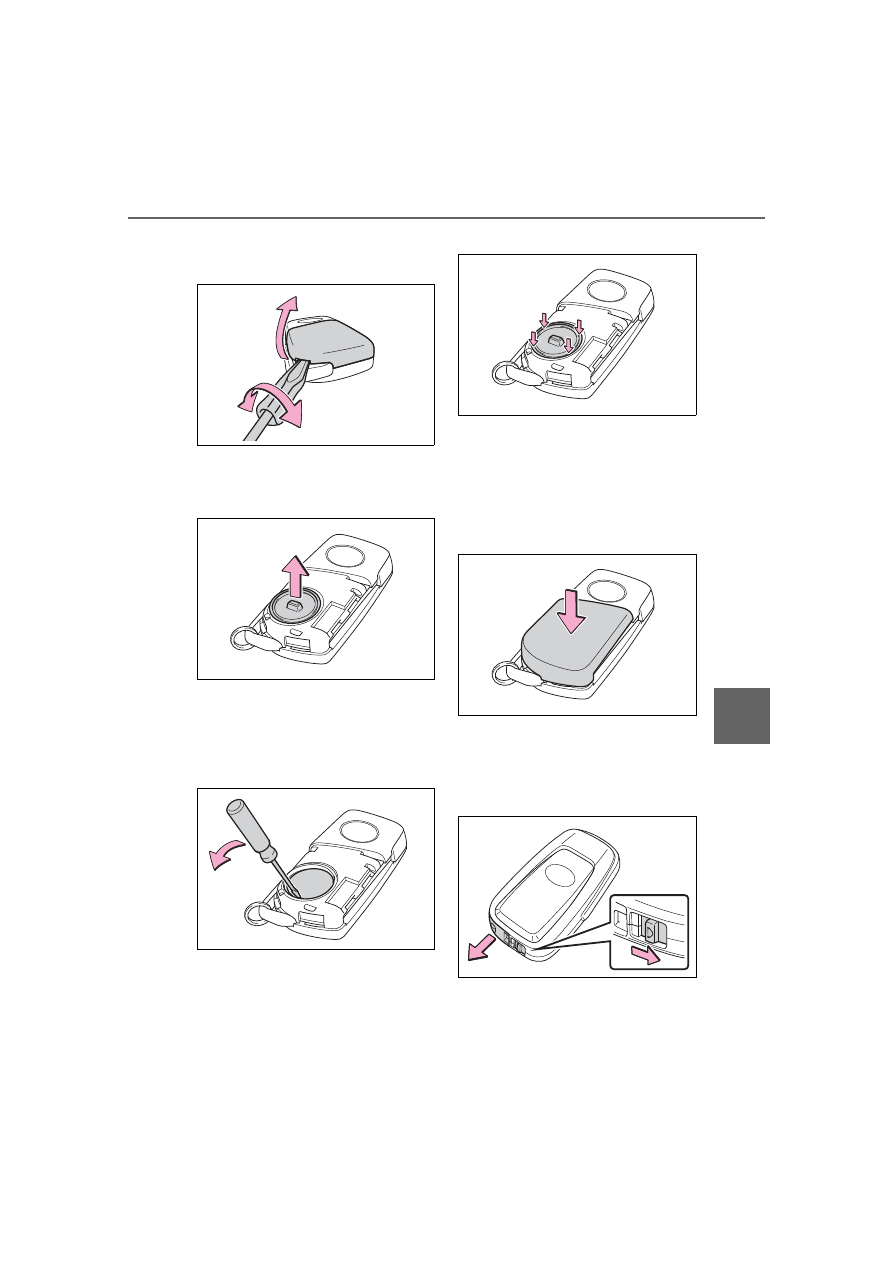

2

Remove the battery cover.

If the battery cover is difficult to

remove, lift the edge to remove it.

3

Remove the depleted battery.

When removing the battery, use a

screwdriver of an appropriate size.
Insert a new battery with the “+” ter-

minal facing up.

4

Install the battery cover with
the tab facing up.

Push the entire edge of the battery

cover into the key.

5

Install the key cover.

Align the key cover with the key

and then press it straight into the

key.
Make sure that the key cover is

securely installed without any gaps

between it and the key.



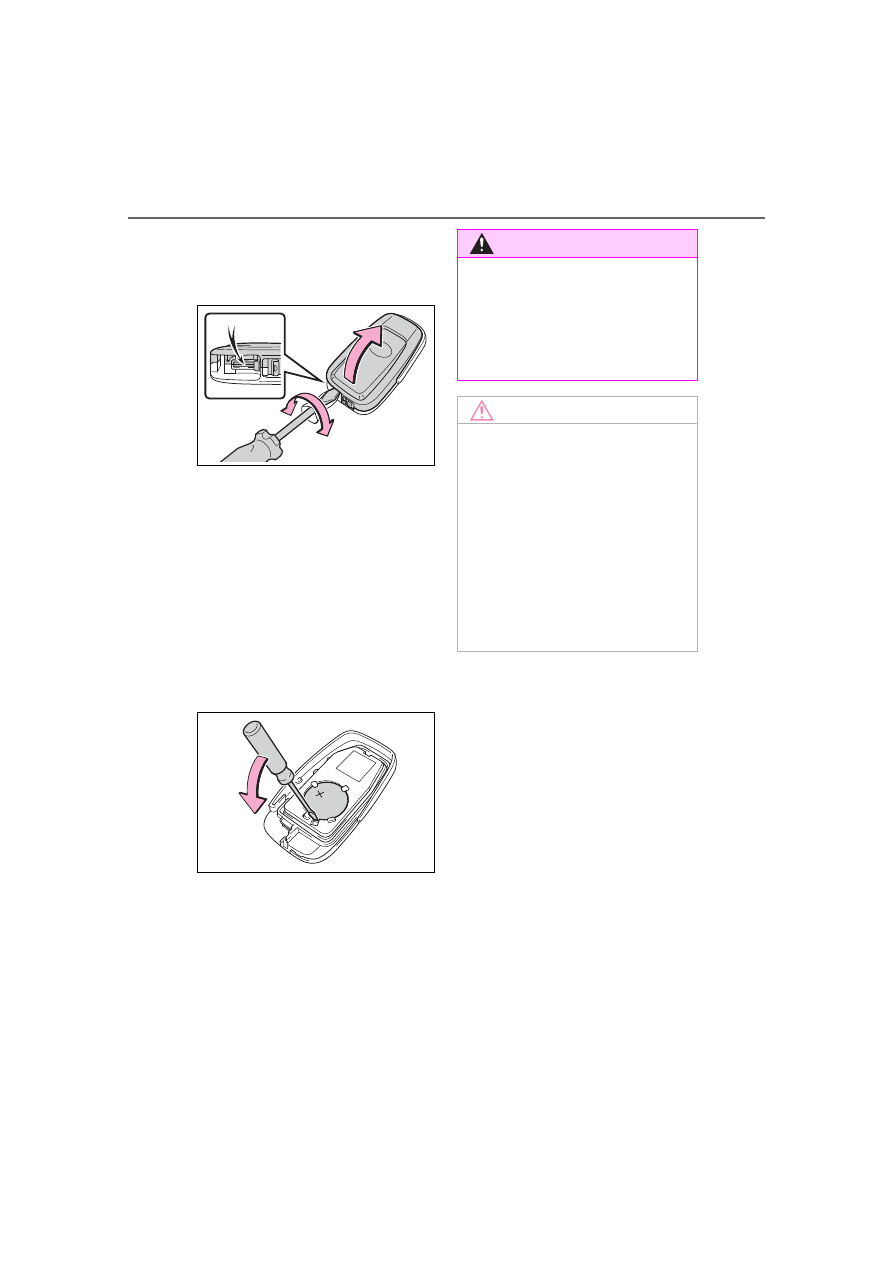

Vehicles with smart key sys-
tem

1

Release the lock and remove
the mechanical key.

2

Remove the key cover.

Use a screwdriver of an appropriate

size. Forcedly prying may cause

606

7-3. Do-it-yourself maintenance

the cover damaged.
To prevent damage to the key,

cover the tip of the flathead screw-

driver with a rag.

3

Remove the depleted battery
using a small flathead screw-
driver.

When removing the cover, the elec-

tronic key module may stick to the

cover and the battery may not be

visible. In this case, remove the

electronic key module in order to

remove the battery.
When removing the battery, use a

screwdriver of an appropriate size.
Insert a new battery with the “+” ter-

minal facing up.

4

When installing, reverse the
steps listed.

WARNING

■

Removed battery and other

parts

These parts are small and if swal-

lowed by a child, they can cause

choking. Keep away from chil-

dren. Failure to do so could result

in death or serious injury.

NOTICE

■

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery

to rust.

●

Do not touch or move any other

component inside the remote

control.

●

Do not bend either of the battery

terminals.

607

7-3. Do-it-yourself maintenance

7

Maintena

nce
 a

nd ca

re

1

Turn the engine switch off.

2

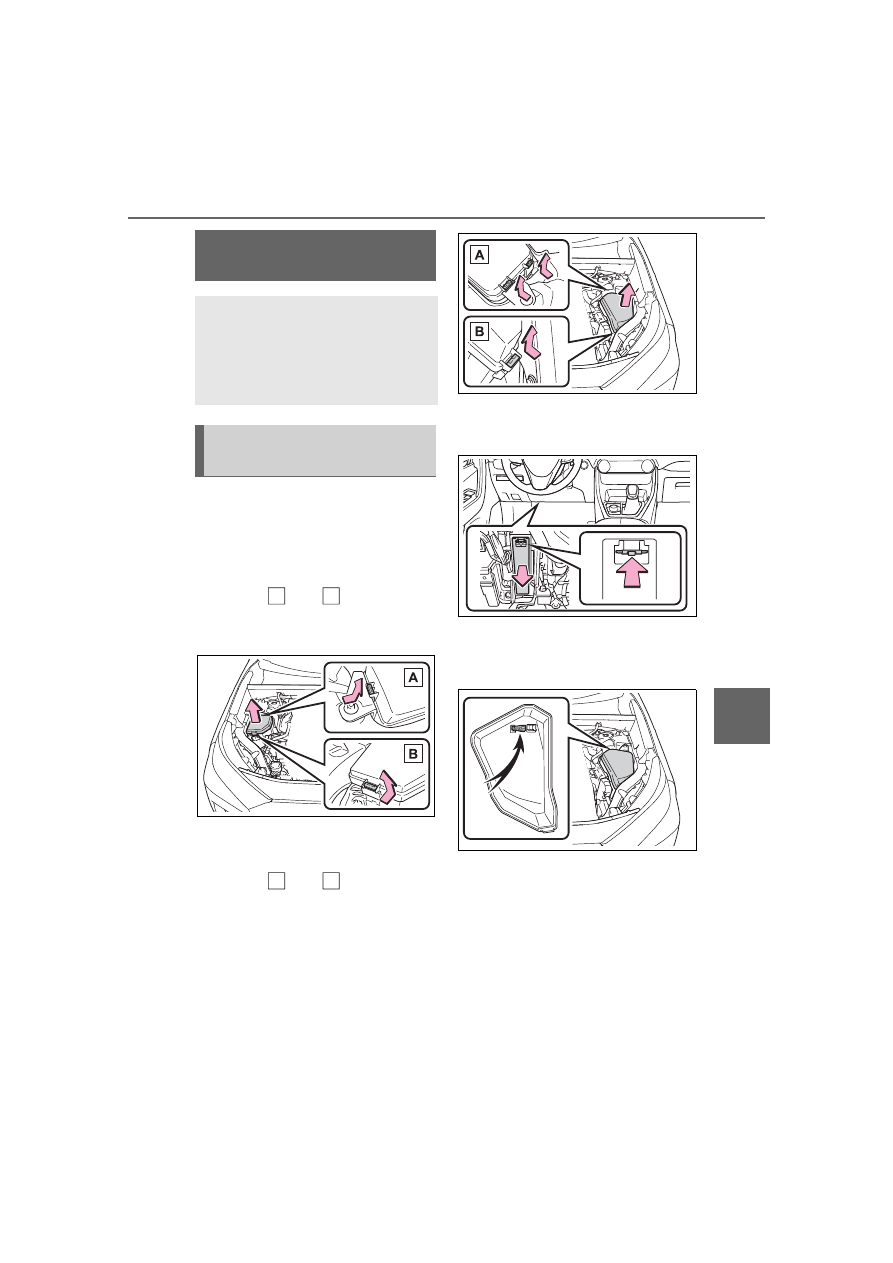

Open the fuse box cover.



Engine compartment: Type A
fuse box (if equipped)

Push claw

 and

 to com-

pletely release the lock, and then lift
up the cover.



Engine compartment: Type B
fuse box

Push claw

 and

 to com-

pletely release the lock, and then lift
up the cover.



Left side instrument panel

Remove the lid.

3

Remove the fuse.

Only type A fuse can be removed

using the pullout tool.

4

Check if the fuse is blown.

Replace the blown fuse with a new

fuse of an appropriate amperage

rating. The amperage rating can be

found on the fuse box lid.

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

A

B

A

B

608

7-3. Do-it-yourself maintenance



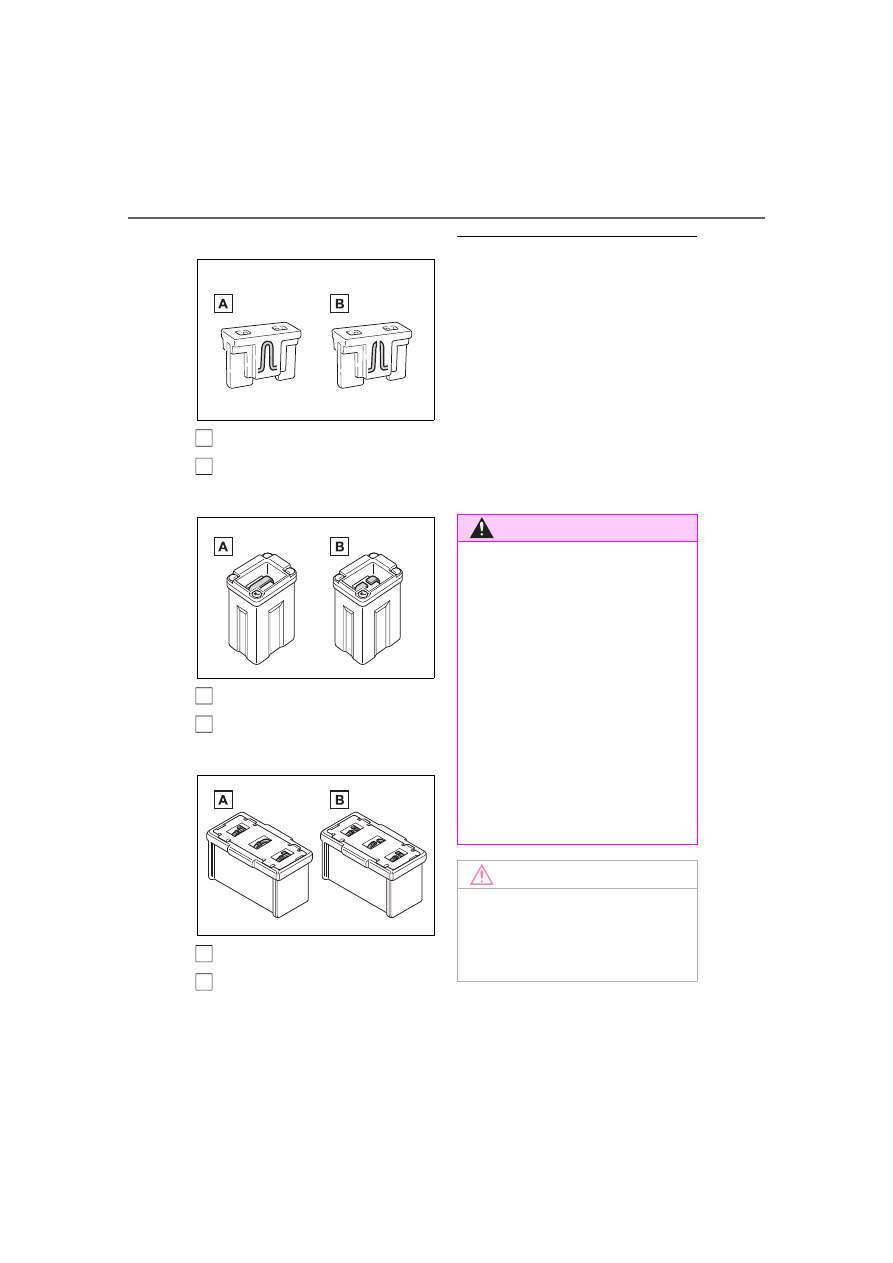

Type A

Normal fuse

Blown fuse



Type B

Normal fuse

Blown fuse



Type C

Normal fuse

Blown fuse

■

After a fuse is replaced

●

When installing the lid, make sure

that the tab is installed securely.

●

If the lights do not turn on even

after the fuse has been replaced,

a bulb may need replacement.

(



P.609)

●

If the replaced fuse blows again,

have the vehicle inspected by

your Toyota dealer.

■

If there is an overload in a cir-

cuit

The fuses are designed to blow, pro-

tecting the wiring harness from

damage.

A

B

A

B

A

B

WARNING

■

To prevent system break-

downs and vehicle fire

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the vehicle, and possibly a

fire or injury.

●

Never use a fuse of a higher

amperage rating than that indi-

cated, or use any other object in

place of a fuse.

●

Always use a genuine Toyota

fuse or equivalent.

Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse

boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical over-

load determined and repaired by

your Toyota dealer as soon as

possible.

609

7-3. Do-it-yourself maintenance

7

Maintena

nce
 a

nd ca

re

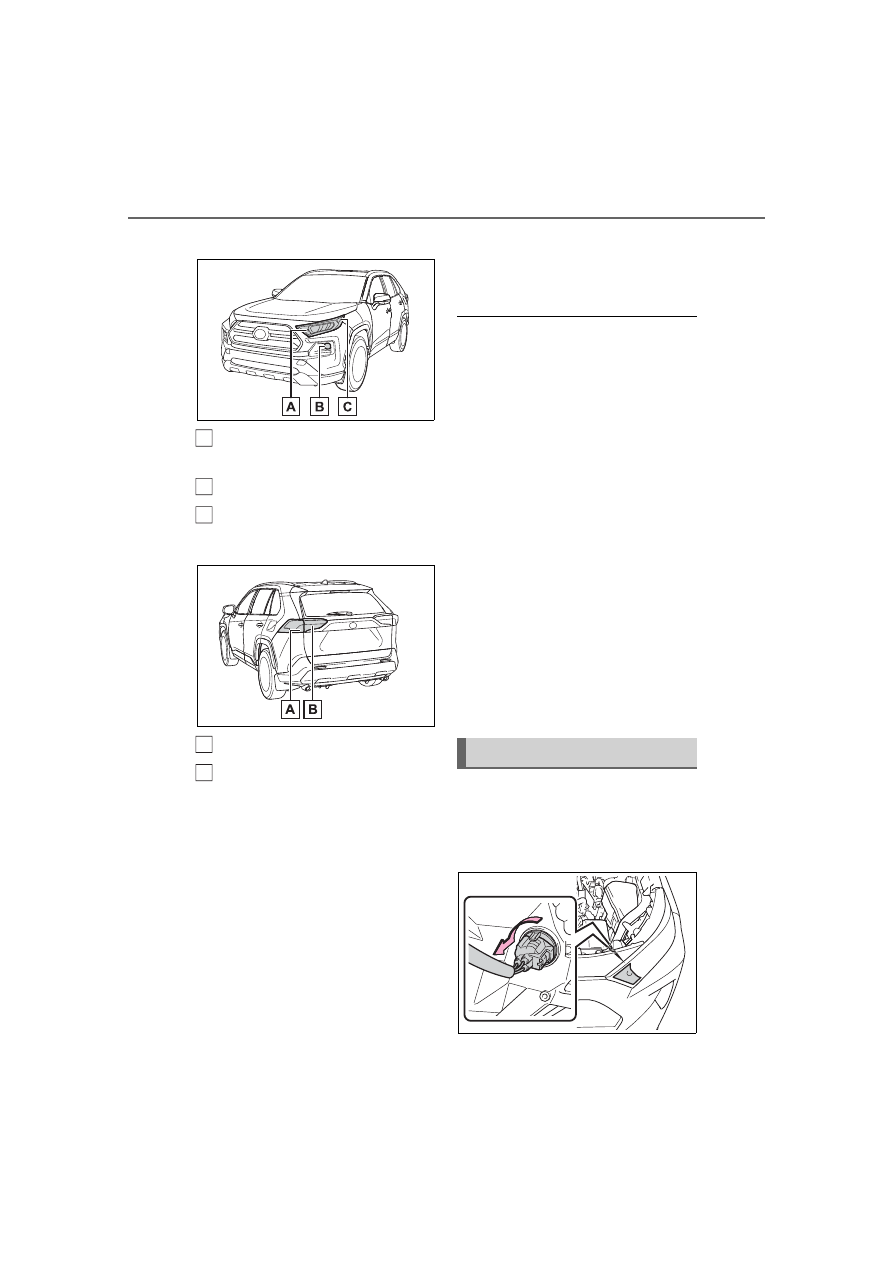

Check the wattage of the light
bulb to be replaced. (



P.675)



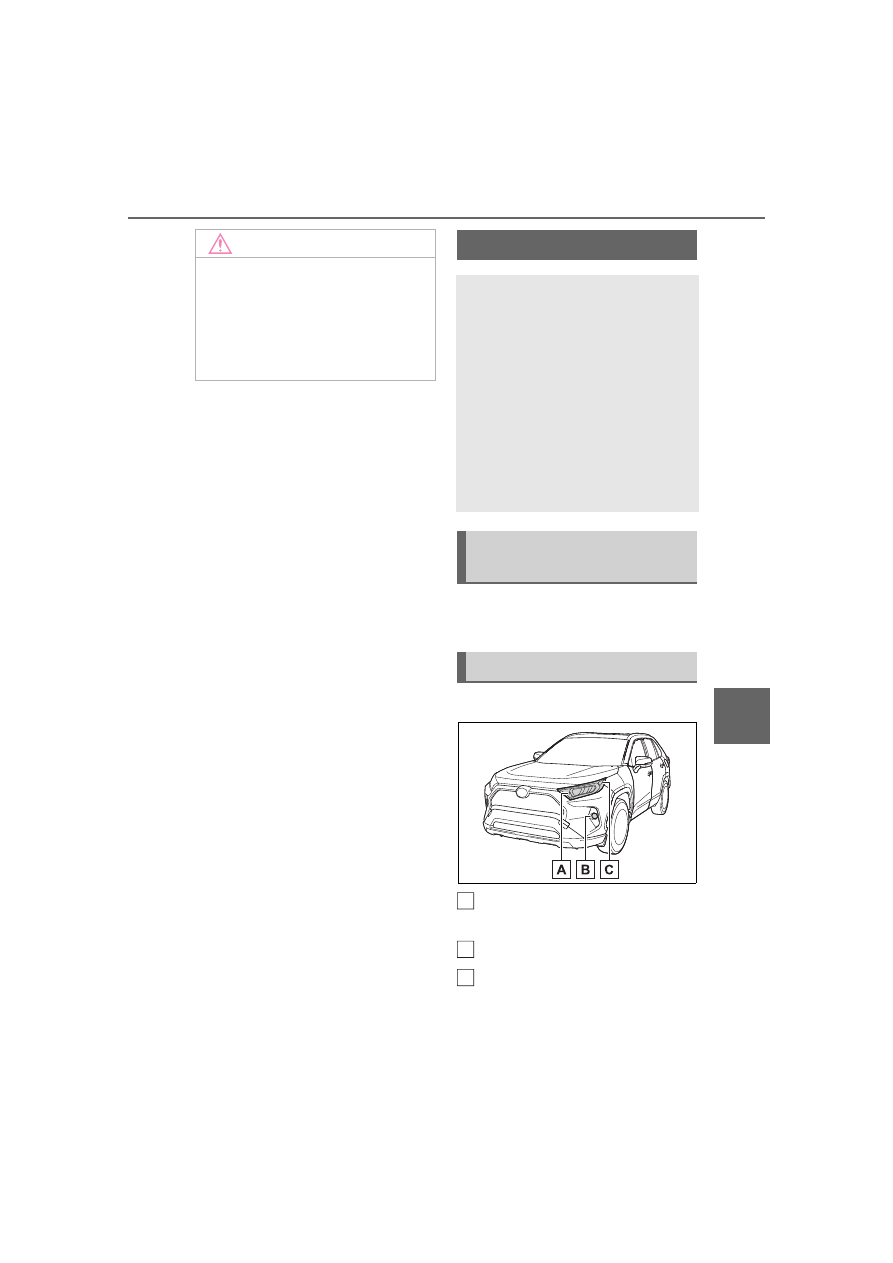

Front (type A)

Front turn signal/parking
lights

Fog lights (if equipped)

Front side marker lights

NOTICE

■

To prevent damage to the

engine compartment fuse box

cover

When opening the fuse box, com-

pletely release the claw locks

before lifting up the cover. Other-

wise, the claws may be damaged.

Light bulbs

You may replace the follow-
ing bulbs by yourself. The
difficulty level of replace-
ment varies depending on
the bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.
For more information about
replacing other light bulbs,
contact your Toyota dealer.

Preparing for light bulb
replacement

Bulb location

A

B

C

610

7-3. Do-it-yourself maintenance



Front (type B)

Front turn signal/parking
lights

Fog lights

Front side marker lights



Rear

Rear turn signal lights

Back-up lights

■

Lights that need to be
replaced by your Toyota
dealer



Headlights



Daytime running lights



Side turn signal lights (if
equipped)



Tail lights



Stop lights



Rear side marker lights



High mounted stoplight



License plate lights



Outer foot lights (if equipped)

■

LED lights

The lights other than the following

lights each consist of a number of

LEDs. If any of the LEDs burn out,

take your vehicle to your Toyota

dealer to have the light replaced.

●

Front turn signal lights

●

Parking lights

●

Front side marker lights

●

Fog lights (if equipped)

●

Rear turn signal lights

●

Back-up lights

■

Condensation build-up on the

inside of the lens

Temporary condensation build-up

on the inside of the light lens does

not indicate a malfunction. Contact

your Toyota dealer for more informa-

tion in the following situations:

●

Large drops of water have built up

on the inside of the lens.

●

Water has built up inside the light.

■

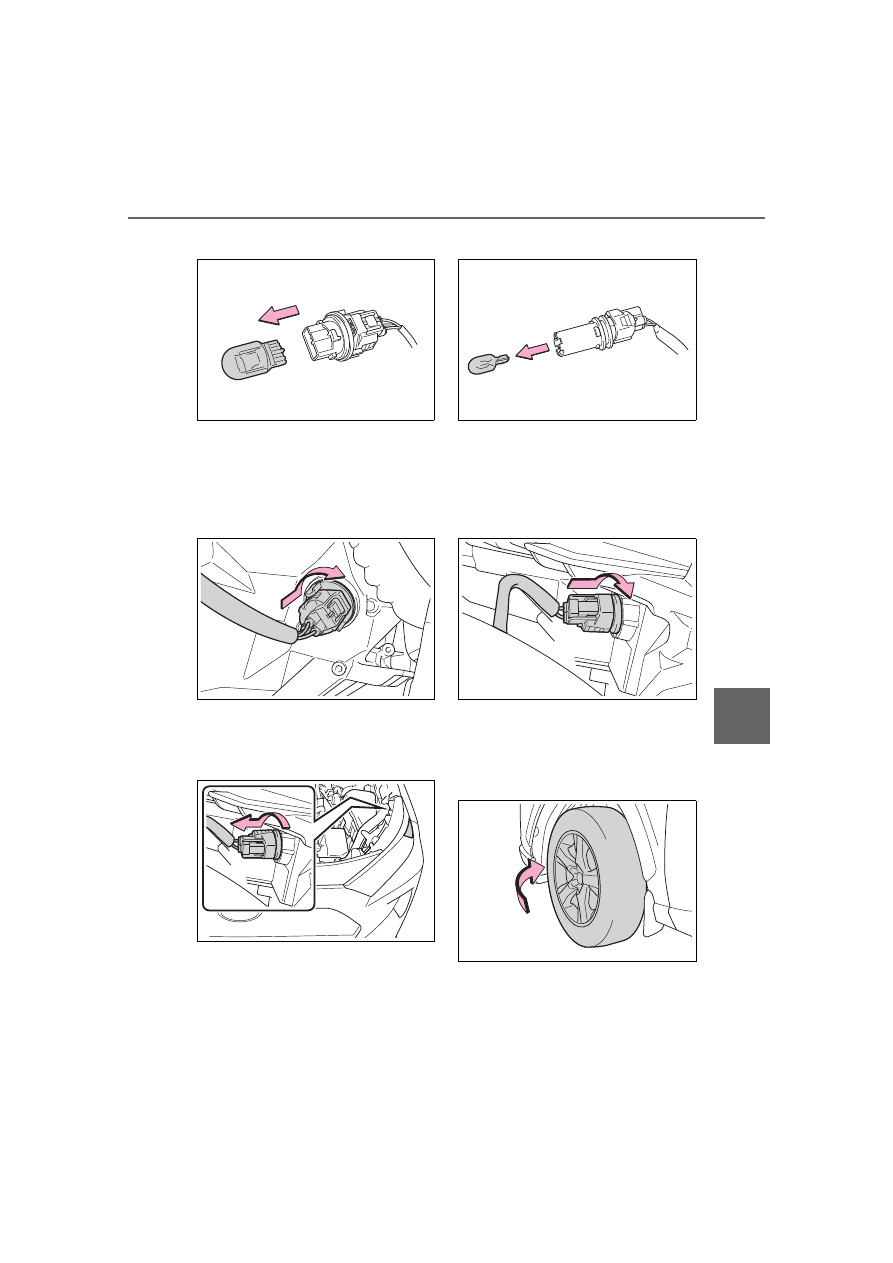

Front turn signal
lights/parking lights

1

Turn the bulb base counter-
clockwise.

A

B

C

A

B

Replacing light bulb

611

7-3. Do-it-yourself maintenance

7

Maintena

nce
 a

nd ca

re

2

Remove the light bulb.

3

Install a new light bulb then
install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.

■

Front side marker lights

1

Turn the bulb base counter-
clockwise.

2

Remove the light bulb.

3

Install a new light bulb then
install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.

■

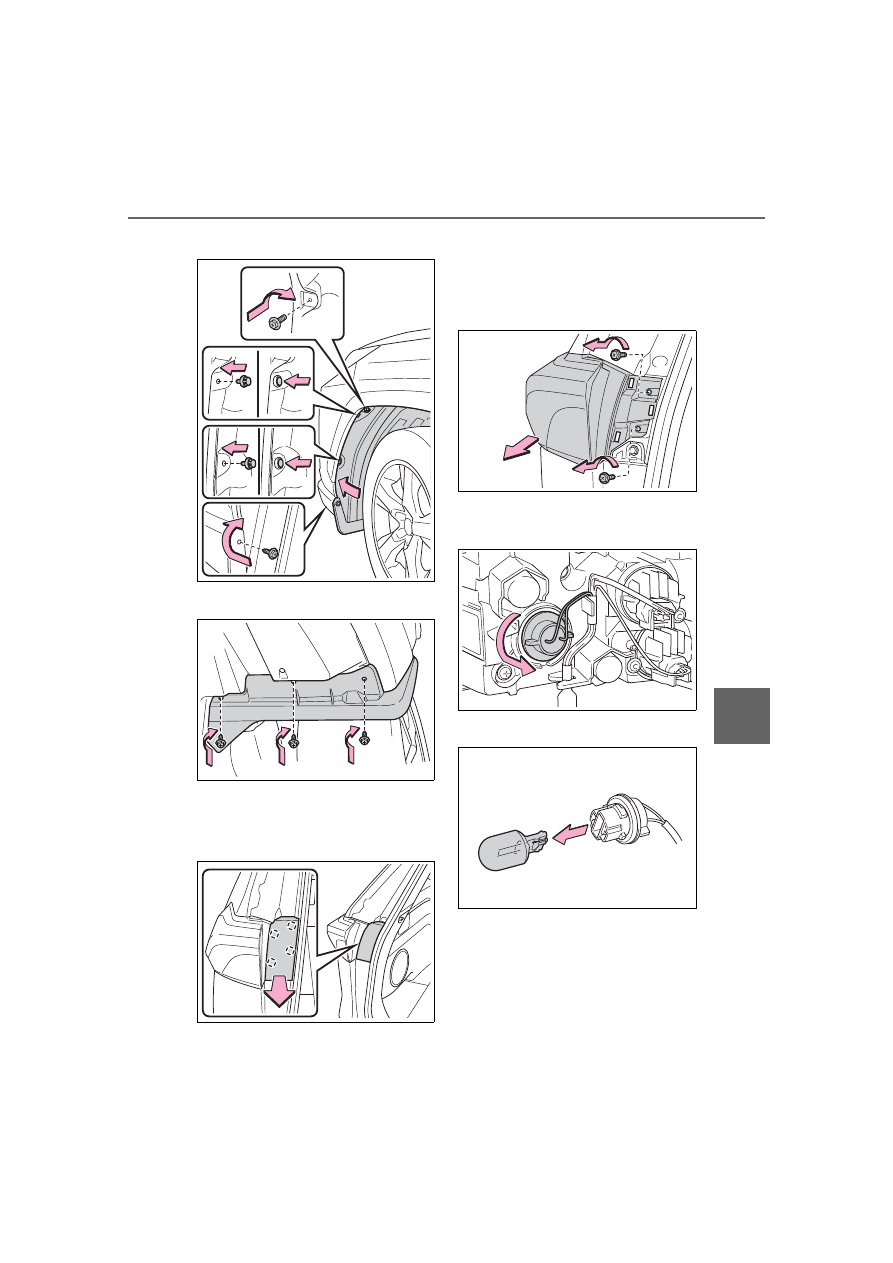

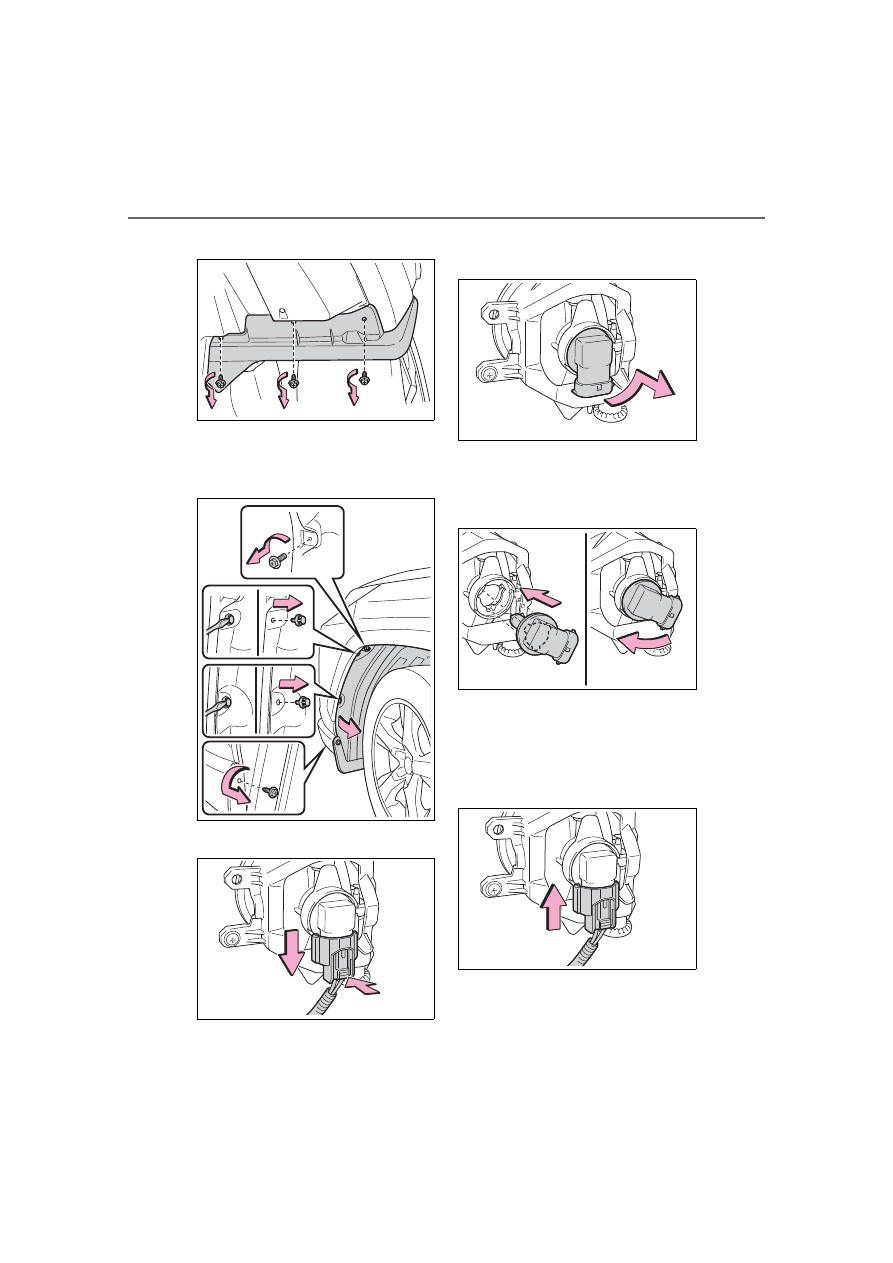

Fog lights (if equipped)

1

To allow enough working
space, turn the steering
wheel.

612

7-3. Do-it-yourself maintenance

2

Remove the screws.

3

Remove the screws and
clips, partly remove the
fender liner.

4

Unplug the connector

5

Turn the bulb base counter-
clockwise.

6

Set the new light bulb.

Align the 3 tabs on the light bulb

with the mounting, and insert. Turn

it clockwise to set.

7

Set the connector.

Shake the bulb base gently to

check that it is not loose, turn the

front fog lights on once and visually

confirm that no light is leaking

through the mounting.

613

7-3. Do-it-yourself maintenance

7

Maintena

nce
 a

nd ca

re

8

Reinstall the fender liner.

9

Reinstall the screws.

■

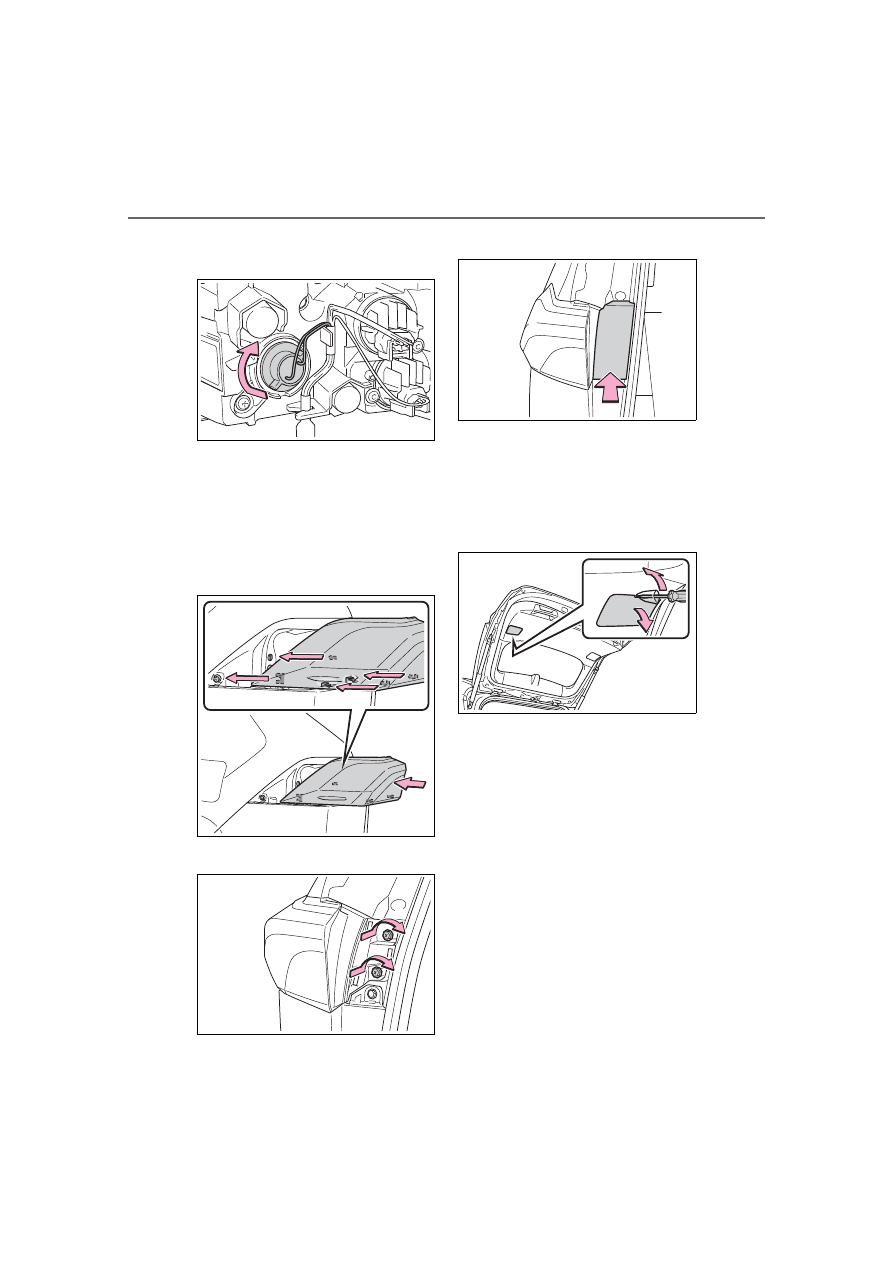

Rear turn signal lights

1

Open the back door and
remove the cover.

2

Remove the securing screws
and remove the unit.

Remove the lamp assembly by pull-

ing it directly backward from the

rear of the vehicle.

3

Turn the bulb base counter-
clockwise.

4

Remove the light bulb.

5

Install a new light bulb then
install the bulb base to the
light unit by inserting it and

614

7-3. Do-it-yourself maintenance

turning the bulb base clock-
wise.

6

Align the grooves on the light
unit with the claws, and insert
the light unit straight so that
the pin on the light unit fit into
the hole.

Confirm that the light unit is com-

pletely secured.

7

Reinstall the screws.

8

Reinstall the cover.

■

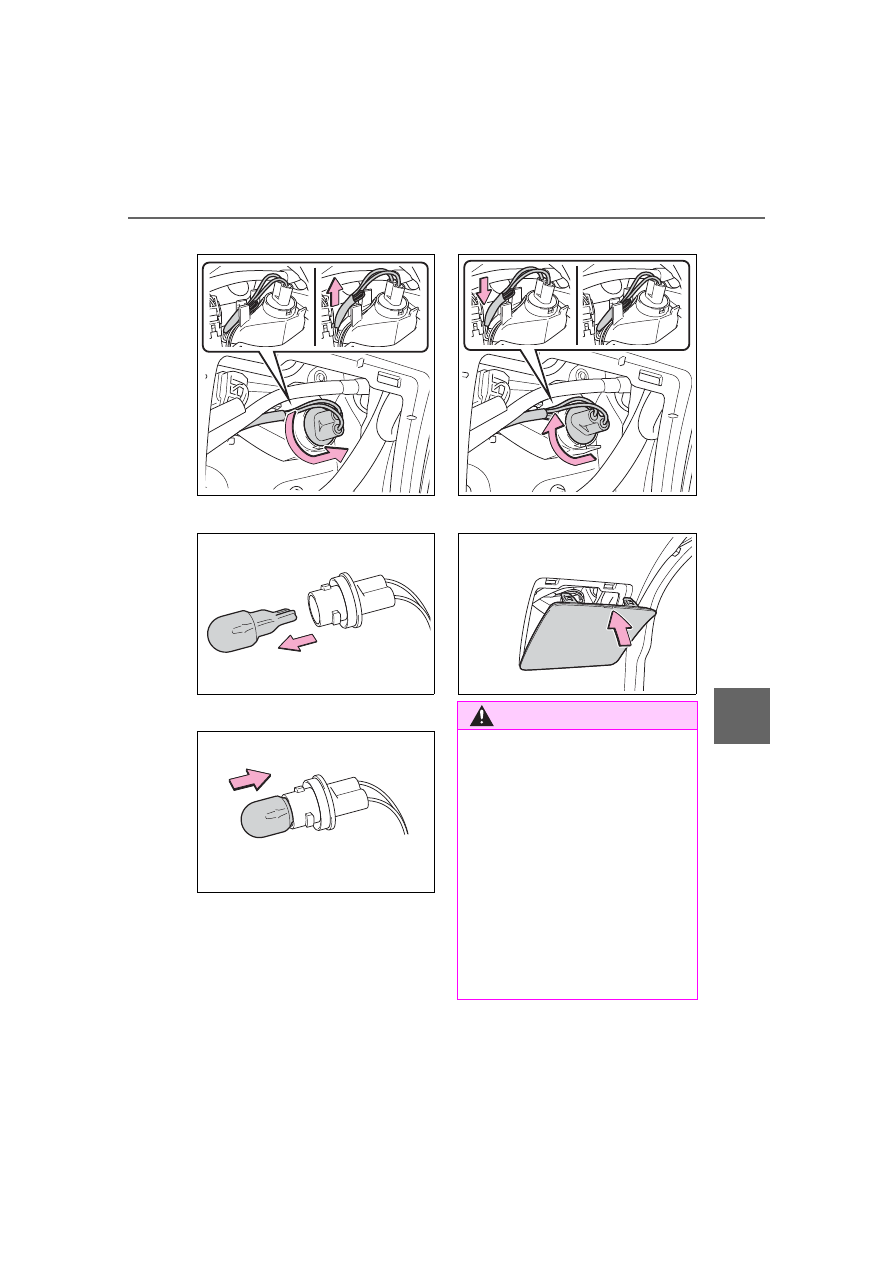

Back-up lights

1

Open the back door and
remove the cover.

To prevent damage to the cover,

protect the tip of the screwdriver

with a rag.

2

Turn the bulb base counter-
clockwise.

Remove the cord from the clip

615

7-3. Do-it-yourself maintenance

7

Maintena

nce
 a

nd ca

re

before turning the bulb base.

3

Remove the light bulb.

4

Install a new light bulb.

5

Install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.

Secure the cord with the clip back

again after installing the bulb base.

6

Reinstall the cover.

WARNING

■

Replacing light bulb

●

Turn off the light. Do not attempt

to replace the bulb immediately

after turning off the light.

The bulb become very hot and

may cause burns.

●

Do not touch the glass portion

of the light bulb with bare

hands. When it is unavoidable

to hold the glass portion, use

and hold with a clean dry cloth

to avoid getting moisture and

oils on the bulb.

Also, if the bulb is scratched or

dropped, it may blow out or

crack.

616

7-3. Do-it-yourself maintenance

WARNING

●

Fully install light bulb and any

parts used to secure it. Failure

to do so may result in heat dam-

age, fire, or water entering the

light unit. This may damage the

light or cause condensation to

build up on the lens.

●

Do not attempt to repair or dis-

assemble light bulbs, connec-

tors, electric circuits or

component parts.

Doing so may result in death or

serious injury due to electric

shock.

■

To prevent damage or fire

●

Make sure bulb is fully seated

and locked.

●

Check the wattage of the bulb

before installing to prevent heat

damage.

617

8

8

Whe

n tr

ouble

 a

rises

When trouble arises

8-1. Essential information

Emergency flashers ....

618

If your vehicle has to be

stopped in an emergency

..................................

618

If the vehicle is trapped in

rising water................

619

8-2. Steps to take in an emer-

gency

If your vehicle needs to be

towed.........................

621

If you think something is

wrong ........................

626

Fuel pump shut off system

..................................

627

If a warning light turns on or

a warning buzzer sounds

..................................

628

If a warning message is dis-

played........................

639

If you have a flat tire....

642

If the engine will not start

..................................

651

If you lose your keys ...

653

If the electronic key does

not operate properly (vehi-
cles with smart key sys-
tem) ...........................

653

If the vehicle battery is dis-

charged .....................

655

If your vehicle overheats

..................................

659

If the vehicle becomes stuck

..................................

661

618

8-1. Essential information

8-1.Essential information

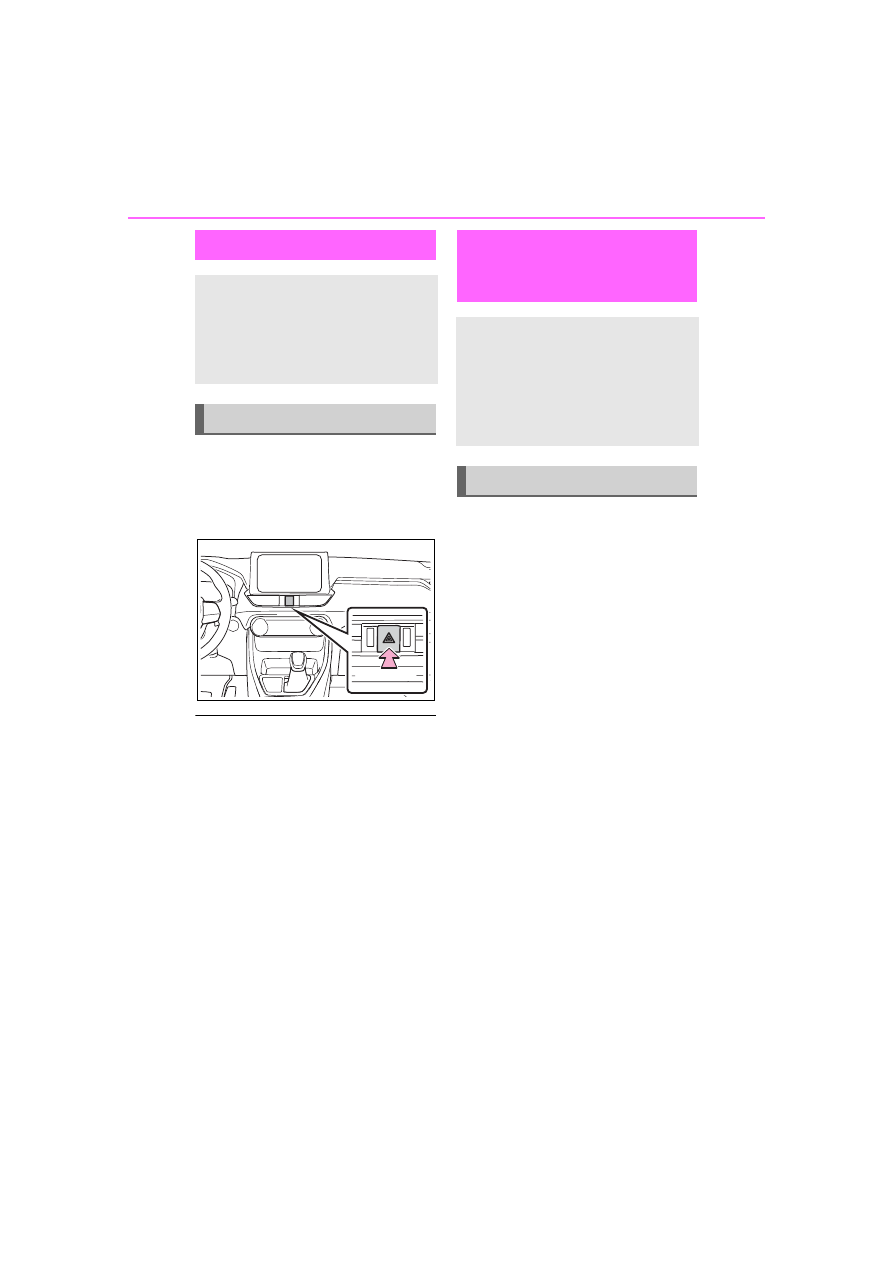

Press the switch.

All the turn signal lights will flash.
To turn them off, press the switch
once again.

■

Emergency flashers

●

If the emergency flashers are

used for a long time while the

engine is not running, the battery

may discharge.

●

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the emergency flash-

ers will turn on automatically.

The emergency flashers will turn

off automatically after operating

for approximately 20 minutes. To

manually turn the emergency

flashers off, press the switch

twice. (The emergency flashers

may not turn on automatically

depending on the force of the

impact and conditions of the colli-

sion.)

1

Steadily step on the brake
pedal with both feet and
firmly depress it.

Do not pump the brake pedal

repeatedly as this will increase the

effort required to slow the vehicle.

2

Shift the shift lever to N.



If the shift lever is shifted to N

3

After slowing down, stop the
vehicle in a safe place by the
road.

4

Stop the engine.



If the shift lever cannot be
shifted to N

3

Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as
possible.

4

Perform the following proce-
dure to stop the engine:



Vehicles without smart key
system

Turn the engine switch to ACC.

Emergency flashers

The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped in the road due to a
breakdown, etc.

Operating instructions

If your vehicle has to

be stopped in an emer-

gency

Only in an emergency, such
as if it becomes impossible
to stop the vehicle in the
normal way, stop the vehicle
using the following proce-
dure:

Stopping the vehicle

619

8-1. Essential information

8

Whe

n tr

ouble

 a

rises



Vehicles with smart key sys-
tem

Press and hold the engine switch
for 2 consecutive seconds or more,
or press it briefly 3 times or more in
succession.

5

Stop the vehicle in a safe
place by the road.



Remove the seat belt first.



If the door can be opened,
open the door and exit the
vehicle.



If the door can not be opened,
open the window using the
power window switch and exit
the vehicle through the win-
dow.



If the window can not be
opened using the power win-
dow switch, remain calm, wait
until the water level inside the
vehicle rises to the point that
the water pressure inside of
the vehicle equals the water
pressure outside of the vehi-
cle, and then open the door
and exit the vehicle.

WARNING

■

If the engine has to be turned

off while driving

●

Power assist for the brakes and

steering wheel will be lost, mak-

ing the brake pedal harder to

depress and the steering wheel

heavier to turn. Decelerate as

much as possible before turning

off the engine.

●

Vehicles without smart key sys-

tem: Never attempt to remove

the key, as doing so will lock the

steering wheel.

If the vehicle is

trapped in rising water

In the event the vehicle is
submerged in water, remain
calm and perform the fol-
lowing.

620

8-1. Essential information

WARNING

■

Using an emergency hammer

*



for emergency escape

The front side windows and rear

side windows, as well as the rear

window can be shattered with an
emergency hammer

*

 used for

emergency escape. However, an

emergency hammer can not shat-

ter the windshield as it is lami-

nated glass.

*

: Contact your Toyota dealer, or

aftermarket accessory manu-
facturer for further information
about an emergency hammer.

■

Escaping the vehicle from the

window

There are cases where escaping

the vehicle from the window is not

possible due to seating position,

passenger body type, etc.
When using an emergency ham-

mer, consider your seat location

and the size of the window open-

ing to ensure that the opening is

accessible and large enough to

escape.

621

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

8-2.Steps to take in an emergency

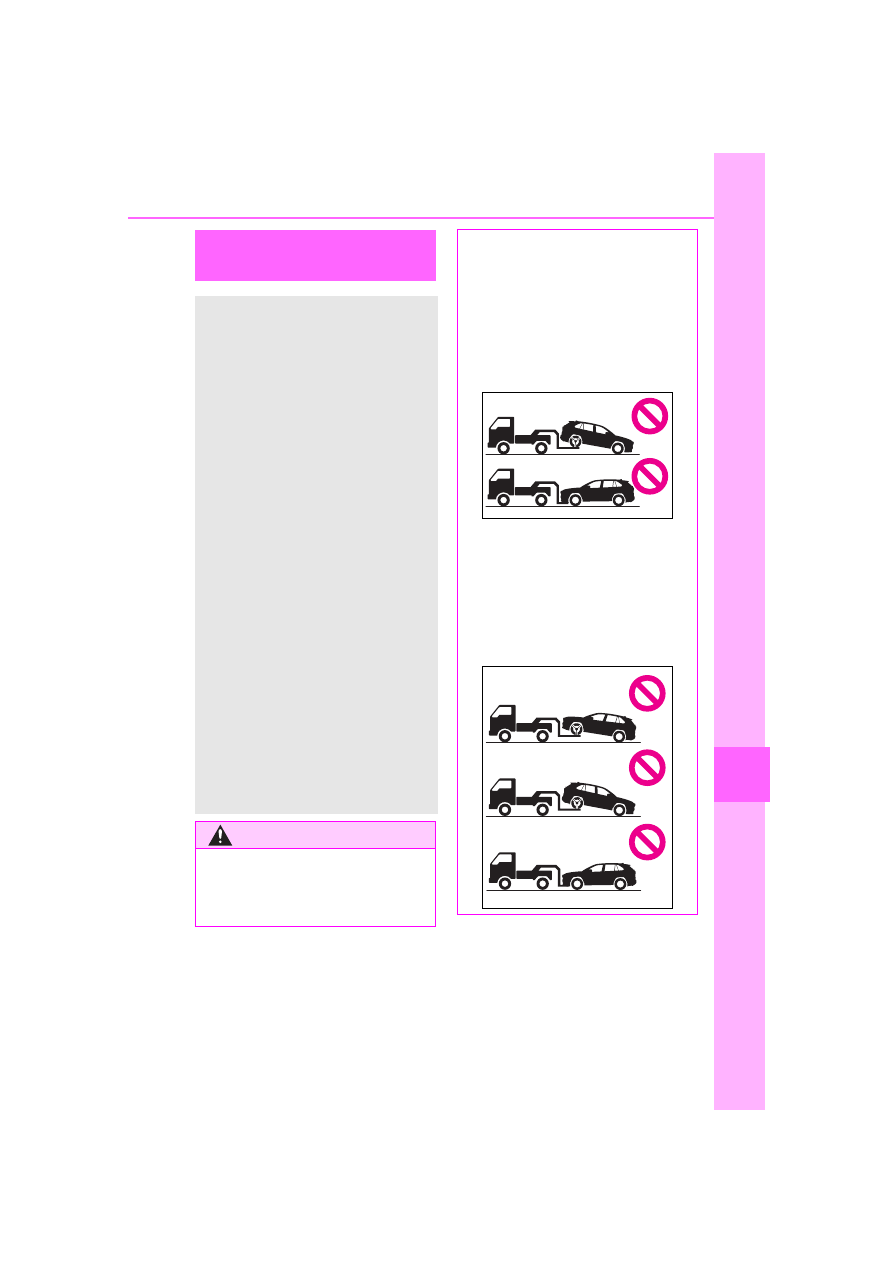

If your vehicle needs

to be towed

If towing is necessary, we
recommend having your
vehicle towed by your Toy-
ota dealer or commercial
towing service, using a
wheel-lift type truck or flat-
bed truck.
Use a safety chain system
for all towing, and abide by
all state/provincial and local
laws.
2WD models: If towing your
vehicle with a wheel-lift type
truck from the front, the
vehicle’s rear wheels and
axles must be in good con-
ditions. (



P.623)

If they are damaged, use a
towing dolly or flatbed
truck.
AWD models: If towing your
vehicle with a wheel-lift type
truck, use a towing dolly.
(



P.623)

WARNING

Observe the following precau-

tions.
Failure to do so may result in

death or serious injury.

■

When towing the vehicle



2WD models

Be sure to transport the vehicle

with the front wheels raised or

with all four wheels raised off the

ground. If the vehicle is towed

with the front wheels contacting

the ground, the drivetrain and

related parts may be damaged.



AWD models

Be sure to transport the vehicle

with all four wheels raised off the

ground. If the vehicle is towed

with the tires contacting the

ground, the drivetrain or related

parts may be damaged, the vehi-

cle may fly off the truck.

622

8-2. Steps to take in an emergency

The following may indicate a
problem with your transmission.
Contact your Toyota dealer or
commercial towing service

WARNING

■

While towing (vehicles with

towing eyelet)

●

When towing using cables or

chains, avoid sudden starts, etc.

which place excessive stress on

the towing eyelets, cables or

chains. The towing eyelets,

cables or chains may become

damaged, broken debris may hit

people, and cause serious dam-

age.

●

Do not turn the engine switch to

OFF.

There is a possibility that the

steering wheel is locked and

cannot be operated.

■

Installing towing eyelet to the

vehicle (vehicles with towing

eyelet)

Make sure that towing eyelet is

installed securely.
If not securely installed, towing

eyelet may come loose during

towing.

NOTICE

■

To prevent damage to the

vehicle when towing using a

wheel-lift type truck

●

Do not tow the vehicle from the

rear when the engine switch is

in OFF or the key is removed

(vehicles without smart key sys-

tem). The steering lock mecha-

nism is not strong enough to

hold the front wheels straight.

●

When raising the vehicle,

ensure adequate ground clear-

ance for towing at the opposite

end of the raised vehicle. With-

out adequate clearance, the

vehicle could be damaged while

being towed.

■

To prevent damage to the

vehicle when towing with a

sling-type truck

Do not tow with a sling-type truck,

either from the front or rear.

■

To prevent damage to the

vehicle during emergency

towing (vehicles with towing

eyelet)

Do not secure cables or chains to

the suspension components.

■

When towing the vehicle

(vehicles with Stop & Start

system)

If it is necessary to tow the vehicle

with all four wheels on the ground,

perform the following procedure

before towing the vehicle, in order

to protect the system.

Turn the engine switch to OFF

and then start the engine or turn

the engine switch to ON.

■

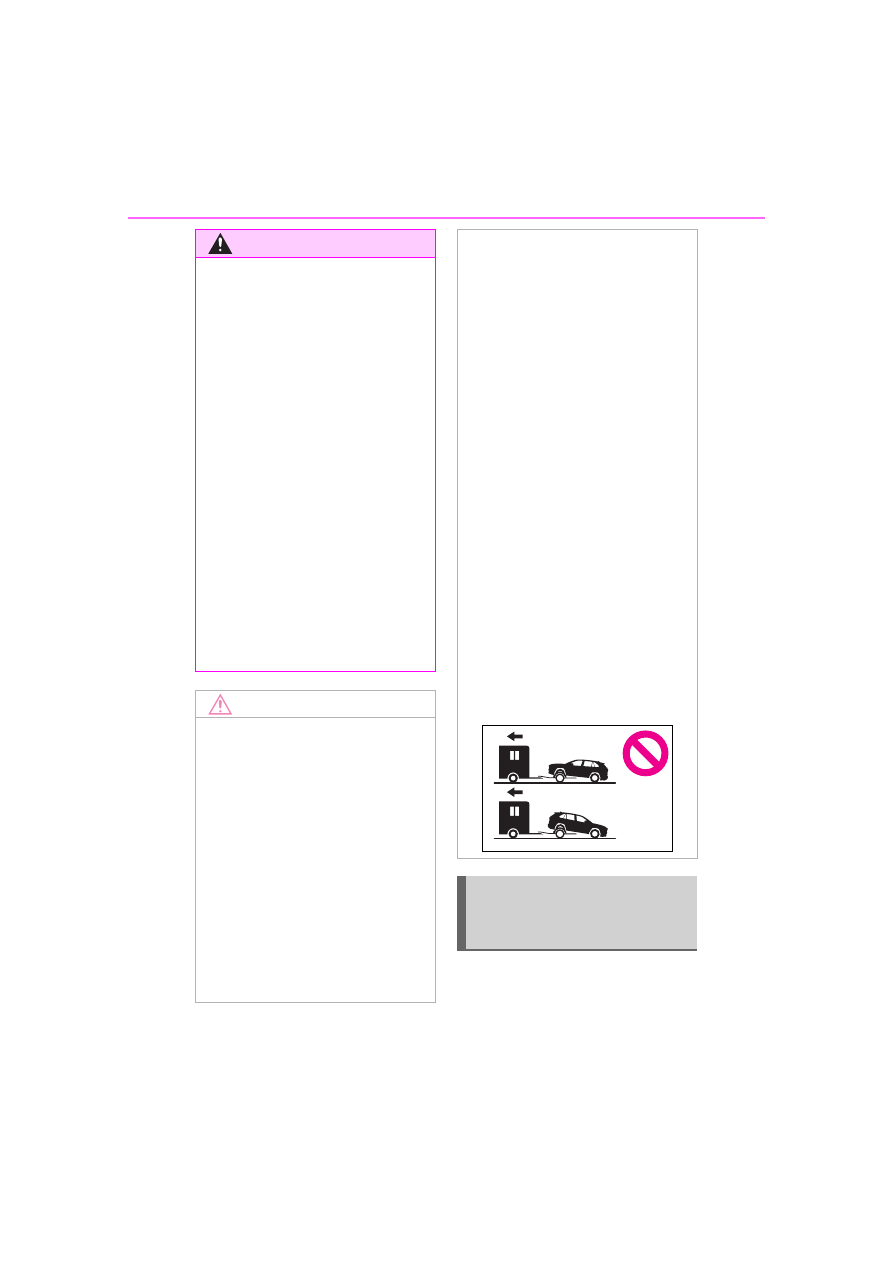

Recreational towing (behind

motor home, etc.)

Never dinghy tow your vehicle to

prevent causing serious damage

to the AWD system (AWD mod-

els) and transmission. (



P.191)

Situations when it is nec-
essary to contact dealers
before towing

623

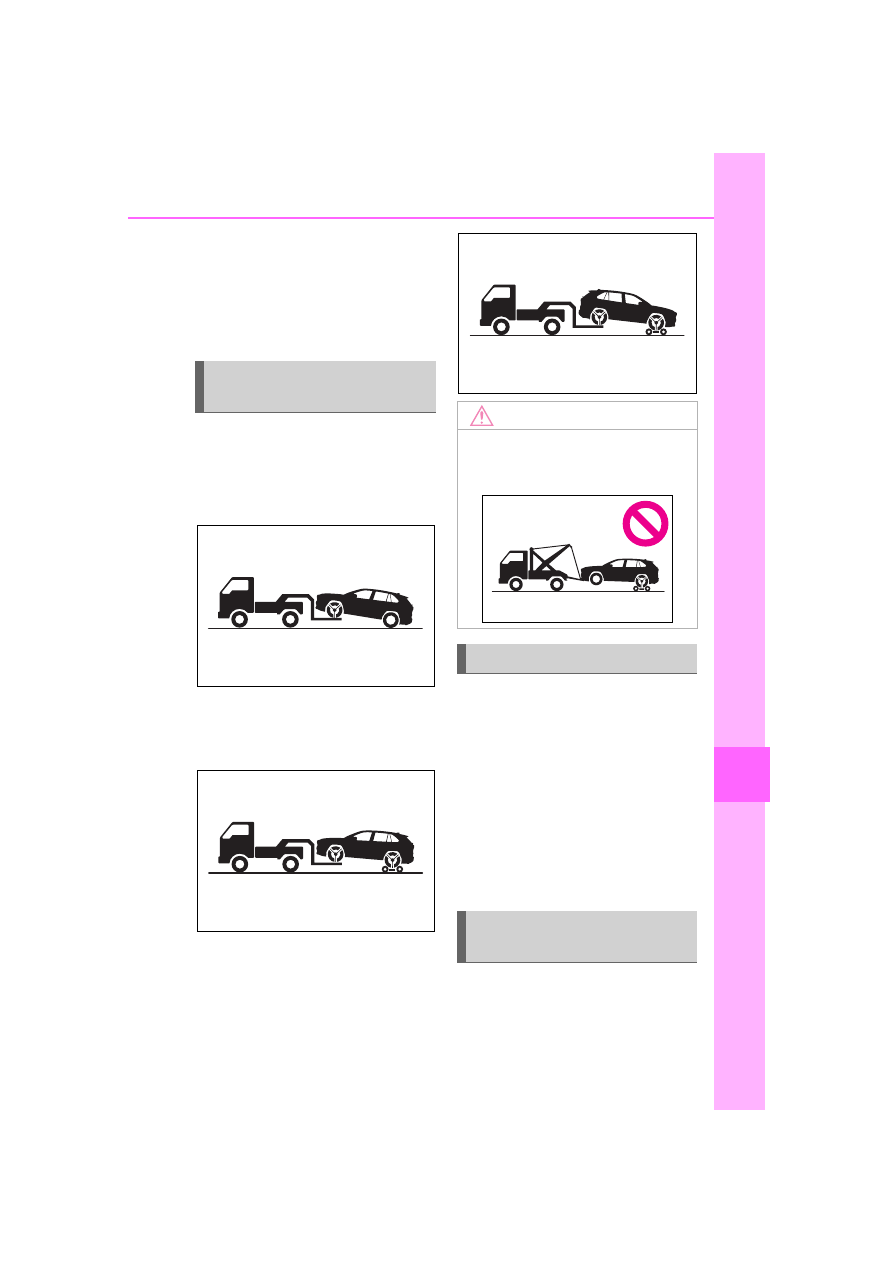

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

before towing.



The engine is running but the
vehicle does not move.



The vehicle makes an abnor-
mal sound.



From the front (2WD models)

Release the parking brake.
Turn automatic mode off.
(



P.204)



From the front (AWD models)

Use a towing dolly under the
rear wheels.



From the rear

Use a towing dolly under the
front wheels.

When using a flat-bed truck to
transport the vehicle, use tire
strapping belts. Refer to the
owner’s manual of the flat-bed
truck for the tire strapping
method.
In order to suppress vehicle
movement during transporta-
tion, set the parking brake and
turn the engine switch off.

If a tow truck is not available in
an emergency, your vehicle may
be temporarily towed using

Towing with a wheel-lift
type truck

NOTICE

■

Towing with a sling-type truck

Do not tow with a sling-type truck

to prevent body damage.

Using a flatbed truck

Emergency towing (vehi-
cles with towing eyelet)

624

8-2. Steps to take in an emergency

cables or chains secured to the
emergency towing eyelets. This
should only be attempted on
hard surfaced roads for at most
50 miles (80 km) at under 18
mph (30 km/h).
A driver must be in the vehicle to
steer and operate the brakes.
The vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.

To have your vehicle towed by
another vehicle, the towing eye-
let must be installed to your
vehicle. Install the towing eyelet
by following the specified proce-
dure.

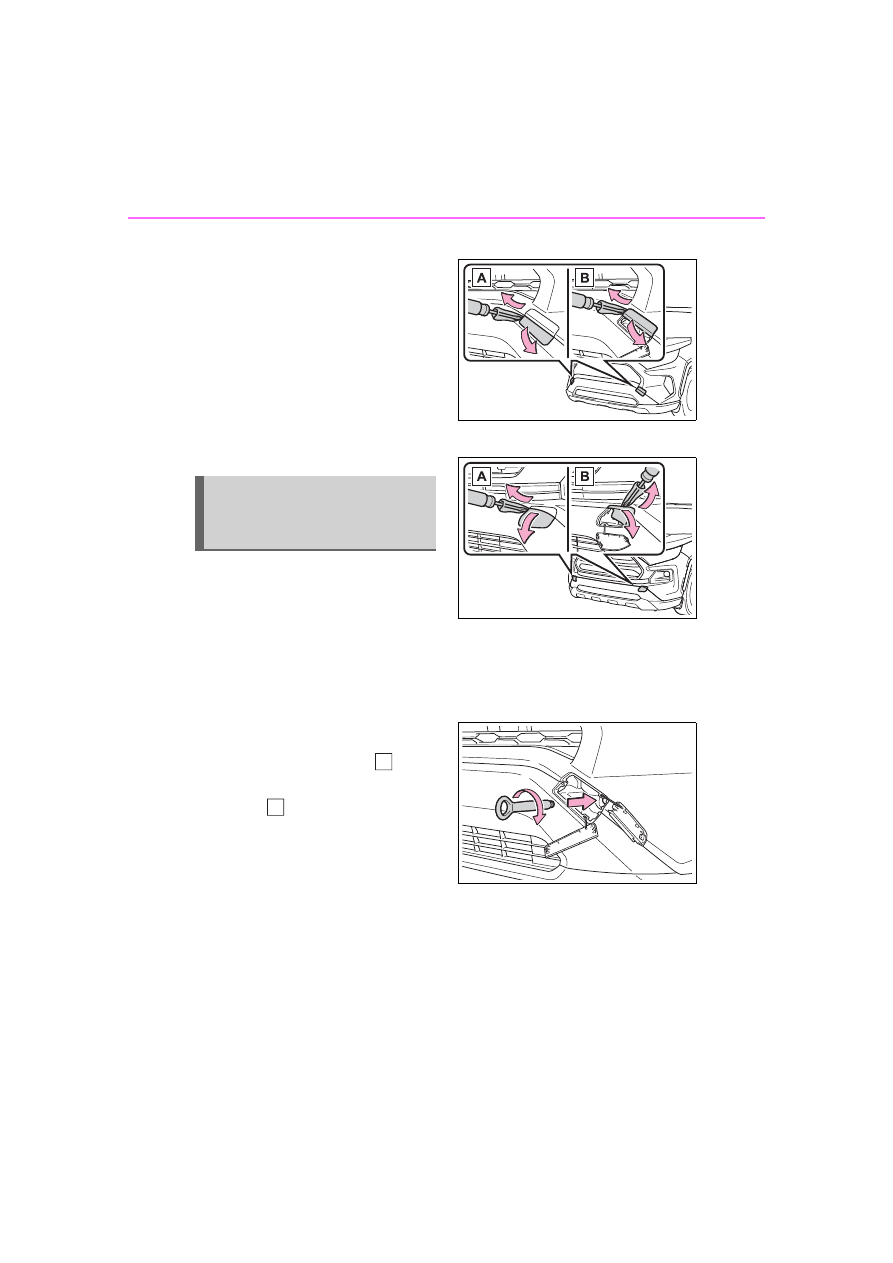

1

Take out the towing eyelet.
(



P.643)

2

Using a flathead screwdriver,
remove eyelet cover (

),

and then remove eyelet
cover (

).

To protect the bodywork, place a

rag between the screwdriver and

the vehicle body as shown in the

illustration.



Type A



Type B

3

Insert the towing eyelet into
the hole and tighten partially
by hand.



Type A

Emergency towing proce-
dure (vehicles with towing
eyelet)

A

B

625

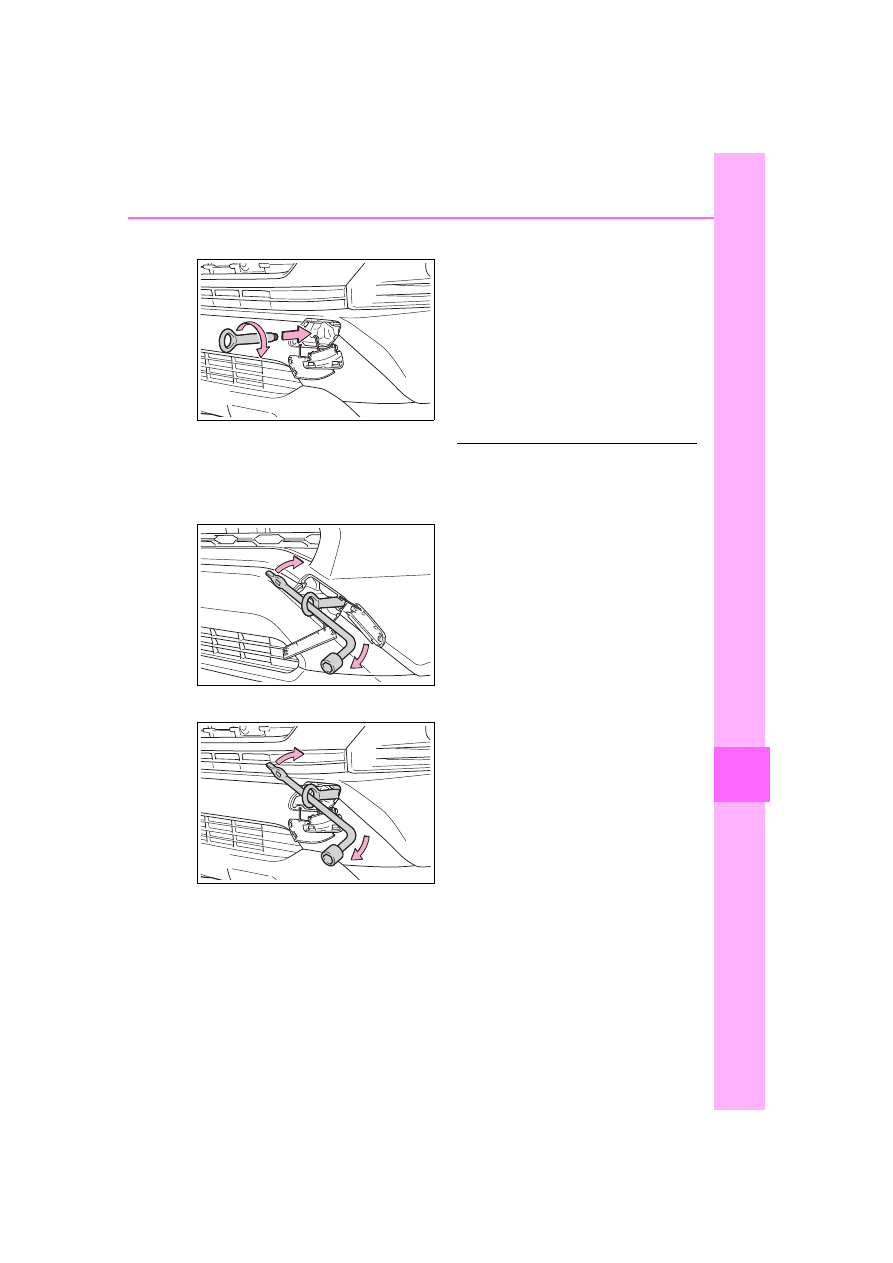

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises



Type B

4

Tighten down the towing eye-
let securely using a wheel nut
wrench or hard metal bar.



Type A



Type B

5

Securely attach cables or
chains to the towing eyelet.

Take care not to damage the vehi-

cle body.

6

Enter the vehicle being towed
and start the engine.

Turn off the Parking Support Brake

function. (if equipped):



P.282

If the engine does not start, turn the

engine switch to ON.
Vehicles with Stop & Start system:

Before towing the vehicle, turn the

engine switch to OFF once, and

then start the engine.

7

Shift the shift lever to N and
release the parking brake.

When the shift lever cannot be

shifted:



P.200

■

While towing

If the engine is not running, the

power assist for the brakes and

steering will not function, making

steering and braking more difficult.

■

Wheel nut wrench

Wheel nut wrench is installed in the

tool bag. (



P.643)

626

8-2. Steps to take in an emergency



Fluid leaks under the vehicle
(Water dripping from the air
conditioning after use is nor-
mal.)



Flat-looking tires or uneven
tire wear



Engine coolant temperature
gauge needle continually
points higher than normal.



Changes in exhaust sound



Excessive tire squeal when
cornering



Strange noises related to the
suspension system



Pinging or other noises
related to the engine



Engine missing, stumbling or
running roughly



Appreciable loss of power



Vehicle pulls heavily to one

side when braking



Vehicle pulls heavily to one
side when driving on a level
road



Loss of brake effectiveness,
spongy feeling, pedal almost
touches the floor

If you think something

is wrong

If you notice any of the fol-
lowing symptoms, your
vehicle probably needs
adjustment or repair. Con-
tact your Toyota dealer as
soon as possible.

Visible symptoms

Audible symptoms

Operational symptoms

627

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

Follow the procedure below to
restart the engine after the sys-
tem is activated.

1

Turn the engine switch to
ACC or off.

2

Restart the engine.

Fuel pump shut off

system

To minimize the risk of fuel
leakage when the engine
stalls or when an airbag
inflates upon collision, the
fuel pump shut off system
stops the supply of fuel to
the engine.

Restarting the engine

NOTICE

■

Before starting the engine

Inspect the ground under the

vehicle.
If you find that fuel has leaked

onto the ground, the fuel system

has been damaged and is in need

of repair. Do not restart the

engine.

628

8-2. Steps to take in an emergency

■

Brake system warning light (warning buzzer)

■

Brake system warning light

■

Charging system warning light

If a warning light turns on or a warning buzzer

sounds

Calmly perform the following actions if any of the warning
lights comes on or flashes. If a light comes on or flashes, but
then goes off, this does not necessarily indicate a malfunc-
tion in the system. However, if this continues to occur, have
the vehicle inspected by your Toyota dealer.

Actions to the warning lights or warning buzzers

Warning light

Details/Actions

(U.S.A.)

(Canada)

(Red)

Indicates that:



The brake fluid level is low; or



The brake system is malfunctioning



Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
Continuing to drive the vehicle may be
dangerous.

Warning light

Details/Actions

(Yellow)

Indicates a malfunction in the parking brake sys-
tem



Have the vehicle inspected by your Toyota
dealer immediately.

Warning light

Details/Actions

Indicates a malfunction in the vehicle’s charging
system



Immediately stop the vehicle in a safe
place and contact your Toyota dealer.

629

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

■

High coolant temperature warning light

*

 (warning buzzer)

*

: This light illuminates on the multi-information display with a message.

■

Low engine oil pressure warning light

*

 (warning buzzer)

*

: This light illuminates on the multi-information display with a message.

■

Malfunction indicator lamp

■

SRS warning light

Warning light

Details/Actions

Indicates that the engine is overheating



Immediately stop the vehicle in a safe
place.
Handling method (



P.659)

Warning light

Details/Actions

Indicates that the engine oil pressure is too low



Immediately stop the vehicle in a safe
place and contact your Toyota dealer.

Warning light

Details/Actions

(U.S.A.)

(Canada)

Indicates a malfunction in:



The electronic engine control system;



The electronic throttle control system; or



The emission control system (if equipped)



Have the vehicle inspected by your Toyota
dealer immediately.

Warning light

Details/Actions

Indicates a malfunction in:



The SRS airbag system;



The front passenger occupant classification
system; or



The seat belt pretensioner system



Have the vehicle inspected by your Toyota
dealer immediately.

630

8-2. Steps to take in an emergency

■

ABS warning light

■

Electric power steering system warning light (warning
buzzer)

■

PCS warning light (warning buzzer)

Warning light

Details/Actions

(U.S.A.)

(Canada)

Indicates a malfunction in:



The ABS; or



The brake assist system



Have the vehicle inspected by your Toyota
dealer immediately.

Warning light

Details/Actions

(Red/yellow)

Indicates a malfunction in the EPS (Electric
Power Steering) system



Have the vehicle inspected by your Toyota
dealer immediately.

Warning light

Details/Actions

(Flashes or illuminates)

When a buzzer sounds simultaneously:
Indicates a malfunction has occurred in the PCS
(Pre-Collision System).



Have the vehicle inspected by your Toyota
dealer immediately.

When a buzzer does not sound:
The PCS (Pre-Collision System) has become
temporarily unavailable, corrective action may
be necessary.



Follow the instructions displayed on the
multi-information display. (



P.227, 641)

If the PCS (Pre-Collision System) or VSC (Vehi-
cle Stability Control) system is disabled, the
PCS warning light will illuminate.



P.236

631

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

■

LTA indicator (warning buzzer)

■

Stop & Start cancel indicator

■

Intuitive parking assist OFF indicator (warning buzzer)

Warning light

Details/Actions

(Orange)

Indicates a malfunction in the LTA (Lane Tracing
Assist)



Follow the instructions displayed on the
multi-information display. (



P.246)

Warning light

Details/Actions

(Flashes)

(If equipped)

Indicates a malfunction in the Stop & Start sys-
tem



Have the vehicle inspected by your Toyota
dealer immediately.

Warning light

Details/Actions

(Flashes)

(If equipped)

When a buzzer sounds:
Indicates a malfunction in the Intuitive parking
assist function



Have the vehicle inspected by your Toyota
dealer immediately.

When a buzzer does not sound:
Indicates that the system is temporarily unavail-
able, possibly due to a sensor being dirty or cov-
ered with ice, etc.



Follow the instructions displayed on the
multi-information display. (



P.273, 639)

632

8-2. Steps to take in an emergency

■

PKSB OFF indicator (warning buzzer)

■

RCTA OFF indicator (warning buzzer)

■

Slip indicator light

Warning light

Details/Actions

(Flashes)

(If equipped)

When a buzzer sounds:
Indicates a malfunction in the PKSB (Parking
Support Brake) system



Have the vehicle inspected by your Toyota
dealer immediately.

When a buzzer does not sound:
Indicates that the system is temporarily unavail-
able, possibly due to a sensor being dirty or cov-
ered with ice, etc.



Follow the instructions displayed on the
multi-information display. (



P.281, 639)

Warning light

Details/Actions

(Flashes)

(If equipped)

When a buzzer sounds:
Indicates a malfunction in the RCTA (Rear
Cross Traffic Alert) function



Have the vehicle inspected by your Toyota
dealer immediately.

When a buzzer does not sound:
Indicates that the rear bumper around the radar
sensor is covered with dirt, etc. (



P.263)



Follow the instructions displayed on the
multi-information display. (



P.262, 639)

Warning light

Details/Actions

Indicates a malfunction in:



Multi-terrain Select brake control (if equipped);



The VSC/Trailer Sway Control system;



The TRAC system;



The hill-start assist control system; or



The downhill assist control system (if
equipped)



Have the vehicle inspected by your Toyota
dealer immediately.

633

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

■

Brake Override System/Drive-Start Control/PKSB (if
equipped) warning light

*

 (warning buzzer)

*

: This light illuminates on the multi-information display with a message.

■

Brake hold operated indicator (warning buzzer)

Warning light

Details/Actions

Brake Override System

Indicates that the accelerator and brake pedals
are being depressed simultaneously, and the
Brake Override System is operating.



Release the accelerator pedal and
depress the brake pedal.

Indicates a malfunction in the Brake Override
System (with warning buzzer)



Have the vehicle inspected by your Toyota
dealer immediately.

Drive-Start Control

Indicates that the shift position was changed
and Drive-Start Control was operated while
depressing the accelerator pedal. (with warning
buzzer)



Momentarily release the accelerator pedal.

Indicates a malfunction in the Drive-Start Con-
trol (with warning buzzer)



Have the vehicle inspected by your Toyota
dealer immediately.

PKSB (if equipped)

Parking Support Brake function (for static
objects) is operating. (



P.277)



If a warning message is shown on the
multi-information display, read the mes-
sage and follow the instructions.

Warning light

Details/Actions

(Flashes)

Indicates a malfunction in the brake hold system



Have the vehicle inspected by your Toyota
dealer immediately.

634

8-2. Steps to take in an emergency

■

Parking brake indicator

■

Tire pressure warning light

■

Low fuel level warning light

Warning light

Details/Actions

(U.S.A.)

(Flashes)

(Canada)
(Flashes)

It is possible that the parking brake is not fully
engaged or released



Operate the parking brake switch once
again.

This light comes on when the parking brake is
not released. If the light turns off after the park-
ing brake is fully released, the system is operat-
ing normally.

Warning light

Details/Actions

(If equipped)

When the light comes on after blinking for 1 min-
ute:
Malfunction in the tire pressure warning system



Have the system checked by your Toyota
dealer.

When the light comes on:
Low tire inflation pressure such as



Natural causes



Flat tire



Immediately stop the vehicle in a safe
place.
Handling method (



P.636)

Warning light

Details/Actions

Indicates that remaining fuel is approximately
2.2 gal. (8.3 L, 1.8 Imp. gal.) or less



Refuel the vehicle.

635

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

■

Driver’s and front passenger’s seat belt reminder light (warn-
ing buzzer

*

)

*

: Driver’s seat belt warning buzzer:

The driver’s seat belt warning buzzer sounds to alert the driver that his or
her seat belt is not fastened. Once the engine switch is turned to ON, the
buzzer sounds. If the seat belt is still unfastened, the buzzer sounds inter-
mittently for a certain period of time after the vehicle reaches a certain
speed.
Front passenger’s seat belt warning buzzer:
The front passenger’s seat belt warning buzzer sounds to alert the front
passenger that his or her seat belt is not fastened. If the seat belt is
unfastened, the buzzer sounds intermittently for a certain period of time
after the vehicle reaches a certain speed.

■

Rear passengers’ seat belt reminder light (warning buzzer

*

)

*

: Rear passengers’ seat belt warning buzzer:

The rear passengers’ seat belt warning buzzer sounds to alert the rear
passenger that his or her seat belt is not fastened. If the seat belt is
unfastened, the buzzer sounds intermittently for a certain period of time,
after the seat belt is fastened and unfastened and the vehicle reaches a
certain speed.

■

Warning buzzer

In some cases, the buzzer may not

be heard because of noisy place or

an audio sound.

■

Front passenger detection sen-

sor, seat belt reminder and

warning buzzer

●

If luggage is placed on the front

passenger seat, the front passen-

ger detection sensor may cause

the warning light to flash and the

warning buzzer to sound even if a

passenger is not sitting in the

Warning light

Details/Actions

Warns the driver and/or front passenger to fas-
ten their seat belts



Fasten the seat belt.
If the front passenger’s seat is occupied,
the front passenger’s seat belt also needs
to be fastened to make the warning light
(warning buzzer) turn off.

Warning light

Details/Actions

(If equipped)

Warns the rear passengers to fasten their seat
belts



Fasten the seat belt.

636

8-2. Steps to take in an emergency

seat.

●

If a cushion is placed on the seat,

the sensor may not detect a pas-

senger, and the warning light may

not operate properly.

■

SRS warning light

This warning light system monitors

the airbag sensor assembly, front

impact sensors, side impact sensors

(front door), side impact sensors

(front), side impact sensors (rear),

driver’s seat position sensor,

driver’s seat belt buckle switch, front

passenger occupant classification

system (ECU and sensors), “AIR

BAG ON” indicator light, “AIR BAG

OFF” indicator light, front passen-

ger’s seat belt buckle switch, seat

belt pretensioners and force limiters,

airbags, interconnecting wiring and

power sources. (



P.34)

■

If the malfunction indicator

lamp comes on while driving

First check the following:

●

Is the fuel tank empty?

If it is, fill the fuel tank immediately.

●

Is the fuel tank cap loose?

If it is, tighten it securely.
The light will go off after several

driving trips.
If the light does not go off even after

several trips, contact your Toyota

dealer as soon as possible.

■

Electric power steering system

warning light (warning buzzer)

When the battery charge becomes

insufficient or the voltage temporar-

ily drops, the electric power steering

system warning light may come on

and the warning buzzer may sound.

■

When the tire pressure warning

light comes on (vehicles with

tire pressure warning system)

Inspect the tires to check if a tire is

punctured.
If a tire is punctured:



P.642

If none of the tires are punctured:
Turn the engine switch to OFF then

turn it to ON. Check if the tire pres-

sure warning light comes on or

blinks.



If the tire pressure warning light

blinks for approximately 1 minute

then stays on

There may be a malfunction in the
tire pressure warning system. Have
the vehicle inspected by your Toyota
dealer immediately.



If the tire pressure warning light

comes on

1

After the temperature of the tires

has lowered sufficiently, check

the inflation pressure of each tire

and adjust them to the specified

level.

2

If the warning light does not turn

off even after several minutes

have elapsed, check that the

inflation pressure of each tire is

at the specified level and perform

initialization. (



P.590)

■

The tire pressure warning light

may come on due to natural

causes (vehicles with tire pres-

sure warning system)

The tire pressure warning light may

come on due to natural causes such

as natural air leaks and tire inflation

pressure changes caused by tem-

perature. In this case, adjusting the

tire inflation pressure will turn off the

warning light (after a few minutes).

■

When a tire is replaced with a

compact spare tire (vehicles

with tire pressure warning sys-

tem)

The compact spare tire is not

equipped with a tire pressure warn-

ing valve and transmitter. If a tire

goes flat, the tire pressure warning

light will not turn off even though the

flat tire has been replaced with the

spare tire. Replace the spare tire

with the standard tire and adjust the

tire inflation pressure. The tire pres-

637

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

sure warning light will go off after a

few minutes.

■

Conditions that the tire pres-

sure warning system may not

function properly



P.584

WARNING

■

If a warning light comes on or

a warning buzzer sounds

when a warning message is

shown on the multi-informa-
tion display

*

Check and follow the message

shown on the multi-information

display.
Failure to do so may result in

death or serious injury.

*

: Warning lights illuminate in red

or yellow and the warning
buzzer beeps once or sounds
continuously.

■

When the electric power

steering system warning light

comes on

When the light comes on yellow,

the assist to the power steering is

restricted. When the light comes

on red, the assist to the power

steering is lost and handling oper-

ations of the steering wheel

become extremely heavy.

If the steering wheel becomes

heavier than usual when operat-

ing, hold firmly and operate using

more force than usual.

■

If the tire pressure warning

light comes on (vehicles with

tire pressure warning system)

Be sure to observe the following

precautions. Failure to do so

could cause a loss of vehicle con-

trol and result in death or serious

injury.

●

Stop your vehicle in a safe place

as soon as possible. Adjust the

tire inflation pressure immedi-

ately.

●

If the tire pressure warning light

comes on even after tire infla-

tion pressure adjustment, it is

probable that you have a flat

tire. Check the tires. If a tire is

flat, change it with the spare tire

and have the flat tire repaired by

the nearest Toyota dealer.

●

Avoid abrupt maneuvering and

braking. If the vehicle tires dete-

riorate, you could lose control of

the steering wheel or the

brakes.

■

If a blowout or sudden air

leakage should occur (vehi-

cles with tire pressure warn-

ing system)

The tire pressure warning system

may not activate immediately.

638

8-2. Steps to take in an emergency

WARNING

■

Maintenance of the tires

(vehicles with tire pressure

warning system)

Each tire, including the spare (if

provided), should be checked

monthly when cold and inflated to

the inflation pressure recom-

mended by the vehicle manufac-

turer on the vehicle placard or tire

inflation pressure label (tire and

load information label). (If your

vehicle has tires of a different size

than the size indicated on the

vehicle placard or tire inflation

pressure label [tire and load infor-

mation label], you should deter-

mine the proper tire inflation

pressure for those tires.)

As an added safety feature, your

vehicle has been equipped with a

tire pressure monitoring system

(TPMS-tire pressure warning sys-

tem) that illuminates a low tire

pressure telltale (tire pressure

warning light) when one or more

of your tires is significantly under-

inflated. Accordingly, when the

low tire pressure telltale (tire pres-

sure warning light) illuminates,

you should stop and check your

tires as soon as possible, and

inflate them to the proper pres-

sure. Driving on a significantly

under-inflated tire causes the tire

to overheat and can lead to tire

failure. Under-inflation also

reduces fuel efficiency and tire

tread life, and may affect the vehi-

cle’s handling and stopping ability.

Please note that the TPMS (tire

pressure warning system) is not a

substitute for proper tire mainte-

nance, and it is the driver’s

responsibility to maintain correct

tire pressure, even if under-infla-

tion has not reached the level to

trigger illumination of the TPMS

low tire pressure telltale (tire pres-

sure warning light).

Your vehicle has also been

equipped with a TPMS (tire pres-

sure warning system) malfunc-

tion indicator to indicate when the

system is not operating properly.

The TPMS (tire pressure warning

system) malfunction indicator is

combined with the low tire pres-

sure telltale (tire pressure warning

light). When the system detects a

malfunction, the telltale will flash

for approximately one minute and

then remain continuously illumi-

nated. This sequence will con-

tinue upon subsequent vehicle

start-ups as long as the malfunc-

tion exists. When the malfunction

indicator is illuminated, the sys-

tem may not be able to detect or

signal low tire pressure as

intended.

TPMS (tire pressure warning sys-

tem) malfunctions may occur for a

variety of reasons, including the

installation of replacement or

alternate tires or wheels on the

vehicle that prevent the TPMS

(tire pressure warning system)

from functioning properly. Always

check the TPMS (tire pressure

warning system) malfunction tell-

tale after replacing one or more

tires or wheels on your vehicle to

ensure that the replacement or

alternate tires and wheels allow

the TPMS (tire pressure warning

system) to continue to function

properly.

NOTICE

■

To ensure the tire pressure

warning system operates

properly (vehicles with tire

pressure warning system)

Do not install tires with different

specifications or manufacturers

as the tire pressure warning sys-

tem may not operate properly.

639

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

■

Warning messages

The warning messages explained

below may differ from the actual

messages according to operation

conditions and vehicle specifica-

tions.

■

If a message about an operation

is shown

●

If a message about an operation

of the accelerator pedal or brake

pedal is shown

A warning message about an opera-
tion of the brake pedal may be

shown while the driving assist sys-
tems such as PCS (Pre-Collision
system) or the dynamic radar cruise
control with full-speed range is oper-
ating. If a warning message is
shown, be sure to decelerate the
vehicle or follow an instruction
shown on the multi-information dis-
play.
A warning message is shown when
Brake Override System, Drive-Start
Control or Parking Support Brake (if
equipped) (



P.170, 277) operates.

Follow the instructions on the multi-
information display.

●

If a message about an operation

of the engine switch is shown

An instruction for operation of the
engine switch is shown when the
incorrect procedure for starting the
engine is performed or the engine
switch is operated incorrectly. Fol-
low the instructions shown on the
multi-information display to operate
the engine switch again.

●

If a message about a shift lever

operation is shown

To prevent the shift lever from being
operated incorrectly or the vehicle
from moving unexpectedly, a mes-
sage that requires shifting the shift
lever may be shown on the multi-
information display. In that case, fol-
low the instruction of the message
and shift the shift lever.

●

If a message or image about an

open/close state of a part or

replenishment of a consumable is

shown

Confirm the part indicated by the
multi-information display or a warn-
ing light, and then perform the cop-
ing method such as closing the
open door or replenishing a con-

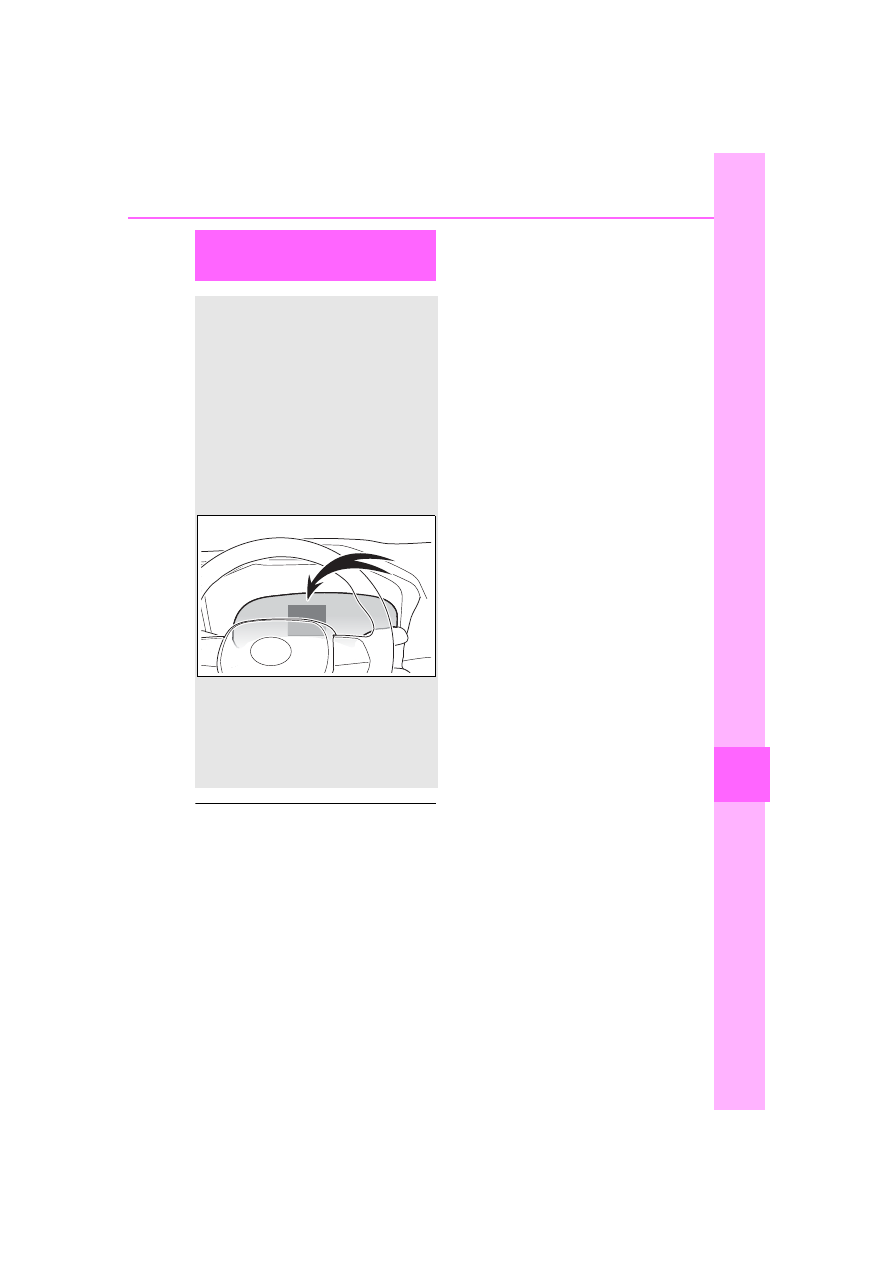

If a warning message

is displayed

The multi-information dis-
play shows warnings of sys-
tem malfunctions,
incorrectly performed oper-
ations, and messages that
indicate a need for mainte-
nance. When a message is
shown, perform the correc-
tion procedure appropriate
to the message.

If a warning message is dis-
played again after the appro-
priate actions have been
performed, contact your Toy-
ota dealer.

640

8-2. Steps to take in an emergency

sumable.

■

If a message that indicates the

need for visiting your Toyota

dealer is displayed

The system or part shown on the

multi-information display is malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer immediately.

■

If a message that indicates the

need for referring to Owner’s

Manual is displayed

●

If “Engine Coolant Temp High” is

shown, follow the instructions

(



P.659).

●

If the following messages are

shown, there may be a malfunc-

tion.

Immediately stop the vehicle in a

safe place and contact your Toy-

ota dealer. Continuing to drive the

vehicle may be dangerous.

• “Charging System Malfunction”

• “High Transmission Fluid Temp”

• “Smart Key System Malfunction”

●

If the following messages are

shown, there may be a malfunc-

tion.

Immediately have the vehicle

inspected by your Toyota dealer.

• “Oil Pressure Low”

• “Braking Power Low”

■

If “Shift to P when Parked” is

shown

Message is displayed when the

driver’s door is opened without turn-

ing the engine switch to OFF with

the shift lever in any position other

than P.
Shift the shift lever to P.

■

If “Auto Power OFF to Conserve

Battery” is shown

Power was turned off due to the

automatic power off function.
Next time when starting the engine,

increase the engine speed slightly

and maintain that level for approxi-

mately 5 minutes to recharge the

battery.

■

If “Engine Oil Level Low Add or

Replace” is displayed

The engine oil level may be low.

Check the level of the engine oil,

and add engine oil if necessary. This

message may be displayed if the

vehicle is stopped on a slope. Move

the vehicle to a level surface and

check if the message disappears.

■

If “Maintenance Required

Soon” is shown

Indicates that all maintenance

according to the driven distance on
the maintenance schedule

*

 should

be performed soon.
Comes on approximately 4500

miles (7200 km) after the message

has been reset.
If necessary, perform maintenance.

Please reset the message after the

maintenance is performed.

(



P.565)

*

: Refer to the separate “Scheduled

Maintenance Guide” or “Owner’
Manual Supplement” for the main-
tenance interval applicable to your
vehicle.

■

If “Maintenance Required Visit

Your Dealer” is shown

Indicates that all maintenance is

required to correspond to the driven

distance on the maintenance sched-
ule

*

.

Comes on approximately 5000

miles (8000 km) after the message

has been reset. (The indicator will

not work properly unless the mes-

sage has been reset.)
Perform the necessary mainte-

nance. Please reset the message

after the maintenance is performed.

(



P.565)

*

: Refer to the separate “Scheduled

Maintenance Guide” or “Owner’
Manual Supplement” for the main-
tenance interval applicable to your
vehicle.

641

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

■

If “Front Camera Unavailable”

or “Front Camera Unavailable

See Owner’s Manual” is dis-

played

The following systems may be sus-

pended until the problem shown in

the message is resolved. (



P.445,

630)

●

PCS (Pre-Collision System)

●

LTA (Lane Tracing Assist)

●

Automatic High Beam

●

RSA (Road Sign Assist)

*

●

Dynamic radar cruise control with

full-speed range

*

: If equipped

■

If “Radar Cruise Control

Unavailable See Owner’s Man-

ual” is shown

The dynamic radar cruise control

with full-speed range system is sus-

pended temporarily or until the prob-

lem shown in the message is

resolved. (causes and coping meth-

ods:



P.445)

■

If “Radar Cruise Control

Unavailable” is shown

The dynamic radar cruise control

with full-speed range system cannot

be used temporarily. Use the system

when it becomes available again.

■

Warning buzzer



P.635

WARNING

■

If a warning light comes on or

a warning buzzer sounds

when a warning message is

shown on the multi-informa-

tion display



P.637

NOTICE

■

“High Power Consumption

Partial Limit On AC/Heater

Operation” is frequently

shown

There is a possible malfunction

relating to the charging system or

the battery may be deteriorating.

Have the vehicle inspected by

your Toyota dealer.

642

8-2. Steps to take in an emergency



Stop the vehicle in a safe place on a hard, flat surface.



Set the parking brake.



Shift the shift lever to P.



Stop the engine.



Turn on the emergency flashers. (



P.618)



For vehicles with power back door: Turn off the power back door
system. (



P.127)

If you have a flat tire

Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires:



P.581

WARNING

■

If you have a flat tire

Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the

wheel beyond repair, which could result in an accident.

Before jacking up the vehicle

643

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

Jack

Tool bag

Spare tire

Jack handle

*1

Wheel nut wrench

*1

Jack handle

*2

Wheel nut wrench

*2

Towing eyelet

*2

 (if equipped)

*1

:Except for models made in Japan

*3

*2

:For models made in Japan

*3

*3

:The country of production is written on the Certification Regulation label.

(



P.665)

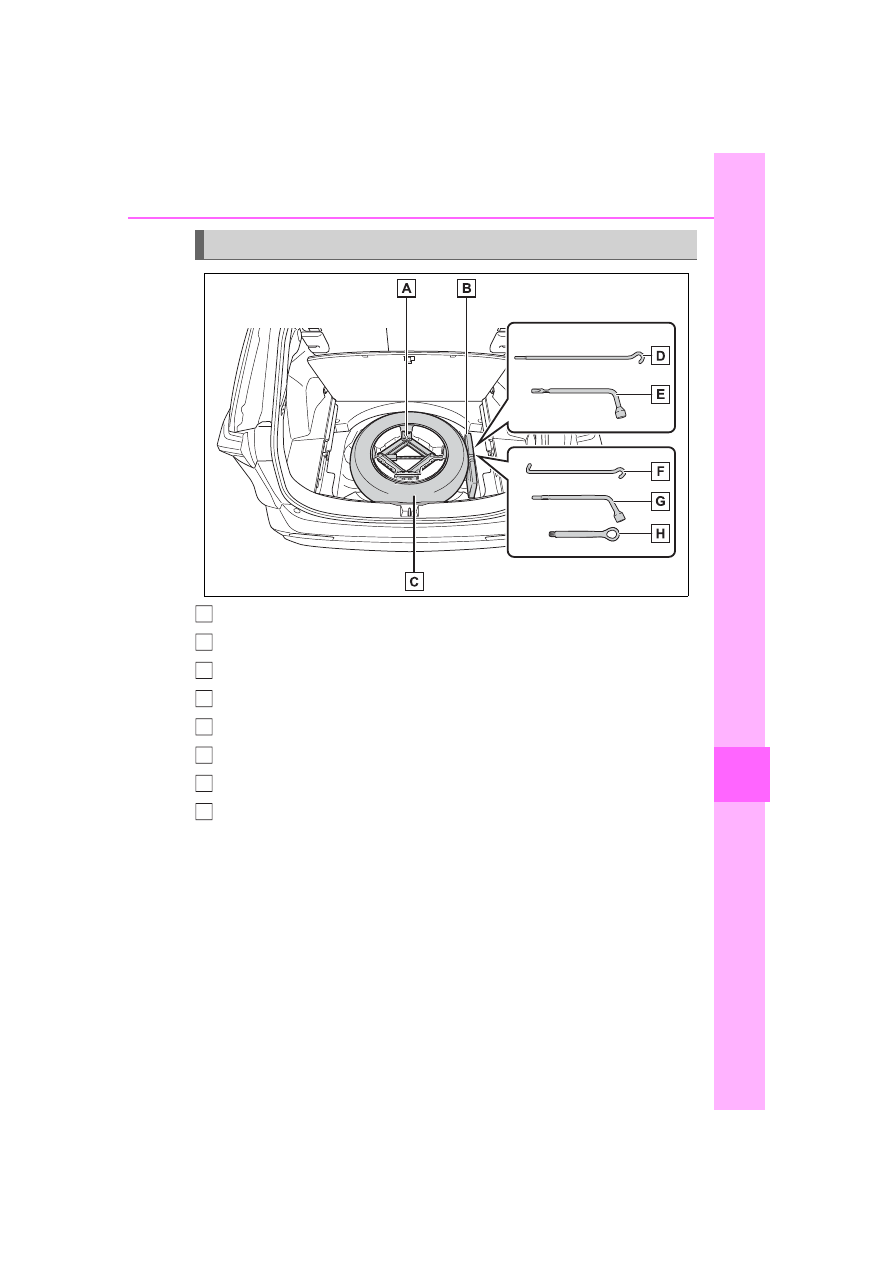

Location of the spare tire, jack and tools

A

B

C

D

E

F

G

H

644

8-2. Steps to take in an emergency

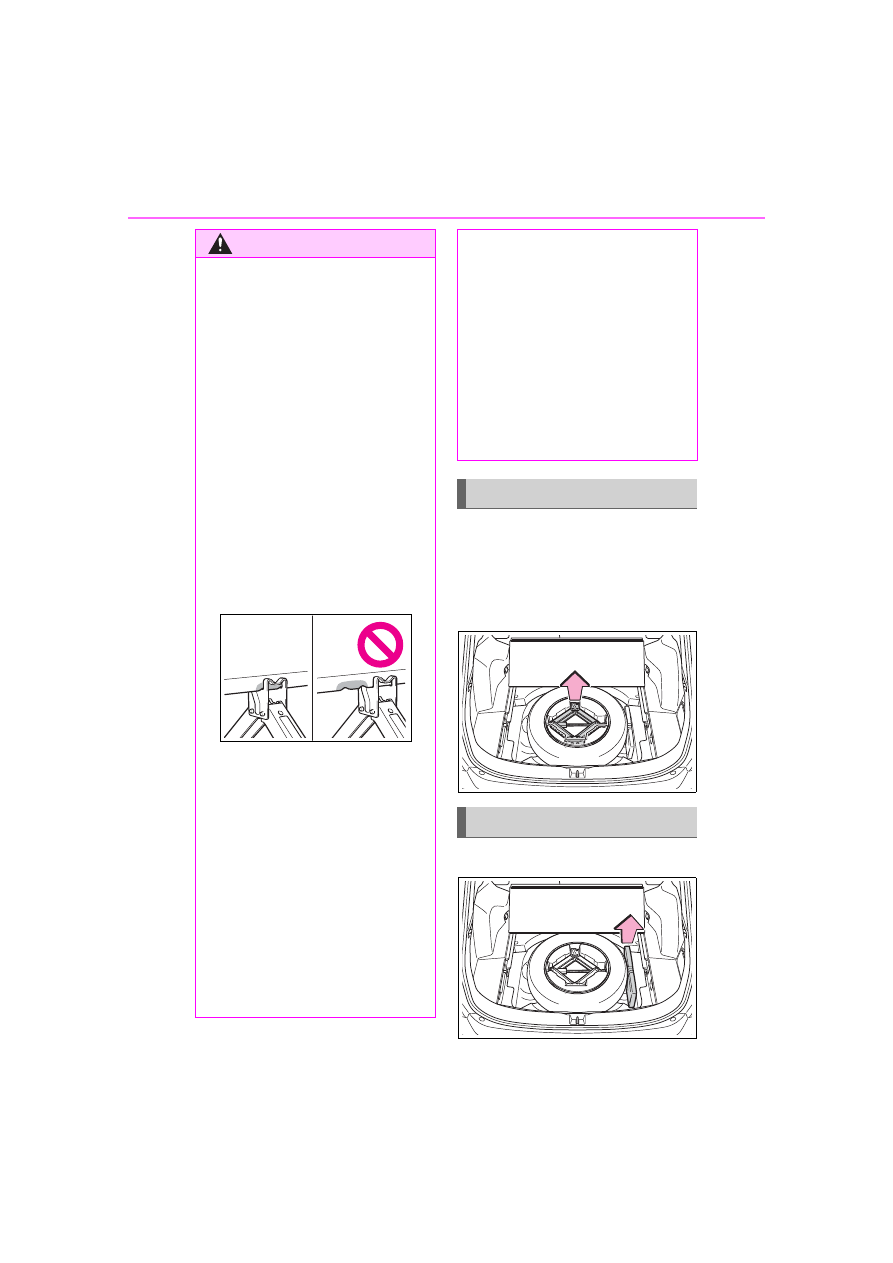

1

Open the deck board
(



P.532).

2

Take out the jack.

Do not touch the threaded portion

of the jack as it is greased.

Take out the tool bag.

WARNING

■

Using the tire jack

Observe the following precau-

tions.
Improper use of the tire jack may

cause the vehicle to suddenly fall

off the jack, leading to death or

serious injury.

●

Do not use the tire jack for any

purpose other than replacing

tires or installing and removing

tire chains.

●

Only use the tire jack that

comes with this vehicle for

replacing a flat tire.

Do not use it on other vehicles,

and do not use other tire jacks

for replacing tires on this vehi-

cle.

●

Put the jack properly in its jack

point.

●

Do not put any part of your body

under the vehicle while it is sup-

ported by the jack.

●

Do not start the engine or drive

the vehicle while the vehicle is

supported by the jack.

●

Do not raise the vehicle while

someone is inside.

●

When raising the vehicle, do not

put an object on or under the

jack.

●

Do not raise the vehicle to a

height greater than that required

to replace the tire.

●

Use a jack stand if it is neces-

sary to get under the vehicle.

●

Stop the vehicle on firm, flat and

level ground, firmly set the park-

ing brake and shift the shift lever

to P. Block the wheel diagonally

opposite to the one being

changed if necessary.

●

When lowering the vehicle,

make sure that there is no-one

near the vehicle. If there are

people nearby, warn them

vocally before lowering.

Taking out the jack

Taking out the tool bag

645

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

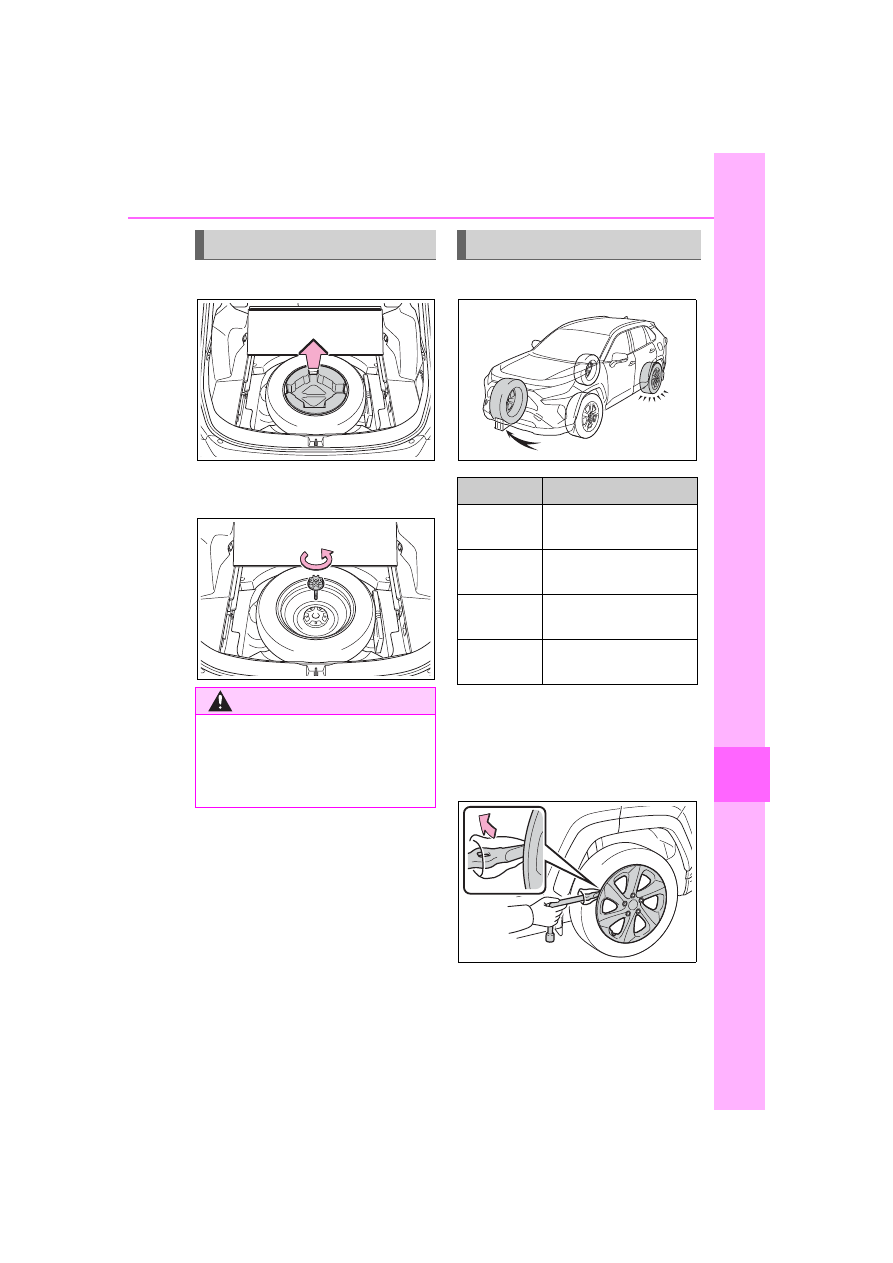

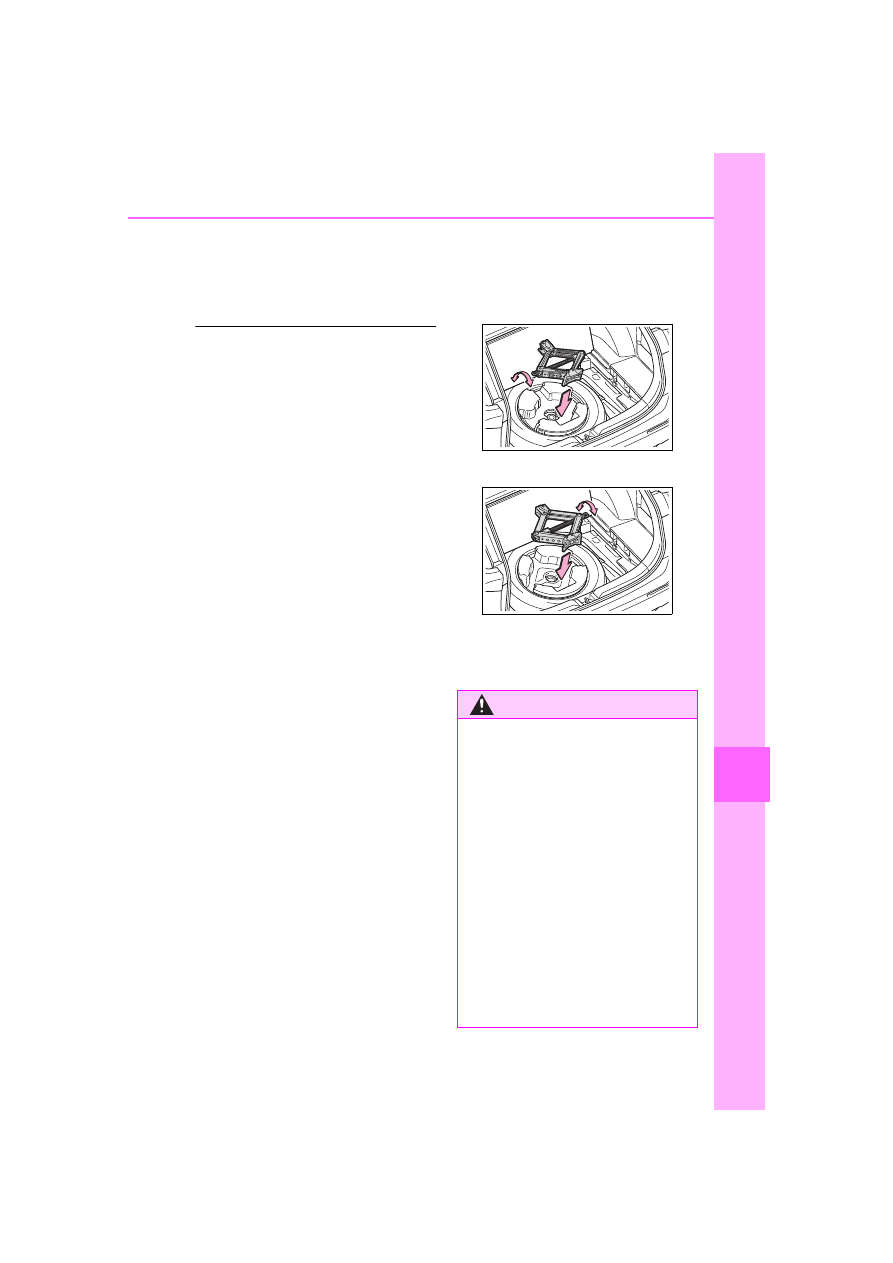

1

Take out the jack holder.

2

Loosen the center fastener
that secures the spare tire.

1

Chock the tires.

2

For vehicles with full wheel
ornament: Remove the wheel
ornament using the wrench.

To prevent damage, cover the tip of

the wrench with a rag.

Taking out the spare tire

WARNING

■

When storing the spare tire

Be careful not to catch fingers or

other body parts between the

spare tire and the body of the

vehicle.

Replacing a flat tire

Flat tire

Wheel chock positions

Front left-
hand side

Behind the rear right-
hand side tire

Front right-
hand side

Behind the rear left-
hand side tire

Rear left-
hand side

In front of the front
right-hand side tire

Rear right-
hand side

In front of the front
left-hand side tire

646

8-2. Steps to take in an emergency

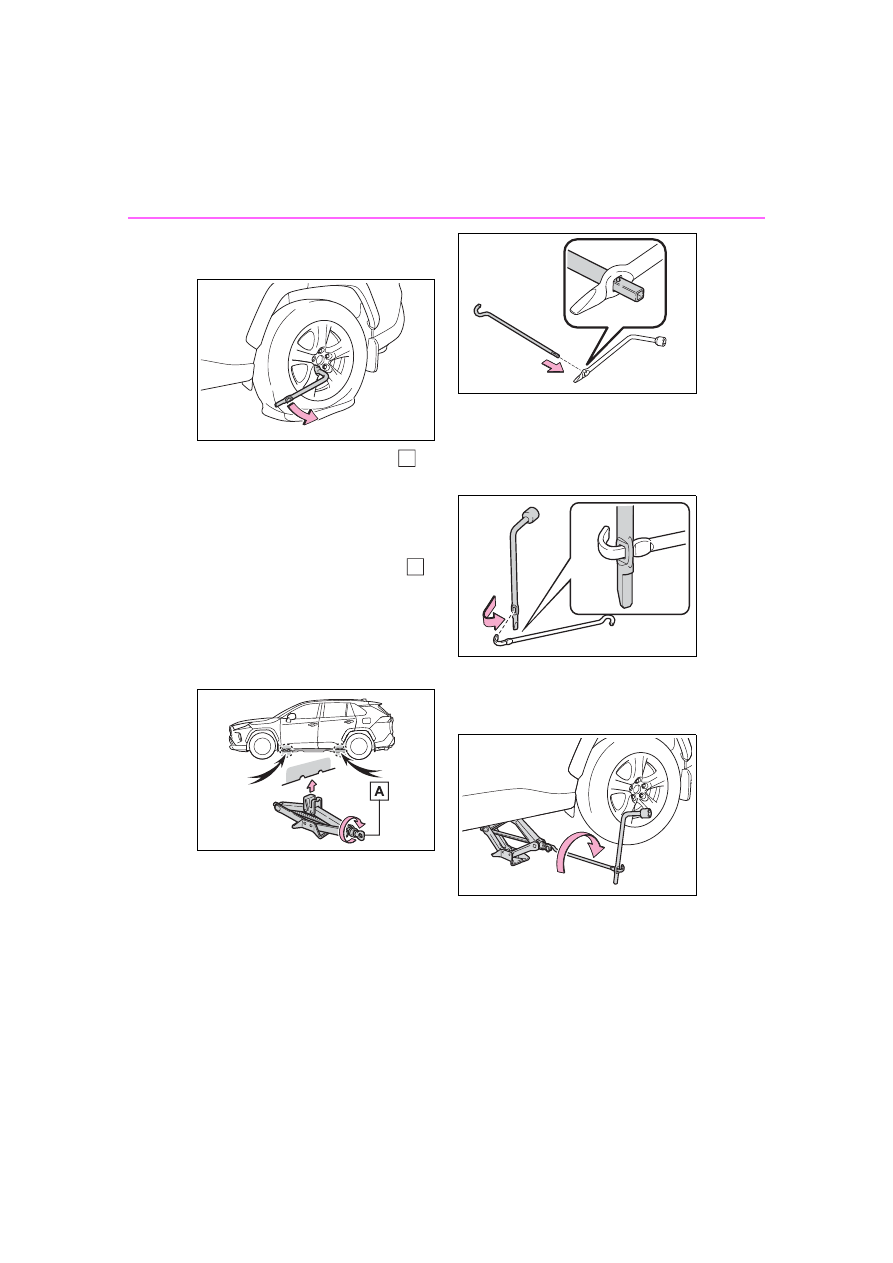

3

Slightly loosen the wheel
nuts (one turn).

4

Turn the tire jack portion



by hand until the notch of the
jack is in contact with the jack
point.

After removing the jack from the
jack holder, turn the jack portion



in the opposite direction to lower

the jack, and then adjust the jack

set position.
The jack point guides are located

under the rocker panel. They indi-

cate the jack point positions.

5

Assemble the jack handle
and the wheel nut wrench as
shown in the illustration.



Except for models made in
Japan

*

*

: The country of production is writ-

ten on the Certification Regula-
tion label. (



P.665)



For models made in Japan

*

*

: The country of production is writ-

ten on the Certification Regula-
tion label. (



P.665)

6

Raise the vehicle until the tire
is slightly raised off the
ground.

7

Remove all the wheel nuts
and the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

A

A

647

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

scratching the wheel surface.

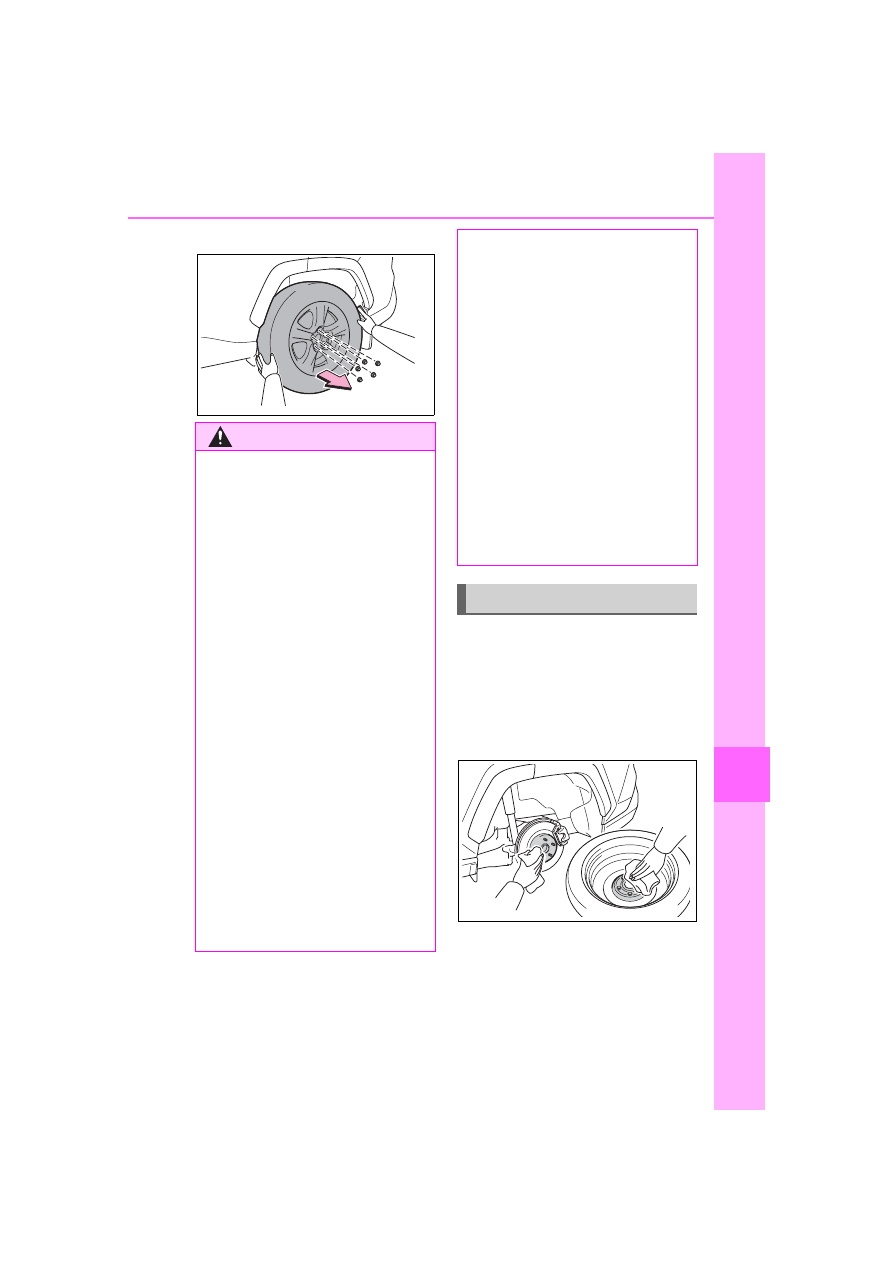

1

Remove any dirt or foreign
matter from the wheel con-
tact surface.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come off.

2

Install the spare tire and
loosely tighten each wheel
nut by hand by approximately
the same amount.

When replacing a steel wheel with

WARNING

■

Replacing a flat tire

●

Do not touch the disc wheels or

the area around the brakes

immediately after the vehicle

has been driven.

After the vehicle has been

driven the disc wheels and the

area around the brakes will be

extremely hot. Touching these

areas with hands, feet or other

body parts while changing a tire,

etc. may result in burns.

●

Failure to follow these precau-

tions could cause the wheel

nuts to loosen and the tire to fall

off, resulting in death or serious

injury.

• Have the wheel nuts tightened

with a torque wrench to 76 ft•lbf

(103 N•m, 10.5 kgf•m) as soon

as possible after changing

wheels.

• Do not attach a heavily dam-

aged wheel ornament, as it may

fly off the wheel while the vehi-

cle is moving.

• When installing a tire, only use

wheel nuts that have been spe-

cifically designed for that wheel.

• If there are any cracks or defor-

mations in the bolt screws, nut

threads or bolt holes of the

wheel, have the vehicle

inspected by your Toyota

dealer.

• When installing the wheel nuts,

be sure to install them with the

tapered ends facing inward.

●

For vehicles with power back

door: In cases such as when

replacing tires, make sure to

turn off the power back door

system (



P.127). Failure to do

so may cause the back door to

operate unintentionally if the

power back door switch is acci-

dentally touched, resulting in

hands and fingers being caught

and injured.

Installing the spare tire

648

8-2. Steps to take in an emergency

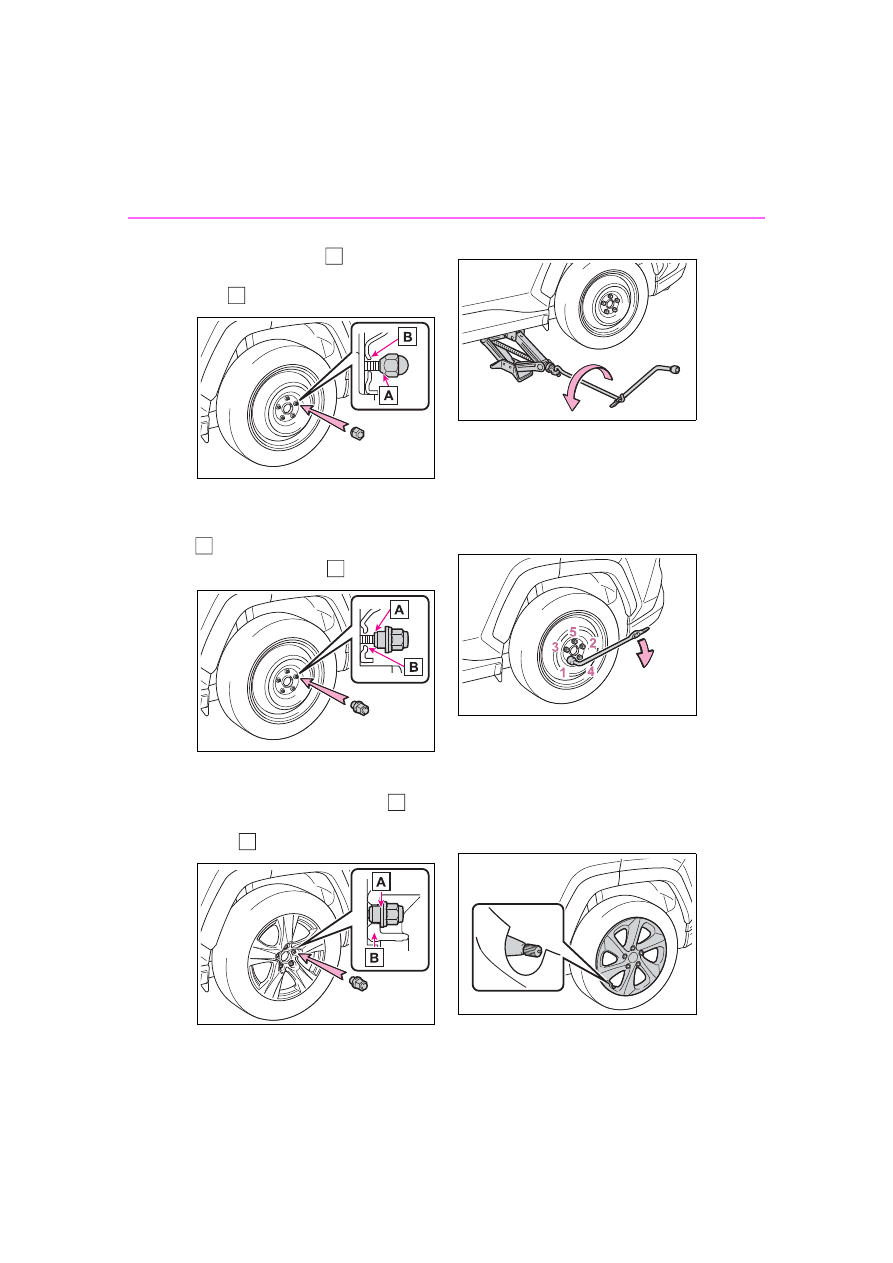

a steel wheel, tighten the nuts until
the tapered portion

 comes into

loose contact with the disc wheel
seat

.

When replacing an aluminum wheel

with a steel wheel, tighten the

wheel nuts until the tapered portion

 comes into loose contact with

the disc wheel seat

.

When replacing an aluminum wheel

with an aluminum wheel, turn the
wheel nuts until the washers



come into contact with the disc
wheel

.

3

Lower the vehicle.

4

Firmly tighten each wheel nut
two or three times in the
order shown in the illustra-
tion.

Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

5

For vehicles with full wheel
ornament: When reinstalling
an original wheel, reinstall
the wheel ornament

*

.

Align the cutout of the wheel orna-

ment with the valve stem as shown.

*

: The wheel ornament cannot be

A

B

A

B

A

B

649

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

installed on the compact spare
tire.

6

Stow the flat tire, tire jack and
all tools.

■

The compact spare tire

●

The compact spare tire is identi-

fied by the label “TEMPORARY

USE ONLY” on the tire sidewall.

Use the compact spare tire tempo-

rarily, and only in an emergency.

●

Make sure to check the tire infla-

tion pressure of the compact

spare tire. (



P.671)

■

When using the compact spare

tire

As the compact spare tire is not

equipped with a tire pressure warn-

ing valve and transmitter, low infla-

tion pressure of the spare tire will

not be indicated by the tire pressure

warning system. Also, if you replace

the compact spare tire after the tire

pressure warning light comes on,

the light remains on.

■

When the compact spare tire is

attached

The vehicle height may become

lower when driving with the compact

spare tire compared to when driving

with standard tires.

■

If you have a flat front tire on a

road covered with snow or ice

Install the compact spare tire on one

of the rear wheels of the vehicle.

Perform the following steps and fit

tire chains to the front tires:

1

Replace a rear tire with the com-

pact spare tire.

2

Replace the flat front tire with the

tire removed from the rear of the

vehicle.

3

Fit tire chains to the front tires.

■

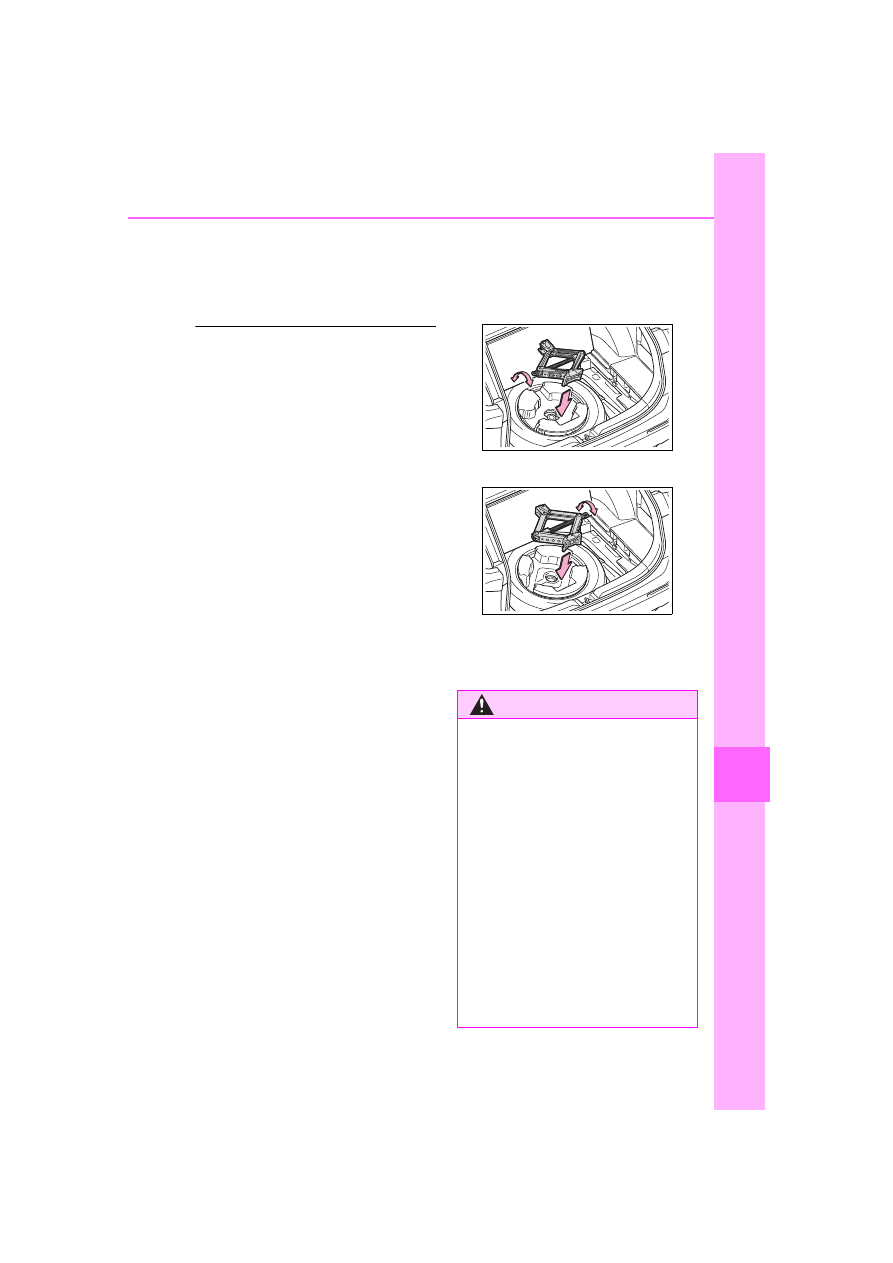

When stowing the jack

Before storing the jack, adjust the

height of the jack to match the

shape of the jack holder.

The storage direction of the jack dif-

fers depending on the type, so make

sure to store the jack in the correct

direction.

Except for models made in Japan

*

:

For models made in Japan

*

:

*

: The country of production is writ-

ten on the Certification Regulation
label. (



P.665)

WARNING

■

When using the compact

spare tire

●

Remember that the compact

spare tire provided is specifi-

cally designed for use with your

vehicle. Do not use your com-

pact spare tire on another vehi-

cle.

●

Do not use more than one com-

pact spare tire simultaneously.

●

Replace the compact spare tire

with a standard tire as soon as

possible.

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

650

8-2. Steps to take in an emergency

WARNING

■

When the compact spare tire

is attached

The vehicle speed may not be

correctly detected, and the follow-

ing systems may not operate cor-

rectly:
• ABS & Brake assist

• VSC/Trailer Sway Control

• TRAC

• Dynamic radar cruise control

with full-speed range

• Dynamic radar cruise control

• PCS (Pre-Collision System)

• EPS

• LTA (Lane Tracing Assist)

• Tire pressure warning system (if

equipped)

• AHB (Automatic High Beam)

• BSM (Blind Spot Monitor) (if

equipped)

• Downhill assist control system

(if equipped)

• Rear view monitor system (if

equipped)

• Panoramic view monitor (if

equipped)

• Toyota parking assist monitor (if

equipped)

• Intuitive parking assist (if

equipped)

• Navigation system (if equipped)

Also, not only can the following

systems not be utilized fully, but

they may actually negatively

affect the drive-train components:
• Dynamic Torque Control AWD

system (if equipped)

• Dynamic Torque Vectoring AWD

system (if equipped)

■

Speed limit when using the

compact spare tire

Do not drive at speeds in excess

of 50 mph (80 km/h) when a com-

pact spare tire is installed on the

vehicle.
The compact spare tire is not

designed for driving at high

speeds. Failure to observe this

precaution may lead to an acci-

dent causing death or serious

injury.

■

After using the tools and jack

Before driving, make sure all the

tools and jack are securely in

place in their storage location to

reduce the possibility of personal

injury during a collision or sudden

braking.

NOTICE

■

Be careful when driving over

bumps with the compact

spare tire installed on the

vehicle

The vehicle height may become

lower when driving with the com-

pact spare tire compared to when

driving with standard tires. Be

careful when driving over uneven

road surfaces.

■

Driving with tire chains and

the compact spare tire

Do not fit tire chains to the com-

pact spare tire.
Tire chains may damage the vehi-

cle body and adversely affect driv-

ing performance.

651

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

One of the following may be the
cause of the problem:



There may not be sufficient
fuel in the vehicle’s tank.
Refuel the vehicle.



The engine may be flooded.
Try to restart the engine again
following correct starting pro-
cedures. (



P.193, 194)



There may be a malfunction
in the engine immobilizer sys-
tem. (



P.70)

One of the following may be the
cause of the problem:



The battery may be dis-
charged. (



P.655)

NOTICE

■

When replacing the tires

(vehicles with tire pressure

warning system)

When removing or fitting the

wheels, tires or the tire pressure

warning valve and transmitter,

contact your Toyota dealer as the

tire pressure warning valve and

transmitter may be damaged if not

handled correctly.

If the engine will not

start

If the engine will not start
even though correct starting
procedures are being fol-
lowed (



P.193, 194), con-

sider each of the following
points:

The engine will not start
even though the starter
motor operates normally

The starter motor turns
over slowly, the interior
lights and headlights are
dim, or the horn does not
sound or sounds at a low
volume

652

8-2. Steps to take in an emergency



The battery terminal connec-
tions may be loose or cor-
roded.

The engine starting system may
be malfunctioning due to an
electrical problem such as elec-
tronic key battery depletion or a
blown fuse. However, an interim
measure is available to start the
engine. (



P.652)

One of the following may be the
cause of the problem:



The battery may be dis-
charged. (



P.655)



One or both of the battery ter-
minals may be disconnected.



There may be a malfunction
in the steering lock system
(vehicles with smart key sys-
tem).

Contact your Toyota dealer if the
problem cannot be repaired, or if
repair procedures are unknown.

When the engine does not start,
the following steps can be used
as an interim measure to start
the engine if the engine switch is
functioning normally:

1

Pull the parking brake switch
to check that the parking
brake is set. (



P.203)

Parking brake indicator will come

on.

2

Shift the shift lever to P.

3

Turn the engine switch to
ACC.

4

Press and hold the engine
switch for about 15 seconds
while depressing the brake
pedal firmly.

Even if the engine can be
started using the above steps,
the system may be malfunction-
ing. Have the vehicle inspected
by your Toyota dealer.

The starter motor does
not turn over (vehicles
with smart key system)

The starter motor does
not turn over, the interior
lights and headlights do
not turn on, or the horn
does not sound

Emergency start function
(vehicles with smart key
system)

653

8-2. Steps to take in an emergency

8

Whe

n tr

ouble

 a

rises

■

When the electronic key does

not work properly

●

Make sure that the smart key sys-

tem has not been deactivated in

the customization setting. If it is

off, turn the function on.

(Customizable features:



P.691)

●

Check if battery-saving mode is

set. If it is set, cancel the function.

(



P.129)

Use the mechanical key
(



P.107) in order to perform the

If you lose your keys

New genuine keys can be
made by your Toyota dealer
using the other key and the
key number stamped on
your key number plate.
Keep the plate in a safe
place such as your wallet,
not in the vehicle.

NOTICE

■

When an electronic key is lost

(if equipped)

If the electronic key remains lost,

the risk of vehicle theft increases

significantly. Visit your Toyota

dealer immediately with all

remaining electronic keys that

were provided with your vehicle.

If the electronic key

does not operate prop-

erly (vehicles with

smart key system)

If communication between
the electronic key and vehi-
cle is interrupted (



P.129)

or the electronic key cannot
be used because the battery
is depleted, the smart key
system and wireless remote
control cannot be used. In
such cases, the doors can
be opened and the engine
can be started by following
the procedure below.

NOTICE

■

In case of a smart key system

malfunction, or other key

related problems

Take your vehicle with all the elec-

tronic keys provided with your

vehicle to your Toyota dealer.

Locking and unlocking
the doors
