5-12. Voice command system operation

■

Phone

: If the system does not recognize

the name of a contact, create a
voice tag. (



P.483) The name of

a contact can also be recognized
by adding a voice tag.

■

While in a phone call

■

While incoming message
notification is displayed

: Full screen message notification

must be turned on within the
phone settings (



P.481)

Command

Action

“Call <contact>”

Places a call to
the specified
contact from the
phone book

“Call <contact>
<phone type>”

Places a call to
the specified
phone type of
the contact from
the phone book

“Dial <phone
number>”

Places a call to
the specified
phone number

“Redial”

Places a call to
the phone num-
ber of the latest
outgoing call

“Call back”

Places a call to
the phone num-
ber of latest
incoming call

“Show recent
calls”

Displays the call
history screen

“Send a mes-
sage to <con-
tact>”

Sends a text
message to
specified con-
tact from the
phone book

Command

Action

“Send <digits>”

Sends DTMF
tones has speci-
fied

“Mute”

Mutes the micro-
phone (far side
cannot hear the
conversation)

“Unmute”

Unmutes the
microphone

Command

Action

“Read message”

Reads the
incoming mes-
sage over the
vehicle speakers

“Ignore”

Ignores the
incoming mes-
sage notification

“Reply”

Initiates sending
a reply to the
incoming mes-
sage

“Call”

Places a call to
the phone num-
ber of incoming
message

-------------------------------------------------------------------------------------------------------------------------------------------------------------

463

5-12. Voice command system operation

Audio

■

Radio

:A station list must be built first

using the radio screen (



P.425)

:Requires a satellite radio sub-

scription

■

Audio

: The audio device must be con-

nected via a USB cable to use the

Command

Action

“Tune to <fre-
quency> AM”

Changes the
radio to the
specified AM fre-
quency

“Tune to <fre-
quency> FM”

Changes the
radio to the
specified FM fre-
quency

“Play a <genre>
station”

Changes the
radio to an FM
station of the
specified genre

“Tune to preset
<1-36>”

Changes the
radio to the
specified preset
radio station

“Tune to a
<genre> satel-
lite station”

Changes the
radio to a satel-
lite radio channel
of the specified
genre

“Tune to <satel-
lite channel
name>”

Changes the
radio to the sat-
ellite radio chan-
nel with the
specified name

“Tune to chan-
nel <number> on
XM”

Changes the
radio to a satel-
lite radio channel
of the specified
number

Command

Action

“Play Playlist
<name>”

Plays tracks
from the
selected playlist

“Play Artist
<name>”

Plays tracks
from the
selected artist

“Play Song
<name>”

Plays the
selected track

“Play Album
<name>”

Plays tracks
from the
selected album

“Play Genre
<name>”

Plays tracks
from the
selected genre

“Play Composer
<name>”

Plays tracks
from the
selected com-
poser

“Play Podcast
<name>”

Plays tracks
from the
selected podcast

“Play Audiobook
<name>”

Plays tracks
from the
selected audio-
book

“Audio On”

Turns the
audio/visual sys-
tem on

“Audio Off”

Turns the
audio/visual sys-
tem off

“Change the
audio source to
<source name>”

Sets the source
to the specified
audio mode

-------------------------------------------------------------------------------------------------------------------------------------------------------------

465

5-13. Phone operation (Hands-free system for cellular phones)

Audio

5-13.Phone operation (Hands-free system for cellular phones)

The phone screen can be
reached by the following meth-
ods:



From the “PHONE” button

Press the “PHONE” button.



From the “MENU” button

Press the “MENU” button,
then select “Phone”.

The following functions can be
used on phone operation:



Registering/connecting a
Bluetooth

device (



P.390)



Placing a call using the Blue-
tooth

hands-free system

(



P.470)



Receiving a call using the
Bluetooth

hands-free system

(



P.473)



Talking on the Bluetooth

hands-free system (



P.474)

The following function can be
used on message function:



Using the Bluetooth

phone

message function (



P.476)

The following functions can be
made in the system:



Phone settings (



P.481)



Bluetooth

settings (



P.394)

Quick reference

Phone screen operation

Bluetooth

hands-free

system operation

Message function

Setting up a phone

-------------------------------------------------------------------------------------------------------------------------------------------------------------

466

5-13. Phone operation (Hands-free system for cellular phones)

●

This system is not guaranteed to
operate with all Bluetooth

devices.

●

If your cellular phone does not
support Bluetooth

, this system

cannot function.

●

In the following conditions, the

system may not function:

• The cellular phone is turned off.

• The current position is outside the

communication area.

• The cellular phone is not con-

nected.

• The cellular phone has a low bat-

tery.

●

Depending on the type of Blue-
tooth

phone, some function is

not available.

●

When using the hands-free sys-
tem or Bluetooth

audio and

W-Fi

Hotspot functions at the

same time, the following problems

may occur:

• The Bluetooth

connection may

be cut.

• Noise may be heard on the Blue-

tooth

audio playback.

• A noise may be heard during

phone calls.

●

Bluetooth

uses the 2.4 GHz fre-

quency band. If both a Wi-Fi

con-

nection and Bluetooth

connection are being used simul-

taneously, each connection may

be affected.

●

If a Bluetooth

device is attempt-

ing to connect to the vehicle while

another device is connected as a
Bluetooth

audio device or con-

nected using the hands-free sys-
tem or Wi-Fi

Hotspot function,

the communication speed may

decrease or malfunctions may

occur, such as image distortion or
audio skipping. If a Bluetooth

device is connected to the system,

the interference it may cause will

be reduced. When carrying a
device with its Bluetooth

connec-

tion enabled, make sure to regis-

ter it to the system and connect it
or disable its Bluetooth

function.

●

When a device is connected via
Bluetooth

, the Bluetooth

icon

on the status bar will be displayed

in blue. (



P.378)

Some basics

The hands-free system
enables calls to be made
and received without having
to take your hands off the
steering wheel.
This system supports Blue-
tooth

. Bluetooth

is a wire-

less data system that
enables cellular phones to
be used without being con-
nected by a cable or placed
in a cradle.
The operating procedure of
the phone is explained here.
When an Apple CarPlay
connection is established,
phone functions will be per-
formed by Apple CarPlay
instead of the hands-free
system.

WARNING

●

While driving, do not operate a

cellular phone.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

467

5-13. Phone operation (Hands-free system for cellular phones)

Audio

To use the hands-free system
for cellular phones, it is neces-
sary to register a cellular phone
with the system. (



P.390)

■

Connecting a Bluetooth

device



Registering an additional
device

Display the phone top
screen. (



P.465)

Select “Select Device”.

Select “Add Device”.



When another Bluetooth

device is connected, a confir-
mation screen will be dis-
played. To disconnect the
Bluetooth

device, select

“Yes”.

Follow the steps in “Register-
ing a Bluetooth

phone for

the first time” from step

(



P.390)



Selecting a registered device

Display the phone top
screen. (



P.465)

Select “Select Device”.

Select the desired device to
be connected.

Check that a confirmation
screen is displayed when the
connection is complete.



If an error message is dis-
played, follow the guidance
on the screen to try again.

■

Bluetooth

phone condition

display

The condition of the Bluetooth

phone appears on the upper
right side of the screen.

WARNING

●

Your audio unit is fitted with
Bluetooth

antennas. People

with implantable cardiac pace-

makers, cardiac resynchroniza-

tion therapy-pacemakers or

implantable cardioverter defibril-

lators should maintain a reason-

able distance between
themselves and the Bluetooth

antennas. The radio waves may

affect the operation of such

devices.

●

Before using Bluetooth

devices, users of any electrical

medical device other than

implantable cardiac pacemak-

ers, cardiac resynchronization

therapy-pacemakers or implant-

able cardioverter defibrillators

should consult the manufacturer

of the device for information

about its operation under the

influence of radio waves. Radio

waves could have unexpected

effects on the operation of such

medical devices.

NOTICE

●

Do not leave your cellular phone

in the vehicle. The temperature

inside may rise to a level that

could damage the phone.

Registering/Connecting a
Bluetooth

phone

-------------------------------------------------------------------------------------------------------------------------------------------------------------

468

5-13. Phone operation (Hands-free system for cellular phones)

(



P.378)

■

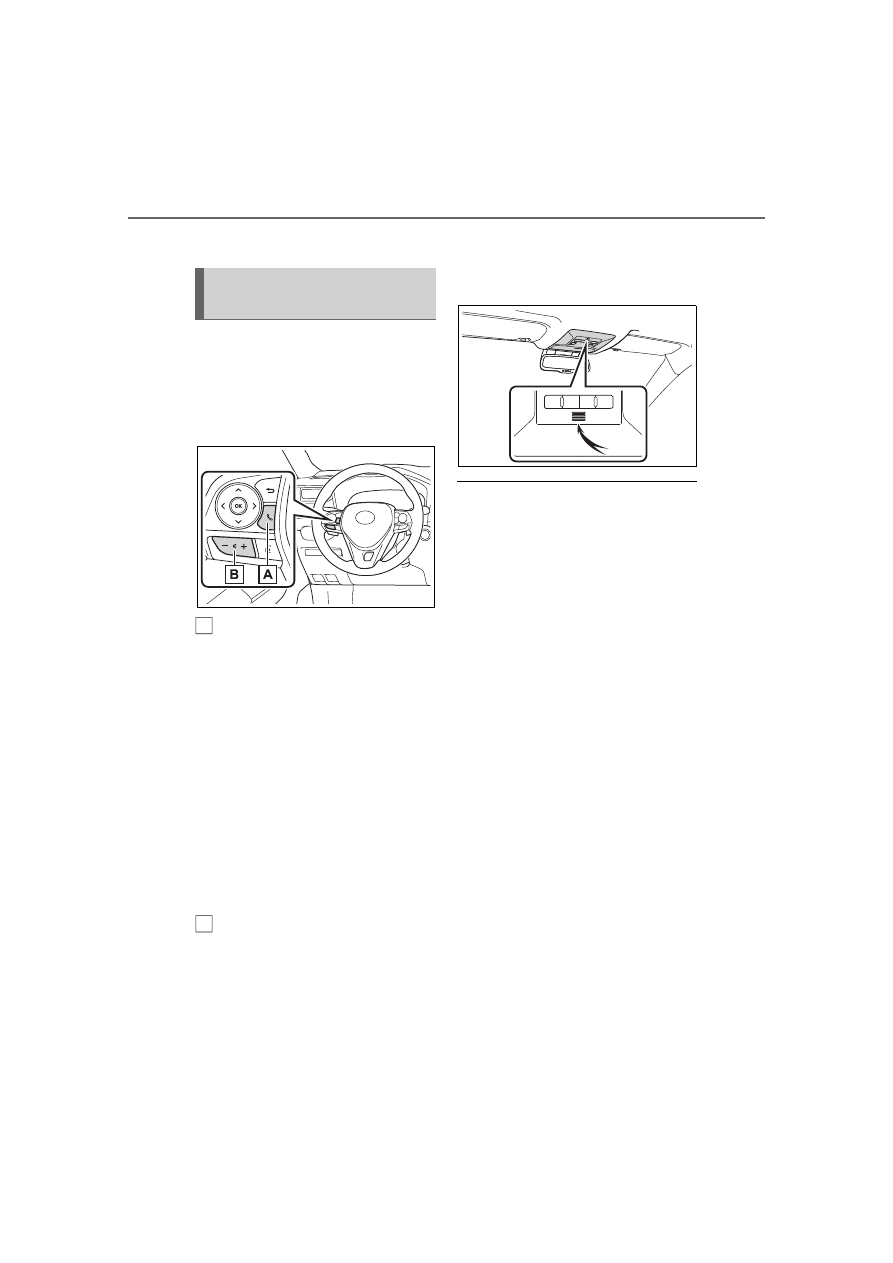

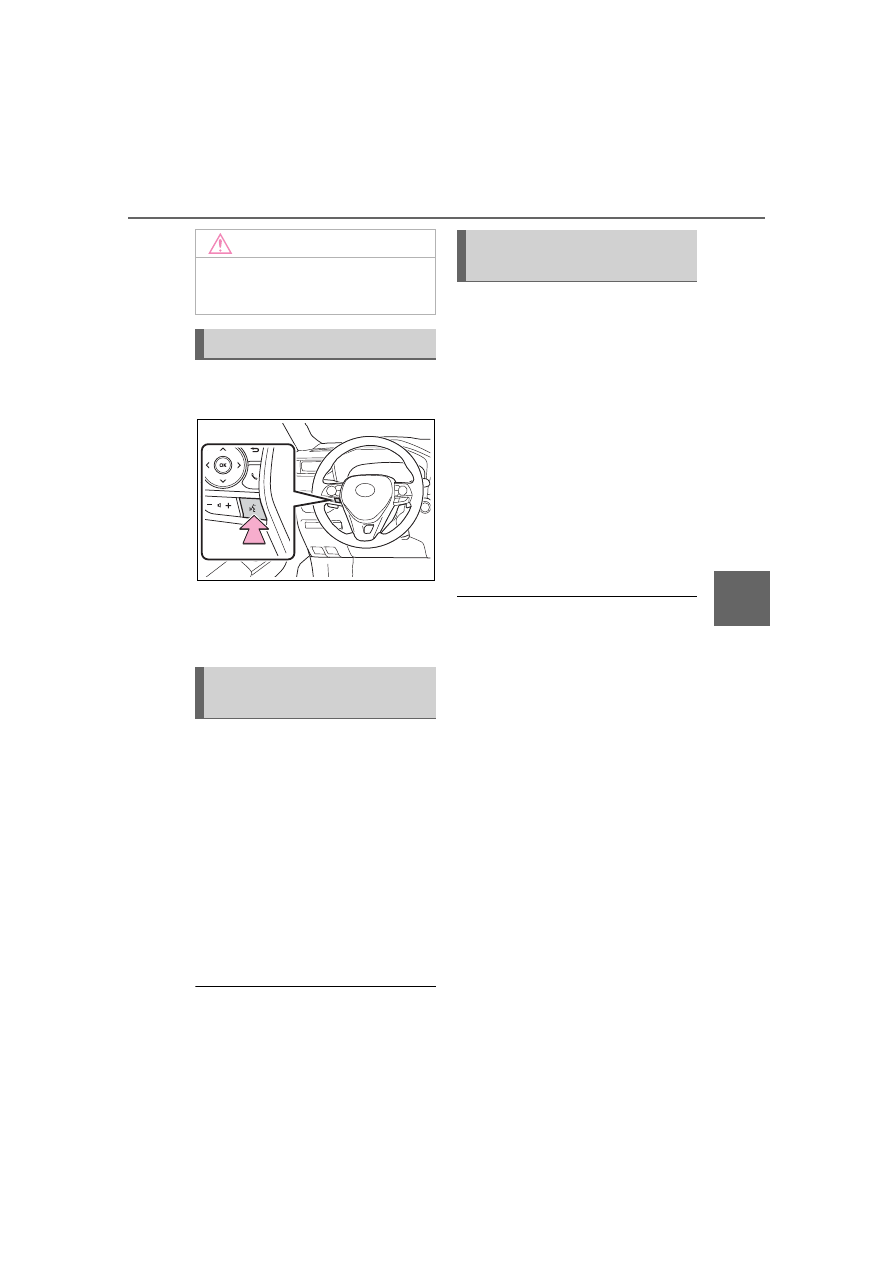

Steering switch

By pressing the phone switch, a
call can be received or ended
without taking your hands off the
steering wheel.

Phone switch

• If the switch is pressed during a

call, the call will end.

• If the switch is pressed when an

incoming call is received, the call
will be answered.

• If the switch is pressed during a

call when a separate incoming
call is waiting, the waiting call will
be answered.

• If the switch is pressed when an

Apple CarPlay/Android Auto con-
nection is established, the Apple
CarPlay/Android Auto phone
application will be displayed on
the system screen.

Volume control switch

• Press the “+” side to increase the

volume.

• Press the “-” side to decrease the

volume.

■

Microphone

The microphone is used when
talking on the phone.

●

The other party’s voice will be

heard from the front speakers.

The audio/visual system will be

muted during phone calls or when

hands-free voice commands are

used.

●

Talk alternately with the other

party on the phone. If both parties

speak at the same time, the other

party may not hear what has been

said. (This is not a malfunction.)

●

Keep call volume down. Other-

wise, the other party’s voice may

be audible outside the vehicle and

voice echo may increase. When

talking on the phone, speak

clearly towards the microphone.

●

The other party may not hear you

clearly when:

• Driving on an unpaved road.

(Making excessive traffic noise.)

• Driving at high speeds.

• The roof or windows are open.

• The air conditioning vents are

pointed towards the microphone.

• The sound of the air conditioning

fan is loud.

• There is a negative effect on

sound quality due to the phone

and/or network being used.

Using the phone
switch/microphone

-------------------------------------------------------------------------------------------------------------------------------------------------------------

469

5-13. Phone operation (Hands-free system for cellular phones)

Audio

Press the talk switch to operate
the voice command system.



The voice command system
and its list of commands can
be operated. (



P.458)



The following data is stored
for every registered phone.
When another phone is con-
nected, the following regis-
tered data cannot be read:

• Contact data
• Call history data
• Favorites data
• Image data
• All phone settings
• Message settings

●

When a phone’s registration is

deleted, the above-mentioned

data is also deleted.

A lot of personal data is regis-
tered when the hands-free sys-
tem is used. When selling or
disposing of the vehicle, initial-
ize the data. (



P.417)



The following data in the sys-
tem can be initialized:

• Contact data
• Call history data
• Favorites data
• Image data
• All phone settings
• Message settings

●

Once initialized, the data and set-

tings will be erased. Pay addi-

tional attention when initializing

the data.

NOTICE

●

Do not touch and put a sharp

object to the microphone. It may

cause failure.

Voice command system

About the contacts in the
contact list

When selling or disposing
of the vehicle

-------------------------------------------------------------------------------------------------------------------------------------------------------------

470

5-13. Phone operation (Hands-free system for cellular phones)

Display the phone top
screen. (



P.465)

Select the desired method to
call from.

■

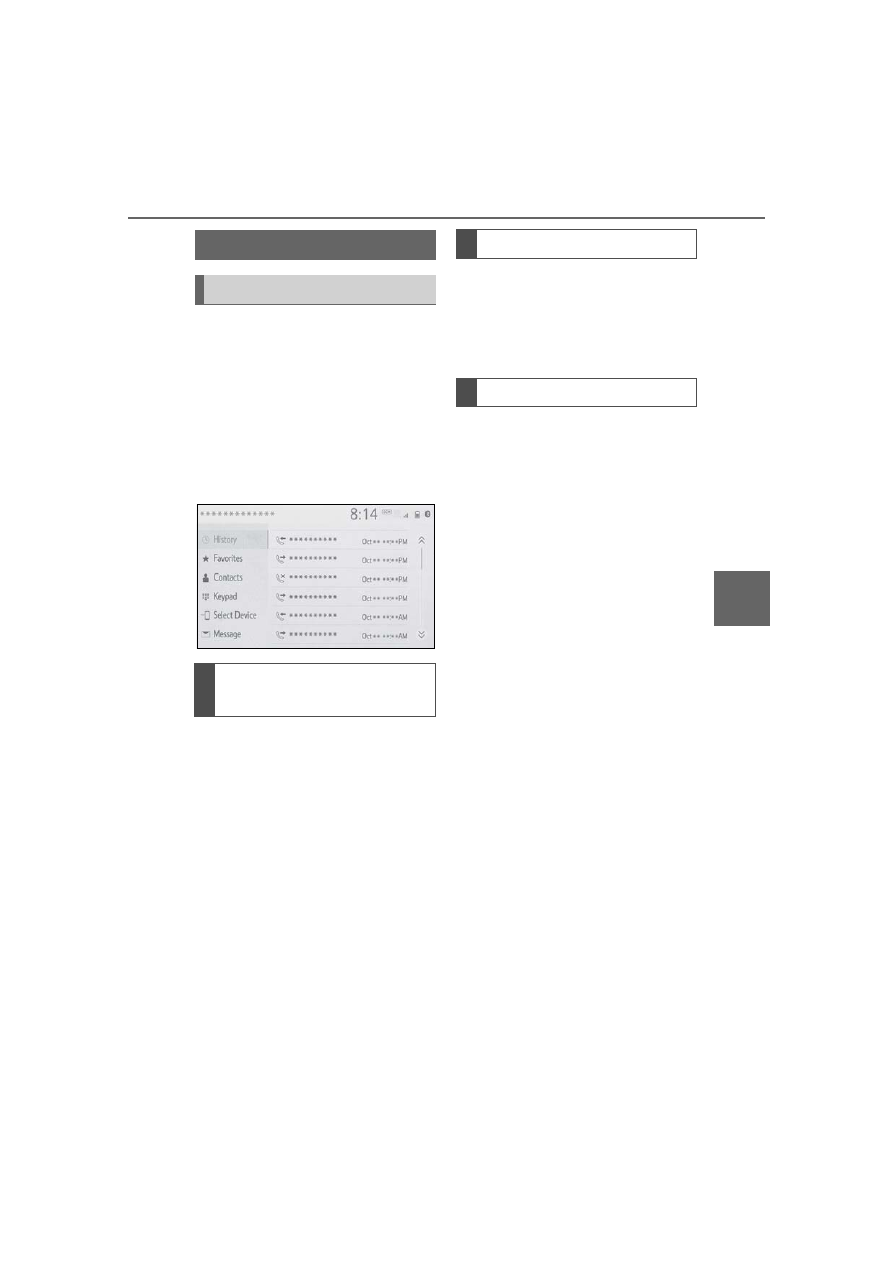

Calling methods from
phone screen



By call history (



P.470)



By favorites (



P.471)



By contacts (



P.471)



By keypad (



P.472)



By message (



P.479)

■

Also the following lists are
available from each func-
tion’s screen



By voice command system
(



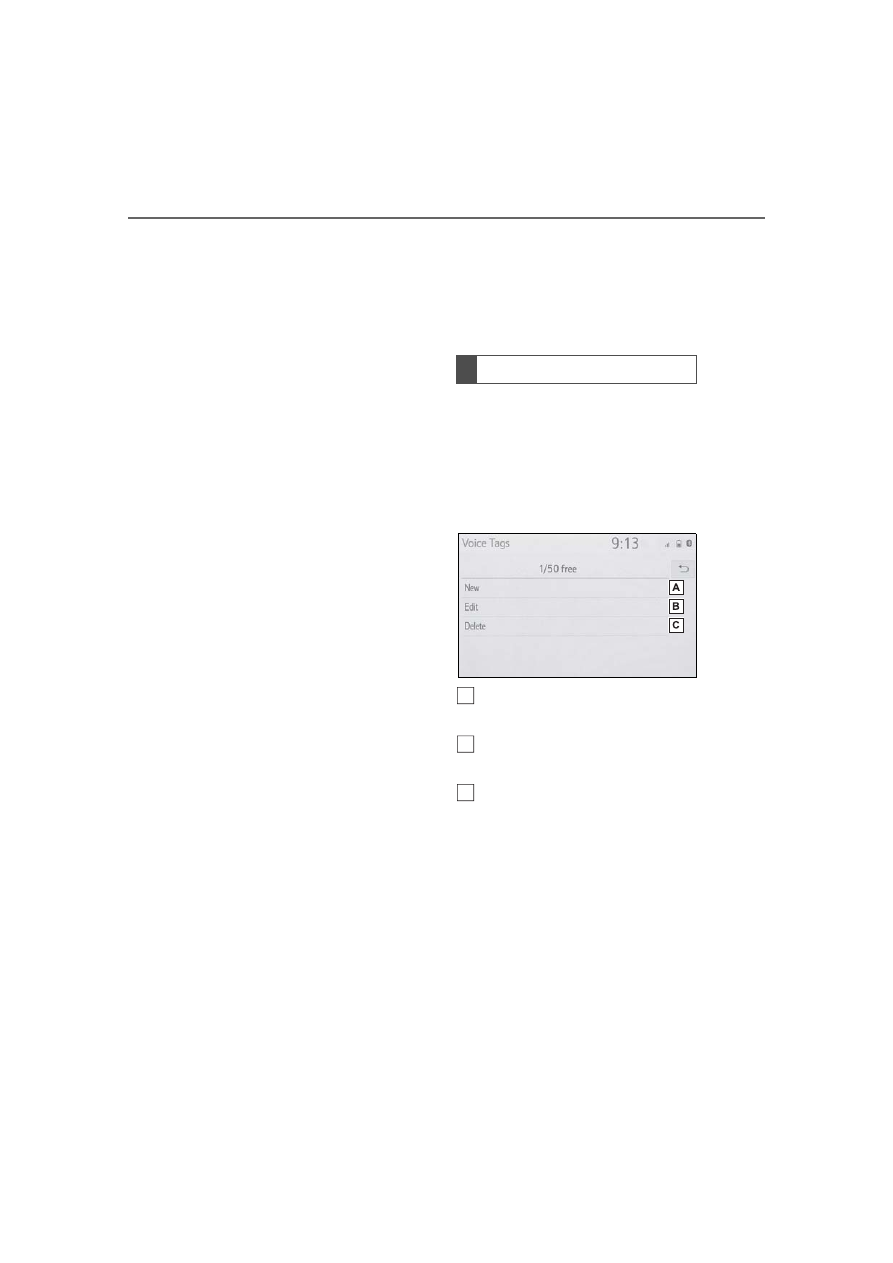

P.459)



By home screen (



P.473)

Up to 30 of the latest call history
items (missed, incoming and
outgoing) can be selected.

Display the phone top
screen. (



P.465)

Select “History” and select
the desired contact.



If the contact which is not reg-
istered on the contact list is
selected, the name is dis-
played as “Unknown Con-
tact”. In this case, select the
number to make a call prop-
erly.

Check that the dialing screen
is displayed.

●

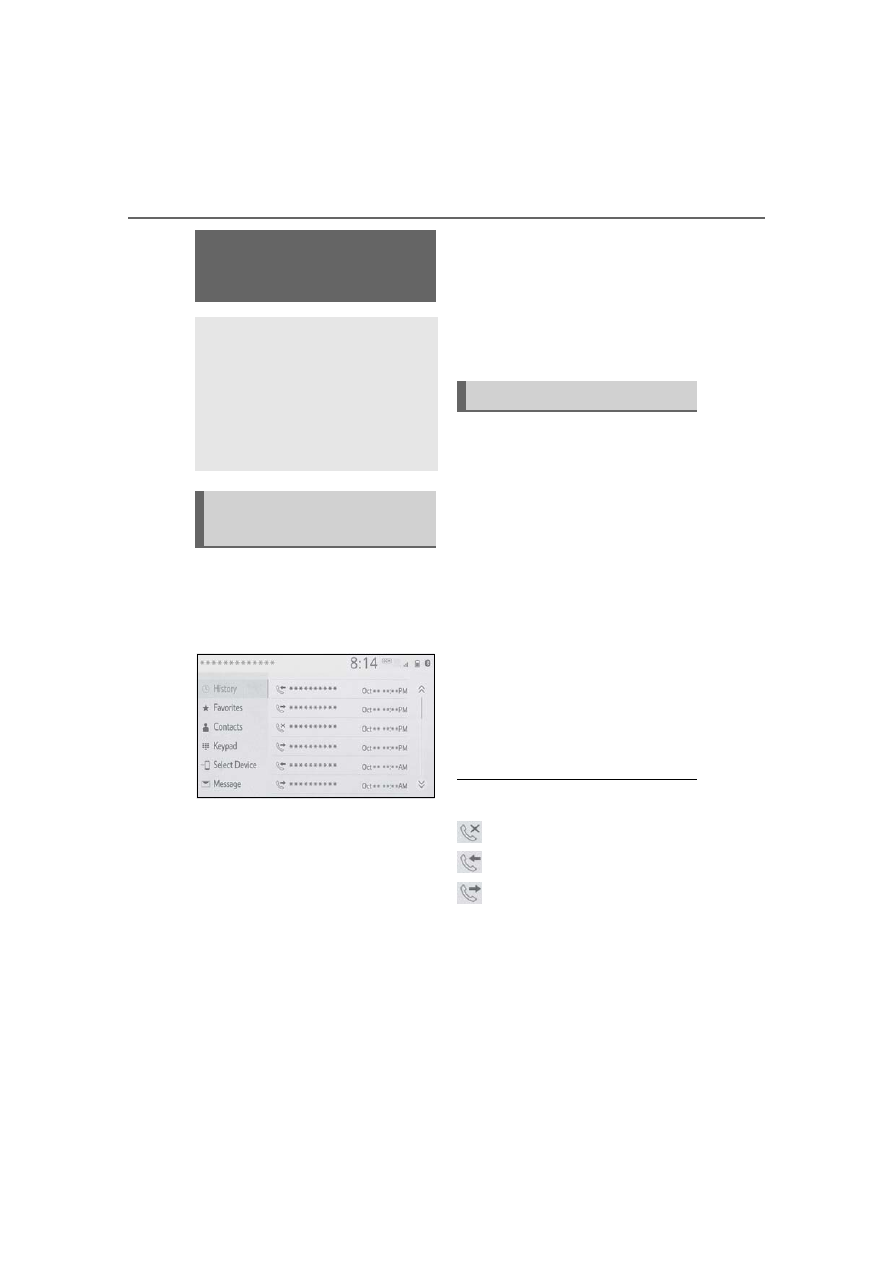

The icons of call type are dis-

played.

: Missed call

: Incoming call

: Outgoing call

●

When making a call to the same

number continuously, only the

most recent call is listed in call his-

tory.

●

When a phone number registered

in the contact list is received, the

name is displayed.

●

Number-withheld calls are also

Placing a call using

the Bluetooth

hands-

free system

After a Bluetooth

phone

has been registered, a call
can be made using the
hands-free system. There
are several methods by
which a call can be made, as
described below.

Calling methods on the
Bluetooth

phone

By call history

-------------------------------------------------------------------------------------------------------------------------------------------------------------

471

5-13. Phone operation (Hands-free system for cellular phones)

Audio

memorized in the system.

●

International phone calls may not

be made depending on the type of
Bluetooth

phone you have.

●

The list should group together

consecutive entries with the same

phone number and same call

type. For example, two calls from

John’s mobile would be displayed

as follows: John (2)

Calls can be made using regis-
tered contacts which can be
selected from a contact list.
(



P.471)

Display the phone top
screen. (



P.465)

Select “Favorites” and select
the desired contact.

Select the desired number.

Check that the dialing screen
is displayed.

Calls can be made by using
contact data which is transferred
from a registered cellular phone.
(



P.483)

Up to 5000 contacts (maximum
of 4 phone numbers, e-mail
addresses and addresses per
contact) can be registered in the
contact list.

Display the phone top
screen. (



P.465)

Select “Contacts” and select
the desired contact.

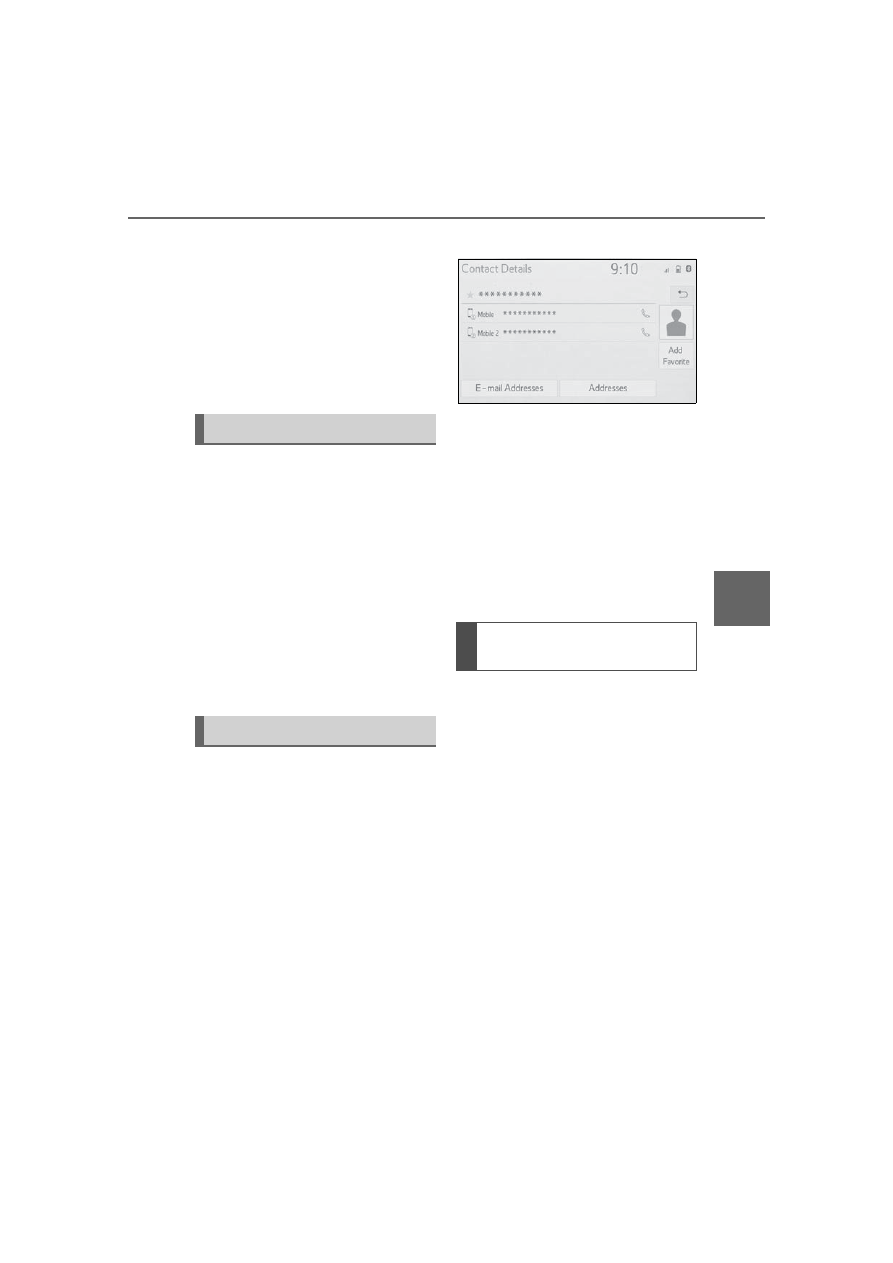

Select the desired number.

“Add Favorite”/“Remove Favorite”:

Select to register/remove the con-

tact in the favorites list. (



P.488)

“E-mail Addresses”: Select to dis-

play all registered e-mail addresses

for the contact.
“Addresses”: Select to display all

registered addresses for the con-

tact.

Check that the dialing screen
is displayed.

■

For PBAP compatible Blue-
tooth

phones when “Auto-

matic Transfer” is set to on
(



P.483)



Contacts are transferred auto-
matically.

By favorites list

By contacts list

When the contact list is
empty

-------------------------------------------------------------------------------------------------------------------------------------------------------------

472

5-13. Phone operation (Hands-free system for cellular phones)

■

For PBAP compatible Blue-
tooth

phones when “Auto-

matic Transfer” is set to off
(



P.483)

Select the desired item.

Select to always transfer all
the contacts from a con-
nected cellular phone auto-
matically.

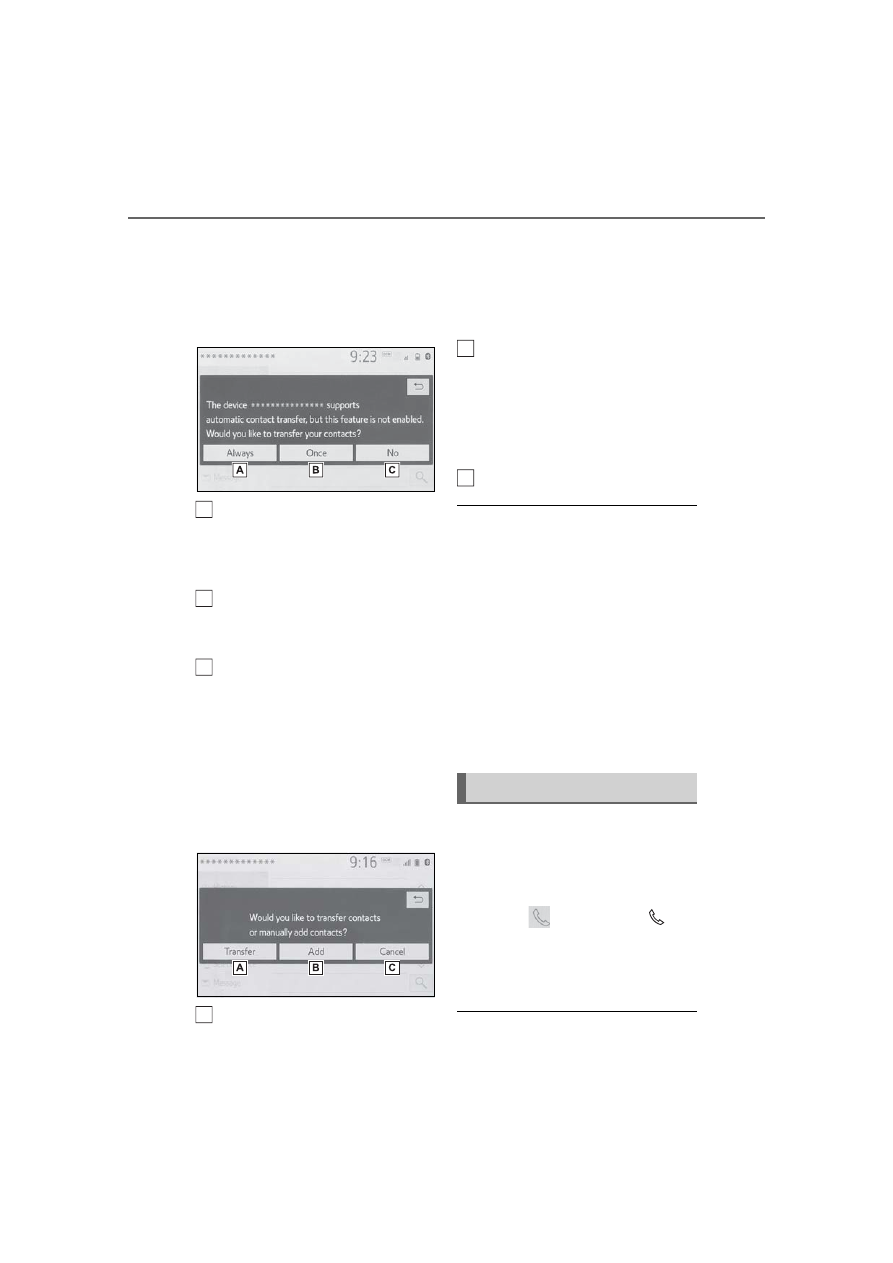

Select to transfer all the con-
tacts from a connected cellu-
lar phone only once.

Select to cancel transferring.

Check that a confirmation
screen is displayed when the
operation is complete.

■

For PBAP incompatible but
OPP compatible Blue-
tooth

phones

Select the desired item.

Select to transfer the con-

tacts from the connected cel-
lular phone.
Transfer the contact data to
the system using a Blue-
tooth

phone.

Select to add a new contact
manually.
Follow the steps in “Register-
ing a new contact to the con-
tacts list” from step

(



P.486)

Select to cancel transferring.

●

If your cellular phone is neither

PBAP nor OPP compatible, the

contacts cannot be transferred
using Bluetooth

. But the contacts

can be transferred from USB

device. (



P.486)

●

Depending on the type of Blue-
tooth

phone:

• It may be necessary to perform

additional steps on the phone

when transferring contact data.

• The registered image in the con-

tact list may not transfer depend-
ing on the type of Bluetooth

phone connected.

Display the phone top
screen. (



P.465)

Select “Keypad” and enter
the phone number.

Select

or press the

switch on the steering wheel.

Check that the dialing screen
is displayed.

●

Depending on the type of Blue-

By keypad

-------------------------------------------------------------------------------------------------------------------------------------------------------------

473

5-13. Phone operation (Hands-free system for cellular phones)

Audio

tooth

phone being connected, it

may be necessary to perform

additional steps on the phone.

Display the home screen.
(



P.384)

Select the desired contact.

Check that the dialing screen
is displayed.

■

Registering a new contact

Select and hold the screen
button to add a contact.

Select the desired contact.

Select the desired number.

●

If there is no contact in the con-

tacts list, the contacts cannot be

registered at the home screen.

●

The contact cannot be registered

at the home screen while driving.

Select “Answer” or press the

switch on the steering

wheel to talk on the phone.

“Decline”: Select to refuse to
receive the call.
To adjust the volume of a received
call: Turn the “POWER VOLUME”
knob, or use the volume control
switch on the steering wheel.

●

The contact image picture can be

displayed only when the vehicle is

not moving.

●

During international phone calls,

the other party’s name or number

may not be displayed correctly

depending on the type of Blue-
tooth

phone you have.

●

The incoming call display mode

can be set. (



P.482)

●

The ringtone that has been set in

the sound settings screen can be

heard when there is an incoming

call. Depending on the type of

By home screen

Receiving a call using

the Bluetooth

hands-

free system

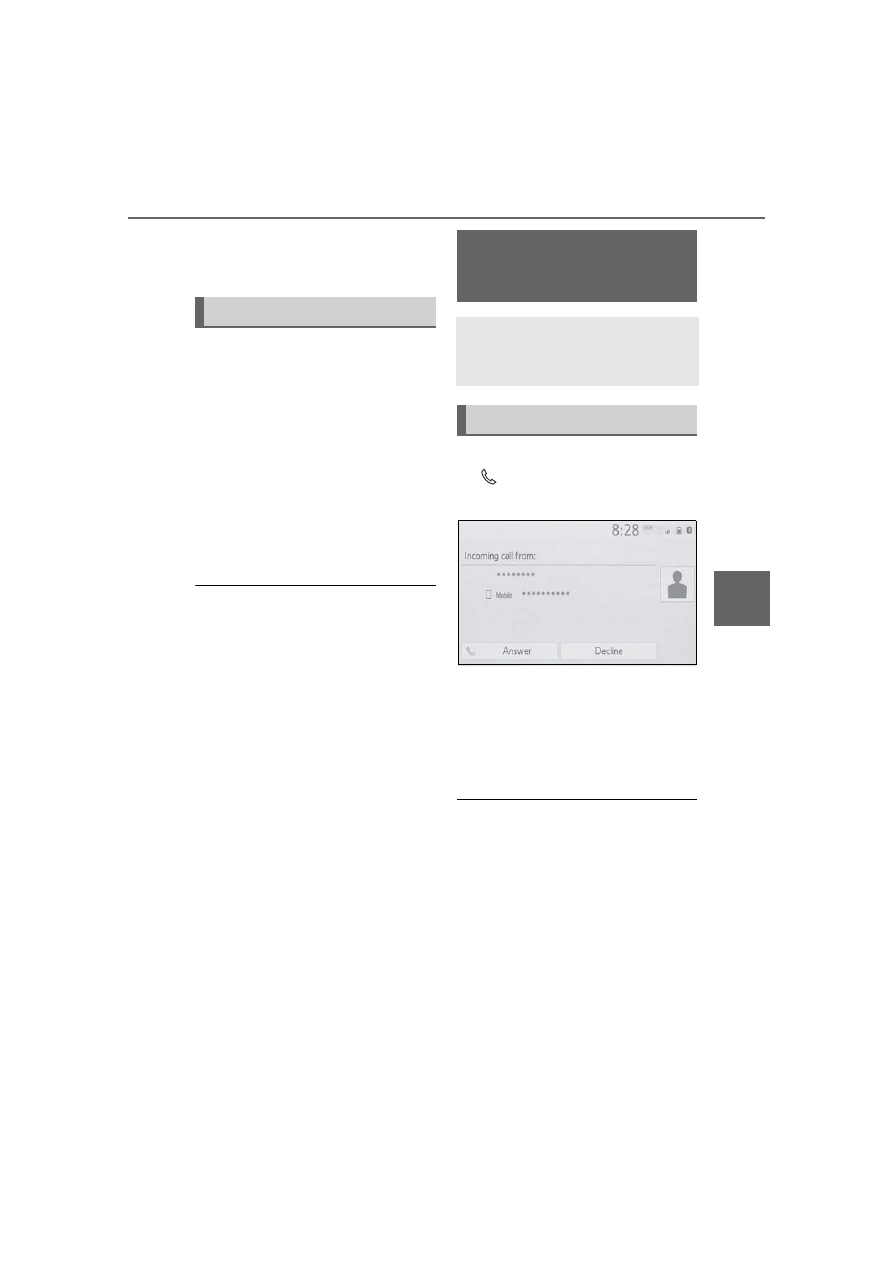

When a call is received, the
following screen is dis-
played with a sound.

Incoming calls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

474

5-13. Phone operation (Hands-free system for cellular phones)

Bluetooth

phone, both the sys-

tem and Bluetooth

phone may

ring simultaneously when there is

an incoming call. (



P.481)

Select to display the keypad
to send tones. (



P.475)

Select to send tones. This
button only appears when a
number that contains a (w) is
dialed in hands-free mode.
(



P.475)

Select to adjust your voice
volume that the other party
hears from their speaker.
(



P.475)

Select to mute your voice to
the other party.

Select to change handset
modes between hands-free
and cellular phone.

Select to put a call on hold.

Talking on the Blue-

tooth

hands-free sys-

tem

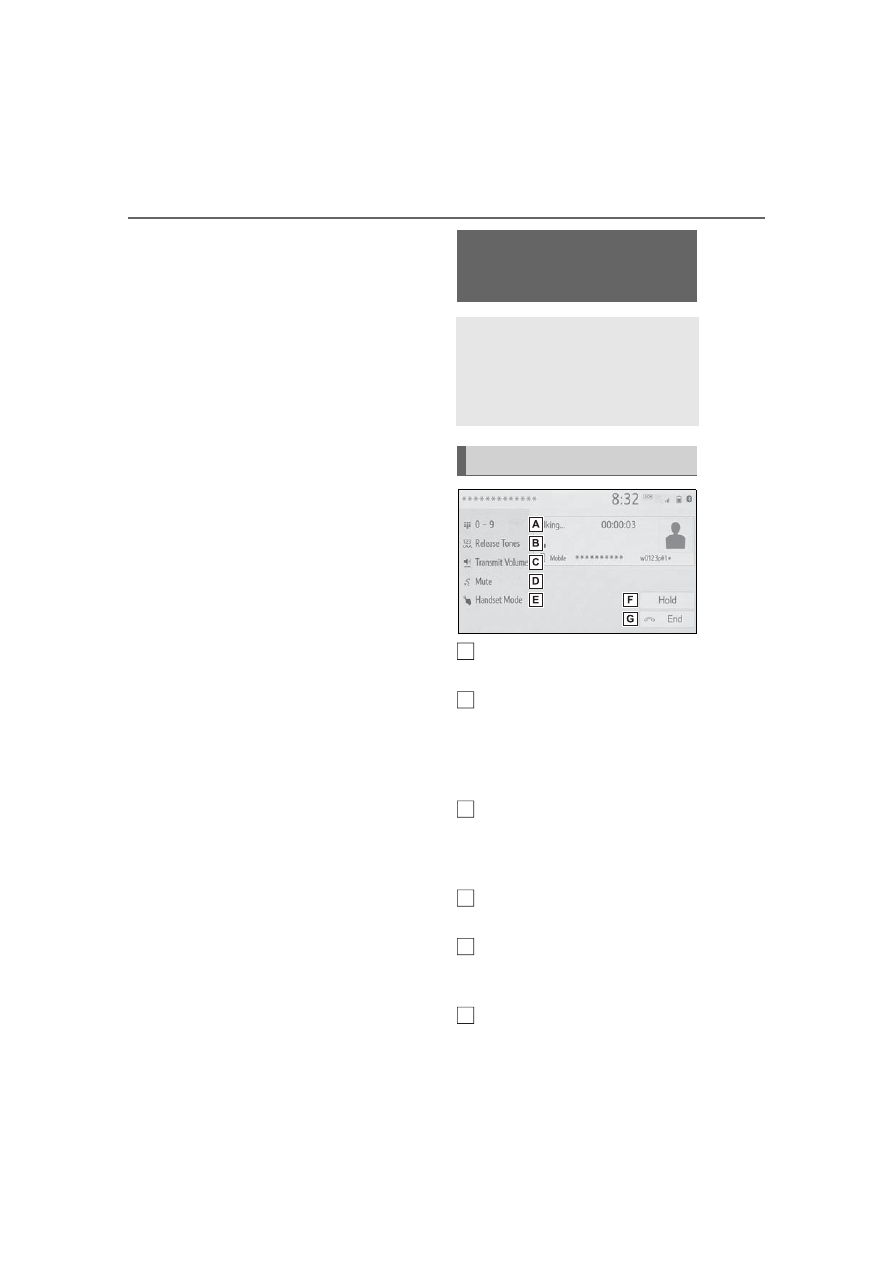

While talking on the phone,
the following screen is dis-
played. The operations out-
lined below can be
performed on this screen.

Call screen operation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

475

5-13. Phone operation (Hands-free system for cellular phones)

Audio

To cancel this function, select
“Activate”.

Select to hang up the phone.

●

Changing from hands-free call to

cellular phone call is not possible

while driving.

●

Only when the vehicle is not mov-

ing, the contact image can be dis-

played.

●

When cellular phone call is

changed to hands-free call, the

hands-free screen will be dis-

played and its functions can be

operated on the screen.

●

Changing between cellular phone

call and hands-free call can be

performed by operating the cellu-

lar phone directly.

●

Transferring methods and opera-

tions will be different depending

on the type of cellular phone you

have.

●

For the operation of the cellular

phone, see the manual that

comes with it.

■

By keypad

This operation cannot be per-
formed while driving.

Select “0-9”.

Enter the desired number.

■

By selecting “Release
Tones”

“Release Tones” appear when a
continuous tone signal(s) con-
taining a (w) is registered in the
contact list.
This operation can be per-
formed while driving.

Select “Release Tones”.

●

A continuous tone signal is a char-

acter string that consists of num-

bers and the characters “p” or “w”.

(e.g. 056133w0123p#1)

●

When the “p” pause tone is used,

the tone data up until the next

pause tone will be automatically

sent after 2 seconds have

elapsed. When the “w” pause tone

is used, the tone data up until the

next pause tone will be automati-

cally sent after a user operation is

performed.

●

Release tones can be used when

automated operation of a phone

based service such as an answer-

ing machine or bank phone ser-

vice is desired. A phone number

with continuous tone signals can

be registered in the contact list.

●

Tone data after a “w” pause tone

can be operated by voice com-

mand during a call.

Select “Transmit Volume”.

Select the desired level for
the transmit volume.

Select

to display previ-

ous screen.

●

The sound quality of the voice

heard from the other party’s

speaker may be negatively

impacted.

●

“Transmit Volume” is dimmed

when mute is on.



When there are no calls on
hold during a call: “Hold” is
displayed. When selected, the

Sending tones

Transmit volume setting

Switching calls while a
call is in progress

-------------------------------------------------------------------------------------------------------------------------------------------------------------

476

5-13. Phone operation (Hands-free system for cellular phones)

current call is placed on hold.



When there is no current call,
but there is a call on hold:
“Activate” is displayed. When
selected, the system switches
to the call that was on hold.



When there is another call on
hold during a call: “Swap
Calls” is displayed. When
selected, the current call is
placed on hold, and the sys-
tem switches to the call that
was on hold.

●

This function may not be available

depending on the type of cellular

phone.

When a call is interrupted by a
third party while talking, the
incoming screen is displayed.

Select “Answer” or press the

switch on the steering

wheel to start talking with the
other party.



To refuse to receive the call:
Select “Decline”.



Each time “Swap Calls” is
selected, the party who is on
hold will be switched.

●

This function may not be available

depending on the type of Blue-
tooth

phone.

Display the phone top
screen. (



P.465)

Select “Message”.



A confirmation message
appears when the “Automatic
Message Transfer” function is
set to off (



P.489), select

“Yes”.

Check that the message
screen is displayed.

“Phone”: Select to change to phone

mode.



The account name is dis-
played on the left side of

Incoming call waiting

Bluetooth

phone

message function

Received messages can be
forwarded from the con-
nected Bluetooth

phone,

enabling checking and
replying using the system.
Depending on the type of
Bluetooth

phone con-

nected, received messages
may not be transferred to
the system.
If the phone does not sup-
port the message function,
this function cannot be
used. Even when the sup-
ported phone is used, reply
function may not be used.

Displaying the message
screen

-------------------------------------------------------------------------------------------------------------------------------------------------------------

477

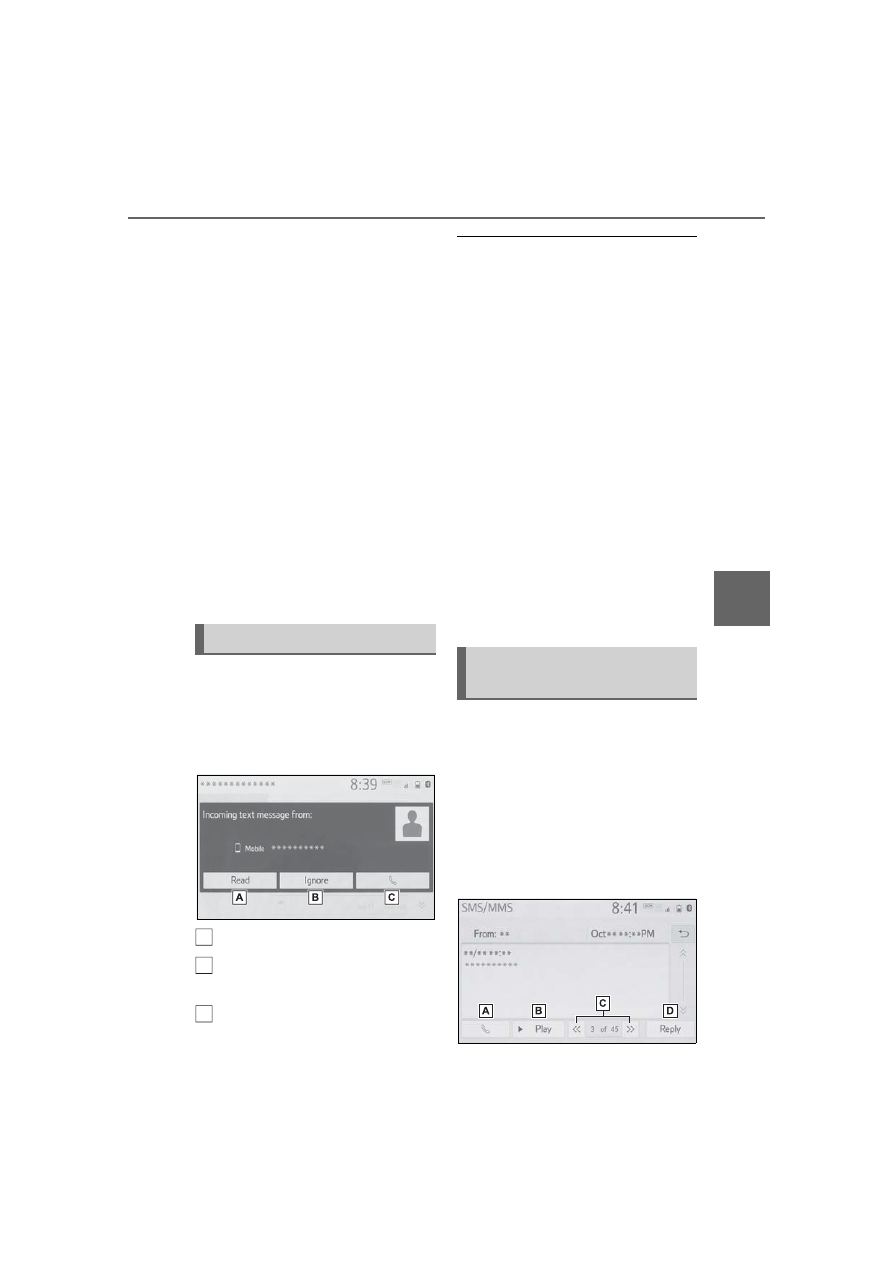

5-13. Phone operation (Hands-free system for cellular phones)

Audio

screen.



Account names are the
names of the accounts that
exist on the currently con-
nected phone.



The following functions can
be used on message function:

• Receiving a message

(



P.477)

• Checking messages

(



P.477)

• Replying to a message (dicta-

tion reply) (



P.478)

• Replying to a message (quick

reply) (



P.479)

• Calling the message sender

(

• Message settings (

When an e-mail/SMS/MMS is
received, the incoming message
screen pops up with sound and
is ready to be operated on the
screen.

Select to check the message.

Select to not open the mes-
sage.

Select to call the message
sender.

●

Depending on the type of Blue-
tooth

phone used for receiving

messages, or its registration sta-

tus with the system, some infor-

mation may not be displayed.

●

The pop-up screen is separately

available for incoming e-mail and

SMS/MMS messages under the

following conditions:

E-mail:
• “Incoming E-mail Display” is set to

“Full Screen”. (



P.482)

• “E-mail Notification Pop-up” is set

to on. (



P.482)

SMS/MMS:
• “Incoming SMS/MMS Display” is

set to “Full Screen”. (



P.482)

• “SMS/MMS Notification Pop-up” is

set to on. (



P.482)

●

Depending on the type of Blue-
tooth

phone being connected, E-

Mail function cannot be used via
Bluetooth

Display the message screen.
(



P.476)

Select a desired account
name.

Select the desired message
from the list.

Check that the message is
displayed.

Receiving a message

Checking received mes-
sages

-------------------------------------------------------------------------------------------------------------------------------------------------------------

478

5-13. Phone operation (Hands-free system for cellular phones)

Select to call the message
sender.

Select to have messages
read out.
To cancel this function, select
“Stop”.
When “Automatic Message
Readout” is set to on, mes-
sages will be automatically
read out. (



P.489)

Select to display the previous
or next message.

This function can be chosen
the method to reply mes-
sage with “Dictation” or
“Quick Message”.

●

Reading a text message is not

available while driving.

●

Depending on the type of Blue-
tooth

phone being connected,

this function cannot be used.

●

Depending on the type of Blue-
tooth

phone being connected, it

may be necessary to perform

additional steps on the phone.

●

Messages are displayed in the

appropriate connected Blue-
tooth

phone’s registered mail

address folder. Select the desired

folder to be displayed.

●

Only received messages on the
connected Bluetooth

phone can

be displayed.

●

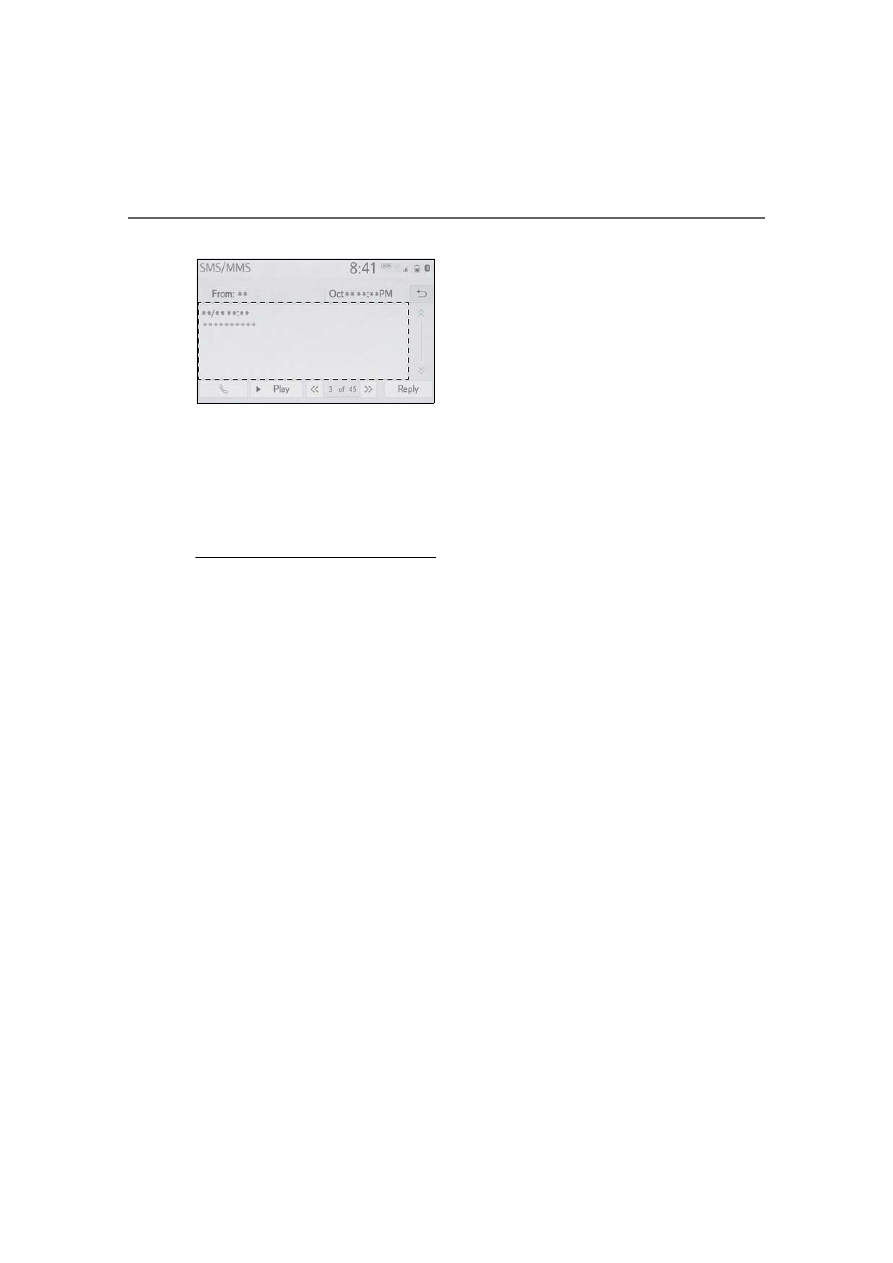

The text of the message is not dis-

played while driving.

●

Turn the “POWER VOLUME”

knob, or use the volume control

switch on the steering wheel to

adjust the message read out vol-

ume.

●

“Subject:” field is not shown on

SMS case.

●

E-mail only: Select “Mark Unread”

or “Mark Read” to mark mail

unread or read on the message

screen.

This function is available when

“Update Message Read Status on

Phone” is set to on. (



P.489)

: If equipped

Display the message screen.
(



P.476)

Select the desired message
from the list.

Select “Reply”.

Select “Dictation”.

When the “Say Your Mes-
sage” screen is displayed,
speak message that you
want to send.

Select “Send” to send mes-
sage.

“Cancel”: Select to cancel sending

the message.
“Retry”: Select to retry speaking

message that you want to send.



While the message is being
sent, a sending message
screen is displayed.

Check that a confirmation
screen is displayed when the
operation is complete.



If an error message is dis-
played, follow the guidance
on the screen to try again.

Replying to a message
(dictation reply)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

479

5-13. Phone operation (Hands-free system for cellular phones)

Audio

15 messages have already
been stored.

Display the message screen.
(



P.476)

Select the desired message
from the list.

Select “Reply”.

Select “Quick Message”.

Select the desired message.

: Select to edit the message.

(



P.479)

Select “Send”.

“Cancel”: Select to cancel sending

the message.



While the message is being
sent, a sending message
screen is displayed.

Check that a confirmation
screen is displayed when the
operation is complete.



If an error message is dis-
played, follow the guidance
on the screen to try again.

●

Depending on the type of Blue-
tooth

phone, reply function is not

available.

■

Editing quick reply mes-
sages

This operation cannot be per-
formed while driving.

Select

corresponding to

the desired message to edit.

Select “OK” when editing is
completed.

●

To reset the edited quick reply

messages, select “Default”.

Calls can be made to an e-
mail/SMS/MMS message
sender’s phone number.
This operation can be per-
formed while driving.

■

Calling from e-
mail/SMS/MMS message
display

Display the message screen.
(



P.476)

Select the desired message.

Select

, or press the

switch on the steering wheel.



If there are 2 or more phone
numbers, select the desired
number.

Check that the dialing screen
is displayed.

■

Calling from a number
within a message

Calls can be made to a number
identified in a message’s text
area.
This operation cannot be per-
formed while driving.

Display the message screen.
(



P.476)

Select the desired message.

Replying to a message
(quick reply)

Calling the message
sender

-------------------------------------------------------------------------------------------------------------------------------------------------------------

481

5-14. Phone settings

Audio

5-14.Phone settings

Press the “MENU” button.

Select “Setup”.

Select “Phone”.

Select the desired item to be
set.

Connecting a Bluetooth

device and editing the Blue-
tooth

device information

(



P.395, 398)

Sound settings

(



P.481)

Notifications/display set-
tings

(



P.482)

Contact/call history settings

(



P.483)

Message settings

(



P.489)

: This operation cannot be per-

formed while driving.

The call and ringtone volume
can be adjusted. A ringtone can
be selected.

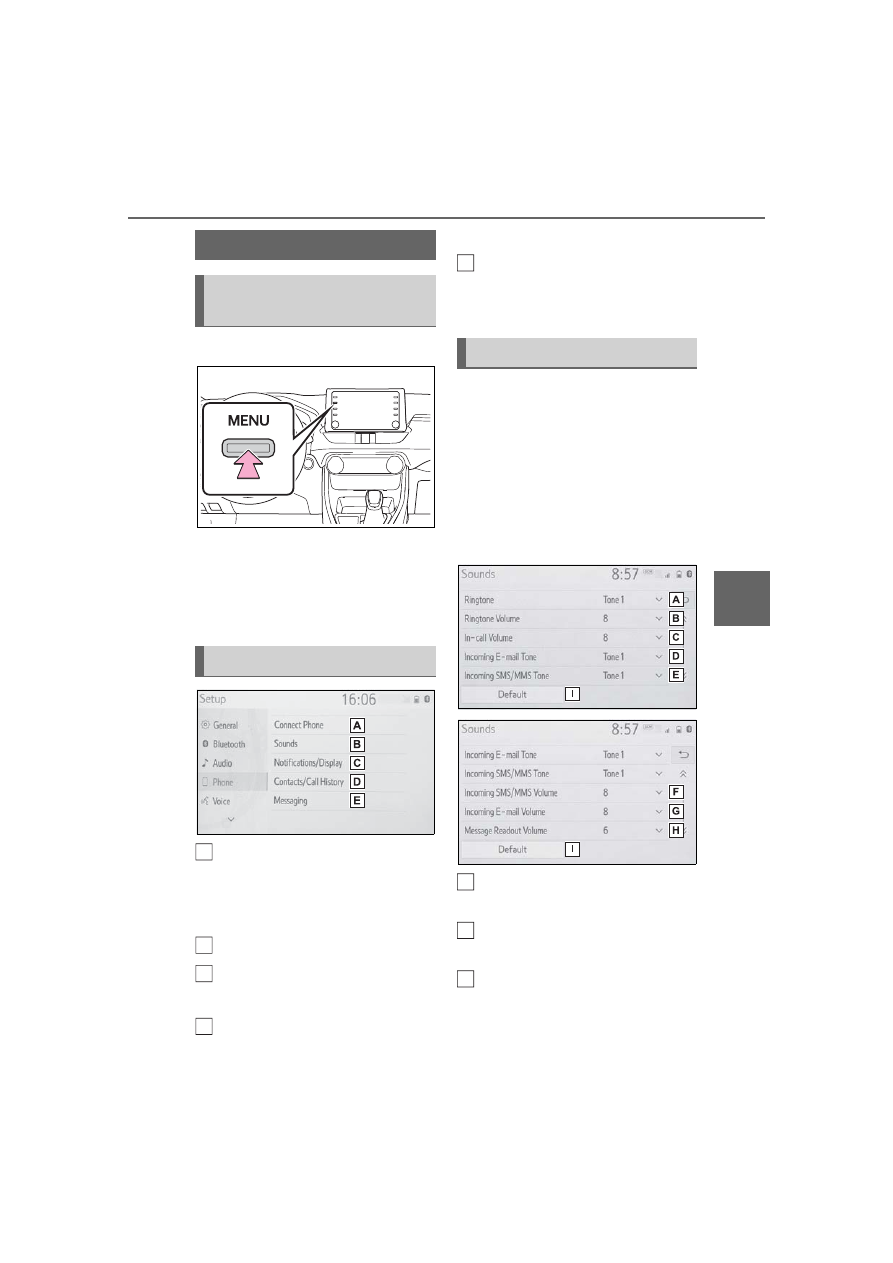

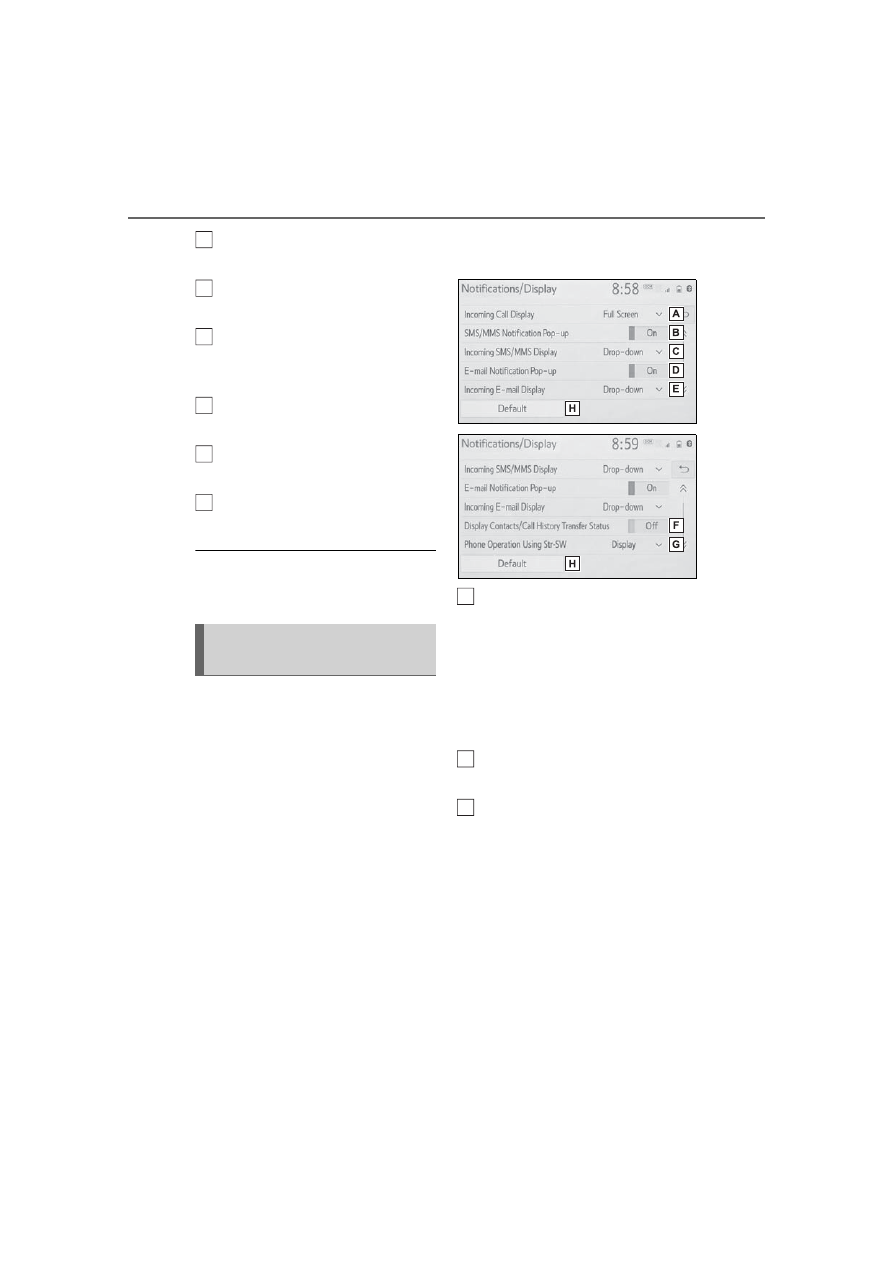

Display the phone settings
screen. (



P.481)

Select “Sounds”.

Select the desired item to be
set.

Select to set the desired ring-
tone.

Select “-” or “+” to adjust the
ringtone volume.

Select “-” or “+” to adjust the
default volume of the other
party’s voice.

Setup

Displaying the phone set-
tings screen

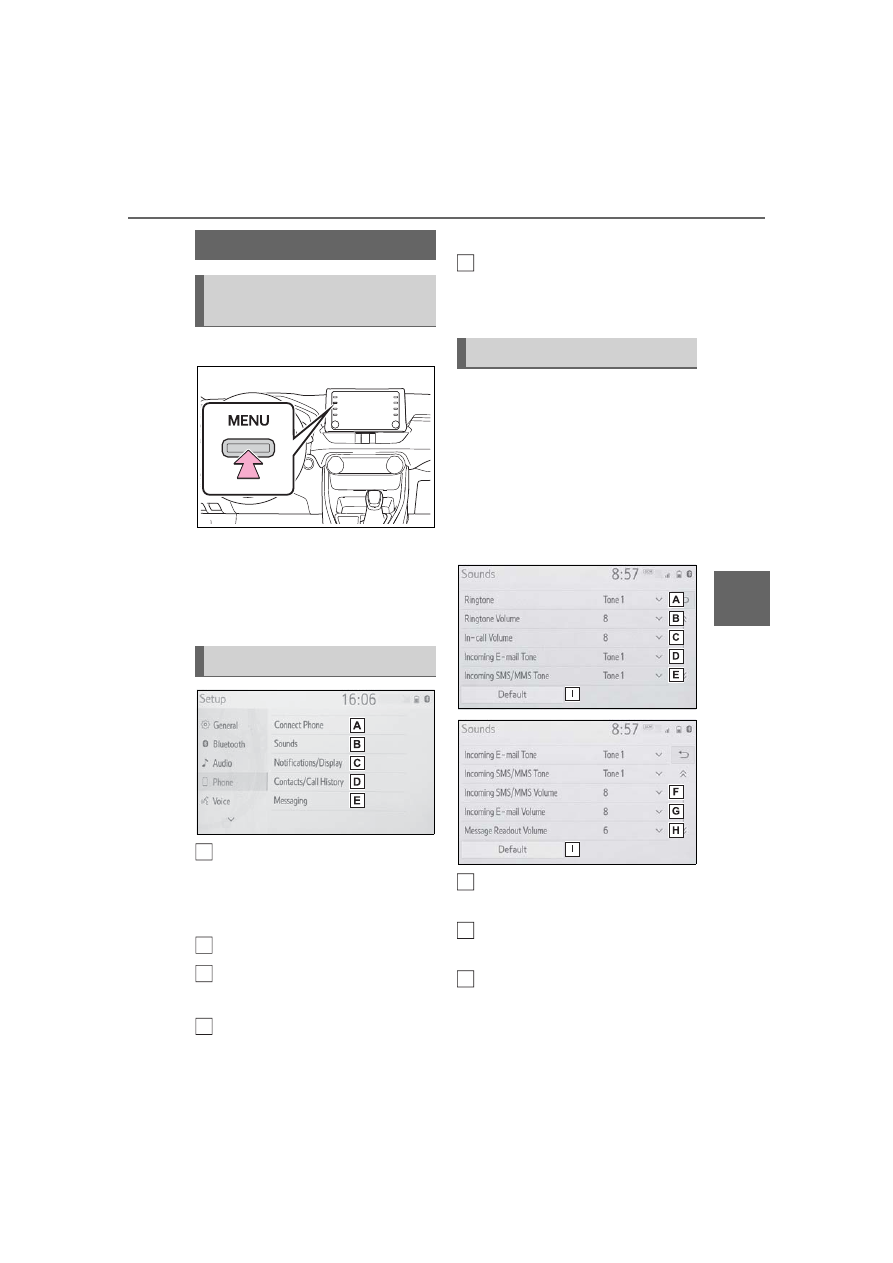

Phone settings screen

Sounds settings screen

-------------------------------------------------------------------------------------------------------------------------------------------------------------

482

5-14. Phone settings

Select to set the desired
incoming e-mail tone.

Select to set the desired
incoming SMS/MMS tone.

Select “-” or “+” to adjust the
incoming SMS/MMS tone
volume.

Select “-” or “+” to adjust the
incoming e-mail tone volume.

Select “-” or “+” to adjust the
message readout volume.

Select to reset all setup
items.

●

Depending on the type of Blue-
tooth

phone, certain functions

may not be available.

Display the phone settings
screen. (



P.481)

Select “Notifications/Display”.

Select the desired item to be
set.

Select to change the incom-
ing call display.

“Full Screen”: When a call is
received, the incoming call screen
is displayed and can be operated
on the screen.
“Drop-down”: A message is dis-
played at the top of the screen.

Select to set the SMS/MMS
notification pop-up on/off.

Select to change the incom-
ing SMS/MMS display.
“Full Screen”: When an
SMS/MMS message is
received, the incoming
SMS/MMS display screen is
displayed and can be oper-
ated on the screen.
“Drop-down”: When an
SMS/MMS message is
received, a message is dis-
played at the top of the

Notifications/display set-
tings screen

-------------------------------------------------------------------------------------------------------------------------------------------------------------

483

5-14. Phone settings

Audio

screen.

Select to set the e-mail notifi-
cation pop-up on/off.

Select to change the incom-
ing e-mail display.
“Full Screen”: When an e-
mail is received, the incoming
e-mail display screen is dis-
played and can be operated
on the screen.
“Drop-down”: When an e-
mail is received, a message
is displayed at the top of the
screen.

Select to set display of the
contact/history transfer com-
pletion message on/off.

The phone top screen can be
set to be displayed on the
multi-information display or
system screen.

: If equipped

Select to reset all setup
items.

●

Depending on the type of Blue-
tooth

phone, these functions

may not be available.

Contacts can be transferred
from a Bluetooth

phone to this

system. Contacts and favorites
can be added, edited and
deleted. Also, the call history
can be deleted.

Display the phone settings
screen. (



P.481)

Select “Contacts/Call His-
tory”.

Select the desired item to be
set.

For PBAP compatible Blue-
tooth

phones: Select to

change the contact/history
transfer settings. (



P.484)

Select to update contacts
from the connected device.
(



P.485)

Select to sort contacts by the
first name or last name field.

Select to add contacts to the
favorites list. (



P.487)

Select to delete contacts
from the favorites list.
(



P.488)

Select to clear the call his-

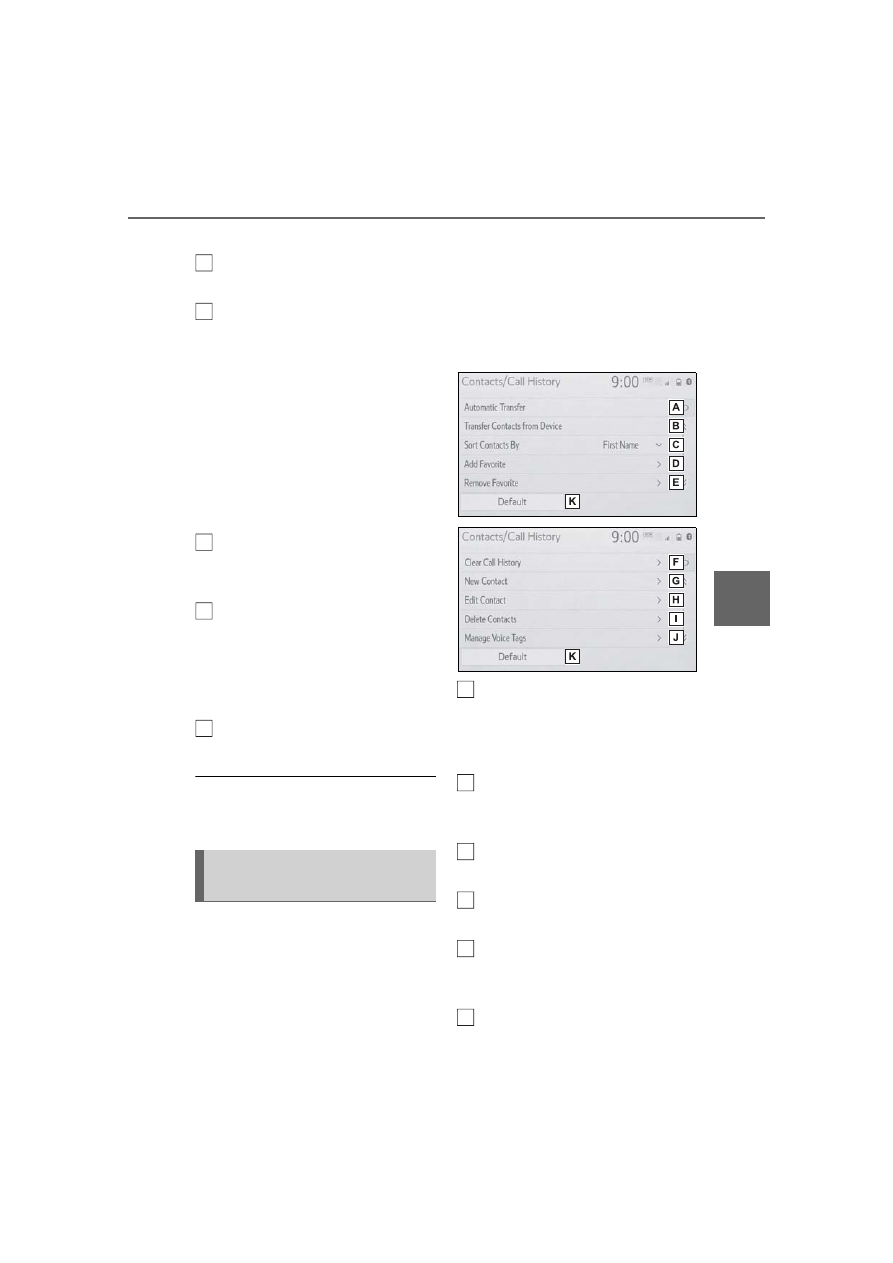

Contacts/Call history set-
tings screen

-------------------------------------------------------------------------------------------------------------------------------------------------------------

484

5-14. Phone settings

tory.

Select to add new contacts to
the contact list.

(



P.486)

Select to edit contacts in the
contact list.

(



P.487)

Select to delete contacts
from the contact list.

(



P.487)

Select to set the voice tags.
(



P.488)

Select to reset all setup
items.

: For PBAP compatible Bluetooth

phones, this function is available
when “Automatic Transfer” is set
to off. (



P.484)

●

Depending on the type of Blue-
tooth

phone, certain functions

may not be available.

●

Contact data is managed inde-

pendently for every registered

phone. When one phone is con-

nected, another phone’s regis-

tered data cannot be read.

The automatic contact/history
function is available for PBAP
compatible Bluetooth

phones

only.

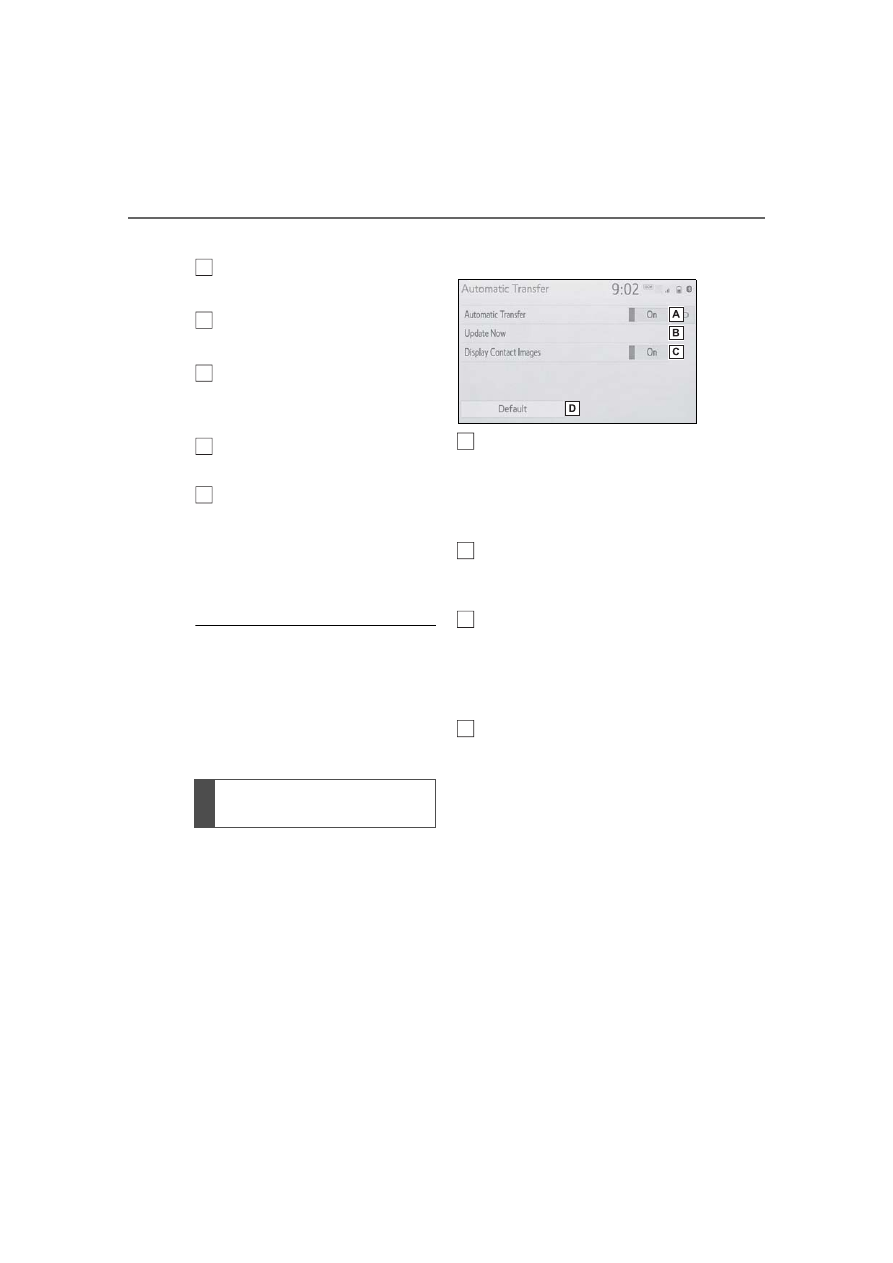

Select “Automatic Transfer”.

Select the desired item to be
set.

Select to set automatic con-
tact/history transfer on/off.
When set to on, the phone’s
contact data and history are
automatically transferred.

Select to update contacts
from the connected phone.
(



P.484)

Select to set the transferred
contact image display on/off.
Only when the vehicle is not
moving, the contact image
can be displayed.

Select to reset all setup
items.

■

Updating contacts from
phone

Select “Update Now”.



Contacts are transferred auto-
matically.

Check that a confirmation
screen is displayed when the
operation is complete.



This operation may be unnec-
essary depending on the type
of Bluetooth

phone.



If another Bluetooth

device

Setting automatic con-
tact/history transfer

-------------------------------------------------------------------------------------------------------------------------------------------------------------

485

5-14. Phone settings

Audio

is connected when transfer-
ring contact data, depending
on the phone, the connected
Bluetooth

device may need

to be disconnected.



Depending on the type of
Bluetooth

phone being con-

nected, it may be necessary
to perform additional steps on
the phone.

■

Updating the contacts in a
different way (from the call
history screen)

Display the phone top
screen. (



P.465)

Select “History” and select a
contact not yet registered in
the contact list.

Select “Update Contact”.

Select the desired contact.

Select a phone type for the
phone number.

: For PBAP compatible Bluetooth

phones, this function is available
when “Automatic Transfer” is set
to off. (



P.484)

When an Android Auto connection

is established, this function will be
unavailable.

: This function is not made avail-

able in some countries or areas.



When the contact is not regis-
tered

Select “Transfer Contacts
from Device”.

Select “From Phone (Blue-
tooth)”.

Transfer the contact data to
the system using a Blue-
tooth

phone.



This operation may be unnec-
essary depending on the type
of Bluetooth

phone.



To cancel this function, select
“Cancel”.

Check that a confirmation
screen is displayed when the
operation is complete.



When the contact is regis-
tered

Select “Transfer Contacts
from Device”.

Select “From Phone (Blue-
tooth)”.

Select “Replace Contacts” or
“Add Contact”.

“Replace Contacts”: Select to trans-

fer the contact from the connected

cellular phone and replace the cur-

rent one.
“Add Contact”: Select to transfer

the desired contact data from the

connected cellular phone to add to

the current one.

Transfer contacts from
device

From phone (OPP compati-
ble Bluetooth

phones only)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

486

5-14. Phone settings

Transfer the contact data to
the system using a Blue-
tooth

phone.



This operation may be unnec-
essary depending on the type
of Bluetooth

phone.



To cancel this function, select
“Cancel”.

Check that a confirmation
screen is displayed when the
operation is complete.

Backed-up contact data
(“vCard” formatted) can be
transferred from USB device or
Bluetooth

phone to this sys-

tem.

Connect a USB device.
(



P.422)

Select “Transfer Contacts
from Device”.

Select “From USB”.

Select “USB 1” or “USB 2”
when the multiple USB
devices are connected. If a
USB device is connected,
skip this procedure.

Select “Replace Contacts” or
“Add Contact”. If the contact
is already registered, skip
this procedure.

“Replace Contacts”: Select to trans-

fer the contact from the connected
USB device or Bluetooth

phone

and replace the current one.
“Add Contact”: Select to transfer

the desired contact data from the

connected USB device or Blue-
tooth

phone to add to the current

one.

Select a desired file from
vCard file list.

Check that a confirmation
screen is displayed when the
operation is complete.

●

Depending on the type of Blue-
tooth

phone used and number of

files, it may take time to display

vCard file lists and download con-

tacts.

●

Downloading may not complete

correctly in the following cases:

• If the engine switch is turned off

during downloading.

• If the USB device or Bluetooth

phone is removed before down-

loading is complete.

New contact data can be regis-
tered.
Up to 4 numbers per person can
be registered. For PBAP com-
patible Bluetooth

phones, this

function is available when “Auto-
matic Transfer” is set to off.
(



P.483)

Select “New Contact”.

Enter the name and select
“OK”.

Enter the phone number and
select “OK”.

Select the phone type for the
phone number.

From USB device

Registering a new contact
to the contacts list

-------------------------------------------------------------------------------------------------------------------------------------------------------------

487

5-14. Phone settings

Audio

To add another number to
this contact, select “Yes”.

■

Registering a new contact
in a different way (from the
call history screen)

Display the phone top
screen. (



P.465)

Select “History” and select a
contact not yet registered in
the contact list.

Select “Add to Contacts”.

Follow the steps in “Register-
ing a new contact to the con-
tacts list” from step

(



P.486)

For PBAP compatible Blue-
tooth

phones, this function is

available when “Automatic
Transfer” is set to off. (



P.483)

Select “Edit Contact”.

Select the desired contact.

Select

next to the name

or desired number.

Enter the name or the phone
number and select “OK”.

For PBAP compatible Blue-
tooth

phones, this function is

available when “Automatic
Transfer” is set to off. (



P.483)

Select “Delete Contacts”.

Select the desired contact
and select “Delete”.

Select “Yes” when the confir-
mation screen appears.

●

Multiple data can be selected and

deleted at the same time.

●

When a Bluetooth

phone is

deleted, the contact data will be

deleted at the same time.

Up to 15 contacts (maximum of
4 numbers per contact) can be
registered in the favorites list.

■

Registering the contacts in
the favorites list

Select “Add Favorite”.

Select the desired contact to
add to the favorites list.



Dimmed contacts are already
stored as a favorite.

Check that a confirmation
screen is displayed when the
operation is complete.



When 15 contacts have
already been registered to the
favorites list

When 15 contacts have
already been registered to
the favorites list, a registered
contact needs to be replaced.
Select “Yes” when the confir-
mation screen appears to
replace a contact.

Select the contact to be
replaced.

Editing the contact data

Deleting the contact data

Favorites list setting

-------------------------------------------------------------------------------------------------------------------------------------------------------------

488

5-14. Phone settings

Check that a confirmation
screen is displayed when the
operation is complete.

■

Registering contacts in the
favorites list in a different
way (from the contact
details screen)

Display the phone top
screen. (



P.465)

Select “Contacts” and select
the desired contact.

Select “Add Favorite”.

Check that a confirmation
screen is displayed when the
operation is complete.

■

Deleting the contacts in the
favorites list

Select “Remove Favorite”.

Select the desired contacts
and select “Remove”.

Select “Yes” when the confir-
mation screen appears.

Check that a confirmation
screen is displayed when the
operation is complete.

■

Deleting contacts in the
favorites list in a different
way (from the contact
details screen)

Display the phone top
screen. (



P.465)

Select “Favorites” or “Con-
tacts” and select the desired
contact to delete.

Select “Remove Favorite”.

Select “Yes” when the confir-
mation screen appears.

Check that a confirmation
screen is displayed when the
operation is complete.

Calls can be made by saying the
voice tag of a registered contact
in the contact list. (



P.458)

Select “Manage Voice Tags”.

Select the desired item to be
set.

Select to register a new voice
tag. (



P.488)

Select to edit a voice tag.
(



P.489)

Select to delete a voice tag.
(



P.489)

■

Registering a voice tag

Up to 50 voice tags can be reg-
istered.

Select “New”.

Select the desired contact to
register a voice tag for.

Select “REC” and record a
voice tag.



When recording a voice tag,

Setting voice tags

-------------------------------------------------------------------------------------------------------------------------------------------------------------

489

5-14. Phone settings

Audio

do so in a quiet area.

“Play”: Select to play the voice tag.

Select “OK” when voice tag
registration is complete.

■

Editing a voice tag

Select “Edit”.

Select the desired contact to
edit.

Follow the steps in “Register-
ing a voice tag” from step

(



P.488)

■

Deleting the voice tag

Select “Delete”.

Select the desired contact
and select “Delete”.

Select “Yes” when the confir-
mation screen appears.

●

Multiple data can be selected and

deleted at the same time.

●

Voice tags are deleted when the

set language of the system is

changed. (



P.414)

Display the phone settings
screen. (



P.481)

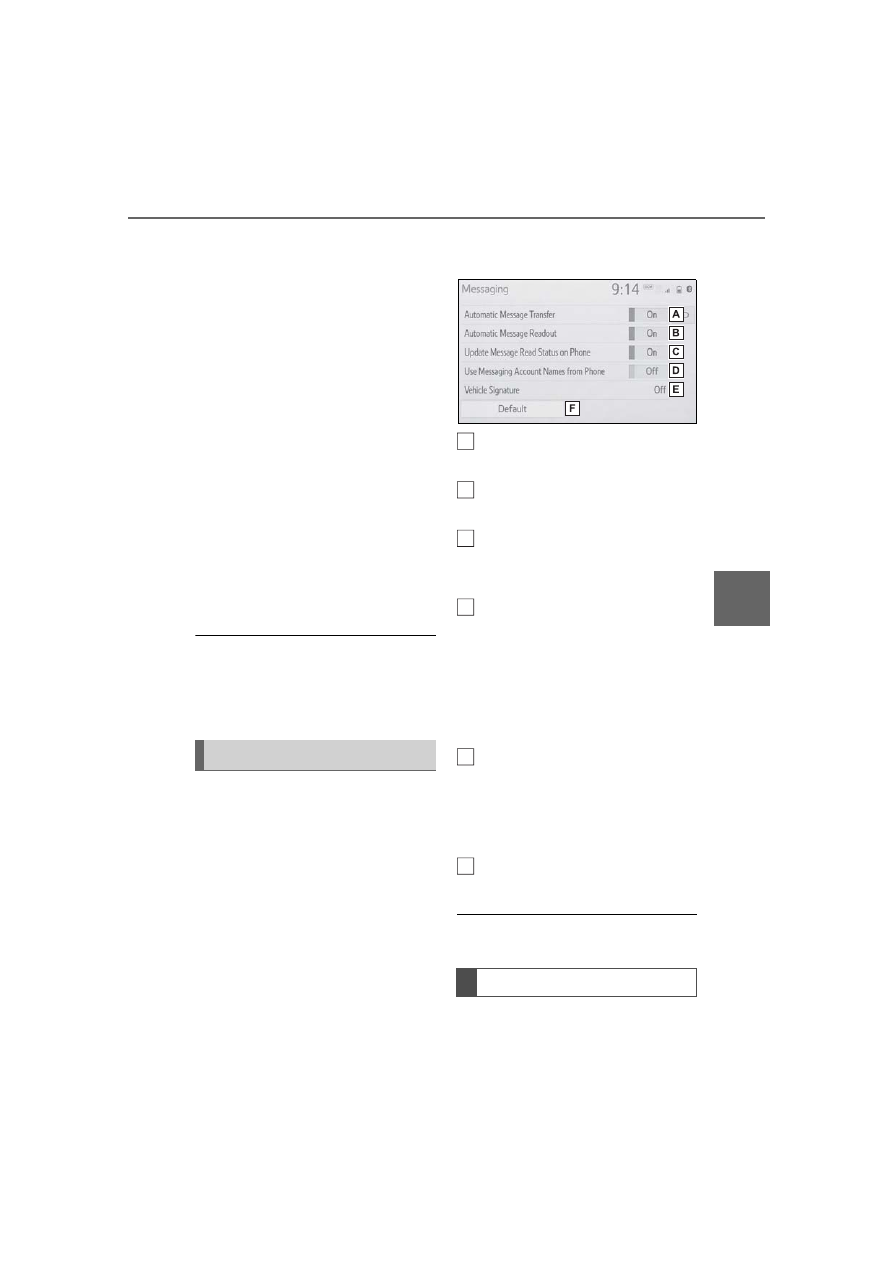

Select “Messaging”.

Select the desired item to be
set.

Select to set automatic mes-
sage transfer on/off.

Select to set automatic mes-
sage readout on/off.

Select to set updating mes-
sage read status on phone
on/off.

Select to set display of mes-
saging account names on the
message screen on/off.
When set to on, messaging
account names used on the
cellular phone will be dis-
played.

Select to set adding the vehi-
cle signature to outgoing
messages on/off.
The vehicle signature can be
edited. (



P.489)

Select to reset all setup
items.

●

Depending on the phone, these

functions may not be available.

Select “Vehicle Signature”.

Message settings screen

Vehicle signature settings

-------------------------------------------------------------------------------------------------------------------------------------------------------------

491

5-15. What to do if... (Bluetooth

)

Audio

5-15.What to do if... (Bluetooth®)

■

When using the hands-free
system with a Bluetooth

device

The hands-free system or Blue-
tooth

device does not work.

■

When registering/connect-
ing a cellular phone

A cellular phone cannot be reg-
istered.

Troubleshooting

If there is a problem with the
hands-free system or a
Bluetooth

device, first

check the table below.

Troubleshooting

Likely cause

Solution

The connected
device may not
be a compatible
Bluetooth

cellu-

lar phone.

For a list of spe-
cific devices
which operation
has been con-
firmed on this
system, check
with your Toyota
dealer or the fol-
lowing website:
http://www.
toyota.com/
audio-multimedia
in the United
States,
http://www.
toyota.ca/
connected
in Canada, and
http://www.
toyotapr.com/
audio-multimedia
in Puerto Rico

The Bluetooth

version of the
connected cellu-
lar phone may
be older than the
specified ver-
sion.

Use a cellular
phone with Blue-
tooth

version

2.0 or higher
(recommended:
Ver. 4.2 or
higher).
(



P.393)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

492

5-15. What to do if... (Bluetooth

)

A Bluetooth

connection can-

not be made.

■

When making/receiving a
call

A call cannot be made/received.

■

When using the phonebook

Phonebook data cannot be
transferred manually/automati-
cally.

Likely cause

Solution

An incorrect
passcode was
entered on the
cellular phone.

Enter the correct
passcode on the
cellular phone.

The registration
operation has
not been com-
pleted on the cel-
lular phone side.

Complete the
registration oper-
ation on the cel-
lular phone
(approve regis-
tration on the
phone).

Old registration
information
remains on
either this sys-
tem or the cellu-
lar phone.

Delete the exist-
ing registration
information from
both this system
and the cellular
phone, then reg-
ister the cellular
phone you wish
to connect to this
system.
(



P.397)

Likely cause

Solution

Another Blue-
tooth

device is

already con-
nected.

Manually con-
nect the cellular
phone you wish
to use to this
system.
(



P.395)

Bluetooth

func-

tion is not
enabled on the
cellular phone.

Enable the Blue-
tooth

function

on the cellular
phone.

Automatic Blue-
tooth

connec-

tion on this
system is set to
off.

Set automatic
Bluetooth

con-

nection on this
system to on
when the engine
switch is in ACC
or ON. (



P.400)

Preferred device
settings function
on this system is
set to on.

Set preferred
device settings
function on this
system to off.
(



P.400)

Set the desired
cellular phone to
the highest auto-
matic connec-
tion priority.
(



P.400)

Likely cause

Solution

Your vehicle is in
a

area.

Move to where

no longer

appears on the
display.

Likely cause

Solution

-------------------------------------------------------------------------------------------------------------------------------------------------------------

493

5-15. What to do if... (Bluetooth

)

Audio

Phonebook data cannot be

edited.

■

When using the Bluetooth

message function

Messages cannot be viewed.

New message notifications are
not displayed.

Likely cause

Solution

The profile ver-
sion of the con-
nected cellular
phone may not
be compatible
with transferring
phonebook data.

Automatic con-
tact transfer
function on this
system is set to
off.

Set automatic
contact transfer
function on this
system to on.
(



P.484)

Passcode has
not been entered
on the cellular
phone.

Enter the pass-
code on the cel-
lular phone if
requested
(default pass-
code: 1234).

Transfer opera-
tion on the cellu-
lar phone has
not completed.

Complete trans-
fer operation on
the cellular
phone (approve
transfer opera-
tion on the
phone).

Likely cause

Solution

Automatic con-
tact transfer
function on this
system is set to
on.

Set automatic
contact transfer
function on this
system to off.
(



P.484)

Likely cause

Solution

Message trans-
fer is not enabled
on the cellular
phone.

Enable mes-
sage transfer on
the cellular
phone (approve
message trans-
fer on the
phone).

Automatic trans-
fer function on
this system is set
to off.

Set automatic
transfer function
on this system to
on. (



P.484)

Likely cause

Solution

Notification of
SMS/MMS/E-
mail reception on
this system is set
to off.

Set notification
of SMS/MMS/E-
mail reception on
this system to
on. (



P.482)

Automatic mes-
sage transfer
function is not
enabled on the
cellular phone.

Enable auto-
matic transfer
function on the
cellular phone.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

494

5-15. What to do if... (Bluetooth

)

■

In other situations

The Bluetooth

connection sta-

tus is displayed at the top of the
screen each time the engine
switch is in ACC or ON.

Even though all conceivable
measures have been taken, the
symptom status does not
change.

●

For details, refer to the owner’s

manual that came with the cellular

phone.

Likely cause

Solution

Connection con-
firmation display
on this system is
set to on.

To turn off the
display, set con-
nection confir-
mation display
on this system to
off. (



P.400)

Likely cause

Solution

The cellular
phone is not
close enough to
this system.

Bring the cellu-
lar phone closer
to this system.

Radio interfer-
ence has
occurred.

Turn off Wi-Fi

devices or other
devices that may
emit radio
waves.

The cellular
phone is the
most likely cause
of the symptom.

Turn the cellular
phone off,
remove and rein-
stall the battery
pack, and then
restart the cellu-
lar phone.

Enable the cellu-
lar phone’s Blue-
tooth

connection.

Disable the
W-Fi

connec-

tion of the cellu-
lar phone.

Stop the cellular
phone’s security
software and
close all applica-
tions.

Before using an
application
installed on the
cellular phone,
carefully check
its source and
how its opera-
tion might affect
this system.

Likely cause

Solution

-------------------------------------------------------------------------------------------------------------------------------------------------------------

495

5-16. Connected Services overview

Audio

5-16.Connected Services overview

: This function is not made avail-

able in some countries or areas.



The functions included are
classified into the following
four types.

• Type A: Function achieved by

using a smartphone or an embed-
ded cellular device in the vehicle
(DCM: Data Communication
Module) and the system

• Type B: Function achieved by

using DCM and the system

• Type C: Function achieved by

using DCM

• Type D: Function achieved by

using DCM and a smartphone

●

Connected Services functionality

is dependent upon network recep-

tion level and signal strength.

●

Each function is available in the

following areas:

• Toyota Apps is available in the

contiguous United States, Wash-

ington D.C. and Alaska.

• Wi-Fi

Hotspot is available in the

contiguous United States, Wash-

ington D.C. and Alaska.

• Safety Connect is available in the

contiguous United States, Wash-

ington D.C. and Alaska.

• Remote Connect is available in

the contiguous United States,

Washington D.C. and Alaska.

• Service Connect is available in the

contiguous United States, Wash-

ington D.C. and Alaska.

Connected Services

Connected Services
includes Toyota Apps, Ser-
vice Connect, Wi-Fi

Hotspot, Safety Connect
and Remote Connect.

Functional overview

Function

Type

Toyota Apps

Type A

Wi-Fi

Hotspot

Type B

Safety Connect

Type C

Remote Connect, Ser-
vice Connect

Type D

-------------------------------------------------------------------------------------------------------------------------------------------------------------

496

5-16. Connected Services overview

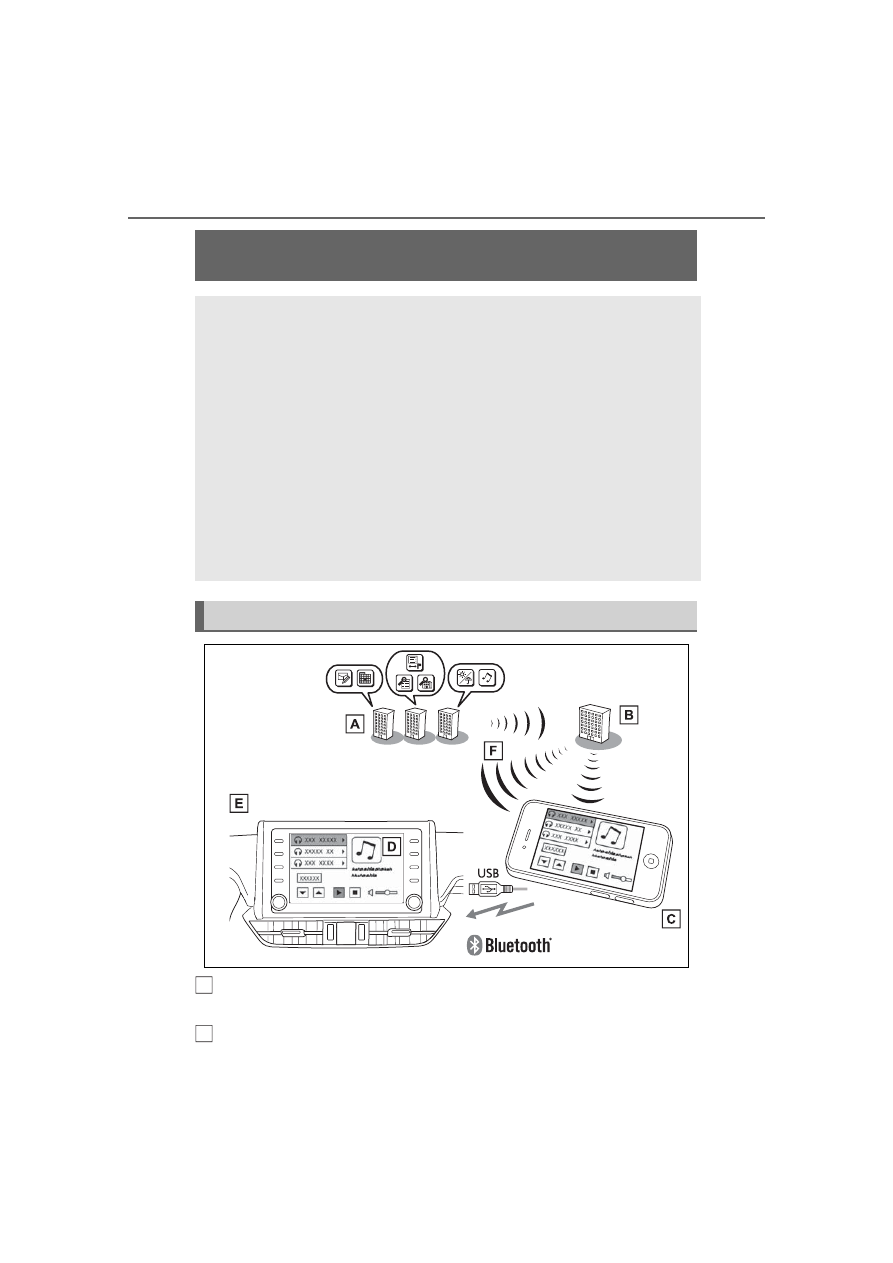

Content provider
Provides contents to the application server.

Application server

Type A: Function achieved by using a smartphone

or DCM

Of the functions included with Connected Services, the Toyota
Apps rely on the use of a smartphone or DCM.



Using a smartphone

• Toyota audio multimedia system enables applicable apps

installed on a smartphone to be displayed on and operated from
the screen via a Bluetooth



Via DCM

• Toyota audio multimedia system enables applicable apps

installed on the system to be displayed on and operated from the
screen.

A few settings must be performed before Toyota Apps can be
used. (



P.498)

By using a smartphone or DCM

-------------------------------------------------------------------------------------------------------------------------------------------------------------

497

5-16. Connected Services overview

Audio

Provides applications to the system or a smartphone.

Smartphone

Using the Toyota mobile application, communication is relayed
between the system, application server and content provider.

Applications
Display usable content from the content providers on the screen
using the data connection of the connected smartphone or DCM.

System
Content received, via a smartphone or DCM, from content pro-
vider servers is displayed on the screen. The system is equipped
with an application player to run applications.

Via DCM

: For known compatible phones, refer to http://www.toyota.com/

connected-services in the United States.

The required operations to acti-
vate applications and connect a
smartphone to the system, and
the registration steps for the
Connected Services are
explained in this section.

■

Subscription



Services requiring a separate
contract can also be used.

: For details, refer to

http://www.toyota.com/
connected-services
or call 1-800-331-4331 in the
United States.

■

Availability of function



Toyota Apps is available in the
contiguous United States,
Washington D.C. and Alaska.

●

Data usage fees may apply while

using Toyota Apps. Confirm data

usage fees before using this func-

tion.

●

For details regarding operation of

the Toyota Apps, refer to

http://www.toyota.com/

connected-services

in the United States.

●

These functions are not made

available in some countries or

areas. Availability of functions of

the Toyota Apps is dependent on

network reception level.

■

Initializing personal data

The personal data used in appli-
cations can be reset. (



P.417)



The following personal data
can be deleted and returned
to their default settings:

• Downloaded contents
• Radio stations that were listened

●

Once initialized, the data and set-

tings will be erased. Pay much

attention when initializing the data.

Before using the function

-------------------------------------------------------------------------------------------------------------------------------------------------------------

498

5-16. Connected Services overview

■

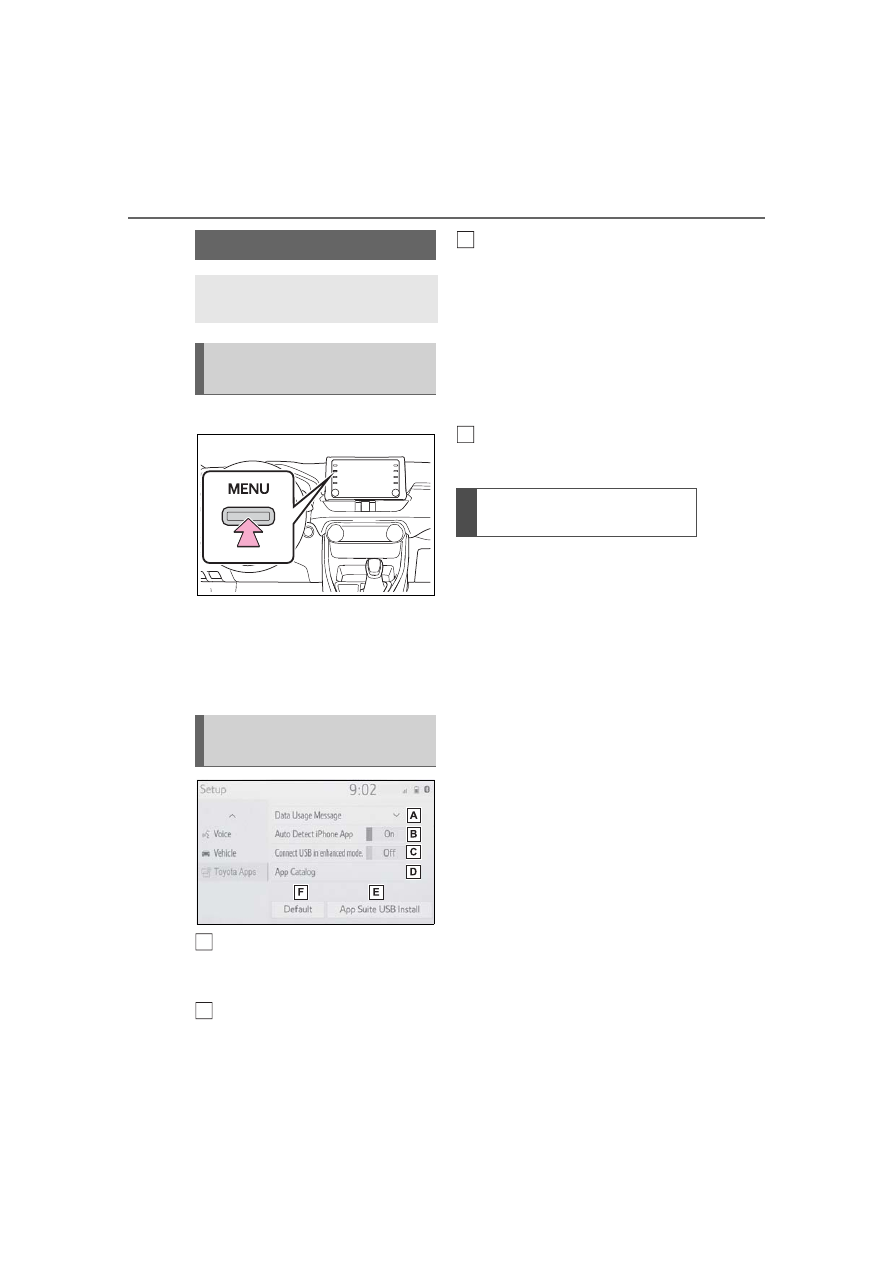

Settings required to use
Toyota mobile application

Perform the settings in the fol-
lowing order.

Download the Toyota mobile
application to your smart-
phone.

Open the Toyota mobile
application on your smart
phone and follow instruc-
tions. Bluetooth

Pairing is

required.

In order to use Toyota mobile appli-

cation, the following must first be

performed:



phone

with the hands-free system.
(



P.390)

●

Applications can only be used

when the Toyota mobile applica-

tion has been downloaded to your

smartphone, and the application is

running.

●

Toyota mobile application opera-

tional procedures can also be con-

firmed by visiting

http://www.toyota.com/

connected-services

in the United States.

●

If a Toyota mobile application is

used while iPod audio/video is

being played back, system opera-

tion may become unstable.

: Vehicles equipped with DCM

■

Subscription



After you have signed the
Telematics Subscription Ser-
vice Agreement and are
enrolled, you can begin
receiving services. A variety
of subscription terms are
available. Contact your Toyota

Preparation before using
Toyota mobile application

Type B: Function

achieved by using

DCM and the system

The functionality of Wi-Fi

Hotspot is made possible
through the shared work of
the DCM and the system.
These are subscription-
based telematics services
that use Global Positioning
System (GPS) data and
embedded cellular technol-
ogy to provide safety and
security as well as conve-
nience features.
These services are available
by subscription on select,
telematics hardware-
equipped vehicles and sup-
ported by the Toyota
response center, which
operates 24 hours a day, 7
days a week.

For details about Wi-Fi

Hotspot:



P.402

Before using the function

-------------------------------------------------------------------------------------------------------------------------------------------------------------

499

5-16. Connected Services overview

Audio

dealer, or call 1-800-331-4331
in the United States, for fur-
ther subscription details.
(



P.497)

■

Availability of functions



Wi-Fi

Hotspot is available in

the contiguous United States,
Washington D.C. and Alaska.

: Vehicles equipped with DCM

●

Free/Open Source Software Infor-

mation

This product contains Free/Open

Source Software (FOSS).

The license information and/or the

source code of such FOSS can be

found at the following URL.

http://opensource.lge.com

●

Exposure to radio frequency sig-

nals:

The Toyota audio multimedia sys-

tem installed in your vehicle

includes a low power radio trans-

mitter and receiver. The system

receives and also sends out radio

frequency (RF) signals.

●

In August 1996, the Federal Com-

munications Commission (FCC)

adopted RF exposure guidelines

with safety levels for mobile wire-

less phones. Those guidelines are

consistent with the safety stan-

dards previously set by both U.S.

and international standards bod-

ies.

• ANSI (American National Stan-

dards Institute) C95.1 [1992]

• NCRP (National Council on Radi-

ation Protection and Measure-

ment) Report 86 [1986]

• ICNIRP (International Commis-

sion on Non-Ionizing Radiation

Protection) [1996]

●

These standards are based on

comprehensive and periodic eval-

uations of the relevant scientific lit-

erature. Over 120 scientists,

engineers, and physicians from

Type C: Function

achieved by using

DCM

The functionality of Safety
Connect is made possible
by the use of a DCM.
For details, (



P.65)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

500

5-16. Connected Services overview

universities, government health

agencies, and industry reviewed

the available body of research to

develop the ANSI Standard

(C95.1).

●

The design of Toyota audio multi-

media system complies with the

FCC guidelines in addition to

those standards.

●

Contact with the Toyota response

center is dependent upon the

telematics device being in opera-

tive condition, cellular connection

availability and GPS satellite sig-

nal reception, which can limit the

ability to reach the Toyota

response center or receive sup-

port. Enrollment and Telematics

Subscription Service Agreement

required. A variety of subscription

terms are available; charges vary

by subscription term selected.

●

The Toyota response center offers

support in multiple languages.

●

Select Safety Connect-sub-

scribed vehicles are capable of

communicating vehicle informa-

tion. Please see the terms and

conditions for additional details.

Owners who do not wish to have

their vehicle transmit this informa-

tion can opt out at the time of

enrollment or by calling 1-800-

331-4331 in the United States,

and following the prompts for

Safety Connect.

●

For further details about the ser-

vice, contact your Toyota dealer.

●

Toyota audio multimedia are not

subject to section 255 of the Tele-

communications Act and the sys-

tem is not TTY compatible.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

502

5-16. Connected Services overview

: Vehicles equipped with remote

connect only

Remote Connect is a service
that lets you view and remotely
control certain aspects of your
vehicle.

■

Subscription



After you sign the Telematics
Subscription Service Agree-
ment (see the Safety Connect
section



P.65), download the

Toyota App from your smart-
phone app store, and register
within the app (or enroll and
complete registration at the
dealer), you can begin using
these services.



A variety of subscription terms
are available. Contact your
Toyota dealer, or call 1-800-
331-4331 for further subscrip-

tion details.

■

Availability of function



Remote Connect is available
in the contiguous United
States, Washington D.C. and
Alaska.

●

Availability of functions of the

Remote Connect is dependent on

network reception level.

●

Remote Connect should only be

used by authorized users.

●

Laws in some communities may

require that the vehicle be within

view of the user when operating

Remote Connect.

In some states, use of Remote

Connect may violate state or local

laws. Before using Remote Con-

nect, check your state and local

laws.

●

Any malfunction of the vehicle

should be repaired by your Toyota

dealer.

●

Remote Connect is designed to

work at temperatures above

approximately -22 °F (-30 °C).

This specification is related to the

Remote Connect operation, but is

dependent on the vehicle’s oper-

ating temperature range which

may be different.

●

Content is subject to change with-

out notice.

●

Additional information can be

found at http://www.toyota.com/

connected-services in the United

States.

Type D: Function

achieved by using

DCM and a smart-

phone

The functionality of Remote
Connect and Service Con-
nect are made possible by
the use of a DCM and a
smartphone.
For details about these ser-
vices, refer to
http://www.toyota.com/
connected-services.

Remote Connect

WARNING

●

Operating Remote Connect

incorrectly may lead to unfore-

seen accidents or malfunctions.

Check the vehicle condition and

assume full responsibility before

using.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

504

5-17. Connected Services operation

5-17.Connected Services operation



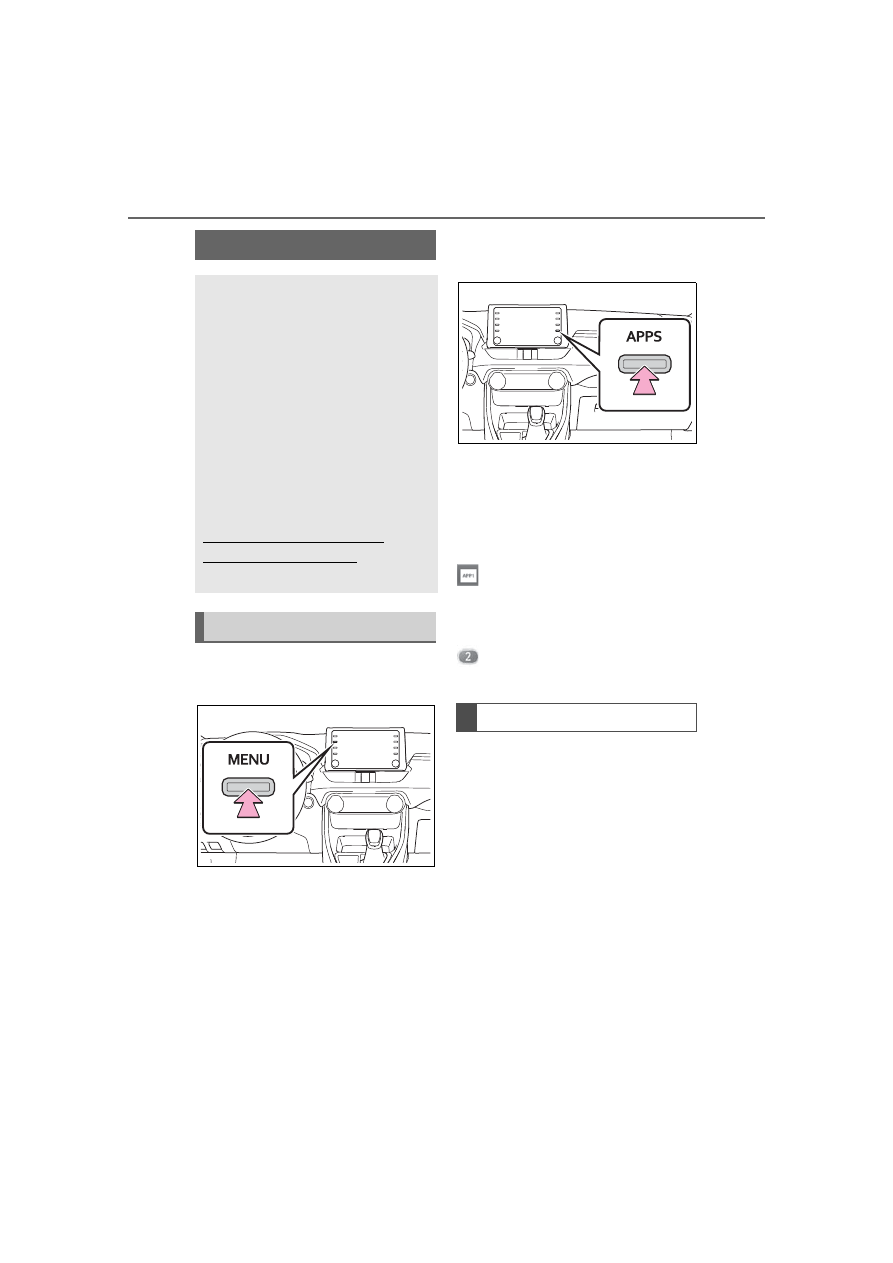

From the “MENU” button

Press the “MENU” button.

Select “Apps”.

Follow the steps in “From the
“APPS” button” from step

(



P.504)



From the “APPS” button

Press the “APPS” button.



If a specific application screen
is displayed, press the
“APPS” button again.

Select the desired application
screen button.

: Select to activate an applica-

tion.
“Update”: Select to update the

applications. (



P.504)

: Displays the number of new

notifications for the application

When the Toyota Apps is acti-
vated, an application may need
to be updated. To update an
application, it is necessary to
download update data and
install it.

■

Downloading update

If an update is available,
“Update” can be selected.

Select “Update” on the appli-
cation screen. (



P.504)

Check that downloading
starts.

Toyota Apps

Toyota Apps is a function
that enables certain apps
installed on a smartphone
or the system to be dis-
played on and operated
from the system screen.
Before the Toyota Apps can
be used, some setup needs
to be performed. (



P.498)

For details about the func-
tions and services provided
by each application, refer to
http://www.toyota.com/
connected-services
in the United States.

Using Toyota Apps

Updating an application

-------------------------------------------------------------------------------------------------------------------------------------------------------------

505

5-17. Connected Services operation

Audio

“Download in Background”: Select

to operate other functions while

downloading.
“Cancel”: Select to cancel updating.

Check that downloading is
complete.

“Later”: Select to install later. When

this screen button is selected, the

screen will return to the last dis-

played screen. To install the update

data: (



P.505)

“See Detail”: Select to display

detailed information on the update

data.
“Install”: Select to install the update

data. Follow the steps “Installing

the update data” from step

(



P.505)

■

Installing the update data

After the downloading is com-
plete, “Update” will be changed
to “Install”.

Select “Install” on the appli-
cation screen. (



P.504)

Select “Continue”.

“Later”: Select to postpone the

installation of the update data and

go back to the previous screen.

Check that installing is
started.

“Install in Background”: Select to

operate other functions while

installing.

Select “OK” after the install-
ing is complete.

●

The Toyota Apps cannot be oper-

ated while installing.

When problems occur with start-

ing the application player, a
message will appear on the
screen. Referring to the table
below, identify the problem and
take the suggested corrective
action.



“When it is safe and legal to
do so, please ensure your
Toyota mobile application is
running and logged in on your
phone.”

The Toyota mobile application can-
not be connected to Bluetooth

SPP.
Refer to
http://www.toyota.com/
connected-services
in the United States, to confirm if
the phone is Bluetooth

SPP com-

patible or not, and then activate the
Toyota mobile application.



“Installation failed, please try
again”

Installation can be attempted again
by changing to the application
screen and pressing the “Install”
switch.



“Application download error.
Please try again later.”

Downloading can be attempted
again by checking the communica-
tion status, changing to the applica-
tion screen and pressing the
“Download” switch again.



“Download error, some Toyota
mobile application functions
may not work as expected.
Please reinitiate the download
process.”

If a message appears on
the screen

-------------------------------------------------------------------------------------------------------------------------------------------------------------

506

5-17. Connected Services operation

The Toyota mobile application can-
not be connected to Bluetooth

SPP.
Refer to
http://www.toyota.com/
connected-services
in the United States, to confirm if
the phone is Bluetooth

SPP com-

patible or not, and then activate the
Toyota mobile application.
Please ensure your Toyota mobile
application is running and logged in
on your phone while vehicle is not
moving.



“To use the services, Toyota
mobile application needs to
be running on your phone.
For more information, please
visit toyota.com or call 1-800-
331-4331 in the United
States.”

The Toyota mobile application can-
not be connected to Bluetooth

SPP.
Refer to
http://www.toyota.com/
connected-services
in the United States, to confirm if
the phone is Bluetooth

SPP com-

patible or not, and then activate the
Toyota mobile application.



“Communication unsuccess-
ful. Please try again.”

Communication was disconnected.
After a few moments, retry the
operation.

A keyword can be entered to an
application by the software key-
board or voice recognition func-
tion. For details about the
functions and services provided
by each application, refer to
http://www.toyota.com/
connected-services
in the United States.



The keyboard layout can be
changed. (



P.414)

Display the application
screen. (



P.504)

Select the desired application
screen button.

Select the character entering
space.

Enter a search term, and
then select “OK”.

Entering characters will be
reflected on the character
entering space.



For details on operating the
keyboard:



P.385

Display the application
screen. (



P.504)

Entering keyword opera-
tion

Entering a keyword using
the software keyboard

Entering a keyword using
the voice recognition func-
tion

-------------------------------------------------------------------------------------------------------------------------------------------------------------

508

5-18. Setup

5-18.Setup

Press the “MENU” button.

Select “Setup”.

Select “Toyota Apps”.

Select the desired items to
be set.

Select to set the pop up
reminder for smartphone
data usage. (



P.508)

Select to detect iPhone app
automatically on/off.

Select to turn on/off the
enhanced USB connection
mode.

• When an iPhone is connected

while this setting is “On”, commu-
nication with any devices con-
nected to the other USB port is
not possible. Also, depending on
the device, charging may not be
possible.

Select to reset all setup items
to default setting

The data usage notification pop-
up, which indicates that the sys-
tem will use an internet connec-
tion, can be enabled/disabled.

Display the Toyota Apps set-
tings screen. (



P.508)

Select “Data Usage Mes-
sage”.

Change the setting as
desired.

Toyota Apps settings

Toyota Apps settings can be
changed.

Displaying the Toyota
Apps settings screen

Toyota Apps settings
screen

Data usage notification
pop-up settings

-------------------------------------------------------------------------------------------------------------------------------------------------------------

509

Interior

featur

Interior features

6-1. Using the air conditioning

system and defogger

Manual air conditioning sys-

tem ............................

510

Automatic air conditioning

system.......................

515

Heated steering wheel/seat

heaters/seat ventilators

..................................

522

6-2. Using the interior lights

Interior lights list ..........

525

6-3. Using the storage features

List of storage features

528

Luggage compartment fea-

tures ..........................

532

6-4. Using the other interior

features

Other interior features .

537

Garage door opener....

548

-------------------------------------------------------------------------------------------------------------------------------------------------------------

510

6-1. Using the air conditioning system and defogger

6-1.Using the air conditioning system and defogger

: If equipped

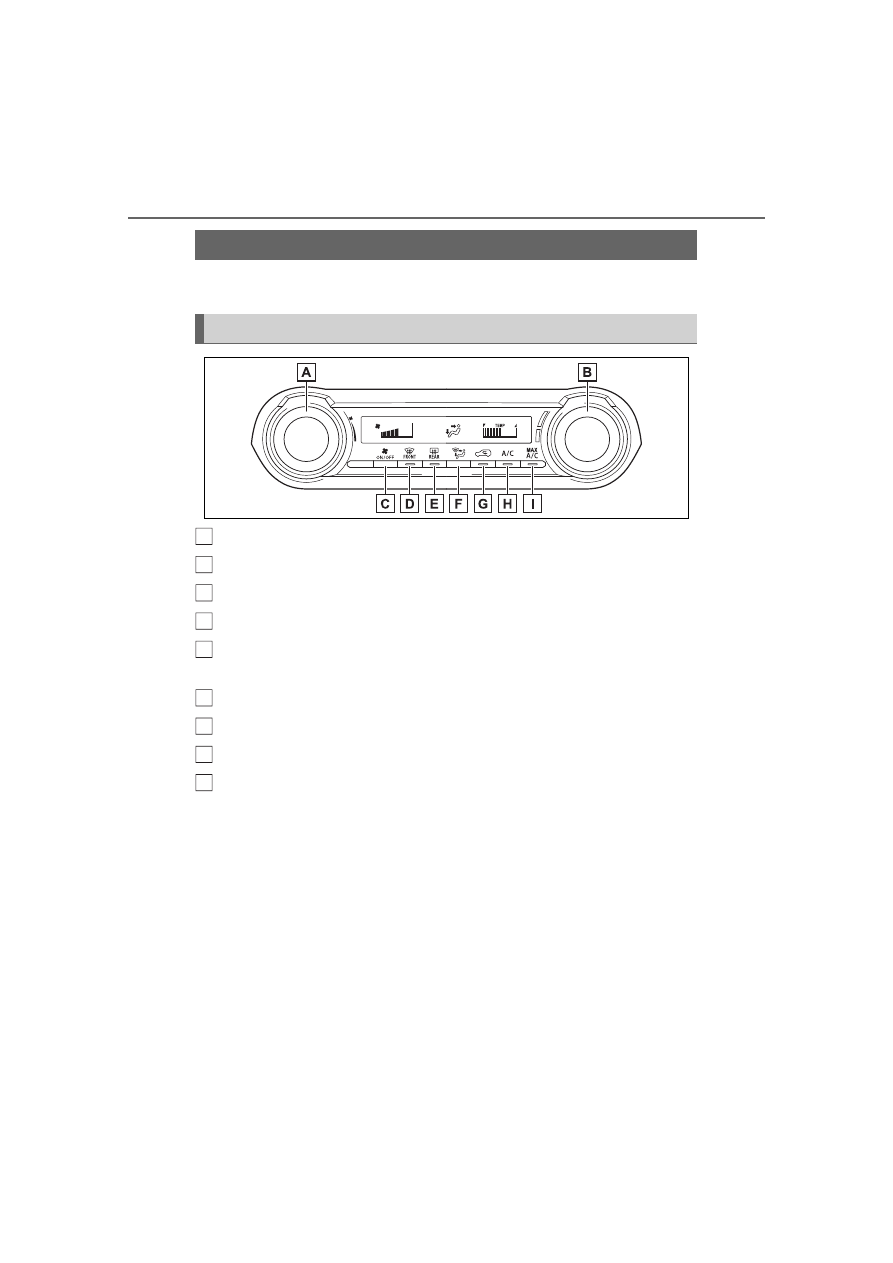

Fan speed control switch

Temperature control switch

On/off switch

Windshield defogger switch

Rear window defogger and outside rear view mirror defoggers

switch

Airflow mode control switch

Outside/recirculated air mode switch

“A/C” switch

“MAX A/C” switch

: If equipped

■

Adjusting the temperature
setting

To adjust the temperature set-
ting, turn the temperature con-
trol switch clockwise (warm) or
counterclockwise (cool).

If “A/C” switch is not pressed, the
system will blow ambient tempera-
ture air or heated air.

■

Fan speed setting

To adjust the fan speed, turn the
fan speed control switch clock-
wise (increase) or counterclock-
wise (decrease).

Pressing the on/off switch turns off
the fan.
When the fan is off, pressing the
on/off switch or turning the fan
speed control switch will turn on the

Manual air conditioning system

Air conditioning controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

511

6-1. Using the air conditioning system and defogger

Interior

featur

fan.

■

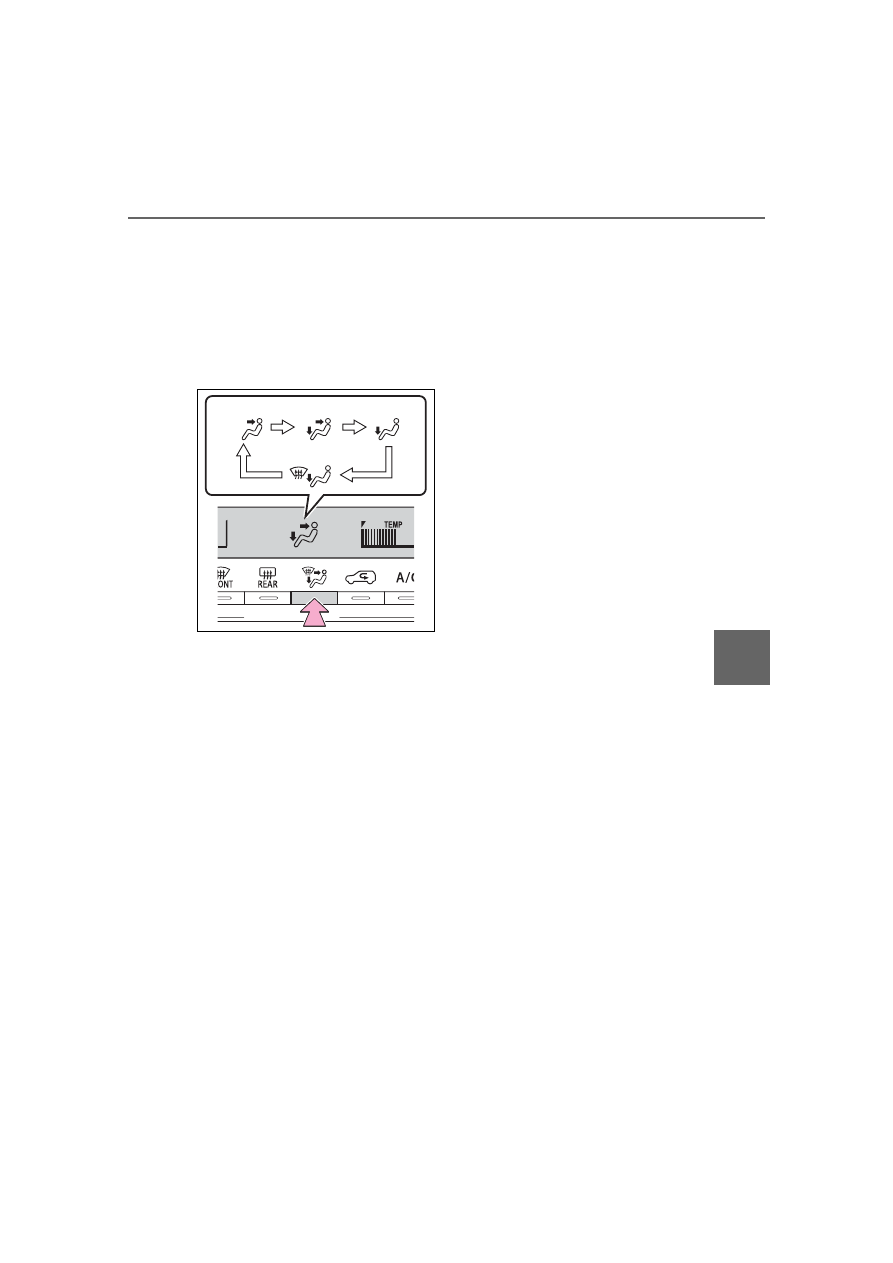

Change the airflow mode

Press the airflow mode control
switch.

The airflow mode changes as fol-
lows each time the switch is
pressed.

Upper body

Upper body and feet

Feet

Feet and the windshield
defogger operates

■

Switching between outside
air and recirculated air
modes

Press the outside/recirculated
air mode switch.
The mode switches between
outside air mode and recircu-
lated air mode each time the
switch is operated.

When recirculated air mode is
selected, the indicator illuminates
on the outside/ recirculated air
mode switch.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used.
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors (if equipped)

Defoggers are used to defog the
rear window, and to remove
raindrops, dew and frost from
the outside rear view mirrors (if
equipped).
Press the rear window defogger
and outside rear view mirror
defoggers switch.

When the rear window defogger
and outside rear view mirror defog-

-------------------------------------------------------------------------------------------------------------------------------------------------------------

512

6-1. Using the air conditioning system and defogger

gers switch is on, the indicator illu-
minates on the rear window
defogger and outside rear view mir-
ror defoggers switch.
The defoggers will automatically
turn off after a while.

■

For quick cooling

Press the “MAX A/C” switch.

The air conditioning will automati-

cally turn on.
At this time, the following will occur:

●

The recirculated air mode will be

set

●

The windshield defogger will turn

off

●

The air flow mode will change to

the upper body mode

■

Operation of the air condition-

ing system in Eco drive mode

In Eco drive mode, the air condition-

ing system is controlled to prioritize

fuel efficiency by regulating the

engine speed and compressor oper-

ation to restrict the heating/cooling

capacity.
To improve air conditioning perfor-

mance, perform the following opera-

tions:

●

Adjust the fan speed

●

Adjust the temperature setting

●

Turn off Eco drive mode (



P.351)

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning the “A/C” switch on

will dehumidify the air from the

outlets and defog the windshield

effectively.

●

If you turn the “A/C” switch off, the

windows may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode and

the fan speed to any setting except

off.

■

Outside/recirculated air mode

Setting to the recirculated air mode

temporarily is recommended in pre-

venting dirty air from entering the

vehicle interior and helping to cool

the vehicle when the outside air

temperature is high.

■

When the outside temperature

falls to nearly 32°F (0°C)

The dehumidification function may

not operate even when the “A/C”

switch is pressed.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

To reduce potential odors from

occurring:

It is recommended that the air

conditioning system be set to out-

side air mode prior to turning the

vehicle off.

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

■

Air conditioning system opera-

tions when the engine is

stopped due to the Stop & Start

system (vehicles with Stop &

Start system)

When the engine is stopped due to

the Stop & Start system operations,

the air conditioning cooling, heating

-------------------------------------------------------------------------------------------------------------------------------------------------------------

513

6-1. Using the air conditioning system and defogger

Interior

featur

and dehumidification functions turn

off and only ambient temperature air

is blown, and there is a possibility

that the blowing of ambient tem-

perature air will stop. To prevent the

air conditioning system from turning

off, press the Stop & Start cancel

switch to deactivate the system.

■

When the windshield is fogged

up and the engine is stopped

due to the Stop & Start system

(vehicles with Stop & Start sys-

tem)

Press the windshield defogger

switch to restart the engine and

defog the windshield.
If the windshield continuously fogs

up, press the Stop & Start cancel

switch and refrain from using the

Stop & Start system.

■

When an odor comes from the

air conditioning system while

the engine is stopped due to the

Stop & Start system (vehicles

with Stop & Start system)

Press the Stop & Start cancel switch

to restart the engine.

■

Air conditioning filter



P.599

■

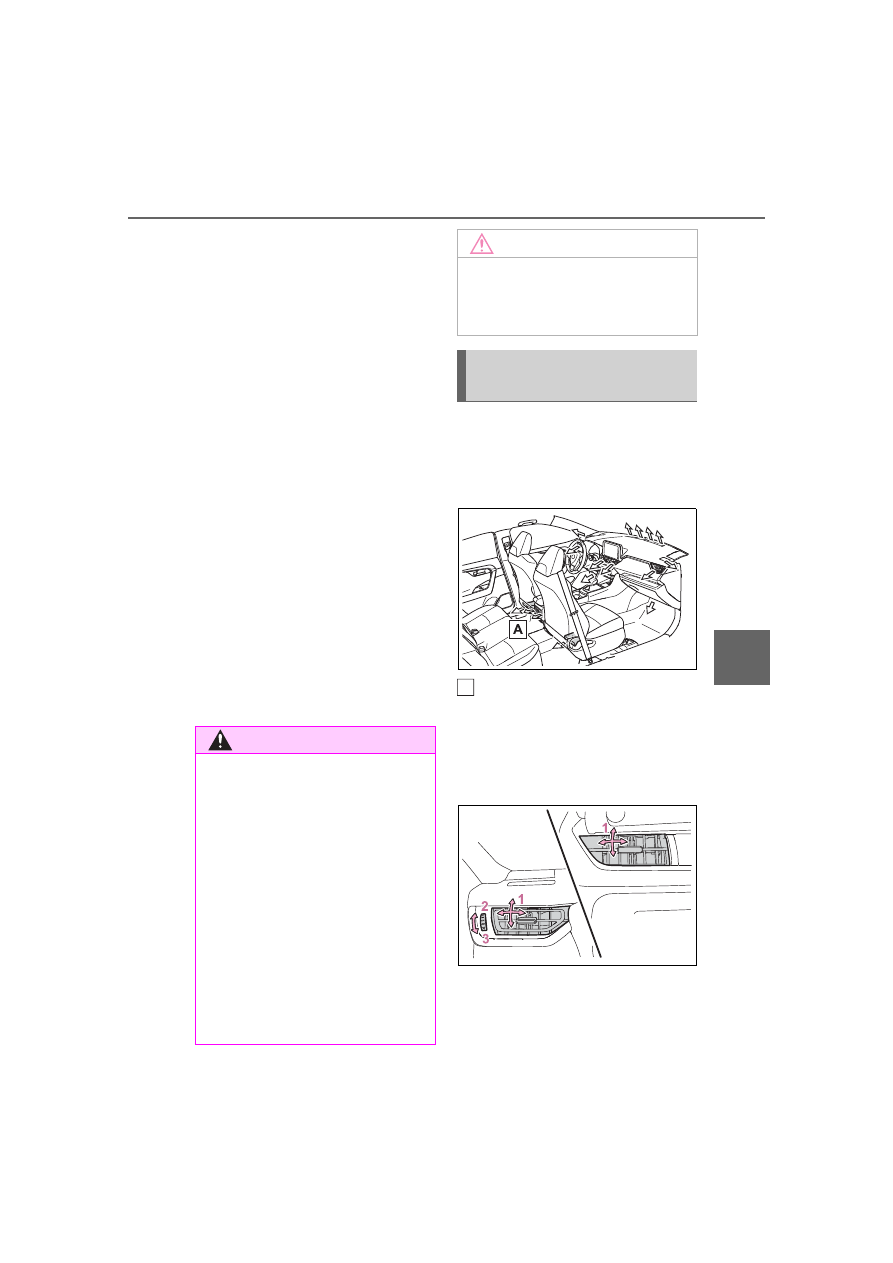

Location of air outlets

The air outlets and air volume
change according to the
selected airflow mode.

If equipped

■

Adjusting the air flow direc-
tion and opening/closing
the air outlets



Front

Direct air flow to the left or
right, up or down.

Open the vent

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

■

When the outside rear view

mirror defoggers are operat-

ing (if equipped)

Do not touch the rear view mirror

surfaces when the outside rear

view mirror defoggers are on.

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning

system on longer than necessary

when the engine is off.

Air outlet layout and oper-
ations

-------------------------------------------------------------------------------------------------------------------------------------------------------------

515

6-1. Using the air conditioning system and defogger

Interior

featur

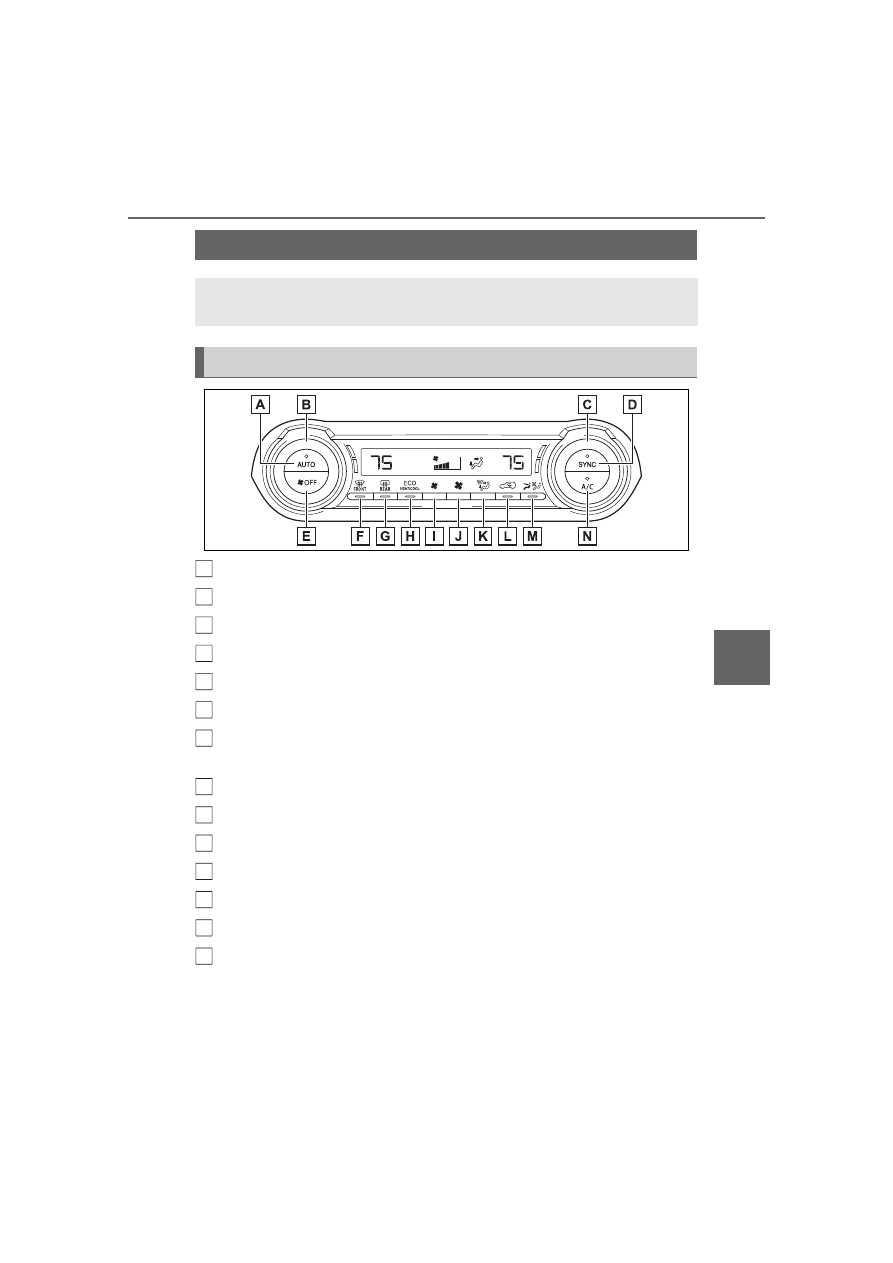

Automatic mode switch

Left-hand side temperature control knob

Right-hand side temperature control knob

“SYNC” switch

“OFF” switch

Windshield defogger switch

Rear window defogger and outside rear view mirror defoggers
switch

Eco air conditioning mode switch

Fan speed decrease switch

Fan speed increase switch

Airflow mode control switch

Outside/recirculated air mode switch

S-FLOW mode switch

“A/C” switch

■

Adjusting the temperature
setting

Turn driver’s side temperature

control dial clockwise to
increases the temperature and
turn the dial counterclockwise to

Automatic air conditioning system

Air outlets and fan speed are automatically adjusted accord-
ing to the temperature setting.

Air conditioning controls

-------------------------------------------------------------------------------------------------------------------------------------------------------------

516

6-1. Using the air conditioning system and defogger

decreases the temperature.

The air conditioning system
switches between individual and
simultaneous modes each time the
“SYNC” switch is pressed.
Simultaneous mode (the indicator
on the “SYNC” switch is on):
The driver’s side temperature con-
trol dial can be used to adjust the
temperature for the driver’s and
passenger’s side. At this time,
operate the passenger’s side tem-
perature control dial to enter indi-
vidual mode.
Individual mode (the indicator on
the “SYNC” switch is off):
The temperature for the driver’s
and passenger’s side can be
adjusted separately.

■

Setting the fan speed

Press the fan speed increase
switch to increase the fan speed
and the fan speed decrease
switch to decrease the fan
speed.

Pressing the “OFF” switch to turns
off the fan.

■

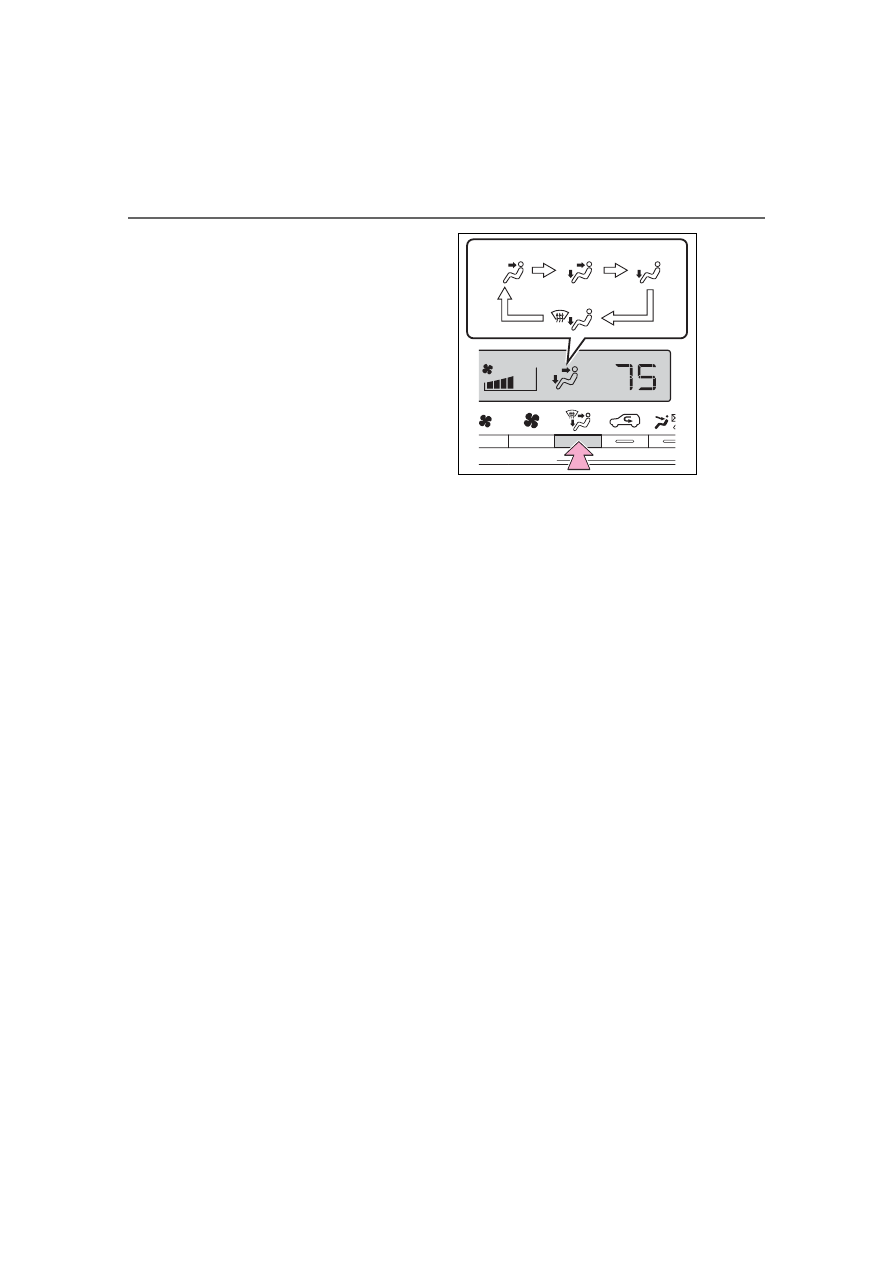

Change the airflow mode

Press the airflow mode control
switch.

The airflow mode changes as fol-
lows each time the switch is
pressed.

Upper body

Upper body and feet

Feet

Feet and the windshield
defogger operates

■

Switching between outside
air and recirculated air
modes

Press the outside/recirculated
air mode switch.

The mode switches between out-
side air mode and recirculated air
mode each time the switch is oper-
ated.
When recirculated air mode is
selected, the indicator illuminates
on the outside/ recirculated air
mode switch.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Eco air conditioning mode

The air conditioning is controlled
with low fuel consumption priori-

-------------------------------------------------------------------------------------------------------------------------------------------------------------

517

6-1. Using the air conditioning system and defogger

Interior

featur

tized such as reducing fan
speed, etc.
Press the eco air conditioning
mode switch.

When the eco air conditioning
mode is on, the indicator illumi-
nates on the eco air conditioning
mode switch.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors (if equipped)

Defoggers are used to defog the
rear window and to remove rain-
drops, dew and frost from the
outside rear view mirrors (if
equipped).
Press the rear window defogger
and outside rear view mirror

defoggers switch.

The defoggers will automatically
turn off after 15 minutes.
When the rear window defogger
and outside rear view mirror defog-
gers switch is on, the indicator illu-
minates on the rear window
defogger and outside rear view mir-
ror defoggers switch.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning “A/C” switch on will

dehumidify the air from the outlets

and defog the windshield effec-

tively.

●

If you turn “A/C” switch off, the

windows may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode and

the fan speed to any setting except

off.

■

Outside/recirculated air mode

●

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

●

Outside/recirculated air mode may

automatically switch depending on

the temperature setting or the

inside temperature.

■

Operation of the air condition-

ing system in Eco drive mode

●

In Eco drive mode, the air condi-

tioning system is controlled as fol-

lows to prioritize fuel efficiency:

• Engine speed and compressor

-------------------------------------------------------------------------------------------------------------------------------------------------------------

518

6-1. Using the air conditioning system and defogger

operation controlled to restrict

heating/cooling capacity

• Fan speed restricted when auto-

matic mode is selected

●

To improve air conditioning perfor-

mance, perform the following

operations:

• Adjust the fan speed

• Turn off Eco drive mode (



P.351)

• Turn off Eco air conditioning mode

●

When the driving mode is set to

Eco driving mode, the Eco air con-

ditioning mode will be turned on

automatically. Even in this case,

the Eco air conditioning mode can

be turned off by pressing the Eco

air conditioning mode switch.

■

When the outside temperature

falls to nearly 32°F (0°C)

The dehumidification function may

not operate even when “A/C” switch

is pressed.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

To reduce potential odors from

occurring:

• It is recommended that the air

conditioning system be set to out-

side air mode prior to turning the

vehicle off.

• The start timing of the blower may

be delayed for a short period of

time immediately after the air con-

ditioning system is started in auto-

matic mode.

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

■

Air conditioning system opera-

tions when the engine is

stopped due to the Stop & Start

system (vehicles with Stop &

Start system)

When the engine is stopped due to

Stop & Start system operations, the

automatic air conditioning cooling,

heating and dehumidification func-

tions turn off and the fan speed is

decreased according to the outside

temperature etc. or air blowing

stops. To stop the air conditioning

system from turning off, press the

Stop & Start cancel switch and

refrain from using the Stop & Start

system.

■

When the windshield is fogged

up and the engine is stopped

due to the Stop & Start system

(vehicles with Stop & Start sys-

tem)

Press the windshield defogger

switch to restart the engine and

defog the windshield.
If the windshield continuously fogs

up, press the Stop & Start cancel

switch and refrain from using the

Stop & Start system.

■

When an odor comes from the

air conditioning system while

the engine is stopped due to the

Stop & Start system (vehicles

with Stop & Start system)

Press the Stop & Start cancel switch

to restart the engine.

■

Air conditioning filter



P.599

■

Customization

Some functions can be customized.

(Customizable features:



P.697)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

519

6-1. Using the air conditioning system and defogger

Interior

featur

Press the “AUTO” switch.

The dehumidification function

begins to operate. Air outlets and

fan speed are automatically

adjusted according to the tempera-

ture setting and humidity.

Adjust the temperature set-
ting.

To stop the operation, press-
the “OFF” switch.

If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.
Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch is pressed.

This function automatically con-
trols the air conditioning airflow
so that priority is given to the
front seats. When the front pas-
senger seat is not occupied, air-
flow may switch to only the
driver’s seat. Unnecessary air
conditioning is suppressed, con-
tributing to increased fuel effi-
ciency.
Front seat concentrated airflow
mode operates in the following
situations.



No passengers are detected
in the rear seats



The windshield defogger is
not operating

While operating,

illumi-

nates.

■

Manually turning front seat
concentrated airflow mode
on/off

In front seat concentrated air-
flow mode, directing airflow to
the front seats only and to all
seats can be switched via switch

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

■

When the outside rear view

mirror defoggers are operat-

ing (if equipped)

Do not touch the rear view mirror

surfaces when the outside rear

view mirror defoggers are on.

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning

system on longer than necessary

when the engine is off.

Using automatic mode

Front seat concentrated
airflow mode (S-FLOW)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

520

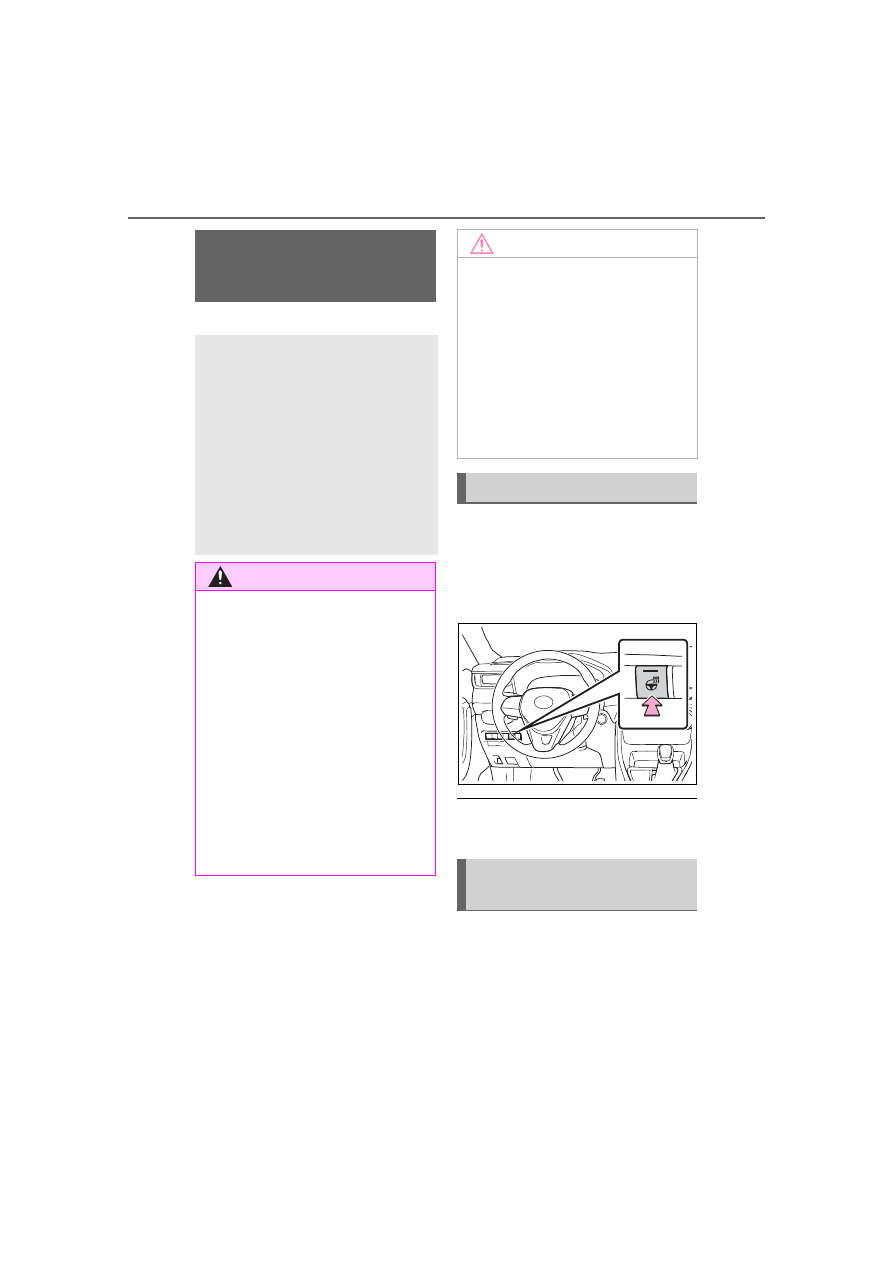

6-1. Using the air conditioning system and defogger

operation. When the mode has
been switched manually, auto-
matic airflow control stops oper-
ating.

Press

on the air condition-

ing operation panel and switch
the airflow.



Indicator illuminated: Airflow
to the front seats only



Indicator off: Airflow to all the
seats

■

Operation of automatic airflow

control

●

In order to maintain a comfortable

interior, airflow may be directed to

seats without passengers immedi-

ately after the engine is started

and at other times depending on

the outside temperature.

●

After the engine is started, if pas-

sengers move around inside or

enter/exit the vehicle, the system

cannot accurately detect the pres-

ence of passengers and automatic

airflow control will not operate.

■

Operation of manual airflow

control

Even if the function is manually

switched to directing airflow to only

the front seats, when a rear seat is

occupied, it may automatically direct

airflow to all seats.

■

To return to automatic airflow

control

With the indicator off, turn the

engine switch off.

After 60 minutes or more elapse,

turn the engine switch to ON.

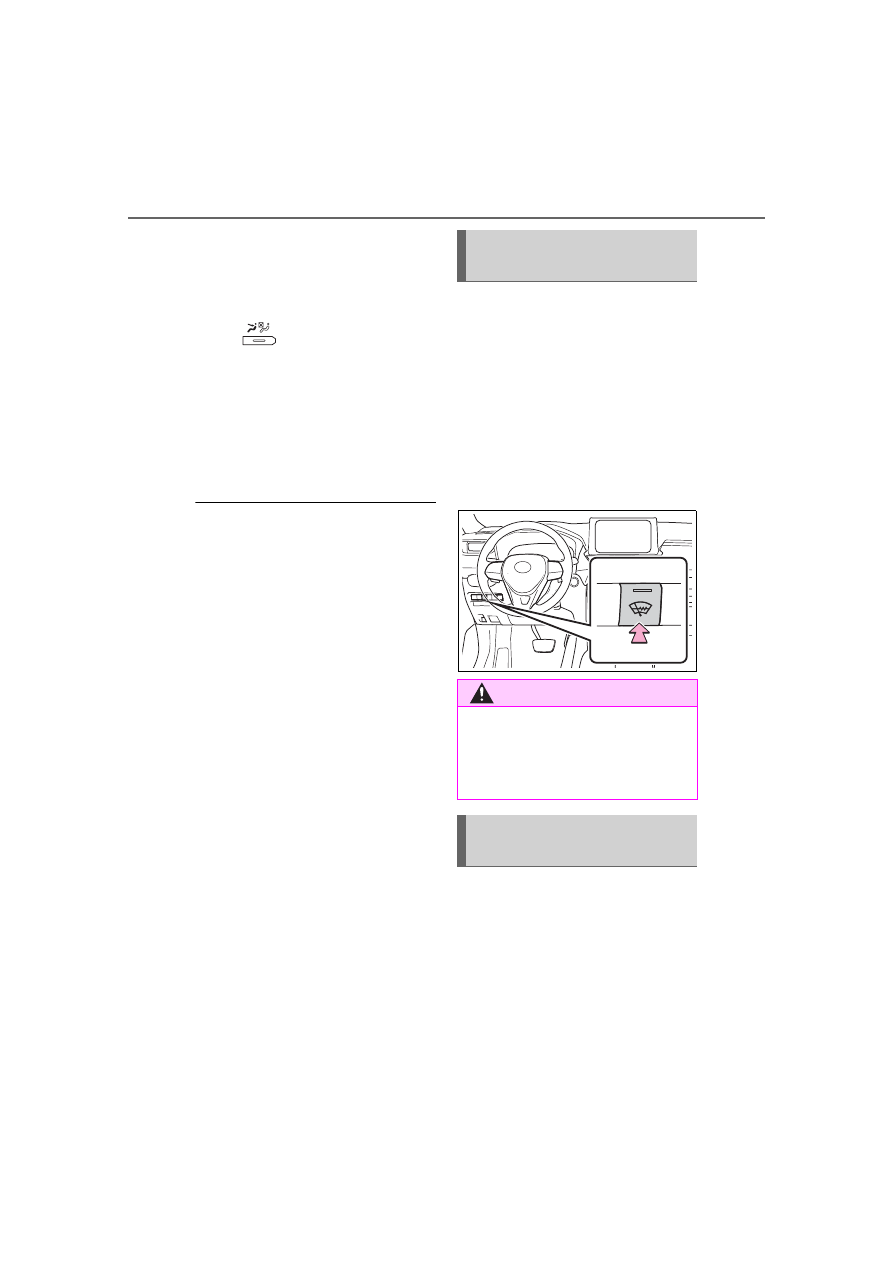

This feature is used to prevent
ice from building up on the wind-
shield and wiper blades.
Press the switch to turn the sys-
tem on/off.

The indicator comes on when the
system is on.
The windshield wiper de-icer will
automatically turn off after a period
of time.

■

Location of air outlets

The air outlets and air volume
change according to the
selected air flow mode.

Windshield wiper de-icer
(if equipped)

WARNING

■

To prevent burns

Do not touch the glass at lower

part of the windshield or to the

side of the front pillars when the

windshield wiper deicer is on.

Air outlet layout and oper-
ations

-------------------------------------------------------------------------------------------------------------------------------------------------------------

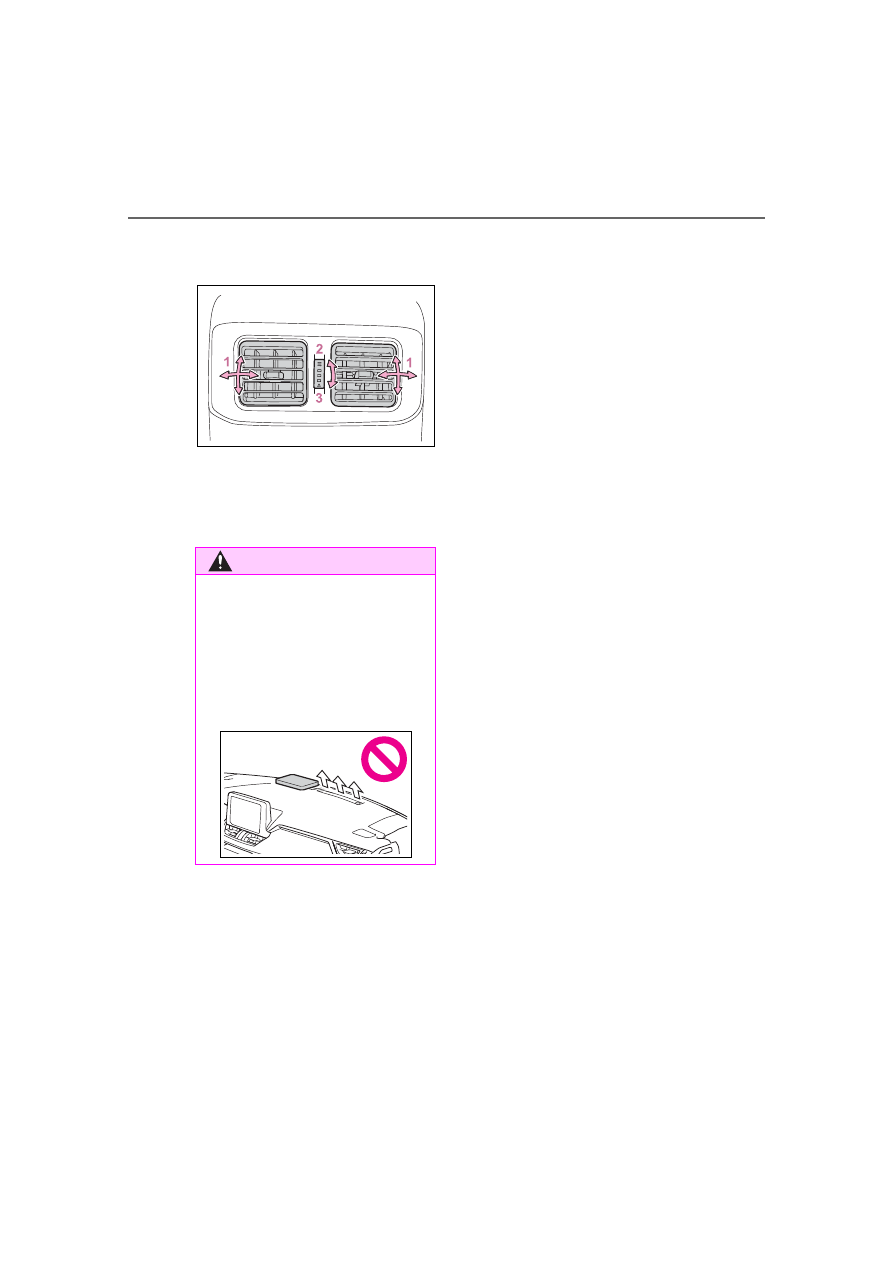

521

6-1. Using the air conditioning system and defogger

Interior

featur

If equipped

■

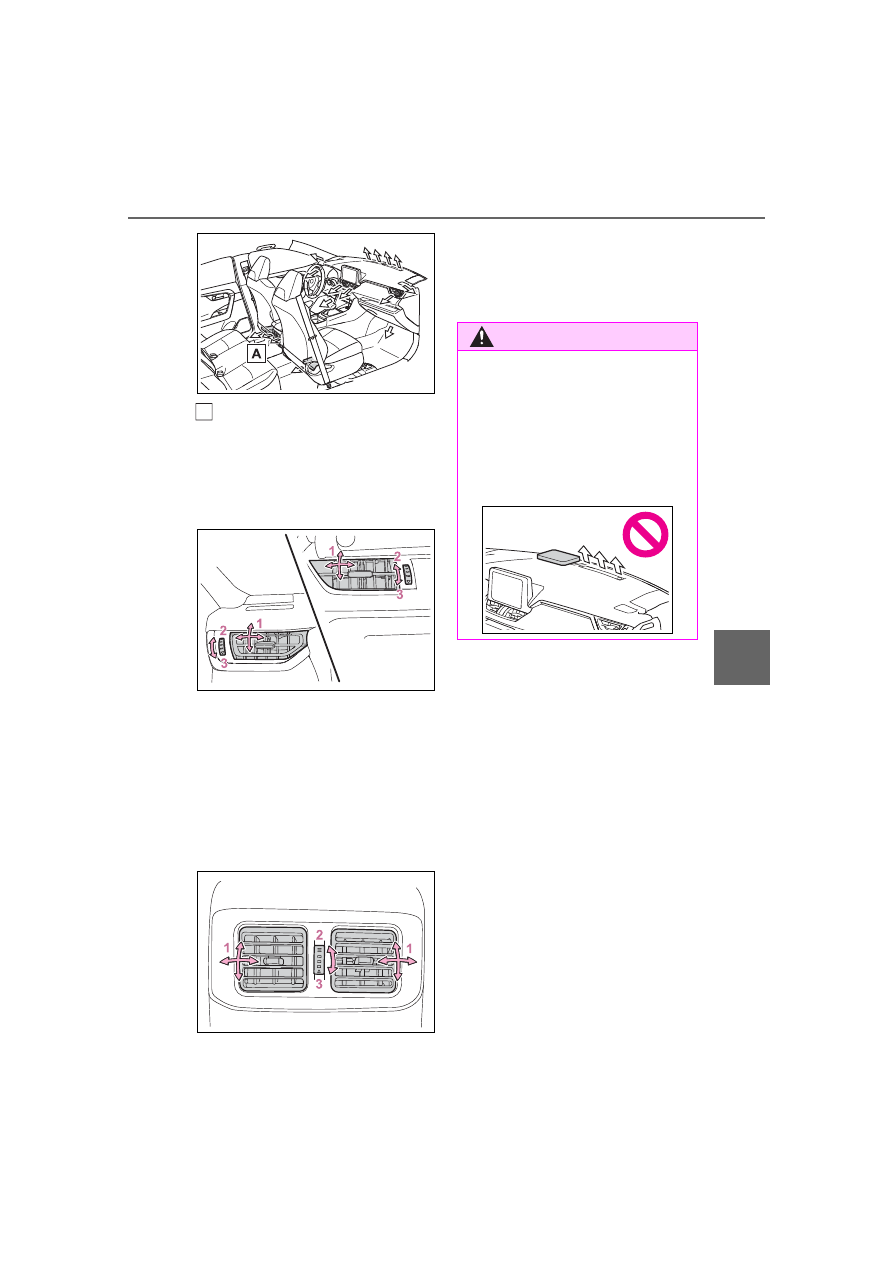

Adjusting the air flow direc-
tion and opening/closing
the air outlets



Front

Direct air flow to the left or
right, up or down

Open the vent

Close the vent

: If equipped (center air outlets

only)



Rear (if equipped)

Direct air flow to the left or
right, up or down

Open the vent

Close the vent

WARNING

■

To not interrupt the wind-

shield defogger from operat-

ing

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

522

6-1. Using the air conditioning system and defogger

: If equipped

Turns the heated steering wheel
on/off

The indicator light comes on when
the heated steering wheel is oper-
ating.

■

Operation condition

The engine switch is in ON.



Front

Turns the seat heaters on/off

Heated steering

wheel

/seat heat-

ers

/seat ventilators



Heated steering wheel

Warm up the grip of the steer-
ing wheel



Seat heaters

Warm up the seat upholstery



Seat ventilators

Maintain good ventilation by
pulling air through the seat
upholstery

WARNING

■

To prevent minor burn inju-

ries

Care should be taken if anyone in

the following categories comes in

contact with the steering wheel or

seats when the heater is on:

●

Babies, small children, the

elderly, the sick and the physi-

cally challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alco-

hol or drugs that induce sleep

(sleeping drugs, cold remedies,

etc.)

NOTICE

■

To prevent damage to the

seat heaters and seat ventila-

tors

Do not put heavy objects that

have an uneven surface on the

seat and do not stick sharp

objects (needles, nails, etc.) into

the seat.

■

To prevent battery discharge

Do not use the functions when the

engine is not running.

Heated steering wheel

Operating the seat heat-
ers

-------------------------------------------------------------------------------------------------------------------------------------------------------------

523

6-1. Using the air conditioning system and defogger

Interior

featur

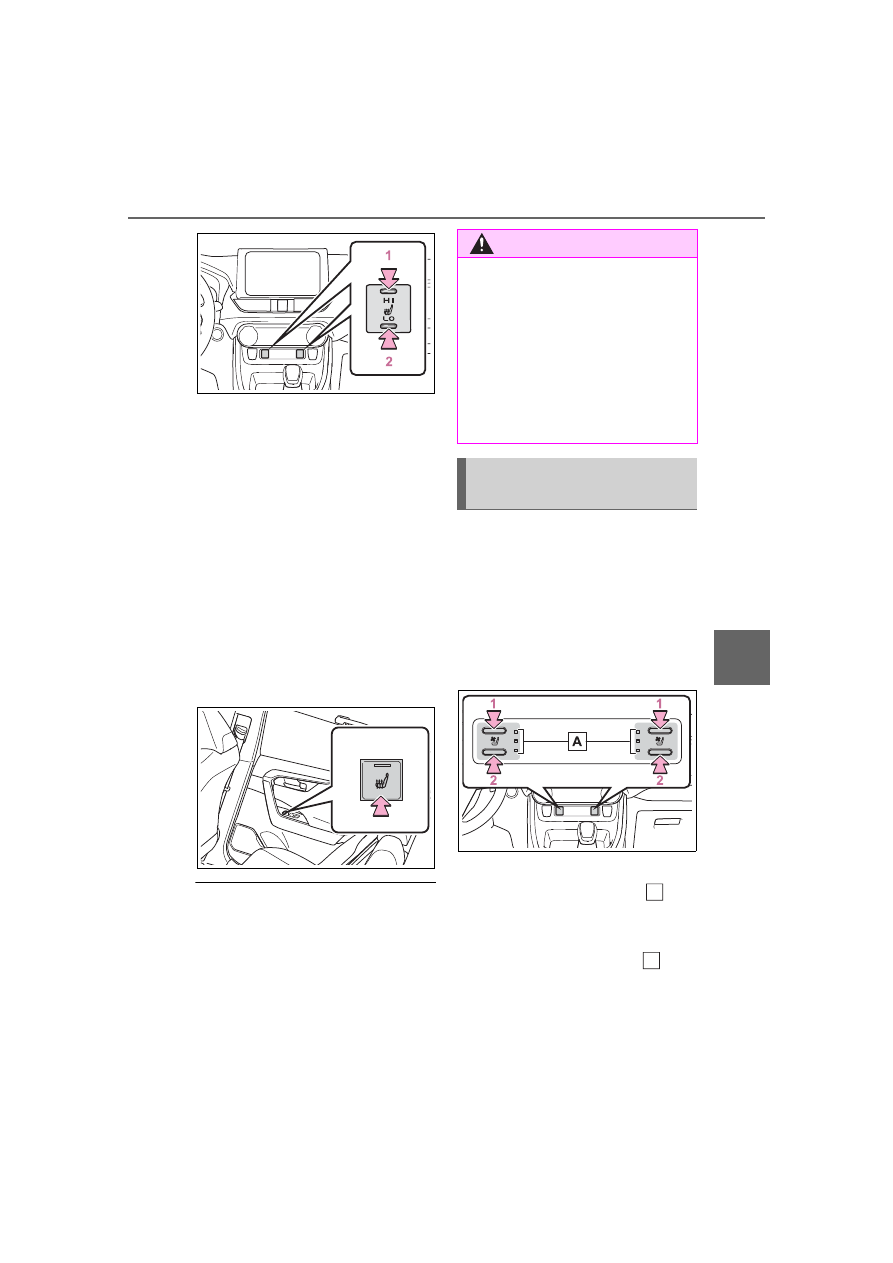

High temperature

Low temperature

When the seat heater is on, the
indicator illuminates on the seat
heater switch.
When not in use, put the switch
in the neutral position. The indi-
cator will turn off.



Rear

Turns the seat heaters on/off
The indicator light comes on
when the seat heater is operat-
ing.

■

Operation condition

The engine switch is in ON.

Turns the seat heaters and ven-
tilators on/off

Each time the switch is pressed,
the operation condition changes as
follows.
Hi (3 segments lit)



Mid (2 seg-

ments lit)



Lo (1 segment lit)



Off

Turns the seat heater on

The level indicators (yellow)

light up during operation.

Turns the seat ventilator on

The level indicators (green)

light up during operation.

WARNING

■

To prevent causes of over-

heating and minor burn inju-

ries

Observe the following precautions

when using a seat heater:

●

Do not cover the seat with a

blanket or cushion when using

the seat heater.

●

Do not use seat heater more

than necessary.

Seat heaters and ventila-
tors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

524

6-1. Using the air conditioning system and defogger

■

Operation condition

The engine switch is in ON.

■

Air conditioning system-linked

control mode

When a seat ventilator is set to Hi,

the fan speed of the seat ventilator

may increase according to the fan

speed of the air conditioning sys-

tem.

WARNING

■

To prevent causes of over-

heating and minor burn inju-

ries

Observe the following precautions

when using a seat heater:

●

Do not cover the seat with a

blanket or cushion when using

the seat heater.

●

Do not use seat heater more

than necessary.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

525

6-2. Using the interior lights

Interior

featur

6-2.Using the interior lights

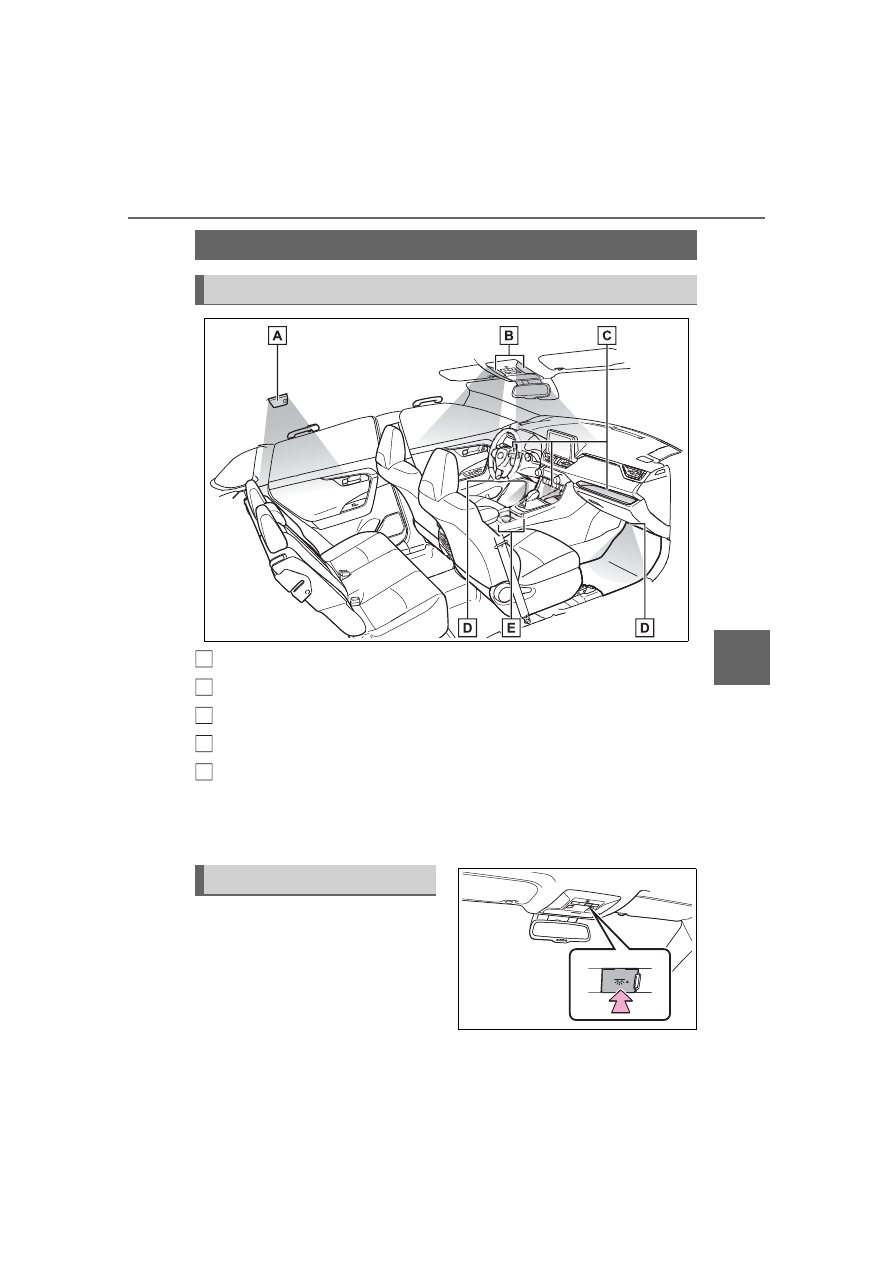

Rear interior light (



P.526)

Front interior lights/personal lights (



P.525, 5 26)

Open tray lights (if equipped)

Footwell lights (if equipped)

Front cup holder lights (if equipped)

: These lights turn on when a door is unlocked.

When the shift lever is in a position other than P, the brightness of these
lights will reduce intensity.

■

Front interior lights

Turns the lights on/off

Interior lights list

Location of the interior lights

Operating interior lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Toyota RAV4 (2020 year). Manual in english - part 8
