334

4-5. Using the driving support systems

Parts of objects which extend above a certain height cannot be
displayed on the screen.

●

As the images obtained from four cameras are processed and displayed

on the standard of a flat road surface; the panoramic view/moving

view/see through view may be displayed as follows.

• Objects may look collapsed; thinner or bigger than usual.

• An object with a higher position than the road surface may look farther

away than it actually is or may not appear at all.

• Tall objects may appear protruding from the non-displayed areas of the

image.

●

Variations in the brightness of the image may appear for every camera.

●

The displayed image may be shifted by inclination of the vehicle body,

change in vehicle height, etc., depending on the number of passengers,

amount of luggage, fuel quantity, etc.

●

If the front doors or back door are not completely closed; neither the

image nor the guide lines are displayed.

●

The position relations of the vehicle icon and the road surface or obstacle

may differ from the actual positions.

●

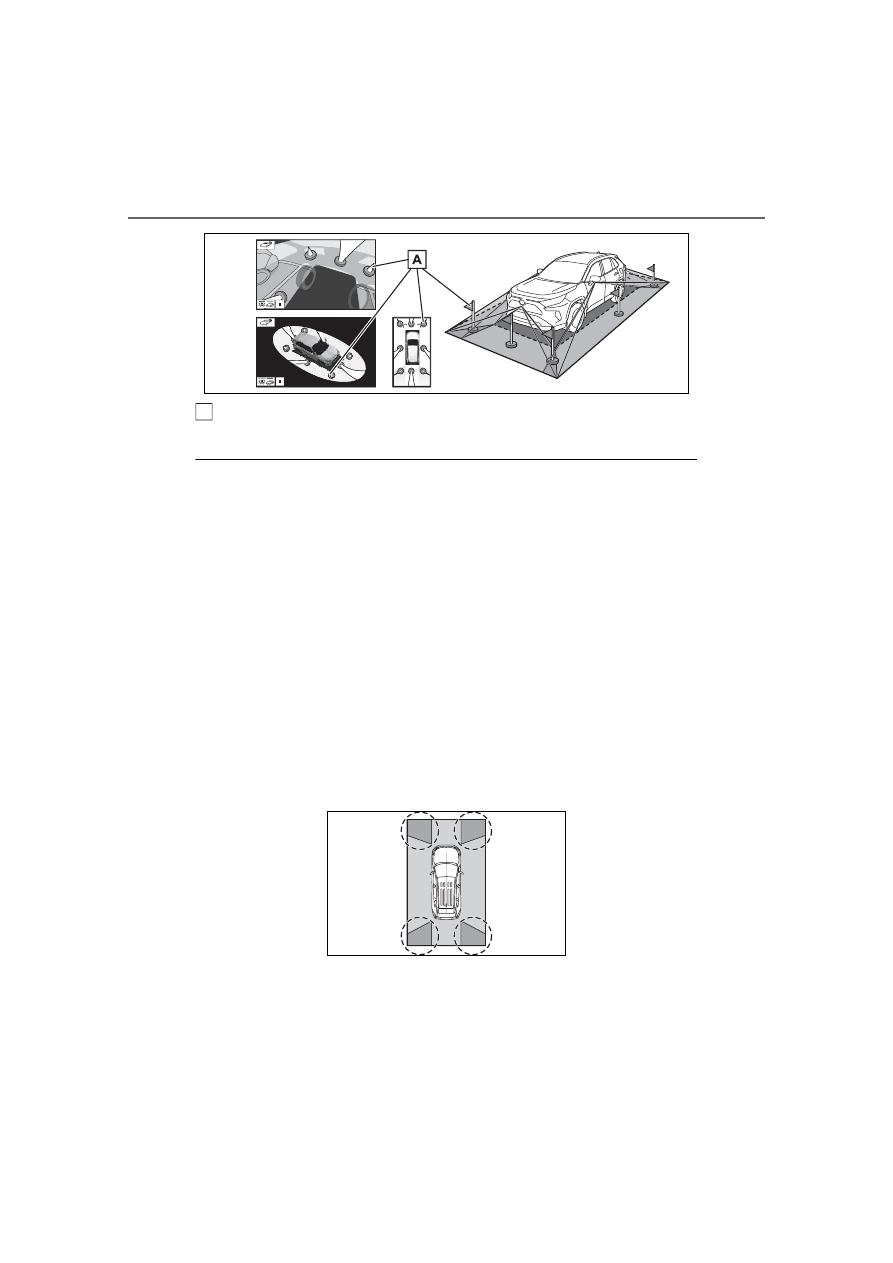

The black areas of the vicinity of the vehicle icon are areas that are not

captured by the camera.

●

Images like the following are combined, thus some areas may be difficult

to view.

A

335

4-5. Using the driving support systems

4

Dr

iv

ing



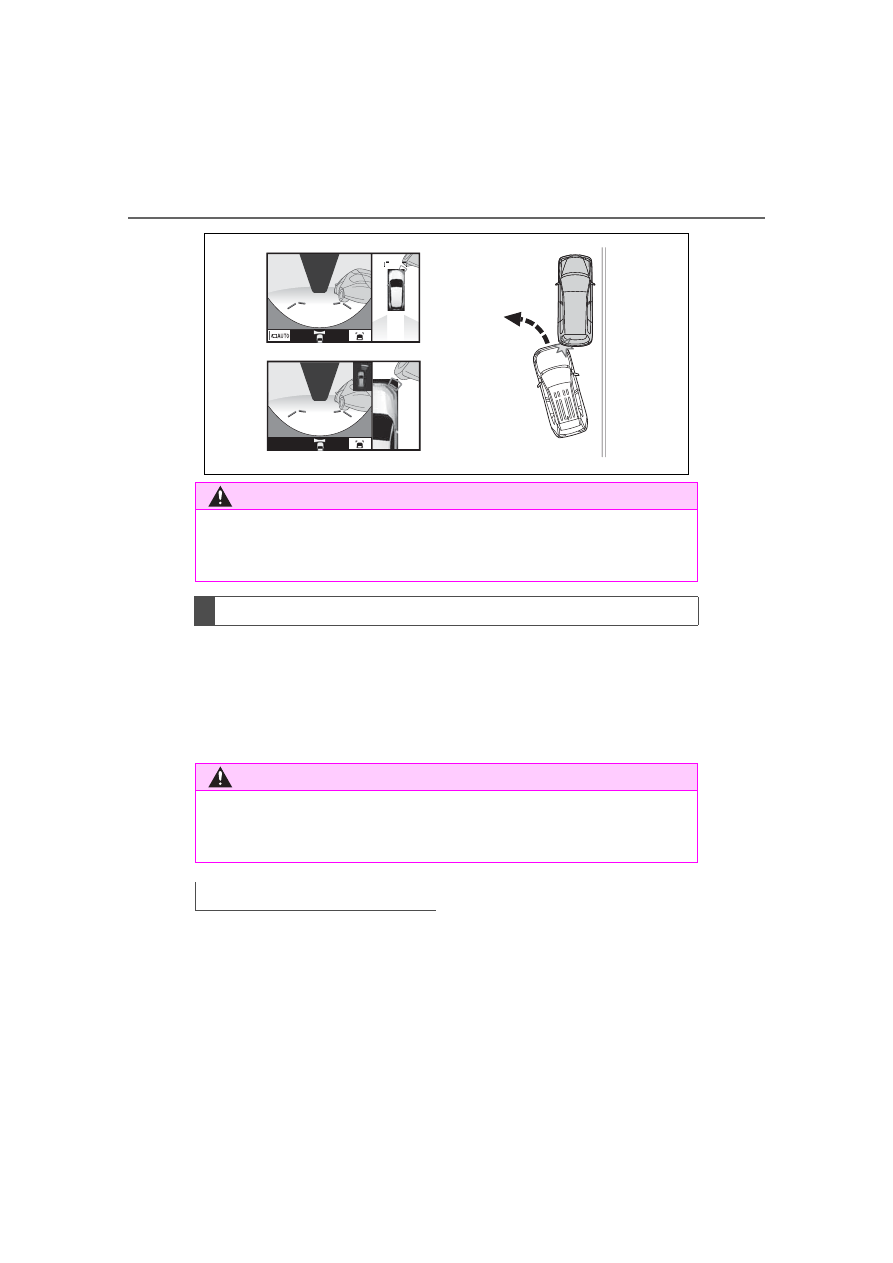

Wide front view



Side view

WARNING

●

When a sensor indicator on the intuitive parking assist display illumi-

nates in red or a buzzer sounds continuously, be sure to check the area

around the vehicle immediately and do not proceed any further until

safety has been ensured, otherwise an unexpected accident may occur.

Area of the image captured
by the camera

336

4-5. Using the driving support systems



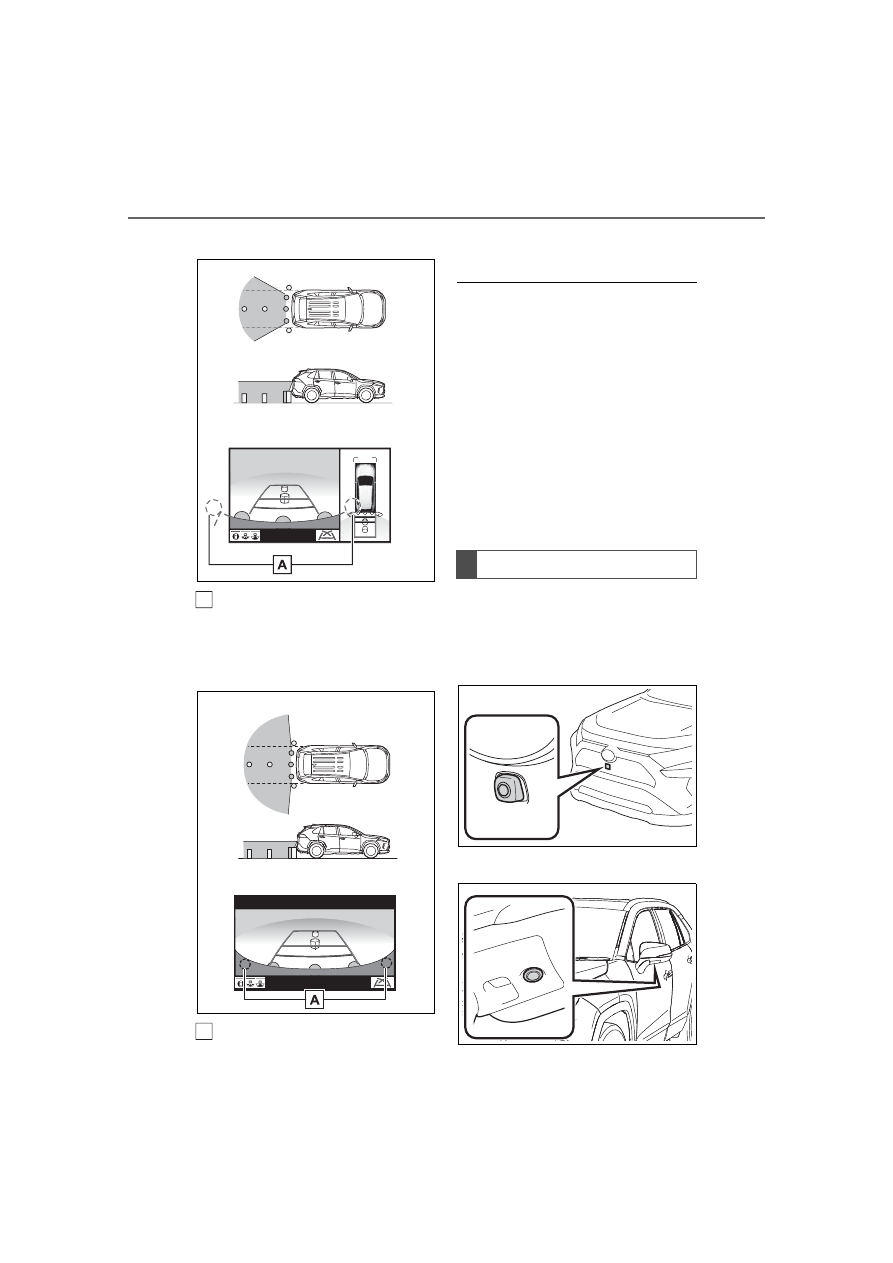

Rear view

The area around both cor-
ners of the bumper will not be
displayed.



Wide rear view

The area around both cor-

ners of the bumper will not be
displayed.

●

Black masking is done for dis-

tance detection differences to the

front of the vehicle.

●

The area covered by the camera

is limited. Objects which are close

to either corner of the bumper or

under the bumper cannot be seen

on the screen.

●

The area displayed on the screen

may vary depending on vehicle

orientation or road conditions.

●

The camera uses a special lens.

The distance in the image dis-

played on the screen will differ

from the actual distance.

The cameras for the panoramic
view monitor are located as
shown in the illustrations.



Front camera



Side cameras

A

A

The camera

337

4-5. Using the driving support systems

4

Dr

iv

ing



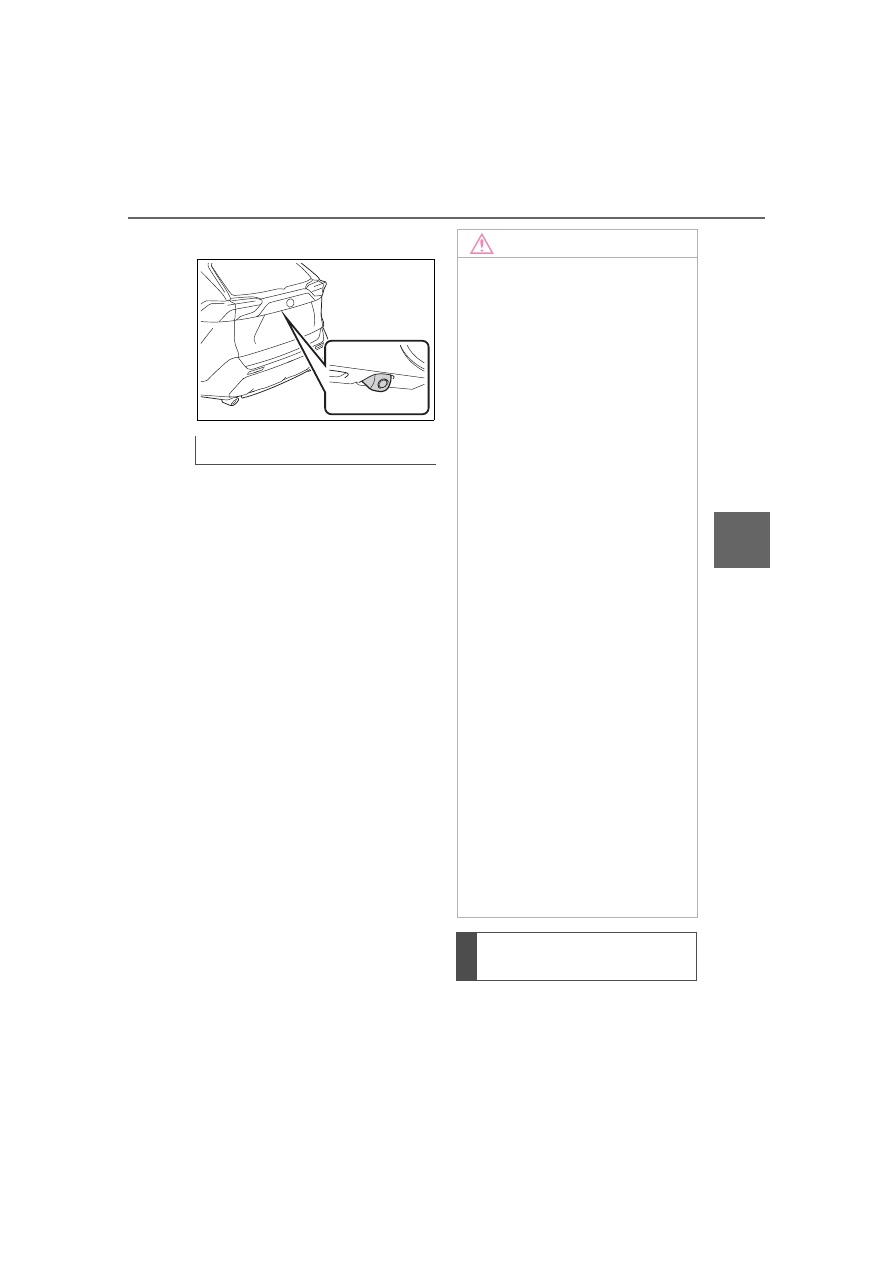

Rear camera

If dirt or foreign matter (such as
water droplets, snow, mud, etc.)
is adhering to the camera, it
cannot transmit a clear image.
In this case, flush it with a large
quantity of water and wipe the
camera lens clean with a soft
and wet cloth.



The distance guide lines and
the vehicle width guide lines

Using the camera

NOTICE

●

The panoramic view monitor

may not operate properly in the

following cases.

• If the camera is hit, the position

and mounting angle of the cam-

era may change.

• As the camera has a water

proof construction, do not

detach, disassemble or modify

it. This may cause incorrect

operation.

• When cleaning the camera lens,

flush the camera with a large

quantity of water and wipe it

with a soft and wet cloth.

Strongly rubbing the camera

lens may cause the camera lens

to be scratched and unable to

transmit a clear image.

• Do not allow an organic solvent,

car wax, window cleaner or a

glass coating to adhere to the

camera. If this happens, wipe it

off as soon as possible.

• If the temperature changes rap-

idly, such as when hot water is

poured on the vehicle in cold

weather, the system may not

operate normally.

• When washing the vehicle, do

not apply intensive bursts of

water to the camera or camera

area. Doing so may result in the

camera malfunctioning.

●

Do not expose the camera to

strong impacts as this could

cause a malfunction. If this hap-

pens, have the vehicle

inspected by your Toyota dealer

as soon as possible.

Difference between the
screen and the actual road

338

4-5. Using the driving support systems

may not actually be parallel
with the dividing lines of the
parking space, even when
they appear to be so. Be sure
to check visually.



The distances between the
vehicle width guide lines and
the left and right dividing lines
of the parking space may not
be equal, even when they
appear to be so. Be sure to
check visually.



The distance guide lines give
a distance guide for flat road
surfaces. In any of the follow-
ing situations, there is a mar-
gin of error between the guide
lines on the screen and the
actual distance/course on the
road.

The distance guide lines will
appear to be closer to the vehi-
cle than the actual distance.
Because of this, objects will
appear to be farther away than
they actually are. In the same
way, there will be a margin of
error between the guidelines
and the actual distance/course
on the road.

The distance guide lines will
appear to be farther from the
vehicle than the actual distance.
Because of this, objects will
appear to be closer than they
actually are. In the same way,
there will be a margin of error
between the guidelines and the
actual distance/course on the
road.

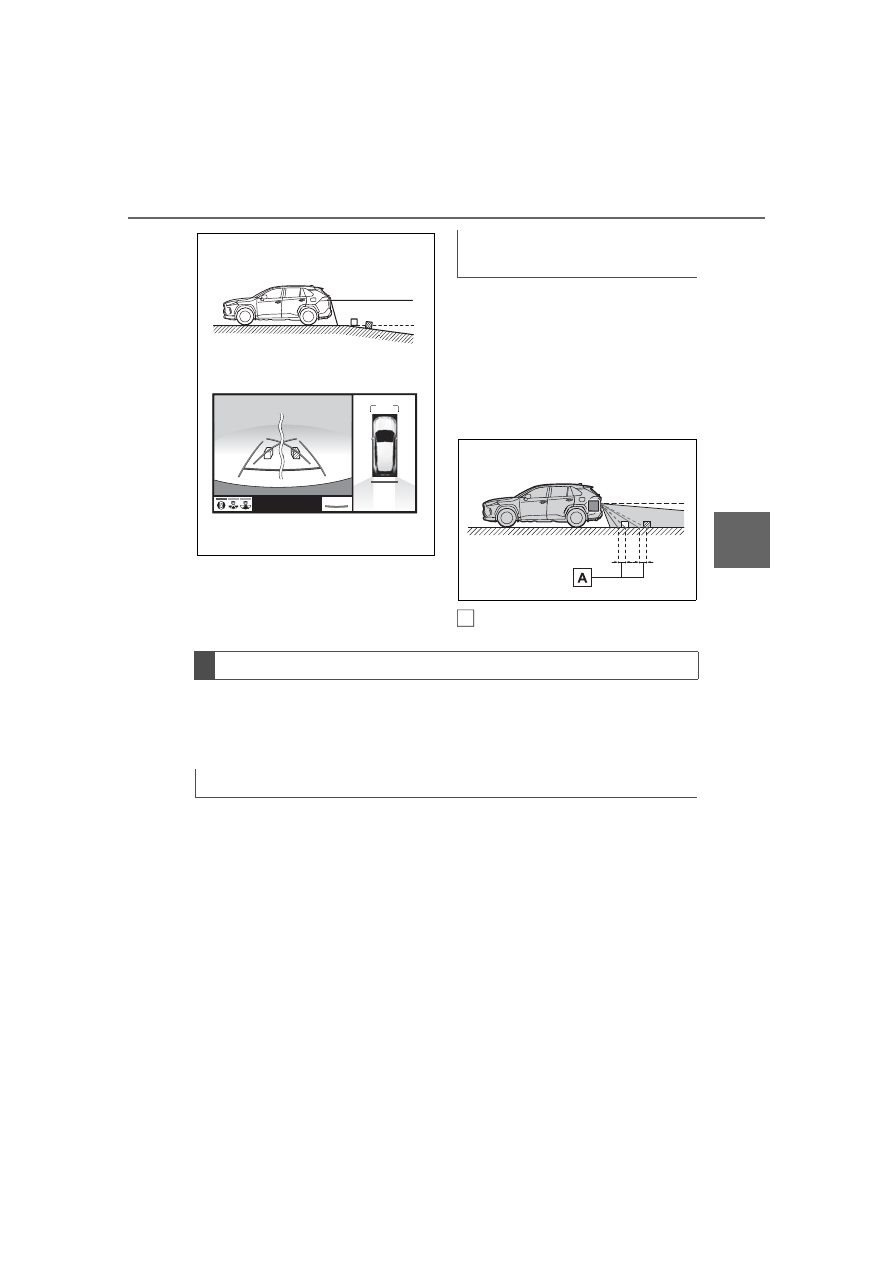

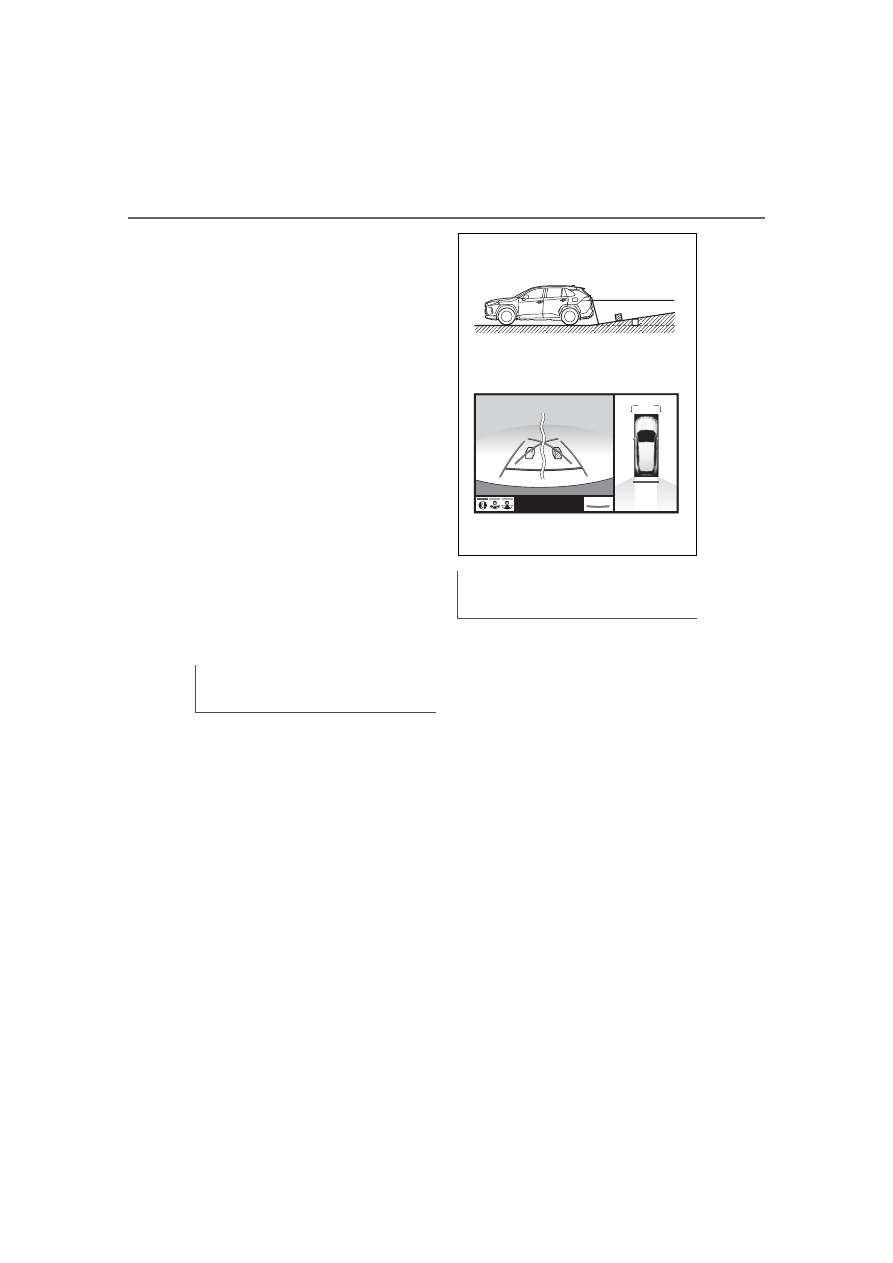

When the ground behind the
vehicle slopes up sharply

When the ground behind the
vehicle slopes down sharply

339

4-5. Using the driving support systems

4

Dr

iv

ing

When any part of the vehicle
sags due to the number of pas-
sengers or the distribution of the
load, there is a margin of error
between the guide lines on the
screen and the actual dis-
tance/course on the road.

A margin of error

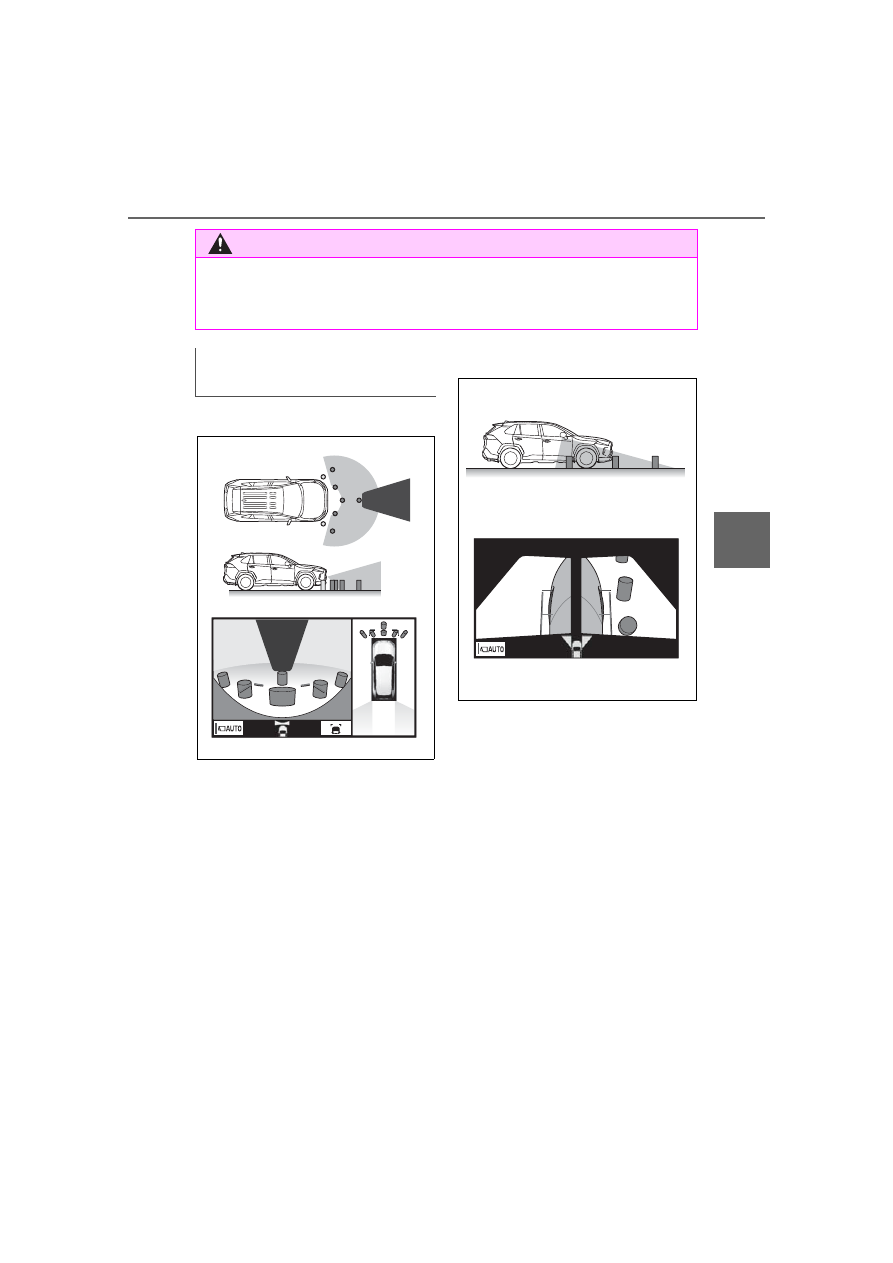

When there are three-dimensional objects (such as vehicle bum-
pers, etc.) nearby in positions higher than the surface of the road,
take extra care when using the following.

Since the panoramic view processes and displays images based on
flat road surfaces, it cannot depict the position of three-dimension
objects (such as vehicle bumpers, etc.) that are in positions higher
than the surface of the road. For example, even though it appears
that there is space between the bumpers of the two vehicles in the
illustration below and they are not likely to collide, in reality, a colli-
sion is about to occur.

When any part of the vehicle
sags

A

Distortion of three-dimensional objects on the screen

Panoramic view display (including magnified display)

340

4-5. Using the driving support systems

The estimated course lines target flat surfaced objects (such as the
road). It is not possible to determine the position of three-dimen-
sional objects (such as vehicles) using the estimated course lines
and distance guide lines. When approaching a three-dimensional
object that extends outward (such as the flatbed of a truck), be care-
ful of the following.

Since the estimated course line
is displayed for a flat road sur-
face, it cannot depict the posi-
tion of three-dimensional objects
(such as vehicle bumpers, etc.)
that are in positions higher than

the surface of the road. Even if
the bumpers of the vehicle is on
the outside of the estimated
course line in the image, in real-
ity, the vehicles are on a colli-
sion course.

WARNING

●

When a sensor indicator on the intuitive parking assist display illumi-

nates in red or a buzzer sounds continuously, be sure to check the area

around the vehicle immediately and do not proceed any further until

safety has been ensured, otherwise an unexpected accident may occur.

When approaching three-dimensional objects

WARNING

●

When a sensor indicator on the intuitive parking assist display illumi-

nates in red or a buzzer sounds continuously, be sure to check the area

around the vehicle immediately and do not proceed any further until

safety has been ensured, otherwise an unexpected accident may occur.

Estimated course lines

341

4-5. Using the driving support systems

4

Dr

iv

ing

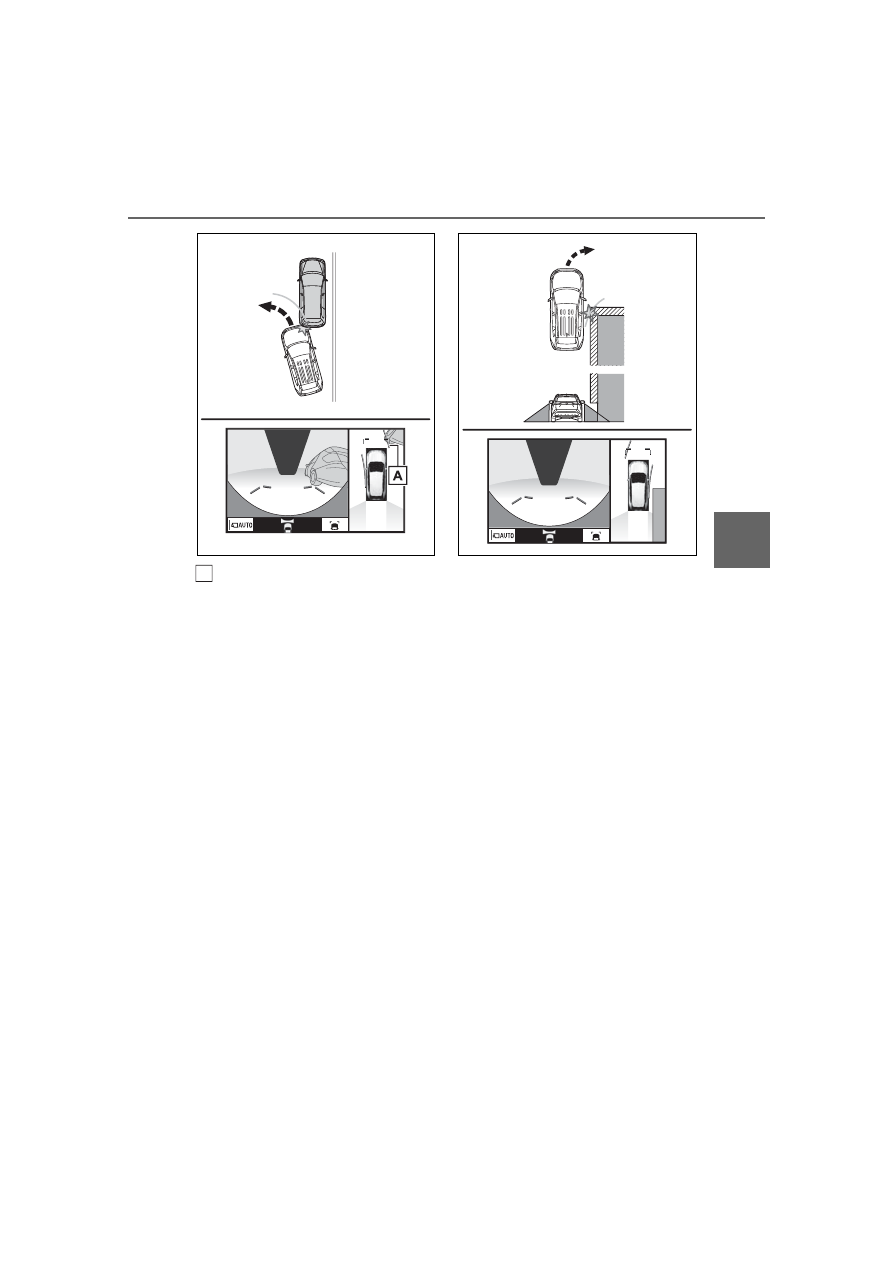

Estimated course line

Three-dimensional objects
(such as the overhang of a wall
or loading platform of a truck) in
high positions may not be pro-
jected on the screen. Check the
safety of the surroundings
directly.

Visually check the surroundings
and the area behind the vehicle.
In the case shown below, the
truck appears to be outside of
the estimated course lines and
the vehicle does not look as if it
hits the truck. However, the rear
body of the truck may actually
cross over the estimated course
lines. In reality if you back up as
guided by the estimated course
lines, the vehicle may hit the
truck.

A

342

4-5. Using the driving support systems

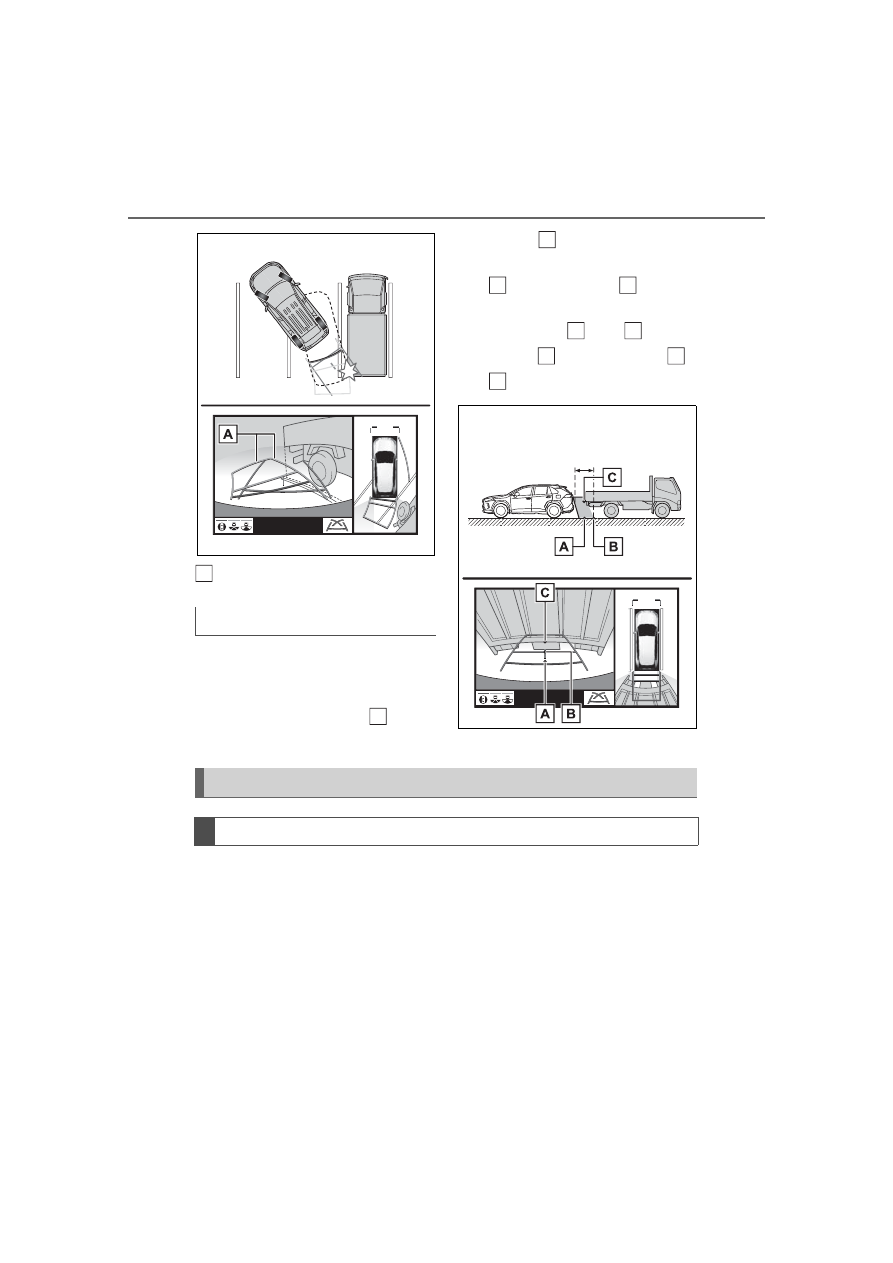

Estimated course lines

Visually check the surroundings
and the area behind the vehicle.
On the screen, it appears that a
truck is parking at point

.

However, in reality if you back

up to point

, you will hit the

truck. On the screen, it appears
that

 is closest and

 is far-

thest away. However, in reality,
the distance to

 and

 is the

same, and

 is farther than



and

.

If you notice any of the following symptoms, refer to the likely cause
and the solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle
inspected by your Toyota dealer.

Distance guide lines

A

B

A

A

C

A

C

B

A

C

Things you should know

If you notice any symptoms

343

4-5. Using the driving support systems

4

Dr

iv

ing

Symptom

Likely cause

Solution

The image is difficult to
see



The vehicle is in a
dark area



The temperature
around the lens is
either high or low



The outside tempera-
ture is low



There are water drop-
lets on the camera



It is raining or humid



Foreign matter (mud,
etc.) is adhering to the
camera



Sunlight or headlights
are shining directly
into the camera



The vehicle is under
fluorescent lights,
sodium lights, mer-
cury lights, etc.

Back up while visually
checking the vehicle’s
surroundings. (Use the
monitor again once con-
ditions have been
improved.)
The procedure for
adjusting the picture
quality of the pan-
oramic view monitor
system is the same as
the procedure for
adjusting the screen dis-
play. (



P.388)

The image is blurry

Dirt or foreign matter
(such as water drop-
lets, snow, mud, etc.) is
adhering to the camera.

Flush the camera with a
large quantity of water
and wipe the camera
lens clean with a soft
and wet cloth.

The image is out of
alignment

The camera or sur-
rounding area has
received a strong
impact.

Have the vehicle
inspected by your Toy-
ota dealer.

The guide lines are very
far out of alignment

The camera position is
out of alignment.

Have the vehicle
inspected by your Toy-
ota dealer.



The vehicle is tilted.
(There is a heavy load
on the vehicle, tire
pressure is low due to
a tire puncture, etc.)



The vehicle is used on
an incline.

If this happens due to
these causes, it does
not indicate a malfunc-
tion.
Back up while visually
checking the vehicle’s
surroundings.

344

4-5. Using the driving support systems

The estimated course
lines move even though
the steering wheel is
straight

There is a malfunction
in the signals being out-
put by the steering sen-
sor.

Have the vehicle
inspected by your Toy-
ota dealer.

Guide lines are not dis-
played

The back door is open.

Close the back door.
If this does not resolve
the symptom, have the
vehicle inspected by
your Toyota dealer.

The estimated course
lines are not displayed



Battery has been rein-
stalled.



The steering wheel
has been moved while
the battery was being
reinstalled.



Battery power is low.



The steering sensor
has been reinstalled.



There is a malfunction
in the signals being
output by the steering
sensor.

Have the vehicle
inspected by your Toy-
ota dealer.

The panoramic view dis-
play cannot be magni-
fied

The intuitive parking
assist may be malfunc-
tioning or dirty.

Follow the correction
procedures for malfunc-
tions of the intuitive
parking assist. (



P.270)

The see-through
view/moving view can-
not be displayed

Product license

Symptom

Likely cause

Solution

345

4-5. Using the driving support systems

4

Dr

iv

ing

*

: If equipped

■

Stopping the engine

While driving with the D shift
position selected, depress the
brake pedal and stop the vehi-
cle. The engine will stop auto-
matically.

When the engine stops, the Stop &
Start indicator will illuminate.

■

Restarting the engine

Release the brake pedal. The
engine will start automatically.

When the engine starts, the Stop &
Start indicator will turn off.

■

When the brake hold sys-
tem is operating



When the engine is stopped
by the Stop & Start system, if
the brake pedal is released
the engine will remain
stopped.



If the accelerator pedal is
depressed while the engine is
stopped by the Stop & Start
system, the engine will
restart.



While the engine is stopped
by the Stop & Start system, if
the engine is restarted, the
brake hold system will con-
tinue to apply the brakes,
unless the operation condi-
tions of the brake hold system
are no longer met. (



P.206)

■

When the dynamic radar
cruise control with full-
speed range is operating



When the vehicle is stopped
by the dynamic radar cruise
control with full-speed range,
the engine will stop automati-
cally even though the brake
pedal is not depressed.



When the preceding vehicle
starts off, the engine will
restart automatically.



If the engine is restarted by
the Stop & Start system while
the vehicle is stopped by the
dynamic radar cruise control
with full-speed range, the
vehicle will remain stopped.

Stop & Start system

*

The Stop & Start system
stops and starts the engine
according to brake pedal or
shift lever operation when
the vehicle is stopped, such
as at a stoplight, intersec-
tion, etc., in order to
improve fuel economy and
reduce noise pollution
caused by the engine idling.

Stop & Start system oper-
ation

346

4-5. Using the driving support systems

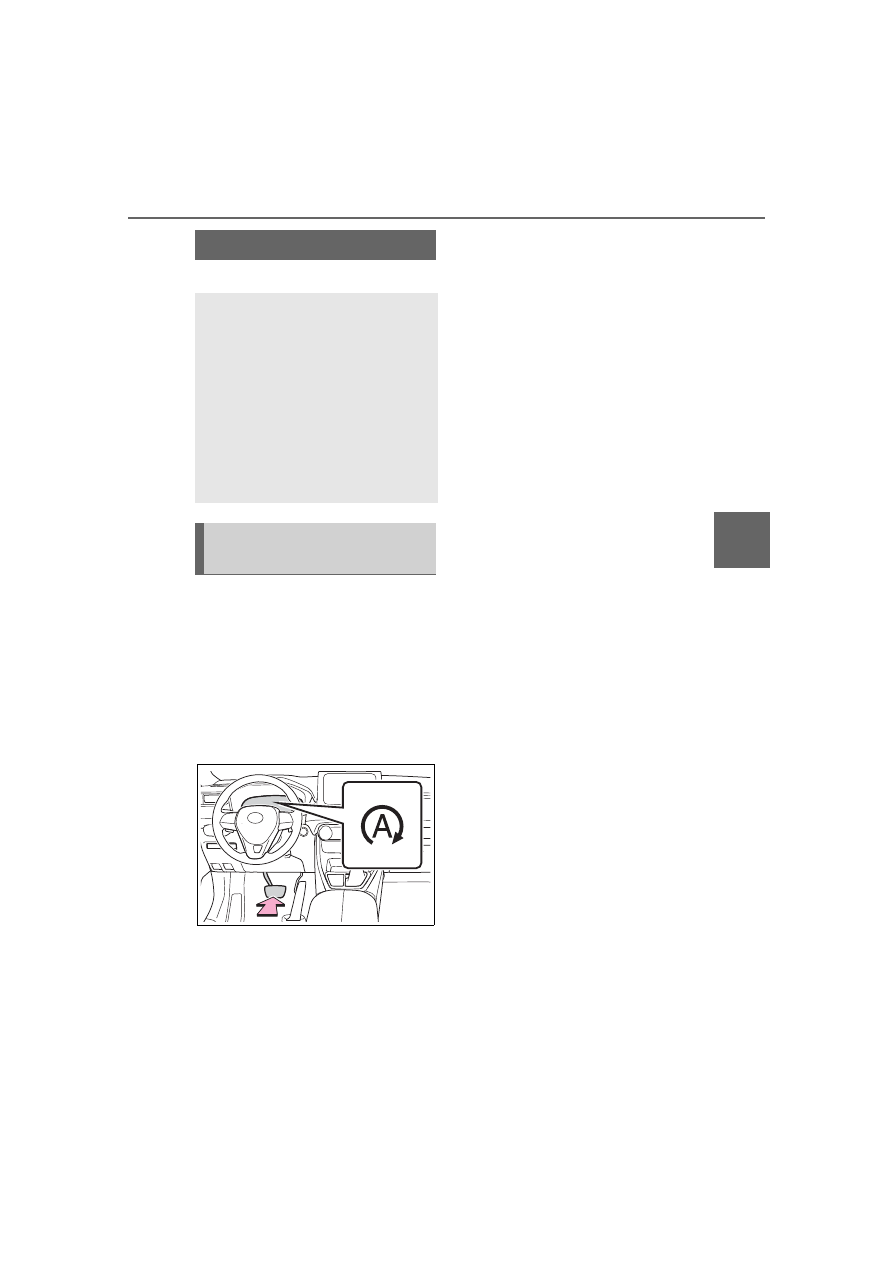

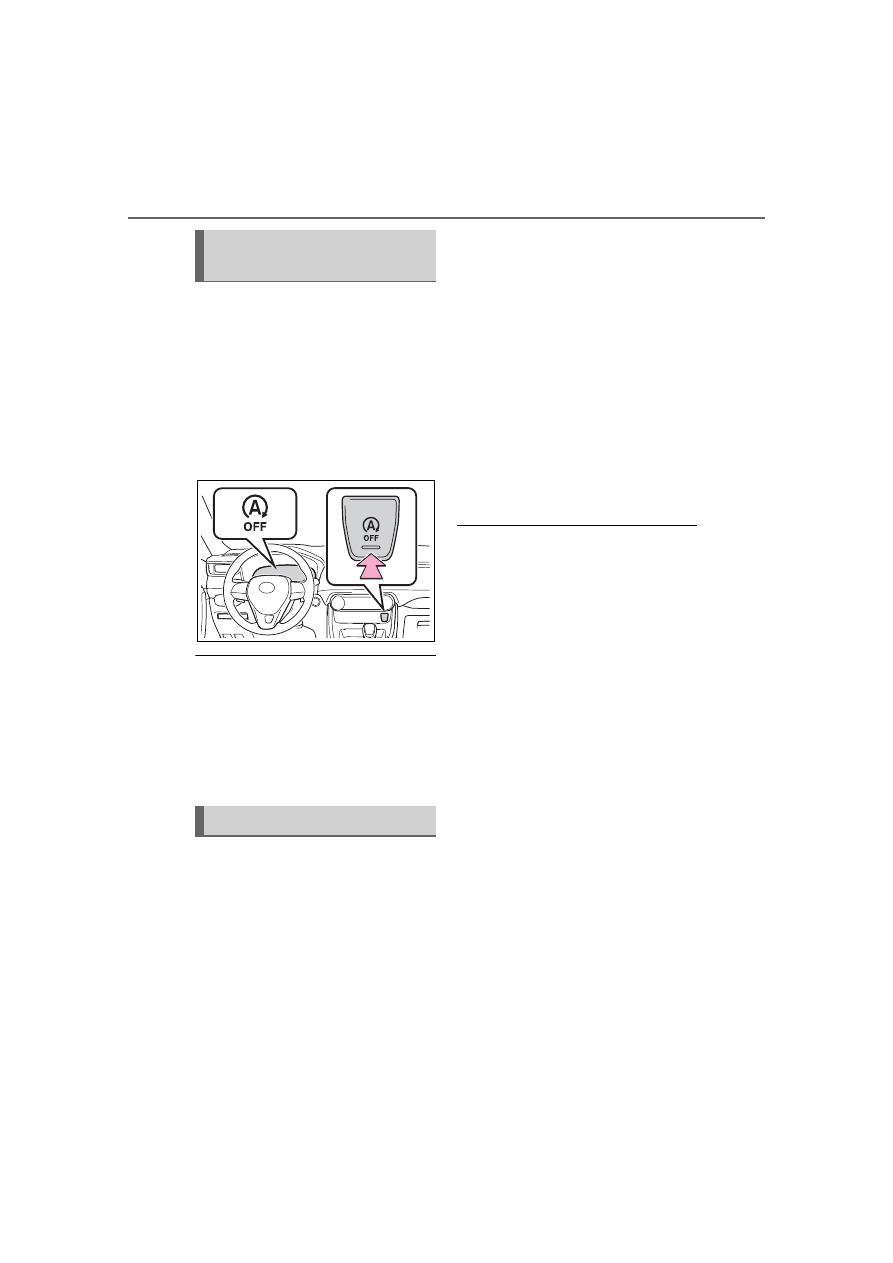

Press the Stop & Start cancel
switch to disable the Stop &
Start system.
The Stop & Start cancel indica-
tor will illuminate.

Pressing the switch again will
enable the Stop & Start system and
the Stop & Start cancel indicator will
turn off.

■

Automatic enabling of the Stop

& Start system

If the Stop & Start system is dis-

abled using the Stop & Start cancel

switch, it will be automatically re-

enabled once the engine switch is

turned off and then the engine is

started.

When the engine is stopped by
the Stop & Start system when
the vehicle is on an incline,
when the brake pedal is
released, brake force is tempo-
rarily maintained to prevent the
vehicle from rolling backwards
before the engine is restarted
and drive force is generated.
When drive force is generated,

the maintained brake force is
automatically canceled.



This function operates on flat
surfaces as well as steep
inclines.



Sound may be generated
from the brake system, but
this does not indicate a mal-
function.



Brake pedal response may
change and vibration may
occur, but this does not indi-
cate a malfunction.

■

Points for use

●

If the engine switch is pressed

when the engine is stopped by the

Stop & Start system, the engine

will not be able to be restarted by

the automatic engine start func-

tion. In this case, restart the

engine using the normal engine

starting procedure. (



P.193, 194)

●

When the engine is being

restarted by the Stop & Start sys-

tem, the power outlets may be

temporarily unusable, but this

does not indicate a malfunction.

●

Installation and removal of electri-

cal components and wireless

devices may affect the Stop &

Start system. Contact your Toyota

dealer for details.

●

When stopping the vehicle for a

longer period of time, turn the

engine switch off to stop the

engine completely.

●

When the engine is restarted by

the Stop & Start system, the steer-

ing wheel may temporarily feel

heavy.

■

Operating conditions

●

The Stop & Start system is opera-

tional when all of the following

conditions are met:

Disabling the Stop & Start
system

Hill-start assist control

347

4-5. Using the driving support systems

4

Dr

iv

ing

• The vehicle has been driven a cer-

tain amount of time.

• The brake pedal is being

depressed firmly. (except when

the vehicle is stopped by the

dynamic radar cruise control with

full-speed range when in vehicle-

to-vehicle distance control mode)

• The D shift position is selected.

• The driver’s seat belt is fastened.

• The driver’s door is closed.

• The selected driving mode is nor-

mal or Eco drive mode.

• The selected driving mode is not

snow mode (AWD models).

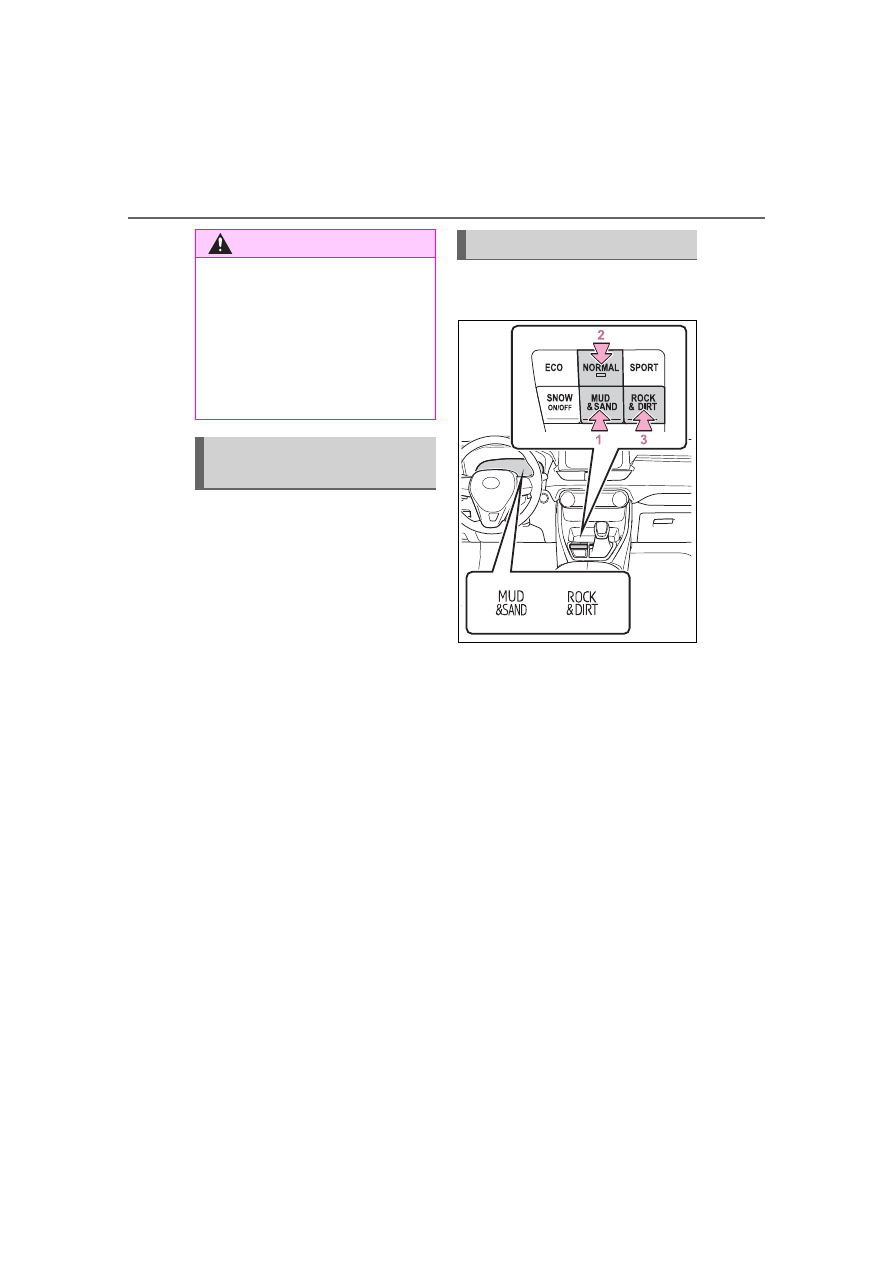

• Mud & Sand or Rock & Dirt mode

is not selected for Multi-terrain

Select (AWD models).

• The windshield defogger is off.

(vehicles without a manual air

conditioning system)

• The accelerator pedal is not being

depressed.

• The engine is adequately warmed

up.

• The outside temperature is 23°F (-

5°C) or higher.

• The hood is closed. (



P.348)

●

In the following situations, the

engine may not be stopped by the

Stop & Start system. This is not a

malfunction of the Stop & Start

system.

• When the air conditioning system

is being used.

• When the battery is undergoing a

periodic recharge.

• When the battery is not sufficiently

charged, such as if the vehicle

has been parked for a long time

and the battery charge has

decreased, the electric load is

large, the battery fluid tempera-

ture is excessively low or the bat-

tery has deteriorated.

• When the brake booster vacuum

is low.

• When the elapsed time since the

engine was restarted is short.

• When the vehicle is stopped fre-

quently, such as when in a traffic

jam.

• When the engine coolant tem-

perature or transmission fluid tem-

perature is extremely low or high.

• When the vehicle is stopped on a

steep incline.

• When the steering wheel is being

operated.

• When the vehicle is being driven

in a high altitude area.

• When the battery fluid tempera-

ture is extremely low or high.

• For a while after the battery termi-

nals have been disconnected and

reconnected.

●

When the engine is stopped by

the Stop & Start system, the

engine will be restarted automati-

cally if any of the following condi-

tions are met:

(To enable the engine to be

stopped by the Stop & Start sys-

tem again, drive the vehicle.)

• The air conditioning system is

turned on. (vehicles without a

manual air conditioning system)

• The windshield defogger is turned

on. (vehicles without a manual air

conditioning system)

• The shift lever is shifted from D.

• The driver’s seat belt is unfas-

tened.

• The driver’s door is opened.

• The driving mode is changed from

normal or Eco drive mode to

another mode.

• The driving mode is changed to

snow mode (AWD models).

• Mud & Sand or Rock & Dirt mode

is selected for Multi-terrain Select

(AWD models).

• The Stop & Start cancel switch is

pressed.

• The steering wheel is operated.

• The accelerator pedal is

depressed.

• The vehicle starts to roll on an

incline.

●

When the engine is stopped by

the Stop & Start system, the

engine may restart automatically

in the following situations: (To

enable the engine to be stopped

by the Stop & Start system again,

drive the vehicle.)

• When the brake pedal is pumped

348

4-5. Using the driving support systems

or strongly depressed.

• When the air conditioning system

is being used.

• When a switch of the air condition-

ing system is operated (windshield

defogger switch, etc.).

• If the battery charge becomes low.

■

When the hood is opened

●

If the hood is opened while the

engine is stopped by the Stop &

Start system, the engine will stall

and will not be able to be restarted

by the automatic engine start

function. In this case, restart the

engine using the normal engine

starting procedure. (



P.193, 194)

●

If the hood is closed after the

engine is started with the hood

open, the Stop & Start system will

not operate. Close the hood, turn

the engine switch off, wait 30 sec-

onds or more, and then start the

engine.

■

Air conditioning system opera-

tion while the engine is stopped

by the Stop & Start system

Vehicles with an automatic air con-

ditioning system: When the air con-

ditioning is in automatic mode and

the engine is stopped by the Stop &

Start system, the fan may operate at

a low speed in order to prevent the

temperature in the cabin from

increasing or decreasing or may be

stopped.
To prioritize air conditioning system

performance when the vehicle is

stopped, disable the Stop & Start

system by pressing the Stop & Start

cancel switch.

●

If the windshield is fogged up

Turn the windshield defogger on.
(



P.511, 517)

If the windshield fogs up frequently,
press the Stop & Start cancel switch
to disable the Stop & Start system.

●

If an odor is emitted from the air

conditioning system

• Vehicles with a manual air condi-

tioning system:

If the idling stop time setting is set

to “Extended”, change it to “Stan-

dard”. If an odor is emitted when

the idling stop time setting is set to

“Standard”, press the Stop & Start

cancel switch to deactivate the

Stop & Start system.

• Vehicles with an automatic air

conditioning system:

Press the Stop & Start cancel

switch to deactivate the Stop &

Start system.

■

Changing the idling stop time

with the air conditioning system

on

The length of time the Stop & Start

system will operate when the air

conditioning system is on can be
changed in

 of the multi-informa-

tion display (



P.94). (The length of

time the Stop & Start system will

operate when the air conditioning

system is off cannot be changed.)

■

Displaying the Stop & Start sys-

tem status

After Start:
Displays the cumulative time that

the engine is stopped by the Stop &

Start system from when the engine

is started until the engine is

stopped.

This item is reset each time the

engine stops.

■

Multi-information display mes-

sages

If the following situations,



and a message may be displayed

on the multi-information display.

●

When the engine cannot be

stopped by the Stop & Start sys-

tem

 “Press Brake More to Acti-

vate”

349

4-5. Using the driving support systems

4

Dr

iv

ing

• The brake pedal is not sufficiently

depressed.



 If the brake pedal is depressed

further, the system will operate.

 “Non-Dedicated Battery”

• A battery not designed for use

with a Stop & Start system may

have been installed.



 Have the vehicle inspected by

your Toyota dealer.

 “Battery Charging”

• The battery charge may be low.



 Stopping of the engine is tempo-

rarily prohibited to prioritize charging
of the battery. After the engine runs
for a certain amount of time, the sys-
tem will be enabled.
• A refresh charge may be occur-

ring (Examples: For a while after

the battery terminals have been

disconnected and reconnected.

For a while after the battery has

been replaced. etc.)



 After a refresh charge for up to

an hour completes, the system can
be operated.
• If displayed continuously for a

long time (more than an hour)



 The battery may be deteriorated.

Contact your Toyota dealer for
details.

 “Stop & Start System

Unavailable”
• The Stop & Start system is tempo-

rarily disabled.



 Allow the engine to run for some

time.
• The engine may have been

started with the hood open.



 Close the hood, turn the engine

switch off, wait for 30 seconds or
more, and then start the engine.

 “In Preparation”

• The vehicle is being driven in a

high altitude area.

• The brake booster vacuum is low.



 When the brake booster vacuum

reaches a predetermined level, the
system will be enabled.

 “For Climate Control”

• The air conditioning system is

being used when the ambient

temperature is high or low.



If the difference between the set

temperature and cabin temperature
becomes small, the system will be
enabled.
• The windshield defogger is on.

●

When the engine automatically

restarts while stopped by the Stop

& Start system

 “In Preparation”

• The brake pedal has been

depressed further or pumped.



 The system will be enabled after

the engine runs and the brake
booster vacuum reaches a predeter-
mined level.

 “For Climate Control”

• The air conditioning system has

been turned on or is being used.

• The windshield defogger has

been turned on.

 “Battery Charging”

• The battery charge may be low.



The system will be enabled after

the engine runs to sufficiently

350

4-5. Using the driving support systems

charge the battery.

■

When the buzzer sounds

If the driver’s door is opened when

the engine is stopped by the Stop &

Start system and the shift lever is in

D, a buzzer will sound and the Stop

& Start system indicator will flash. To

stop the buzzer, close the driver’s

door.

■

The Stop & Start system protec-

tion function

●

When the volume of the audio

system is excessively high, sound

output from the audio system may

suddenly be cut off in order to

reduce battery consumption. To

prevent the audio system from

being cut off, keep the volume of

audio system at a moderate level.

If the audio system has been cut

off, turn the engine switch off, wait

for 3 seconds or more and then

turn it to ACC or ON to re-enable

the audio system.

●

The audio system may not be acti-

vated if the battery terminals are

disconnected and then recon-

nected. If this occurs, turn the

engine switch off and then repeat

the following operation twice to

activate the audio system nor-

mally.

• Turn the engine switch to ON and

then to off.

■

Replacing the battery



P.657

■

If the Stop & Start cancel indica-

tor flashes continuously

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

■

If “Stop & Start System Mal-

function Visit Your Dealer” is

displayed on the multi-informa-

tion display

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

WARNING

■

When the Stop & Start system

is operating

Make sure to disable the Stop &

Start system while the vehicle is in

a poorly ventilated area.

If not disabled, the engine may be

automatically restarted unexpect-

edly, causing exhaust gases to

collect and enter the vehicle, pos-

sibly resulting in death or a seri-

ous health hazard.

●

Do not leave the vehicle while

the engine is stopped by the

Stop & Start system (while the

Stop & Start indicator is on). An

accident may occur due to the

automatic engine start function.

●

Depress the brake pedal and

apply the parking brake when

necessary while the engine is

stopped by the Stop & Start sys-

tem (while the Stop & Start indi-

cator is on).

NOTICE

■

To ensure the system oper-

ates correctly

If any of the following situations

occur, the Stop & Start system

may not operate correctly. Have

your vehicle inspected by your

Toyota dealer.

●

While the driver’s seat belt is

fastened, the driver’s and front

passenger’s seat belt reminder

light flashes.

●

Even though the driver’s seat

belt is not fastened, the driver’s

and front passenger’s seat belt

reminder light does not illumi-

nate.

351

4-5. Using the driving support systems

4

Dr

iv

ing

■

FF vehicles/Dynamic
Torque Control AWD vehi-
cles

1

Eco drive mode

Suitable for driving to improve fuel
economy by more smoothly gener-
ating torque in response to acceler-
ator pedal operations compared to
normal mode and restraining air
conditioning system operations
(heating/cooling).
When the switch is pressed while
not in Eco drive mode, the system
switches to Eco drive mode and the

NOTICE

●

Even though the driver’s door is

closed, the open door warning

light is illuminated or the interior

light is illuminated when the

interior light switch is in the door

position.

●

Even though the driver’s door is

open, the open door warning

light does not illuminate or the

interior light does not illuminate

when the interior light switch is

in the door position.

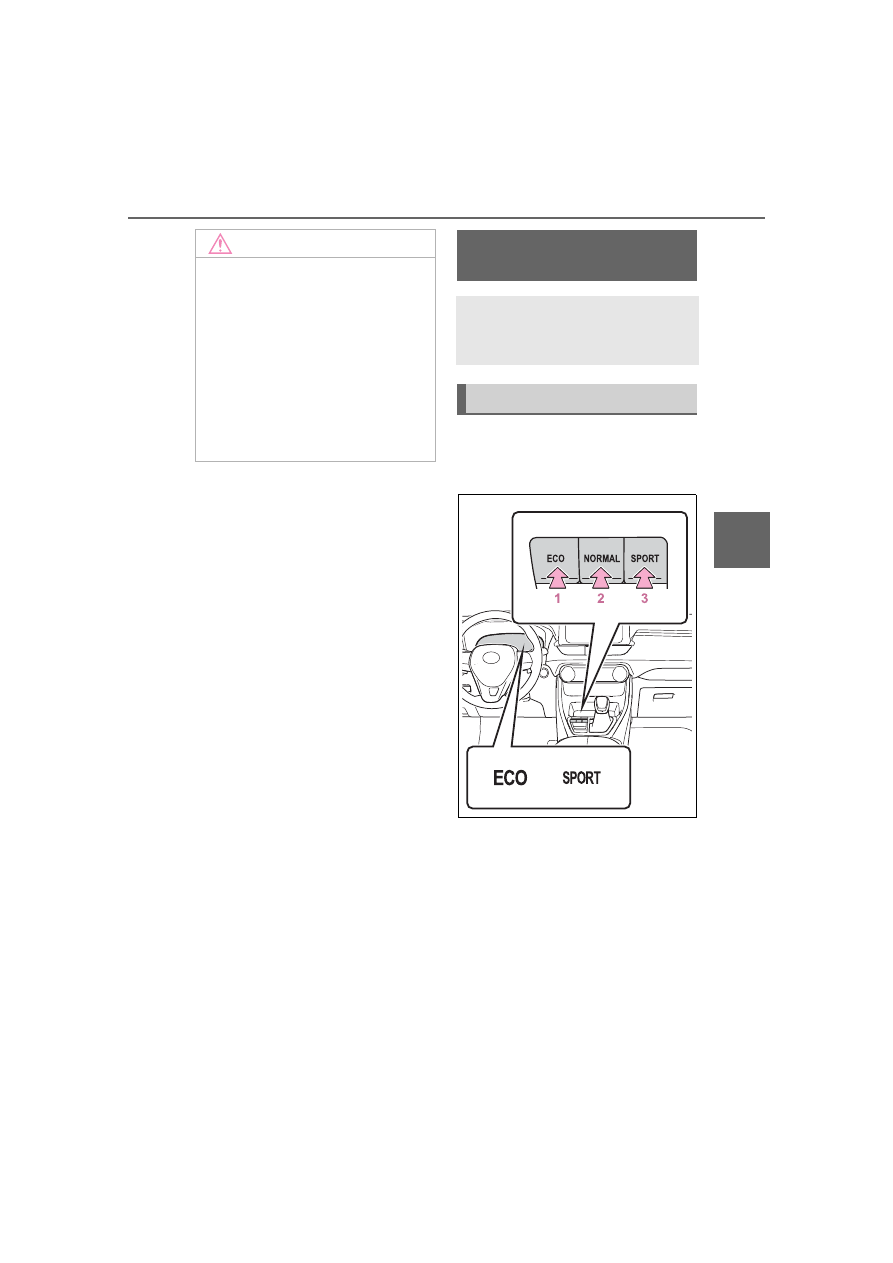

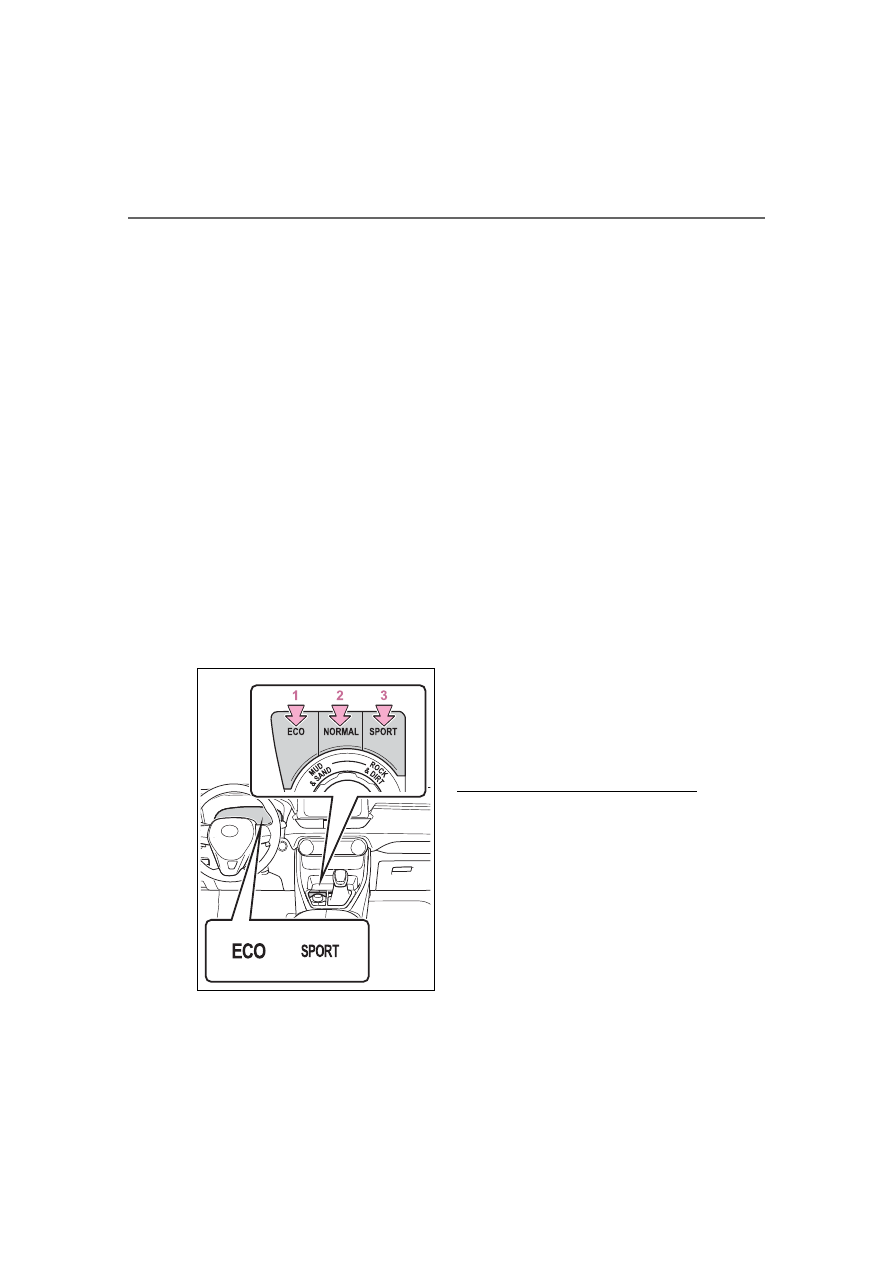

Driving mode select

switch

The driving modes can be
selected to suit the driving
and usage conditions.

Selecting a driving mode

352

4-5. Using the driving support systems

Eco drive mode indicator illumi-
nates on the multi-information dis-
play.

2

Normal mode

Suitable for normal driving.
The driving mode returns to normal
mode if the switch is pressed while
in Eco drive mode or sport mode.

3

Sport mode

Controls the steering feeling and
engine to create an acceleration
response that is suitable for sporty
driving. Suitable for when crisp
handling is desired, such as when
driving on mountainous roads.
When the switch is pressed while
not in sport mode, the system
switches to sport mode and the
sport mode indicator illuminates on
the multi-information display.

■

Dynamic Torque Vectoring
AWD vehicles

1

Eco drive mode

Suitable for driving to improve fuel

economy by more smoothly gener-
ating torque in response to acceler-
ator pedal operations compared to
normal mode and restraining air
conditioning system operations
(heating/cooling).
When the switch is pressed while
not in Eco drive mode, the system
switches to Eco drive mode and the
Eco drive mode indicator illumi-
nates on the multi-information dis-
play.

2

Normal mode

Suitable for normal driving.
The driving mode returns to normal
mode if the switch is pressed while
in Eco drive mode or sport mode.

3

Sport mode

Controls the steering feeling and
engine to create an acceleration
response that is suitable for sporty
driving. Suitable for when crisp
handling is desired, such as when
driving on mountainous roads.
When the switch is pressed while
not in sport mode, the system
switches to sport mode and the
sport mode indicator illuminates on
the multi-information display.

■

When changing to a driving

mode other than normal mode

●

The background color of the multi-

information display changes

according to the selected driving

mode.

●

When the speedometer is set to

analog display, the speedometer

display color also changes. (For

vehicles with the 7-inch multi-

information display only)

●

Switches to AWD control suitable

for the selected mode. (For

Dynamic Torque Vectoring AWD

vehicles only)

353

4-5. Using the driving support systems

4

Dr

iv

ing

■

Air conditioning system opera-

tion in Eco drive mode

In Eco drive mode, heating/cooling

operations and the fan speed is con-

trolled to improve fuel efficiency.

Perform the following procedures to

increase the air conditioning perfor-

mance.

●

Vehicles with automatic air condi-

tioning system: Turn eco air condi-

tioning mode off (



P.516)

●

Adjust the fan speed (



P.510,

516)

●

Cancel Eco drive mode

■

Canceling a driving mode

●

Sport mode is automatically can-

celed and the driving mode

returns to normal mode when the

engine switch is turned off.

●

Normal mode and Eco drive mode

are not canceled until another

driving mode is selected. (Even if

the engine switch is turned off,

normal mode and Eco drive mode

will not be automatically can-

celed.)

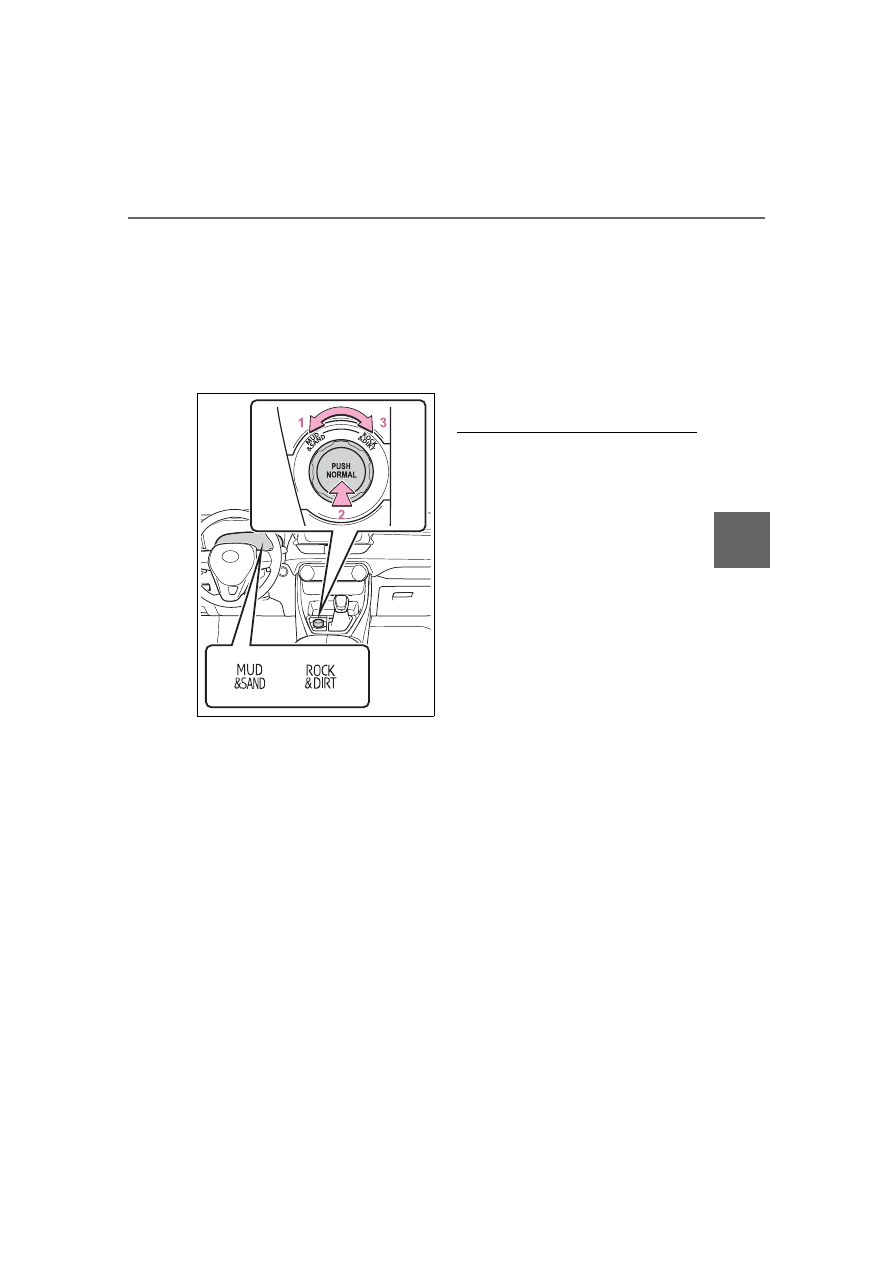

Multi-terrain Select

(AWD vehicles)

When driving over muddy,
sandy or rough road sur-
faces, Multi-terrain Select
selects a suitable driving
mode to switch AWD, brake
and drive force control to
perform control suitable for
the road condition.

WARNING

■

Before using Multi-terrain

Select

Make sure to observe the follow-

ing precautions. Failure to

observe these precautions may

result in an unexpected accident.

●

Check that the Mud & Sand and

Rock & Dirt indicators are illumi-

nated before driving. Multi-ter-

rain Select will not operate

when the indicators are off.

●

Do not rely solely upon the

Multi-terrain Select. This func-

tion is not intended to expand

the limits of the vehicle. If the

system is continuously used for

a long period of time, the load

on related parts increases and

the system may be unable to

operate normally, which may

lead to an accident. Thoroughly

check the road conditions and

driving route before driving, and

drive with caution.

354

4-5. Using the driving support systems

Control that is suitable for the
following road conditions can be
performed by switching to either
of the two modes. Select a
mode that is appropriate for the
road condition.

■

Mud & Sand mode

Suitable for driving on roads
with increased driving resis-
tance such as sandy roads,
muddy roads, etc.

■

Rock & Dirt mode

Suitable for driving in bumpy
road conditions, such as on
unpaved forest roads.

■

Dynamic Torque Control
AWD vehicles

1

Mud & Sand mode

When the switch is pressed while
not in Mud & Sand mode, the sys-
tem switches to Mud & Sand mode
and the Mud & Sand mode indica-
tor, VSC OFF indicator (



P.79) and

PCS warning light (



P.77) illumi-

nate on the multi-information dis-
play or the instrument cluster.

2

Normal mode

Mode that performs AWD, brake
and drive force control suitable for
driving on general roads. Use nor-
mal mode when not driving off-
road.
The driving mode returns to normal
mode if the switch is pressed while
in Mud & Sand mode or Rock & Dirt
mode.

3

Rock & Dirt mode

WARNING

●

The road conditions listed in

“Guidelines for selecting each

mode” are for reference only.

There is a chance that the func-

tion may not be the most appro-

priate in terms of road

conditions such as pitch, slip-

periness, undulation, etc. Thor-

oughly check the road

conditions before driving.

Guidelines for selecting
each mode

Changing the mode

355

4-5. Using the driving support systems

4

Dr

iv

ing

When the switch is pressed while
not in Rock & Dirt mode, the sys-
tem switches to Rock & Dirt mode
and the Rock & Dirt mode indicator
illuminates on the multi-information
display.

■

Dynamic Torque Vectoring
AWD vehicles

1

Mud & Sand mode

When the switch is turned to the left
while not in Mud & Sand mode, the
system switches to Mud & Sand
mode and the Mud & Sand mode
indicator, VSC OFF indicator
(



P.79) and PCS warning light

(



P.77) illuminate on the multi-

information display or the instru-
ment cluster.

2

Normal mode

Mode that performs AWD, brake
and drive force control suitable for
driving on general roads. Use nor-
mal mode when not driving off-
road.
The driving mode returns to normal

mode if the switch is pressed while
in Mud & Sand mode or Rock & Dirt
mode.

3

Rock & Dirt mode

When the switch is turned to the
right while not in Rock & Dirt mode,
the system switches to Rock & Dirt
mode and the Rock & Dirt mode
indicator illuminates on the multi-
information display.

■

Multi-terrain Select

●

Multi-terrain Select is intended for

use when driving on rough roads.

Drive in normal mode during nor-

mal driving.

●

The Mud & Sand and Rock & Dirt

modes control the vehicle so that

it can maximize the drive force

and improve drivability on rough

roads. As a result, fuel efficiency

may diminish when compared to

driving in normal mode.

■

If Mud & Sand or Rock & Dirt

mode is selected

●

The background of the multi-infor-

mation display will change follow-

ing the Multi-terrain Select mode.

●

The AWD operation status display

will automatically switch on the

multi-information display.

●

The color of the switch will change

following the Multi-terrain Select

mode. (For Dynamic Torque Vec-

toring AWD vehicles only)

■

AWD control for Mud & Sand

and Rock & Dirt modes

If the vehicle speed exceeds the

speeds listed below, 4WD control is

performed similar to that performed

in Normal mode, even if Mud &

Sand or Rock & Dirt mode is

selected.

●

Mud & Sand mode: Vehicle speed

is approximately 40 km/h (25

mph) or more

●

Rock & Dirt mode: Vehicle speed

356

4-5. Using the driving support systems

is approximately 25 km/h (16

mph) or more

If the vehicle speed drops below the

above speeds, the system automati-

cally switches to the 4WD control

suitable for each mode.

■

When Multi-terrain Select brake

control temporarily stops oper-

ating

If Mud & Sand or Rock & Dirt mode

is continuously used for a long

period of time, the brakes may over-

heat, and Multi-terrain Select brake

control may temporarily stop operat-

ing.

●

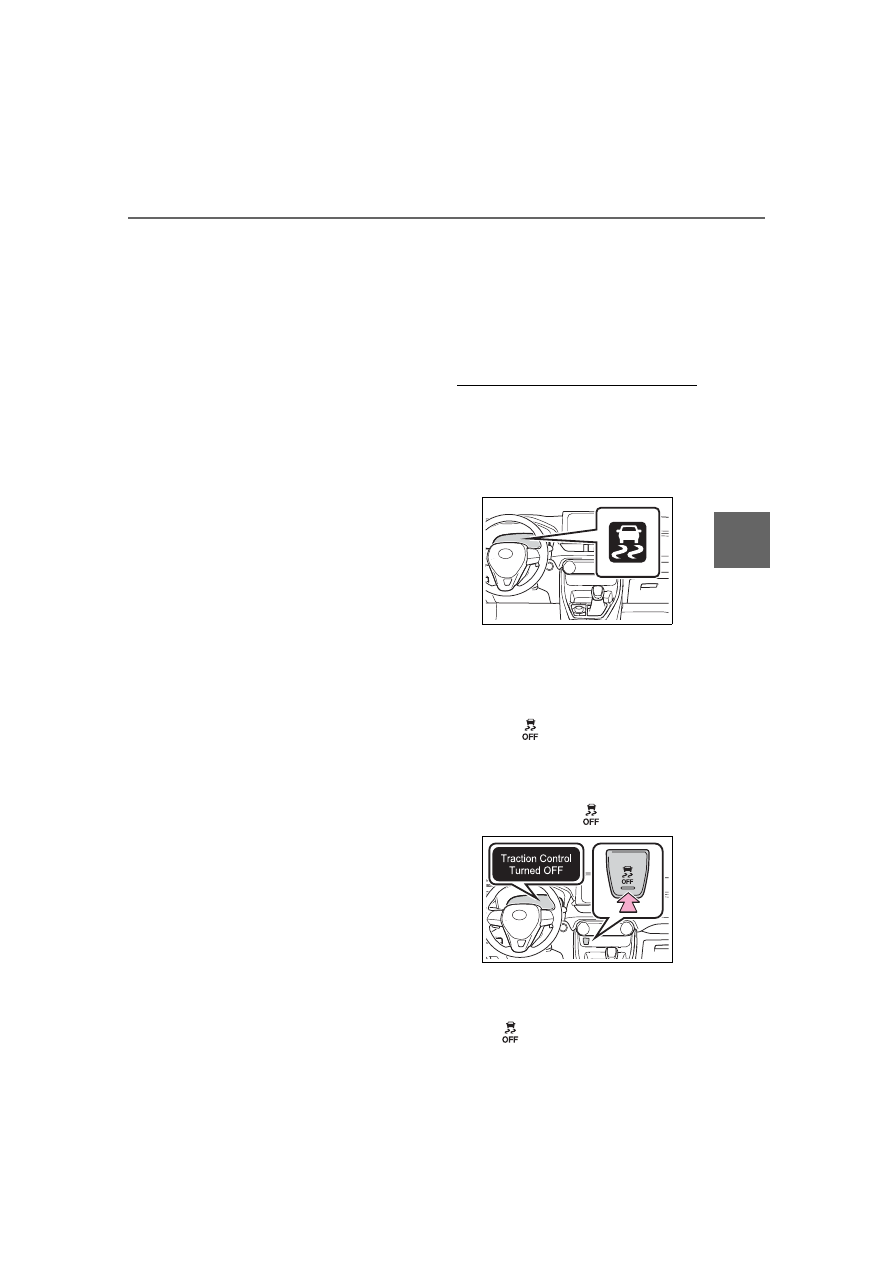

At this time, the buzzer sounds

intermittently and “Traction Con-

trol Turned OFF” is displayed on

the multi-information display.

●

If Multi-terrain Select brake control

stops operating, stop the vehicle

in a safe location as soon as pos-
sible

*

 and wait until the system

temperature decreases. Once the

display message on the multi-

information display turns off, the

brake control returns to normal.

Note that normal driving is still

possible even when Multi-terrain

Select brake control is not operat-

ing.

*

: After stopping the vehicle, do not

stop the engine until the display
message has turned off.

■

When Mud & Sand or Rock &

Dirt mode is canceled

In the following situations, Mud &

Sand mode or Rock & Dirt mode are

automatically canceled even if they

are selected.

●

When the driving mode is

changed (



P.351)

●

When the engine switch is turned

off

■

Driving in Mud & Sand or Rock

& Dirt mode

The following types of situations

may occur, but they are not malfunc-

tions.

●

Vibrations may be felt throughout

the vehicle or steering wheel

●

Operating noise may be heard

from the engine compartment

■

When an inspection at your

Toyota dealer is necessary

In the following situations, the sys-

tem may be malfunctioning. Have

the vehicle inspected by your Toyota

dealer immediately.

●

When the slip indicator light illumi-

nates while Mud & Sand or Rock

& Dirt mode is selected

●

When the indicator for each mode

does not illuminate even though

Mud & Sand or Rock & Dirt mode

is selected

357

4-5. Using the driving support systems

4

Dr

iv

ing

■

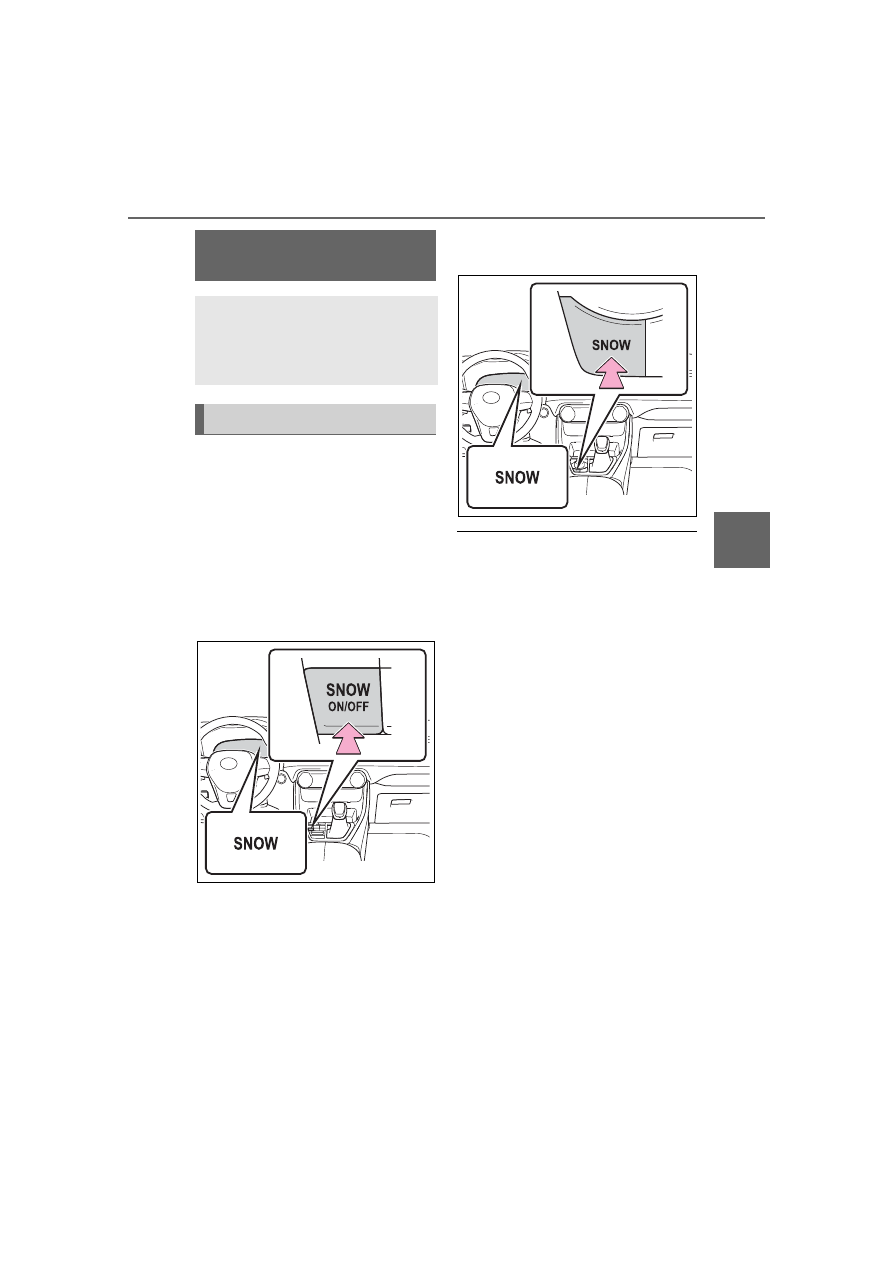

Dynamic Torque Control
AWD vehicles

Press the snow mode switch.

When the switch is pressed, the
system switches to snow mode and
the snow mode indicator illuminates
on the multi-information display.
When the switch is pressed again,
the snow mode indicator turns off.

■

Dynamic Torque Vectoring
AWD vehicles

Press the snow mode switch.

When the switch is pressed, the
system switches to snow mode and
the snow mode indicator illuminates
on the multi-information display.

When the switch is pressed again,
the snow mode indicator turns off.

■

When changing to snow mode

The background of the multi-infor-

mation display changes.

■

Canceling the snow mode

Snow mode is automatically can-

celed when the engine switch is

turned off or Mud & Sand or Rock &

Dirt mode is selected for Multi-ter-

rain Select.

Snow mode switch

(AWD vehicles)

Snow mode can be selected
to suit the conditions when
driving on slippery road sur-
faces, such as on snow.

System operation

358

4-5. Using the driving support systems

*

: If equipped

Press the “DAC” switch.

The downhill assist control system
indicator will come on and the sys-
tem will operate.
When the system is in operation,
the slip indicator light will flash, and
the stop lights/high mounted stop
lights will be lit. A sound may also
occur during the operation. This
does not indicate a malfunction.

Press the “DAC” switch while
the system is in operation.

The downhill assist control system
indicator will flash as the system
gradually ceases operation, and will
turn off when the system is fully off.
Press the “DAC” switch while the
downhill assist control system indi-
cator is flashing to start the system
again.

■

Operating tips

The system will operate when the

shift lever is in D or 1 range of S

mode or R.

■

If the downhill assist control

system indicator flashes

●

In the following situations, the indi-

cator flashes and the system will

not operate:

• The shift lever is in a position

other than D or 1 range of S mode

or R.

• The accelerator or brake pedal is

depressed.

• The vehicle speed exceeds

approximately 15 mph (25 km/h).

• The brake system overheats.

●

In the following situation, the indi-

cator flashes to alert the driver,

but the system will operate:

• The “DAC” switch is turned off

while the system is operating.

The system will gradually ceases

Downhill assist con-

trol system

*

The downhill assist control
system helps to prevent
excessive speed on steep
downhill slopes.
The system will operate
when the vehicle is traveling
under 25 km/h (15 mph) with
the accelerator and brake
pedals released.

WARNING

■

When using downhill assist

control system

Do not rely overmuch on the

downhill assist control system.

This function does not extend the

vehicle’s performance limitations.

Always thoroughly check the road

conditions, and drive safely.

System operation

Turning off the system

359

4-5. Using the driving support systems

4

Dr

iv

ing

operation. The indicator will flash
during operation, and then go off
when the system is fully off.

■

When the downhill assist con-

trol system is operated continu-

ously

This may cause the brake actuator

to overheat. In this case, the down-

hill assist control system will stop

operating, a buzzer will sound and

the downhill assist control system

indicator will start flashing. Refrain

from using the system until the

downhill assist control system indi-

cator stays on. (The vehicle can be

driven normally during this time.)

■

Sounds and vibrations caused

by the downhill assist control

system

●

A sound may be heard from the

engine compartment when the

engine is started or just after the

vehicle begins to move. This

sound does not indicate that a

malfunction has occurred in down-

hill assist control system.

●

Either of the following conditions

may occur when the downhill

assist control system is operating.

None of these are indicators that a

malfunction has occurred.

• Vibrations may be felt through the

vehicle body and steering.

• A motor sound may be heard after

the vehicle comes to a stop.

■

System malfunction

In the following cases, have your

vehicle checked by your Toyota

dealer.

●

The downhill assist control system

indicator does not come on when

the engine switch is turned to ON.

●

The downhill assist control system

indicator does not come on when

the “DAC” switch is pressed.

●

The slip indicator light comes on.

WARNING

■

The system may not operate

on the following surfaces,

which may lead to an acci-

dent causing death or serious

injury

●

Slippery surfaces such as wet

or muddy roads

●

Icy surface

●

Unpaved roads

360

4-5. Using the driving support systems

■

ABS (Anti-lock Brake Sys-
tem)

Helps to prevent wheel lock
when the brakes are applied
suddenly, or if the brakes are
applied while driving on a slip-
pery road surface

■

Brake assist

Generates an increased level of
braking force after the brake
pedal is depressed when the
system detects a panic stop sit-
uation

■

VSC (Vehicle Stability Con-
trol)

Helps the driver to control skid-
ding when swerving suddenly or
turning on slippery road sur-
faces.

■

Enhanced VSC (Enhanced
Vehicle Stability Control)

Provides cooperative control of
the ABS, TRAC, VSC and EPS.
Helps to maintain directional
stability when swerving on slip-
pery road surfaces by con-
trolling steering performance.

■

Trailer Sway Control

Helps the driver to control trailer
sway by selectively applying
brake pressure for individual
wheels and reducing driving
torque when trailer sway is
detected.

■

TRAC (Traction Control)

Helps to maintain drive power
and prevent the drive wheels
from spinning when starting the
vehicle or accelerating on slip-
pery roads

■

Active Cornering Assist
(ACA)

Helps to prevent the vehicle
from drifting to the outer side by
performing inner wheel brake
control when attempting to
accelerate while turning

■

Hill-start assist control

Helps to reduce the backward
movement of the vehicle when
starting on an uphill

■

EPS (Electric Power Steer-
ing)

Employs an electric motor to
reduce the amount of effort

Driving assist systems

To keep driving safety and
performance, the following
systems operate automati-
cally in response to various
driving situations. Be
aware, however, that these
systems are supplementary
and should not be relied
upon too heavily when oper-
ating the vehicle.

Summary of the driving
assist systems

361

4-5. Using the driving support systems

4

Dr

iv

ing

needed to turn the steering
wheel

■

Dynamic Torque Control
AWD system (if equipped)

Automatically switches from
front-wheel drive to all-wheel
drive (AWD) according to the
driving conditions, helping to
ensure reliable handling and
stability. Examples of conditions
where the system will switch to
AWD are when cornering, going
uphill, starting off or accelerat-
ing, and when the road surface
is slippery due to snow, rain, etc.

■

Dynamic Torque Vectoring
AWD system (if equipped)

Automatically switches from
front wheel drive to all-wheel
drive (AWD) according to the
driving conditions, helping to
ensure reliable handling and
stability. Examples of conditions
where the system will switch to
AWD are when cornering, going
uphill, starting off or accelerat-
ing, and when the road surface
is slippery due to snow, rain, etc.
Also, when the vehicle is corner-
ing, the drive torque distribution
between the front and rear
wheels and between the rear left
and right wheels is precisely
controlled to improve drivability
and stability.

■

The Secondary Collision
Brake

When the SRS airbag sensor

detects a collision and the sys-
tem operates, the brakes and
brake lights are automatically
controlled to reduce the vehicle
speed and help reduce the pos-
sibility of further damage due to
a secondary collision.

■

When the TRAC/VSC/Trailer

Sway Control systems are oper-

ating

The slip indicator light will flash

while the TRAC/VSC/Trailer Sway

Control systems are operating.

■

Disabling the TRAC system

If the vehicle gets stuck in mud, dirt

or snow, the TRAC system may

reduce power from the engine to the

wheels.

Pressing

 to turn the system off

may make it easier for you to rock
the vehicle in order to free it.
To turn the TRAC system off, quickly
press and release

.

“Traction Control Turned OFF” will

be shown on the multi-information

display.

Press

 again to turn the system

362

4-5. Using the driving support systems

back on.

■

Turning off the

TRAC/VSC/Trailer Sway Con-

trol systems

To turn the TRAC/VSC/Trailer Sway

Control systems off, press and hold

 for more than 3 seconds while

the vehicle is stopped.
The VSC OFF indicator light will

come on and the “Traction Control

Turned OFF” will be shown on the
multi-information display.

*

Press

 again to turn the systems

back on.

*

: PCS will also be disabled (only

Pre-Collision warning is avail-
able). The PCS warning light will
come on and a message will be
displayed on the multi-information
display. (



P.236)

■

When the message is dis-

played on the multi-information

display showing that TRAC has
been disabled even if

 has

not been pressed

TRAC is temporary deactivated. If

the information continues to show,

contact your Toyota dealer.

■

Operating conditions of hill-

start assist control

When the following four conditions

are met, the hill-start assist control

will operate:

●

The shift lever is in a position

other than P or N (when starting

off forward/backward on an

upward incline).

●

The vehicle is stopped.

●

The accelerator pedal is not

depressed.

●

The parking brake is not engaged.

■

Automatic system cancelation

of hill-start assist control

The hill-start assist control will turn

off in any of the following situations:

●

The shift lever is shifted to P or N.

●

The accelerator pedal is

depressed.

●

The parking brake is engaged.

●

No more than 2 seconds have

elapsed after the brake pedal is

released.

■

Sounds and vibrations caused

by the ABS, brake assist, VSC,

Trailer Sway Control, TRAC and

hill-start assist control systems

●

A sound may be heard from the

engine compartment when the

brake pedal is depressed repeat-

edly, when the engine is started or

just after the vehicle begins to

move. This sound does not indi-

cate that a malfunction has

occurred in any of these systems.

●

Any of the following conditions

may occur when the above sys-

tems are operating. None of these

indicates that a malfunction has

occurred.

• Vibrations may be felt through the

vehicle body and steering.

• A motor sound may be heard also

after the vehicle comes to a stop.

• The brake pedal may pulsate

slightly after the ABS is activated.

• The brake pedal may move down

slightly after the ABS is activated.

■

Active Cornering Assist opera-

tion sounds and vibrations

When the Active Cornering Assist is

operated, operation sounds and

vibrations may be generated from

the brake system, but this is not a

malfunction.

■

AWD system operation sounds

and vibrations when switching

between AWD and front wheel

drive

When the vehicle switches from

AWD to front wheel drive and vice

versa, operation sounds and vibra-

tions may be generated, but this is

not a malfunction.

363

4-5. Using the driving support systems

4

Dr

iv

ing

■

EPS operation sound

When the steering wheel is oper-

ated, a motor sound (whirring

sound) may be heard. This does not

indicate a malfunction.

■

Automatic reactivation of

TRAC, Trailer Sway Control and

VSC systems

After turning the TRAC, Trailer

Sway Control and VSC systems off,

the systems will be automatically re-

enabled in the following situations:

●

When the engine switch is turned

off.

●

If only the TRAC system is turned

off, the TRAC will turn on when

vehicle speed increases.

If both the TRAC and VSC sys-

tems are turned off, automatic re-

enabling will not occur when vehi-

cle speed increases.

■

Operating conditions of Active

Cornering Assist

The system operates when the fol-

lowing occurs.

●

TRAC/VSC can operate

●

The driver is attempting to accel-

erate while turning

●

The system detects that the vehi-

cle is drifting to the outer side

●

The brake pedal is released

■

Reduced effectiveness of the

EPS system

The effectiveness of the EPS sys-

tem is reduced to prevent the sys-

tem from overheating when there is

frequent steering input over an

extended period of time. The steer-

ing wheel may feel heavy as a

result. Should this occur, refrain

from excessive steering input or

stop the vehicle and turn the engine

off. The EPS system should return

to normal within 10 minutes.

■

Secondary Collision Brake

operating conditions

The system operates when the SRS

airbag sensor detects a collision

while the vehicle is in motion. How-

ever, the system does not operate in

any of the following situations.

●

The vehicle speed is below 6 mph

(10 km/h)

●

Components are damaged

■

Secondary Collision Brake

automatic cancellation

The system is automatically can-

celed in any of the following situa-

tions.

●

The vehicle speed drops below

approximately 6 mph (10 km/h)

●

A certain amount of time elapses

during operation

●

The accelerator pedal is

depressed a large amount

364

4-5. Using the driving support systems

■

If a message about AWD is shown on the multi-information display

(AWD models)

Perform the following actions.

*

: After stopping the vehicle, do not stop the engine until the display mes-

sage has turned off.

Message

Details/Actions

“AWD System Over-

heated Switching to

2WD Mode”

AWD system is overheating.



Perform the following actions.

• Reduce the vehicle speed until the message

disappears.

• Stop the vehicle in a safe place and let the

engine idle.

*

Once the display message on the multi-informa-
tion display turns off, there is no problem continu-
ing to drive.
If the message does not disappear, have your
vehicle checked by your Toyota dealer immedi-
ately.

“AWD System Over-

heated 2WD Mode

Engaged”

The vehicle switched from all-wheel drive (AWD)
to front wheel drive due to overheating.



Perform the following actions.

• Reduce the vehicle speed until the message

disappears.

• Stop the vehicle in a safe place and let the

engine idle.

*

Once the display message on the multi-informa-
tion display turns off, the AWD system returns to
normal.
If the message does not disappear, have your
vehicle checked by your Toyota dealer immedi-
ately.

“AWD System Malfunc-

tion 2WD Mode

Engaged Visit Your

Dealer”

A malfunction occurred in the AWD system.



Have your vehicle checked by your Toyota
dealer immediately.

365

4-5. Using the driving support systems

4

Dr

iv

ing

WARNING

■

The ABS does not operate

effectively when

●

The limits of tire gripping perfor-

mance have been exceeded

(such as excessively worn tires

on a snow covered road).

●

The vehicle hydroplanes while

driving at high speed on wet or

slick roads.

■

Stopping distance when the

ABS is operating may exceed

that of normal conditions

The ABS is not designed to

shorten the vehicle’s stopping dis-

tance. Always maintain a safe dis-

tance from the vehicle in front of

you, especially in the following sit-

uations:

●

When driving on dirt, gravel or

snow-covered roads

●

When driving with tire chains

●

When driving over bumps in the

road

●

When driving over roads with

potholes or uneven surfaces

■

TRAC/VSC may not operate

effectively when

Directional control and power may

not be achievable while driving on

slippery road surfaces, even if the

TRAC/VSC system is operating.

Drive the vehicle carefully in con-

ditions where stability and power

may be lost.

■

Active Cornering Assist does

not operate effectively when

●

Do not overly rely on Active

Cornering Assist. Active Corner-

ing Assist may not operate

effectively when accelerating

down slopes or driving on slip-

pery road surfaces.

●

When Active Cornering Assist

frequently operates, Active Cor-

nering Assist may temporarily

stop operating to ensure proper

operation of the brakes, TRAC

and VSC.

■

Hill-start assist control does

not operate effectively when

●

Do not overly rely on hill-start

assist control. Hill-start assist

control may not operate effec-

tively on steep inclines and

roads covered with ice.

●

Unlike the parking brake, hill-

start assist control is not

intended to hold the vehicle sta-

tionary for an extended period

of time. Do not attempt to use

hill-start assist control to hold

the vehicle on an incline, as

doing so may lead to an acci-

dent.

■

When the TRAC/VSC/Trailer

Sway Control is activated

The slip indicator light flashes.

Always drive carefully. Reckless

driving may cause an accident.

Exercise particular care when the

indicator light flashes.

■

When the TRAC/VSC/Trailer

Sway Control systems are

turned off

Be especially careful and drive at

a speed appropriate to the road

conditions. As these are the sys-

tems to help ensure vehicle stabil-

ity and driving force, do not turn

the TRAC/VSC/Trailer Sway Con-

trol systems off unless necessary.
Trailer Sway Control is part of the

VSC system and will not operate

if VSC is turned off or experiences

a malfunction.

366

4-5. Using the driving support systems

WARNING

■

Dynamic Torque Vectoring

AWD system (if equipped)

The cornering performance of the

newly developed AWD system

has been improved. However, do

not overly rely on the system and

drive with caution.

■

Replacing tires

Make sure that all tires are of the

specified size, brand, tread pat-

tern and total load capacity. In

addition, make sure that the tires

are inflated to the recommended

tire inflation pressure level.

The ABS, TRAC and VSC/Trailer

Sway Control systems will not

function correctly if different tires

are installed on the vehicle.

Contact your Toyota dealer for fur-

ther information when replacing

tires or wheels.

■

Handling of tires and the sus-

pension

Using tires with any kind of prob-

lem or modifying the suspension

will affect the driving assist sys-

tems, and may cause a system to

malfunction.

■

Trailer Sway Control precau-

tion

The Trailer Sway Control system

is not able to reduce trailer sway

in all situations. Depending on

many factors such as the condi-

tions of the vehicle, trailer, road

surface and driving environment,

the Trailer Sway Control system

may not be effective. Refer to

your trailer owner’s manual for

information on how to tow your

trailer properly.

■

If trailer sway occurs

Observe the following precau-

tions.

Failing to do so may cause death

or serious injury.

●

Firmly grip the steering wheel.

Steer straight ahead. Do not try

to control trailer swaying by

turning the steering wheel.

●

Begin releasing the accelerator

pedal immediately but very

gradually to reduce speed.

Do not increase speed. Do not

apply vehicle brakes.

If you make no extreme correction
with the steering or brakes, your
vehicle and trailer should stabi-
lize. (



P.179)

■

Secondary Collision Brake

Do not rely solely upon the Sec-

ondary Collision Brake. This sys-

tem is designed to help reduce

the possibility of further damage

due to a secondary collision, how-

ever, that effect changes accord-

ing to various conditions. Overly

relying on the system may result

in death or serious injury.

367

4-6. Driving tips

4

Dr

iv

ing

4-6.Driving tips



Use fluids that are appropriate
to the prevailing outside tem-
peratures.

• Engine oil
• Engine coolant
• Washer fluid



Have a service technician
inspect the condition of the
battery.



Have the vehicle fitted with
four snow tires or purchase a
set of tire chains for the front
tires.

*

Ensure that all tires are the same
size and brand, and that chains
match the size of the tires.

*

: Tire chains cannot be mounted

on vehicles with 235/55R19 tires.

Winter driving tips

Carry out the necessary
preparations and inspec-
tions before driving the
vehicle in winter. Always
drive the vehicle in a man-
ner appropriate to the pre-
vailing weather conditions.

Pre-winter preparations

WARNING

■

Driving with snow tires

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in a

loss of vehicle control and cause

death or serious injury.

●

Use tires of the specified size.

●

Maintain the recommended

level of air pressure.

●

Do not drive in excess of 75

mph (120 km/h), regardless of

the type of snow tires being

used.

●

Use snow tires on all, not just

some wheels.

■

Driving with tire chains

(except 235/55R19 tires)

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in the

vehicle being unable to be driven

safely, and may cause death or

serious injury.

●

Do not drive in excess of the

speed limit specified for the tire

chains being used, or 30 mph

(50 km/h), whichever is lower.

●

Avoid driving on bumpy road

surfaces or over potholes.

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

●

Slow down sufficiently before

entering a curve to ensure that

vehicle control is maintained.

●

Do not use LTA (Lane Tracing

Assist) system.

NOTICE

■

Repairing or replacing snow

tires (vehicles with tire pres-

sure warning system)

Request repairs or replacement of

snow tires from your Toyota

dealer or legitimate tire retailers.

This is because the removal and

attachment of snow tires affects

the operation of the tire pressure

warning valves and transmitters.

368

4-6. Driving tips

Perform the following according
to the driving conditions:



Do not try to forcibly open a
window or move a wiper that
is frozen. Pour warm water
over the frozen area to melt
the ice. Wipe away the water
immediately to prevent it from
freezing.



To ensure proper operation of
the climate control system
fan, remove any snow that
has accumulated on the air
inlet vents in front of the wind-
shield.



Check for and remove any
excess ice or snow that may
have accumulated on the
exterior lights, vehicle’s roof,
chassis, around the tires or on
the brakes.



Remove any snow or mud
from the bottom of your shoes
before getting in the vehicle.

Accelerate the vehicle slowly,
keep a safe distance between
you and the vehicle ahead, and
drive at a reduced speed suit-
able to road conditions.



Park the vehicle and move
the shift lever to P without set-

ting the parking brake. The
parking brake may freeze up,
preventing it from being
released. If the vehicle is
parked without setting the
parking brake, make sure to
block the wheels.
Failure to do so may be dan-
gerous because it may cause
the vehicle to move unexpect-
edly, possibly leading to an
accident.
When the parking brake is in
automatic mode, release the
parking brake after shifting
the shift lever to P. (



P.203)



If the vehicle is left parked
with the brakes damp in cold
temperatures, there is a pos-
sibility of the brakes freezing.



If the vehicle is parked without
setting the parking brake,
confirm that the shift lever
cannot be moved out of P

*

.

*

: The shift lever will be locked if it is

attempted to be shifted from P to
any other position without
depressing the brake pedal. If the
shift lever can be shifted from P,
there may be a problem with the
shift lock system. Have the vehi-
cle inspected by your Toyota
dealer immediately.

Before driving the vehicle

When driving the vehicle

When parking the vehicle

369

4-6. Driving tips

4

Dr

iv

ing



Vehicles without 235/55R19
tires

Use the correct tire chain size
when mounting the tire chains.
Chain size is regulated for each
tire size.

Side chain:

0.12 in. (3 mm) in diameter

0.39 in. (10 mm) in width

1.18 in. (30 mm) in length

Cross chain:

0.16 in. (4 mm) in diameter

0.55 in. (14 mm) in width

0.98 in. (25 mm) in length



Vehicles with 235/55R19 tires

Tire chains cannot be mounted.
Snow tires should be used

instead.

Regulations regarding the use
of tire chains vary depending on
location and type of road.
Always check local regulations
before installing chains.

■

Tire chain installation

Observe the following precautions

when installing and removing

chains:

●

Install and remove tire chains in a

safe location.

●

Install tire chains on the front tires

only. Do not install tire chains on

the rear tires.

●

Install tire chains on front tires as

tightly as possible. Retighten

chains after driving 1/4 - 1/2 mile

(0.5 - 1.0 km).

●

Install tire chains following the

instructions provided with the tire

chains.

WARNING

■

When parking the vehicle

When parking the vehicle without

applying the parking brake, make

sure to chock the wheels. If you

do not chock the wheels, the vehi-

cle may move unexpectedly, pos-

sibly resulting in an accident.

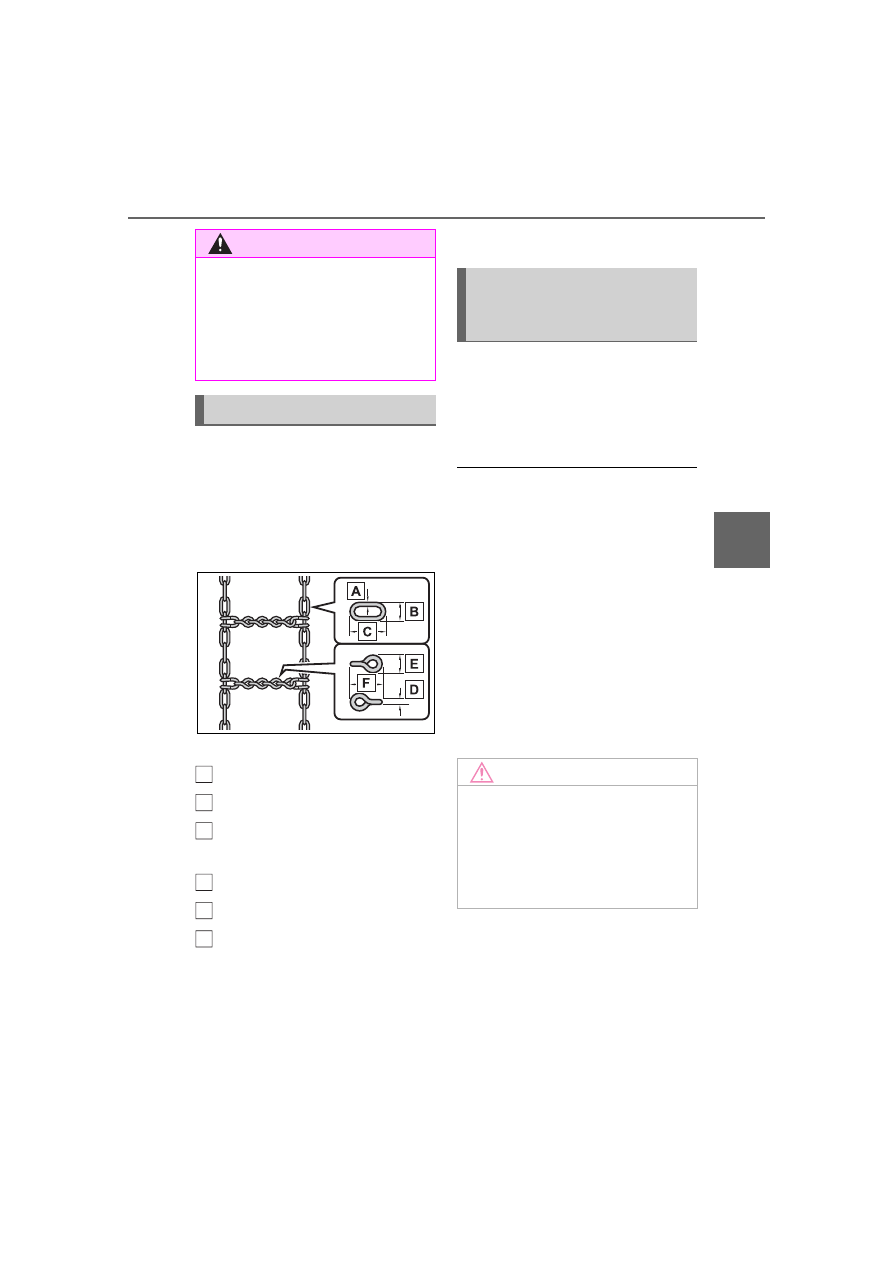

Selecting tire chains

A

B

C

D

E

F

Regulations on the use of
tire chains (except
235/55R19 tires)

NOTICE

■

Fitting tire chains (vehicles

with tire pressure warning

system)

The tire pressure warning valves

and transmitters may not function

correctly when tire chains are fit-

ted.

370

4-6. Driving tips



Specific design characteris-
tics give it a higher center of
gravity than ordinary passen-
ger cars. This vehicle design
feature causes this type of
vehicle to be more likely to
rollover. And, utility vehicles
have a significantly higher
rollover rate than other types
of vehicles.



An advantage of the higher
ground clearance is a better
view of the road allowing you
to anticipate problems.



It is not designed for corner-
ing at the same speeds as
ordinary passenger cars any
more than low-slung sports
cars are designed to perform
satisfactorily under off-road
conditions. Therefore, sharp
turns at excessive speeds
may cause the vehicle to roll-
over.

When driving your vehicle off-

Utility vehicle precau-

tions

This vehicle belongs to the
utility vehicle class, which
has higher ground clear-
ance and narrower tread in
relation to the height of its
center of gravity to make it
capable of performing in a
wide variety of off-road
applications.

Utility vehicle feature

WARNING

■

Utility vehicle precautions

Always observe the following pre-

cautions to minimize the risk of

death, serious injury or damage to

your vehicle:

●

In a rollover crash, an unbelted

person is significantly more

likely to die than a person wear-

ing a seat belt. Therefore, the

driver and all passengers

should always fasten their seat

belts.

●

Avoid sharp turns or abrupt

maneuvers, if at all possible.

Failure to operate this vehicle

correctly may result in loss of

control or vehicle rollover caus-

ing death or serious injury.

●

Loading cargo on the roof lug-

gage carrier (if equipped) will

make the center of the vehicle

gravity higher. Avoid high

speeds, sudden starts, sharp

turns, sudden braking or abrupt

maneuvers, otherwise it may

result in loss of control or vehi-

cle rollover due to failure to

operate this vehicle correctly.

●

Always slow down in gusty

crosswinds. Because of its pro-

file and higher center of gravity,

your vehicle is more sensitive to

side winds than an ordinary

passenger car. Slowing down

will allow you to have better

control.

●

Do not drive horizontally across

steep slopes. Driving straight up

or straight down is preferred.

Your vehicle (or any similar off-

road vehicle) can tip over side-

ways much more easily than

forward or backward.

Off-road driving

371

4-6. Driving tips

4

Dr

iv

ing

road, please observe the follow-
ing precautions to ensure your
driving enjoyment and to help
prevent the closure of areas to
off-road vehicles:



Drive your vehicle only in
areas where off-road vehicles
are permitted to travel.



Respect private property. Get
owner’s permission before
entering private property.



Do not enter areas that are
closed. Honor gates, barriers
and signs that restrict travel.



Stay on established roads.
When conditions are wet,
driving techniques should be
changed or travel delayed to
prevent damage to roads.

■

Additional information for off-

road driving



For owners in U.S. mainland,

Hawaii and Puerto Rico:

To obtain additional information per-
taining to driving your vehicle off-
road, consult the following organiza-
tions:

• State and Local Parks and Recre-

ation Departments

• State Motor Vehicle Bureau

• Recreational Vehicle Clubs

• U.S. Forest Service and Bureau of

Land Management

WARNING

■

Off-road driving precautions

Always observe the following pre-

cautions to minimize the risk of

death, serious injury or damage to

your vehicle:

●

Drive carefully when off the

road. Do not take unnecessary

risks by driving in dangerous

places.

●

Do not grip the steering wheel

spokes when driving off-road. A

bad bump could jerk the wheel

and injure your hands. Keep

both hands and especially your

thumbs on the outside of the

rim.

●

Always check your brakes for

effectiveness immediately after

driving in sand, mud, water or

snow.

●

After driving through tall grass,

mud, rock, sand, rivers, etc.,

check that there is no grass,

bush, paper, rags, stone, sand,

etc. adhering or trapped on the

underbody. Clear off any such

matter from the underbody. If

the vehicle is used with these

materials trapped or adhering to

the underbody, a breakdown or

fire could occur.

372

4-6. Driving tips

WARNING

●

When driving off-road or in rug-

ged terrain, do not drive at

excessive speeds, jump, make

sharp turns, strike objects, etc.

This may cause loss of control

or vehicle rollover causing

death or serious injury. You are

also risking expensive damage

to your vehicle’s suspension

and chassis.

NOTICE

■

To prevent the water damage

Take all necessary safety mea-

sures to ensure that water dam-

age to the engine or other

components does not occur.

●

Water entering the engine air

intake will cause severe engine

damage.

●

Water entering the automatic

transmission will cause deterio-

ration in shift quality, locking up

of your transmission accompa-

nied by vibration, and ultimately

damage.

●

Water can wash the grease

from wheel bearings, causing

rusting and premature failure,

and may also enter the differen-

tials, transmission and transfer

case (AWD models), reducing

the gear oil’s lubricating quali-

ties.

■

When you drive through

water

If driving through water, such as

when crossing shallow streams,

first check the depth of the water

and the bottom of the riverbed for

firmness. Drive slowly and avoid

deep water.

■

Inspection after off-road driv-

ing

●

Sand and mud that has accu-

mulated around brake discs

may affect braking efficiency

and may damage brake system

components.

●

Always perform a maintenance

inspection after each day of off-

road driving that has taken you

through rough terrain, sand,

mud, or water. For scheduled

maintenance information, refer

to the “Scheduled Maintenance

Guide” or “Owner’s Manual

Supplement”.

373

5

5

Audio

Audio

5-1. Basic function

Buttons overview.........

375

Menu screen ...............

377

Status icon ..................

378

“Setup” screen ............

380

5-2. Basic information before

operation

Initial screen................

381

Touch screen...............

382

Home screen...............

384

Entering letters and num-

bers/list screen operation

..................................

385

Screen adjustment ......

388

Linking multi-information

display and the system

..................................

389

5-3. Connectivity settings

Registering/Connecting a

Bluetooth

®

 device .....

390

Setting Bluetooth

®

 details

..................................

394

Wi-Fi

®

 Hotspot ............

402

5-4. Apple CarPlay/Android

Auto

Apple CarPlay

®

/Android

Auto...........................

407

5-5. Other settings

General settings..........

414

Voice settings..............

418

Vehicle settings ...........

419

5-6. Using the audio/visual

system

Quick reference...........

420

Some basics................

421

5-7. Radio operation

AM/FM/SiriusXM (SXM)

radio ..........................

425

5-8. Media operation

USB memory...............

432

iPod/iPhone (Apple Car-

Play) ..........................

434

Android Auto................

437

Bluetooth

®

 audio .........

438

5-9. Audio/visual remote con-

trols

Steering switches ........

442

5-10.Audio settings

Setup...........................

444

5-11.Tips for operating the

audio/visual system

Operating information..

446

5-12.Voice command system

operation

Voice command system

..................................

458

Command list ..............

461

5-13.Phone operation (Hands-

free system for cellular
phones)

Quick reference...........

465

Some basics................

466

374

Placing a call using the

Bluetooth

®

 hands-free sys-

tem ............................

470

Receiving a call using the

Bluetooth

®

hands-free sys-

tem ............................

473

Talking on the Bluetooth

®



hands-free system.....

474

Bluetooth

®

 phone message

function......................

476

5-14.Phone settings

Setup...........................

481

5-15.What to do if... (Blue-

tooth

®

)

Troubleshooting ..........

491

5-16.Connected Services over-

view

Connected Services....

495

Type A: Function achieved

by using a smartphone or
DCM..........................

496

Type B: Function achieved

by using DCM and the sys-
tem ............................

498

Type C: Function achieved

by using DCM............

499

Type D: Function achieved

by using DCM and a
smartphone ...............

502

5-17.Connected Services oper-

ation

Toyota Apps ................

504

5-18.Setup

Toyota Apps settings ...

508

375

5-1. Basic function

5

Audio

5-1.Basic function

*

: Vehicles with Audio only

For details about Audio Plus or Premium Audio, refer to “Navigation and
Multimedia System Owner’s Manual”.

By touching the screen with your finger, you can control the
selected functions. (



P.382, 383)

Press to seek up or down for a radio station or to access a
desired track/file. (



P.425, 432, 434, 438)

Press to access the Bluetooth

®

 hands-free system. (



P.465)

• When an Apple CarPlay connection is established, press to display the

Phone application screen.

*1

Press to display the Toyota Apps screen.

*1, 2

 (



P.504)

Turn to change the radio station or skip to the next or previous
track/file. (



P.425, 432, 434, 438)

Press to turn the audio/visual system on and off, and turn it to
adjust the volume. Press and hold to restart the system. (



P.381,

421)

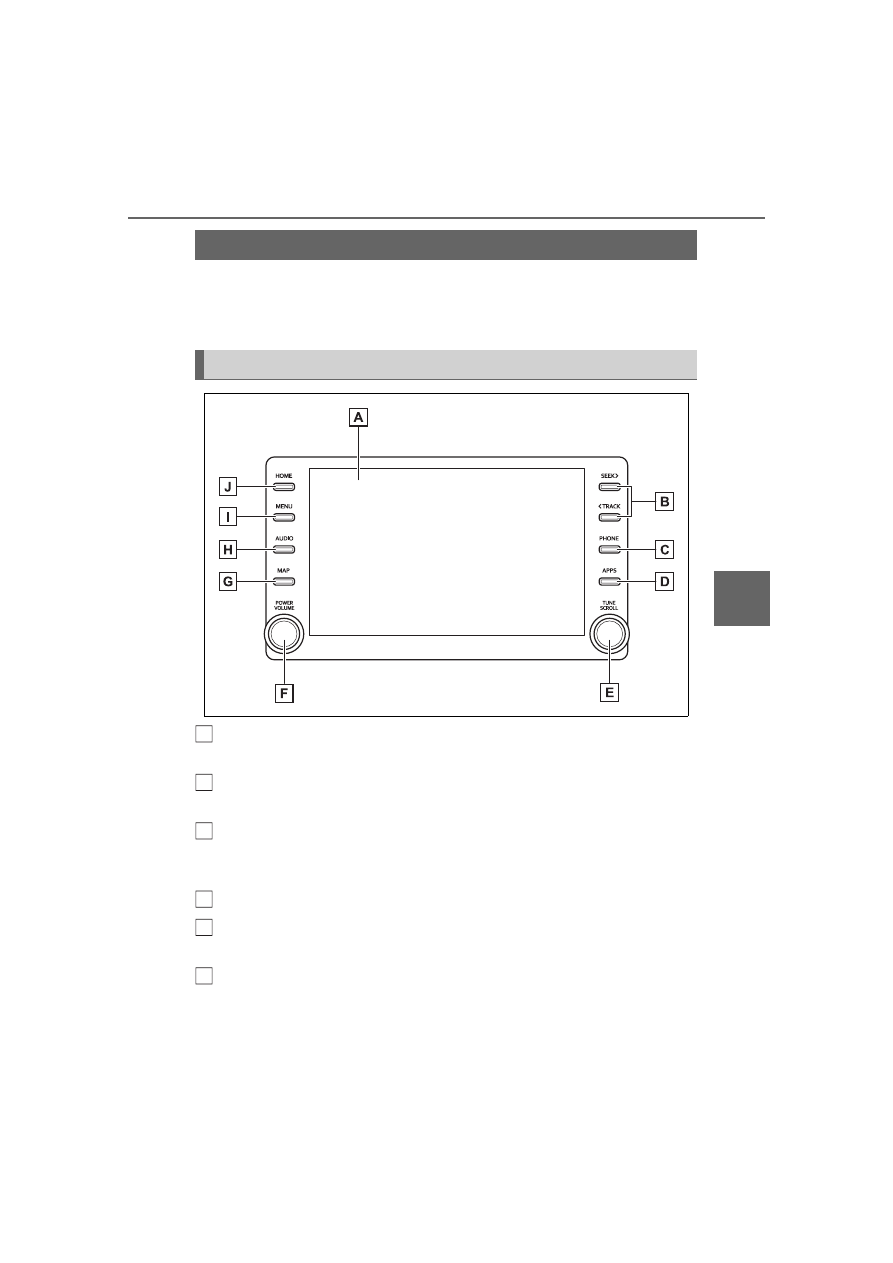

Buttons overview

*

Operations of each part

A

B

C

D

E

F

376

5-1. Basic function

When an Apple CarPlay/Android Auto connection is established,
press to display the Maps application screen.

*1

Press to display the audio/visual system screen. (



420, 421)

Press to display the “Menu” screen. (



P.377)

Press to display the home screen. (



P.384)

*1

:This function is not made available in some countries or areas.

*2

:When an Apple CarPlay/Android Auto connection is established, this

function will be unavailable.

●

The screen shots in this document

and the actual screens of the sys-

tem differ depending on whether

the functions and/or a contract

existed.

G

H

I

J

WARNING

●

For safety, the driver should not

operate the system while

he/she is driving. Insufficient

attention to the road and traffic

may cause an accident.

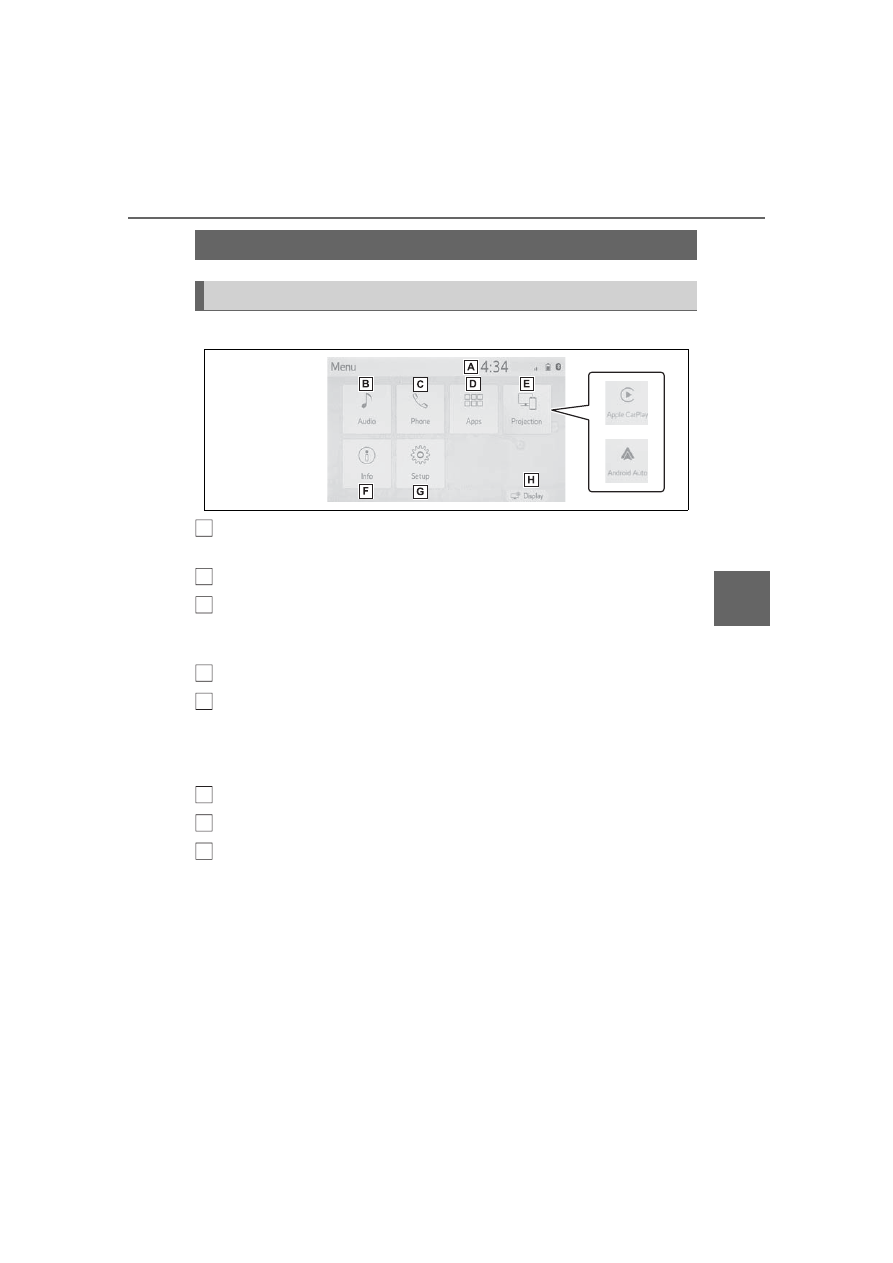

377

5-1. Basic function

5

Audio

Press the “MENU” button to display the “Menu” screen.

Displays the clock. Select to display the clock settings screen.
(



P.415)

Select to display the audio control screen. (



P.420)

Select to display the hands-free operation screen. (



P.465)

• When an Apple CarPlay connection is established, select to display the

Phone application screen.

*1

Select to display the Toyota Apps screen.

*1, 2

 (



P.504)

When an Apple CarPlay/Android Auto connection is established
and this button displays “Apple CarPlay”/“Android Auto”, select to
display the home screen of Apple CarPlay/Android Auto.

*1



(



P.407)

Select to display the fuel consumption screen. (



P.99)

Select to display the “Setup” screen. (



P.380)

Select to adjust the contrast, brightness, etc. of the display.
(



P.388)

*1

:This function is not made available in some countries or areas.

*2

:When an Apple CarPlay/Android Auto connection is established, this

function will be unavailable.

Menu screen

Menu screen operation

A

B

C

D

E

F

G

H

378

5-1. Basic function

Indicate during data commu-
nication performed via Data
Communication Module
(DCM)

*1

The reception level of Data
Communication Module
(DCM) display

*1

 (



P.378)

The reception level of the
connected phone display
(



P.378)

Remaining battery charge
display (



P.379)

Bluetooth

®

 phone connection

condition display (



P.379)

Wi-Fi

®

 connection condition

display

*1, 2

 (



P.402)

*1

:Vehicles equipped with DCM

*2

:This function is not made avail-

able in some countries or areas.

●

The number of status icons that

can be displayed differs depend-

ing on the displayed screen.

The level of reception does not
always correspond with the level
displayed on the cellular phone.
The level of reception may not
be displayed depending on the
phone you have.
When the cellular phone is out
of the service area or in a place
inaccessible by radio waves,

/

 is displayed.

“Rm” is displayed when receiv-
ing in a roaming area. While
roaming, display “Rm” top-left
on the icon.
The receiving area may not be
displayed depending on the type
of Bluetooth

®

 phone you have.



While connected with cellular
phone

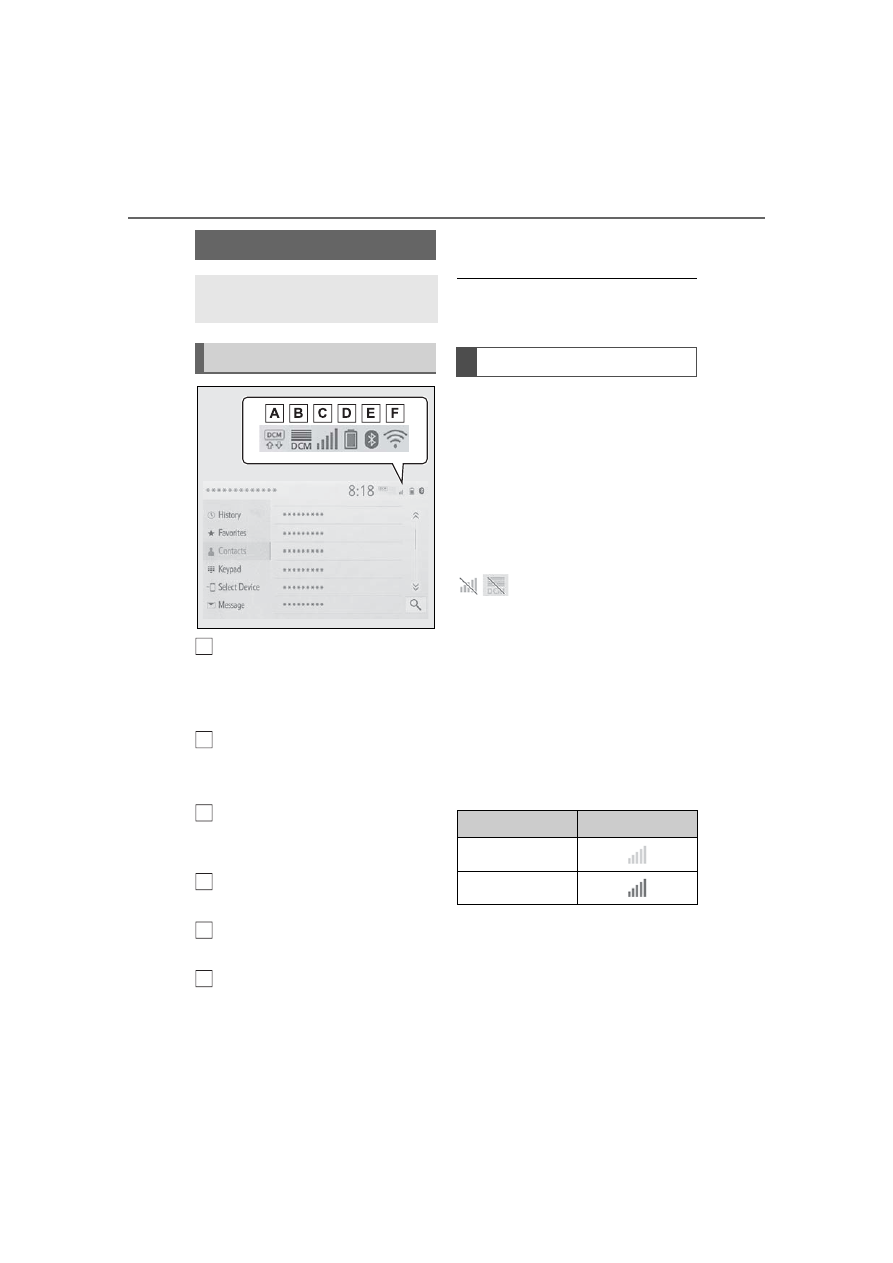

Status icon

Status icons are displayed
at the top of the screen.

Status icon explanation

A

B

C

D

E

F

Reception level display

Reception Level

Indicators

Poor

Excellent

379

5-1. Basic function

5

Audio



While using Data Communi-
cation Module (DCM)



While using Wi-Fi

®

Hotspot

●

When Wi-Fi

®

 Hotspot is off, no

item is displayed.

The amount displayed does not
always correspond with the
amount displayed on the Blue-
tooth

®

 device.

The amount of battery charge
left may not be displayed
depending on the type of the
Bluetooth

®

 device connected.

This system does not have a
charging function.

An antenna for the Bluetooth

®



connection is built into the
instrument panel.

The condition of the Bluetooth

®



connection may deteriorate and
the system may not function
when a Bluetooth

®

 phone is

used in the following conditions
and/or places:
The cellular phone is obstructed
by certain objects (such as
when it is behind the seat or in
the glove box or console box).
The cellular phone is touching or
is covered with metal materials.

Leave the Bluetooth

®

 phone in a

place where the condition of the
Bluetooth

®

 connection is good.

Reception Level

Indicators

Poor

Excellent

Reception Level

Indicators

No connection

Connected

Remaining battery charge
display

Remaining

charge

Indicators

Empty

Full

Bluetooth

®

 connection

condition display

Indicators

Conditions

(Blue)

Indicates that the con-
dition of the Blue-
tooth

®

 connection is

good.

(Gray)

While in this condition,
sound quality during
phone calls may dete-
riorate.

Indicates that the cel-
lular phone is not con-
nected via Bluetooth

®

.

380

5-1. Basic function

Press the “MENU” button, then
select “Setup” to display the
“Setup” screen. The items
shown on the “Setup” screen
can be set.

Select to change the selected
language, operation sound
settings, etc. (



P.414)

Select to set Bluetooth

®



device and Bluetooth

®

 sys-

tem settings. (



P.394)

Select to set audio settings.
(



P.444)

Select to set the phone
sound, contacts, message
settings, etc. (



P.481)

Select to set the voice set-
tings. (



P.418)

Select to set vehicle informa-
tion. (



P.419)

Select to set Wi-Fi

®

 connec-

tion settings.

*1, 2

 (



P.403)

Select to set Toyota Apps
settings.

*2

 (



P.508)

*1

:Vehicles equipped with DCM

*2

:This function is not made avail-

able in some countries or areas.

“Setup” screen

“Setup” screen

A

B

C

D

E

F

G

H

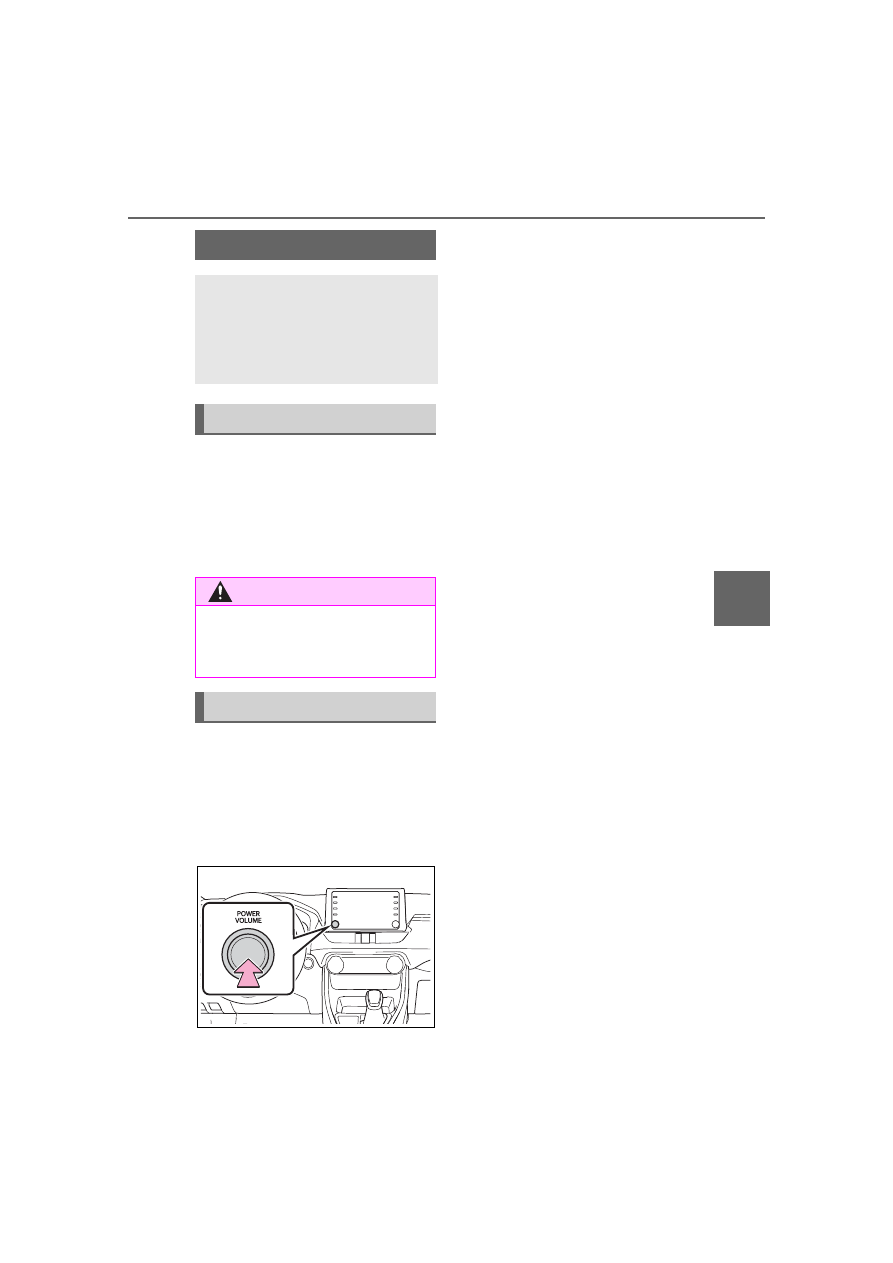

381

5-2. Basic information before operation

5

Audio

5-2.Basic information before operation

After a few seconds, the caution
screen will be displayed.
After about 5 seconds or select-
ing “Continue”, the caution
screen automatically switches to
the next screen.

When system response is
extremely slow, the system can
be restarted.

1

Press and hold the “POWER
VOLUME” knob for 3 sec-
onds or more.

Initial screen

When the engine switch is
turned to ACC or ON, the
initial screen will be dis-
played and the system will
begin operating.

Caution screen

WARNING

●

When the vehicle is stopped

with the engine running, always

apply the parking brake for

safety.

Restarting the system

382

5-2. Basic information before operation

Operations are performed by touching the touch screen directly with
your finger.

*1

:The above operations may not be performed on all screens.

*2

:The Apple CarPlay Maps application is not compatible with pinch multi-

touch gestures.

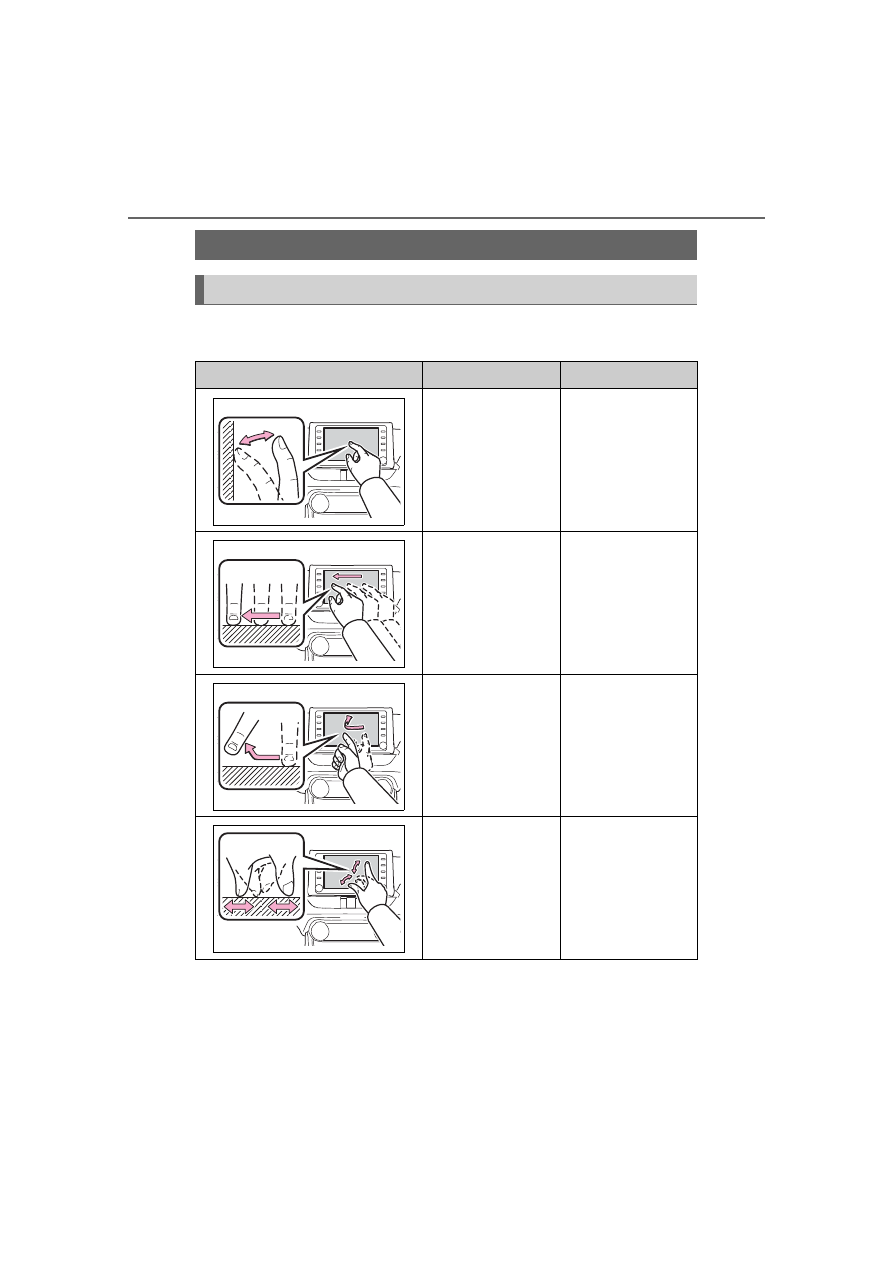

Touch screen

Touch screen gestures

Operation method

Outline

Main use



Touch

Quickly touch and
release once.



Selecting an item
on the screen



Drag

*1

Touch the screen
with your finger,
and move the
screen to the
desired position.



Scrolling the lists



Flick

*1

Quickly move the
screen by flicking
with your finger.



Scrolling the main
screen page



Pinch in/Pinch
out

Slide fingers toward
each other or apart
on the screen.



Changing the
scale of the
map

*2

383

5-2. Basic information before operation

5

Audio

●

Flick operations may not be performed smoothly at high altitudes.

●

If the system does not respond to

touching a screen button, move

your finger away from the screen

and then touch it again.

●

Dimmed screen buttons cannot be

operated.

●

The displayed image may become

darker and moving images may

be slightly distorted when the

screen is cold.

●

In extremely cold conditions, the

screen may not be displayed and

the data input by a user may be

deleted. Also, the screen buttons

may be harder than usual to

depress.

●

When you look at the screen

through polarized material such as

polarized sunglasses, the screen

may be dark and hard to see. If

so, look at the screen from differ-

ent angles, adjust the screen set-

tings on the display settings

screen or take off your sun-

glasses.

●

When

 is displayed on the

screen, select

 to return to the

previous screen.

The operable areas of the
capacitive touch screen buttons
use capacitive touch sensors
and may not operate properly in
the following situations:



If the screen is dirty or wet



If a source of strong electro-
magnetic waves is brought
near the screen



If a glove is worn during oper-
ation



If the screen is touched by a
fingernail



If a stylus is used to operate
the buttons



If your palm touches the oper-
able area of another button
during operation



If a button is touched quickly



If the operable part of a
capacitive touch screen but-
ton is touched by or covered

Touch screen operation

This system is operated
mainly by the buttons on
the screen. (Referred to as
screen buttons in this man-
ual.)
When a screen button is
touched, a beep sounds. (To
set the beep sound:



P.414)

NOTICE

●

To prevent damaging the

screen, lightly touch the screen

buttons with your finger.

●

Do not use objects other than

your finger to touch the screen.

●

Wipe off fingerprints using a

glass cleaning cloth. Do not use

chemical cleaners to clean the

screen, as they may damage

the touch screen.

Capacitive touch screen
buttons

384

5-2. Basic information before operation

with a metal object, such as
the following, it may not oper-
ate properly:

• Magnetic isolation cards
• Metallic foil, such as the inner

packaging of a cigarette box

• Metallic wallets or bags
• Coins
• Discs, such as a CD or DVD



If the operable part of a
capacitive touch screen but-
ton is wiped, it may operate
unintentionally.



If the capacitive touch screen
button is being touched when
the engine switch is changed
to ACC or ON, the button may
not operate properly. In this
case, remove anything touch-
ing the button, turn the engine
switch off and then turn it to
ACC or ON, or restart the sys-
tem by press and hold the
“POWER VOLUME” knob for
3 seconds or more.

●

Capacitive touch screen button

sensor sensitivity can be adjusted.

(



P.414)

1

Press the “HOME” button.

2

Check that the home screen
is displayed.



Selecting a screen will display
it full screen.

●

The display information and area

on the home screen can be cus-

tomized.

●

The home screen can be set to

several types of split layouts

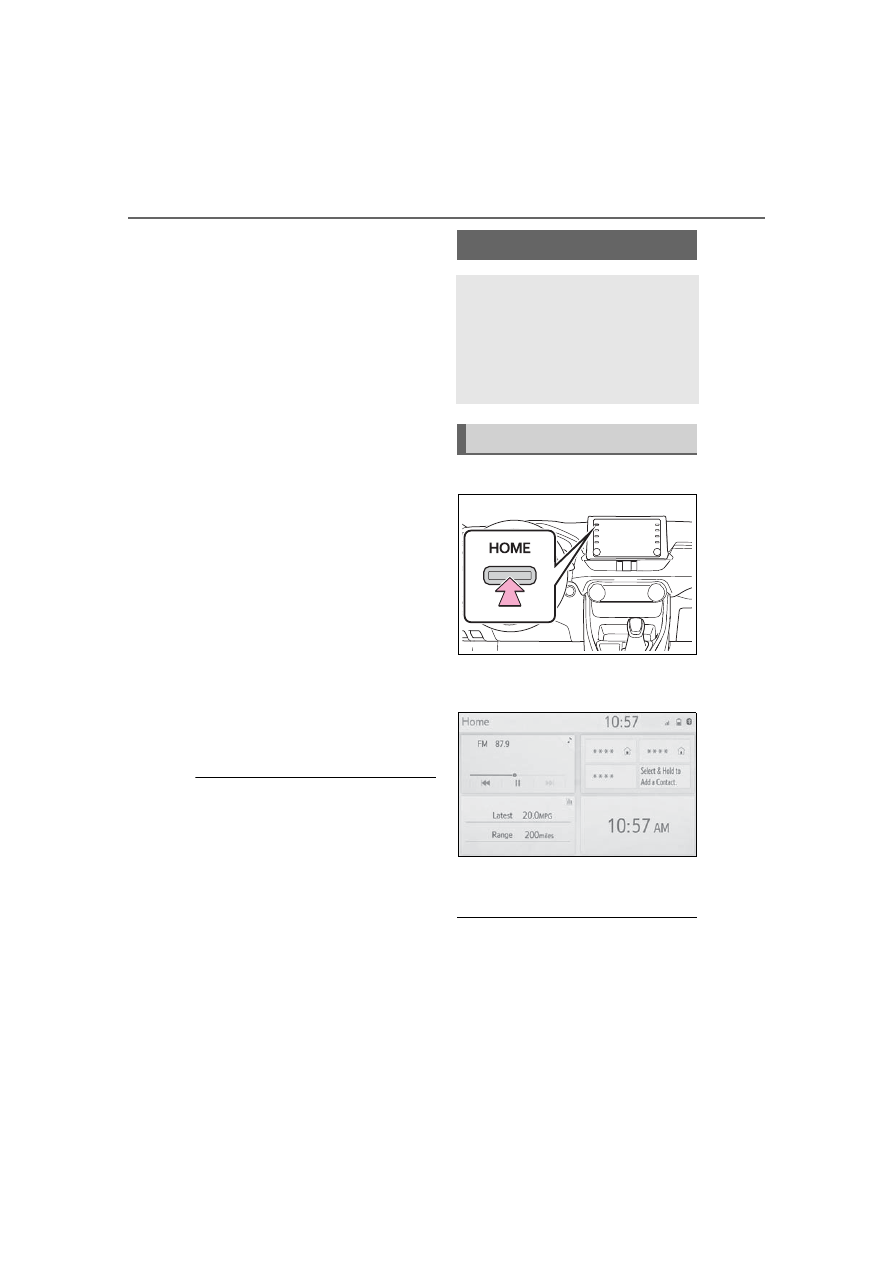

Home screen

On the home screen, multi-
ple screens, such as the
audio/visual system screen,
hands-free screen and clock
screen, can be displayed
simultaneously.

Home screen operation

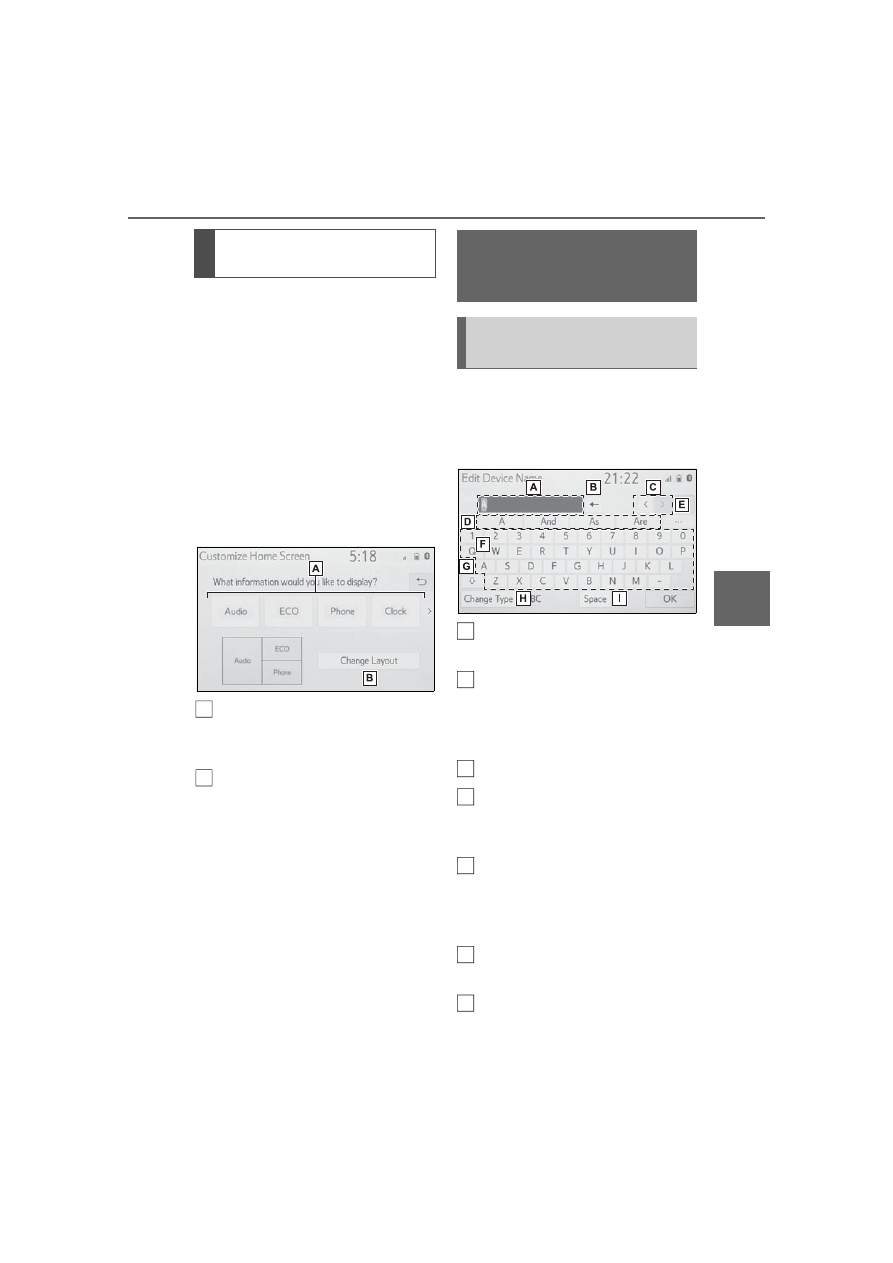

385

5-2. Basic information before operation

5

Audio

The display information/area on
the home screen and the home
screen layout can be changed.

1

Press the “MENU” button.

2

Select “Setup”.



If the general settings screen
is not displayed, select “Gen-
eral”.

3

Select “Customize Home
Screen”.

4

Select the items to be set.

Select to change the display
information and area on the
home screen.

Select to change the home
screen layout.

When searching by a name or
entering data, letters and num-
bers can be entered via the
screen.

Text field. Entered charac-
ter(s) will be displayed.

Select to erase one charac-
ter.
Select and hold to continue
erasing characters.

Select to move the cursor.

Select to choose predictive
text candidate for entered
text. (



P.386)

Select to display a list of pre-
dictive text candidates when
there is more than one.
(



P.386)

Select to enter desired char-
acters.

Select to enter characters in
lower case or in upper case.

Customizing the home
screen

A

B

Entering letters and

numbers/list screen

operation

Entering letters and num-
bers

A

B

C

D

E

F

G

386

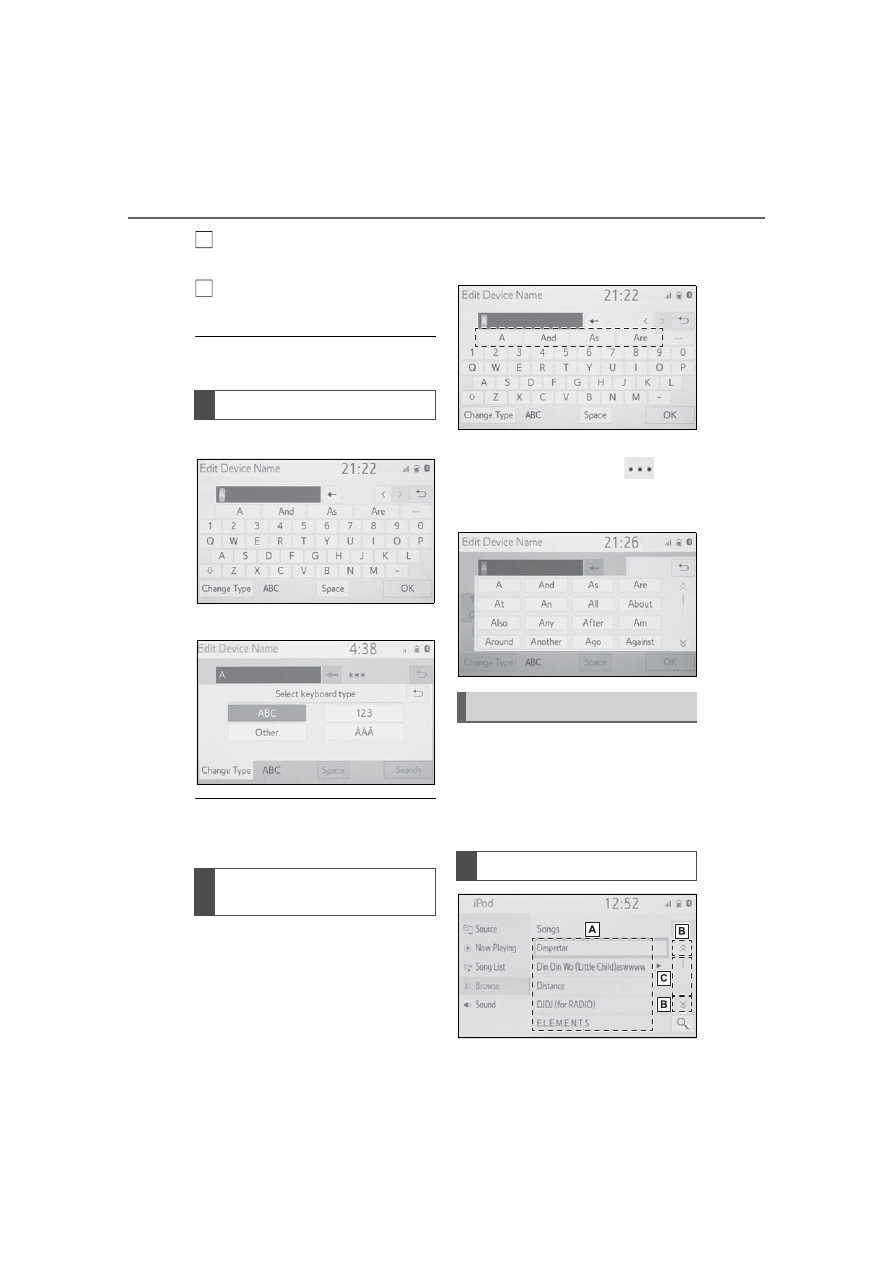

5-2. Basic information before operation

Select to change character
types. (



P.386)

Select to make a space on
cursor.

●

Keyboard layout can be changed.

(



P.414)

1

Select “Change Type”.

2

Select the desired character.

●

Depending on the screen being

displayed, it may not be possible

to change keyboard characters.

When text is input, the system
predicts the text that may com-
plete the currently unconfirmed
text and displays predictive
replacement candidates that
match the beginning of the text.

1

Input text.

2

Select the desired candidate.



To select a candidate that is
not displayed, select

, and

then select the desired predic-
tive replacement candidate.

The list screen may be dis-
played after entering characters.
When a list is displayed, use the
appropriate screen button to
scroll through the list.

Changing character type

Displaying predictive text
candidates

H

I

List screen

Scrolling list screen

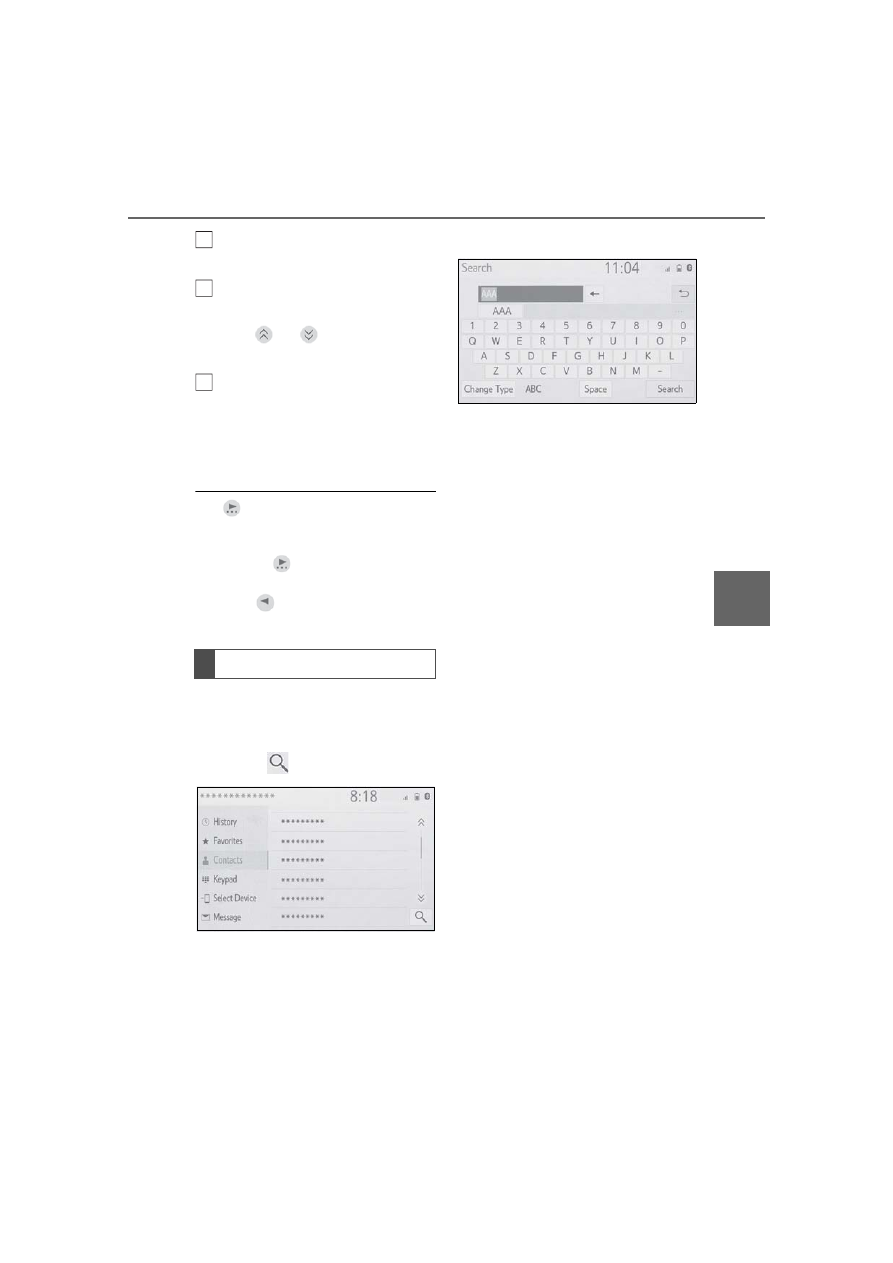

387

5-2. Basic information before operation

5

Audio

To scroll up/down the list,
flick the list up/down.

Select to skip to the next or
previous page. Select and
hold

 or

 to scroll

through the displayed list.

Indicates the position of the
displayed entries in the entire
list.
To scroll up/down pages,
drag the bar.

●

If

 appears to the right of an

item name, the complete name is

too long to display.

• Select to

 scroll to the end of

the name.

• Select

 to move to the begin-

ning of the name.

Items are displayed in the list
with the most similar results of
the search at the top.

1

Select

.

2

Input text.

3

Select “Search”.

4

The list is displayed.

Searching a list

A

B

C

388

5-2. Basic information before operation

1

Press the “MENU” button.

2

Select “Display”.

3

Select the desired items to
be set.

Select to turn the screen off.
To turn it on, press any but-

ton.

Select to turn day mode
on/off. (



P.388)

Select to adjust the screen
display. (



P.388)

Select to adjust the camera
display.

●

When the screen is viewed

through polarized sunglasses, a

rainbow pattern may appear on

the screen due to optical charac-

teristics of the screen. If this is dis-

turbing, please operate the screen

without polarized sunglasses.

Depending on the position of the
headlight switch, the screen
changes to day or night mode.
This feature is available when
the headlight is switched on.

1

Select “Day Mode”.

●

If the screen is set to day mode

with the headlight switch turned

on, this condition is memorized

even with the engine turned off.

The contrast and brightness of
the screen can be adjusted
according to the brightness of
your surroundings.

1

Select “General” or “Cam-
era”.

2

Select the desired item.

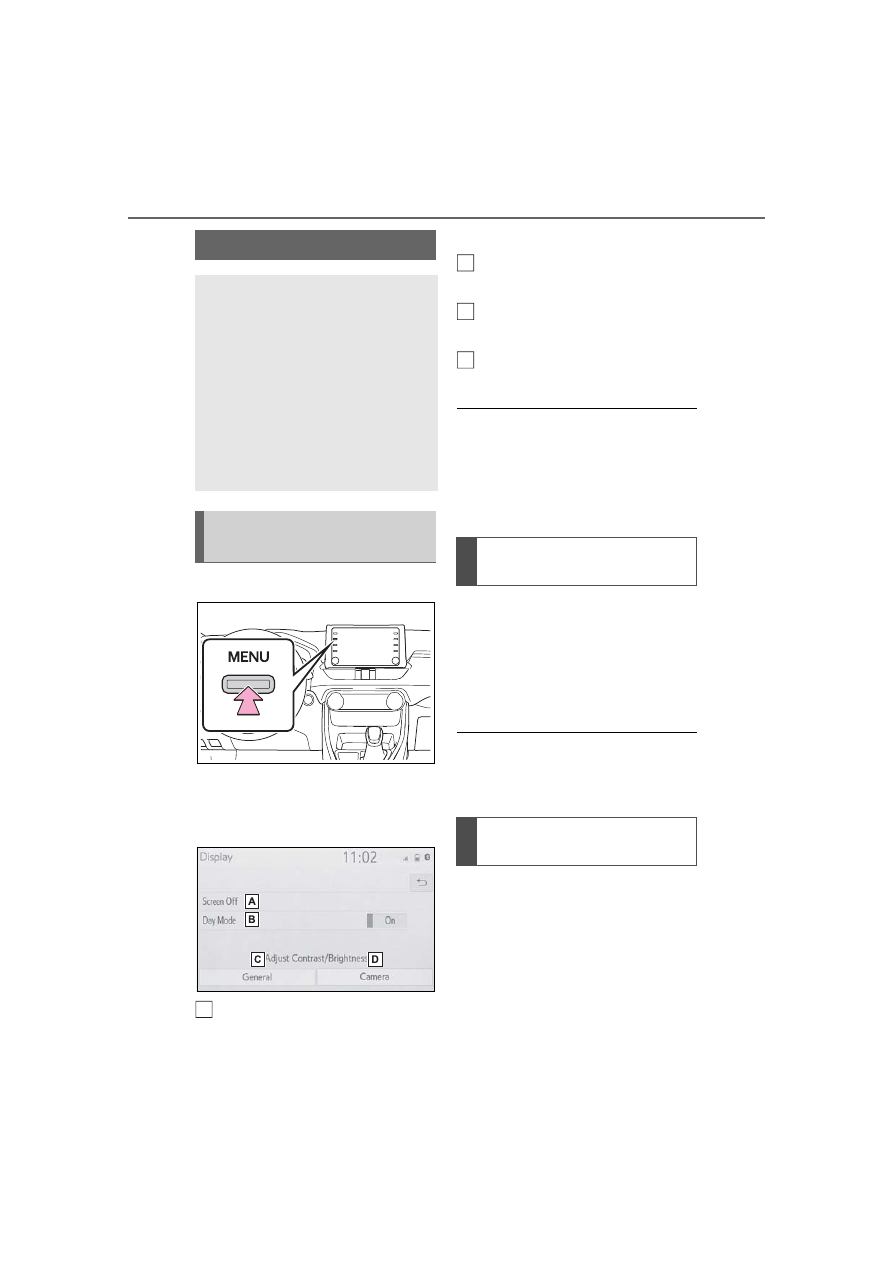

Screen adjustment

The contrast and brightness
of the screen display and
the image of the camera dis-
play can be adjusted. The
screen can also be turned
off, and/or changed to either
day or night mode.
(For information regarding
audio/visual screen adjust-
ment:



P.423)

Displaying the screen
adjustment screen

A

Changing between day
and night mode

Adjusting the con-
trast/brightness

B

C

D

389

5-2. Basic information before operation

5

Audio



“Display (General)” screen
only: Select “<” or “>” to select
the desired display.

• “Contrast”
“+”: Select to strengthen the con-
trast of the screen.
“-”: Select to weaken the contrast of
the screen.
• “Brightness”
“+”: Select to brighten the screen.
“-”: Select to darken the screen.

Linking multi-informa-

tion display and the

system

The following functions of
the system are linked with
the multi-information dis-
play in the instrument clus-
ter:



Audio



Phone

*

etc.
These functions can be
operated using multi-infor-
mation display control
switches on the steering
wheel. (



P.89)

*

: When an Apple CarPlay con-

nection is established, this
function will be unavailable.

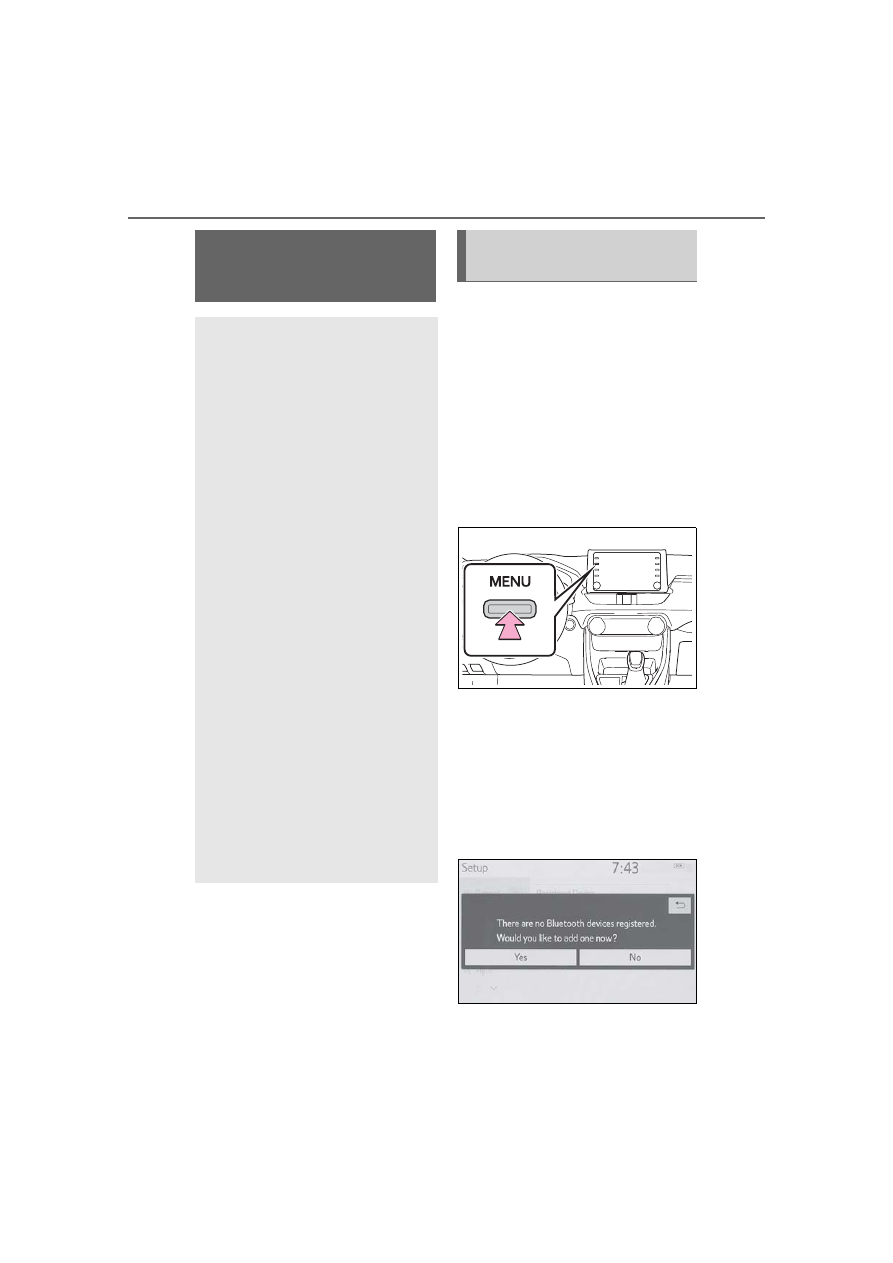

390

5-3. Connectivity settings

5-3.Connectivity settings

■

Registering from the sys-
tem

1

Turn the Bluetooth

®

 connec-

tion setting of your cellular
phone on.



This function is not available
when Bluetooth

®

 connection

setting of your cellular phone
is set to off.

2

Press the “MENU” button.

3

Select “Phone”.



Operations up to this point
can also be performed by
pressing the “PHONE” button
on the instrument panel.

4

Select “Yes” to register a
phone.

Registering/Connect-

ing a Bluetooth

®



device

To use the hands-free sys-
tem, it is necessary to regis-
ter a Bluetooth

®

 phone with

the system.
Once the phone has been
registered, it is possible to
use the hands-free system.
This operation cannot be
performed while driving.
When an Apple CarPlay
connection is established,
Bluetooth

®

 functions of the

system will become unavail-
able and any connected
Bluetooth

®

 devices will be

disconnected.
When connecting to
Android Auto, a Bluetooth

®



connection will be made
automatically.
When an Android Auto con-
nection is established,
some Bluetooth

®

 functions

other than hands-free sys-
tem cannot be used.

Registering a Bluetooth

®



phone for the first time

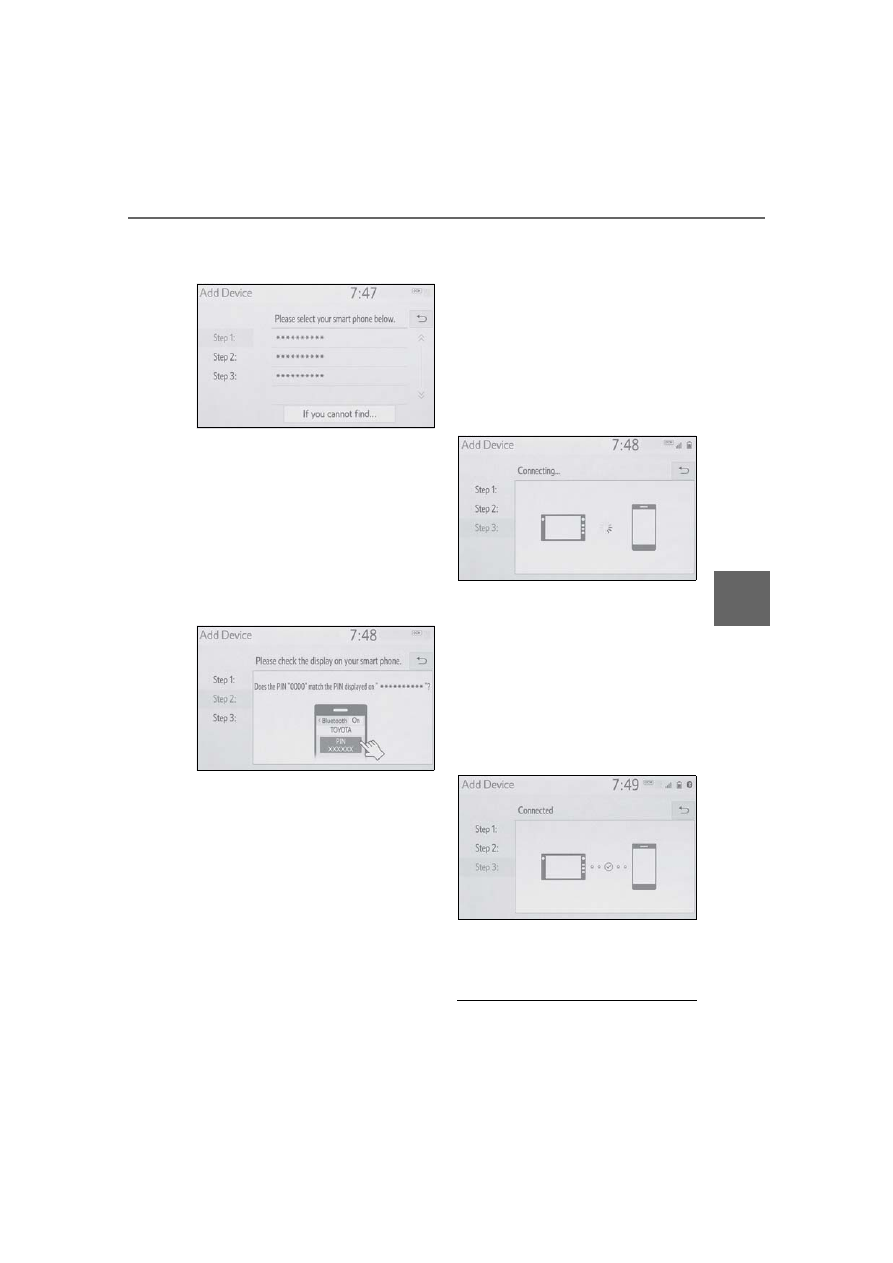

391

5-3. Connectivity settings

5

Audio

5

Select the desired Bluetooth

®



device.



If the desired Bluetooth

®



phone is not on the list, select
“If you cannot find...” and fol-
low the guidance on the
screen. (



P.392)

6

Register the Bluetooth

®



device using your Blue-
tooth

®

 device.



For details about operating
the Bluetooth

®

 device, see

the manual that comes with it.



A PIN code is not required for
SSP (Secure Simple Pairing)
compatible Bluetooth

®



devices. Depending on the
type of Bluetooth

®

 device

being connected, a message
confirming registration may
be displayed on the Blue-
tooth

®

 device’s screen.

Respond and operate the
Bluetooth

®

 device according

to the confirmation message.

7

Check that the following
screen is displayed, indicat-
ing pairing was successful (a
Bluetooth

®

 link has been

established but registration is
not yet complete).



The system is connecting to
the registered device.



At this stage, the Bluetooth

®



functions are not yet avail-
able.

8

Check that “Connected” is
displayed and registration is
complete.



If an error message is dis-
played, follow the guidance
on the screen to try again.

●

If a cellular phone does not oper-

ate properly after being con-

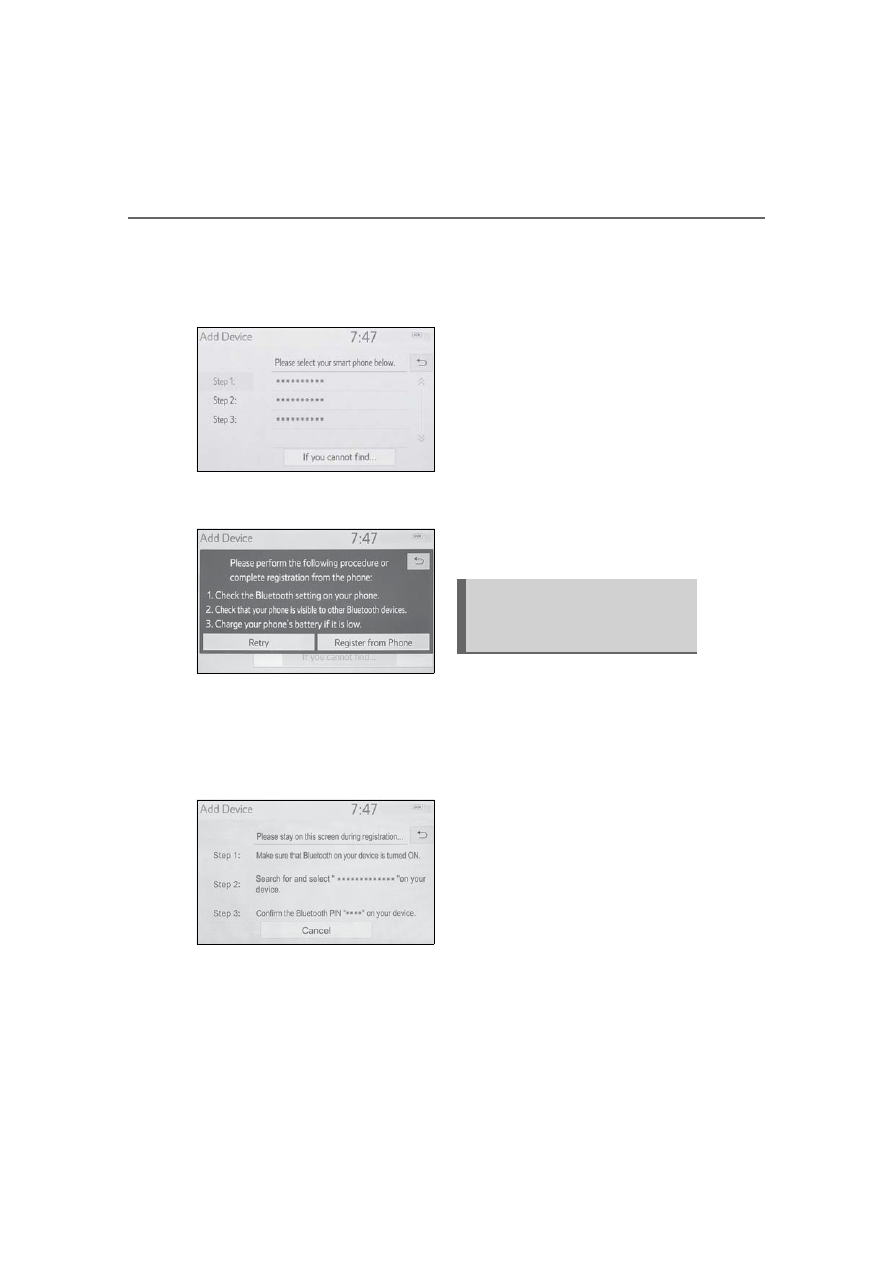

392

5-3. Connectivity settings

nected, turn the cellular phone off

and on and then connect it again.

■

Registering from phone

1

Select “If you cannot find...”.

2

Select “Register from
Phone”.

3

Check that the following
screen is displayed, and reg-
ister the Bluetooth

®

 device

using your Bluetooth

®



device.



For details about operating
the Bluetooth

®

 device, see

the manual that comes with it.



A PIN code is not required for

SSP (Secure Simple Pairing)
compatible Bluetooth

®



devices. Depending on the
type of Bluetooth

®

 device

being connected, a message
confirming registration may
be displayed on the Blue-
tooth

®

 device’s screen.

Respond and operate the
Bluetooth

®

 device according

to the confirmation message.

4

Follow the steps in “Register-
ing a Bluetooth

®

 phone for

the first time” from step

7

.

(



P.390)

To use the Bluetooth

®

 audio, it is

necessary to register an audio
player with the system.
Once the player has been regis-
tered, it is possible to use the
Bluetooth

®

 audio.

This operation cannot be per-
formed while driving.
For details about registering a
Bluetooth

®

 device:



P.397

1

Turn the Bluetooth

®

 connec-

tion setting of your audio
player on.



This function is not available
when the Bluetooth

®

 connec-

tion setting of your audio

Registering a Bluetooth

®



audio player for the first
time

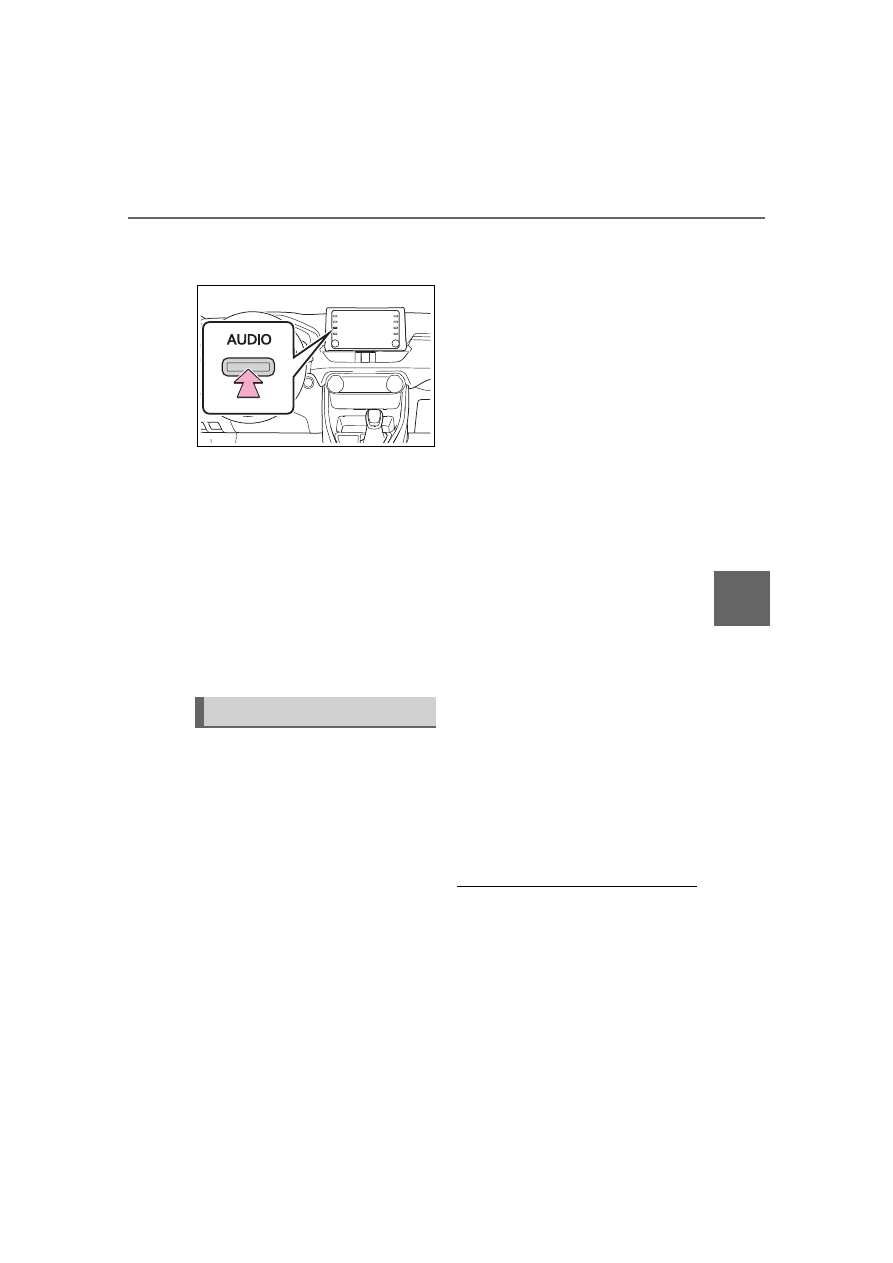

393

5-3. Connectivity settings

5

Audio

player is set to off.

2

Press the “AUDIO” button.

3

Select “Source” on the audio
screen or press “AUDIO” but-
ton again.

4

Select “Bluetooth”.

5

Select “Yes” to register an
audio player.

6

Follow the steps in “Register-
ing a Bluetooth

®

 phone for

the first time” from step

5

.

(



P.390)

This system supports the follow-
ing services.

■

Bluetooth

®

 Core Specifica-

tion



Ver. 2.0 (Recommended: Ver.
4.2)

■

Profiles



HFP (Hands Free Profile) Ver.
1.0 (Recommended: Ver. 1.7)

• This is a profile to allow hands-

free phone calls using a cellular
phone. It has outgoing and
incoming call functions.



OPP (Object Push Profile)
Ver. 1.1 (Recommended: Ver.
1.2)

• This is a profile to transfer con-

tacts data.



PBAP (Phone Book Access
Profile) Ver. 1.0 (Recom-
mended: Ver. 1.2)

• This is a profile to transfer phone-

book data.



MAP (Message Access Pro-
file) Ver. 1.0 (Recommended:
Ver. 1.2)

• This is a profile to use phone

message functions.



SPP (Serial Port Profile) Rec-
ommended: Ver. 1.2

• This is a profile to use the Toyota

audio multimedia function.



A2DP (Advanced Audio Dis-
tribution Profile) Ver. 1.0 (Rec-
ommended: Ver. 1.3)

• This is a profile to transmit stereo

audio or high quality sound to the
audio/visual system.



AVRCP (Audio/Video Remote
Control Profile) Ver. 1.0 (Rec-
ommended: Ver. 1.6)

• This is a profile to allow remote

control the A/V equipment.

●

This system is not guaranteed to
operate with all Bluetooth

®



devices.

●

If your cellular phone does not

support HFP, registering the Blue-
tooth

®

 phone or using OPP,

PBAP, MAP or SPP profiles indi-

vidually will not be possible.

Profiles

394

5-3. Connectivity settings

●

If the connected Bluetooth

®



device version is older than rec-

ommended or incompatible, the
Bluetooth

®

 device function may

not work properly.

●

Refer to http://www.

toyota.com/audio-multimedia in

the United States,

http://www.toyota.ca/connected in

Canada, and

http://www.toyotapr.com/

audio-multimedia in Puerto Rico,
to find approved Bluetooth

®



phones for this system.

●

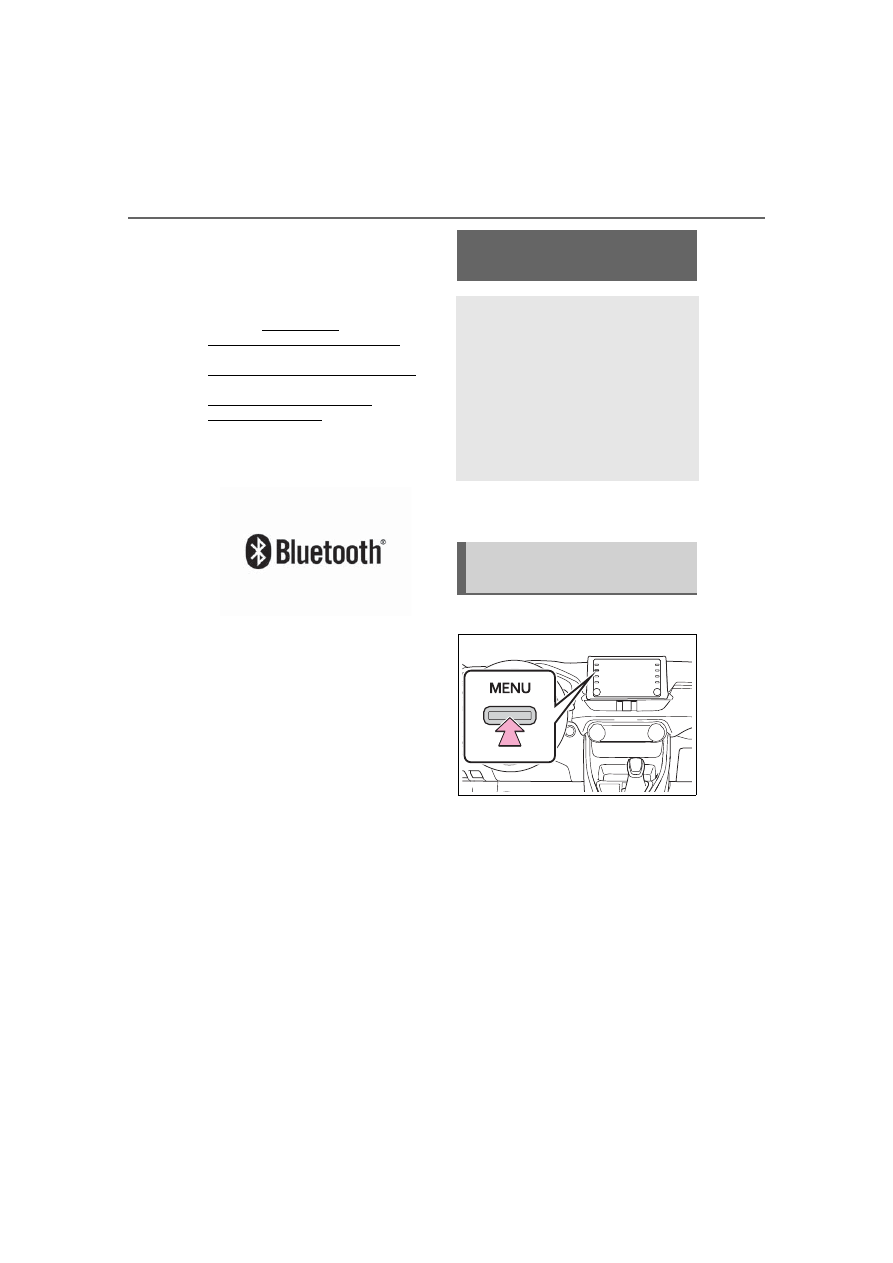

Certification

Bluetooth is a registered trademark

of Bluetooth SIG, Inc.

*

: This function is not made avail-

able in some countries or areas.

1

Press the “MENU” button.

2

Select “Setup”.

3

Select “Bluetooth”.

Setting Bluetooth

®



details

When an Apple CarPlay
connection is established,
this function will be unavail-
able.

*

When an Android Auto con-
nection is established,
some functions will be
unavailable.

*

Displaying the Blue-
tooth

®

 setup screen

395

5-3. Connectivity settings

5

Audio

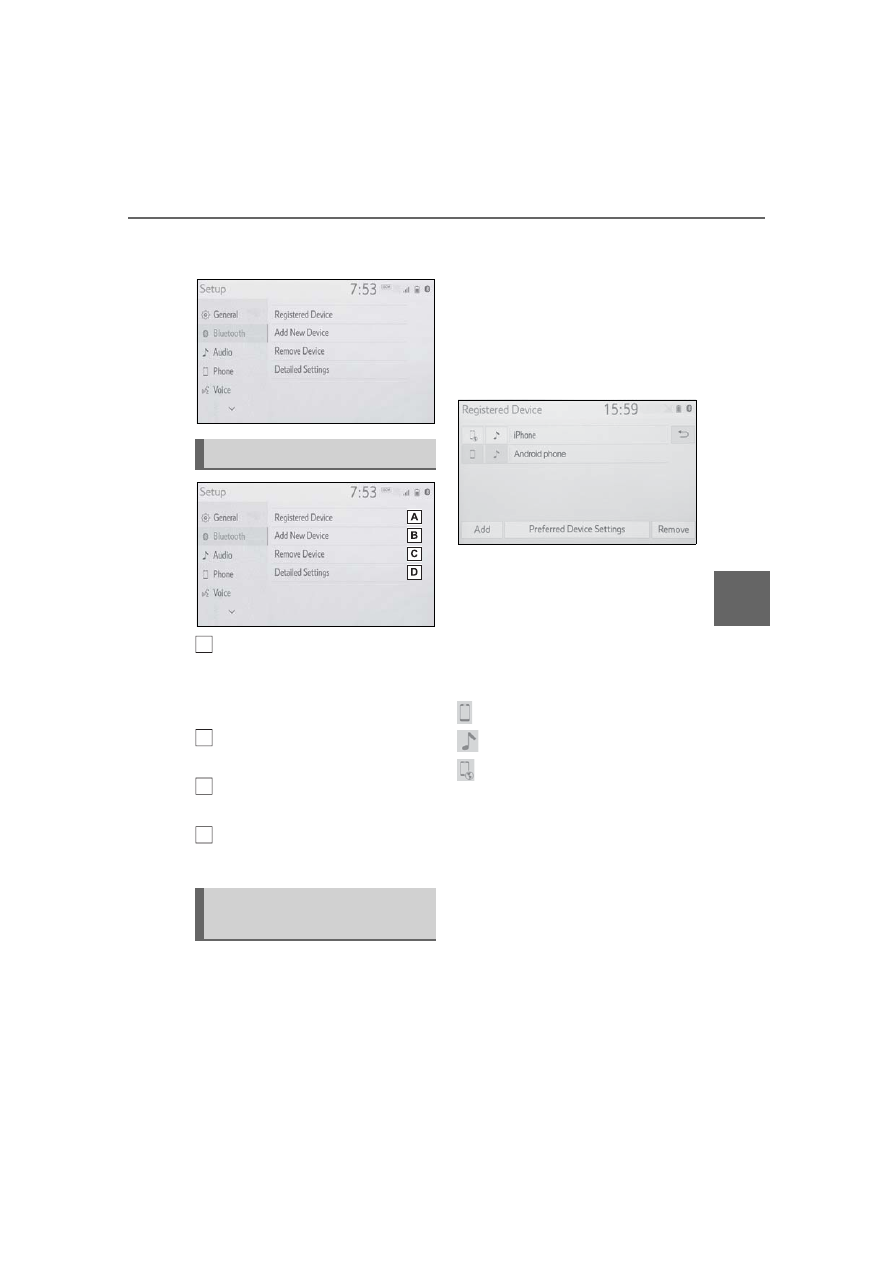

4

Select the desired item to be
set.

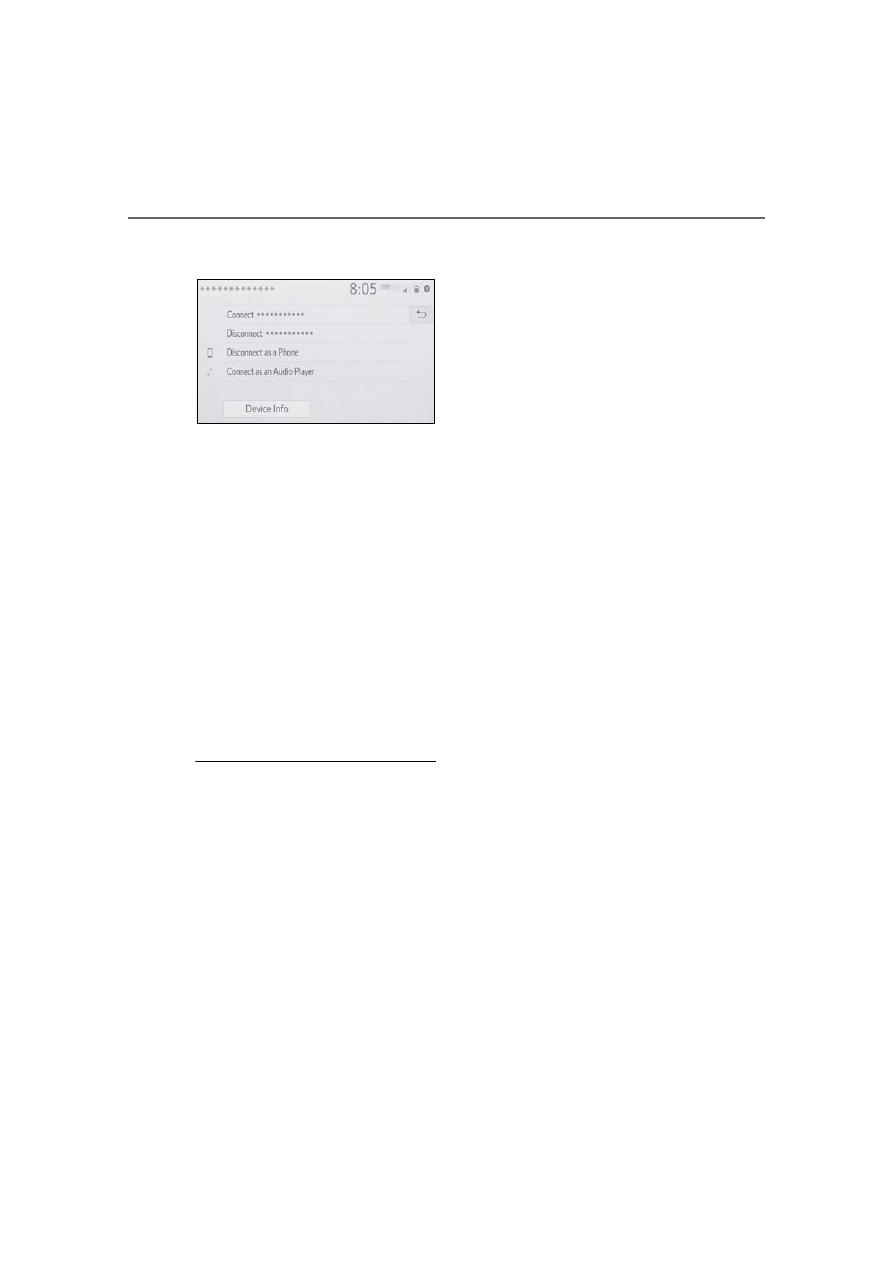

Connecting a Bluetooth

®



device and editing the Blue-
tooth

®

device information

(



P.395, 398)

Registering a Bluetooth

®



device (



P.397)

Deleting a Bluetooth

®

 device

(



P.397)

Setting the Bluetooth

®

 sys-

tem (



P.399)

Up to 5 Bluetooth

®

 devices

(Phones (HFP) and audio play-
ers (AVP)) can be registered.

If more than 1 Bluetooth

®

 device

has been registered, select
which device to connect to.

1

Display the Bluetooth

®

 set-

tings screen. (



P.394)

2

Select “Registered Device”.

3

Select the device to be con-
nected.

“Add”: Registering a Bluetooth

®



device. (



P.397)

“Preferred Device Settings”: Select

to change the automatic connection
priority of the registered Bluetooth

®



devices. (



P.400)

“Remove”: Deleting a Bluetooth

®



device. (



P.397)

: Phone

: Audio player

: Phone/Toyota Apps Services



The profile icon for a currently
connected device will be dis-
played in color.



Selecting a profile icon which
is not currently connected will
switch the connection to the
function.



If the desired Bluetooth

®



device is not on the list, select
“Add New Device” to register
the device. (



P.397)

Bluetooth

®

 setup screen

Connecting a Bluetooth

®



device

A

B

C

D

396

5-3. Connectivity settings

4

Select the desired connec-
tion.



“Device Info”: Select to con-
firm and change the Blue-
tooth

®

 device information.

(



P.398)



When another Bluetooth

®



device is connected



To disconnect the Bluetooth

®



device, select “Yes”.

5

Check that a confirmation
screen is displayed when the
connection is complete.



If an error message is dis-
played, follow the guidance
on the screen to try again.

●

It may take time if the device con-

nection is carried out during Blue-
tooth

®

 audio playback.

●

Depending on the type of Blue-
tooth

®

 device being connected, it

may be necessary to perform

additional steps on the device.

●

When disconnecting a Bluetooth

®



device, it is recommended to dis-

connect using the system.

■

Connecting a Bluetooth

®



device in a different way
(from phone top screen)



P.467

■

Connecting a Bluetooth

®



device in a different way
(from phone setup screen)



P.481

■

Connecting a Bluetooth

®



device in a different way
(from Bluetooth

®

 audio

screen)



P.440

■

Auto connection mode

To turn auto connection mode
on, set “Bluetooth Power” to on.
(



P.399) Leave the Bluetooth

®



device in a location where the
connection can be established.



When the engine switch is in
ACC or ON, the system
searches for a nearby regis-
tered device.



The system will connect with
the registered device that was
last connected, if it is nearby.
When automatic connection
priority is set to on and there
is more than one registered
Bluetooth

®

 phone available,

the system will automatically
connect to the Bluetooth

®



phone with the highest prior-
ity. (



P.399)

■

Connecting manually

When the auto connection has
failed or “Bluetooth Power” is
turned off, it is necessary to con-
nect the Bluetooth

®

 device man-

ually.

397

5-3. Connectivity settings

5

Audio

1

Display the Bluetooth

®

 set-

tings screen. (



P.394)

2

Follow the steps in “Connect-
ing a Bluetooth

®

 device” from

step

2

. (



P.395)

■

Reconnecting the Blue-
tooth

®

 phone

If a Bluetooth

®

 phone is discon-

nected due to poor reception
from the Bluetooth

®

 network

when the engine switch is in
ACC or ON, the system auto-
matically reconnects the Blue-
tooth

®

 phone.

Up to 5 Bluetooth

®

 devices can

be registered.

Bluetooth

®

 compatible phones

(HFP) and audio players (AVP)
can be registered simultane-
ously.
This operation cannot be per-
formed while driving.

1

Display the Bluetooth

®

 set-

tings screen. (



P.394)

2

Select “Add New Device”.



When another Bluetooth

®



device is connected



To disconnect the Bluetooth

®



device, select “Yes”.



When 5 Bluetooth

®

 devices

have already been registered



A registered device needs to
be replaced. Select “Yes”, and
select the device to be
replaced.

3

Follow the steps in “Register-
ing a Bluetooth

®

 phone for

the first time” from step

5

.

(



P.390)

This operation cannot be per-
formed while driving.

1

Display the Bluetooth

®

 set-

tings screen. (



P.394)

2

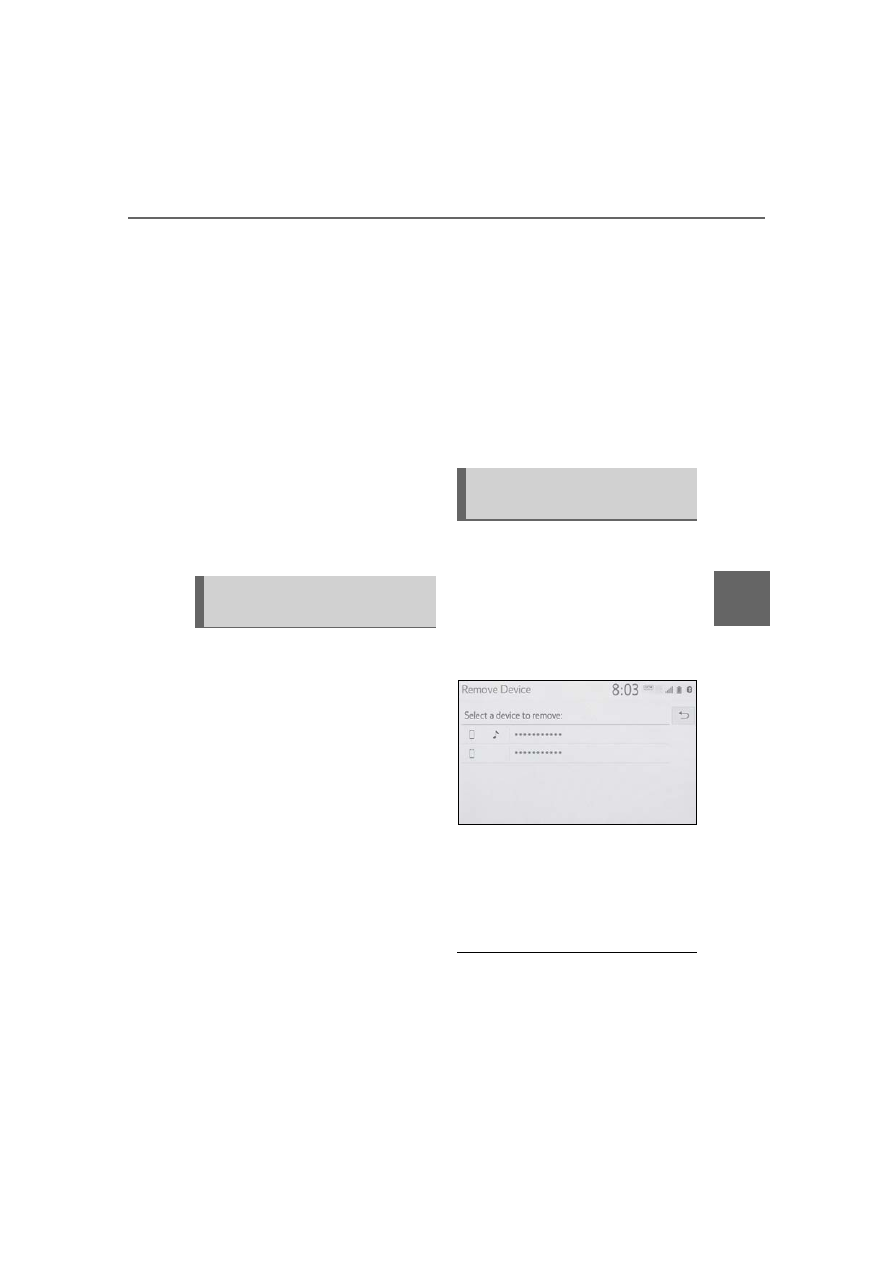

Select “Remove Device”.

3

Select the desired device.

4

Select “Yes” when the confir-
mation screen appears.

5

Check that a confirmation
screen is displayed when the
operation is complete.

●

When deleting a Bluetooth

®



phone, the contact data will be

deleted at the same time.

Registering a Bluetooth

®



device

Deleting a Bluetooth

®



device
