6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

■

Rear turn signal lights and rear side marker lights

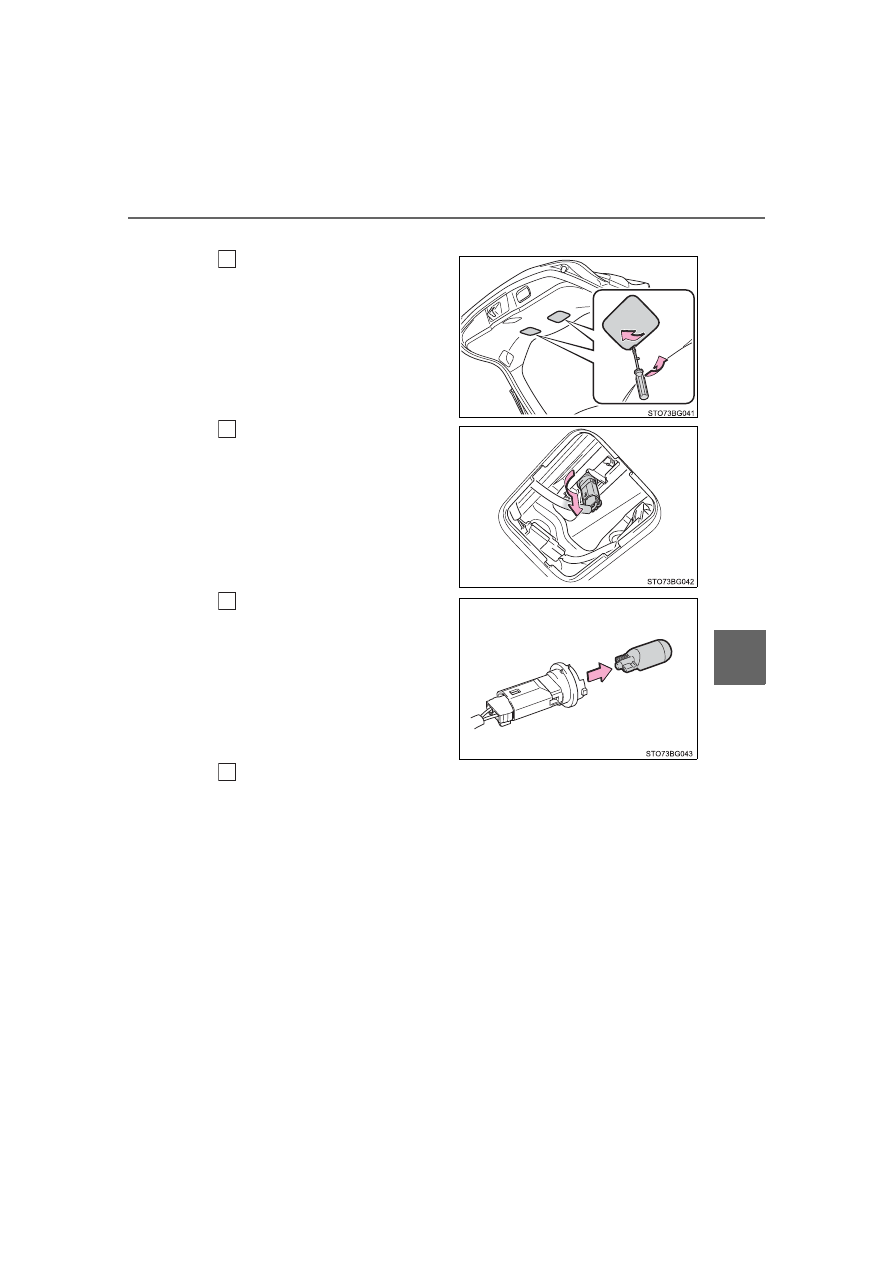

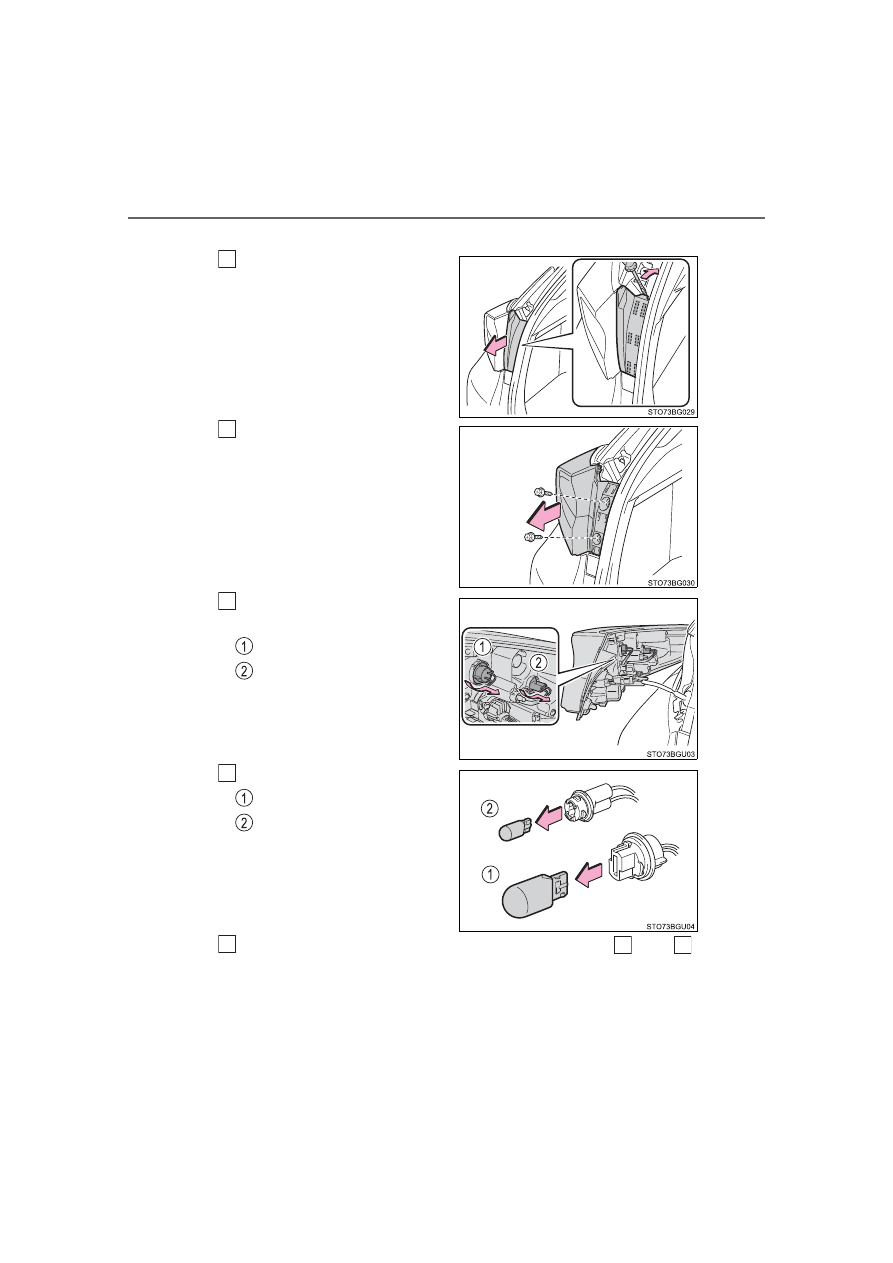

Open  the  back  door  and
remove the cover.

To  prevent  damaging  the  vehi-
cle,  wrap  the  flathead  screw-
driver with a tape.

Remove  the  2  screws  and
pull  the  light  unit  toward  the
rear of the vehicle to remove
it.

Turn  the  bulb  base  counter-
clockwise.

Rear turn signal lights
Rear side marker lights

Remove the light bulb.

Rear turn signal lights
Rear side marker lights

When  installing  the  light  bulb,  install  by  conducting

  and

with the directions reversed.

1

2

3

4

5

3

4

397

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

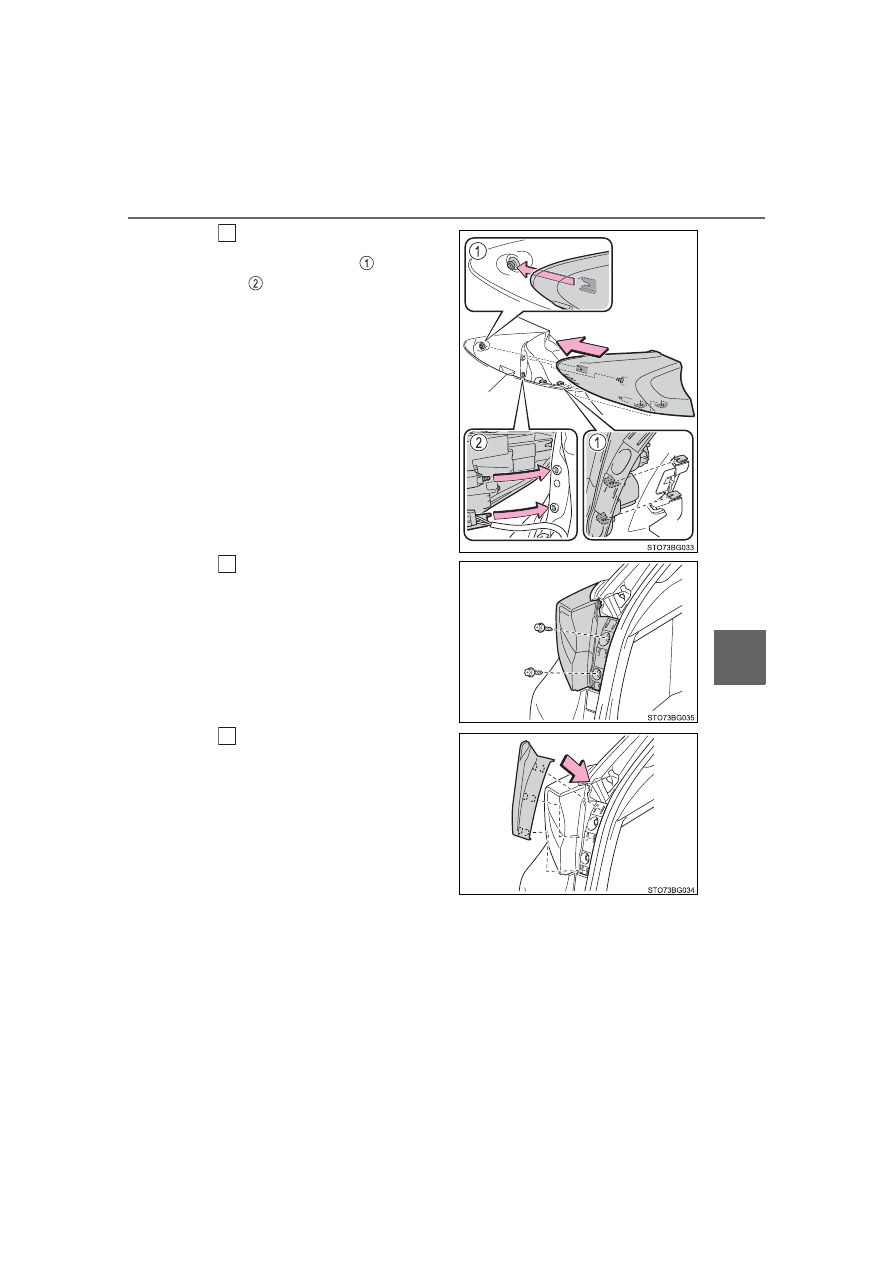

Install the lamp assembly.

Align  the  guide  (

)  and  pins

(

) on the lamp assembly with

the mounting when installing it.

Install the 2 screws.

Install the cover.

6

7

8

398

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

■

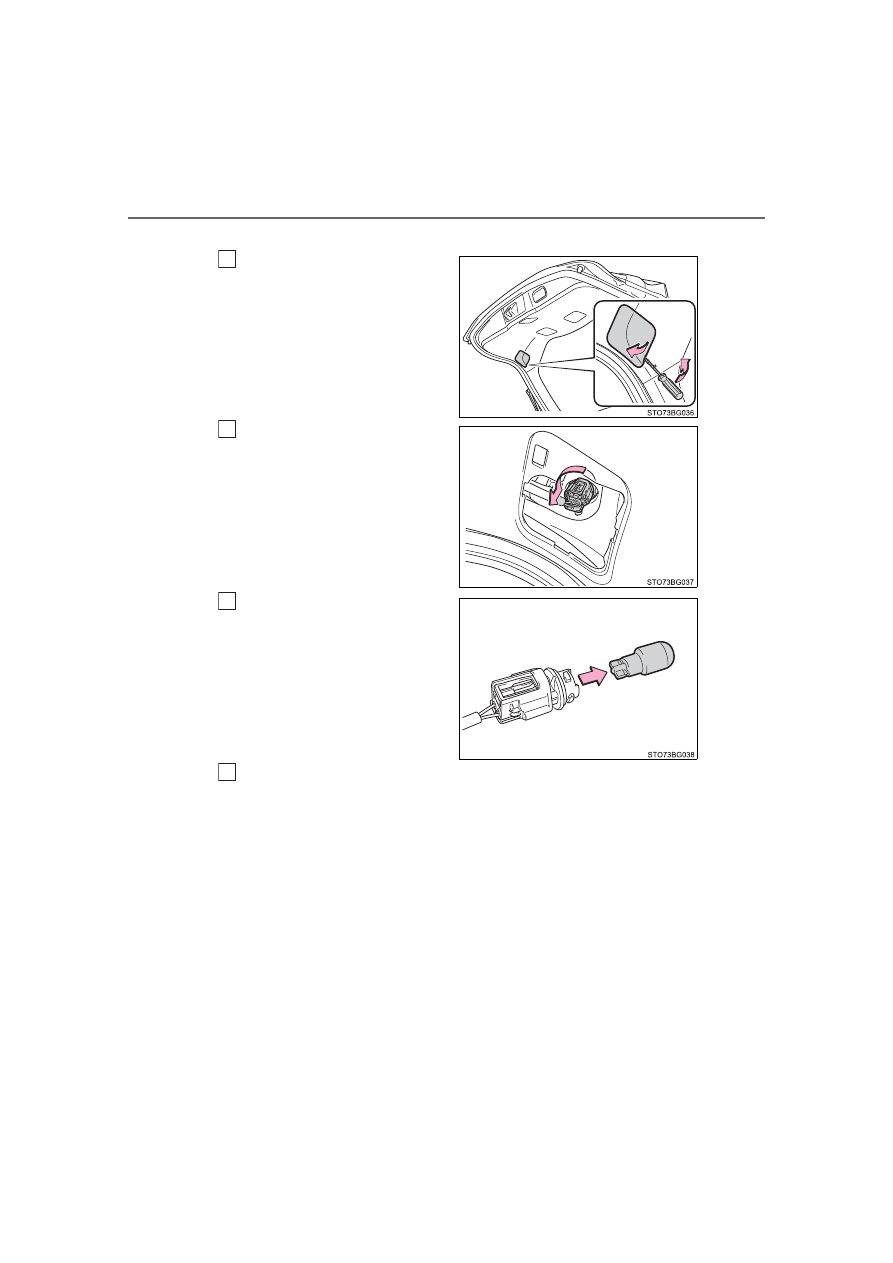

Back-up lights

Open  the  back  door  and
remove the cover.

To  prevent  damaging  the  vehi-
cle,  wrap  the  flathead  screw-
driver with a tape.

Turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

1

2

3

4

399

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

■

License plate lights

Open  the  back  door  and
remove the cover.

To  prevent  damaging  the  vehi-
cle,  wrap  the  flathead  screw-
driver with a tape.

Turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

1

2

3

4

400

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

■

Side turn signal lights

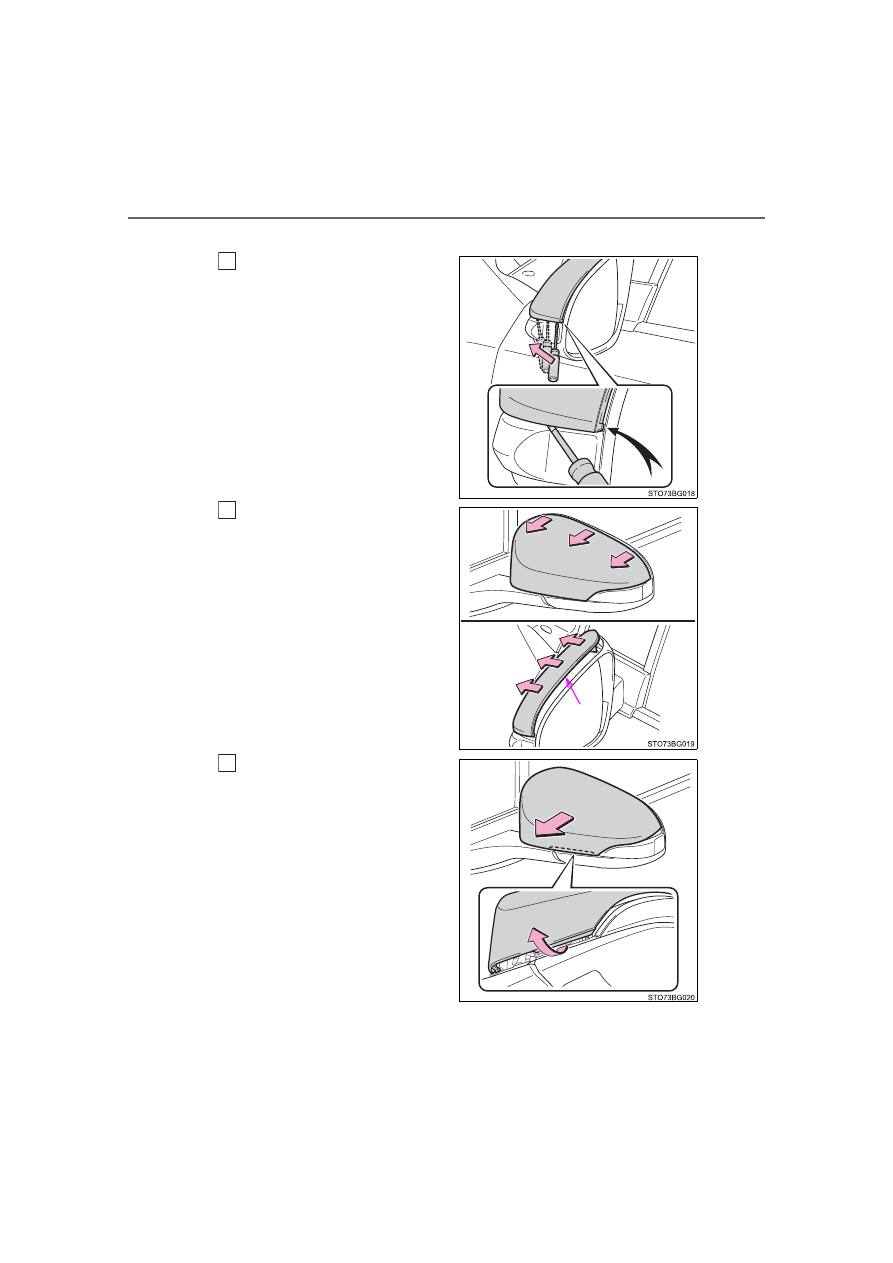

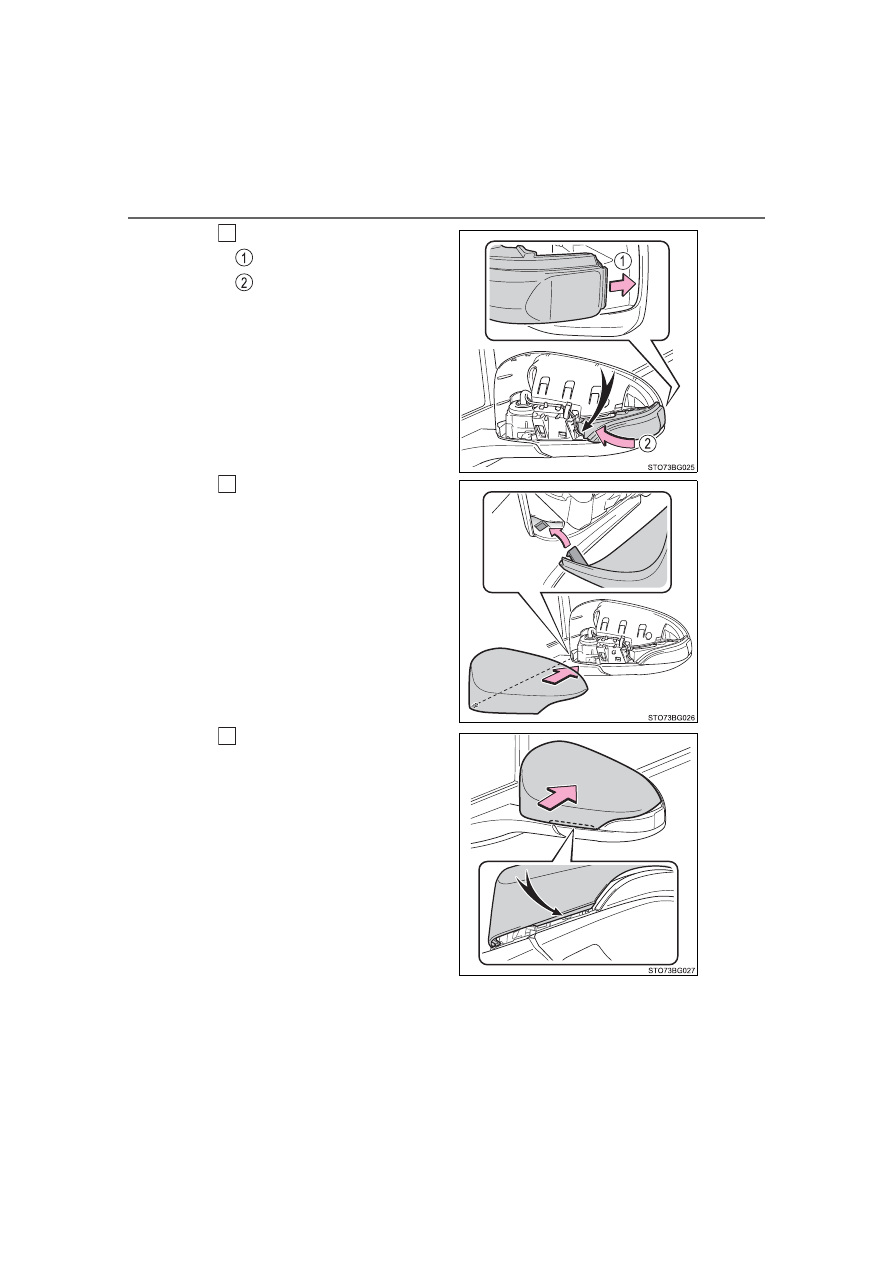

Insert  a  flathead  screwdriver
and  release  the  claw  for  the
outside  rear  view  mirror
cover.

To  prevent  damaging  the  vehi-
cle,  wrap  the  flathead  screw-
driver with a tape.

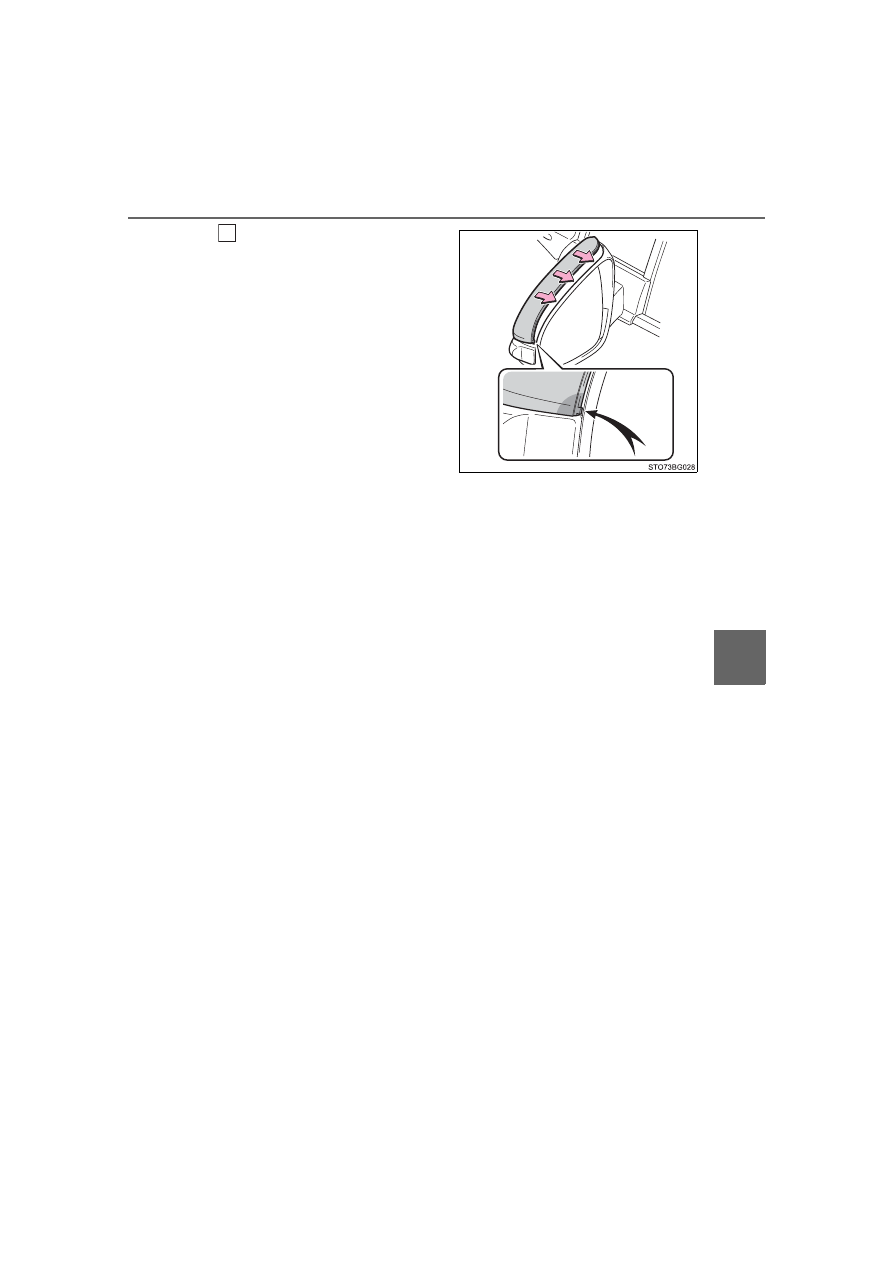

Release  the  cover  claws
spanning  over  the  entire
perimeter.

Release the claw of  the bot-
tom  part  of  the  cover  and
then remove the cover.

1

Claw

2

3

401

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

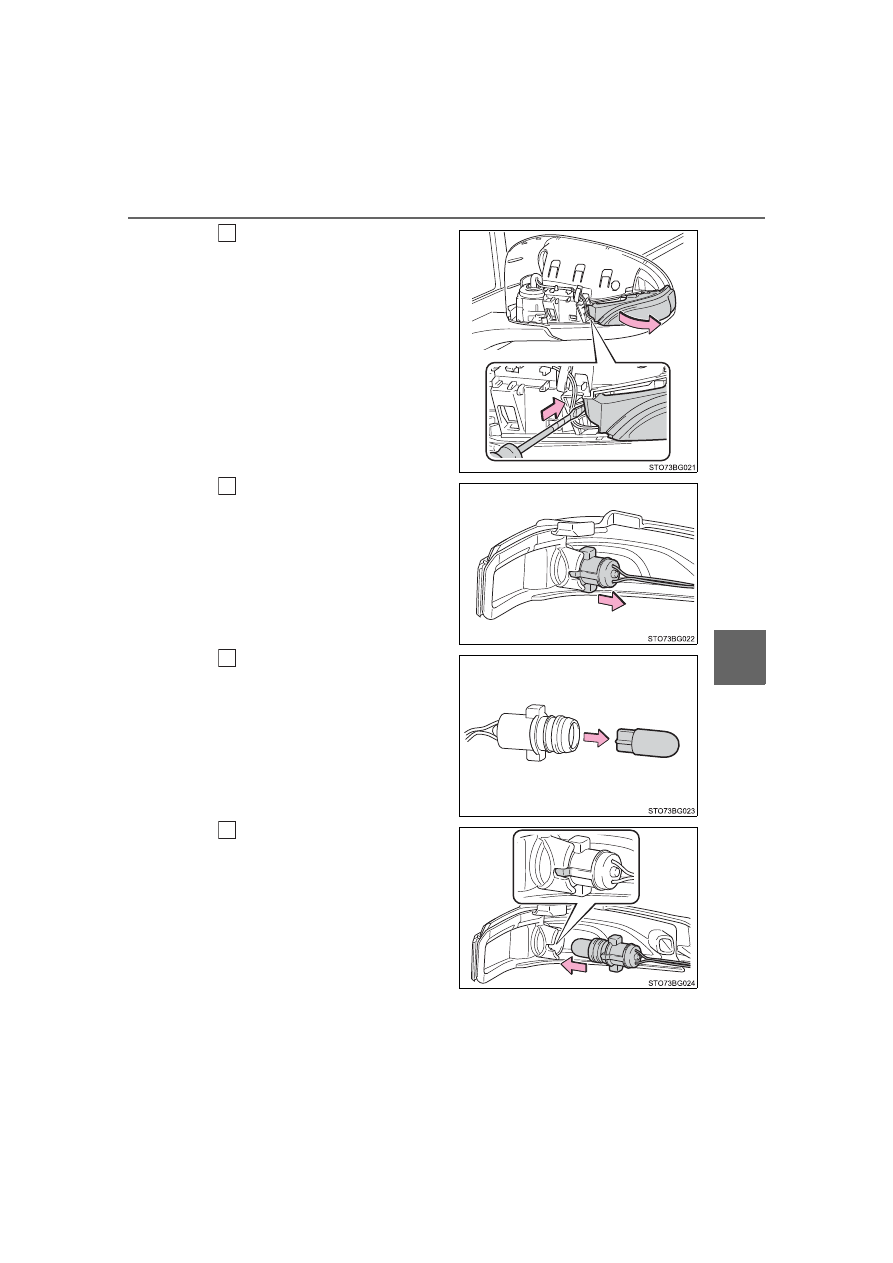

Insert  a  flathead  screwdriver
and  remove  the  lens  to  the
outside.

Remove the  socket from  the
side turn signal light housing.

Remove the bulb.

Replace  the  bulb  and  install
the  socket  to  the  side  turn
signal light housing.

Align  the  grooves  of  the  socket
to the side turn signal light hous-
ing.

4

5

6

7

402

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

Install the lens.

Insert the claw of the lens.
Attach the lens.

Arrange the wire harness on the
back side of the lens.

Insert the claw of the cover.

Attach  the  claw  on  the  bot-
tom part of the cover.

8

9

10

403

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

Attach the cover claws span-
ning  over  the  entire  perime-
ter.

Finally,  confirm  that  the  outside
claw is securely fitted.

■

Replacing the following bulbs

If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.

●

Headlights

●

Parking lights/daytime running lights

●

Front turn signal lights (vehicles with LED type)

●

Front side marker lights (vehicles with LED type)

●

Front fog lights

●

Stop/tail lights

●

High mounted stoplight

●

Outer mirror illumination (if equipped)

11

404

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

■

LED light bulbs

The following lights consist of a number of LEDs. If any of the LEDs burns
out, take your vehicle to your Toyota dealer to have the light replaced.

●

Headlights

●

Parking lights/daytime running lights

●

Front turn signal lights (vehicles with LED type)

●

Front side marker lights (vehicles with LED type)

●

Front fog lights

●

Stop/tail lights

●

High mounted stoplight

●

Outer mirror illumination (if equipped)

■

Condensation build-up on the inside of the lens

Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:

●

Large drops of water have built up on the inside of the lens.

●

Water has built up inside the headlight.

■

When replacing light bulbs



P. 390

405

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

WARNING

■

Replacing light bulbs

●

Turn  off  the  lights.  Do  not  attempt  to  replace  the  bulb  immediately  after
turning off the lights.
The bulbs become very hot and may cause burns.

●

Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.

●

Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.

●

Do  not  attempt  to  repair  or  disassemble  light  bulbs,  connectors,  electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.

■

To prevent damage or fire

●

Make sure bulbs are fully seated and locked.

●

Check the wattage of the bulb before installing to prevent heat damage.

406

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

407

7

When trouble arises

C-HR_OM_USA_OM10634U

7-1. Essential information

Emergency flashers .......... 408
If your vehicle has to be

stopped in an
emergency ...................... 409

If the vehicle is trapped

in rising water.................. 411

7-2. Steps to take in an

emergency

If your vehicle needs to

be towed ......................... 412

If you think something is

wrong .............................. 419

Fuel pump shut off

system ............................ 420

If a warning light turns

on or a warning buzzer
sounds ............................ 421

If a warning message is

displayed......................... 431

If you have a flat tire.......... 436
If the engine will not

start................................. 447

If the electronic key

does not operate
properly (vehicles with a
smart key system)........... 449

If the vehicle battery is

discharged ...................... 452

If your vehicle

overheats ........................ 457

If the vehicle becomes

stuck ............................... 460

408

7-1. Essential information

C-HR_OM_USA_OM10634U

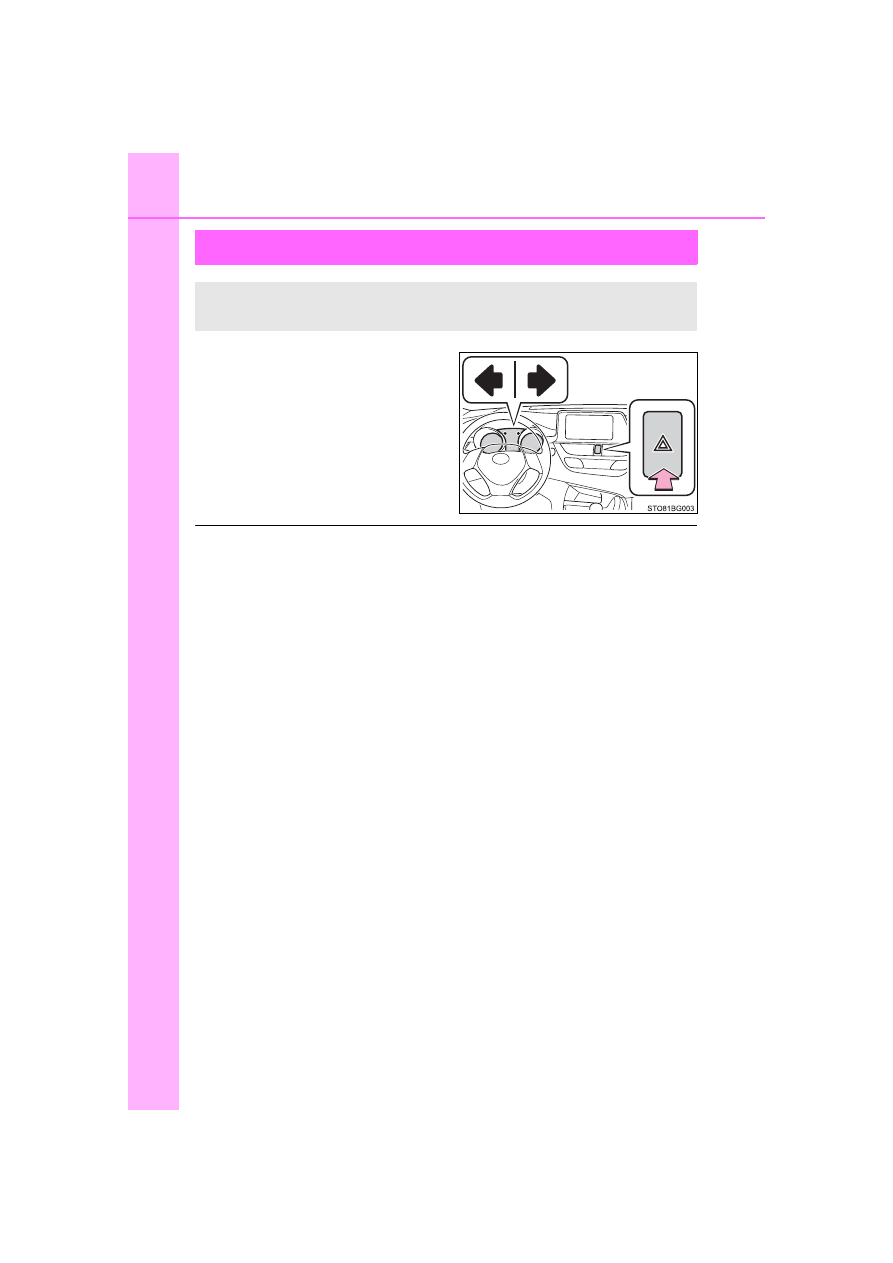

Emergency flashers

Press the switch.

All the turn signal lights will flash.
To  turn  them  off,  press  the  switch
once again.

■

Emergency flashers

If  the  emergency  flashers  are  used  for  a  long  time  while  the  engine  is  not
operating, the battery may discharge.

The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.

409

7-1. Essential information

C-HR_OM_USA_OM10634U

7

Wh
en tro

uble

 a

ris

es

If your vehicle has to be stopped in an

emergency

Steadily step on the brake pedal with both feet and firmly depress it.

Do  not  pump  the  brake  pedal  repeatedly  as  this  will  increase  the  effort
required to slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.



If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.

Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:

1

2

3

4

3

410

7-1. Essential information

C-HR_OM_USA_OM10634U

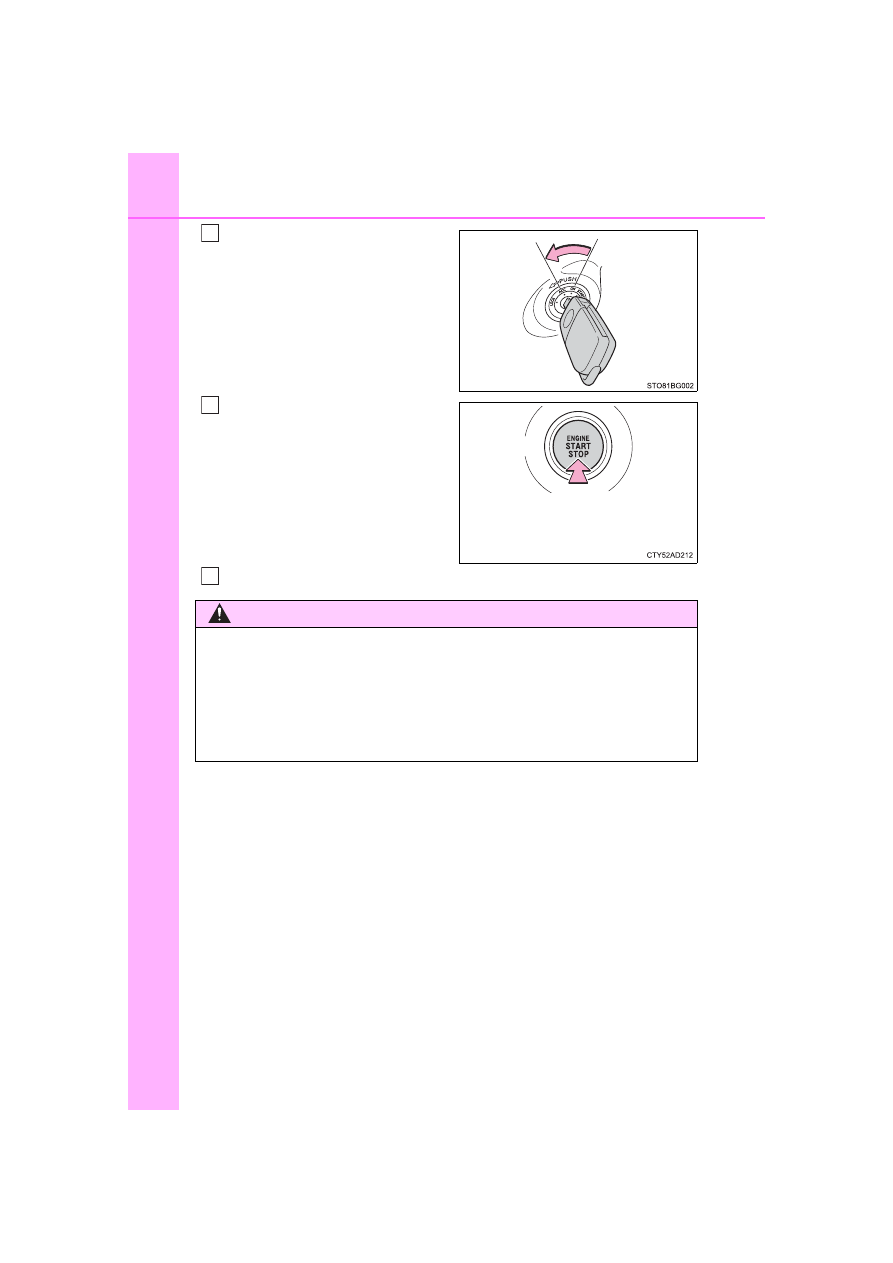

Vehicles  without  a  smart  key
system:  Stop  the  engine  by
turning the engine switch to the
“ACC” position.

Vehicles  with  a  smart  key  sys-
tem: To  stop  the  engine,  press
and  hold  the  engine  switch  for
2 consecutive seconds or more,
or  press  it  briefly  3  times  or
more in succession.

Stop the vehicle in a safe place by the road.

4

Press and hold for 2 seconds or
more, or press briefly 3 times or
more

4

WARNING

■

If the engine has to be turned off while driving

●

Power  assist  for  the  brakes  and  steering  wheel  will  be  lost,  making  the
brake  pedal  harder  to  depress  and  the  steering  wheel  heavier  to  turn.
Decelerate as much as possible before turning off the engine.

●

Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.

5

411

7-1. Essential information

C-HR_OM_USA_OM10634U

7

Wh
en tro

uble

 a

ris

es

If the vehicle is trapped in rising water

●

Remove the seat belt first.

●

If the door can be opened, open the door and exit the vehicle.

●

If  the  door  cannot  be  opened,  open  the  window  using  the  power
window switch and exit the vehicle through the window.

●

If  the  window  cannot  be  opened  using  the  power  window  switch,
remain calm, wait until the water level inside the vehicle rises to the
point that the water pressure inside of the vehicle equals the water
pressure outside of the vehicle, and then open the door and exit the
vehicle.

In the event the vehicle is submerged in water, remain calm and
perform the following.

WARNING

■

Using an emergency hammer

*

 for emergency escape

The front side windows and rear side windows, as well as the rear window
can be shattered with an emergency hammer

*

 used for emergency escape.

However, an emergency hammer cannot shatter the windshield as it is lam-
inated glass.

*

: Contact your Toyota dealer or aftermarket accessory manufacturer for fur-

ther information about an emergency hammer.

■

Escaping the vehicle from the window

There are cases where escaping the vehicle from the window is not possi-
ble due to seating position, passenger body type, etc.
When  using  an  emergency  hammer,  consider  your  seat  location  and  the
size  of  the  window  opening  to  ensure  that  the  opening  is  accessible  and
large enough to escape.

412

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

If your vehicle needs to be towed

The following may indicate a problem with your transmission. Contact
your Toyota dealer or commercial towing service before towing.

●

The engine is running but the vehicle does not move.

●

The vehicle makes an abnormal sound.

If  towing  is  necessary,  we  recommend  having  your  vehicle
towed  by  your  Toyota  dealer  or  commercial  towing  service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.

Situations when it is necessary to contact dealers before towing

413

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

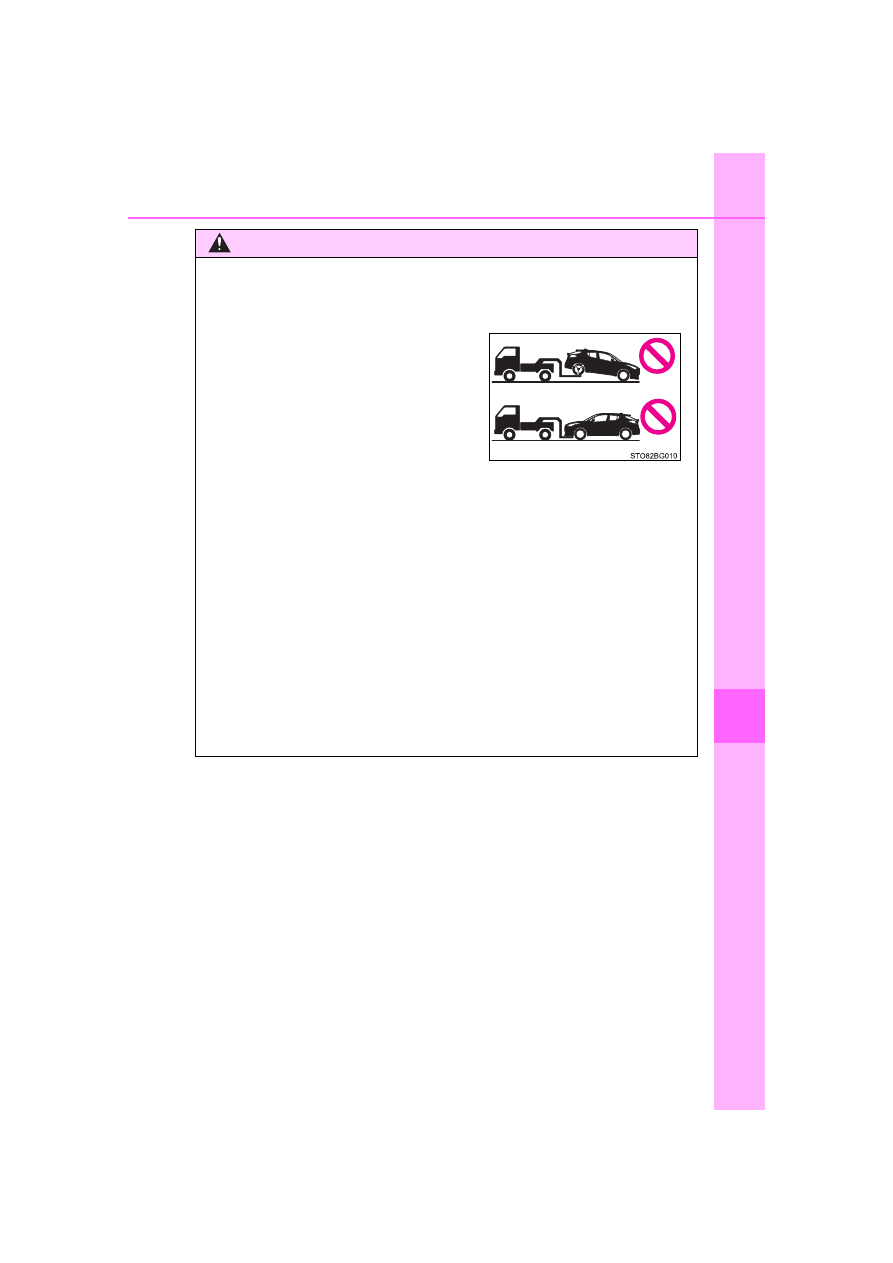

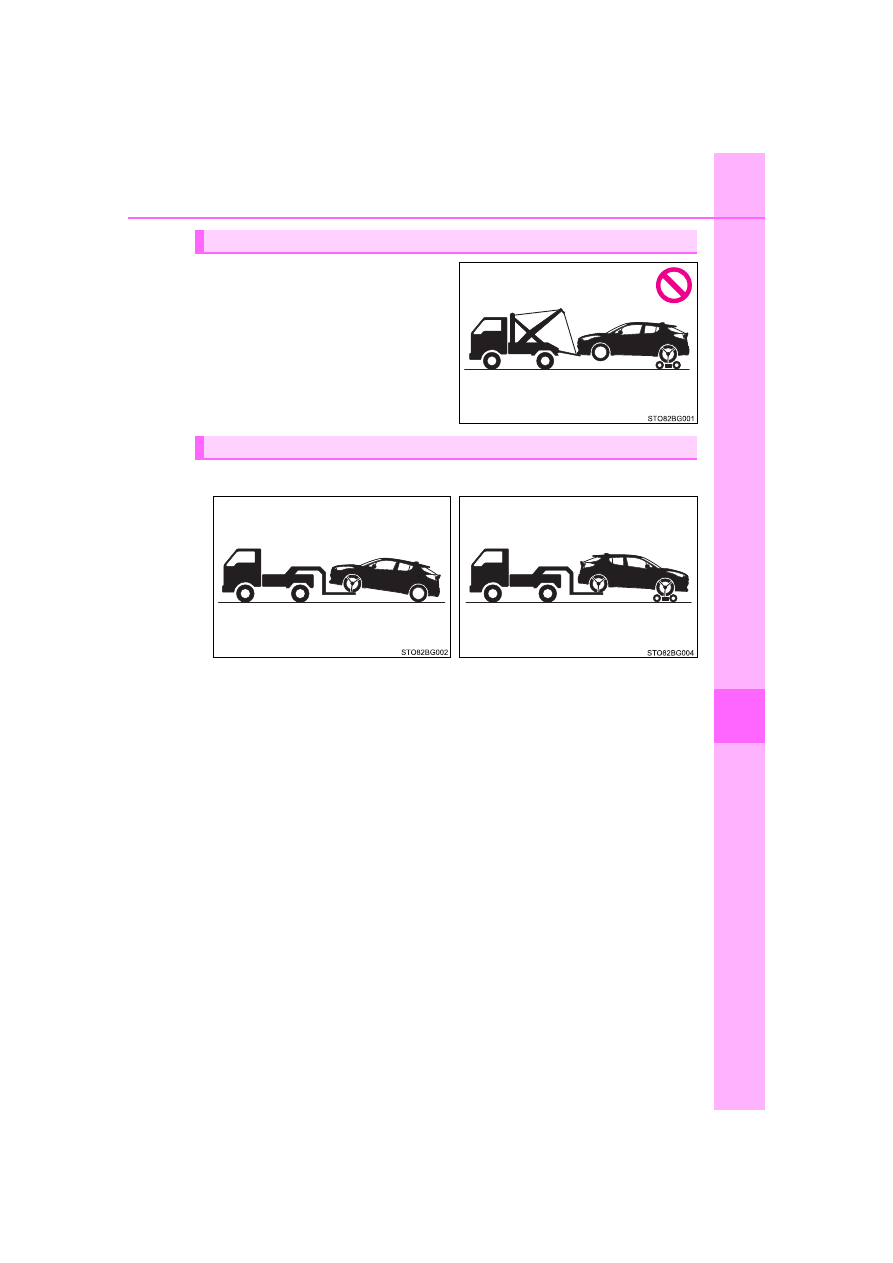

Do not tow with a sling-type truck
to prevent body damage.

Towing with a sling-type truck

Towing with a wheel-lift type truck



From the front



From the rear

Release the parking brake.

Use  a  towing  dolly  under  the
front wheels.

414

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

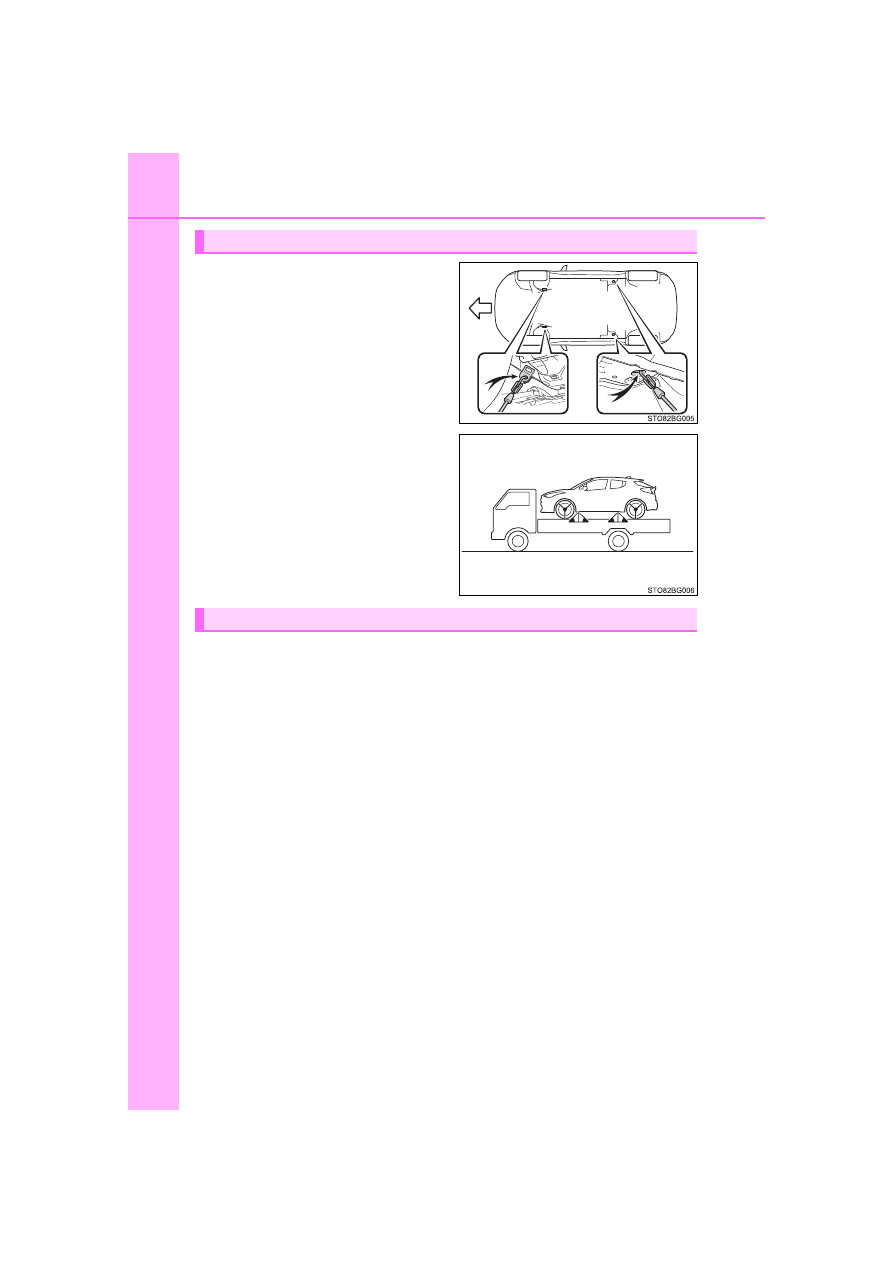

If your vehicle is transported by a
flatbed  truck,  it  should  be  tied
down at the locations shown in the
illustration.

If  you  use  chains  or  cables  to  tie
down  your  vehicle,  the  angles
shaded in black must be 45



.

Do  not  overly  tighten  the  tie
downs or the vehicle may be dam-
aged.

If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using cables or chains secured to the emergency
towing eyelets. This should only be attempted on hard surfaced roads
for at most 50 miles (80 km) at under 18 mph (30 km/h).
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s  wheels,  drivetrain,  axles,  steering  and  brakes  must  be  in
good condition.
Only the front towing eyelets may be used.

Using a flatbed truck

Emergency towing

415

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

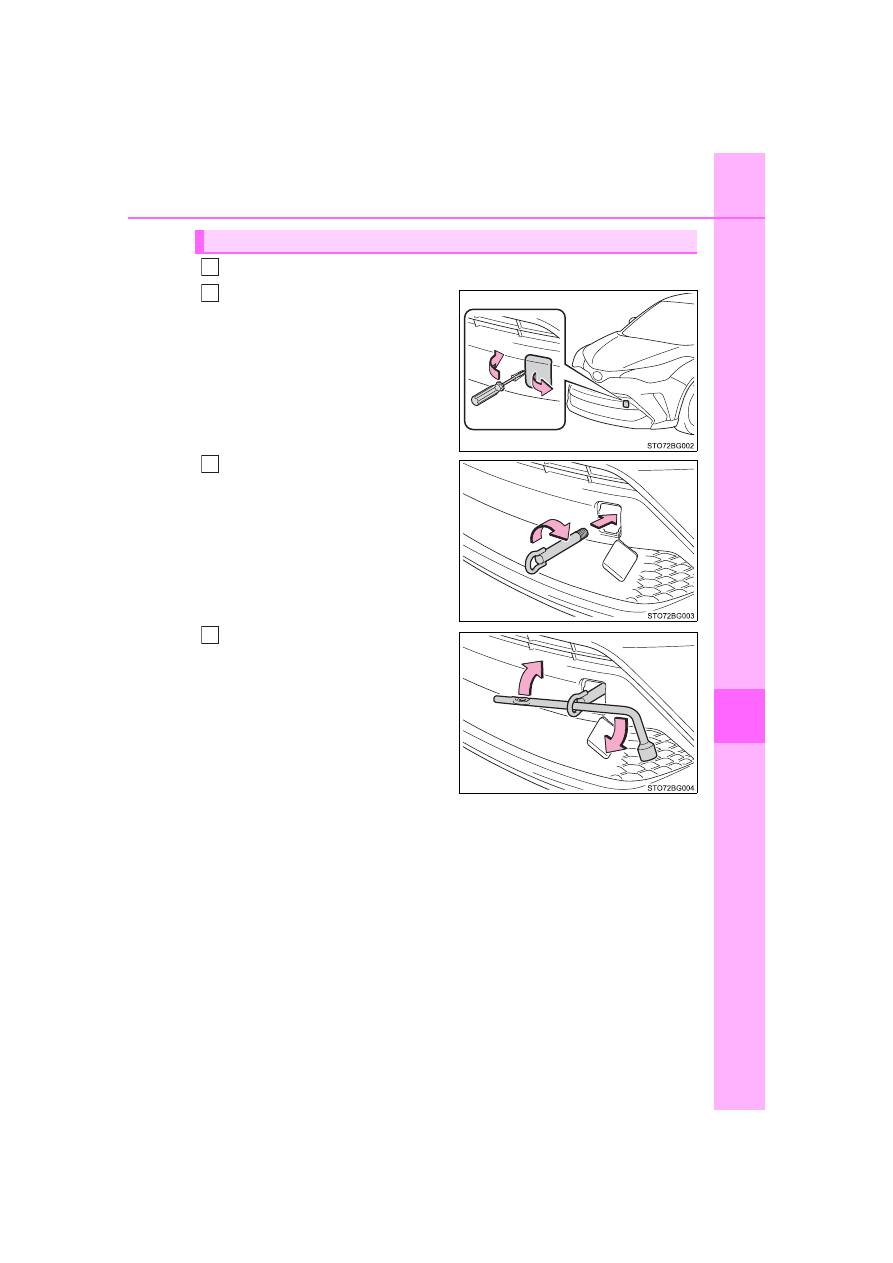

Take out the towing eyelet. (



P. 437)

Remove the eyelet cover using
a flathead screwdriver.

To  protect  the  bodywork,  place  a
rag  between  the  screwdriver  and
the  vehicle  body  as  shown  in  the
illustration.

Insert the towing eyelet into the
hole  and  tighten  partially  by
hand.

Tighten down the towing eyelet
securely  using  a  wheel  nut
wrench or hard metal bar.

Emergency towing procedure

1

2

3

4

416

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

Securely attach cables or chains to the towing eyelet.

Take care not to damage the vehicle body.

Vehicles without a smart key system: Enter the vehicle being towed
and start the engine.

If the engine does not start, turn the engine switch to the “ON” position.

Vehicles  with  a  smart  key  system:  Enter  the  vehicle  being  towed
and start the engine.

If the engine does not start, turn the engine switch to IGNITION ON mode.

Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted:



P. 191

■

While towing

If the engine is not running, the power assist for the brakes and steering will
not function, making steering and braking more difficult.

■

Wheel nut wrench

Wheel nut wrench is installed in the luggage compartment. (



P. 437)

5

6

7

417

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

WARNING

Observe the following precautions.
Failure to do so may result in death or serious injury.

■

When towing the vehicle

■

While towing

●

When  towing  using  cables  or  chains,  avoid  sudden  starts,  etc.,  which
place excessive stress on the towing eyelets, cables or chains. The towing
eyelets,  cables  or  chains  may  become  damaged,  broken  debris  may  hit
people, and cause serious damage.

●

Vehicles without a smart key system: Do not turn the engine switch to the
“LOCK” position.
There is a possibility that the steering wheel is locked and cannot be oper-
ated.

●

Vehicles with a smart key system: Do not turn the engine switch off.
There is a possibility that the steering wheel is locked and cannot be oper-
ated.

■

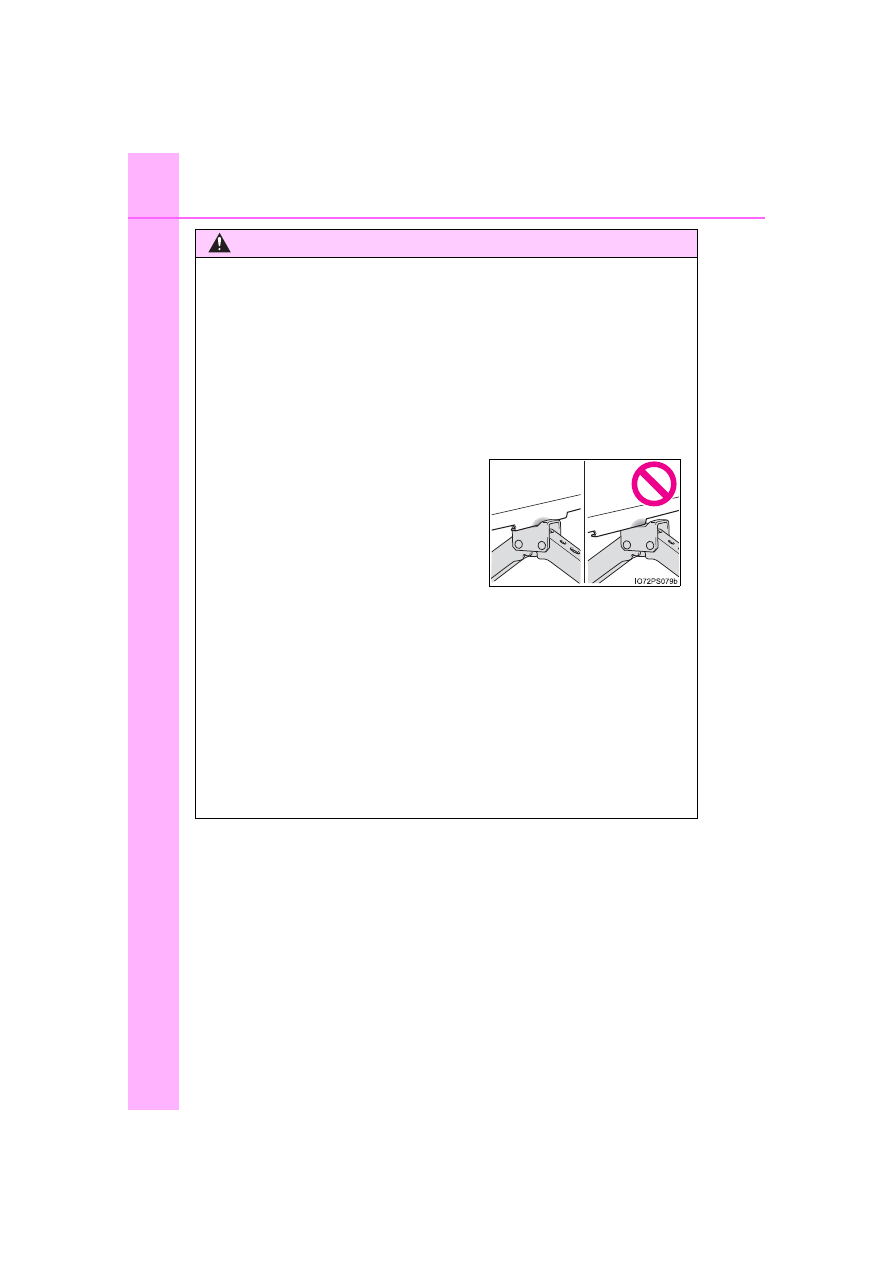

Installing towing eyelets to the vehicle

Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing.

Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised  off  the  ground.  If  the  vehicle  is
towed  with  the  front  wheels  contacting
the  ground,  the  drivetrain  and  related
parts may be damaged.

418

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

NOTICE

■

To prevent damage to the vehicle when towing using a wheel-lift type
truck

●

Vehicles without a smart key system: Do not tow the vehicle from the rear
when the engine switch is in the “LOCK” position or the key is removed.
The steering lock mechanism is not strong enough to hold the front wheels
straight.

●

Vehicles  with  a  smart  key  system:  Do  not  tow  the  vehicle  from  the  rear
when the engine switch is off. The steering lock mechanism is not strong
enough to hold the front wheels straight.

●

When raising the vehicle, ensure adequate ground clearance for towing at
the  opposite  end  of  the  raised  vehicle.  Without  adequate  clearance,  the
vehicle could be damaged while being towed.

■

To prevent damage to the vehicle when towing with a sling-type truck

Do not tow with a sling-type truck, either from the front or rear.

■

To prevent damage to the vehicle during emergency towing

Do not secure cables or chains to the suspension components.

419

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

7

Wh
en tro

uble

 a

ris

es

If you think something is wrong

●

Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)

●

Flat-looking tires or uneven tire wear

●

Engine coolant temperature gauge needle continually points higher
than normal.

●

Changes in exhaust sound

●

Excessive tire squeal when cornering

●

Strange noises related to the suspension system

●

Pinging or other noises related to the engine

●

Engine misses, stumbling or running roughly

●

Appreciable loss of power

●

Vehicle pulls heavily to one side when braking

●

Vehicle pulls heavily to one side when driving on a level road

●

Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor

If you notice any of the following symptoms, your vehicle proba-
bly  needs  adjustment  or  repair.  Contact  your  Toyota  dealer  as
soon as possible.

Visible symptoms

Audible symptoms

Operational symptoms

420

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

Fuel pump shut off system

Follow the procedure below to restart the engine after the system is
activated.



Vehicles without a smart key system
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.



Vehicles with a smart key system
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.

To  minimize  the  risk  of  fuel  leakage  when  the  engine  stalls  or
when  an  airbag  inflates  upon  collision,  the  fuel  pump  shut  off
system stops the supply of fuel to the engine.

NOTICE

■

Before starting the engine

Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.

1

2

1

2

421

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

7

Wh
en tro

uble

 a

ris

es

If a warning light turns on or a warning

buzzer sounds

Calmly perform the following actions if any of the warning lights
comes  on  or  flashes.  If  a  light  comes  on  or  flashes,  but  then
goes off, this does not necessarily indicate a malfunction in the
system.  However,  if  this  continues  to  occur,  have  the  vehicle
inspected by your Toyota dealer.

Warning light and warning buzzer list

Warning light

Warning light/Details/Actions

(U.S.A.)

(Red) (Canada)

Brake system warning light (warning buzzer)

Indicates that:
• Low brake fluid; or
• The brake system is malfunctioning.



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer
Continuing to drive the vehicle may be dangerous.

*

1

Low engine oil pressure warning light (warning buzzer)

Indicates abnormal engine oil pressure
The warning light may come on if the engine oil pressure
is too low.
A buzzer also sounds.



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer
Continuing to drive the vehicle may be dangerous.

*

1

Charging system warning light

Indicates a malfunction in the vehicle’s charging system



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer

422

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

(U.S.A.)

(Canada)

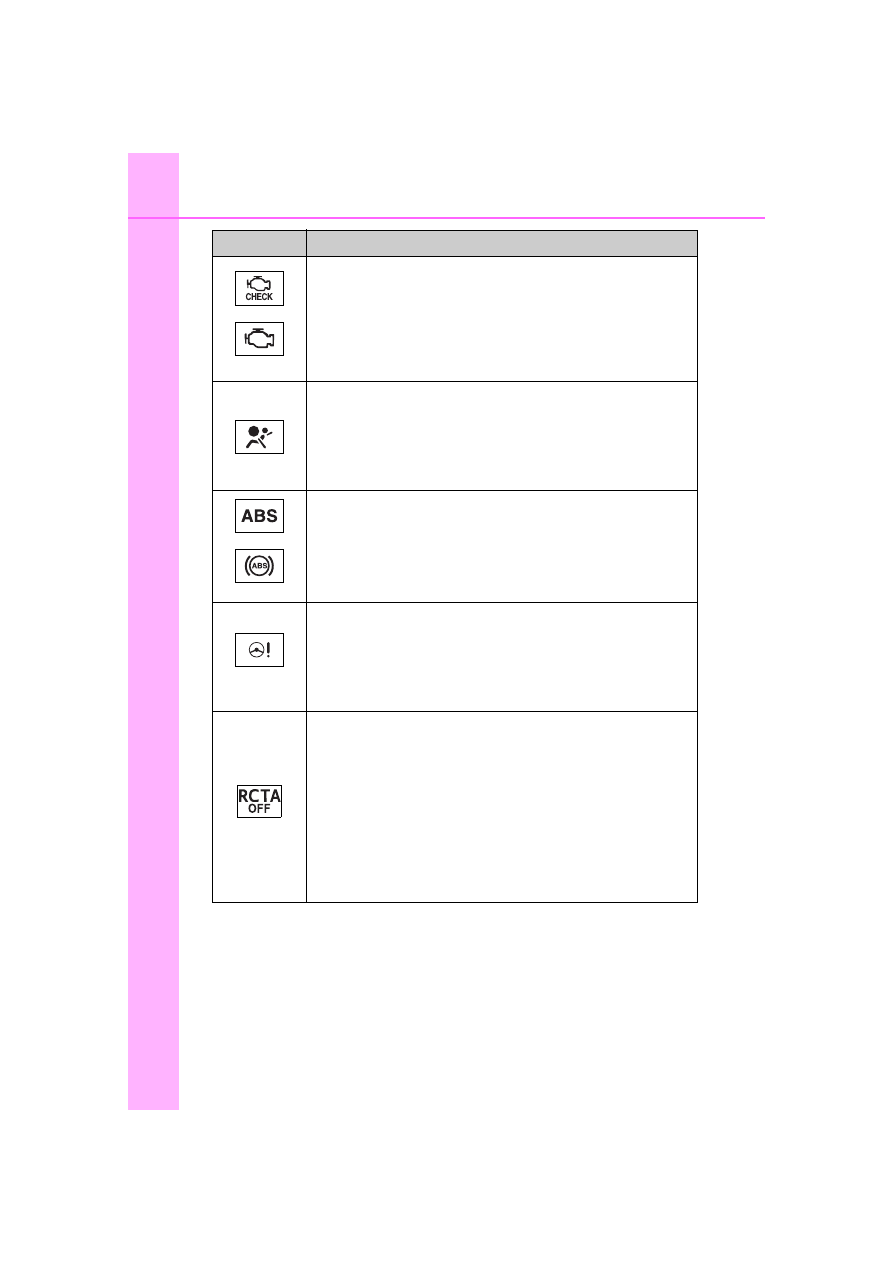

Malfunction indicator lamp (warning buzzer)

Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic continuously variable transmission.



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

SRS warning light

Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system.



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

(U.S.A.)

(Canada)

ABS warning light

Indicates a malfunction in:
• The ABS; or
• The brake assist system.



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

(Red/yellow)

Electric  power  steering  system  warning  light  (warning
buzzer)

Indicates a malfunction in the EPS (Electric Power Steer-
ing) system



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

(Flashes)

“RCTA OFF” indicator (if equipped)

When a buzzer sounds:
Indicates a malfunction in the RCTA (Rear Crossing Traffic
Alert) function



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

When a buzzer does not sound:
Indicates that the rear bumper around the radar sensor is
covered with dirt, etc. (



P. 272)



Follow  the  instructions  displayed  on  the  multi-infor-
mation display. (



P. 279)

Warning light

Warning light/Details/Actions

423

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

Slip indicator

Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRAC (Traction Control) system; or
• The hill-start assist control system.
The light will flash when the VSC or the TRAC is operat-
ing. (



P. 287)



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

(Yellow)

Brake system warning light

Indicates a malfunction in the electric parking brake



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

*

1

(Flashes)

Brake hold operated indicator

Indicates a malfunction in the brake hold system



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

(Flashes or
illuminates)

PCS warning light

Indicates a malfunction in the PCS (Pre-Collision System)
or  that  the  system  is  temporarily  unavailable  due  to  the
vehicle  being  extremely  hot/cold,  or  dirt  around  a  front
sensor, etc. (



P. 241, 431)



Follow  the  instructions  displayed  on  the  multi-infor-
mation display. (



P. 241, 431)

If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.



P. 241

*

2

(Flashes) (U.S.A.)

(Flashes) (Canada)

Parking brake indicator (warning buzzer)

It is possible that the parking brake is not fully engaged or
released



Operate the parking brake switch once again.

This  light  comes  on  when  the  parking  brake  is  not
released. If the light turns off after the parking brake is fully
released, the system is operating normally.

Low fuel level warning light

Indicates  that  remaining  fuel  is  approximately  2.0 gal.
(7.5 L, 1.6 Imp.gal.) or less



Refuel the vehicle.

Warning light

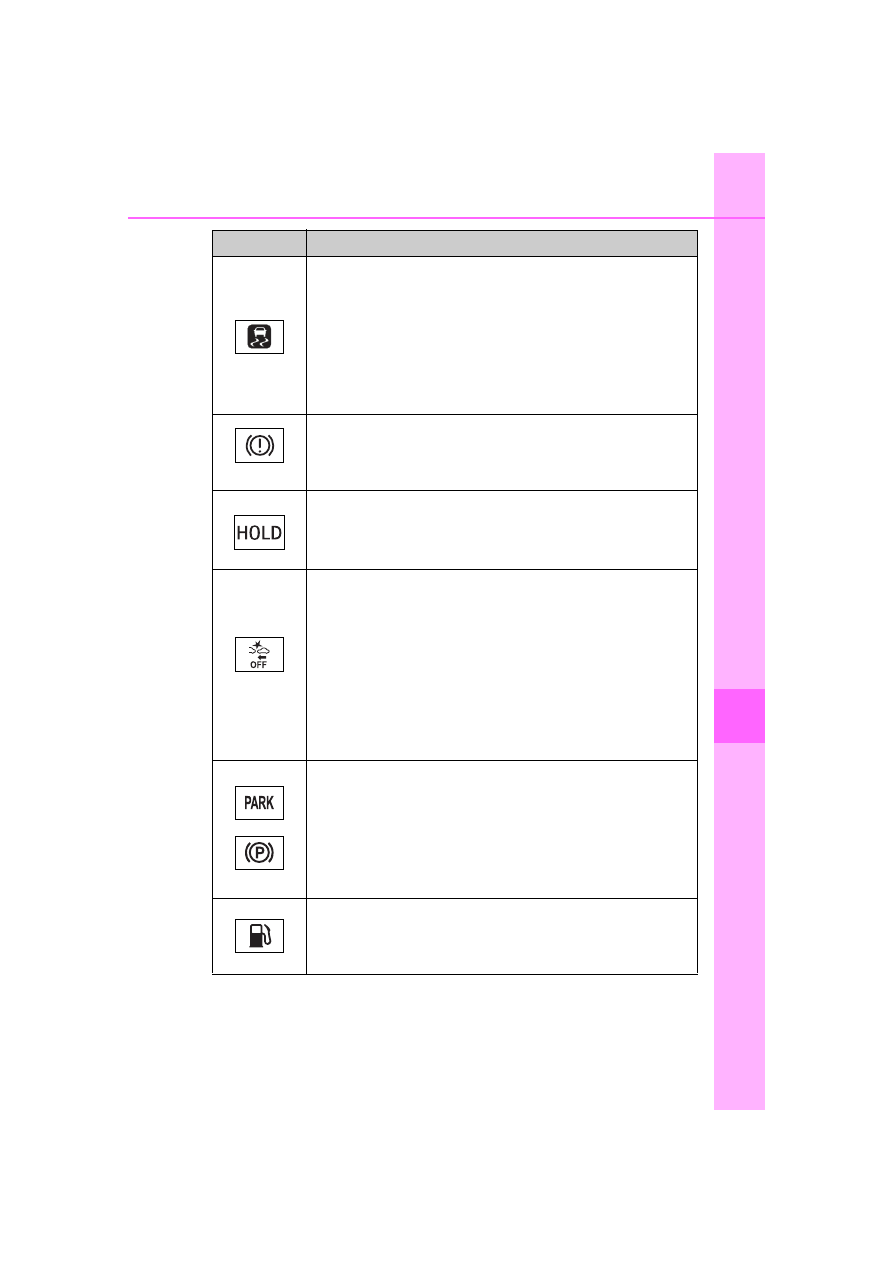

Warning light/Details/Actions

424

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

*

3

Driver’s  and  front  passenger’s  seat  belt  reminder  light
(warning buzzer)

Warns  the  driver  and/or  front  passenger  to  fasten  their
seat belts.



Fasten the seat belt.
If the front passenger seat is occupied, the front pas-
senger’s seat belt also needs to be fastened to make
the warning light (warning buzzer) off.

*

3

(On the center panel)

Rear  passengers’  seat  belt  reminder  lights  (warning
buzzer)

Warn the rear passengers to fasten their seat belts



Fasten the seat belt.

Tire pressure warning light

When the light comes on:

Low tire inflation pressure such as

• Natural causes (



P. 427)

• Flat tire (



P. 436)



Adjust  the  tire  inflation  pressure  to  the  specified

level.

The light will turn off after a few minutes. In case

the light does not turn off even if the tire inflation

pressure is adjusted, have the system checked by

your Toyota dealer.

When the light comes on after blinking for 1 minute:

Malfunction in the tire pressure warning system

(



P. 427)



Have the system checked by your Toyota dealer.

*

1

High engine coolant temperature warning light (warning
buzzer)

Indicates that the engine coolant temperature is too high



P. 457

Warning light

Warning light/Details/Actions

425

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

*

1

: This light illuminates on the multi-information display.

*

2

: Parking brake engaged warning buzzer:

A  buzzer  will  sound  if  the  vehicle  is  driven  at  a  speed  of  approximately
3 mph (5 km/h) or more.

*

3

: Driver’s seat belt warning buzzer:

The driver’s seat belt warning buzzer sounds to alert the driver that his or
her seat belt is not fastened. Once the engine switch is turned to the “ON”
position (vehicles without smart key system) or IGNITION ON mode (vehi-
cles  with  smart  key  system),  the  buzzer  sounds.  If  the  seat  belt  is  still
unfastened,  the  buzzer  sounds  intermittently  for  a  certain  period  of  time
after the vehicle reaches a certain speed.

Front passenger’s seat belt warning buzzer:
The  front  passenger’s  seat  belt  warning  buzzer  sounds  to  alert  the  front
passenger that his or her seat belt is not fastened. If the seat belt is unfas-
tened, the buzzer sounds intermittently for a certain period of time after the
vehicle reaches a certain speed.

Rear passengers’ seat belt warning buzzer:
The  rear  passengers’  seat  belt  warning  buzzer  sounds  to  alert  the  rear
passenger that his or her seat belt is not fastened. If the seat belt is unfas-
tened,  the  buzzer sounds  intermittently for  a  certain period  of time,  after
the seat belt is fastened and unfastened and the vehicle reaches a certain
speed.

*

1

Brake Override System

Indicates that the accelerator and brake pedals are being
depressed  simultaneously,  and  the  Brake  Override  Sys-
tem is operating.



Release the accelerator pedal and depress the brake
pedal.

Indicates  a  malfunction  in  the  Brake  Override  System
(with warning buzzer)



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

Drive-Start Control

Indicates  that  the  shift  position  was  changed  and  Drive-
Start Control was operated while depressing the accelera-
tor pedal. (with warning buzzer)



Momentarily release the accelerator pedal.

Indicates a malfunction in the Drive-Start Control system
(with warning buzzer)



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

Warning light

Warning light/Details/Actions

426

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

■

SRS warning light

This warning light system monitors the airbag sensor assembly, front impact
sensors,  side  impact  sensors  (front  door),  side  impact  sensors  (front),  side
impact sensors (rear), driver’s seat position sensor, driver’s seat belt buckle
switch, front passenger occupant classification system, “AIR BAG ON” indica-
tor  light,  “AIR  BAG  OFF”  indicator  light,  front  passenger’s  seat  belt  buckle
switch,  seat  belt  pretensioners,  airbags,  interconnecting  wiring  and  power
sources. (



P. 32)

■

Electric power steering system warning light (warning buzzer)

When  the  battery  charge  becomes  insufficient  or  the  voltage  temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.

■

If the malfunction indicator lamp comes on while driving

For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle imme-
diately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact your Toyota dealer.

■

Front  passenger  detection  sensor,  seat  belt  reminder  and  warning
buzzer

●

If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.

●

If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.

■

Warning light operations for unfastened rear passenger seat belts

●

When  opening  and  closing  the  rear  door,  the  warning  light  comes  on  for
approximately 34 seconds.

●

When any of the rear seat belts are unfastened, the warning light comes on.
When the rear doors are opened and closed while the warning light is on,
the warning light will turn off after approximately 34 seconds.

427

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

■

When the tire pressure warning light comes on

Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured:



P. 436

If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered

sufficiently.

●

Check the tire inflation pressure and adjust to the appropriate level.

●

If the warning  light  does not go  out  even after several minutes, check

that the tire inflation pressure is at the specified level and carry out ini-

tialization. (



P. 364)

The  warning  light  may  come  on  again  if  the  above  operations  are  con-

ducted without first allowing the tire temperature to lower sufficiently.

■

The tire pressure warning light may come on due to natural causes

The tire pressure warning light may come on due to natural causes such

as  natural  air  leaks  and  tire  inflation  pressure  changes  caused  by  tem-

perature. In this case, adjusting the tire inflation pressure will turn off the

warning light (after a few minutes).

■

When a tire is replaced with a spare tire

The compact spare tire is not equipped with a tire pressure warning valve

and transmitter. If a tire goes flat, the tire pressure warning light will not

turn  off  even  though  the  flat  tire  has  been  replaced  with  the  spare  tire.

Replace the spare tire with the repaired tire and adjust the tire inflation

pressure. The tire pressure warning light will go off after a few minutes.

■

Conditions  that  the  tire  pressure  warning  system may  not function

properly



P. 367

■

If the tire pressure warning light frequently comes on after blinking

for 1 minute

If  the  tire  pressure  warning  light  frequently  comes  on  after  blinking  for

1 minute when the engine switch is turned to the “ON” position (vehicles

without  smart  key  system)  or  IGNITION  ON  mode  (vehicles  with  smart

key system), have it checked by your Toyota dealer.

■

Warning buzzer

In some cases, the buzzer may not be heard because of noisy place or an
audio sound.

428

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

WARNING

■

If both the ABS and the brake system warning lights remain on

Stop  your  vehicle  in  a  safe  place  immediately  and  contact  your  Toyota
dealer. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.

■

When the electric power steering system warning light comes on

When  the  light  comes  on  yellow,  the  assist  to  the  power  steering  is
restricted. When the light comes on red, the assist to the power steering is
lost  and  handling  operations  of  the  steering  wheel  become  extremely
heavy.  When  steering  wheel  operations  are  heavier  than  usual,  grip  the
steering wheel firmly and operate it using more force than usual.

■

If the tire pressure warning light comes on

Be  sure  to  observe  the  following  precautions.  Failure  to  do  so  could

cause a loss of vehicle control and result in death or serious injury.

●

Stop your vehicle in a safe place as soon as possible. Adjust the tire

inflation pressure immediately.

●

If the tire pressure warning light comes on even after tire inflation pres-

sure adjustment, it is probable that you have a flat tire. Check the tires.

If  a  tire  is  flat,  change  it  with  the  spare  tire  and  have  the  flat  tire

repaired by the nearest Toyota dealer.

●

Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,

you could lose control of the steering wheel or the brakes.

■

If a blowout or sudden air leakage should occur

The tire pressure warning system may not activate immediately.

429

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

WARNING

■

Maintenance of the tires

Each tire, including the spare (if provided), should be checked monthly

when  cold  and  inflated  to  the  inflation  pressure  recommended  by  the

vehicle  manufacturer  on  the  vehicle  placard  or  tire  inflation  pressure

label (tire and load information label). (If your vehicle has tires of a dif-

ferent size than the size indicated on the vehicle placard or tire inflation

pressure  label  [tire  and  load  information  label],  you  should  determine

the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire

pressure monitoring system (TPMS-tire pressure warning system) that

illuminates a low tire pressure telltale (tire pressure warning light) when

one  or  more  of  your  tires  is  significantly  under-inflated.  Accordingly,

when  the  low  tire  pressure  telltale  (tire  pressure  warning  light)  illumi-

nates, you should stop and check your tires as soon as possible, and

inflate  them  to  the  proper  pressure.  Driving  on  a  significantly  under-

inflated  tire  causes  the  tire  to  overheat  and  can  lead  to  tire  failure.

Under-inflation also reduces fuel efficiency and tire tread life, and may

affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-

stitute for proper tire maintenance, and it is the driver’s responsibility to

maintain  correct  tire  pressure,  even  if  under-inflation  has  not  reached

the level to trigger illumination of the TPMS low tire pressure telltale (tire

pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warn-

ing  system)  malfunction  indicator  to  indicate  when  the  system  is  not

operating properly. The TPMS (tire pressure warning system) malfunc-

tion indicator is combined with the low tire pressure telltale (tire pressure

warning light). When the system detects a malfunction, the telltale will

flash for approximately one minute and then remain continuously illumi-

nated. This sequence will continue upon  subsequent vehicle  start-ups

as long as the malfunction exists. When the malfunction indicator is illu-

minated, the system may not be able to detect or signal low tire pres-

sure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-

ety of reasons, including the installation of replacement or alternate tires

or wheels on the vehicle that prevent the TPMS (tire pressure warning

system)  from  functioning  properly. Always  check  the TPMS  (tire  pres-

sure  warning  system)  malfunction  telltale  after  replacing  one  or  more

tires or wheels on your vehicle to ensure that the replacement or alter-

nate tires and wheels allow the TPMS (tire pressure warning system) to

continue to function properly.

430

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

NOTICE

■

To ensure the tire pressure warning system operates properly

Do  not  install  tires  with  different  specifications  or  makers,  as  the  tire

pressure warning system may not operate properly.

431

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

7

Wh
en tro

uble

 a

ris

es

If a warning message is displayed

Multi-information display

If any of the warning messages are shown again after the following
actions have been performed, contact your Toyota dealer.

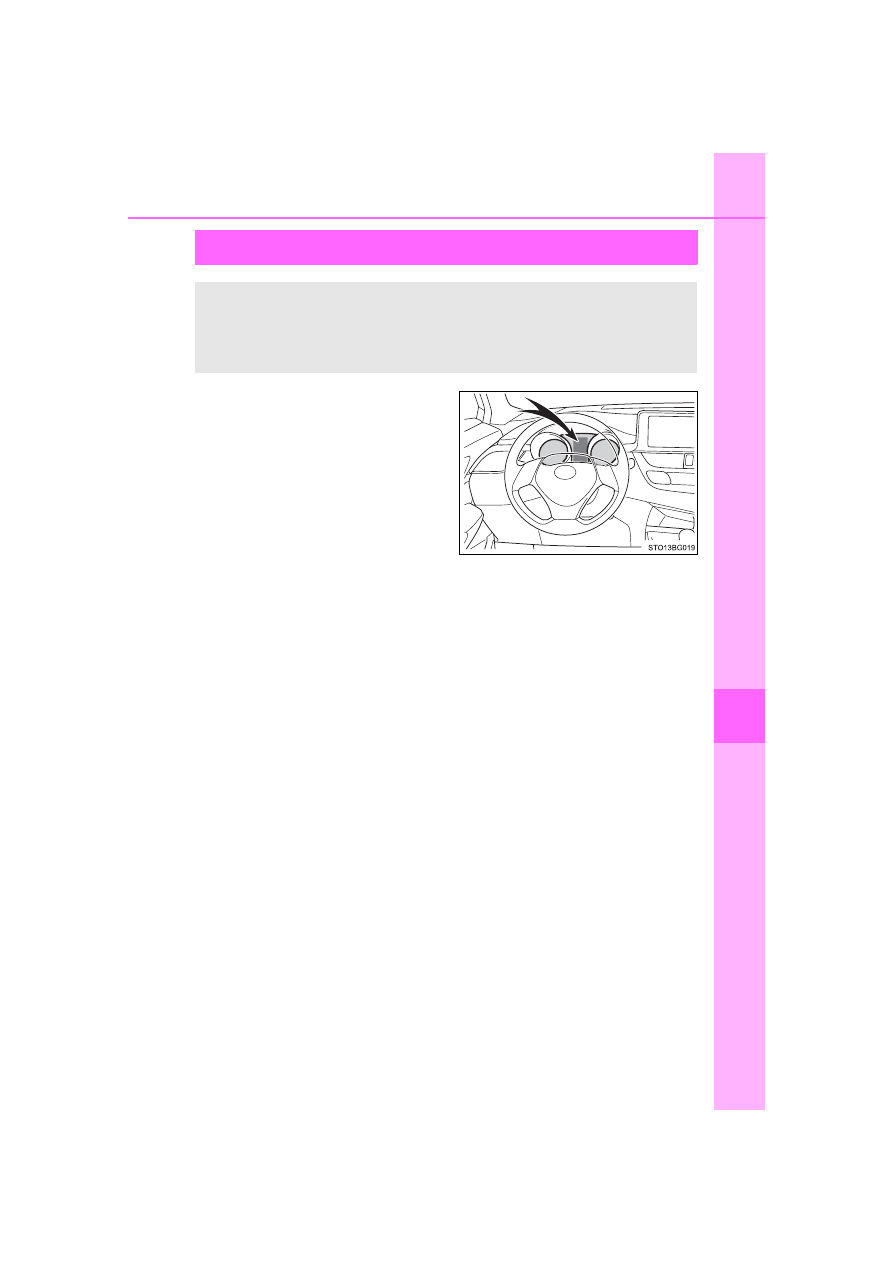

The  multi-information  display  shows  warnings  of  system  mal-
functions, incorrectly performed operations, and messages that
indicate  a  need  for  maintenance.  When  a  message  is  shown,
perform the correction procedure appropriate to the message.

432

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection  by  a  dealer,  have  the  vehicle  inspected  by  your  Toyota
dealer immediately.

*

: A buzzer sounds the first time a message is shown on the multi-informa-

tion display

Messages and warnings

System

warning

light

Warning

buzzer

*

Warning



Sounds

• Indicates  an  important  situation,  such  as

when a system related to driving is malfunc-
tioning or that danger may result if the correc-
tion procedure is not performed

• Indicates  a  situation,  such  as  when  damage

to the vehicle or danger may result

Comes

on or

flashes

Sounds

Indicates an important situation, such as when
the systems shown on the multi-information dis-
play may be malfunctioning



Does not

sound

• Indicates a condition, such as malfunction of

electrical components, their condition, or indi-
cates the need for maintenance

• Indicates a situation, such as when an opera-

tion  has  been  performed  incorrectly,  or  indi-
cates how to perform an operation correctly

433

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

■

Warning messages

The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.

■

If  a  message  that  indicates  the  need  for  visiting  your  Toyota  dealer  is
displayed

The system or part shown on the multi-information display is malfunctioning.
Have the vehicle inspected by your Toyota dealer immediately.

■

If a message about an operation is shown

●

If a message about an operation of the accelerator pedal or brake pedal is
shown
A warning message about an operation of the brake pedal may be shown
while the driving assist systems such as PCS (Pre-Collision System) or the
dynamic radar cruise control with full-speed range is operating. If a warning
message is shown, be sure to decelerate the vehicle or follow the instruction
shown on the multi-information display.

●

A warning message is shown when Brake Override System or Drive-Start
Control operates (



P. 164). Follow the instructions on the multi-informa-

tion display.

●

If a message about an operation of the engine switch is shown
An instruction for operation of the engine switch is shown when the incorrect
procedure for starting the engine is performed or the engine switch is oper-
ated incorrectly. Follow the instructions shown on the multi -information dis-
play to operate the engine switch again.

●

If a message about a shift lever operation is shown
To prevent the shift lever from being operated incorrectly or the vehicle from
moving unexpectedly, a message that requires shifting the shift lever may
be shown on the multi-information display. In that case, follow the instruction
of the message and shift the shift lever.

●

If a message or image about an open/close state of a part or replenishment
of a consumable is shown
Confirm the part indicated by the multi-information display or a warning light,
and  then  perform  the  coping  method  such  as  closing  the  open  door  or
replenishing a consumable.

434

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

■

If a message that indicates the need for referring to Owner’s Manual is
displayed

●

If “Engine Coolant Temperature High.”is shown, follow the instructions
(



P. 457).

●

If the following messages are shown, there may be a malfunction. Immedi-
ately stop the vehicle in a safe place and contact your Toyota dealer. Con-
tinuing to drive the vehicle may be dangerous.
• “Braking Power Low.”
• “Charging System Malfunction.”
• “Engine Oil Pressure Low.”

●

If the following messages are shown, there may be a malfunction. Immedi-
ately have the vehicle inspected by your Toyota dealer.
• “Smart Key System Malfunction.”

■

If “Engine Oil Level Low. Add or Replace Oil.” is displayed

The engine oil level is low. Check the level of the engine oil, and add if neces-
sary.
This  message  may  appear  if  the  vehicle  is  stopped  on  a  slope.  Move  the
vehicle to a level surface and check to see if the message disappears.

■

If “Engine Stopped. Steering Power Low.” is displayed

This message is displayed if the engine is stopped while driving.
When  steering  wheel  operations  are  heavier  than  usual,  grip  the  steering
wheel firmly and operate it using more force than usual.

■

If “Maintenance Required Soon.” is shown (U.S.A. only)

Indicates that all maintenance according to the driven distance on the mainte-
nance schedule

*

 should be performed soon.

Comes on approximately 4500 miles (7200 km) after the message has been
reset.
If necessary, perform maintenance. Please reset the message after the main-
tenance is performed. (



P. 334)

*

: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual

Supplement” for the maintenance interval applicable to your vehicle.

■

If “Maintenance Required. Visit Your Dealer.” is shown (U.S.A. only)

Indicates that all maintenance is required to correspond to the driven distance
on the maintenance schedule

*

.

Comes on approximately 5000 miles (8000 km) after the message has been
reset.  (The  indicator  will  not  work  properly  unless  the  message  has  been
reset.)
Perform  the  necessary  maintenance.  Please  reset  the  message  after  the
maintenance is performed. (



P. 334)

*

: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual

Supplement” for the maintenance interval applicable to your vehicle.

435

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

■

If “A New Key has been Registered. Contact Your Dealer for Details.” is
shown (vehicles with a smart key system)

This message will be displayed each time the driver’s door is opened when
the doors are unlocked from the outside for approximately one week after a
new electronic key has been registered.
If this message is displayed but you have not had a new electronic key regis-
tered,  ask  your Toyota  dealer  to  check  if  an  unknown  electronic  key  (other
than those in your possession) has been registered.

■

If “Front Camera Unavailable.”, “Front Camera Unavailable. See owner’s
manual.”  or  “Front  Camera  Vision  Blocked.  Clean  and  Demist  Wind-
shield.” is displayed.

The  following  systems  may  be  suspended  until  the  problem  shown  in  the
message is resolved. (



P. 241, 423)

●

PCS (Pre-Collision System)

●

LDA (Lane Departure Alert with steering control)

●

Dynamic radar cruise control with full-speed range

●

Automatic High Beam

■

Warning buzzer



P. 427

436

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

If you have a flat tire

●

Stop the vehicle in a safe place on a hard, flat surface.

●

Set the parking brake.

●

Shift the shift lever to P.

●

Stop the engine.

●

Turn on the emergency flashers. (



P. 408)

Your  vehicle  is  equipped  with  a  spare  tire.  The  flat  tire  can  be
replaced with the spare tire.
For details about tires:



P. 362

WARNING

■

If you have a flat tire

Do not continue driving with a flat tire.

Driving even a short distance with a flat tire can damage the tire and the

wheel beyond repair, which could result in an accident.

Before jacking up the vehicle

437

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

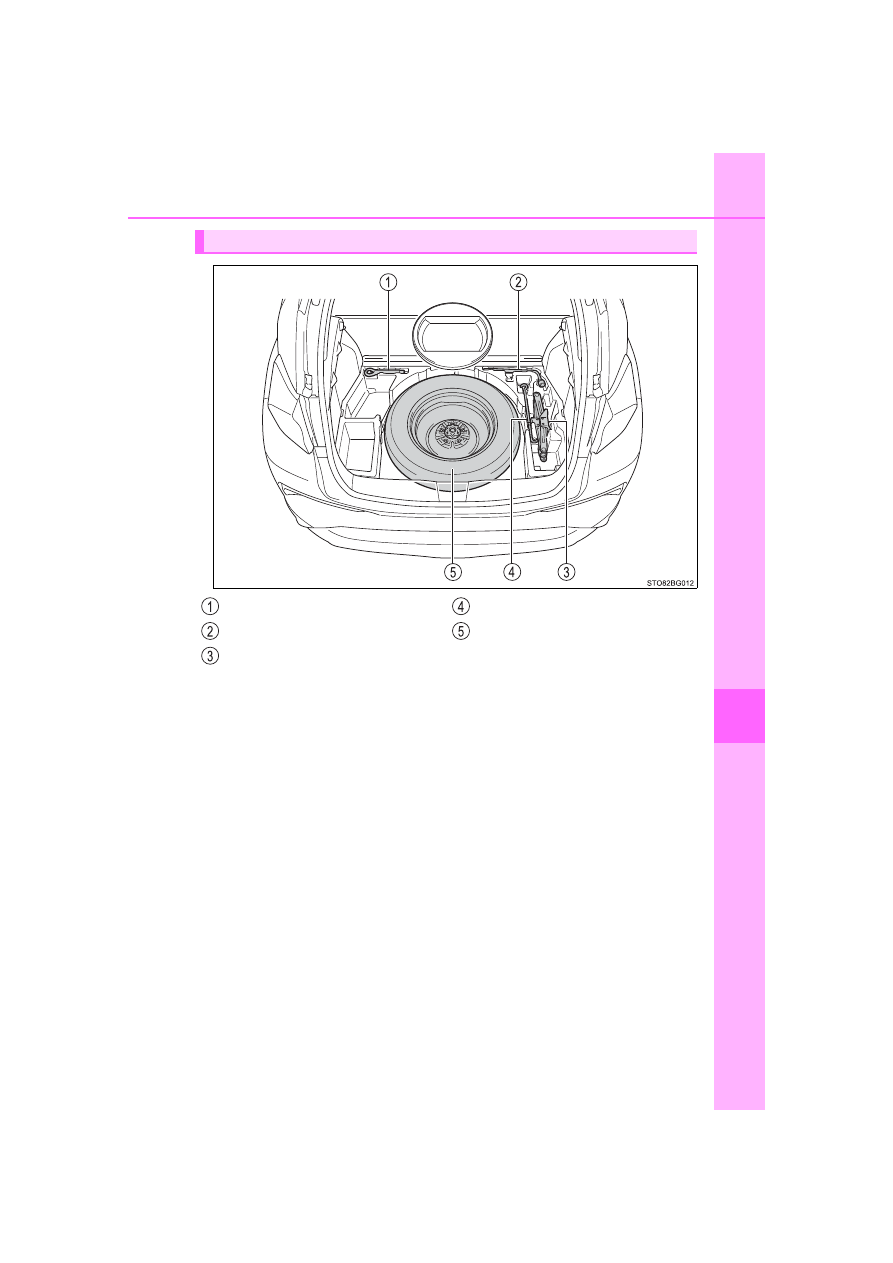

Location of the spare tire, jack and tools

Towing eyelet
Wheel nut wrench
Jack

Jack handle
Spare tire

438

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

WARNING

■

Using the tire jack

Observe the following precautions.

Improper use of the tire jack may cause the vehicle to suddenly fall off

the jack, leading to death or serious injury.

●

Do not use the tire jack for any purpose other than replacing tires or

installing and removing tire chains.

●

Only use the tire jack that comes with this vehicle for replacing a flat

tire.

Do  not  use  it  on  other  vehicles,  and  do  not  use  other  tire  jacks  for

replacing tires on this vehicle.

●

Do not put any part of your body under the vehicle while it is supported

by the jack.

●

Do  not  start  the  engine  or  drive  the  vehicle  while  the  vehicle  is  sup-

ported by the jack.

●

Do not raise the vehicle while someone is inside.

●

When raising the vehicle, do not put an object on or under the jack.

●

Do  not  raise  the  vehicle  to  a  height  greater  than  that  required  to

replace the tire.

●

Use a jack stand if it is necessary to get under the vehicle.

●

When  lowering  the  vehicle,  make  sure  that  there  is  no-one  near  the

vehicle. If there are people nearby, warn them vocally before lowering.

●

Put the jack properly in its jack point.

(



P. 440)

439

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

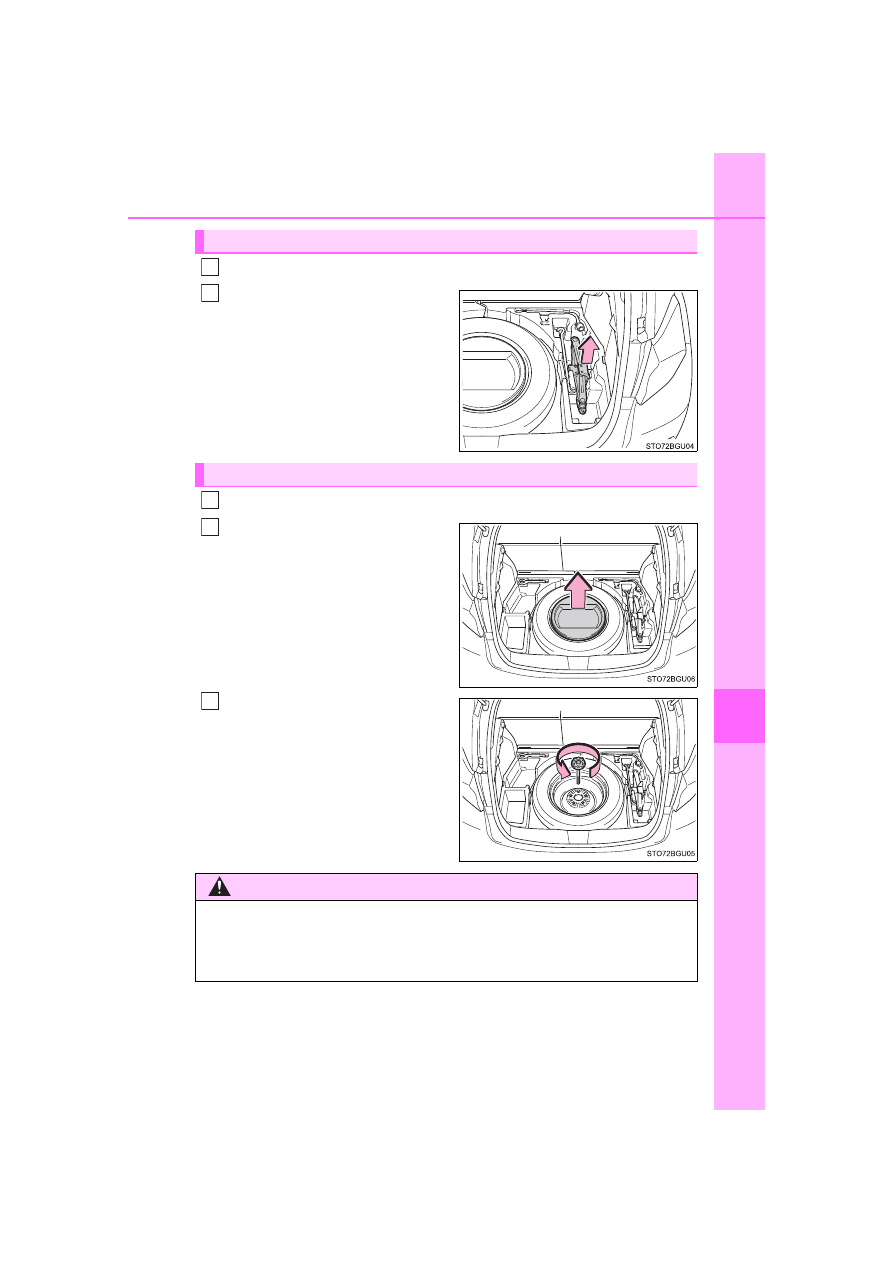

Remove the deck board. (



P. 316)

Take out the jack.

Remove the deck board. (



P. 316)

Remove the cushion.

Loosen the center fastener that
secures the spare tire.

Taking out the jack

1

2

Taking out the spare tire

1

2

3

WARNING

■

When storing the spare tire

Be careful not to catch fingers or other body parts between the spare

tire and the body of the vehicle.

440

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

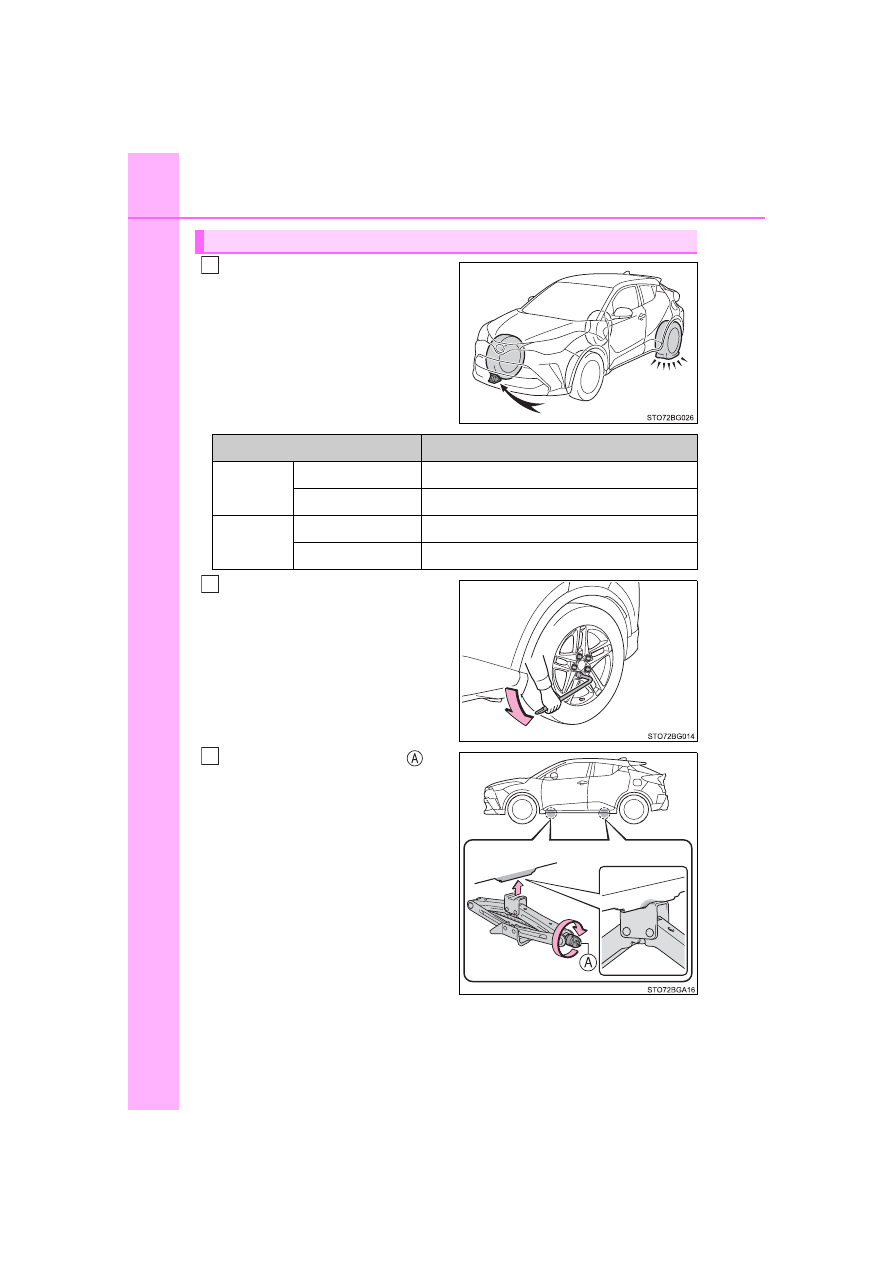

Chock the tires.

Slightly  loosen  the  wheel  nuts
(one turn).

Turn the tire jack portion

 by

hand  until  the  center  of  the
recessed  portion  of  the  jack  is
in contact with the center of the
jack point.

Replacing a flat tire

1

Flat tire

Wheel chock positions

Front

Left-hand side

Behind the rear right-hand side tire

Right-hand side

Behind the rear left-hand side tire

Rear

Left-hand side

In front of the front right-hand side tire

Right-hand side

In front of the front left-hand side tire

2

3

441

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

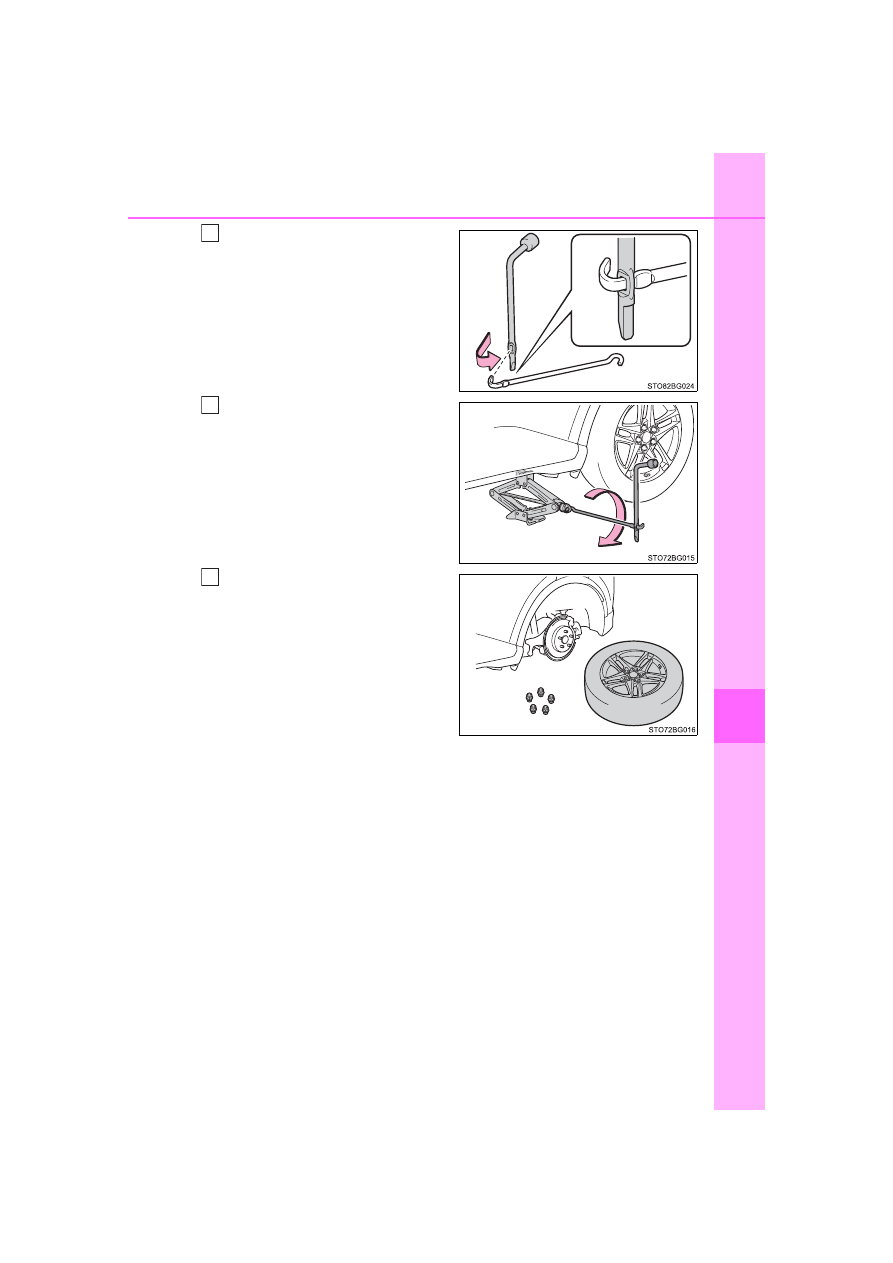

Assemble  the  jack  handle  and
the wheel nut wrench as shown
in the illustration.

Raise the vehicle until the tire is
slightly raised off the ground.

Remove all the wheel nuts and
the tire.

When  resting  the  tire  on  the

ground, place the tire so that the

wheel  design  faces  up  to  avoid

scratching the wheel surface.

4

5

6

442

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

WARNING

■

Replacing a flat tire

●

Observe the following precautions.

Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in

handling the ornament to avoid unexpected personal injury.

• Do not touch the disc wheels or the area around the brakes immedi-

ately after the vehicle has been driven.

After  the  vehicle  has  been  driven,  the  disc  wheels  and  the  area

around the brakes will be extremely hot. Touching these areas with

hands,  feet  or  other  body  parts  while  changing  a  tire,  etc.,  may

result in burns.

●

Failure  to  follow  these  precautions  could  cause  the  wheel  nuts  to

loosen and the tire to fall off, resulting in death or serious injury.
• Have  the  wheel  nuts  tightened  with  a  torque  wrench  to  76 ft·lbf

(103 N·m, 10.5 kgf·m) as soon as possible after changing wheels.

• Do not attach a heavily damaged wheel ornament, as it may fly off

the wheel while the vehicle is moving.

• When installing a tire, only use wheel nuts that have been specifi-

cally designed for that wheel.

• If  there  are  any  cracks  or  deformations  in  the  bolt  screws,  nut

threads  or  bolt  holes  of  the  wheel,  have  the  vehicle  inspected  by

your Toyota dealer.

• When  installing  the  wheel  nuts,  be  sure  to  install  them  with  the

tapered ends facing inward. (



P. 377)

443

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

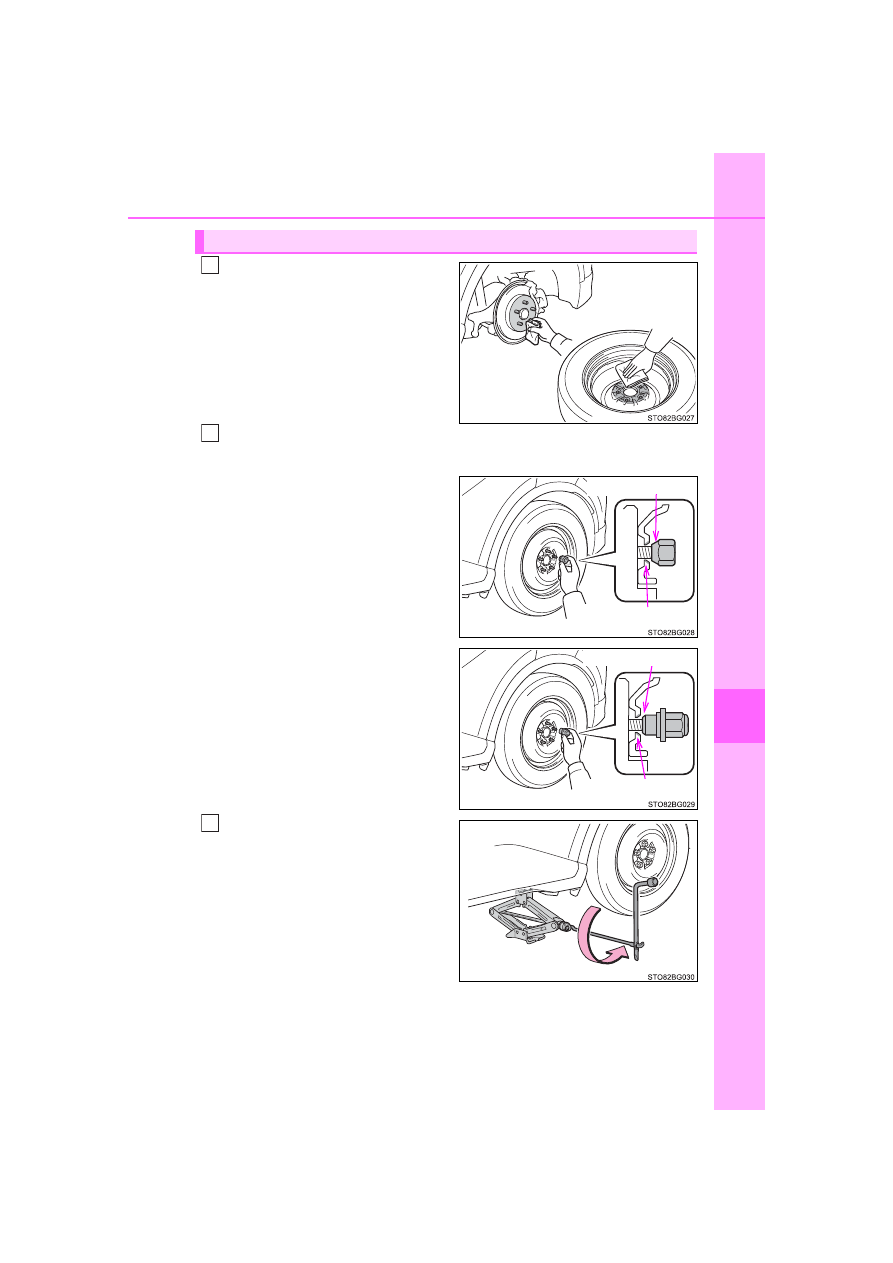

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.

If  foreign  matter  is  on  the  wheel

contact  surface,  the  wheel  nuts

may loosen while the vehicle is in

motion,  causing  the  tire  to  come

off.

Install  the  tire  and  loosely  tighten  each  wheel  nut  by  hand  by
approximately the same amount.
When  replacing  a  steel  wheel
with  a  steel  wheel,  tighten  the
wheel  nuts  until  the  tapered
portion  comes  into  loose  con-
tact with the disc wheel seat.

When  replacing  an  aluminum
wheel  with  a  steel  wheel,
tighten the wheel nuts until the
tapered  portion  comes  into
loose  contact  with  the  disc
wheel seat.

Lower the vehicle.

Installing the spare tire

1

2

Tapered portion

Disc wheel seat

Tapered portion

Disc wheel seat

3

444

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

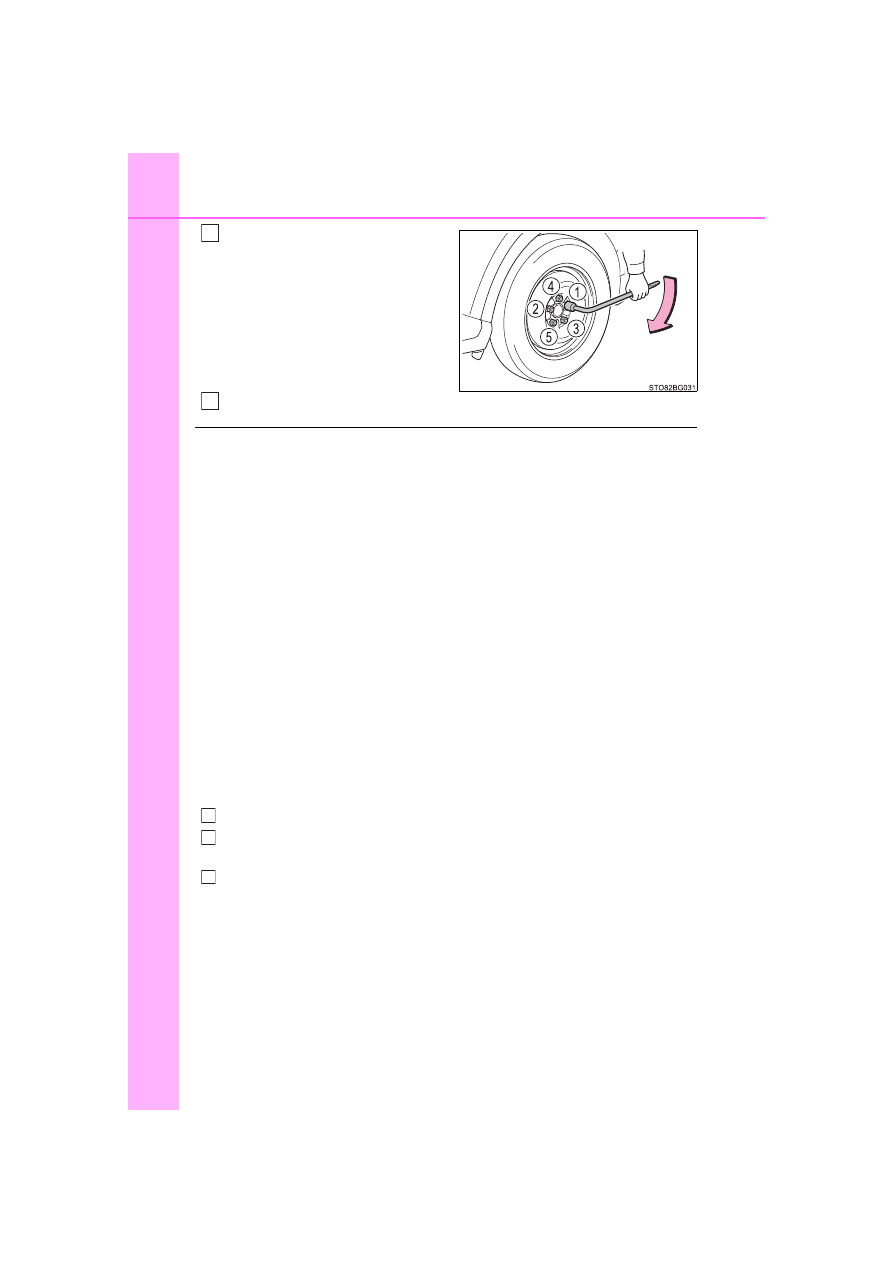

Firmly  tighten  each  wheel  nut
two  or  three  times  in  the  order
shown in the illustration.

Tightening torque:

76 ft·lbf (103 N·m, 10.5 kgf·m)

Stow the flat tire, tire jack and all tools.

■

The compact spare tire

●

The  compact  spare  tire  is  identified  by  the  label  “TEMPORARY  USE

ONLY” on the tire sidewall.

Use the compact spare tire temporarily, and only in an emergency.

●

Make sure to check the tire inflation pressure of the compact spare tire.

(



P. 470)

■

After completing the tire change

The tire pressure warning system must be reset. (



P. 364)

■

When using the compact spare tire

As  the  compact  spare  tire  is  not  equipped  with  a  tire  pressure  warning

valve and transmitter, low inflation pressure of the spare tire will not be

indicated  by  the  tire  pressure  warning  system. Also,  if  you  replace  the

compact spare tire after the tire pressure warning light comes on, the light

remains on.

■

When the compact spare tire is equipped

The  vehicle  becomes  lower  when  driving  with  the  compact  spare  tire

compared to when driving with standard tires.

■

If you have a flat front tire on a road covered with snow or ice

Install  the  compact  spare  tire  on  one  of  the  rear  wheels  of  the  vehicle.

Perform the following steps and fit tire chains to the front tires:

Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehi-

cle.
Fit tire chains to the front tires.

4

5

1

2

3

445

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

WARNING

■

When using the compact spare tire

●

Remember  that  the  compact  spare  tire  provided  is  specifically

designed for use with your vehicle. Do not use your compact spare tire

on another vehicle.

●

Do not use more than one compact spare tires simultaneously.

●

Replace the compact spare tire with a standard tire as soon as possi-

ble.

●

Avoid sudden acceleration, abrupt steering, sudden braking and shift-

ing operations that cause sudden engine braking.

■

When the compact spare tire is attached

The vehicle speed may not be correctly detected, and the following sys-

tems may not operate correctly:

■

Speed limit when using the compact spare tire

Do not drive at speeds in excess of 50 mph (80 km/h) when a compact

spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Fail-

ure to observe this precaution may lead to an accident causing death or

serious injury.

■

After using the tools and jack

Before driving, make sure all the tools and jack are securely in place in

their storage location to reduce the possibility of personal injury during a

collision or sudden braking.

• ABS & Brake assist

• VSC

• TRAC

• EPS

• Automatic High Beam

• PCS (Pre-Collision System)

*

: If equipped

• LDA (Lane Departure Alert with

steering control)

• Dynamic  radar  cruise  control

with full-speed range

• BSM (Blind Spot Monitor)

*

• Rear view monitor system

446

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

NOTICE

■

Be  careful  when  driving  over  bumps  with  the  compact  spare  tire

installed on the vehicle.

The  vehicle  height  may  become  lower  when  driving  with  the  compact

spare  tire,  compared  to  when  driving  with  standard  tires.  Be  careful

when driving over uneven road surfaces.

■

Driving with tire chains and the compact spare tire

Do not fit tire chains to the compact spare tire.

Tire chains may damage the vehicle body and adversely affect driving

performance.

■

When replacing the tires

When removing or fitting the wheels, tires or the tire pressure warning

valve  and  transmitter,  contact  your Toyota  dealer  as  the  tire  pressure

warning valve and transmitter may be damaged if not handled correctly.

■

To avoid damage to the tire pressure warning valves and transmit-

ters

When  a  tire  is  repaired  with  liquid  sealants,  the  tire  pressure  warning

valve  and  transmitter  may  not  operate  properly.  If  a  liquid  sealant  is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (



P. 363)

447

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

7

Wh
en tro

uble

 a

ris

es

If the engine will not start

One of the following may be the cause of the problem:

●

There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.

●

The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(



P. 178, 181)

●

There may be a malfunction in the engine immobilizer system.
(



P. 81)

One of the following may be the cause of the problem:

●

The battery may be discharged. (



P. 452)

●

The battery terminal connections may be loose or corroded.

The engine starting system may be malfunctioning due to an electrical
problem  such  as  electronic  key  battery  depletion  or  a  blown  fuse.
However, an interim measure is available to start the engine.
(



P. 448)

If  the  engine  will  not  start  even  though  correct  starting  proce-
dures are being followed (



P. 178, 181), consider each of the fol-

lowing points:

The engine will not start even though the starter motor operates
normally.

The starter motor turns over slowly, the interior lights and head-
lights  are  dim,  or  the  horn  does  not  sound  or  sounds  at  a  low
volume.

The starter motor does not turn over (vehicles with a smart key
system)

448

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

One of the following may be the cause of the problem:

●

One or both of the battery terminals may be disconnected.

●

The battery may be discharged. (



P. 452)

●

There may be a malfunction in the steering lock system. (vehicles
with a smart key system)

Contact your Toyota dealer if the problem cannot be repaired, or if repair
procedures are unknown.

When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning
normally:

Set the parking brake.
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press  and  hold  the  engine  switch  for  about  15  seconds  while
depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system

may be malfunctioning. Have the vehicle inspected by your Toyota

dealer.

The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.

Emergency start function (vehicles with a smart key system)

1

2

3

4

449

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

7

Wh
en tro

uble

 a

ris

es

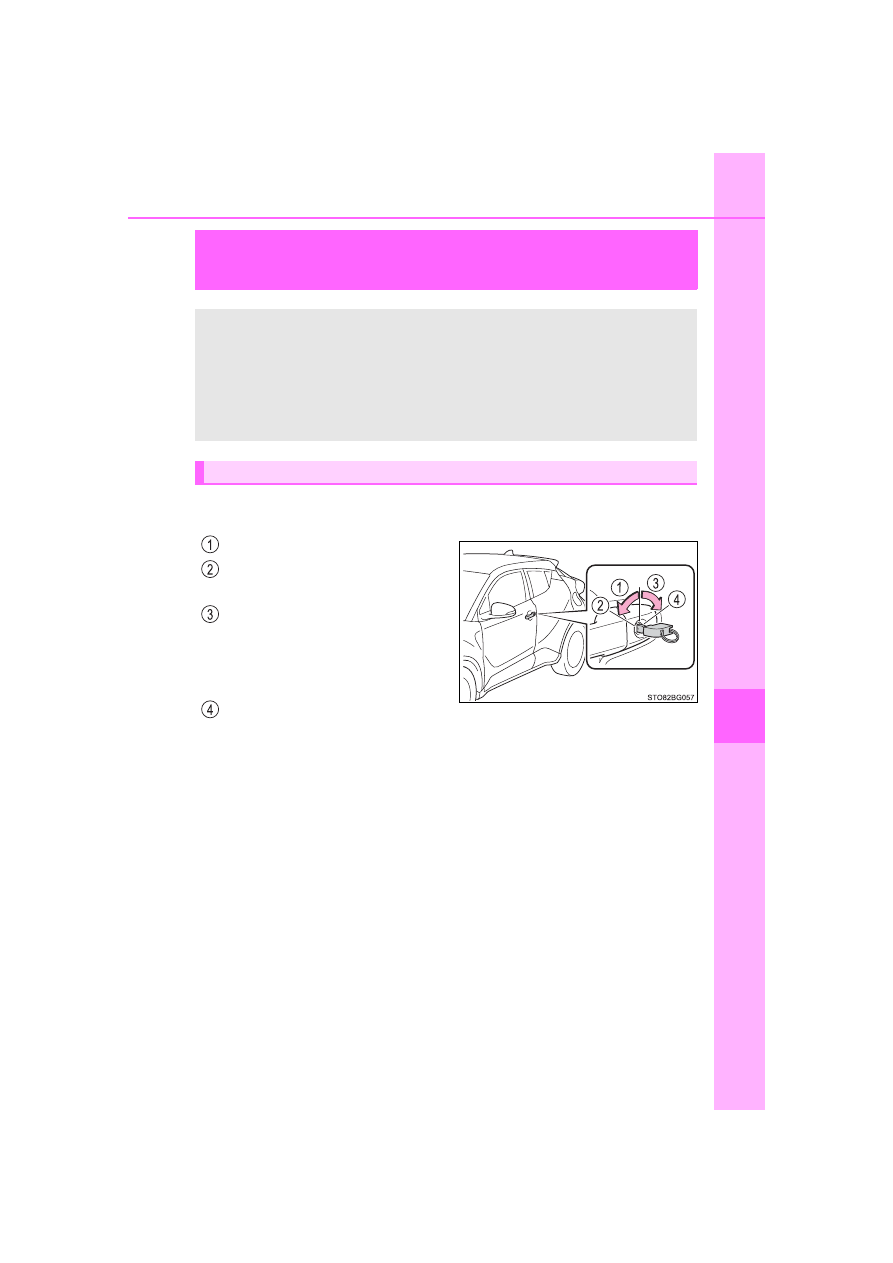

If the electronic key does not operate

properly (vehicles with a smart key system)

Use the mechanical key (



P. 112) in order to perform the following

operations:

Locks all the doors
Closes  the  windows  (turn  and
hold)

*

Unlocks the door

Turning  the  key  rearward  unlocks
the  driver’s  door.  Turning  the  key
once  again  within  3  seconds
unlocks the other doors.

Opens  the  windows  (turn  and
hold)

*

*

: These settings must be customized at your Toyota dealer. (



P. 494)

If  communication  between  the  electronic  key  and  vehicle  is
interrupted  (



P.  134)  or  the  electronic  key  cannot  be  used

because  the  battery  is  depleted,  the  smart  key  system  and
wireless  remote  control  cannot  be  used.  In  such  cases,  the
doors can be opened and the engine can be started by follow-
ing the procedure below.

Locking and unlocking the doors

450

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

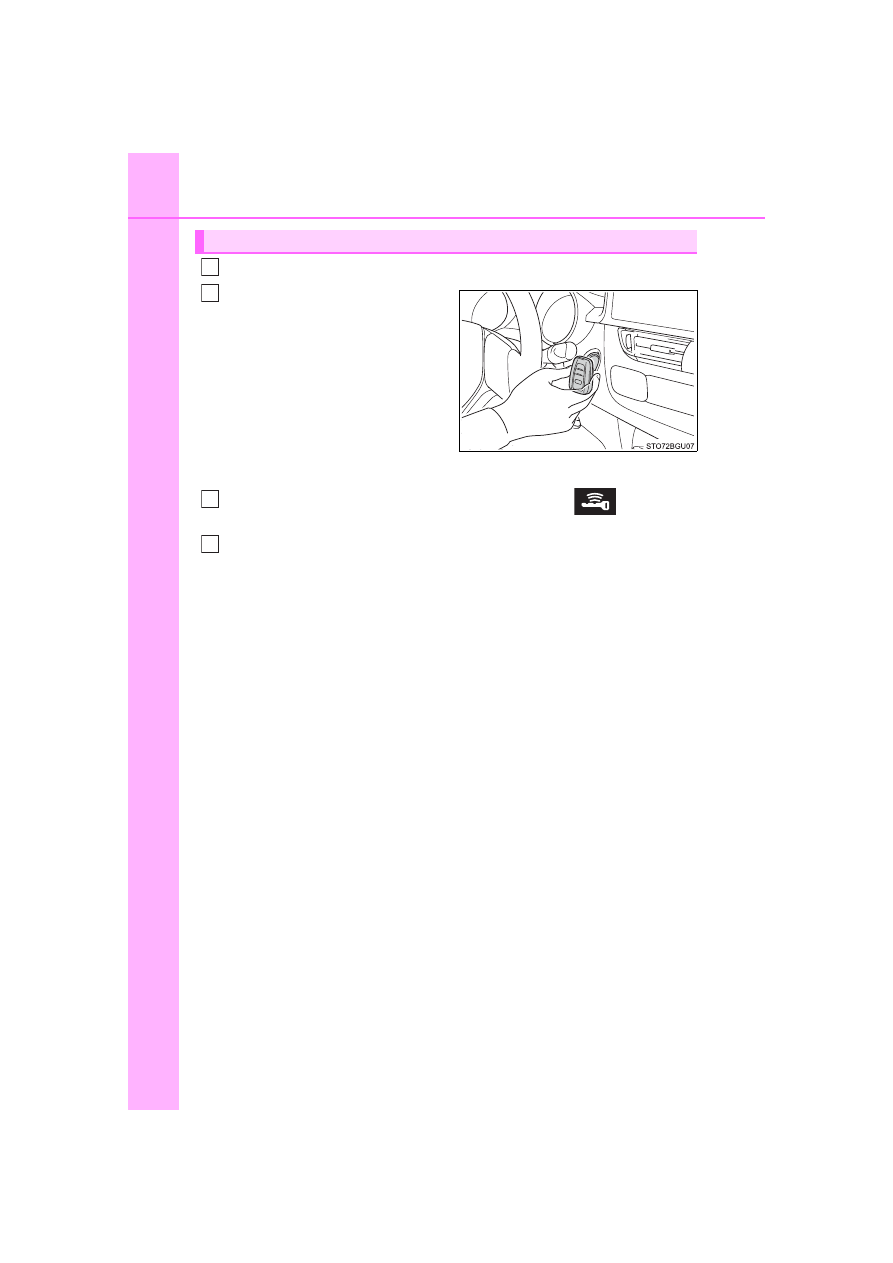

Ensure that the shift lever is in P and depress the brake pedal.
Touch  the  Toyota  emblem  side
of  the  electronic  key  to  the
engine switch.

When  the  electronic  key  is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When  the  smart  key  system  is
deactivated  in  customization  set-
ting,  the  engine  switch  will  turn  to
ACCESSORY mode.

Firmly  depress  the  brake  pedal  and  check  that

  and  mes-

sages are shown on the multi-information display.
Press the engine switch.

In the event that the engine still cannot be started, contact your Toyota
dealer.

Starting the engine

1

2

3

4

451

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

■

Stopping the engine

Set the parking brake, shift the shift lever to P and press the engine switch as
you normally do when stopping the engine.

■

Replacing the key battery

As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(



P. 383)

■

Changing engine switch modes

Release the brake pedal and press the engine switch in step

 above. The

engine  does  not  start  and  modes  will  be  changed  each  time  the  switch  is
pressed. (



P. 182)

■

When the electronic key does not work properly

●

Make sure that the smart key system and push button start has not been
deactivated in the customization setting. If it is off, turn the function on.
(Customizable features:



P. 488)

●

Check if battery-saving mode is set. If it is set, cancel the function.
(



P. 133)

WARNING

■

When using the mechanical key and operating the power windows

Operate the power window after checking to make sure that there is no pos-
sibility of any passenger having any of their body parts caught in the side
window.
Also, do not allow children to operate the mechanical key. It is possible for
children and other passengers to get caught in the power window.

3

452

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

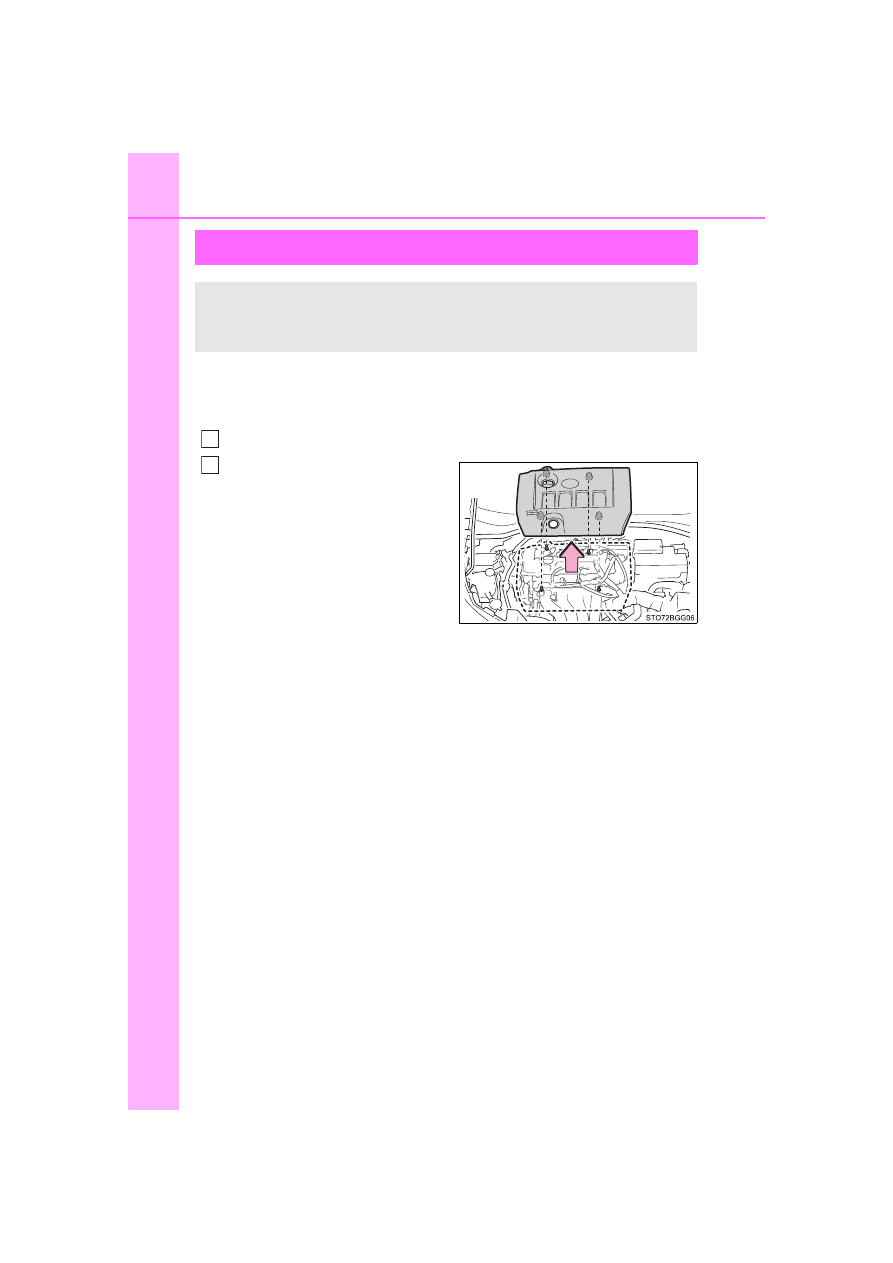

If the vehicle battery is discharged

If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.

Open the hood. (



P. 344)

Remove the engine cover.

Pull up the both ends of the cover
vertically.

The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can also call your Toyota dealer or a qualified repair shop.

1

2

453

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

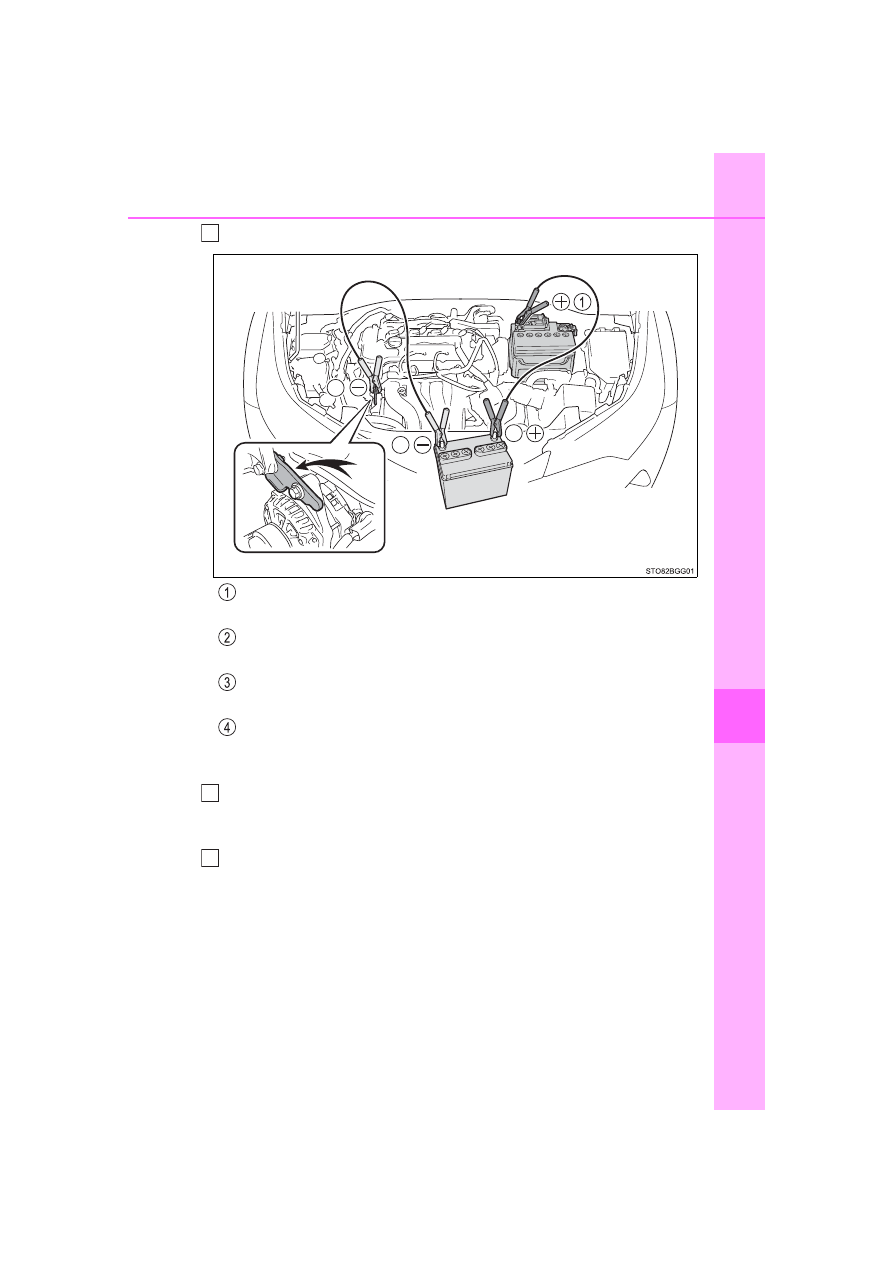

Connect the jumper cables according to the following procedure:

Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.
Connect  the  clamp  at  the  other  end  of  the  negative  cable  to  a
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.

Start the engine of the second vehicle. Increase the engine speed
slightly  and  maintain  at  that  level  for  approximately  5  minutes  to
recharge the battery of your vehicle.
Vehicles with a smart key system: Open and close any of the doors
of your vehicle with the engine switch off.

3

3

2

4

4

5

454

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

Vehicles without a smart key system:
Maintain  the  engine  speed  of  the  second  vehicle  and  turn  the
engine switch to the “ON” position, then start the vehicle’s engine.
Vehicles with a smart key system:
Maintain  the  engine  speed  of  the  second  vehicle  and  turn  the
engine  switch  to  IGNITION  ON  mode,  then  start  the  vehicle’s
engine.
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
To  install  the  engine  cover,  conduct  the  removal  procedure  in
reverse.  After  installing,  check  that  the  fixed  pins  are  inserted
securely.

Once  the  engine  starts,  have  the  vehicle  inspected  at  your  Toyota
dealer as soon as possible.

■

Starting the engine when the battery is discharged

The engine cannot be started by push-starting.

■

To prevent battery discharge

●

Turn off the headlights and the air conditioning system while the engine is
stopped.

●

Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.

■

Charging the battery

The  electricity  stored  in  the  battery  will  discharge  gradually  even  when  the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge,  and  the  engine  may  be  unable  to  start.  (The  battery  recharges
automatically during driving.)

■

Precautions when the battery is discharged (vehicles with a smart key
system)

●

In some cases, it may not be possible to unlock the doors using the smart
entry  &  start  system  when  the  battery  is  discharged.  Use  the  wireless
remote control or the mechanical key to lock or unlock the doors.

●

The engine may not start on the first attempt after the battery has recharged
but will start normally after the second attempt. This is not a malfunction.

●

The engine switch mode is memorized by the vehicle. When the battery is
reconnected, the system will return to the mode it was in before the battery
was discharged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.

6

7

8

455

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

■

When replacing the battery

●

Use a battery that conforms to European regulations.

●

Use a battery that the case size is same as the previous one, 20 hour rate
capacity (20HR) is equivalent or greater, and performance rating (CCA) is
equivalent or greater.
Check the label on top of the battery for the battery size and specifications
(ex. LN2, 60Ah, 345A).
• If the sizes differ, the battery cannot be properly secured.
• If the 20 hour rate capacity is low, even if the time period where the vehi-

cle is not used is a short time, the battery may discharge and the engine
may not be able to start.

●

For details, consult your Toyota dealer.

WARNING

■

Avoiding battery fires or explosions

Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:

●

Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.

●

Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.

●

Do not allow the + and - clamps of the jumper cables to come into contact
with each other.

●

Do  not smoke,  use matches, cigarette lighters  or  allow  open flame near
the battery.

■

Battery precautions

The  battery  contains  poisonous  and  corrosive  acidic  electrolyte,  while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:

●

When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.

●

Do not lean over the battery.

●

In  the  event  that  battery  fluid  comes  into  contact  with  the  skin  or  eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.

●

Always wash your hands after handling the battery support, terminals, and
other battery-related parts.

●

Do not allow children near the battery.

456

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

NOTICE

■

When handling jumper cables

When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fan or engine drive belt.

457

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

7

Wh
en tro

uble

 a

ris

es

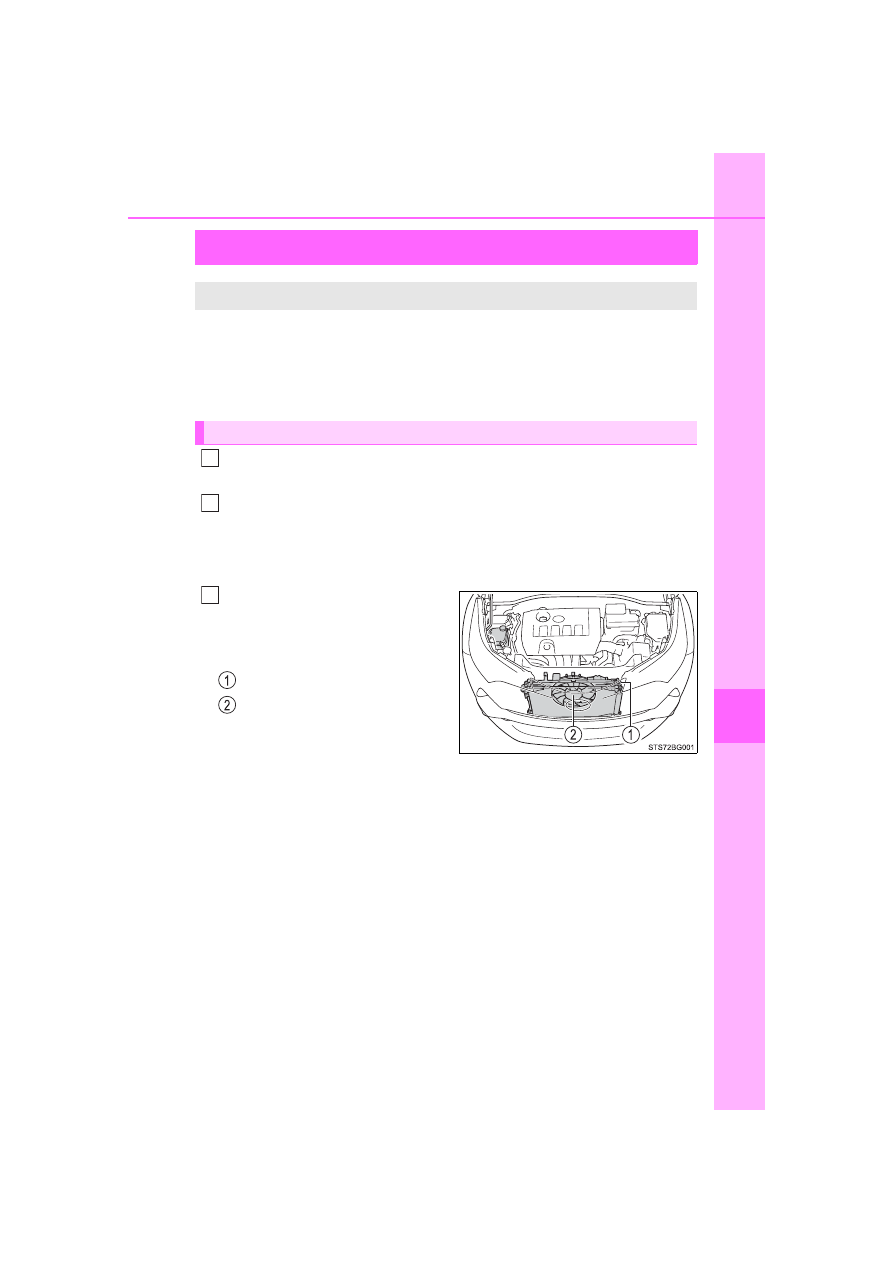

If your vehicle overheats

●

The  needle  of  the  engine  coolant  temperature  gauge  (



P.  94)

enters the red zone or a loss of engine power is experienced (for
example, the vehicle speed does not increase).

●

Steam comes out from under the hood.

Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After  the  engine  has  cooled
down  sufficiently,  inspect  the
hoses and radiator core (radia-
tor) for any leaks.

Radiator
Cooling fan

If  a  large  amount  of  coolant
leaks,  immediately  contact  your
Toyota dealer.

The following may indicate that your vehicle is overheating.

Correction procedures

1

2

3

458

7-2. Steps to take in an emergency

C-HR_OM_USA_OM10634U

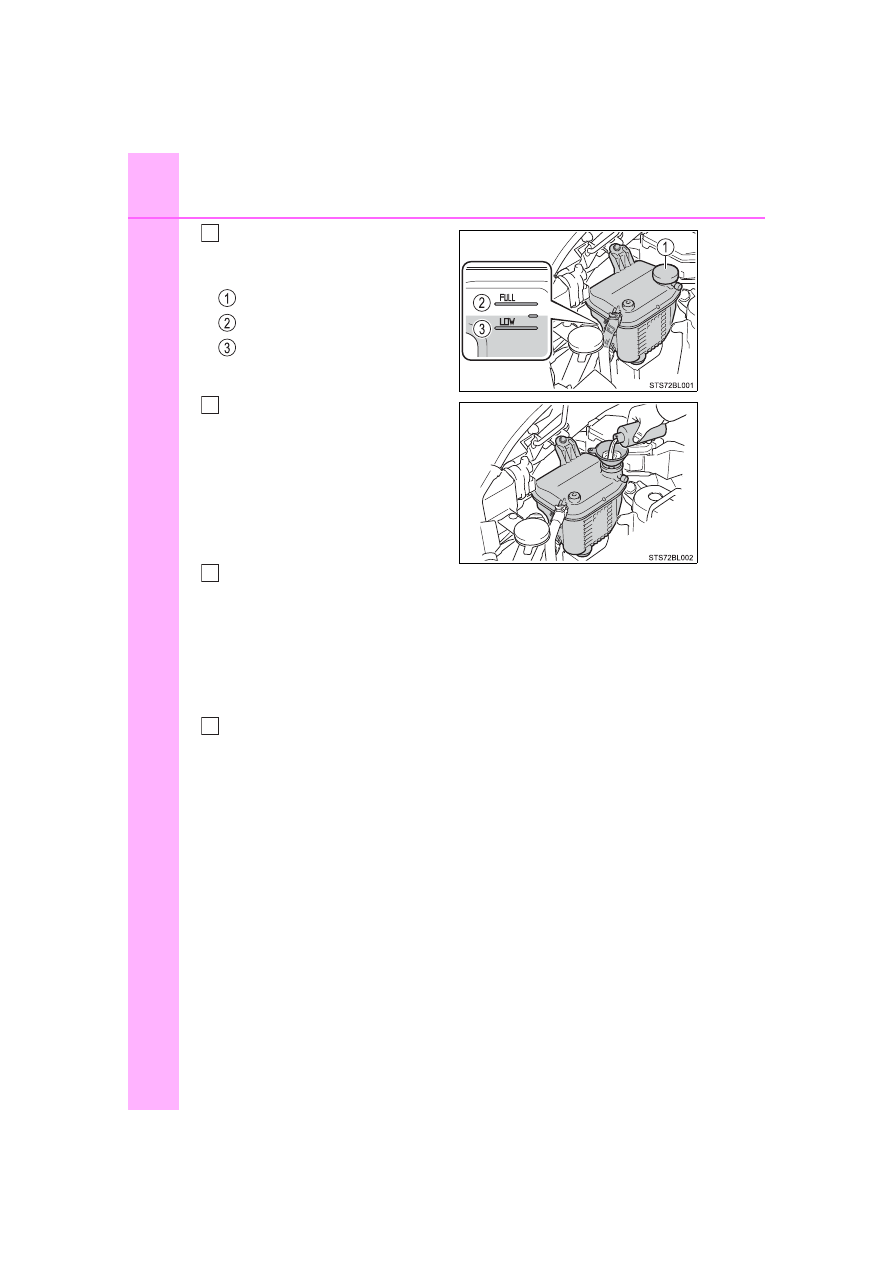

The coolant level is satisfactory
if  it  is  between  the  “FULL”  and
“LOW” lines on the reservoir.

Reservoir
“FULL” line
“LOW” line

Add coolant if necessary.

Water  can  be  used  in  an  emer-
gency if coolant is unavailable.

Start the engine and turn the air conditioning system on to check
that the radiator cooling fan operates and to check for coolant leaks
from the radiator or hoses.

The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly.
(The fan may not operate in freezing temperatures.)

If the fan is not operating:
Stop the engine immediately and contact your Toyota dealer.
If the fan is operating:
Have the vehicle inspected at the nearest Toyota dealer.

4

5

6

7

459

7-2. Steps to take in an emergency

7

Wh
en tro

uble

 a

ris

es

C-HR_OM_USA_OM10634U

WARNING

■

When inspecting under the hood of your vehicle

Observe the following precautions.
Failure to do so may result in serious injury such as burns.

●

If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.

●

Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.

●

Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
High temperature steam or coolant could spray out.

NOTICE

■

When adding coolant

Add  coolant  slowly  after  the  engine  has  cooled  down  sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.

■

To prevent damage to the cooling system

Observe the following precautions:

●

Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).

●

Do not use any coolant additives.
