6-1. Maintenance and care

C-HR_OM_USA_OM10634U

NOTICE

Cleaning detergents

Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat  portions:  Organic  substances  such  as  benzene  or  gasoline,

alkaline or acidic solutions, dye, and bleach

• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-

hol

Do not use a polish wax or polish cleaner. The instrument panel’s or other
interior part’s painted surface may be damaged.

Preventing damage to leather surfaces

Observe the following precautions to avoid damage to and deterioration of
leather surfaces:

Remove any dust or dirt from leather surfaces immediately.

Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.

Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.

Water on the floor

Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.

When cleaning the inside of the windshield

Do not allow glass cleaner to contact the lens. Also, do not touch the lens.
(

P. 224)

Cleaning the inside of the rear window

Do not use a glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.

Be careful not to scratch or damage the heater wires.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

333

6-2. Maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

Maintenance requirements

General maintenance should be performed on a daily basis. This can
be done by yourself or by a Toyota dealer.

Scheduled  maintenance  should  be  performed  at  specified  intervals
according to the maintenance schedule.

For details about maintenance items and schedules, refer to the “Sched-
uled Maintenance Guide” or “Owner’s Manual Supplement”.

You can perform some maintenance procedures by yourself.
Please be aware that do-it-yourself maintenance may affect warranty
coverage.

The use of Toyota Repair Manuals is recommended.
For details about warranty coverage, refer to the separate “Owner’s War-
ranty Information Booklet” or “Owner’s Manual Supplement”.

To ensure safe and economical driving, day-to-day care and reg-
ular maintenance are essential. It is the owner’s responsibility to
perform regular checks. Toyota recommends the following main-
tenance:

General maintenance

Scheduled maintenance

Do-it-yourself maintenance

-------------------------------------------------------------------------------------------------------------------------------------------------------------

334

6-2. Maintenance

C-HR_OM_USA_OM10634U

Repair and replacement

It is recommended that genuine Toyota parts be used for repairs to ensure
performance of each system. If non-Toyota parts are used in replacement or if
a repair shop other than a Toyota dealer performs repairs, confirm the war-
ranty coverage.

Resetting the message indicating maintenance is required

After  the  required  maintenance  is  performed  according  to  the  maintenance
schedule, please reset the message.
To reset the message, follow the procedure described below:

Switch the display to the trip meter “A” when the engine is running. (

P. 95)

Turn the engine switch off.
Vehicles without a smart key system:
While  pressing  the  “TRIP”  switch  (

P.  95),  turn  the  engine  switch  to  the

“ON” position (do not start the engine because the reset mode will be can-
celed). Continue to press and hold the switch until the trip meter displays
“00000”.
Vehicles with a smart key system:
While  pressing  the  “TRIP”  switch  (

P.  95),  turn  the  engine  switch  to  the

IGNITION ON mode (do not start the engine because the reset mode will
be canceled). Continue to press and hold the switch until the trip meter dis-
plays “00000”.

Allow inspection and repairs to be performed by a Toyota dealer

Toyota technicians are well-trained specialists and are kept up to date with
the latest service information. They are well informed about the operations
of all systems on your vehicle.

Keep  a  copy  of  the  repair  order.  It  proves  that  the  maintenance  that  has
been  performed  is  under  warranty  coverage.  If  any  problem  should  arise
while your vehicle is under warranty, your Toyota dealer will promptly take
care of it.

1

2

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

335

6-2. Maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

WARNING

If your vehicle is not properly maintained

Improper  maintenance  could  result  in  serious  damage  to  the  vehicle  and
possible death or serious injury.

Handling of the battery

Engine exhaust, some of its constituents, and a wide variety of automobile
components contain or emit chemicals known to the State of California to
cause  cancer  and  birth  defects  and  other  reproductive  harm.  Work  in  a
well ventilated area.

Oils, fuels and fluids contained in vehicles as well as waste produced by
component wear contain or emit chemicals known to the State of Califor-
nia  to  cause  cancer  and  birth  defects  or  other  reproductive  harm. Avoid
exposure and wash any affected area immediately.

Battery  posts,  terminals  and  related  accessories  contain  lead  and  lead
compounds which  are known  to cause brain damage. Wash your hands
after handling. (

P. 355)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

336

6-2. Maintenance

C-HR_OM_USA_OM10634U

General maintenance

Listed below are the general maintenance items that should be
performed  at  the  intervals  specified  in  the  “Owner’s  Warranty
Information  Booklet”  or  “Owner’s  Manual  Supplement/Sched-
uled Maintenance Guide”. It is recommended that any problem
you  notice  should  be  brought  to  the  attention  of  your  Toyota
dealer or qualified service shop for advice.

Engine compartment

Items

Check points

Battery

Check the connections.

 (

P. 355)

Brake fluid

Is the brake fluid at the correct level?

(

P. 353)

Engine coolant

Is the engine coolant at the correct level?

(

P. 351)

Engine oil

Is the engine oil at the correct level?

(

P. 348)

Exhaust system

There should not be any fumes or strange sounds.

Radiator/condenser

The  radiator  and  condenser  should  be  free  of  for-
eign objects.

(

P. 352)

Washer fluid

Is there sufficient washer fluid?

(

P. 359)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

337

6-2. Maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

Vehicle interior

Items

Check points

Accelerator pedal

• The accelerator pedal should move smoothly

(without uneven pedal effort or catching).

Continuously

variable

transmission

“Park”

mechanism

• When parked on a slope and the shift lever is

in P, is the vehicle securely stopped?

Brake pedal

• Does the brake pedal move smoothly?
• Does the brake pedal have appropriate clear-

ance from the floor?

(

P. 469)

• Does  the  brake  pedal  have  the  correct

amount of free play?

(

P. 469)

Brakes

• The vehicle should not pull to one side when

the brakes are applied.

• The brakes should work effectively.
• The brake pedal should not feel spongy.
• The  brake  pedal  should  not  get  too  close  to

the floor when the brakes are applied.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

338

6-2. Maintenance

C-HR_OM_USA_OM10634U

Head restraints

• Do  the  head  restraints  move  smoothly  and

lock securely?

Indicators/buzzers

• Do  the  indicators  and  buzzers  function  prop-

erly?

Lights

• Do all of the lights come on?

Parking brake

• Does  the  parking  brake  switch  operate  nor-

mally?

• When  parked  on  a  slope  and  the  parking

brake is on, is the vehicle securely stopped?

Seat belts

• Do the seat belts operate smoothly?
• The seat belts should not be damaged.

Seats

• Do the seat controls operate properly?

Steering wheel

• Does the steering wheel rotate smoothly?
• Does  the  steering  wheel  have  the  correct

amount of free play?

• There should not be any strange sounds com-

ing from the steering wheel.

Items

Check points

-------------------------------------------------------------------------------------------------------------------------------------------------------------

339

6-2. Maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

Vehicle exterior

Items

Check points

Doors

• Do the doors operate smoothly?

Engine hood

• Does the engine hood lock system work prop-

erly?

Fluid leaks

• There should not be any signs of fluid leakage

after the vehicle has been parked.

Tires

• Is the tire inflation pressure correct?

• The tires should not be damaged or exces-

sively worn.

• Have the tires been rotated according to the

maintenance schedule?

• The wheel nuts should not be loose.

Windshield  wipers/rear
window wiper

• The wiper blades should not show any signs

of  cracking,  splitting,  wear,  contamination  or
deformation.

• The wiper blades should clear the windshield/

rear window without streaking or skipping.

WARNING

If the engine is running

Turn the engine off and ensure that there is adequate ventilation before per-
forming maintenance checks.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

340

6-2. Maintenance

C-HR_OM_USA_OM10634U

Emission inspection and maintenance (I/M)

programs

The OBD system determines that a problem exists somewhere in the
emission control system. Your vehicle may not pass the I/M test and
may need  to  be  repaired. Contact  your Toyota  dealer to  service  the
vehicle.

When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also,  depending  on  your  driving  habits,  the  readiness  codes  may
not be completely set.

When the fuel tank cap is loose
The malfunction indicator lamp illuminates, indicating a temporary
malfunction, and your vehicle may not pass the I/M test.

An OBD system error code will not be cleared unless the vehicle is
driven 40 or more times.

Contact your Toyota dealer to prepare the vehicle for re-testing.

Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system
monitors the operation of the emission control system.

If the malfunction indicator lamp comes on

Your vehicle may not pass the I/M test in the following situations:

When  the  malfunction  indicator  lamp  remains  on  after  several
driving trips

If your vehicle does not pass the I/M test

-------------------------------------------------------------------------------------------------------------------------------------------------------------

341

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

Do-it-yourself service precautions

If  you  perform  maintenance  by  yourself,  be  sure  to  follow  the
correct procedure as given in these sections.

Items

Parts and tools

Battery  condition
(

P. 355)

• Warm water

• Baking soda

• Grease

• Conventional wrench (for terminal clamp bolts)

Brake  fluid  level
(

P. 353)

• FMVSS  No.116  DOT  3  or  SAE  J1703;  FMVSS

No.116 DOT 4 or SAE J1704 brake fluid

• Rag or paper towel
• Funnel (used only for adding brake fluid)

Engine

coolant

level (

P. 351)

• “Toyota  Super  Long  Life  Coolant”  or  a  similar  high

quality  ethylene  glycol-based  non-silicate,  non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is pre-mixed with
55% coolant and 45% deionized water.

• Funnel (used only for adding engine coolant)

Engine  oil  level
(

P. 348)

• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)

Fuses (

P. 387)

• Fuse with same amperage rating as original

-------------------------------------------------------------------------------------------------------------------------------------------------------------

342

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

Light bulbs
(

P. 393)

• Bulb with same number and wattage rating as origi-

nal

• Phillips-head screwdriver
• Flathead screwdriver

• Wrench

Radiator and con-
denser (

P. 352)

Tire

inflation

pressure

(

P. 372)

• Tire pressure gauge

• Compressed air source

Washer fluid
(

P. 359)

• Water or washer fluid containing antifreeze (for win-

ter use)

• Funnel (used only for adding water or washer fluid)

WARNING

The  engine  compartment  contains  many  mechanisms  and  fluids  that  may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.

When working on the engine compartment

Keep  hands,  clothing  and  tools  away  from  the  moving  fan  and  engine
drive belt.

Be careful not to touch the engine, radiator, exhaust manifold, etc., right
after driving as they may be hot. Oil and other fluids may also be hot.

Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.

Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.

Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.

Items

Parts and tools

-------------------------------------------------------------------------------------------------------------------------------------------------------------

343

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

WARNING

When working near the electric cooling fan or radiator grille

Vehicles without a smart key system: Be sure the engine switch is off. With
the engine switch in the “ON” position, the electric cooling fan may automat-
ically start to run if the air conditioning is on and/or the coolant temperature
is high. (

P. 352)

Vehicles with a smart key system: Be sure the engine switch is off. With the
engine switch in IGNITION ON mode, the electric cooling fan may automat-
ically start to run if the air conditioning is on and/or the coolant temperature
is high. (

P. 352)

Safety glasses

Wear  safety  glasses  to  prevent  flying  or  falling  material,  fluid  spray,  etc.,
from getting in your eyes.

NOTICE

If you remove the air cleaner filter

Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

344

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

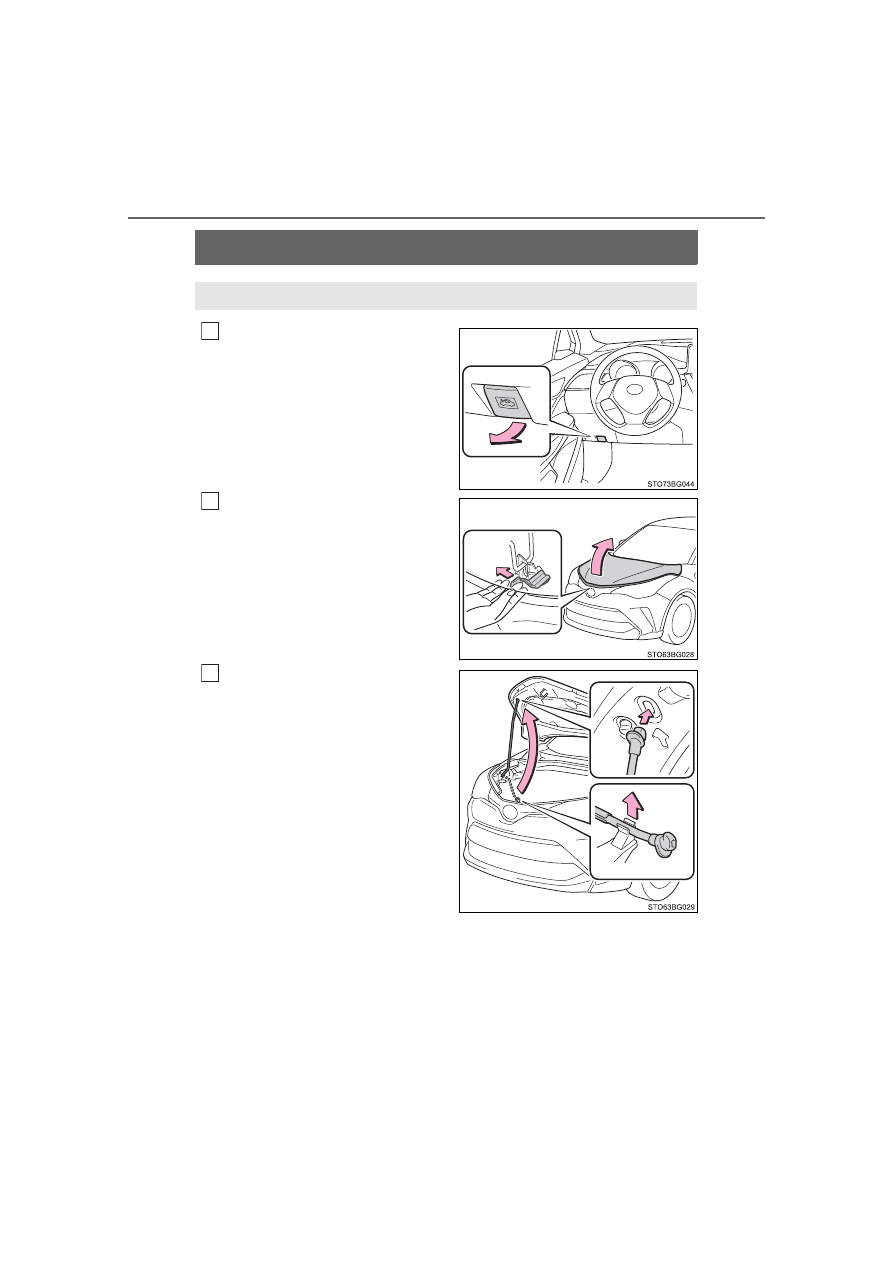

Hood

Pull the hood lock release lever.

The hood will pop up slightly.

Move  the  auxiliary  catch  lever
to  side  direction  and  lift  the
hood.

Hold the hood open by inserting
the support rod into the slot.

Release the lock from the inside of the vehicle to open the hood.

1

2

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

345

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

WARNING

Pre-driving check

Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.

After installing the support rod into the slot

Make  sure  the  rod  supports  the  hood  securely  preventing  it  from  falling
down onto your head or body.

NOTICE

When closing the hood

Be sure to return the support rod to its clip before closing the hood. Closing
the hood without returning the support rod properly could cause the hood to
bend.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

346

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

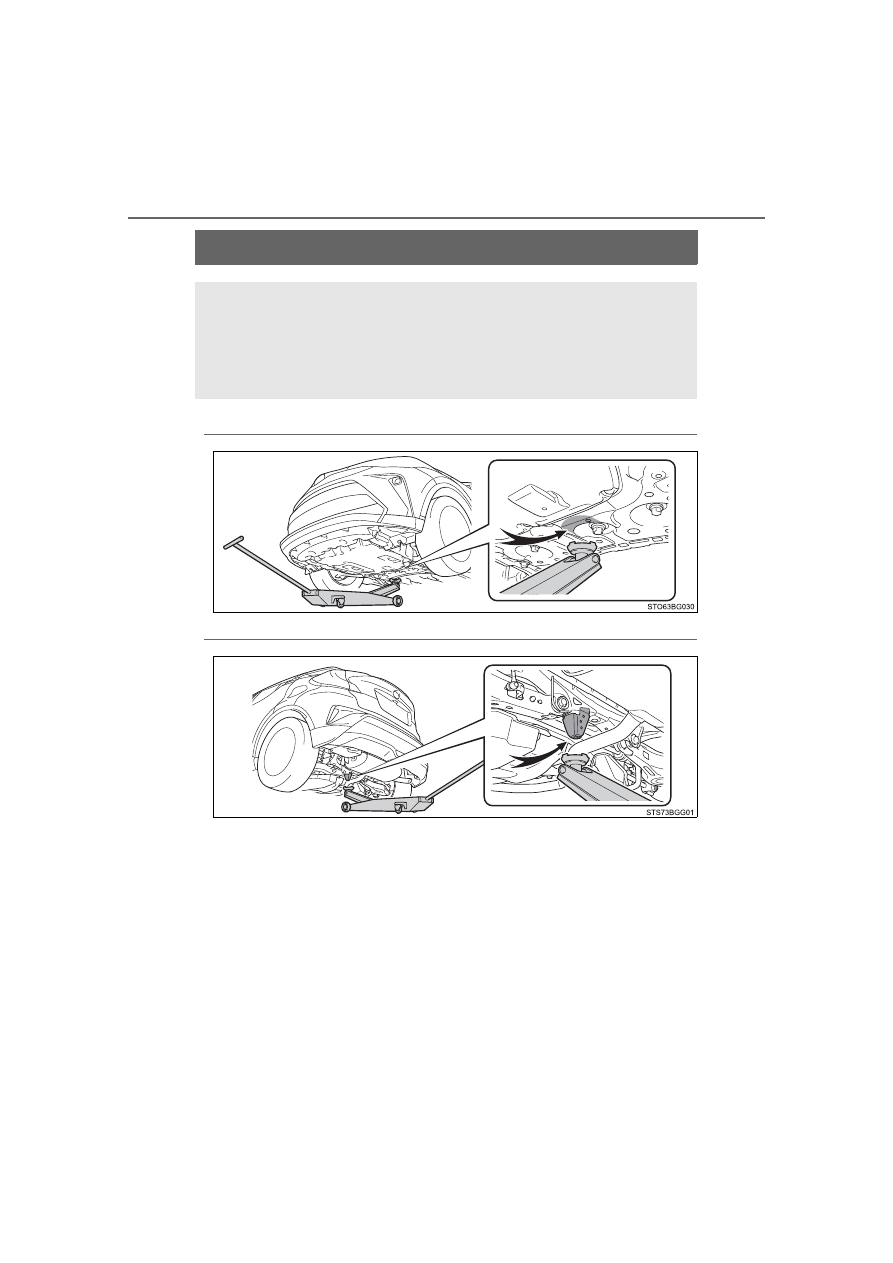

Positioning a floor jack

Front

Rear

When  using  a  floor  jack,  follow  the  instructions  in  the  manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly.  Improper  placement  may  damage  your  vehicle  or  cause
injury.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

347

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

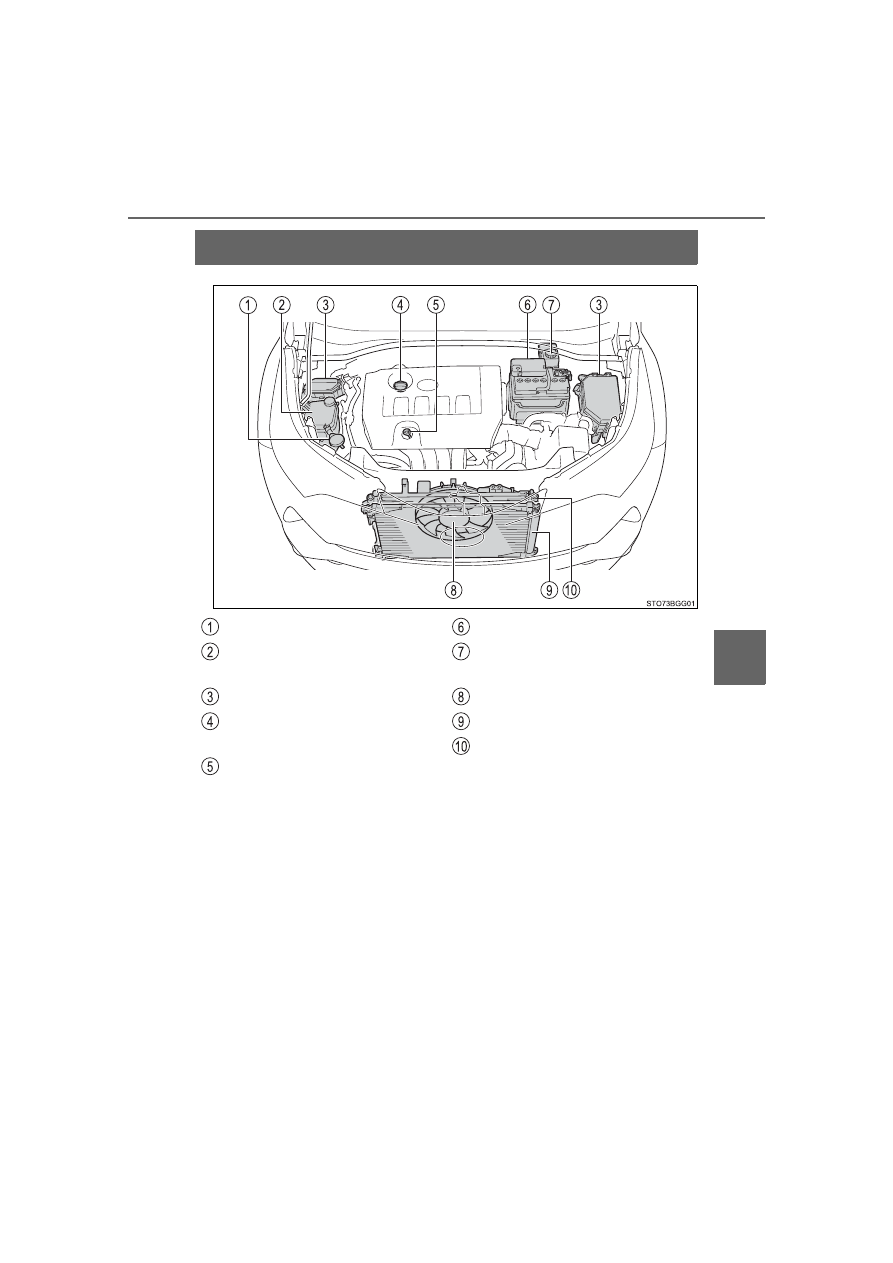

Engine compartment

Washer fluid tank (

P. 359)

Engine coolant reservoir

(

P. 351)

Fuse boxes

(

P. 387)

Engine oil filler cap

(

P. 349)

Engine oil level dipstick

(

P. 348)

Battery

(

P. 355)

Brake fluid reservoir

(

P. 353)

Electric cooling fan
Condenser

(

P. 352)

Radiator

(

P. 352)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

348

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

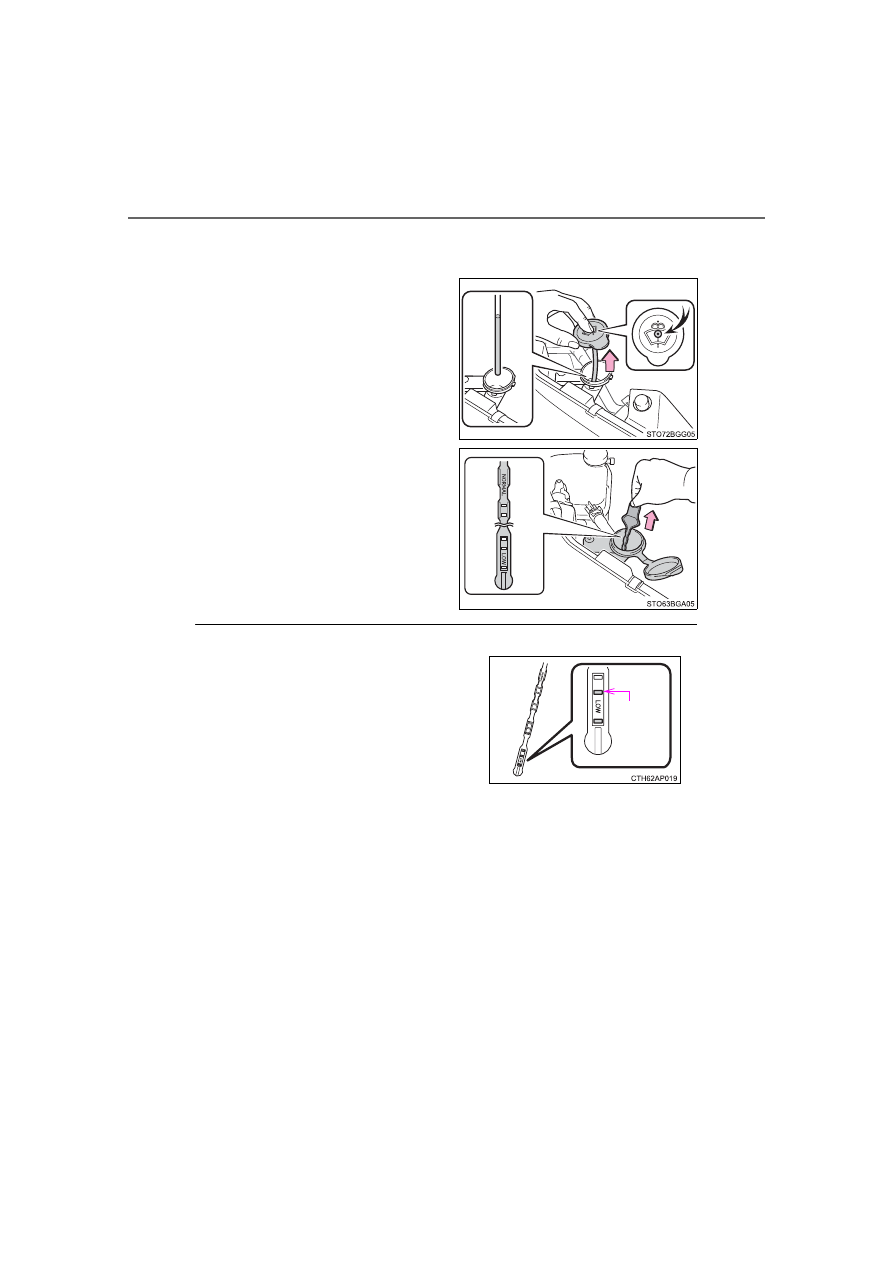

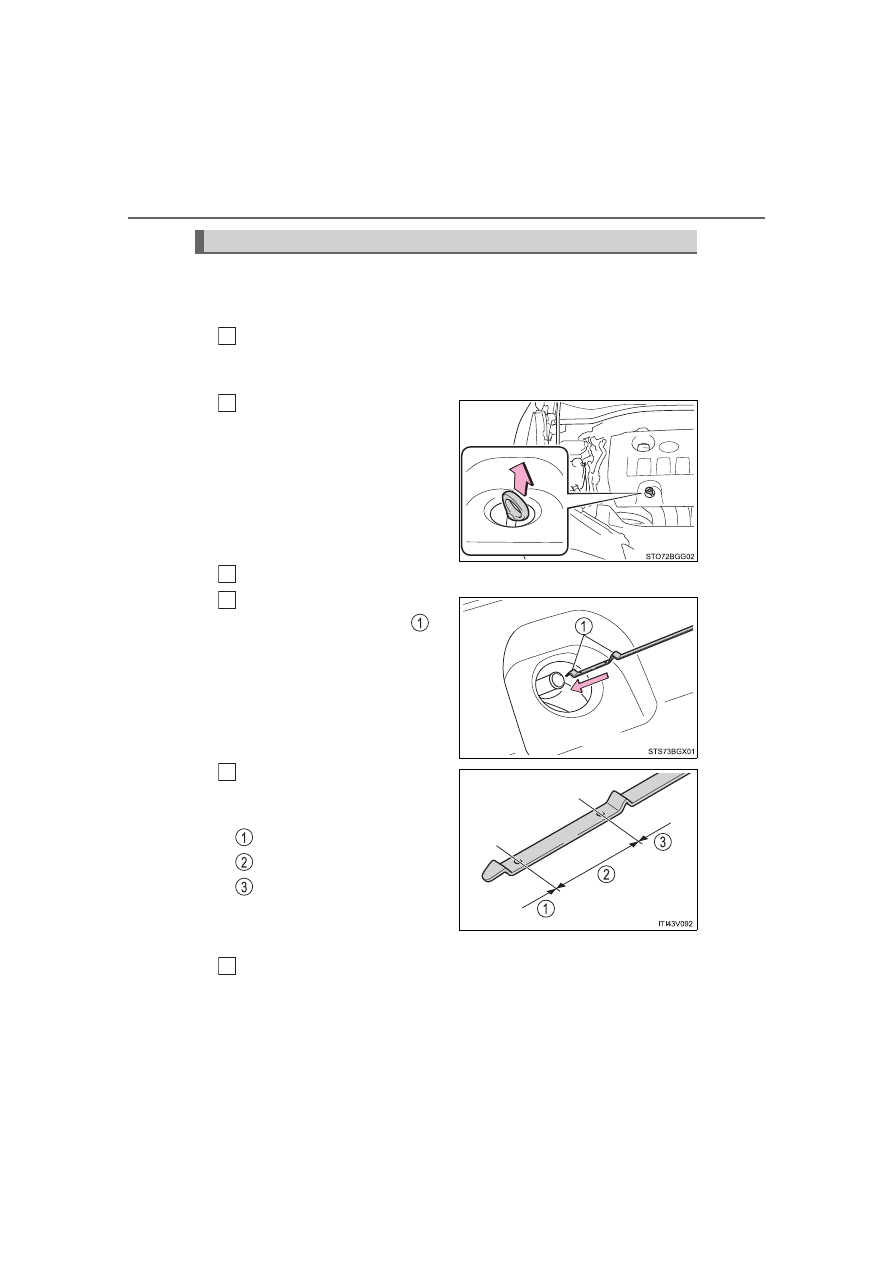

With the engine at operating temperature and turned off, check the oil
level on the dipstick.

Checking the engine oil

Park  the  vehicle  on  level  ground. After  warming  up  the  engine
and  turning  it  off,  wait  more  than  5  minutes  for  the  oil  to  drain
back into the bottom of the engine.
Holding a rag under the end,
pull the dipstick out.

Wipe the dipstick clean.
Reinsert  the  dipstick  fully
with its protruding area (

 in

the

illustration)

pointing

towards the engine.

Holding a rag under the end,
pull  the  dipstick  out  and
check the oil level.

Low
Normal
Excessive

The shape of the dipstick may
differ  depending  on  the  type
of vehicle or engine.

Wipe the dipstick and reinsert it fully.

Engine oil

1

2

3

4

5

6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

349

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

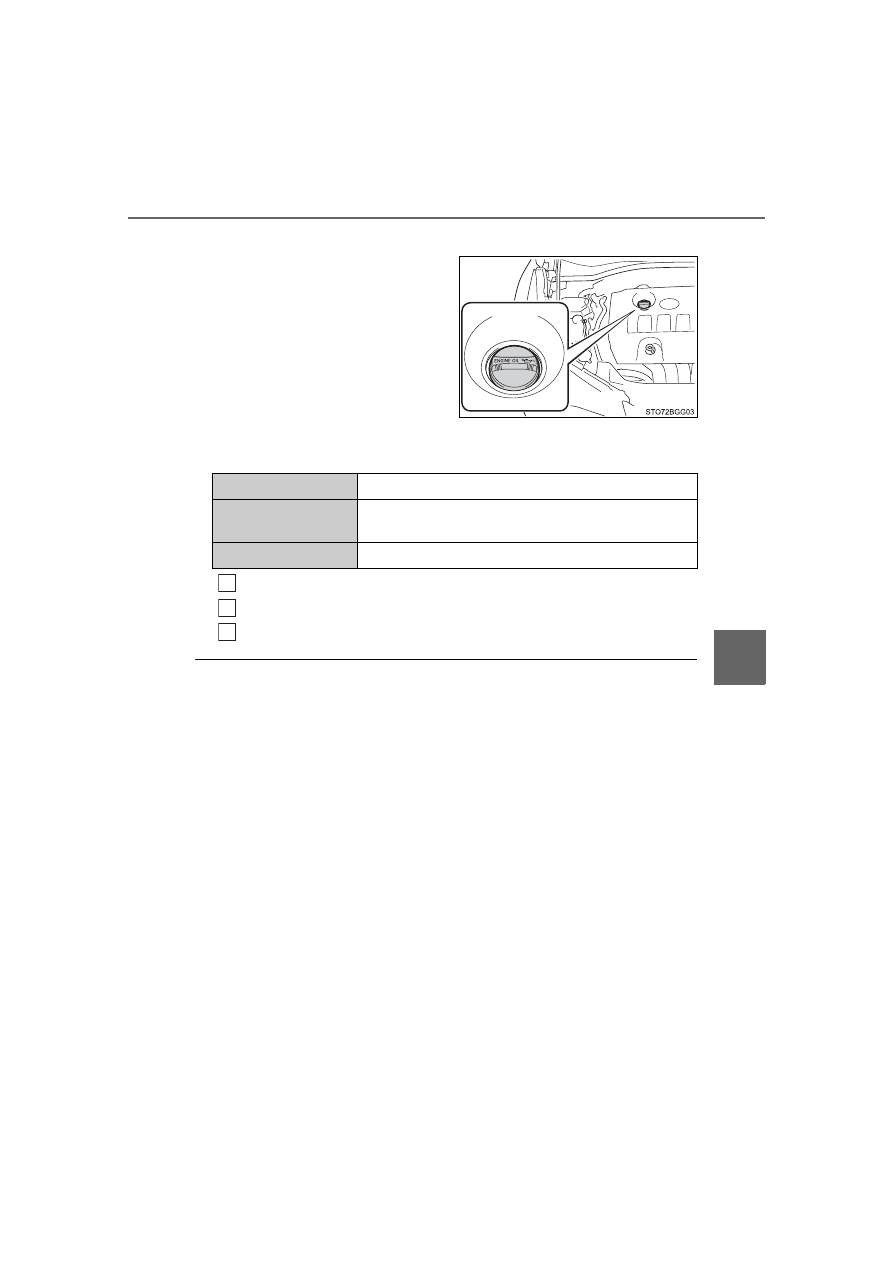

Adding engine oil

If  the  oil  level  is  below  or  near
the low level mark, add engine
oil  of  the  same  type  as  that
already in the engine.

Make  sure  to  check  the  oil  type  and  prepare  the  items  needed
before adding oil.

Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.

Engine oil consumption

A certain amount of engine oil will be consumed while driving. In the following
situations,  oil  consumption  may  increase,  and  engine  oil  may  need  to  be
refilled in between oil maintenance intervals.

When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine

If low quality oil or oil of an inappropriate viscosity is used

When driving at high engine speeds or with a heavy load, or when driving
while accelerating or decelerating frequently

When leaving the engine idling for a long time, or when driving frequently
through heavy traffic

Engine oil selection

P. 467

Oil quantity
(Low

 Full)

1.6 qt. (1.5 L, 1.3 Imp.qt.)

Items

Clean funnel

1

2

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

350

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

WARNING

Used engine oil

Used  engine  oil  contains  potentially  harmful  contaminants  which  may
cause  skin  disorders  such  as  inflammation  and  skin  cancer,  so  care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.

Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call your Toyota dealer, service station or auto parts store for information
concerning recycling or disposal.

Do not leave used engine oil within the reach of children.

NOTICE

To prevent serious engine damage

Check the oil level on a regular basis.

When replacing the engine oil

Be careful not to spill engine oil on the vehicle components.

Avoid overfilling, or the engine could be damaged.

Check the oil level on the dipstick every time you refill the vehicle.

Be sure the engine oil filler cap is properly tightened.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

351

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

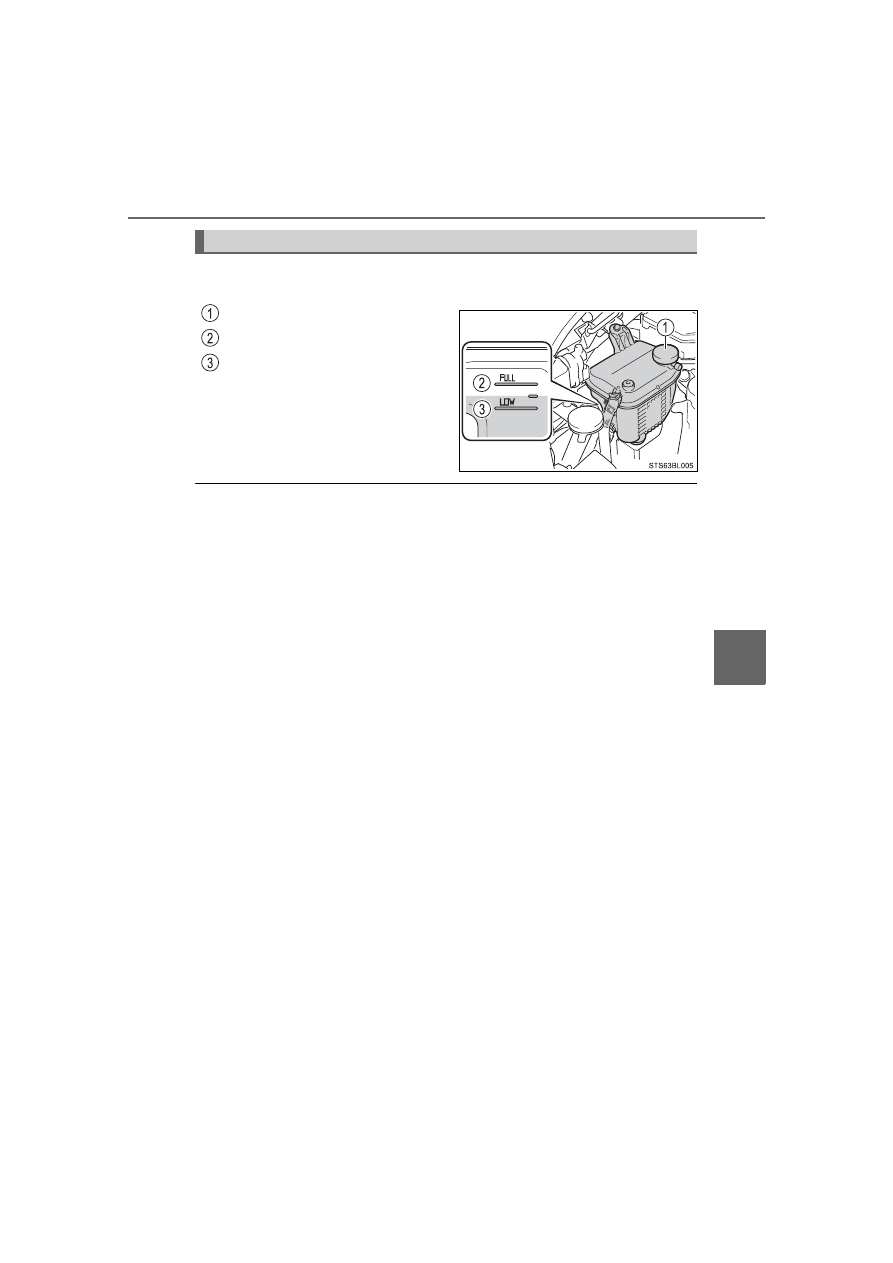

The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.

Reservoir cap
“FULL” line
“LOW” line

If  the  level  is  on  or  below  the
“LOW”  line,  add  coolant  up  to  the
“FULL” line.

Coolant selection

Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
For the U.S.A.:  “Toyota Super Long Life Coolant” is a mixture of 50% cool-

ant and 50% deionized water. (Minimum temperature: -31

F

[-35

C])

For Canada:

“Toyota Super Long Life Coolant” is a mixture of 55% cool-
ant and 45% deionized water. (Minimum temperature: -44

F

[-42

C])

For more details about engine coolant, contact your Toyota dealer.

If the coolant level drops within a short time of replenishing

Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have your Toyota dealer test the cap and check for
leaks in the cooling system.

Engine coolant

-------------------------------------------------------------------------------------------------------------------------------------------------------------

352

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

Check the radiator and condenser and clear away any foreign objects.
If  either of  the  above parts  is  extremely  dirty  or you  are not  sure of
their condition, have your vehicle inspected by your Toyota dealer.

WARNING

When the engine is hot

Do not remove the engine coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.

NOTICE

When adding coolant

Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.

If you spill coolant

Be sure to wash it off with water to prevent it from damaging parts or paint.

Radiator and condenser

WARNING

When the engine is hot

Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

353

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

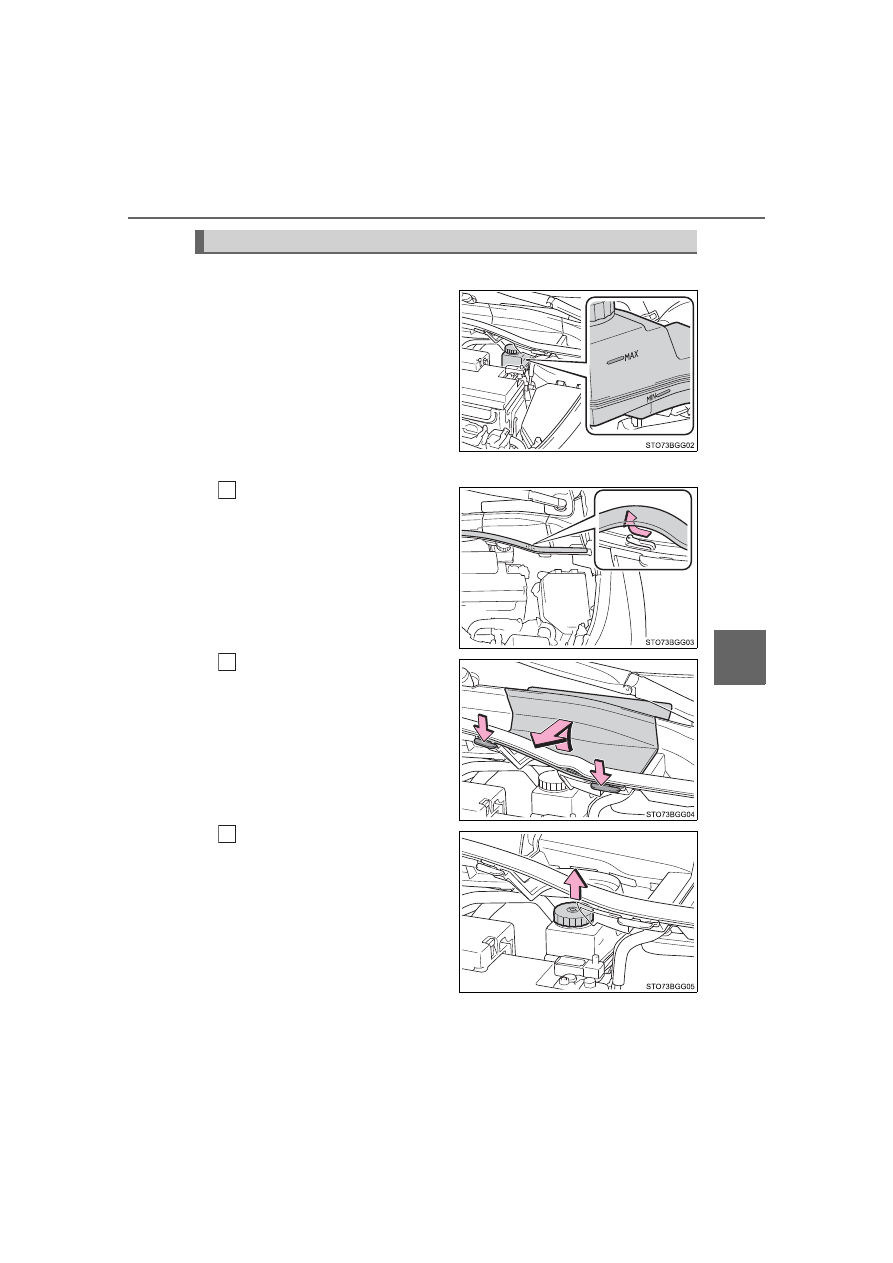

Checking fluid level

The brake fluid level should be
between  the  “MAX”  and  “MIN”
lines on the tank.

Adding fluid

Slide  and  lift  up  the  rubber
strip  to  partly  remove  it  as
shown.

Disconnect  the  claws  and
remove the service cover.

Remove the reservoir cap.

Brake fluid

1

2

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

354

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

Add brake fluid slowly while checking the fluid level.
Make  sure  to  check  the  fluid  type  and  prepare  the  necessary
item.

Brake fluid can absorb moisture from the air

Excess moisture in the brake fluid can cause a dangerous loss of braking effi-
ciency. Use only newly opened brake fluid.

4

Fluid type

FMVSS No.116 DOT 3 or SAE J1703;
FMVSS No.116 DOT 4 or SAE J1704 brake fluid

Item

Clean funnel

WARNING

When filling the reservoir

Take  care  as  brake  fluid  can  harm  your  hands  and  eyes  and  damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, see a doctor.

NOTICE

If the fluid level is low or high

It is normal for the brake fluid level to go down slightly as the brake pads
wear out or when the fluid level in the accumulator is high.
However,  if  the  reservoir  needs  frequent  refilling,  there  may  be  a  serious
problem. Have the vehicle inspected at your Toyota dealer as soon as pos-
sible.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

355

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

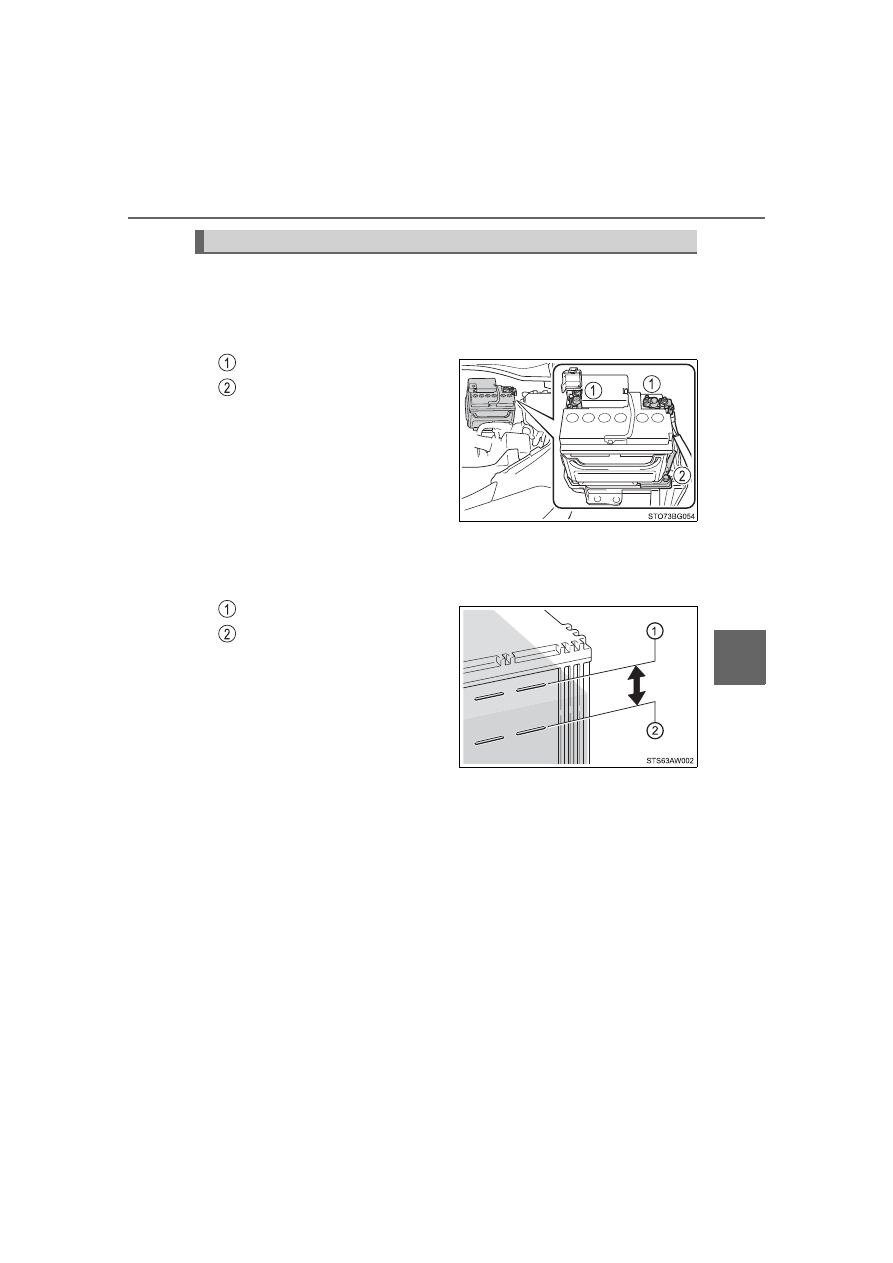

Check the battery as follows.

Battery exterior

Make  sure  that  the  battery  terminals  are  not  corroded  and  that
there are no loose connections, cracks, or loose clamps.

Terminals
Hold-down clamp

Checking battery fluid

If there are lines on the side of the battery:
Check that the level is between the upper and lower lines.

Upper line
Lower line

If the fluid level is at or below the
lower line, add distilled water.

Battery

-------------------------------------------------------------------------------------------------------------------------------------------------------------

356

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

If there are not lines on the side of the battery:
Check the fluid level as follows.

Remove the vent plug.
Check the fluid level by look-
ing directly at the cell.

If  the  fluid  level  is  low,  add  dis-
tilled water.

Put the vent plug back on and close it securely.

Adding distilled water

Remove the vent plug.
Add distilled water.
Put the vent plug back on and close it securely.

1

Low

O.K.

2

3

1

2

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

357

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

Before recharging

When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:

If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.

Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.

After recharging/reconnecting the battery (vehicles with a smart key sys-
tem)

The engine may not start. Follow the procedure below to initialize the sys-
tem.

Shift the shift lever to P.
Open and close any of the doors.
Restart the engine.

Unlocking the doors using the smart key system may not be possible imme-
diately  after  reconnecting  the  battery.  If  this  happens,  use  the  wireless
remote control or the mechanical key to lock/unlock the doors.

Start the engine with the engine switch in ACCESSORY mode. The engine
may  not  start  with  the  engine  switch  turned  off.  However,  the  engine  will
operate normally from the second attempt.

The engine switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the engine switch mode to the status it was in
before the battery was disconnected. Make sure to turn off the engine switch
before disconnecting the battery. Take extra care when connecting the bat-
tery if the engine switch mode prior to discharge is unknown.

If the system will not start even after multiple attempts at all methods above,
contact your Toyota dealer.

1

2

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

358

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

WARNING

Chemicals in the battery

Batteries  contain  poisonous  and  corrosive  sulfuric  acid  and  may  produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near the
battery:

Do not cause sparks by touching the battery terminals with tools.

Do not smoke or light a match near the battery.

Avoid contact with eyes, skin and clothes.

Never inhale or swallow electrolyte.

Wear protective safety glasses when working near the battery.

Keep children away from the battery.

Where to safely charge the battery

Always charge the battery in an open area. Do not charge the battery in a
garage or closed room where there is insufficient ventilation.

Emergency measures regarding electrolyte

If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.

If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.

If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.

If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.

When there is insufficient battery fluid

Do not use if there is insufficient fluid in the battery. There is a possible dan-
ger that the battery may explode.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

359

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

Add washer fluid in the following situations:

A washer does not work.

The warning message appears
on the multi-information display
(if equipped).

NOTICE

When recharging the battery

Never  recharge  the  battery  while  the  engine  is  running. Also,  be  sure  all
accessories are turned off.

When adding distilled water

Avoid overfilling. Water spilled during battery recharging may cause corro-
sion.

Washer fluid

-------------------------------------------------------------------------------------------------------------------------------------------------------------

360

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

The washer fluid level is extremely low (type A) or at “LOW” (type
B).

Type A

Raise  the  cap  keeping  your  finger
pressed  down  on  the  hole  in  the
center  and  check  the  fluid  level  in
the tube.

Type B

Using the gauge (type B)

The washer fluid level can be checked by
observing the position of the level on the
liquid-covered holes in the gauge.
If  the  level  falls  below  the  second  hole
from the bottom (the “LOW” position), refill
the washer fluid.

Current
fluid
level

-------------------------------------------------------------------------------------------------------------------------------------------------------------

361

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

WARNING

When adding washer fluid

Do not add washer fluid when the engine is hot or running as washer fluid
contains alcohol and may catch fire if spilled on the engine, etc.

NOTICE

Do not use any fluid other than washer fluid

Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces, as well as
damaging the pump leading to problems of the washer fluid not spraying.

Diluting washer fluid

Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

362

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

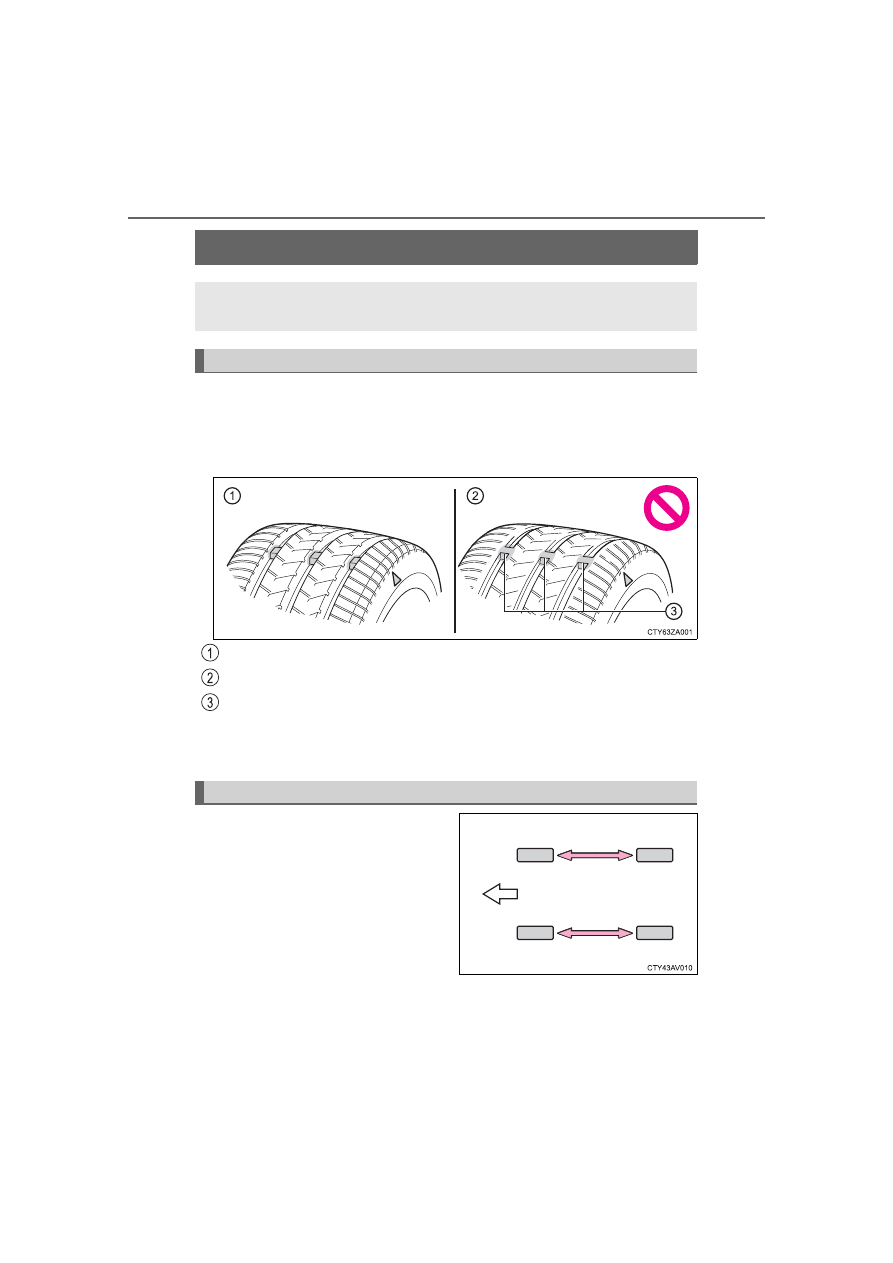

Tires

Check if the treadwear indicators are showing on the tires. Also check
the tires for uneven wear, such as excessive wear on one side of the
tread.
Check the spare tire condition and pressure if not rotated.

New tread
Worn tread
Treadwear indicator

The location of treadwear indicators is shown by a “TWI” or “

” mark,

etc., molded into the sidewall of each tire.

Replace the tires if the treadwear indicators are showing on a tire.

Rotate  the  tires  in  the  order
shown.

To equalize tire wear and extend

tire life, Toyota recommends that

tire  rotation  is  carried  out  at  the

same interval as tire inspection.

Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.

Checking tires

Tire rotation

Front

-------------------------------------------------------------------------------------------------------------------------------------------------------------

363

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

Your vehicle is equipped with a tire pressure warning system that uses
tire pressure warning valves and transmitters to detect low tire infla-
tion pressure before serious problems arise.
If  the  tire  pressure  drops  below  a  predetermined  level,  the  driver  is
warned by a warning light. (

P. 424)

Installing tire pressure warning valves and transmitters

When  replacing  tires  or  wheels,  tire  pressure  warning  valves  and
transmitters must also be installed.
When  new  tire  pressure  warning  valves  and  transmitters  are
installed,  new  ID  codes  must  be  registered  in  the  tire  pressure
warning  computer  and  the  tire  pressure  warning  system  must  be
initialized.  Have  tire  pressure  warning  valves  and  transmitter  ID
codes registered by your Toyota dealer. (

P. 365)

Initializing the tire pressure warning system

When  the  tire  size  is  changed,  the  tire  pressure  warning  system
must be initialized.
When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.

Tire pressure warning system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

364

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

How to initialize the tire pressure warning system

Park the vehicle in a safe place and turn the engine switch to the
“LOCK”  position  (vehicles  without  a  smart  key  system)  or  off
(vehicles with a smart key system).

Initialization cannot be performed while the vehicle is moving.

Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. (

P. 470)

Make sure to adjust the tire pressure to the specified cold tire infla-

tion  pressure  level.  The  tire  pressure  warning  system  will  operate

based on this pressure level.

Turn  the  engine  switch  to  the “ON”  position  (vehicles  without  a
smart key system) or IGNITION ON mode (vehicles with a smart
key system).
Press  “

”  or  “

”  of  the  meter  control  switch  to  select

.

(

P. 98)

Press “

” or “

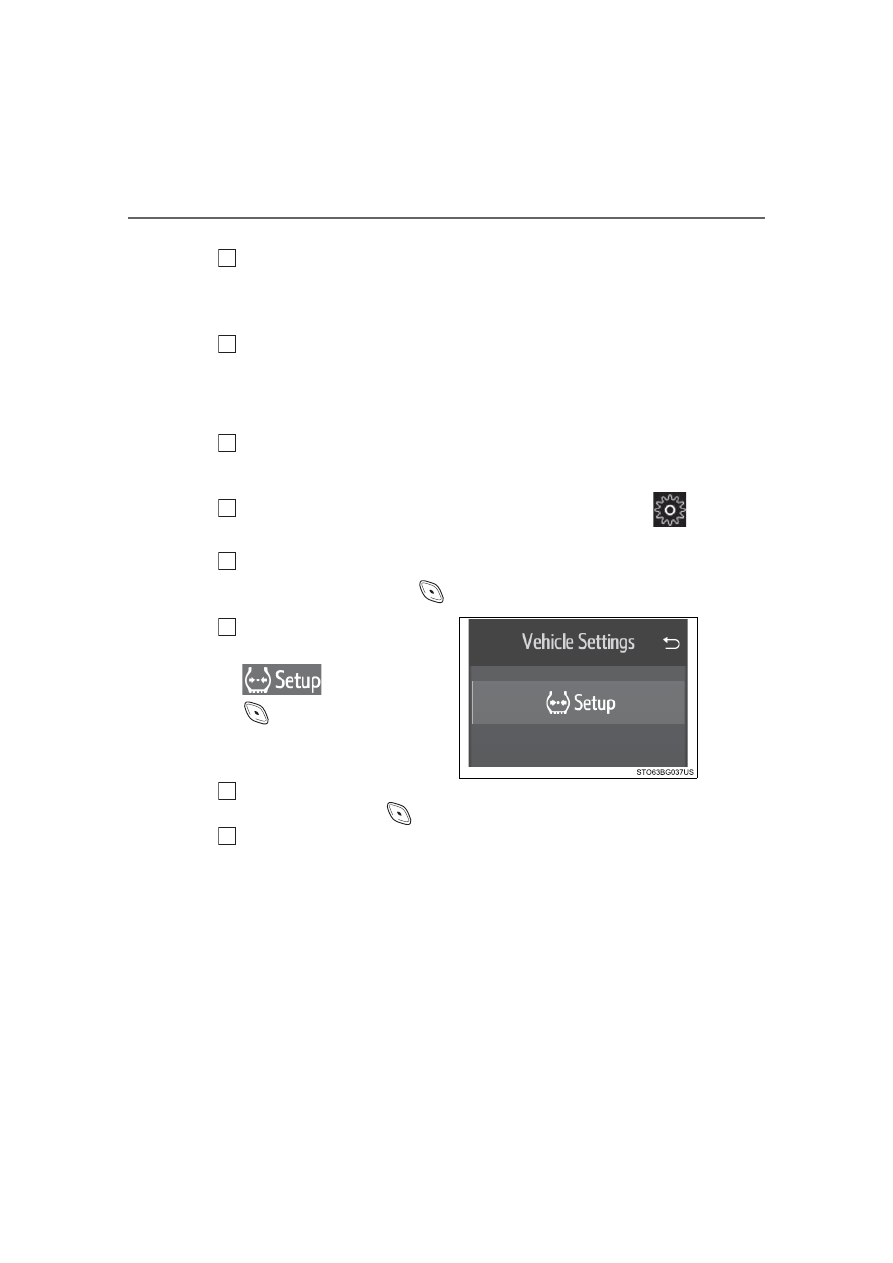

” of the meter control switch to select the “Vehicle

Settings” and then press

 to display the menu.

Press “

” or “

” of the meter

control  switch  to  select

  and  then  press

.

Press “

” or “

” of the meter control switch to select “SET” and

then press and hold

.

When  initialization  completes,  a  message  is  displayed  on  the
multi-information display and the tire pressure warning light will
blink 3 times.

1

2

3

4

5

6

7

8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

365

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

Registering ID codes

The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to register the ID code. Have the ID code
registered by your Toyota dealer.

When to replace your vehicle’s tires

Tires should be replaced if:

The treadwear indicators are showing on a tire.

You  have  tire  damage  such  as  cuts,  splits,  cracks  deep  enough  to

expose the fabric, and bulges indicating internal damage

A tire goes flat repeatedly or cannot be properly repaired due to the size

or location of a cut or other damage

If you are not sure, consult with your Toyota dealer.

Replacing tires and wheels

If the ID code of the tire pressure warning valve and transmitter is not reg-

istered, the tire pressure warning system will not work properly. After driv-

ing  for  about  20  minutes,  the  tire  pressure  warning  light  blinks  for  1

minute and stays on to indicate a system malfunction.

Tire life

Any tire over 6 years old must be checked by a qualified technician even

if it has seldom or never been use, or damage is not obvious.

Routine tire inflation pressure checks

The  tire  pressure  warning  system  does  not  replace  routine  tire inflation

pressure  checks.  Make  sure  to  check  tire  inflation  pressure  as  part  of

your routine of daily vehicle checks.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

366

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

Maximum load of tire

Check that the maximum load of the replacement tire is greater than 1/2

of the Gross Axle Weight Ratings (GAWR) of either the front axle or the

rear axle, whichever is greater.

Tire types

Summer tires
Summer tires are high-speed performance tires best suited to highway

driving under dry conditions. Since summer tires do not have the same

traction  performance  as  snow  tires,  summer  tires  are  inadequate  for

driving  on  snow-covered  or  icy  roads.  For  driving  on  snow-covered

roads or icy roads, the use of snow tires is recommended. When install-

ing snow tires, be sure to replace all four tires.

All season tires
All season tires are designed to provide better traction in snow and to

be  adequate  for  driving  in  most  winter  conditions  as  well  as  for  use

year-round. All  season  tires,  however,  do  not  have  adequate  traction

performance compared with snow tires in heavy or loose snow. Also, all

season tires fall short in acceleration and handling performance com-

pared with summer tires in highway driving.

Snow tires
For driving on snow-covered roads or icy roads, we recommend using

snow tires. If you need snow tires, select tires of the same size, con-

struction and load capacity as the originally installed tires. Since your

vehicle  has  radial  tires  as  original  equipment,  make  sure  your  snow

tires also have radial construction. Do not install studded tires without

first  checking  local  regulations  for  possible  restrictions.  Snow  tires

should be installed on all wheels. (

P. 292)

If the tread on snow tires wears down below 0.16 in. (4 mm)

The effectiveness of the tires as snow tires is lost.

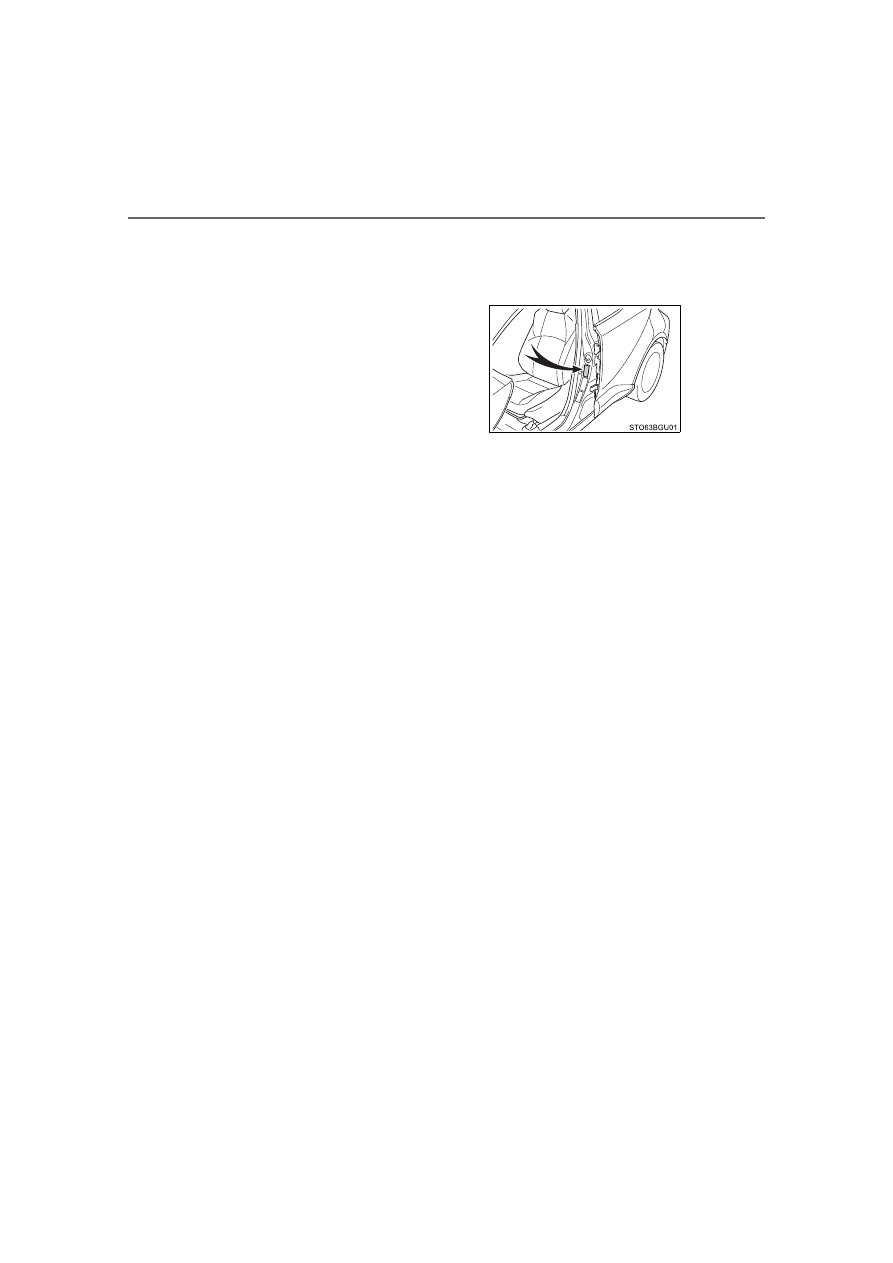

For  the  GAWR,  see  the  Certification

Label. For the maximum load of the tire,

see the load limit at maximum cold tire

inflation  pressure  mentioned  on  the

sidewall of the tire. (

P. 475)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

367

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

Situations in which the tire pressure warning system may not oper-

ate properly

In the following cases, the tire pressure warning system may not operate

properly.
• If non-genuine Toyota wheels are used.

• A tire has been replaced with a tire that is not an OE (Original Equip-

ment) tire.

• A tire has been replaced with a tire that is not of the specified size.

• Tire chains, etc., are equipped.

• An auxiliary-supported run-flat tire is equipped.

• If a window tint that affects the radio wave signals is installed.

• If there is a lot of snow or ice on the vehicle, particularly around the

wheels or wheel housings.

• If  the  tire  inflation  pressure  is  extremely  higher  than  the  specified

level.

• If  wheels  without  the  tire  pressure  warning  valves  and  transmitters

are used.

• If the ID code on the tire pressure warning valves and transmitters is

not registered in the tire pressure warning computer.

Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large

display, airport or other facility that generates strong radio waves or

electrical noise.

• When  carrying  a  portable  radio,  cellular  phone,  cordless  phone  or

other wireless communication device.

When the vehicle is parked, the time taken for the warning to start or go

off could be extended.

When tire inflation pressure declines rapidly for example when a tire has

burst, the warning may not function.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

368

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

The initialization operation

Make sure to carry out initialization after adjusting the tire inflation pres-

sure.

Also, make sure the tires are cold before carrying out initialization or tire

inflation pressure adjustment.

If you have accidentally turned the engine switch off during initialization,

it  is  not  necessary  to  press  the  reset  switch  again  as  initialization  will

restart automatically when the engine switch to the “ON” position (vehi-

cles without a smart key system) or IGNITION ON mode (vehicles with a

smart key system) for the next time.

If you accidentally press the reset switch when initialization is not neces-

sary,  adjust  the  tire  inflation  pressure  to  the  specified  level  when  the

tires are cold, and conduct initialization again.

Warning performance of the tire pressure warning system

The  warning  of  the  tire  pressure  warning  system  will  change  in  accor-

dance  with  driving  conditions.  For  this  reason,  the  system  may  give  a

warning even if the tire pressure does not reach a low enough level, or if

the pressure is higher than the pressure that was adjusted to when the

system was initialized.

When initialization of the tire pressure warning system has failed

Initialization can be completed in a few minutes. However, in the following

cases, the settings have not been recorded and the system will not oper-

ate properly. If repeated attempts to record tire inflation pressure settings

are unsuccessful, have the vehicle inspected by your Toyota dealer.

When operating the initialization of the system, the tire pressure warning

light does not blink 3 times and the setting message does not appear on

the multi-information display.

After driving for a certain period of time since the initialization has been

completed, the warning light comes on after blinking for 1 minute.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

369

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

Tire pressure warning system certification

For vehicles sold in the U.S.A.

For vehicles sold in Canada

-------------------------------------------------------------------------------------------------------------------------------------------------------------

370

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

WARNING

When inspecting or replacing tires

Observe the following precautions to prevent accidents.

Failure to do so may cause damage to parts of the drive train as well as

dangerous  handling  characteristics,  which  may  lead  to  an  accident

resulting in death or serious injury.

Do not mix tires of different makes, models or tread patterns.

Also, do not mix tires of remarkably different treadwear.

Do not use tire sizes other than those recommended by Toyota.

Do not mix differently constructed tires (radial, bias-belted or bias-ply

tires).

Do not mix summer, all season and snow tires.

Do not use tires that have been used on another vehicle.

Do not use tires if you do not know how they were used previously.

Do not tow if your vehicle has a compact spare tire installed.

When initializing the tire pressure warning system

Do not initialize tire pressure warning system without first adjusting the

tire inflation pressure to the specified level. Otherwise, the tire pressure

warning light may not come on even if the tire inflation pressure is low,

or it may come on when the tire inflation pressure is actually normal.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

371

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

NOTICE

Repairing or replacing tires, wheels, tire pressure warning valves,

transmitters and tire valve caps

When removing or fitting the wheels, tires or the tire pressure warning

valves  and  transmitters,  contact  your Toyota  dealer  as  the  tire  pres-

sure warning valves and transmitters may be damaged if not handled

correctly.

Make sure to install the tire valve caps. If the tire valve caps are not

installed,  water  could  enter  the  tire  pressure  warning  valves  and  the

tire pressure warning valves could be bound.

When replacing tire valve caps, do not use tire valve caps other than

those specified. The cap may become stuck.

To avoid damage to the tire pressure warning valves and transmit-

ters

When  a  tire  is  repaired  with  liquid  sealants,  the  tire  pressure  warning

valve  and  transmitter  may  not  operate  properly.  If  a  liquid  sealant  is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (

P. 363)

Driving on rough roads

Take particular care when driving on roads with loose surfaces or pot-

holes.

These conditions may cause losses in tire inflation pressure, reducing

the  cushioning  ability  of  the  tires.  In  addition,  driving  on  rough  roads

may  cause  damage  to  the  tires  themselves,  as  well  as  the  vehicle’s

wheels and body.

If tire inflation pressure of each tire becomes low while driving

Do not continue driving, or your tires and/or wheels may be ruined.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

372

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

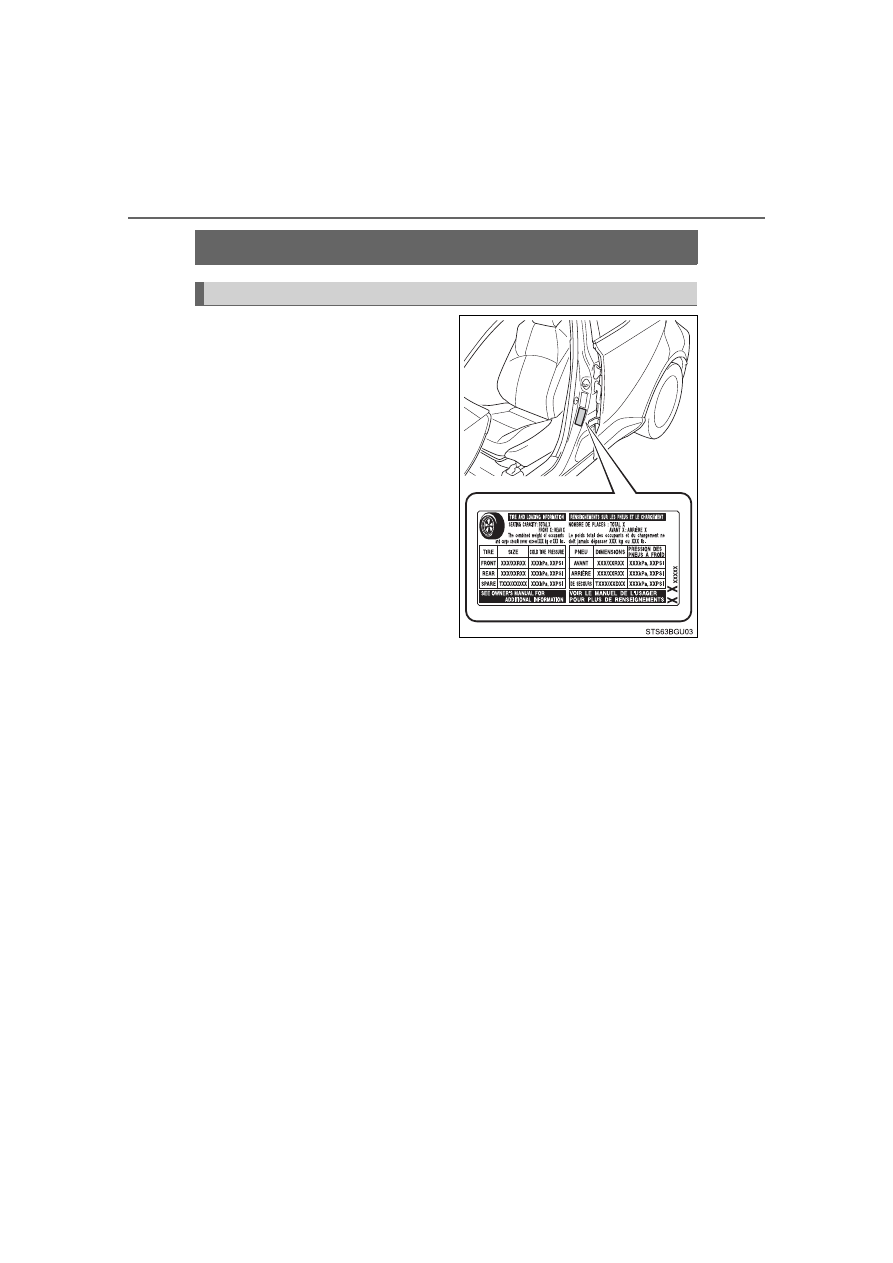

Tire inflation pressure

The  recommended  cold  tire  infla-
tion pressure and tire size are dis-
played  on  the  tire  and  loading
information label. (

P. 470)

Tire inflation pressure

-------------------------------------------------------------------------------------------------------------------------------------------------------------

373

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

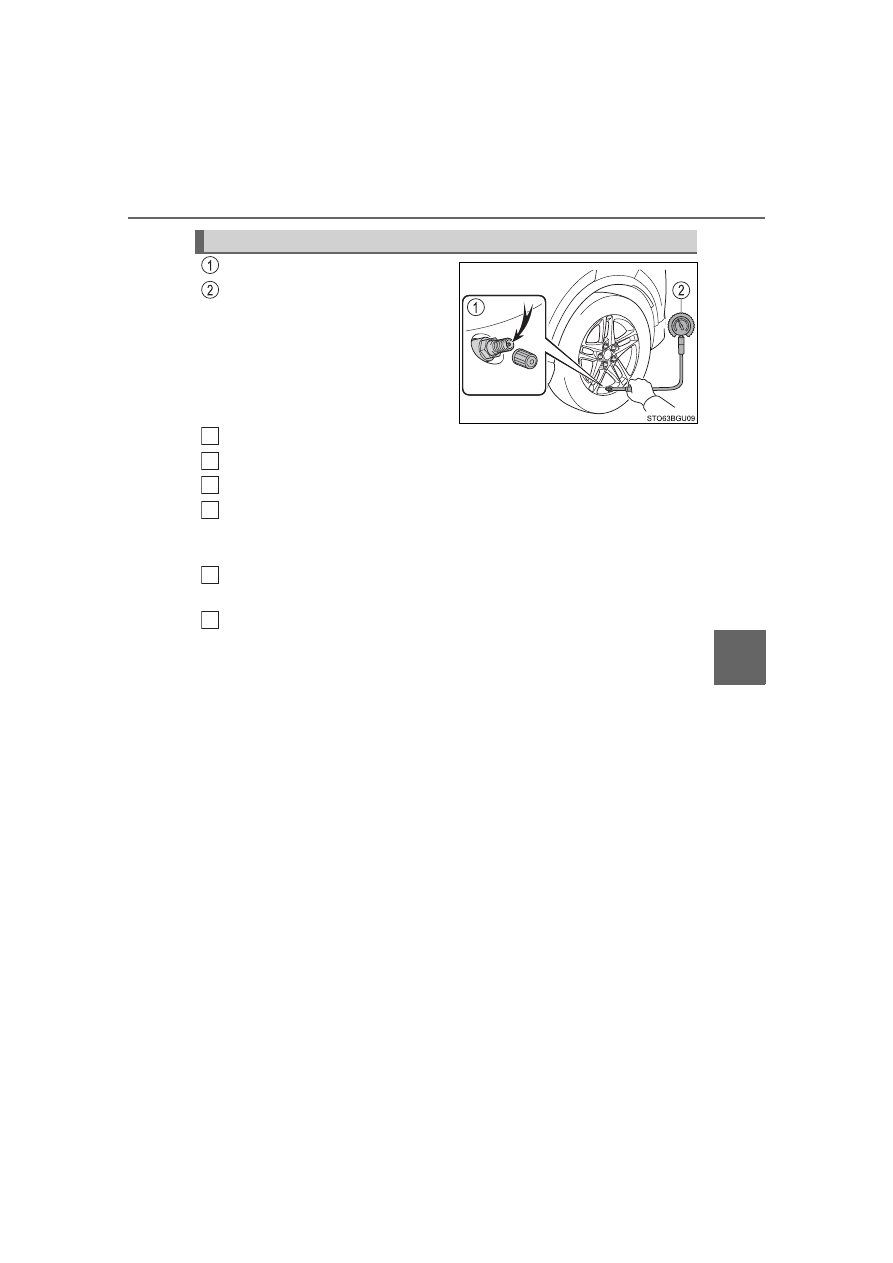

Tire valve
Tire pressure gauge

Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the gauge gradations.
If the tire inflation pressure is not at the recommended level, adjust
the pressure.
If you add too much air, press the center of the valve to deflate.
After  completing  the  tire  inflation  pressure  measurement  and
adjustment, apply soapy water to the valve and check for leakage.
Put the tire valve cap back on.

Inspection and adjustment procedure

1

2

3

4

5

6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

374

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

Tire inflation pressure check interval

You should check tire inflation pressure every two weeks, or at least once

a month.

Do not forget to check the spare.

Effects of incorrect tire inflation pressure

Driving with incorrect tire inflation pressure may result in the following:

Reduced fuel economy

Reduced driving comfort and poor handling

Reduced tire life due to wear

Reduced safety

Damage to the drivetrain

If a tire needs frequent inflating, have it checked by your Toyota dealer.

Instructions for checking tire inflation pressure

When checking tire inflation pressure, observe the following:

Check only when the tires are cold.

If  your  vehicle  has  been  parked  for  at  least  3  hours  or  has  not  been

driven for more than 1 mile or 1.5 km, you will get an accurate cold tire

inflation pressure reading.

Always use a tire pressure gauge.

It is difficult to judge if a tire is properly inflated based only on its appear-

ance.

It  is  normal  for  the  tire  inflation  pressure  to  be  higher  after  driving  as

heat is generated in the tire. Do not reduce tire inflation pressure after

driving.

Never exceed the vehicle capacity weight.

Passengers and luggage weight should be placed so that the vehicle is

balanced.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

375

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

WARNING

Proper inflation is critical to save tire performance

Keep your tires properly inflated.

If the tires are not properly inflated, the following conditions may occur

which could lead to an accident resulting in death or serious injury:

Excessive wear

Uneven wear

Poor handling

Possibility of blowouts resulting from overheated tires

Air leaking from between tire and wheel

Wheel deformation and/or tire damage

Greater possibility of tire damage while driving (due to road hazards,

expansion joints, sharp edges in the road, etc.)

NOTICE

When inspecting and adjusting tire inflation pressure

Be sure to put the tire valve caps back on.

If a valve cap is not installed, dirt or moisture may get into the valve and

cause an air leak, resulting in decreased tire inflation pressure.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

376

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

Wheels

When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset

*

.

Replacement wheels are available at your Toyota dealer.

*

: Conventionally referred to as “offset”.

Toyota does not recommend using the following:

Wheels of different sizes or types

Used wheels

Bent wheels that have been straightened

Use  only Toyota  wheel  nuts  and  wrenches  designed  for  use  with
your aluminum wheels.

When  rotating,  repairing  or  changing  your  tires,  check  that  the
wheel nuts are still tight after driving 1000 miles (1600 km).

Be  careful  not  to  damage  the  aluminum  wheels  when  using  tire
chains.

Use only Toyota genuine balance weights or equivalent and a plas-
tic or rubber hammer when balancing your wheels.

When replacing wheels

The  wheels  of  your  vehicle  are  equipped  with  tire  pressure  warning

valves  and  transmitters  that  allow  the  tire  pressure  warning  system  to

provide advance warning in the event of a loss in tire inflation pressure.

Whenever wheels are replaced, tire pressure warning valves and trans-

mitters must be installed. (

P. 363)

If  a  wheel  is  bent,  cracked  or  heavily  corroded,  it  should  be
replaced.  Otherwise,  the  tire  may  separate  from  the  wheel  or
cause a loss of handling control.

Wheel selection

Aluminum wheel precautions (if equipped)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

377

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

WARNING

When replacing wheels

Do not use wheels that are a different size from those recommended in

the Owner’s Manual, as this may result in a loss of handling control.

Never  use  an  inner  tube  in  a  leaking  wheel  which  is  designed  for  a

tubeless tire. Doing so may result in an accident, causing death or seri-

ous injury.

When installing the wheel nuts

Never use oil or grease on the wheel bolts or wheel nuts.

Oil and grease may cause the wheel nuts to be excessively tightened,

leading to bolt or disc wheel damage. In addition, the oil or grease can

cause the wheel nuts to loosen and the wheel may fall off, causing an

accident  and  resulting  in  death  or  serious  injury.  Remove  any  oil  or

grease from the wheel bolts or wheel nuts.

Use of defective wheels prohibited

Do not use cracked or deformed wheels.

Doing so could cause the tire to leak air during driving, possibly causing

an accident.

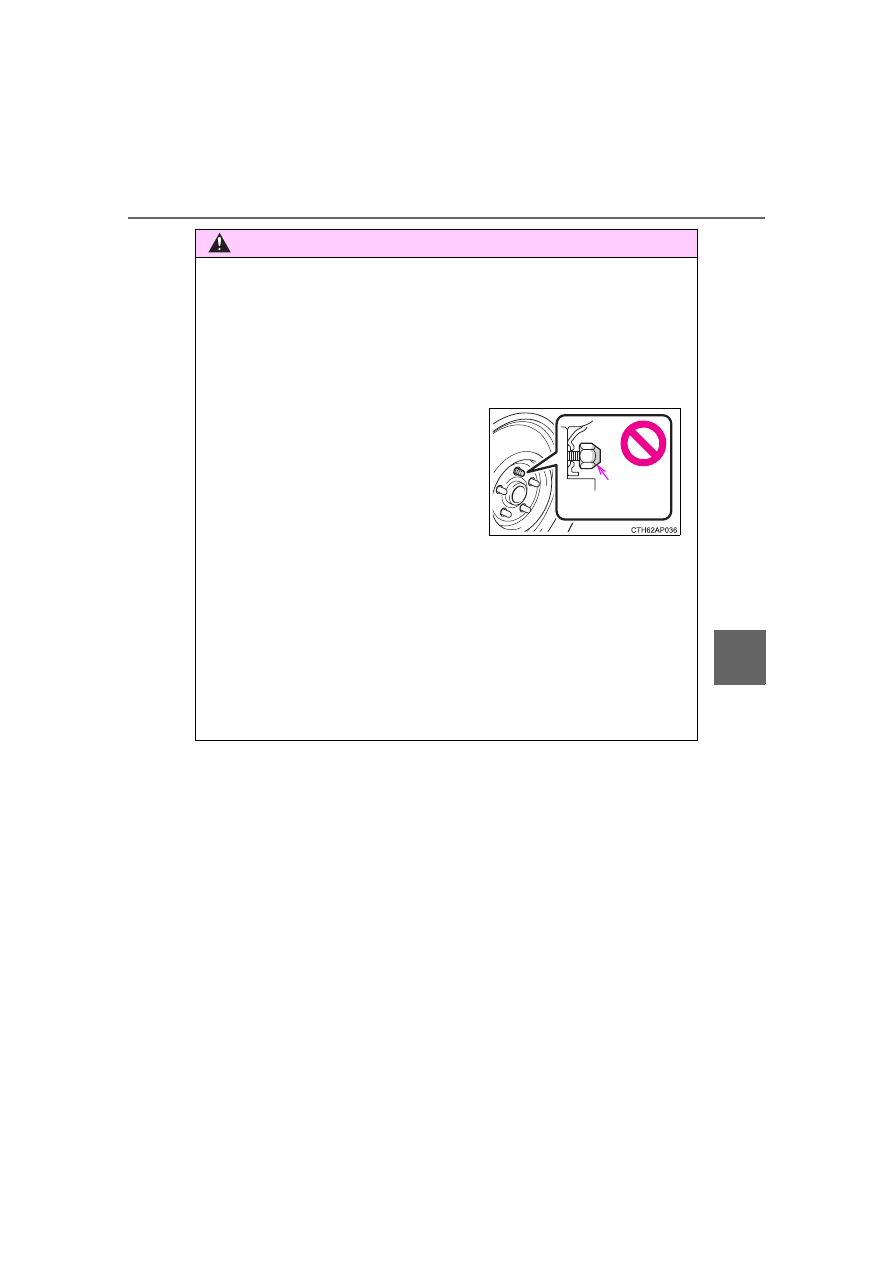

Be sure to install the wheel nuts with

the  tapered  ends  facing  inward.

Installing  the  nuts  with  the  tapered

ends  facing  outward  can  cause  the

wheel  to  break  and eventually  cause

the  wheel  to  come  off  while  driving,

which  could  lead  to  an  accident

resulting in death or serious injury.

Tapered
portion

-------------------------------------------------------------------------------------------------------------------------------------------------------------

378

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

NOTICE

Replacing tire pressure warning valves and transmitters

Because tire repair or replacement may affect the tire pressure warn-
ing valves and transmitters, make sure to have tires serviced by your
Toyota dealer or other qualified service shop. In addition, make sure to
purchase  your  tire  pressure  warning  valves  and  transmitters  at  your
Toyota dealer.

Ensure that only genuine Toyota wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly
with non-genuine wheels.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

379

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

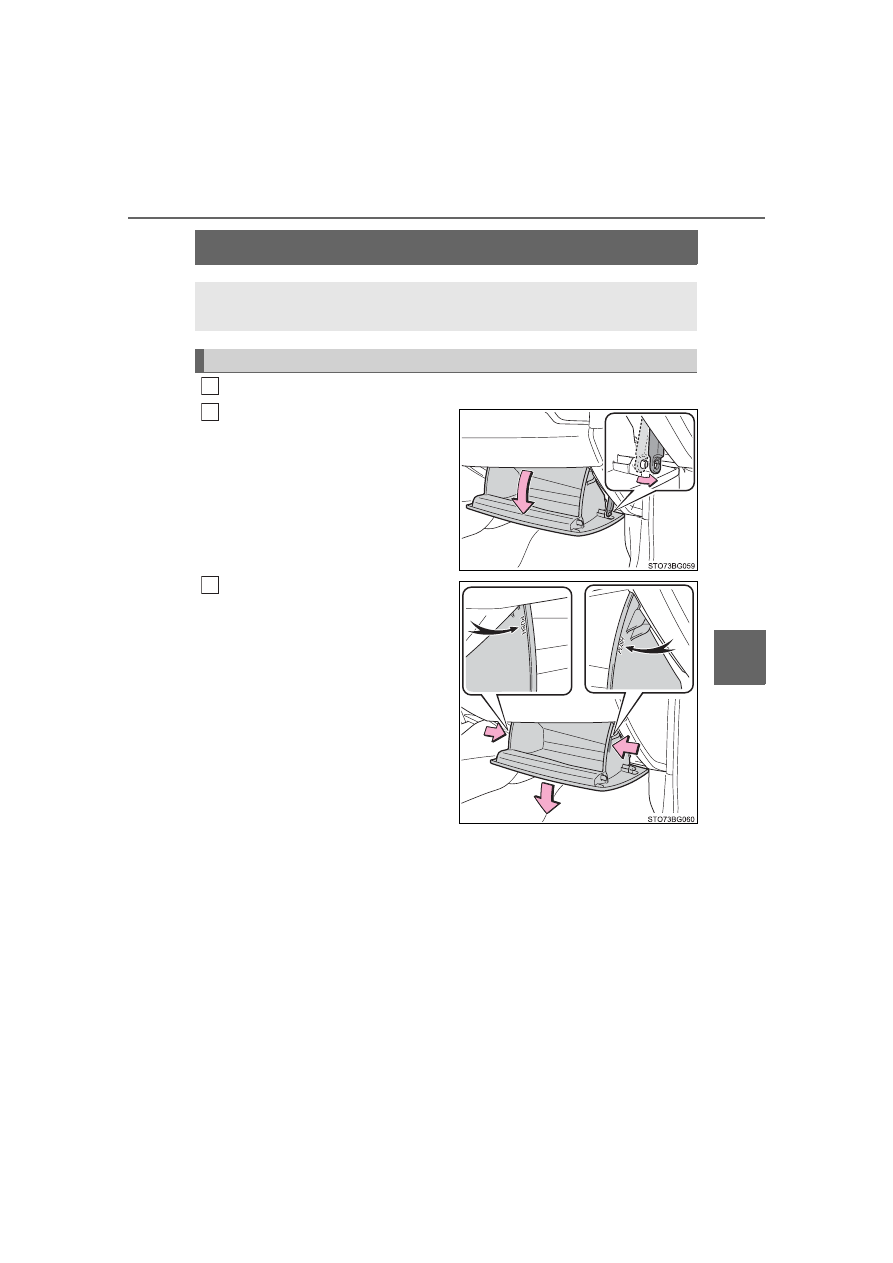

Air conditioning filter

Turn the engine switch off.
Open  the  glove  box.  Slide  off
the damper.

Push  in  each  side  of  the  glove
box  to  disconnect  the  claws,
and  then  slowly  and  fully  open
the  glove  box  while  supporting
it.

The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.

Removal method

1

2

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

380

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

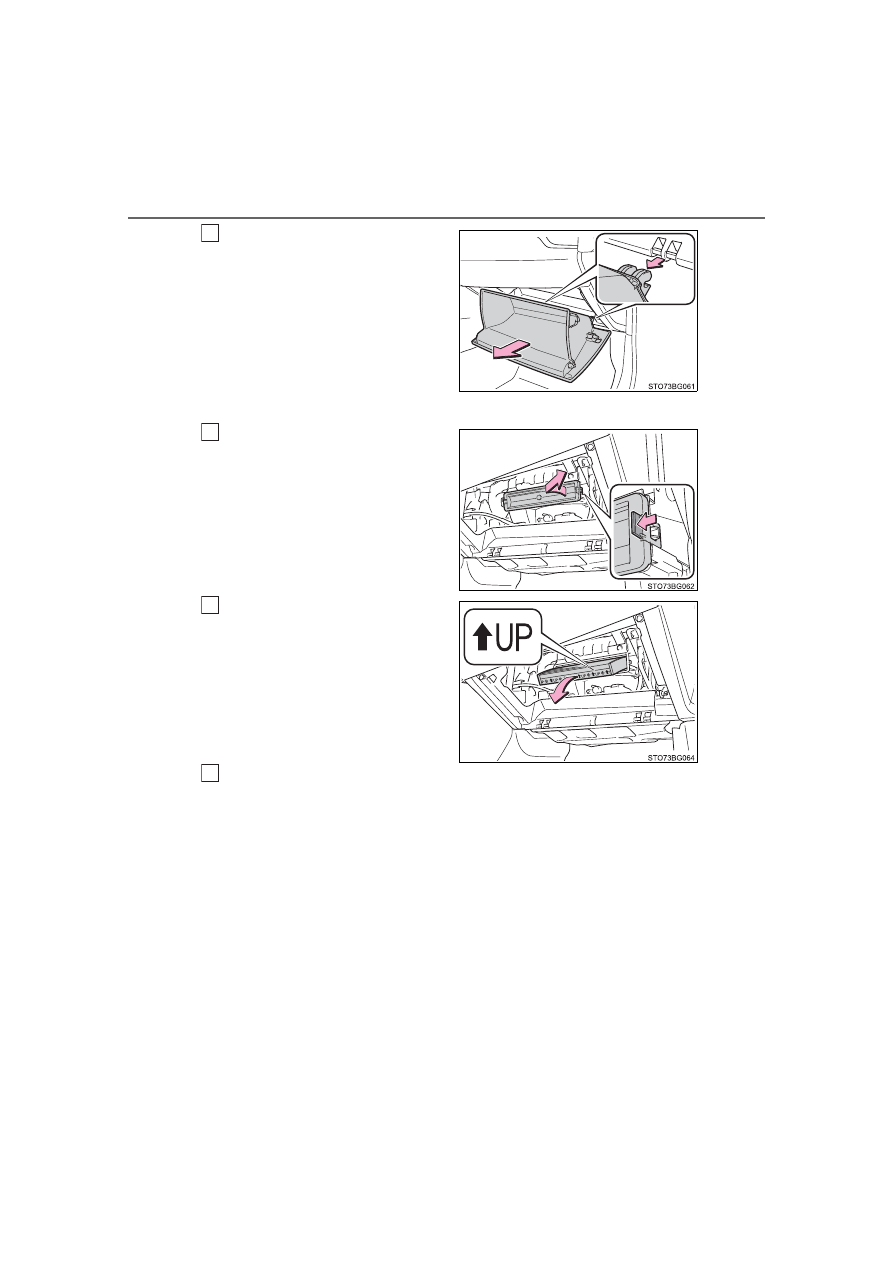

With  the  glove  box  fully  open,
slightly lift up the glove box and
pull  toward  the  seat  to  detach
the bottom of the glove box.

Do  not  use  excessive  force  if  the
glove  box  does  not  detach  when
lightly  pulled.  Instead,  pull  toward
the seat while slightly adjusting the
height of the glove box.

Type A

Remove the filter cover.

Remove the air conditioning fil-
ter  and  replace  it  with  a  new
one.

The “

UP” marks shown on the fil-

ter should be pointing up.

When installing, reverse the steps listed.

4

5

6

7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

381

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

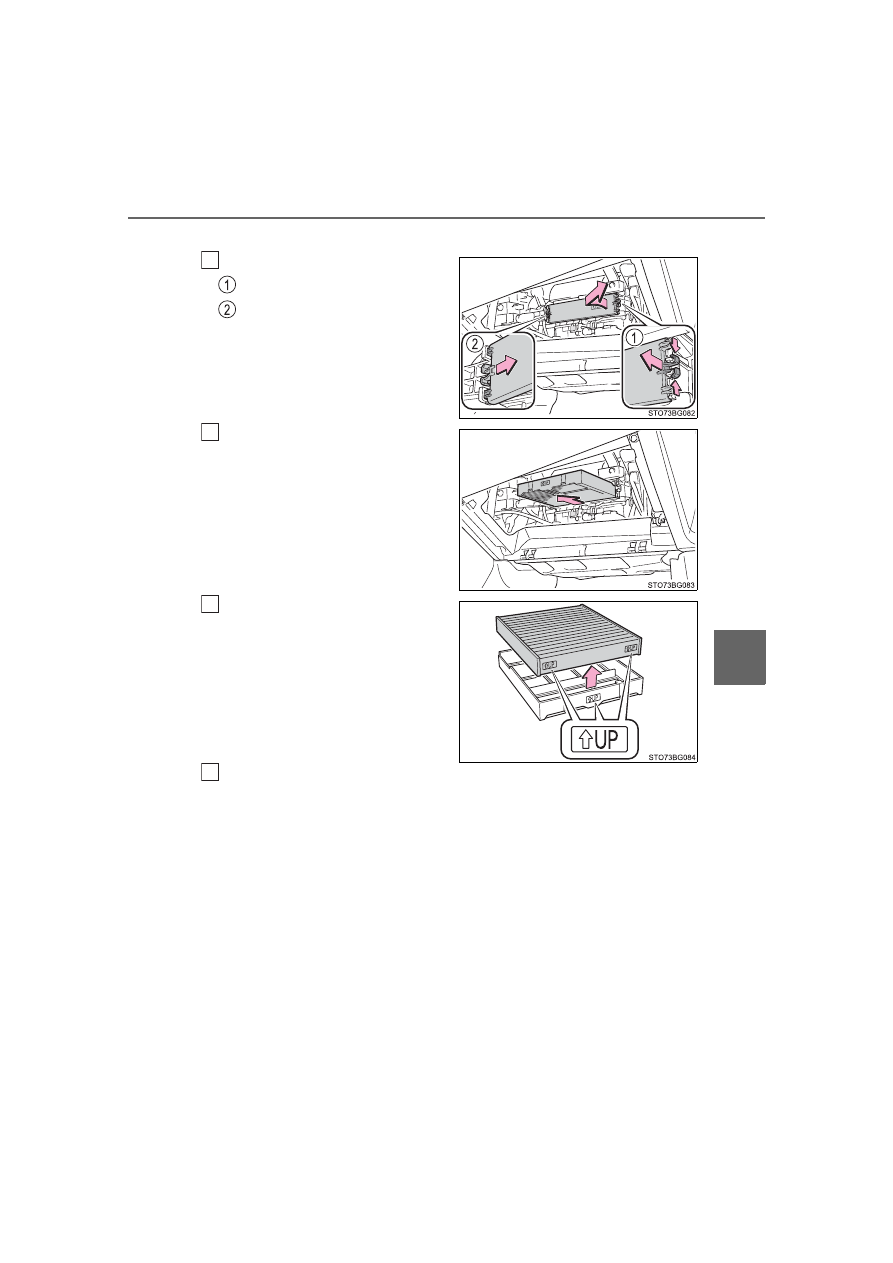

Type B

Remove the filter cover.

Unlock the filter cover.
Move  the  filter  cover  in  the
direction  of  the  arrow,  and
then pull it out of the claws.

Remove the filter case.

Remove the air conditioning fil-
ter  from  the  filter  case  and
replace it with a new one.

The “

UP” marks shown on the fil-

ter should be pointing up.

When installing, reverse the steps listed.

5

6

7

8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

382

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

Checking interval

Inspect and replace the air conditioning  filter  according to  the  maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Schedule maintenance guide” or “Owner’s Manual Supplement”.)

If air flow from the vents decreases dramatically

The filter may be clogged. Check the filter and replace if necessary.

NOTICE

When using the air conditioning system

Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.

When removing the glove box

Always follow the specified procedure to remove the glove box (

P. 379). If

the  glove  box  is  removed  without  following  the  specified  procedure,  the
hinge of the glove box may become damaged.

To prevent damage to the filter cover

When moving the filter cover in the direc-
tion  of  arrow  to  release  the  fitting,  pay
attention  not  to apply excessive  force  to
the  claws.  Otherwise,  the  claws  may  be
damaged.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

383

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

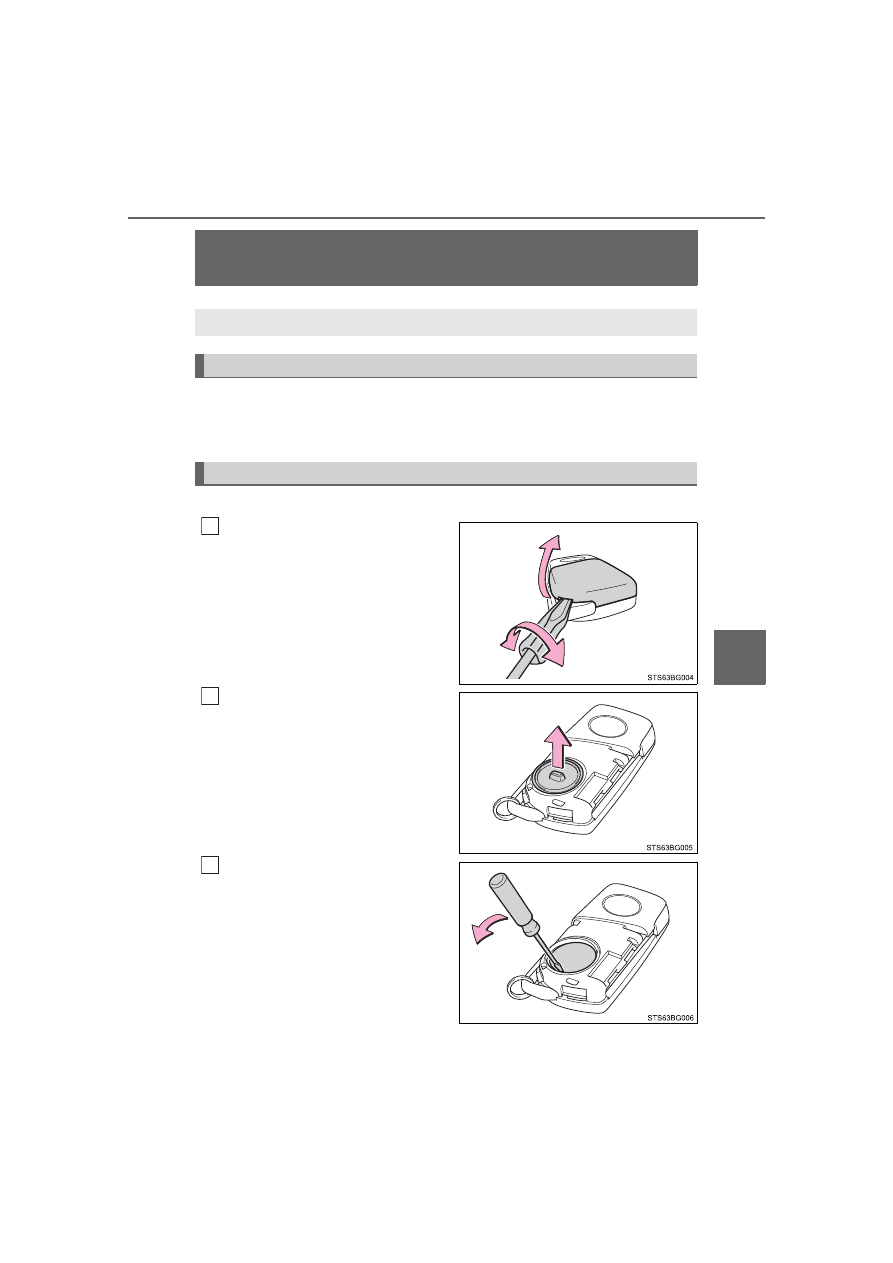

Wireless remote control/electronic key bat-

tery

Flathead screwdriver

Small flathead screwdriver

Lithium battery CR2032

Vehicles without a smart key system

Remove the cover.

To  prevent  damage  to  the  key,
cover the tip of the screwdriver with
a rag.

Remove the battery cover.

If  the  battery  cover  is  difficult  to
remove, lift the edge to remove it.

Remove  the  depleted  battery
using  a  small  flathead  screw-
driver.

Insert  a  new  battery  with  the  “+”
terminal facing up.

Replace the battery with a new one if it is depleted.

You will need the following items:

Replacing the battery

1

2

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

384

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

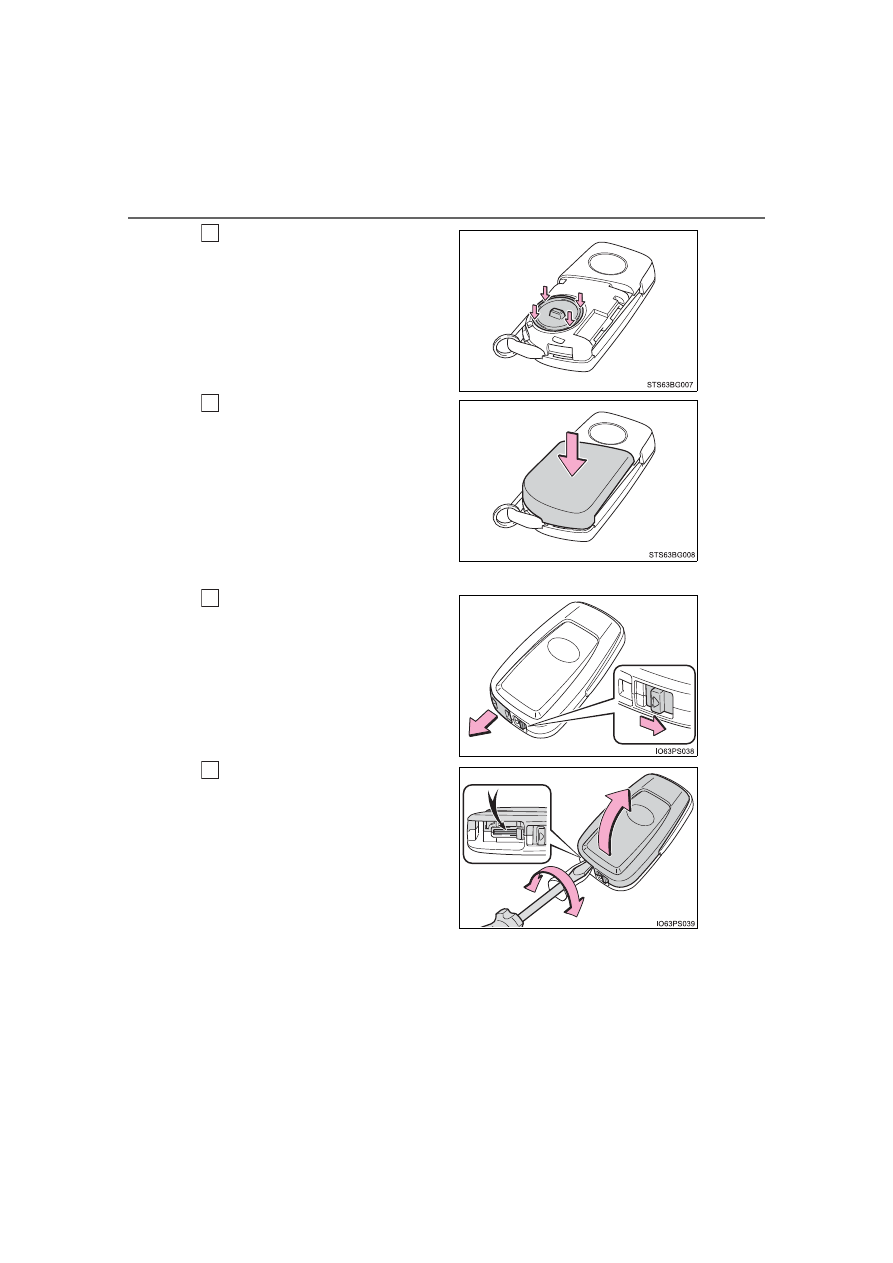

Install the battery cover with the
tab facing up.

Push the entire edge of the battery
cover into the key.

Install the key cover.

Align  the  key  cover  with  the  key
and  then  press  it  straight  into  the
key.
Make  sure  that  the  key  cover  is
securely installed without any gaps
between it and the key.

Vehicles with a smart key system

Release  the  lock  and  take  out
the mechanical key.

Remove the cover.

Use  an  appropriate  sized  flathead
screwdriver.  Forceful  prying  may
deform the cover.
To  prevent  damage  to  the  key,
cover the tip of the screwdriver with
a rag.

4

5

1

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

385

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

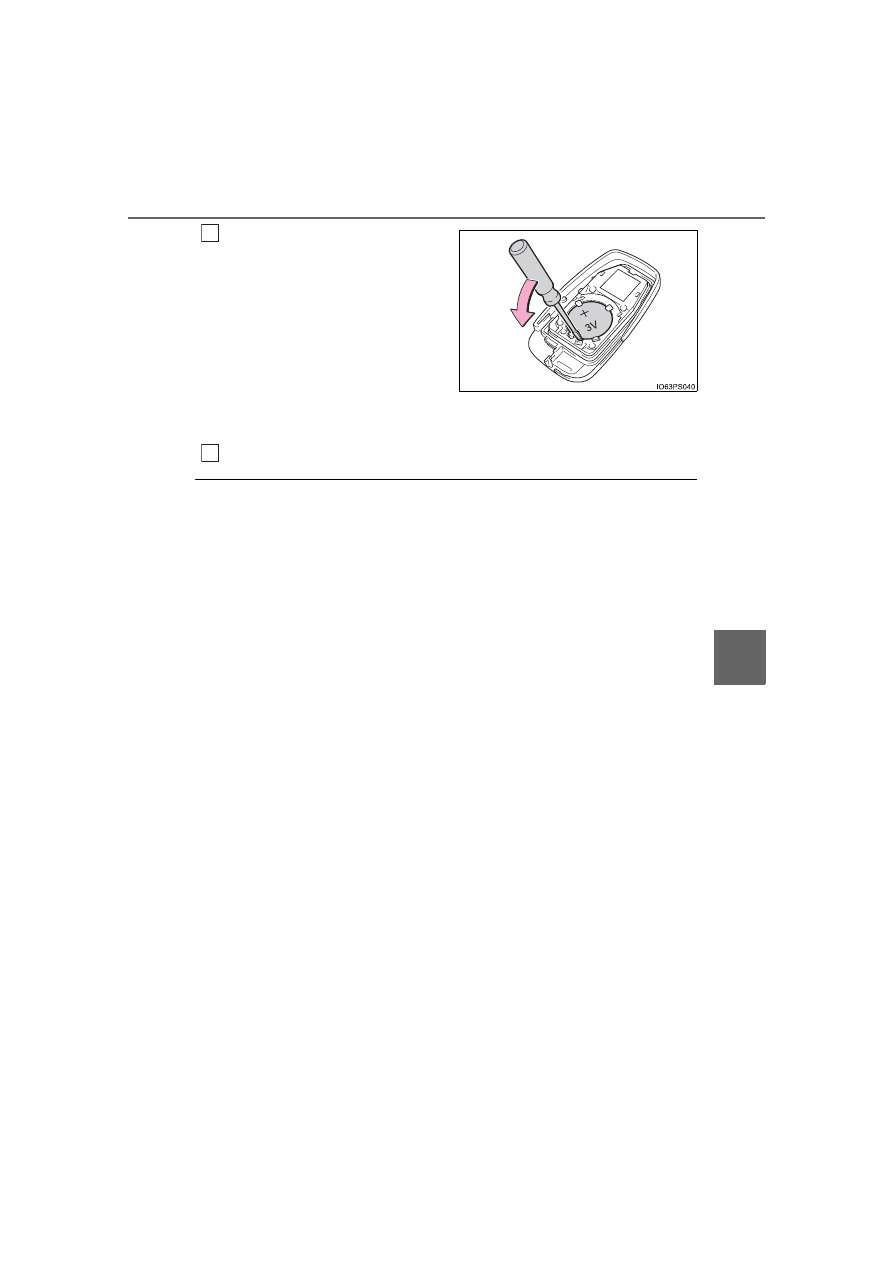

Remove the depleted battery.

When  removing  the  cover,  if  the
battery cannot be seen due to the
electronic key module attaching to
the  upper  cover,  remove  the  elec-
tronic  key  module  from  the  cover
so  that  the  battery  is  visible  as
shown in the illustration.
Use  an  appropriate  sized  flathead
screwdriver  when  removing  the
battery.
Insert a new battery with the “+” terminal facing up.

When installing, reverse the steps listed.

Use a CR2032 lithium battery

Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.

Replace only with the same or equivalent type recommended by the manu-
facturer.

Dispose of used batteries according to local laws.

If the key battery is depleted

The following symptoms may occur:

The  smart  key  system  (if  equipped)  and  wireless  remote  control  will  not
function properly.

The operational range will be reduced.

3

4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

386

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

WARNING

Removed battery and other parts

These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.

NOTICE

For normal operation after replacing the battery

Observe the following precautions to prevent accidents:

Always work with dry hands.
Moisture may cause the battery to rust.

Do not touch or move any other component inside the remote control.

Do not bend either of the battery terminals.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

387

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

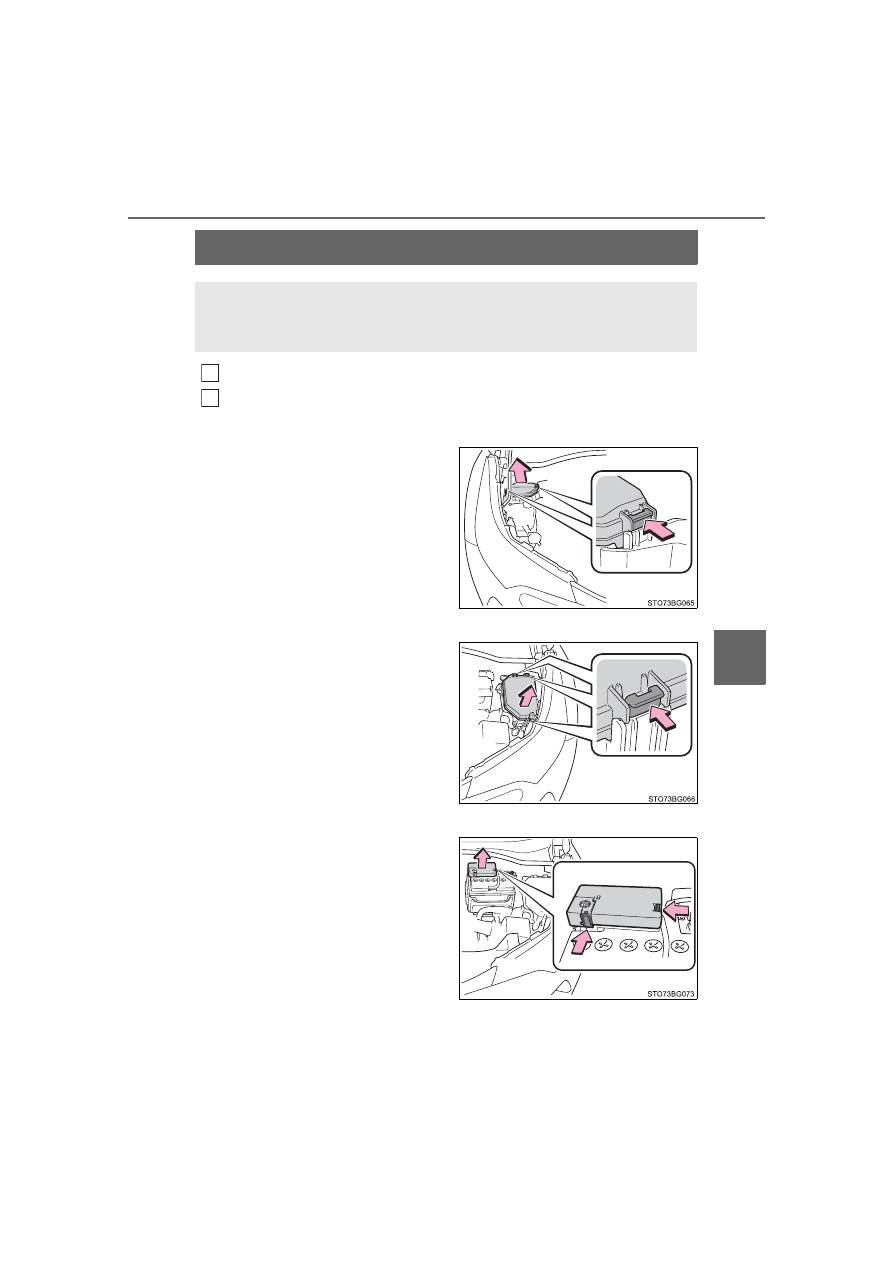

Checking and replacing fuses

Turn the engine switch off.
Open the fuse box cover.

Engine compartment type A fuse box

While  pushing  the  2  claws,  lift
up the cover.

When closing the cover, make sure
to attach the 2 claws.

Engine compartment type B fuse box

While  pushing  the  3  claws,  lift
up the cover.

When closing the cover, make sure
to attach the 3 claws.

Engine compartment type C fuse box

While  pushing  the  2  claws,  lift
up the cover.

When closing the cover, make sure
to attach the 2 claws.

If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.

1

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

388

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

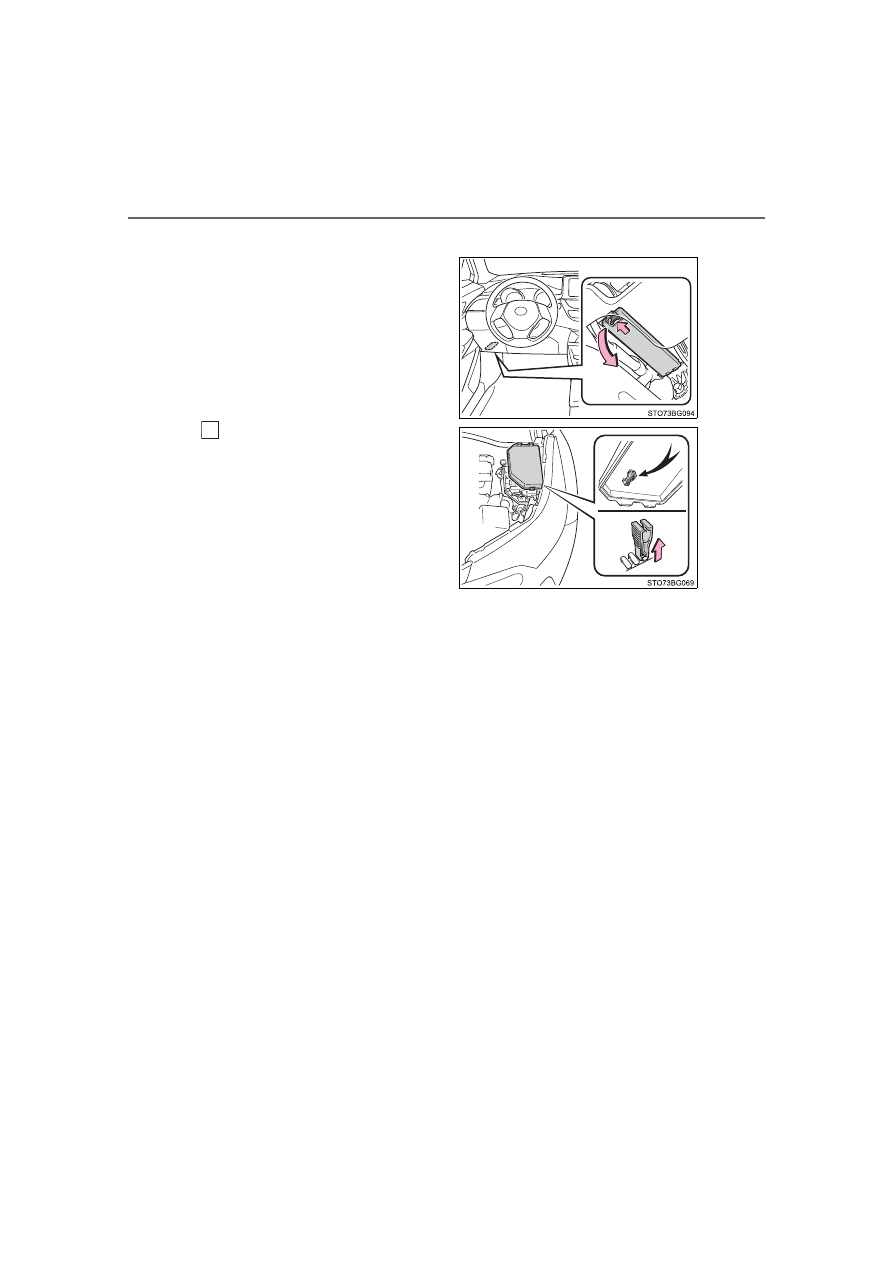

Left side instrument panel

Remove the lid.

Make sure to press the claw during
removal or installation.

Remove  the  fuse  with  the  pull-
out tool.

Only type A fuses can be removed
using the pullout tool.

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

389

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

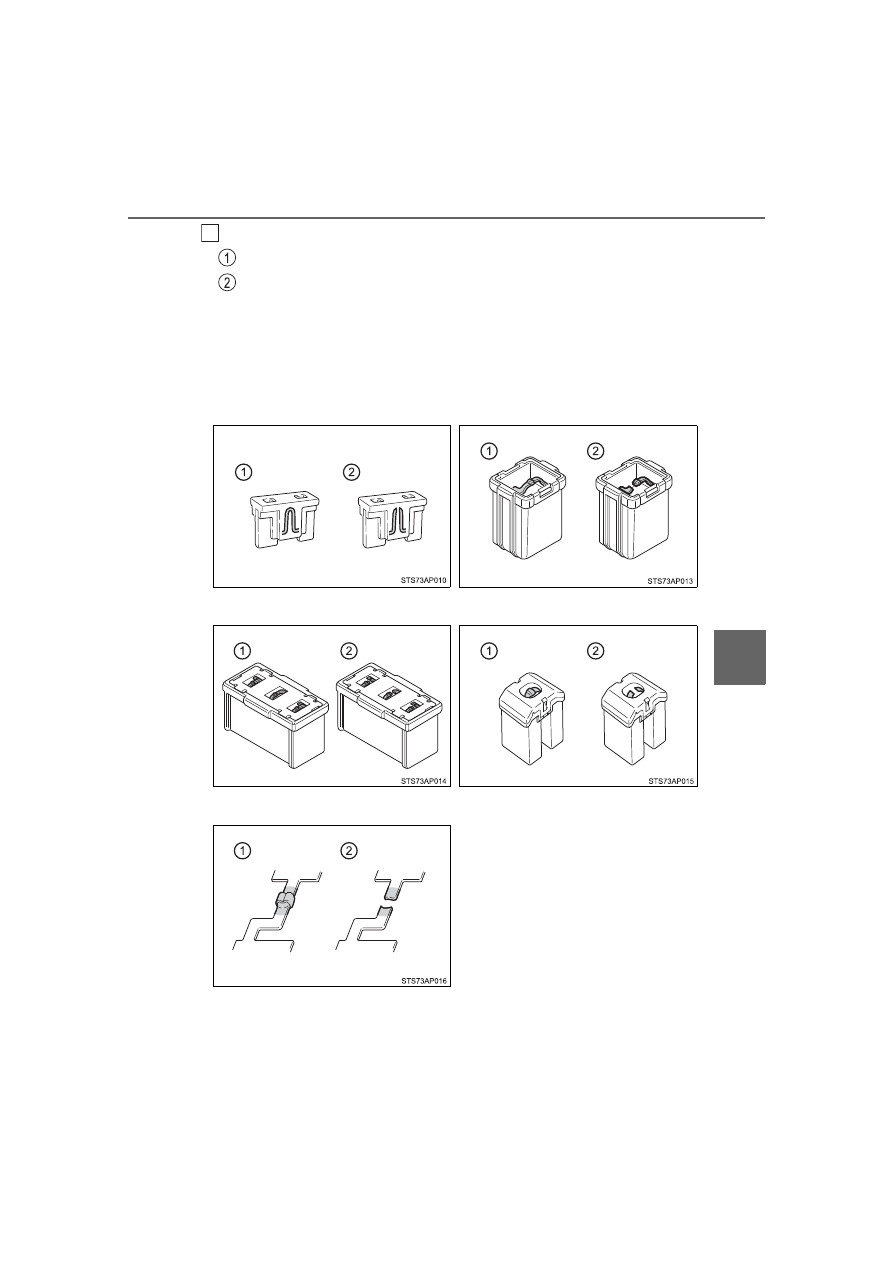

Check if the fuse is blown.

Normal fuse
Blown fuse

Except for type E:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact your Toyota dealer.

4

Type A

Type B

Type C

Type D

Type E

-------------------------------------------------------------------------------------------------------------------------------------------------------------

390

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

After a fuse is replaced

If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (

P. 393)

If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.

If there is an overload in a circuit

The fuses are designed to blow, protecting the wiring harness from damage.

When replacing light bulbs

Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload,  non-genuine  parts  or  parts  not  designed  for  this  vehicle  may  be
unusable.

WARNING

To prevent system breakdowns and vehicle fire

Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.

Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.

Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.

Do not modify the fuses or fuse boxes.

NOTICE

Before replacing fuses

Have  the  cause  of  electrical  overload  determined  and  repaired  by  your
Toyota dealer as soon as possible.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

391

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

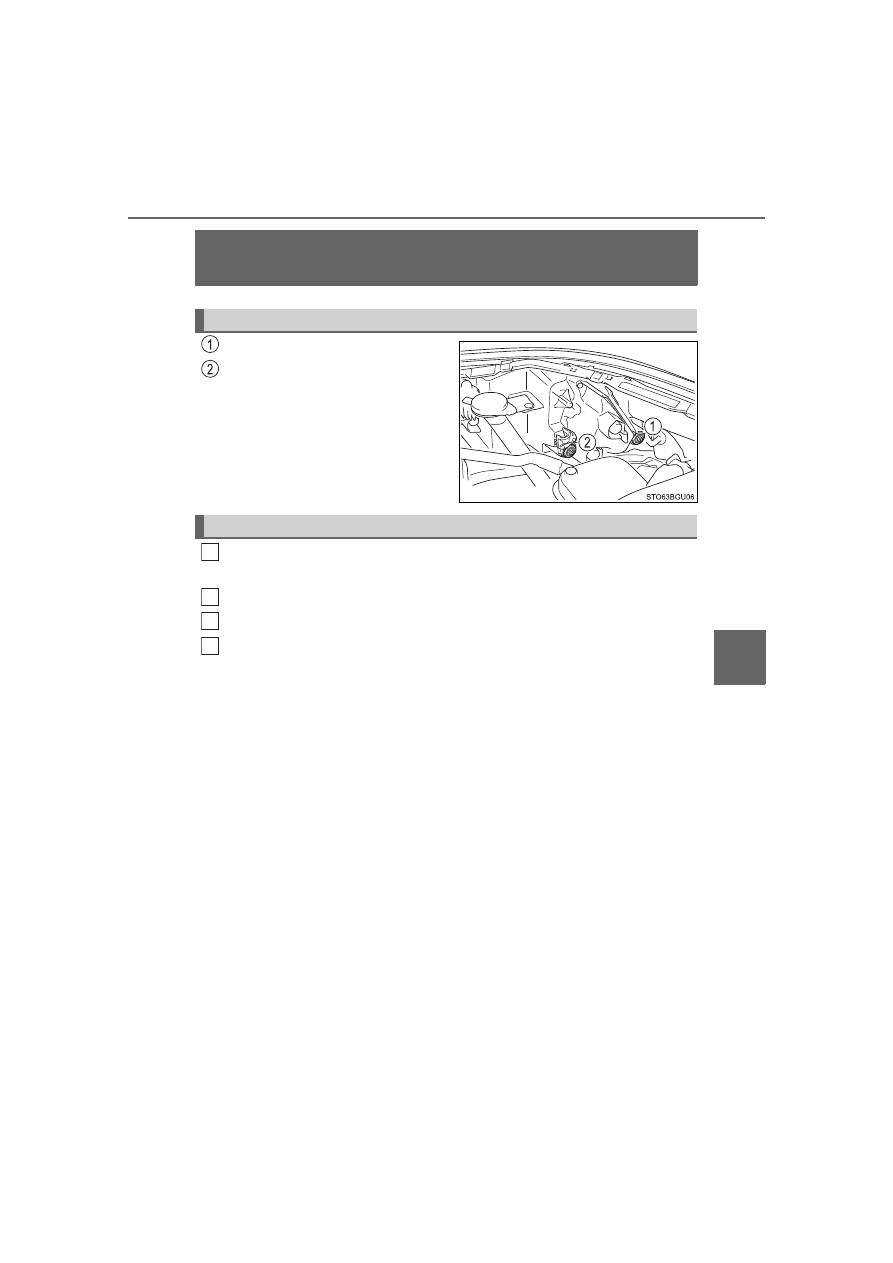

Headlight aim (vehicles with front fog

lights)

Adjustment bolt A
Adjustment bolt B

Make  sure  the  vehicle  has  a  full  tank  of  gasoline  and  the  area
around the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.

Vertical movement adjusting bolts

Before checking the headlight aim

1

2

3

4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

392

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

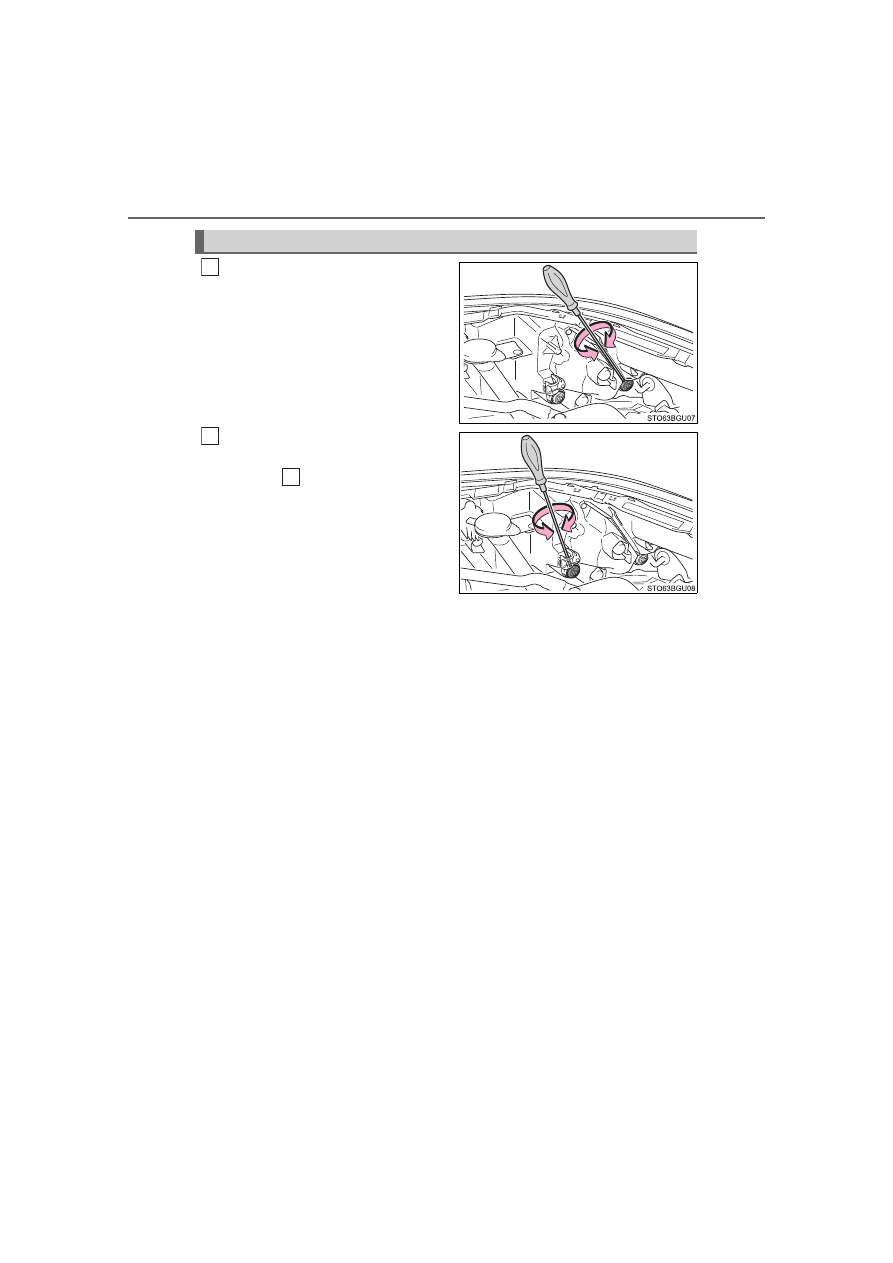

Using  a  Phillips-head  screw-
driver, turn bolt A in either direc-
tion.

Remember  the  turning  direction
and the number of turns.

Turn bolt B the same number of
turns and in the same direction
as step

.

If the headlight cannot be adjusted
using this procedure, take the vehi-
cle to your Toyota dealer to adjust
the headlight aim.

Adjusting the headlight aim

1

2

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

393

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

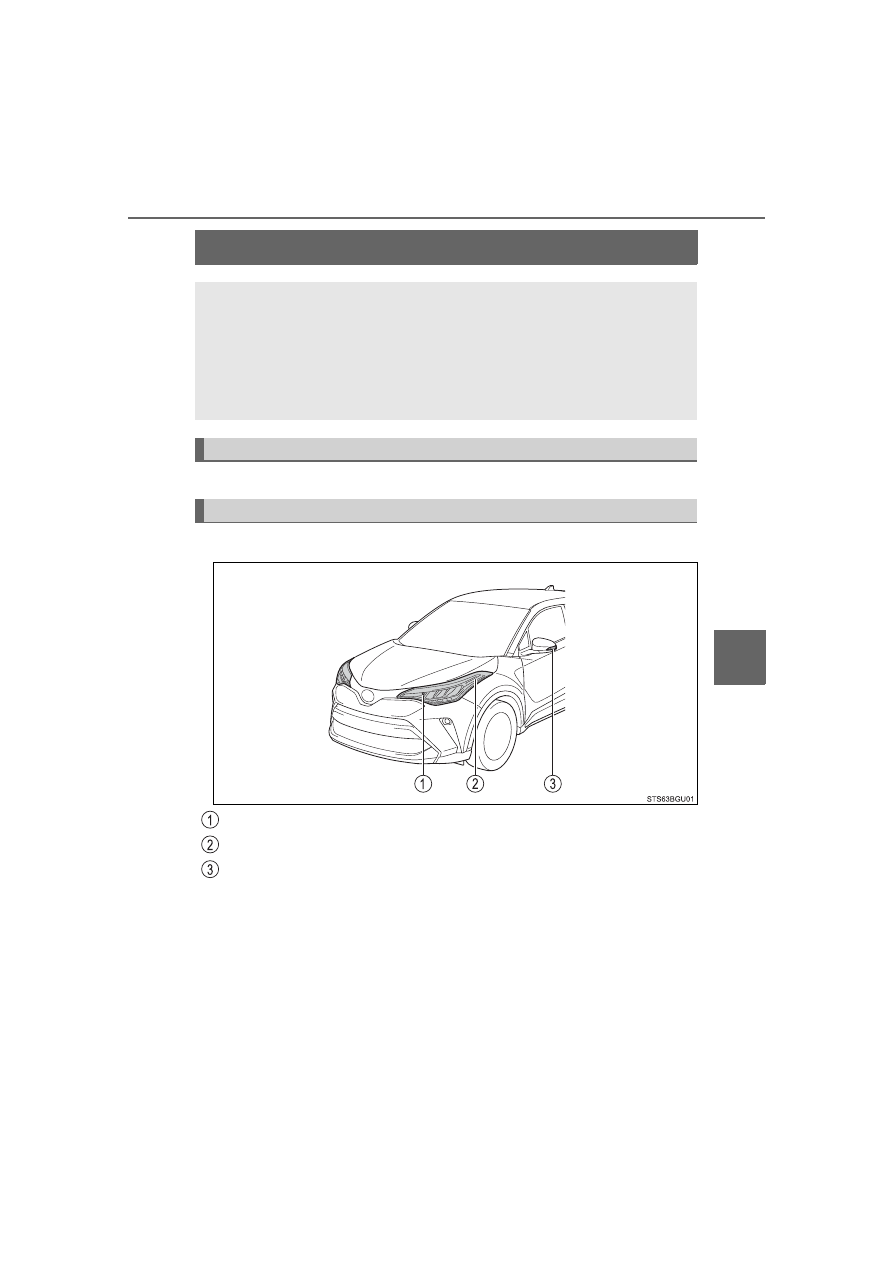

Light bulbs

Check the wattage of the light bulb to be replaced. (

P. 471)

Front

Front turn signal lights (bulb type)
Front side marker lights (bulb type)
Side turn signal lights

You may replace the following bulbs yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement  seems  difficult  to  perform,  contact  your  Toyota
dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.

Preparing for light bulb replacement

Bulb locations

-------------------------------------------------------------------------------------------------------------------------------------------------------------

394

6-3. Do-it-yourself maintenance

C-HR_OM_USA_OM10634U

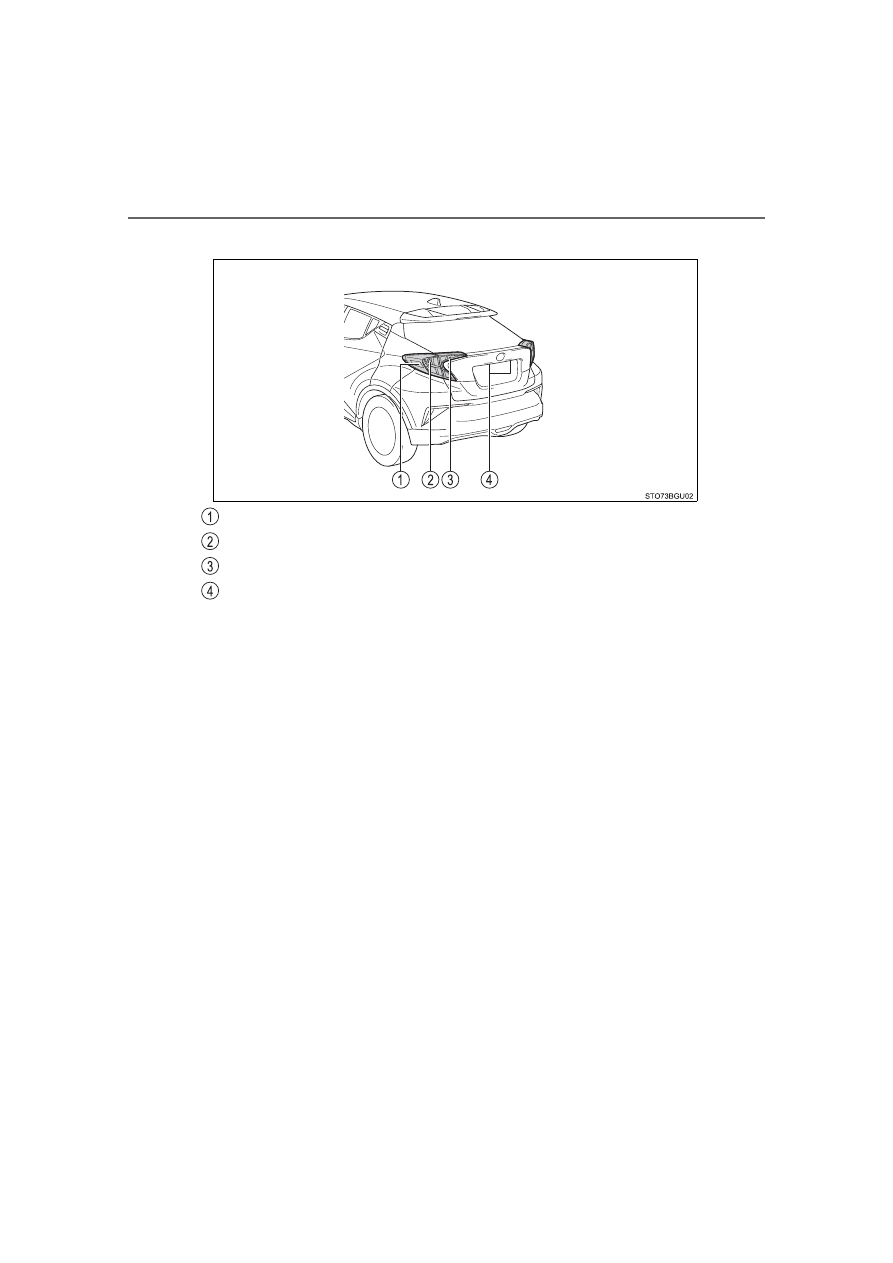

Rear

Rear side marker lights
Rear turn signal lights
Back-up lights
License plate lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

395

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

C-HR_OM_USA_OM10634U

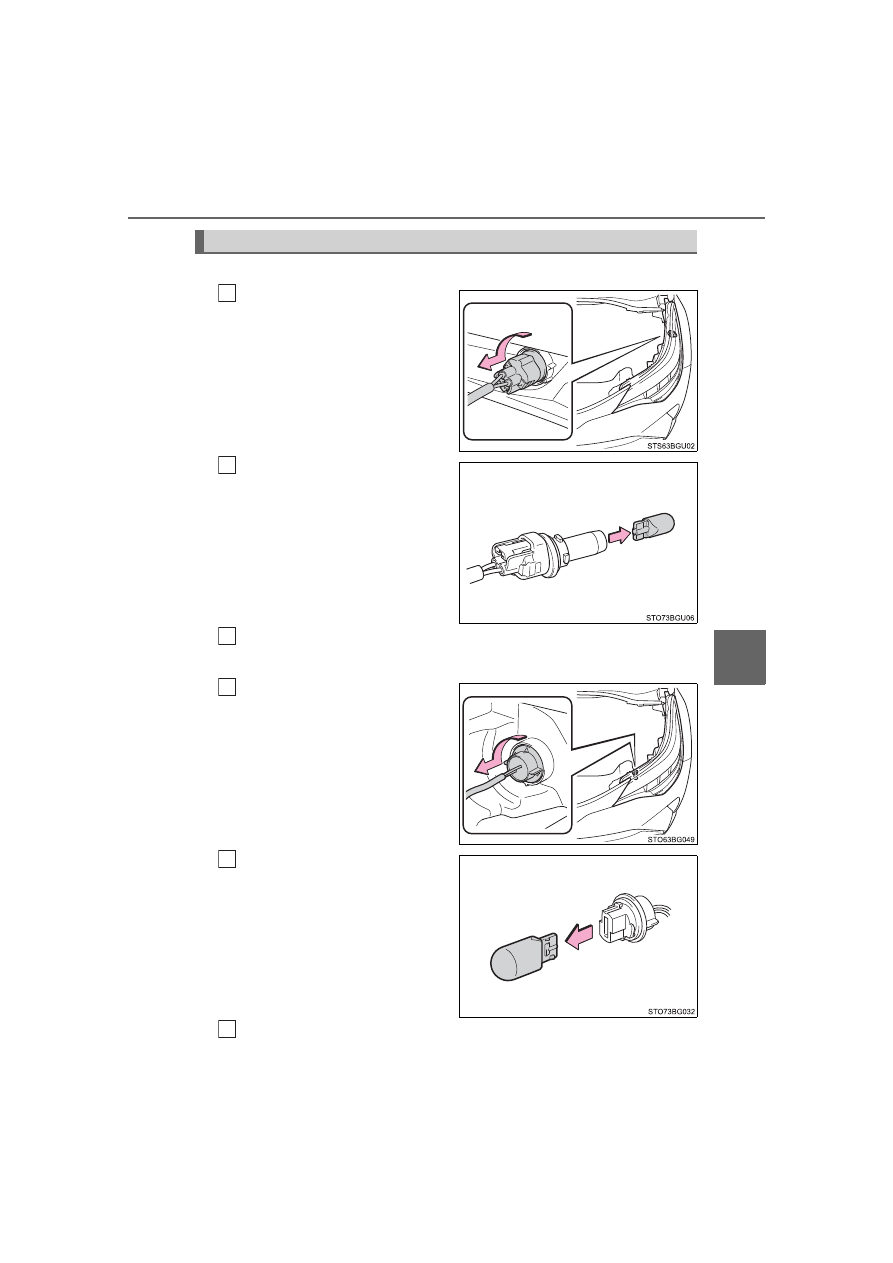

Front side marker lights (bulb type)

Turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

Front turn signal lights (bulb type)

Turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

Replacing light bulbs

1

2

3

1

2

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     4      5      6      7     ..
