204

4-3. Operating the lights and wipers

C-HR_OM_USA_OM10634U

■

Daytime running light system

●

The daytime running lights illuminate using the same lights as the parking

lights and illuminate brighter than the parking lights.

●

To make your vehicle more visible to other drivers during daytime driving,

the  daytime  running  lights  turn  on  automatically  when  all  of  the  following

conditions are met. (The daytime running lights are not designed for use at

night.)
• The engine is running
• The parking brake is released
• The headlight switch is in the

 or “AUTO”

*

 position

*

: When the surroundings are bright

The daytime running lights remain on after they illuminate, even if the parking
brake is set again.

●

For  the  U.S.A.:  Daytime  running  lights  can  be  turned  off  by  operating  the

switch.

●

Compared  to  turning  on  the  headlights,  the  daytime  running  light  system

offers greater durability and consumes less electricity, so it can help improve

fuel economy.

■

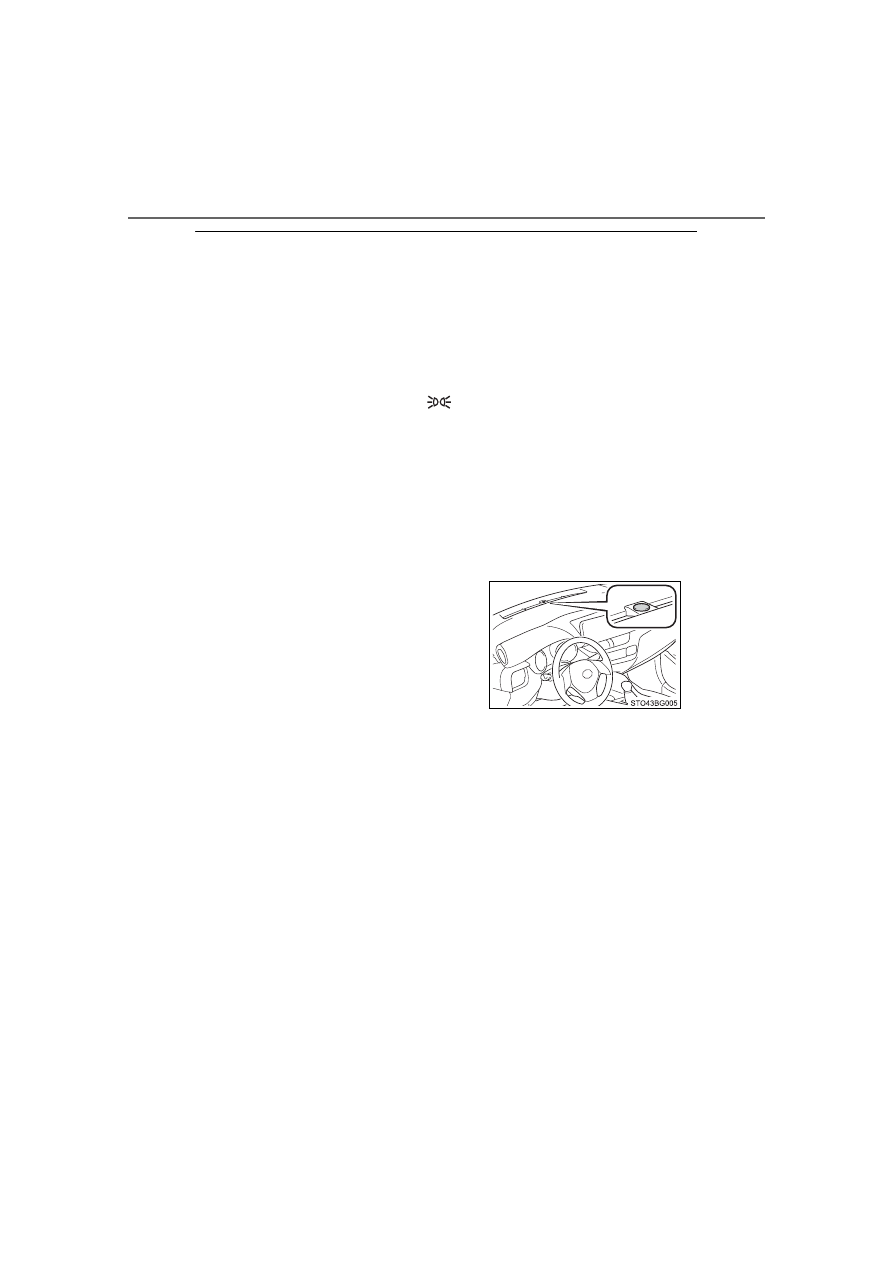

Headlight control sensor

The sensor may not function properly if an

object is placed on the sensor, or anything

that  blocks  the  sensor  is  affixed  to  the

windshield.

Doing  so  interferes  with  the  sensor

detecting  the  level  of  ambient  light  and

may  cause  the  automatic  headlight  sys-

tem to malfunction.

205

4-3. Operating the lights and wipers

4

Drivin

g

C-HR_OM_USA_OM10634U

■

Automatic light off system



Vehicles without a smart key system

●

When the headlights are on: The headlights and tail lights turn off 30 sec-

onds after the engine switch is turned to the “ACC” or “LOCK” position and a
door is opened and closed. (The lights turn off immediately if

 on the

key is pressed after all the doors are locked.)

●

When only the tail lights are on: The tail lights turn off automatically if the

engine  switch  is  turned  to  the  “ACC”  or  “LOCK”  position  and  the  driver’s

door is opened.

To turn the lights on again, turn the engine switch to “ON” position, or turn the
light switch to

 once and then back to

 or

.

If any of the doors is kept open, the lights automatically turn off after 20 min-

utes.



Vehicles with a smart key system

●

When the headlights come on: The headlights and tail lights turn off 30 sec-

onds  after  a  door  is  opened  and  closed  if  the  engine  switch  is  turned  to
ACCESSORY mode or turned off. (The lights turn off immediately if

 on

the key is pressed after all the doors are locked.)

●

When only the tail lights come on: The tail lights turn off automatically if the

engine switch is turned to ACCESSORY mode or turned off and the driver’s

door is opened.

To turn the lights on again, turn the engine switch to IGNITION ON mode, or
turn the light switch to

 once and then back to

 or

.

If any of the doors is kept open, the lights automatically turn off after 20 min-

utes.

■

Light reminder buzzer



Vehicles without a smart key system

A buzzer sounds when the engine switch is turned to “LOCK” position and the
driver’s door is opened while the lights are turned on.



Vehicles with a smart key system

A buzzer sounds and a message appears when the engine switch is turned
off or turned to ACCESSORY mode and the driver’s door is opened while the
lights are turned on.

■

Automatic headlight leveling system (vehicles with Adaptive Front-lighting
System)

The level of the headlights is automatically adjusted according to the number
of  passengers  and  the  loading  condition  of  the  vehicle  to  ensure  that  the
headlights do not interfere with other road users.

206

4-3. Operating the lights and wipers

C-HR_OM_USA_OM10634U

■

Battery-saving function

In the following conditions, the headlights and the other remaining lights will
go off automatically after 20 minutes in order to prevent the vehicle battery
from being discharged:

●

The headlights and/or tail lights are on.

●

Vehicles  without  a  smart  key  system:  The  engine  switch  is  turned  to  the
“ACC” position or turned off.
Vehicles with a smart key system: The engine switch is turned to ACCES-
SORY mode or turned off.

●

The light switch is in

 or

.

This function will be canceled in any of the following situations:

●

Vehicles  without  a  smart  key  system:  The  engine  switch  is  turned  to  the
“ON” position.
Vehicles with a smart key system: The engine switch is turned to IGNITION
ON.

●

When the light switch is operated.

●

When the door is opened or closed.

■

If “Headlight System Malfunction. Visit Your Dealer.” is displayed on the
multi-information display

The  system  may  be  malfunctioning.  Have  the  vehicle  inspected  by  your
Toyota dealer.

■

Customization

Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features:



P. 495)

NOTICE

■

To prevent battery discharge

Do  not  leave  the  lights  on  longer  than  necessary  when  the  engine  is  not
running.

207

4-3. Operating the lights and wipers

4

Drivin

g

C-HR_OM_USA_OM10634U

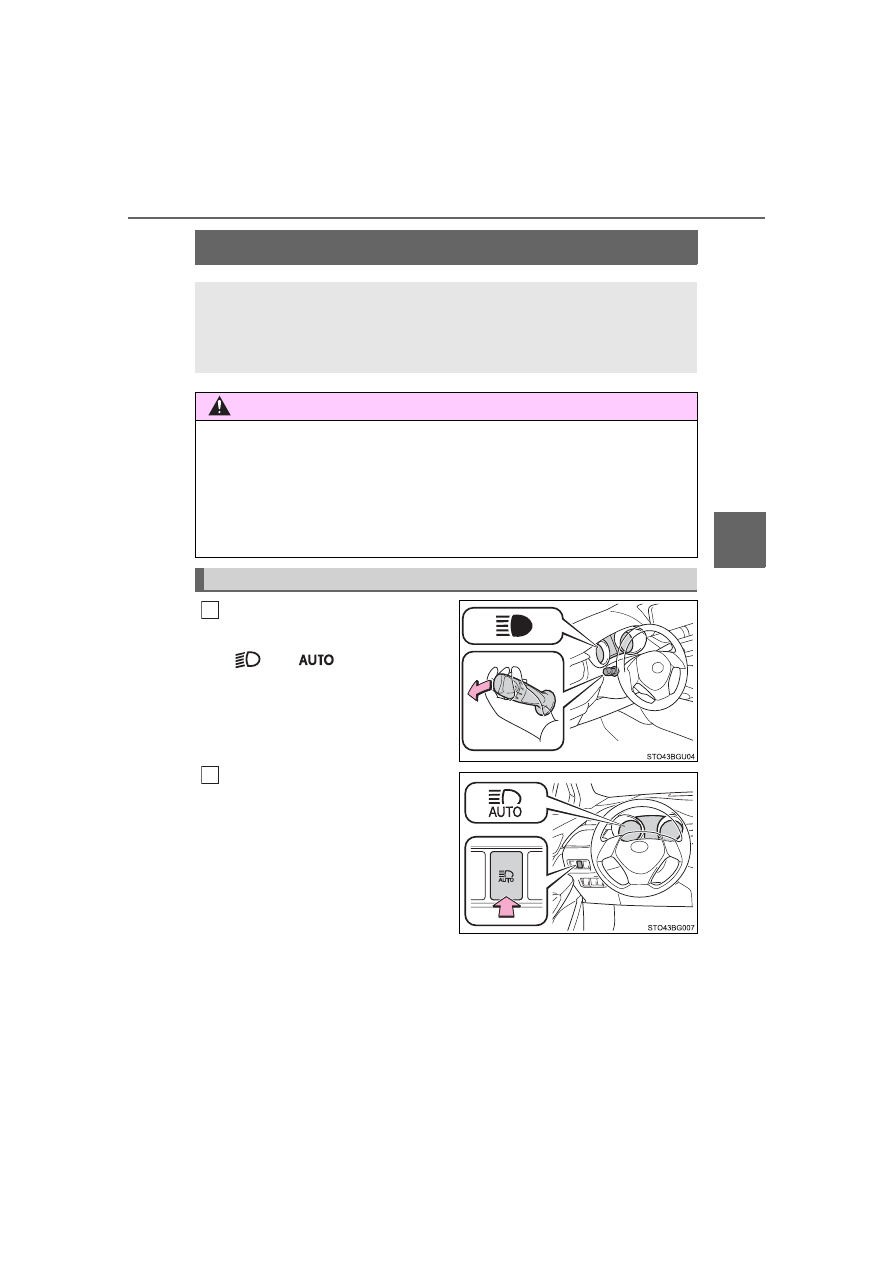

Automatic High Beam

Push  the  lever  away  from  you
with the headlight switch in the

 or

 position.

Press  the  Automatic  High
Beam switch.

The Automatic  High  Beam  indica-
tor  will  come  on  when  the  head-
lights  are  turned  on  automatically
to  indicate  that  the  system  is
active.

The Automatic High Beam uses an in-vehicle camera sensor to
assess  the  brightness  of  streetlights,  the  lights  of  vehicles
ahead etc., and automatically turns the high beam on or off as
necessary.

WARNING

■

Limitations of the Automatic High Beam

Do not rely on the Automatic High Beam. Always drive safely, taking care to
observe your surroundings and turning the high beam on or off manually if
necessary.

■

To prevent incorrect operation of the Automatic High Beam system

Do not overload the vehicle.

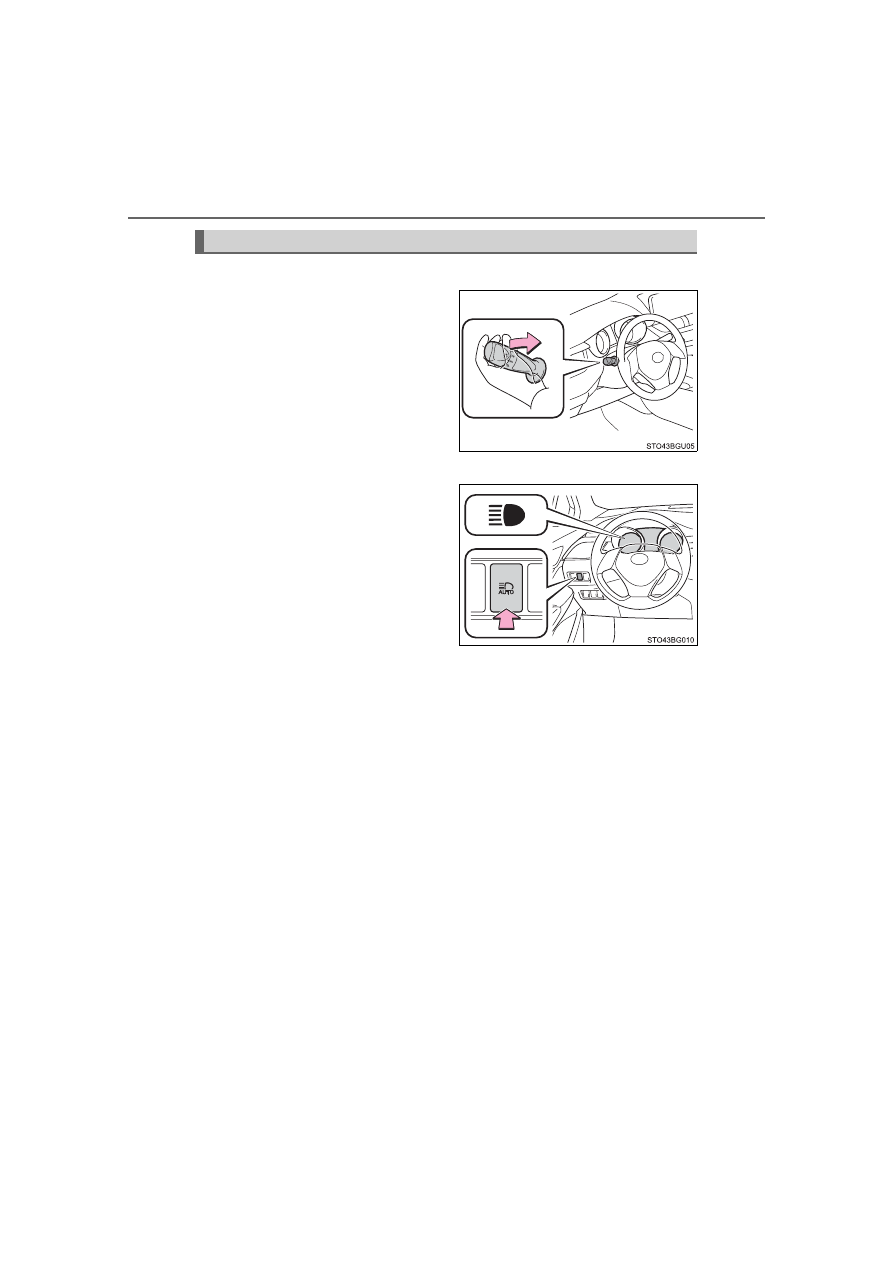

Activating the Automatic High Beam system

1

2

208

4-3. Operating the lights and wipers

C-HR_OM_USA_OM10634U

■

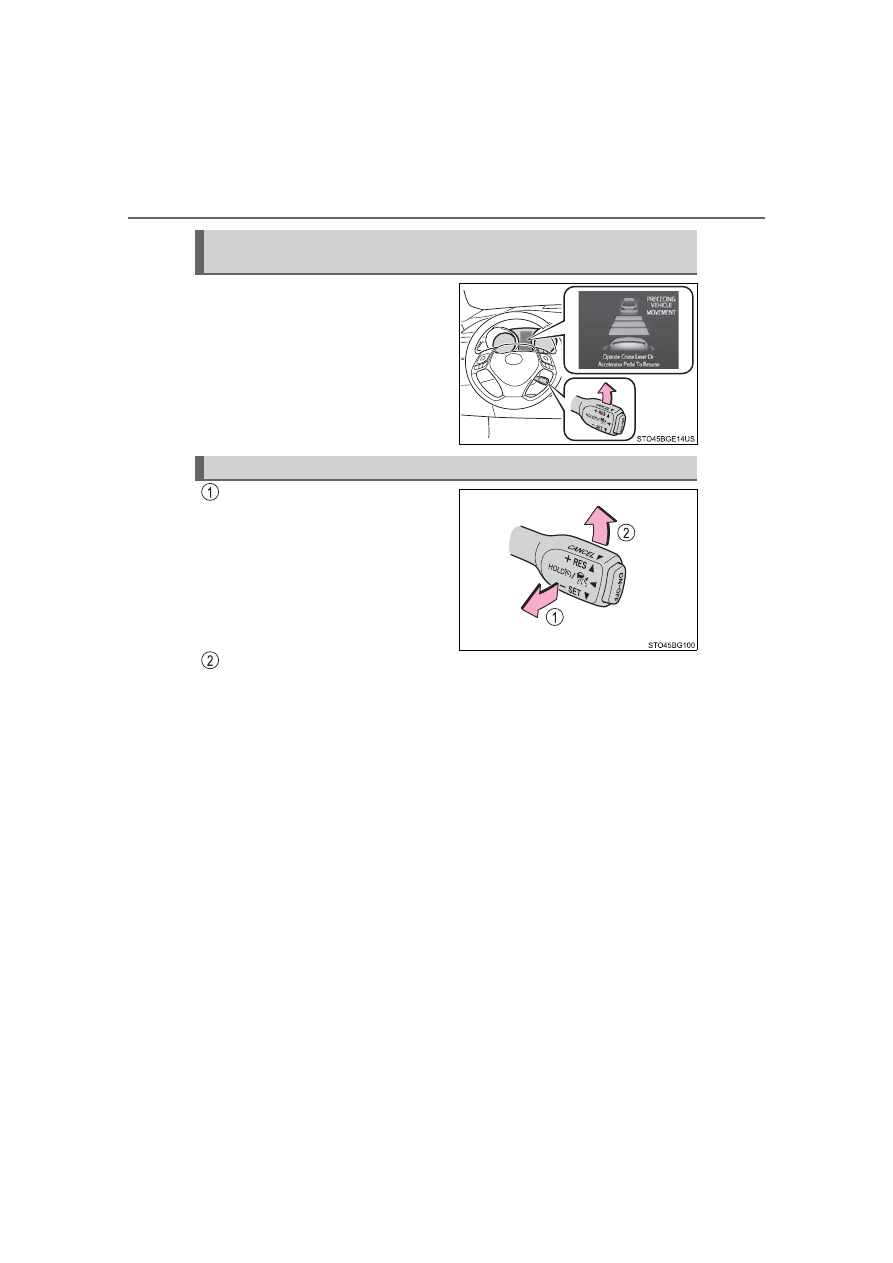

Switching to low beam

Pull  the  lever  to  the  original
position.

The Automatic  High  Beam  indi-
cator will turn off.
Push the lever away from you to
activate  the  Automatic  High
Beam system again.

■

Switching to high beam

Press  the  Automatic  High
Beam switch.

The Automatic  High  Beam  indi-
cator  will  turn  off  and  the  high
beam indicator will turn on.
Press  the switch to  activate the
Automatic  High  Beam  system
again.

Turning the high beam on/off manually

209

4-3. Operating the lights and wipers

4

Drivin

g

C-HR_OM_USA_OM10634U

■

High beam automatic turning on or off conditions

●

When all of the following conditions are fulfilled, the high beam will be auto-
matically turned on (after approximately 1 second):
• Vehicle speed is above approximately 21 mph (34 km/h).
• The area ahead of the vehicle is dark.
• There are no vehicles ahead with headlights or tail lights turned on.
• There are few streetlights on the road ahead.

●

If any of the following conditions are fulfilled, the high beam will be automat-
ically turned off:
• Vehicle speed drops below approximately 17 mph (27 km/h).
• The area ahead of the vehicle is not dark.
• Vehicles ahead have headlights or tail lights turned on.
• There are many streetlights on the road ahead.

■

Camera sensor detection information

●

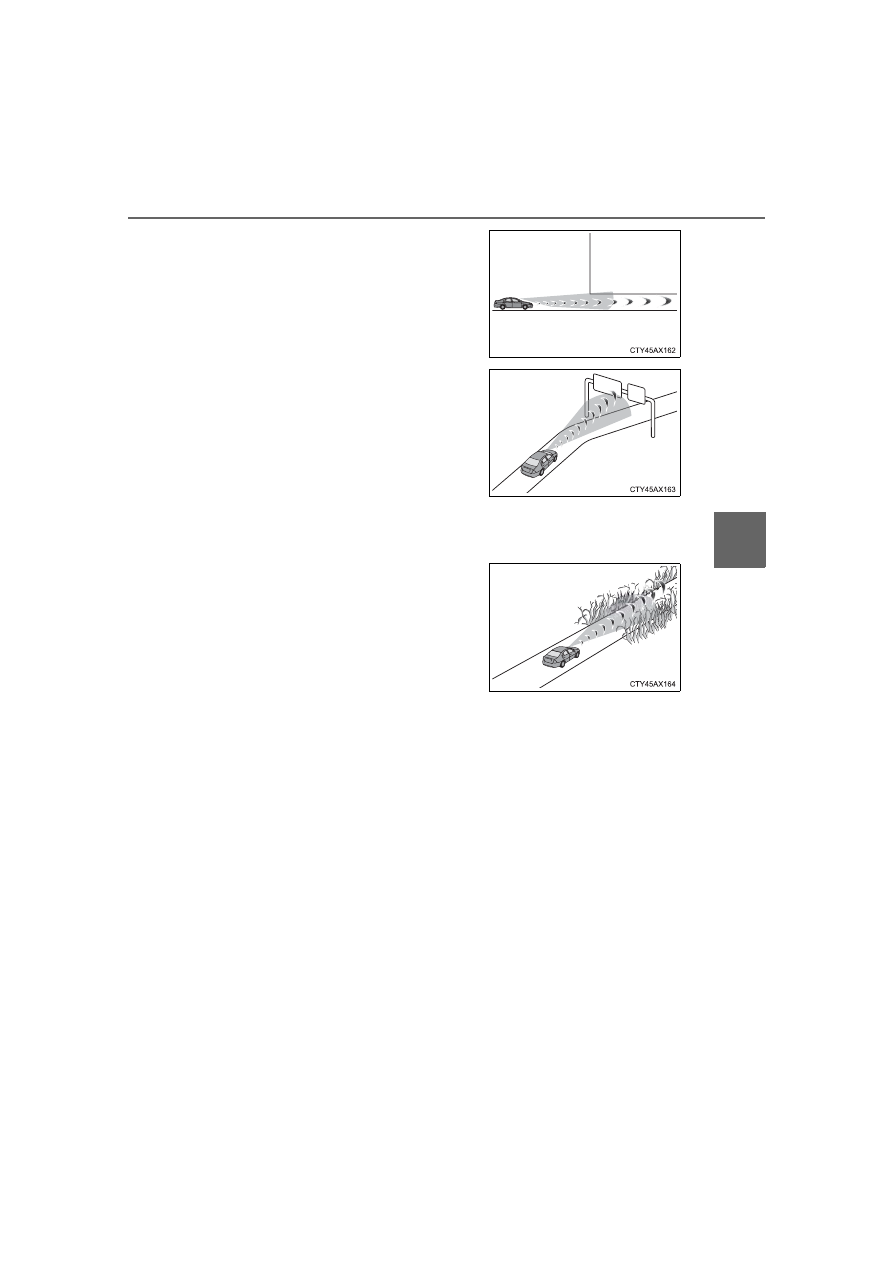

The  high  beam  may  not be  automatically turned  off in  the  following  situa-
tions:
• When oncoming vehicles suddenly appear from a curve
• When the vehicle is cut off in front of by another vehicle
• When vehicles ahead are hidden from sight due to repeated curves, road

dividers or roadside trees

• When vehicles ahead appear from the faraway lane on wide road
• When vehicles ahead have no lights

●

The high beam may be turned off if a vehicle ahead that is using fog lights
without using the headlights is detected.

●

House lights, street lights, traffic signals, and illuminated billboards or signs
may cause the high beam to switch to the low beams, or the low beams to
remain on.

●

The following factors may affect the amount of time taken to turn the high
beam on or off:
• The brightness of headlights, fog lights, and tail lights of vehicles ahead
• The movement and direction of vehicles ahead
• When a vehicle ahead only has operational lights on one side
• When a vehicle ahead is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface,

etc.)

• The number of passengers and amount of luggage

210

4-3. Operating the lights and wipers

C-HR_OM_USA_OM10634U

●

The high beam may be turned on or off when the driver does not expect it.

●

Bicycles or similar objects may not be detected.

●

In  the  situations  shown  below,  the  system  may  not  be  able  to  accurately
detect  surrounding  brightness  levels.  This  may  cause  the  low  beams  to
remain  on or the  high beams to  cause problems  for pedestrians, vehicles
ahead or other parties. In these cases, manually switch between the high
and low beams.
• In bad weather (rain, snow, fog, sandstorms, etc.)
• The windshield is obscured by fog, mist, ice, dirt, etc.
• The windshield is cracked or damaged.
• The camera sensor is deformed or dirty.
• The camera sensor temperature is extremely high.
• Surrounding brightness levels are equal to those of headlights, tail lights

or fog lights.

• Vehicles  ahead  have  headlights  that  are  either  switched  off,  dirty,  are

changing color, or are not aimed properly.

• When driving through an area of intermittently changing brightness and

darkness.

• When frequently and repeatedly driving ascending/descending roads, or

roads  with  rough,  bumpy  or  uneven  surfaces  (such  as  stone-paved
roads, gravel tracks, etc.).

• When  frequently  and  repeatedly  taking  curves  or  driving  on  a  winding

road.

• There is a highly reflective object ahead of the vehicle, such as a sign or

a mirror.

• The back of a vehicle ahead is highly reflective, such as a container on a

truck.

• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trailer being towed etc.
• The high beam and low beam are repeatedly being switched between in

an abnormal manner.

• The driver believes that the high beam may be causing problems or dis-

tress to other drivers or pedestrians nearby.

211

4-3. Operating the lights and wipers

4

Drivin

g

C-HR_OM_USA_OM10634U

■

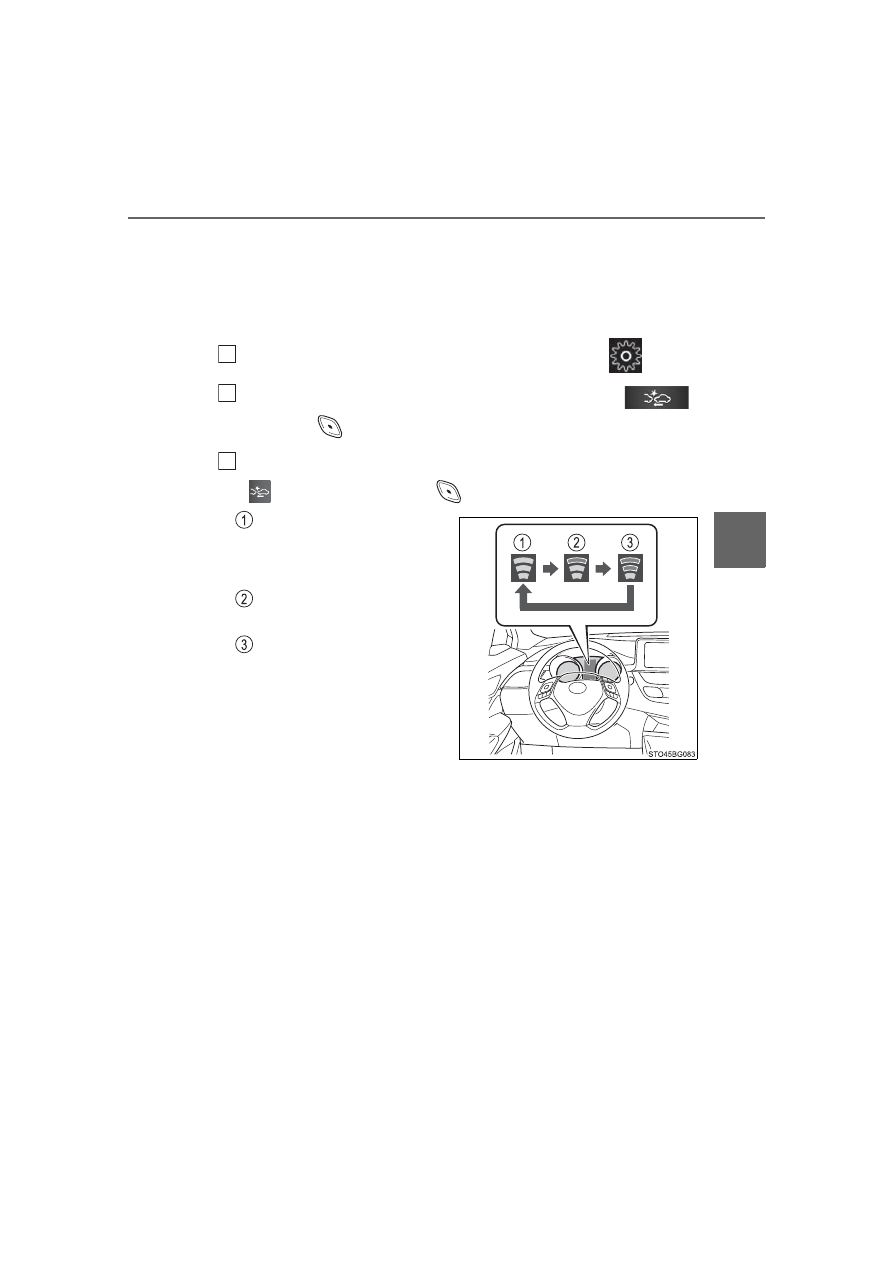

Temporarily lowering sensor sensitivity

The sensitivity of the sensor can be temporarily lowered.

Turn the engine switch off while the following conditions are met.

• The headlight switch is in

 or

.

• The headlight switch lever is in high beam position.
• Automatic High Beam switch is on.
Turn the engine switch to ON mode.
Within 30 seconds after

, repeat pulling the headlight switch lever to the

original position then pushing it to the high beam position quickly 10 times,
then leave the lever in high beam position.
If the sensitivity is changed, the Automatic High Beam indicator is turn on
and off 3 times.

Automatic High Beam (headlights) may turn on even the vehicle is stopped.

■

If “Headlight System Malfunction. Visit Your Dealer.” is displayed on the
multi-information display

The  system  may  be  malfunctioning.  Have  the  vehicle  inspected  by  your
Toyota dealer.

1

2

3

2

4

212

4-3. Operating the lights and wipers

C-HR_OM_USA_OM10634U

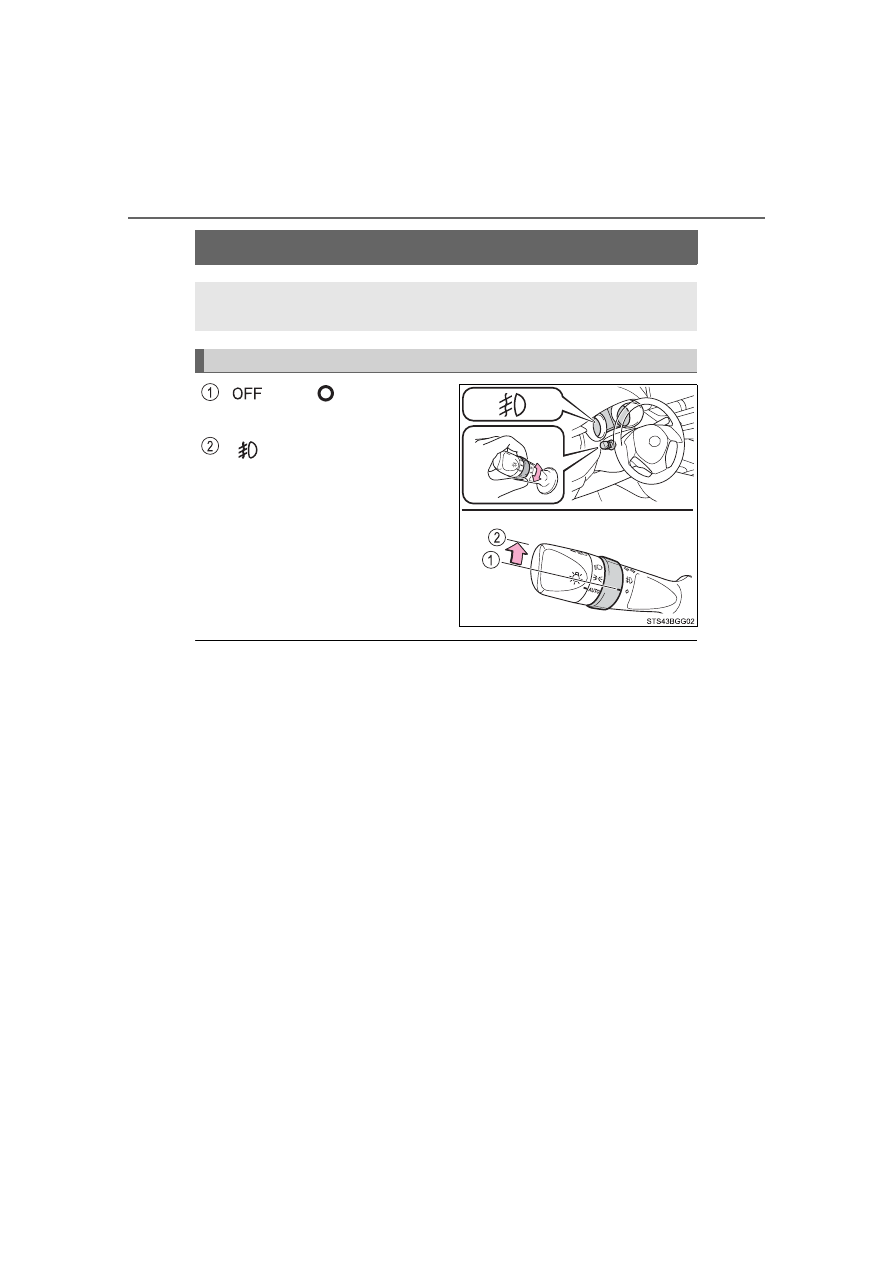

Fog light switch



*

1

 or

*

2

Turns the front fog lights off

Turns the front fog lights on

*

1

: For U.S.A.

*

2

: For Canada

■

Fog lights can be used when

The headlights are turned on.



: If equipped

The fog lights secure excellent visibility in difficult driving con-
ditions, such as in rain and fog.

Operating instructions

213

4-3. Operating the lights and wipers

4

Drivin

g

C-HR_OM_USA_OM10634U

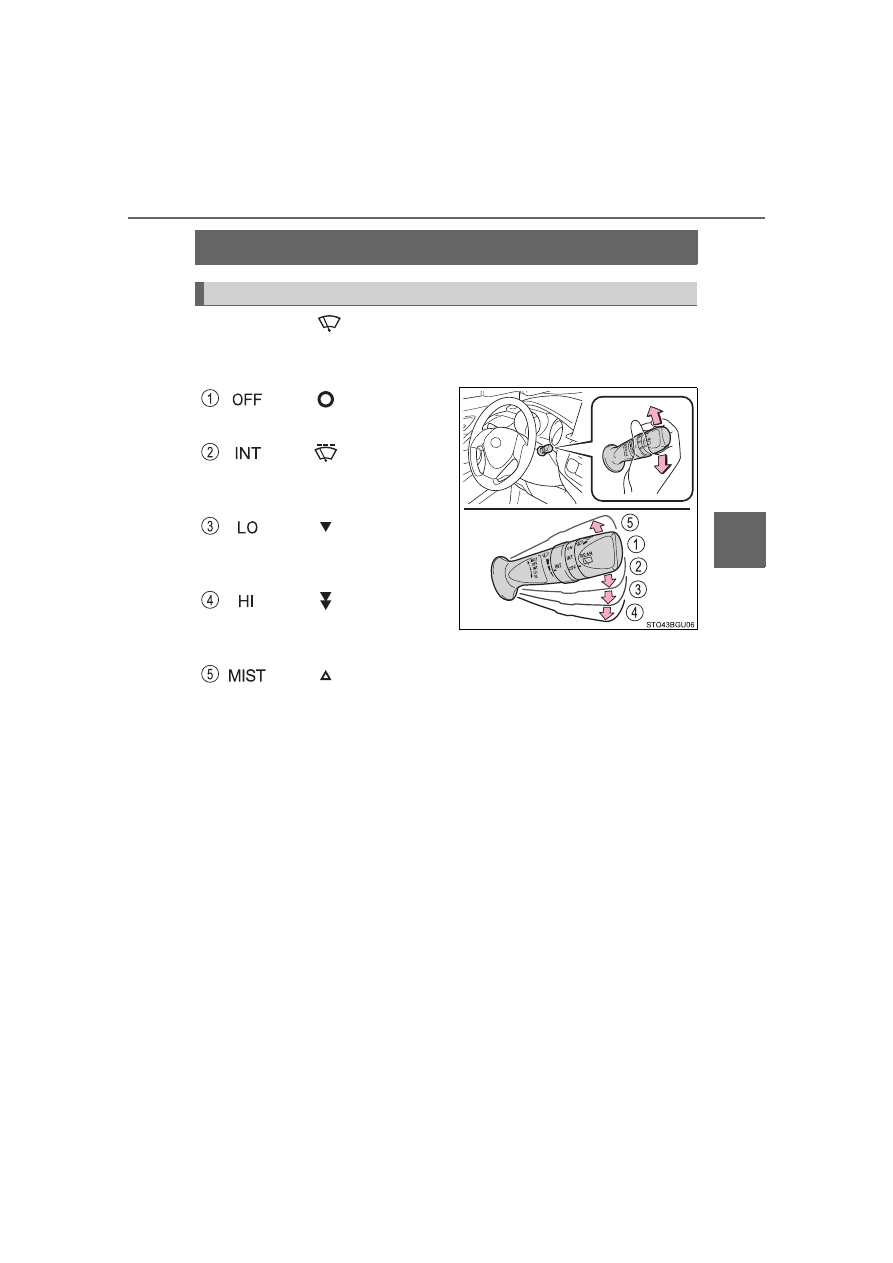

Windshield wipers and washer

Operating the

 lever operates the wipers or washer as follows:

When  intermittent  windshield  wiper  operation  is  selected,  the  wiper
interval can be also adjusted.

*

1

 or

*

2

Off

*

1

 or

*

2

Intermittent  windshield  wiper
operation

*

1

 or

*

2

Low  speed  windshield  wiper
operation

*

1

 or

*

2

High  speed  windshield  wiper
operation

*

1

 or

*

2

Temporary operation

*

1

: For U.S.A.

*

2

: For Canada

Operating the wiper lever

214

4-3. Operating the lights and wipers

C-HR_OM_USA_OM10634U

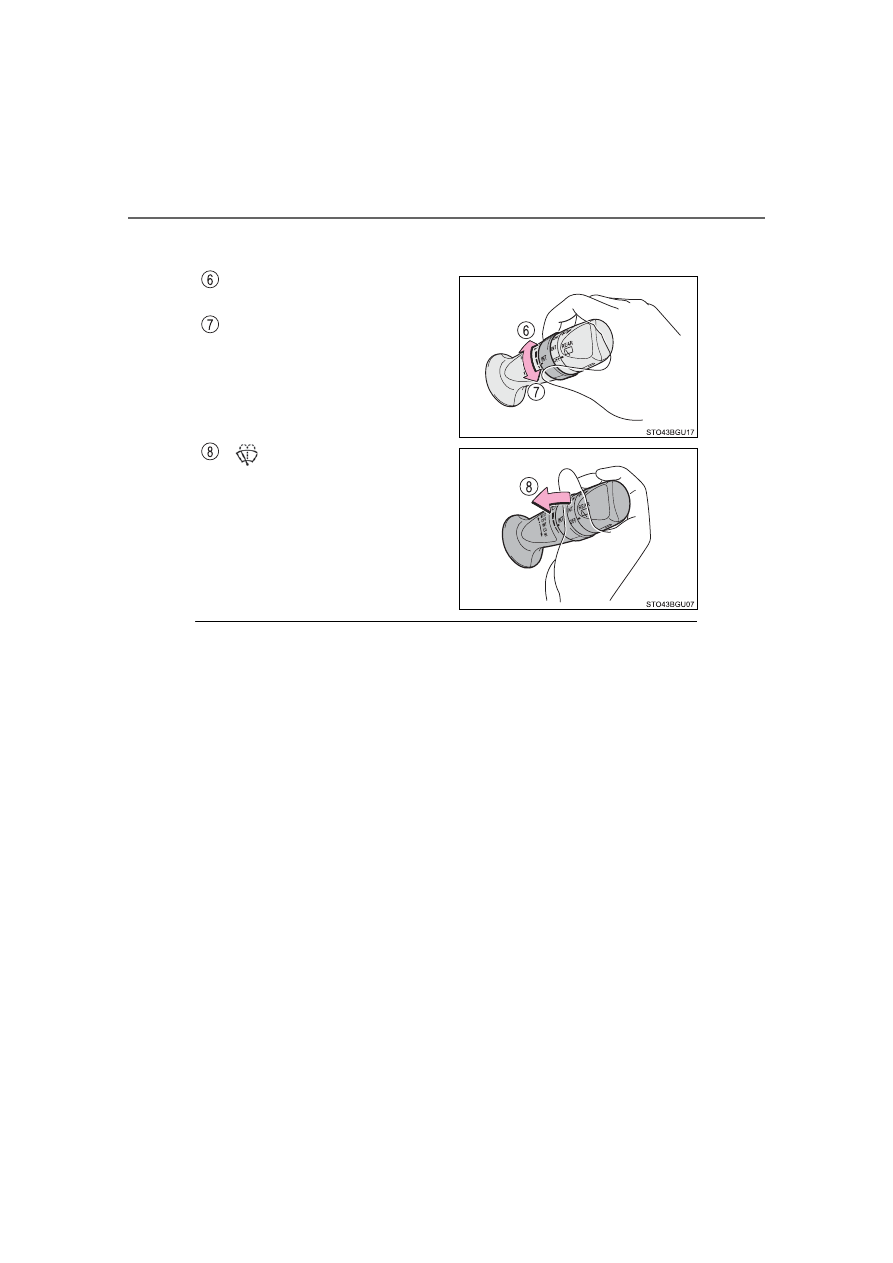

Wiper  intervals  can  be  adjusted  when  intermittent  operation  is
selected.

Increases the intermittent wind-
shield wiper frequency
Decreases

the

intermittent

windshield wiper frequency

Washer/wiper dual oper-
ation

Pulling  the  lever  operates
the wipers and washer.
Wipers  will  automatically
operate  a  couple  of  times
after the washer squirts.

■

The windshield wiper and washer can be operated when



Vehicles without a smart key system

The engine switch is in the “ON” position.



Vehicles with a smart key system

The engine switch is in IGNITION ON mode.

■

If no windshield washer fluid sprays

Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.

6

215

4-3. Operating the lights and wipers

4

Drivin

g

C-HR_OM_USA_OM10634U

WARNING

■

Caution regarding the use of washer fluid

When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.

NOTICE

■

When the windshield is dry

Do not use the wipers, as they may damage the windshield.

■

When there is no washer fluid spray from the nozzle

Damage  to  the  washer  fluid  pump  may  be  caused  if  the  lever  is  pulled
toward you and held continually.

■

When a nozzle becomes blocked

In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

216

4-3. Operating the lights and wipers

C-HR_OM_USA_OM10634U

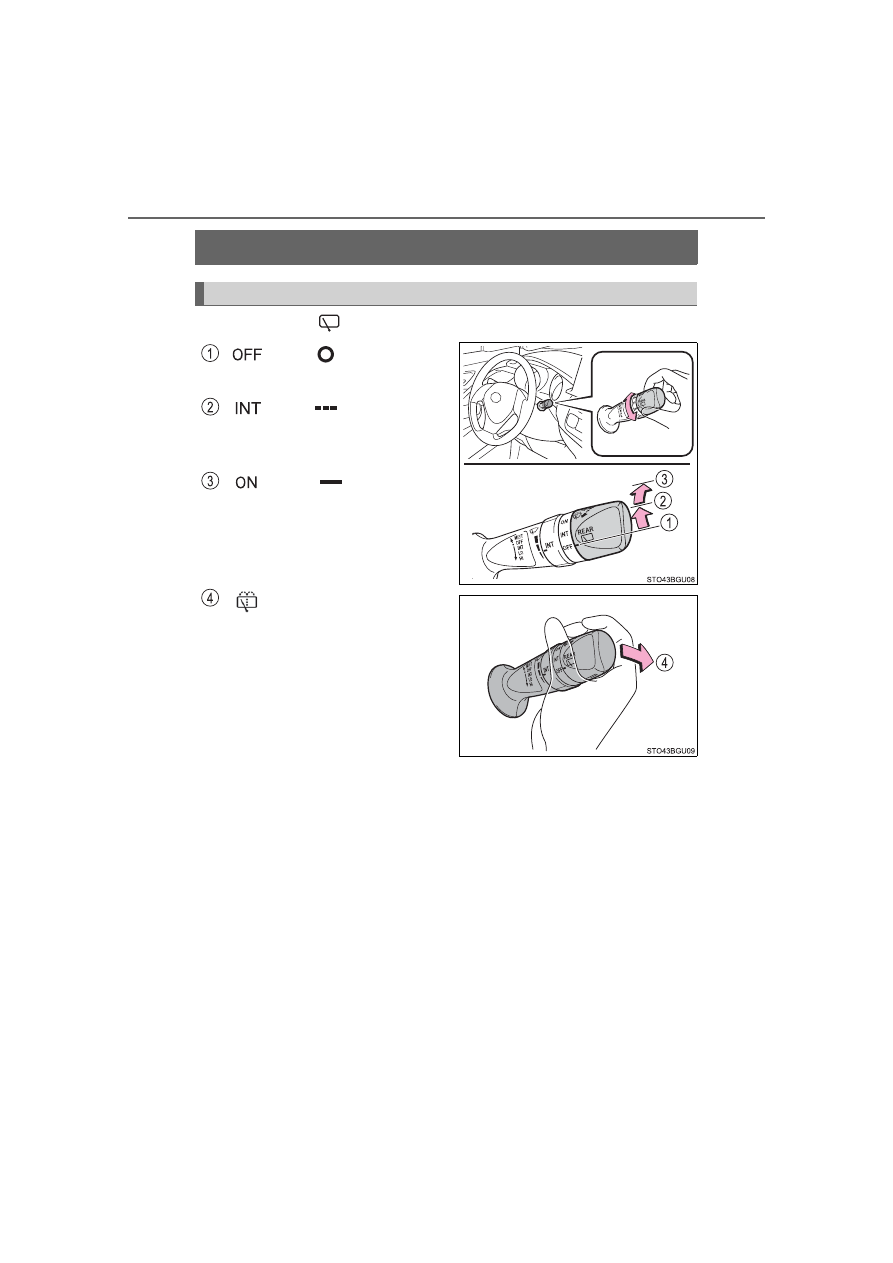

Rear window wiper and washer

Operating the

 switch turns on the rear wiper as follows:

*

1

 or

*

2

Off

*

1

 or

*

2

Intermittent window wiper oper-
ation

*

1

 or

*

2

Normal window wiper operation

*

1

: For U.S.A.

*

2

: For Canada

Washer/wiper dual oper-
ation

Pushing the lever operates
the wiper and washer.
The  wiper  will  automati-
cally  operate  a  couple  of
times  after  the  washer
squirts.

Operating instructions

217

4-3. Operating the lights and wipers

4

Drivin

g

C-HR_OM_USA_OM10634U

■

The rear window wiper and washer can be operated when



Vehicles without a smart key system

The engine switch is in the “ON” position.



Vehicles with a smart key system

The engine switch is in IGNITION ON mode.

■

If no windshield washer fluid sprays

Check  that  the  washer  nozzle  is  not  blocked  if  there  is  washer  fluid  in  the
windshield washer fluid reservoir.

NOTICE

■

When the rear window is dry

Do not use the wiper, as it may damage the rear window.

■

When the washer fluid tank is empty

Do not operate the switch continually as the washer fluid pump may over-
heat.

■

When a nozzle becomes blocked

In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

218

4-4. Refueling

C-HR_OM_USA_OM10634U

Opening the fuel tank cap

●

Vehicles without a smart key system
Turn the engine switch to the “LOCK” position and ensure that all
the doors and windows are closed.

●

Vehicles with a smart key system
Turn the engine switch off and ensure that all the doors and win-
dows are closed.

●

Confirm the type of fuel.

■

Fuel types



P. 472

■

Fuel tank opening for unleaded gasoline

To  help  prevent  incorrect  fueling,  your  vehicle  has  a  fuel  tank  opening  that
only accommodates the special nozzle on unleaded fuel pumps.

■

If the malfunction indicator lamp illuminates

The malfunction indicator lamp may illuminate erroneously if refueling is per-
formed repeatedly when the fuel tank is nearly full.

Perform the following steps to open the fuel tank cap:

Before refueling the vehicle

219

4-4. Refueling

4

Drivin

g

C-HR_OM_USA_OM10634U

WARNING

■

When refueling the vehicle

Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.

●

After  exiting  the  vehicle  and  before  opening  the  fuel  door,  touch  an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.

●

Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A  whooshing  sound  may  be  heard  when  the  fuel  tank  cap  is  loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.

●

Do  not  allow  anyone  that  has  not  discharged  static  electricity  from  their
body to come close to an open fuel tank.

●

Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.

●

Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.

●

Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.

■

When refueling

Observe the following precautions to prevent fuel overflowing from the fuel
tank:

●

Securely insert the fuel nozzle into the fuel filler neck.

●

Stop filling the tank after the fuel nozzle automatically clicks off.

●

Do not top off the fuel tank.

NOTICE

■

Refueling

Do not spill fuel during refueling.
Doing  so  may  damage  the  vehicle,  such  as  causing  the  emission  control
system to operate abnormally, or damaging fuel system components, or the
vehicle’s painted surface.

220

4-4. Refueling

C-HR_OM_USA_OM10634U

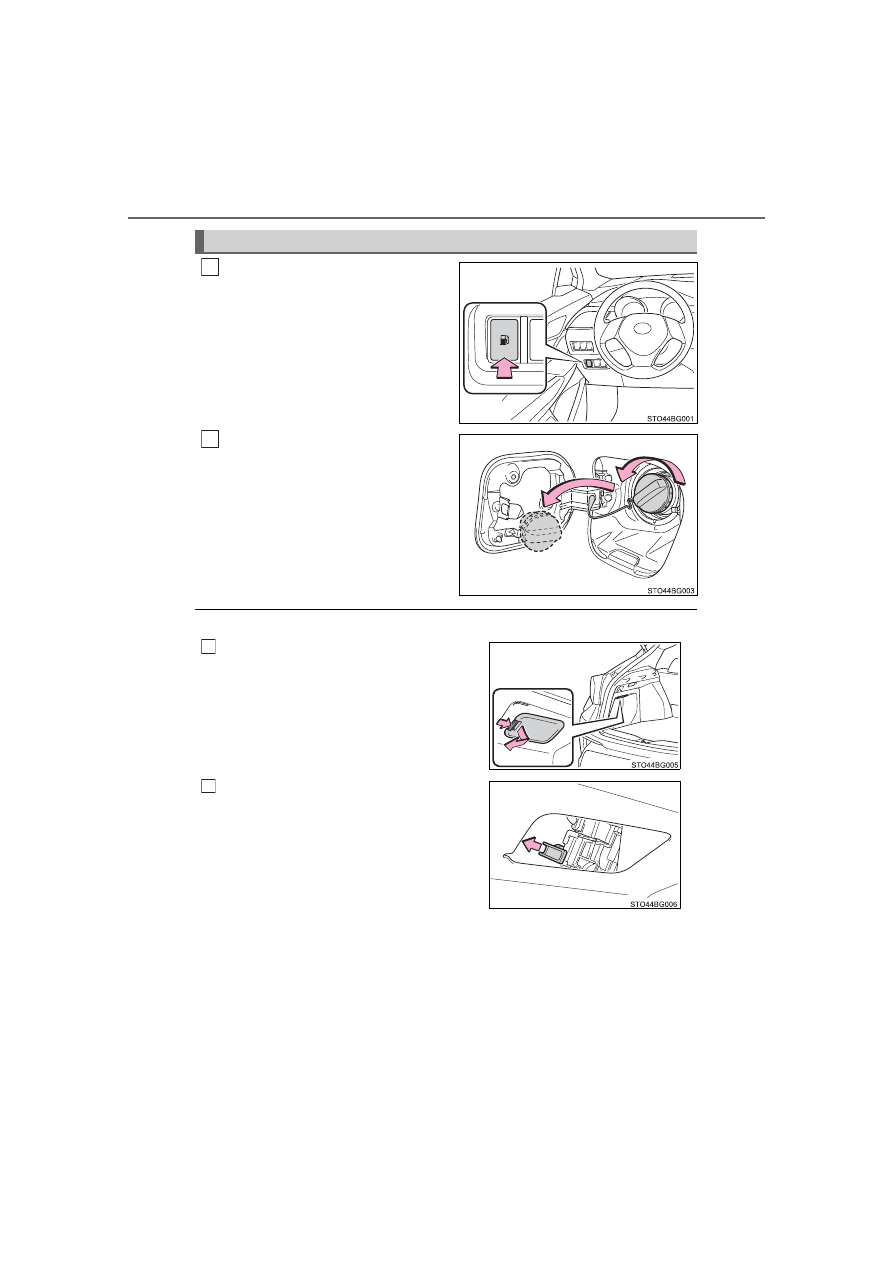

Press  the  opener  to  open  the
fuel filler door.

Turn the fuel tank cap slowly to
remove  it  and  hang  it  on  the
back of the fuel filler door.

■

When the fuel filler door cannot be opened

Opening the fuel tank cap

1

2

Open  the  back  door  and  remove  the
cover underneath the luggage compart-
ment light.

Pull the lever backward and check that
the fuel filler door opens.

1

2

221

4-4. Refueling

4

Drivin

g

C-HR_OM_USA_OM10634U

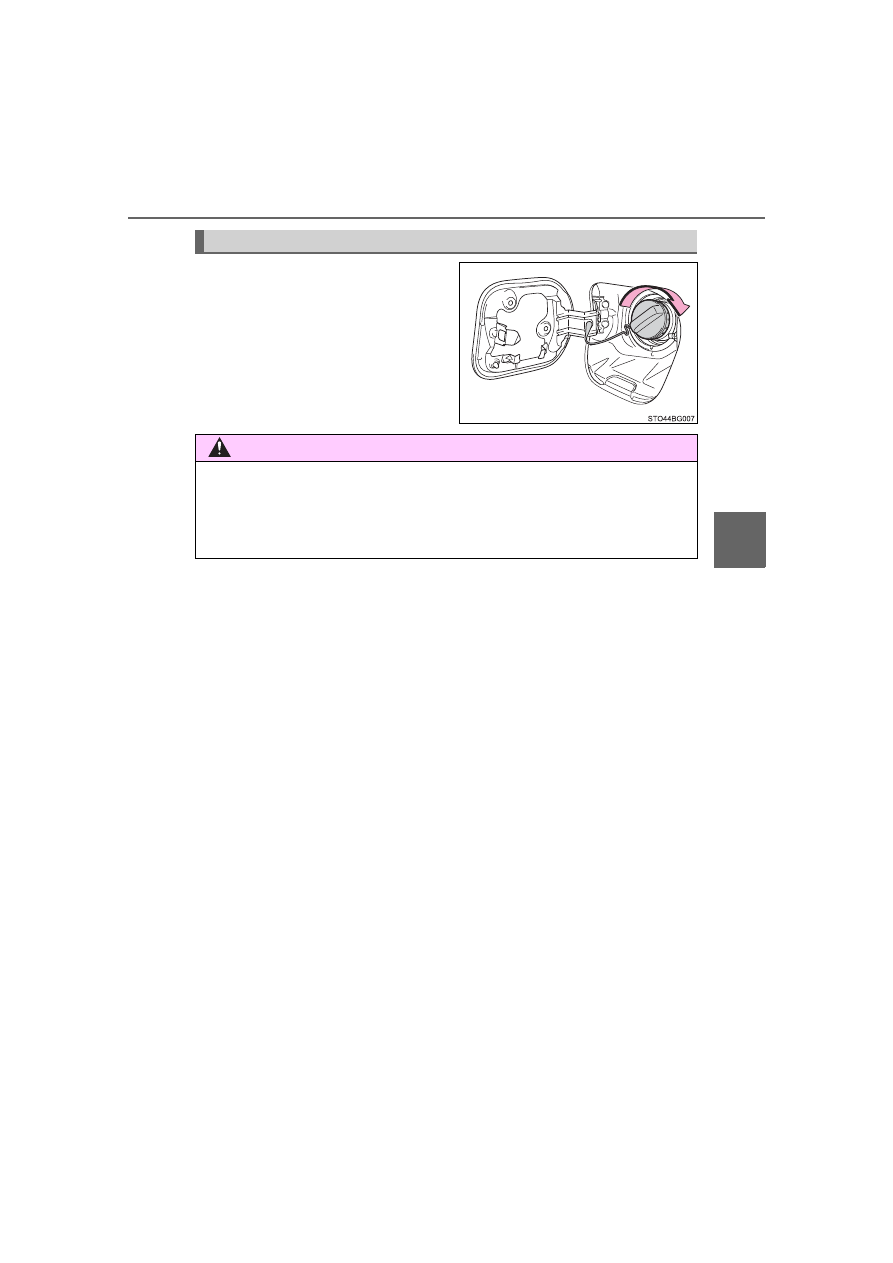

After  refueling,  turn  the  fuel  tank
cap  until  you  hear  a  click.  Once
the  cap  is  released,  it  will  turn
slightly in the opposite direction.

Closing the fuel tank cap

WARNING

■

When replacing the fuel tank cap

Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle.  Doing  so  may  cause  a  fire  or  other  incident  which  may  result  in
death or serious injury.

222

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

Toyota Safety Sense P

◆

PCS (Pre-Collision System)



P. 228

◆

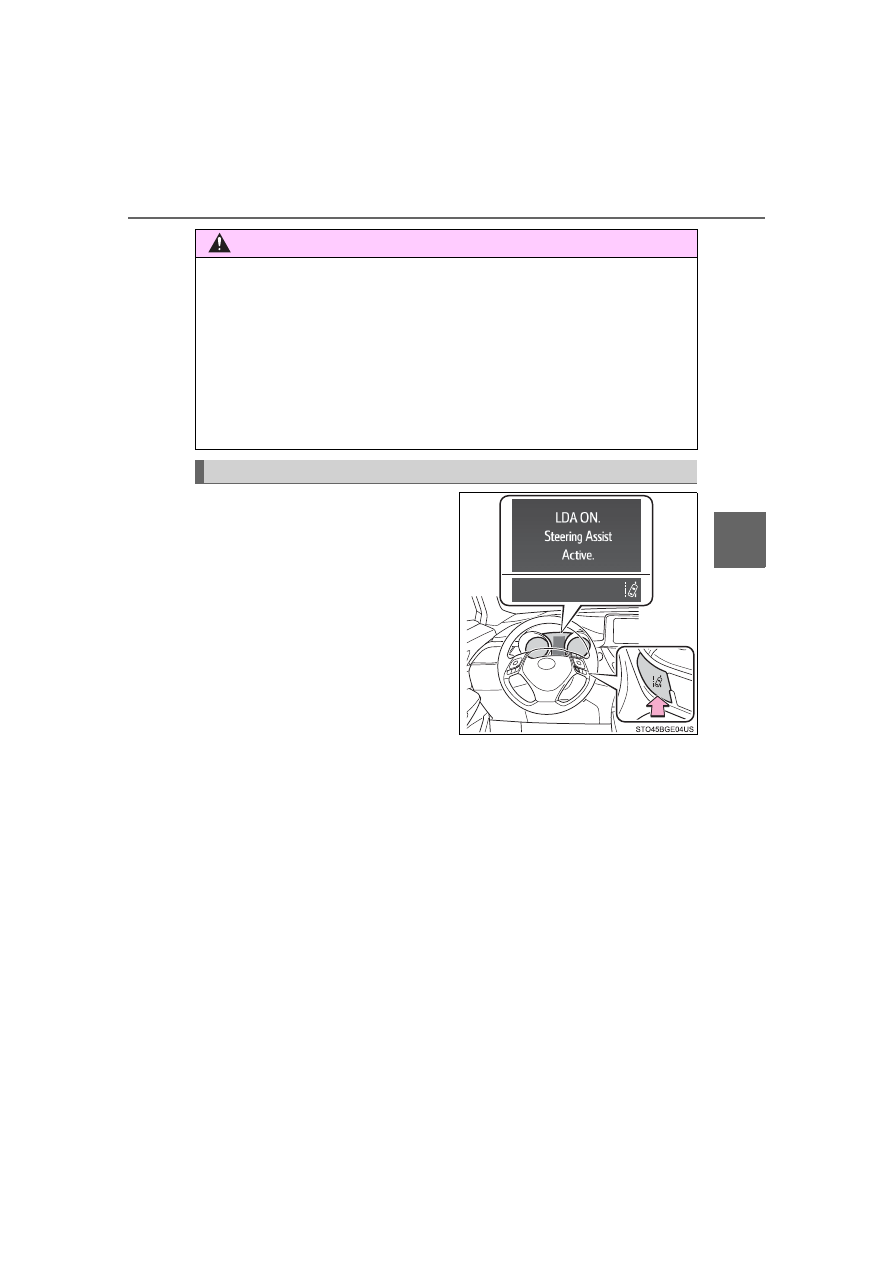

LDA (Lane Departure Alert with steering control)



P. 242

◆

Automatic High Beam



P. 207

◆

Dynamic radar cruise control with full-speed range



P. 252

The Toyota Safety Sense P consists of the following drive assist
systems and contributes to a safe and comfortable driving expe-
rience:

WARNING

■

Toyota Safety Sense P

The Toyota  Safety  Sense  P  is  designed  to operate  under  the  assumption
that the driver will drive safely, and is designed to help reduce the impact to
the occupants and the vehicle in the case of a collision or assist the driver in
normal driving conditions.
As there is a limit to the degree of recognition accuracy and control perfor-
mance that this system can provide, do not overly rely on this system. The
driver is always responsible for paying attention to the vehicle’s surround-
ings and driving safely.

223

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

The  pre-collision  system  is  equipped  with  a  sophisticated  computer
that will record certain data, such as:

• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the pre-collision system functions
• Information (such as the distance and relative speed between your

vehicle and the vehicle ahead or other objects)

• Images from the camera sensor (available only when the pre-colli-

sion braking function or the pre-collision brake assist function was
operating)

The  pre-collision  system  does  not  record  conversations  sounds  or
images of the inside of the vehicle.

●

Data usage
Toyota  may  use  the  data  recorded  in  this  computer  to  diagnose
malfunctions,  conduct  research  and  development,  and  improve
quality.
Toyota will not disclose the recorded data to a third party except:

• With the consent of the vehicle owner or with the consent of the

lessee if the vehicle is leased

• In response to an official request by the police, a court of law or a

government agency

• For use by Toyota in a lawsuit
• For  research  purposes  where  the  data  is  not  tied  to  a  specific

vehicle or vehicle owner

●

Recorded images can be erased using a specialized device.
The image recording function can be disabled. However, if the func-
tion is disabled, data from when the pre-collision system operates
will not be available.

Vehicle data recording

224

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

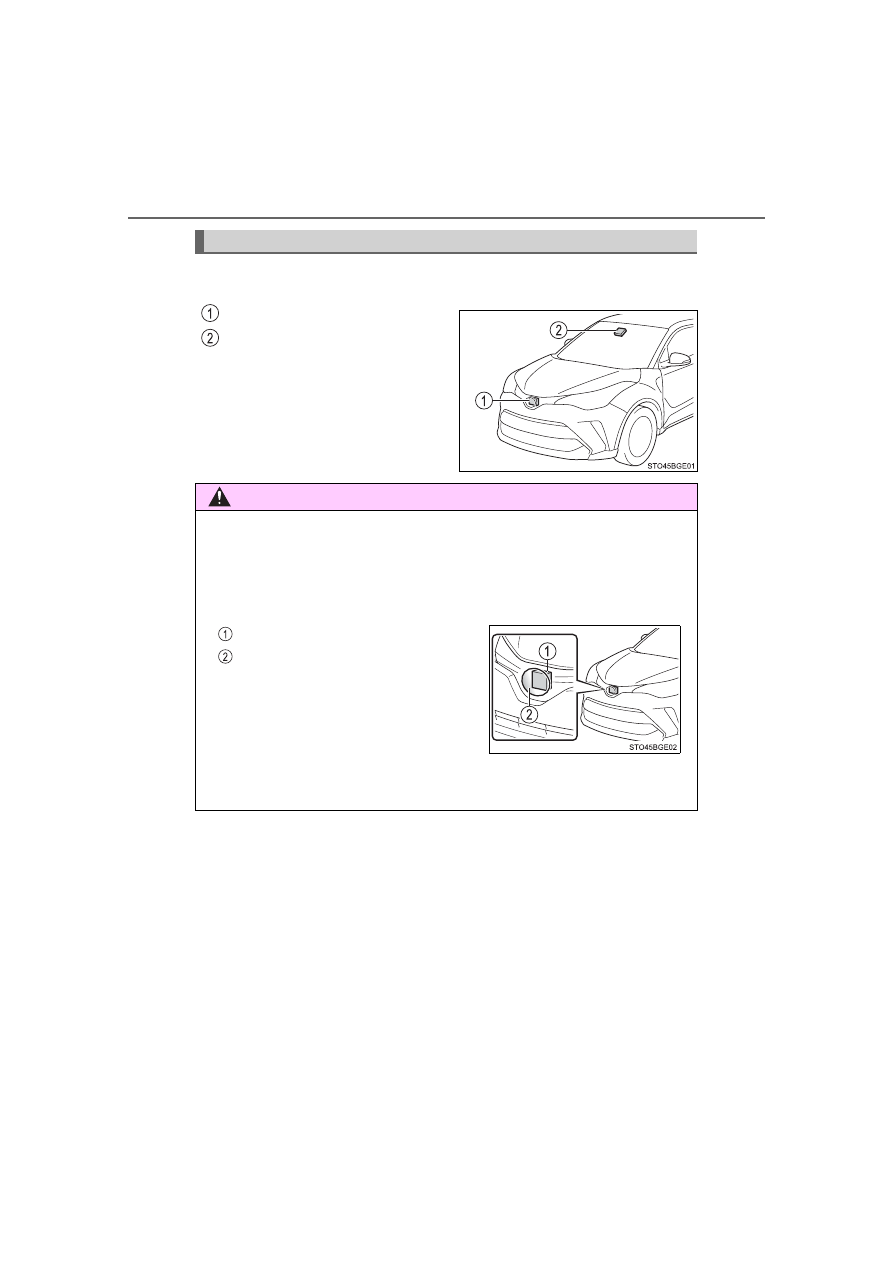

Two types of sensors, located behind the front grille and windshield,
detect information necessary to operate the drive assist systems.

Radar sensor
Camera sensor

Sensors

WARNING

■

To avoid malfunction of the radar sensor

Observe the following precautions.
Otherwise, the radar sensor may not operate properly, possibly leading to
an accident resulting in death or serious injury.

●

Keep the radar sensor and front grille emblem clean at all times.

Radar sensor
Front grille emblem

If  the  front  of  the  radar  sensor  or  the
front or back of the front grille emblem
is dirty or covered with water droplets,
snow, etc., clean it.
Clean the radar sensor and front grille
emblem with a soft cloth so you do not
mark or damage them.

225

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

WARNING

●

Do  not  attach  accessories,  stickers  (including  transparent  stickers)  or
other items to the radar sensor, front grille emblem or surrounding area.

●

Do not subject the radar sensor or surrounding area to a strong impact.
If  the  radar  sensor, front grille, or  front  bumper has  been  subjected to  a
strong impact, have the vehicle inspected by your Toyota dealer.

●

Do not disassemble the radar sensor.

●

Do not modify or paint the radar sensor, front grille emblem or surrounding
area.

●

If the radar sensor, front grille, or front bumper needs to be removed and
installed, or replaced, contact your Toyota dealer.

■

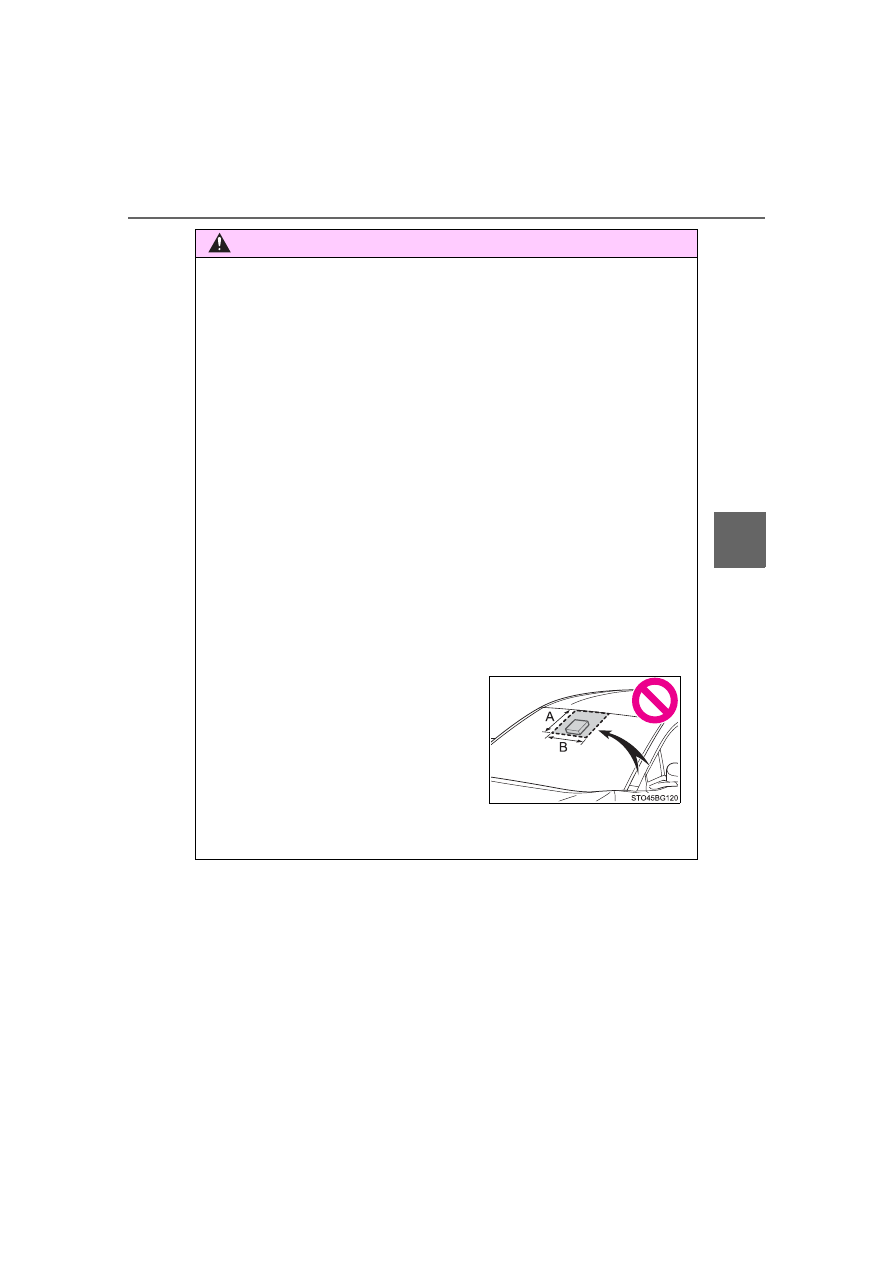

To avoid malfunction of the camera sensor

Observe the following precautions.
Otherwise, the camera sensor may not operate properly, possibly leading to
an accident resulting in death or serious injury.

●

Keep the windshield clean at all times.
• If  the  windshield  is  dirty  or  covered  with  an  oily  film,  water  droplets,

snow, etc., clear the windshield.

• If a glass coating agent is applied to the windshield, it will still be neces-

sary to use the windshield wipers to remove water droplets, etc. from
the area of the windshield in front of the camera sensor.

• If the inner side of the windshield where the camera sensor is installed

is dirty, contact your Toyota dealer.

B: Approximately  7.9  in.  (20  cm)  (Approximately  4.0  in.  (10  cm)  to  the

right and left from the center of the camera sensor)

●

Do not attach objects, such as stickers,
transparent stickers, and so forth, to the
outer  side  of  the  windshield  in  front  of
the camera sensor (shaded area in the
illustration).
A:  From  the  top  of  the  windshield  to

approximately  0.4  in.  (1  cm)  below
the bottom of the camera sensor

226

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

WARNING

●

If the part of the windshield in front of the camera sensor is fogged up or
covered with condensation or ice, use the windshield defogger to remove
the fog, condensation or ice. (



P. 301)

●

If water droplets cannot be properly removed from the area of the wind-
shield in front of the camera sensor by the windshield wipers, replace the
wiper insert or wiper blade.
If  the  wiper  inserts  or  wiper  blades  need  to  be  replaced,  contact  your
Toyota dealer.

●

Do not attach window tinting to the windshield.

●

Replace the windshield if it is damaged or cracked.
If the windshield needs to be replaced, contact your Toyota dealer.

●

Do not get the camera sensor wet.

●

Do not allow bright lights to shine into the camera sensor.

●

Do not dirty or damage the camera sensor.
When cleaning the inside of the windshield, do not allow glass cleaner to
contact the lens. Also, do not touch the lens.
If the lens is dirty or damaged, contact your Toyota dealer.

●

Do not subject the camera sensor to a strong impact.

●

Do not change the installation position or direction of the camera sensor or
remove it.

●

Do not disassemble the camera sensor.

●

Do not modify any components of the vehicle around the camera sensor
(inside rear view mirror, etc.) or ceiling.

●

Do not attach any accessories that may obstruct the camera sensor to the
hood, front grille or front bumper. Contact your Toyota dealer for details.

●

If a surfboard or other long object is to be mounted on the roof, make sure
that it will not obstruct the camera sensor.

●

Do not modify the headlights or other lights.

227

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

■

Certification

228

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

PCS (Pre-Collision System)

The pre-collision system uses a radar sensor and camera sen-
sor to detect vehicles and pedestrians in front of your vehicle.
When the system determines that the possibility of a frontal col-
lision with a vehicle or pedestrian is high, a warning operates to
urge  the  driver  to  take  evasive  action  and  the  potential  brake
pressure is increased to help the driver avoid the collision. If the
system determines that the possibility of a frontal collision with
a  vehicle  or  pedestrian  is  extremely  high,  the  brakes  are  auto-
matically applied to help avoid the collision or help reduce the
impact of the collision.

The pre-collision system can be disabled/enabled and the warning
timing can be changed. (



P. 232)

229

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

◆

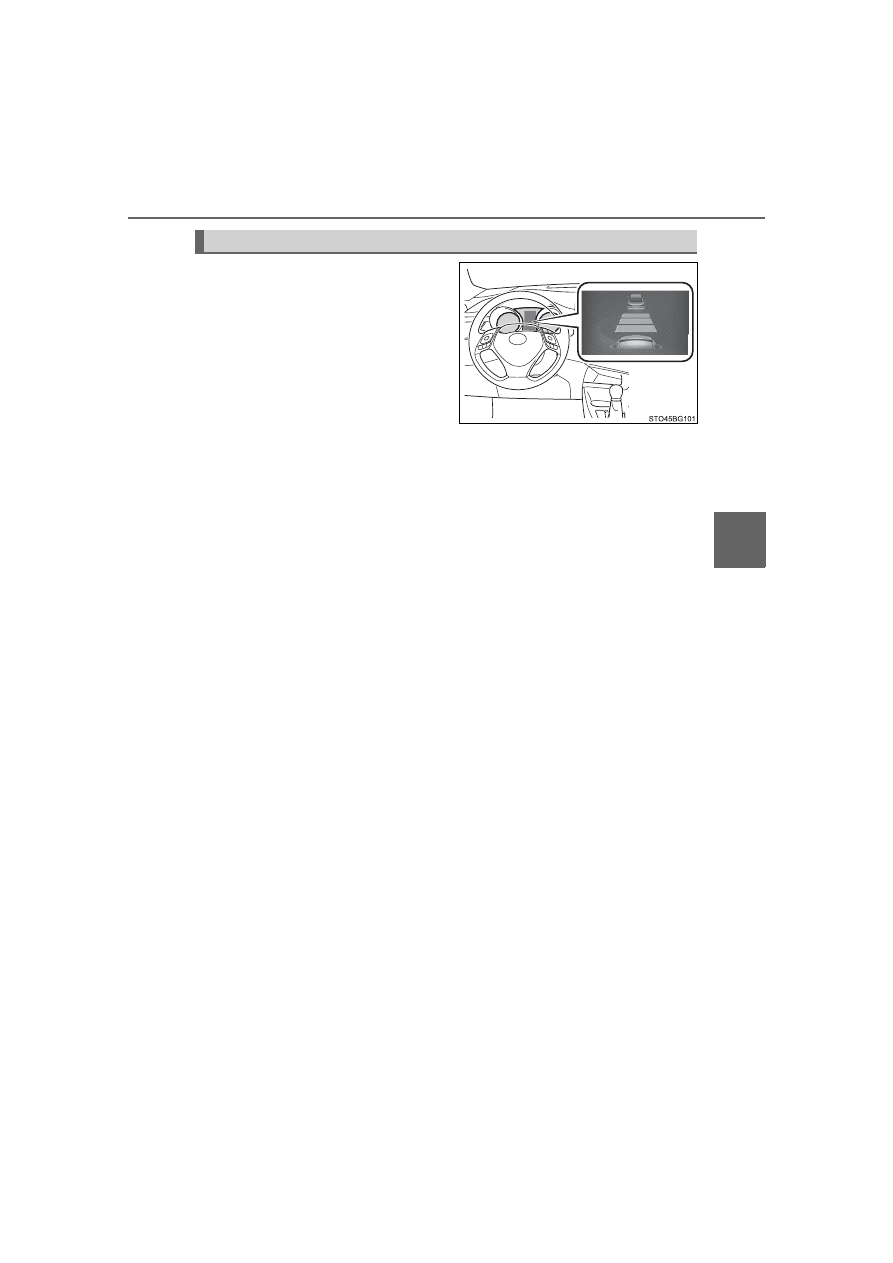

Pre-collision warning

When  the  system  determines
that  the  possibility  of  a  frontal
collision  is  high,  a  buzzer  will
sound and a warning message
will  be  displayed  on  the  multi-
information  display  to  urge  the
driver to take evasive action.

◆

Pre-collision brake assist

When  the  system  determines  that  the  possibility  of  a  frontal  colli-
sion is high, the system applies greater braking force in relation to
how strongly the brake pedal is depressed.

◆

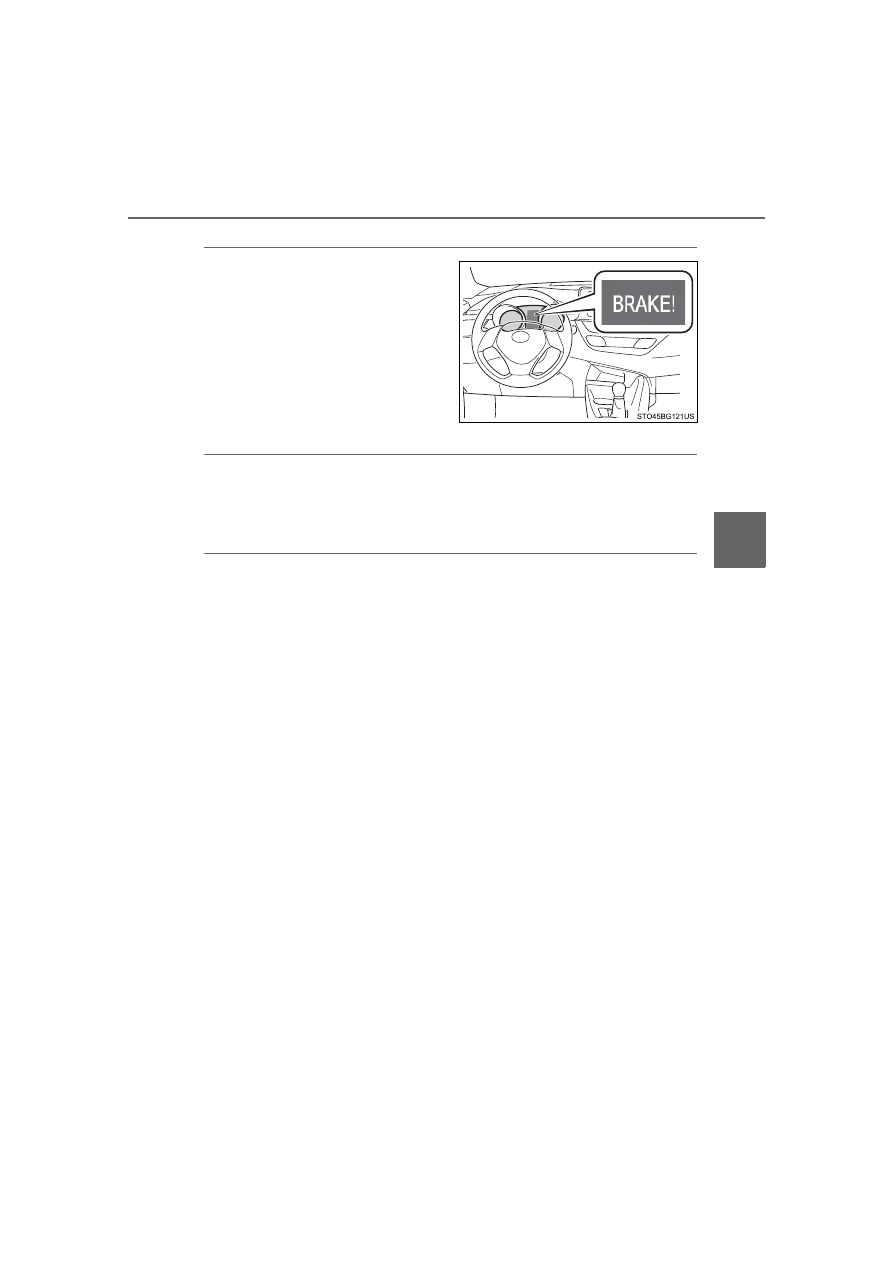

Pre-collision braking

When  the  system  determines  that  the  possibility  of  a  frontal  colli-
sion is high, the system warns the driver. If the system determines
that the possibility of a frontal collision is extremely high, the brakes
are automatically applied to help avoid the collision or reduce the
collision speed.

230

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

WARNING

■

Limitations of the pre-collision system

●

The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
Do not use the pre-collision system instead of normal braking operations
under any circumstances. This system will not prevent collisions or lessen
collision damage or injury in every situation. Do not overly rely on this sys-
tem. Failure to do so may lead to an accident, resulting in death or serious
injury.

●

Although this system is designed to help avoid a collision or help reduce
the impact of the collision, its effectiveness may change according to vari-
ous conditions, therefore the system may not always be able to achieve
the same level of performance.
Read the following conditions carefully. Do not overly rely on this system
and always drive carefully.
• Conditions under which the system may operate even if there is no pos-

sibility of a collision:



P. 235

• Conditions under which the system may not operate properly:



P. 238

●

Do not attempt to test the operation of the pre-collision system yourself.
Depending  on  the  objects  used  for  testing  (dummies,  cardboard  objects
imitating  detectable  objects,  etc.),  the  system  may  not  operate  properly,
possibly leading to an accident.

■

Pre-collision braking

●

When  the  pre-collision  braking  function  is  operating,  a  large  amount  of
braking force will be applied.

●

If the vehicle is stopped by the operation of the pre-collision braking func-
tion,  the  pre-collision  braking  function  operation  will  be  canceled  after
approximately 2 seconds. Depress the brake pedal as necessary.

●

The pre-collision braking function may not operate if certain operations are
performed  by  the  driver.  If  the  accelerator  pedal  is  being  depressed
strongly or the steering wheel is being turned, the system may determine
that the driver is taking evasive action and possibly prevent the pre-colli-
sion braking function from operating.

●

In  some  situations,  while  the  pre-collision  braking  function  is  operating,
operation  of  the  function  may  be  canceled  if  the  accelerator  pedal  is
depressed strongly or the steering wheel is turned and the system deter-
mines that the driver is taking evasive action.

●

If the brake pedal is being depressed, the system may determine that the
driver is taking evasive action and possibly delay the operation timing of
the pre-collision braking function.

231

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

WARNING

■

When to disable the pre-collision system

In the following situations, disable the system, as it may not operate prop-
erly, possibly leading to an accident resulting in death or serious injury:

●

When the vehicle is being towed

●

When your vehicle is towing another vehicle

●

When  transporting  the  vehicle  via  truck,  boat,  train  or  similar  means  of
transportation

●

When the vehicle is raised on a lift with the engine running and the tires
are allowed to rotate freely

●

When inspecting the vehicle using a drum tester such as a chassis dyna-
mometer or speedometer tester, or when using an on vehicle wheel bal-
ancer

●

When a strong impact is applied to the front bumper or front grille, due to
an accident or other reasons

●

If the vehicle cannot be driven in a stable manner, such as when the vehi-
cle has been in an accident or is malfunctioning

●

When the vehicle is driven in a sporty manner or off-road

●

When the tires are not properly inflated

●

When the tires are very worn

●

When tires of a size other than specified are installed

●

When tire chains are installed

●

When a compact spare tire or an emergency tire puncture repair kit is used

●

If equipment (snow plow, etc.) that may obstruct the radar sensor or cam-
era sensor is temporarily installed to the vehicle

232

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

■

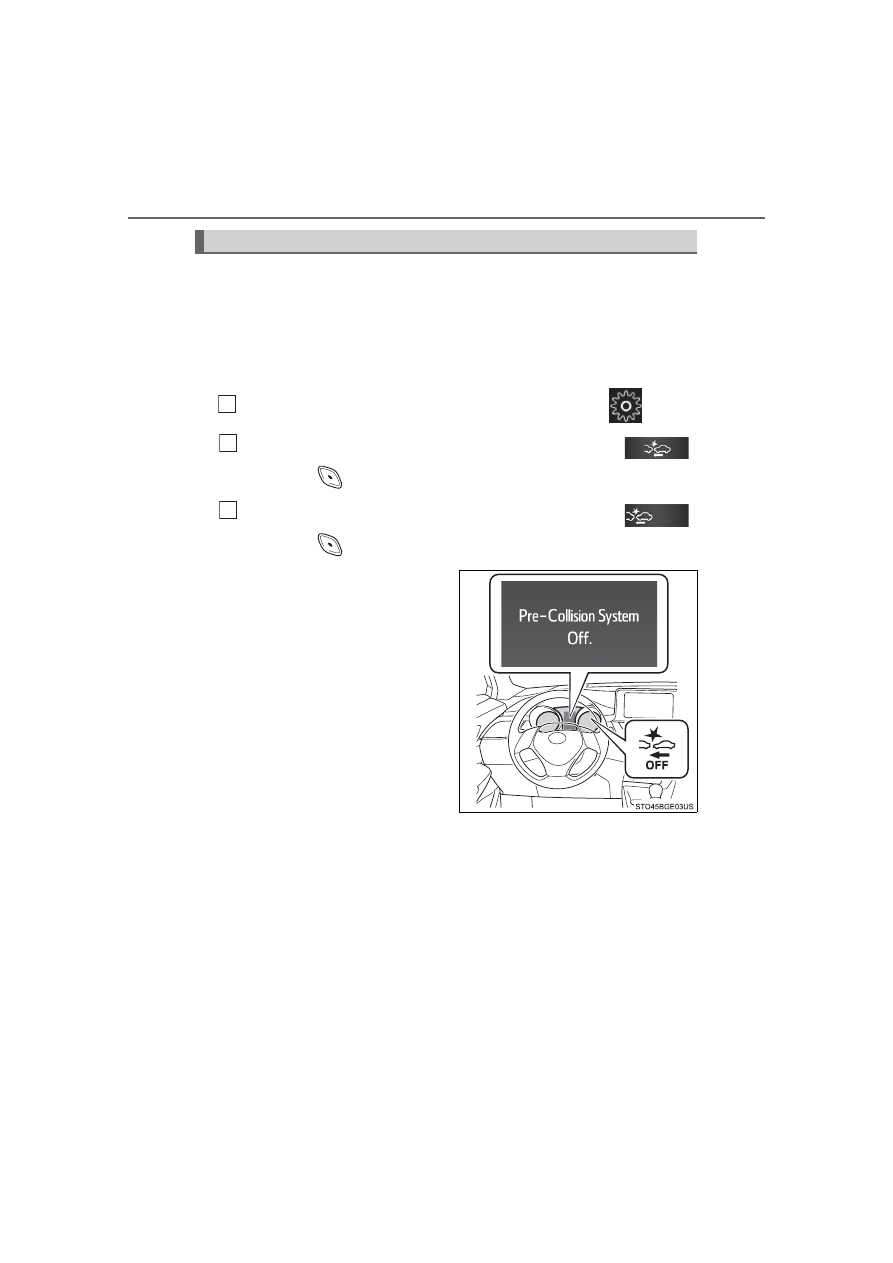

Enabling/disabling the pre-collision system

The  pre-collision  system  can  be  enabled/disabled  on  the  multi-
information display.

The  system  is  automatically  enabled  each  time  the  engine  switch  is
turned  to  the  “ON”  position  (vehicles  without  a  smart  key  system)  or
turned to IGNITION ON mode (vehicles with a smart key system).

Press “



” or “



” of meter control switches and select

.

Press “



” or “



” of meter control switches and select

,

and press

.

Press “



” or “



” of meter control switches and select

,

and press

 to select the desired setting (on/off).

If  the  system  is  disabled,  the
PCS  warning  light  will  turn  on
and  a  message  will  be  dis-
played  on  the  multi-information
display.

Changing settings of the pre-collision system

1

2

3

233

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

■

Changing the pre-collision warning timing

The pre-collision warning timing can be changed on the multi-infor-
mation display.

The  operation  timing  setting  is  retained  when  the  engine  switch  is
turned off.

Press “



” or “



” of meter control switches and select

.

Press “



” or “



” of meter control switches and select

,

and press

.

Press “



” or “



” of meter control switches and select

“

 Sensitivity”, and press

 to select the desired setting.

Far

The  warning  will  begin  to
operate  earlier  than  with  the
default timing.

Middle

This is the default setting.

Near

The  warning  will  begin  to
operate  later  than  with  the
default timing.

1

2

3

234

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

■

Operational conditions

The pre-collision system is enabled and the system determines that the pos-
sibility of a frontal collision with a vehicle or pedestrian is high.
Each function is operational at the following speeds:

●

Pre-collision warning:
• Vehicle speed is between approximately 7 and 110 mph (10 and 180 km/h).

(For detecting a pedestrian, vehicle speed is between approximately 7 and
50 mph [10 and 80 km/h].)

• The  relative  speed  between  your  vehicle  and  the  vehicle  or  pedestrian

ahead is approximately 7 mph (10 km/h) or more.

●

Pre-collision brake assist:
• Vehicle  speed  is  between  approximately  20  and  110 mph  (30  and

180 km/h). (For detecting a pedestrian, vehicle speed is between approx-
imately 20 and 50 mph [30 and 80 km/h].)

• The  relative  speed  between  your  vehicle  and  the  vehicle  or  pedestrian

ahead is approximately 20 mph (30 km/h) or more.

●

Pre-collision braking:
• Vehicle speed is between approximately 7 and 110 mph (10 and 180 km/h).

(For detecting a pedestrian, vehicle speed is between approximately 7 and
50 mph [10 and 80 km/h].)

• The  relative  speed  between  your  vehicle  and  the  vehicle  or  pedestrian

ahead is approximately 7 mph (10 km/h) or more.

The system may not operate in the following situations:

●

If a battery terminal has been disconnected and reconnected and then the
vehicle has not been driven for a certain amount of time

●

If the shift lever is in R

●

If  VSC  is  disabled  (only  the  pre-collision  warning  function  will  be  opera-
tional)

235

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

■

Pedestrian detection function

■

Cancelation of the pre-collision braking

If either of the following occur while the pre-collision braking function is oper-
ating, it will be canceled:

●

The accelerator pedal is depressed strongly.

●

The steering wheel is turned sharply or abruptly.

■

Conditions under which the system may operate even if there is no pos-
sibility of a collision

●

In  some  situations  such  as  the  following,  the  system  may  determine  that
there is a possibility of a frontal collision and operate.
• When passing a vehicle or pedestrian
• When changing lanes while overtaking a preceding vehicle
• When overtaking a preceding vehicle that is changing lanes

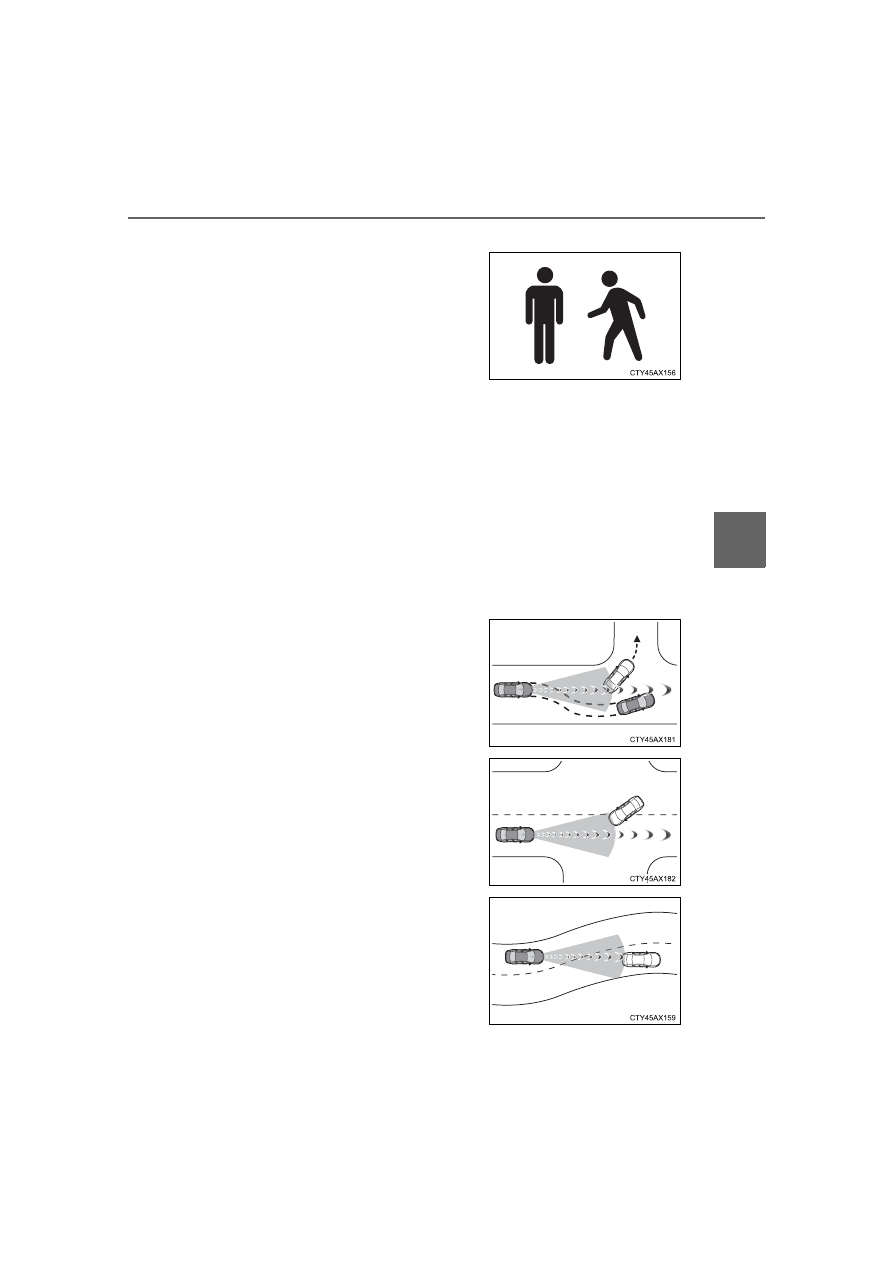

The pre-collision system detects pedestri-
ans based on the size, profile, and motion
of  a  detected  object.  However,  a  pedes-
trian  may  not  be  detected  depending  on
the  surrounding  brightness  and  the
motion,  posture,  and  angle  of  the
detected  object,  preventing  the  system
from operating properly. (



P. 240)

• When overtaking a preceding vehicle

that is making a left/right turn

• When passing a vehicle in an oncom-

ing  lane  that  is  stopped  to  make  a
right/left turn

• When driving on a road where relative

location  to  vehicle  ahead  in  an  adja-
cent lane may change, such as on a
winding road

236

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

• When rapidly closing on a vehicle ahead
• If the front of the vehicle is raised or lowered, such as when the road sur-

face is uneven or undulating

• When  approaching  objects  on  the  roadside,  such  as  guardrails,  utility

poles, trees, or walls

• When driving on a narrow path surrounded by a structure, such as in a

tunnel or on an iron bridge

• When there is a metal object (manhole cover, steel plate, etc.), steps, or a

protrusion on the road surface or roadside

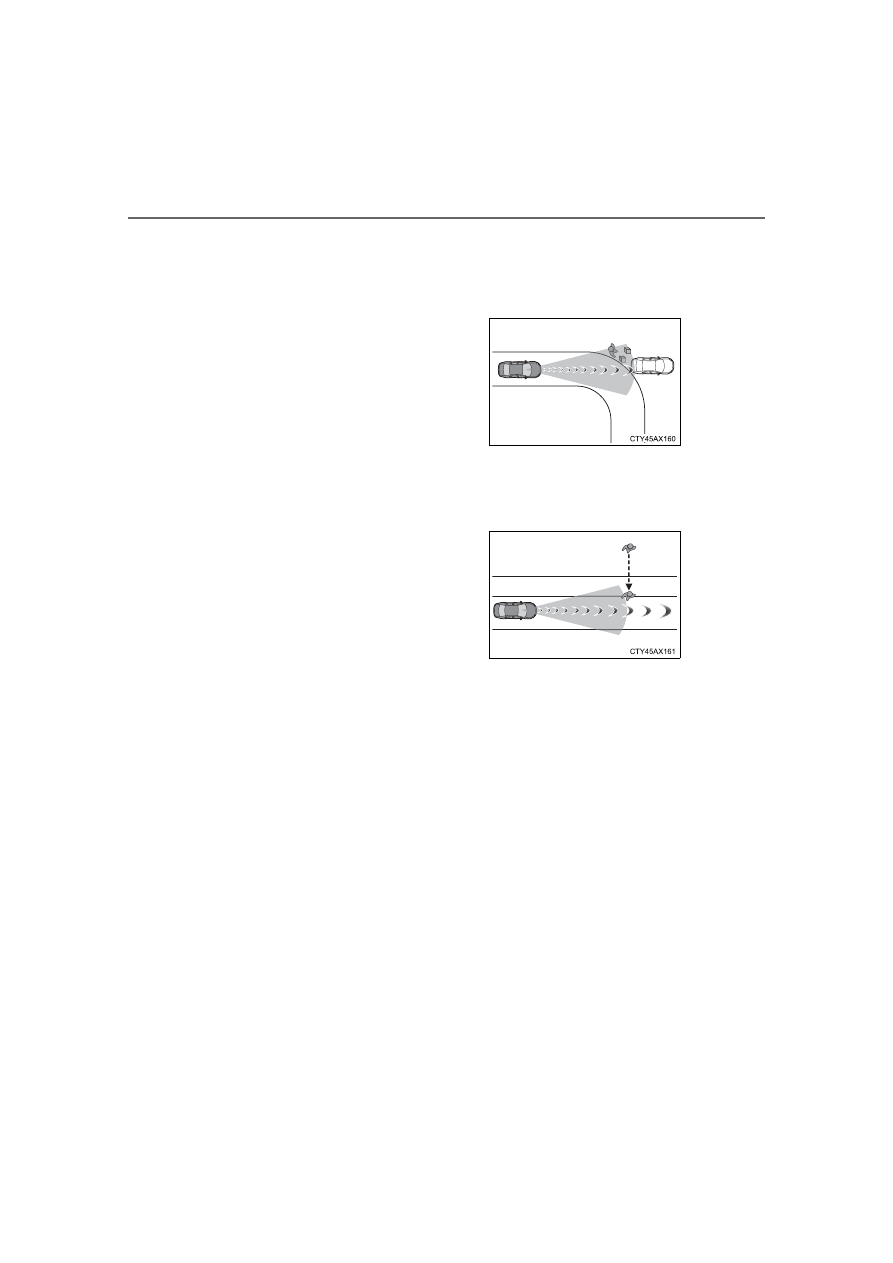

• When  there  is  a  vehicle,  pedestrian,

or  object  by  the  roadside  at  the
entrance of a curve

• When

a

crossing

pedestrian

approaches very close to the vehicle

237

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

• When rapidly closing on an electric toll gate barrier, parking area barrier,

or other barrier that opens and closes

• When using an automatic car wash

• When the vehicle is hit by water, snow, dust, etc., from a vehicle ahead
• When driving through steam or smoke
• When there are patterns or paint on the road or a wall that may be mis-

taken for a vehicle or pedestrian

• When  driving  near  an  object  that  reflects  radio  waves,  such  as  a  large

truck or guardrail

• When driving near a TV tower, broadcasting station, electric power plant,

or  other  location  where  strong  radio  waves  or  electrical  noise  may  be
present

• When passing through a place with a

low structure above the road (low ceil-
ing, traffic sign, etc.)

• When  passing  under  an  object  (bill-

board, etc.) at the top of an uphill road

• When  driving  through  or  under

objects  that  may  contact  the  vehicle,
such as thick grass, tree branches, or
a banner

238

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

■

Situations in which the system may not operate properly

●

In some situations such as the following, a vehicle may not be detected by
the radar sensor and camera sensor, preventing the system from operating
properly:
• If an oncoming vehicle is approaching your vehicle
• If a vehicle ahead is a motorcycle or bicycle
• When approaching the side or front of a vehicle
• If a preceding vehicle has a small rear end, such as an unloaded truck

• If a vehicle ahead is carrying a load which protrudes past its rear bumper

• If a vehicle ahead is irregularly shaped, such as a tractor or side car
• If the sun or other light is shining directly on a vehicle ahead
• If a vehicle cuts in front of your vehicle or emerges from beside a vehicle
• If a vehicle ahead makes an abrupt maneuver (such as sudden swerving,

acceleration or deceleration)

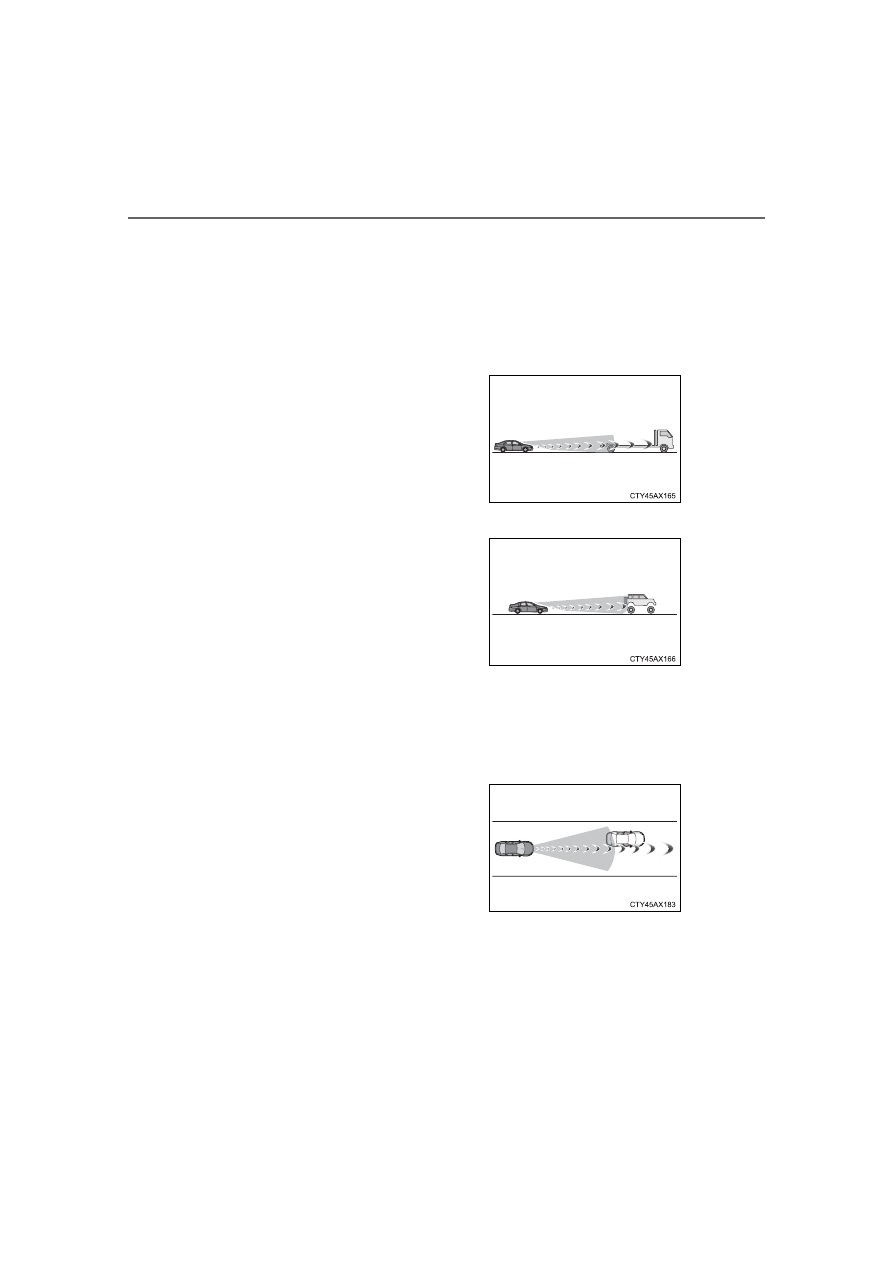

• When suddenly cutting behind a preceding vehicle

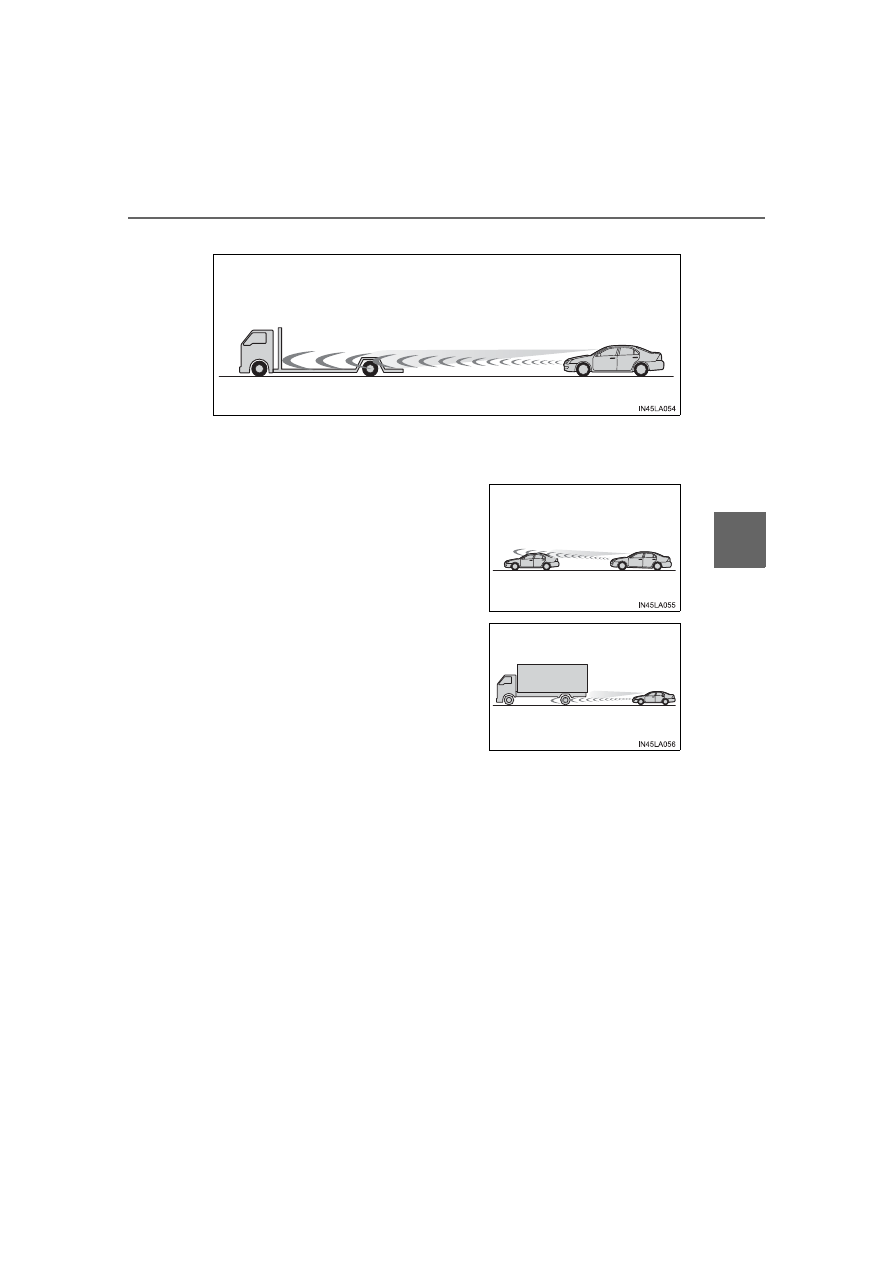

• If a preceding vehicle has a low rear

end, such as a low bed trailer

• If a vehicle ahead has extremely high

ground clearance

• When  a  vehicle  ahead  is  not  directly

in front of your vehicle

239

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

• When  driving  in  inclement  weather  such  as  heavy  rain,  fog,  snow  or  a

sandstorm

• When the vehicle is hit by water, snow, dust, etc., from a vehicle ahead
• When driving through steam or smoke
• When driving in a place where the surrounding brightness changes sud-

denly, such as at the entrance or exit of a tunnel

• When a very bright light, such as the sun or the headlights of oncoming

traffic, shines directly into the camera sensor

• When the surrounding area is dim, such as at dawn or dusk, or while at

night or in a tunnel

• After the engine has started the vehicle has not been driven for a certain

amount of time

• While making a left/right turn and for a few seconds after making a left/

right turn

• While driving on a curve and for a few seconds after driving on a curve
• If your vehicle is skidding

• If the wheels are misaligned
• If a wiper blade is blocking the camera sensor
• The vehicle is wobbling.
• The vehicle is being driven at extremely high speeds.
• When driving on a hill
• If the radar sensor or camera sensor is misaligned

• If the front of  the vehicle  is  raised  or

lowered

240

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

●

In some situations such as the following, sufficient braking force may not be
obtained, preventing the system from performing properly:
• If the braking functions cannot operate to their full extent, such as when

the brake parts are extremely cold, extremely hot, or wet

• If the vehicle is not properly maintained (brakes or tires are excessively

worn, improper tire inflation pressure, etc.)

• When the vehicle is being driven on a gravel road or other slippery sur-

face

●

Some pedestrians such as the following may not be detected by the radar
sensor and camera sensor, preventing the system from operating properly:
• Pedestrians shorter than approximately 3.2 ft. (1 m) or taller than approx-

imately 6.5 ft. (2 m)

• Pedestrians wearing oversized clothing (a rain coat, long skirt, etc.), mak-

ing their silhouette obscure

• Pedestrians who are carrying large baggage, holding an umbrella, etc.,

hiding part of their body

• Pedestrians who are bending forward or squatting
• Pedestrians who are pushing a stroller, wheelchair, bicycle or other vehi-

cle

• Groups of pedestrians which are close together
• Pedestrians who are wearing white and look extremely bright
• Pedestrians in the dark, such as at night or while in a tunnel
• Pedestrians  whose  clothing  appears  to  be  nearly  the  same  color  or

brightness as their surroundings

• Pedestrians near walls, fences, guardrails, or large objects
• Pedestrians who are on a metal object (manhole cover, steel plate, etc.)

on the road

• Pedestrians who are walking fast
• Pedestrians who are changing speed abruptly
• Pedestrians running out from behind a vehicle or a large object
• Pedestrians who are extremely close to the side of the vehicle (outside

rear view mirror, etc.)

241

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

■

If the PCS warning light flashes or illuminates, and a warning message is
displayed on the multi-information display

The pre-collision system may be temporarily unavailable or there may be a
malfunction in the system.

●

In  the  following  situations,  the  warning  light  will  turn  off,  the  message  will
disappear and the system will become operational when normal operating
conditions return:
• When the radar sensor or camera sensor or the area around either sen-

sor is hot, such as in the sun

• When the radar sensor or camera sensor or the area around either sen-

sor is cold, such as in an extremely cold environment

• When a front sensor is dirty or covered with snow, etc.
• When the part of the windshield in front of the camera sensor is fogged

up or covered with condensation or ice
(Defogging the windshield:



P. 301)

• If the camera sensor is obstructed, such as when the hood is open or a

sticker is attached to the windshield near the camera sensor

●

If  the  PCS  warning  light  continues  to  flash  or  remains  illuminated  or  the
warning message does not disappear even though the vehicle has returned
to normal, the system may be malfunctioning. Have the vehicle inspected by
your Toyota dealer immediately.

■

If VSC is disabled

●

If VSC is disabled (



P. 288), the pre-collision brake assist and pre-collision

braking functions are also disabled.

●

The PCS warning light will turn on and “VSC Turned Off. Pre-Collision Brake
System Unavailable.” will be displayed on the multi-information display.

242

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

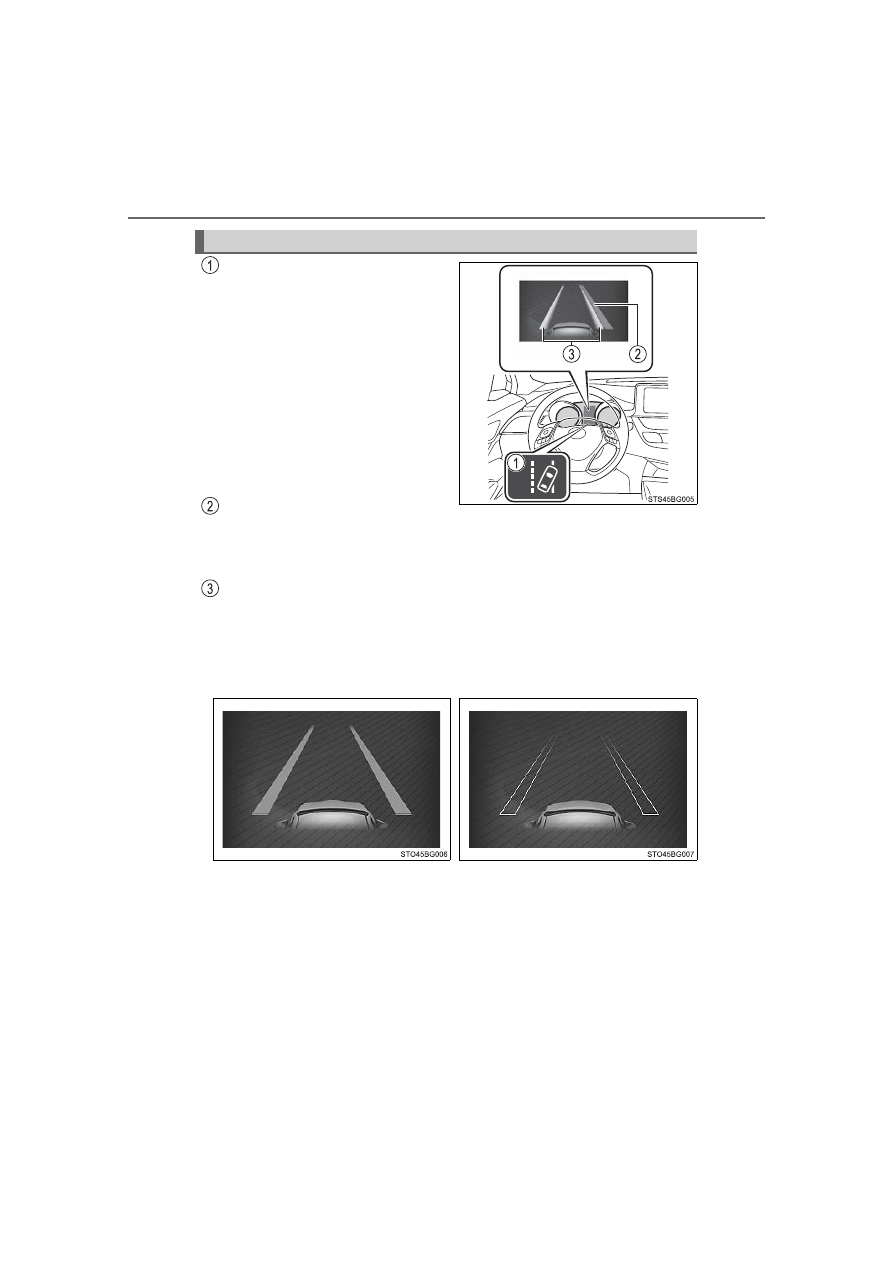

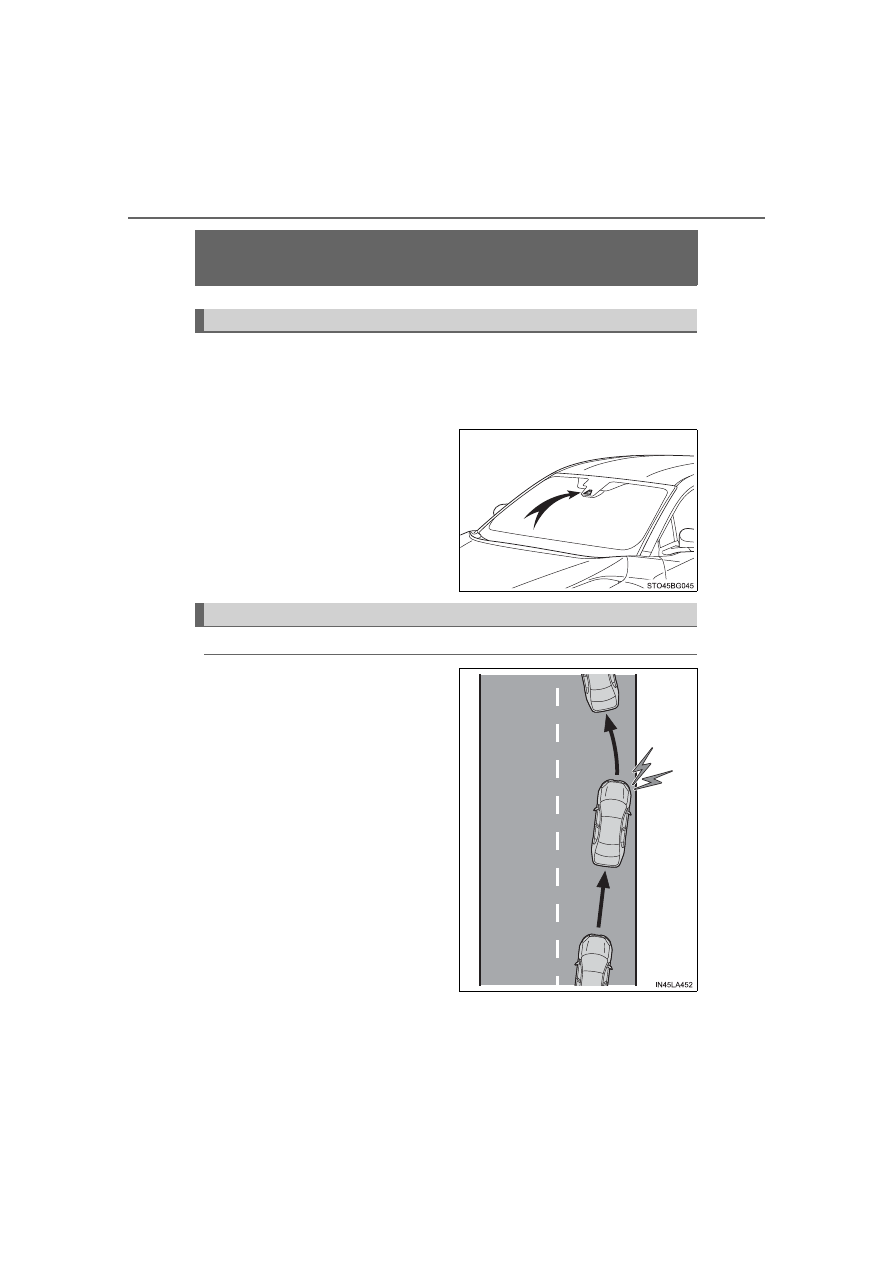

LDA (Lane Departure Alert with steering

control)

When driving on highways and freeways with white (yellow) lines, this
function alerts the driver when the vehicle might depart from its lane
and provides assistance by operating the steering wheel to keep the
vehicle in its lane.
The  LDA  system  recognizes  visi-
ble  white  (yellow)  lines  with  the
camera sensor on the upper por-
tion of the windshield.

◆

Lane departure alert function

When  the  system  determines
that  the  vehicle  might  depart
from  its  lane,  a  warning  is  dis-
played  on  the  multi-information
display and the warning buzzer
sounds to alert the driver.

When  the  warning  buzzer
sounds,  check  the  surrounding
road  situation  and  carefully
operate  the  steering  wheel  to
move  the  vehicle  back  to  the
center of the line.

Summary of functions

Functions included in LDA system

243

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

◆

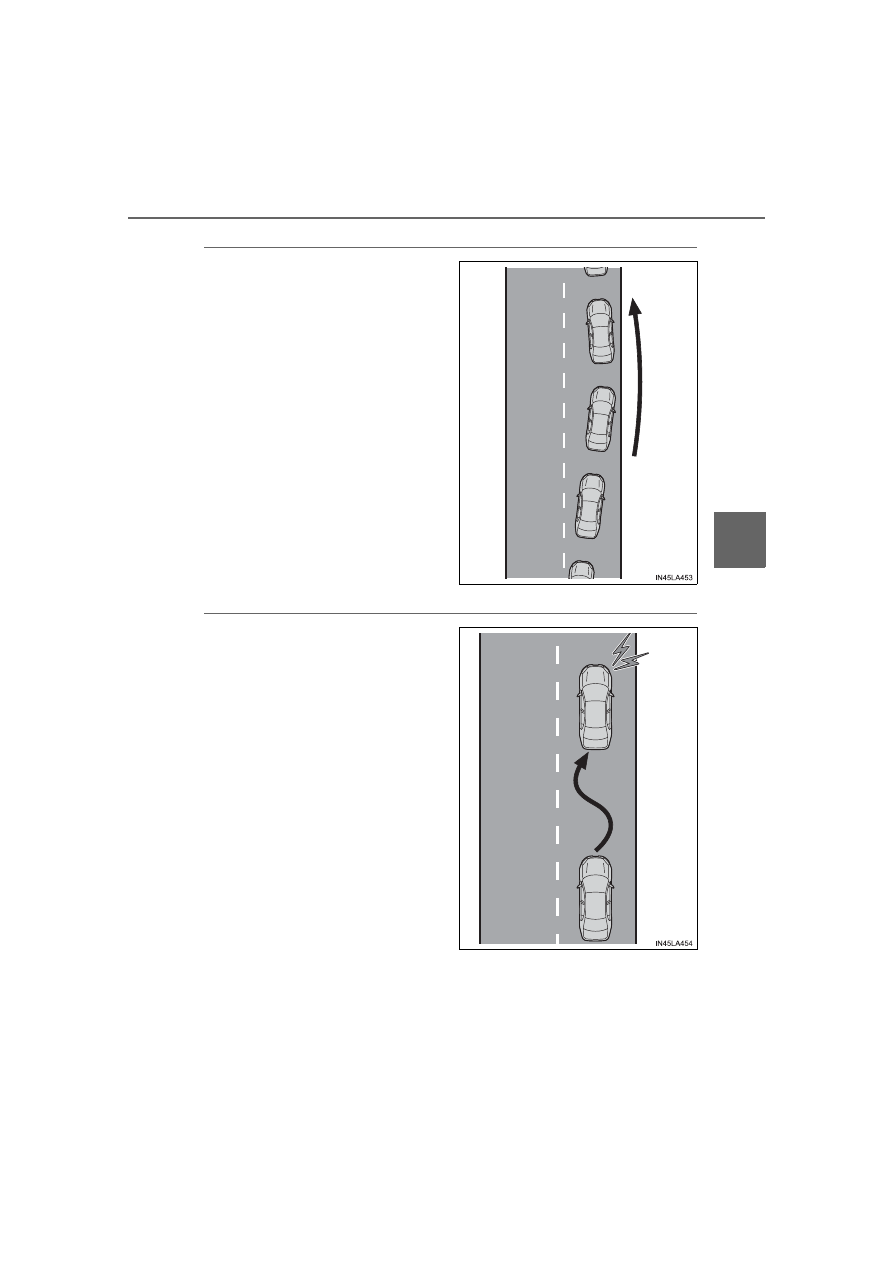

Steering control function

When  the  system  determines
that  the  vehicle  might  depart
from  its  lane,  the  system  pro-
vides  assistance  as  necessary
by operating the steering wheel
in  small  amounts  for  a  short
period of time to keep the vehi-
cle in its lane.

If  the  system  detects  that  the
steering  wheel  has  not  been
operated  for  a  fixed  amount  of
time or the steering wheel is not
being  firmly  gripped,  a  warning
is  displayed  on  the  multi-infor-
mation  display  and  the  warning
buzzer sounds.

◆

Vehicle sway warning function

When the vehicle is swaying or
appears as if it may depart from
its  lane  multiple  times,  the
warning  buzzer  sounds  and  a
message  is  displayed  on  the
multi-information display to alert
the driver.

244

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

WARNING

■

Before using LDA system

Do not rely solely upon the LDA system. The LDA system does not auto-
matically drive the vehicle or reduce the amount of attention that must be
paid to the area in front of the vehicle. The driver must always assume full
responsibility for driving safely by paying careful attention to the surround-
ing  conditions and operating the steering wheel to  correct the  path  of  the
vehicle. Also, the driver must take adequate breaks when fatigued, such as
from driving for a long period of time.
Failure to perform appropriate driving operations and pay careful attention
may lead to an accident, resulting in death or serious injury.

■

To avoid operating LDA system by mistake

When not using the LDA system, use the LDA switch to turn the system off.

■

Situations unsuitable for LDA system

Do not use the LDA system in the following situations.
The system may not operate properly and lead to an accident, resulting in
death or serious injury.

●

A compact spare tire, tire chains, etc., are equipped.

●

When the tires have been excessively worn, or when the tire inflation pres-
sure is low.

●

Tires  which  differ  by  structure,  manufacturer,  brand  or  tread  pattern  are
used.

●

Objects  or  patterns  that  could  be  mistaken  for  white  (yellow)  lines  are
present on the side of the road (guardrails, curbs, reflective poles, etc.).

●

Vehicle is driven on a snow-covered road.

●

White (yellow) lines are difficult to see due to rain, snow, fog, dust, etc.

●

Asphalt  repair  marks,  white  (yellow)  line  marks,  etc.,  are  present  due  to
road repair.

●

Vehicle is driven in a temporary lane or restricted lane due to construction
work.

●

Vehicle is driven on a road surface which is slippery due to rainy weather,
fallen snow, freezing, etc.

●

Vehicle is driven in traffic lanes other than on highways and freeways.

●

Vehicle is driven in a construction zone.

●

During emergency towing.

245

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

Press  the  LDA  switch  to  turn  the
LDA system on.

The  LDA  indicator  illuminates  and
a  message  is  displayed  on  the
multi-information display.
Press the LDA switch again to turn
the LDA system off.
When the LDA system is turned on
or off, operation of the LDA system
continues  in  the  same  condition
the next time the engine is started.

WARNING

■

Preventing  LDA  system  malfunctions  and  operations  performed  by
mistake

●

Do not modify the headlights or place stickers, etc., on the surface of the
lights.

●

Do  not  modify  the  suspension,  etc.  If  the  suspension,  etc.,  needs  to  be
replaced, contact your Toyota dealer.

●

Do not install or place anything on the hood or grille. Also, do not install a
grille guard (bull bars, kangaroo bar, etc.).

●

If your windshield needs repairs, contact your Toyota dealer.

Turning LDA system on

246

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

LDA indicator

The  illumination  condition  of  the
indicator  informs  the  driver  of  the
system operation status.
Illuminated in white:
LDA system is operating.
Illuminated in green:
Steering  wheel  assistance  of  the
steering  control  function  is  operat-
ing.
Flashing in orange:
Lane  departure  alert  function  is
operating.

Operation  display  of  steering
wheel operation support

Indicates that steering wheel assistance of the steering control function is
operating.

Lane departure alert function display

Displayed  when  the  multi-information  display  is  switched  to  the  driving
assist system information screen.

Indications on multi-information display



Inside  of  displayed  white  lines
is white



Inside of displayed white lines
is black

Indicates that the system is recog-
nizing  white  (yellow)  lines.  When
the  vehicle  departs  from  its  lane,
the  white  line  displayed  on  the
side  the  vehicle  departs  from
flashes orange.

Indicates  that  the  system  is  not
able  to  recognize  white  (yellow)
lines or is temporarily canceled.

247

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

■

Operation conditions of each function

●

Lane departure alert function
This function operates when all of the following conditions are met.
• LDA is turned on.
• Vehicle speed is approximately 32 mph (50 km/h) or more.
• System recognizes white (yellow) lines.
• Width of traffic lane is approximately 9.8 ft. (3 m) or more.
• Turn signal lever is not operated.
• Vehicle is driven on a straight road or around a gentle curve with a radius

of more than approximately 492 ft. (150 m).

• No system malfunctions are detected. (



P. 250)

●

Steering control function
This function operates when all of the following conditions are met in addi-
tion to the operation conditions for the lane departure alert function.

• Setting for “

 Steering Assist” in

 screen of the multi-information

display is set to on. (



P. 495)

• Vehicle is not accelerated or decelerated by a certain amount or more.
• Steering  wheel  is  not  operated  with  a  steering  force  level  suitable  for

changing lanes.

• ABS, VSC, TRAC and PCS are not operating.
• TRAC or VSC is not turned off.

●

Vehicle sway warning function
This function operates when all of the following conditions are met.

• Setting for “

 Alert” in

 screen of the multi-information display is

set to on. (



P. 495)

• Vehicle speed is approximately 32 mph (50 km/h) or more.
• Width of traffic lane is approximately 9.8 ft. (3 m) or more.
• No system malfunctions are detected. (



P. 250)

248

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

■

Temporary cancellation of functions

When the operation conditions are no longer met, a function may be tempo-
rarily canceled. However, when the operation conditions are met again, oper-
ation of the function is automatically restored. (



P. 247)

■

Steering control function

Depending  on  the  vehicle  speed,  lane  departure  situation,  road  conditions,
etc., the driver may not feel the function is operating or the function may not
operate at all.

■

Lane departure alert function

The warning buzzer may be difficult to hear due to external noise, audio play-
back, etc.

■

Hands off steering wheel warning

If the driver continues to keep their hands off of the steering wheel, a buzzer
sounds and a warning message and the symbol shown in the illustration are
displayed on the multi-information display. This warning also operates in the
same way when the driver continuously operates the steering wheel only a
small amount. Always keep your hands on the steering wheel when using this
system, regardless of warnings.
Depending on the vehicle and road conditions, the warning may not operate.

■

Vehicle sway warning function

Depending on the vehicle and road conditions, the warning may not operate.

■

White (yellow) lines are only on one side of road

The  LDA  system  will  not  operate  for  the  side  on  which  white  (yellow)  lines
could not be recognized.

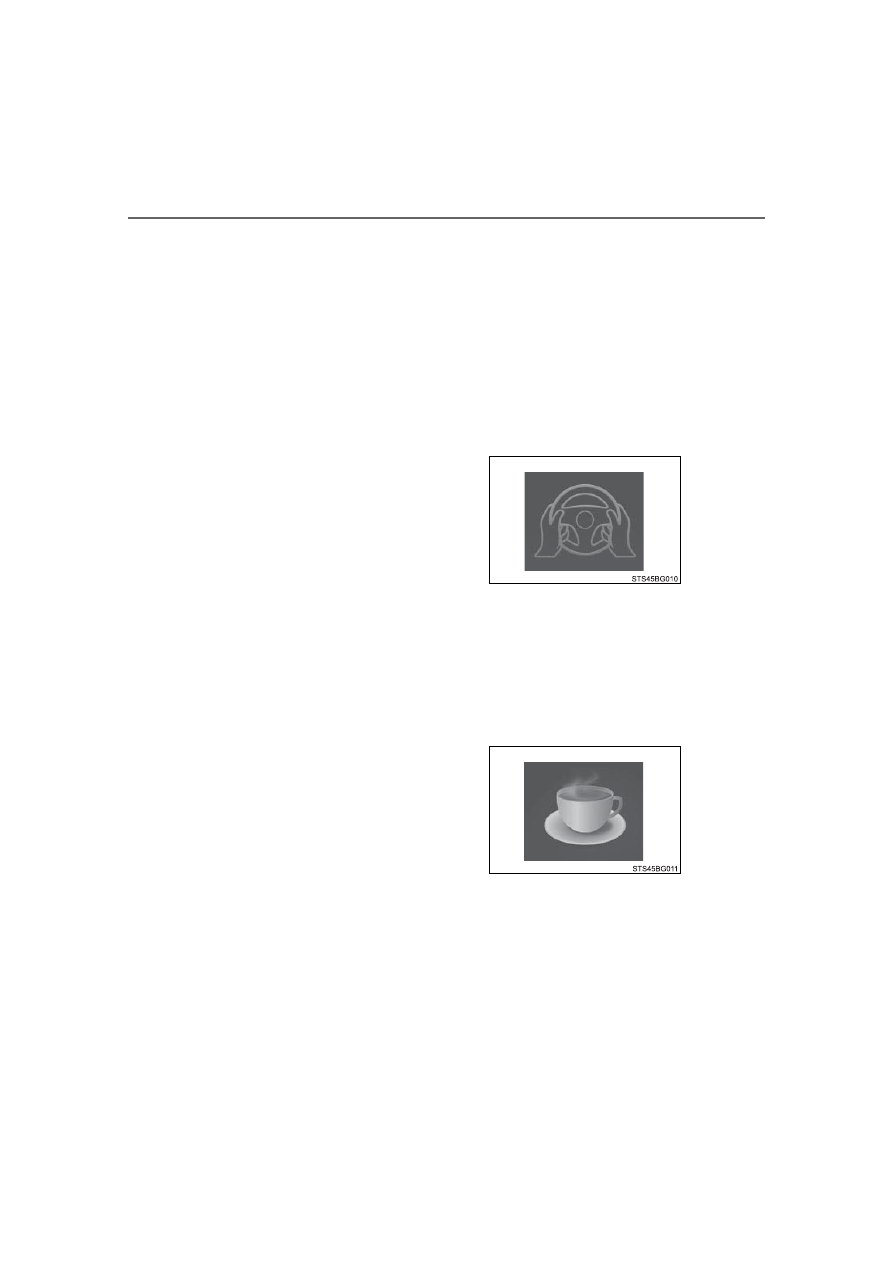

When  the  system  determines  that  the
driver  has  removed  their  hands  from  the
steering  wheel  while  the  steering  control
function is operating, a warning message
urging  the  driver  to  hold  the  steering
wheel and the symbol shown in the illus-
tration are displayed on the multi-informa-
tion display.

When  the  system  determines  that  the
vehicle is swaying while the vehicle sway
warning  function  is  operating,  a  buzzer
sounds  and  a  warning  message  urging
the driver to rest and the symbol shown in
the  illustration  are  simultaneously  dis-
played on the multi-information display.

249

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

■

Conditions in which functions may not operate properly

In the following situations, the camera sensor may not detect white (yellow)
lines and various functions may not operate normally.

●

There  are  shadows  on  the  road  that  run  parallel  with,  or  cover,  the  white
(yellow) lines.

●

The vehicle is driven in an area without white (yellow) lines, such as in front
of a tollgate or checkpoint, or at an intersection, etc.

●

The  white  (yellow)  lines  are  cracked,  “Botts’  dots”,  “Raised  pavement
marker” or stones are present.

●

The white (yellow) lines cannot be seen or are difficult to see due to sand,
etc.

●

The vehicle is driven on a road surface that is wet due to rain, puddles, etc.

●

The  traffic lines are yellow (which may be more difficult to  recognize  than
lines that are white).

●

The white (yellow) lines cross over a curb, etc.

●

The vehicle is driven on a bright surface, such as concrete.

●

The vehicle is driven on a surface that is bright due to reflected light, etc.

●

The  vehicle  is  driven  in  an  area  where  the  brightness  changes  suddenly,
such as at the entrances and exits of tunnels, etc.

●

Light from the headlights of an oncoming vehicle, the sun, etc., enters the
camera.

●

The vehicle is driven where the road diverges, merges, etc.

●

The vehicle is driven on a slope.

●

The vehicle is driven on a road which tilts left or right, or a winding road.

●

The vehicle is driven on an unpaved or rough road.

●

The vehicle is driven around a sharp curve.

●

The traffic lane is excessively narrow or wide.

●

The  vehicle  is  extremely  tilted  due  to  carrying  heavy  luggage  or  having
improper tire pressure.

●

The distance to the preceding vehicle is extremely short.

●

The vehicle is moving up and down a large amount due to road conditions
during driving (poor roads or road seams).

●

The headlight lenses are dirty and emit a faint amount of light at night, or the
beam axis has deviated.

●

The vehicle is struck by a crosswind.

●

The vehicle has just changed lanes or crossed an intersection.

●

Snow tires, etc., are equipped.

250

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

■

Warning message

If the following warning message is displayed on the multi-information display
and  the  LDA  indicator  illuminates  in  orange,  follow  the  appropriate  trouble-
shooting procedure.

If a different warning message is displayed, follow the instructions displayed
on the screen.

Warning message

Details/Actions

“Lane Departure

Alert

Malfunction.

Visit Your Dealer.”

The system may not be operating properly.



Have  the  vehicle  inspected  at  your  Toyota
dealer.

“Front Camera

Vision Blocked.

Clean and Demist

Windshield.”

Dirt,  rain,  condensation,  ice,  snow,  etc.,  are
present on the windshield in front of the camera
sensor.



Turn  the  LDA  system  off,  remove  any  dirt,
rain,  condensation,  ice,  snow,  etc.,  from  the
windshield,  and  then  turn  the  LDA  system
back on.

“Front Camera

Unavailable.”

The operation conditions of the camera sensor
(temperature, etc.) are not met.



When the operation conditions of the camera
sensor  (temperature,  etc.)  are  met,  the  LDA
system  will  become  available.  Turn  the  LDA
system  off,  wait  for  a  little  while,  and  then
turn the LDA system back on.

“LDA Unavailable.”

The LDA system is temporarily canceled due to
a malfunction in a sensor other than the camera
sensor.



Turn  the  LDA  system  off  and  follow  the
appropriate  troubleshooting  procedures  for
the  warning  message.  Afterward,  drive  the
vehicle  for  a  short  time,  and  then  turn  the
LDA system back on.

“LDA Unavailable

Below Approx.

32 MPH (50km/h).”

The LDA system cannot be used as the vehicle
speed  is  approximately  less  than  32  mph
(50 km/h).



Drive  the  vehicle  at  approximately  32  mph
(50 km/h) or more.

251

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

■

Customization

The following settings can be changed.

For how to change settings, refer to P. 495.

Function

Setting details

Lane departure alert function

Adjust alert sensitivity

Steering control function

Turn steering wheel assistance on and off

Vehicle sway warning function

Turn function on and off

Adjust alert sensitivity

252

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

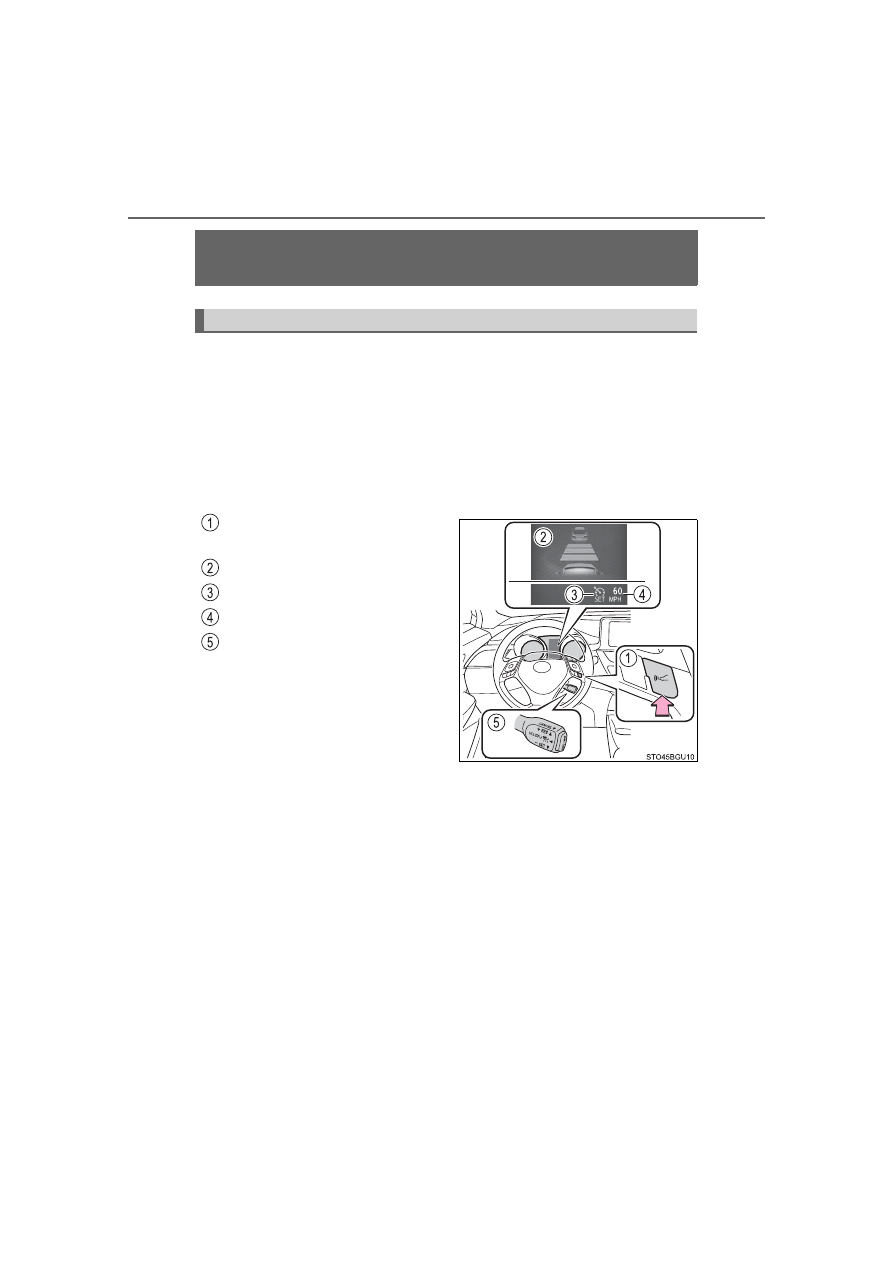

Dynamic radar cruise control



with full-speed

range

In vehicle-to-vehicle distance control mode, the vehicle automatically
accelerates, decelerates and stops to match the speed changes of the
preceding vehicle  even  if  the accelerator  pedal  is  not  depressed.  In
constant speed control mode, the vehicle runs at a fixed speed.
Use  the  dynamic  radar  cruise  control  with  full-speed  range  on  free-
ways and highways.

●

Vehicle-to-vehicle distance control mode (



P. 255)

●

Constant speed control mode (



P. 262)

Vehicle-to-vehicle

distance

switch
Display
Indicators
Set speed
Cruise control switch

Summary of functions

253

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

WARNING

■

Before using dynamic radar cruise control with full-speed range

●

Driving safely is the sole responsibility of the driver. Do not rely solely on
the system, and drive safely by always paying careful attention to your sur-
roundings.

●

The  dynamic  radar  cruise  control  with  full-speed  range  provides  driving
assistance to reduce the driver’s burden. However, there are limitations to
the assistance provided.
Read the following conditions carefully. Do not overly rely on this system
and always drive carefully.
• When the sensor may not be correctly detecting the vehicle ahead:



P. 264

• Conditions  under  which  the  vehicle-to-vehicle  distance  control  mode

may not function correctly:



P. 266

●

Set the speed appropriately depending on the speed limit, traffic flow, road
conditions, weather conditions, etc. The driver is responsible for checking
the set speed.

●

Even when the system is functioning normally, the condition of the preced-
ing  vehicle  as  detected  by  the  system  may  differ  from  the  condition
observed  by  the  driver.  Therefore,  the  driver  must  always  remain  alert,
assess the danger of each situation and drive safely. Relying on this sys-
tem or assuming the system ensures safety while driving can lead to an
accident, resulting in death or serious injury.

●

Switch the dynamic radar cruise control with full-speed range off using the
“ON-OFF” button when not in use.

■

Cautions regarding the driving assist systems

Observe the following precautions, as there are limitations to the assistance
provided by the system.
Failure to do so may cause an accident resulting in death or serious injury.

●

Assisting the driver to measure following distance
The dynamic radar cruise control with full-speed range is only intended to
help the driver in determining the following distance between the driver’s
own vehicle and a designated vehicle traveling ahead. It is not a mecha-
nism that allows careless or inattentive driving, and it is not a system that
can  assist  the  driver  in  low-visibility  conditions.  It  is  still  necessary  for
driver to pay close attention to the vehicle’s surroundings.

●

Assisting the driver to judge proper following distance
The  dynamic  radar  cruise  control  with  full-speed  range  determines
whether  the  following  distance  between  the  driver’s  own  vehicle  and  a
designated vehicle traveling ahead is within a set range. It is not capable
of making any other type of judgement. Therefore, it is absolutely neces-
sary for the driver to remain vigilant and to determine whether or not there
is a possibility of danger in any given situation.

254

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

WARNING

●

Assisting the driver to operate the vehicle
The dynamic radar cruise control with full-speed range has limited capabil-
ity to prevent or avoid a collision with a vehicle traveling ahead. Therefore,
if there is ever any danger, the driver must take immediate and direct con-
trol of the vehicle and act appropriately in order to ensure the safety of all
involved.

■

Situations unsuitable for dynamic radar cruise control with full-speed
range

Do not use dynamic radar cruise control with full-speed range in any of the
following situations.
Doing so may result in inappropriate speed control and could cause an acci-
dent resulting in death or serious injury.

●

Roads where there are pedestrians, cyclists, etc.

●

In heavy traffic

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as those covered with rain, ice or snow

●

On steep downhills, or where there are sudden changes between sharp up
and down gradients
Vehicle speed may exceed the set speed when driving down a steep hill.

●

At entrances to freeways and highways

●

When weather conditions are bad enough that they may prevent the sen-
sors from detecting correctly (fog, snow, sandstorm, heavy rain, etc.)

●

When there is rain, snow, etc., on the front surface of the radar sensor or
camera sensor

●

In traffic conditions that require frequent repeated acceleration and decel-
eration

●

During emergency towing

●

When an approach warning buzzer is heard often

255

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

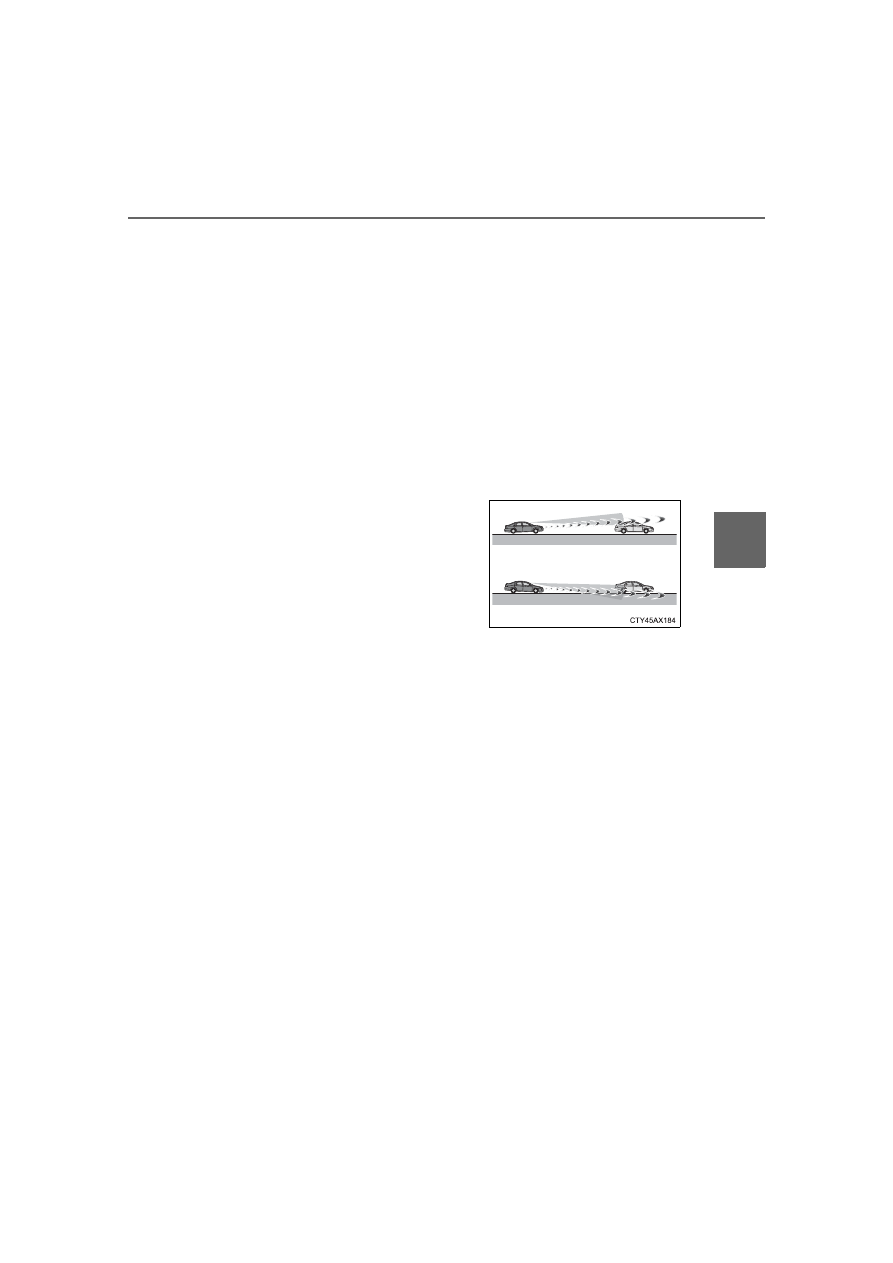

This mode employs a radar sensor to detect the presence of vehicles
up  to  approximately  328  ft.  (100  m)  ahead,  determines  the  current
vehicle-to-vehicle following distance, and operates to maintain a suit-
able following distance from the vehicle ahead.

Note  that  vehicle-to-vehicle  distance  will  close  in  when  traveling  on  long
downhill slopes.

Driving in vehicle-to-vehicle distance control mode

256

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

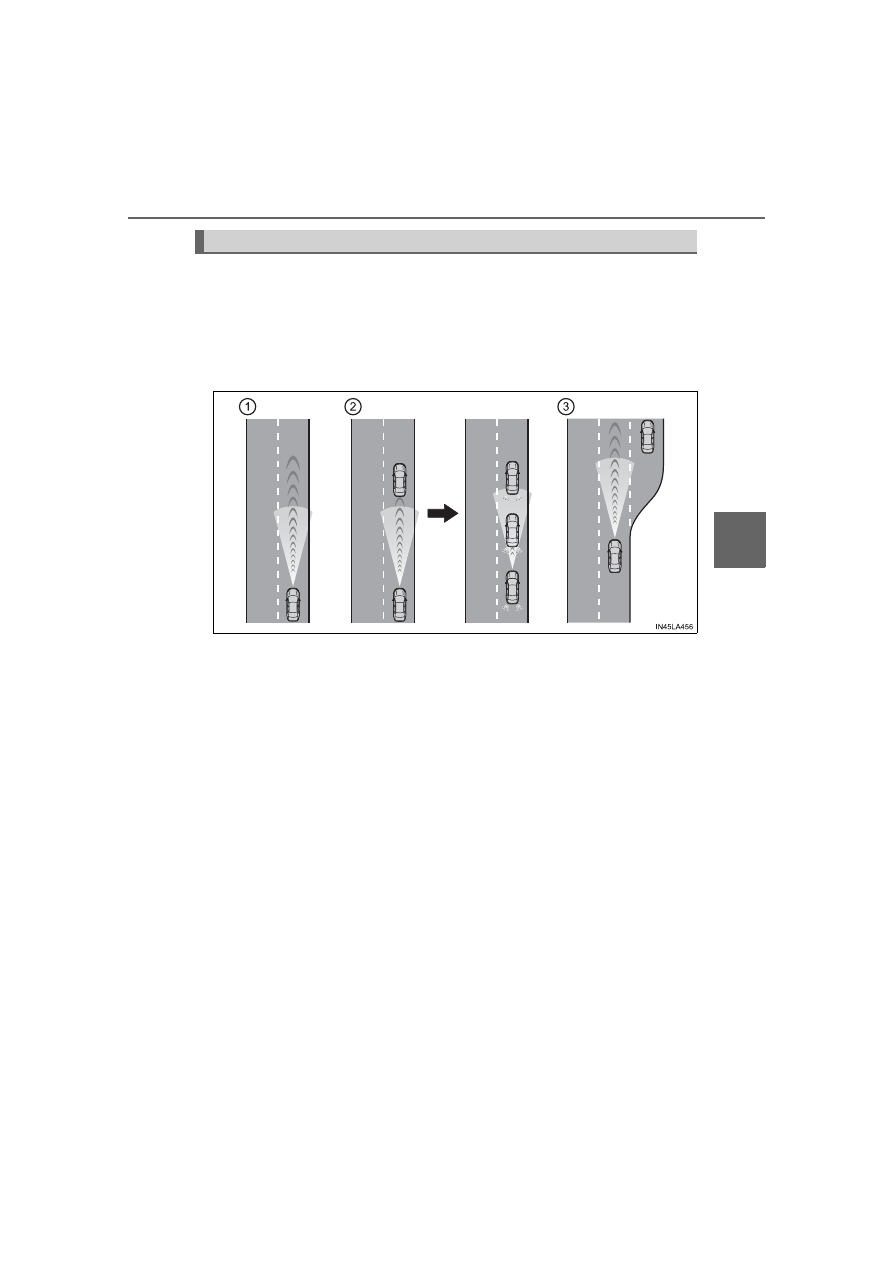

Example of constant speed cruising
When there are no vehicles ahead

The vehicle travels at the speed set by the driver. The desired vehicle-to-
vehicle  distance  can  also  be  set  by  operating  the  vehicle-to-vehicle  dis-
tance switch.

Example of deceleration cruising and follow-up cruising
When  a  preceding  vehicle  driving  slower  than  the  set  speed
appears

When a vehicle is detected running ahead of you, the system automatically
decelerates  your  vehicle.  When  a  greater  reduction  in  vehicle  speed  is
necessary, the system applies the brakes (the stop lights will come on at
this time). The system will respond to changes in the speed of the vehicle
ahead in order to maintain the vehicle-to-vehicle distance set by the driver.
Approach  warning  warns  you  when  the  system  cannot  decelerate  suffi-
ciently to prevent your vehicle from closing in on the vehicle ahead.
When the vehicle ahead of you stops, your vehicle will also stop (vehicle is
stopped by system control). After the vehicle ahead starts off, pushing the
cruise control lever up or depressing the accelerator pedal will resume fol-
low-up cruising.

Example of acceleration
When  there  are  no  longer  any  preceding  vehicles  driving  slower
than the set speed

The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.

257

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

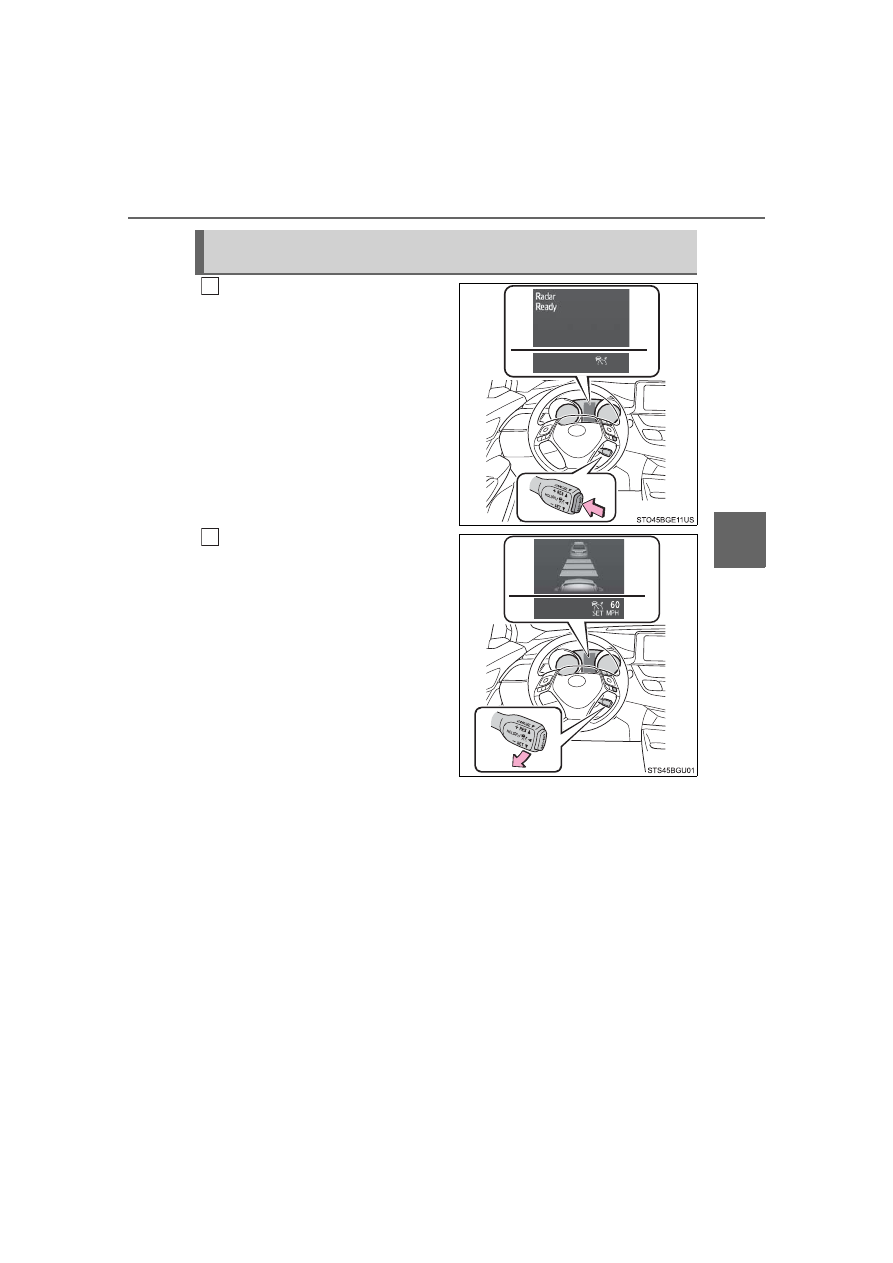

Press  the  “ON-OFF”  button  to
activate the cruise control.

Radar  cruise  control  indicator  will
come  on  and  a  message  will  be
displayed  on  the  multi-information
display.
Press  the  button  again  to  deacti-
vate the cruise control.
If  the  “ON-OFF”  button  is  pressed
and held for 1.5 seconds or more,
the  system  turns  on  in  constant
speed control mode. (



P. 262)

Accelerate  or  decelerate,  with
accelerator  pedal  operation,  to
the desired vehicle speed (at or
above  approximately  30  mph
[50  km/h])  and  push  the  lever
down to set the speed.

Cruise  control  “SET”  indicator  will
come on.
The  vehicle  speed  at  the  moment
the  lever  is  released  becomes  the
set speed.
If  the  lever  is  operated  while  the
vehicle  speed  is  below  approxi-
mately  30  mph  (50  km/h)  and  a
preceding  vehicle  is  present,  the
set  speed  will  be  adjusted  to
approximately 30 mph (50 km/h).

Setting  the  vehicle  speed  (vehicle-to-vehicle  distance  control
mode)

1

2

258

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

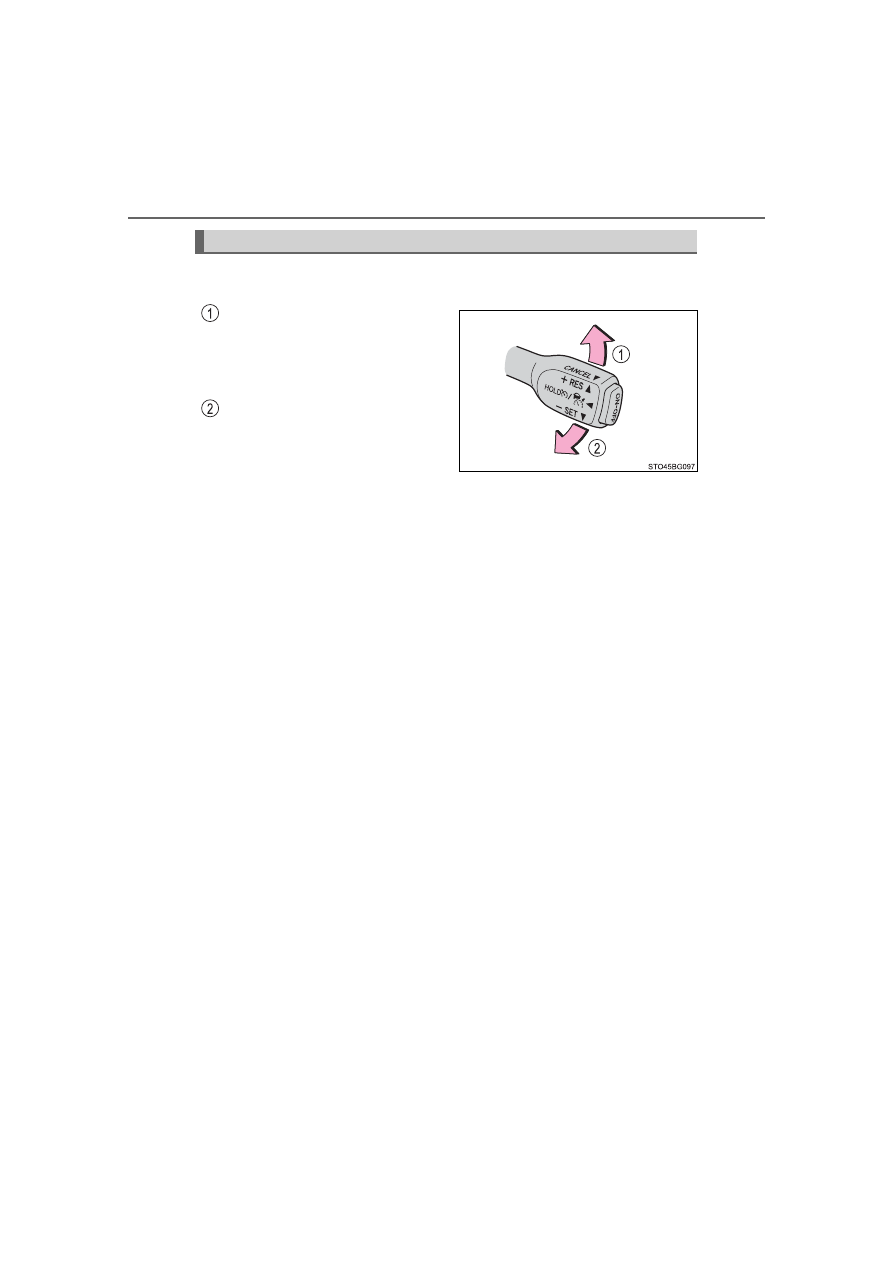

To change the set speed, operate the lever until the desired set speed
is displayed.

Increases the speed

(Except when the vehicle has been
stopped by system control in vehi-
cle-to-vehicle

distance

control

mode)

Decreases the speed

Fine  adjustment:  Momentarily
move  the  lever  in  the  desired
direction.
Large  adjustment:  Hold  the  lever  up  or  down  to  change  the  speed,
and release when the desired speed is reached.
In the vehicle-to-vehicle distance control mode, the set speed will be
increased or decreased as follows:

Fine adjustment: By 1 mph (1.6 km/h)

*

1

 or 1 km/h (0.6 mph)

*

2

 each time

the lever is operated



For the U.S. mainland, Hawaii

Large adjustment: Increases or decreases in 1 mph (1.6 km/h)

*

1

 or 1 km/h

(0.6 mph)

*

2

 increments for as long as the lever is held



For Canada, Guam and Puerto Rico

Large adjustment: Increases or decreases in 5 mph (8 km/h)

*

1

 or 5 km/h

(3.1 mph)

*

2

 increments for as long as the lever is held

In the constant speed control mode (



P. 262), the set speed will be

increased or decreased as follows:

Fine adjustment: By 1 mph (1.6 km/h)

*

1

 or 1 km/h (0.6 mph)

*

2

 each time

the lever is operated
Large  adjustment:  The  speed  will  continue  to  change  while  the  lever  is
held.

*

1

: When the set speed is shown in “MPH”

*

2

: When the set speed is shown in “km/h”

Adjusting the set speed

259

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

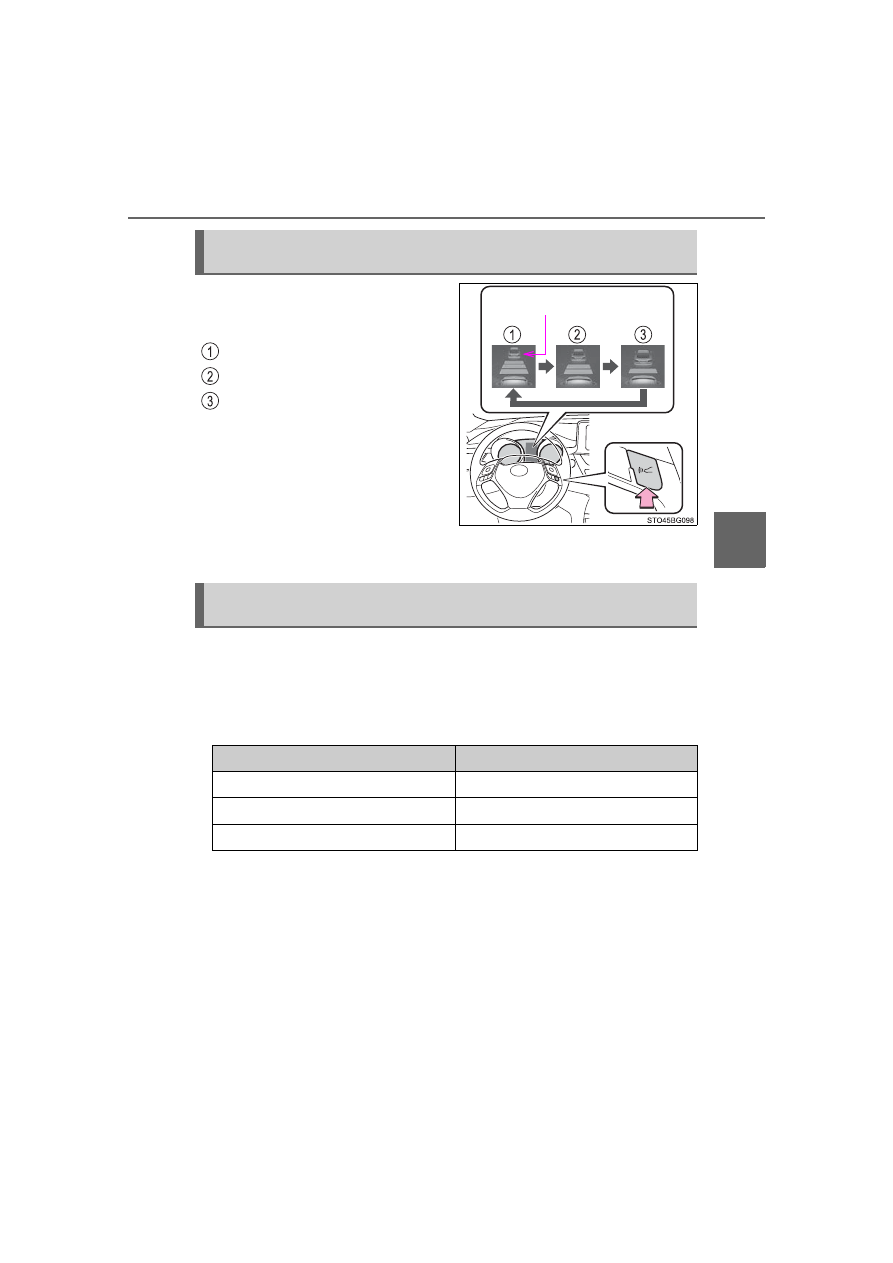

Pressing  the  switch  changes  the
vehicle-to-vehicle  distance  as  fol-
lows:

Long
Medium
Short

The  vehicle-to-vehicle  distance  is
set  automatically  to  long  mode
when the engine switch is turned to
the “ON” position (vehicles without
a  smart  key  system)  or  IGNITION
ON  mode  (vehicles  with  a  smart
key system).
If a vehicle is running ahead of you, the preceding vehicle mark will also be
displayed.

Select a distance from the table below. Note that the distances shown
correspond to a vehicle speed of 50 mph (80 km/h). Vehicle-to-vehicle
distance  increases/decreases  in  accordance  with  vehicle  speed.
When the vehicle is stopped by system control, the vehicle stops at a
certain vehicle-to-vehicle distance depending on the situation.

Changing the vehicle-to-vehicle distance (vehicle-to-vehicle dis-
tance control mode)

Preceding vehicle mark

Vehicle-to-vehicle distance settings (vehicle-to-vehicle distance
control mode)

Distance options

Vehicle-to-vehicle distance

Long

Approximately 160 ft. (50 m)

Medium

Approximately 130 ft. (40 m)

Short

Approximately 100 ft. (30 m)

260

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

After  the  vehicle  ahead  of  you
starts off, push the lever up.
Your  vehicle  will  also  resume
follow-up  cruising  if  the  accelera-
tor  pedal  is  depressed  after  the
vehicle ahead of you starts off.

Pulling  the  lever  toward  you
cancels the speed control.

The speed control is also canceled
when

the

brake

pedal

is

depressed.
(When  the  vehicle  has  been
stopped

by

system

control,

depressing  the  brake  pedal  does
not cancel the setting.)

Pushing the lever up resumes the cruise control and returns vehicle
speed to the set speed.

However,  when  a  vehicle  ahead  is  not  detected,  cruise  control  does  not
resume when the vehicle speed is approximately 25 mph (40 km/h) or less.

Resuming follow-up cruising when the vehicle has been stopped
by system control (vehicle-to-vehicle distance control mode)

Canceling and resuming the speed control

261

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

When your vehicle is too close to
a  vehicle  ahead,  and  sufficient
automatic  deceleration  via  the
cruise  control  is  not  possible,  the
display  will  flash  and  the  buzzer
will  sound  to  alert  the  driver.  An
example  of  this  would  be  if
another driver cuts in front of you
while you are following a vehicle.
Depress  the  brake  pedal  to
ensure  an  appropriate  vehicle-to-
vehicle distance.

■

Warnings may not occur when

In the following instances, warnings may not occur even when the
vehicle-to-vehicle distance is small.

●

When  the  speed  of  the  preceding  vehicle  matches  or  exceeds
your vehicle speed

●

When  the  preceding  vehicle  is  traveling  at  an  extremely  slow
speed

●

Immediately after the cruise control speed was set

●

When depressing the accelerator pedal

Approach warning (vehicle-to-vehicle distance control mode)

262

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

When constant speed control mode is selected, your vehicle will main-
tain  a  set  speed  without  controlling  the  vehicle-to-vehicle  distance.
Select this mode only when vehicle-to-vehicle distance control mode
does not function correctly due to a dirty radar sensor, etc.

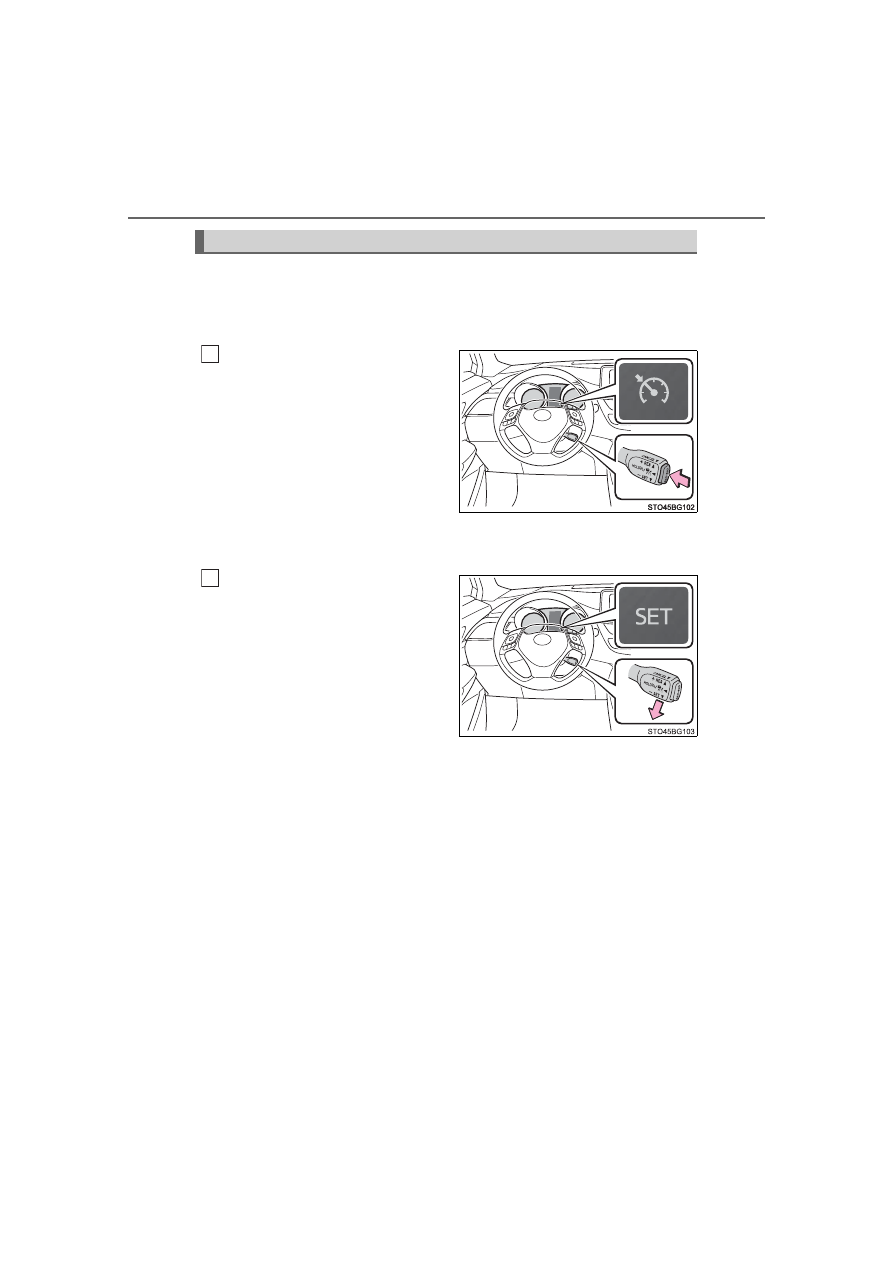

With  the  cruise  control  off,
press  and  hold  the  “ON-OFF”
button for 1.5 seconds or more.

Immediately  after  the  “ON-OFF”
button is pressed, the radar cruise
control  indicator  will  come  on.
Afterwards, it switches to the cruise
control indicator.
Switching  to  constant  speed  con-
trol  mode  is  only  possible  when
operating  the  lever  with  the  cruise
control off.

Accelerate  or  decelerate,  with
accelerator  pedal  operation,  to
the desired vehicle speed (at or
above  approximately  25  mph
[40  km/h])  and  push  the  lever
down to set the speed.

Cruise  control  “SET”  indicator  will
come on.
The  vehicle  speed  at  the  moment
the  lever  is  released  becomes  the
set speed.
Adjusting the speed setting:



P. 258

Canceling and resuming the speed setting:



P. 260

Selecting constant speed control mode

1

2

263

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

■

Dynamic radar cruise control with full-speed range can be set when

●

The shift lever is in D.

●

Vehicle speed is at or above approximately 30 mph (50 km/h).
However,  when a  preceding  vehicle is detected, the  dynamic  radar  cruise
control with full-speed range can be set even if the vehicle speed is below
approximately 30 mph (50 km/h).

■

Accelerating after setting the vehicle speed

The vehicle can accelerate by operating the accelerator pedal. After acceler-
ating,  the  set  speed  resumes.  However,  during  vehicle-to-vehicle  distance
control mode, the vehicle speed may decrease below the set speed in order
to maintain the distance to the preceding vehicle.

■

When the vehicle stops while follow-up cruising

●

Pushing  the  lever  up  while  the  vehicle  ahead  stops  will  resume  follow-up
cruising if the vehicle ahead starts off within approximately 3 seconds after
the lever is pushed up.

●

If the vehicle ahead starts off within 3 seconds after your vehicle stops, fol-
low-up cruising will be resumed.

■

Automatic cancelation of vehicle-to-vehicle distance control mode

Vehicle-to-vehicle distance control mode is automatically canceled in the fol-
lowing situations:

●

Actual vehicle speed falls at or below approximately 25 mph (40 km/h) when
there are no vehicles ahead.

●

The preceding vehicle leaves the lane when your vehicle is following at a
vehicle speed at or below approximately 25 mph (40 km/h). Otherwise, the
sensor cannot properly detect the vehicle.

●

VSC is activated.

●

TRAC is activated for a period of time.

●

When the VSC or TRAC system is turned off.

●

The sensor cannot detect correctly because it is covered in some way.

●

Pre-collision braking is activated.

●

The parking brake is operated.

●

The vehicle is stopped by system control on a steep incline.

●

The following are detected when the vehicle has been stopped by system
control:
• The driver is not wearing a seat belt.
• The driver’s door is opened.
• The vehicle has been stopped for about 3 minutes.

If vehicle-to-vehicle distance control mode is automatically canceled for any
other reason, there may be a malfunction in the system. Contact your Toyota
dealer.

264

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

■

Automatic cancelation of constant speed control mode

Constant speed control mode is automatically canceled in the following situa-
tions:

●

Actual vehicle speed is more than approximately 10 mph (16 km/h) below
the set vehicle speed.

●

Actual vehicle speed falls below approximately 25 mph (40 km/h).

●

VSC is activated.

●

TRAC is activated for a period of time.

●

When the VSC or TRAC system is turned off.

●

Pre-collision braking is activated.

If constant speed control mode is automatically canceled for any other rea-
son, there may be a malfunction in the system. Contact your Toyota dealer.

■

Brake system operation sound

If the brakes are applied automatically while the vehicle is in vehicle-to-vehi-
cle  distance  control  mode,  a  brake  system  operation  sound  may  be  heard.
This does not indicate a malfunction.

■

Warning  messages  and  buzzers  for  dynamic  radar  cruise  control  with
full-speed range

Warning messages and buzzers are used to indicate a system malfunction or
to inform the driver of the need for caution while driving. If a warning message
is shown on the multi-information display, read the message and follow the
instructions.

■

When the sensor may not be correctly detecting the vehicle ahead

In  the  case  of  the  following  and  depending  on  the  conditions,  operate  the
brake  pedal  when  deceleration  of  the  system  is  insufficient  or  operate  the
accelerator pedal when acceleration is required.
As the sensor may not be able to correctly detect these types of vehicles, the
approach warning (



P. 261) may not be activated.

●

Vehicles that cut in suddenly

●

Vehicles traveling at low speeds

●

Vehicles that are not moving in the same lane

265

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

●

Vehicles with small rear ends (trailers with no load on board, etc.)

●

Motorcycles traveling in the same lane

●

When  water  or  snow  thrown  up  by  the  surrounding  vehicles  hinders  the
detecting of the sensor

●

When  your  vehicle  is  pointing  upwards
(caused by a heavy load in the luggage
compartment, etc.)

●

Preceding vehicle has an extremely high
ground clearance

266

4-5. Using the driving support systems

C-HR_OM_USA_OM10634U

■

Conditions  under  which  the  vehicle-to-vehicle  distance  control  mode
may not function correctly

In the case of the following conditions, operate the brake pedal (or accelera-
tor pedal, depending on the situation) as necessary.
As the sensor may not be able to correctly detect vehicles ahead, the system
may not operate properly.

●

When the vehicle ahead of you decelerates suddenly

●

When driving on a road surrounded by a structure, such as in a tunnel or on
a bridge

●

While  the  vehicle  speed  is  decreasing  to  the  set  speed  after  the  vehicle
accelerates by depressing the accelerator pedal

●

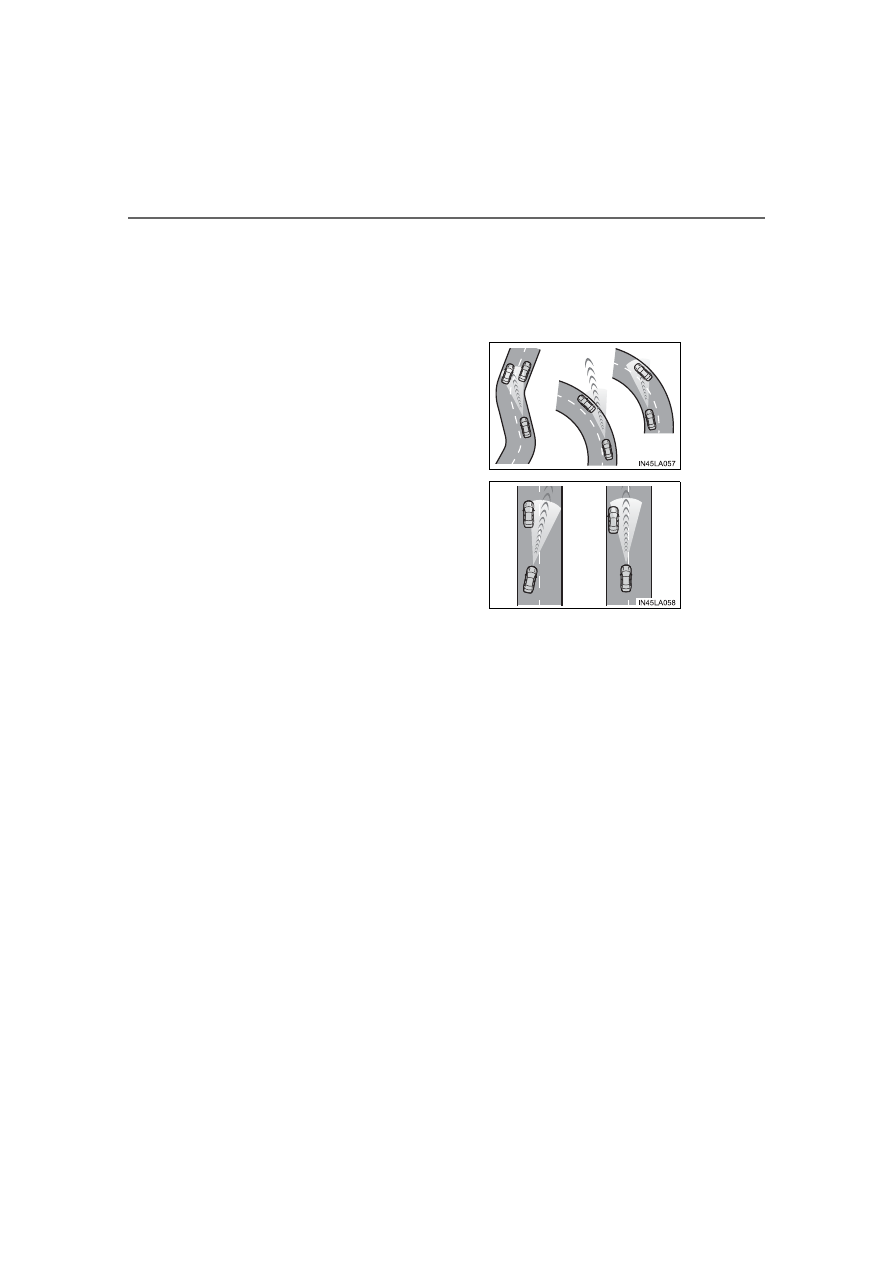

When the road curves or when the lanes
are narrow

●

When  steering  wheel  operation  or  your
position in the lane is unstable

267

4-5. Using the driving support systems

4

Drivin

g

C-HR_OM_USA_OM10634U

Driving mode select

■

Changing the driving mode

To select the drive mode, perform operations on the multi-information
display.

Press “



” or “



” of meter control switches and select

.

Press “



” or “



” of the meter control switches, and select “Drive

Mode”.
Press  “



” or “



”  of  the meter control  switches, and  select drive

mode.

In response to driving conditions, one of 3 drive modes can be
selected.

Select the drive mode

1

2

3
