Tire types

●

Summer tires
Summer tires are high-speed performance tires best suited to highway

driving under dry conditions. Since summer tires do not have the same

traction  performance  as  snow  tires,  summer  tires  are  inadequate  for

driving  on  snow-covered  or  icy  roads.  For  driving  on  snow-covered

roads or icy roads, the use of snow tires is recommended. When install-

ing snow tires, be sure to replace all four tires.

●

All season tires
All season tires are designed to provide better traction in snow and to

be  adequate  for  driving  in  most  winter  conditions  as  well  as  for  use

year-round. All  season  tires,  however,  do  not  have  adequate  traction

performance compared with snow tires in heavy or loose snow. Also, all

season tires fall short in acceleration and handling performance com-

pared with summer tires in highway driving.

●

Snow tires
For driving on snow-covered roads or icy roads, we recommend using

snow tires. If you need snow tires, select tires of the same size, con-

struction and load capacity as the originally installed tires. Since your

vehicle  has  radial  tires  as  original  equipment,  make  sure  your  snow

tires also have radial construction. Do not install studded tires without

first  checking  local  regulations  for  possible  restrictions.  Snow  tires

should be installed on all wheels. (



P. 373)

■

If the tread on snow tires wears down below 0.16 in. (4 mm)

The effectiveness of the tires as snow tires is lost.

463

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

■

Situations in which the tire pressure warning system may not oper-

ate properly

●

In  the  following  situations,  the  tire  pressure  warning  system  may  not

operate properly.
• If non-genuine Toyota wheels are used.

• If  a  tire  has  been  replaced  with  a  tire  that  is  not  an  OE  (Original

Equipment) tire.

• If a tire has been replaced with a tire that is not of the specified size.

• If tire chains, etc. are installed.

• If a window tint that affects radio wave signals is installed.

• If there is a lot of snow or ice on the vehicle, particularly around the

wheels or wheel housings.

• If the tire inflation pressure is much higher than the specified level.

• If wheels not equipped with tire pressure warning valve and transmit-

ter are used.

• If the ID codes of the tire pressure warning valve and transmitters are

not registered in the tire pressure warning computer.

●

Performance may be affected in the following situations.
• When driving near a TV tower, electric power plant, gas station, radio

station,  large  display,  airport  or  other  facility  that  generates  strong

radio waves or electrical noise

• When  carrying  a  portable  radio,  cellular  phone,  cordless  phone  or

other wireless communication device

Vehicles  with  a  tire  inflation  pressure  display  function:  If  tire  position

information is not correctly displayed due to the radio wave conditions,

the display may be corrected by changing the location of the vehicle as

the radio wave conditions may change.

●

When the vehicle is stopped, the time taken for the warning to start or

turn off may be longer.

●

When the inflation pressure of a tire drops rapidly, for example when a

tire has burst, the warning may not operate.

464

6-3. Do-it-yourself maintenance

■

Initialization procedure

●

Make sure to perform the initialization procedure after adjusting the tire

inflation pressure.

Also,  make  sure  the  tires  are  cold  before  performing  the  initialization

procedure or adjusting the tire inflation pressure.

●

If the power switch is turned off during initialization, it is not necessary to

restart  the  initialization  procedure  from  the  beginning  as  it  will  begin

automatically when the power switch is turned back to ON mode.

●

If  initialization  has  accidentally  been  started  when  it  is  not  necessary,

adjust the tire inflation pressure to the specified level when the tires are

cold and then perform the initialization procedure again.

●

Vehicles with a tire inflation pressure display function: While the position

of each tire is being determined and the inflation pressures are not being

displayed on the multi-information display, if the inflation pressure of a

tire drops, the tire pressure warning light will come on.

■

Warning performance of the tire pressure warning system

The  warning  of  the  tire  pressure  warning  system  will  change  in  accor-

dance with the conditions under which it was initialized. For this reason,

the system may give a warning even if the tire pressure does not reach a

low enough level, or if the pressure is higher than the pressure that was

adjusted to when the system was initialized.

■

If the tire pressure warning system is not initialized properly



Vehicles without a tire inflation pressure display function

Initialization can be completed in a few minutes. However, in the following

cases, the settings have not been recorded and the system will not oper-

ate properly. If repeated attempts to record tire inflation pressure settings

are unsuccessful, have the vehicle inspected by your Toyota dealer.

●

If initialization is attempted and the tire pressure warning light does not

blink 3 times.

●

If, when the vehicle has been driven for about 20 minutes after perform-

ing initialization, the tire pressure warning light blinks for approximately

1 minute and then illuminates.

465

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care



Vehicles with a tire inflation pressure display function

●

In the following situations, initialization may take longer than usual to be

completed or may not be possible. (Usually, the vehicle will need to be

driven for approximately 10 to 30 minutes to complete initialization.)

If  initialization  is  not  complete  after  driving  approximately  30  minutes,

continue driving for a while.
• If the vehicle is driven on an unpaved road, it may take longer to com-

plete initialization.

• If  the  vehicle  is  backed  up  while  performing  initialization,  data  col-

lected during initialization will be cleared and it will take longer than

normal to complete.

• If the vehicle is driven in heavy traffic or another situation where other

vehicles are driven close by, it may take time for the system to recog-

nize the tire pressure warning valve and transmitters of your vehicle

over those of other vehicles.

If  initialization  is  not  complete  after  driving  for  approximately  1  hour,

park the vehicle in a safe place for approximately 20 minutes and then

drive the vehicle again.

●

In  the  following  situations,  initialization  will  not  be  started  or  was  not

completed  properly  and  the  system  will  not  operate  properly.  Perform

the initialization procedure again.
• If, when attempting to start initialization, the tire pressure warning light

does not blink 3 times.

• If, when the vehicle has been driven for about 20 minutes after per-

forming initialization, the tire pressure warning light blinks for approxi-

mately 1 minute and then illuminates.

●

If  initialization  cannot  be  completed  after  performing  the  above  proce-

dure, contact your Toyota dealer.

■

When registering ID codes (vehicles with a tire inflation pressure dis-

play function)

●

Before performing ID code registration, make sure that no wheels with

tire pressure warning valve and transmitters installed are near the vehi-

cle.

●

Make sure to initialize the tire pressure warning system after registering

the ID codes. If the system is initialized before registering the ID codes,

the initialized values will be invalid.

●

As the tires will be warm when registration is completed, make sure to

allow the tires to cool before performing initialization.

466

6-3. Do-it-yourself maintenance

■

Canceling ID code registration (vehicles with a tire inflation pressure

display function)

●

To cancel ID code registration after it has been started, turn the power

switch off before driving the vehicle.

If the vehicle is driven after ID code registration is started, to cancel reg-

istration, perform the ID code registration start procedure again and turn

the power switch off before driving.

●

If ID code registration has been canceled, the tire pressure warning light

will blink for approximately 1 minute when the power switch is turned to

ON mode and then illuminate. The tire pressure warning system will be

operational when the tire pressure warning light turns off.

●

If  the  warning  light  does  not  turn  off  even  after  several  minutes  have

elapsed, ID code registration may not have been cancelled correctly. To

cancel  registration,  perform  the  ID  code  registration  start  procedure

again and then turn the power switch off before driving.

■

If ID codes are not registered properly (vehicles with a tire inflation

pressure display function)

●

In  the  following  situations,  ID  code  registration  may  take  longer  than

usual to be completed or may not be possible. (Usually, the vehicle will

need  to  be  driven  for  approximately  10  to  30  minutes  to  complete  ID

code registration.)

If ID code registration is not complete after driving for approximately 30

minutes, continue driving for a while.
• If the vehicle is driven on an unpaved road, it may take longer than

normal to complete registration.

• If  the  vehicle  is  backed  up  while  performing  registration,  data  col-

lected during registration will be cleared, and it will take longer than

normal to complete.

• If the vehicle is driven in heavy traffic or another situation where other

vehicles are driven close by, it may take time for the system to recog-

nize the tire pressure warning valve and transmitters of your vehicle

over those of other vehicles.

• If a wheel with a tire pressure warning valve and transmitter installed

is  inside  or  near  the  vehicle,  registration  of  the  ID  codes  for  the

installed wheels may not be possible.

If ID registration is not complete after driving for approximately 1 hour,

park the vehicle in a safe place for approximately 20 minutes and then

perform the ID code registration procedure again.

467

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

●

In the following situations, ID code registration will not be started or was

not  completed  properly  and  the  system  will  not  operate  properly.  Per-

form the ID code registration procedure again.
• If,  when  attempting  to  start  ID  code  registration,  the  tire  pressure

warning light does not blink slowly 3 times.

• If, when the vehicle has been driven for about 20 minutes after per-

forming ID code registration, the tire pressure warning light blinks for

approximately 1 minute and then illuminates.

●

If ID code registration cannot be completed after performing the above

procedure, contact your Toyota dealer.

■

Tire pressure warning system certification



For vehicles sold in the U.S.A.

468

6-3. Do-it-yourself maintenance



For vehicles sold in Canada

WARNING

■

When inspecting or replacing tires

Observe the following precautions to prevent accidents.

Failure to do so may cause damage to parts of the drive train as well as

dangerous  handling  characteristics,  which  may  lead  to  an  accident

resulting in death or serious injury.

●

Do not mix tires of different makes, models or tread patterns.

Also, do not mix tires of remarkably different treadwear.

●

Do not use tire sizes other than those recommended by Toyota.

●

Do not mix differently constructed tires (radial, bias-belted or bias-ply

tires).

●

Do not mix summer, all season and snow tires.

●

Do not use tires that have been used on another vehicle.

Do not use tires if you do not know how they were used previously.

■

When initializing the tire pressure warning system

Do not initialize the tire pressure warning system without first adjusting

the tire inflation pressure to the specified level. Otherwise, the tire pres-

sure warning light may not come on even if the tire inflation pressure is

low, or it may come on when the tire inflation pressure is actually nor-

mal.

469

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

NOTICE

■

Repairing  or  replacing  tires,  wheels,  tire  pressure  warning  valve

and transmitters and tire valve caps

●

When removing or fitting the wheels, tires or the tire pressure warning

valve and transmitters, contact your Toyota dealer as the tire pressure

warning  valve  and  transmitters  may  be  damaged  if  not  handled  cor-

rectly.

●

Make sure to install the tire valve caps. If the tire valve caps are not

installed, water may enter the valves of the tire pressure warning valve

and transmitters and the valves may become stuck.

●

When replacing tire valve caps, do not replace them with metal caps or

any tire valve caps other than specified, as they may become stuck.

■

To avoid damage to the tire pressure warning valve and transmit-

ters

When  a  tire  is  repaired  with  liquid  sealants,  the  tire  pressure  warning

valve  and  transmitter  may  not  operate  properly.  If  a  liquid  sealant  is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (



P. 457)

■

Driving on rough roads

Take particular care when driving on roads with loose surfaces or pot-

holes.

These conditions may cause losses in tire inflation pressure, reducing

the  cushioning  ability  of  the  tires.  In  addition,  driving  on  rough  roads

may  cause  damage  to  the  tires  themselves,  as  well  as  the  vehicle’s

wheels and body.

■

Low profile tires (vehicles with 18-inch wheels)

Low profile tires may cause greater damage than usual to the tire wheel

when sustaining impact from the road surface. Therefore, pay attention

to the following:

●

Be sure to use proper tire inflation pressure. If tires are under-inflated,

they may be damaged more severely.

●

Avoid potholes, uneven pavement, curbs and other road hazards. Fail-

ure to do so may lead to severe tire and wheel damage.

■

If tire inflation pressure of each tire becomes low while driving

Do not continue driving, or your tires and/or wheels may be ruined.

470

6-3. Do-it-yourself maintenance

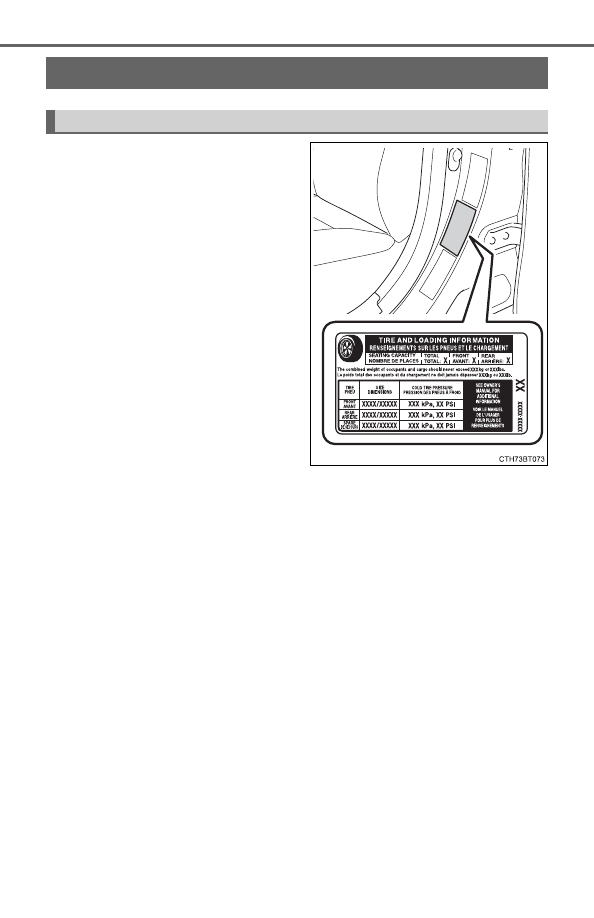

The  recommended  cold  tire  infla-
tion pressure and tire size are dis-
played  on  the  tire  and  loading
information label. (



P. 562)

Tire inflation pressure

Tire inflation pressure

471

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

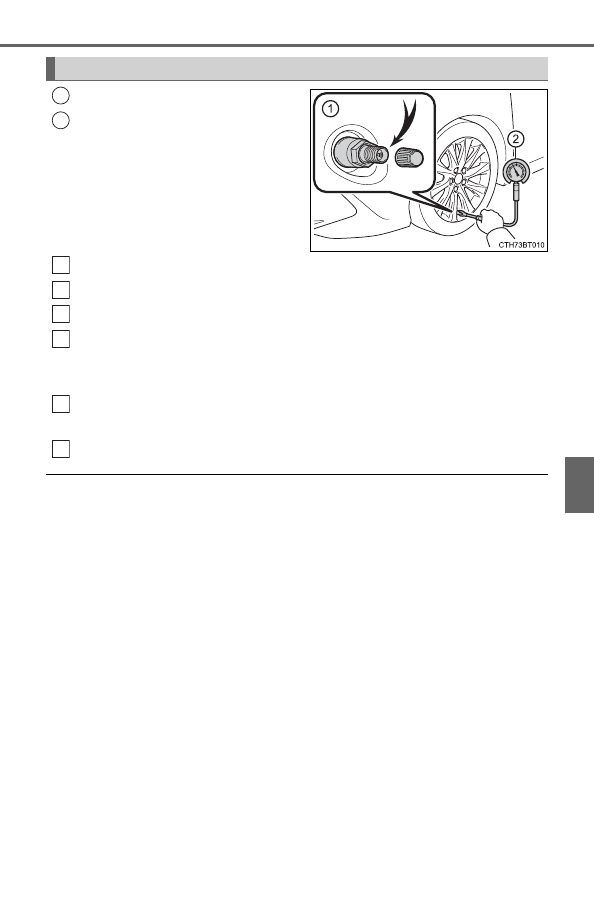

Tire valve
Tire pressure gauge

Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the gauge gradations.
If the tire inflation pressure is not at the recommended level, adjust
the pressure.
If you add too much air, press the center of the valve to deflate.
After  completing  the  tire  inflation  pressure  measurement  and
adjustment, apply soapy water to the valve and check for leakage.
Put the tire valve cap back on.

■

Tire inflation pressure check interval

You should check tire inflation pressure every two weeks, or at least once

a month.

Do not forget to check the spare.

■

Effects of incorrect tire inflation pressure

Driving with incorrect tire inflation pressure may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor handling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drivetrain

If a tire needs frequent inflating, have it checked by your Toyota dealer.

Inspection and adjustment procedure

1

2

1

2

3

4

5

6

472

6-3. Do-it-yourself maintenance

■

Instructions for checking tire inflation pressure

When checking tire inflation pressure, observe the following:

●

Check only when the tires are cold.

If  your  vehicle  has  been  parked  for  at  least  3  hours  or  has  not  been

driven for more than 1 mile or 1.5 km, you will get an accurate cold tire

inflation pressure reading.

●

Always use a tire pressure gauge.

It is difficult to judge if a tire is properly inflated based only on its appear-

ance.

●

It  is  normal  for  the  tire  inflation  pressure  to  be  higher  after  driving  as

heat is generated in the tire. Do not reduce tire inflation pressure after

driving.

●

Never exceed the vehicle capacity weight.

Passengers and luggage weight should be placed so that the vehicle is

balanced.

WARNING

■

Proper inflation is critical to save tire performance

Keep your tires properly inflated.

If the tires are not properly inflated, the following conditions may occur

which could lead to an accident resulting in death or serious injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting from overheated tires

●

Air leaking from between tire and wheel

●

Wheel deformation and/or tire damage

●

Greater possibility of tire damage while driving (due to road hazards,

expansion joints, sharp edges on the road, etc.)

NOTICE

■

When inspecting and adjusting tire inflation pressure

Be sure to put the tire valve caps back on.

If a valve cap is not installed, dirt or moisture may get into the valve and

cause an air leak, resulting in decreased tire inflation pressure.

473

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset

*

.

Replacement wheels are available at your Toyota dealer.

*

: Conventionally referred to as “offset”.

Toyota does not recommend using the following:

●

Wheels of different sizes or types

●

Used wheels

●

Bent wheels that have been straightened

●

Use  only Toyota  wheel  nuts  and  wrenches  designed  for  use  with
your aluminum wheels.

●

When  rotating,  repairing  or  changing  your  tires,  check  that  the
wheel nuts are still tight after driving 1000 miles (1600 km).

●

Be  careful  not  to  damage  the  aluminum  wheels  when  using  tire
chains.

●

Use only Toyota genuine balance weights or equivalent and a plas-
tic or rubber hammer when balancing your wheels.

■

When replacing wheels

The wheels of your vehicle are equipped with tire pressure warning valve

and  transmitters  that  allow  the  tire  pressure  warning  system  to  provide

advance warning in the event of a loss in tire inflation pressure. When-

ever  wheels  are  replaced,  tire  pressure  warning  valve  and  transmitters

must be installed. (



P. 457)

Wheels

If  a  wheel  is  bent,  cracked  or  heavily  corroded,  it  should  be
replaced.  Otherwise,  the  tire  may  separate  from  the  wheel  or
cause a loss of handling control.

Wheel selection

Aluminum wheel precautions (if equipped)

474

6-3. Do-it-yourself maintenance

WARNING

■

When replacing wheels

●

Do not use wheels that are a different size from those recommended in

the Owner’s Manual, as this may result in a loss of handling control.

●

Never  use  an  inner  tube  in  a  leaking  wheel  which  is  designed  for  a

tubeless tire. Doing so may result in an accident, causing death or seri-

ous injury.

■

When installing the wheel nuts

●

Be sure to install the wheel nuts with the tapered ends facing inward.

(



P. 533) Installing the nuts with the tapered ends facing outward can

cause the wheel to break and eventually cause the wheel to come off

while driving, which could lead to an accident resulting in death or seri-

ous injury.

●

Never use oil or grease on the wheel bolts or wheel nuts.

Oil and grease may cause the wheel nuts to be excessively tightened,

leading to bolt or disc wheel damage. In addition, the oil or grease can

cause the wheel nuts to loosen and the wheel may fall off, causing an

accident  and  resulting  in  death  or  serious  injury.  Remove  any  oil  or

grease from the wheel bolts or wheel nuts.

NOTICE

■

Replacing tire pressure warning valve and transmitters

●

Because tire repair or replacement may affect the tire pressure warn-
ing  valve  and  transmitters, make sure to have tires serviced  by your
Toyota dealer or other qualified service shop. In addition, make sure to
purchase  your  tire  pressure  warning  valve  and  transmitters  at  your
Toyota dealer.

●

Ensure that only genuine Toyota wheels are used on your vehicle.
Tire  pressure  warning  valve  and  transmitters  may  not  work  properly
with non-genuine wheels.

475

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

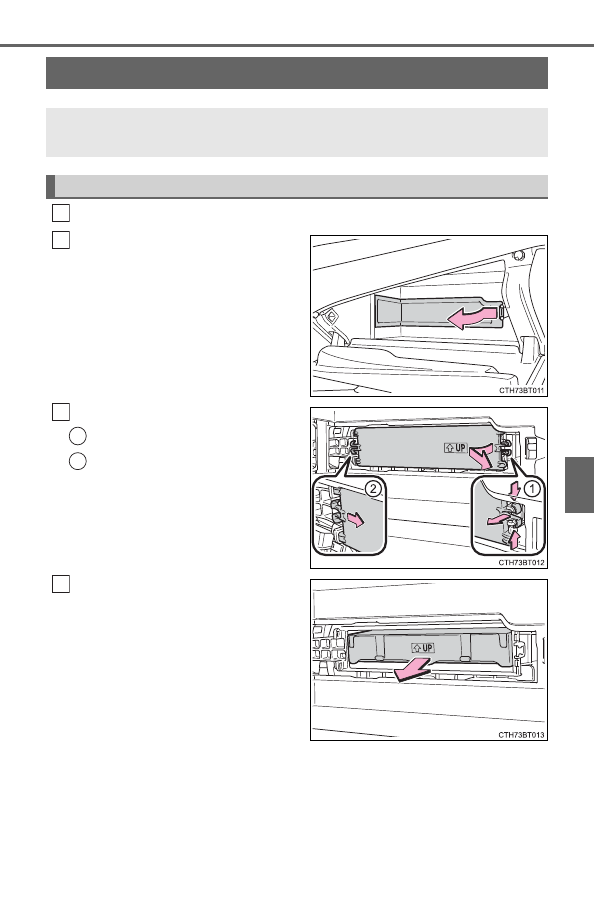

Turn the power switch off.
Open  the  glove  box  and
remove  the  glove  box  cover
inside the glove box.

Remove the filter cover.

Unlock the filter cover.
Move  the  filter  cover  in  the
direction  of  the  arrow,  and
then pull it out of the claws.

Remove the filter case.

There  may  be  foreign  objects  on
top of the air conditioning filter.

Air conditioning filter

The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.

Removal method

1

2

3

1

2

4

476

6-3. Do-it-yourself maintenance

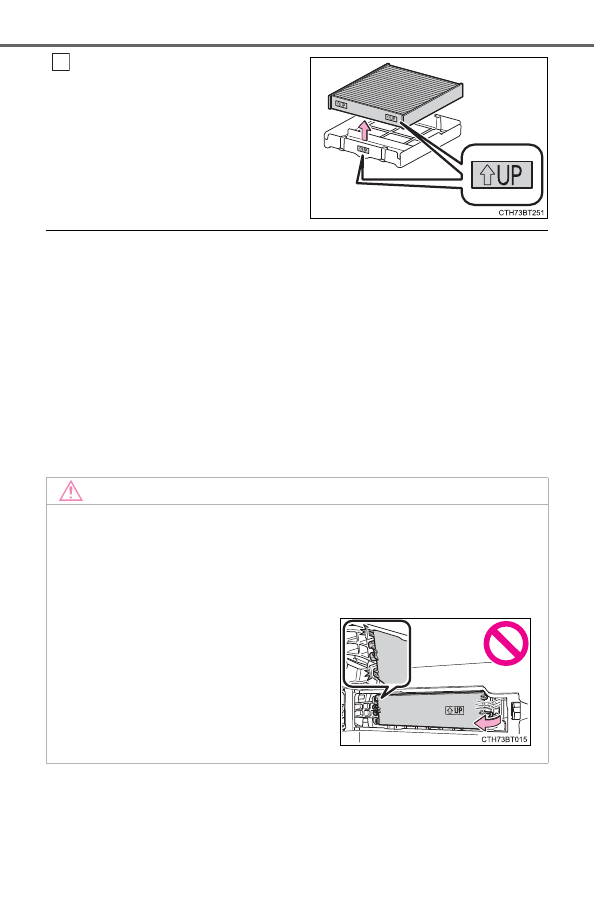

Remove the air conditioning fil-
ter  from  the  filter  case  and
replace it with a new one.

The “



UP” marks shown on the fil-

ter  and  the  filter  case  should  be
pointing up.

■

Checking interval

Inspect and replace the air conditioning  filter  according to  the  maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Scheduled Maintenance Guide” or “Owner’s Manual Supplement”.)

■

If air flow from the vents decreases dramatically

The filter may be clogged. Check the filter and replace if necessary.

■

Air conditioning filter with deodorizing function

When  fragrances  are  placed  in  your  vehicle,  the  deodorizing  effect  may
become significantly weakened in a short period.
When an air conditioning odor comes out continuously, replace the air condi-
tioning filter.

5

NOTICE

■

When using the air conditioning system

Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.

■

To prevent damage to the filter cover

When moving the filter cover in the direc-
tion  of  arrow  to  release  the  fitting,  pay
attention  not  to apply excessive  force  to
the  claws.  Otherwise,  the  claws  may  be
damaged.

477

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

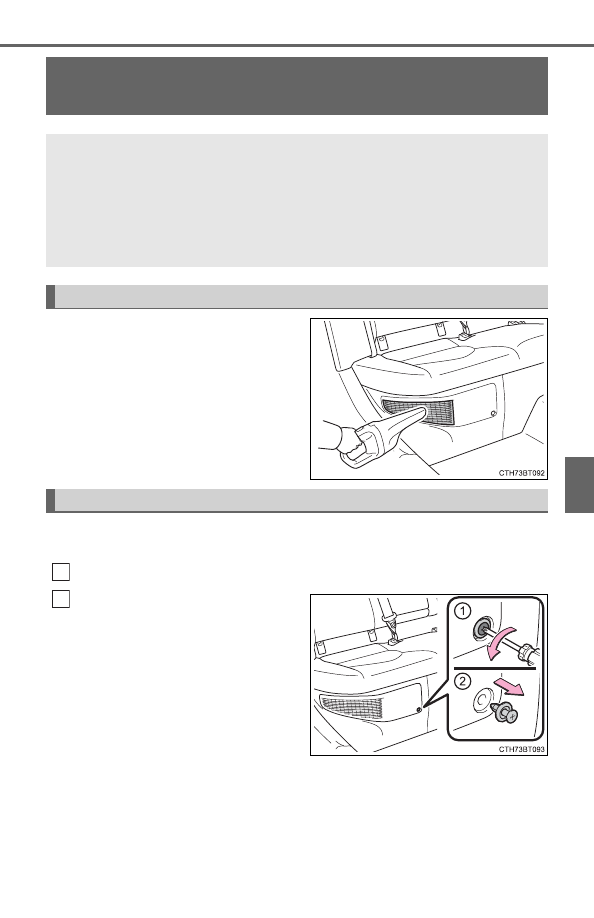

Remove  the  dust  from  the  air
intake  vent  with  a  vacuum
cleaner, etc.

Make sure to only use a vacuum to
suck  out  dust  and  clogs. Attempt-
ing  to  blow  out  dust  and  clogs
using  an  airgun,  etc.  may  push  it
into the air intake vent. (



P. 481)

If  dust  and  clogs  cannot  be  completely  removed  with  the  air  intake
vent cover installed, remove the cover and clean the filter.

Turn the power switch off.
Using  a  Phillips  screwdriver,
remove the clip.

Cleaning the hybrid battery (traction bat-

tery) air intake vent and filter

To  prevent  the  fuel  economy  from  being  affected,  visually
inspect the hybrid battery (traction battery) air intake vent peri-
odically for dust and clogs. If it is dusty or clogged or if “Mainte-
nance Required for Traction Battery Cooling Parts See Owner’s
Manual” is displayed on the multi-information display, clean the
air intake vent using the following procedures:

Cleaning the air intake vent

If dust and clogs cannot be completely removed

1

2

478

6-3. Do-it-yourself maintenance

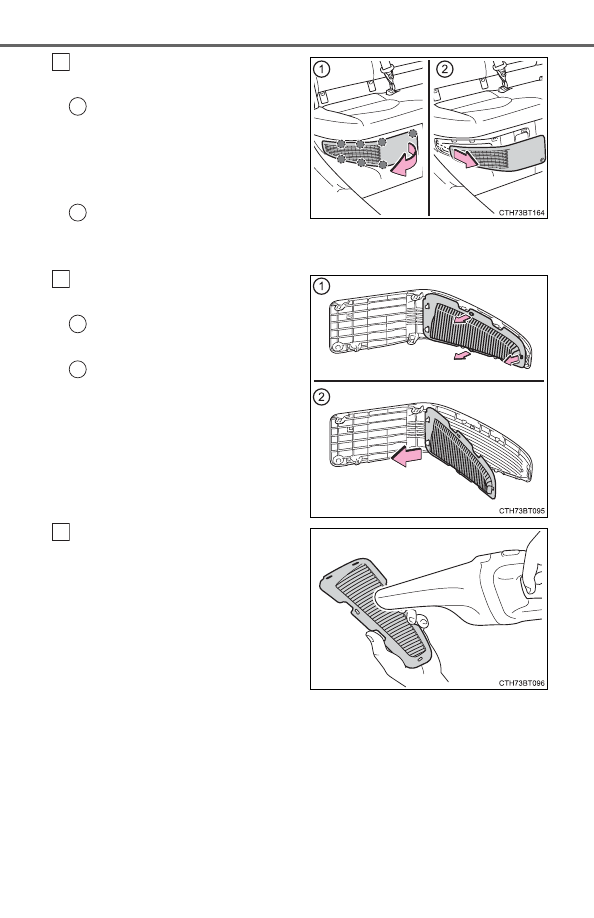

Remove  the  air  intake  vent
cover.

Pull  the  cover  as  shown  in
the  illustration  to  disengage
the 7 claws, starting from the
claw  in  the  upper  right  cor-
ner.
Pull  the  cover  toward  the
front of the vehicle to remove
it.

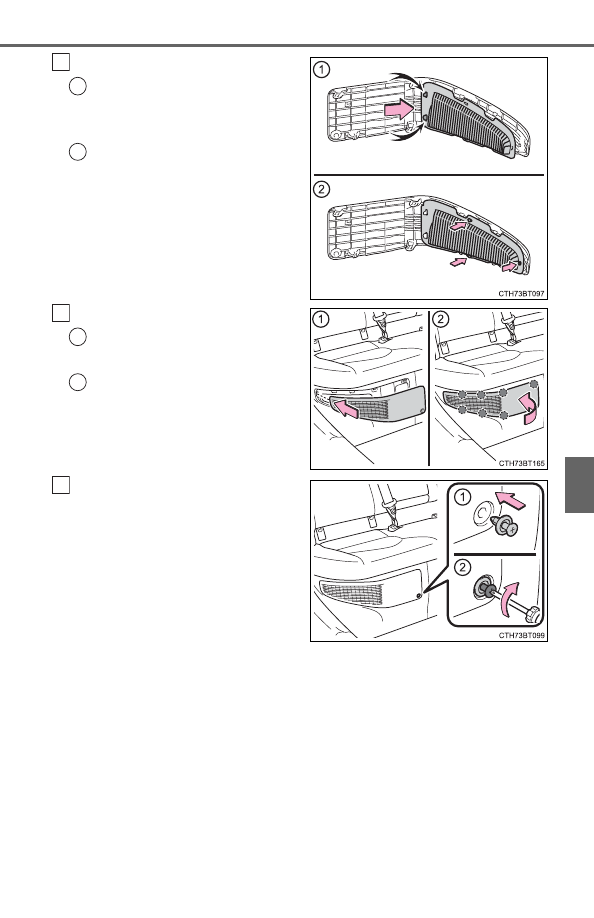

Remove  the  air  intake  vent  fil-
ter.

Disengage  the  3  claws  as
shown in the illustration.
Remove  the  filter  from  the
cover.

Remove  the  dust  and  clogs
from  the  filter  using  a  vacuum
cleaner, etc.

Make sure to also remove the dust
and clogs from the inside of the air
intake vent cover.

3

1

2

4

1

2

5

479

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

Reinstall the filter to the cover.

Engage  the  filter  to  the  2
claws  as  shown  in  the  illus-
tration.
Engage the 3 claws to install
the filter.

Make  sure  that  the  filter  is  not
crooked  or  deformed  when  install-
ing it.

Install the air intake vent cover.

Insert the tab of the cover as
shown in the illustration.
Push the cover to engage the
7 claws.

Using  a  Phillips  screwdriver,
install the clip.

6

1

2

7

1

2

8

480

6-3. Do-it-yourself maintenance

■

Scheduled maintenance of the air intake vent is necessary when

In some situations such as when the vehicle is used frequently or in heavy
traffic or dusty areas, the air intake vent may need to be cleaned more regu-
larly. For details, refer to “Scheduled Maintenance Guide” or “Owner’s Man-
ual Supplement”.

■

Cleaning the air intake vent

●

Dust in the air intake vent may interfere with the cooling of the hybrid battery
(traction battery). If charging/discharging of the hybrid battery (traction bat-
tery) becomes limited, the distance that the vehicle can be driven using the
electric motor (traction motor) may be reduced and the fuel economy may
be reduced.
Inspect and clean the air intake vent periodically.

●

Improper handling of the air intake vent cover and filter may result in dam-
age to them. If you have any concerns about cleaning the filter, contact your
Toyota dealer.

■

If “Maintenance Required for Traction Battery Cooling Parts See Owner’s
Manual” is displayed on the multi-information display

●

If  this  warning  message  is  displayed  on  the  multi-information  display,
remove the air intake vent cover and clean the filter. (



P. 477)

●

After cleaning the air intake vent, start the hybrid system and check that the
warning message is no longer displayed.
After the hybrid system is started, it may be necessary to drive the vehicle
up to approximately 20 minutes before the warning message disappears. If
the warning message does not disappear after driving for appropriately 20
minutes, have the vehicle inspected by your Toyota dealer.

WARNING

■

When cleaning the air intake vent

●

Do not use water or other liquids to clean the air intake vent. If water is
applied to the hybrid battery (traction battery) or other components, a mal-
function or fire may occur.

●

Before cleaning the air intake vent, make sure to turn the power switch off
to stop the hybrid system.

■

When removing the air intake vent cover

Do not touch the service plug located near the air intake vent. (



P. 86)

481

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

NOTICE

■

When cleaning the air intake vent

■

To prevent damage to the vehicle

●

Do not allow water or foreign matter to enter the air intake vent when the
cover is removed.

●

Carefully handle the removed filter so that it will not be damaged.
If the filter is damaged, have it replaced with a new filter by your Toyota
dealer.

●

Make  sure  to  reinstall  the  filter  and  cover  to  their  original  positions  after
cleaning.

●

Do not install anything to the air intake vent other than the exclusive filter
for this vehicle or use the vehicle without the filter installed.

■

If  “Maintenance  Required  for  Traction  Battery  Cooling  Parts  See
Owner’s Manual” is displayed on the multi-information display

If  the  vehicle  is  continuously  driven  with  the  warning  message  (indicating
that  charging/discharging  of  the  hybrid  battery  (traction  battery)  may
become  limited)  displayed,  the  hybrid  battery  (traction  battery)  may  mal-
function. If a warning message is displayed, clean the air intake vent imme-
diately.

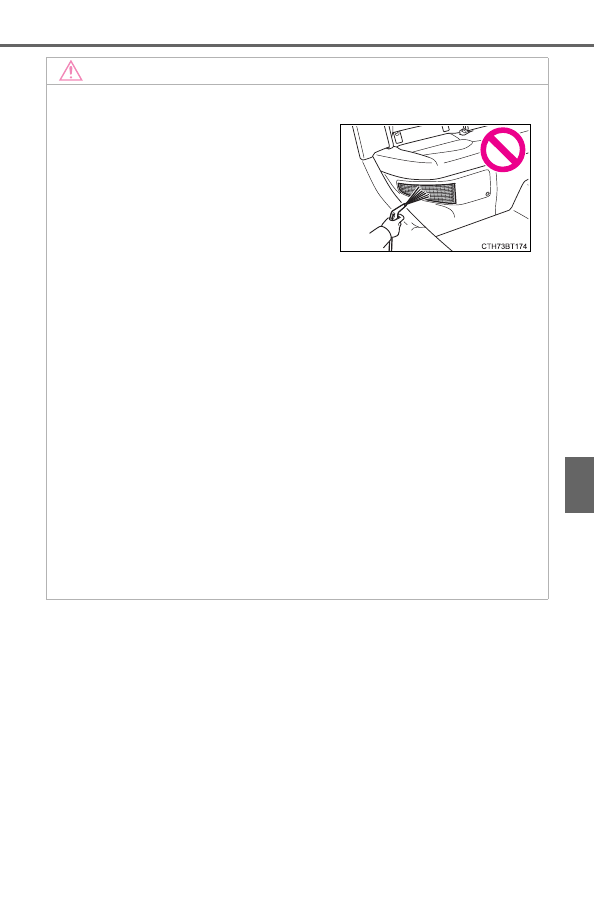

When cleaning the air intake vent, make
sure  to  only  use  a  vacuum  to  suck  out
dust and clogs. If a compressed air blow
gun,  etc.  is  used  to  blow  out  dust  and
clogs,  the  dust  or  clogs  may  be  pushed
into the air intake vent, which may affect
the  performance  of  the  hybrid  battery
(traction  battery)  and  cause  a  malfunc-
tion.

482

6-3. Do-it-yourself maintenance

●

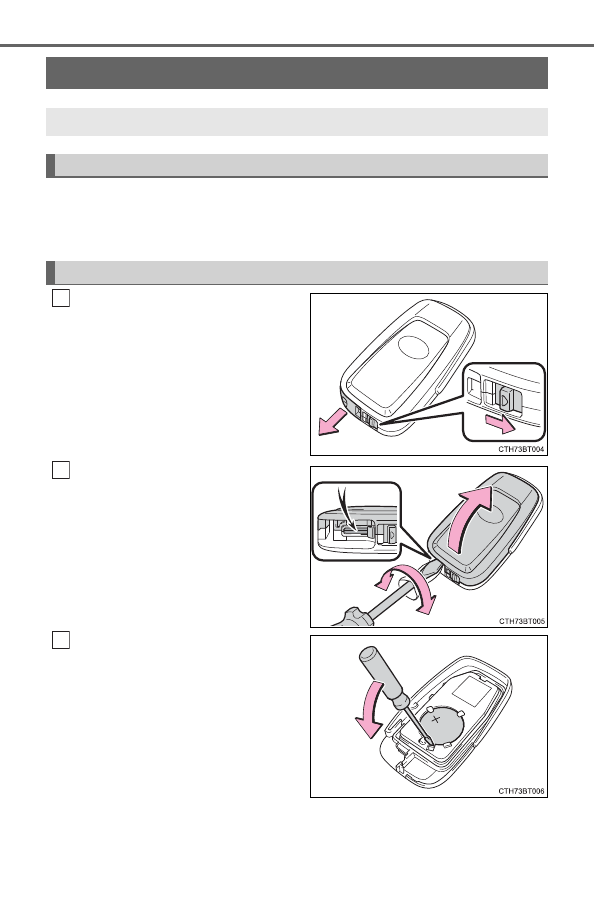

Flathead screwdriver

●

Small flathead screwdriver

●

Lithium battery CR2032

Release  the  lock  and  remove
the mechanical key.

Remove the key cover.

To  prevent  damage  to  the  key,
cover the tip of the flathead screw-
driver with a rag.

Remove  the  depleted  battery
using  a  small  flathead  screw-
driver.

When  removing  the  cover,  the
electronic key module may stick to
the cover and the battery may not
be visible. In this case, remove the
electronic  key  module  in  order  to
remove the battery.
Insert a new battery with the “+” terminal facing up.

Electronic key battery

Replace the battery with a new one if it is depleted.

You will need the following items:

Replacing the battery

1

2

3

483

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

When installing the key cover and mechanical key, install by con-
ducting

 and

 with the directions reversed.

Operate the

 or

 switch and check that the doors can

be locked/unlocked.

■

When replacing the key battery

Be careful not to lose the battery or any other small parts.

■

Use a CR2032 lithium battery

●

Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.

●

Replace only with the same or equivalent type recommended by the manu-
facturer.

●

Dispose of used batteries according to local laws.

■

If the key battery is depleted

The following symptoms may occur:

●

The smart key system and wireless remote control will not function properly.

●

The operational range will be reduced.

WARNING

■

Battery precautions

Observe the following precautions. Failure to do so may result in death or
serious injury.

●

Do not swallow the battery. Doing so may cause chemical burns.

●

A coin battery or button battery is used in the electronic key. If a battery is
swallowed, it may cause severe chemical burns in as little as 2 hours and
may result in death or serious injury.

●

Keep away new and removed batteries from children.

●

If the cover cannot be firmly closed, stop using the electronic key and stow
the key in the place where children cannot reach, and then contact your
Toyota dealer.

●

If  you  accidentally  swallow  a  battery  or  put  a  battery  into  a  part  of  your
body, get emergency medical attention immediately.

■

To prevent battery explosion or leakage of flammable liquid or gas

●

Replace the battery with a new battery of the same type. If a wrong type of
battery is used, it may explode.

●

Do not expose batteries to extremely low pressure due to high altitude or
extremely high temperatures.

●

Do not burn, break or cut a battery.

4

2

1

5

484

6-3. Do-it-yourself maintenance

NOTICE

■

For normal operation after replacing the battery

Observe the following precautions to prevent accidents:

●

Always work with dry hands.
Moisture may cause the battery to rust.

●

Do not touch or move any other component inside the remote control.

●

Do not bend either of the battery terminals.

485

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

Turn the power switch off.
Open the fuse box cover.

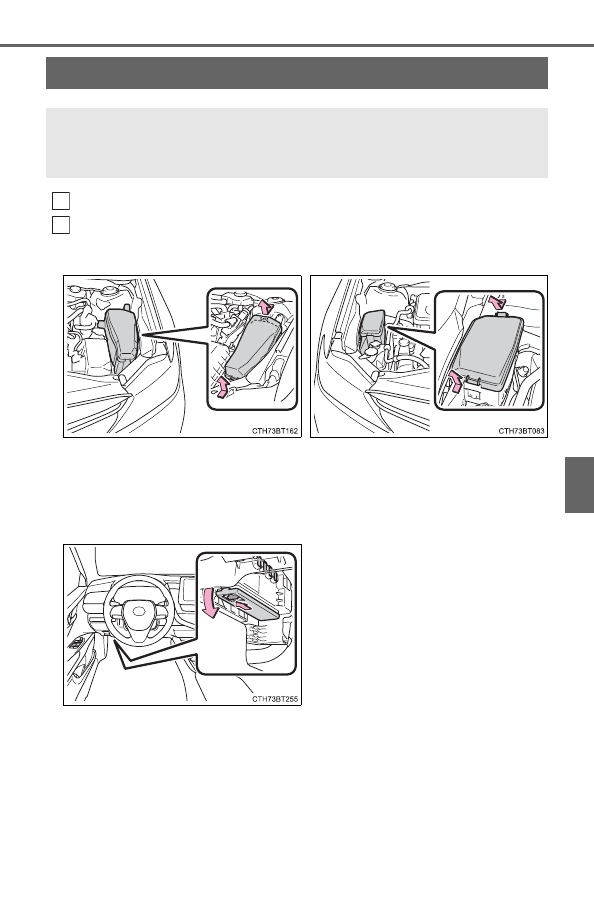

Checking and replacing fuses

If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.

1

2



Engine compartment (type A)



Engine compartment (type B)

Push the tabs in and lift the lid off.

Push  the  tabs  in  and  lift  the  lid
off.



Under  the  driver’s  side  instru-
ment panel

Remove the lid.

Make  sure  to  push  the  claw  when
removing/installing the lid.

486

6-3. Do-it-yourself maintenance

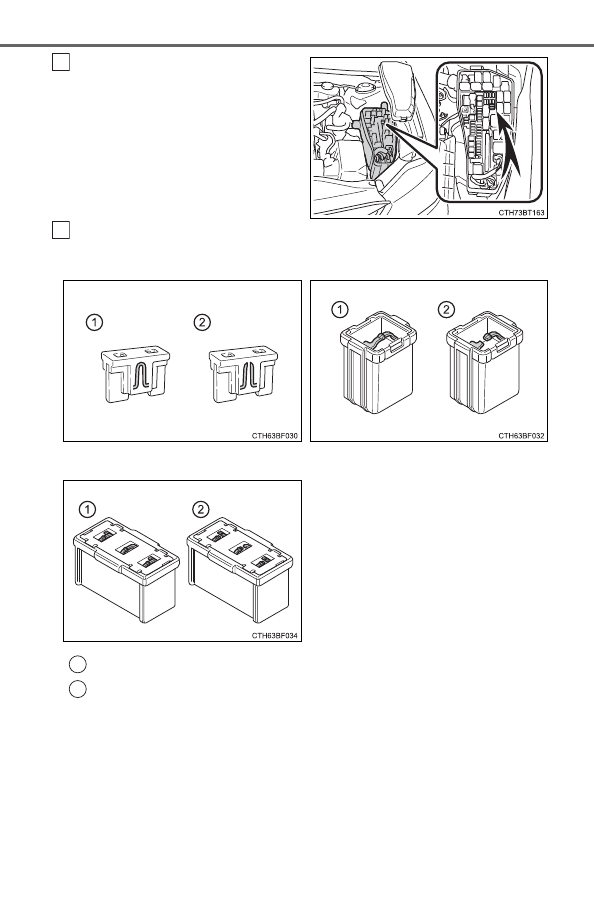

Remove  the  fuse  with  the  pull-
out tool.

Only type A fuses can be removed
using the pullout tool.

Check if the fuse is blown.

Normal fuse
Blown fuse

Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.

3

4



Type A



Type B



Type C

1

2

487

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

■

After a fuse is replaced

●

If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (



P. 488)

●

If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.

■

If there is an overload in a circuit

The fuses are designed to blow, protecting the wiring harness from damage.

WARNING

■

To prevent system breakdowns and vehicle fire

Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.

●

Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.

●

Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.

●

Do not modify the fuses or fuse boxes.

NOTICE

■

Before replacing fuses

Have  the  cause  of  electrical  overload  determined  and  repaired  by  your
Toyota dealer as soon as possible.

488

6-3. Do-it-yourself maintenance

Check the wattage of the light bulb to be replaced. (



P. 564)

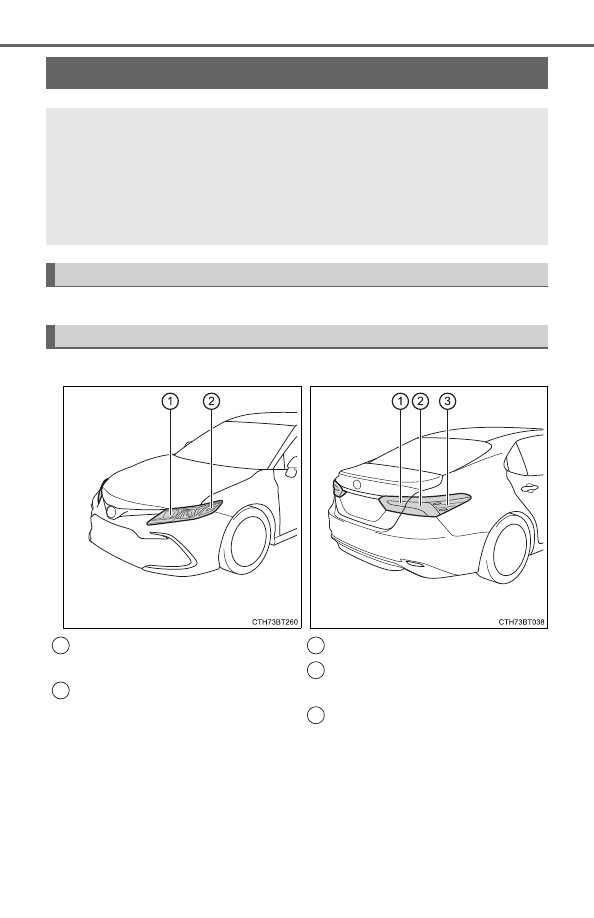

Light bulbs

You may replace the following bulbs yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement  seems  difficult  to  perform,  contact  your  Toyota
dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.

Preparing for light bulb replacement

Bulb locations



Front



Rear

Front  turn  signal/parking  lights
(bulb type)
Front  side  marker  lights  (bulb
type)

Back-up lights (bulb type)
Rear  turn  signal  lights  (bulb
type)
Rear  side  marker  lights  (bulb
type)

1

2

1

2

3

489

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

■

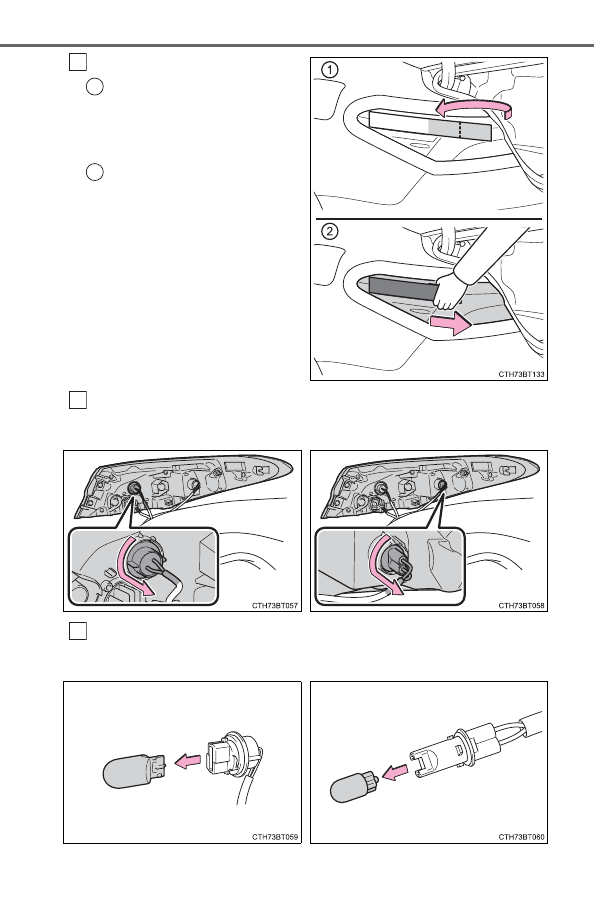

Front turn signal/parking lights (bulb type)

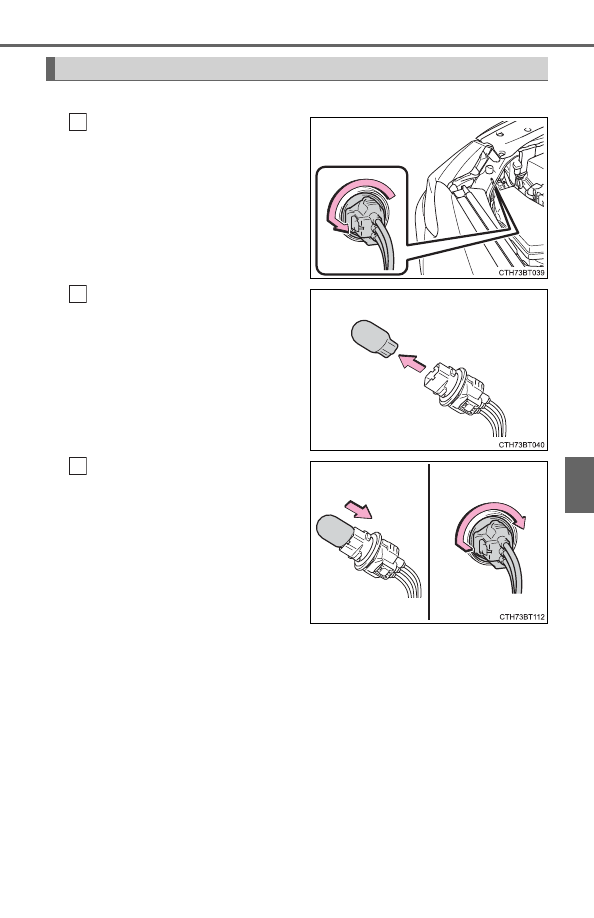

Turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

Install  a  new  light  bulb  and
then  install  the  bulb  base  to
the  light  unit  by  inserting  it
and turning it clockwise.

Replacing light bulbs

1

2

3

490

6-3. Do-it-yourself maintenance

■

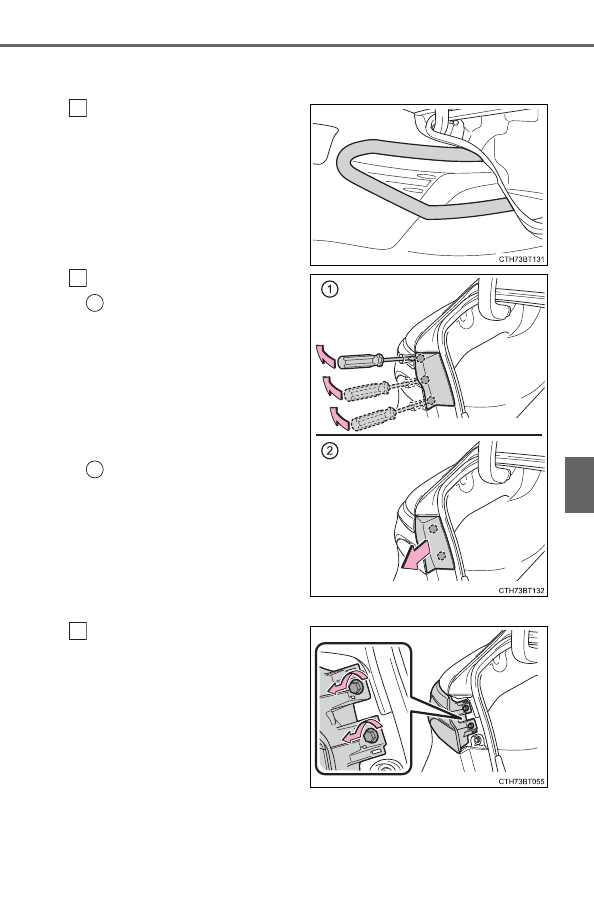

Front side marker lights (bulb type)

To  ensure  enough  space  to
perform work, turn the steer-
ing  wheel  to  move  the  front
wheel  away  from  the  light
bulb to be replaced.

Turn  the  steering  wheel  to  the
left when replacing the right side
light  bulb,  and  turn  the  steering
wheel  to  the  right  when  replac-
ing the left side light bulb.

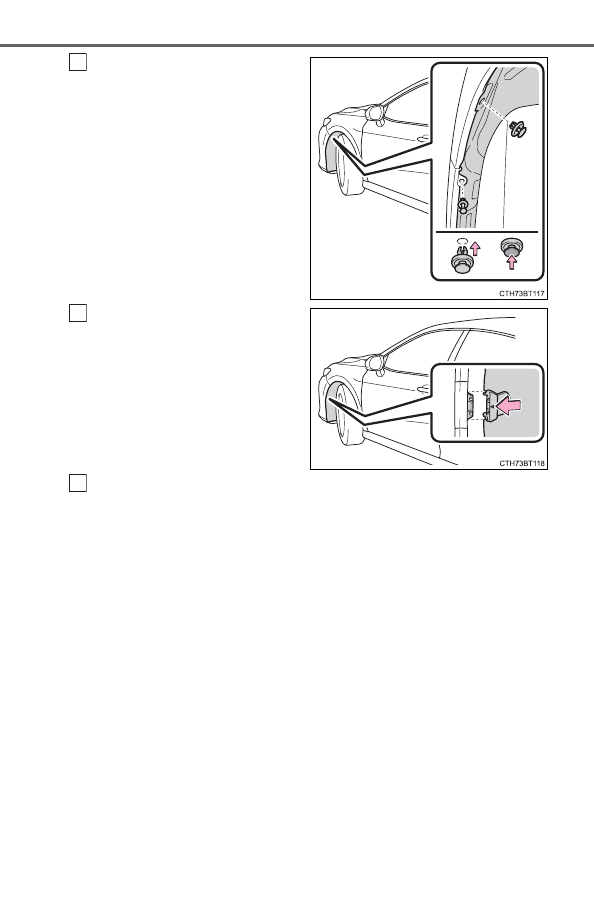

Remove  the  fender  liner
clips.

To  protect  the  front  bumper
from  being  damaged,  apply
protective  tape  around  the
clip  as  shown  in  the  illustra-
tion.

Use  masking  tape,  etc.  Do  not
use  duct  tape,  as  it  may  leave
residue  or  damage  the  paint
when removed.

1

2

3

491

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

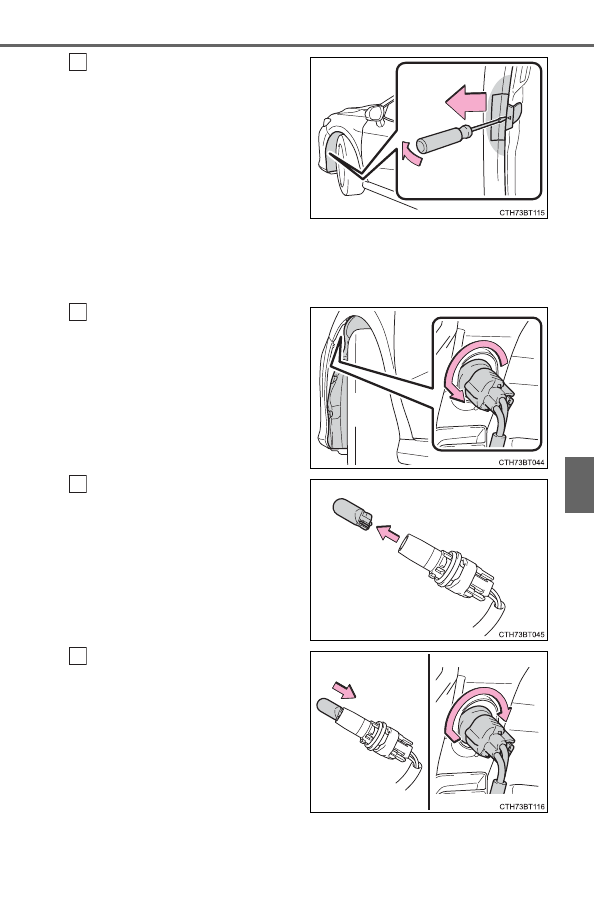

Insert a small flathead screw-
driver  between  the  front
bumper  and  fender  liner  at
the  position  marked  with  a
“



”  and  then  separate  the

front bumper from the fender
liner.

To  separate  the  front  bumper
from the fender liner, pry up the
fender  liner  while  pulling  the
front bumper outward as shown
in the illustration.

Pull back the fender liner and
turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

Install  a  new  light  bulb  and
then  install  the  bulb  base  to
the  light  unit  by  inserting  it
and turning it clockwise.

4

5

6

7

492

6-3. Do-it-yourself maintenance

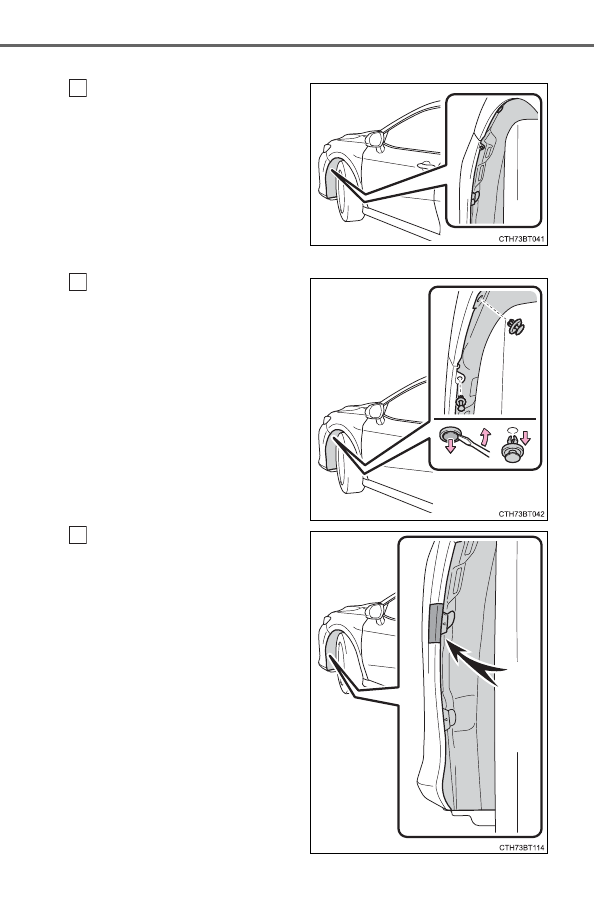

Return  the  fender  liner  to  its
original  position,  and  install
the clips.

Make  sure  that  the  fender  liner
is  correctly  positioned  on  the
inner side of the front bumper.

To  Install  the  fender  liner  to
the front bumper, engage the
clip to the front bumper.

Remove the protective tape.

8

9

10

493

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

■

Back-up lights (bulb type)

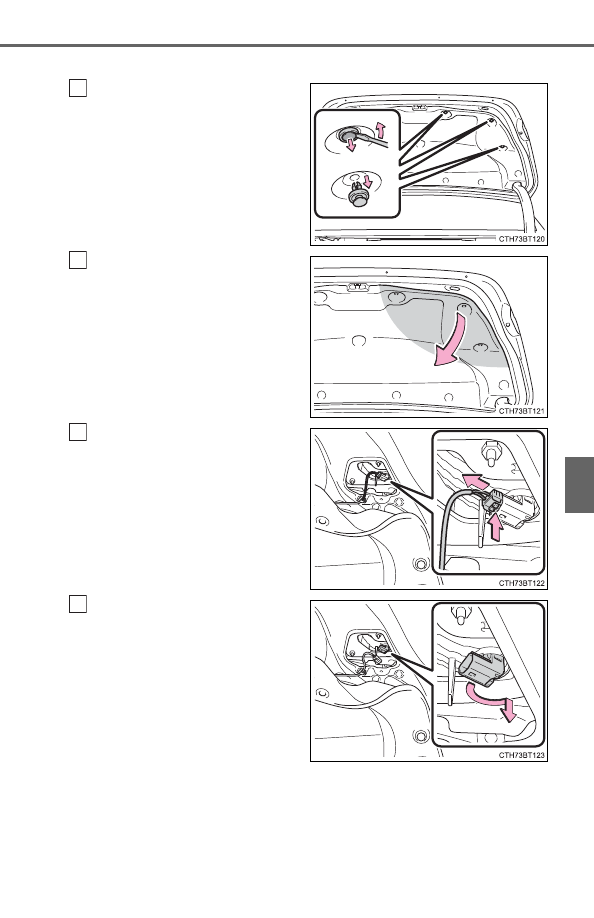

Open  the  trunk  lid  and
remove the clips.

Partly  remove  the  trunk  lid
cover.

Disconnect  the  connector
while  depressing  the  lock
release.  (When  replacing
right side bulb only.)

Turn  the  bulb  base  counter-
clockwise.

1

2

3

4

494

6-3. Do-it-yourself maintenance

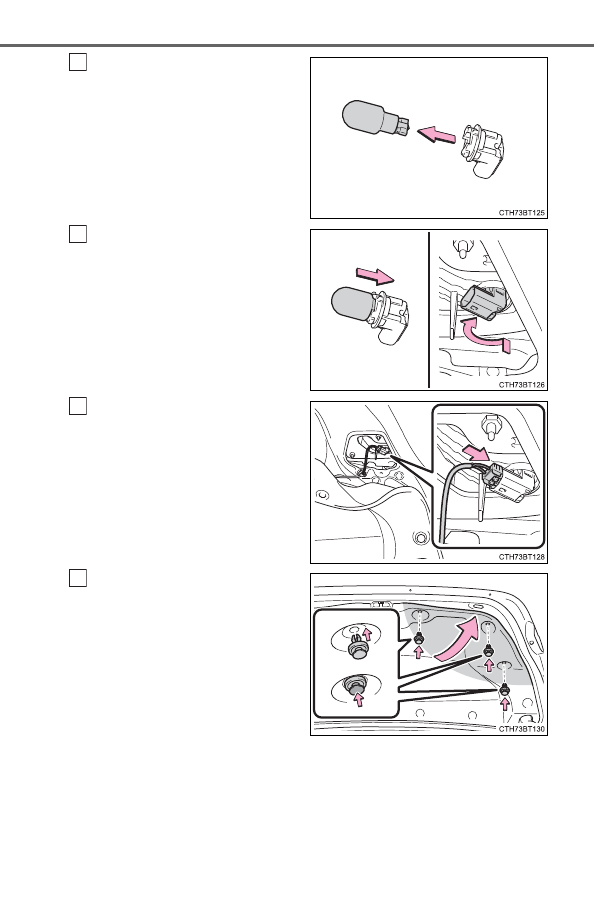

Remove the light bulb.

Install  a  new  light  bulb  and
then  install  the  bulb  base  to
the  light  unit  by  inserting  it
and turning it clockwise.

Connect

the

connector.

(When  replacing  right  side
bulb only.)

Reinstall  the  trunk  lid  cover
with the clips.

5

6

7

8

495

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

■

Rear turn signal lights (bulb type) and rear side marker lights
(bulb type)

Open  the  trunk  and  apply
protective tape to the vehicle
body around the light unit.

Use  masking  tape,  etc.  Do  not
use  duct  tape,  as  it  may  leave
residue  or  damage  the  paint
when removed.

Remove the cover.

Insert  a  flathead  screw-
driver  between  the  cover
and  the  light  unit  and  pry
up  the  cover  in  several
positions  as  shown  in  the
illustration  to  disengage
the  claws  (indicated  by  a
dotted line).
Pull  the  cover  toward  the
rear  of  the  vehicle  to  dis-
engage  the  claws  (indi-
cated by a dotted line) and
remove the cover.

To  prevent  scratching  the  vehi-
cle,  wrap  the  tip  of  the  flathead
screwdriver with a cloth, etc.

Remove the 2 bolts.

1

2

1

2

3

496

6-3. Do-it-yourself maintenance

Remove the light unit.

Attach  a  long  piece  of
packing  tape  to  the  light
unit and fold the excess in
half.
Hold  the  folded  portion
and  pull  it  toward  the  rear
of  the  vehicle  to  remove
the light unit.

Turn the bulb base counterclockwise.

Remove the light bulb.

4

1

2

5



Rear turn signal lights



Rear side marker lights

6



Rear turn signal lights



Rear side marker lights

497

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

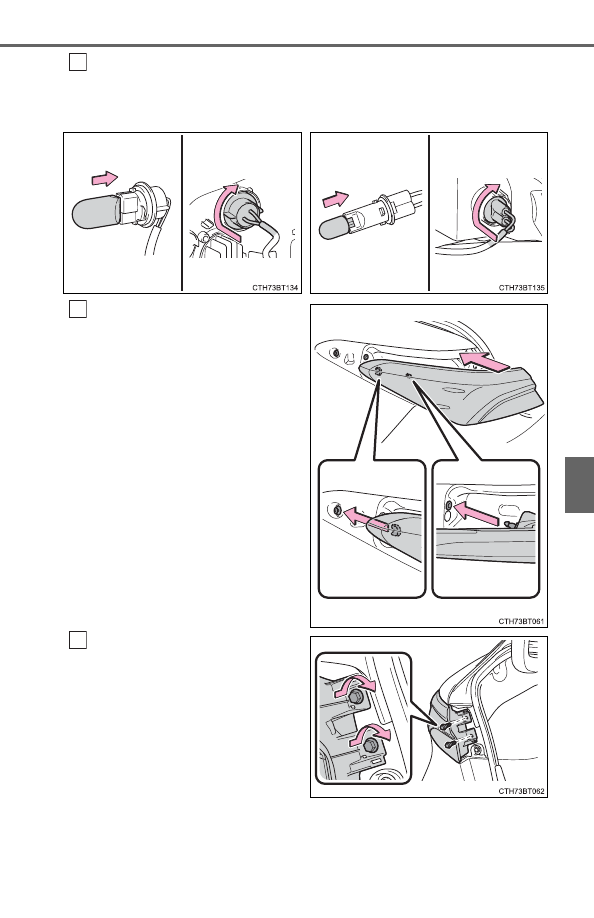

Install a new light bulb and then install the bulb base to the light
unit by inserting it and turning it clockwise.

Install the light unit.

Align the tabs and push the light
unit toward the front of the vehi-
cle to install it.

Install the 2 bolts.

7



Rear turn signal lights



Rear side marker lights

8

9

498

6-3. Do-it-yourself maintenance

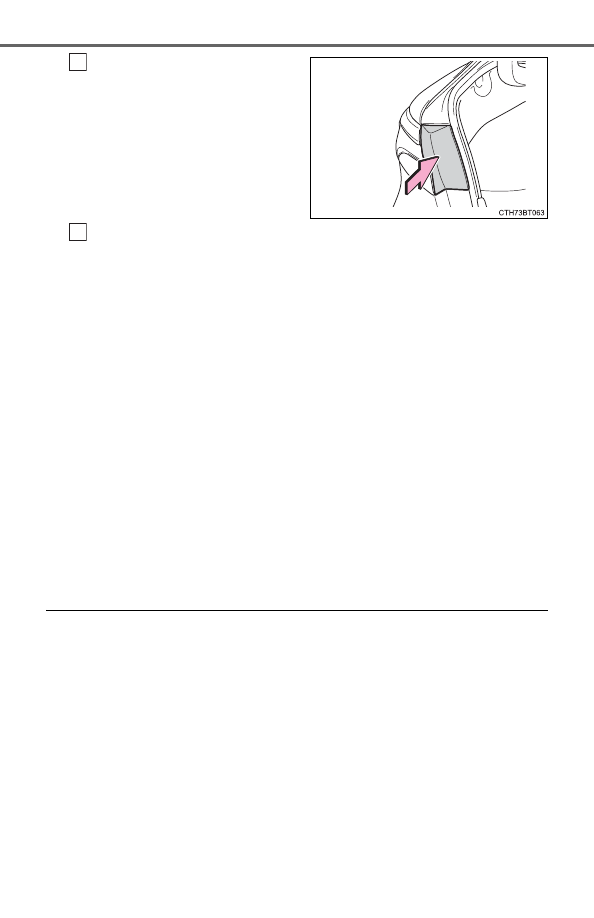

Install the cover.

Remove the protective tape.

■

Replacing the following bulbs

If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.

●

Headlights

●

Daytime running lights

●

Parking lights (LED type)

●

Front turn signal lights (LED type)

●

Front side marker lights (LED type)

●

Side turn signal lights (if equipped)

●

Tail lights

●

Rear side marker lights (LED type)

●

Stoplights

●

Rear turn signal lights (LED type)

●

Back-up lights (LED type)

●

High mounted stoplight

●

License plate lights

■

LED light bulbs

The lights other than the front turn signal/parking lights (bulb type), front side
marker  lights  (bulb  type),  back-up  lights  (bulb  type),  rear  turn  signal  lights
(bulb  type)  and  rear  side  marker  lights  (bulb  type)  consist  of  a  number  of
LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer to
have the light replaced.

■

Condensation build-up on the inside of the lens

Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:

●

Large drops of water have built up on the inside of the lens.

●

Water has built up inside the headlight.

10

11

499

6-3. Do-it-yourself maintenance

6

Mai
ntenan

ce and care

WARNING

■

Replacing light bulbs

●

Turn  off  the  lights.  Do  not  attempt  to  replace  the  bulb  immediately  after
turning off the lights.
The bulbs become very hot and may cause burns.

●

Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.

●

Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.

■

To prevent damage or fire

Make sure bulbs are fully seated and locked.

500

6-3. Do-it-yourself maintenance

501

7

When trouble arises

7-1.  Essential information

Emergency flashers .......... 502
If your vehicle has

to be stopped in
an emergency ................. 503

If the vehicle is trapped

in rising water.................. 504

7-2.  Steps to take in

an emergency

If your vehicle needs

to be towed ..................... 505

If you think something

is wrong .......................... 508

If a warning light turns

on or a warning buzzer
sounds ............................ 509

If a warning message

is displayed ..................... 519

If you have a flat tire.......... 525
If the hybrid system will

not start........................... 537

If the electronic key

does not operate
properly........................... 539

If the 12-volt battery

is discharged................... 542

If your vehicle

overheats ........................ 549

If the vehicle becomes

stuck ............................... 553

502

7-1. Essential information

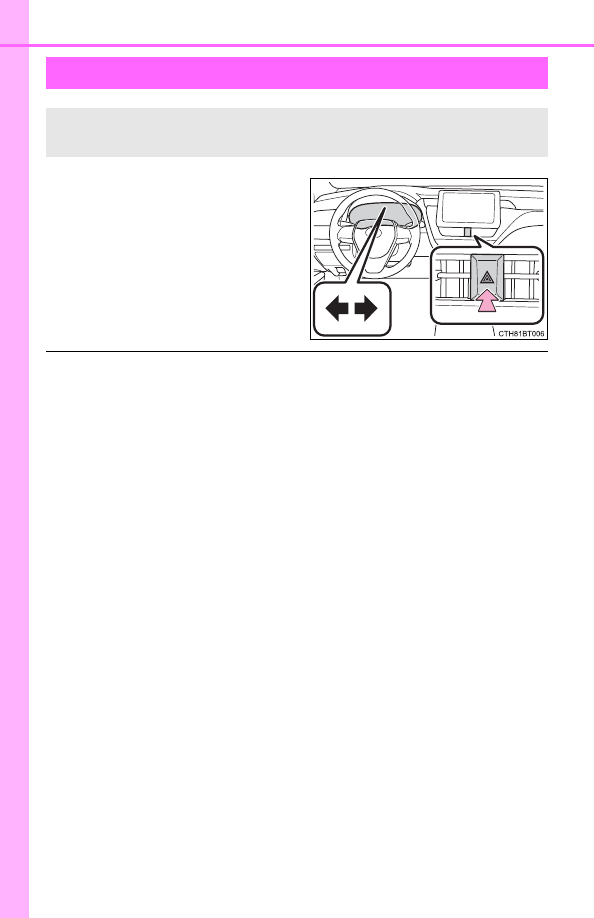

Press the switch.

All the turn signal lights will flash.
To  turn  them  off,  press  the  switch
once again.

■

Emergency flashers

●

If the emergency flashers are used for a long time while the hybrid sys-

tem is not operating (while the “READY” indicator is not illuminated), the

12-volt battery may discharge.

●

If any of the SRS airbags deploy (inflate) or in the event of a strong rear

impact, the emergency flashers will turn on automatically.

The  emergency  flashers  will  turn  off  automatically  after  operating  for

approximately 20 minutes. To manually turn the emergency flashers off,

press the switch twice.

(The  emergency  flashers  may  not  turn  on  automatically  depending  on

the force of the impact and conditions of the collision.)

Emergency flashers

The emergency flashers are used to warn other drivers when the
vehicle has to be stopped on the road due to a breakdown, etc.

503

7-1. Essential information

7

W

hen
 troub

le arises

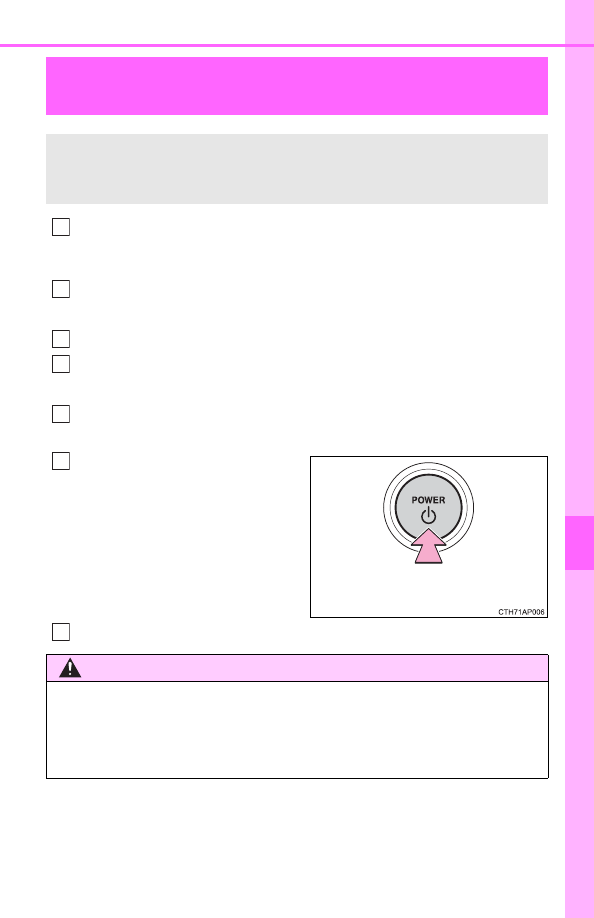

Steadily step on the brake pedal with both feet and firmly depress it.

Do  not  pump  the  brake  pedal  repeatedly  as  this  will  increase  the  effort
required to slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.



If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
To  stop  the  hybrid  system,
press  and  hold  the  power
switch  for  2  consecutive  sec-
onds or more, or press it briefly
3 times or more in succession.

Stop the vehicle in a safe place by the road.

If your vehicle has to be stopped in an

emergency

Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:

1

2

3

4

3

Press and hold for 2 seconds or
more, or press briefly 3 times or more

4

WARNING

■

If the hybrid system has to be turned off while driving

Power assist for the steering wheel will be lost, making the steering wheel
heavier to turn. Decelerate as much as possible before turning off the hybrid
system.

5

504

7-1. Essential information

●

Remove the seat belt first.

●

If the door can be opened, open the door and exit the vehicle.

●

If  the  door  cannot  be  opened,  open  the  window  using  the  power
window switch and exit the vehicle through the window.

●

If  the  window  cannot  be  opened  using  the  power  window  switch,
remain calm, wait until the water level inside the vehicle rises to the
point that the water pressure inside of the vehicle equals the water
pressure outside of the vehicle, and then open the door and exit the
vehicle.

If the vehicle is trapped in rising water

In the event the vehicle is submerged in water, remain calm and
perform the following.

WARNING

■

Using an emergency hammer

*

 for emergency escape

The front side windows and rear side windows, as well as the rear window
can be shattered with an emergency hammer

*

 used for emergency escape.

However,  an  emergency  hammer

*

  cannot  shatter  the  windshield  as  it  is

laminated glass.

*

: Contact your Toyota dealer or aftermarket accessory manufacturer for fur-

ther information about an emergency hammer.

■

Escaping the vehicle from the window

There are cases where escaping the vehicle from the window is not possi-
ble due to seating position, passenger body type, etc.
When  using  an  emergency  hammer,  consider  your  seat  location  and  the
size  of  the  window  opening  to  ensure  that  the  opening  is  accessible  and
large enough to escape.

505

7

W

hen
 troub

le arises

7-2. Steps to take in an emergency

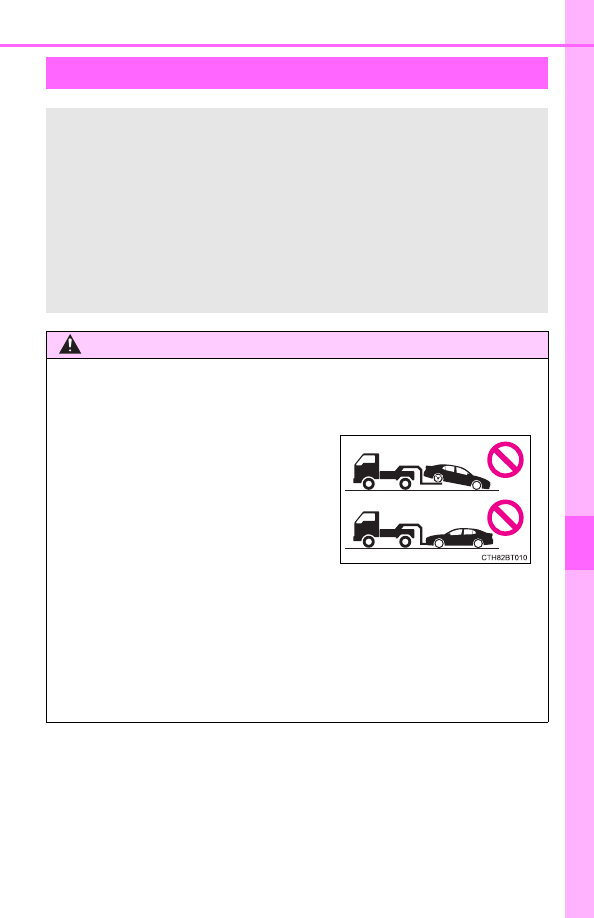

If your vehicle needs to be towed

If  towing  is  necessary,  we  recommend  having  your  vehicle
towed  by  your  Toyota  dealer  or  commercial  towing  service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
If towing your vehicle with a wheel-lift type truck from the front,
the vehicle's rear wheels and axles must be in good conditions.
(



P. 505, 507)

If they are damaged, use a towing dolly or flatbed truck.

WARNING

Observe the following precautions.
Failure to do so may result in death or serious injury.

■

When towing the vehicle

■

While towing

●

When towing using cables or chains, avoid sudden starts, etc. which place
excessive stress on the towing eyelets, cables or chains. The towing eye-
lets, cables or chains may become damaged, broken debris may hit peo-
ple, and cause serious damage.

●

Do  not  turn  the  power  switch  off. There  is  a  possibility  that  the  steering
wheel is locked and cannot be operated.

Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised  off  the  ground.  If  the  vehicle  is
towed  with  the  front  wheels  contacting
the  ground,  the  drivetrain  and  related
parts may be damaged or electricity gen-
erated by the operation of the motor may
cause  a  fire  to  occur  depending  on  the
nature of the damage or malfunction.

506

7-2. Steps to take in an emergency

The following may indicate a problem with your transmission. Contact
your Toyota dealer or commercial towing service before towing.

●

The hybrid system warning message is shown on the multi-informa-
tion display and the vehicle does not move.

●

The hybrid system warning light turns on and the vehicle does not
move.

●

The vehicle makes an abnormal sound.

NOTICE

■

To prevent damage to the vehicle when towing using a wheel-lift type
truck

●

Do  not  tow  the  vehicle  from  the  rear  when  the  power  switch  is  off. The
steering  lock  mechanism  is  not  strong  enough  to  hold  the  front  wheels
straight.

●

When raising the vehicle, ensure adequate ground clearance for towing at
the  opposite  end  of  the  raised  vehicle.  Without  adequate  clearance,  the
vehicle could be damaged while being towed.

■

To prevent damage to the vehicle when towing with a sling-type truck

Do not tow with a sling-type truck, either from the front or rear.

■

To prevent damage to the vehicle during emergency towing

Do not secure cables or chains to the suspension components.

■

Recreational towing (behind motor home, etc.)



P. 211

Situations when it is necessary to contact dealers before towing

507

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

When using a flat-bed truck to transport the vehicle, use tire strapping
belts.  Refer  to  the  owner's  manual  of  the  flat-bed  truck  for  the  tire
strapping method.
In order to suppress vehicle movement during transportation, set the
parking brake and turn the power switch off.

A driver must be in the vehicle to steer and operate the brakes. The
vehicle's  wheels,  drive  train,  axles,  steering  and  brakes  must  be  in
good condition.

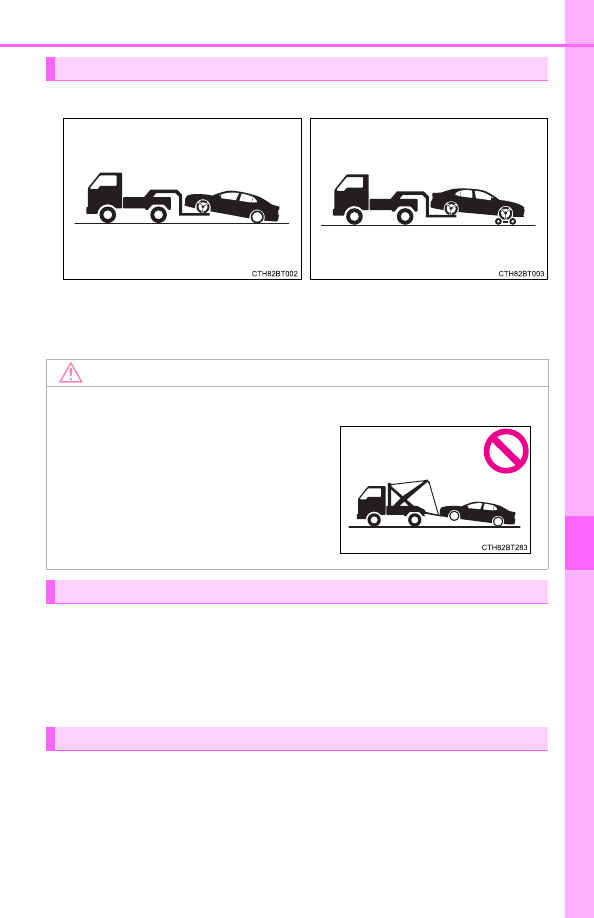

Towing with a wheel-lift type truck



From the front



From the rear

Release the parking brake.
Turn automatic mode off.
(



P. 229)

Use  a  towing  dolly  under  the
front wheels.

NOTICE

■

Towing with a sling-type truck

Using a flatbed truck

Emergency towing

Do not tow with a sling-type truck to pre-
vent body damage.

508

7-2. Steps to take in an emergency

●

Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)

●

Flat-looking tires or uneven tire wear

●

Engine coolant temperature gauge needle continually points higher
than normal

●

Changes in exhaust sound

●

Excessive tire squeal when cornering

●

Strange noises related to the suspension system

●

Pinging or other noises related to the hybrid system

●

Engine missing, stumbling or running roughly

●

Appreciable loss of power

●

Vehicle pulls heavily to one side when braking

●

Vehicle pulls heavily to one side when driving on a level road

●

Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor

If you think something is wrong

If you notice any of the following symptoms, your vehicle proba-
bly  needs  adjustment  or  repair.  Contact  your  Toyota  dealer  as
soon as possible.

Visible symptoms

Audible symptoms

Operational symptoms

509

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

If a warning light turns on or a warning

buzzer sounds

Calmly perform the following actions if any of the warning lights
comes  on  or  flashes.  If  a  light  comes  on  or  flashes,  but  then
goes off, this does not necessarily indicate a malfunction in the
system.  However,  if  this  continues  to  occur,  have  the  vehicle
inspected by your Toyota dealer.

Warning light and warning buzzer list

Warning light

Warning light/Details/Actions

(U.S.A.)

(Red)

(Canada)

Brake system warning light

Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning



Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer. Continuing to drive the vehi-
cle may be dangerous.

(Yellow)

Brake system warning light

Indicates a malfunction in:
• The regenerative braking system;
• The electronically controlled brake system; or
• The electric parking brake



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

(U.S.A.)

(Canada)

Malfunction indicator lamp

Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system; or
• The electronic throttle control system



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

SRS warning light

Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

510

7-2. Steps to take in an emergency

(U.S.A.)

(Canada)

ABS warning light

Indicates a malfunction in:
• The ABS; or
• The brake assist system



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

Brake Override System/Drive-Start Control/Parking Sup-
port Brake warning light (warning buzzer)

*

1

When a buzzer sounds:
Indicates a malfunction in:

• The Brake Override System

• The Drive-Start Control

• Parking Support Brake (if equipped)



Have  the  vehicle  inspected  by  your  Toyota  dealer

immediately.

• Indicates that the shift position was changed and Drive-

Start Control was operated while depressing the accel-

erator pedal.



Momentarily release the accelerator pedal.

When a buzzer does not sound:

Indicates that the accelerator and brake pedals are being

depressed  simultaneously,  and  the  Brake  Override  Sys-

tem is operating.



Release the accelerator pedal and depress the brake

pedal.

(Flashes)

(U.S.A.)

(Flashes)

(Canada)

Parking brake indicator (warning buzzer)

*

2

It is possible that the parking brake is not fully engaged or
released



Operate the parking brake once again.

This  light  comes  on  when  the  parking  brake  is  not
released. If the light turns off after the parking brake is fully
released, the system is operating normally.

(Flashes)

Brake hold operated indicator

Indicates a malfunction in the brake hold system



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

(Red/yellow)

Electric  power  steering  system  warning  light  (warning
buzzer)

Indicates a malfunction in the EPS (Electric Power Steer-
ing) system



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

Warning light

Warning light/Details/Actions

511

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

(Yellow)

LTA indicator (warning buzzer)

*

1

Indicates a malfunction in the LTA (Lane Tracing Assist)



Follow  the  instructions  displayed  on  the  multi-infor-
mation display. (



P. 289)

(Flashes or

illuminates)

PCS warning light

When a buzzer sounds simultaneously:
Indicates a malfunction has occurred in the PCS (Pre-Col-
lision System).



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

When a buzzer does not sound:
The PCS (Pre-Collision System) has become temporarily
unavailable, corrective action may be necessary.



Follow  the  instructions  displayed  on  the  multi-infor-
mation display. (



P. 258, 519)

If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.



P. 274

(if equipped)

(Flashes)

PKSB OFF indicator

When a buzzer sounds:
Indicates a malfunction in the Parking Support Brake sys-
tem



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

When a buzzer does not sound:
Indicates that the system is temporarily unavailable, possi-
bly due to a sensor being dirty or covered with ice, etc.



Clear the dirt, etc.

(if equipped)

(Flashes)

Intuitive parking assist OFF indicator

*

1

Indicates a malfunction in the intuitive parking assist func-
tion



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

Indicates that the system is temporarily unavailable, possi-
bly due to a sensor being dirty or covered with ice, etc.



Clear the dirt, etc.

Warning light

Warning light/Details/Actions

512

7-2. Steps to take in an emergency

(if equipped)

(Flashes)

RCD OFF indicator

*

1

When a buzzer sounds:
Indicates a malfunction in the RCD (Rear Camera Detec-
tion) function



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

When a buzzer does not sound:
Indicates that the function temporarily cannot be used due
to the camera being dirty, etc.



Clear the dirt, etc.

Slip indicator

Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRAC (Traction Control) system
• The ABS; or
• The hill-start assist control system
The light will flash when the ABS, VSC or TRAC system is
operating.



Have  the  vehicle  inspected  by  your  Toyota  dealer
immediately.

Low fuel level warning light

Indicates that remaining fuel is approximately 1.8 gal. (6.7
L, 1.5 Imp. gal.) or less



Refuel the vehicle.

Driver’s  and  front  passenger’s  seat  belt  reminder  light
(warning buzzer)

*

3

Warns  the  driver  and/or  front  passenger  to  fasten  their
seat belts



Fasten the seat belt.
If  the  front  passenger’s  seat  is  occupied,  the  front
passenger’s  seat  belt  also  needs  to  be  fastened  to
make the warning light (warning buzzer) turn off.

Rear  passengers’  seat  belt  reminder  lights  (warning
buzzer)

*

3

Warns the rear passengers to fasten their seat belts.



Fasten the seat belt.

Master warning light

A  buzzer  sounds  and  the  warning  light  comes  on  and
flashes  to  indicate  that  the  master  warning  system  has
detected a malfunction.



P. 519

Warning light

Warning light/Details/Actions

513

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

*

1

: This light illuminates on the multi-information display.

*

2

: Parking brake engaged warning buzzer:

A buzzer will sound if the vehicle is driven at a speed of approximately 3
mph (5 km/h) or more.

*

3

: Driver’s seat belt warning buzzer:

The driver’s seat belt warning buzzer sounds to alert the driver that his or
her seat belt is not fastened. Once the power switch is turned to ON mode,
the buzzer sounds. If the seat belt is still unfastened, the buzzer sounds
intermittently for a certain period of time after the vehicle reaches a certain
speed.
Front passenger’s seat belt warning buzzer:
The  front  passenger’s  seat  belt  warning  buzzer  sounds  to  alert  the  front
passenger that his or her seat belt is not fastened. If the seat belt is unfas-
tened, the buzzer sounds intermittently for a certain period of time after the
vehicle reaches a certain speed.
Rear passengers’ seat belt warning buzzer:
The  rear  passengers’  seat  belt  warning  buzzer  sounds  to  alert  the  rear
passenger that his or her seat belt is not fastened. If the seat belt is unfas-
tened,  the  buzzer sounds  intermittently for  a  certain period  of time,  after
the seat belt is fastened and unfastened and the vehicle reaches a certain
speed.

Tire pressure warning light

Indicates the following:

• Low tire pressure due to flat tire;

• Low tire pressure due to natural causes; or

• The tire pressure warning system is malfunctioning



Immediately stop the vehicle in a safe place.

Handling method (



P. 515)

Warning light

Warning light/Details/Actions

514

7-2. Steps to take in an emergency

■

SRS warning light

This warning light system monitors the airbag sensor assembly, front impact
sensors,  side  impact  sensors  (front  door),  side  impact  sensors  (front),  side
impact sensors (rear), driver’s seat position sensor, driver’s seat belt buckle
switch,  front  passenger  occupant  classification  system  (ECU  and  sensors),
“AIRBAG ON” indicator light, “AIRBAG OFF” indicator light, seat belt preten-
sioners, airbags, interconnecting wiring and power sources. (



P. 36)

■

Front  passenger  detection  sensor,  seat  belt  reminder  and  warning
buzzer

●

If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.

●

If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.

■

If the malfunction indicator lamp comes on while driving

First check the following:

●

Is the fuel tank empty?
If it is, fill the fuel tank immediately.

●

Is the fuel tank cap loose?
If it is, tighten it securely.

The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Toyota dealer
as soon as possible.

515

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

■

When the tire pressure warning light comes on

Inspect the tires to check if a tire is punctured.
If a tire is punctured:



P. 525

If none of the tires are punctured:

Turn the power switch off then turn it to ON mode. Check if the tire pres-

sure warning light comes on or blinks.



If the tire pressure warning light comes on
After  the  temperature  of  the  tires  has  lowered  sufficiently,  check  the

inflation pressure of each tire and adjust them to the specified level.
If  the  warning  light  does  not  turn  off  even  after  several  minutes  have

elapsed, check that the inflation pressure of each tire is at the specified

level and perform initialization. (



P. 457)

If the warning light does not turn off several minutes after the initialization

has  been  performed,  have  the  vehicle  inspected  by  your Toyota  dealer

immediately.



If the tire pressure warning light blinks for 1 minute then stays on

There  may  be  a  malfunction  in  the  tire  pressure  warning  system.  Have

the vehicle inspected by your Toyota dealer immediately.

■

The tire pressure warning light may come on due to natural causes

The tire pressure warning light may come on due to natural causes such

as  natural  air  leaks  and  tire  inflation  pressure  changes  caused  by  tem-

perature. In this case, adjusting the tire inflation pressure will turn off the

warning light (after a few minutes).

■

When a tire is replaced with a spare tire

The compact spare tire is not equipped with a tire pressure warning valve

and transmitter. If a tire goes flat, the tire pressure warning light will not

turn  off  even  though  the  flat  tire  has  been  replaced  with  the  spare  tire.

Replace the spare tire with the repaired tire and adjust the tire inflation

pressure. The tire pressure warning light will go off after a few minutes.

■

Conditions  that  the  tire  pressure  warning  system may  not function
properly



P. 463

■

Electric power steering system warning light (warning buzzer)

When the 12-volt battery charge becomes insufficient or the voltage tempo-
rarily  drops,  the  electric  power  steering  system  warning  light  may  come  on
and the warning buzzer may sound.

■

Warning buzzer

In some cases, the buzzer may not be heard because of noisy place or an
audio sound.

1

2

516

7-2. Steps to take in an emergency

WARNING

■

If both the ABS and the brake system warning lights remain on

Stop  your  vehicle  in  a  safe  place  immediately  and  contact  your  Toyota
dealer. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.

■

When the electric power steering system warning light comes on

When  the  light  comes  on  yellow,  the  assist  to  the  power  steering  is
restricted. When the light comes on red, the assist to the power steering is
lost  and  handling  operations  of  the  steering  wheel  become  extremely
heavy.
If  the  steering  wheel  becomes  heavier  than  usual  when  operating,  hold
firmly and operate using more force than usual.

■

If the tire pressure warning light comes on

Be  sure  to  observe  the  following  precautions.  Failure  to  do  so  could

cause a loss of vehicle control and result in death or serious injury.

●

Stop your vehicle in a safe place as soon as possible. Adjust the tire

inflation pressure immediately.

●

If the tire pressure warning light comes on even after tire inflation pres-

sure adjustment, it is probable that you have a flat tire. Check the tires.

If  a  tire  is  flat,  change  it  with  the  spare  tire  and  have  the  flat  tire

repaired by the nearest Toyota dealer.

●

Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,

you could lose control of the steering wheel or the brakes.

■

If a blowout or sudden air leakage should occur

The tire pressure warning system may not activate immediately.

517

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

WARNING

■

Maintenance of the tires

Each tire, including the spare (if provided), should be checked monthly

when  cold  and  inflated  to  the  inflation  pressure  recommended  by  the

vehicle  manufacturer  on  the  vehicle  placard  or  tire  inflation  pressure

label (tire and load information label). (If your vehicle has tires of a dif-

ferent size than the size indicated on the vehicle placard or tire inflation

pressure  label  [tire  and  load  information  label],  you  should  determine

the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire

pressure monitoring system (TPMS-tire pressure warning system) that

illuminates a low tire pressure telltale (tire pressure warning light) when

one  or  more  of  your  tires  is  significantly  under-inflated.  Accordingly,

when  the  low  tire  pressure  telltale  (tire  pressure  warning  light)  illumi-

nates, you should stop and check your tires as soon as possible, and

inflate  them  to  the  proper  pressure.  Driving  on  a  significantly  under-

inflated  tire  causes  the  tire  to  overheat  and  can  lead  to  tire  failure.

Under-inflation also reduces fuel efficiency and tire tread life, and may

affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-

stitute for proper tire maintenance, and it is the driver’s responsibility to

maintain  correct  tire  pressure,  even  if  under-inflation  has  not  reached

the level to trigger illumination of the TPMS low tire pressure telltale (tire

pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warn-

ing  system)  malfunction  indicator  to  indicate  when  the  system  is  not

operating properly. The TPMS (tire pressure warning system) malfunc-

tion indicator is combined with the low tire pressure telltale (tire pressure

warning light). When the system detects a malfunction, the telltale will

flash for approximately one minute and then remain continuously illumi-

nated. This sequence will continue upon  subsequent vehicle  start-ups

as long as the malfunction exists. When the malfunction indicator is illu-

minated, the system may not be able to detect or signal low tire pres-

sure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-

ety of reasons, including the installation of replacement or alternate tires

or wheels on the vehicle that prevent the TPMS (tire pressure warning

system)  from  functioning  properly. Always  check  the TPMS  (tire  pres-

sure  warning  system)  malfunction  telltale  after  replacing  one  or  more

tires or wheels on your vehicle to ensure that the replacement or alter-

nate tires and wheels allow the TPMS (tire pressure warning system) to

continue to function properly.

518

7-2. Steps to take in an emergency

NOTICE

■

To ensure the tire pressure warning system operates properly

Do  not  install  tires  with  different  specifications  or  makers,  as  the  tire

pressure warning system may not operate properly.

519

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

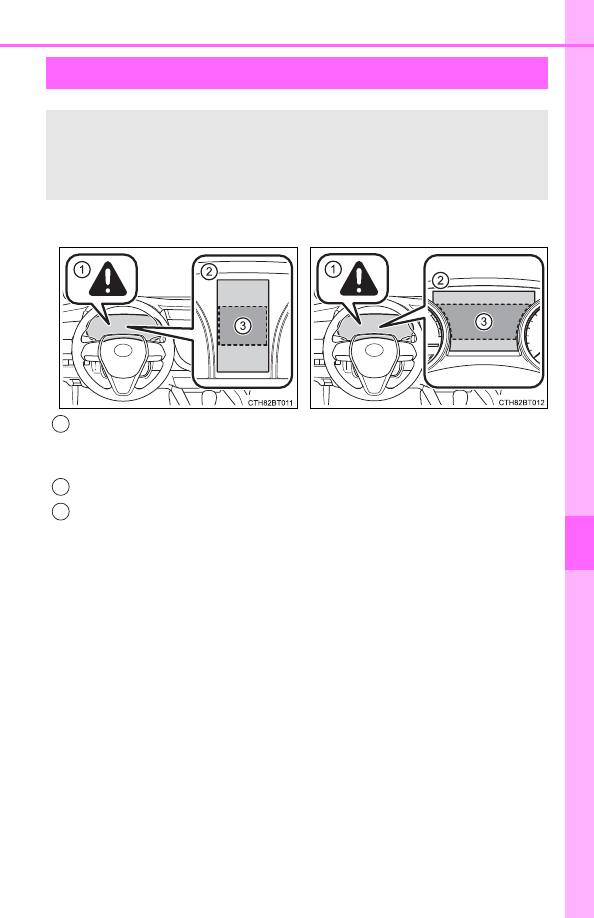

Master warning light

The master warning light also comes on or flashes in order to indicate that
a message is currently being displayed on the multi-information display.

Multi-information display
Handling method

Follow the instructions of the message on the multi-information display.

If any of the warning messages are shown again after the appropriate
actions have been performed, contact your Toyota dealer.

If a warning message is displayed

The  multi-information  display  shows  warnings  of  system  mal-
functions, incorrectly performed operations, and messages that
indicate  a  need  for  maintenance.  When  a  message  is  shown,
perform the correction procedure appropriate to the message.



4.2-inch display



7-inch display

1

2

3

520

7-2. Steps to take in an emergency

The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection  by  a  dealer,  have  the  vehicle  inspected  by  your  Toyota
dealer immediately.

The  operation  of  the  warning  lights  and  warning  buzzers  may  differ
from  those  stated.  In  this  case,  perform  the  correction  procedure
according to the displayed message.

*

: A buzzer sounds the first time a message is shown on the multi-informa-

tion display.

Messages and warnings

System

warning

light

Warning buzzer

*

Warning

Comes

on



Sounds

Indicates  an  important  situation,
such as when a system related to
driving  is  malfunctioning  or  that
danger may result if the correction
procedure is not performed



Comes

on or

flashes

Sounds

Indicates  an  important  situation,
such as when the systems shown
on  the  multi-information  display
may be malfunctioning

Flashes



Sounds

Indicates  a  situation,  such  as
when  damage  to  the  vehicle  or
danger may result

Comes

on



Does not sound

Indicates a condition, such as mal-
function  of  electrical  components,
their  condition,  or  indicates  the
need for maintenance

Flashes



Does not sound

Indicates  a  situation,  such  as
when an  operation  has been  per-
formed  incorrectly,  or  indicates
how  to  perform  an  operation  cor-
rectly

521

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

■

Warning messages

The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.

■

System warning lights

The master warning light does not come on or flash in the following cases.
Instead, a separate system warning light will come on along with a message
shown on the multi-information display.

●

Malfunction in the ABS
The ABS warning light comes on. (



P. 510)

●

Malfunction in the brake system
The brake system warning light (yellow) comes on. (



P. 509)

●

Malfunction in the tire pressure warning system
The tire pressure warning light comes on. (



P. 513)

●

Remaining fuel level is low
The low fuel level warning light comes on. (



P. 512)

■

If a message instructing to refer to the Owner’s Manual is displayed

●

If the following messages are shown, there may be a malfunction.
Immediately stop the vehicle in a safe place and contact your Toyota dealer.
Continuing to drive the vehicle may be dangerous.
• “Low Braking Power Stop in a Safe Place See Owner’s Manual”
• “Oil Pressure Low Stop in a Safe Place See Owner’s Manual”
• “Charging System Malfunction Stop in a Safe Place See Owner’s Man-

ual”

●

If the following message is shown, there may be a malfunction.
Immediately have the vehicle inspected by your Toyota dealer.
• “Hybrid System Malfunction”
• “Check Engine”
• “Hybrid Battery System Malfunction”
• “Accelerator System Malfunction”
• “Smart Key System Malfunction See Owner’s Manual”

●

If “Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is
displayed, follow the instructions accordingly. (



P. 549)

●

If  “Maintenance  Required  for Traction  Battery  Cooling  Parts  See  Owner’s
Manual” is displayed, follow the instructions accordingly. (



P. 522)

522

7-2. Steps to take in an emergency

■

If “Hybrid System Overheated Output Power Reduced” is shown

This message may be displayed when driving under severe operating condi-
tions. (For example, when driving up a long steep hill.)
Handling method:



P. 549

■

If “Maintenance Required for Traction Battery Cooling Parts See Owner’s
Manual” is shown

The filter may be clogged, the air intake vent may be blocked or there may be
a gap in the duct.

●

If the air intake vent or filter is dirty, refer to P. 477 for cleaning the air intake
vent and filter.

●

If the message is being displayed and the air intake vent and filter are not
dirty, have the vehicle inspected at your Toyota dealer.

■

If  “Traction  Battery  Needs  to  Be  Protected.  Refrain  from  the  Use  of  N
Position.” is shown

This message may be displayed when the shift lever is in N.
As the hybrid battery (traction battery) cannot be charged when the shift lever
is in N, shift the shift lever to P when the vehicle is stopped.

■

If  “Traction  Battery  Needs  to  Be  Protected.  Shift  into  P  to  Restart.”  is
shown

This message is displayed when the hybrid battery (traction battery) charge
has become extremely low because the shift lever has been left in N for a cer-
tain amount of time.
When operating the vehicle, shift to P and restart the hybrid system.

■

If “Shift to P Before Exiting Vehicle” is shown

Message  is  displayed  when  the  driver’s  door  is  opened  without  turning  the
power switch off with the shift lever in any position other than P.
Shift the shift lever to P.

■

If “Shift Is in N Release Accelerator Before Shifting” is shown

Message is displayed when the accelerator pedal has been depressed and
the shift lever is in N. Release the accelerator pedal and shift the shift lever to
D or R.

■

If “Press Brake When Vehicle Is Stopped Hybrid System May Overheat”
is shown

Message is  displayed when the accelerator pedal is  depressed to maintain
the vehicle position when stopped on a upward slope, etc.
If this continues, the hybrid system may overheat.
Release the accelerator pedal and depress the brake pedal.

523

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

■

If “Auto Power Off to Conserve Battery” is displayed

This message is displayed when the power was cut off due to the automatic
power off function.
The next time the hybrid system is started, increase the engine speed slightly
and maintain it at that speed for approximately 5 minutes to recharge the 12-
volt battery.

■

If “A New Key has been Registered Contact Your Dealer for Details” is
displayed

This message will be displayed each time the driver’s door is opened when
the doors are unlocked from the outside for approximately one week after a
new electronic key has been registered.
If this message is displayed but you have not had a new electronic key regis-
tered,  ask  your Toyota  dealer  to  check  if  an  unknown  electronic  key  (other
than those in your possession) has been registered.

■

If “Headlight System Malfunction Visit Your Dealer” is displayed

The following systems may be malfunctioning. Have the vehicle inspected by
your Toyota dealer immediately.

●

The LED headlight system

●

The automatic headlight leveling system (if equipped)

●

AHB (Automatic High Beam)

●

AFS (Adaptive Front-lighting System) (if equipped)

■

If “Radar Cruise Control Unavailable See Owner's Manual” is shown

The dynamic radar cruise control with full-speed range system is suspended
temporarily or until the problem shown in the message is resolved. (causes
and coping methods:



P. 258)

■

If “Radar Cruise Control Unavailable” is shown

The  dynamic  radar  cruise  control  with  full-speed  range  system  cannot  be
used temporarily. Use the system when it becomes available again.

■

If a message that indicates the malfunction of front camera is displayed

The  following  systems  may  be  suspended  until  the  problem  shown  in  the
message is resolved. (



P. 258, 509)

●

PCS (Pre-Collision System)

●

LTA (Lane Tracing Assist)

●

AHB (Automatic High Beam)

●

RSA (Road Sign Assist) (if equipped)

●

Dynamic radar cruise control with full-speed range

■

If a message that indicates the malfunction of radar sensor is displayed

The  following  systems  may  be  suspended  until  the  problem  shown  in  the
message is resolved. (



P. 258, 509)

●

PCS (Pre-Collision System)

●

LTA (Lane Tracing Assist)

●

Dynamic radar cruise control with full-speed range

524

7-2. Steps to take in an emergency

■

If “Maintenance Required Soon” is displayed

Indicates that all maintenance according to the driven distance on the mainte-
nance schedule

*

 should be performed soon.

Comes on approximately 4500 miles (7200 km) after the message has been
reset.
If necessary, perform maintenance. Please reset the message after the main-
tenance is performed. (



P. 431)

*

: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual

Supplement” for the maintenance interval applicable to your vehicle.

■

If “Maintenance Required Visit Your Dealer” is displayed

Indicates that all maintenance is required to correspond to the driven distance
on the maintenance schedule

*

.

Comes on approximately 5000 miles (8000 km) after the message has been
reset.
(The indicator will not work properly unless the message has been reset.)
Perform  the  necessary  maintenance.  Please  reset  the  message  after  the
maintenance is performed. (



P. 431)

*

: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual

Supplement” for the maintenance interval applicable to your vehicle.

■

If “Engine Oil Level Low Add or Replace” is displayed

The engine oil level may be low. Check the level of the engine oil, and add
engine  oil  if  necessary.  This  message  may  be  displayed  if  the  vehicle  is
stopped on a slope. Move the vehicle to a level surface and check if the mes-
sage disappears.

■

Warning buzzer



P. 515

NOTICE

■

If “High Power Consumption Power to Climate Temporarily Limited” is
frequently shown

There is a possible malfunction relating to the charging system or the 12-
volt battery may be deteriorating. Have the vehicle inspected by your Toyota
dealer.

■

If  “Maintenance  Required  For  Traction  Battery  At  Your  Dealer”  is
shown (AXVH70 model

*

)

The  hybrid  battery  (traction  battery)  is  scheduled  to  be  inspected  or
replaced. Have the vehicle inspected by your Toyota dealer immediately.

●

Continuing to drive the vehicle without having the hybrid battery (traction
battery) inspected will cause the hybrid system not to start.

●

If  the  hybrid  system  does  not  start,  contact  your  Toyota  dealer  immedi-
ately.

*

: The model code is indicated on the Certification Label. (



P. 557)

525

7-2. Steps to take in an emergency

7

W

hen
 troub

le arises

●

Stop the vehicle in a safe place on a hard, flat surface.

●

Set the parking brake.

●

Shift the shift lever to P.

●

Stop the hybrid system.

●

Turn on the emergency flashers. (



P. 502)

If you have a flat tire

Your  vehicle  is  equipped  with  a  spare  tire.  The  flat  tire  can  be
replaced with the spare tire.
For details about tires:



P. 455

WARNING

■

If you have a flat tire

Do not continue driving with a flat tire.

Driving even a short distance with a flat tire can damage the tire and the

wheel beyond repair, which could result in an accident.

Before jacking up the vehicle

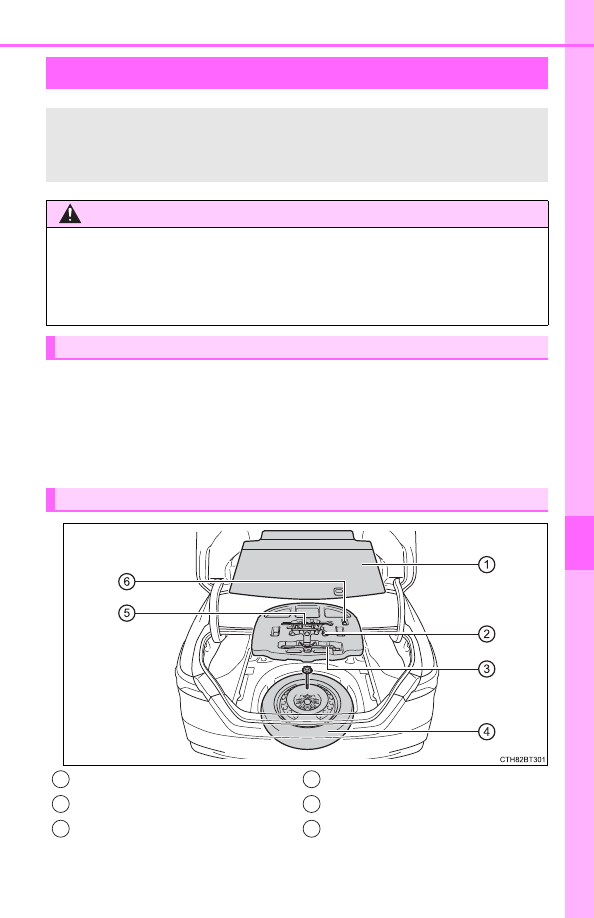

Location of the spare tire, jack and tools

Luggage floor cover
Wheel nut wrench
Jack

Spare tire
Jack handle
Wheel lock key (if equipped)

1

2

3

4

5

6
