Toyota 4Runner (2021 year). Manual in english - part 7

398

4RUNNER (U)

6-2. Maintenance

General maintenance should be performed on a daily basis. This can
be done by yourself or by a Toyota dealer.

Scheduled  maintenance  should  be  performed  at  specified  intervals
according to the maintenance schedule.

For details about maintenance items and schedules, refer to the “Sched-
uled Maintenance Guide” or “Owner’s Manual Supplement”.

You can perform some maintenance procedures by yourself.
Please be aware that do-it-yourself maintenance may affect warranty
coverage.

The use of Toyota Repair Manuals is recommended.
For details about warranty coverage, refer to the separate “Owner’s War-
ranty Information Booklet” or “Owner’s Manual Supplement”.

■

Repair and replacement

It is recommended that genuine Toyota parts be used for repairs to ensure
performance of each system. If non-Toyota parts are used in replacement or if
a repair shop other than a Toyota dealer performs repairs, confirm the war-
ranty coverage.

Maintenance requirements

To ensure safe and economical driving, day-to-day care and reg-
ular maintenance are essential. It is the owner’s responsibility to
perform regular checks. Toyota recommends the following main-
tenance:

General maintenance

Scheduled maintenance

Do-it-yourself maintenance

399

6-2. Maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

Resetting the message indicating maintenance is required (U.S.A. only)

After  the  required  maintenance  is  performed  according  to  the  maintenance
schedule, please reset the message.
To reset the message, follow the procedures described below:

Turn the engine switch off with the trip meter A reading shown. (



P. 89)

Vehicles without a smart key system:
While pressing the display change button (



P. 89), turn the engine switch

to  the  “ON”  position  (do  not  start  the  engine  because  reset  mode  will  be
canceled).
Vehicles with a smart key system:
While pressing the display change button (



P. 89), turn the engine switch

to the IGNITION ON mode (do not start the engine because otherwise the
reset mode will be canceled).
Continue to press and hold the button until the trip meter displays “000000”.

■

Allow inspection and repairs to be performed by a Toyota dealer

●

Toyota technicians are well-trained specialists and are kept up to date with
the latest service information. They are well informed about the operations
of all systems on your vehicle.

●

Keep  a  copy  of  the  repair  order.  It  proves  that  the  maintenance  that  has
been  performed  is  under  warranty  coverage.  If  any  problem  should  arise
while your vehicle is under warranty, your Toyota dealer will promptly take
care of it.

WARNING

■

If your vehicle is not properly maintained

Improper  maintenance  could  result  in  serious  damage  to  the  vehicle  and
possible death or serious injury.

■

Handling of the battery

●

Engine exhaust, some of its constituents, and a wide variety of automobile
components contain or emit chemicals known to the State of California to
cause  cancer  and  birth  defects  and  other  reproductive  harm.  Work  in  a
well ventilated area.

●

Oils, fuels and fluids contained in vehicles as well as waste produced by
component wear contain or emit chemicals known to the State of Califor-
nia  to  cause  cancer  and  birth  defects  or  other  reproductive  harm. Avoid
exposure and wash any affected area immediately.

●

Battery  posts,  terminals  and  related  accessories  contain  lead  and  lead
compounds which  are known  to cause brain damage. Wash your hands
after handling. (



P. 417)

1

2

3

400

6-2. Maintenance

4RUNNER (U)

General maintenance

Listed below are the general maintenance items that should be
performed  at  the  intervals  specified  in  the  “Owner’s  Warranty
Information  Booklet”  or  “Owner’s  Manual  Supplement/Sched-
uled Maintenance Guide”. It is recommended that any problem
you  notice  should  be  brought  to  the  attention  of  your  Toyota
dealer or qualified service shop for advice.

Engine compartment

Items

Check points

Battery

Check the connections.

(



P. 417)

Brake fluid

Is the brake fluid at the correct level?

(



P. 414)

Engine coolant

Is the engine coolant at the correct level? (



P. 412)

Engine oil

Is the engine oil at the correct level?

(



P. 410)

Exhaust system

There should not be any fumes or strange sounds.

Power steering fluid

Is the power steering fluid at the correct level?

 (



P. 416)

Radiator/condenser

The radiator and condenser should be free from
foreign objects.

(



P. 414)

Washer fluid

Is there sufficient washer fluid?

(



P. 420)

401

6-2. Maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

Vehicle interior

Items

Check points

Accelerator pedal

• The  accelerator  pedal  should  move  smoothly

(without uneven pedal effort or catching).

Automatic  transmis-
sion  “Park”  mecha-
nism

• When parked on a slope and the shift lever is in P,

is the vehicle securely stopped?

Brake pedal

• Does the brake pedal move smoothly?
• Does the brake pedal have appropriate clearance

from the floor?

(



P. 527)

• Does the brake pedal have the correct amount of

free play?

(



P. 527)

Brakes

• The vehicle should not pull to one side when the

brakes are applied.

• The brakes should work effectively.
• The brake pedal should not feel spongy.
• The  brake  pedal  should  not  get  too  close  to  the

floor when the brakes are applied.

Head restraints

• Do  the  head  restraints  move  smoothly  and  lock

securely?

Indicators/buzzers

• Do the indicators and buzzers function properly?

Lights

• Do all the lights come on?

Parking brake

• Does the parking brake pedal move smoothly?
• When parked on a slope and the parking brake is

on, is the vehicle securely stopped?

Seat belts

• Do the seat belts operate smoothly?
• The seat belts should not be damaged.

Seats

• Do the seat controls operate properly?

Steering wheel

• Does the steering wheel rotate smoothly?
• Does the steering wheel have the correct amount

of free play?

• There should not be any strange sounds coming

from the steering wheel.

402

6-2. Maintenance

4RUNNER (U)

Vehicle exterior

Items

Check points

Doors

• Do the doors operate smoothly?

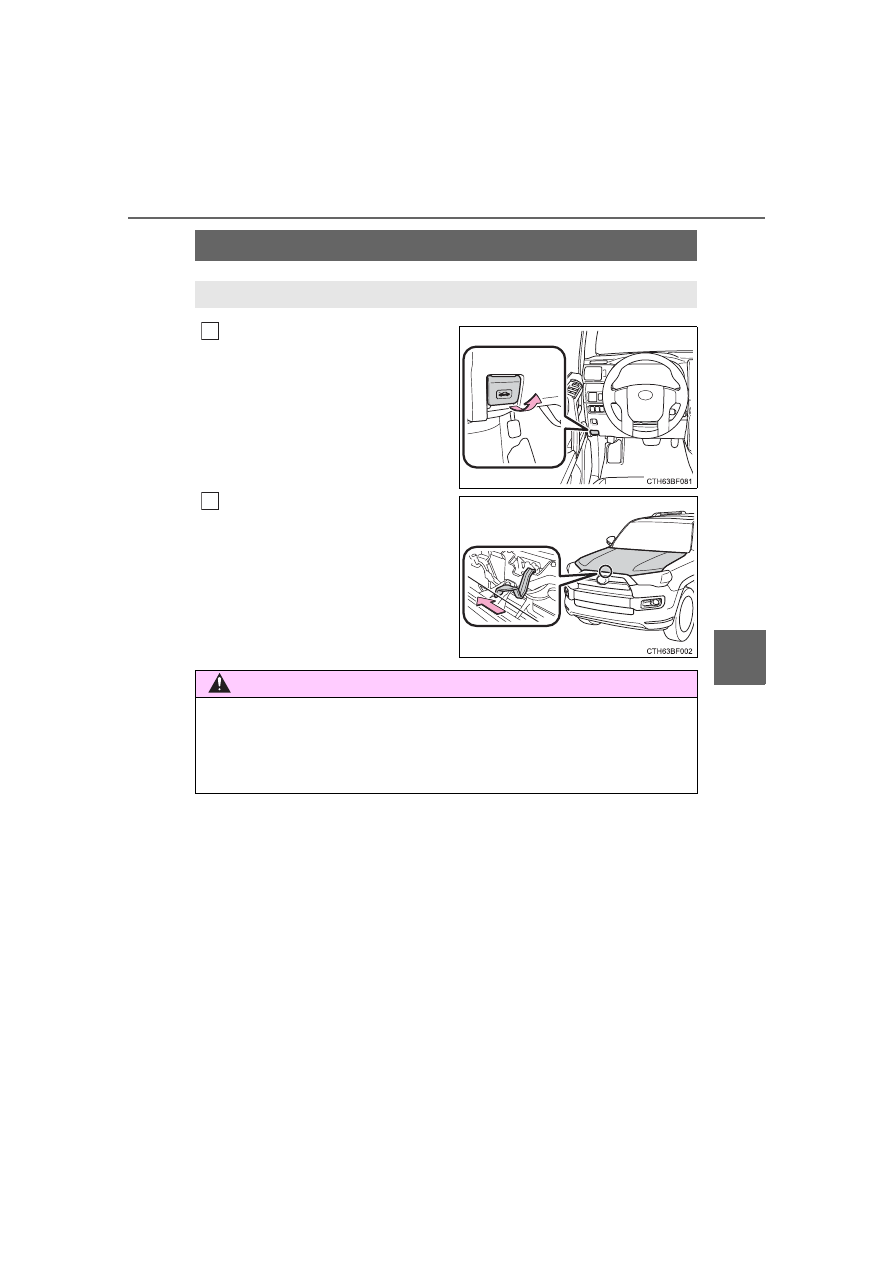

Engine hood

• Does the engine hood lock system work properly?

Fluid leaks

• There  should  not  be  any  signs  of  fluid  leakage

after the vehicle has been parked.

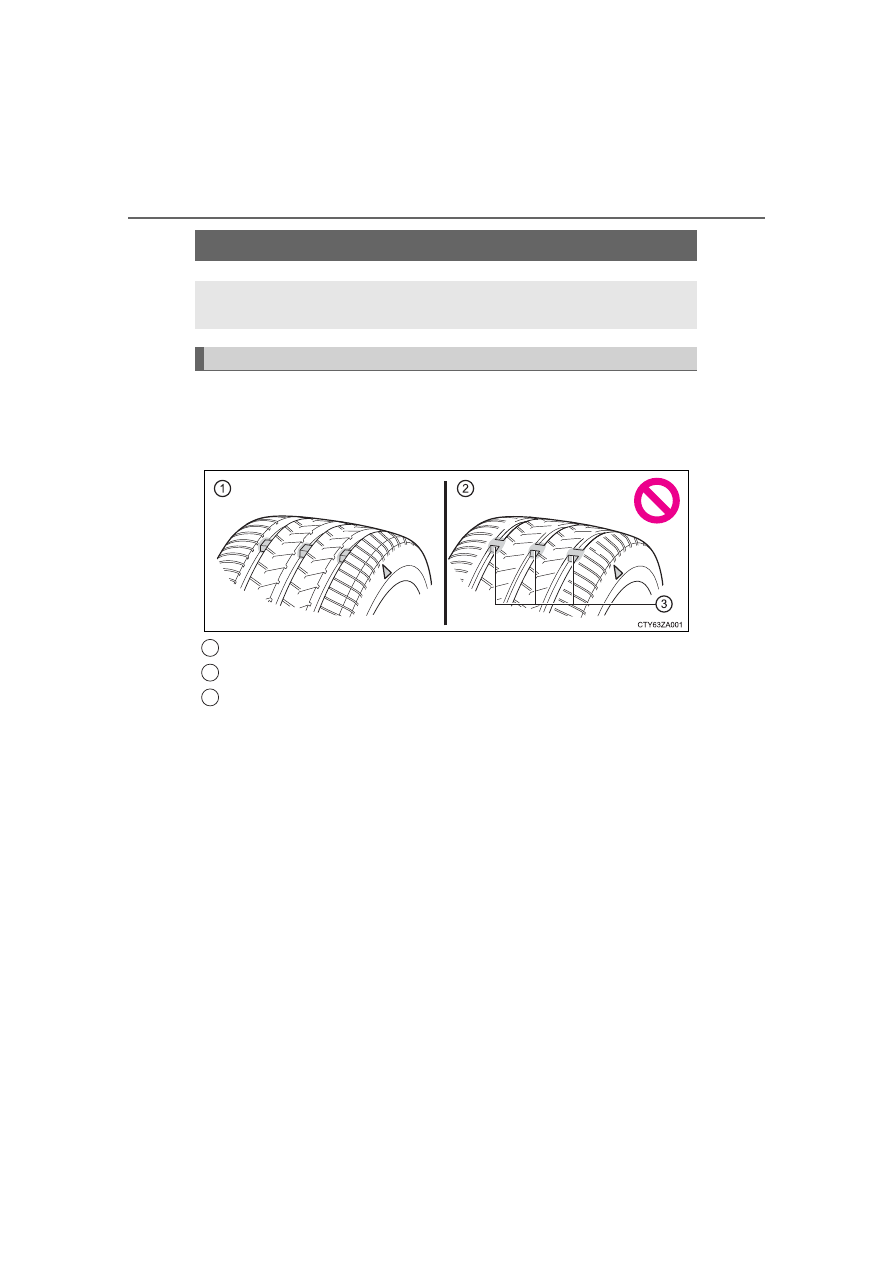

Tires

• Is the tire inflation pressure correct?
• The tires should not be damaged or excessively

worn.

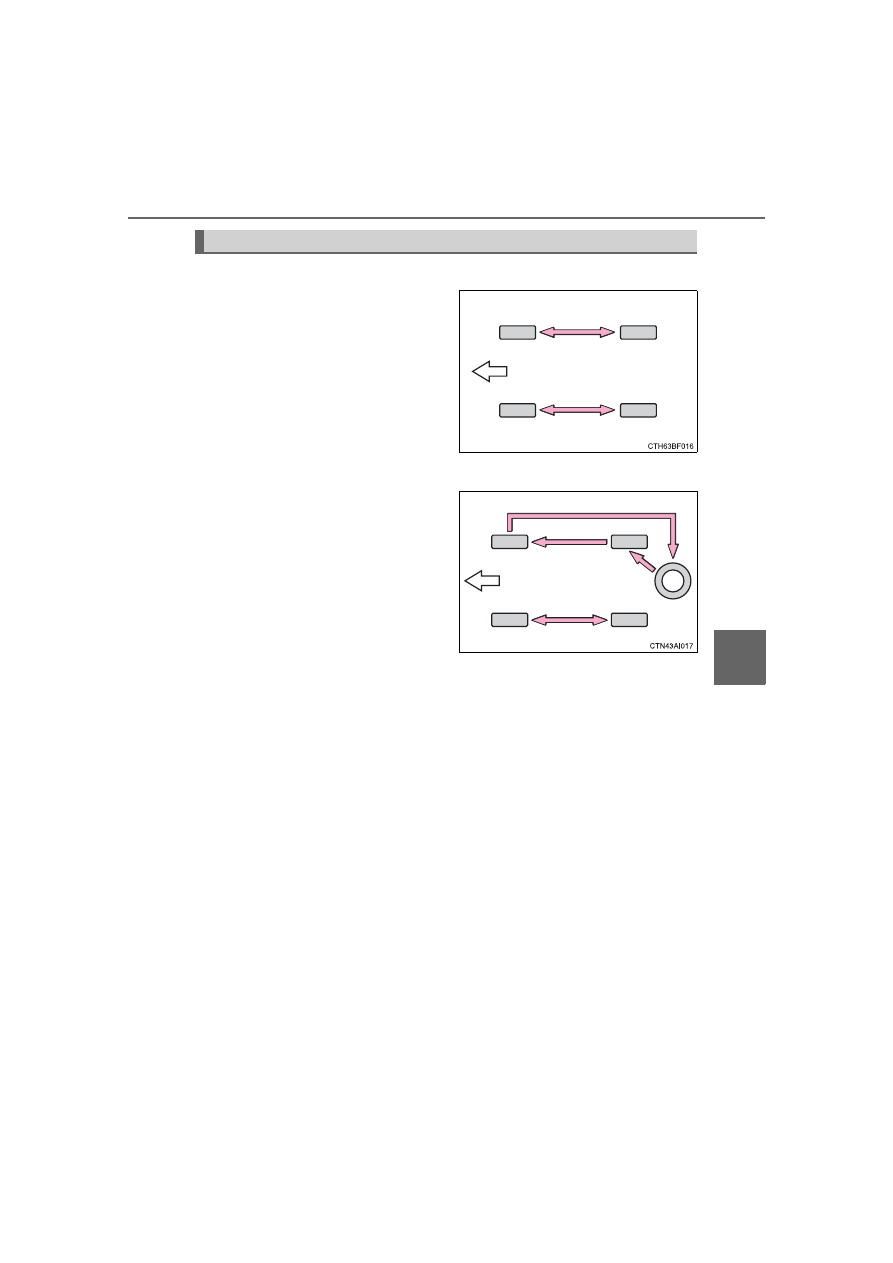

• Have  the  tires  been  rotated  according  to  the

maintenance schedule?

• The wheel nuts should not be loose.

Windshield  wipers/
rear window wiper

• The  wiper  blades  should  not  show  any  signs  of

cracking,  splitting,  wear,  contamination  or  defor-
mation.

• The wiper blades should clear the windshield/rear

window without streaking or skipping.

WARNING

■

If the engine is running

Turn the engine off and ensure that there is adequate ventilation before per-
forming maintenance checks.

403

6-2. Maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

The OBD system determines that a problem exists somewhere in the
emission control system. Your vehicle may not pass the I/M test and
may need  to  be  repaired. Contact  your Toyota  dealer to  service  the
vehicle.

●

When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also,  depending  on  your  driving  habits,  the  readiness  codes  may
not be completely set.

●

When the fuel tank cap is loose
The  malfunction  indicator  lamp  comes  on  indicating  a  temporary
malfunction and your vehicle may not pass the I/M test.

The error code in the OBD system will not be cleared unless the vehi-
cle is driven 40 or more times.

Contact your Toyota dealer to prepare the vehicle for re-testing.

Emission inspection and maintenance (I/M)

programs

Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system
monitors the operation of the emission control system.

If the malfunction indicator lamp comes on

Your vehicle may not pass the I/M test in the following situations:

When the malfunction indicator lamp still remains on after sev-
eral driving trips

If your vehicle does not pass the I/M test

404

4RUNNER (U)

6-3. Do-it-yourself maintenance

Do-it-yourself service precautions

If  you  perform  maintenance  by  yourself,  be  sure  to  follow  the
correct procedure as given in these sections.

Items

Parts and tools

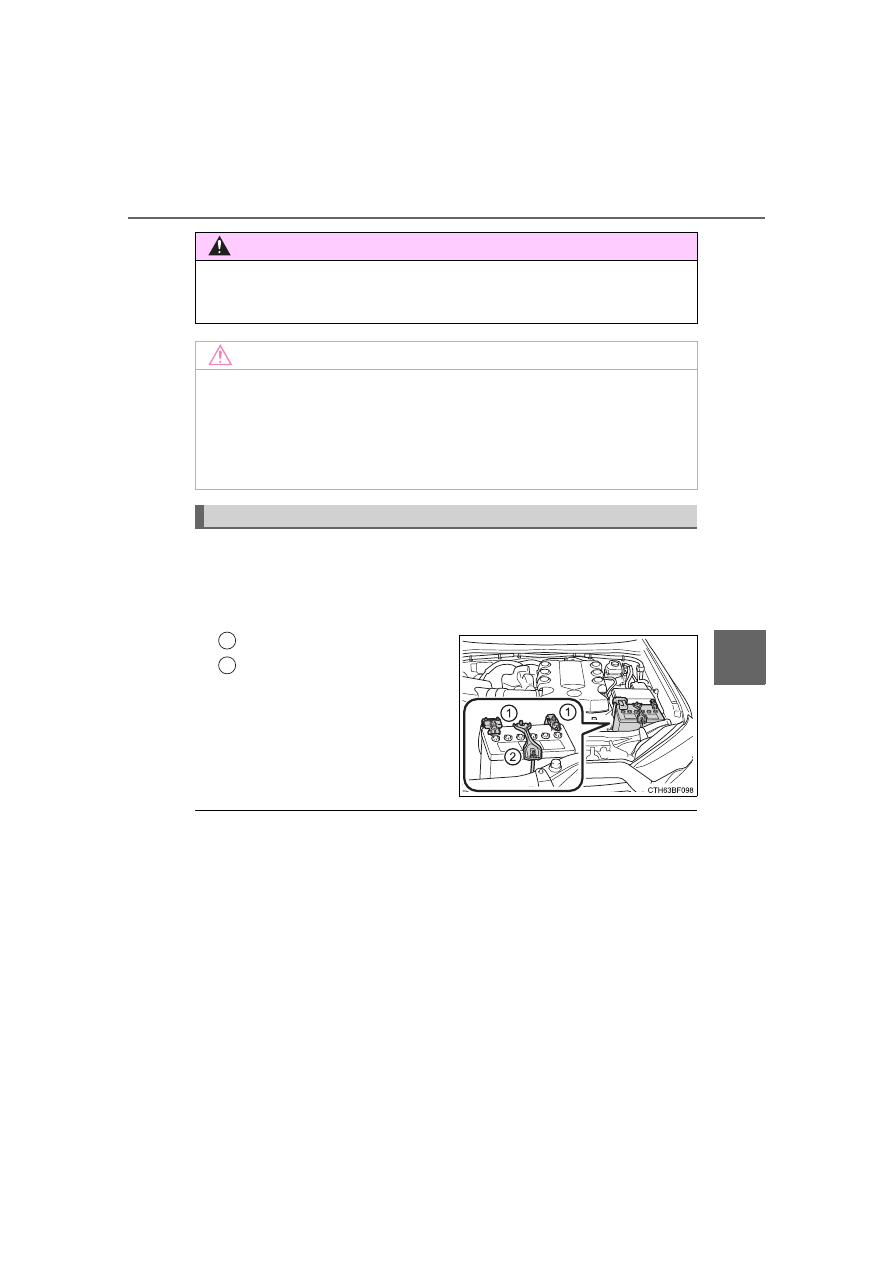

Battery condition

(



P. 417)

• Warm water

• Baking soda

• Grease

• Conventional wrench (for terminal clamp bolts)

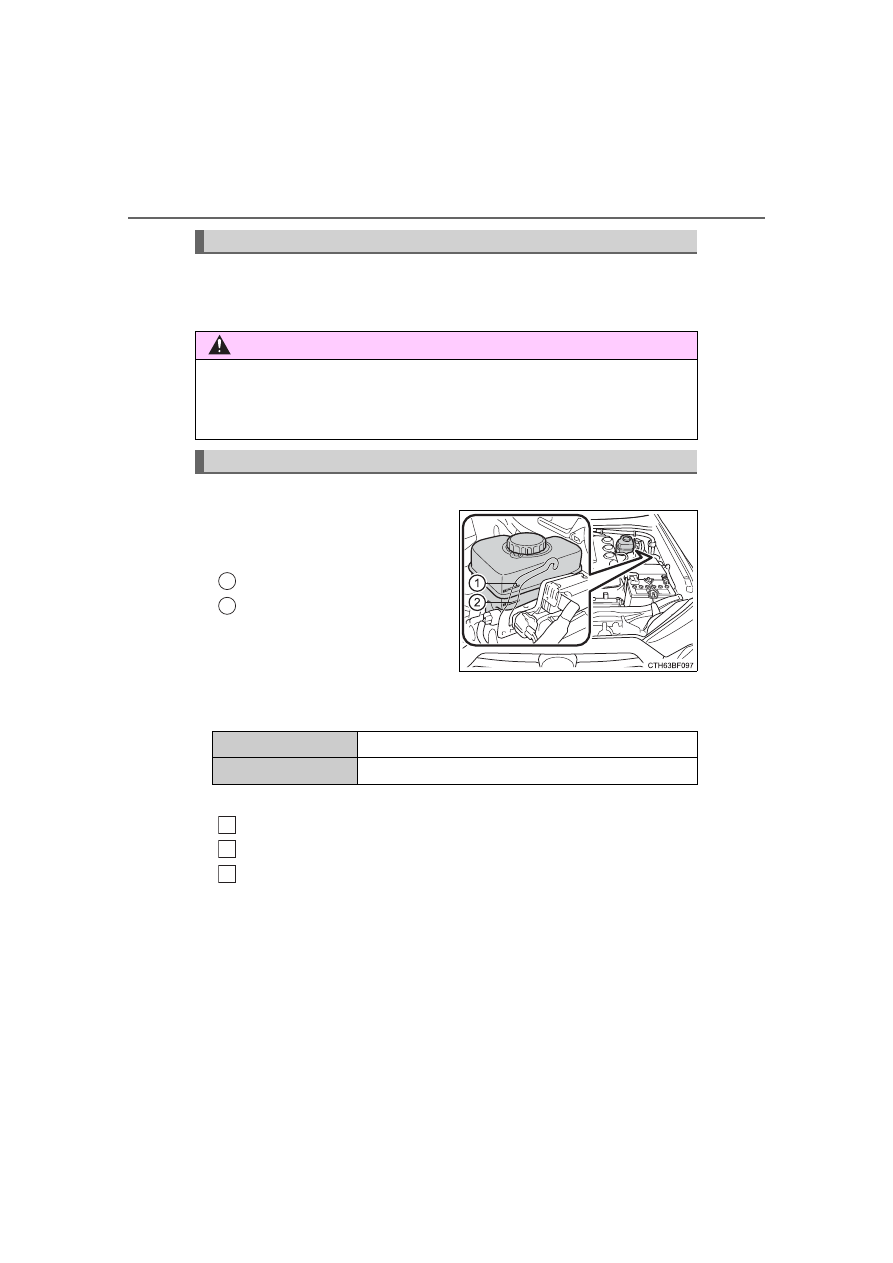

Brake fluid level

(



P. 414)

• FMVSS  No.116  DOT  3  or  SAE  J1703  brake

fluid

• Rag or paper towel

• Funnel (used only for adding brake fluid)

Engine coolant level

(



P. 412)

• “Toyota  Super  Long  Life  Coolant”  or  a  similar

high quality ethylene glycol-based non-silicate,
non-amine,  non-nitrite  and  non-borate  coolant
with long-life hybrid organic acid technology
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed
with 50% coolant and 50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is pre-mixed
with 55% coolant and 45% deionized water.

• Funnel (used only for adding coolant)

Engine oil level

(



P. 410)

• “Toyota Genuine Motor Oil” or equivalent

• Rag or paper towel

• Funnel (used only for adding engine oil)

405

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

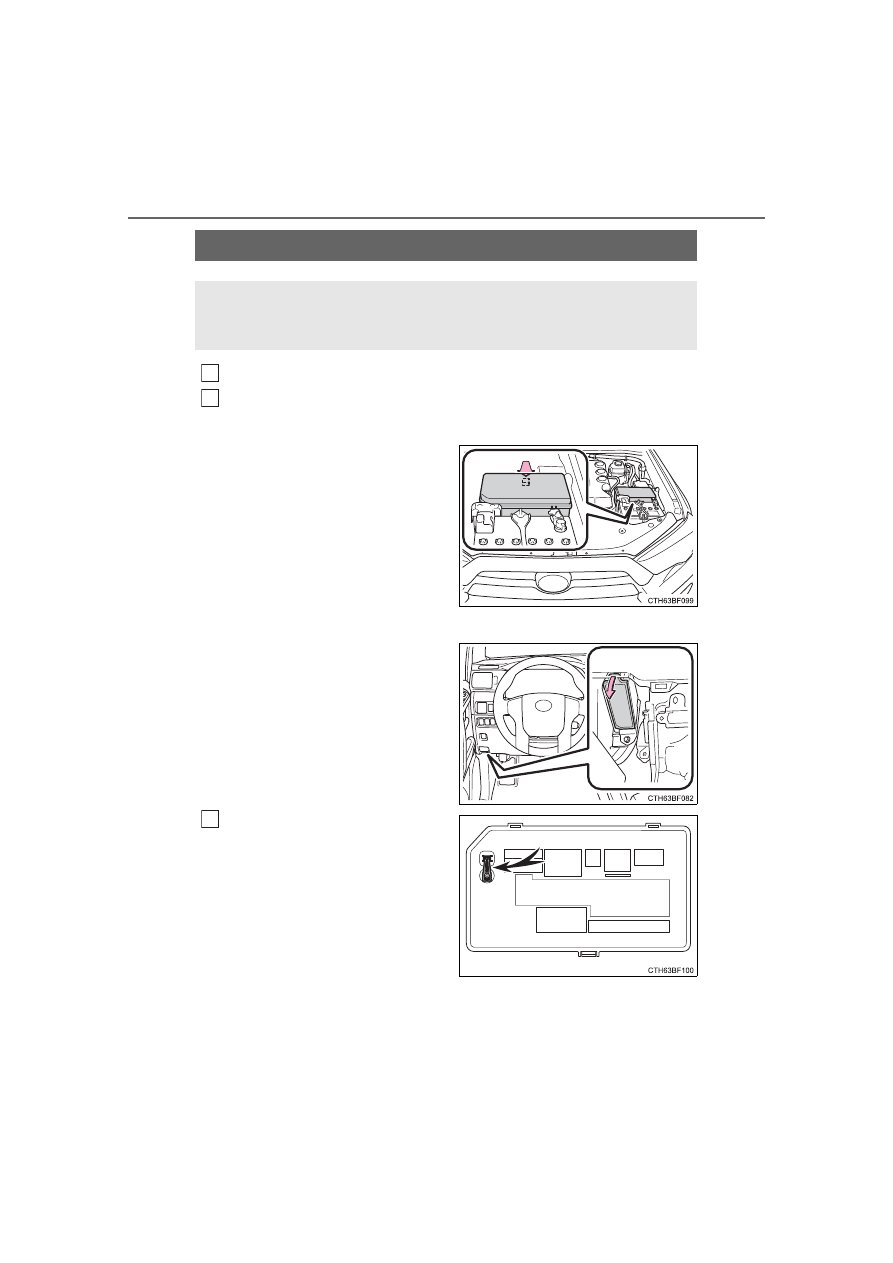

Fuses

(



P. 446)

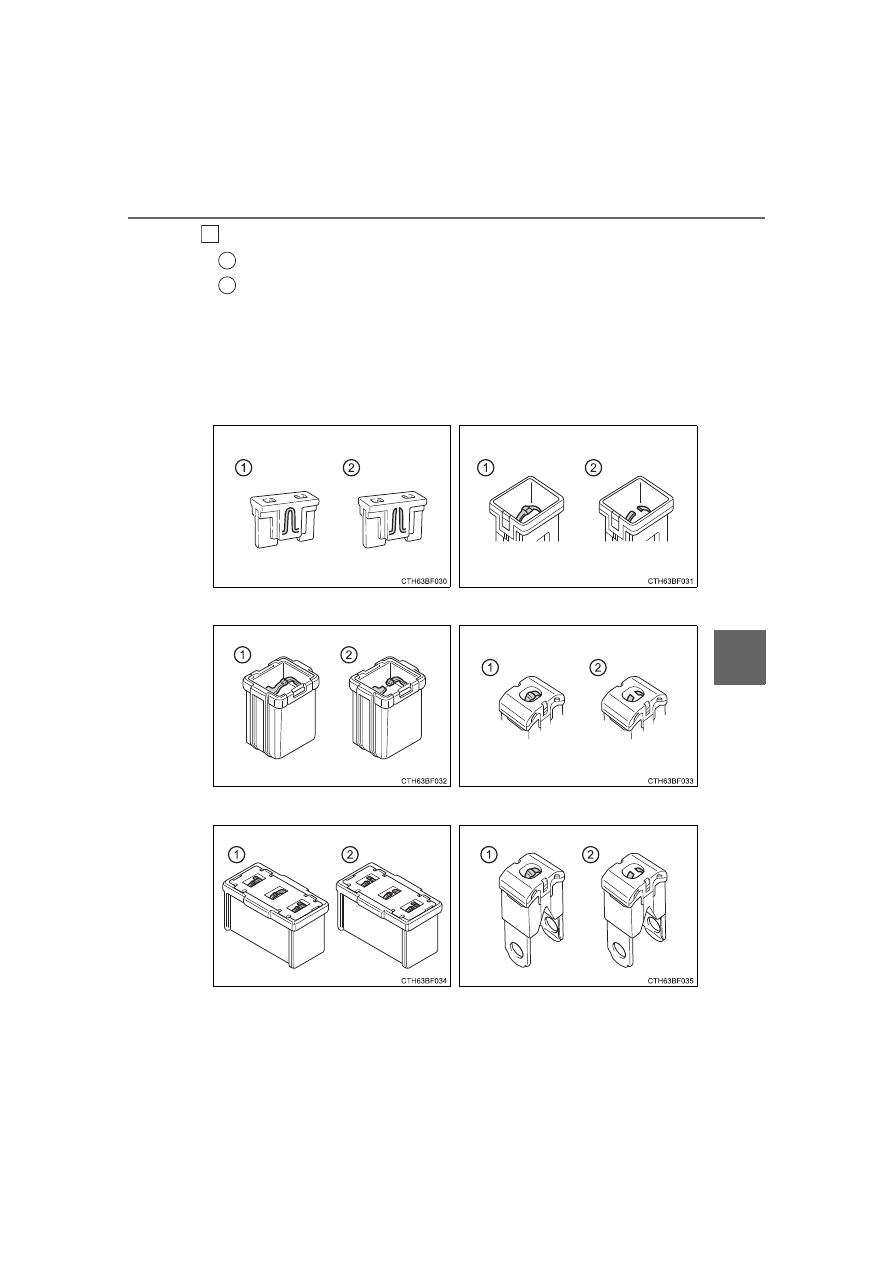

• Fuse with same amperage rating as original

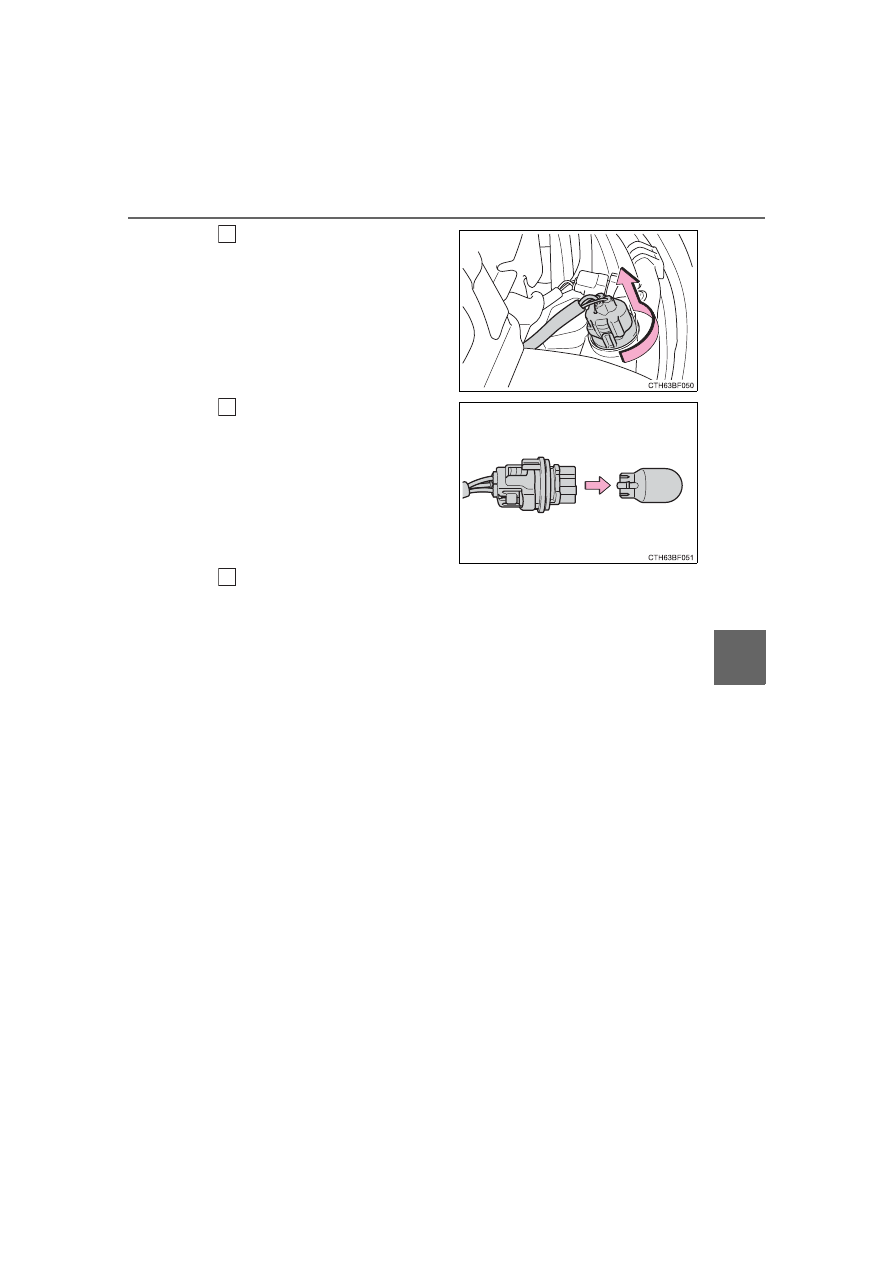

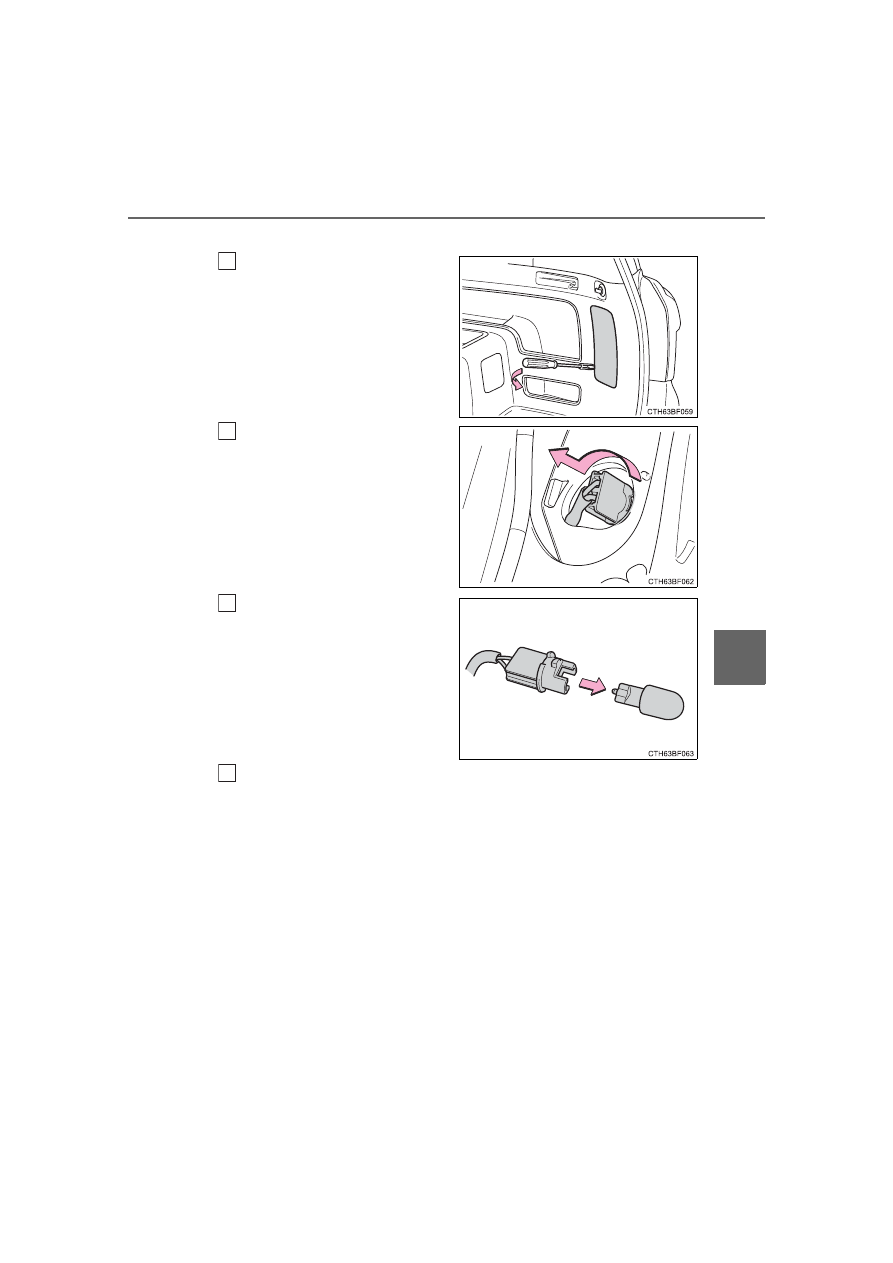

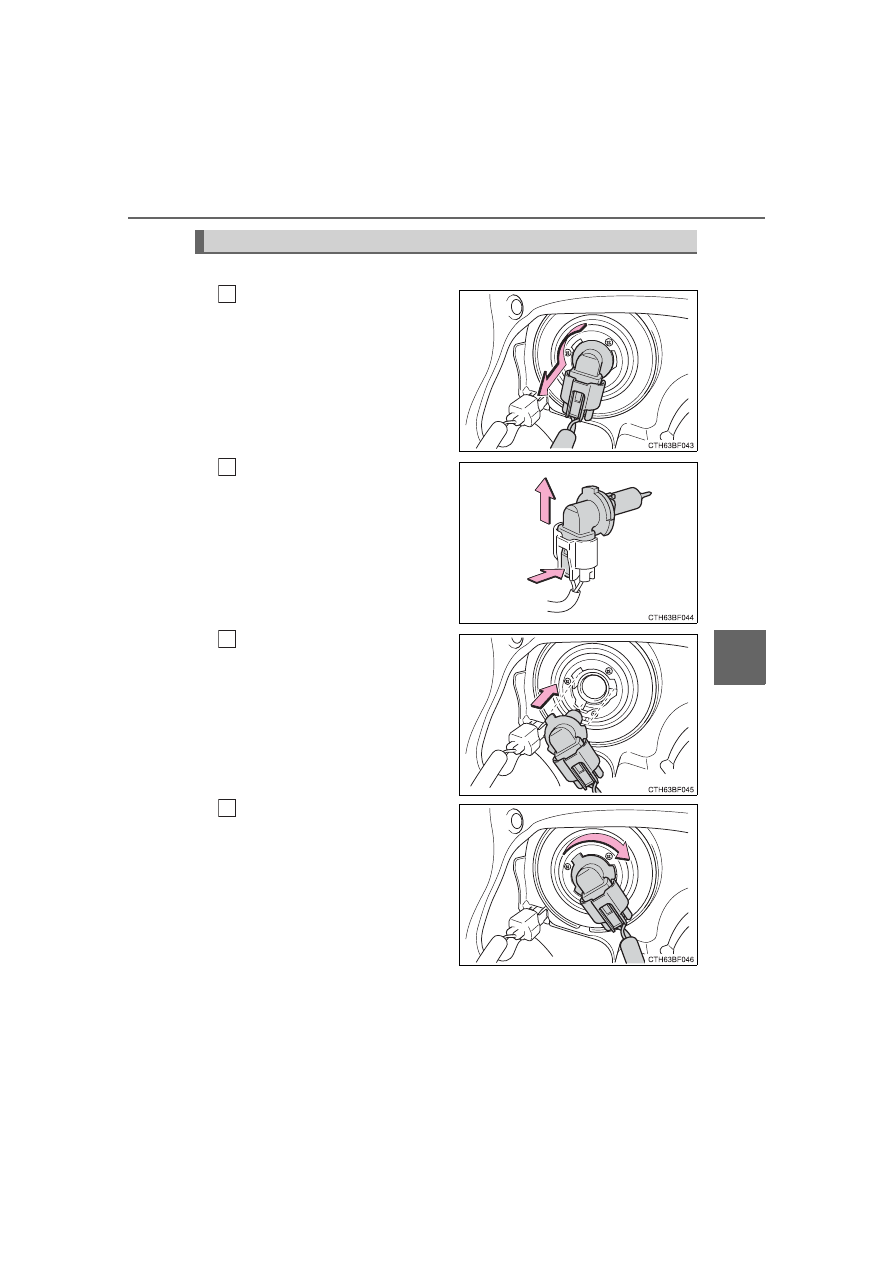

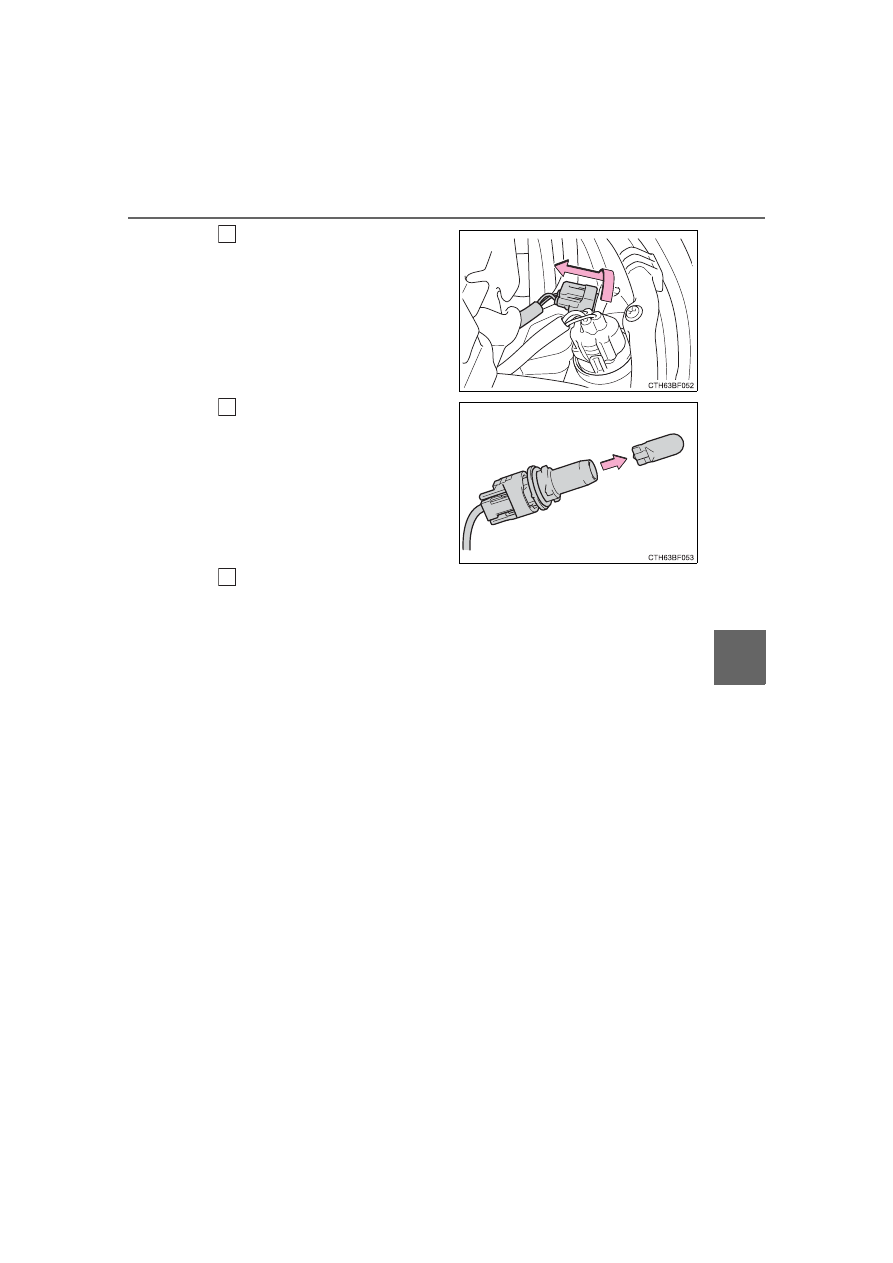

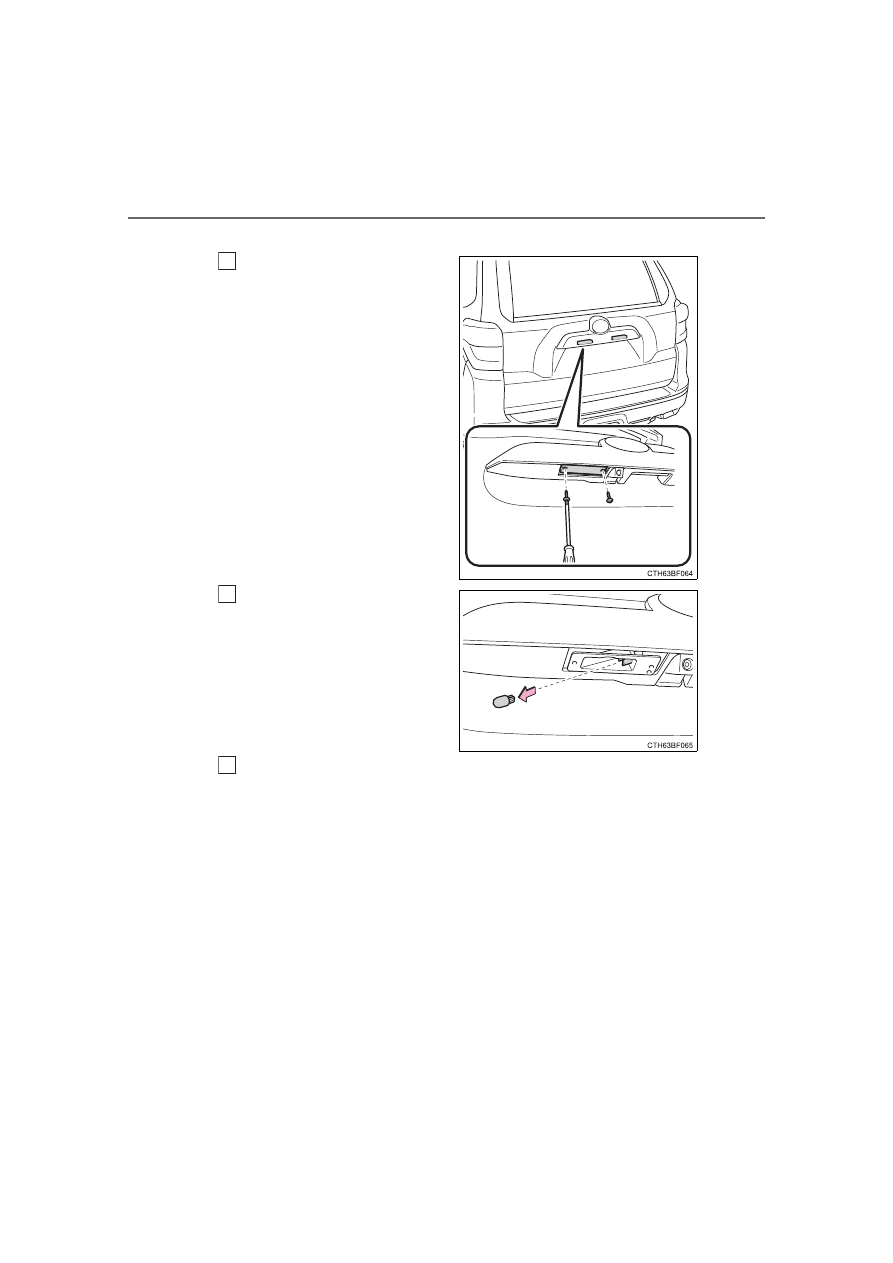

Light bulbs (



P. 449)

• Bulb with same number and wattage rating as

original

• Phillips-head screwdriver

• Flathead screwdriver

• Wrench

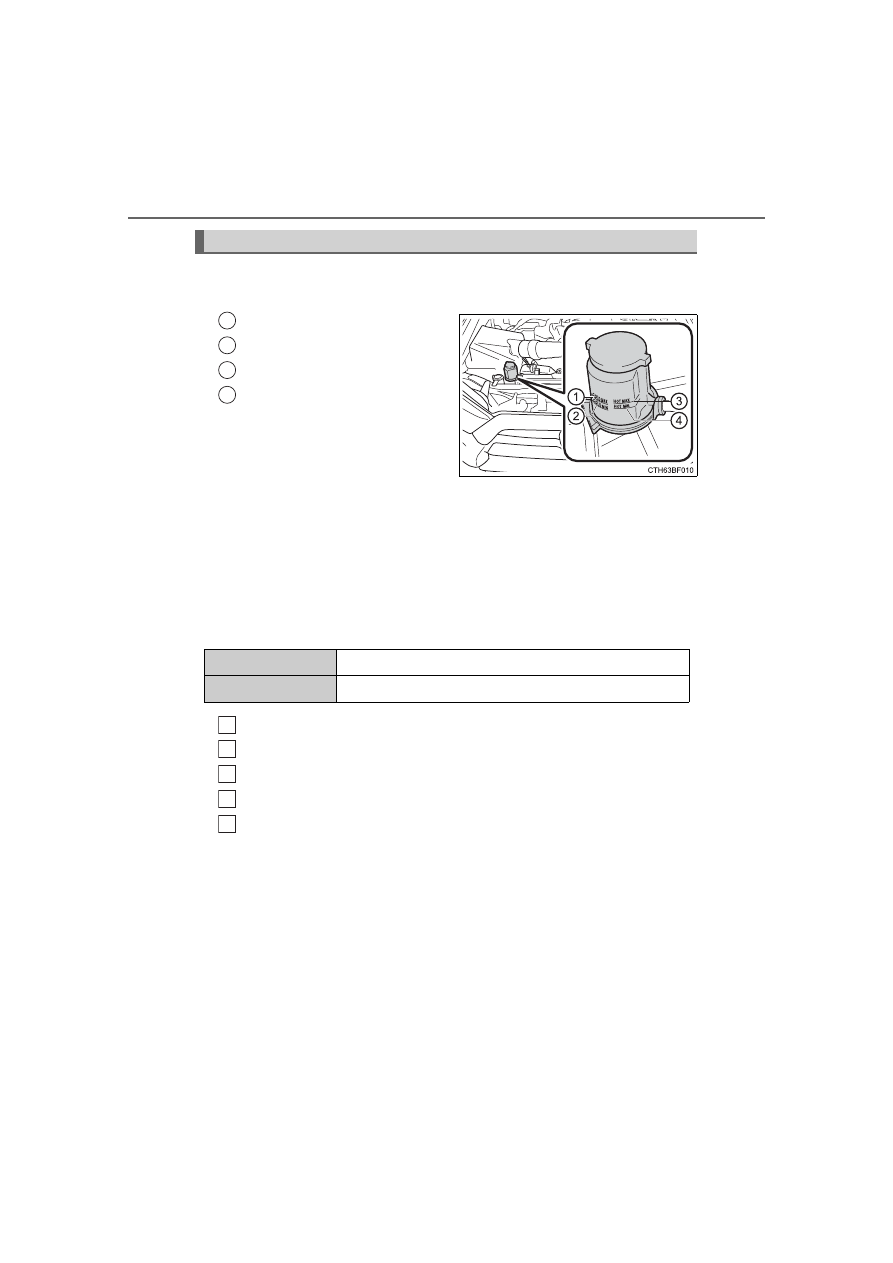

Power  steering  fluid
level

(



P. 416)

• Automatic transmission fluid DEXRON

®

II or III

• Rag or paper towel

• Clean funnel

Radiator

and

con-

denser

(



P. 414)



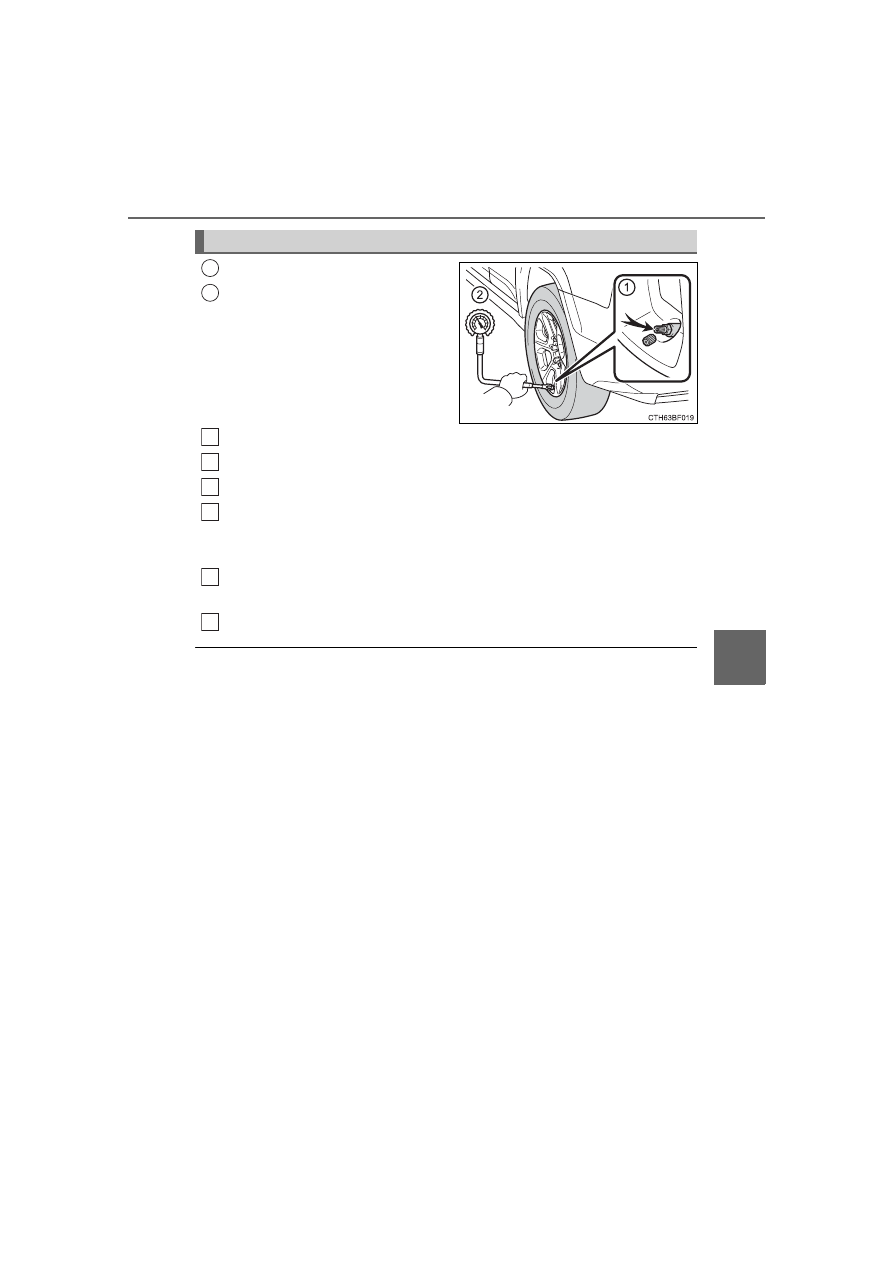

Tire inflation pressure

(



P. 436)

• Tire pressure gauge

• Compressed air source

Washer fluid

(



P. 420)

• Water or washer fluid containing antifreeze (for

winter use)

• Funnel  (used  only  for  adding  water  or  washer

fluid)

Items

Parts and tools

406

6-3. Do-it-yourself maintenance

4RUNNER (U)

WARNING

The  engine  compartment  contains  many  mechanisms  and  fluids  that  may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.

■

When working on the engine compartment

●

Keep  hands,  clothing  and  tools  away  from  the  moving  fan  and  engine
drive belt.

●

Be  careful  not  to  touch  the  engine,  radiator,  exhaust  manifold,  etc.  right
after driving as they may be hot. Oil and other fluids may also be hot.

●

Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.

●

Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.

●

Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.

■

Safety glasses

Wear  safety  glasses  to  prevent  flying  or  falling  material,  fluid  spray,  etc.
from getting in your eyes.

NOTICE

■

If you remove the air cleaner filter

Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.

407

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

Pull the hood lock release lever.

The hood will pop up slightly.

Push the auxiliary catch lever to
the left and lift the hood.

Hood

Release the lock from the inside of the vehicle to open the hood.

1

2

WARNING

■

Pre-driving check

Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.

408

6-3. Do-it-yourself maintenance

4RUNNER (U)

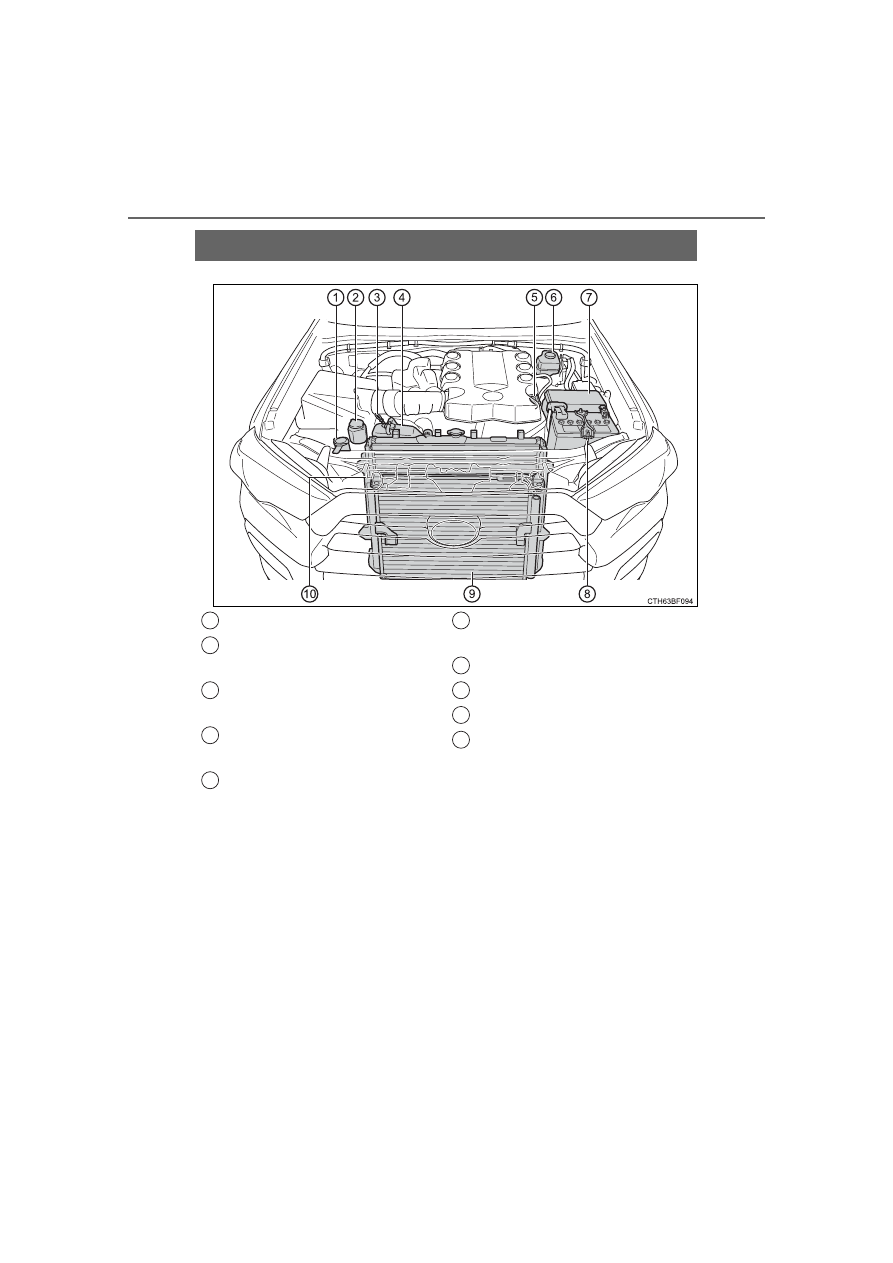

Engine compartment

Washer fluid tank  (



P. 420)

Power steering fluid reservoir

(



P. 416)

Engine oil level dipstick

(



P. 410)

Engine coolant reservoir

(



P. 412)

Engine oil filler cap (



P. 411)

Brake fluid reservoir

(



P. 414)

Fuse box

(



P. 446)

Battery

(



P. 417)

Condenser

(



P. 414)

Radiator

(



P. 414)

1

2

3

4

5

6

7

8

9

10

409

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

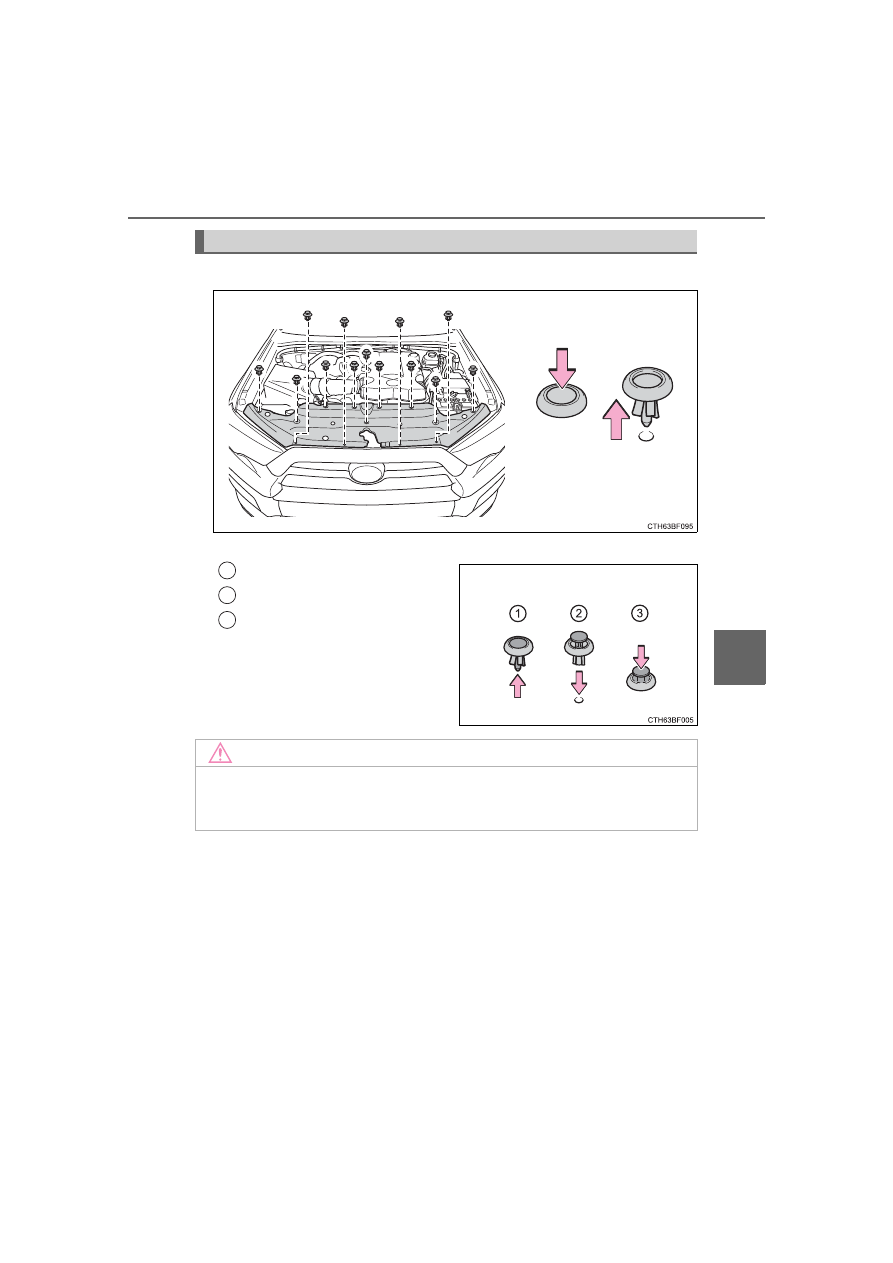

Removing the engine compartment cover

■

Installing the clips

Push up center portion
Insert
Press

Engine compartment cover

1

2

3

NOTICE

■

After installing an engine compartment cover

Make sure that the cover is securely installed in its original position.

410

6-3. Do-it-yourself maintenance

4RUNNER (U)

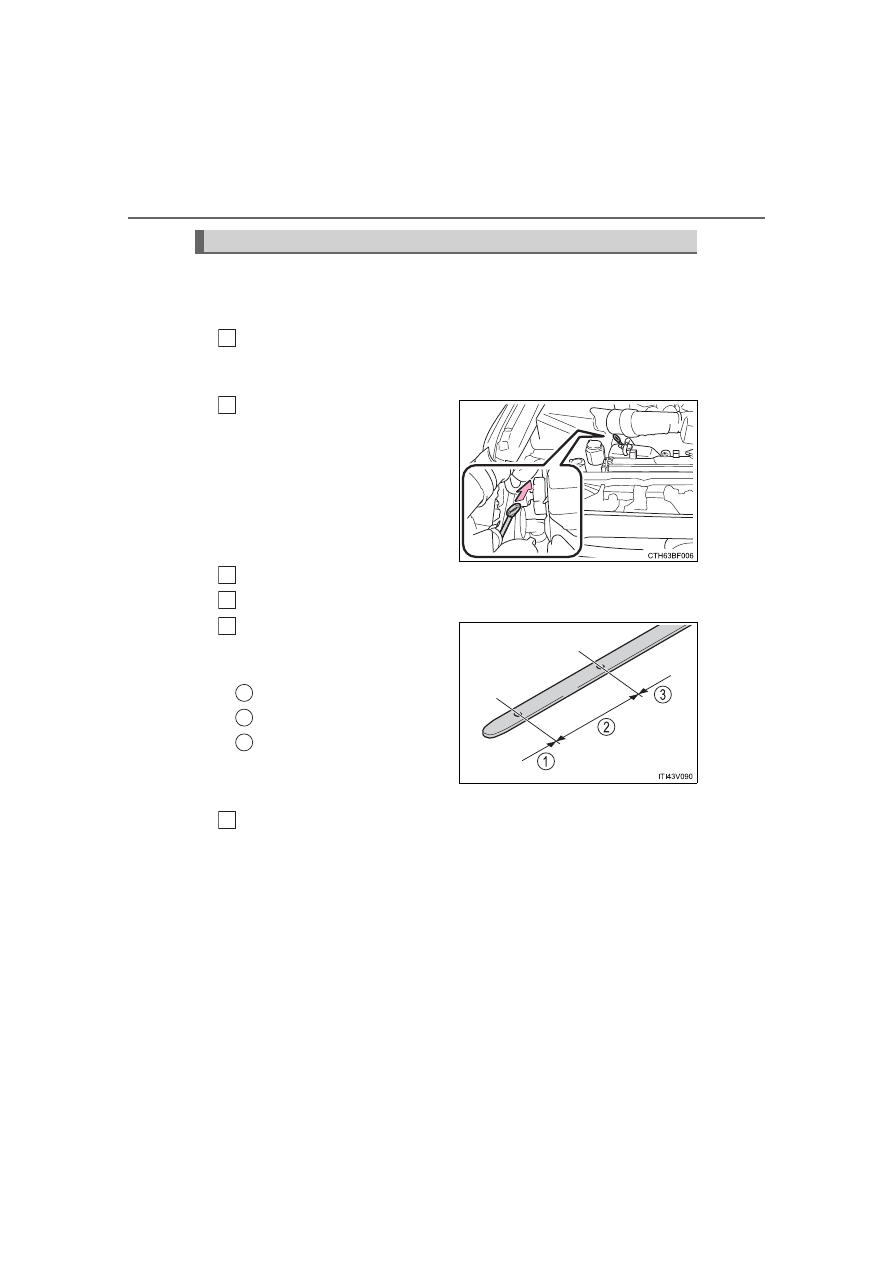

With the engine at operating temperature and turned off, check the oil
level on the dipstick.

■

Checking the engine oil

Park  the  vehicle  on  level  ground. After  warming  up  the  engine
and  turning  it  off,  wait  more  than  5  minutes  for  the  oil  to  drain
back into the bottom of the engine.
Holding a rag under the end,
pull the dipstick out.

Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end,
pull  the  dipstick  out  and
check the oil level.

Low
Normal
Excessive

The  shape  of  the  dipstick  may
differ  depending  on  the  type  of
vehicle or engine.

Wipe the dipstick and reinsert it fully.

Engine oil

1

2

3

4

5

1

2

3

6

411

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

Adding engine oil

If  the  oil  level  is  below  or  near
the low level mark, add engine
oil  of  the  same  type  as  that
already in the engine.

Make  sure  to  check  the  oil  type  and  prepare  the  items  needed
before adding oil.

Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.

■

Engine oil consumption

A certain amount of engine oil will be consumed while driving. In the following
situations,  oil  consumption  may  increase,  and  engine  oil  may  need  to  be
refilled in between oil maintenance intervals.

●

When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine

●

If low quality oil or oil of an inappropriate viscosity is used

●

When driving at high engine speeds or with a heavy load, when towing, or
when driving while accelerating or decelerating frequently

●

When leaving the engine idling for a long time, or when driving frequently
through heavy traffic

Engine oil selection



P. 523

Oil quantity
(Low



 Full)

1.8 qt. (1.7 L, 1.5 Imp. qt.)

Items

Clean funnel

1

2

3

412

6-3. Do-it-yourself maintenance

4RUNNER (U)

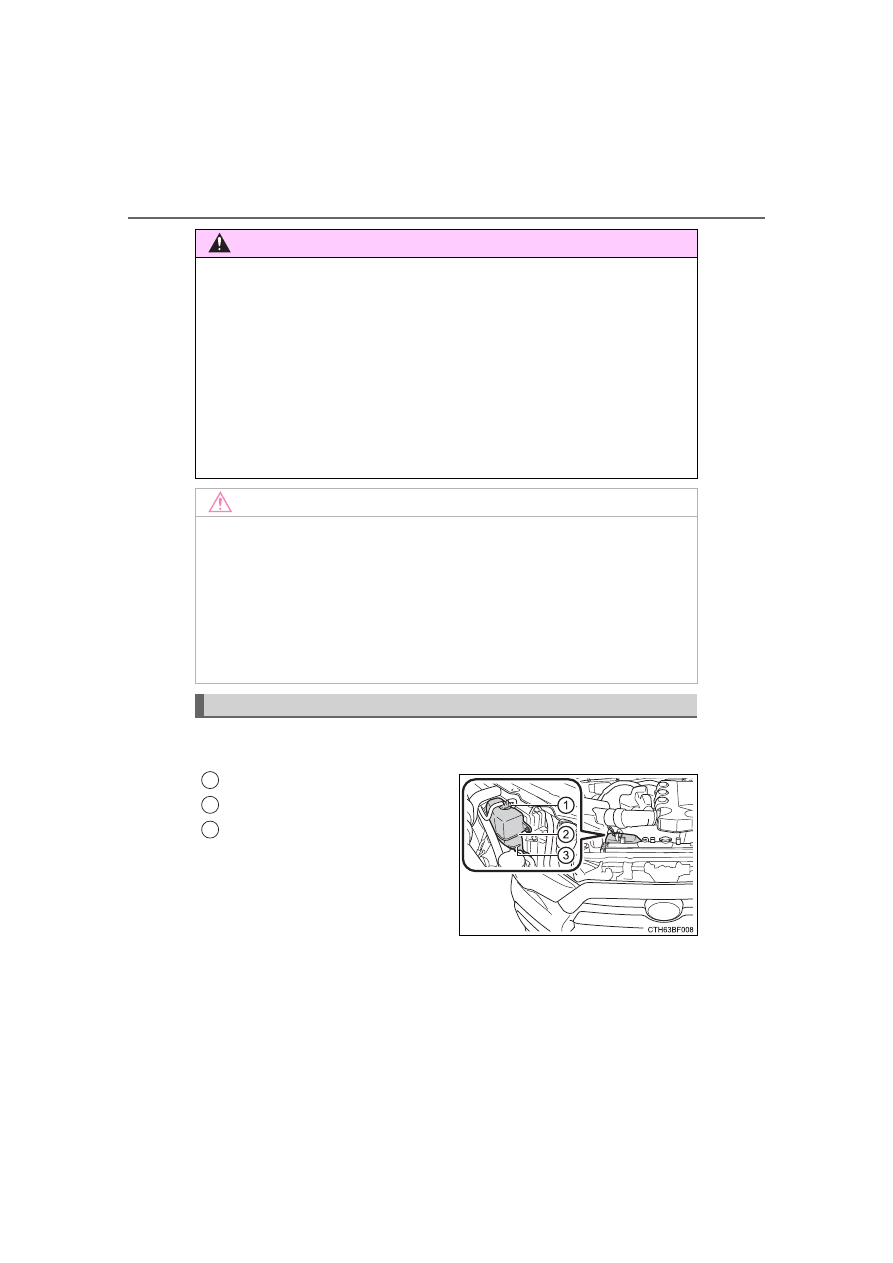

The coolant level is satisfactory if it is between the “F” and “L” lines on
the reservoir when the engine is cold.

Reservoir cap
“F” line
“L” line

If  the  level  is  on  or  below  the  “L”
line, add coolant up to the “F” line.
(



P. 514)

WARNING

■

Used engine oil

●

Used  engine  oil  contains  potentially  harmful  contaminants  which  may
cause  skin  disorders  such  as  inflammation  and  skin  cancer,  so  care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.

●

Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call your Toyota dealer, service station or auto parts store for information
concerning recycling or disposal.

●

Do not leave used engine oil within the reach of children.

NOTICE

■

To prevent serious engine damage

Check the oil level on a regular basis.

■

When replacing the engine oil

●

Be careful not to spill engine oil on the vehicle components.

●

Avoid overfilling, or the engine could be damaged.

●

Check the oil level on the dipstick every time you refill the vehicle.

●

Be sure the engine oil filler cap is properly tightened.

Engine coolant

1

2

3

413

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

Coolant selection

Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -31



F [-35



C])

Canada:
“Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deion-
ized water. (Minimum temperature: -44



F [-42



C])

For more details about engine coolant, contact your Toyota dealer.

■

If the coolant level drops within a short time of replenishing

Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have your Toyota dealer test the cap and check for
leaks in the cooling system.

WARNING

■

When the engine is hot

Do not remove the engine coolant reservoir cap or the radiator cap.
(



P. 515)

The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.

NOTICE

■

When adding coolant

Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to prevent it from damaging parts or paint.

414

6-3. Do-it-yourself maintenance

4RUNNER (U)

Check the radiator and condenser and clear away any foreign objects.
If  either of  the  above parts  is  extremely  dirty  or you  are not  sure of
their condition, have your vehicle inspected by your Toyota dealer.

■

Checking fluid level

The brake fluid level should be
between  the  “MAX”  and  “MIN”
lines on the tank.

“MAX” line
“MIN” line

■

Adding fluid

Make sure to check the fluid type and prepare the necessary item.

■

Refilling brake fluid

Turn the engine switch off.
Depress the brake pedal more than 40 times.
Remove  the  reservoir  cap  by  hand. Add  brake  fluid  up  to  the
“MAX” line.
If you do not follow the procedure above, the reservoir may over-
flow.

Radiator and condenser

WARNING

■

When the engine is hot

Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.

Brake fluid

1

2

Fluid type

FMVSS No.116 DOT 3 or SAE J1703 brake fluid

Items

Clean funnel

1

2

3

415

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

Brake fluid can absorb moisture from the air

Excess moisture in the brake fluid can cause a dangerous loss of braking effi-
ciency. Use only newly opened brake fluid.

WARNING

■

When filling the reservoir

Take  care  as  brake  fluid  can  harm  your  hands  and  eyes  and  damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, see a doctor.

NOTICE

■

If the fluid level is low or high

It is normal for the brake fluid level to go down slightly as the brake pads
wear out or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, there may be a serious problem.

416

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

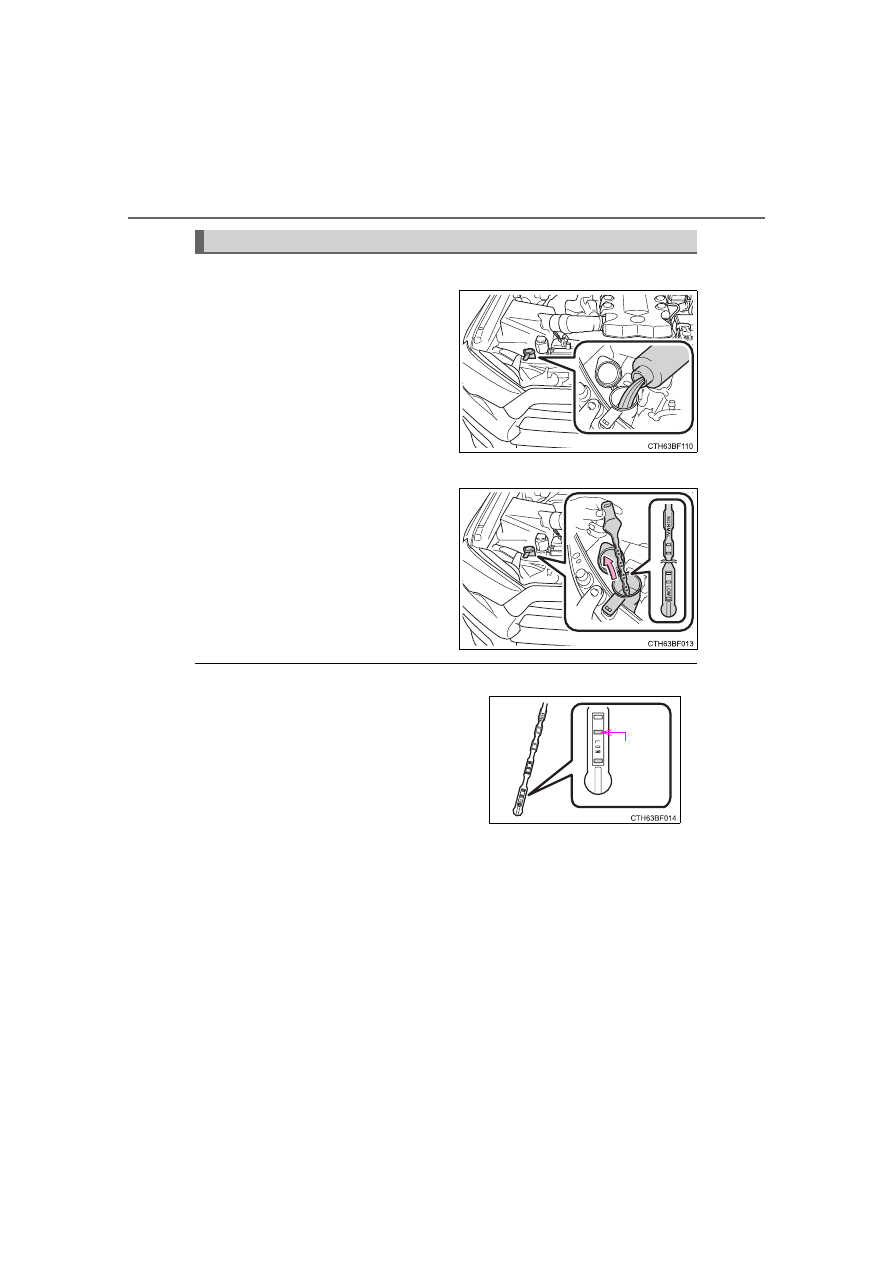

Fluid level

The fluid level should be within the appropriate range.

Full (when cold)
Add fluid (when cold)
Full (when hot)
Add fluid (when hot)

Hot: Vehicle has been driven around 50 mph (80 km/h) for 20 min-

utes, or slightly longer in frigid temperatures. (Fluid tempera-
ture, 140°F - 175°F [60°C - 80°C]).

Cold: Engine has not been run for about 5 hours. (Room tempera-

ture, 50°F - 85°F [10°C - 30°C]).

■

Checking the fluid level

Make sure to check the fluid type and prepare the necessary items.

Clean all dirt off the reservoir.
Remove the cap by turning it counterclockwise.
Wipe the dipstick clean.
Reinstall the cap and remove it again.
Check the fluid level.

Power steering fluid

1

2

3

4

Fluid type

Automatic transmission fluid DEXRON

®

 II or III

Items

Rag or paper, clean funnel (only for adding fluid)

1

2

3

4

5

417

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

Check the battery as follows.

■

Battery exterior

Make  sure  that  the  battery  terminals  are  not  corroded  and  that
there are no loose connections, cracks, or loose clamps.

Terminals
Hold-down clamp

■

Before recharging

When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, observe the following before recharging:

●

If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.

●

Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.

WARNING

■

When checking the reservoir

Take care as the reservoir may be hot.

NOTICE

■

When adding fluid

Avoid overfilling, or the power steering may be damaged.

■

After replacing the reservoir cap

Check the steering box case, vane pump and hose connections for leaks or
damage.

Battery

1

2

418

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

After recharging/reconnecting the battery (vehicles with a smart key sys-
tem)

The engine may not start. Follow the procedure below to initialize the system.

Shift the shift lever to P.
Open and close any of the doors.
Restart the engine.

●

Unlocking the doors using the smart key system may not be possible imme-
diately  after  reconnecting  the  battery.  If  this  happens,  use  the  wireless
remote control or the mechanical key to lock/unlock the doors.

●

Start the engine with the engine switch in ACCESSORY mode. The engine
may not start when the engine switch turned from off. However, the engine
will operate normally from the second attempt.

●

The engine switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the engine switch mode to the status it was in
before  the  battery  was  disconnected.  Make  sure  to  turn  off  the  engine
before disconnect the battery. Take extra care when connecting the battery
if the engine switch mode prior to discharge is unknown.

If the system will not start even after multiple attempts, contact your Toyota
dealer.

WARNING

■

Chemicals in the battery

Batteries  contain  poisonous  and  corrosive  sulfuric  acid  and  may  produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near the
battery:

●

Do not cause sparks by touching the battery terminals with tools.

●

Do not smoke or light a match near the battery.

●

Avoid contact with eyes, skin and clothes.

●

Never inhale or swallow electrolyte.

●

Wear protective safety glasses when working near the battery.

●

Keep children away from the battery.

1

2

3

419

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

WARNING

■

Where to safely charge the battery

Always charge the battery in an open area. Do not charge the battery in a
garage or closed room where there is insufficient ventilation.

■

How to recharge the battery

Only  perform  a  slow  charge  (5  A  or  less).  The  battery  may  explode  if
charged at a quicker rate.

■

Emergency measures regarding electrolyte

●

If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.

●

If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.

●

If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.

●

If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.

NOTICE

■

When recharging the battery

Never  recharge  the  battery  while  the  engine  is  running. Also,  be  sure  all
accessories are turned off.

420

6-3. Do-it-yourself maintenance

4RUNNER (U)



Type A

If any washer does not work or the
warning message appears on the
multi-information

display,

the

washer  tank  may  be  empty. Add
washer fluid.



Type B

If  the  washer  fluid  level  is  at
“LOW”, add washer fluid.

■

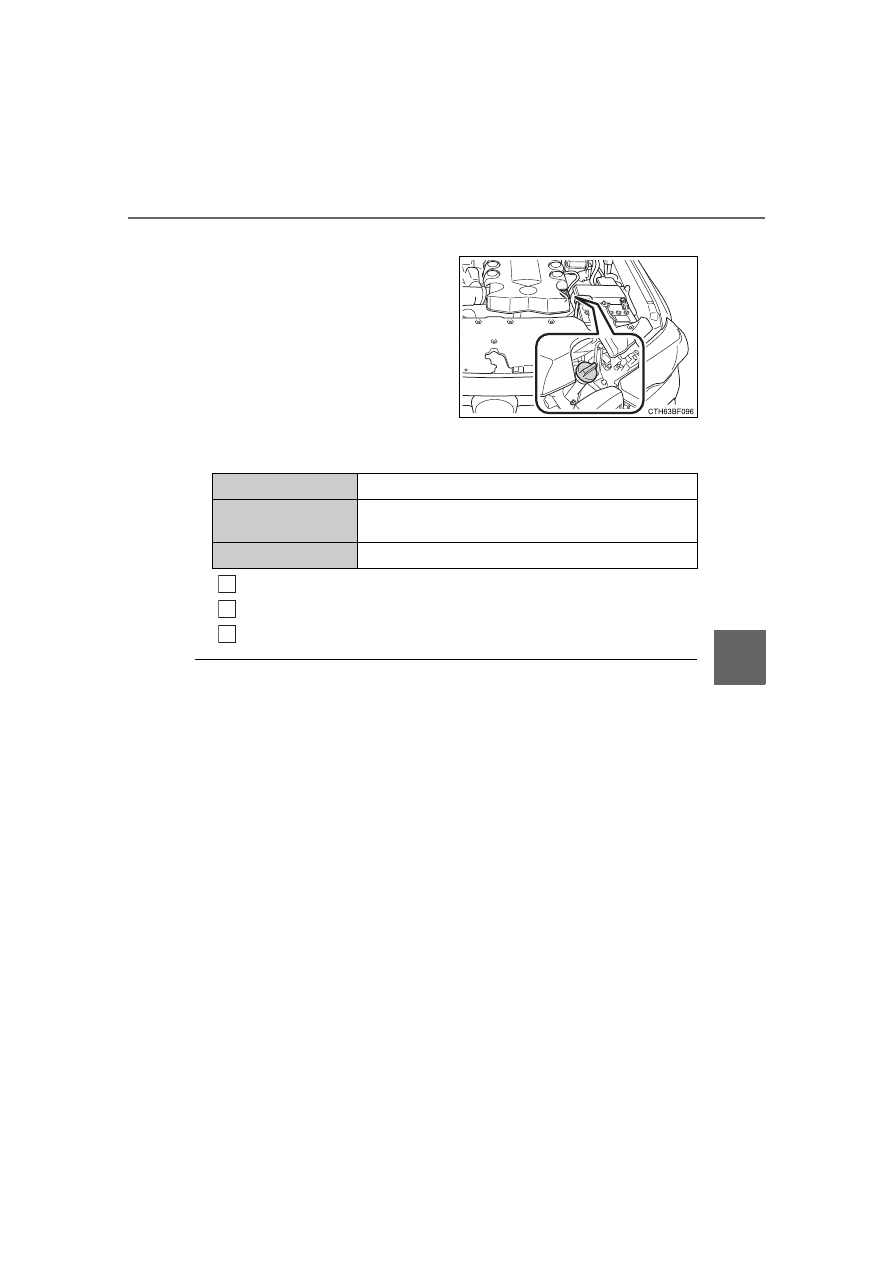

Using the gauge (Type B only)

Washer fluid

The washer fluid level can be checked by
observing the position of the level on the
liquid-covered holes in the gauge.
If  the  level  falls  below  the  second  hole
from the bottom (the “LOW” position), refill
the washer fluid.

Current
fluid
level

421

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

WARNING

■

When adding washer fluid

Do not add washer fluid when the engine is hot or running as washer fluid
contains alcohol and may catch fire if spilled on the engine etc.

NOTICE

■

Do not use any fluid other than washer fluid

Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle's painted surfaces, as well as
damaging the pump leading to problems of the washer fluid not spraying.

■

Diluting washer fluid

Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.

422

6-3. Do-it-yourself maintenance

4RUNNER (U)

Check if the treadwear indicators are showing on the tires. Also check
the tires for uneven wear, such as excessive wear on one side of the
tread.
Check the spare tire condition and pressure if not rotated.

New tread
Worn tread
Treadwear indicator

The location of treadwear indicators is shown by a “TWI” or “



” mark,

etc., molded into the sidewall of each tire.

Replace the tires if the treadwear indicators are showing on a tire.

Tires

Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.

Checking tires

1

2

3

423

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)



Vehicles without P245/60R20 tires

Rotate  the  tires  in  the  order
shown.

To equalize tire wear and extend
tire life, Toyota recommends that
tire  rotation  is  carried  out  at  the
same interval as tire inspection.



Vehicles with P245/60R20 tires

Rotate  the  tires  in  the  order
shown.

To equalize tire wear and extend
tire life, Toyota recommends that
tire  rotation  is  carried  out  at  the
same interval as tire inspection.

Tire rotation

Front

Front

424

6-3. Do-it-yourself maintenance

4RUNNER (U)

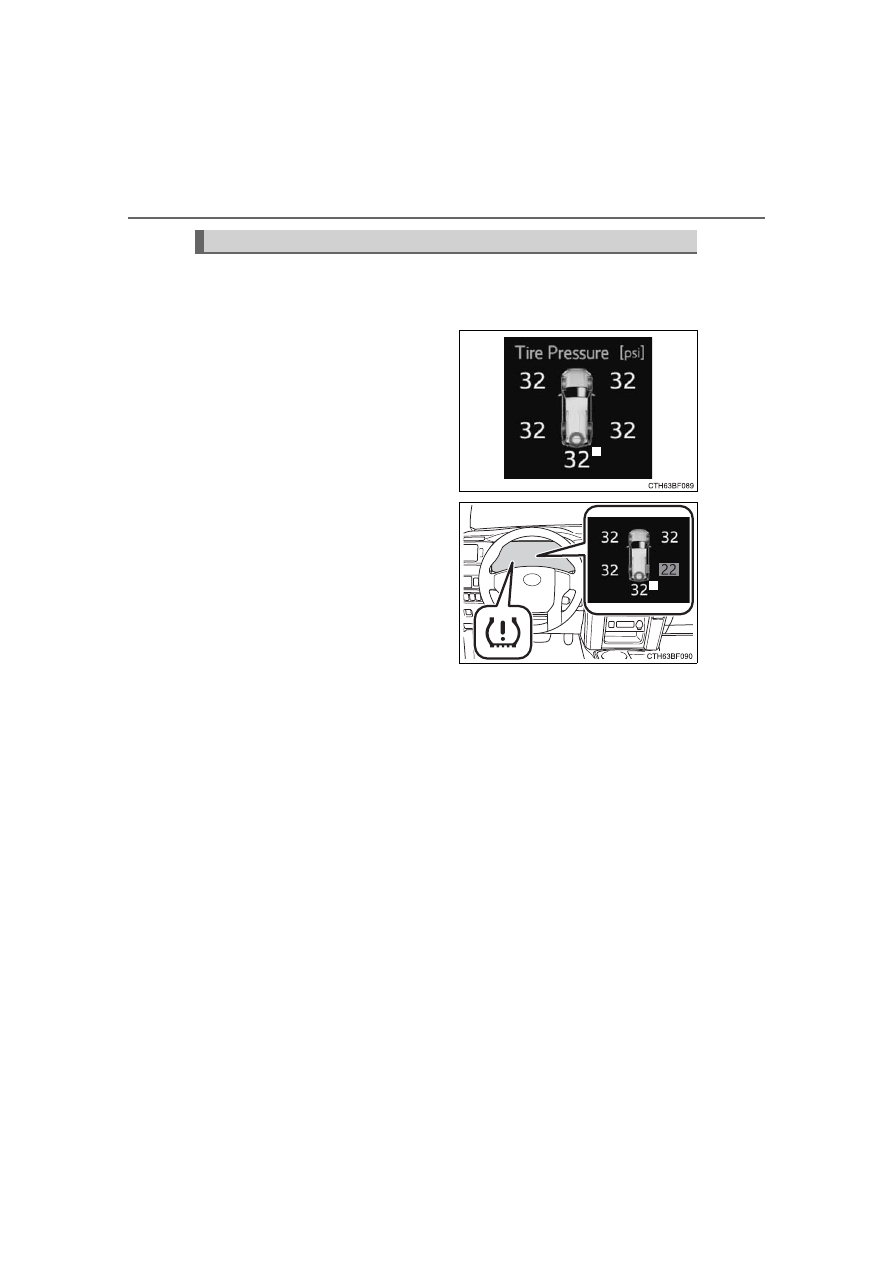

Your vehicle is equipped with a tire pressure warning system that uses
tire pressure warning valve and transmitters to detect low tire inflation
pressure before serious problems arise.

●

The  tire  pressure  detected  by
the  tire  pressure  warning  sys-
tem  can  be  displayed  on  the
multi-information display.

*

:

If equipped

●

If the tire pressure drops below
a  predetermined  level,  the
driver  is  warned  by  a  screen
display  and  a  warning  light.
(



P. 478)

*

:

If equipped

Tire pressure warning system

*

*

425

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

◆

Installing tire pressure warning valve and transmitters

When replacing the tires or wheels, the tire pressure warning valve
and  transmitters  must  be  installed  to  the  wheels  which  will  be
installed to the vehicle.
When  new  tire  pressure  warning  valve  and  transmitters  are
installed,  new  ID  codes  must  be  registered  in  the  tire  pressure
warning  computer  and  the  tire  pressure  warning  system  must  be
initialized. (



P. 426)

◆

Initializing the tire pressure warning system

■

The tire pressure warning system must be initialized in the fol-
lowing circumstances:

●

When the tire inflation pressure is changed such as when chang-
ing traveling speed or load weight.

●

When the tire inflation pressure is changed such as when the tire
size is changed.

●

When rotating the tires.

●

After performing the transmitter  ID code registration procedure.
(



P. 426)

When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.

■

How to initialize the tire pressure warning system

Park the vehicle in a safe place and turn the engine switch off.

The  initialization  procedure  cannot  be  started  while  the  vehicle  is

moving.

Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. (



P. 528)

Make sure to adjust the tire pressure to the specified cold tire infla-

tion  pressure  level.  The  tire  pressure  warning  system  will  operate

based on this pressure level.

Start the engine. (



P. 209, 212)

Select

 on the multi-information display using the meter con-

trol switches on the steering wheel. (



P. 96)

Select “Vehicle Settings” and then press and hold

.

Select “TPWS” and then press

.

1

2

3

4

5

6

426

6-3. Do-it-yourself maintenance

4RUNNER (U)

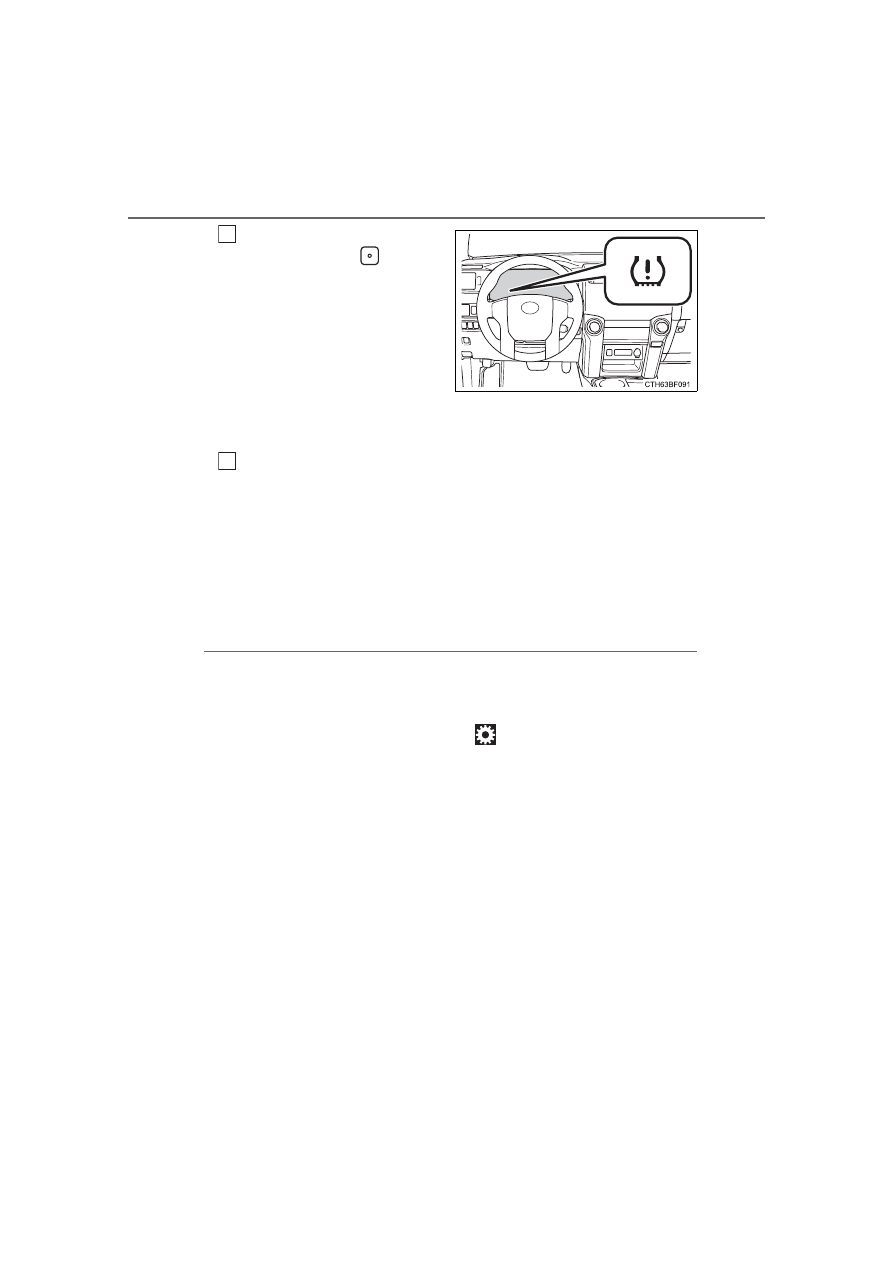

Select  “Set  Pressure”  then
press  and  hold

  until  the

tire  pressure  warning  light
blinks 3 times.

Then  a  message  will  be  dis-

played on the multi-information

display.
“---”  will  be  displayed  on  the

multi-information  display  for

the  inflation  pressure  of  each

tire  while  initialization  is  being

performed.

Drive  straight  (with  occasional  left  and  right  turns)  at  approxi-
mately 25 mph (40 km/h) or more for approximately 10 to 30 min-
utes.

Initialization is complete when the position of each tire is determined

and the inflation pressure of each tire is displayed on the multi-infor-

mation display.
Initialization  may  take  longer  than  approximately  1  hour  in  certain

situations,  such  as  when  the  vehicle  is  stopped  for  a  long  time  at

traffic lights, etc. (



P. 431)

◆

Registering ID codes

Every tire pressure warning valve and transmitter has a unique ID
code. When replacing a tire pressure warning valve and transmitter,
it is necessary to register the ID codes.
The ID codes can be registered on

 of the multi-information dis-

play.

7

8

427

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

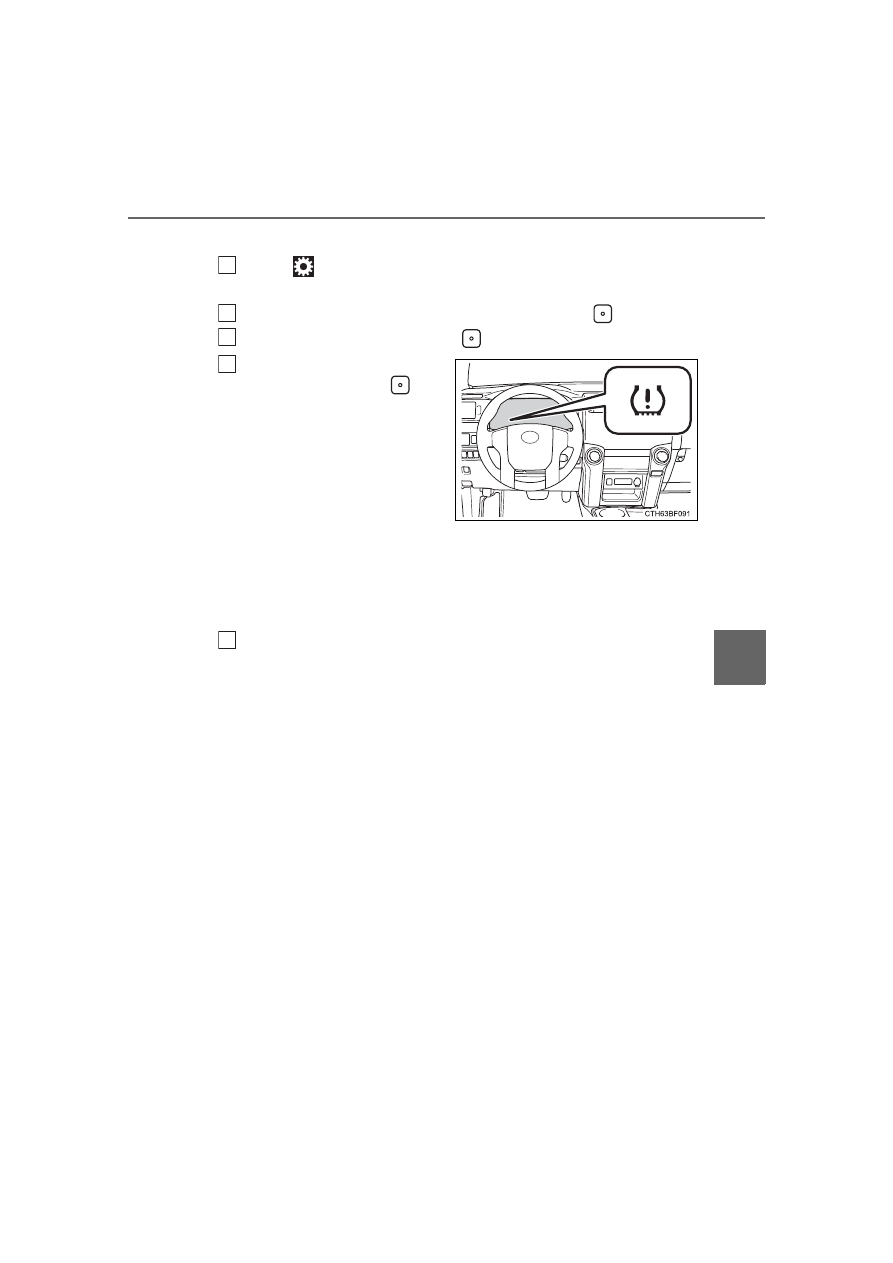

How to register the ID codes

Select

 on the multi-information display using the meter con-

trol switches on the steering wheel. (



P. 96)

Select “Vehicle Settings” and then press and hold

.

Select “TPWS” and then press

.

Select  “Change  Wheel  Set”
then press and hold

 until

the  tire  pressure  warning
light blinks slowly 3 times.

Then  a  message  will  be  dis-

played on the multi-information

display.
When registration is being per-

formed, the tire pressure warn-

ing

light

will

blink

for

approximately  1  minute  then

illuminate and  “---” will  be  dis-

played  for  the  inflation  pres-

sure  of  each tire  on  the  multi-

information display.

Drive  straight  (with  occasional  left  and  right  turns)  at  approxi-
mately 25 mph (40 km/h) or more for approximately 10 to 30 min-
utes.

Registration is complete when the tire pressure warning light turns

off and the inflation pressure of each tire is displayed on the multi-

information display.
Registration  may  take  longer  than  approximately  1  hour  in  certain

situations,  such  as  when  the  vehicle  is  stopped  for  a  long  time  at

traffic lights, etc. (



P. 432)

After registering the ID codes, make sure to initialize the tire pres-

sure warning system. (



P. 425)

1

2

3

4

5

428

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

When to replace your vehicle’s tires

Tires should be replaced if:

●

The treadwear indicators are showing on a tire.

●

You  have  tire  damage  such  as  cuts,  splits,  cracks  deep  enough  to
expose the fabric, and bulges indicating internal damage

●

A tire goes flat repeatedly or cannot be properly repaired due to the size
or location of a cut or other damage

If you are not sure, consult with your Toyota dealer.

■

Replacing tires and wheels

If the ID code of the tire pressure warning valve and transmitter is not reg-
istered, the tire pressure warning system will not work properly. After driv-
ing  for  about  20  minutes,  the  tire  pressure  warning  light  blinks  for  1
minute and stays on to indicate a system malfunction.

■

Tire life

Any tire over 6 years old must be checked by a qualified technician even
if it has seldom or never been used or damage is not obvious.

■

Routine tire inflation pressure checks

The  tire  pressure  warning  system  does  not  replace  routine  tire inflation
pressure  checks.  Make  sure  to  check  tire  inflation  pressure  as  part  of
your routine of daily vehicle checks.

■

Maximum load of tire

Check that the number given by dividing the maximum load by 1.10 of the
replacement  tire  is  greater  than  1/2  of  the  Gross Axle  Weight  Ratings
(GAWR) of either the front axle or the rear axle, whichever is greater.

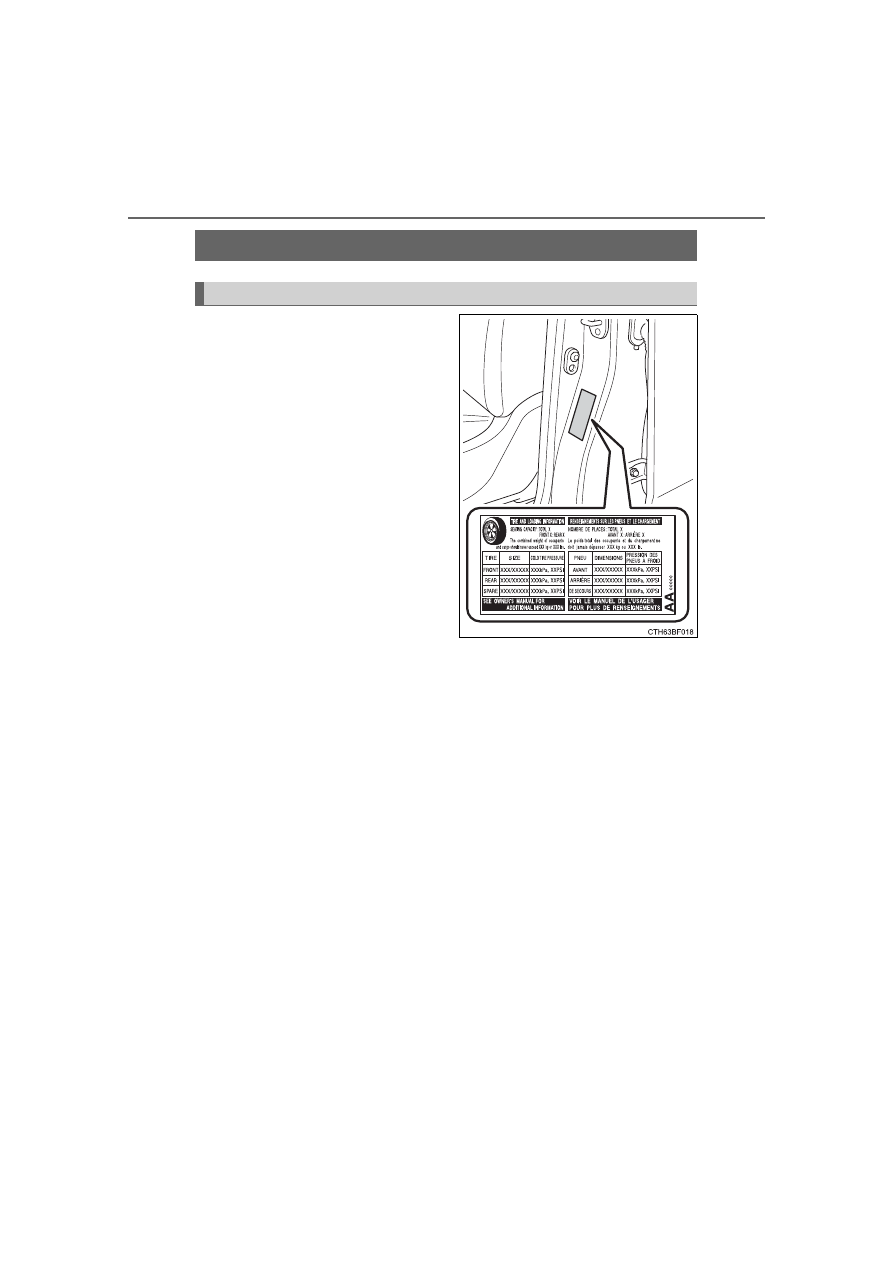

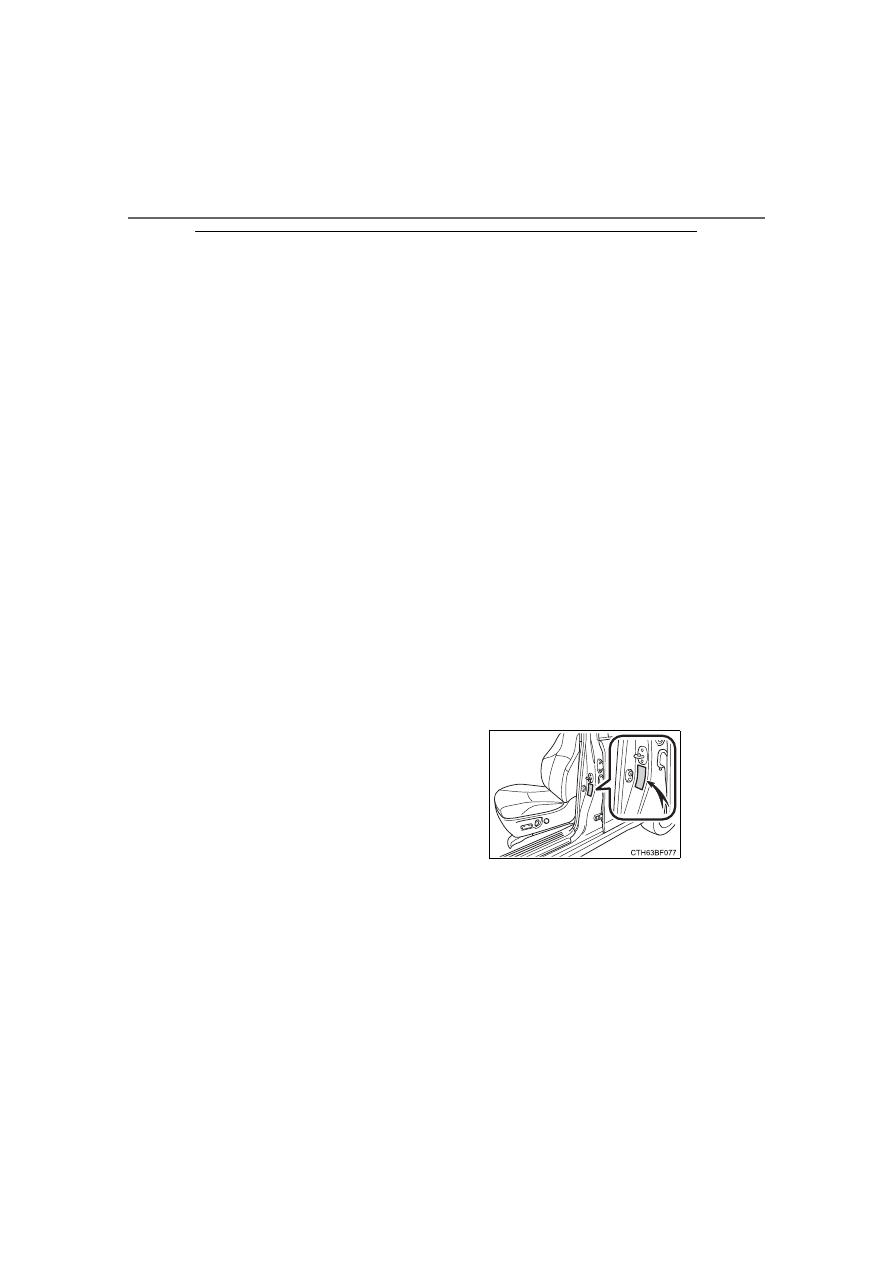

For  the  GAWR,  see  the  Certification
Label. For the maximum load of the tire,
see the load limit at maximum cold tire
inflation  pressure  mentioned  on  the
sidewall of the tire. (



P. 533)

429

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

Tire types

●

Summer tires
Summer tires are high-speed performance tires best suited to highway
driving under dry conditions. Since summer tires do not have the same
traction  performance  as  snow  tires,  summer  tires  are  inadequate  for
driving  on  snow-covered  or  icy  roads.  For  driving  on  snow-covered
roads or icy roads, the use of snow tires is recommended. When install-
ing snow tires, be sure to replace all four tires.

●

All season tires
All season tires are designed to provide better traction in snow and to
be  adequate  for  driving  in  most  winter  conditions  as  well  as  for  use
year-round. All  season  tires,  however,  do  not  have  adequate  traction
performance compared with snow tires in heavy or loose snow. Also, all
season tires fall short in acceleration and handling performance com-
pared with summer tires in highway driving.

●

Snow tires
For driving on snow-covered roads or icy roads, we recommend using
snow tires. If you need snow tires, select tires of the same size, con-
struction and load capacity as the originally installed tires. Since your
vehicle  has  radial  tires  as  original  equipment,  make  sure  your  snow
tires also have radial construction. Do not install studded tires without
first  checking  local  regulations  for  possible  restrictions.  Snow  tires
should be installed on all wheels. (



P. 329)

■

If the tread on snow tires wears down below 0.16 in. (4 mm)

The effectiveness of the tires as snow tires is lost.

■

Warning performance of the tire pressure warning system

The  warning  of  the  tire  pressure  warning  system  will  change  in  accor-

dance with the conditions under which it was initialized. For this reason,

the system may give a warning even if the tire pressure does not reach a

low enough level, or if the pressure is higher than the pressure that was

adjusted to when the system was initialized.

430

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

Situations in which the tire pressure warning system may not oper-

ate properly

●

In the following cases, the tire pressure warning system may not operate

properly.
• If non-genuine Toyota wheels are used.

• A tire has been replaced with a tire that is not an OE (Original Equip-

ment) tire.

• A tire has been replaced with a tire that is not of the specified size.

• Tire chains etc. are equipped.

• If a window tint that affects the radio wave signals is installed.

• If there is a lot of snow or ice on the vehicle, particularly around the

wheels or wheel housings.

• If  the  tire  inflation  pressure  is  extremely  higher  than  the  specified

level.

• If  the  spare  tire  is  in  a  location  subject  to  poor  radio  wave  signal

reception.

• If a large metallic object which can interfere  with signal reception is

put near the spare tire.

• If tires not equipped with the tire pressure warning valves and trans-

mitters are used.

• If the ID code on the tire pressure warning valves and transmitters is

not registered in the tire pressure warning computer.

●

Performance may be affected in the following situations.
• Near a TV tower, electric power plant, gas station, radio station, large

display, airport or other facility that generates strong radio waves or

electrical noise

• When  carrying  a  portable  radio,  cellular  phone,  cordless  phone  or

other wireless communication device

●

When the vehicle is parked, the time taken for the warning to start or go

off could be extended.

●

When tire inflation pressure declines rapidly for example when a tire has

burst, the warning may not function.

431

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

The initialization operation

●

Make sure to carry out initialization after adjusting the tire inflation pres-

sure.

Also, make sure the tires are cold before carrying out initialization or tire

inflation pressure adjustment.

●

If you have accidentally turned the engine switch to the “LOCK” position

(vehicles without a smart key system) or off (vehicles with a smart key

system) during initialization, it is not necessary to press the reset switch

again  as initialization will restart automatically  when the engine  switch

has been turned to the “ON” position (vehicles without a smart key sys-

tem) or IGNITION ON mode (vehicles with a smart key system) for the

next time.

●

If you accidentally press the reset switch when initialization is not neces-

sary,  adjust  the  tire  inflation  pressure  to  the  specified  level  when  the

tires are cold, and conduct initialization again.

●

While the position of each tire is being determined and the inflation pres-

sures  are  not  being  displayed  on  the  multi-information  display,  if  the

inflation pressure of a tire drops, the tire pressure warning light will come

on.

■

When initialization of the tire pressure warning system has failed

●

Do  not  move  the  vehicle  backward  during  initialization.  Initialization  is

started again from the beginning and it may take longer than usual.

●

Initialization may take longer to complete if the vehicle is driven on an

unpaved road.

When  performing  initialization,  drive  on  a  paved  road  if  possible.

Depending on the driving environment and condition of the tires, initial-

ization will be completed in approximately 10 to 30 minutes.
• If initialization is not complete after driving approximately 30 minutes,

continue driving for a while.

• If initialization is not complete after driving approximately 1 hour, park

the vehicle in a safe place for approximately 20 minutes. Then drive

straight (with occasional left and right turns) at approximately 25 mph

(40 km/h) or more

*

 for approximately 10 to 30 minutes.

• If initialization is still not complete, have the vehicle inspected by your

Toyota dealer.

*

: Except when making a left/right turn

●

In the following situations, the tire inflation pressure will not be recorded

and the system will not operate properly. Perform initialization again.
• When operating the tire pressure warning reset switch, the tire pres-

sure warning light does not blink 3 times.

• After performing initialization, the tire pressure warning light blinks for

1 minute then stays on after driving for about 20 minutes.

432

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

When ID code registration has failed

●

Registration may take long time or the ID codes may not be registered in

the following situations.
• When the vehicle is moved backward during registration.

Registration is started again from the beginning and it may take lon-

ger than usual.

• When  another  vehicle  is  running  the  side  of  the  vehicle  such  as  in

heavy traffic.

It may take longer to detect the vehicle’ tire pressure warning valves

and transmitters.

• If tire pressure warning valves and transmitters are in the vehicle.

The ID codes may not be registered.

●

When  performing  registration,  drive  on  a  paved  road  if  possible.

Depending on the driving environment and condition of the tires, regis-

tration will be completed in approximately 10 to 30 minutes.
• If registration is not complete after driving approximately 30 minutes,

continue driving for a while.

• If registration is not complete after driving approximately 1 hour, park

the vehicle in a safe place for approximately 20 minutes. Then drive

straight (with occasional left and right turns) at approximately 40 km/h

(25 mph) or more

*

 for approximately 10 to 30 minutes.

If registration is still not complete, have the vehicle inspected by your

Toyota dealer.

*

: Except when making a left/right turn

●

When the tire pressure warning light does not blink slowly 3 times, the

ID code will not be registered and the system will not operate properly.

Perform registration again.

■

When registering ID codes

●

Initialize the tire pressure warning system after ID code registration. Ini-

tialization is disabled if the system was initialized before registration.

●

After ID code registration, the tires are hot by driving. Initialize the tire

pressure warning system after the tires become cold.

■

Canceling the change wheel set mode

●

If turning  the  engine switch to  the  “LOCK”  position (vehicles  without  a

smart key system) or off (vehicles with a smart key system) when in the

change wheel set mode before driving, the change wheel set mode is

canceled.

●

After driving when in the change wheel set mode, the change wheel set

mode cannot be canceled. To cancel the mode, perform the procedure

for ID code registration again and turn the engine switch to the “LOCK”

position  (vehicles  without  a  smart  key  system)  or  off  (vehicles  with  a

smart key system) before driving.

●

If  the  change  wheel  set  mode  is  canceled,  the  ID  codes  that  have

already been registered are communicated. When communication is fin-

ished, the tire pressure warning light will turn off.

433

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

Tire pressure warning system certification



For vehicles sold in the U.S.A.



For vehicles sold in Canada

434

6-3. Do-it-yourself maintenance

4RUNNER (U)

WARNING

■

When inspecting or replacing tires

Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drive train as well as
dangerous  handling  characteristics,  which  may  lead  to  an  accident
resulting in death or serious injury.

●

Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.

●

Do not use tire sizes other than those recommended by Toyota.

●

Do not mix differently constructed tires (radial, bias-belted or bias-ply
tires).

●

Do not mix summer, all season and snow tires.

●

Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.

■

When initializing the tire pressure warning system

Do  not  operate  the  tire  pressure  warning  reset  switch  without  first
adjusting the tire inflation pressure to the specified level. Otherwise, the
tire  pressure  warning  light  may  not  come  on  even  if  the  tire  inflation
pressure  is  low,  or  it  may  come  on  when  the  tire  inflation  pressure  is
actually normal.

435

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

NOTICE

■

Repairing or replacing tires, wheels, tire pressure warning valves,
transmitters and tire valve caps

●

When removing or fitting the wheels, tires or the tire pressure warning
valves  and  transmitters,  contact  your Toyota  dealer  as  the  tire  pres-
sure warning valves and transmitters may be damaged if not handled
correctly.

●

Make sure to install the tire valve caps. If the tire valve caps are not
installed,  water  could  enter  the  tire  pressure  warning  valves  and  the
tire pressure warning valves could be bound.

●

When replacing tire valve caps, do not use tire valve caps other than
those specified. The cap may become stuck.

■

To avoid damage to the tire pressure warning valves and transmit-
ters

When  a  tire  is  repaired  with  liquid  sealants,  the  tire  pressure  warning
valve  and  transmitter  may  not  operate  properly.  If  a  liquid  sealant  is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. (



P. 425)

■

Driving on rough roads

Take particular care when driving on roads with loose surfaces or pot-
holes.
These conditions may cause losses in tire inflation pressure, reducing
the  cushioning  ability  of  the  tires.  In  addition,  driving  on  rough  roads
may  cause  damage  to  the  tires  themselves,  as  well  as  the  vehicle’s
wheels and body.

■

If tire inflation pressure of each tire becomes low while driving

Do not continue driving, or your tires and/or wheels may be ruined.

436

6-3. Do-it-yourself maintenance

4RUNNER (U)

The  recommended  cold  tire  infla-
tion pressure and tire size are dis-
played  on  the  tire  and  loading
information label. (



P. 533)

Tire inflation pressure

Tire inflation pressure

437

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

Tire valve
Tire pressure gauge

Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the gauge gradations.
If the tire inflation pressure is not at the recommended level, adjust
the pressure.
If you add too much air, press the center of the valve to deflate.
After  completing  the  tire  inflation  pressure  measurement  and
adjustment, apply soapy water to the valve and check for leakage.
Put the tire valve cap back on.

■

Tire inflation pressure check interval

You should check tire inflation pressure every two weeks, or at least once
a month.
Do not forget to check the spare.

■

Effects of incorrect tire inflation pressure

Driving with incorrect tire inflation pressure may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor handling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drive train

If a tire needs frequent inflating, have it checked by your Toyota dealer.

Inspection and adjustment procedure

1

2

1

2

3

4

5

6

438

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

Instructions for checking tire inflation pressure

When checking tire inflation pressure, observe the following:

●

Check only when the tires are cold.
If  your  vehicle  has  been  parked  for  at  least  3  hours  or  has  not  been
driven for more than 1 mile or 1.5 km, you will get an accurate cold tire
inflation pressure reading.

●

Always use a tire pressure gauge.

It is difficult to judge if a tire is properly inflated based only on its appear-

ance.

●

It  is  normal  for  the  tire  inflation  pressure  to  be  higher  after  driving  as

heat is generated in the tire. Do not reduce tire inflation pressure after

driving.

●

Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is
balanced.

WARNING

■

Proper inflation is critical to save tire performance

Keep your tires properly inflated.
If the tires are not properly inflated, the following conditions may occur
which could lead to an accident resulting in death or serious injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting from overheated tires

●

Air leaking from between tire and wheel

●

Wheel deformation and/or tire damage

●

Greater possibility of tire damage while driving (due to road hazards,

expansion joints, sharp edges in the road, etc.)

NOTICE

■

When inspecting and adjusting tire inflation pressure

Be sure to put the tire valve caps back on.
If a valve cap is not installed, dirt or moisture may get into the valve and
cause an air leak, resulting in decreased tire inflation pressure.

439

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset

*

.

Replacement wheels are available at your Toyota dealer.

*

:

Conventionally referred to as “offset”.

Toyota does not recommend using the following:

●

Wheels of different sizes or types

●

Used wheels

●

Bent wheels that have been straightened

●

Use  only Toyota  wheel  nuts  and  wrenches  designed  for  use  with
your aluminum wheels.

●

When  rotating,  repairing  or  changing  your  tires,  check  that  the
wheel nuts are still tight after driving 1000 miles (1600 km).

●

Be  careful  not  to  damage  the  aluminum  wheels  when  using  tire
chains.

●

Use only Toyota genuine balance weights or equivalent and a plas-
tic or rubber hammer when balancing your wheels.

Wheels

If  a  wheel  is  bent,  cracked  or  heavily  corroded,  it  should  be
replaced.  Otherwise,  the  tire  may  separate  from  the  wheel  or
cause a loss of handling control.

Wheel selection

Aluminum wheel precautions

440

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

When replacing wheels

The  wheels  of  your  vehicle  are  equipped  with  tire  pressure  warning
valves  and  transmitters  that  allow  the  tire  pressure  warning  system  to
provide advance warning in the event of a loss in tire inflation pressure.
Whenever wheels are replaced, tire pressure warning valves and trans-
mitters must be installed. (



P. 425)

WARNING

■

When replacing wheels

●

Do not use wheels that are a different size from those recommended in
the Owner’s Manual, as this may result in a loss of handling control.

●

Never  use  an  inner  tube  in  a  leaking  wheel  which  is  designed  for  a
tubeless tire. Doing so may result in an accident, causing death or seri-
ous injury.

■

When installing the wheel nuts

Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened, lead-
ing to bolt or disc wheel damage. In addition, the oil or grease can cause the
wheel nuts to loosen and the wheel may fall off, causing an accident and
resulting in death or serious injury. Remove any oil or grease from the wheel
bolts or wheel nuts.

NOTICE

■

Replacing tire pressure warning valves and transmitters

●

Because tire repair or replacement may affect the tire pressure warn-
ing valves and transmitters, make sure to have tires serviced by your
Toyota dealer or other qualified service shop. In addition, make sure to
purchase  your  tire  pressure  warning  valves  and  transmitters  at  your
Toyota dealer.

●

Ensure that only genuine Toyota wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly
with non-genuine wheels.

441

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

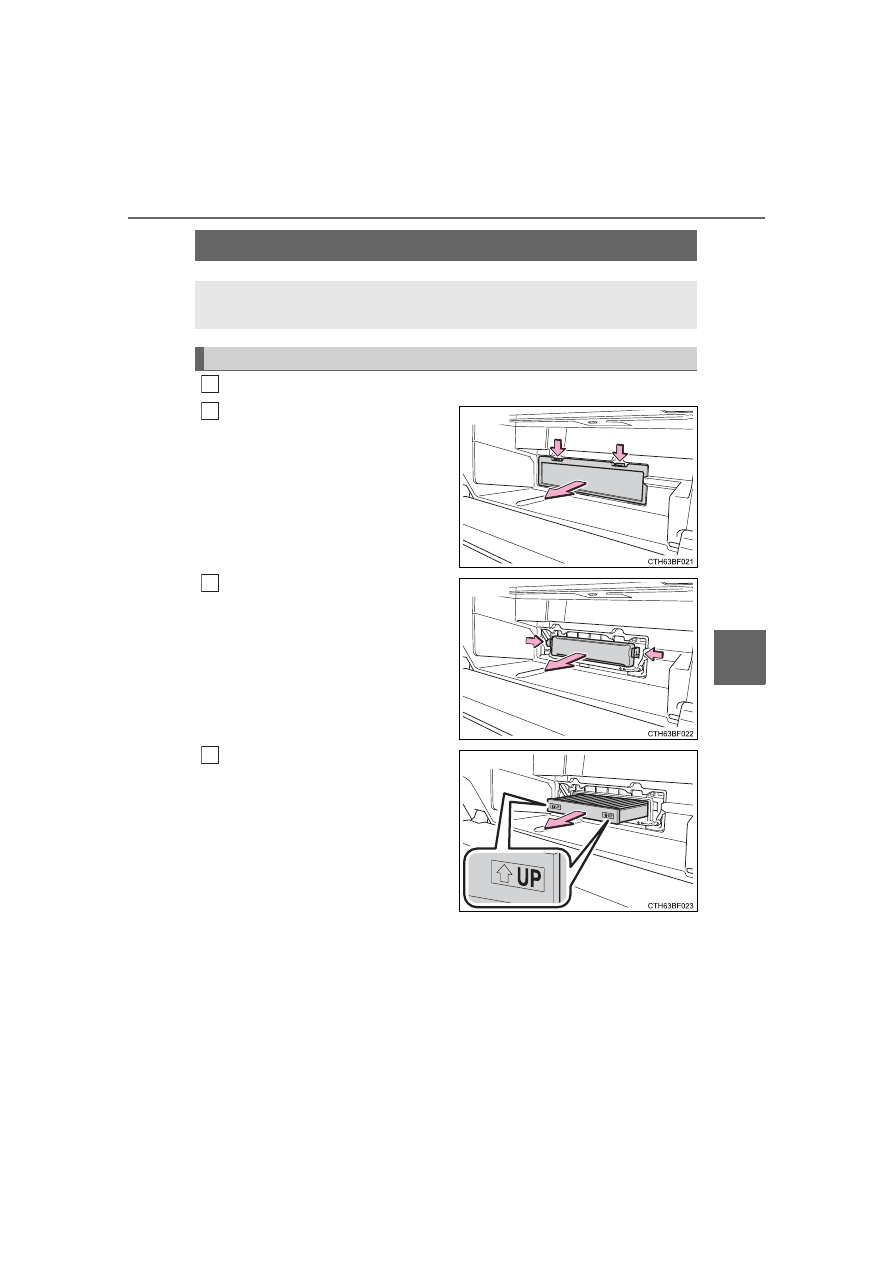

Turn the engine switch off.
Open  the  glove  box  and
remove the cover.

Remove the filter cover.

Remove the air conditioning fil-
ter  and  replace  it  with  a  new
one.

The “



UP” marks shown on the fil-

ter should be pointing up.

Air conditioning filter

The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.

Removal method

1

2

3

4

442

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

Checking interval

Inspect and replace the air conditioning  filter  according to  the  maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Schedule maintenance guide” or “Owner’s Manual Supplement”.)

■

If air flow from the vents decreases dramatically

The filter may be clogged. Check the filter and replace if necessary.

NOTICE

■

When using the air conditioning system

Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.

443

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

●

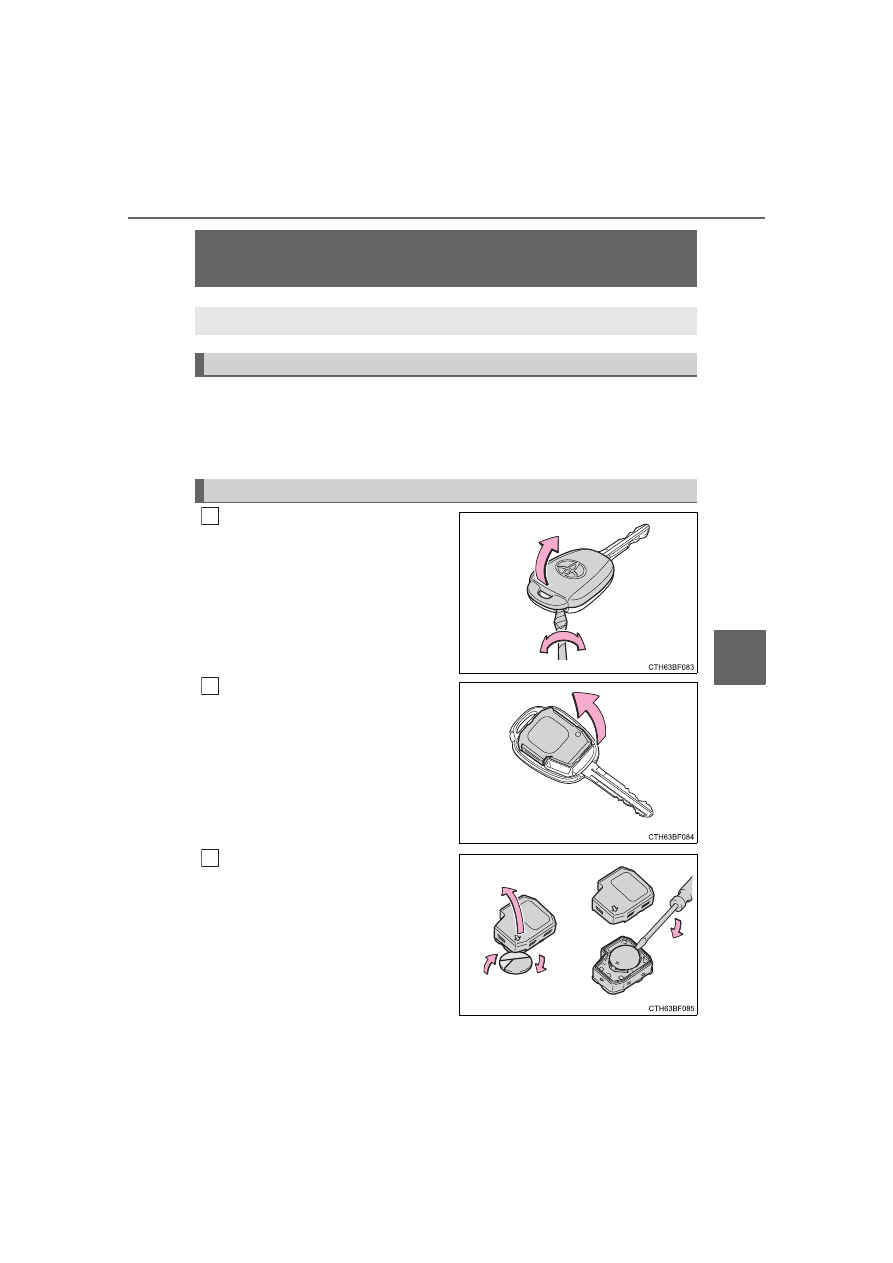

Flathead screwdriver

●

Small flathead screwdriver

●

Lithium battery CR2016 (vehicles without a smart key system), or
CR1632 (vehicles with a smart key system)

Remove the cover.

To  prevent  damage  to  the  key,
cover the tip of the screwdriver with
a rag.

Remove the module.

Open  the  case  cover  using  a
coin  protected  with  tape  etc.
and  remove  the  depleted  bat-
tery.

Insert  a  new  battery  with  the  “+”
terminal facing up.

Wireless remote control/electronic key

battery

Replace the battery with a new one if it is depleted.

You will need the following items:

Replacing the battery (vehicles without a smart key system)

1

2

3

444

6-3. Do-it-yourself maintenance

4RUNNER (U)

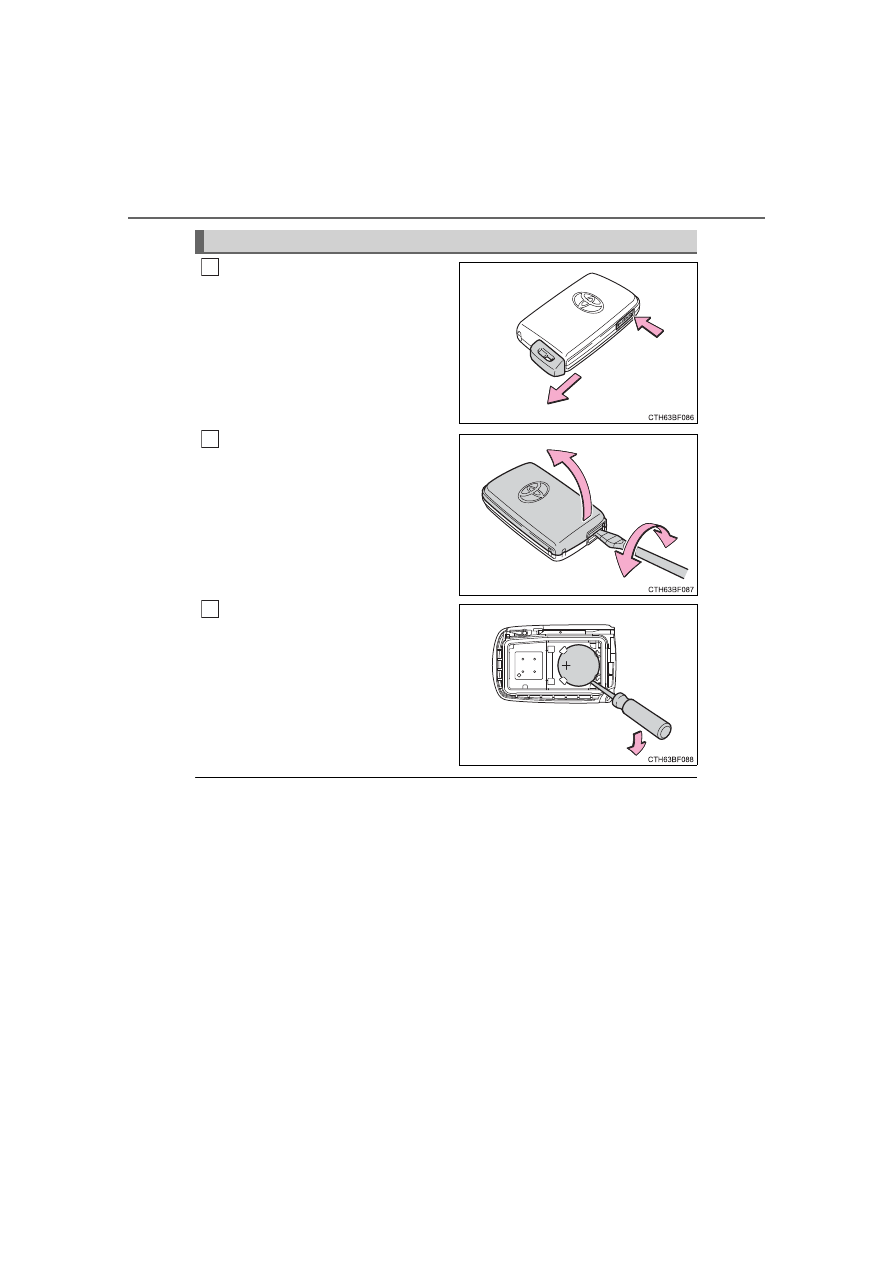

Take out the mechanical key.

Remove the cover.

To  prevent  damage  to  the  key,
cover the tip of the screwdriver with
a rag.

Remove the depleted battery.

Insert  a  new  battery  with  the  “+”
terminal facing up.

■

Use a CR2016 (vehicles without a smart key system) or CR1632 (vehicles
with a smart key system) lithium battery

●

Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.

●

Replace only with the same or equivalent type recommended by the manu-
facturer.

●

Dispose of used batteries according to local laws.

■

If the electronic key battery is depleted

The following symptoms may occur:

●

The smart key system and wireless remote control will not function properly.

●

The operational range will be reduced.

Replacing the battery (vehicles with a smart key system)

1

2

3

445

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

WARNING

■

Battery precautions

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Do not swallow the battery. Doing so may cause chemical burns.

●

A coin battery or button battery is used in the wireless remote control/elec-
tronic key. If a battery is swallowed, it may cause severe chemical burns in
as little as 2 hours and may result in death or serious injury.

●

Keep away new and removed batteries from children.

●

If the cover cannot be firmly closed, stop using the wireless remote con-
trol/electronic  key  and  stow  the  key  in  the  place  where  children  cannot
reach, and then contact your Toyota dealer.

●

If  you  accidentally  swallow  a  battery  or  put  a  battery  into  a  part  of  your
body, get emergency medical attention immediately.

■

To prevent battery explosion or leakage of flammable liquid or gas

●

Replace the battery with a new battery of the same type. If a wrong type of
battery is used, it may explode.

●

Do not expose batteries to extremely low pressure due to high altitude or
extremely high temperatures.

●

Do not burn, break or cut a battery.

NOTICE

■

For normal operation after replacing the battery

Observe the following precautions to prevent accidents:

●

Always work with dry hands.
Moisture may cause the battery to rust.

●

Do not touch or move any other component inside the remote control.

●

Do not bend either of the battery terminals.

446

6-3. Do-it-yourself maintenance

4RUNNER (U)

Turn the engine switch off.
Open the Fuse box cover.



Engine compartment

Push the tab in and lift the lid off.



Driver’s side instrument panel

Remove the lid.

Remove  the  fuse  with  the  pull-
out tool.

Only  type A  fuse  can  be  removed
using the pullout tool.

Checking and replacing fuses

If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.

1

2

3

447

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

Check if the fuse is blown.

Normal fuse
Blown fuse

Type A, B, C, D, E:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type F:
Contact your Toyota dealer.

4

1

2



Type A



Type B



Type C



Type D



Type E



Type F

448

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

After a fuse is replaced

●

If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (



P. 449)

●

If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.

■

If there is an overload in a circuit

The fuses are designed to blow, protecting the wiring harness from damage.

WARNING

■

To prevent system breakdowns and vehicle fire

Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.

●

Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.

●

Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.

●

Do not modify the fuses or fuse boxes.

NOTICE

■

Before replacing fuses

Have  the  cause  of  electrical  overload  determined  and  repaired  by  your
Toyota dealer as soon as possible.

449

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

Check the wattage of the light bulb to be replaced. (



P. 529)

Light bulbs

You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. If necessary
bulb  replacement  seems  difficult  to  perform,  contact  your
Toyota dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.

Preparing for light bulb replacement

450

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

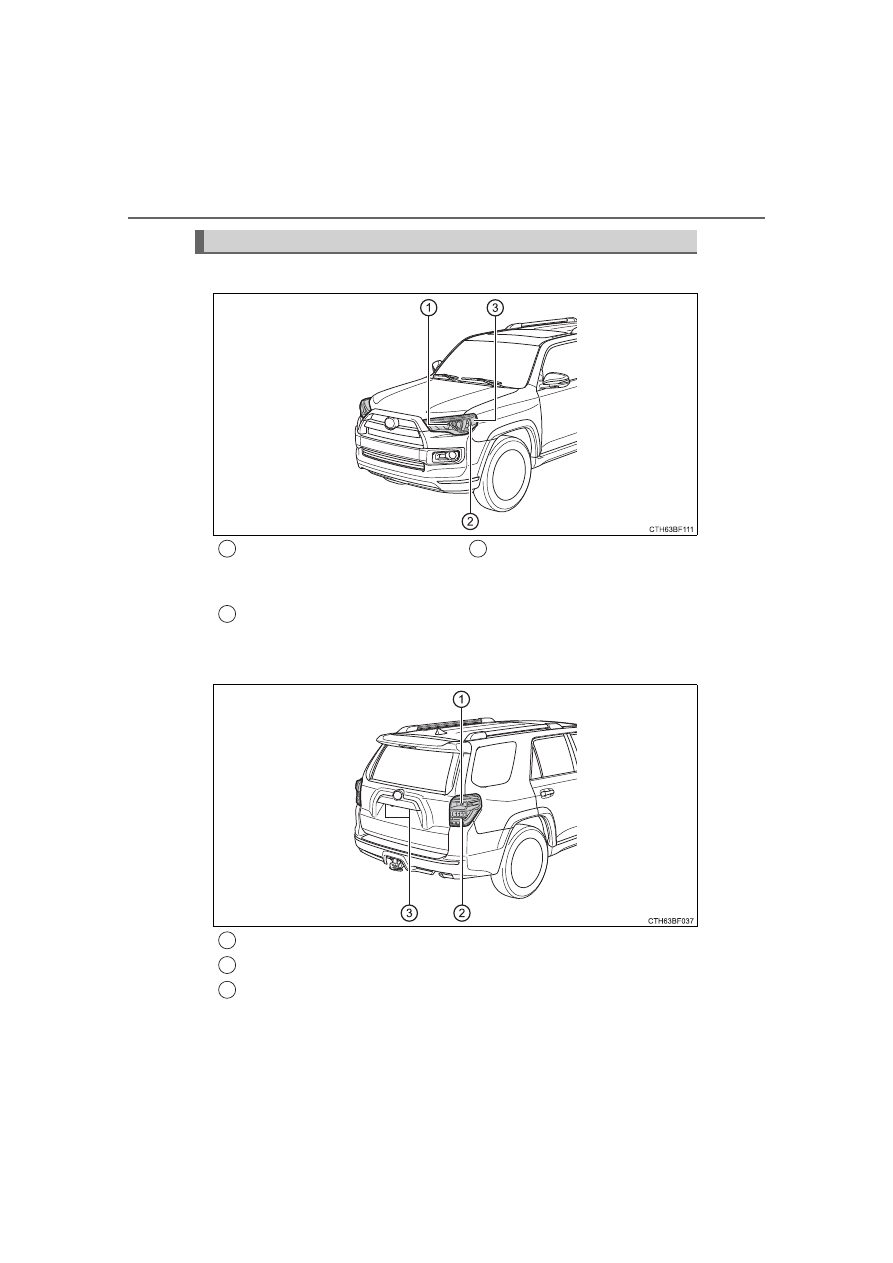

Front

■

Rear

Bulb locations

Headlight  high  beam  (if
equipped)/daytime  running
light
Front  turn  signal/parking
light

Front side marker light

1

2

3

Rear turn signal light
Back-up light
License plate light

1

2

3

451

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

Headlight high beam (if equipped)/daytime running lights

Turn  the  bulb  base  counter-
clockwise.

Pull the bulb out while press-
ing  the  lock  release  of  the
connector.

Replace  the  light  bulb,  and
install the bulb base.

Align the 3 tabs on the light bulb
with the mounting and insert.

Turn  and  secure  the  bulb
base.

Shake  the  bulb  base  gently  to
check  that  it  is  not  loose,  turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.

Replacing light bulbs

1

2

3

4

452

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

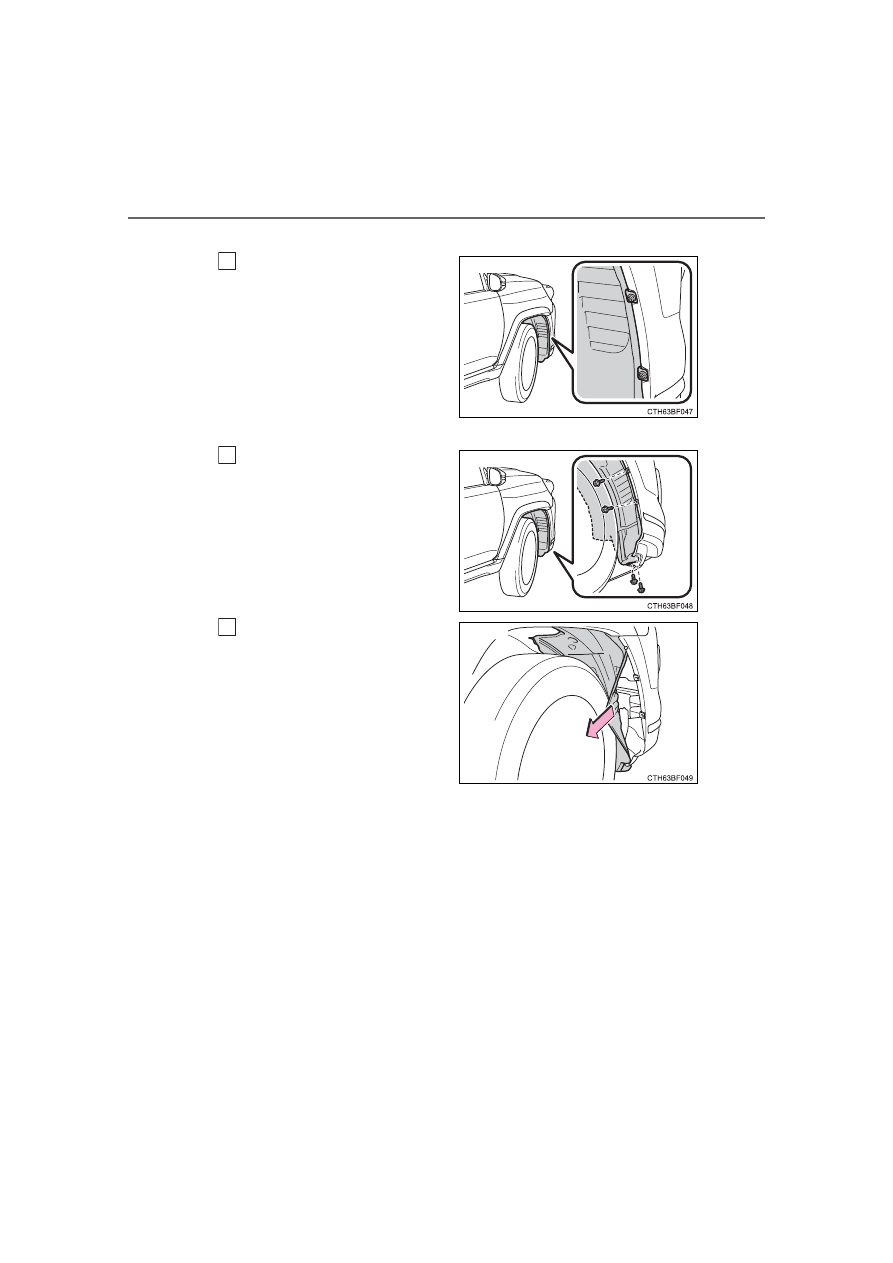

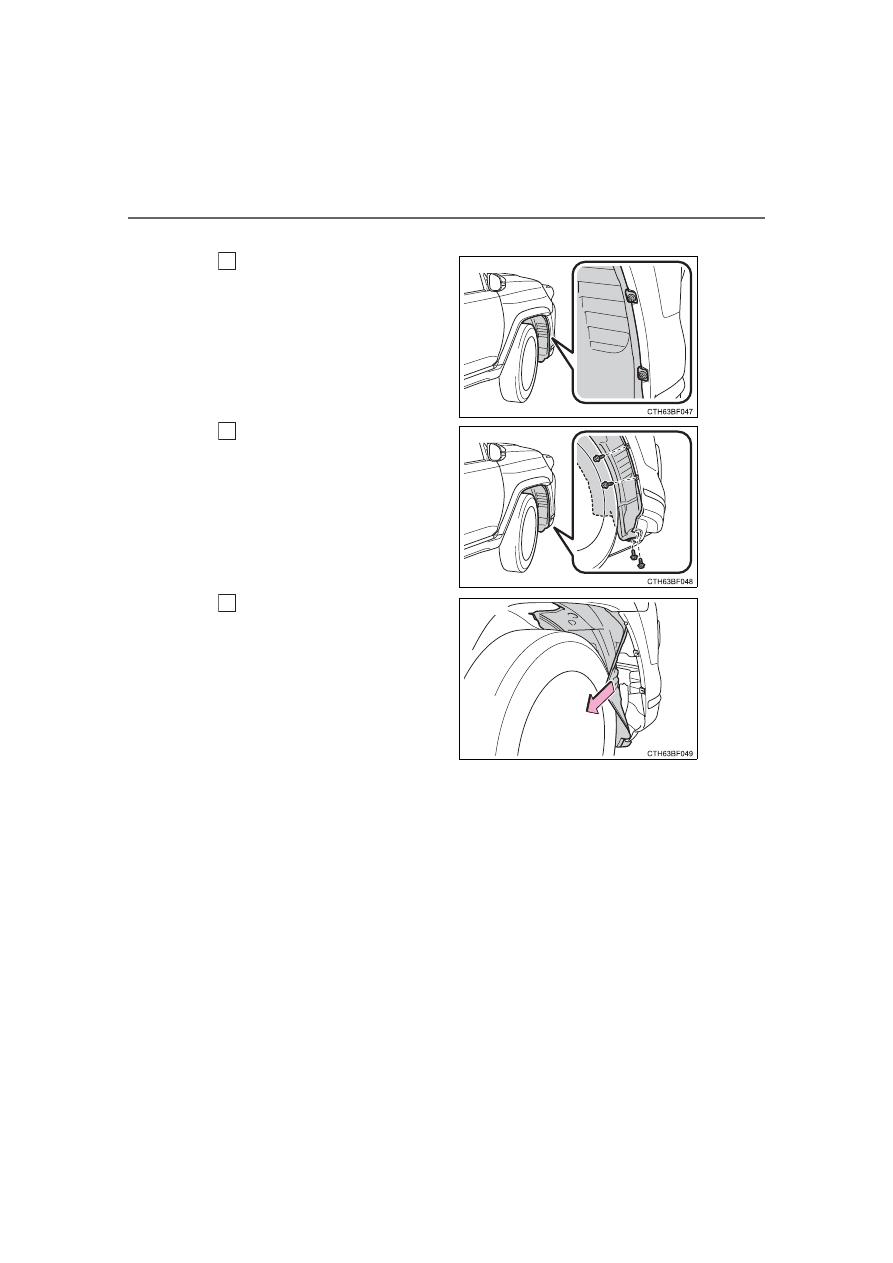

Front turn signal/parking light

Turn  the  steering  wheel  in
the  opposite  direction  of  the
front  turn  signal  light  and
parking light that you wish to
replace.

For  example,  if  you  wish  to
replace the front turn signal light
and  parking  light  on  the  right
side,  turn  the  steering  wheel  to
the left.

Remove  the  fender  liner
screws.

Partly  remove  the  fender
liner.

1

2

3

453

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

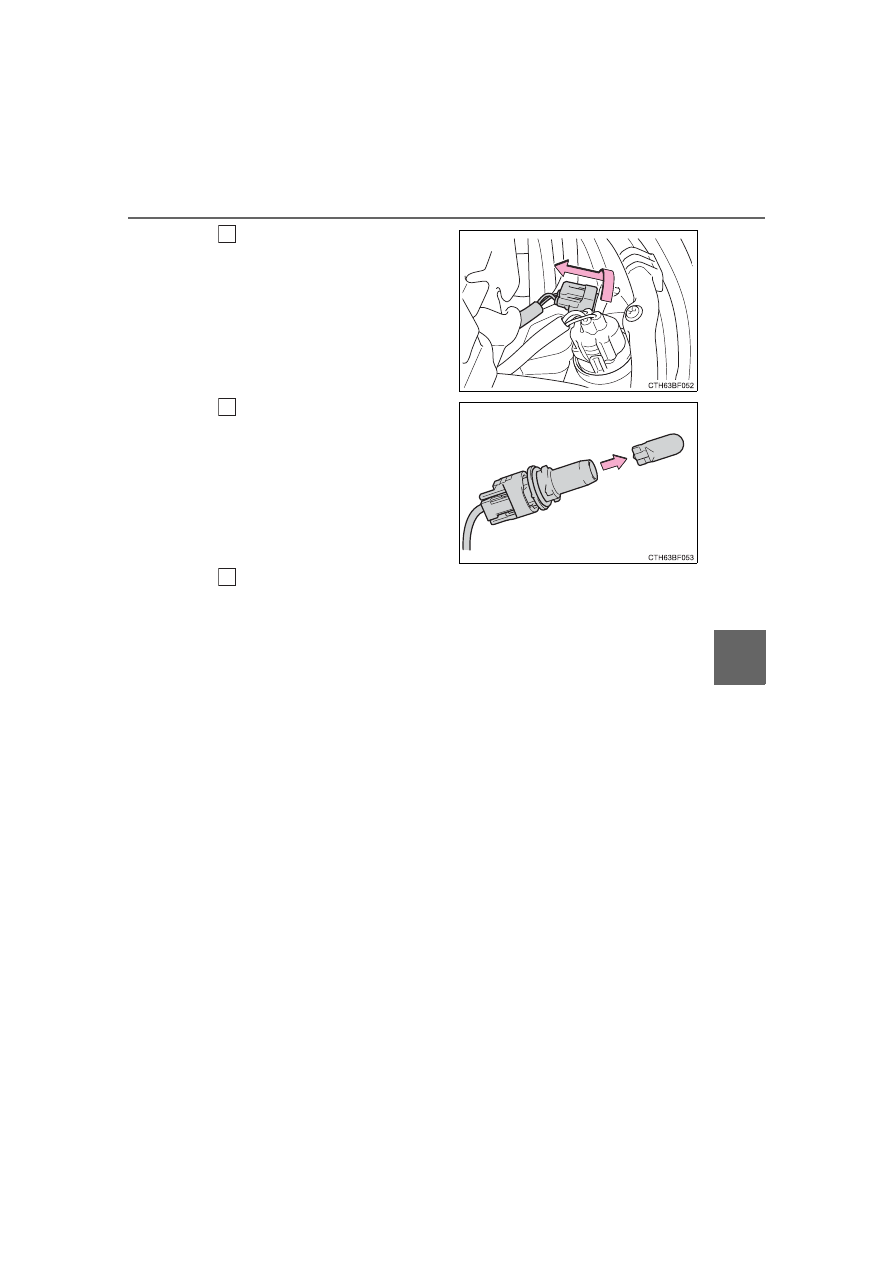

Turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

4

5

6

454

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

Front side marker lights

Turn  the  steering  wheel  in
the  opposite  direction  of  the
front  side  marker  light  that
you wish to replace.

For  example,  if  you  wish  to
replace  the  front  side  marker
light  on  the  right  side,  turn  the
steering wheel to the left.

Remove  the  fender  liner
screws.

Partly  remove  the  fender
liner.

1

2

3

455

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

Turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

4

5

6

456

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

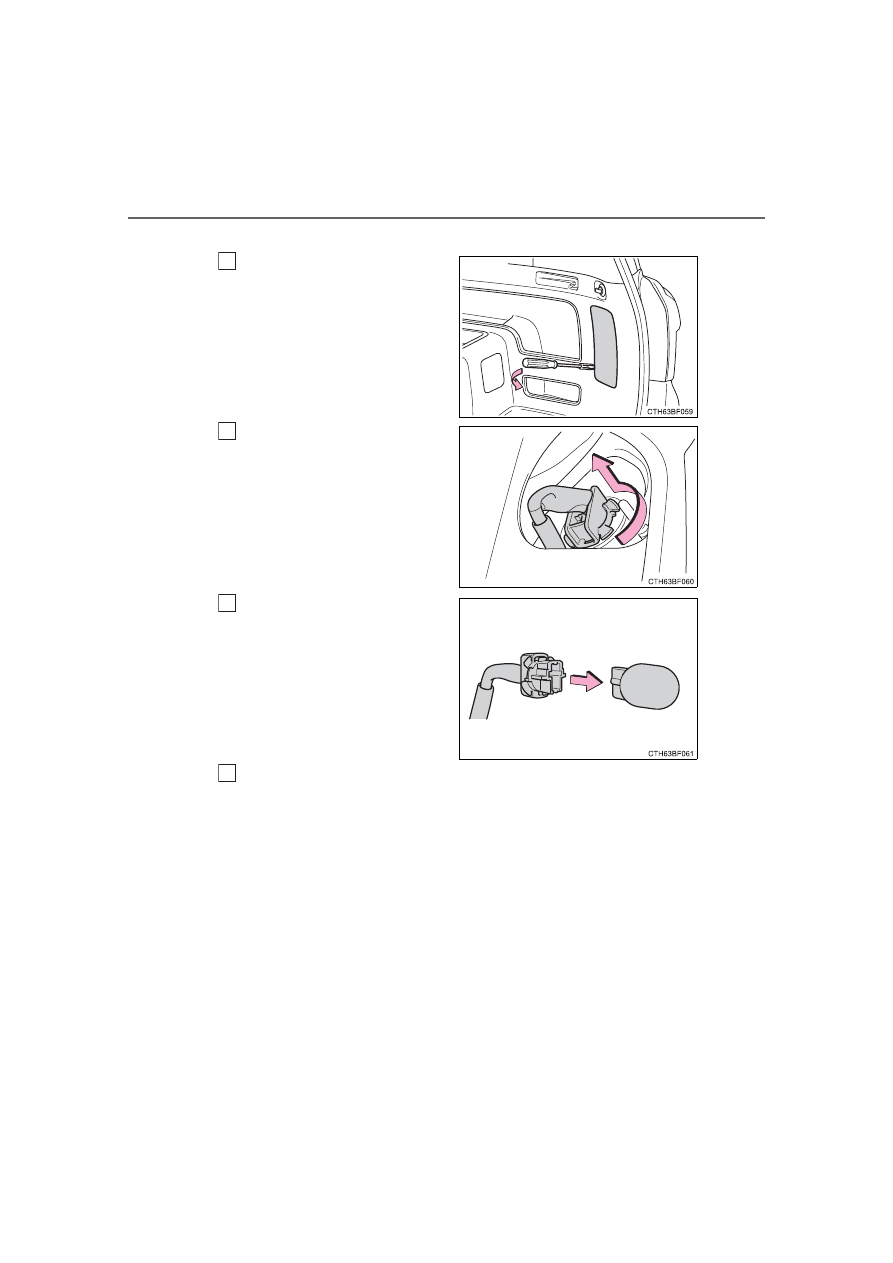

Rear turn signal lights

Open  the  back  door  and
remove the cover.

To  prevent  damage  to  the vehi-
cle,  cover  the  tip  of  the  screw-
driver with a rag.

Turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

1

2

3

4

457

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

Back-up lights

Open  the  back  door  and
remove the cover.

To  prevent  damage  to  the vehi-
cle,  cover  the  tip  of  the  screw-
driver with a rag.

Turn  the  bulb  base  counter-
clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

1

2

3

4

458

6-3. Do-it-yourself maintenance

4RUNNER (U)

■

License plate lights

Remove  the  screws  and
lens.

Remove the light bulb.

When installing, reverse the steps listed.

1

2

3

459

6-3. Do-it-yourself maintenance

6

Mainten

ance an

d ca

re

4RUNNER (U)

■

Replacing the following bulbs

If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.

●

Headlight low beams (if equipped)

●

Headlight low/high beams (if equipped)

●

Fog lights

●

Side turn signal lights

●

Stop/tail lights

●

Rear side marker lights

●

High mounted stoplight

●

Outer foot lights (if equipped)

■

LED light bulbs

The  headlight  low  beams  (if  equipped),  headlight  low/high  beams  (if
equipped), fog lights, side turn signal lights, stop/tail lights, rear side marker
lights,  high  mounted  stoplight  and  outer  foot  lights  consist  of  a  number  of
LEDs. If any LEDs burn out, take your vehicle to your Toyota dealer to have
the light replaced.

■

Condensation build-up on the inside of the lens

Temporary condensation build-up on the inside of the lens does not indicate a
malfunction. Contact your Toyota dealer for more information in the following
situations:

●

Large drops of water have built up on the inside of the lens.

●

Water has built up inside the lens.

WARNING

■

Replacing light bulbs

●

Turn  off  the  lights.  Do  not  attempt  to  replace  the  bulb  immediately  after
turning off the lights.
The bulbs become very hot and may cause burns.

●

Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.

●

Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.

■

To prevent damage or fire

●

Make sure bulbs are fully seated and locked.

●

Check the wattage of the bulb before installing to prevent heat damage.

460

6-3. Do-it-yourself maintenance

4RUNNER (U)

461

When trouble arises

7

4RUNNER (U)

7-1.  Essential information

Emergency flashers .......... 462
If your vehicle has to be

stopped in an
emergency ...................... 463

If the vehicle is trapped in

rising water ..................... 465

7-2.  Steps to take in an

emergency

If your vehicle needs to be

towed .............................. 466

If you think something is

wrong .............................. 472

Fuel pump shut off

system ............................ 473

If a warning light turns

on or a warning buzzer
sounds ............................ 474

If a warning message is

displayed......................... 484

If you have a flat tire.......... 489
If the engine will not

start................................. 504

If you cannot operate

back door opener............ 506

If the electronic key does

not operate properly
(vehicles with a smart
key system)..................... 507

If the vehicle battery is

discharged ...................... 510

If your vehicle

overheats ........................ 514

If the vehicle becomes

stuck ............................... 517
