Intelligent Clearance Sonar (ICS) (if equipped)

When parking, this available system scans for stationary objects, like walls or

lampposts. Should the system anticipate a collision, it will emit an audible and

visible alert, reduce engine or motor output, and automatically apply the brakes if

needed. And with advanced side-colllision detection, Prius can help you get in and

out of parking spots more easily.

CHANGE SETTINGS

System ON/OFF on the

multi-information display.

Refer to the Owner‘s Manual for limitations and more details on this system.

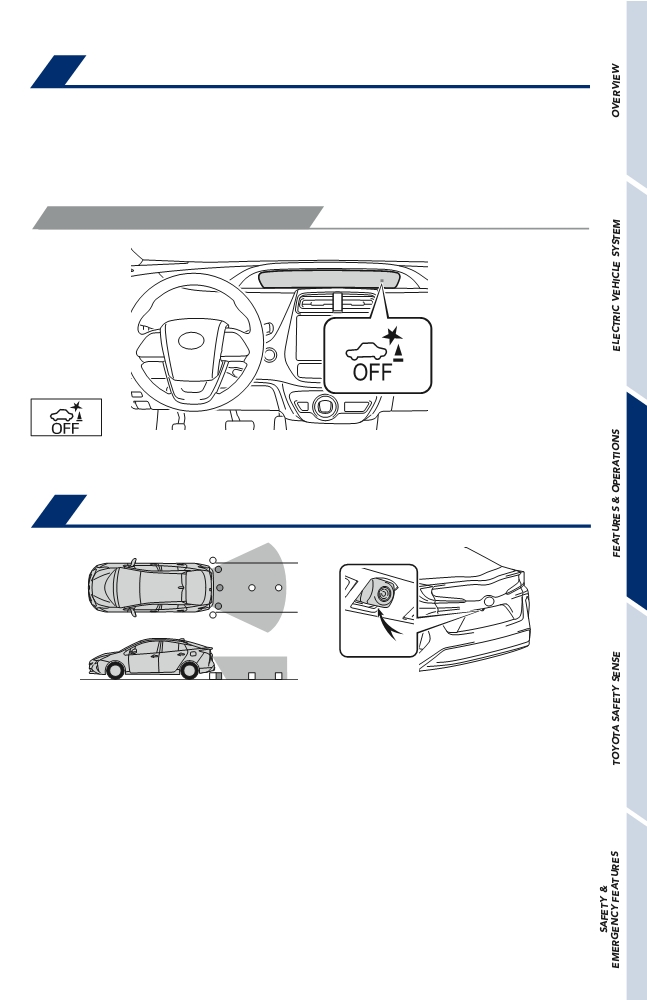

Rear view monitor system

The rear view monitor system displays an image of the view from the bumper of

the rear area of the vehicle. The camera for the rear view monitor system is located

above the license plate.

To adjust the image on the rear view monitor screen

For 7” display, press the “APPS” button, select “Setup” and “Display”. Select

“Camera” to adjust the screen contrast and brightness.

For 11.6” display, press the “MENU” button and select “Display” on the “Setup”

screen. Select “Camera” to adjust the screen contrast and brightness.

Refer to the Navigation System Owner‘s Manual for limitations and more details on

this system.

Blind Spot Monitor with Rear Cross

Traffic Alert (BSM w/RCTA) (if equipped)

Indicator

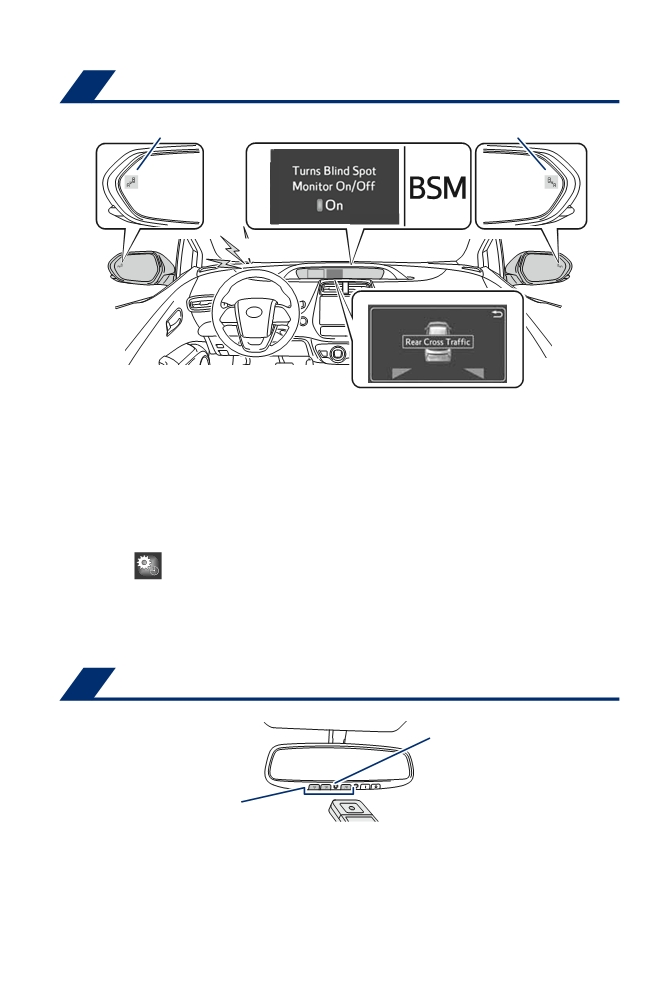

BSM on/off screen and indicator

Indicator

Buzzer

RCTA detection display

The Blind Spot Monitor is a system that has two functions:

• The Blind Spot Monitor function (assists the driver in making the decision when

changing lanes)

• The Rear Cross Traffic Alert function (assists the driver when backing up)

The system is designed to use radar sensors to detect vehicles traveling in the

Prius Prime’s blind spot and advises the driver of the vehicles’ presence via the

outside rear view mirror indicators.

Note: Use

in the Multi-Information Display (MID) to change settings. The

system will continue in the last state it was in (ON or OFF) when the engine is

started again.

Refer to the Owner‘s Manual for limitations and more details on this system before

attempting to use it.

Garage door opener (HomeLink®) (if equipped)

Indicator

Buttons

Garage door openers manufactured under license from HomeLink®* can be

programmed to operate garage doors, estate gates, security lighting, etc.

Refer to the Owner’s Manual for more details.

For programming assistance, contact HomeLink®state gates, security lightinhttp://

www.homelink.com.

* HomeLink® is a registered trademark of Johnson Controls, Inc.

TOYOTA SAFETY SENSE™

Quick overview-Toyota Safety Sense™ P (TSS-P)

Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed

to help mitigate or prevent collisions across a wide range of traffic situations, in

certain conditions. TSS-P is designed to help support the driver’s awareness,

decision making and vehicle operation contributing to a safe driving experience.

5HIHU WR WKH 2ZQHU·V 0DQXDO IRU RSHUDWLRQ VHWWLQJ DGMXVWPHQWV OLPLWDWLRQV DQG

PRUH GHWDLOV WR XQGHUVWDQG WKHVH IXQFWLRQV DQG FRPSOHWH VDIHW\ SUHFDXWLRQV )RU

PRUH LQIRUPDWLRQ

SOHDVH JR WR KWWS ZZZ WR\RWD FRP VDIHW\ VHQVH

Pre-Collision System with Pedestrian Detection function (PCS w/PD)

PCS w/PD is designed to provide alert, mitigation, and/or

avoidance support in certain conditions, when the system

detects a potential collision with a preceding vehicle is likely to

occur.

Advanced millimeter-wave radar sensor system is designed

to work with the camera sensor to help recognize a preceding

pedestrian, and provide an alert, mitigation and/or avoidance

support in certain conditions.

Lane Departure Alert with Steering Assist function (LDA w/SA)

LDA w/SA is designed to provide notification when the system

detects an unintended lane departure.

The Steering Assist function is designed to provide small

corrective steering inputs to the steering wheel for a short

period of time to help keep the vehicle in its lane.

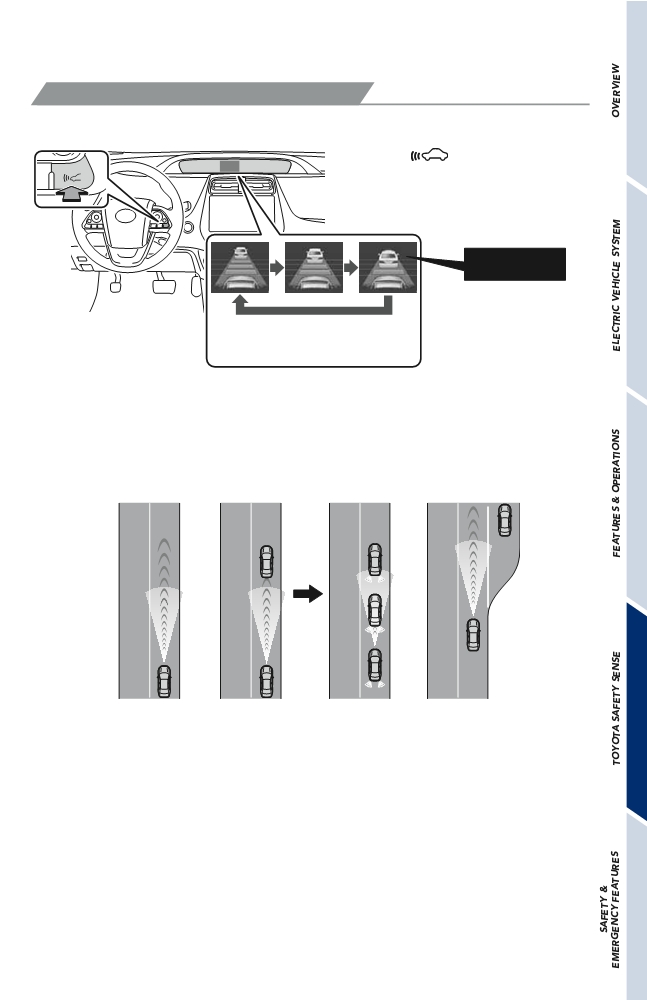

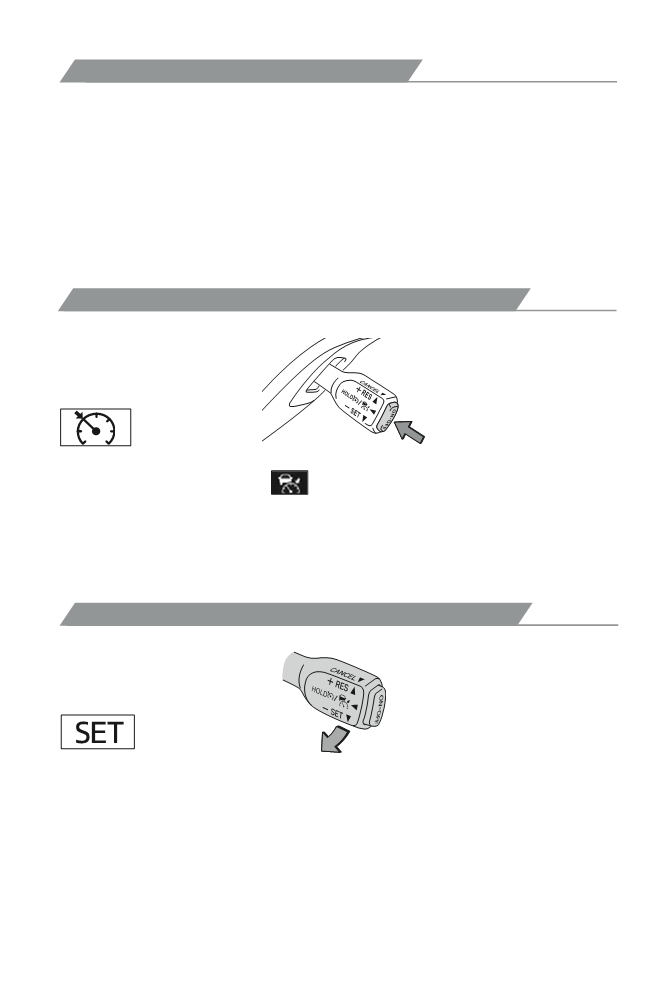

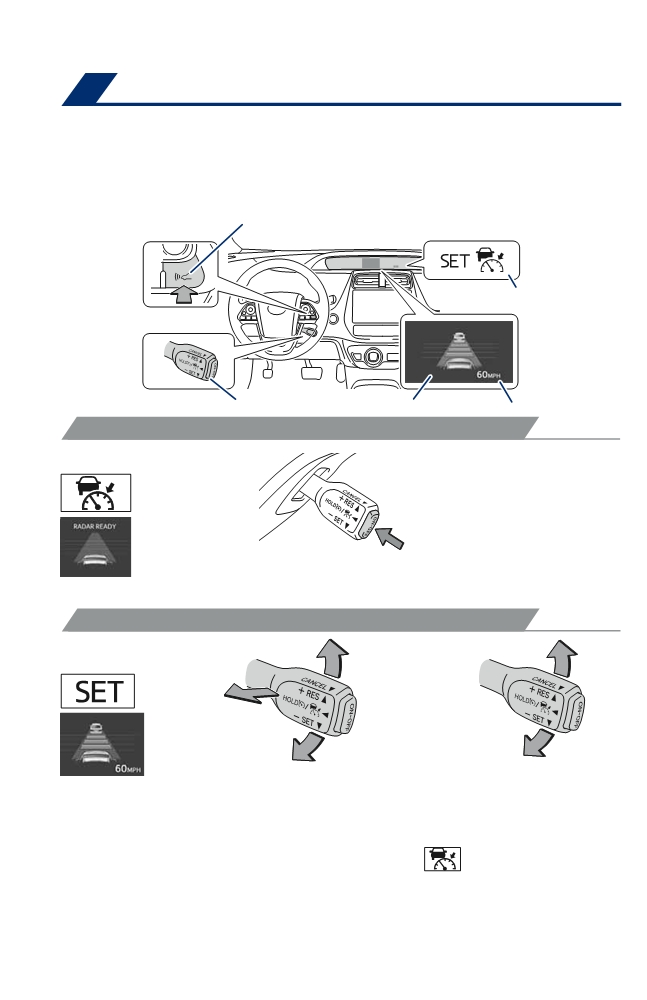

Full-Speed Range Dynamic Radar Cruise Control (DRCC)

DRCC is designed to help maintain a pre-set distance to a

preceding vehicle when the preceding vehicle is traveling at a

lower speed.

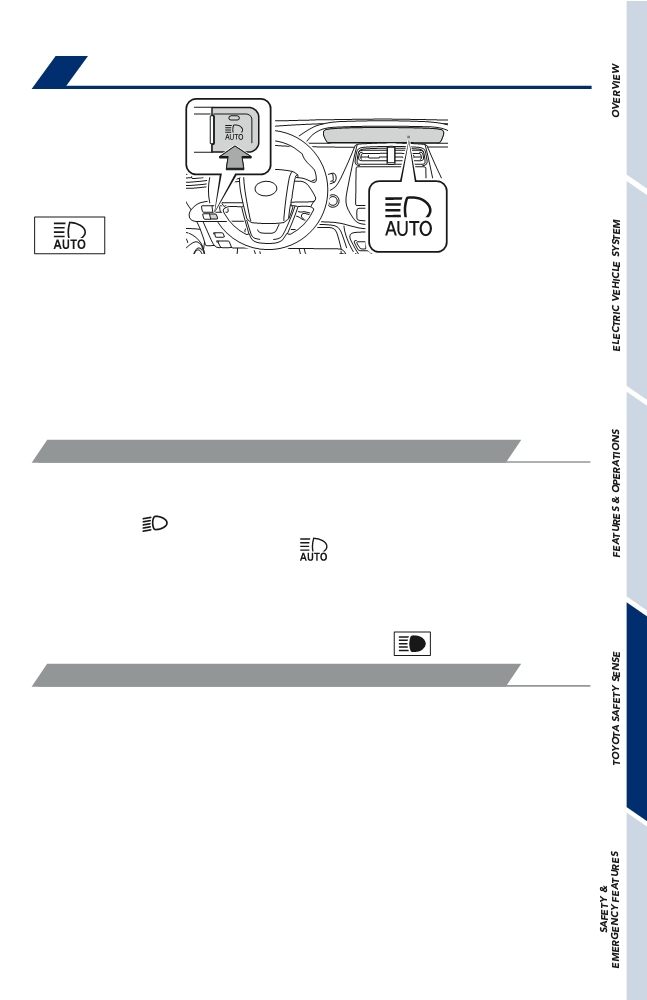

Automatic High Beams (AHB)

AHB is designed to detect the headlights of oncoming vehicles

and the tail lights of preceding vehicles and switch between

high beams and low beams as appropriate.

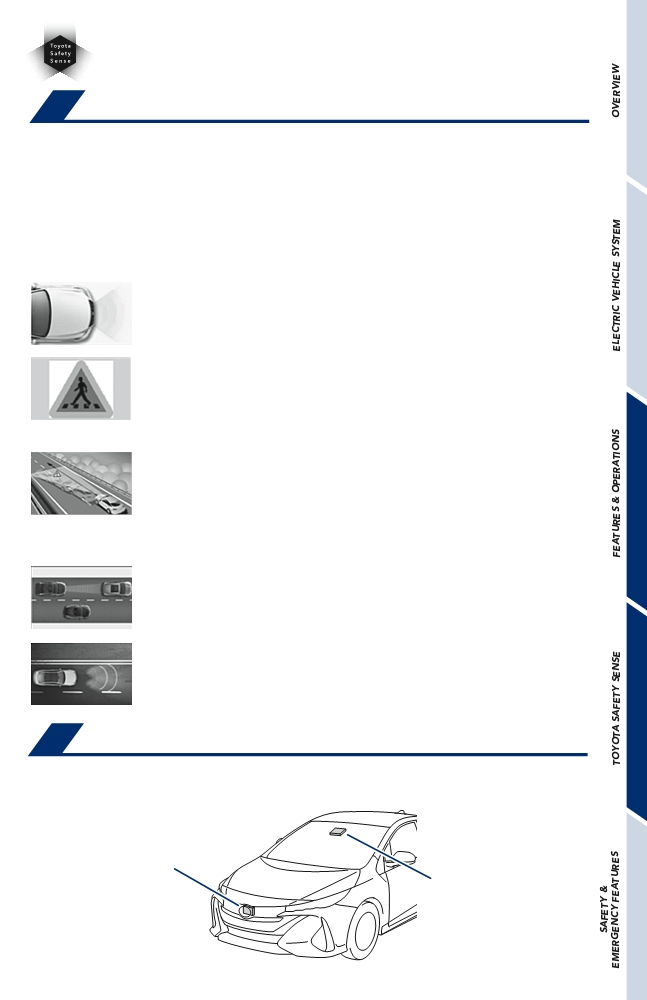

Sensors

TSS-P combines an in-vehicle camera mounted in front of the inside rear view mirror

and a millimeter-wave radar mounted in the front grill. These sensors support the

driver assist systems.

Radar sensor

Camera sensor

TOYOTA SAFETY SENSE™

Pre-Collision System with Pedestrian

Detection function (PCS w/PD)

The Pre-Collision System uses a radar sensor and camera sensor to help detect a

vehicle or pedestrian in front of your vehicle.

As there is a limit to the degree of recognition accuracy and control performance

that this system can provide, do not overly rely on this system. This system will not

prevent collisions or lessen collision damage or injury in every situation. Do not use

PCS instead of normal braking operations under any circumstances. Do not attempt

to test the operation of the pre-collision system yourself, as the system may not

operate or engage, possibly leading to an accident. In some situations, such as

when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or

while driving on a curve and for a few seconds after driving on a curve, a vehicle

may not be detected by the radar and camera sensors, preventing the system from

operating or engaging properly.

Refer to a Toyota Owner’s Manual for a list of additional situations in which the

system may not operate properly.

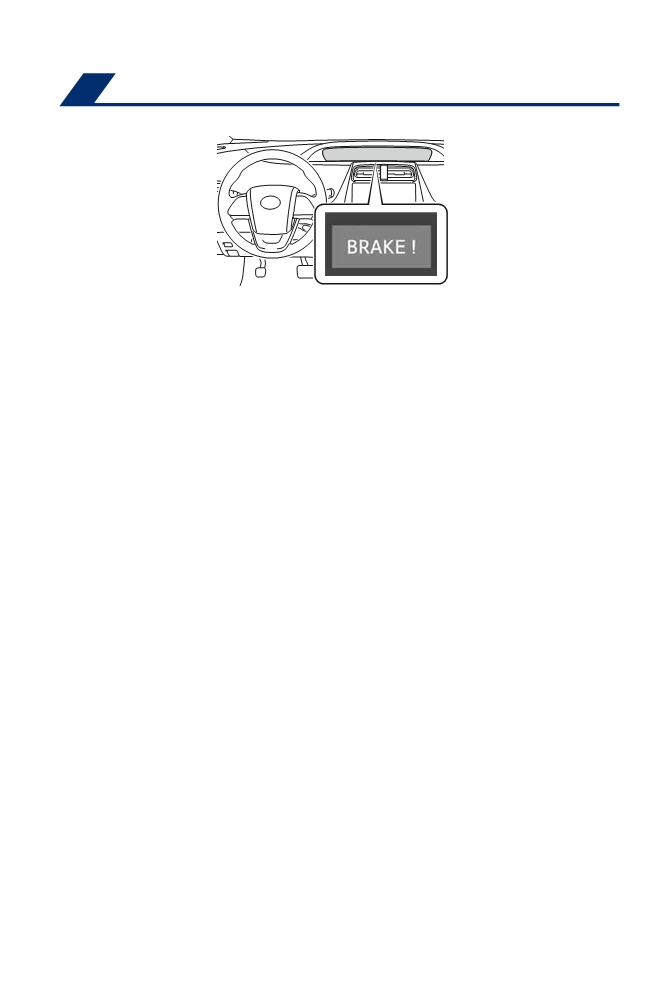

Pre-Collision Warning

When the system determines that the possibility of a frontal collision is high, a

buzzer will sound and a warning message will be displayed on the Multi-Information

Display (MID) to urge the driver to take evasive action.

Pre-Collision Brake Assist

If the driver notices the hazard and brakes, the system may provide additional

braking force using Brake Assist. This system may prime the brakes and may apply

greater braking force in relation to how strongly the brake pedal is depressed.

Pre-Collision Braking

If the driver does not brake in a set time and the system determines that the

possibility of a frontal collision with a preceding vehicle is extremely high, the

system may automatically apply the brakes, reducing speed in order to help the

driver reduce the impact and in certain cases avoid the collision.

Refer to a Toyota Owner’s Manual for additional information on PCS w/PD operation,

settings adjustments, limitations, and precautions before attempting to use it.

PEDESTRIAN DETECTION FUNCTION

In certain conditions, the PCS system included with the TSS-P package may also

help to detect a pedestrian in front of your vehicle. With Toyota Safety Sense™ P,

PCS uses an in-vehicle camera and front-grill mounted millimeter-wave radar to

help detect a pedestrian in front of your vehicle in certain conditions. The in-vehicle

camera of PCS detects a potential pedestrian based on size, profile, and motion of

the detected pedestrian. However, a pedestrian may not be detected depending

on the conditions, including the surrounding brightness and the motion, posture,

size, and angle of the potential detected pedestrian, preventing the system from

operating or engaging. Refer to a Toyota Owner’s Manual for additional information.

Monocular camera sensor

Millimeter

wave radar

As part of the Pre-Collision System, this function is also designed to first provide an

alert and then automatic braking if needed.

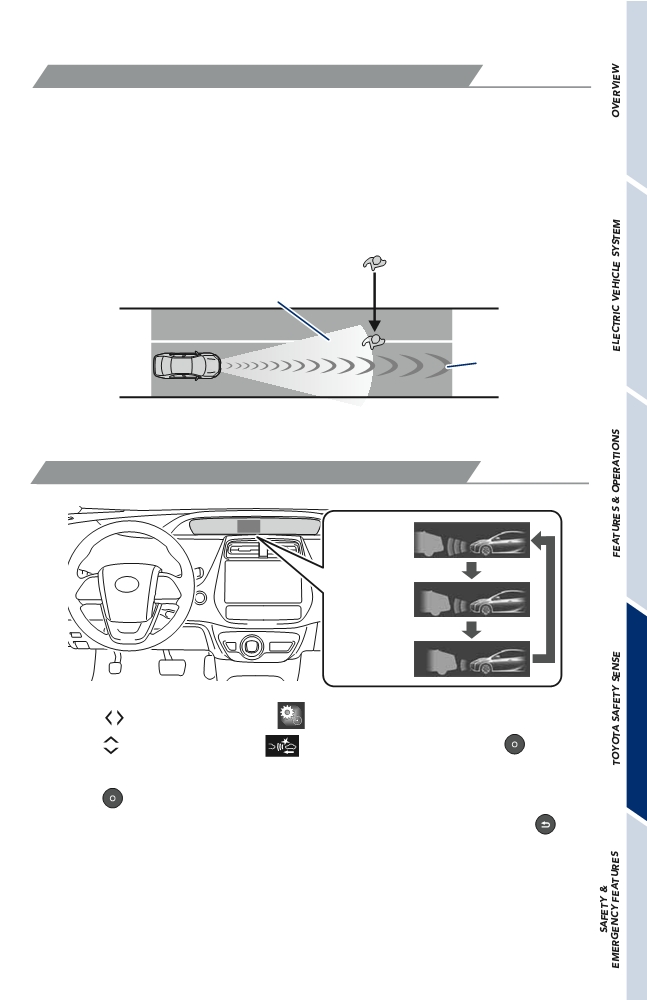

CHANGING THE PCS ALERT TIMING

Far

Middle

(default)

Near

(1) Press “

” switches and select

from the Multi-Information Display (MID).

(2) Press “

” switches and select

from the MID and then press “

”. The

setting screen is displayed.

(3) Press “

” each time to change the setting. Each time it is pressed, the

response to the PCS alert timing changes as shown above. You can press “

” to

go back to the menu.

Note: PCS is enabled each time the engine switch is turned to Ignition On.

The system can be disabled/enabled and the alert timing of the system can be

changed. (Alert timing only, brake operation remains the same.)

TOYOTA SAFETY SENSE™

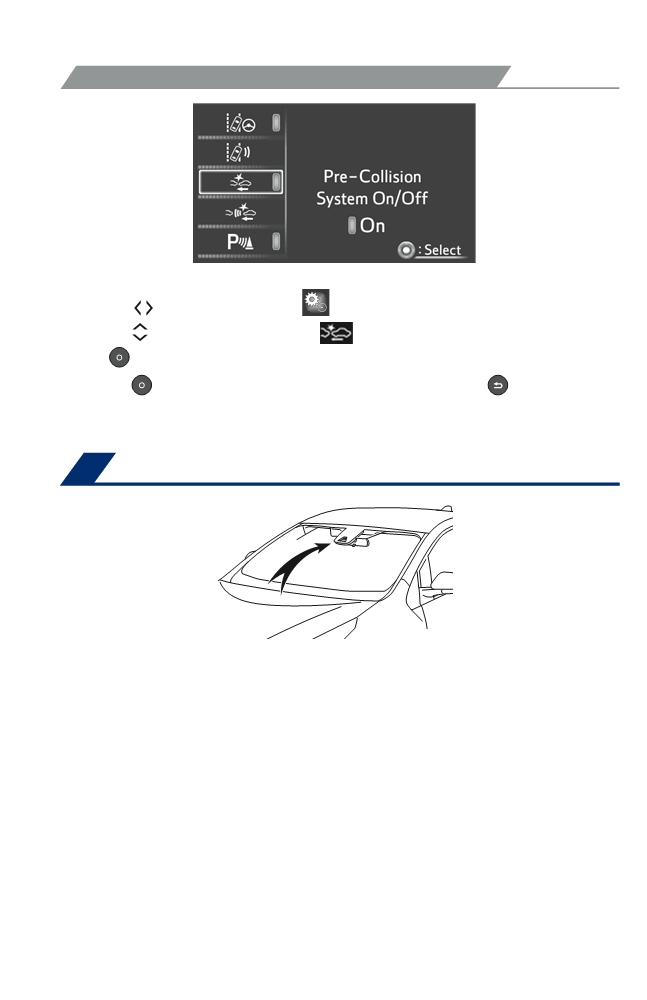

DISABLING THE PRE-COLLISION SYSTEM (PCS)

(1) Press “

” switches and select

from the Multi-Information Display (MID).

(2) Press “

” switches and select the

setting function from the MID and then

press “

”. The setting screen is displayed.

(3) Press “

” each time to change the setting. You can press “

” to go back to

the menu.

Lane Departure Alert with

Steering Assist function (LDA w/SA)

LDA in TSS-P uses an in-vehicle camera designed to detect visible white and yellow

lane markers in front of the vehicle and the vehicle’s position on the road. If the

system determines that the vehicle is starting to unintentionally deviate from its lane,

the system alerts the driver with an audio and visual alert. When the alerts occur, the

driver must check the surrounding road situation and carefully operate the steering

wheel to move the vehicle back to the center part of their lane.

LDA is designed to function at speeds of approximately 32 MPH or higher on

relatively straight roadways.

In addition to the alert function, LDA w/SA also features a steering assist

function. When enabled, if the system determines that the vehicle is on a path to

unintentionally depart from its lane, the system may provide small corrective steering

inputs to the steering wheel for a short period of time to help keep the vehicle in its

lane.

TURNING THE LDA SYSTEM ON/OFF

Press the LDA switch to turn the LDA system on. Depress again to turn it off.

Note: Operation of the LDA system and

setting adjustments continues in the

same condition regardless of Ignition cycle until changed by the driver or the

system is reset.

Refer to a Toyota Owner’s Manual for additional information on LDA operation,

settings adjustments, limitations, and precautions before attempting to use it.

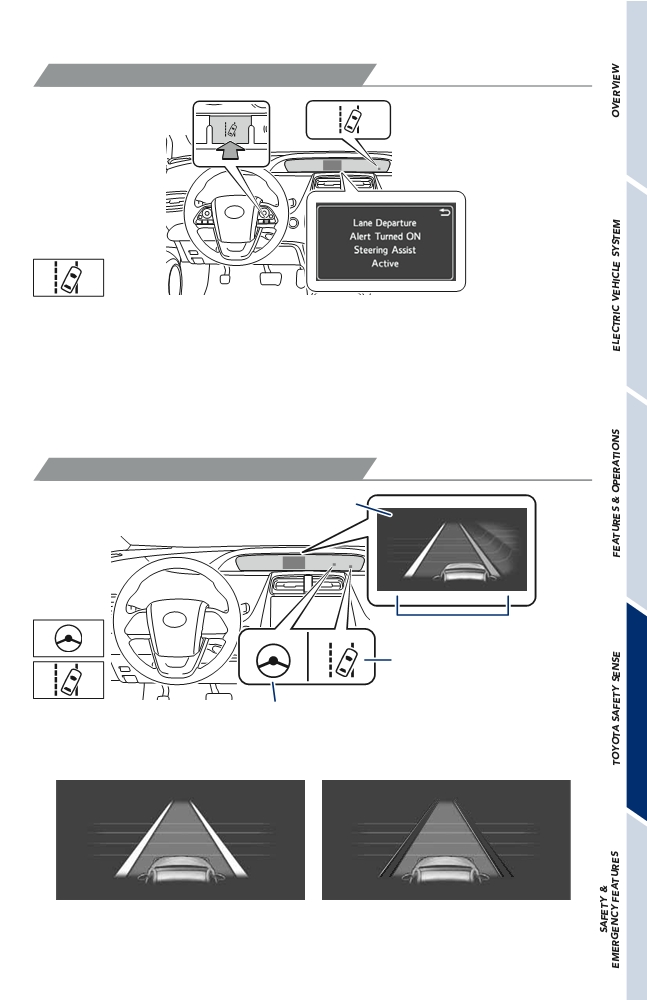

FUNCTIONS

LDA function display

Lane marker

LDA indicator

Steering control indicator

Lane Departure Alert (LDA) indicator flashes orange when operating.

(1)

(2)

TOYOTA SAFETY SENSE™

The LDA function

displays when the Multi-Information Display (MID) is switched

to the driving assist system information screen.

(1) The system displays solid white lines on the LDA indicator when visible lane

markers on the road are detected. A side flashes orange to alert the driver when the

vehicle deviates from its lane.

(2) The system displays outlines on the LDA indicator when lane markers on the road

are not detected or the function is temporarily cancelled.

Note: When operation conditions are no longer met, a function may be

temporarily canceled. However, when the operation conditions are met again,

operation of the function is automatically restored. For example, LDA may not

function on the side(s) where white/yellow lines are not detectable.

Refer to a Toyota Owner’s Manual for additional information on LDA operation,

settings adjustments, limitations, and precautions before attempting to use it.

DISABLING THE STEERING ASSIST FUNCTION

(1) Press “

” switches and select

from the Multi-Information Display (MID).

(2) Press “

” switches and select the

setting function and then press “

”.

(3) Press “

” each time to change the setting.

(4) Press “

” to go back to the menu.

Note: Operation of the LDA system and setting adjustments continues in the

same condition regardless of Ignition cycle until changed by the driver or the

system is reset.

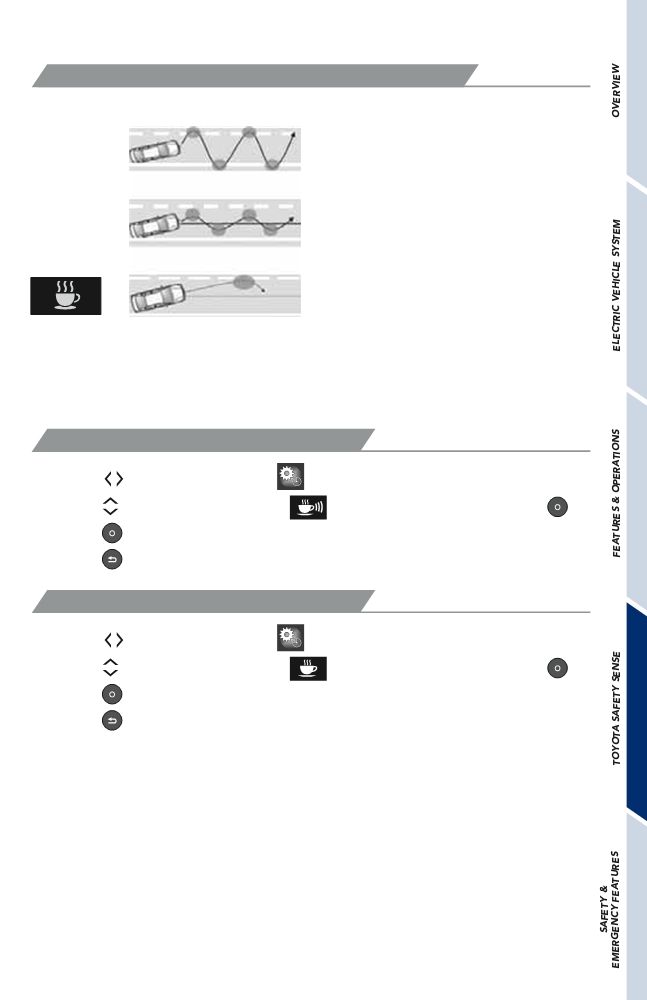

CHANGING THE LDA ALERT SENSITIVITY

The driver can adjust the sensitivity of the LDA (warning) function from the

Multi-Information Display (MID) customization screen.

High - Is designed to warn approximately before the front tire crosses

the lane marker.

Normal - Is designed to warn approximately when the front tire crosses

the lane marker.

(1) Press “

” switches and select

from the Multi-Information Display (MID).

(2) Press “

” switches and select the

setting function and then press “

”.

(3) Press “

” each time to change the setting.

(4) Press “

” to go back to the menu.

VEHICLE SWAY WARNING SYSTEM (SWS) FUNCTION

Continuous lane deviations from

swaying.

Gentle swaying from driver’s

inattentiveness.

Acute steering wheel operation after the

number of operations decrease due to driver’s

inattentiveness.

SWS is a function of LDA and is designed to detect swaying based on the vehicle

location in the lane and the driver’s steering wheel operation. To help prevent

swaying, the system alerts the driver using a buzzer sound and a warning displays

in the MID.

ADJUSTING SWAY ALERT SENSITIVITY

(1) Press “

” switches and select

from the Multi-Information Display (MID).

(2) Press “

” switches and select the

setting function and then press “

”.

(3) Press “

” each time to change the setting.

(4) Press “

” to go back to the menu.

DISABLING SWS

(1) Press “

” switches and select

from the Multi-Information Display (MID).

(2) Press “

” switches and select the

setting function and then press “

”.

(3) Press “

” each time to change the setting.

(4) Press “

” to go back to the menu.

Note: Operation of the LDA system and setting adjustments continues in the

same condition regardless of Ignition cycle until changed by the driver or the

system is reset.

TOYOTA SAFETY SENSE™

Full-Speed Range

Dynamic Radar Cruise Control (DRCC)

DRCC helps maintain a pre-set distance to a preceding vehicle when the preceding

vehicle is traveling at a lower speed. This mode is always selected first when

the cruise control button is depressed. Constant speed control mode is also

available. Full-Speed Range DRCC is designed to function at speeds between 0 to

approximately 110 MPH and is intended for highway use.

Full-Speed Range Dynamic Radar Cruise

Control vehicle-to-vehicle distance button

Indicators

Cruise control switch

Display

Set speed

TURNING SYSTEM ON/OFF

(1)

Push once: On

Push again: Off

Refer to page 46 for switching to Constant Speed (Cruise) Control Mode.

ADJUSTING SET SPEED

(2)

Resume2

(3)

Increase

speed

Cancel1

Decrease

Set

speed

Vehicle will cruise at a set speed, decelerate to maintain selected distance from a

slower vehicle traveling in front and accelerate back up to the selected speed if the

vehicle in front changes lanes or speeds up.

(1) Push the ON-OFF button. The “RADAR READY” or “

” indicator will come on.

(2) Push the lever down to SET speed, push it up to Resume and pull it or depress

brake to Cancel.

(3) Push up to increase the set speed, push down to decrease (1 MPH increments).

1 T

he set speed may also be cancelled by depressing the brake pedal.

2 T

he set speed may be resumed once vehicle speed exceeds 25 mph.

ADJUSTING DISTANCE

To change the vehicle-to-vehicle distance

Push the “

” button to cycle

through the settings, which will

change progressively.

Preceding vehicle

mark

LONG

MIDDLE

SHORT

(default setting)

This mode employs a radar sensor to detect the presence of a preceding vehicle

up to approximately 328 ft (100m) ahead, determines the current vehicle-to-vehicle

following distance and operates to maintain a suitable following distance from the

vehicle ahead. These distances vary based on vehicle speed.

Note: Vehicle-to-vehicle distance will close in when traveling on long downhill

slopes.

(1)

(2)

(3)

(1) Constant speed cruising when there are no vehicles ahead

The vehicle travels at the speed set by the driver. The desired vehicle-to-

vehicle distance can also be set by operating the vehicle-to-vehicle distance

control.

(2) Deceleration cruising and follow-up cruising when a preceding vehicle

driving slower than the set speed appears

When a vehicle is detected running ahead of you, the system automatically

decelerates your vehicle. When a greater reduction in vehicle speed is

necessary, the system applies the brakes (the brake lights will come on at this

time). The system will respond to changes in the speed of the vehicle ahead

in order to maintain the vehicle-to-vehicle distance set by the driver. A warning

tone warns you when the system cannot decelerate sufficiently to prevent your

vehicle from closing in on the vehicle ahead.

TOYOTA SAFETY SENSE™

DRCC ADJUSTING DISTANCE (CONTINUED)

(3) Acceleration when there are no longer any preceding vehicles driving

slower than the set speed

The system accelerates until the set speed is reached. The system then

returns to constant speed cruising.

Note: When your vehicle is too close to a vehicle ahead, and sufficient automatic

deceleration via the cruise control is not possible, the display will flash and the

buzzer will sound to alert the driver. An example of this would be if another driver

cuts in front of you while you are following a vehicle. Depress the brake pedal to

ensure an appropriate vehicle-to-vehicle distance.

SWITCHING TO CONSTANT SPEED (CRUISE) CONTROL MODE

1.5 seconds

If you are already using DRCC “

”, push ON-OFF button to turn the system off

first, then push and hold ON-OFF button for at least 1.5 seconds to switch.

Note: When the engine is turned off, it will automatically default to DRCC.

Refer to a Toyota Owner’s Manual for additional information on DRCC operation,

settings adjustments, limitations, and precautions before attempting to use it.

SETTING CONSTANT SPEED (CRUISE) CONTROL

Set

To adjust speed or cancel, see steps (2) and (3) of ADJUSTING SET SPEED on

page 44.

Refer to a Toyota Owner’s Manual for additional information on DRCC operation,

settings adjustments, limitations, and precautions before attempting to use it.

Automatic High Beams (AHB)

AHB is a safety system designed to help drivers see more of what’s ahead at

nighttime without dazzling other drivers. When enabled, AHB uses an in-vehicle

camera to help detect the headlights of oncoming vehicles and tail lights of

preceding vehicles, then automatically switches between high and low beams

as appropriate to provide the most light possible and enhance forward visibility.

By using high beams more frequently, the system may allow earlier detection of

pedestrians and obstacles.

Refer to a Toyota Owner’s Manual for additional information on AHB operation,

settings adjustments, limitations, and precautions before attempting to use it.

ACTIVATING THE AHB SYSTEM

Note: The AHB function only operates at night.

(1) With the engine switch in IGNITION ON mode and headlight switch turned to

“AUTO” or “

” position, push lever away from you.

(2) Depress the Automatic High Beam “

” switch.

The AHB indicator will come on when the headlights are turned on automatically

to indicate that the system is active.

Note: Pull the lever back toward you to turn the AHB system off. The AHB

indicator will turn off and the high beam indicator “

” turns on.

CONDITIONS WHERE AHB WILL TURN ON/OFF AUTOMATICALLY

When all of these conditions are met, high beams will be automatically turned on

(after approximately 1 second):

• Vehicle speed is above approximately 21 mph (34 km/h.)

• The area ahead of the vehicle is dark.

• There are no oncoming or preceding vehicles with headlights or tail lights

turned on.

• There are few street lights on the road ahead.

If any of these conditions occur, the system is designed to automatically turn off

high beams:

• Vehicle speed drops below approximately 17 mph (27 km/h.)

• The area ahead of the vehicle is not dark.

• Oncoming or preceding vehicles have headlights or tail lights

turned on.

• There are many streetlights on the road ahead.

6$)(7<

(0(5*(1&< )($785(6

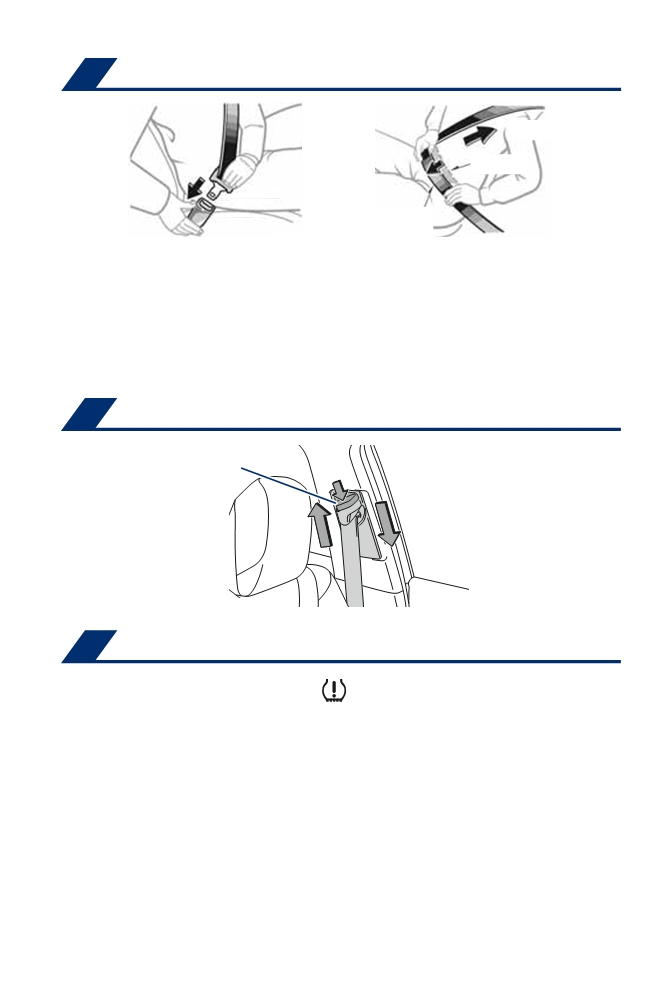

Seat belts

Take up slack

Too high

Keep as low on

hips as possible

127( ,I D SDVVHQJHU·V VHDW EHOW LV IXOO\ H[WHQGHG WKHQ UHWUDFWHG HYHQ VOLJKWO\

WKH $XWRPDWLF /RFNLQJ 5HWUDFWRU $/5 ZLOO SUHYHQW LW IURP EHLQJ UH H[WHQGHG

EH\RQG WKDW SRLQW XQOHVV IXOO\ UHWUDFWHG DJDLQ 7KLV IHDWXUH LV XVHG WR KHOS

KROG FKLOG UHVWUDLQW V\VWHPV VHFXUHO\

To find more information about seat belts, and how to install a child restraint system,

refer to the Owner’s Manual.

Seat belts - Shoulder belt anchor

Push up, or squeeze lock

release to lower

Tire Pressure Monitoring (warning) System (TPMS)

If the Tire Pressure Warning indicator “

” illuminates without blinking, adjust tire

pressures to factory-specified levels.* The light will turn off after a few minutes. The

warning light may come on due to temperature changes or changes in tire pressure

from natural air leakage.

If the tire pressure indicator flashes for more than 60 seconds and then remains on,

take the vehicle to your local Toyota dealer.

5HIHU WR WKH 2ZQHU·V 0DQXDO IRU PRUH GHWDLOV

* Refer to load label on door jamb or the Owner’s Manual for tire inflation

specifications.

Star Safety System™

Your vehicle comes standard with the Star Safety SystemTM, which combines Anti-

lock Braking System (ABS), Brake Assist (BA), Electronic Brake-force Distribution

(EBD), Smart Stop Technology (SST), Traction Control (TRAC) and Vehicle Stability

Control (VSC).

5HIHU WR WKH 2ZQHU·V 0DQXDO IRU PRUH GHWDLOV DQG LPSRUWDQW LQIRUPDWLRQ RQ OLPLWDWLRQV

WR WKHVH V\VWHPV

ANTI-LOCK BRAKE SYSTEM (ABS)

Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup

by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure

repeatedly for fractions of a second. This helps the tires attain the traction that

current road conditions will allow, helping you to stay in directional control.

BRAKE ASSIST (BA)

Brake Assist is designed to detect sudden or “panic” braking, and then add braking

pressure to help decrease the vehicle’s stopping distance. When there’s only a split

second to react, Brake Assist can add additional brake pressure more quickly than

just the driver alone can.

ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)

Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help

maintain control and balance when braking. Abrupt stops can cause a vehicle to tilt

forward, reducing the braking power of the rear wheels. EBD responds to sudden

stops by redistributing brake force to enhance the braking effectiveness of all four

wheels.

SMART STOP TECHNOLOGY (SST)

Smart Stop Technology automatically reduces engine power when the accelerator

and brake pedals are pressed simultaneously under certain conditions.

SST engages when the accelerator is depressed first and the brakes are applied

firmly for longer than one-half second at speeds greater than five miles per hour.

SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,

allowing vehicles to start on a steep hill and safely accelerate without rolling

backward.

ENHANCED VEHICLE STABILITY CONTROL (VSC)

Enhanced Vehicle Stability Control provides cooperative control of the ABS, TRAC,

VSC and EPS.

Enhanced VSC helps to maintain directional stability when loss of traction occurs

during a turn.

Toyota Prius Prime (2018 year). Instruction - part 3
