OVERVIEW

Instrument panel

Voice command switch2

Meter control switches

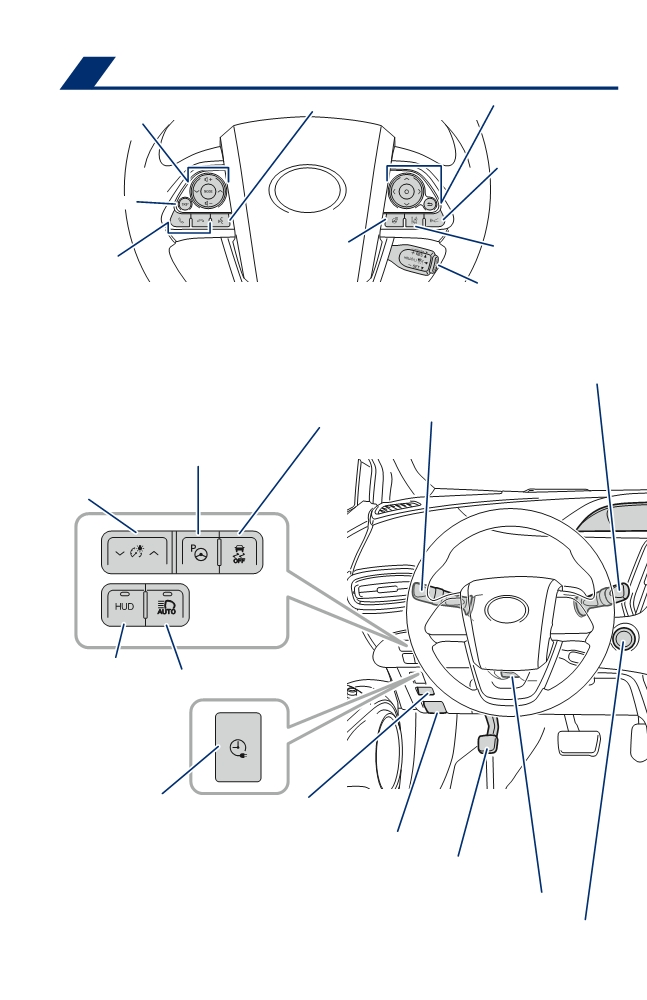

Steering wheel

audio controls2

Full-Speed Dynamic

Radar Cruise Control

(DRCC)

Vehicle-to-vehicle

“TRIP” switch

distance switch

Lane Departure Alert

Heated steering

(LDA) switch

Telephone

wheel switch1

controls2

Full-Speed Dynamic Radar Cruise

Control (DRCC) switch/Cruise

Steering wheel controls

control switch

Wiper and washer controls

Vehicle Stability Control

Headlight, turn signal and front

(VSC) OFF switch

fog light1 controls

Simple Advanced Parking Guidance

System (S-APGS) switch1

Instrument panel

light control switch

Head-up Display

Automatic High Beams

“HUD” switch1

(AHB) switch

Charging timer switch

Fuel tank door release switch

Hood lock release lever

Parking brake

Tilt and telescopic steering lock release lever

“POWER” switch

2

1 If equipped.

2 For details, refer to the “Navigation System Owner’s Manual.”

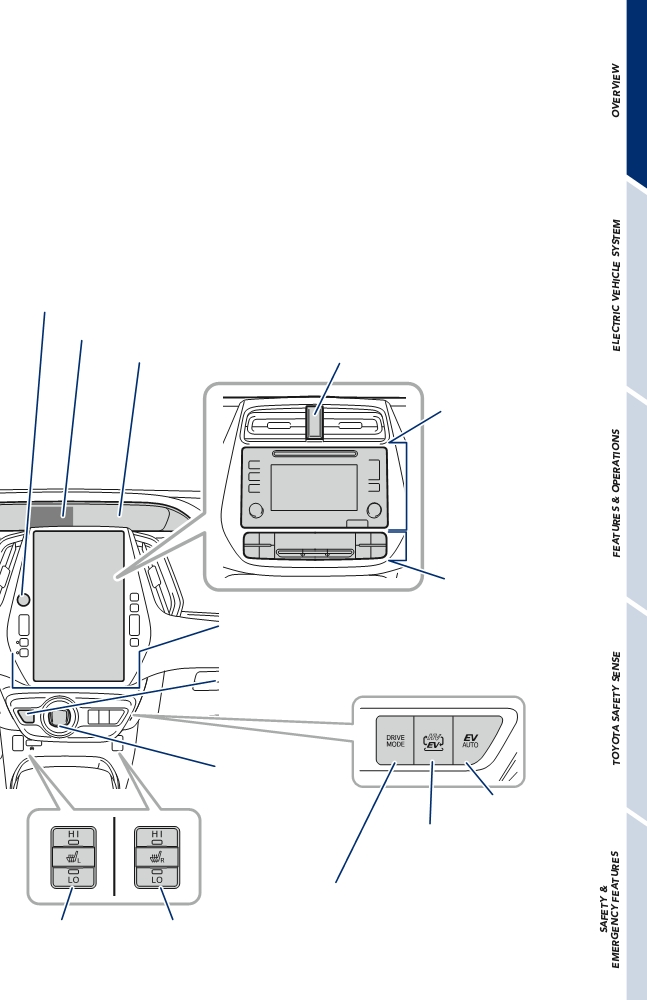

Emergency flasher switch (11.6” display)

Multi-Information Display (MID)

Gauges and meters

Emergency flasher switch (7” display)

7” Display1

Audio system1,2/

Navigation system2

Air conditioning controls

11.6” Display1

Audio system1,2/Navigation system2

and Air conditioning controls

Park “P” position switch

Shift lever

Electric Vehicle

(EV) Auto switch

Electric Vehicle/Hybrid

Vehicle (EV/HV) toggle

switch

Drive mode switch

Driver side seat

Passenger side

heater switches

seat heater switches

3

OVERVIEW

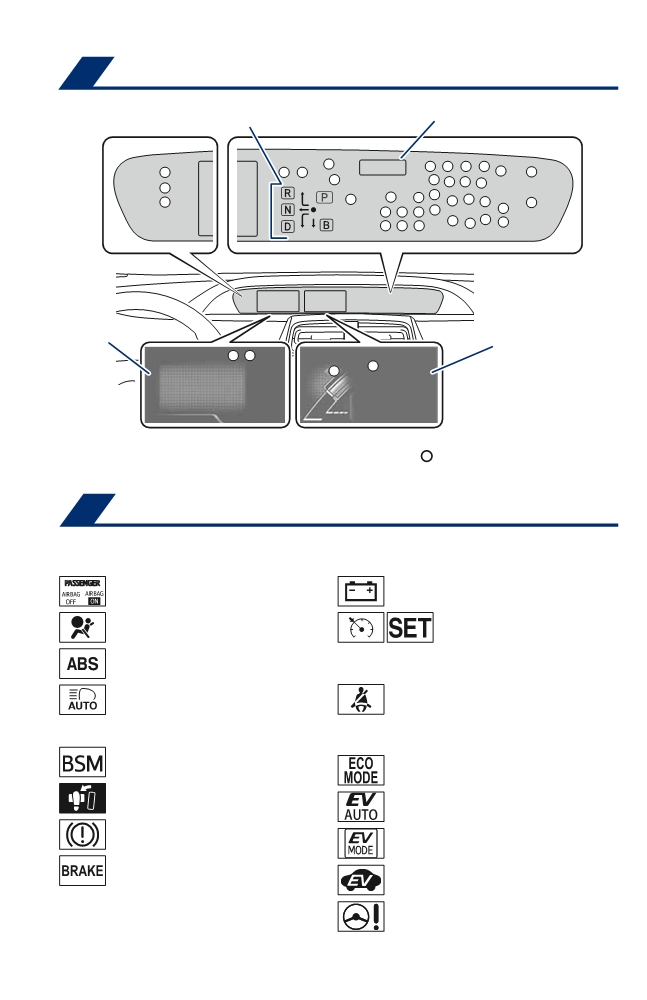

Instrument cluster

Transmission shift position indicator

Clock

Main Display

Multi-Information Display (MID)

Service indicators and reminders

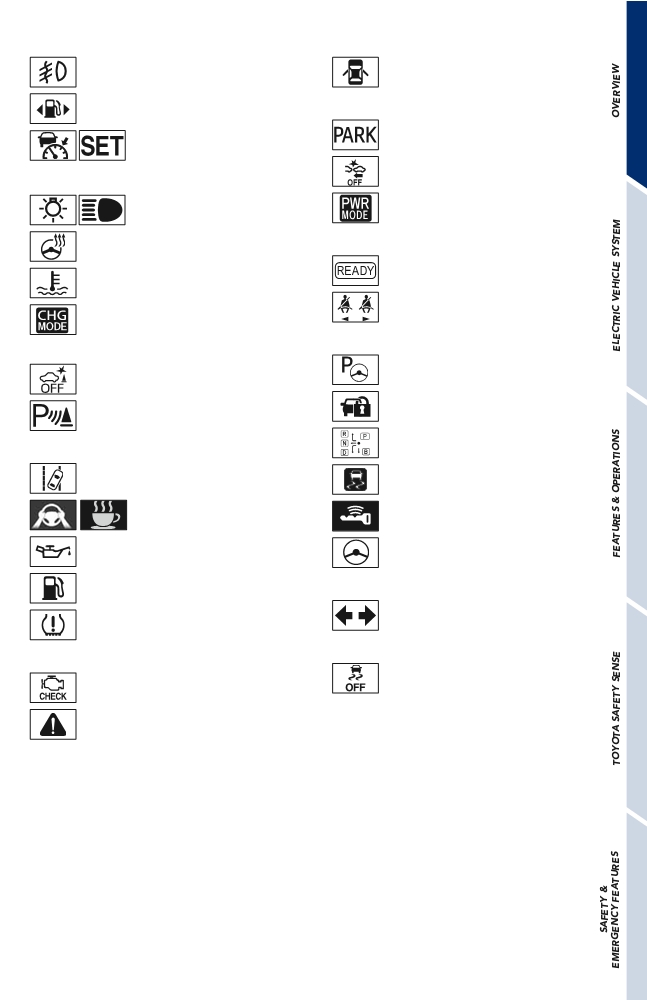

Indicator symbols

For details, refer to “Instrument cluster,” Section 3-3, 2018 Owner’s Manual.

“AIR BAG ON/OFF” indicator1

Charging system warning1

Constant speed cruise control

Air bag SRS warning1

indicator2/Constant speed

cruise control SET indicator2

Anti-lock Brake System (ABS)

warning1

Automatic High Beam (AHB)

Driver and front passengers seat

indicator

belt reminder (alarm sounds for

speeds over 12 mph)

Blind Spot Monitor (BSM) indicator4

ECO mode indicator

Brake Override System/Drive-Start

Control/Intelligent Clearance Sonar4

EV auto mode indicator

Brake system warning1

EV drive mode indicator

Brake system warning1

EV indicator

Electric power steering system

warning light (Red/yellow)1

4

4

Fog light indicator

Open door warning

Fuel tank door position

Full-Speed Dynamic Radar

Parking brake indicator

Cruise Control (DRCC)

indicator2/DRCC SET indicator2

Pre-Collision System

(PCS) warning1,3

Headlight low/high beam

PWR MODE indicator

indicator

Heated steering wheel indicator4

“READY” indicator

High coolant temperature

warning1

Rear passengers’ seat belt

Hybrid battery charge mode

reminder

indicator

S-APGS indicator1,4

ICS OFF indicator1,3,4

Intuitive Parking Assist (IPA)

Security indicator

indicator4

Shift position indicators

Lane Departure Alert (LDA)

Slip indicator/Hill-start Assist

indicator

Control indicator1

Lane Departure Alert with

Steering Assist (LDA w/SA)

Smart Key system

indicator

Low engine oil pressure warning1

Steering control indicator

Low fuel level warning light

Turn signal indicator

Low Tire Pressure Warning1

Vehicle Stability Control

Malfunction/Check Engine indicator1

(VSC) OFF indicator1

Master warning light1

1 If indicator does not turn off within a few seconds of starting Hybrid System, there may be a

malfunction. Have vehicle inspected by your Toyota dealer.

2 If this light flashes, refer to “Full-Speed Range Dynamic Radar Cruise Control,” Section 5-5, 2018

Owner’s Manual.

3 The indicator flashes to indicate a malfunction.

4 If equipped.

5

OVERVIEW

Keyless entry

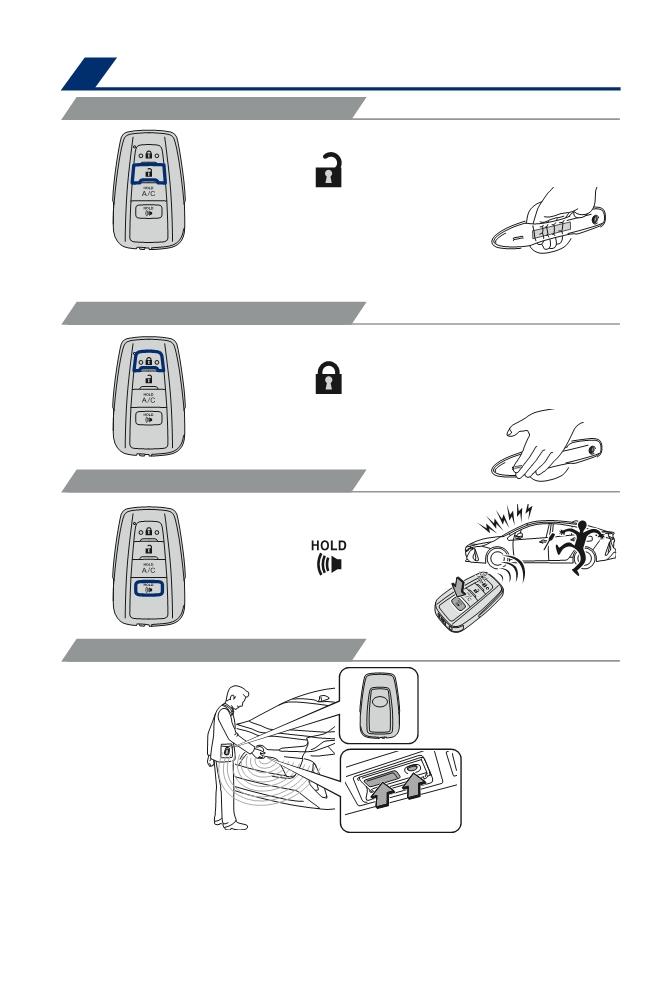

UNLOCKING OPERATION

Carry remote

Smart key feature

Front door unlock*

Push

Grasp

ONCE: Driver door

TWICE: All doors

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for

safety.

LOCKING OPERATION

Carry remote

Smart key feature

Front door lock

Touch

Push

PANIC BUTTON

Push and hold

BACK DOOR LOCKING/UNLOCKING

Carry remote

Smart key feature

Push

* Driver door unlocking function can be programmed to unlock driver door only,

or all doors. In some models, grasping front passenger door handle will unlock all

doors. Please refer to the Owner’s Manual for more details on how to program the

doors.

NOTE: Doors may also be locked/unlocked using remote.

6

AIR CONDITIONING REMOTE

(1) Press twice to de-activate. System also

automatically shuts off after 10 minutes or

when a door is opened.

(2) The Remote Air Conditioning System will

operate in accordance with the temperature

Push and hold

settings of the air conditioning system.

NOTE: Remote Climate system can also be

activated via smartphone using Entune Prime

Apps (if equipped).

Smart Key system

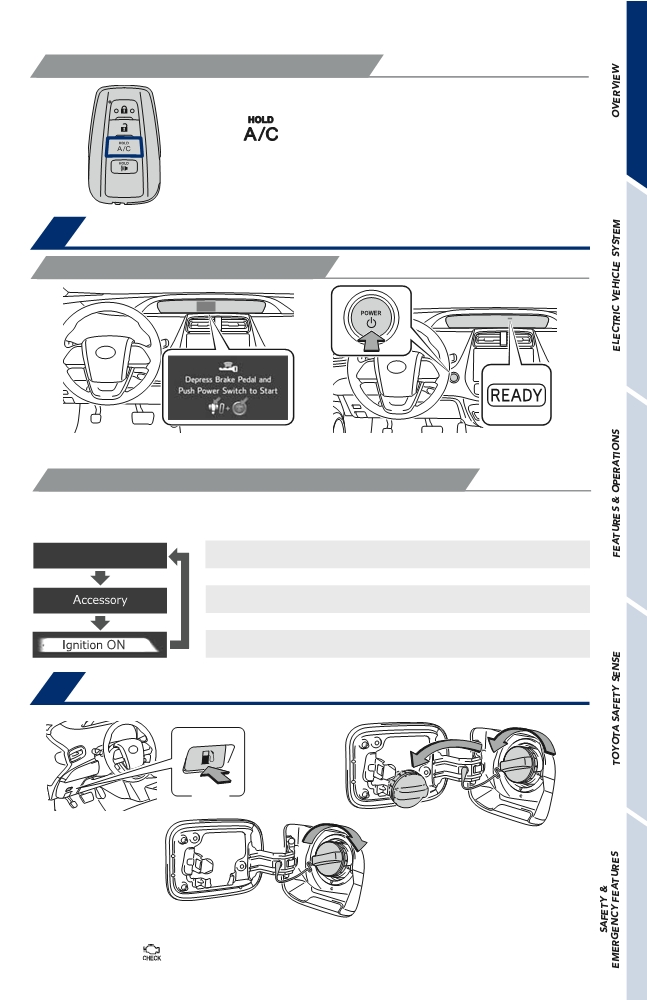

START FUNCTION

NOTE: Gear shift lever must be in Park and brake pedal depressed.

POWER (WITHOUT STARTING HYBRID SYSTEM)

Without depressing the brake pedal, pressing the “POWER” switch will change the

operation mode in succession from:

All systems OFF. operate.

Accessories such as the radio will

Power ON; the engine is not running.

Fuel tank door release & cap

Turn to open

Press

Store

The fuel tank door locks/unlocks

with the vehicle’s doors.

NOTE: Tighten until one click is heard. If the cap is not locked or tightened,

Check Engine “

” indicator may illuminate.

7

OVERVIEW

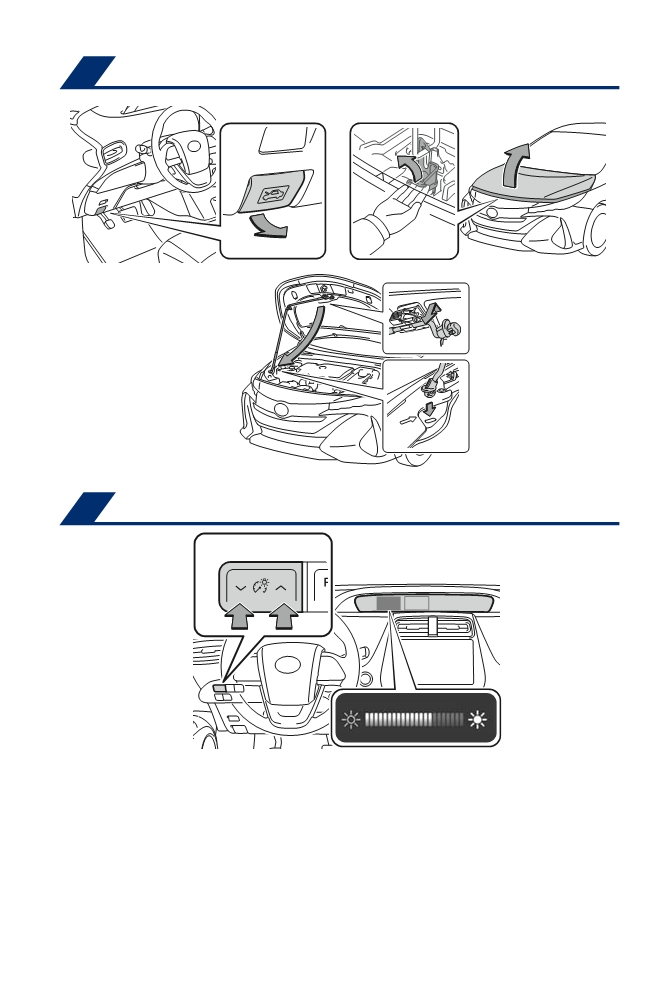

Hood release

Pull up latch and

raise hood

Pull

Engage support rod

Instrument panel light control

Darker Brighter

8

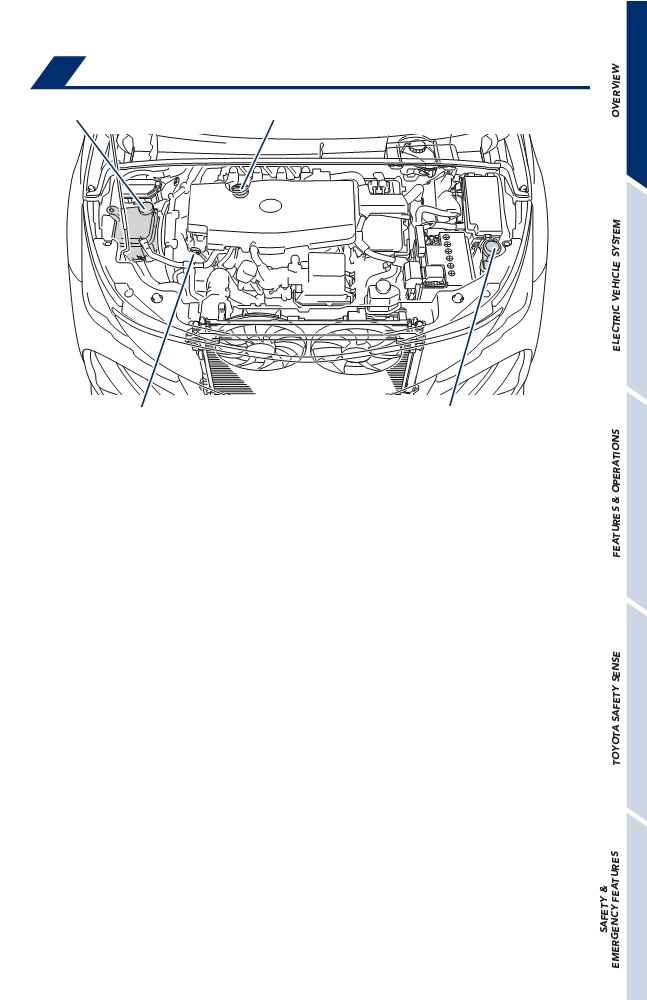

Engine maintenance

Engine coolant reservoir

Engine oil filler cap

Engine oil level dipstick

Windshield washer fluid tank

NOTE: Regularly scheduled maintenance, including oil changes, will help

extend the life of your vehicle and maintain performance. Please refer to the

“Warranty & Maintenance Guide.”

9

ELECTRIC VEHICLE SYSTEM

Electric Vehicle System

The Prius Prime system has features of both electric and hybrid vehicles. Electricity

received by charging from an external power source can be used to supplement

hybrid energy, and the vehicle can also be driven as an electric vehicle using only

the electric motor. The EV driving range can be extended by using regenerative

braking to store electricity in the traction battery.

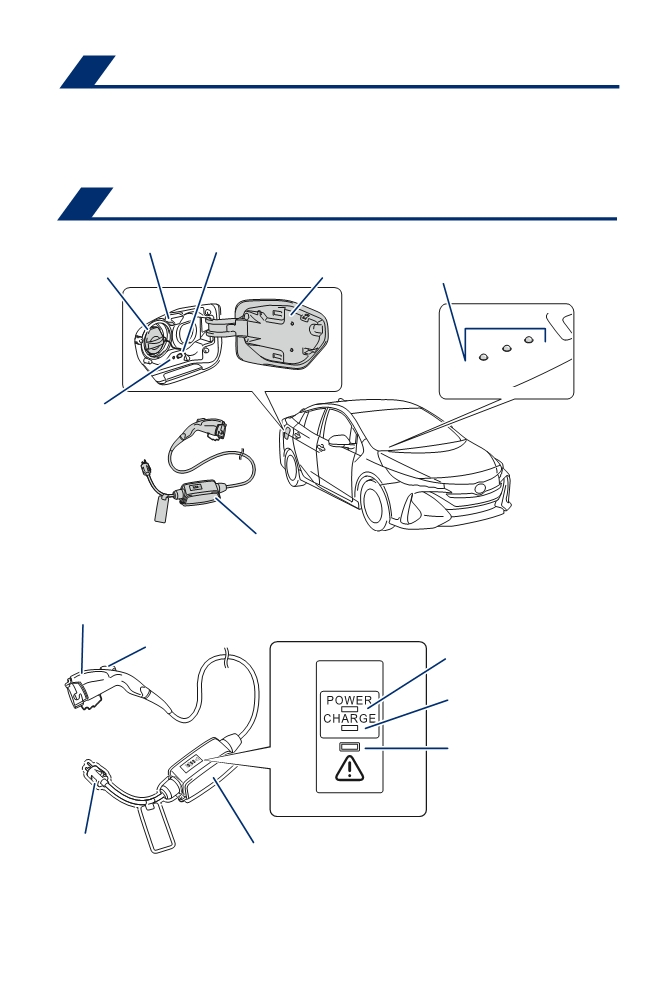

Charging equipment

Inlet light

Connector lock switch (if equipped)

Hybrid battery

Charging inlet

Charging port lid

(traction battery) status indicator

Charging port

Charging indicator

Charge cable

The charge cable included with the vehicle is designed to be connected only to

an AC 120V power source.

Charging connector

Latch release button

Power indicator illuminates

when power is flowing to the

CCID

Charging indicator illuminates

when charging is in progress

Error warning indicator

flashes when malfunction

or electrical leakage is

detected.

Plug

CCID (Charging Circuit

Interrupting Device)

Refer to Owner’s Manual for more details.

NOTE:Toyota recommends installing a heavier-duty 15-amp wall receptacle

with GFCI (Ground-Fault

Circuit-Interrupter).

10

Charging

The Prius Prime may be charged immediately, or scheduled to charge at a

specific time. Before charging, it is recommended that:

• Parking brake is securely set

• All lights are turned off

• The POWER switch is OFF

Refer to “Things to Know Before Charging,” in the Owner’s Manual before

attempting to charge the hybrid battery.

START CHARGING

- Make sure to hold the body of the plug and insert it

firmly into the outlet.

- Check that the power indicator of the CCID (Charging

Circuit Interrupting Device) is illuminated.

- Check the status of the automatic system check that

runs before charging to detect electrical leakage. If a

malfunction is detected, an error warning indicator

flashes.

- The surface of the CCID may become hot, but this

does not indicate a malfunction.

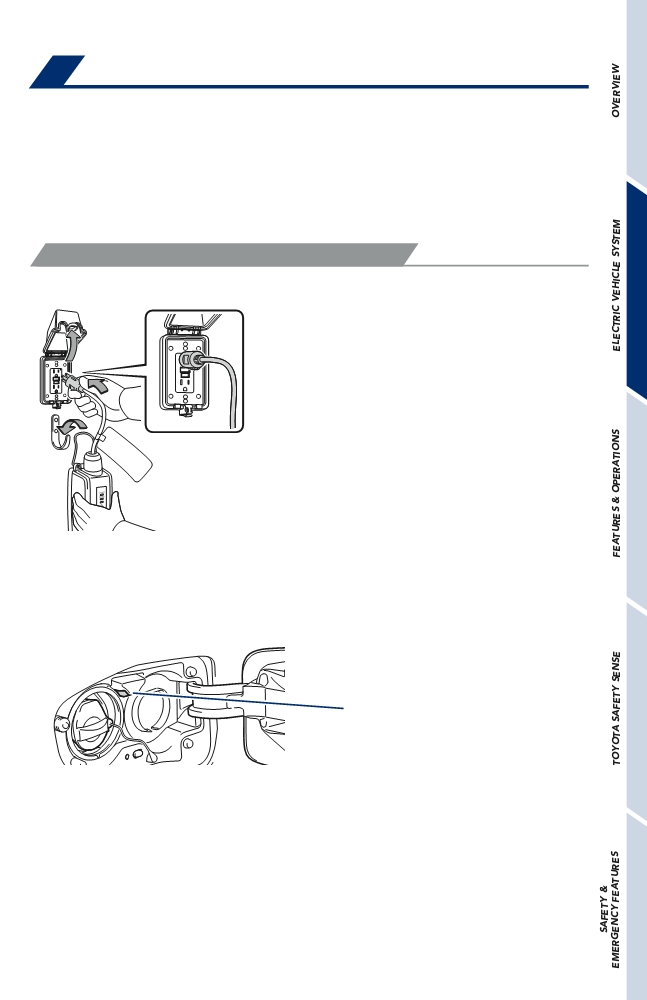

Step 1 Plug the charge cable into the outlet of the external power source.

NOTE: Hanging the CCID on a hook is recommended to reduce the strain on

the outlet and charge cable plug.

Charging inlet light

Step 2 Press the charge port lid to open and the charging inlet light will illuminate.

NOTE: For vehicles with smart lid & connector locking system, unlock doors

first.

For more information or to change settings for the smart lid and charging connector

function, refer to Owner’s Manual.

11

ELECTRIC VEHICLE SYSTEM

START CHARGING (CONTINUED)

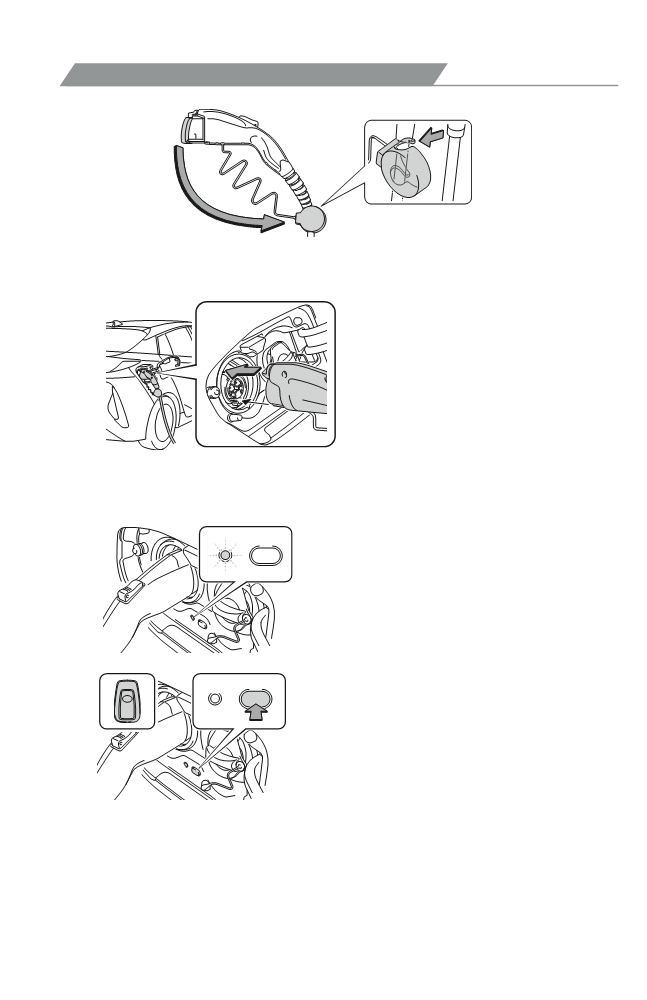

Step 3 Remove the charge connector cap. Affix the cap to the cable.

- Do not press the latch release button when

inserting the connector.

- Align with the guide position shown on

underside of the charge connector, and

push it in until it clicks.

Step 4 Insert the charge cable connector into the charge inlet.

- Charging will not start if the charging

indicator does not illuminate when the

charging connector is inserted.

When charge timer function is in use,

it will turn off several seconds after

illuminating.

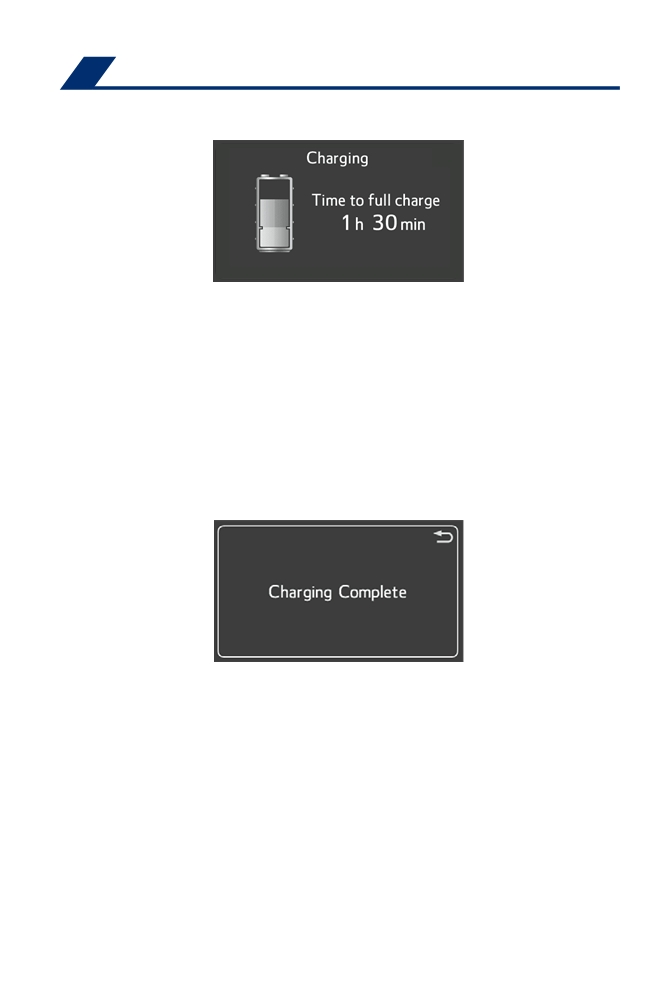

- The amount of time until charging is

completed can be checked on the energy

monitor by turning the POWER switch to

ON mode.

- The charging indicator will turn off when

charging is completed.

Step 5 Once charging connector is inserted into the inlet and indicator has

illuminated, press the connector lock switch before charging.

Refer to the Owner’s Manual for limitations and more details.

12

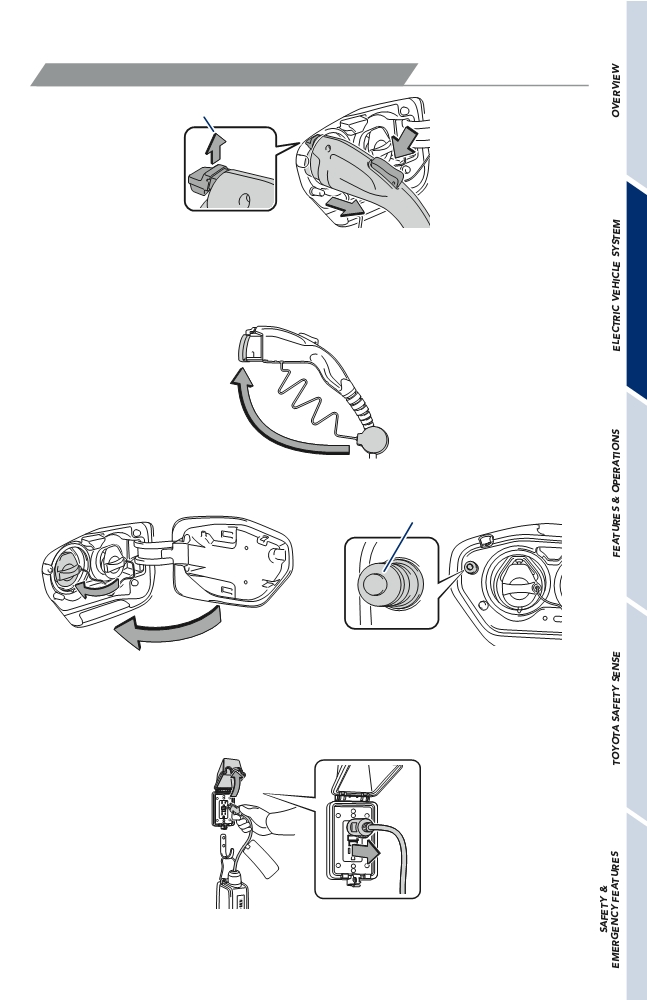

AFTER CHARGING

Lever raises up when unlocked to release

Step 1 Press the latch release button while pulling toward you to release charging

connector.

Note: If smart lid & connector locking system is in use, carry the Smart Key to

unlock. (if equipped)

Step 2 Attach cap to charging connector.

Push lifter

Step 3 Attach charging inlet cap and close charging port lid.

Note: For vehicles with smart lid and connector locking system, touching push

lifter will activate the locking mechanism of the charging port lid or connector

lock. Carry Smart Key to unlock. (if equipped)

Step 4 When the charging equipment will not be used for a prolonged period of

time, remove the plug. Hold the body of the plug when removing from the

outlet.

13

ELECTRIC VEHICLE SYSTEM

Charging schedule

Use of the charge schedule can help reduce electricity costs by making it easy to

charge during off-peak hours.

ADD A CHARGING TIME TO THE CHARGE SCHEDULE

7” display

Charging timer switch

Multi-Information Display

Meter control switches

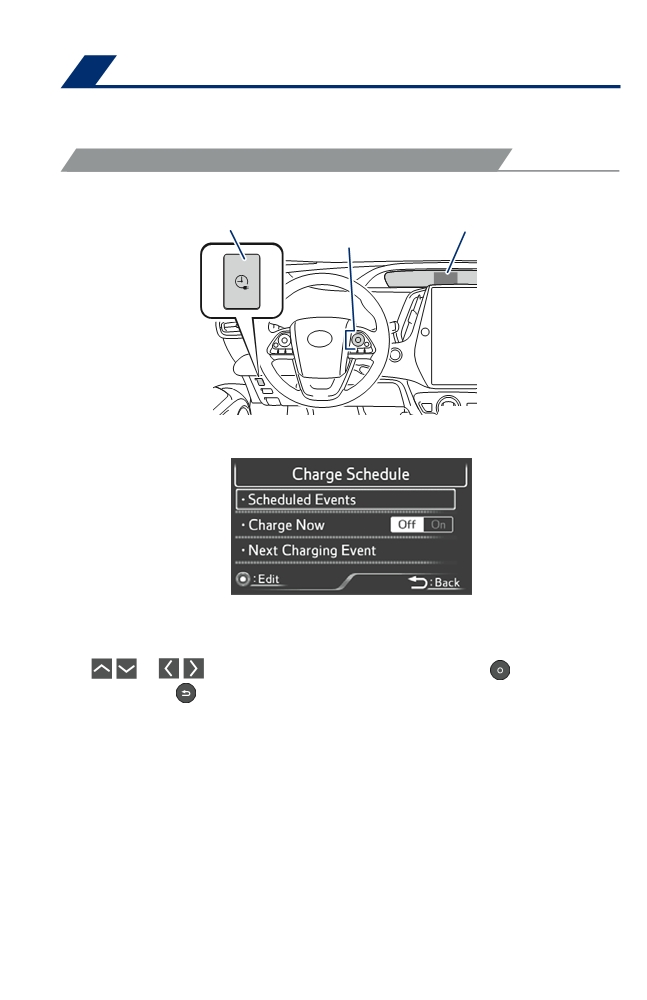

(1) While the vehicle is parked, press the charging timer switch.

The Charge Schedule screen displays on the multi-information display.

Use

or

to navigate through the options and press

to select an

option. Also, use

to return to a previous screen.

Refer to the Owner’s Manual for more information.

14

ADD A CHARGING TIME TO THE CHARGE SCHEDULE (CONTINUED)

11.6” display (if equipped)

Touch screen display

Menu button

displays menu screen

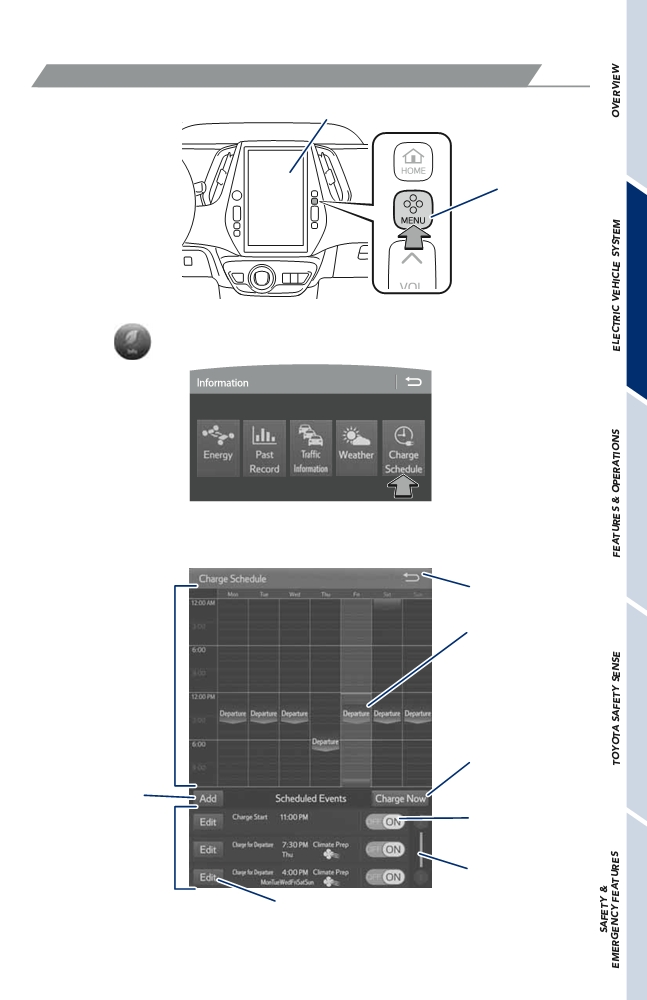

(1) While the vehicle is parked, press the MENU button to display the menu screen.

Then, touch

to select and view the Information screen.

(2) Touch Charge Schedule and the Charge Schedule screen displays.

Close the Charge

Schedule screen

Charge event

shown as an icon

on the schedule

Icon color meaning:

Calendar view of

charge schedule

Orange - Next

Green - Departure

Blue - Start

Turns Charge

Schedule On/Off.

Add new

charge event

Turns this event

ON/OFF in the

schedule

List view of

charge schedule

Scroll to see more

charge events in

schedule

Change or delete a charge event on the schedule

(3) Create a charge schedule for days and times of the week as reminders.

Refer to the Owner’s Manual for more information.

15

ELECTRIC VEHICLE SYSTEM

Charging Information

Remaining charging time and charging information is displayed on the

Multi-Information Display (MID) or 11.6” display (if equipped.)

If the POWER switch is turned to ON mode during charging, the current charging

status and the amount of time needed until charging is complete will be displayed

on the energy monitor.

After confirming, switch the POWER switch to OFF and turn off the display. The

POWER switch will turn off automatically after several tens of seconds.

Charging information and warning messages The first time the POWER switch is

turned to ON mode after charging is completed, a message detailing the results of

the charge is shown. Also, if an operation was attempted that could not be carried

out while charging, a warning message will be shown.

Follow the instructions in the message. The message may not be displayed if the

Remote Climate System has been used.

Refer to Owner’s Manual for limitations and more details.

16

Content   ..  1  2  3   ..
