9-1. Specifications

Tires and wheels

 Type A

Tire size

245/60R18 105T, T165/90D18 107M (spare)

Front

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

Rear

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

Spare

Tire inflation pressure

60 psi (420 kPa, 4.2 kgf/cm2 or bar)

(Recommended cold

Driving at high speeds (above 100 mph [160

tire inflation pressure)

km/h]) (in countries where such speeds are

permitted by law)

Add 3 psi (20 kPa, 0.2 kgf/cm2 or bar) to the

front tires and rear tires. Never exceed the

maximum cold tire inflation pressure indi-

cated on the tire sidewall.

Wheel size

18 × 7 1/2 J, 18 × 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

 Type B

Tire size

P245/60R18 104T, T165/90D18 107M (spare)

Front

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

Rear

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

Spare

Tire inflation pressure

60 psi (420 kPa, 4.2 kgf/cm2 or bar)

(Recommended cold

Driving at high speeds (above 100 mph [160

tire inflation pressure)

km/h]) (in countries where such speeds are

permitted by law)

Add 3 psi (20 kPa, 0.2 kgf/cm2 or bar) to the

front tires and rear tires. Never exceed the

maximum cold tire inflation pressure indi-

cated on the tire sidewall.

Wheel size

18 × 7 1/2 J, 18 × 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

HIGHLANDER_HV_U (OM0E032U)

9-1. Specifications

647

 Type C

Tire size

245/55R19 103T, T165/90D18 107M (spare)

Front

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

Rear

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

Spare

Tire inflation pressure

60 psi (420 kPa, 4.2 kgf/cm2 or bar)

(Recommended cold

Driving at high speeds (above 100 mph [160

tire inflation pressure)

km/h]) (in countries where such speeds are

permitted by law)

Add 3 psi (20 kPa, 0.2 kgf/cm2 or bar) to the

front tires and rear tires. Never exceed the

maximum cold tire inflation pressure indi-

cated on the tire sidewall.

Wheel size

19 × 7 1/2 J, 18 × 4T (spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

 Type D

Tire size

245/60R18 105T

Front

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

Rear

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

Spare

Tire inflation pressure

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

(Recommended cold

Driving at high speeds (above 100 mph [160

tire inflation pressure)

km/h]) (in countries where such speeds are

permitted by law)

Add 3 psi (20 kPa, 0.2 kgf/cm2 or bar) to the

front tires and rear tires. Never exceed the

maximum cold tire inflation pressure indi-

cated on the tire sidewall.

Wheel size

18 × 7 1/2 J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

HIGHLANDER_HV_U (OM0E032U)

648

9-1. Specifications

 Type E

Tire size

P245/60R18 104T

Front

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

Rear

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

Spare

Tire inflation pressure

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

(Recommended cold

Driving at high speeds (above 100 mph [160

tire inflation pressure)

km/h]) (in countries where such speeds are

permitted by law)

Add 3 psi (20 kPa, 0.2 kgf/cm2 or bar) to the

front tires and rear tires. Never exceed the

maximum cold tire inflation pressure indi-

cated on the tire sidewall.

Wheel size

18 × 7 1/2 J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

 Type F

Tire size

245/55R19 103T

Front

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

Rear

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

Spare

Tire inflation pressure

36 psi (250 kPa, 2.5 kgf/cm2 or bar)

(Recommended cold

Driving at high speeds (above 100 mph [160

tire inflation pressure)

km/h]) (in countries where such speeds are

permitted by law)

Add 3 psi (20 kPa, 0.2 kgf/cm2 or bar) to the

front tires and rear tires. Never exceed the

maximum cold tire inflation pressure indi-

cated on the tire sidewall.

Wheel size

19 × 7 1/2 J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

HIGHLANDER_HV_U (OM0E032U)

9-1. Specifications

649

Light bulbs*1

Light bulbs

Bulb No.

Type

Headlights

High beam

9005

Low beam

⎯

Parking and front turn signal

7444NA

28/8

lights

Exterior

Front side maker lights

⎯

Front fog lights*2

⎯

Rear turn signal lights

⎯

Back-up lights

⎯

License plate lights

⎯

Vanity lights

⎯

1.26

Front interior/front personal

⎯

lights

Rear interior/rear personal

⎯

Interior

lights

Front door courtesy lights

168

Luggage compartment light

Type A

⎯

Type B

A: HB3 halogen bulbs

B: H11 halogen bulbs

C: Wedge base bulbs (amber)

D: Wedge base bulbs (clear)

E: H16 halogen bulbs

F: Double end bulbs

1: Light bulbs not listed in this table are LED bulbs.

*2: If equipped

HIGHLANDER_HV_U (OM0E032U)

650

9-1. Specifications

Fuel information

You must only use unleaded gasoline.

Select octane rating 87 (Research Octane Number 91) or higher.

Use of unleaded gasoline with an octane rating lower than 87

may result in engine knocking. Persistent knocking can lead to

engine damage.

At minimum, the gasoline you use should meet the specifications of

ASTM D4814 in the U.S.A..

■ Gasoline quality

In very few cases, driveability problems may be caused by the brand of gaso-

line you are using. If driveability problems persist, try changing the brand of

gasoline. If this does not correct the problem, consult your Toyota dealer.

■ Gasoline quality standards

● Automotive manufacturers in the U.S.A., Europe and Japan have developed

a specification for fuel quality called the World-Wide Fuel Charter (WWFC),

which is expected to be applied worldwide.

● The WWFC consists of four categories that are based on required emission

levels. In the U.S., category 4 has been adopted.

● The WWFC improves air quality by lowering emissions in vehicle fleets, and

improves customer satisfaction through better performance.

■ Recommendation of the use of gasoline containing detergent additives

● Toyota recommends the use of gasoline that contains detergent additives to

avoid the build-up of engine deposits.

● All gasoline sold in the U.S.A. contains minimum detergent additives to

clean and/or keep clean intake systems, per EPA’s lowest additives concen-

tration program.

● Toyota strongly recommends the use of Top Tier Detergent Gasoline. For

more information on Top Tier Detergent Gasoline and a list of marketers,

please go to the official website www.toptiergas.com.

HIGHLANDER_HV_U (OM0E032U)

9-1. Specifications

651

■ Recommendation of the use of low emissions gasoline

Gasolines containing oxygenates such as ethers and ethanol, as well as

reformulated gasolines, are available in some cities. These fuels are typically

acceptable for use, providing they meet other fuel requirements.

Toyota recommends these fuels, since the formulations allow for reduced

vehicle emissions.

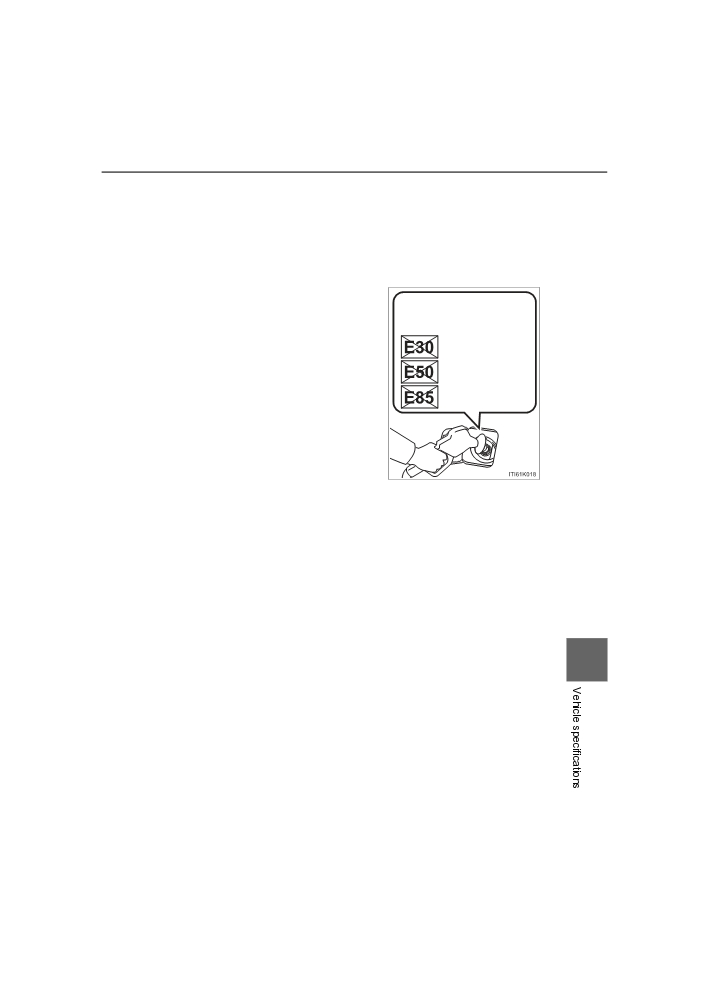

■Non-recommendation of the use of blended gasoline

● Use only gasoline containing up to 15%

DO NOT use gasoline

ethanol.

containing more than

DO NOT use any flex-fuel or gasoline

that could contain more than 15% etha-

15% ethanol.

nol, including from any pump labeled

(30% ethanol)

E30, E50, E85 (which are only some

examples of fuel containing

more than

(50% ethanol)

15% ethanol).

(85% ethanol)

● If you use gasohol in your vehicle, be sure that it has an octane rating no

lower than 87.

● Toyota does not recommend the use of gasoline containing methanol.

■Non-recommendation of the use of gasoline containing MMT

Some gasoline contains an octane enhancing additive called MMT (Methylcy-

clopentadienyl Manganese Tricarbonyl).

Toyota does not recommend the use of gasoline that contains MMT. If fuel

containing MMT is used, your emission control system may be adversely

affected.

The malfunction indicator lamp on the instrument cluster may come on. If this

happens, contact your Toyota dealer for service.

■ If your engine knocks

● Consult your Toyota dealer.

● You may occasionally notice light knocking for a short time while accelerat-

ing or driving uphill. This is normal and there is no need for concern.

HIGHLANDER_HV_U (OM0E032U)

652

9-1. Specifications

NOTICE

■ Notice on fuel quality

● Do not use improper fuels. If improper fuels are used, the engine will be

damaged.

● Do not use leaded gasoline.

Leaded gasoline can cause damage to your vehicle’s three-way catalytic

converters causing the emission control system to malfunction.

● Do not use gasohol other than the type previously stated.

Other gasohol may cause fuel system damage or vehicle performance

problems.

● Using unleaded gasoline with an octane number or rating lower than the

level previously stated will cause persistent heavy knocking.

At worst, this will lead to engine damage.

■ Fuel-related poor driveability

If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is

encountered after using a different type of fuel, discontinue the use of that

type of fuel.

■When refueling with gasohol

Take care not to spill gasohol. It can damage your vehicle’s paint.

HIGHLANDER_HV_U (OM0E032U)

654

9-1. Specifications

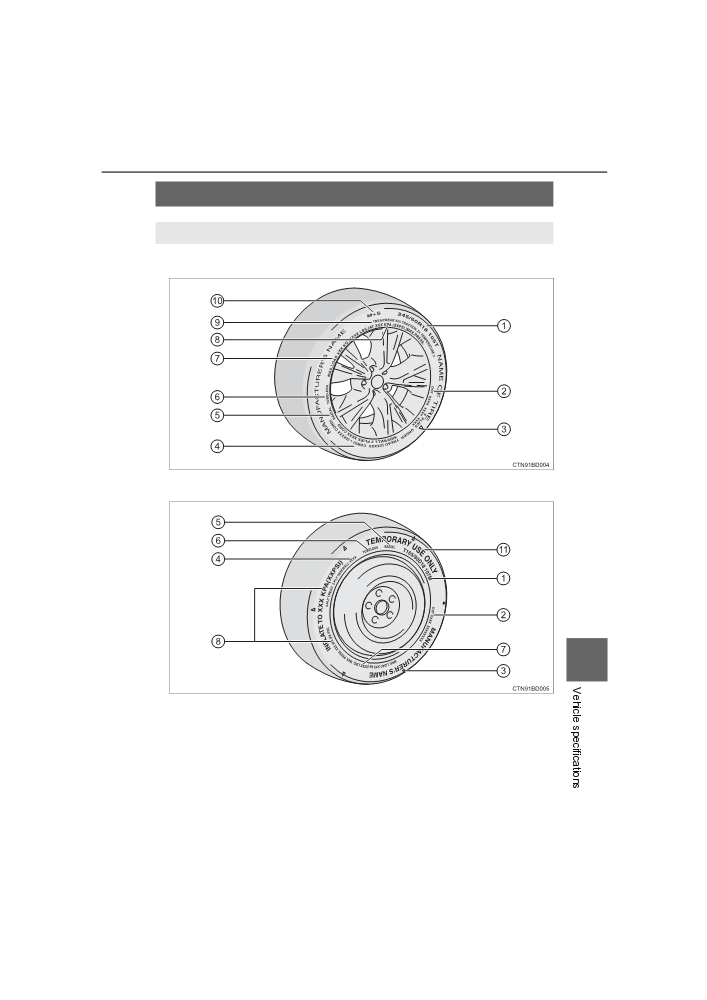

Tire size

(→P. 656)

DOT and Tire Identification Number (TIN)

(→P. 655)

Location of treadwear indicators

(→P. 522)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands

which form the plies in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL”

is a bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire.

A tube type tire has a tube inside the tire and the tube maintains the air

pressure.

Load limit at maximum cold tire inflation pressure

(→P. 660)

Maximum cold tire inflation pressure

(→P. 660)

This means the pressure to which a tire may be inflated.

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Summer tires or all season tires

(→P. 527)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S”

is a summer tire.

“TEMPORARY USE ONLY”

A compact spare tire is identified by the phrase “TEMPORARY USE

ONLY” molded on its sidewall. This tire is designed for temporary

emergency use only.

HIGHLANDER_HV_U (OM0E032U)

9-1. Specifications

655

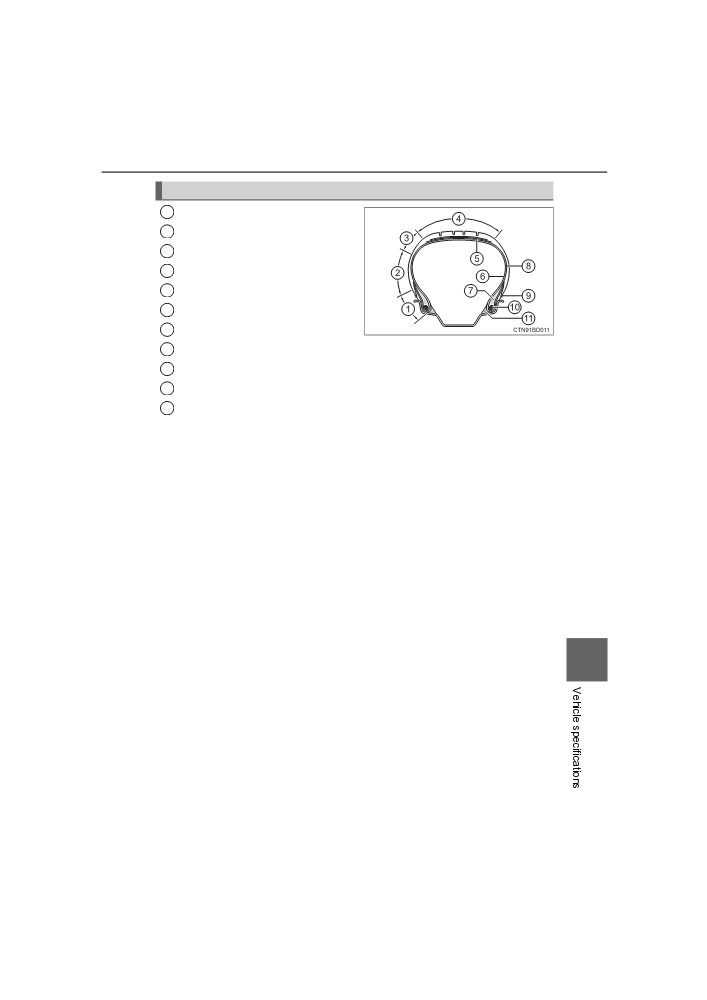

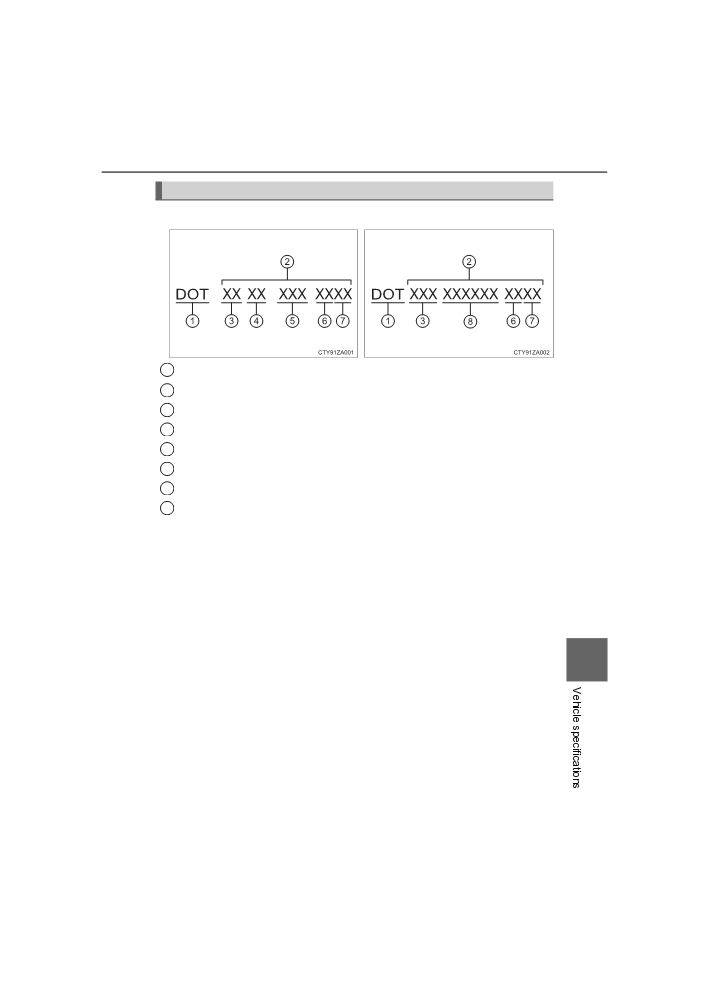

Typical DOT and Tire Identification Number (TIN)

 Type A

 Type B

DOT symbol*

Tire Identification Number (TIN)

Tire manufacturer’s identification mark

Tire size code

Manufacturer’s optional tire type code (3 or 4 letters)

Manufacturing week

Manufacturing year

Manufacturer's code

*: The DOT symbol certifies that the tire conforms to applicable Federal

Motor Vehicle Safety Standards.

HIGHLANDER_HV_U (OM0E032U)

656

9-1. Specifications

Tire size

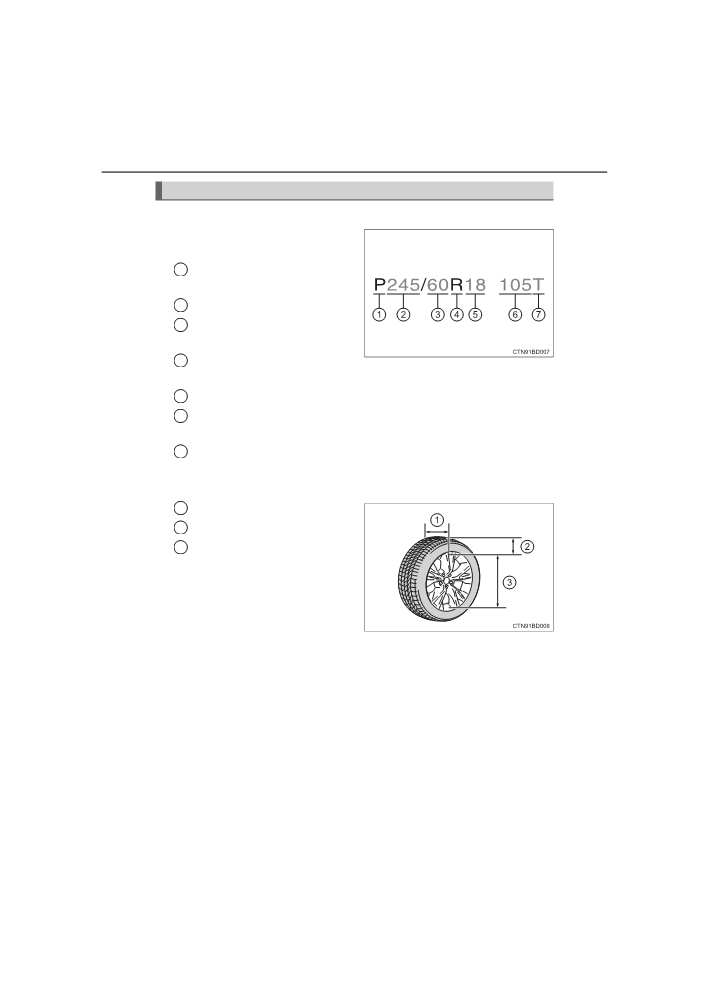

■ Typical tire size information

The illustration indicates typical

tire size.

Tire use (P = Passenger car,

T = Temporary use)

Section width (millimeters)

Aspect ratio

(tire height to section width)

Tire construction code

(R = Radial, D = Diagonal)

Wheel diameter (inches)

Load index

(2 digits or 3 digits)

Speed symbol

(alphabet with one letter)

■ Tire dimensions

Section width

Tire height

Wheel diameter

HIGHLANDER_HV_U (OM0E032U)

658

9-1. Specifications

Uniform Tire Quality Grading

This information has been prepared in accordance with regulations

issued by the National Highway Traffic Safety Administration of the

U.S. Department of Transportation.

It provides the purchasers and/or prospective purchasers of Toyota

vehicles with information on uniform tire quality grading.

Your Toyota dealer will help answer any questions you may have as

you read this information.

■ DOT quality grades

All passenger vehicle tires must conform to Federal Safety Require-

ments in addition to these grades. Quality grades can be found

where applicable on the tire sidewall between tread shoulder and

maximum section width.

For example: Treadwear 200 Traction AA Temperature A

■ Treadwear

The treadwear grade is a comparative rating based on the wear

rate of the tire when tested under controlled conditions on a speci-

fied government test course.

For example, a tire graded 150 would wear one and a half (1 - 1/2)

times as well on the government course as a tire graded 100.

The relative performance of tires depends upon the actual condi-

tions of their use. Performance may differ significantly from the norm

due to variations in driving habits, service practices and differences

in road characteristics and climate.

■ Traction AA, A, B, C

The traction grades, from highest to lowest, are AA, A, B and C,

and they represent the tire’s ability to stop on wet pavement as

measured under controlled conditions on specified government test

surfaces of asphalt and concrete.

A tire marked C may have poor traction performance.

Warning: The traction grade assigned to this tire is based on braking

(straight ahead) traction tests and does not include cornering (turn-

ing) traction.

HIGHLANDER_HV_U (OM0E032U)

9-1. Specifications

659

■ Temperature A, B, C

The temperature grades are A (the highest), B, and C, representing

the tire’s resistance to the generation of heat and its ability to dissi-

pate heat when tested under controlled conditions on a specified

indoor laboratory test wheel.

Sustained high temperature can cause the material of the tire to

degenerate and reduce tire life, and excessive temperature can lead

to sudden tire failure.

Grade C corresponds to a level of performance which all passenger

car tires must meet under the Federal Motor Vehicle Safety Stan-

dard No. 109.

Grades B and A represent higher levels of performance on the labo-

ratory test wheel than the minimum required by law.

Warning: The temperature grades of a tire assume that it is properly

inflated and not overloaded.

Excessive speed, underinflation, or excessive loading, either sepa-

rately or in combination, can cause heat buildup and possible tire

failure.

HIGHLANDER_HV_U (OM0E032U)

660

9-1. Specifications

Glossary of tire terminology

Tire related term

Meaning

Tire pressure when the vehicle has been

Cold tire inflation pres-

parked for three hours or more, or has not

sure

been driven more than 1 mile or 1.5 km under

that condition

The maximum cold inflated pressure to which

Maximum

inflation

a tire may be inflated, shown on the sidewall

pressure

of the tire

Recommended infla-

Cold tire inflation pressure recommended by a

tion pressure

manufacturer

The combined weight (in excess of those stan-

dard items which may be replaced) of hybrid

transmission, power steering, power brakes,

Accessory weight

power windows, power seats, radio and

heater, to the extent that these items are avail-

able as factory-installed equipment (whether

installed or not)

The weight of a motor vehicle with standard

equipment, including the maximum capacity of

Curb weight

fuel, oil and coolant, and if so equipped, air

conditioning and additional weight optional

engine

The sum of:

(a) Curb weight

Maximum loaded vehi-

(b) Accessory weight

cle weight

(d) Production options weight

150 lb. (68 kg) times the number of occupants

Normal

occupant

specified in the second column of Table 1*

weight

that follows

Distribution of occupants in a vehicle as speci-

Occupant distribution

fied in the third column of Table 1* below

HIGHLANDER_HV_U (OM0E032U)

9-1. Specifications

661

Tire related term

Meaning

The combined weight of installed regular pro-

duction options weighing over 5 lb. (2.3 kg) in

excess of the standard items which they

Production

options

replace, not previously considered in curb

weight

weight or accessory weight, including heavy

duty brakes, ride levelers, roof rack, heavy

duty 12-volt battery, and special trim

A metal support for a tire or a tire and tube

Rim

assembly upon which the tire beads are

seated

Rim diameter

Nominal diameter of the bead seat

(Wheel diameter)

Rim size designation

Rim diameter and width

The industry manufacturer’s designation for a

Rim type designation

rim by style or code

Rim width

Nominal distance between rim flanges

Vehicle

capacity

The rated cargo and luggage load plus 150 lb.

weight

(Total

load

(68 kg) times the vehicle’s designated seating

capacity)

capacity

The load on an individual tire that is deter-

Vehicle maximum load

mined by distributing to each axle its share of

on the tire

the maximum loaded vehicle weight, and

dividing by two

The load on an individual tire that is deter-

mined by distributing to each axle its share of

Vehicle normal load on

curb weight, accessory weight, and normal

the tire

occupant weight

(distributed in accordance

with Table 1* below), and dividing by two

The surface area of the rim not covered by the

Weather side

inflated tire

The part of the tire that is made of steel wires,

Bead

wrapped or reinforced by ply cords and that is

shaped to fit the rim

A breakdown of the bond between compo-

Bead separation

nents in the bead

HIGHLANDER_HV_U (OM0E032U)

662

9-1. Specifications

Tire related term

Meaning

A pneumatic tire in which the ply cords that

extend to the beads are laid at alternate

Bias ply tire

angles substantially less than 90 degrees to

the centerline of the tread

The tire structure, except tread and sidewall

Carcass

rubber which, when inflated, bears the load

The breaking away of pieces of the tread or

Chunking

sidewall

Cord

The strands forming the plies in the tire

The parting of cords from adjacent rubber

Cord separation

compounds

Any parting within the tread, sidewall, or inner-

Cracking

liner of the tire extending to cord material

A pneumatic tire with an inverted flange tire

and rim system in which the rim is designed

with rim flanges pointed radially inward and

the tire is designed to fit on the underside of

the rim in a manner that encloses the rim

flanges inside the air cavity of the tire

A tire designed to operate at higher loads and

Extra load tire

at higher inflation pressures than the corre-

sponding standard tire

Groove

The space between two adjacent tread ribs

The layer(s) forming the inside surface of a

Innerliner

tubeless tire that contains the inflating medium

within the tire

The parting of the innerliner from cord material

Innerliner separation

in the carcass

(a)The sidewall that contains a whitewall,

bears white lettering, or bears manufacturer,

brand, and/or model name molding that is

higher or deeper than the same molding on

Intended

outboard

the other sidewall of the tire, or

sidewall

(b)The outward facing sidewall of an asym-

metrical tire that has a particular side that

must always face outward when mounted on a

vehicle

HIGHLANDER_HV_U (OM0E032U)

Toyota Highlander Hybrid (2018 year). Instruction - part 39
