Toyota Highlander Hybrid (2018 year). Instruction - part 38

8-2. Steps to take in an emergency

629

NOTICE

■ When handling jumper cables

When connecting the jumper cables, ensure that they do not become entan-

gled in the cooling fans or belt.

■ Exclusive jump starting terminal

The exclusive jump starting terminal is intended to charge the 12-volt bat-

tery on your vehicle from another vehicle in an emergency. Do not use the

exclusive jump starting terminal to jump start another vehicle.

8

HIGHLANDER_HV_U (OM0E032U)

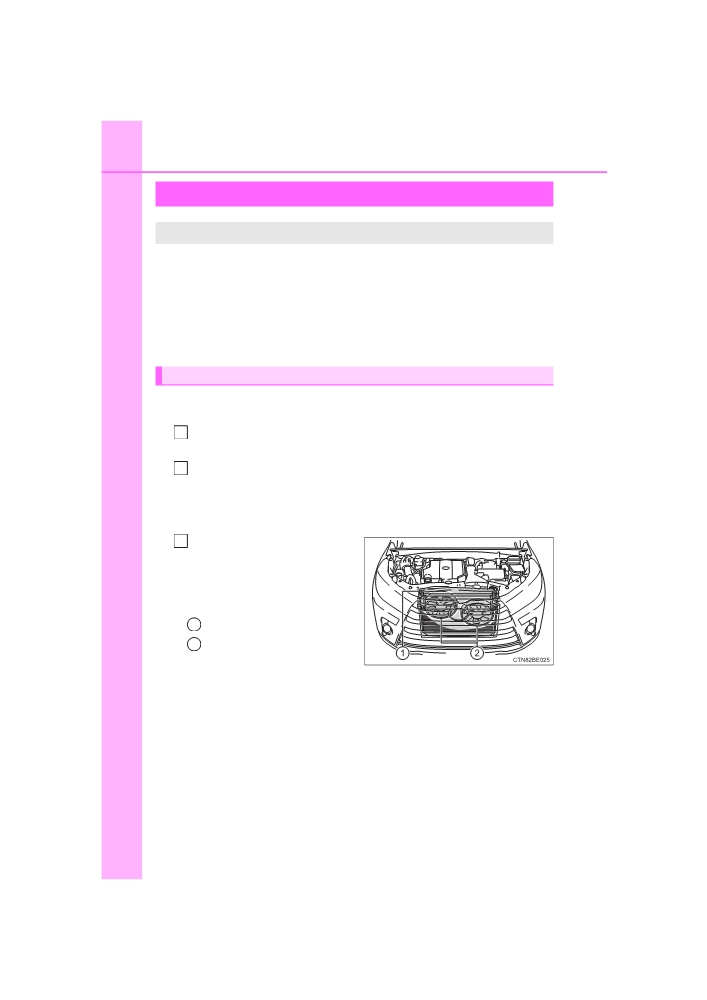

630

8-2. Steps to take in an emergency

If your vehicle overheats

The following may indicate that your vehicle is overheating.

● The needle of the engine coolant temperature gauge (→P. 103)

enters the red zone or a loss of hybrid system power is experi-

enced. (For example, the vehicle speed does not increase.)

● “Hybrid System Overheated Reduced Output Power” is shown on

the multi-information display.

● Steam comes out from under the hood.

Correction procedures

■ If the needle of the engine coolant temperature gauge enters

the red zone

Stop the vehicle in a safe place and turn off the air conditioning

1

system, and then stop the hybrid system.

If you see steam:

2

Carefully lift the hood after the steam subsides.

If you do not see steam:

Carefully lift the hood.

After the hybrid system has

3

cooled down sufficiently,

inspect the hoses and radia-

tor core

(radiator) for any

leaks.

1

Radiator

2

Cooling fans

If a large amount of coolant

leaks, immediately contact

your Toyota dealer.

HIGHLANDER_HV_U (OM0E032U)

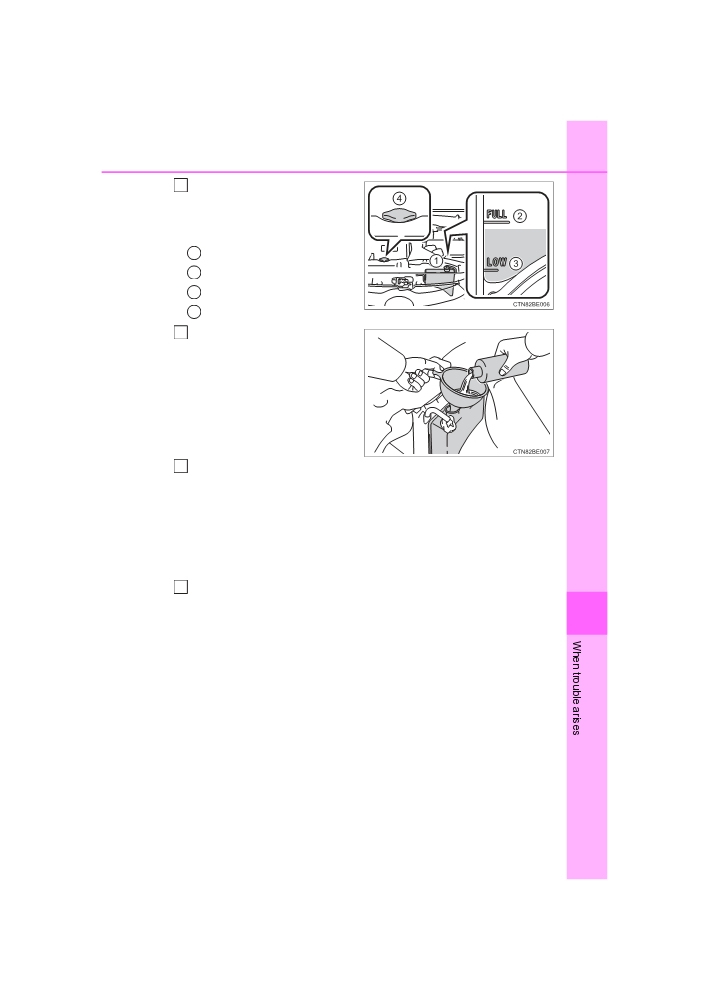

8-2. Steps to take in an emergency

631

4

The coolant level is satisfac-

tory if it is between the

“FULL” and “LOW” lines on

the reservoir.

1

Reservoir

2

“FULL”

3

“LOW”

4

Radiator cap

5

Add coolant if necessary.

Water can be used in an emer-

gency if coolant is unavailable.

Start the hybrid system and turn the air conditioning system on to

6

check that the radiator cooling fans operate and to check for

coolant leaks from the radiator or hoses.

The fans operate when the air conditioning system is turned on immedi-

ately after a cold start. Confirm that the fans are operating by checking

the fan sound and air flow. If it is difficult to check these, turn the air con-

ditioning system on and off repeatedly.

(The fans may not operate in freezing temperatures.)

7

If the fans are not operating:

Stop the hybrid system immediately and contact your Toyota

8

dealer.

If the fans are operating:

Have the vehicle inspected at the nearest Toyota dealer.

HIGHLANDER_HV_U (OM0E032U)

632

8-2. Steps to take in an emergency

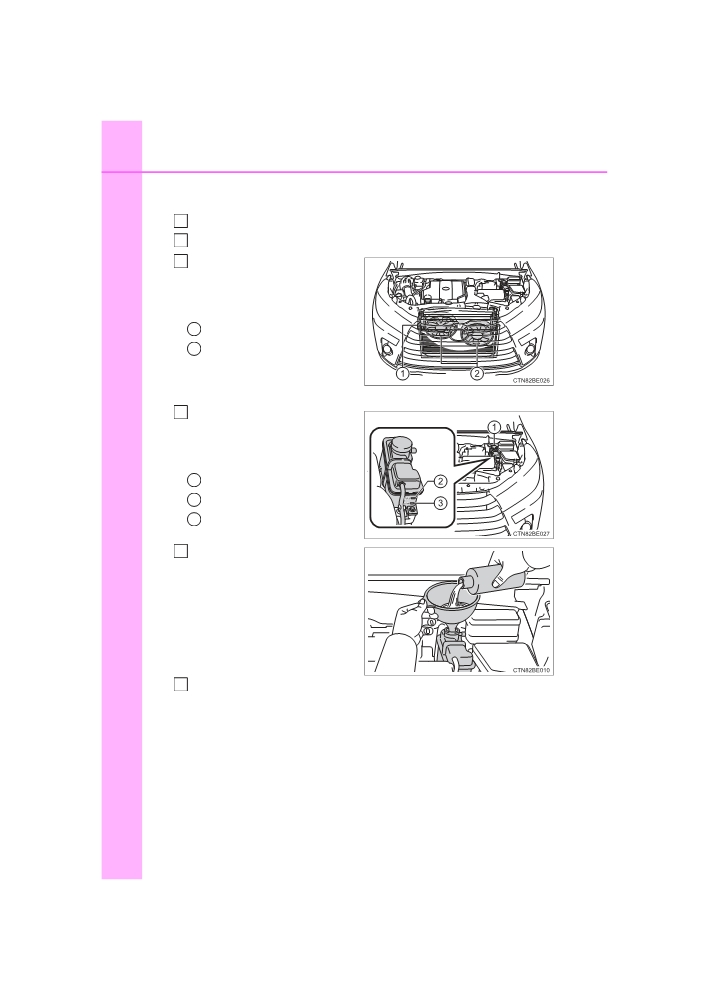

■ If

“Hybrid System Overheated Reduced Output Power” is

shown on the multi-information display

1

Stop the vehicle in a safe place.

2

Stop the hybrid system and carefully lift the hood.

3

After the hybrid system has

cooled down, inspect the

hoses and radiator core

(radiator) for any leaks.

1

Radiator

2

Cooling fans

If a large amount of coolant

leaks, immediately contact

your Toyota dealer.

4

The coolant level is satisfac-

tory if it is between the

“FULL” and “LOW” lines on

the reservoir.

1

Reservoir

2

“FULL”

3

“LOW”

5

Add coolant if necessary.

Water can be used in an emer-

gency if coolant is unavailable.

Start the hybrid system and check the multi-information display.

6

If the message does not disappear:

Stop the hybrid system and contact your Toyota dealer.

If the message is not displayed:

Have the vehicle inspected at the nearest Toyota dealer.

HIGHLANDER_HV_U (OM0E032U)

8-2. Steps to take in an emergency

633

■ Messages displays

The message illustrations used are intended as examples, and may differ

from the image that is actually displayed on the multi-information display.

WARNING

■ When inspecting under the hood of your vehicle

Observe the following precautions.

Failure to do so may result in serious injury such as burns.

● If steam is seen coming from under the hood, do not open the hood until

the steam has subsided. The engine compartment may be very hot.

● After the hybrid system has been turned off, check that the “READY” indi-

cator are off.

When the hybrid system is operating, the gasoline engine may automati-

cally start, or the cooling fans may suddenly operate even if the gasoline

engine stops. Do not touch or approach rotating parts such as the fans,

which may lead to fingers or clothing (especially a tie, a scarf or a muffler)

getting caught, resulting in serious injury.

● Do not loosen the radiator cap and the coolant reservoir caps while the

hybrid system and radiator are hot.

High temperature steam or coolant could spray out.

NOTICE

■When adding engine/power control unit coolant

Add coolant slowly after the hybrid system has cooled down sufficiently.

Adding cool coolant to a hot hybrid system too quickly can cause damage to

the hybrid system.

■ To prevent damage to the cooling system

Observe the following precautions:

8

● Avoid contaminating the coolant with foreign matter (such as sand or dust

etc.).

● Do not use any coolant additive.

HIGHLANDER_HV_U (OM0E032U)

634

8-2. Steps to take in an emergency

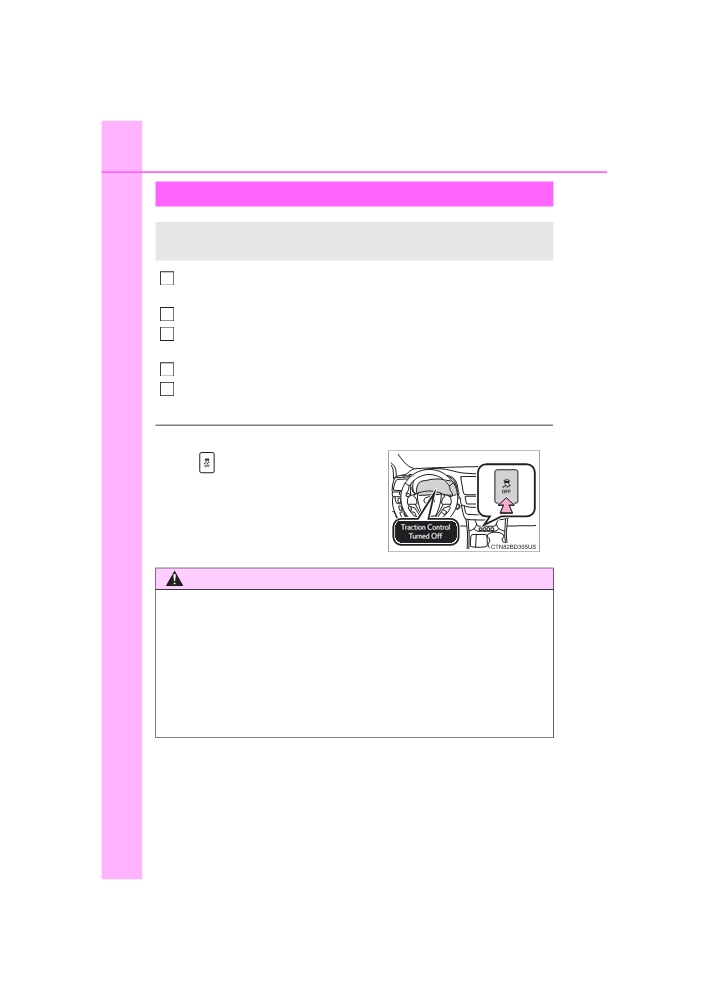

If the vehicle becomes stuck

Carry out the following procedures if the tires spin or the vehicle

becomes stuck in mud, dirt or snow:

1

Stop the hybrid system. Set the parking brake and shift the shift

lever to P.

2

Remove the mud, snow or sand from around the front wheels.

3

Place wood, stones or some other material under the front wheels

to help provide traction.

4

Restart the hybrid system.

Shift the shift lever to D or R and release the parking brake. Then,

5

while exercising caution, depress the accelerator pedal.

■ When it is difficult to free the vehicle

Press

to turn off TRAC.

WARNING

■ When attempting to free a stuck vehicle

If you choose to push the vehicle back and forth to free it, make sure the

surrounding area is clear to avoid striking other vehicles, objects or people.

The vehicle may also lunge forward or lunge back suddenly as it becomes

free. Use extreme caution.

■ When shifting the shift lever

Be careful not to shift the shift lever with the accelerator pedal depressed.

This may lead to unexpected rapid acceleration of the vehicle that may

cause an accident resulting in death or serious injury.

HIGHLANDER_HV_U (OM0E032U)

8-2. Steps to take in an emergency

635

NOTICE

■ To avoid damaging the transmission and other components

● Avoid spinning the front wheels and depressing the accelerator pedal

more than necessary.

● If the vehicle remains stuck even after these procedures are performed,

the vehicle may require towing to be freed.

8

HIGHLANDER_HV_U (OM0E032U)

638

9-1. Specifications

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

192.5 in. (4890 mm)

Overall width

75.8 in. (1925 mm)

 Without roof antenna

68.1 in. (1730 mm)

Overall height*1

 With roof antenna

70.1 in. (1780 mm)

Wheelbase

109.8 in. (2790 mm)

Front tread

64.4 in. (1635 mm)

Rear tread

64.0 in. (1625 mm)

GVU58L-ARXNHA models*2:

1340 lb.

(610 kg)

Vehicle capacity weight

GVU58L-ARXMHA models*2:

1300 lb.

(Occupant + luggage)

(590 kg)

GVU58L-ARXGHA models*2:

1230 lb.

(560 kg)

Trailer Weight Rating

(Trailer weight + cargo

3500 lb. (1590 kg)

weight)

*1: Unladen vehicle

*2: The model code is indicated on the Certification Label. (→P. 639)

HIGHLANDER_HV_U (OM0E032U)

9-1. Specifications

639

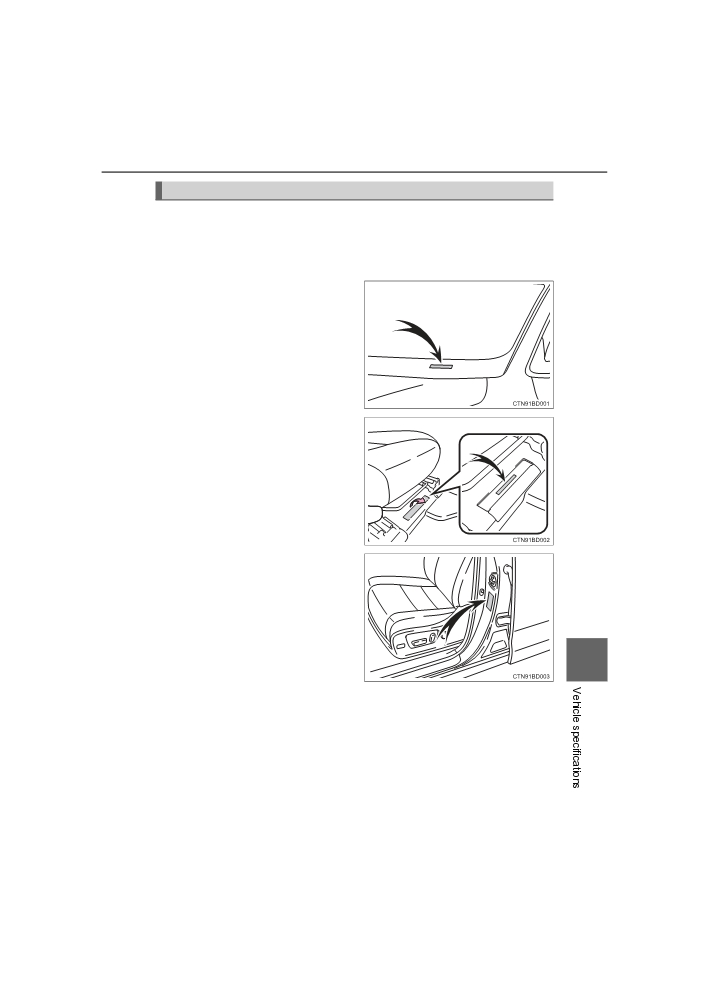

Vehicle identification

■ Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for

your vehicle. This is the primary identification number for your

Toyota. It is used in registering the ownership of your vehicle.

This number is stamped on the

top left of the instrument panel.

On some models, this number

is stamped under the right-hand

front seat.

This number is also on the Cer-

tification Label.

9

HIGHLANDER_HV_U (OM0E032U)

640

9-1. Specifications

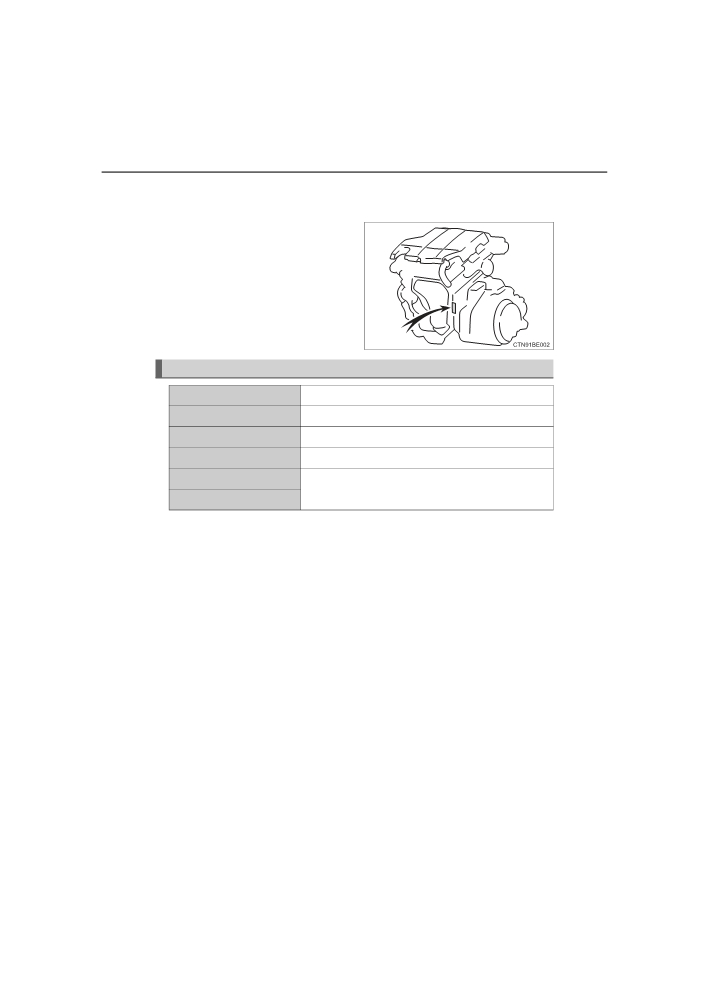

■ Engine number

The engine number is stamped on the engine block as shown.

Engine

Model

2GR-FXS

Type

6-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70 × 3.27 in. (94.0 × 83.0 mm)

Displacement

210.9 cu. in. (3456 cm3)

Valve clearance

Automatic adjustment

Drive belt tension

HIGHLANDER_HV_U (OM0E032U)

9-1. Specifications

641

Fuel

Fuel type

Unleaded gasoline only

Octane rating

87 (Research Octane Number 91) or higher

Fuel tank capacity

17.1 gal. (65.0 L, 14.2 Imp. gal.)

(Reference)

Front electric motor (traction motor)

Type

Permanent magnet synchronous motor

Maximum output

123 kW

Maximum torque

247 ft•lbf (335 N•m, 34.2 kgf•m)

Rear electric motor (traction motor)

Type

Permanent magnet synchronous motor

Maximum output

50 kW

Maximum torque

103 ft•lbf (139 N•m, 14.2 kgf•m)

Hybrid battery (traction battery)

Type

Nickel-Metal hydride battery

Voltage

9.6 V/module

Capacity

6.5 Ah (3HR)

Quantity

30 modules

Overall voltage

288 V

9

HIGHLANDER_HV_U (OM0E032U)

9-1. Specifications

643

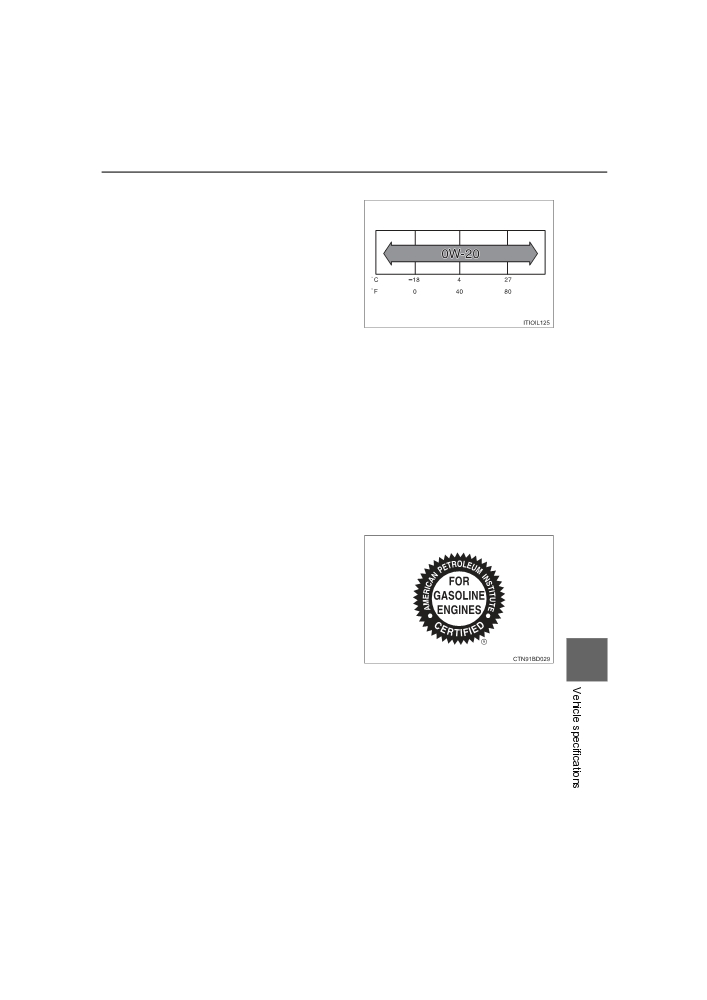

Recommended viscosity: SAE 0W-20

SAE 0W-20 is the best choice

for good fuel economy and

good starting in cold weather.

If SAE 0W-20 is not available,

SAE 5W-20 oil may be used.

However, it must be replaced

with SAE 0W-20 at the next oil

Outside temperature

change.

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which

allows cold startability. Oils with a lower value before the W allow

for easier starting of the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil

when the oil is at high temperature. An oil with a higher viscosity

(one with a higher value) may be better suited if the vehicle is

operated at high speeds, or under extreme load conditions.

How to read oil container label:

The International Lubricant Specification Advisory Committee

(ILSAC) Certification Mark is added to some oil containers to help

you select the oil you should use.

9

HIGHLANDER_HV_U (OM0E032U)

644

9-1. Specifications

Cooling system

Capacity (reference)

Gasoline engine

13.1 qt. (12.4 L, 10.9 Imp. qt.)

Power control unit

2.0 qt. (1.9 L, 1.7 Imp. qt.)

Use either of the following.

•

“Toyota Super Long Life Coolant”

• Similar high-quality ethylene glycol-based

Coolant type

non-silicate, non-amine, non-nitrite, and

non-borate coolant with long-life hybrid

organic acid technology

Do not use plain water alone.

Ignition system

Spark plug

Make

DENSO FK20HBR8

Gap

0.031 in. (0.8 mm)

NOTICE

■ Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system

12-volt battery

Open voltage at 68°F

12.0 V or More

(20°C):

If the voltage is lower than the standard value,

charge the battery.

(Voltage is checked 20 minutes after the hybrid

system and all lights are turned off.)

Charging rates

5 A max.

HIGHLANDER_HV_U (OM0E032U)

9-1. Specifications

645

Hybrid transmission

 Front

4.9 qt. (4.6 L, 4.0 Imp. qt.)

Fluid capacity*

 Rear

1.9 qt. (1.8 L, 1.6 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

*: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

NOTICE

■Hybrid transmission fluid type

Using transmission fluid other than “Toyota Genuine ATF WS” may ulti-

mately damage the transmission of your vehicle.

Brakes

Pedal clearance*1

3.7 in. (93 mm) Min.

Pedal free play

0.04 ⎯ 0.08 in. (1 ⎯ 2 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Parking brake lining

0.04 in. (1.0 mm)

wear limit

Parking brake pedal

8 ⎯ 11 clicks

travel*2

Fluid type

SAE J1703 or FMVSS No.116 DOT 3

*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,

50 kgf) while the hybrid system is on.

9

*2: Parking brake pedal travel when depressed with a force of 67 lbf (300 N,

31 kgf)

Steering

Free play

Less than 1.2 in. (30 mm)

HIGHLANDER_HV_U (OM0E032U)

Content   ..  36  37  38  39   ..
