Toyota Highlander Hybrid (2018 year). Instruction - part 37

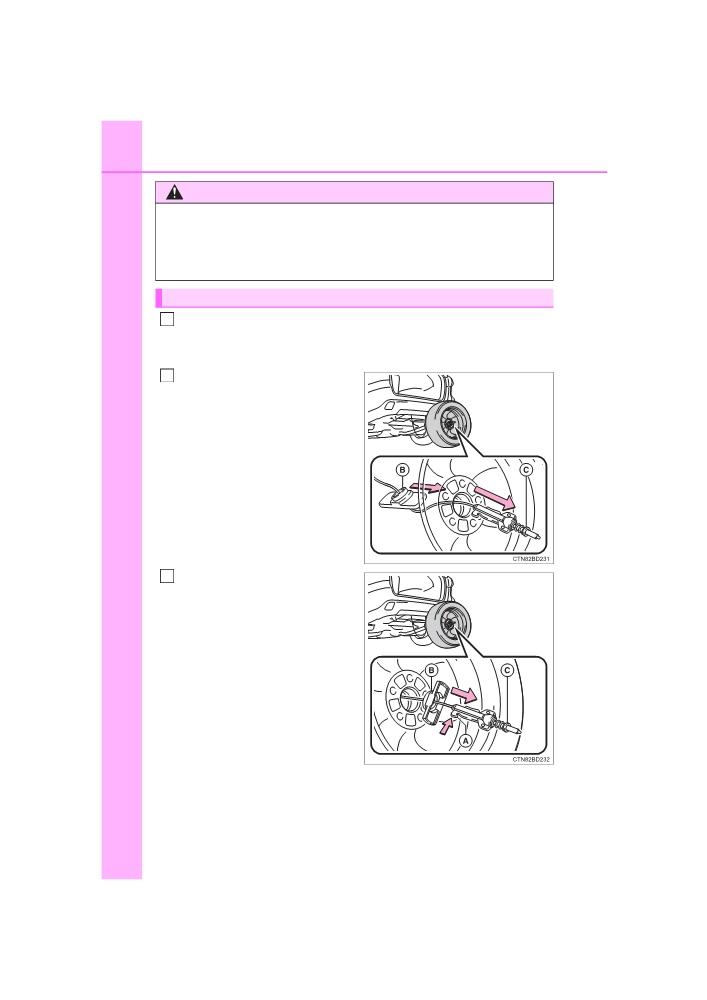

612

8-2. Steps to take in an emergency

WARNING

■Stowing the flat tire

Failure to follow steps listed under stowing the tire may result in damage

to the spare tire carrier and loss of the tire, which could result in serious

injury or death.

Stowing the flat tire, jack and all tools (with a compact spare tire)

Remove the center wheel ornament by pushing from the reverse

1

side.

Be careful not to lose the wheel ornament.

Stand the spare tire against the

2

bumper with the inner surface

facing toward you. Pass the

hoist assembly (C) and holding

bracket (B) through the wheel

opening.

Fully depress the secondary

3

latch (A) and install the bracket

(B) to the hoist assembly (C).

HIGHLANDER_HV_U (OM0E032U)

8-2. Steps to take in an emergency

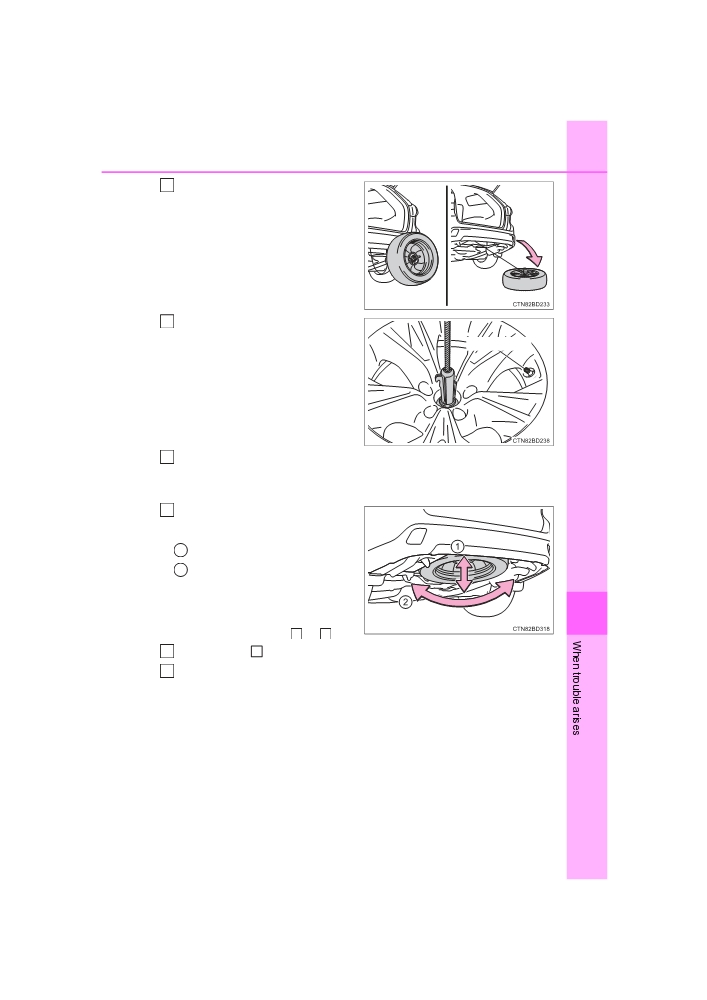

613

4

Lay the tire on the ground with

the outer surface (valve stem)

facing up.

Before raising the tire, make

5

sure that the hoist assembly is

Valve stem

perpendicular to the wheel

opening. (Try to place the tire

directly beneath the

vehicle,

near where the wire

cable is

hanging from.)

Using the jack handle and adapter socket, tighten the tire clamp

6

bolt by turning it clockwise until the tire is in the correct position and

two clicks are heard as the jack handle skips.

7

Confirm it is not loose after

tightening:

1

Push and pull the tire

2

Try rotating

Visually check to ensure tire is

not hung on surrounding parts.

8

If looseness or misassembly

exists, repeat steps

2

to

7

8

Repeat step

7

, any time the tire is lowered or disturbed.

9

Stow the jack and all tools.

HIGHLANDER_HV_U (OM0E032U)

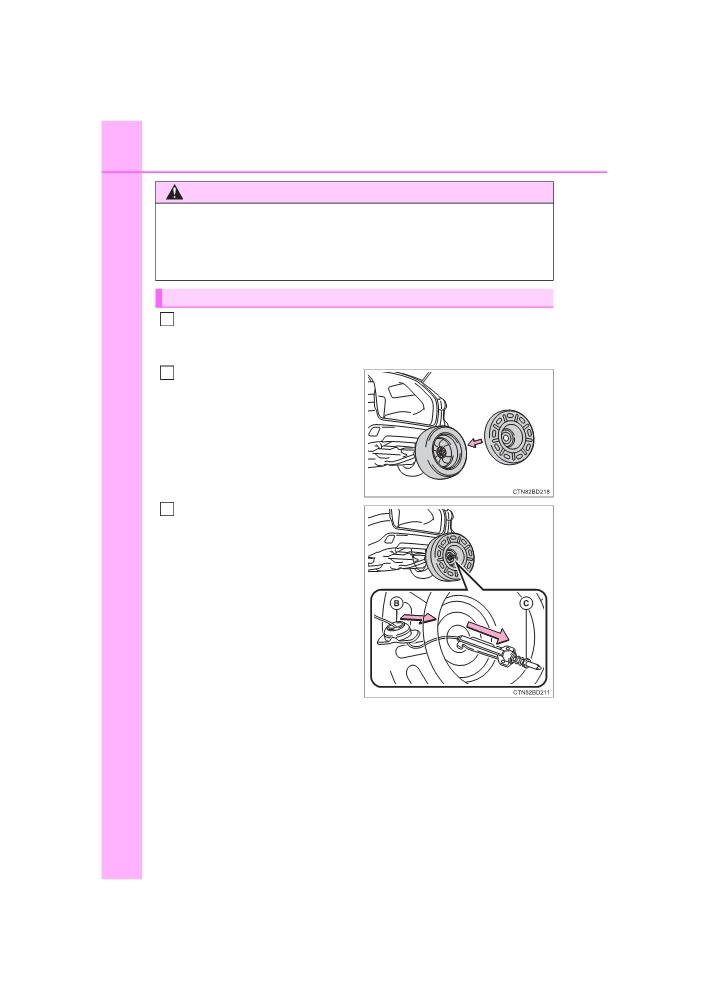

614

8-2. Steps to take in an emergency

WARNING

■Stowing the flat tire

Failure to follow steps listed under stowing the tire may result in damage

to the spare tire carrier and loss of the tire, which could result in serious

injury or death.

Stowing the flat tire, jack and all tools (with a full-size spare tire)

Remove the center wheel ornament by pushing from the reverse

1

side.

Be careful not to lose the wheel ornament.

Stand the spare tire against the

2

bumper with the inner surface

facing toward you and install

the outside spare tire cover.

3

Pass the hoist assembly

(C)

and holding bracket (B) through

the wheel opening.

HIGHLANDER_HV_U (OM0E032U)

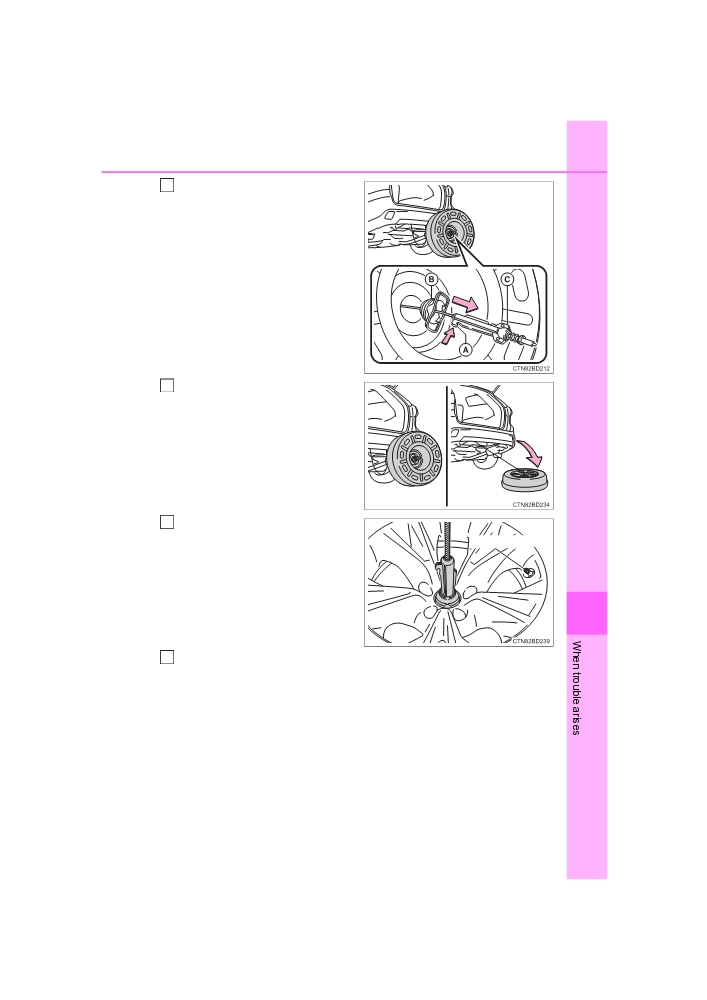

8-2. Steps to take in an emergency

615

4

Fully depress the secondary

latch (A) and install the bracket

(B) to the hoist assembly (C).

5

Lay the tire on the ground with

the outer surface (valve stem)

facing up.

6

When stowing the tire, make

sure that the hoist assembly is

Valve stem

placed perpendicular

to the

wheel opening.

8

Using the jack handle and adapter socket, tighten the spare tire

7

clamp bolt by turning it clockwise until the tire is in the correct posi-

tion and two clicks are heard as the jack handle skips.

HIGHLANDER_HV_U (OM0E032U)

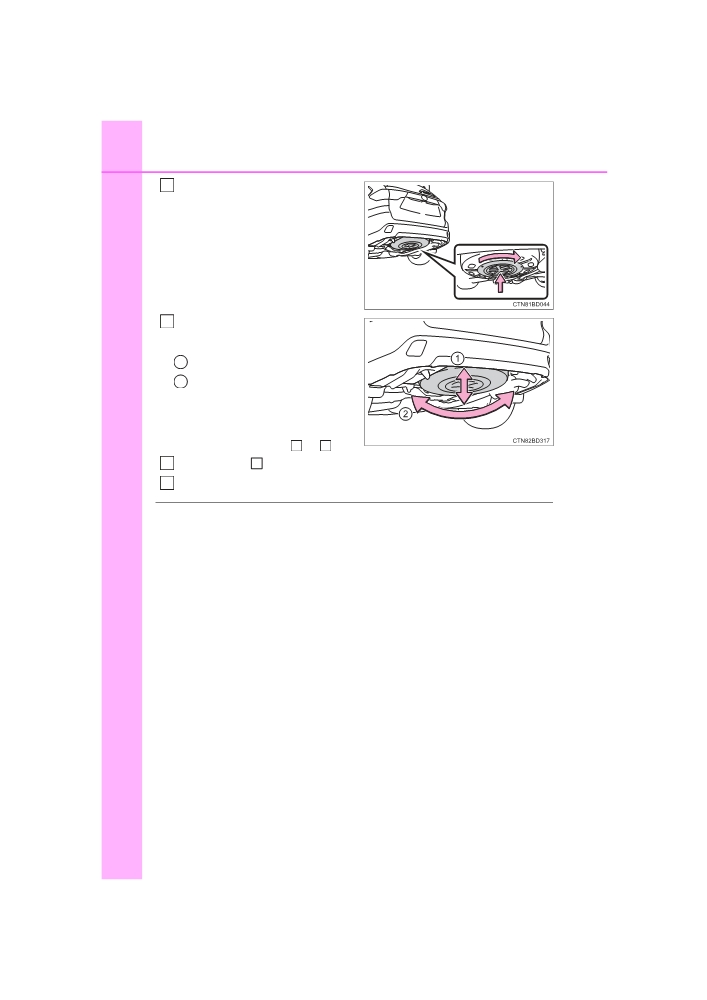

616

8-2. Steps to take in an emergency

8

Install the inside spare tire

cover to the outside spare tire

cover.

9

Confirm it is not loose after

tightening:

1

Push and pull the tire

2

Try rotating

Visually check to ensure tire is

not hung on surrounding parts.

If looseness or misassembly

exists, repeat steps

2

to

9

10

Repeat step

9

, any time the tire is lowered or disturbed.

11

Stow the jack and all tools.

■The compact spare tire (vehicles with a compact spare tire)

●The compact spare tire is identified by the label “TEMPORARY USE

ONLY” on the tire sidewall.

Use the compact spare tire temporarily, and only in an emergency.

●Make sure to check the tire inflation pressure of the compact spare tire.

(→P. 646)

■When the compact spare tire is installed (vehicles with a compact

spare tire)

The vehicle is lower when the compact spare tire is installed compared to

when standard tires are installed.

■When using the compact spare tire (vehicles with a tire pressure

warning system)

As the compact spare tire is not equipped with a tire pressure warning

valve and transmitter, low inflation pressure of the spare tire will not be

indicated by the tire pressure warning system. Also, if you replace the

compact spare tire after the tire pressure warning light comes on, the light

remains on.

HIGHLANDER_HV_U (OM0E032U)

618

8-2. Steps to take in an emergency

WARNING

■Replacing a flat tire for vehicles with power back door

In cases such as when replacing tires, make sure to turn off the power

back door main switch (→P. 133). Failure to do so may cause the back

door to operate unintentionally if the power back door switch is acciden-

tally touched, resulting in hands and fingers being caught and injured.

■After using the tools and jack

Before driving, make sure all the tools and jack are securely in place in

their storage location to reduce the possibility of personal injury during a

collision or sudden braking.

NOTICE

■Be careful when driving over bumps with the compact spare tire

installed on the vehicle.

The vehicle becomes lower when driving with the compact spare tire

compared to when driving with standard tires. Be careful when driving

over uneven road surfaces.

■Driving with tire chains and the compact spare tire

Do not fit tire chains to the compact spare tire.

Tire chains may damage the vehicle body and adversely affect driving

performance.

■When replacing the tires

When removing or fitting the wheels, tires or the tire pressure warning

valve and transmitter, contact your Toyota dealer as the tire pressure

warning valve and transmitter may be damaged if not handled correctly.

■ To avoid damage to the tire pressure warning valves and transmit-

ters

When a tire is repaired with liquid sealants, the tire pressure warning

valve and transmitter may not operate properly. If a liquid sealant is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (→P. 524)

HIGHLANDER_HV_U (OM0E032U)

8-2. Steps to take in an emergency

619

NOTICE

■When stowing the flat tire

●Ensure that there is no object caught between the tire and the vehicle

underbody.

●Securely tighten the spare tire clamp bolt to hold the spare wheel car-

rier by the hook.

●Stow the flat tire in the spare tire location. Failure to do so may cause

damage to the spare tire carrier. Proper storage reduces the possibility

of injury in a collision or during sudden braking.

●Have the flat tire repaired and the spare tire replaced with it as soon as

possible.

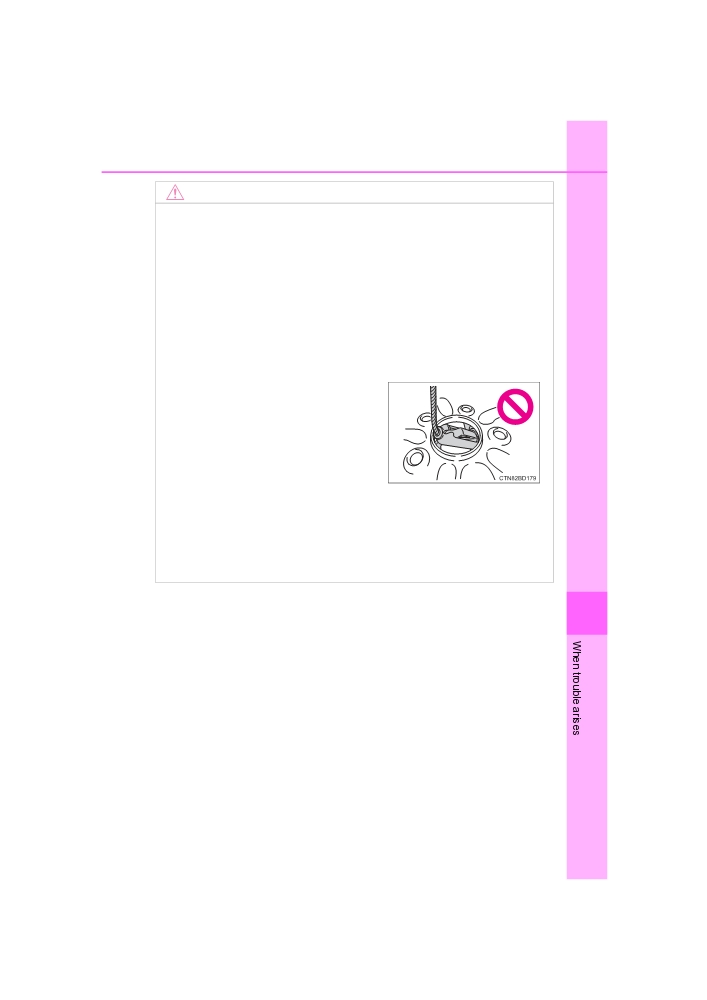

■Proper storage of the spare tire

●If the hoist assembly is slanted when

stowing a tire, the hoist assembly may

become stuck in the wheel opening

and the tire may not be raised prop-

erly, causing damage to the wheel or

the wire cable.

●Do not attempt to turn the spare tire clamp bolt without a tire on the

hoist assembly, as doing so may cause the wire cable to slip off of the

shaft inside the unit and the wire cable may not be able to be raised or

lowered. If the spare tire clamp bolt has been turned without a tire on

the hoist assembly and the wire cable cannot be raised or lowered,

contact your Toyota dealer.

8

HIGHLANDER_HV_U (OM0E032U)

620

8-2. Steps to take in an emergency

If the hybrid system will not start

Reasons for the hybrid system not starting vary depending on

the situation. Check the following and perform the appropriate

procedure:

The hybrid system will not start even though the correct starting

procedure is being followed. (→P. 225)

One of the following may be the cause of the problem:

● The electronic key may not be functioning properly. (→P. 623)

● There may not be sufficient fuel in the vehicle’s tank.

Refuel the vehicle.

● There may be a malfunction in the immobilizer system. (→P. 91)

● There may be a malfunction in the steering lock system.

● The hybrid system may be malfunctioning due to an electrical prob-

lem such as electronic key battery depletion or a blown fuse. How-

ever, depending on the type of malfunction, an interim measure is

available to start the hybrid system. (→P. 621)

The interior lights and headlights are dim, or the horn does not

sound or sounds at a low volume.

One of the following may be the cause of the problem:

● The 12-volt battery may be discharged. (→P. 625)

● The 12-volt battery terminal connections may be loose or corroded.

(→P. 517)

HIGHLANDER_HV_U (OM0E032U)

8-2. Steps to take in an emergency

621

The interior lights and headlights do not turn on, or the horn

does not sound.

One of the following may be the cause of the problem:

● The 12-volt battery may be discharged. (→P. 625)

● One or both of the 12-volt battery terminals may be disconnected.

(→P. 517)

Contact your Toyota dealer if the problem cannot be repaired, or if repair

procedures are unknown.

Emergency start function

When the hybrid system does not start, the following steps can be

used as an interim measure to start the hybrid system if the power

switch is functioning normally.

Do not use this starting procedure except in cases of emergency.

1

Set the parking brake.

2

Shift the shift lever to P.

3

Turn the power switch to ACCESSORY mode.

4

Press and hold the power switch for about 15 seconds while

depressing the brake pedal firmly.

Even if the hybrid system can be started using the above steps, the

system may be malfunctioning. Have the vehicle inspected by your

Toyota dealer.

8

HIGHLANDER_HV_U (OM0E032U)

622

8-2. Steps to take in an emergency

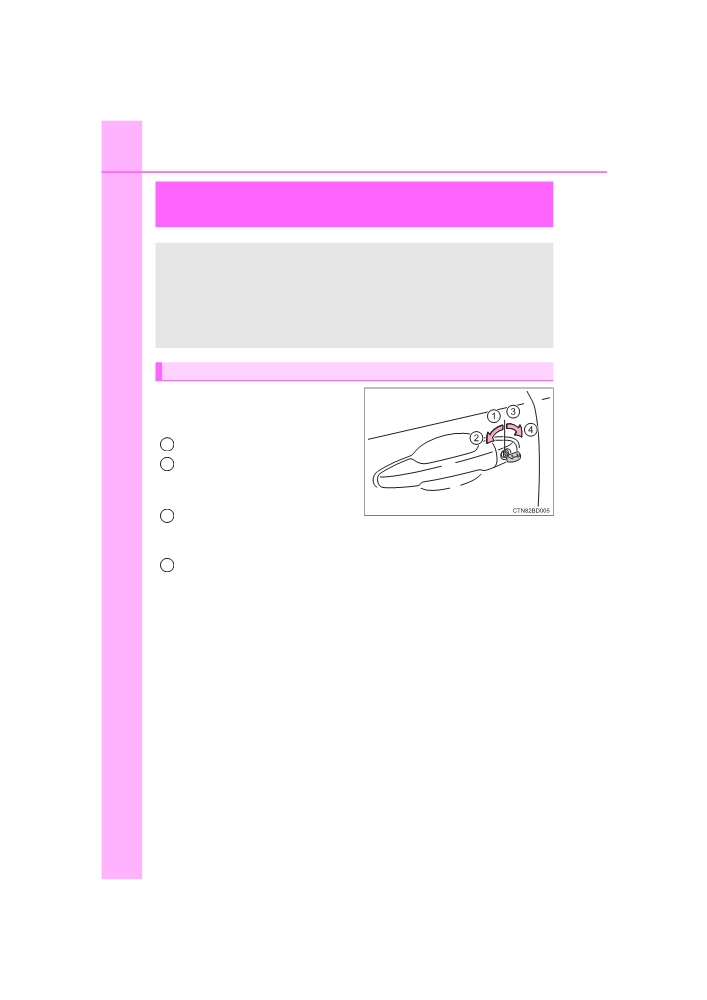

If the electronic key does not operate

properly

If communication between the electronic key and vehicle is

interrupted

(→P. 149) or the electronic key cannot be used

because the battery is depleted, the smart key system, push but-

ton start and wireless remote control cannot be used. In such

cases, the doors can be opened and the hybrid system can be

started by following the procedure below.

Locking and unlocking the doors and key linked functions

Use the mechanical key

(→P.

121) in order to perform the fol-

lowing operations:

1

Locks all the doors

2

Closes the windows and moon

roof*1 (turn and hold)*2

(→P. 179, 182)

3

Unlocks the door

Turning the key rearward unlocks the driver’s door. Turning the key once

again within 5 seconds unlocks the other doors.

4

Opens the windows and moon roof*1 (turn and hold)*2

(→P. 179, 182)

*1: If equipped

*2: This setting must be customized at your Toyota dealer.

HIGHLANDER_HV_U (OM0E032U)

8-2. Steps to take in an emergency

623

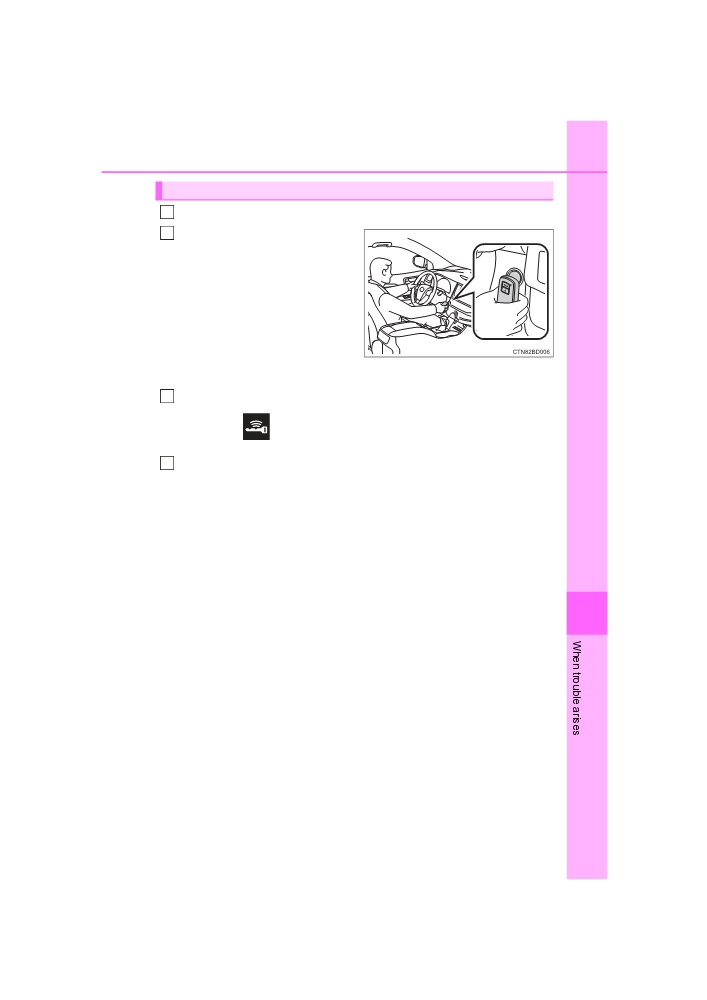

Starting the hybrid system

1

Ensure that the shift lever is in P and depress the brake pedal.

2

Touch the Toyota emblem side

of the electronic key to the

power switch.

When the electronic key is

detected, a buzzer sounds and

the power switch will turn to ON

mode.

When the smart key system is

deactivated in customization set-

ting, the power switch will turn to

ACCESSORY mode.

3

Firmly depress the brake pedal.

Check that

and a message are shown on the multi-information

display.

Press the power switch.

4

In the event that the hybrid system still cannot be started, contact your

Toyota dealer.

8

HIGHLANDER_HV_U (OM0E032U)

624

8-2. Steps to take in an emergency

■Stopping the hybrid system

Shift the shift lever to P and press the power switch as you normally do when

stopping the hybrid system.

■ Replacing the key battery

As the above procedure is a temporary measure, it is recommended that the

electronic key battery be replaced immediately when the battery is depleted.

(→P. 539)

■ Changing power switch modes

Release the brake pedal and press the power switch in step

3

above.

The hybrid system does not start and modes will be changed each time the

switch is pressed. (→P. 226)

■ When the electronic key does not work properly

● Make sure that the smart key system has not been deactivated in the cus-

tomization setting. If it is off, turn the function on.

(Customizable features →P. 666)

● Check if battery-saving mode is set. If it is set, cancel the function.

(→P. 148)

WARNING

■ When using the mechanical key and operating the power windows or

moon roof

Operate the power window or moon roof after checking to make sure that

there is no possibility of any passenger having any of their body parts

caught in the window or moon roof.

Also, do not allow children to operate the mechanical key. It is possible for

children and other passengers to get caught in the power window or moon

roof.

HIGHLANDER_HV_U (OM0E032U)

8-2. Steps to take in an emergency

625

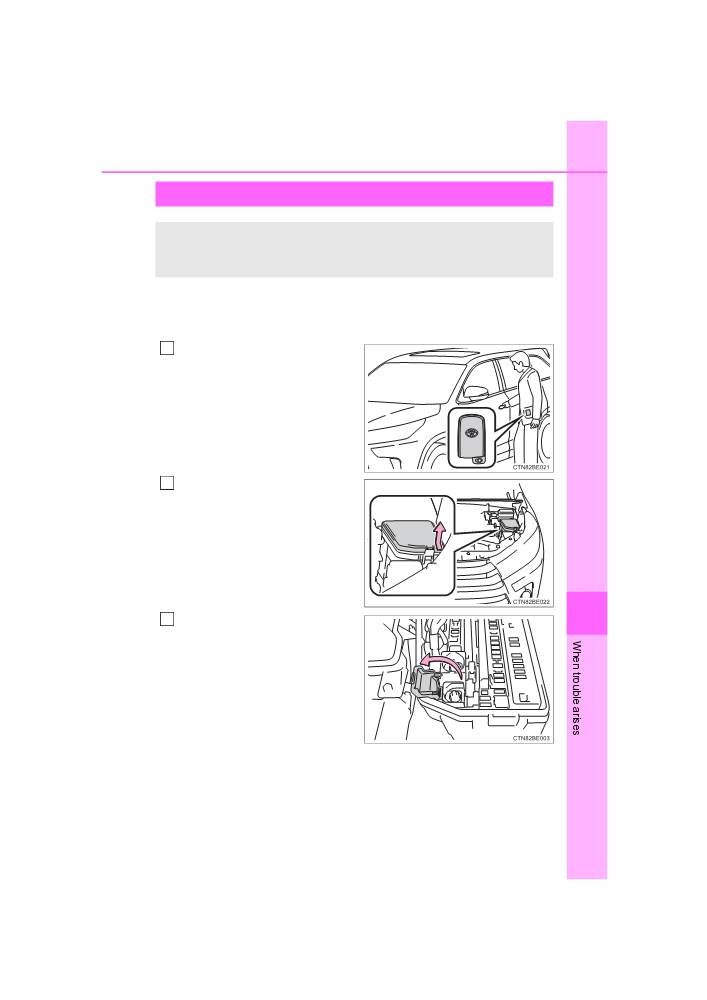

If the 12-volt battery is discharged

The following procedures may be used to start the hybrid sys-

tem if the 12-volt battery is discharged.

You can also call your Toyota dealer or a qualified repair shop.

If you have a set of jumper (or booster) cables and a second vehicle

with a 12-volt battery, you can jump start your vehicle by following the

steps below.

Vehicles with an alarm, confirm

1

that the electronic key is being

carried.

When connecting the jumper (or

booster) cables, depending on the

situation, the alarm may activate

and doors locked. (→P. 95)

2

Open the hood and fuse box

cover.

8

3

Open the exclusive jump start-

ing terminal cover.

HIGHLANDER_HV_U (OM0E032U)

626

8-2. Steps to take in an emergency

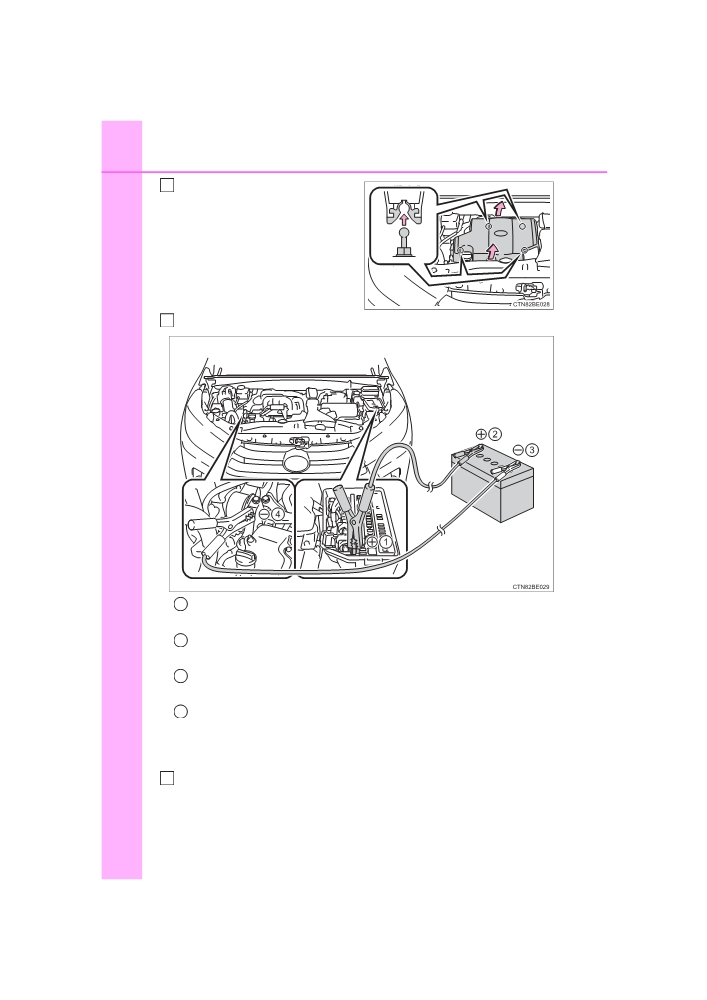

4

Remove the engine cover.

Connect the jumper cables according to the following procedure:

5

1

Connect a positive jumper cable clamp to the exclusive jump

starting terminal on your vehicle.

Connect the clamp on the other end of the positive cable to the

2

positive (+) battery terminal on the second vehicle.

Connect a negative cable clamp to the negative (-) battery termi-

3

nal on the second vehicle.

Connect the clamp at the other end of the negative cable to a

4

solid, stationary, unpainted metallic point away from the exclusive

jump starting terminal and any moving parts, as shown in the

illustration.

Start the engine of the second vehicle. Increase the engine speed

6

slightly and maintain at that level for approximately 5 minutes to

recharge the 12-volt battery of your vehicle.

HIGHLANDER_HV_U (OM0E032U)

8-2. Steps to take in an emergency

627

7

Open and close any of the doors of your vehicle with the power

switch off.

Maintain the engine speed of the second vehicle and start the

8

hybrid system of your vehicle by turning the power switch to ON

mode.

Make sure the “READY” indicator comes on. If the indicator does

9

not come on, contact your Toyota dealer.

Once the hybrid system has started, remove the jumper cables in

10

the exact reverse order from which they were connected.

Close the exclusive jump starting terminal cover, and reinstall the

11

fuse box cover to its original position.

When installing, first hook the fuse box cover onto the two rear tabs.

Once the hybrid system starts, have the vehicle inspected at your

Toyota dealer as soon as possible.

■ Starting the hybrid system when the 12-volt battery is discharged

The hybrid system cannot be started by push-starting.

■ To prevent 12-volt battery discharge

● Turn off the headlights and the audio system while the hybrid system is off.

● Turn off any unnecessary electrical components when the vehicle is running

at a low speed for an extended period, such as in heavy traffic.

■When recharging or replacing the 12-volt battery

● In some cases, it may not be possible to unlock the doors using the smart

key system when the 12-volt battery is discharged. Use the wireless remote

control or the mechanical key to lock or unlock the doors.

● The hybrid system may not start on the first attempt after the 12-volt battery

8

has recharged but will start normally after the second attempt. This is not a

malfunction.

● The power switch mode is memorized by the vehicle. When the 12-volt bat-

tery is reconnected, the system will return to the mode it was in before the

12-volt battery was discharged. Before disconnecting the 12-volt battery,

turn the power switch off.

If you are unsure what mode the power switch was in before the 12-volt bat-

tery discharged, be especially careful when reconnecting the 12-volt battery.

● Vehicle with power back door: The power back door must be initialized.

(→P. 677)

■ Charging the 12-volt battery

The electricity stored in the 12-volt battery will discharge gradually even when

the vehicle is not in use, due to natural discharge and the draining effects of

certain electrical appliances. If the vehicle is left for a long time, the 12-volt

battery may discharge, and the hybrid system may be unable to start. (The

12-volt battery recharges automatically while the hybrid system is operating.)

HIGHLANDER_HV_U (OM0E032U)

Content   ..  35  36  37  38   ..
