442
9-1. Specifications
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

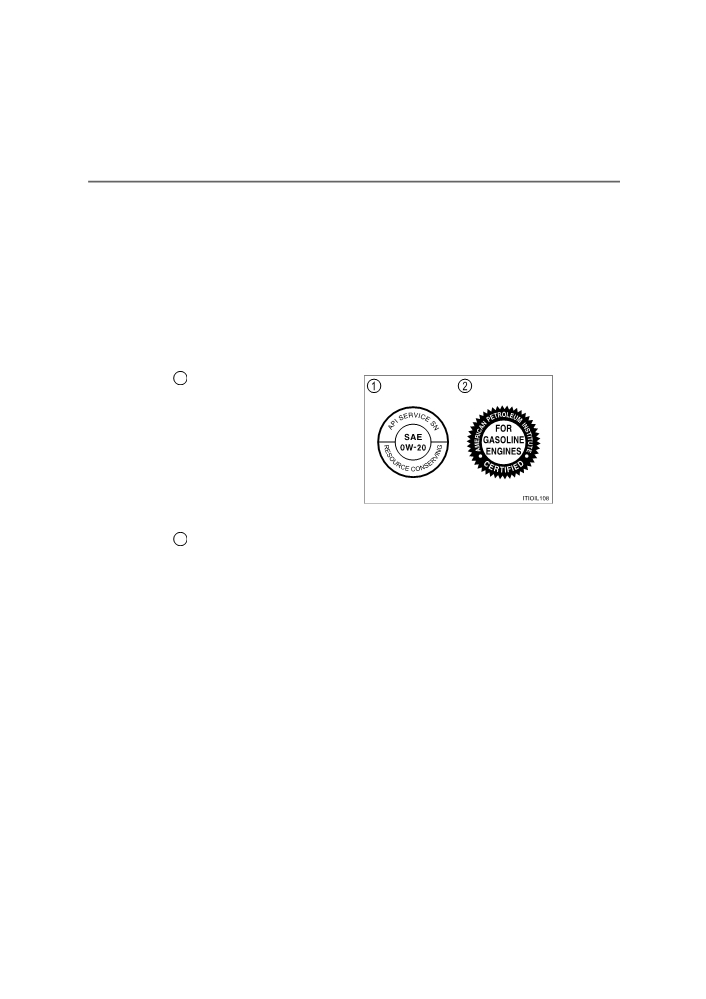

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
1
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion:
“SAE
0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
2
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
AYGO_OM_Europe_OM99P46E
9-1. Specifications
443
HM01 engine
Oil capacity
(Drain and refill Reference*)
With filter
3.25 L (3.43 qt., 2.86 Imp.qt.)
Without filter
3.0 L (3.2 qt., 2.6 Imp.qt.)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■ Engine oil selection
“TOTAL ACTIVA 7000/9000” or
“TOTAL QUARTZ 7000/9000”
engine oil is used in your Toyota vehicle. Toyota recommends the
use of approved “TOTAL ACTIVA 7000/9000” or “TOTAL QUARTZ
7000/9000” engine oil.
Another motor oil of matching quality can also be used.
Oil grade:
5W-40 and 10W-40:
API grade SL “Energy-Conserving” or SM “Energy-Conserving”

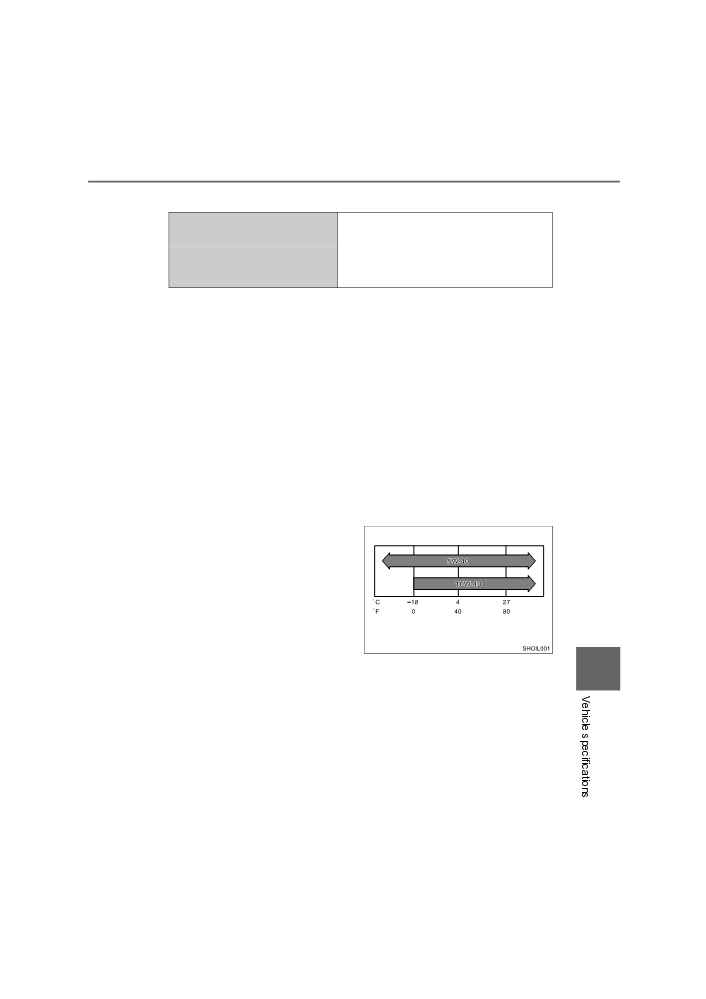

Recommended viscosity (SAE):
If you use SAE 10W-40 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 5W-40 engine
oil is recommended.
Temperature range anticipated
before next oil change
9
AYGO_OM_Europe_OM99P46E
444
9-1. Specifications
Oil viscosity (5W-40 is explained here as an example):
• The 5W in 5W-40 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 40 in 5W-40 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
API registered mark is added to some oil containers to help you
select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SM”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion:
“SAE
5W-40”
means the SAE viscosity grade.
Lower portion:
“Energy-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
AYGO_OM_Europe_OM99P46E
9-1. Specifications
445
Cooling system
1KR engine
0Q011,
3.6 L (3.8 qt., 3.2 Imp.qt.)
Capacity
0Q021*
(Reference)
0Q090*
4.3 L (4.5 qt., 3.8 Imp.qt.)
Use either of the following:
•
“Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-
Coolant type
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.

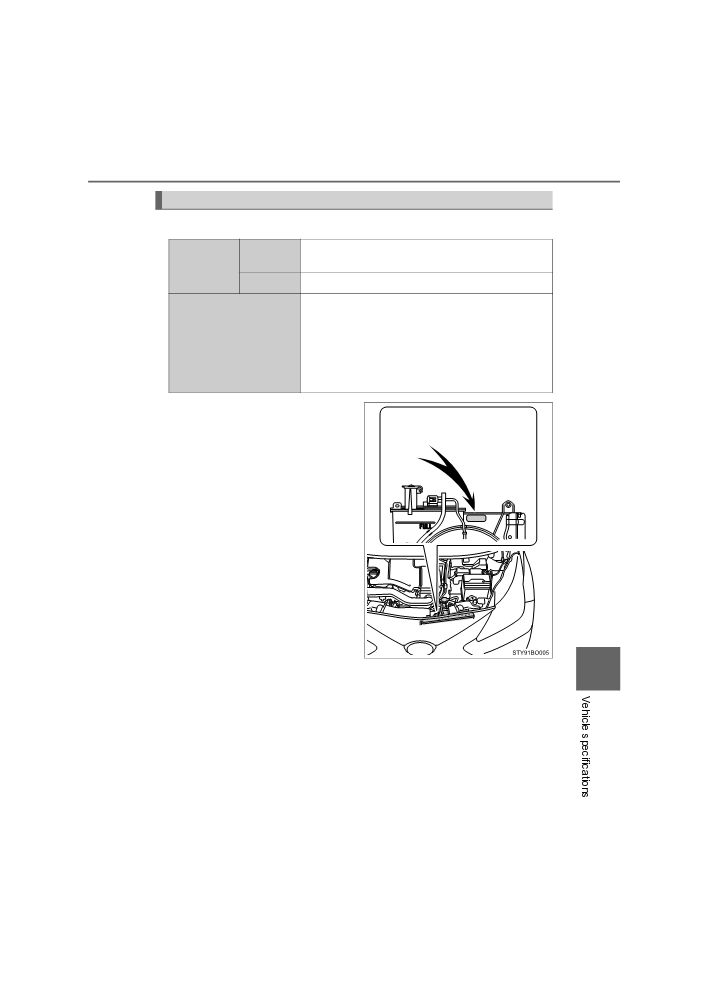

*: The identification code is indicated
at the locations shown in the illus-
On the back side
tration.
9
AYGO_OM_Europe_OM99P46E
446
9-1. Specifications
HM01 engine
Capacity (Reference)
4.5 L (4.8 qt., 4.0 Imp.qt.)
Use either of the following:
•
“Toyota Genuine Premium Long Life Coolant
2WZ-TV”
• Similar high-quality ethylene glycol-based non-
Coolant type
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
NOTICE
■ To prevent serious engine damage
Do not mix “Toyota Super Long Life Coolant” with “Toyota Genuine Pre-
mium Long Life Coolant 2WZ-TV”.
Electrical system
Battery
Open voltage* at
12.6 12.8 V Fully charged
20C (68F):
12.2 12.4 V Half charged
11.8 12.0 V Discharged
(*: Voltage checked
20 minutes after the
engine and all the lights are turned off)
Charging rates
5 A max.
AYGO_OM_Europe_OM99P46E
9-1. Specifications
447
Manual transmission (including front differential)
1KR engine
Gear oil capacity (Reference)
1.7 L (1.8 qt., 1.5 Imp.qt.)
Use either of the following:
•
“TOYOTA Genuine Manual Transmis-
Gear oil type
sion Gear Oil LV”
• Other gear oil that meets API GL-4 and
SAE 75W specifications
HM01 engine
Gear oil capacity (Reference)
2.0 L (2.1 qt., 1.8 Imp.qt.)
Use either of the following:
•
“Exxon Mobil Transmission Oil FE 75W”
Gear oil type
• Other gear oil that meets SAE
75W
specifications
NOTICE
■ Manual transmission gear oil (1KR engine)
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal perfor-
mance.
9
AYGO_OM_Europe_OM99P46E
448
9-1. Specifications
Brakes
Left-hand
94 mm (3.7 in.) Min.
drive vehicles
Pedal clearance*1
Right-hand
93 mm (3.6 in.) Min.
drive vehicles
Pedal free play
1 6 mm (0.04 0.24 in.)
Parking brake lever travel*2
5 8 clicks
Fluid type
SAE J1704 or FMVSS No. 116 DOT 4
*1: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,
67.4 lbf) while the engine is operating.
*2: Parking brake lever travel when pulled up with a force of 196 N (20
kgf,
44 lbf).
Steering
Free play
Less than 30 mm (1.2 in.)
Tires and wheels
14-inch tires (type A)*
Tire size
165/65R14 79T
Tire inflation pressure
Front: 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
(Recommended cold tire
Rear: 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
inflation pressure)
Wheel size
14 4 1/2J
Wheel bolt torque
103 N·m (10.5 kgf·m, 76 ft·lbf)
14-inch tires (type B)*
Tire size
165/65R14 79T
Tire inflation pressure
Front: 220 kPa (2.2 kgf/cm2 or bar, 32 psi)
(Recommended cold tire
Rear: 220 kPa (2.2 kgf/cm2 or bar, 32 psi)
inflation pressure)
Wheel size
14 4 1/2J
Wheel bolt torque
103 N·m (10.5 kgf·m, 76 ft·lbf)
AYGO_OM_Europe_OM99P46E
9-1. Specifications
449
15-inch tires
Tire size
165/60R15 77H
Tire inflation pressure
Front: 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
(Recommended cold tire
Rear: 230 kPa (2.3 kgf/cm2 or bar, 33 psi)
inflation pressure)
Wheel size
15 4 1/2J
Wheel bolt torque
103 N·m (10.5 kgf·m, 76 ft·lbf)
Compact spare tires (if equipped)
Tire size
T125/70R15 95M, T125/70D15 95M
Tire inflation pressure
(Recommended cold tire
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
inflation pressure)
Wheel size
15 4B
Wheel bolt torque
103 N·m (10.5 kgf·m, 76 ft·lbf)

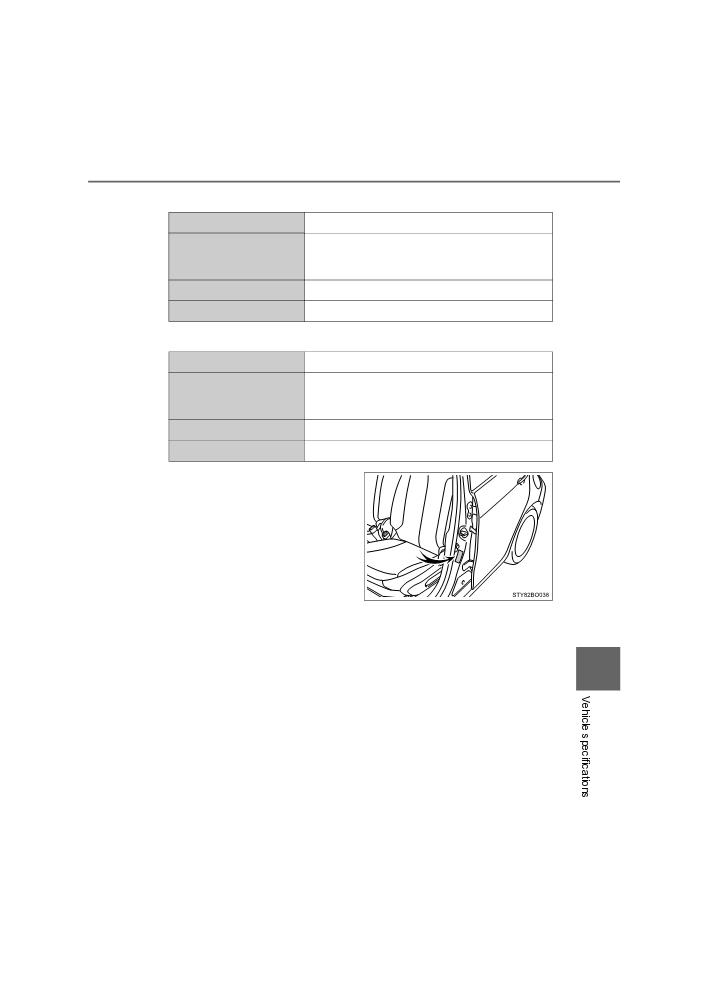

*: The tire inflation pressure is indi-
cated on the left-side center pillar.
9
AYGO_OM_Europe_OM99P46E
450
9-1. Specifications
Light bulbs
Light bulbs
W
Type
Headlights
55
A
Front fog lights*
19
B
Front turn signal lights
21
C
Stop/tail lights
21/5
C
Exterior
Rear turn signal lights
21
D
Back-up light
21
C
Rear fog light
21
C
License plate lights
5
E
High mounted stoplight
5
E
Interior light
5
E
Interior
Luggage compartment light
5
F
A: HIR2 halogen bulbs
B: H16 halogen bulbs
C: Single end bulbs (clear)
D: Single end bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs (clear)
*: If equipped
AYGO_OM_Europe_OM99P46E
9-1. Specifications
451
Fuel information
EU area:
Your vehicle must use only unleaded gasoline conforming to
European standard EN228. For optimum engine performance,
select unleaded gasoline with a Research Octane Number of 95
or higher.
Except EU area:
Your vehicle must use only unleaded gasoline. For optimum
engine performance, select unleaded gasoline with a Research
Octane Number of 95 or higher.
■ Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
●Consult any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
9
AYGO_OM_Europe_OM99P46E
452
9-1. Specifications
NOTICE
■ Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
●Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
●Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. The use of
these fuels will damage the vehicle’s fuel system. In case of any doubt,
ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be used. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicle’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, ask any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
AYGO_OM_Europe_OM99P46E
9-2. Customization
453
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized equipment and may be performed
by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Default
Customized
Item
Function
setting
setting
Smart entry & start
Smart entry & start system
On
Off
system* (P. 113)
Automatic light
control system*
Light sensor sensitivity
Standard
-2 to 2
(P. 166)
*: If equipped
9
AYGO_OM_Europe_OM99P46E
454
9-3. Items to initialize
Items to initialize
The following item must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
Item
When to initialize
Reference
Tire pressure warning
When changing the tire size
P. 339
system*
*: If equipped
AYGO_OM_Europe_OM99P46E
455
Index
What to do if...
(Troubleshooting)
456
Alphabetical index
460
For vehicles with a multimedia system, refer to the
“Multimedia owner’s manual” for information regarding the
equipment listed below.
• Audio system
• Rear view monitor system
AYGO_OM_Europe_OM99P46E
456
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
If you have a problem, check the following before contacting any
authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
● If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional. (P. 94)
● Vehicles with a smart entry & start system
If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional immediately. (P. 101)
The doors cannot be locked or unlocked
● Is the key battery weak or depleted? (P. 348)
● Vehicles with a smart entry & start system
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P. 154)
● Vehicles with a smart entry & start system
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
● The function may not operate properly due to the condition of the radio
wave. (P. 106, 115)
The rear door cannot be opened (5-door models)
● Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. (P. 105)
AYGO_OM_Europe_OM99P46E
What to do if... (Troubleshooting)
457
If you think something is wrong
The engine does not start
(vehicles without a smart entry & start system)
● Vehicles with a multi-mode manual transmission
Do you turn the key with the brake pedal depressed firmly? (P. 149)
● Vehicles with a manual transmission
Do you turn the key with the clutch pedal depressed firmly? (P. 149)
● Is the battery discharged? (P. 426)
The engine does not start
(vehicles with a smart entry & start system)
● Vehicles with a multi-mode manual transmission
Did you press the engine switch while firmly depressing the brake pedal?
(P. 152)
● Vehicles with a manual transmission
Did you press the engine switch while firmly depressing the clutch pedal?
(P. 152)
● Is the electronic key anywhere detectable inside the vehicle? (P. 113)
● Is the steering wheel unlocked? (P. 155)
● Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. (P. 424)
● Is the battery discharged? (P. 426)
The shift lever cannot be shifted even if you depress the
brake pedal (vehicles with a multi-mode manual transmis-
sion)
● Vehicles without a smart entry & start system
Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in the “ON” position: P. 422
● Vehicles with a smart entry & start system
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode: P. 422
AYGO_OM_Europe_OM99P46E
458
What to do if... (Troubleshooting)
The steering wheel cannot be turned after the engine is
stopped
● Vehicles without a smart entry & start system
It is locked to prevent theft of the vehicle if the key is removed from the
engine switch. (P. 150)
● Vehicles with a smart entry & start system
It is locked automatically to prevent theft of the vehicle. (P. 155)
The engine switch is turned off automatically
(vehicles with a smart entry & start system)
● The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not operating) for a period of
time. (P. 154)
A warning buzzer sounds during driving
● The seat belt reminder light is flashing
Are the driver and the passengers wearing the seat belts? (P. 387)
● The brake system warning light is on
Is the parking brake released? (P. 165)
Depending on the situation, other types of warning buzzer may also
sound. (P. 383)
A warning light turns on
● When a warning light turns on, refer to P. 383.
AYGO_OM_Europe_OM99P46E
