8-2. Steps to take in an emergency

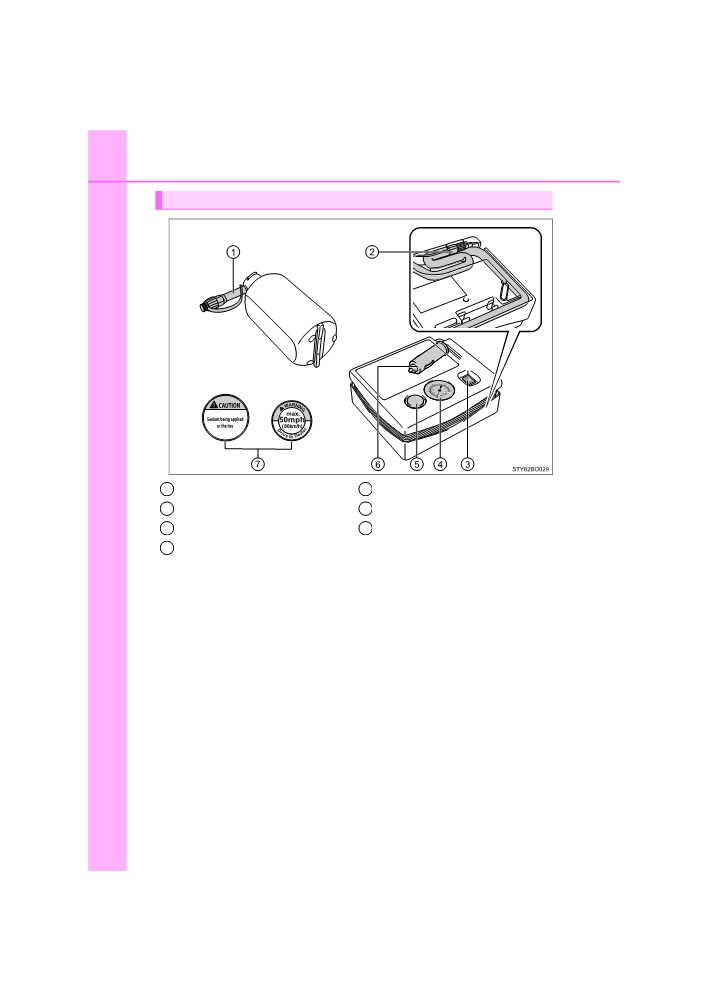

Emergency tire puncture repair kit components

1

Nozzle

5

Pressure release button

2

Hose

6

Power plug

3

Compressor switch

7

Stickers

4

Air pressure gauge

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

409

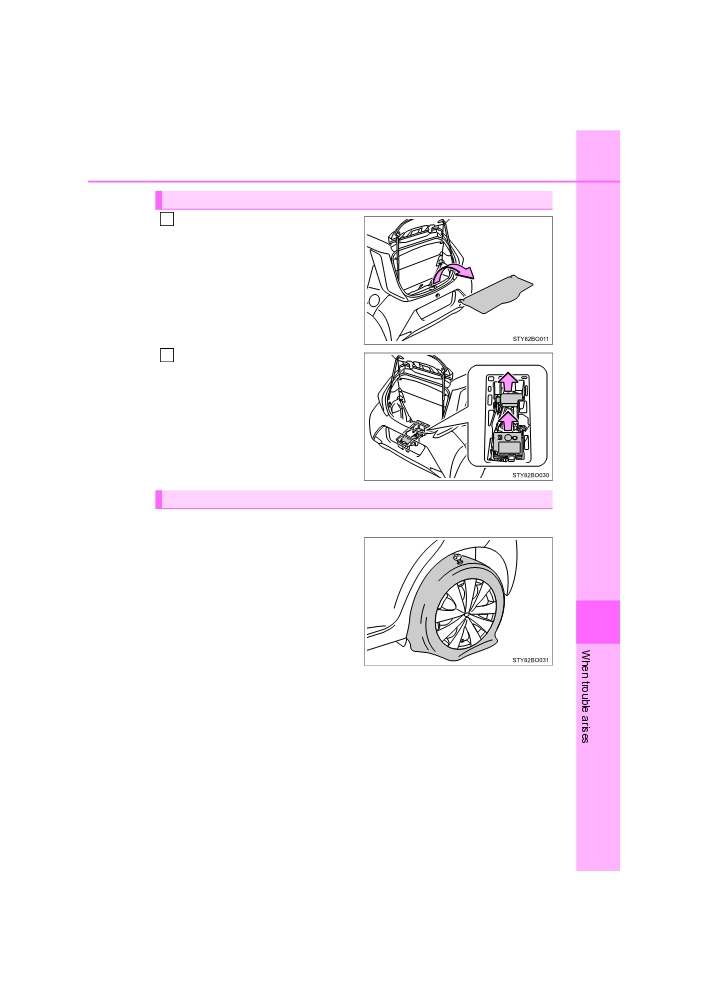

Taking out the emergency tire puncture repair kit

1

Remove the luggage floor

cover.

2

Take out the emergency tire

puncture repair kit.

Before performing emergency repair

Check the degree of the tire damage.

A tire should only be repaired with

the emergency tire puncture

repair kit if the damage is caused

by a nail or screw passing through

the tire tread.

8

• Do not remove the nail or screw

from the tire. Removing the

object may widen the opening

and prevent emergency repair

with the repair kit.

• To avoid sealant leakage, move the vehicle until the area of the

puncture, if known, is positioned at the top of the tire.

AYGO_OM_Europe_OM99P46E

410

8-2. Steps to take in an emergency

Emergency repair method

Take out the repair kit from the tool box.

1

When taking out the bottle from the original bag, do not tear or discard the

bag.

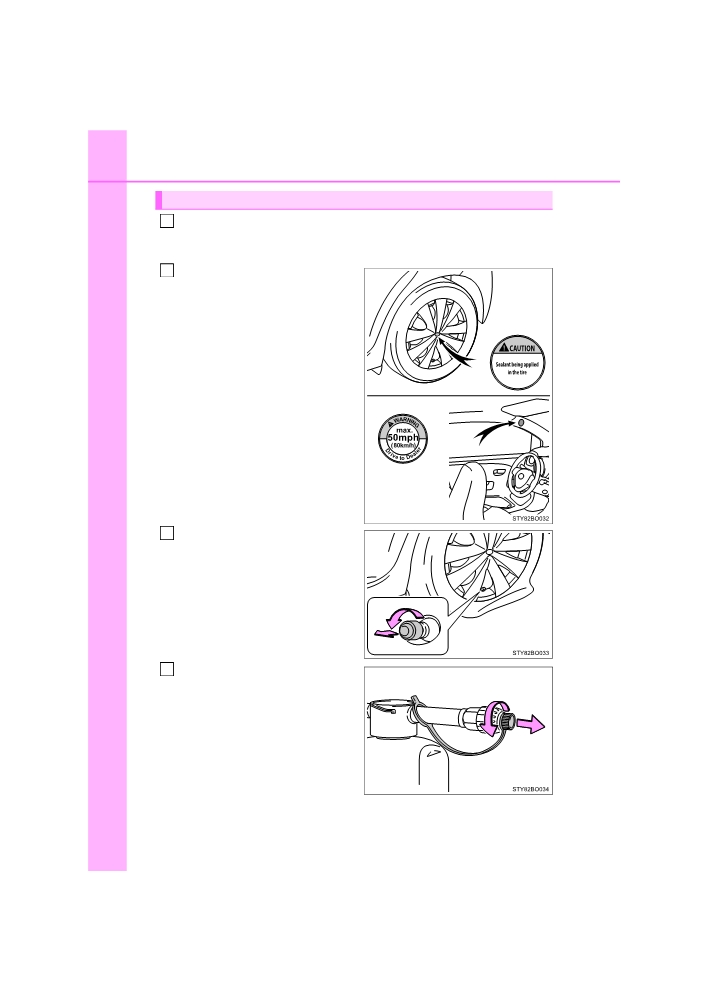

Attach the 2 stickers as shown.

2

Remove any dirt and moisture from

the wheel before attaching the

label. If it is impossible to attach

the label, make sure to tell any

authorized Toyota dealer or

repairer, or another duly qualified

and equipped professional when

you have them repair and replace

the tire that sealant is injected.

Remove the valve cap from the

3

valve of the punctured tire.

4

Remove the cap from the noz-

zle.

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

411

5

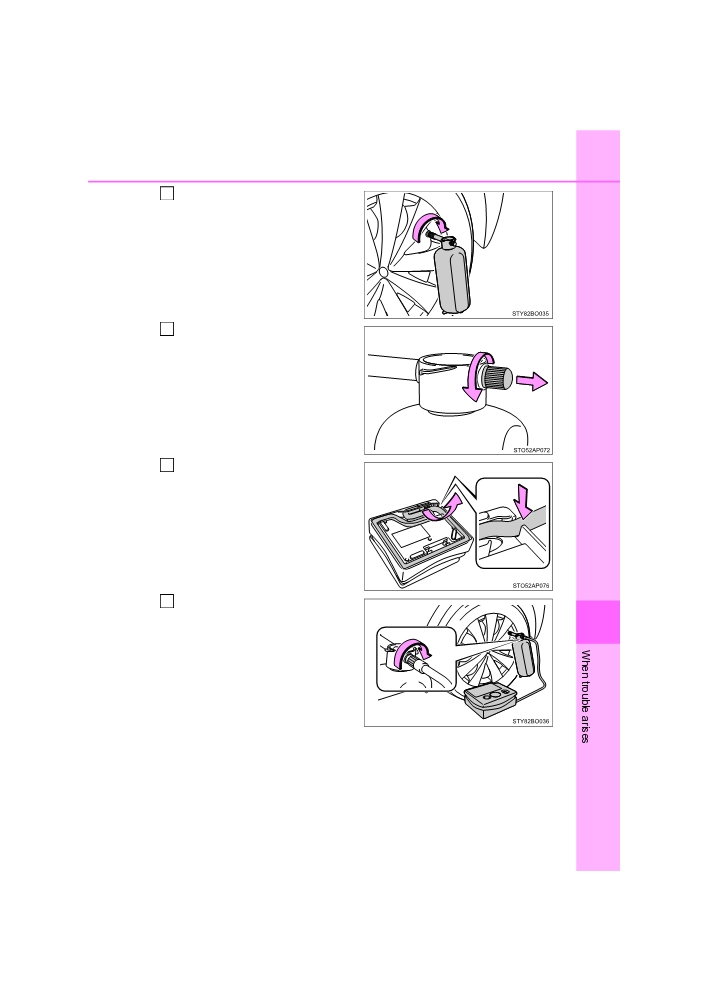

Connect the nozzle to the

valve.

Screw the end of the nozzle clock-

wise as far as possible.

The bottle should hang vertically

without contacting the ground. If

the bottle does not hang vertically,

move the vehicle so that the tire

valve is located properly.

6

Remove the cap from the bot-

tle.

7

Pull the hose out from the com-

pressor.

8

Connect the bottle to the com-

pressor.

8

Screw the end of the nozzle clock-

wise as far as possible.

AYGO_OM_Europe_OM99P46E

412

8-2. Steps to take in an emergency

9

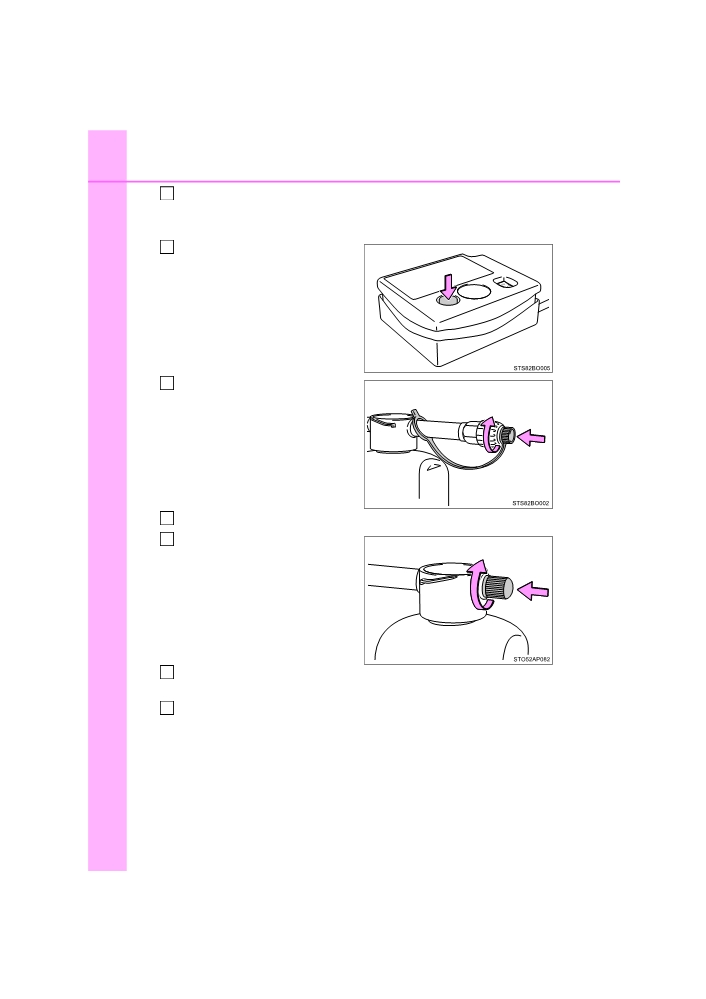

Make sure that the compressor

switch is off.

10

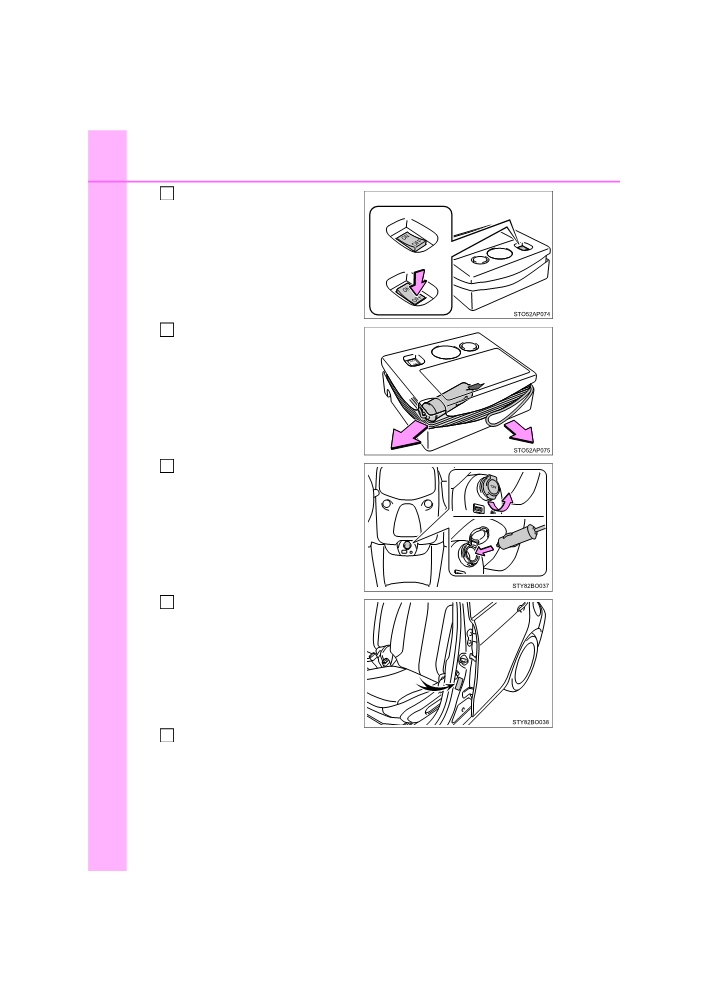

Remove the power plug from

the compressor.

11

Connect the power plug to the

power outlet socket. (P. 308)

12

Check the specified tire inflation

pressure.

Tire inflation pressure is specified

on the label as shown. (P. 448)

Start the engine. (P. 149, 152)

13

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

413

14

To inject the sealant and inflate

the tire, turn the compressor

switch on.

Inflate the tire until the specified

15

air pressure is reached.

The sealant will be injected

1

and the pressure will surge

and

then

gradually

decrease.

The air pressure gauge will

2

display the actual tire infla-

tion pressure about 1 minute

(5 minutes at low tempera-

ture) after the switch is

turned on.

3

Inflate to specified air pres-

sure.

• If the tire inflation pressure is still lower than the specified point after

inflation for 35 minutes with the switch on, the tire is too damaged to

8

be repaired. Turn the compressor switch off and contact any autho-

rized Toyota dealer or repairer, or another duly qualified and

equipped professional.

• If the tire inflation pressure exceeds the specified air pressure, let out

some air to adjust the tire inflation pressure. (P. 417, 448)

Turn the compressor off.

16

AYGO_OM_Europe_OM99P46E

414

8-2. Steps to take in an emergency

Disconnect the nozzle from the valve on the tire and then pull out

17

the power plug from the power outlet socket.

Some sealant may leak when the nozzle is removed.

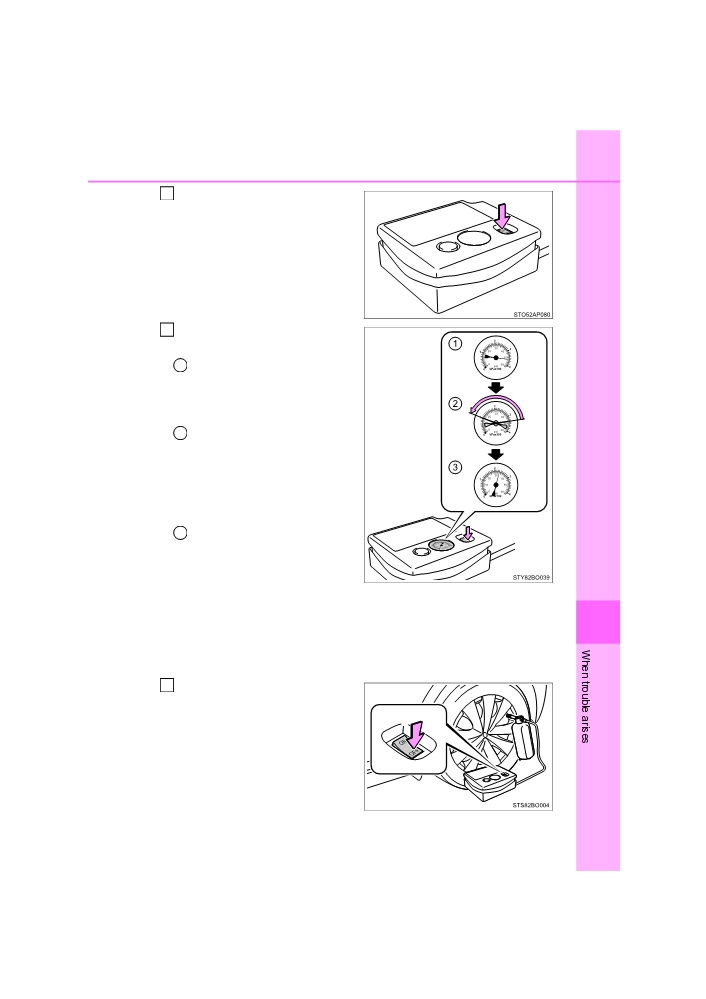

Press the button to release

18

pressure from the bottle.

Attach the cap to the nozzle.

19

20

Install the valve cap onto the valve of the repaired tire.

21

Disconnect the hose from the

bottle and attach the cap to the

bottle.

Place the bottle in the original bag

and zip it.

22

Temporarily store the bottle and compressor in the luggage com-

partment.

To spread the liquid sealant evenly within the tire, immediately drive

23

safely for about 5 km (3 miles) below 80 km/h (50 mph).

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

415

24

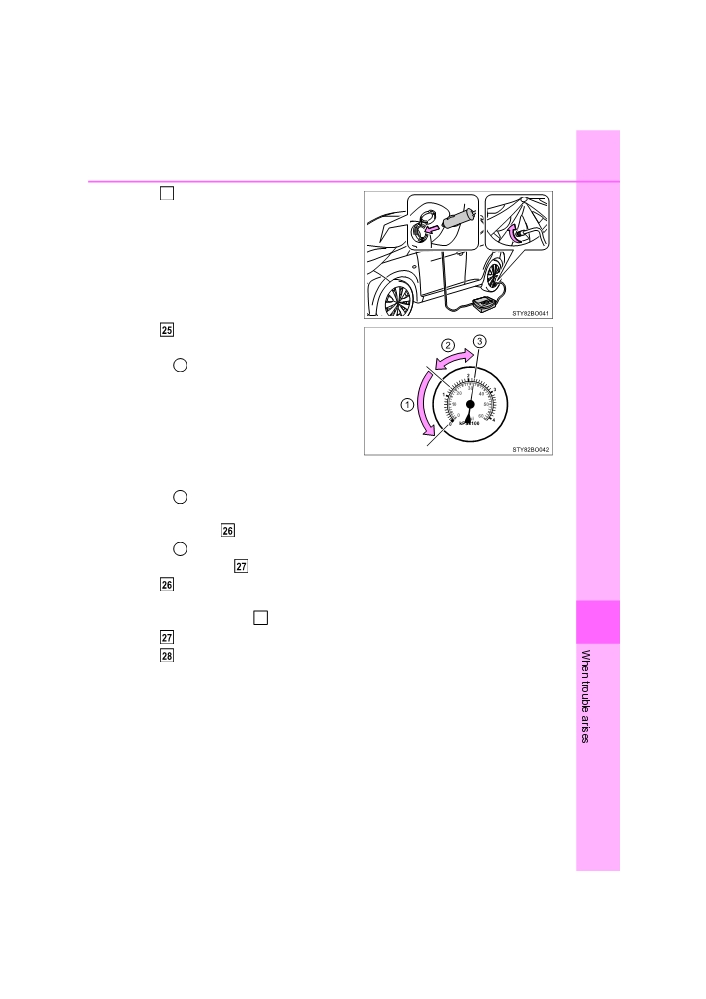

After driving for about

5 km

(3 miles), stop your vehicle in a

safe place on a hard, flat sur-

face and connect the compres-

sor.

Check the tire inflation pres-

sure.

If the tire inflation pressure is

1

under 130 kPa (1.3 kgf/cm2

or bar, 19 psi): The puncture

cannot be repaired. Contact

any authorized Toyota dealer

or repairer, or another duly

qualified and equipped pro-

fessional.

2

If the tire inflation pressure is 130 kPa (1.3 kgf/cm2 or bar, 19 psi)

or higher, but less than the specified air pressure: Proceed to

step

3

If the tire inflation pressure is the specified air pressure: Proceed

to step

Turn the compressor switch on to inflate the tire until the specified

air pressure is reached. Drive for about 5 km (3 miles) and then

perform step

24

8

Store the compressor in the luggage compartment.

Taking precautions to avoid sudden braking, sudden acceleration

and sharp turns, drive carefully at under 80 km/h (50 mph) to the

nearest any authorized Toyota dealer or repairer, or another duly

qualified and equipped professional.

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

417

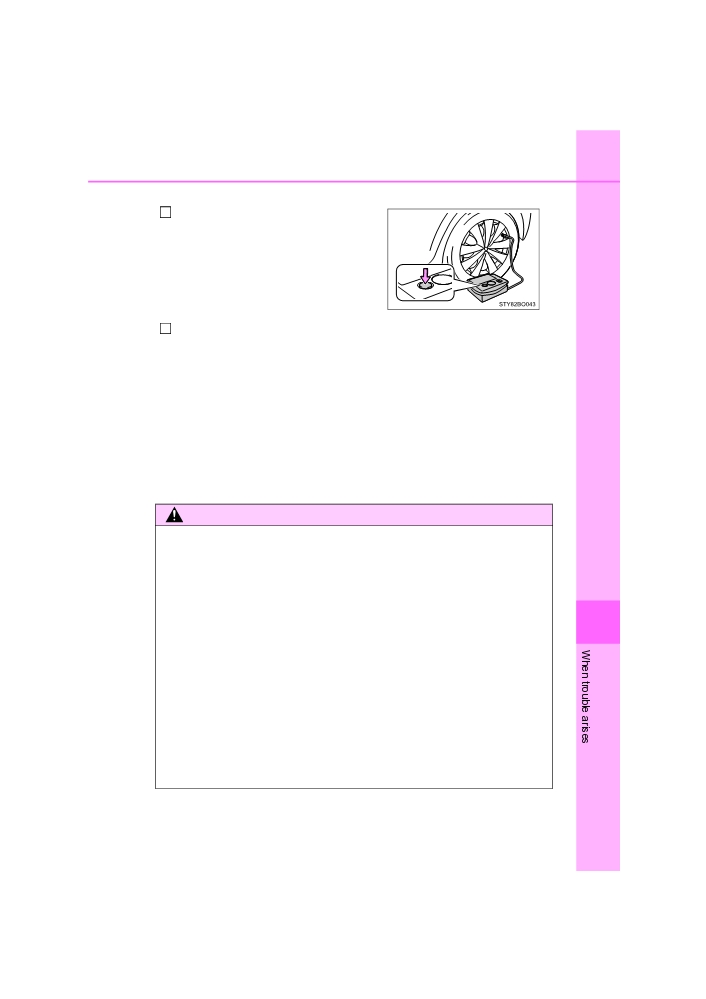

■ If the tire is inflated to more than the specified air pressure

Press the button to let some air out.

1

Check that the air pressure gauge shows the specified air pressure.

2

If the air pressure is under the designated pressure, turn the compressor

switch on again and repeat the inflation procedure until the specified air

pressure is reached.

■ The valve of a tire that has been repaired

After a tire is repaired with the emergency tire puncture repair kit, the valve

should be replaced.

■ Note for checking the emergency tire puncture repair kit

Check the sealant expiry date occasionally.

The expiry date is shown on the bottle.

Do not use sealant that has passed its expiry date. You may be unable to

complete the repair using the emergency tire puncture repair kit.

WARNING

■ Caution while driving

● Store the repair kit in the luggage compartment.

Otherwise, injuries may result in the event of sudden braking, sudden

swerving or an accident.

●The emergency tire puncture repair kit is made exclusively for your vehi-

cle. Do not use it on other vehicles, which could lead to an accident caus-

8

ing death or serious injury.

●Do not use the emergency tire puncture repair kit for tires that are a differ-

ent size than the specified ones or for any other purpose. Doing so may

cause the tires to not be repaired properly, which could lead to an accident

causing death or serious injury.

■ Precautions for use of the sealant

● Ingesting the sealant is hazardous to your health. If you ingest sealant,

consume as much water as possible, and then immediately consult a doc-

tor.

● If sealant gets in eyes or adheres to skin, immediately wash it off with

water. If discomfort persists, consult a doctor.

AYGO_OM_Europe_OM99P46E

418

8-2. Steps to take in an emergency

WARNING

■ When fixing the flat tire

●Stop your vehicle in a safe and flat area.

●Do not touch the wheels or the area around the brakes immediately after

the vehicle has been driven.

After the vehicle has been driven, the wheels and the area around the

brakes may be extremely hot. Touching these areas with hands, feet or

other body parts may result in burns.

● To avoid risk of burst or severe leakage, do not drop or damage the bottle.

Visually inspect the bottle before use. Do not use a bottle with shock,

crack, scratch, leakage or any other damage. In such case, immediately

replace.

●Connect the valve and hose securely with the tire installed on the vehicle.

● If the hose is not properly connected to the valve, air leakage may occur

as sealant may be sprayed out.

●If the hose comes off the valve while inflating the tire, there is a risk that

the hose will move abruptly due to air pressure.

● After inflation of the tire has completed, the sealant may splatter when the

hose is disconnected or some air is let out of the tire.

●Follow the operation procedure to repair the tire. If the procedures not fol-

lowed, the sealant may spray out.

● Keep back from the tire while it is being repaired, as there is a chance of it

bursting while the repair operation is being performed. If you notice any

cracks or deformation of the tire, turn off the compressor switch and stop

the repair operation immediately.

●The repair kit may overheat if operated for a long period of time. Do not

operate the repair kit continuously for more than 40 minutes.

● Parts of the repair kit become hot during operation. Be careful handling the

repair kit during and after operation. Do not touch the metal part around

the connecting area between the bottle and the compressor. It will be

extremely hot.

●Do not attach the vehicle speed warning sticker to an area other than the

one indicated. If the sticker is attached to an area where an SRS airbag is

located, such as the pad of the steering wheel, it may prevent the SRS air

bag from operating properly.

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

419

WARNING

■ Driving to spread the liquid sealant evenly

Observe the following precautions to reduce the risk of accidents.

Failure to do so may result in a loss of vehicle control and cause death or

serious injury.

●Drive the vehicle carefully at a low speed. Be especially careful when turn-

ing and cornering.

● If the vehicle does not drive straight or you feel a pull through the steering

wheel, stop the vehicle and check the following:

• Tire condition. The tire may have separated from the wheel.

• Tire inflation pressure. If tire inflation pressure is 130 kPa (1.3 kgf/cm2

or bar, 19 psi) or less, the tire may be severely damaged.

NOTICE

■ When performing an emergency repair

● A tire should only be repaired with the emergency tire puncture repair kit if

the damage is caused by a sharp object such as nail or screw passing

through the tire tread.

Do not remove the sharp object from the tire. Removing the object may

widen the opening and disenable emergency repair with the repair kit.

●The repair kit is not waterproof. Make sure that the repair kit is not

exposed to water, such as when it is being used in the rain.

●Do not put the repair kit directly onto dusty ground such as sand at the

side of the road. If the repair kit vacuums up dust etc., a malfunction may

occur.

●Do not turn the bottle upside down when using it, as doing so may cause

damage to the compressor.

8

■ Handling the emergency tire puncture repair kit

●The repair kit power source should be 12 V DC suitable for vehicle use. Do

not connect the repair kit to any other source.

● If gasoline splatters on the repair kit, the repair kit may deteriorate. Take

care not to allow gasoline to contact it.

● Place the repair kit in a storage to prevent it from being exposed to dirt or

water.

● Store the repair kit in the luggage compartment out of reach of children.

●Do not disassemble or modify the repair kit. Do not subject parts such as

the air pressure gauge to impacts. This may cause a malfunction.

AYGO_OM_Europe_OM99P46E

420

8-2. Steps to take in an emergency

If the engine will not start

If the engine will not start even though correct starting proce-

dures are being followed (P. 149, 152), consider each of the fol-

lowing points:

The engine will not start even though the starter motor operates

normally.

One of the following may be the cause of the problem:

● There may not be sufficient fuel in the vehicle’s tank.

Refuel the vehicle.

● The engine may be flooded.

Try to restart the engine again following correct starting procedures.

(P. 149, 152)

● There may be a malfunction in the engine immobilizer system.

(P. 70)

The starter motor turns over slowly, the interior lights and head-

lights are dim, or the horn does not sound or sounds at a low

volume.

One of the following may be the cause of the problem:

● The battery may be discharged. (P. 426)

● The battery terminal connections may be loose or corroded.

The starter motor does not turn over (vehicles with a smart entry

& start system).

The engine starting system may be malfunctioning due to an electrical

problem such as an open circuit or a blown fuse. However, an interim

measure is available to start the engine. (P. 421)

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

421

The starter motor does not turn over, the interior lights and head-

lights do not turn on, or the horn does not sound.

One of the following may be the cause of the problem:

● One or both of the battery terminals may be disconnected.

● The battery may be discharged. (P. 426)

● There may be a malfunction in the steering lock system (vehicles

with a smart entry & start system).

Contact any authorized Toyota dealer or repairer, or another duly qualified

and equipped professional if the problem cannot be repaired, or if repair

procedures are unknown.

Emergency start function

When the engine does not start, the following steps can be used as an

interim measure to start the engine if the engine switch is functioning

normally:

1

Set the parking brake.

2

Shift the shift lever to N.

3

Turn the engine switch to ACCESSORY mode.

4

Press and hold the engine switch for about 15 seconds while

depressing the brake pedal (multi-mode manual transmission) or

clutch pedal (manual transmission) firmly.

Even if the engine can be started using the above steps, the system

may be malfunctioning. Have the vehicle inspected by any authorized

Toyota dealer or repairer, or another duly qualified and equipped pro-

fessional.

8

AYGO_OM_Europe_OM99P46E

422

8-2. Steps to take in an emergency

If the shift lever cannot be shifted (vehicles

with a multi-mode manual transmission)

If the shift lever cannot be shifted with your foot on the brake

pedal, there may be a problem with the shift lock system (a sys-

tem to prevent accidental operation of the shift lever). Have the

vehicle inspected by any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional immediately.

Also, when the vehicle’s battery is discharged, the shift lever

cannot be operated.

■ Charging the battery

P. 426

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

423

If the electronic key does not operate properly

(vehicles with a smart entry & start system)

If communication between the electronic key and vehicle is

interrupted

(P. 115) or the electronic key cannot be used

because the battery is depleted, the smart entry & start system

and wireless remote control cannot be used. In such cases, the

doors can be opened and the engine can be started by following

the procedure below.

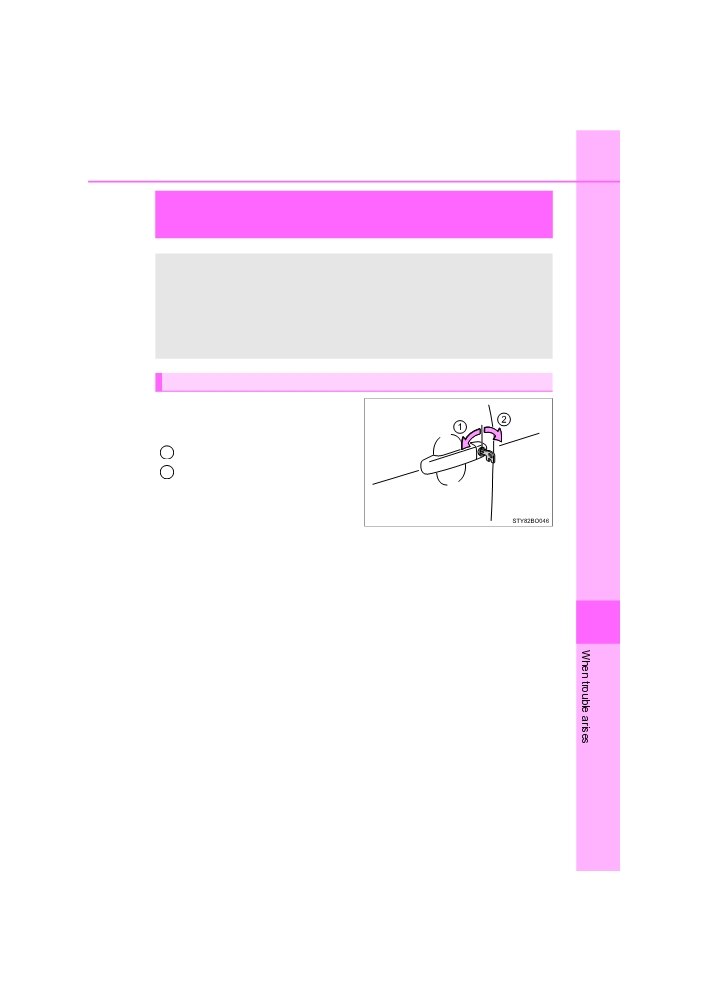

Locking and unlocking the doors

Use the mechanical key (P. 94)

in order to perform the following

operations:

1

Locks all the doors

2

Unlocks all the doors

8

AYGO_OM_Europe_OM99P46E

424

8-2. Steps to take in an emergency

Starting the engine

Ensure that the shift lever is in N and depress the brake pedal

1

(multi-mode manual transmission) or clutch pedal (manual trans-

mission).

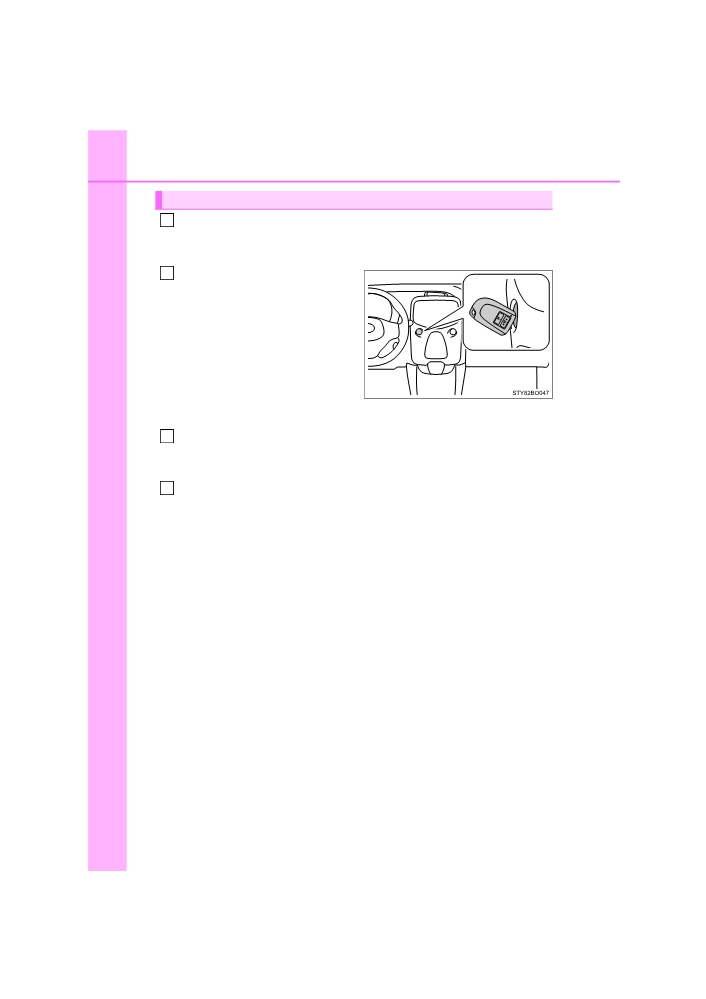

Touch the corner of the elec-

2

tronic key with the indicator to

the engine switch.

When the electronic key is

detected, a buzzer sounds and the

engine switch will turn to IGNITION

ON mode.

When the smart entry & start sys-

tem is deactivated in customization

setting, the engine switch will turn

to ACCESSORY mode.

Firmly depress the brake pedal (multi-mode manual transmission)

3

or clutch pedal (manual transmission) and check that smart entry &

start system indicator light (green) turns on.

Press the engine switch.

4

In the event that the engine still cannot be started, contact any autho-

rized Toyota dealer or repairer, or another duly qualified and equipped

professional.

AYGO_OM_Europe_OM99P46E

Content   ..  23  24  25  26   ..
