■Stopping the engine
Shift the shift lever to N and press the engine switch as you normally do when
stopping the engine.
■ Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(P. 348)
■ Changing engine switch modes
Release the brake pedal (multi-mode manual transmission) or clutch pedal
(manual transmission) and press the engine switch in step
above.
3
The engine does not start and modes will be changed each time the switch is
pressed. (P. 154)
■ When the electronic key does not work properly
● Make sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on.
(Customizable features: P. 453)
●Check if battery-saving mode is set. If it is set, cancel the function.
(P. 115)
8
AYGO_OM_Europe_OM99P46E
426
8-2. Steps to take in an emergency
If the vehicle battery is discharged
The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can also call any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.
1
Open the hood. (P. 322)
2

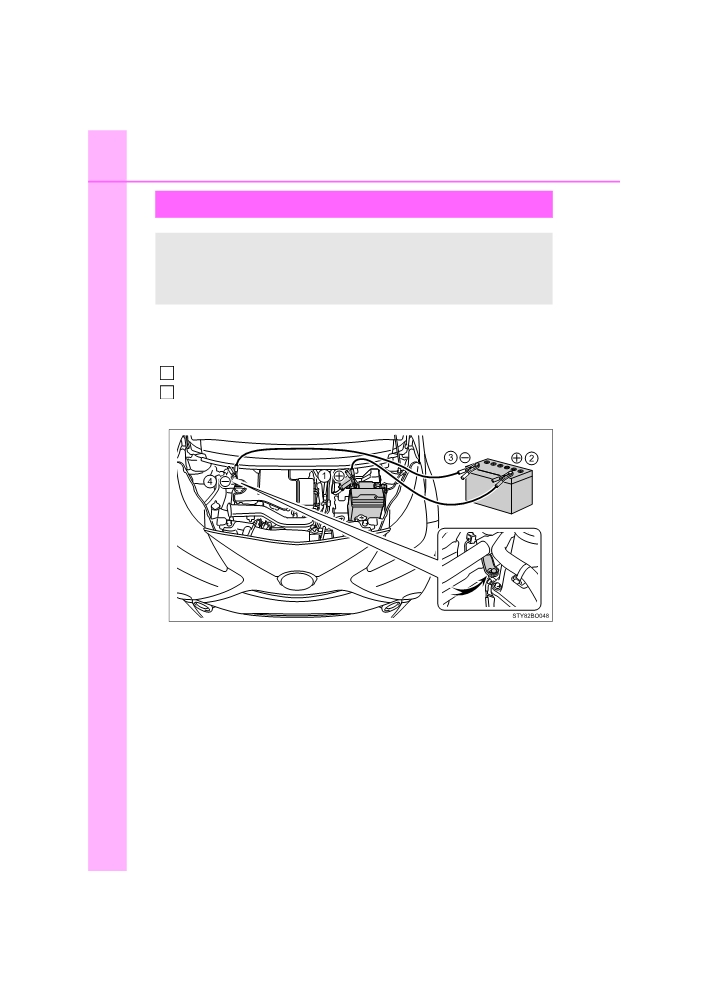

Connect the jumper cables according to the following procedure:
1KR engine
AYGO_OM_Europe_OM99P46E
8-2. Steps to take in an emergency
427
HM01 engine

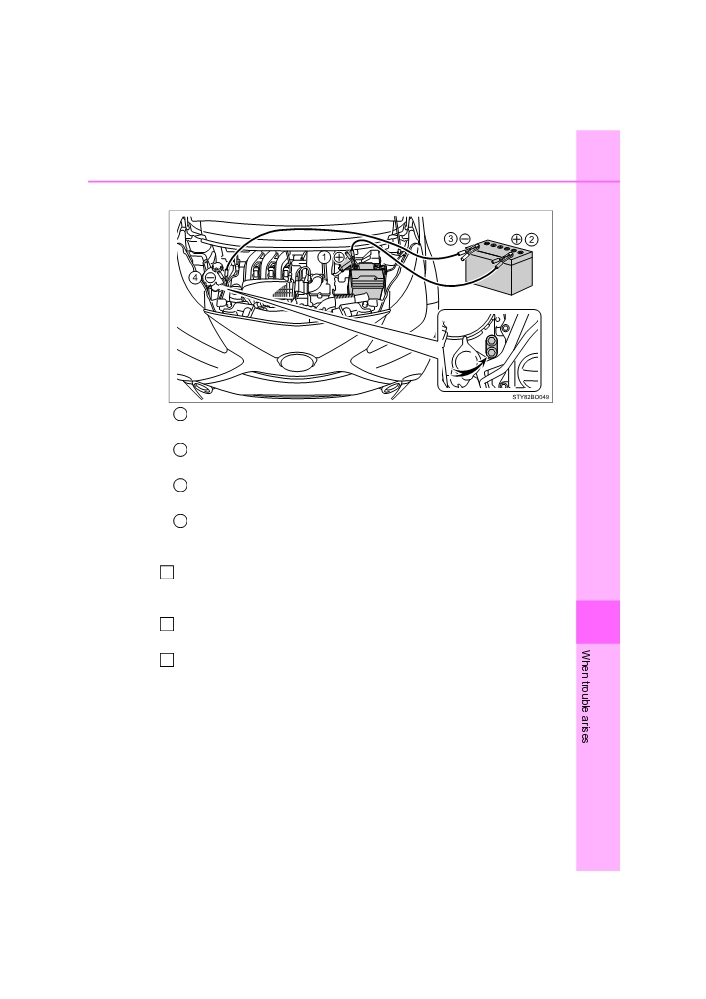

1
Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
2
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
3
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
4
solid, stationary, unpainted metallic point away from the battery
and any moving parts, as shown in the illustration.
Start the engine of the second vehicle. Increase the engine speed
3
slightly and maintain at that level for approximately 5 minutes to
recharge the battery of your vehicle.
8
4
Vehicles with a smart entry & start system only: Open and close
any of the doors of your vehicle with the engine switch off.
5
Vehicles without a smart entry & start system:
Maintain the engine speed of the second vehicle and start the
engine of your vehicle.
Vehicles with a smart entry & start system:
Maintain the engine speed of the second vehicle and start the
engine of your vehicle by turning the engine switch to IGNITION
ON mode.
AYGO_OM_Europe_OM99P46E
428
8-2. Steps to take in an emergency
6
Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.
Once the engine starts, have the vehicle inspected at any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional as soon as possible.
■ To prevent battery discharge
● Turn off the headlights and the audio system while the engine is off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
■ Precautions when the battery is discharged (vehicles with a smart entry
& start system)
●In some cases, it may not be possible to unlock the doors using the smart
entry & start system when the battery is discharged. Use the wireless
remote control or the mechanical key to lock or unlock the doors.
● The engine may not start on the first attempt after the battery has recharged
but will start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is
reconnected, the system will return to the mode it was in before the battery
was discharged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.
AYGO_OM_Europe_OM99P46E
8-2. Steps to take in an emergency
429
WARNING
■ Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the battery:
● Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
●Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
■ Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre-
cautions when handling the battery:
● When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
●Do not lean over the battery.
● In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
● Always wash your hands after handling the battery support, terminals, and
other battery-related parts.
●Do not allow children near the battery.
8
■ To prevent damage to the vehicle
Do not pull- or push-start the vehicle as the three-way catalytic converter
may overheat and become a fire hazard.
NOTICE
■ When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fan or engine drive belt.
AYGO_OM_Europe_OM99P46E
430
8-2. Steps to take in an emergency
If your vehicle overheats
The following may indicate that your vehicle is overheating.
● The high engine coolant temperature warning light (P. 383, 384)
comes on or flashes (1KR engine); comes on (HM01 engine); or a
loss of engine power is experienced. (For example, the vehicle
speed does not increase.)
● Steam comes out from under the hood.
Correction procedures
1
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
2
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
3
After the engine has cooled down sufficiently, inspect the hoses and
radiator core (radiator) for any leaks.

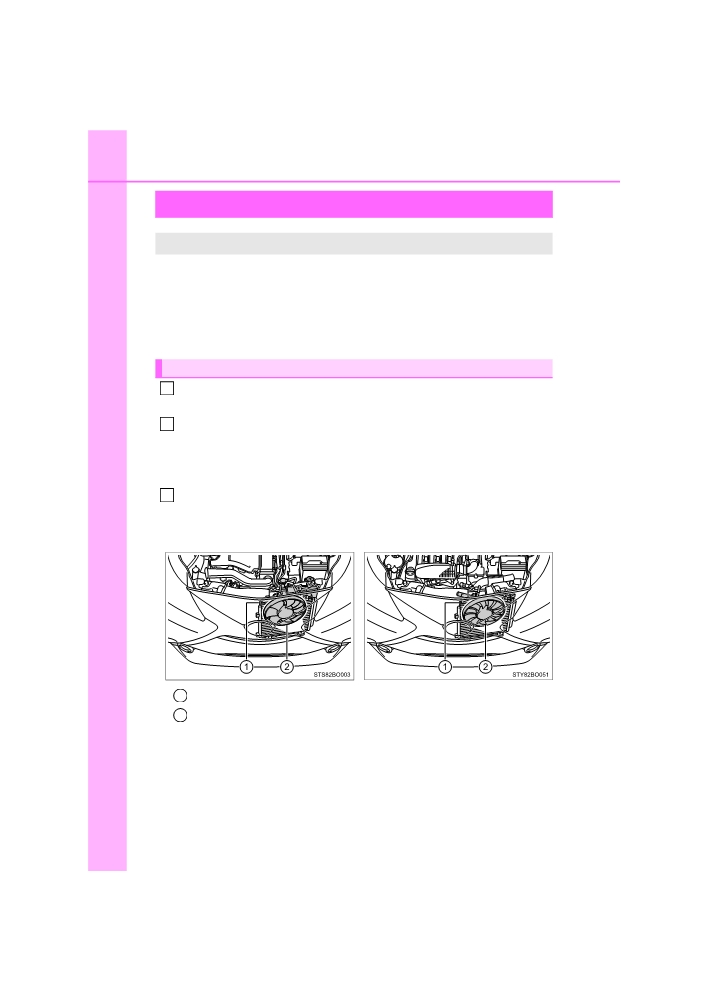

1KR engine
HM01 engine
1
Radiator
2
Cooling fan
If a large amount of coolant leaks, immediately contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
AYGO_OM_Europe_OM99P46E
8-2. Steps to take in an emergency
431
4

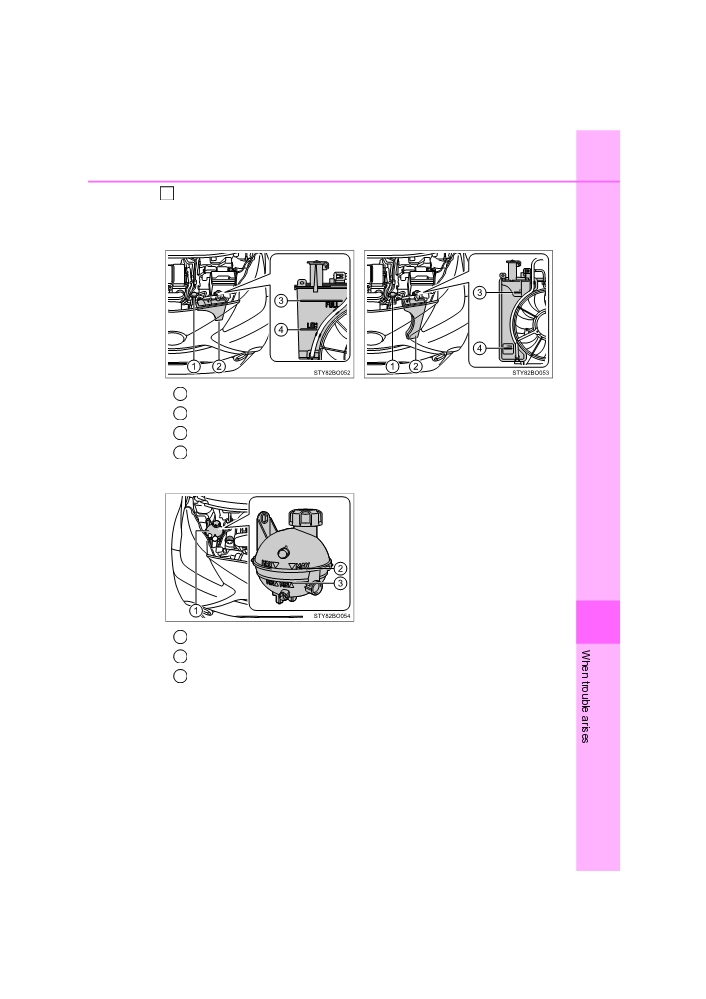

The coolant level is satisfactory if it is between the “FULL”, “F” or
“MAX” and “LOW” or “MIN” lines on the reservoir.
1KR engine (type A)
1KR engine (type B)
1
Radiator cap
2
Reservoir
3
“FULL” or “F”
4
“LOW”
HM01 engine
8
1
Reservoir
2
“MAX”
3
“MIN”
AYGO_OM_Europe_OM99P46E
432
8-2. Steps to take in an emergency
5

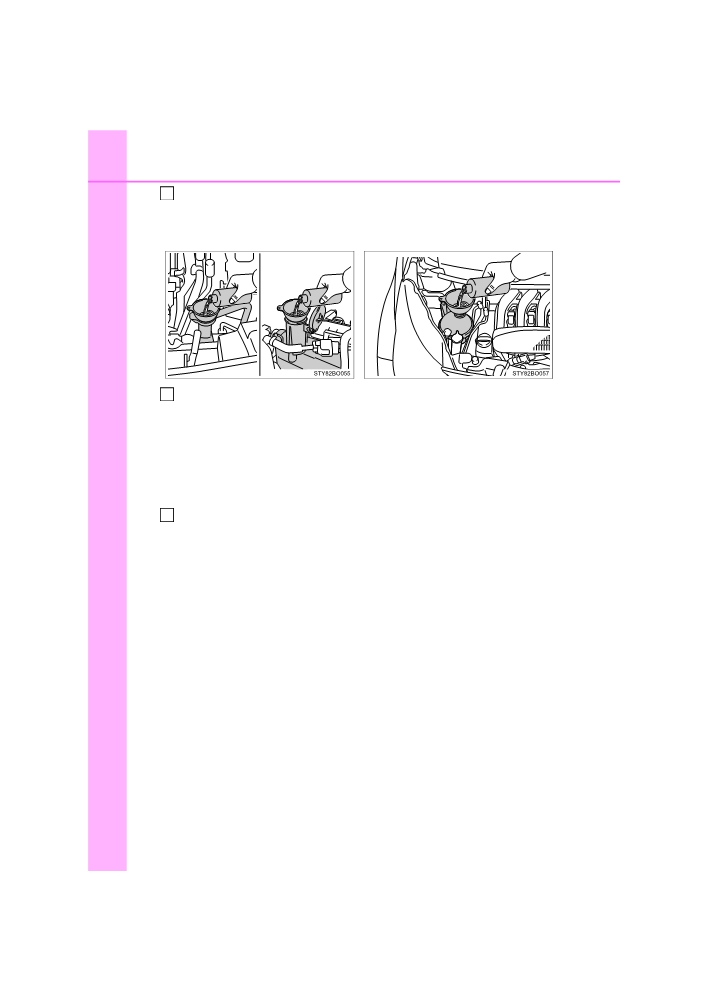

Add coolant if necessary.
Water
can be used in an emergency if coolant is unavailable.
1KR engine
HM01 engine
Start the engine and turn the air conditioning system on to check
6
that the radiator cooling fan operate and to check for coolant leaks
from the radiator or hoses.
The fan operate when the air conditioning system is turned on immediately
after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly. (The fan may not operate in freezing tem-
peratures.)
If the fan is not operating:
7
Stop the engine immediately and contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
If the fan is operating:
Have the vehicle inspected at the nearest any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
AYGO_OM_Europe_OM99P46E
8-2. Steps to take in an emergency
433
WARNING
■ When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
●Do not loosen the radiator cap (1KR engine only) and the coolant reservoir
cap while the engine and radiator are hot. High temperature steam or cool-
ant could spray out.
NOTICE
■ When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust,
etc.).
●Do not use any coolant additives.
8
AYGO_OM_Europe_OM99P46E
434
8-2. Steps to take in an emergency
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
1
Stop the engine. Set the parking brake and shift the shift lever to N.
2
Remove the mud, snow or sand from around the stuck tire.
3
Place wood, stones or some other material to help provide traction
under the tires.
4
Restart the engine.
5
Shift the shift lever to E, M or R (multi-mode manual transmission)
or 1 or R (manual transmission) and release the parking brake.
Then, while exercising caution, depress the accelerator pedal.
■ When it is difficult to free the vehicle (vehicles with a VSC system)
Press
to turn off TRC.
Turn off TRC and/or VSC if these functions are hampering your attempts to
free the vehicle. (P. 218)

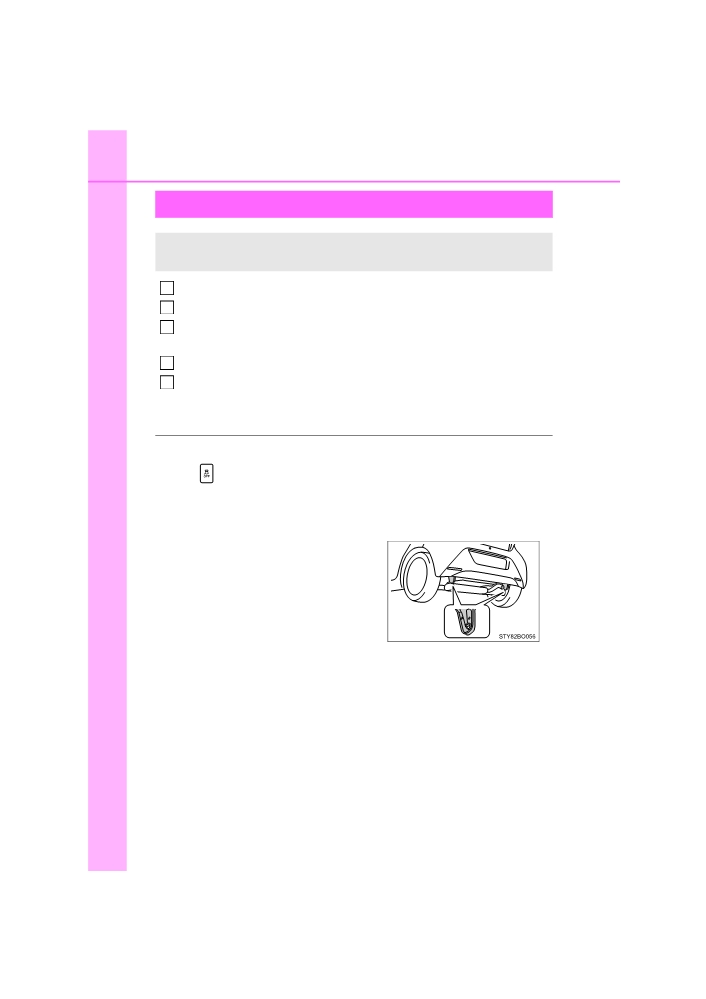

■Emergency hooks
When your vehicle becomes stuck and
cannot move, the emergency hooks are
used for another vehicle to pull your
vehicle to pull your vehicle out in an
emergency.
Your vehicle is not designed to tow
another vehicle.
AYGO_OM_Europe_OM99P46E
8-2. Steps to take in an emergency
435
WARNING
■ When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever (vehicles with a multi-mode manual trans-
mission)
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damaging the transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
8
AYGO_OM_Europe_OM99P46E
436
8-2. Steps to take in an emergency
AYGO_OM_Europe_OM99P46E
437
Vehicle specifications
9
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)
438
Fuel information
451
9-2. Customization
Customizable features
453
9-3. Items to initialize
Items to initialize
454
AYGO_OM_Europe_OM99P46E
438
9-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions
Overall length
3455 mm (136.0 in.)
Overall width
1615 mm (63.6 in.)
1460 mm (57.5 in.)
Overall height*1
1480 mm (58.3 in.)*2
Wheelbase
2340 mm (92.1 in.)
1425 mm (56.1 in.)
Front
1420 mm (55.9 in.)*2
Tread
Rear
1420 mm (55.9 in.)
Gross vehicle mass
1240 kg (2733 lb.)
Front
Maximum permissible
695 kg (1532 lb.)
axle capacity
Rear
*1: Unladen vehicle
*2: Vehicles with raised vehicle height
AYGO_OM_Europe_OM99P46E
9-1. Specifications
439
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.

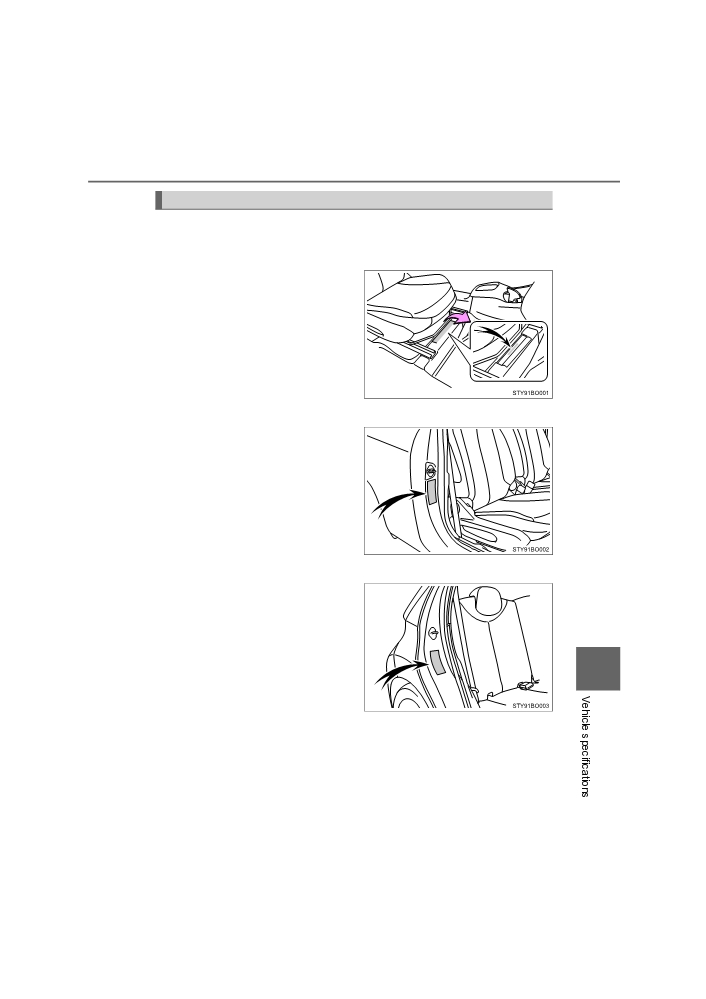

This number is stamped under the
right-hand front seat.
3-door models
This number is also on the manu-
facturer’s label on the right-hand
side center pillar.
5-door models
This number is also on the manu-
facturer’s label on the right-hand
side rear pillar.
9
AYGO_OM_Europe_OM99P46E
440
9-1. Specifications
Fuel
EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Fuel type
Except EU area:
Unleaded gasoline only
Research octane
95 or higher
number
Fuel tank capacity
35 L (9.2 gal., 7.7 Imp.gal.)
(Reference)
Lubrication system
1KR engine
Oil capacity
(Drain and refill Reference*)
With filter
2.8 L (3.0 qt., 2.5 Imp.qt.)
Without filter
2.6 L (2.7 qt., 2.3 Imp.qt.)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
AYGO_OM_Europe_OM99P46E
9-1. Specifications
441
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
Preferred
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.

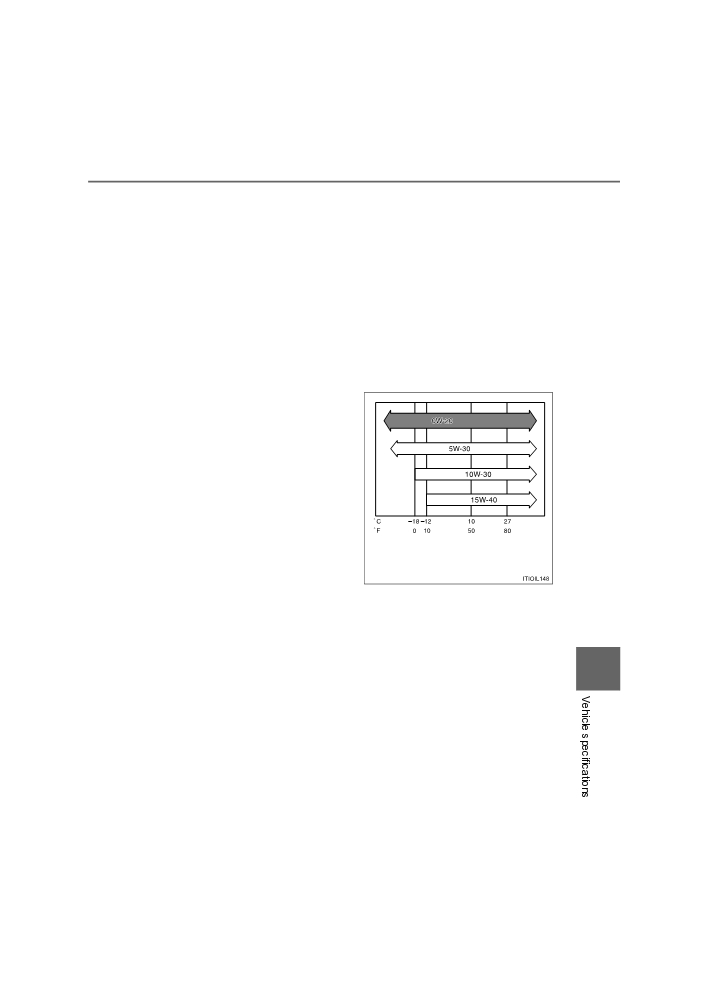

Temperature range anticipated
If you use SAE 10W-30 or a
before next oil change
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
9
AYGO_OM_Europe_OM99P46E
