Toyota Aygo (2017 year). Instruction - part 23

374

8-1. Essential information

WARNING

■ If the engine has to be turned off while driving

● Power assist for the brakes and steering wheel will be lost, making the

brake pedal harder to depress and the steering wheel heavier to turn.

Decelerate as much as possible before turning off the engine.

● Vehicles without a smart entry & start system: Never attempt to remove

the key, as doing so will lock the steering wheel.

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

375

If your vehicle needs to be towed

If towing is necessary, we recommend having your vehicle

towed by any authorized Toyota dealer or repairer, or another

duly qualified and equipped professional or commercial towing

service, using a wheel-lift type truck or flatbed truck.

Use a safety chain system for all towing, and abide by all state/

provincial and local laws.

Situations when it is necessary to contact dealers before towing

The following may indicate a problem with your transmission. Contact

any authorized Toyota dealer or repairer, or another duly qualified and

equipped professional or commercial towing service before towing.

● The engine is running but the vehicle does not move.

● The vehicle makes an abnormal sound.

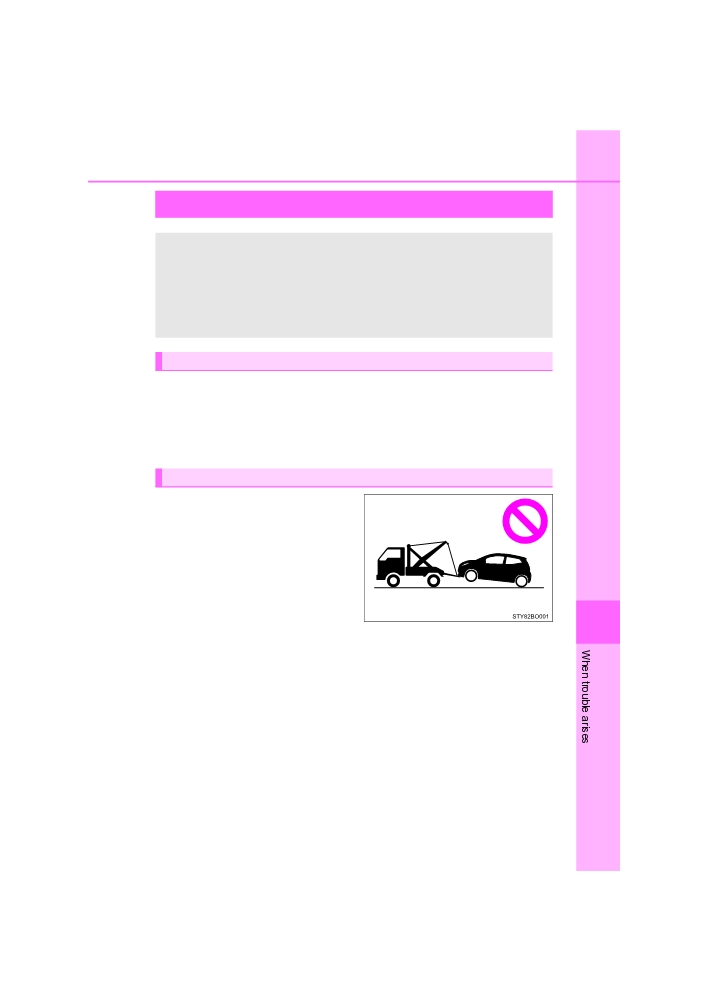

Towing with a sling-type truck

Do not tow with a sling-type truck

to prevent body damage.

8

AYGO_OM_Europe_OM99P46E

376

8-2. Steps to take in an emergency

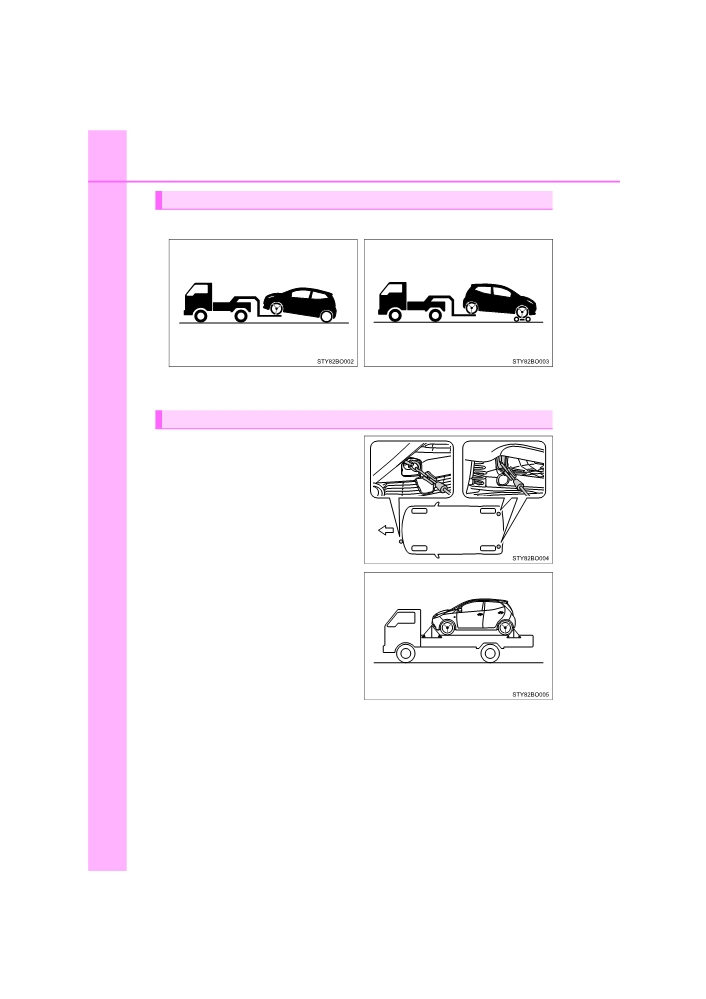

Towing with a wheel-lift type truck

 From the front

 From the rear

Release the parking brake.

Use a towing dolly under the

front wheels.

Using a flatbed truck

If your vehicle is transported by a

flatbed truck, it should be tied

down at the locations shown in the

illustration.

Bottom of

the vehicle

If you use chains or cables to tie

down your vehicle, the angles

shaded in black must be 45.

Do not overly tighten the tie

downs or the vehicle may be dam-

aged.

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

377

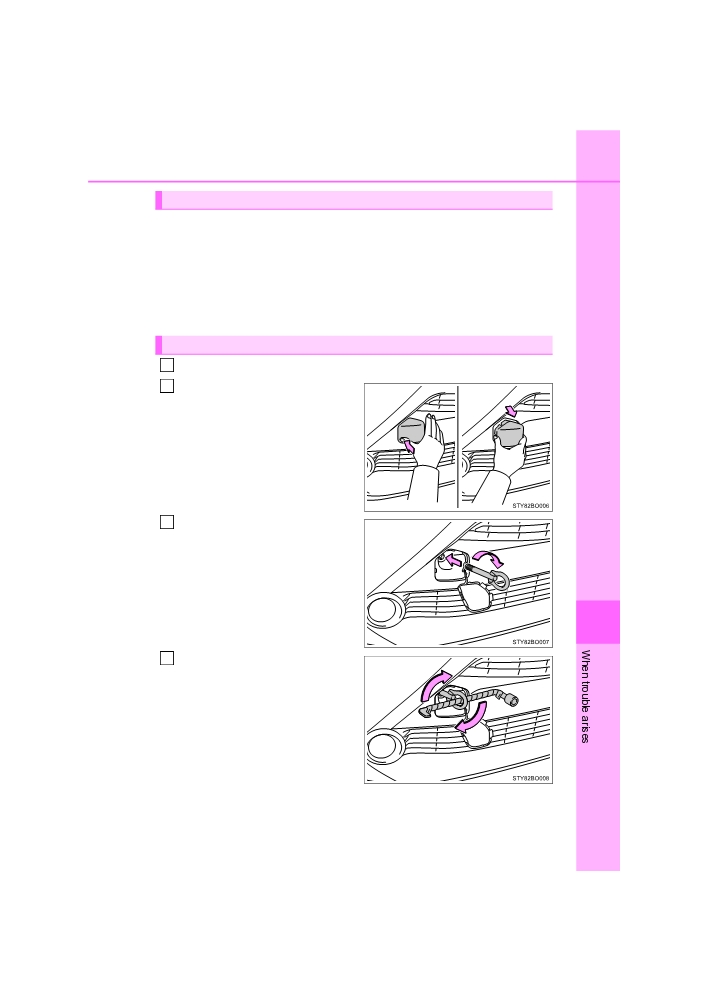

Emergency towing

If a tow truck is not available in an emergency, your vehicle may be

temporarily towed using cables or chains secured to the emergency

towing eyelet. This should only be attempted on hard surfaced roads

for at most 80 km (50 miles) at under 30 km/h (18 mph).

A driver must be in the vehicle to steer and operate the brakes. The

vehicle’s wheels, drive train, axles, steering and brakes must be in

good condition.

Emergency towing procedure

1

Take out the towing eyelet. (P. 394, 407)

2

Push the lower left of the eyelet

cover and then open it.

Insert the towing eyelet into the

3

hole and tighten partially by

hand.

8

Tighten down the towing eyelet

4

securely using a wheel bolt

wrench or hard metal bar.

To prevent damaging the front

bumper, wrap the wheel bolt

wrench with a rag as shown in the

illustration.

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

379

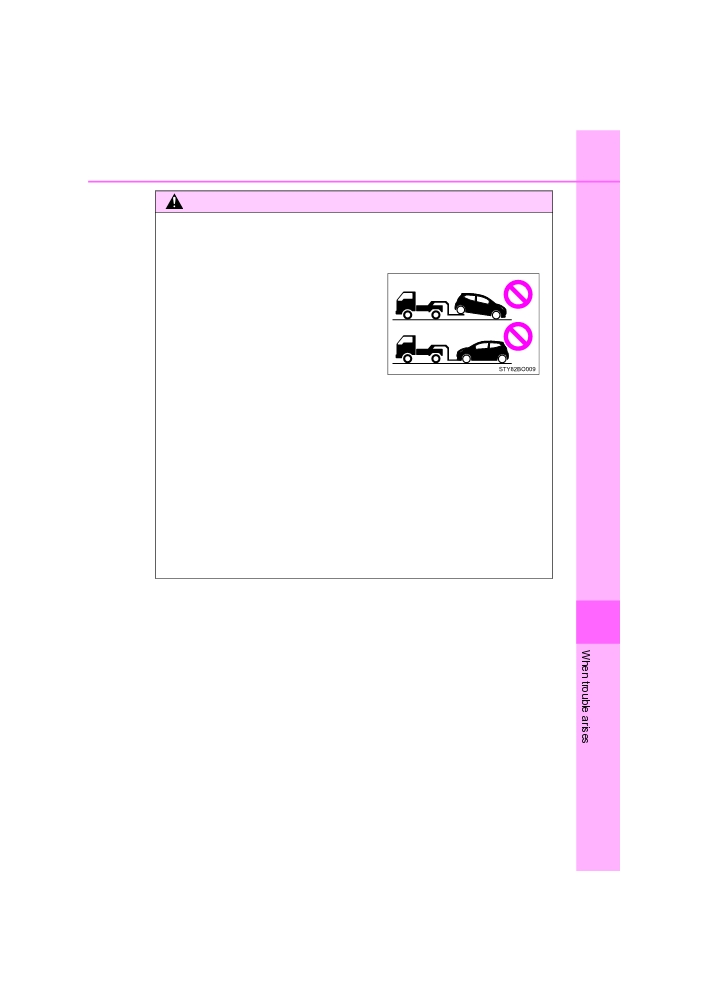

WARNING

Observe the following precautions.

Failure to do so may result in death or serious injury.

■ When towing the vehicle

Be sure to transport the vehicle with the

front wheels raised or with all four wheels

raised off the ground.

If the vehicle is towed with the front

wheels contacting the ground, the drive-

train and related parts may be damaged.

■ While towing

●When towing using cables or chains, avoid sudden starts, etc., which

place excessive stress on the towing eyelets, cables or chains. The towing

eyelets, cables or chains may become damaged, broken debris may hit

people, and cause serious damage.

●Do not turn the engine switch to the “LOCK” position (vehicles without a

smart entry & start system) or off (vehicles with a smart entry & start sys-

tem).

There is a possibility that the steering wheel is locked and cannot be oper-

ated.

■ Installing towing eyelet to the vehicle

Make sure that towing eyelet are installed securely.

If not securely installed, towing eyelet may come loose during towing.

8

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

381

If you think something is wrong

If you notice any of the following symptoms, your vehicle proba-

bly needs adjustment or repair. Contact any authorized Toyota

dealer or repairer, or another duly qualified and equipped pro-

fessional as soon as possible.

Visible symptoms

● Fluid leaks under the vehicle

(Water dripping from the air conditioning after use is normal.)

● Flat-looking tires or uneven tire wear

● High engine coolant temperature warning light comes on

● “STOP” indicator flashes

Audible symptoms

● Changes in exhaust sound

● Excessive tire squeal when cornering

● Strange noises related to the suspension system

● Pinging or other noises related to the engine

Operational symptoms

● Engine misses, stumbling or running roughly

● Appreciable loss of power

● Vehicle pulls heavily to one side when braking

8

● Vehicle pulls heavily to one side when driving on a level road

● Loss of brake effectiveness, spongy feeling, pedal almost touches

the floor

AYGO_OM_Europe_OM99P46E

382

8-2. Steps to take in an emergency

Fuel pump shut off system

To minimize the risk of fuel leakage when the engine stalls (1KR

engine only) or when an airbag inflates upon collision, the fuel

pump shut off system stops the supply of fuel to the engine.

Follow the procedure below to restart the engine after the system is

activated.

 Vehicles without a smart entry & start system

1

Turn the engine switch to the “ACC” or “LOCK” position.

2

Restart the engine.

 Vehicles with a smart entry & start system

1

Turn the engine switch to ACCESSORY mode or turn it off.

2

Restart the engine.

NOTICE

■ Before starting the engine

Inspect the ground under the vehicle.

If you find that fuel has leaked onto the ground, the fuel system has been

damaged and is in need of repair. Do not restart the engine.

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

383

If a warning light turns on or a warning

buzzer sounds

Calmly perform the following actions if any of the warning lights

comes on or flashes. If a light comes on or flashes, but then

goes off, this does not necessarily indicate a malfunction in the

system. However, if this continues to occur, have the vehicle

inspected by any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

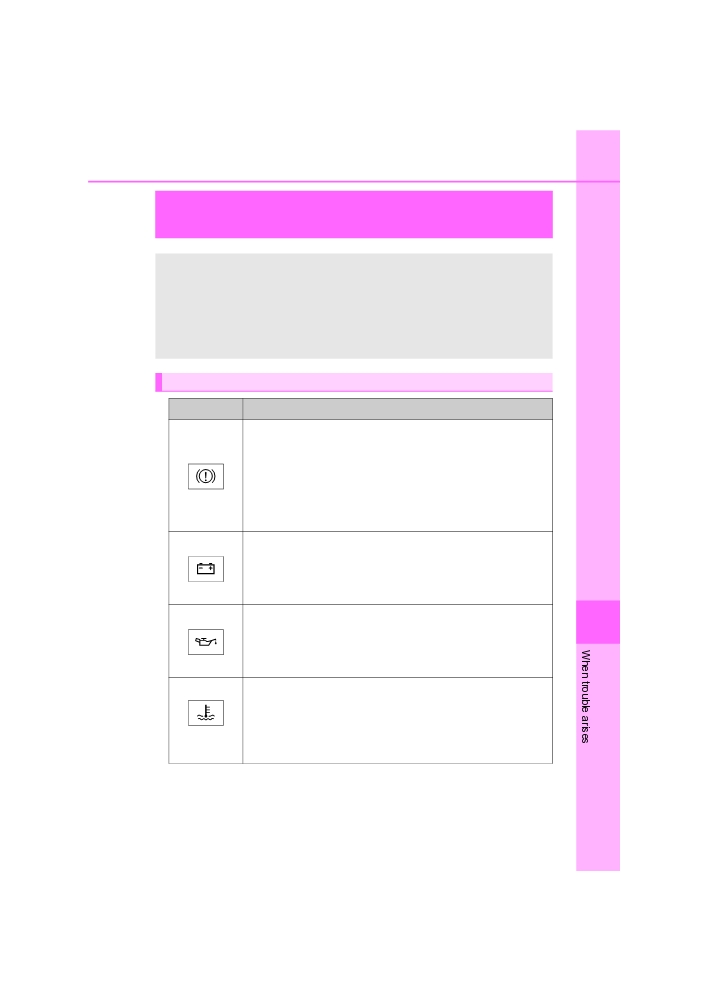

Warning light and warning buzzer list

Warning light

Warning light/Details/Actions

Brake system warning light (warning buzzer)*1

Indicates that:

• The brake fluid level is low; or

• The brake system is malfunctioning

 Immediately stop the vehicle in a safe place and con-

tact any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

Continuing to drive the vehicle may be dangerous.

Charging system warning light

Indicates a malfunction in the vehicle’s charging system

 Immediately stop the vehicle in a safe place and con-

tact any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

Low engine oil pressure warning light

8

Indicates that the engine oil pressure is too low.

 Immediately stop the vehicle in a safe place and con-

tact any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

High engine coolant temperature warning light (for 1KR

engine)

Indicates that the engine is overheating.

As the coolant temperature rise, it changes from flashing

(Flashes or

comes on)

to comes on.

 P. 430

AYGO_OM_Europe_OM99P46E

384

8-2. Steps to take in an emergency

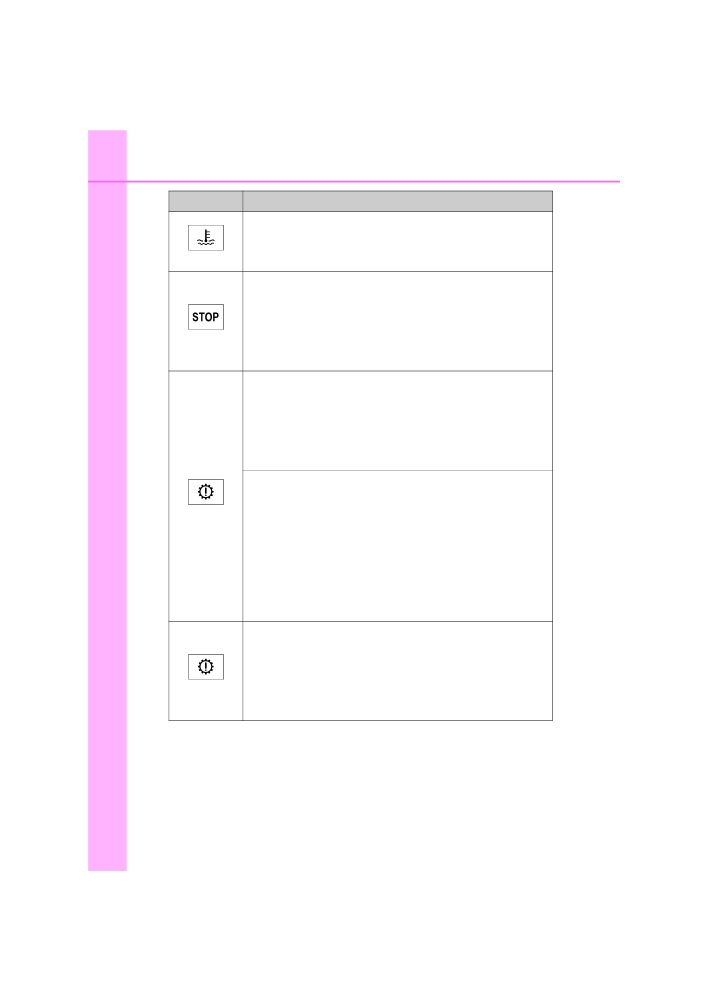

Warning light

Warning light/Details/Actions

High engine coolant temperature warning light

(for

HM01 engine)

Indicates that the engine is overheating.

(Comes on)

 P. 430

“STOP” warning light

Indicates a malfunction in:

• Engine oil pressure is too low; or

• Engine is almost overheating.

(Flashes)

 Immediately stop the vehicle in a safe place and con-

tact any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

Multi-mode manual transmission warning light (vehicles

with a multi-mode manual transmission)

Indicates a malfunction in the multi-mode manual trans-

mission system.

 Have the system checked by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional.

Multi-mode manual transmission warning light (warning

buzzer) (vehicles with a multi-mode manual transmis-

sion)

(Comes on)

Indicates a malfunction in the multi-mode manual trans-

mission system and that the clutch has become hot due to

excessive load.

 Pull over and shift the shift lever to N. Wait for about

15 minutes for the clutch to cool down. Have the sys-

tem checked by any authorized Toyota dealer or

repairer, or another duly qualified and equipped pro-

fessional.

Heat clutch warning light (warning buzzer) (vehicles

with a multi-mode manual transmission)

Indicates that the clutch has become hot, but does not

indicate a malfunction in the multi-mode manual transmis-

(Flashes)

sion system.

 Pull over and shift the shift lever to N. Wait for about

15 minutes for the clutch to cool down.

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

385

Warning light

Warning light/Details/Actions

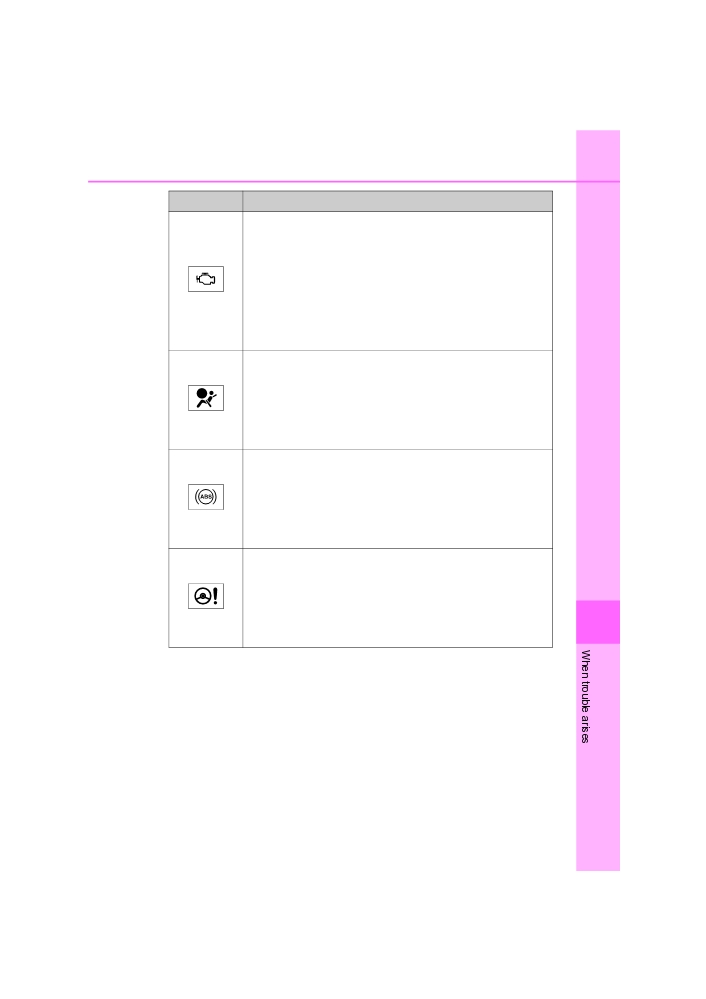

Malfunction indicator lamp

Indicates a malfunction in:

• The electronic engine control system;

• The electronic throttle control system;

• The emission control system; or

• The electronic multi-mode manual transmission control

system (if equipped).

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional immediately.

SRS warning light

Indicates a malfunction in:

• The SRS airbag system; or

• The seat belt pretensioner system.

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional immediately.

ABS warning light

Indicates a malfunction in:

• The ABS; or

• The brake assist system

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional immediately.

Electric power steering system warning light (warning

buzzer)

Indicates a malfunction in the EPS (Electric Power Steer-

ing) system

 Have the vehicle inspected by any authorized Toyota

8

dealer or repairer, or another duly qualified and

equipped professional immediately.

AYGO_OM_Europe_OM99P46E

386

8-2. Steps to take in an emergency

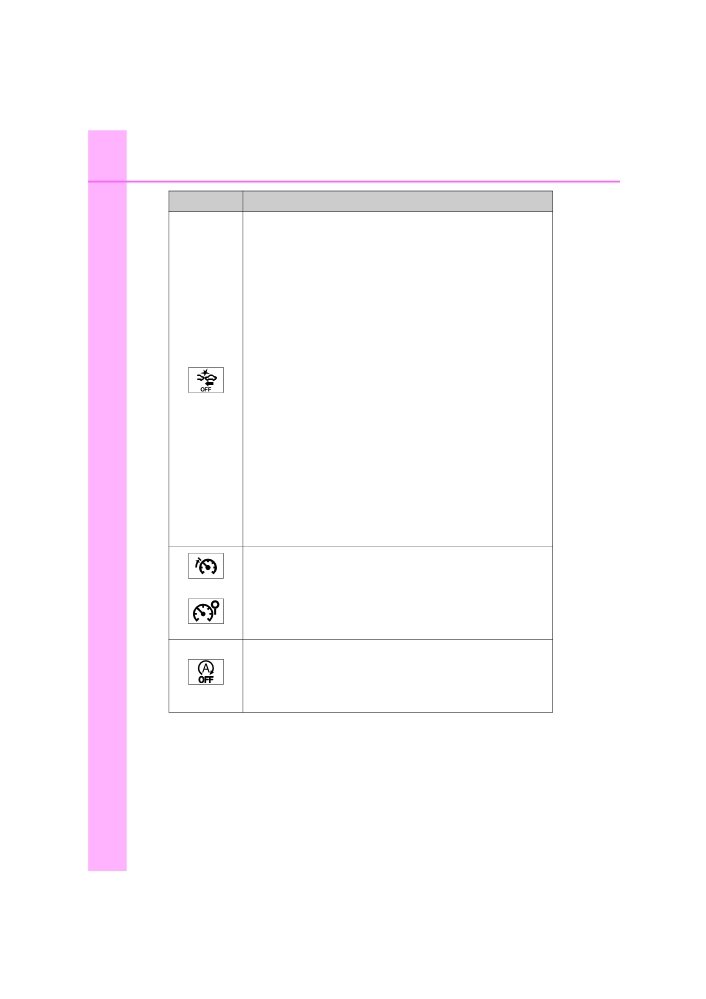

Warning light

Warning light/Details/Actions

PCS warning light (if equipped)

When the warning light flashes (and a buzzer sounds):

Indicates a malfunction in the PCS (Pre-Crash Safety sys-

tem)

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional immediately.

When the warning light illuminates:

Indicates that the PCS (Pre-Crash Safety system) is tem-

porarily unavailable, possibly due to either of the following:

• The part of the windshield around the front sensor being

dirty, fogged up or covered with condensation, ice, stick-

ers, etc.

 Clear the dirt, fog, condensation, ice, stickers, etc.

(P. 184)

• Front sensor temperature being outside of its opera-

tional range

 Wait for a while until the area around the front sensor

has cooled down sufficiently.

When the warning light is illuminated:

Either the VSC (Vehicle Stability Control) system or PCS

(Pre-Crash Safety system) is disabled or both are dis-

abled.

 To enable the PCS, enable both the VSC system and

PCS. (P. 189, 219)

Speed limiter indicator (if equipped)

Indicates a malfunction in the speed limiter system.

(Yellow)

(For 1KR engine)

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional immediately.

(For HM01 engine)

Stop & Start cancel indicator (if equipped)

Indicates a malfunction in the Stop & Start system

 Have the vehicle inspected by any authorized Toyota

(Flashes)

dealer or repairer, or another duly qualified and

equipped professional immediately.

AYGO_OM_Europe_OM99P46E

8-2. Steps to take in an emergency

387

Warning light

Warning light/Details/Actions

Slip indicator (if equipped)

Indicates a malfunction in:

• The VSC system;

• The TRC system; or

• The hill-start assist control system.

The light will flash when the VSC, the TRC or the hill-start

assist control system is operating.

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional immediately.

LDA indicator and Lane marker indicators (if equipped)

Indicates a malfunction in the LDA system.

(Yellow)

 Have the vehicle inspected by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional.

(Yellow)

Smart entry & start system indicator light

(warning

buzzer) (if equipped)

Indicates a malfunction in the smart entry & start system

 Have the vehicle inspected by any authorized Toyota

(Flashes in yellow

for 15 seconds)

dealer or repairer, or another duly qualified and

equipped professional immediately.

Open door warning light (warning buzzer)*2

Indicates that a door is not fully closed

 Check that all the doors are closed.

Driver’s and front passenger’s seat belt reminder light

(warning buzzer)*3

Warns the driver and/or front passenger to fasten their

seat belts

8

 Fasten the seat belt.

If the front passenger’s seat is occupied, the front

passenger’s seat belt also needs to be fastened to

make the warning light (warning buzzer) turn off.

Rear passengers’ seat belt reminder lights (warning

buzzer)*3

Warn the rear passengers to fasten their seat belts

(On the center panel)

 Fasten the seat belt.

Low fuel level warning light (warning buzzer)

Indicates remaining fuel is approximately 5.25 L (1.4 gal.,

1.1 Imp.gal.) or less

 Refuel the vehicle.

AYGO_OM_Europe_OM99P46E

388

8-2. Steps to take in an emergency

Warning light

Warning light/Details/Actions

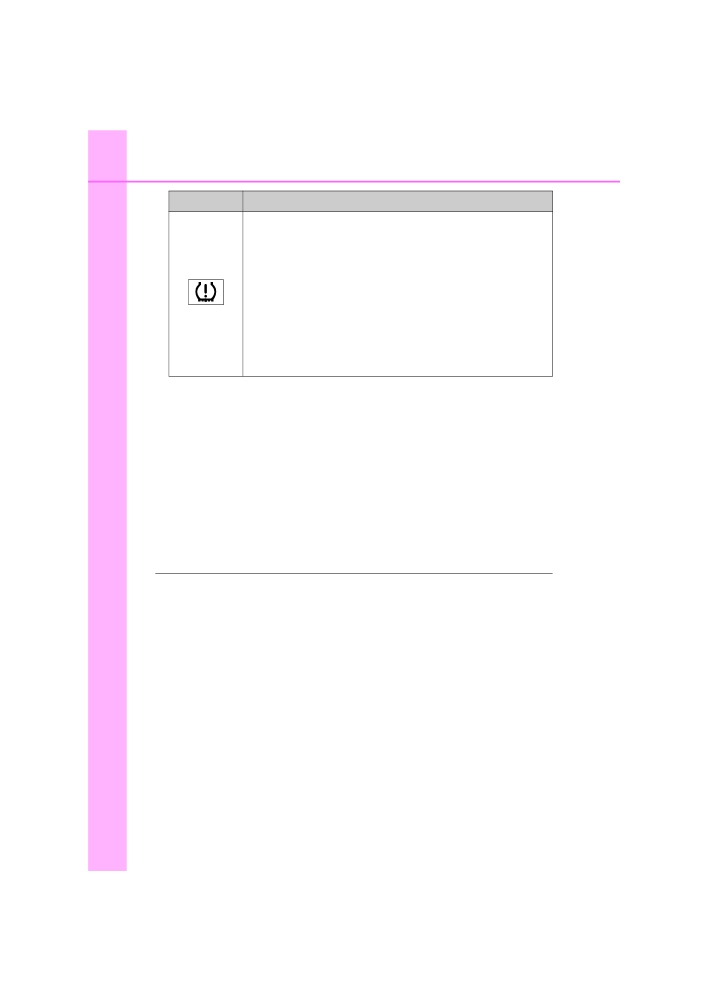

Tire pressure warning light (if equipped)

When the light comes on:

Low tire inflation pressure such as

• Natural causes (P. 389)

• Flat tire (P. 393, 406)

 Adjust the tire inflation pressure to the specified level

and carry out initialization.

When the light comes on after blinking for 1 minute:

Malfunction in the tire pressure warning system

 Have the system checked by any authorized Toyota

dealer or repairer, or another duly qualified and

equipped professional.

*1: Parking brake engaged warning buzzer:

A buzzer will sound if the vehicle is driven at a speed of approximately

5 km/h (3 mph) or more.

*2: Open door warning buzzer:

A buzzer will sound if the vehicle reaches a speed of 5 km/h (3 mph) or

more with any door open.

*3: Driver’s and passenger’s seat belt buzzer:

The driver’s and passenger’s seat belt buzzer sounds to alert the driver

and passenger that his or her seat belt is not fastened. The buzzer sounds

for 30 seconds after the vehicle reaches a speed of 20 km/h (12 mph).

Then, if the seat belt is still unfastened, the buzzer will sound in a different

tone for 90 more seconds.

■ To prevent the clutch from overheating (vehicles with a multi-mode man-

ual transmission)

● Do not use the accelerator pedal or starting assist system to hold the vehicle

on a hill.

● On an uphill incline, observe the following whenever possible:

• Maintain a safe distance from the vehicle ahead and avoid unnecessary

starting off and stopping.

• Avoid using E mode on an uphill slope. This will help to avoid unneces-

sary gear changes.

AYGO_OM_Europe_OM99P46E

390

8-2. Steps to take in an emergency

WARNING

■ If both the ABS and the brake system warning lights remain on

Stop your vehicle in a safe place immediately and contact any authorized

Toyota dealer or repairer, or another duly qualified and equipped profes-

sional. The vehicle will become extremely unstable during braking, and the

ABS system may fail, which could cause an accident resulting in death or

serious injury.

■ When the electric power steering system warning light comes on

The steering wheel may become extremely heavy.

If the steering wheel becomes heavier than usual when operating, hold

firmly and operate using more force than usual.

■ If the tire pressure warning light comes on (vehicles with the tire pres-

sure warning system)

Be sure to observe the following precautions. Failure to do so could cause a

loss of vehicle control and result in death or serious injury.

●Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-

tion pressure immediately.

● If the tire pressure warning light comes on even after tire inflation pressure

adjustment, it is probable that you have a flat tire. Check the tires. If a tire

is flat, change it with the spare tire and have the flat tire repaired by the

nearest any authorized Toyota dealer or repairer, or another duly qualified

and equipped professional.

● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you

could lose control of the steering wheel or the brakes.

■ If a blowout or sudden air leakage should occur (vehicles with the tire

pressure warning system)

The tire pressure warning system may not activate immediately.

NOTICE

■ To ensure the tire pressure warning system operates properly (vehi-

cles with the tire pressure warning system)

Do not install tires with different specifications or makers, as the tire pres-

sure warning system may not operate properly.

AYGO_OM_Europe_OM99P46E

Content   ..  21  22  23  24   ..
