Fuse

Ampere

Circuit

Steering lock system, multiport fuel injec-

tion system/sequential multiport fuel

IG2 NO.2

injection system, multi-mode manual

transmission

A/BAG

7.5

SRS airbag system

METER

Gauges and meters, Stop & Start system

15*1

Multiport fuel injection system/sequential

IG2 NO.1

multiport fuel injection system, stop lights

7.5*2

7.5*1

Multiport fuel injection system/sequential

EFI NO.1

multiport fuel injection system, Stop &

10*

Start system

OBD

7.5

On-board diagnosis system

Stop lights, high mounted stoplight, multi-

port fuel injection system/sequential mul-

tiport fuel injection system, anti-lock

STOP

brake system, vehicle stability control

system, multi-mode manual transmis-

sion, smart entry & start system

Position lights, license plate lights, rear

fog light, front fog lights, tail lights, switch

illumination, multiport fuel injection sys-

TAIL

tem/sequential multiport fuel injection

system, gauges and meters, audio sys-

tem

HTR

Air conditioning system

HTR, OBD, A/C, TAIL, FOG RR, STOP,

AM1

P/W, DOOR F/L, DOOR F/R

AM2 NO.1

EFI NO.2, EFI-MAIN, D/L

Multiport fuel injection system/sequential

EFI NO.2*1

7.5

multiport fuel injection system

EFI NO.1, multiport fuel injection system/

EFI-MAIN*1

sequential multiport fuel injection system,

fuel pump

D/L

Main body ECU, door lock system

P/W

Power windows

AYGO_OM_Europe_OM99P46E

358

7-3. Do-it-yourself maintenance

Fuse

Ampere

Circuit

DOOR F/R*3

Power windows

DOOR F/L*4

A/C

Air conditioning system

FOG RR

Rear fog light

*1: 1KR engine

*2: HM01 engine

*3: Left-hand drive vehicles

*4: Right-hand drive vehicles

■ After a fuse is replaced

● If the lights do not turn on even after the fuse has been replaced, a bulb may

need replacement. (P. 359)

● If the replaced fuse blows again, have the vehicle inspected by any autho-

rized Toyota dealer or repairer, or another duly qualified and equipped pro-

fessional.

■ If there is an overload in a circuit

The fuses are designed to blow, protecting the wiring harness from damage.

WARNING

■ To prevent system breakdowns and vehicle fire

Observe the following precautions.

Failure to do so may cause damage to the vehicle, and possibly a fire or

injury.

●Never use a fuse of a higher amperage rating than that indicated, or use

any other object in place of a fuse.

●Always use a genuine Toyota fuse or equivalent.

Never replace a fuse with a wire, even as a temporary fix.

●Do not modify the fuses or fuse boxes.

NOTICE

■ Before replacing fuses

Have the cause of electrical overload determined and repaired by any

authorized Toyota dealer or repairer, or another duly qualified and equipped

professional as soon as possible.

AYGO_OM_Europe_OM99P46E

7-3. Do-it-yourself maintenance

359

Light bulbs

You may replace the following bulbs by yourself. The difficulty

level of replacement varies depending on the bulb. As there is a

danger that components may be damaged, we recommend that

replacement is carried out by any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional.

Preparing for light bulb replacement

Check the wattage of the light bulb to be replaced. (P. 450)

Bulb locations

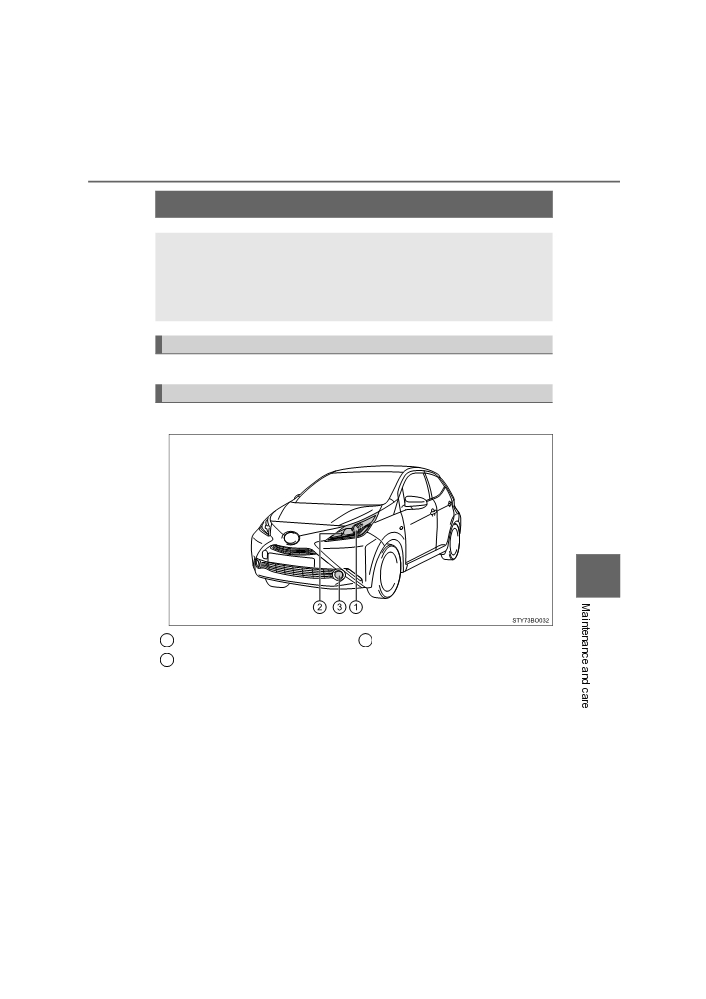

■ Front

Headlights

Front fog lights (if equipped)

Front turn signal lights

AYGO_OM_Europe_OM99P46E

360

7-3. Do-it-yourself maintenance

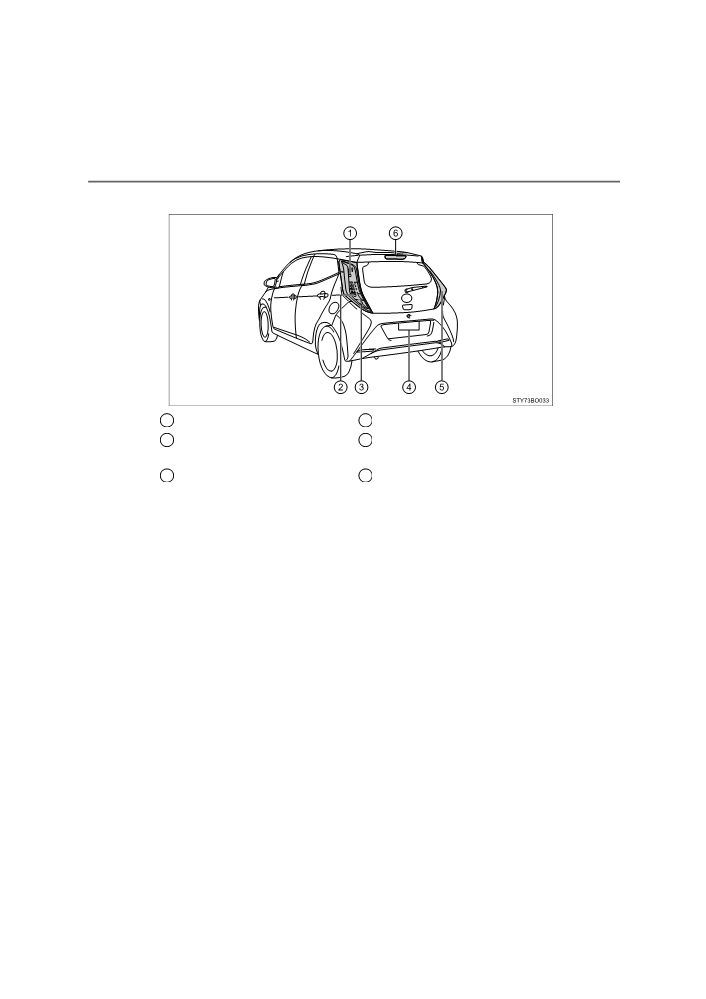

■ Rear

Stop/tail lights

License plate lights

Rear fog light*1 or back-up

Back-up light*1 or rear fog

light*2

Rear turn signal lights

High mounted stoplight

*1: Left-hand drive vehicles

*2: Right-hand drive vehicles

AYGO_OM_Europe_OM99P46E

7-3. Do-it-yourself maintenance

361

Replacing light bulbs

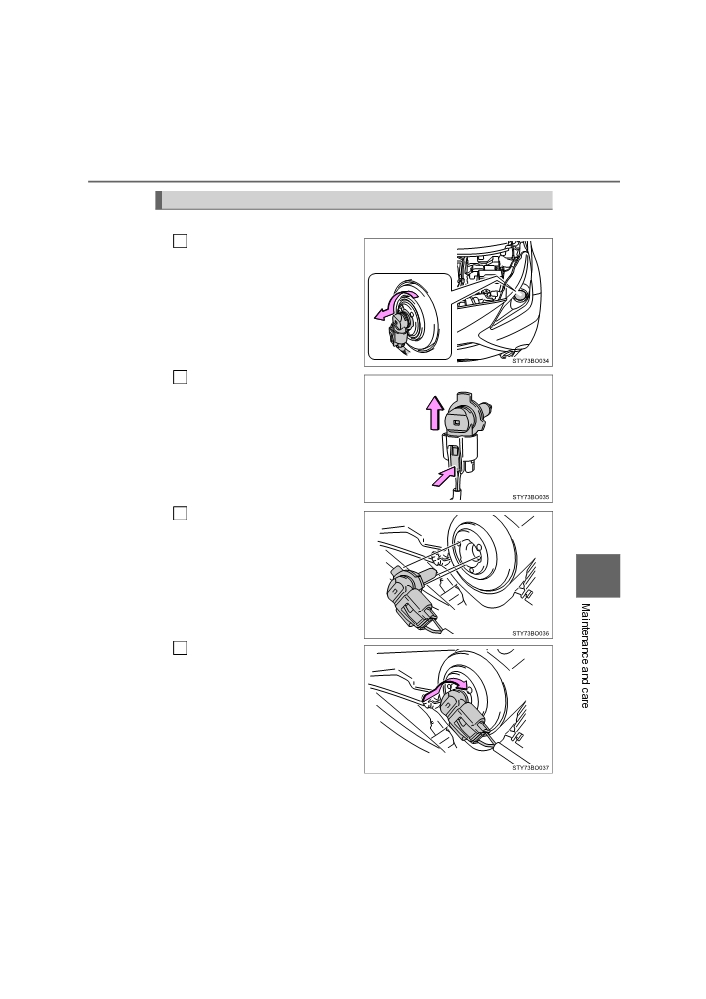

■ Headlights

Turn the bulb base counter-

clockwise.

Unplug the connector while

pressing the lock release.

Replace the light bulb, and

install the bulb base.

Align the 3 tabs on the light bulb

with the mounting, and insert.

Turn and secure the bulb

base.

Shake the bulb base gently to

check that it is not loose, turn

the headlights on once and visu-

ally confirm that no light is leak-

ing through the mounting.

AYGO_OM_Europe_OM99P46E

362

7-3. Do-it-yourself maintenance

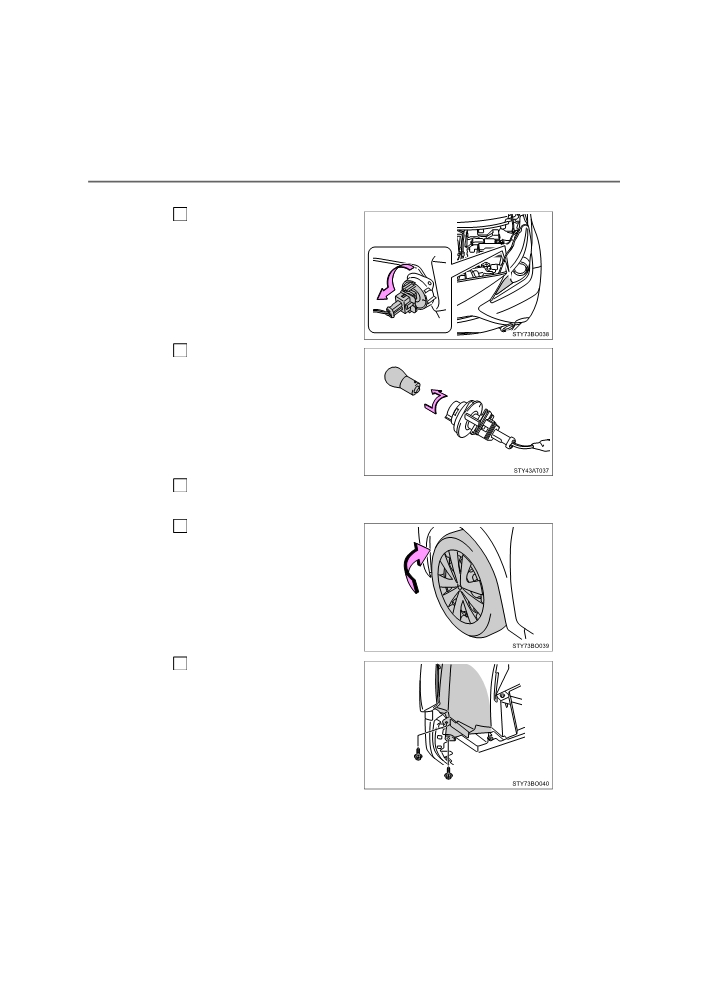

■ Front turn signal lights

Turn the bulb base counter-

clockwise.

Remove the light bulb.

When installing, reverse the steps listed.

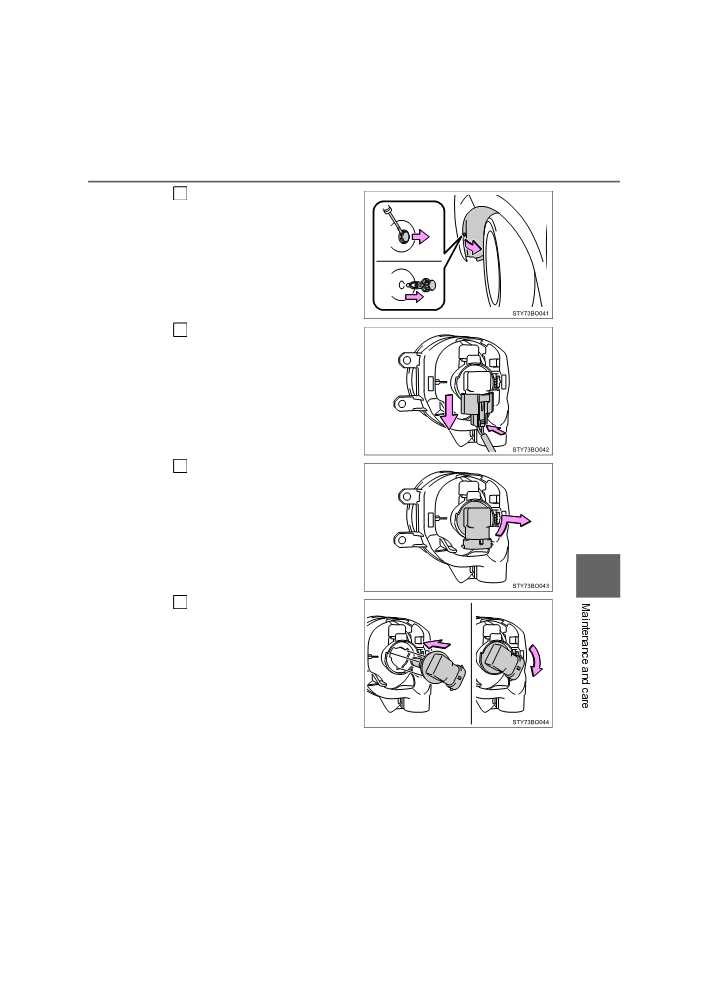

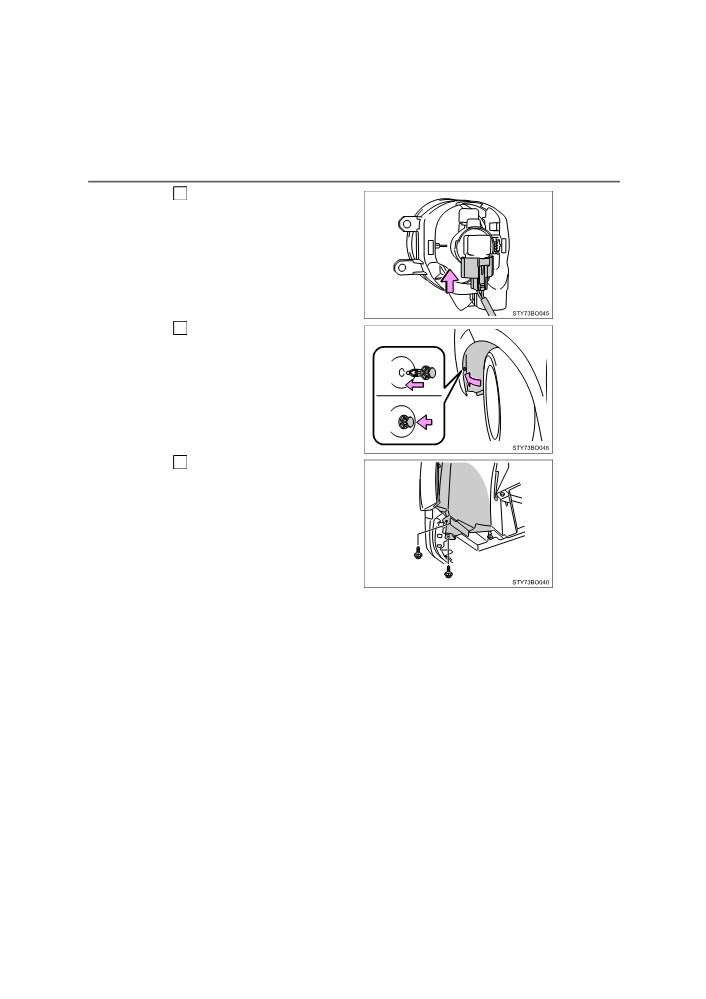

■ Front fog lights (if equipped)

To allow enough working

space, turn the steering

wheel to the opposite side of

the bulb to be replaced.

Turn the steering wheel to the

left when replacing the right side

light bulb, and turn the steering

wheel to the right when replac-

ing the left side light bulb.

Remove the 2 screws.

AYGO_OM_Europe_OM99P46E

7-3. Do-it-yourself maintenance

363

Remove the fender liner clip

and open the fender liner.

Unplug the connector while

pressing the lock release.

Turn the bulb base counter-

clockwise.

Set the new light bulb.

Align the 3 tabs on the light bulb

with the mounting, and insert.

Turn it clockwise to set.

AYGO_OM_Europe_OM99P46E

364

7-3. Do-it-yourself maintenance

Set the connector.

After installing the connector,

shake the bulb base gently to

check that it is not loose, turn

the fog lights on once and visu-

ally confirm that no light is leak-

ing through the mounting.

Reinstall the fender liner and

install the clip.

Insert the clip and turn to lock.

Reinstall the 2 screws.

AYGO_OM_Europe_OM99P46E

7-3. Do-it-yourself maintenance

365

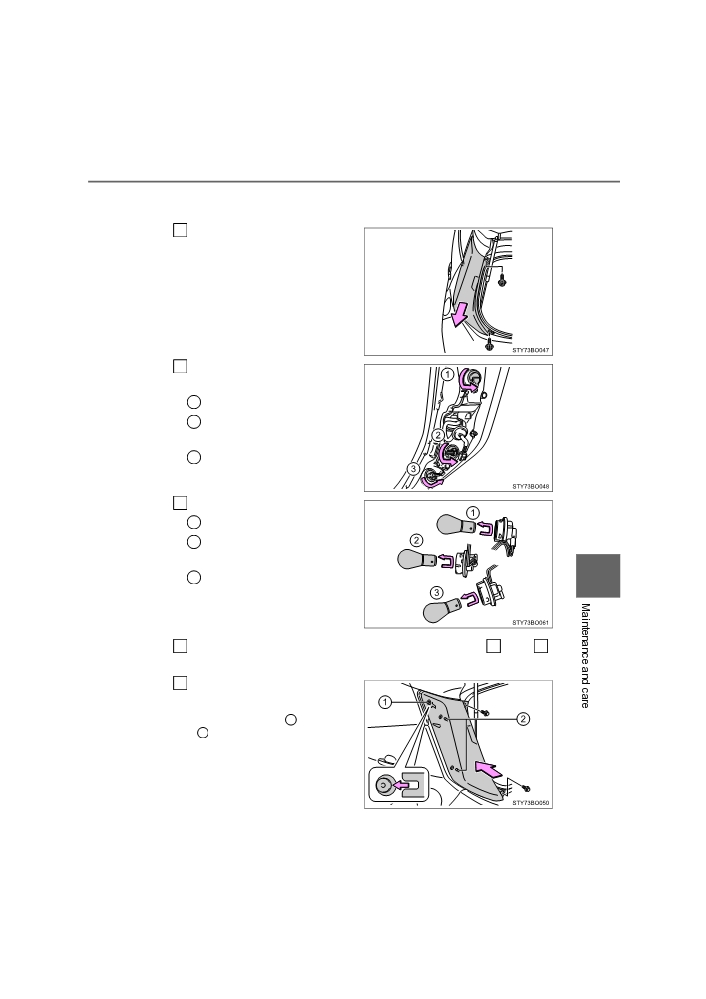

■ Stop/tail lights, back-up light, rear fog light and rear turn signal

lights

Open the back door and

remove the

2 screws, and

remove the lamp assembly

by pulling it directly backward

from the rear of the vehicle.

Turn the bulb base counter-

clockwise.

Stop/tail light

Back-up light or rear fog

light

Rear turn signal light

Remove the light bulb.

Stop/tail light

Back-up light or rear fog

light

Rear turn signal light

When installing the light bulb, install by conducting

and

with the directions reversed.

Install the lamp assembly

and then install the 2 screws.

Align the guide

(

) and pins

(

) on the lamp assembly with

the mounting when installing it.

AYGO_OM_Europe_OM99P46E

366

7-3. Do-it-yourself maintenance

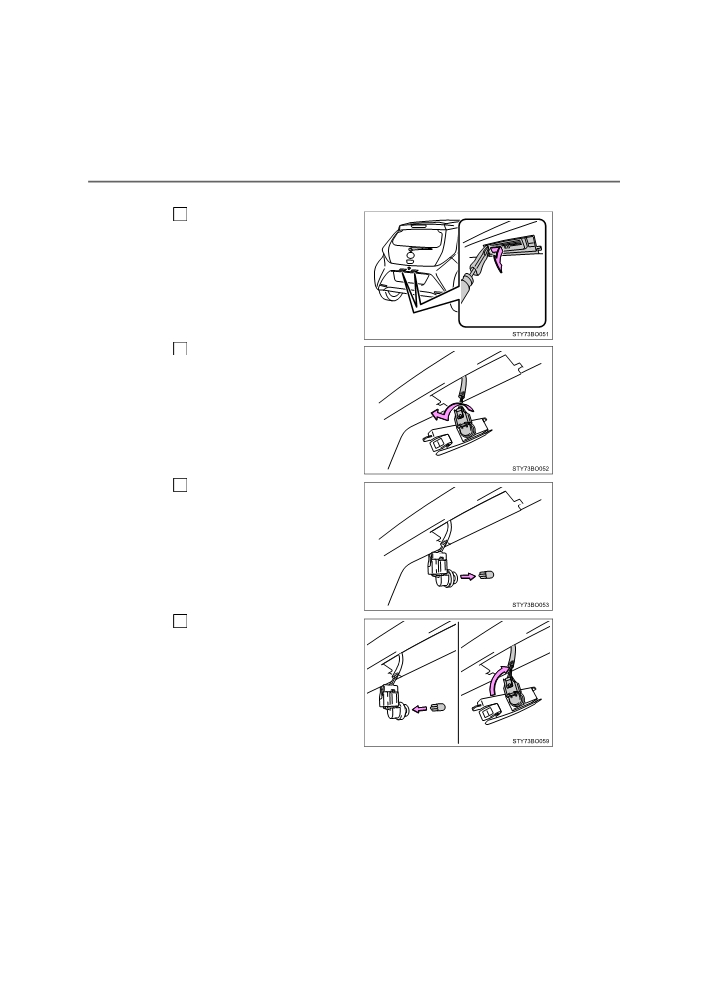

■ License plate lights

Disengage the claws and

remove the license plate

lights.

To prevent damage, cover the

tip of the flathead screwdriver

with rag.

Turn the bulb base counter-

clockwise.

Remove the light bulb.

Set the new light bulb and

turn the bulb base clockwise.

AYGO_OM_Europe_OM99P46E

7-3. Do-it-yourself maintenance

367

Reinstall the license plate

lights as shown in the illustra-

tion.

Align the notches and claws on

the license plate lights with the

mounting when installing.

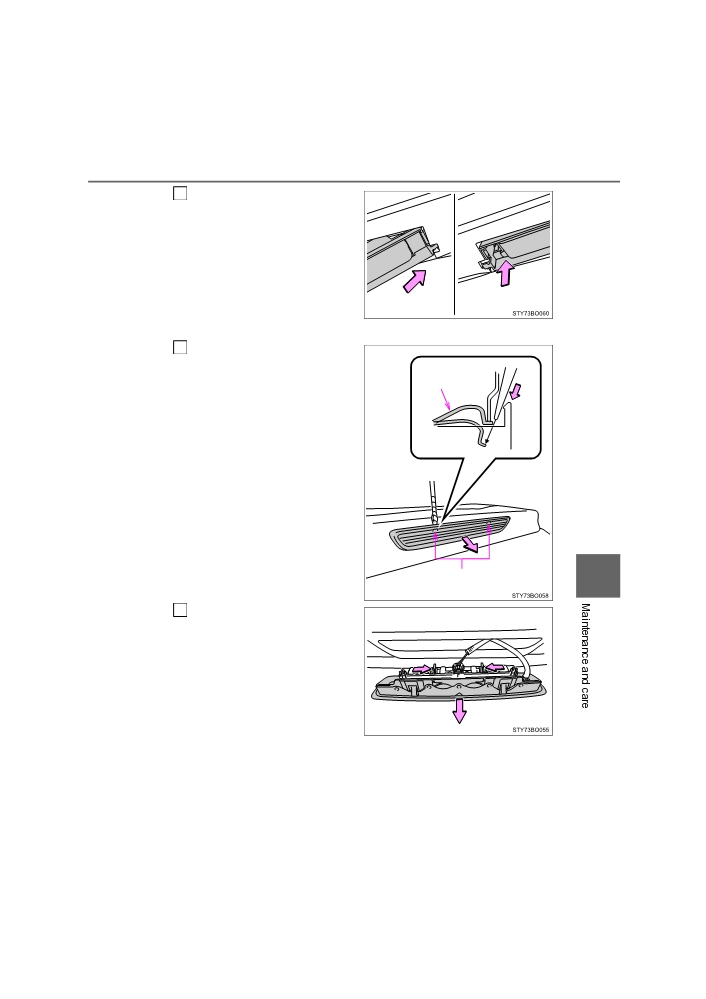

■ High mounted stoplight

Push the upper springs using

the flathead screwdriver and

remove the high mounted

Spring

stoplight assembly.

To prevent damage, cover the

tip of the flathead screwdriver

with tape.

Springs

Remove the bulb base.

AYGO_OM_Europe_OM99P46E

368

7-3. Do-it-yourself maintenance

Remove the light bulb.

When installing, reverse the steps listed.

■ Replacing the following bulbs

If any of the lights listed below has burnt out, have it replaced by

any authorized Toyota dealer or repairer, or another duly qualified

and equipped professional.

● Front position lights

● Daytime running lights (if equipped)

● Side turn signal lights

■ LED Lights

The front position lights and daytime running lights (if equipped) consist of a

number of LEDs. If any of the LEDs burn out, take your vehicle to any autho-

rized Toyota dealer or repairer, or another duly qualified and equipped profes-

sional to have the light replaced.

■ Condensation build-up on the inside of the lens

Temporary condensation build-up on the inside of the headlight lens does not

indicate a malfunction. Contact any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional for more information in the

following situations:

● Large drops of water have built up on the inside of the lens.

● Water has built up inside the headlight.

AYGO_OM_Europe_OM99P46E

7-3. Do-it-yourself maintenance

369

WARNING

■ Replacing light bulbs

● Turn off the lights. Do not attempt to replace the bulb immediately after

turning off the lights.

The bulbs become very hot and may cause burns.

●Do not touch the glass portion of the light bulb with bare hands. When it is

unavoidable to hold the glass portion, use and hold with a clean dry cloth

to avoid getting moisture and oils on the bulb.

Also, if the bulb is scratched or dropped, it may blow out or crack.

●Fully install light bulbs and any parts used to secure them. Failure to do so

may result in heat damage, fire, or water entering the headlight unit. This

may damage the headlights or cause condensation to build up on the lens.

■ To prevent damage or fire

● Make sure bulbs are fully seated and locked.

●Check the wattage of the bulb before installing to prevent heat damage.

AYGO_OM_Europe_OM99P46E

370

7-3. Do-it-yourself maintenance

AYGO_OM_Europe_OM99P46E

371

When trouble arises

8-1.

Essential information

8-2.

Steps to take in

Emergency flashers

372

an emergency

If your vehicle has to

If your vehicle needs

be stopped in an

to be towed

375

emergency

373

If you think

something is wrong

381

Fuel pump shut off

system

382

If a warning light turns

on or a warning buzzer

sounds

383

If you have a flat tire

(vehicles with

a spare tire)

393

If you have a flat tire

(vehicles without

a spare tire)

406

If the engine

will not start

420

If the shift lever cannot

be shifted (vehicles

with a multi-mode

manual transmission)

422

If the electronic key does

not operate properly

(vehicles with a smart

entry & start system)

423

If the vehicle battery

is discharged

426

If your vehicle overheats

430

If the vehicle becomes

stuck

434

AYGO_OM_Europe_OM99P46E

372

8-1. Essential information

Emergency flashers

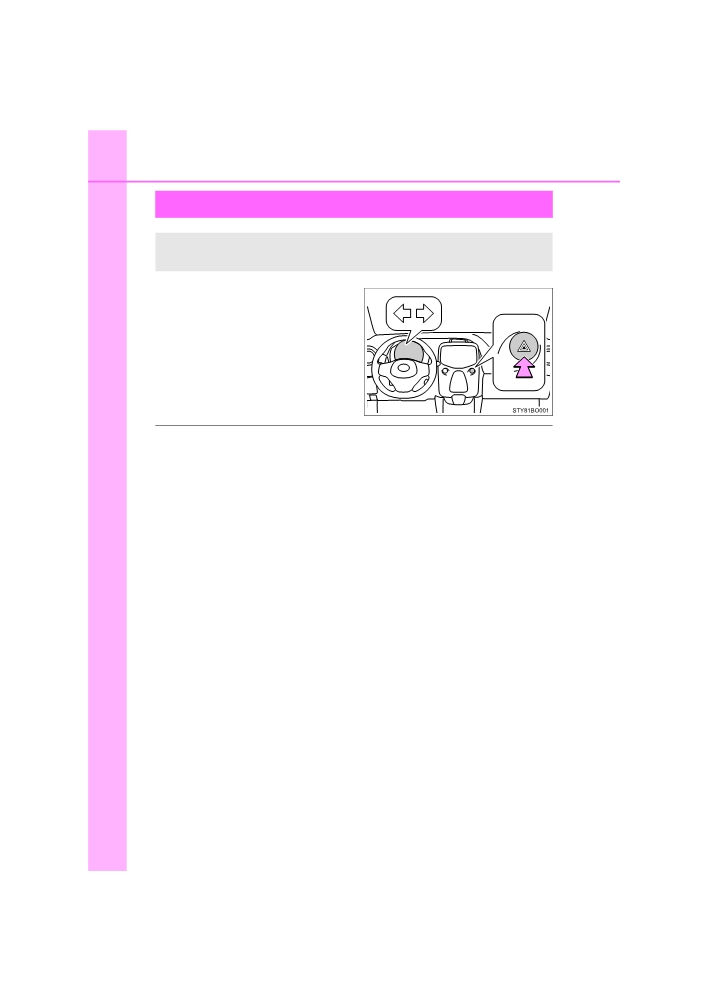

The emergency flashers are used to warn other drivers when the

vehicle has to be stopped in the road to a breakdown, etc.

Press the switch.

All the turn signals will flash.

To turn them off, press the switch

once again.

■ Emergency flashers

If the emergency flashers are used for a long time while the engine is not

operating, the battery may discharge.

AYGO_OM_Europe_OM99P46E

8-1. Essential information

373

If your vehicle has to be stopped in an

emergency

Only in an emergency, such as if it becomes impossible to stop

the vehicle in the normal way, stop the vehicle using the follow-

ing procedure:

Steadily step on the brake pedal with both feet and firmly depress it.

Do not pump the brake pedal repeatedly as this will increase the effort

required to slow the vehicle.

Shift the shift lever to N.

 If the shift lever is shifted to N

After slowing down, stop the vehicle in a safe place by the road.

Stop the engine.

 If the shift lever cannot be shifted to N

Keep depressing the brake pedal with both feet to reduce vehicle

speed as much as possible.

Vehicles without a smart entry

& start system:

Stop the engine by turning the

engine switch to the

“ACC”

position.

Vehicles with a smart entry &

start system:

To stop the engine, press and

hold the engine switch for

consecutive seconds or more,

or press it briefly

3 times or

Press and hold for 2 seconds
