7-3. Do-it-yourself maintenance
323

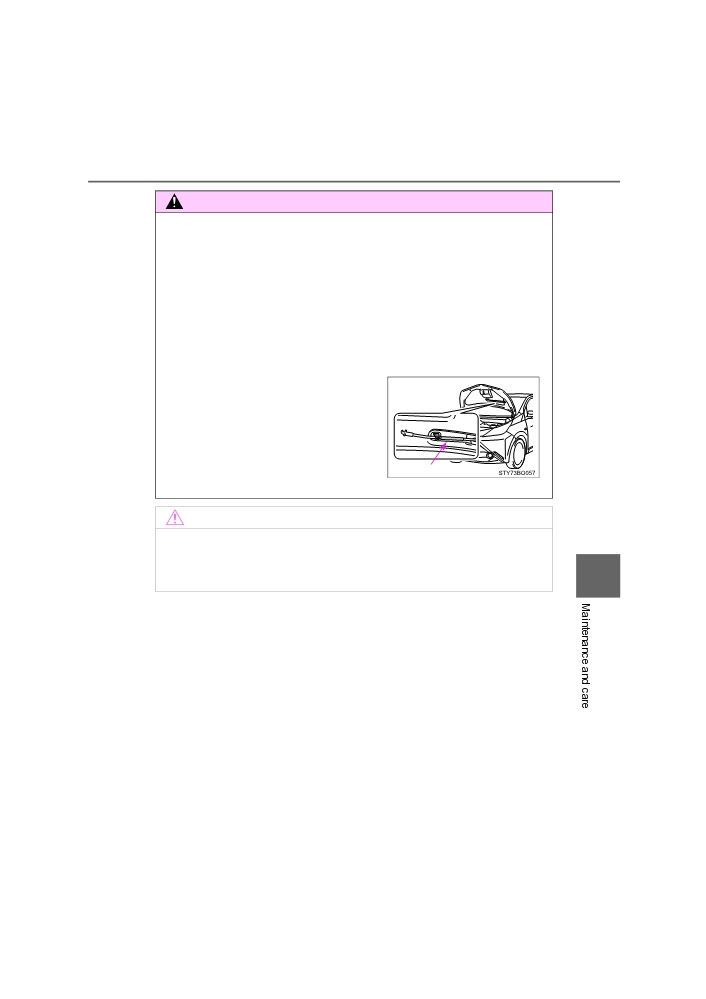

WARNING
■ Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
■ When detaching the support rod from the clip
● Take care to prevent hands or arms from being hit against the inside of the
engine hood. Failure to do so may result in serious injury.
●Hold the support protector area to pre-
vent burns.
Support protector
NOTICE
■ When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.
7
AYGO_OM_Europe_OM99P46E
324
7-3. Do-it-yourself maintenance

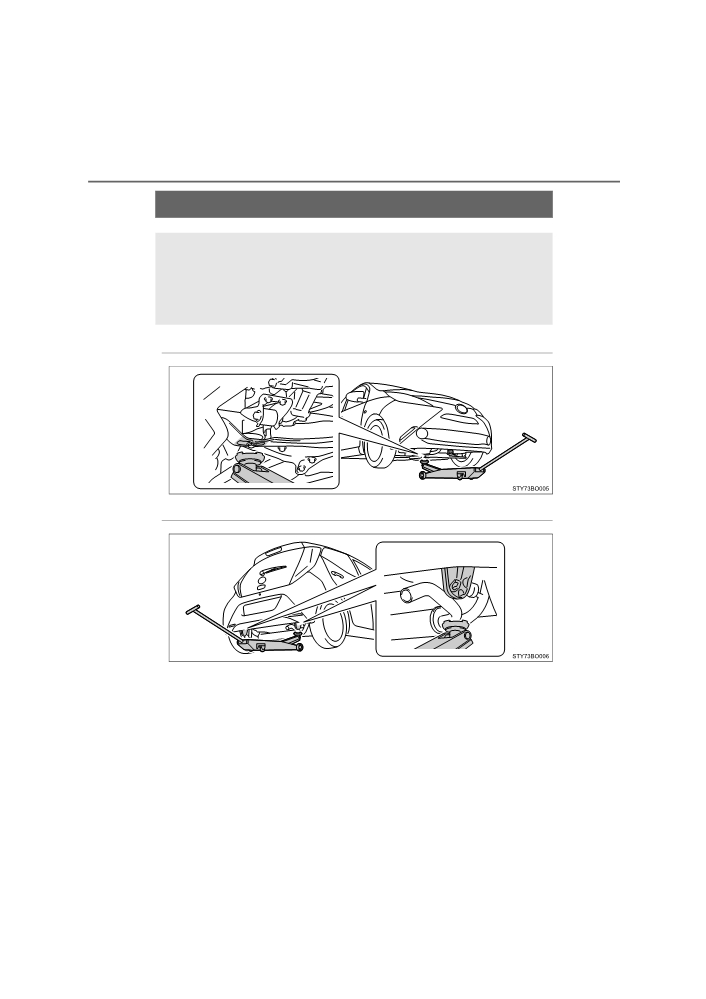

Positioning a floor jack
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.
◆ Front
◆ Rear
AYGO_OM_Europe_OM99P46E
7-3. Do-it-yourself maintenance
325

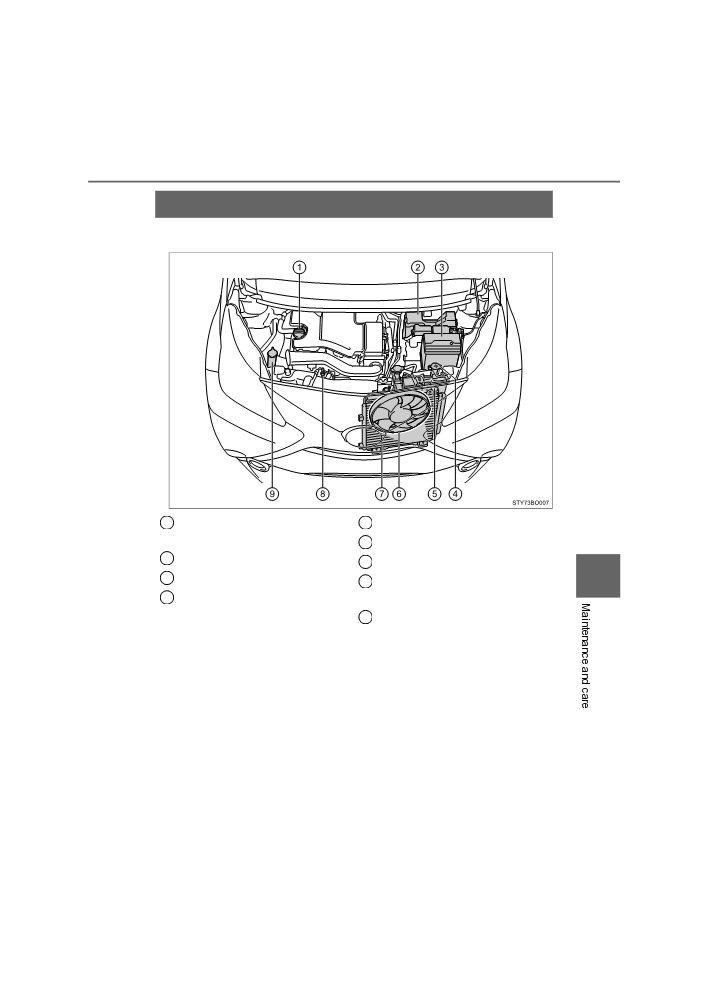

Engine compartment
1KR engine
1
Engine oil filler cap
5
Radiator
(P. 332)
(P. 328)
6
Electric cooling fan
2
Fuse box
(P. 351)
7
Condenser
(P. 332)
7
3
Battery
(P. 332)
8
Engine oil level dipstick
4
Engine coolant reservoir
(P. 327)
(P. 330)
9
Washer fluid tank
(P. 336)
AYGO_OM_Europe_OM99P46E
326
7-3. Do-it-yourself maintenance

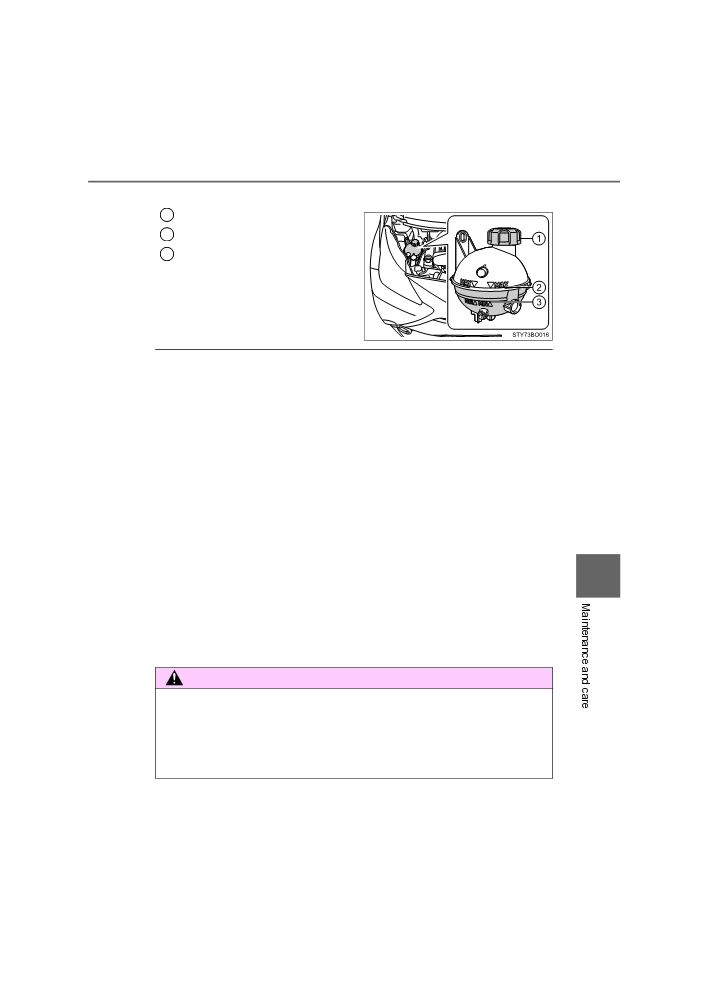

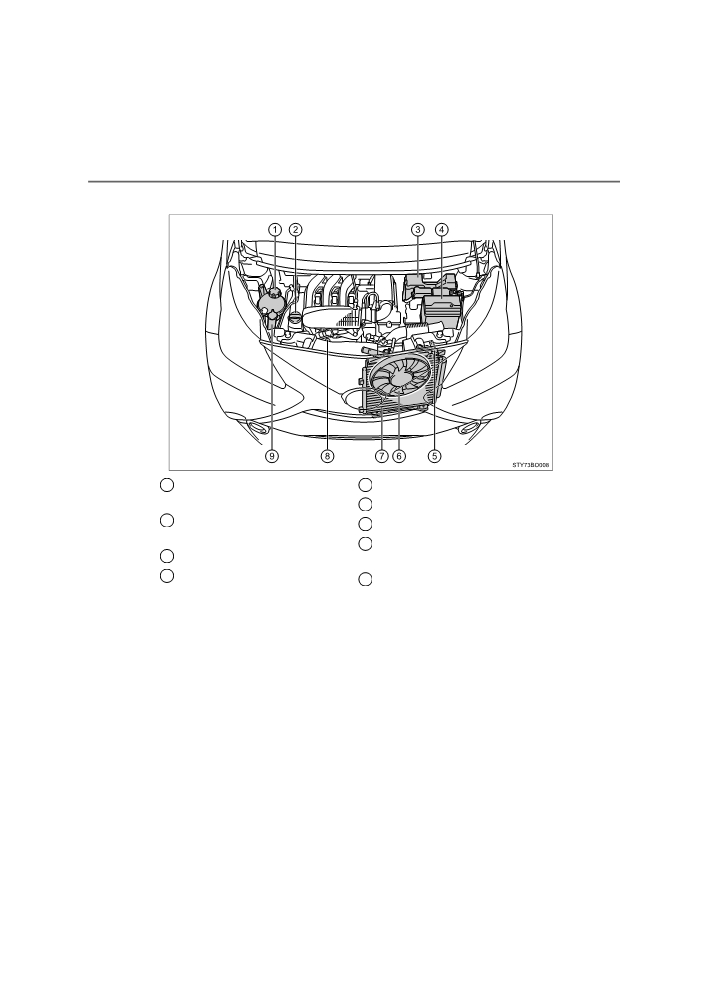

HM01 engine
1
Engine coolant reservoir
5
Radiator
(P. 332)
(P. 330)
6
Electric cooling fan
2
Engine oil filler cap
7
Condenser
(P. 332)
(P. 328)
8
Engine oil level dipstick
3
Fuse box
(P. 351)
(P. 327)
4
Battery
(P. 332)
9
Washer fluid tank
(P. 336)
AYGO_OM_Europe_OM99P46E
7-3. Do-it-yourself maintenance
327
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After warming up the engine
1
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
2
Holding a rag under the end, pull the dipstick out.
1KR engine
HM01 engine
3
Wipe the dipstick clean.
4
Reinsert the dipstick fully.
7
AYGO_OM_Europe_OM99P46E
328
7-3. Do-it-yourself maintenance

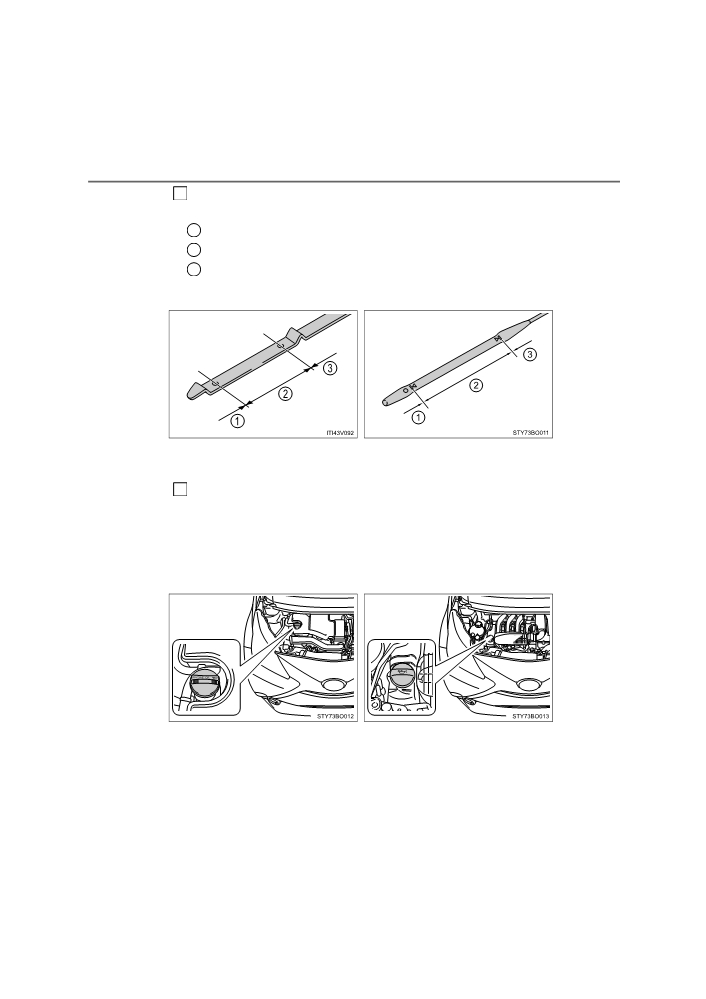

5
Holding a rag under the end, pull the dipstick out and check the
oil level.
1
Low
2
Normal
3
Excessive
1KR engine
HM01 engine
The shape of the dipstick may differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.
6

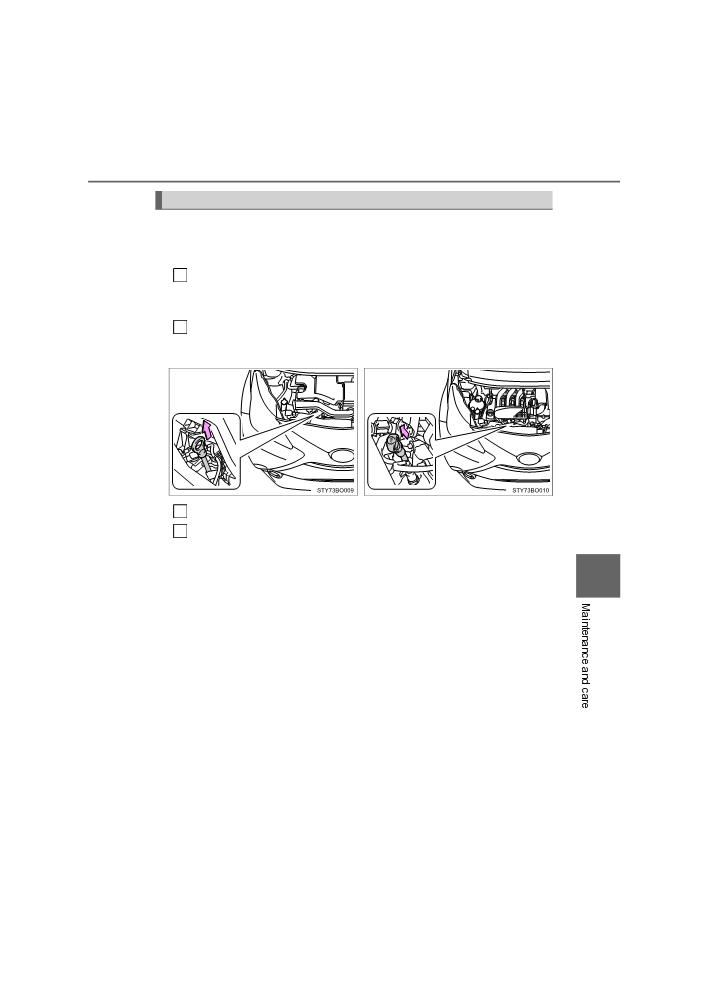

■ Adding engine oil
If the oil level is below or near the low level mark, add engine oil of
the same type as that already in the engine.
1KR engine
HM01 engine
Make sure to check the oil type and prepare the items needed
before adding oil.
AYGO_OM_Europe_OM99P46E
7-3. Do-it-yourself maintenance
329
Engine oil selection
P. 440
Items
Clean funnel
1
Remove the oil filler cap by turning it counterclockwise.
2
Add engine oil slowly, checking the dipstick.
3
Install the oil filler cap by turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
● When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, or when driving
while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
WARNING
■ Used engine oil
●Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
7
engine oil from your skin, wash thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional, service station or auto parts store for information
concerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
AYGO_OM_Europe_OM99P46E
330
7-3. Do-it-yourself maintenance
NOTICE
■ To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.

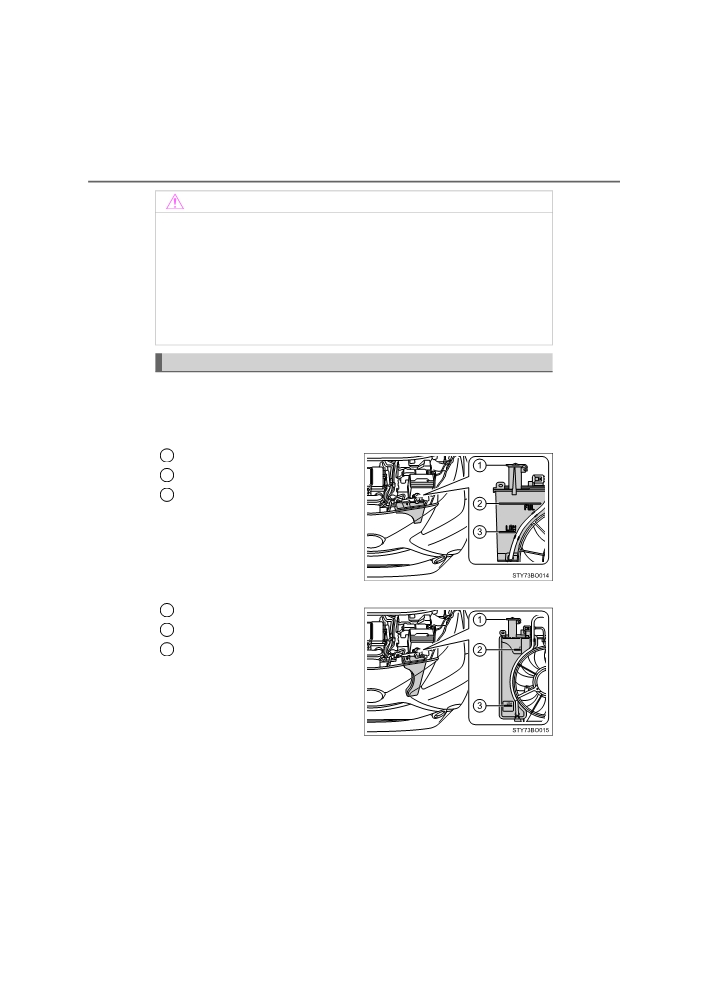

Engine coolant
The coolant level is satisfactory if it is between the “FULL”, “F” or
“MAX” and “LOW” or “MIN” lines on the reservoir when the engine is
cold.
1KR engine (type A)
1
Reservoir cap
2
“FULL” line
3
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.
1KR engine (type B)
1
Reservoir cap
2
“F” line
3
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“F” line.
AYGO_OM_Europe_OM99P46E
7-3. Do-it-yourself maintenance
331
HM01 engine
1
Reservoir cap
2
“MAX” line
3
“MIN” line
If the level is on or below the “MIN”
line, add coolant up to the “MAX”
line.
■ Coolant selection
1KR engine
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50%
deionized water. (Minimum temperature: -35C [-31F])
HM01 engine
Only use “Toyota Genuine Premium Long Life Coolant 2WZ-TV” or a similar
high quality ethylene glycol based non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid organic acid technology.
“Toyota Genuine Premium Long Life Coolant 2WZ-TV” is a mixture of 50%
coolant and 50% deionized water. (Minimum temperature: -38C [-36F])
For more details about coolant, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
7
■ If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir cap, drain cock
and water pump.
If you cannot find a leak, have any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, test the cap and check for
leaks in the cooling system.
WARNING
■ When the engine is hot
Do not remove the radiator cap (1KR engine) or the engine coolant reser-
voir cap (HM01 engine).
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
AYGO_OM_Europe_OM99P46E
332
7-3. Do-it-yourself maintenance
NOTICE
■ When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
Radiator and condenser
Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of
their condition, have your vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
WARNING
■ When the engine is hot
Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.
Battery
Check the battery as follows:

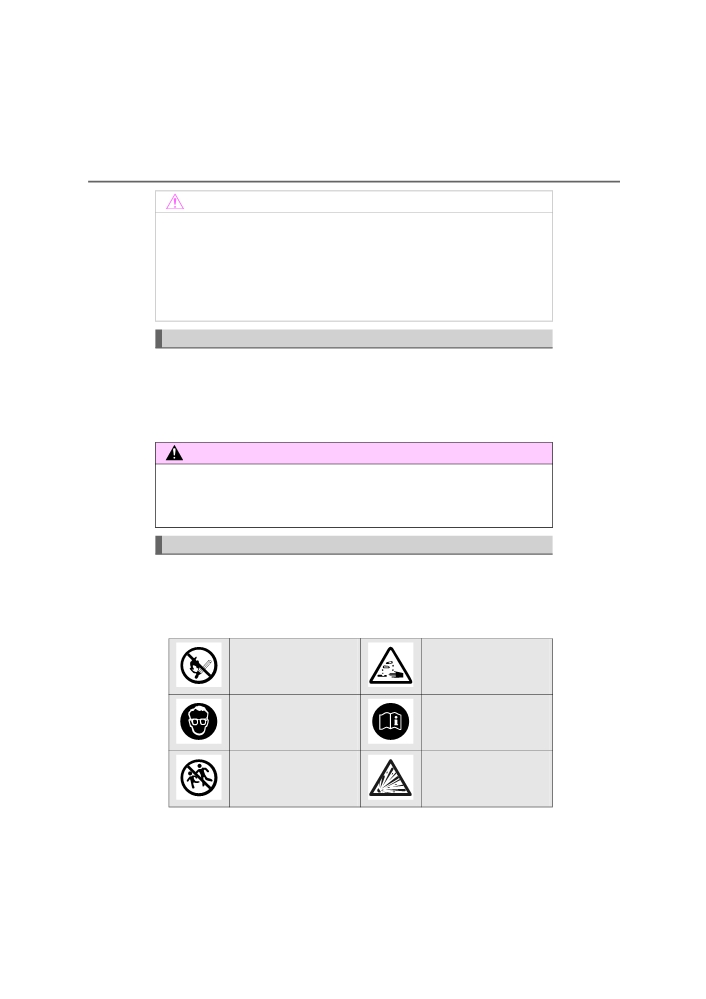

■ Caution symbols
The meanings of each caution symbol on the top of the battery are
as follows:
No smoking, no naked
Battery acid
flames, no sparks
Note operating
Shield eyes
instructions
Keep away from
Explosive gas
children
AYGO_OM_Europe_OM99P46E
7-3. Do-it-yourself maintenance
333

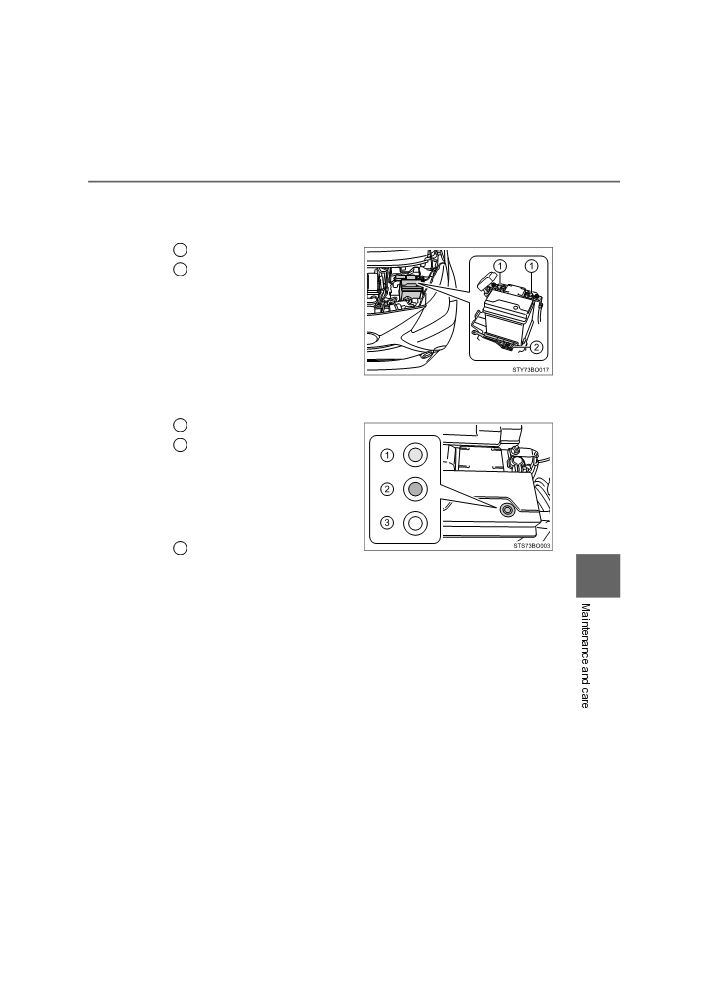

■ Battery exterior
Make sure that the battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.
1
Terminals
2
Hold-down clamp
■ Checking battery condition (if equipped)
Check the battery condition by indicator color.
1
Green: Good condition
2
Dark: Charging is necessary.
Have the vehicle inspected
by any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
3
White: Not working properly.
Have the vehicle inspected by any authorized Toyota dealer or
7
repairer, or another duly qualified and equipped professional.
AYGO_OM_Europe_OM99P46E
334
7-3. Do-it-yourself maintenance
■ Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, before recharging:
● If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
● Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the battery.
■ After recharging/reconnecting the battery (vehicles with a smart entry &
start system)
The engine may not start. Follow the procedure below to initialize the system.
1
Depress the brake pedal with the shift lever in N.
2
Open and close any of the doors.
3
Restart the engine.
● Unlocking the doors using the smart entry & start system may not be possi-
ble immediately after reconnecting the battery. If this happens, use the wire-
less remote control or the mechanical key to lock/unlock the doors.
●Start the engine with the engine switch in ACCESSORY mode. The engine
may not start with the engine switch turned off. However, the engine will
operate normally from the second attempt.
● The engine switch mode is recorded by the vehicle. If the battery is recon-
nected, the vehicle will return the engine switch mode to the status it was in
before the battery was disconnected. Make sure to turn off the engine
before disconnect the battery. Take extra care when connecting the battery
if the engine switch mode prior to discharge is unknown.
If the engine will not start even after multiple attempts, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional.
AYGO_OM_Europe_OM99P46E
7-3. Do-it-yourself maintenance
335
WARNING
■ Chemicals in the battery
A battery contains poisonous and corrosive sulfuric acid and may produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near the
battery:
●Do not cause sparks by touching the battery terminals with tools.
●Do not smoke or light a match near the battery.
● Avoid contact with eyes, skin and clothes.
●Never inhale or swallow electrolyte.
● Wear protective safety glasses when working near the battery.
● Keep children away from the battery.
■ Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a
garage or closed room where there is not sufficient ventilation.
■ How to recharge the battery
Only perform a slow charge (5 A or less). The battery may explode if
charged at a quicker rate.
■ Emergency measures regarding electrolyte
●If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.
● If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
7
attention immediately.
● If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.
●If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.
NOTICE
■ When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all
accessories are turned off.
AYGO_OM_Europe_OM99P46E
336
7-3. Do-it-yourself maintenance
Washer fluid
If the washer does not work, the
washer tank may be empty. Add
washer fluid.
WARNING
■ When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid
contains alcohol and may catch fire if spilled on the engine, etc.
NOTICE
■ Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■ Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.
AYGO_OM_Europe_OM99P46E
7-3. Do-it-yourself maintenance
337
Tires
Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.

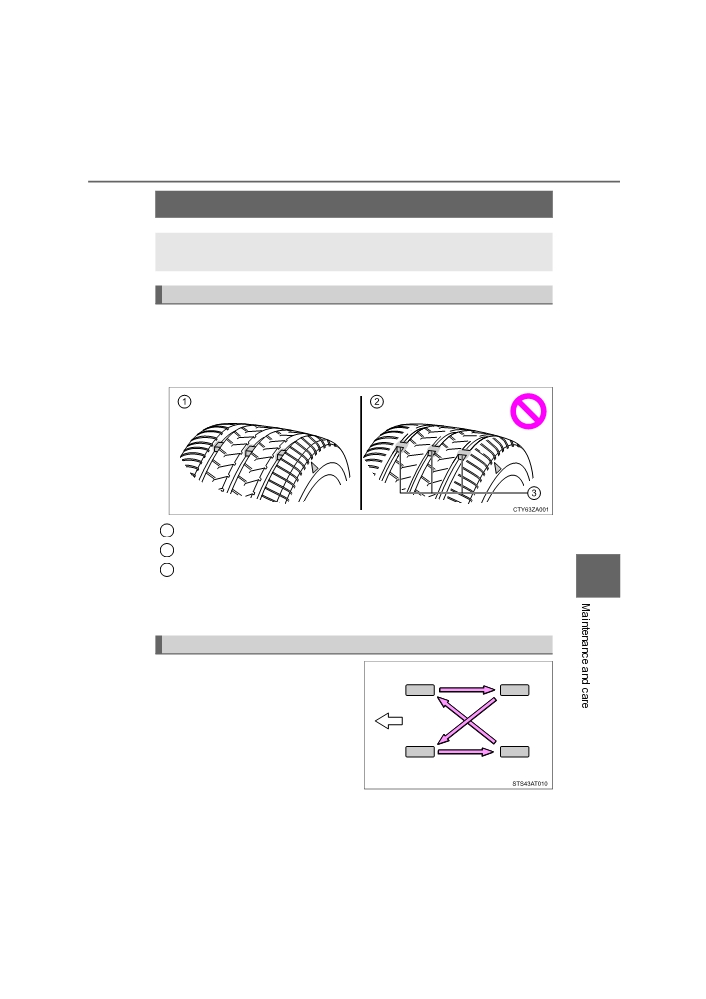

Checking tires
Check if the treadwear indicators are showing on the tires. Also check
the tires for uneven wear, such as excessive wear on one side of the
tread.
Check the spare tire condition and pressure if not rotated.
1
New tread
2
Worn tread
3
Treadwear indicator
7
The location of treadwear indicators is shown by a “TWI” or “” mark, etc.,
molded into the sidewall of each tire.
Replace the tires if
the treadwear indicators are showing on a tire.
Tire rotation
Rotate the tires in the order
shown.
To equalize tire wear and help
extend tire life, Toyota recom-
mends that tire rotation is carried
out approximately every 10000 km
Front
(6000 miles).
AYGO_OM_Europe_OM99P46E
338
7-3. Do-it-yourself maintenance
■ When to replace your vehicle’s tires
Tires should be replaced if:
● The treadwear indicators are showing on a tire.
● You have tire damage such as cuts, splits, cracks deep enough to expose
the fabric, and bulges indicating internal damage
● A tire goes flat repeatedly or cannot be properly repaired due to the size or
location of a cut or other damage
If you are not sure, consult with any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
■ Tire life
Any tire over 6 years old must be checked by a qualified technician even if it
has seldom or never been used or damage is not obvious.
■ Low profile tires (vehicles with 165/60R15 tires)
Generally, low profile tires will wear more rapidly and tire grip performance
will be reduced on snowy and/or icy roads when compared to standard tires.
Be sure to use snow tires or tire chains on snowy and/or icy roads and drive
carefully at a speed appropriate for road and weather conditions.
■ If the tread on snow tires wears down below 4 mm (0.16 in.)
The effectiveness of the tires as snow tires is lost.
Tire pressure warning system (if equipped)
Your vehicle is equipped with a tire pressure warning system.
While the vehicle is in motion, the system monitors the fluctuations in
the wheel speed signals that are output by the speed sensor for the
brake control system.
It informs the driver if it detects a low tire inflation pressure.
◆ Initializing the tire pressure warning system
■ The tire pressure warning system must be initialized when
changing the tire
When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.
■ The initialization operation
● Make sure to carry out initialization after adjusting the tire infla-
tion pressure. Also, make sure the tires are cold before carrying
out initialization or tire inflation pressure adjustment.
● If you accidentally press the reset switch when initialization is not
necessary, adjust the tire inflation pressure to the specified level
when the tires are cold, and conduct initialization again.
AYGO_OM_Europe_OM99P46E
7-3. Do-it-yourself maintenance
339
■ How to initialize the tire pressure warning system
Park the vehicle in a safe place and turn the engine switch to the
1
“LOCK” position (vehicles without a smart entry & start system)
or off (vehicles with a smart entry & start system).
Initialization cannot be performed while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation
2
pressure level. (P. 448)
Make sure to adjust the tire pressure to the specified cold tire inflation
pressure level. The tire pressure warning system will operate based on
this pressure level.
Turn the engine switch to the “ON” position (vehicles without a
3
smart entry & start system) or IGNITION ON mode (vehicles with
a smart entry & start system).

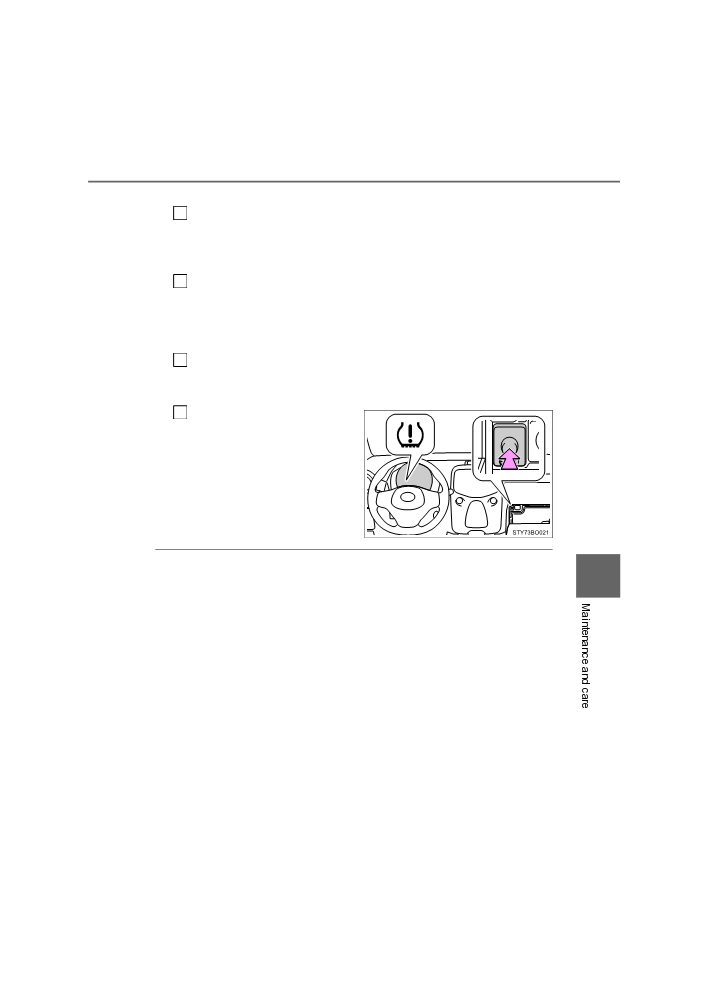

Press and hold the tire pres-
4
sure warning reset switch
until the tire pressure warn-
ing light blinks slowly 3 times.
■ Situations in which the tire pressure warning system may not operate
properly (if equipped)
7
● This tire pressure warning system ensure a proper function when OE (Origi-
nal Equipment) tire is installed.
● In the following cases, the tire pressure warning system may not operate
properly.
• The vehicle uses non-standard size tires or tires made by other manufac-
turers.
• The vehicle uses tire of different size or manufacturers.
• The vehicle uses snow tires, compact spare tire (if equipped) or tire
chains.
• The vehicle is being driven below approximately 40 km/h (25 mph).
• The vehicle is being driven on slippery or rough road surfaces.
● When tire inflation pressure declines rapidly for example when a tire has
burst, the warning may not function.
AYGO_OM_Europe_OM99P46E
