Toyota Auris Hybrid Touring Sports (2017 year). Instruction - part 34

564

9-1. Specifications

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

4595 mm (180.9 in.)

Overall width

1760 mm (69.3 in.)

Overall height*1

1485 mm (58.5 in.)

Wheelbase

2600 mm (102.4 in.)

1535 mm (60.4 in.)*2

Front

1525 mm (60.0 in.)*3

1515 mm (59.6 in.)*4

Tread

1525 mm (60.0 in.)*2

Rear

1515 mm (59.6 in.)*3

1505 mm (59.3 in.)*4

1865 kg (4112 lb.)

Gross vehicle mass*5

1815 kg (4002 lb.)

Front

1020 kg (2249 lb.)

Maximum permis-

sible axle capacity

Rear

1010 kg (2227 lb.)

Drawbar load*6

55 kg (121 lb.)

Towing capacity*6

345 kg (760 lb.)

*1: Unladen vehicles

*2: Vehicles with 195/65R15 tires

*3: Vehicles with 205/55R16 tires

*4: Vehicles with 225/45R17 tires

*5: Gross vehicle mass is specified on the information tag (manufacturer’s

label). (P. 208)

*6: Vehicles with towing package (P. 205)

AURIS HV Touring

Sports_EE

(OM12L18E)

9-1. Specifications

565

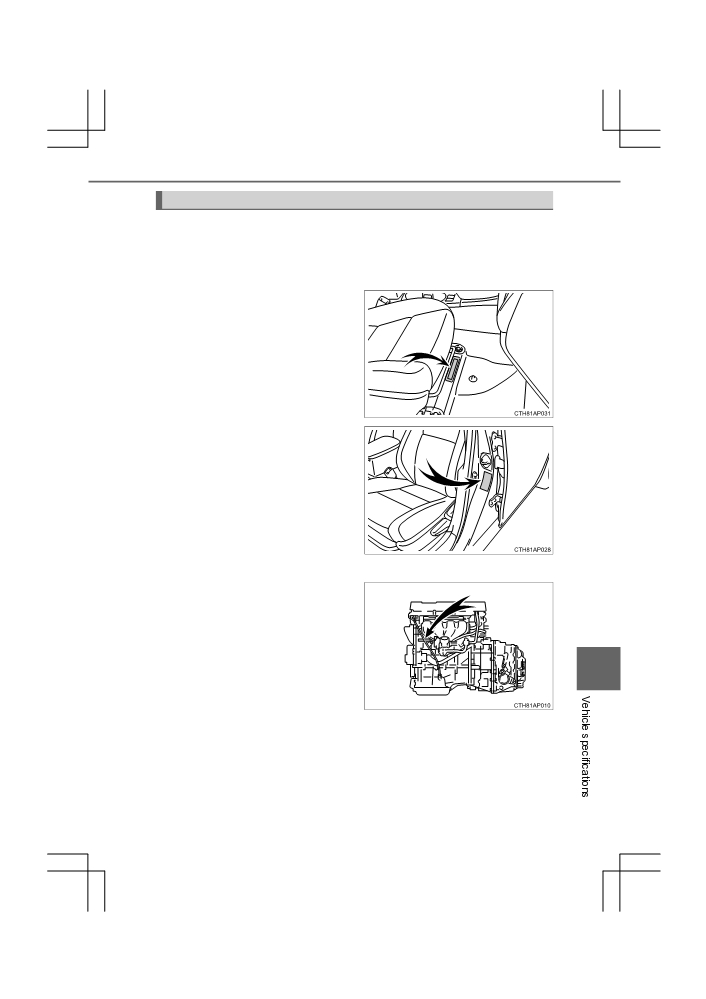

Vehicle identification

■ Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for

your vehicle. This is the primary identification number for your

Toyota. It is used in registering the ownership of your vehicle.

This number is stamped under

the right-hand front seat.

This number is also on the

manufacturer’s label.

■ Engine number

The engine number is stamped

on the engine block as shown.

9

AURIS HV Touring

Sports_EE

(OM12L18E)

566

9-1. Specifications

Engine

Model

2ZR-FXE

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

80.5  88.3 mm (3.17  3.48 in.)

Displacement

1798 cm3 (109.7 cu. in.)

Valve clearance

Automatic adjustment

(engine cold)

Fuel

EU area:

Unleaded gasoline conforming to European

Fuel type

standard EN228 only

Except EU area:

Unleaded gasoline only

Research Octane

95 or higher

Number

Fuel tank capacity

45 L (11.9 gal., 9.9 Imp. gal.)

(Reference)

Electric motor (traction motor)

Type

Permanent magnet motor

Maximum output

60 kW

Maximum torque

207 N•m (21.1 kgf•m, 153 ft•lbf)

Hybrid battery (traction battery)

Type

Nickel-Metal hydride battery

Voltage

7.2 V/module

Capacity

6.5 Ah (3HR)

Quantity

28 modules

Overall voltage

201.6 V

AURIS HV Touring

Sports_EE

(OM12L18E)

9-1. Specifications

567

Lubrication system

Oil capacity

(Drain and refill  reference*)

With filter

4.2 L (4.4 qt., 3.7 Imp. qt.)

Without filter

3.9 L (4.1 qt., 3.4 Imp. qt.)

*: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up the engine and turn off the hybrid system, wait

more than 5 minutes, and check the oil level on the dipstick.

■ Engine oil selection

“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota

recommends the use of approved “Toyota Genuine Motor Oil”.

Another motor oil of matching quality can also be used.

Oil grade:

0W-20, 5W-30 and 10W-30:

API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN

“Resource-Conserving”; or ILSAC multigrade engine oil

15W-40:

API grade SL, SM or SN multigrade engine oil

9

AURIS HV Touring

Sports_EE

(OM12L18E)

568

9-1. Specifications

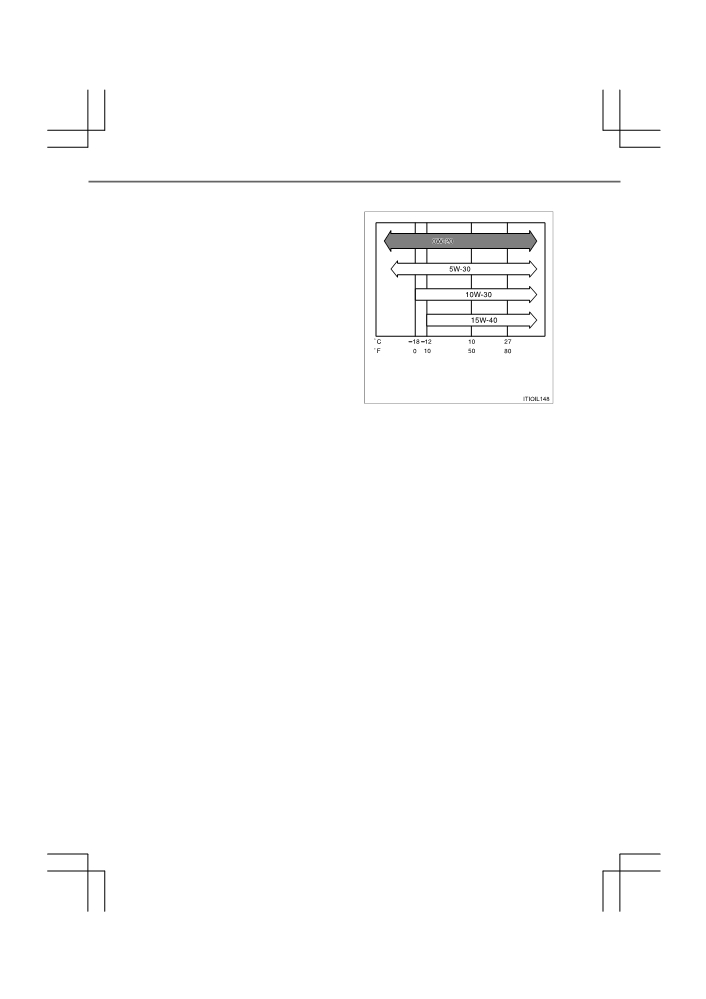

Recommended viscosity (SAE):

SAE 0W-20 is filled into your

Toyota vehicle at manufactur-

Preferred

ing, and the best choice for

good fuel economy and good

starting in cold weather.

If SAE 0W-20 oil is not avail-

able, SAE 5W-30 oil may be

used. However, it should be

replaced with SAE 0W-20 at the

next oil change.

Temperature range anticipated

before next oil change

If you use SAE 10W-30 or a

higher viscosity engine oil in

extremely low temperatures,

the engine may become difficult

to start, so SAE 0W-20 or 5W-

30 engine oil is recommended.

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which

allows cold startability. Oils with a lower value before the W allow

for easier starting of the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil

when the oil is at high temperature. An oil with a higher viscosity

(one with a higher value) may be better suited if the vehicle is

operated at high speeds, or under extreme load conditions.

AURIS HV Touring

Sports_EE

(OM12L18E)

9-1. Specifications

569

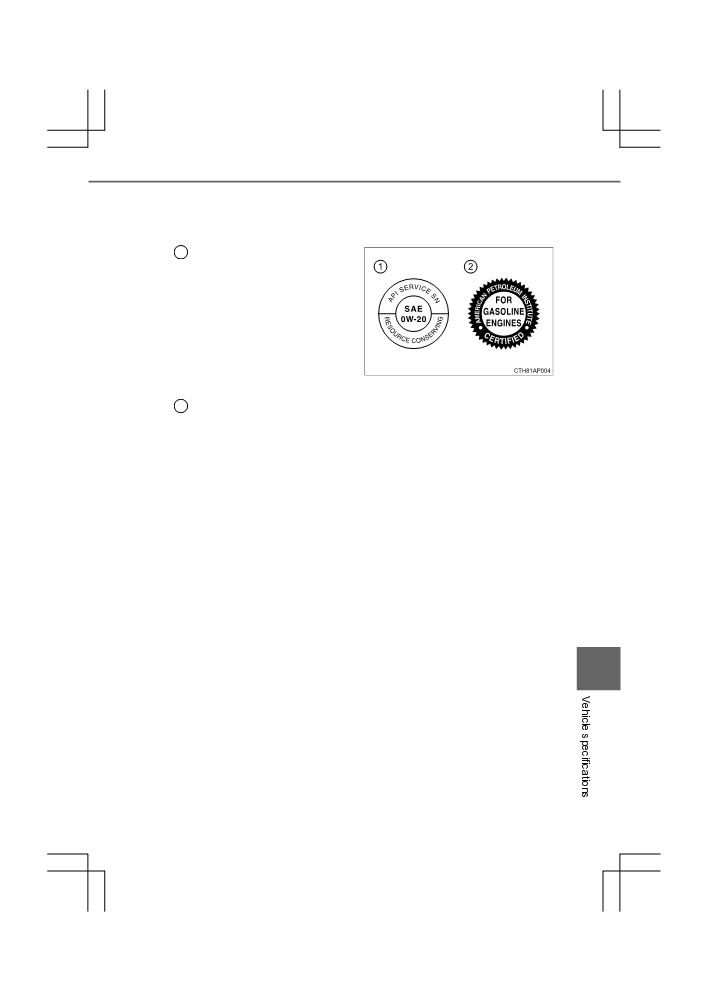

How to read oil container labels:

Either or both API registered marks are added to some oil contain-

ers to help you select the oil you should use.

API Service Symbol

1

Top portion: “API SERVICE SN”

means the oil quality designa-

tion by American Petroleum

Institute (API).

Center portion:

“SAE

0W-20”

means the SAE viscosity grade.

Lower portion: “Resource-Con-

serving” means that the oil has

fuel-saving and environmental

protection capabilities.

ILSAC Certification Mark

2

The International Lubricant Specification Advisory Committee (ILSAC)

Certification Mark is displayed on the front of the container.

9

AURIS HV Touring

Sports_EE

(OM12L18E)

570

9-1. Specifications

Cooling system

Capacity (reference)

Gasoline engine

With an exhaust heat

7.0 L (7.4 qt., 6.2 Imp. qt.)

recovery system

Without an exhaust heat

6.3 L (6.7 qt., 5.5 Imp. qt.)

recovery system

Power control unit

2.1 L (2.2 qt., 1.8 Imp. qt.)

Use either of the following:

•

“Toyota Super Long Life Coolant”

• Similar high-quality ethylene glycol-

Coolant type

based non-silicate, non-amine, non-

nitrite, and non-borate coolant with long-

life hybrid organic acid technology

Do not use plain water alone.

Ignition system

Spark plug

Make

DENSO SC16HR11 or DENSO SC20HR11

Gap

1.1 mm (0.043 in.)

NOTICE

■ Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system

12-volt battery

Open voltage at 20C

12.6  12.8 V Fully charged

(68F):

12.2  12.4 V Half charged

11.8  12.0 V Discharged

(Voltage is checked 20 minutes after the hybrid

system and all lights are turned off.)

Charging rates

5 A max.

AURIS HV Touring

Sports_EE

(OM12L18E)

9-1. Specifications

571

Hybrid transmission

Fluid capacity*

3.4 L (3.6 qt., 3.0 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

*: The fluid capacity is a reference quantity.

If replacement is necessary, contact any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional.

NOTICE

■ Transmission fluid type

Using transmission fluid other than “Toyota Genuine ATF WS” may cause

deterioration in shift quality, locking up of your transmission accompanied

by vibration, and ultimately damage to the transmission of your vehicle.

Brakes

Pedal clearance*1

Left-hand drive vehicles

73 mm (2.87 in.) Min.

Right-hand drive vehi-

83 mm (3.27 in.) Min.

cles

Pedal free play

1  6 mm (0.04  0.24 in.)

Parking brake lever

6  9 clicks

travel*2

SAE J1703 or FMVSS No.116 DOT 3 or

Fluid type

SAE J1704 or FMVSS No.116 DOT 4

*1: Minimum pedal clearance when depressed with a force of 294 N (30 kgf,

66 lbf) while the hybrid system is operating

*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,

45.0 lbf)

9

Steering

Free play

Less than 30 mm (1.2 in.)

AURIS HV Touring

Sports_EE

(OM12L18E)

572

9-1. Specifications

Tires and wheels

 15-inch tires

Tire size

195/65R15 91H

Front wheel

Rear wheel

Vehicle speed

kPa

(kgf/cm2

kPa

(kgf/cm2

or bar, psi)

or bar, psi)

Tire inflation pres-

Type A*:

Type A*:

More than

sure

260 (2.6, 38)

260 (2.6, 38)

160 km/h

(Recommended

Type B*:

Type B*:

(100 mph)

cold tire inflation

270 (2.7, 39)

270 (2.7, 39)

pressure)

Type A*:

Type A*:

160 km/h

230 (2.3, 33)

230 (2.3, 33)

(100 mph)

Type B*:

Type B*:

or less

240 (2.4, 35)

240 (2.4, 35)

Wheel size

15  6 J

Wheel nut torque

103 N•m (10.5 kgf•m, 76 ft•lbf)

*: The tire inflation pressure is specified on the tire-loading information label.

(P. 465)

AURIS HV Touring

Sports_EE

(OM12L18E)

9-1. Specifications

573

 16-inch tires

Tire size

205/55R16 91V

Front wheel

Rear wheel

Vehicle speed

kPa

(kgf/cm2

kPa

(kgf/cm2

or bar, psi)

or bar, psi)

More than 160

Tire inflation pres-

260 (2.6, 38)

260 (2.6, 38)

km/h (100 mph)

sure

(Recommended

Normal pressure:

cold tire inflation

160 km/h

(100

230 (2.3, 33)

230 (2.3, 33)

pressure)

mph) or less

ECO pressure*1:

160 km/h

(100

250 (2.5, 36)*2

250 (2.5, 36)*2

mph) or less

Wheel size

16  6 1/2 J

Wheel nut torque

103 N•m (10.5 kgf•m, 76 ft•lbf)

*1: For optimizing fuel economy, ECO tire pressure is recommended. Tire

pressure affects traveling comfort, road noise and steering characteristics.

*2: Vehicles with ECO tire pressure label (P. 465)

9

AURIS HV Touring

Sports_EE

(OM12L18E)

574

9-1. Specifications

 17-inch tires

Tire size

225/45R17 91W

Front wheel

Rear wheel

Vehicle speed

kPa

(kgf/cm2

kPa

(kgf/cm2

Tire inflation pres-

or bar, psi)

or bar, psi)

sure

(Recommended

More than 160

260 (2.6, 38)

260 (2.6, 38)

cold tire inflation

km/h (100 mph)

pressure)

160 km/h

(100

230 (2.3, 33)

230 (2.3, 33)

mph) or less

Wheel size

17  7 J

Wheel nut torque

103 N•m (10.5 kgf•m, 76 ft•lbf)

 Compact spare tire

Tire size

T125/70D17 98M

Tire inflation pressure

(Recommended cold

420 kPa (4.2 kgf/cm2 or bar, 60 psi)

tire inflation pressure)

Wheel size

17  4 T

Wheel nut torque

103 N•m (10.5 kgf•m, 76 ft•lbf)

■ When towing a trailer

Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation

pressure and drive at speeds below 100 km/h (62 mph).

AURIS HV Touring

Sports_EE

(OM12L18E)

9-1. Specifications

575

Light bulbs

Light Bulbs

W

Type

Halogen headlights*

55

A

Front fog lights*

19

B

Front turn signal lights

21

C

Side turn signal lights

5

C

Exterior

Rear turn signal lights

21

D

Stop lights

21

E

Back-up light

16

F

Licence plate lights

5

F

Vanity lights*

5

G

Front interior lights/personal lights

8

F

Interior

Rear interior light*

8

G

Rear personal lights*

8

F

Luggage compartment light

5

G

A: HIR2 halogen bulbs

B: H16 halogen bulbs

C: Wedge base bulbs (amber)

D: Single end bulbs (amber)

E: Single end bulbs (clear)

F: Wedge base bulbs (clear)

G: Double end bulbs

*: If equipped

9

AURIS HV Touring

Sports_EE

(OM12L18E)

9-1. Specifications

577

NOTICE

■ Notice on fuel quality

● Do not use improper fuels. If improper fuels are used, the engine will be

damaged.

● Do not use leaded gasoline.

Leaded gasoline will cause the three-way catalytic converter to lose its

effectiveness and the emission control system to function improperly.

● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and

fuel containing a large amount of ethanol should not be used. The use of

these fuels will damage the vehicle's fuel system. In case of any doubt,

ask any authorized Toyota dealer or repairer, or another duly qualified and

equipped professional.

● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”

and fuel containing a large amount of ethanol should not be used. Your

vehicle can use gasoline mixed with 10% max ethanol. The use of fuel

with more than 10% ethanol content (E10) will damage the vehicle’s fuel

system. You must ensure that refueling is carried out only from a source

where fuel specification and quality can be guaranteed. In case of any

doubt, ask any authorized Toyota dealer or repairer, or another duly quali-

fied and equipped professional.

● Do not use the methanol blended gasoline such as M15, M85, M100. The

use of gasoline containing methanol may cause engine damage or failure.

9

AURIS HV Touring

Sports_EE

(OM12L18E)

Content   ..  32  33  34  35   ..
