8-2. Steps to take in an emergency
527

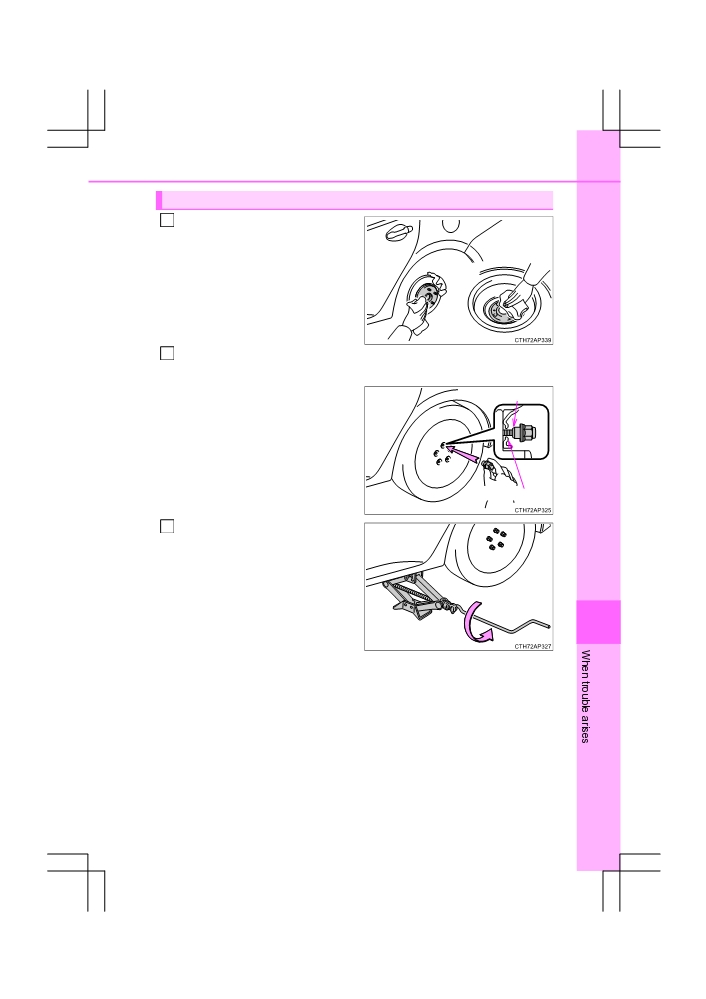

Installing the spare tire
Remove any dirt or foreign mat-
1
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
2
Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Tighten the wheel nuts until the
Tapered portion
tapered portion comes into
loose contact with the disc
wheel seat.
Disc wheel seat
3
Lower the vehicle.
8
AURIS HV Touring
Sports_EE
(OM12L18E)
528
8-2. Steps to take in an emergency

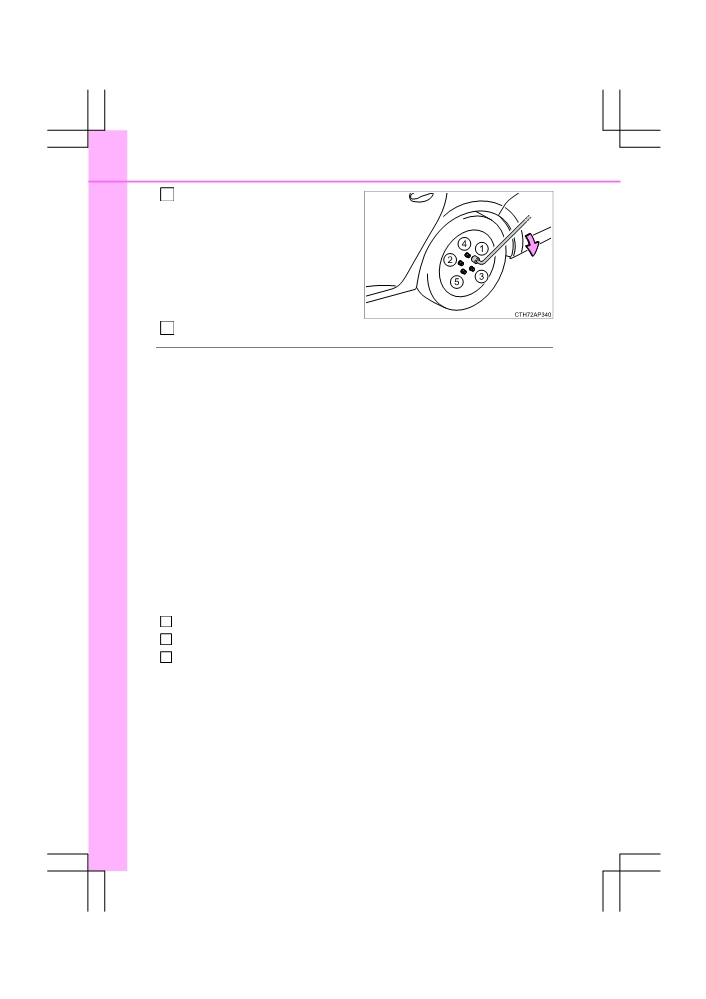

4
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the flat tire, tire jack and all tools.
5
■ The compact spare tire
● The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
● Make sure to check the tire inflation pressure of the compact spare tire.
(P. 572)
■ When the compact spare tire is equipped
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires.
■ When using the compact spare tire (vehicles with a tire pressure warn-
ing system)
As the compact spare tire is not equipped with a tire pressure warning valve
and transmitter, low inflation pressure of the spare tire will not be indicated by
the tire pressure warning system. Also, if you replace the compact spare tire
after the tire pressure warning light comes on, the light remains on.
■ If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle. Per-
form the following steps and fit tire chains to the front tires:
1
Replace a rear tire with the compact spare tire.
2
Replace the flat front tire with the tire removed from the rear of the vehicle.
3
Fit tire chains to the front tires.
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
529

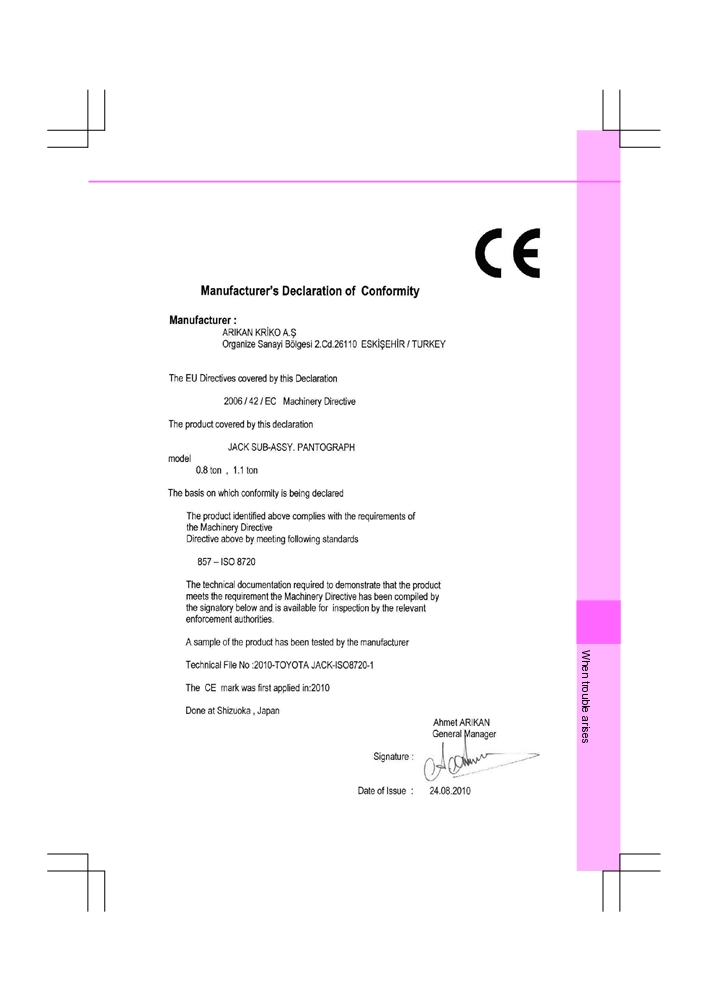

■ Certification for the jack
8
AURIS HV Touring
Sports_EE
(OM12L18E)
530
8-2. Steps to take in an emergency
WARNING
■ When using the compact spare tire
● Remember that the compact spare tire provided is specifically designed
for use with your vehicle. Do not use your compact spare tire on another
vehicle.
● Do not use more than one compact spare tires simultaneously.
● Replace the compact spare tire with a standard tire as soon as possible.
● Avoid sudden acceleration, deceleration and braking, as well as sharp cor-
nering.
■ When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
• ABS & Brake assist
• Cruise control (if equipped)
• VSC
• EPS
• TRC
• PCS (if equipped)
• Automatic High Beam
• LDA (Lane departure alert)
(if equipped)
(if equipped)
■ Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious
injury.
■ After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
531
NOTICE
■ Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
■ Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.
■When replacing the tires (vehicles with a tire pressure warning system)
When removing or fitting the wheels, tires or the tire pressure warning valve
and transmitter, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional as the tire pressure warning valve
and transmitter may be damaged if not handled correctly.
■ To avoid damage to the tire pressure warning valves and transmitters
(vehicles with a tire pressure warning system)
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional or other qualified service shop as soon as possible.
Make sure to replace the tire pressure warning valve and transmitter when
replacing the tire. (P. 452)
8
AURIS HV Touring
Sports_EE
(OM12L18E)
532
8-2. Steps to take in an emergency
If you have a flat tire (vehicles with an
emergency tire puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is equipped
with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can
be repaired temporarily using the emergency tire puncture repair kit.
(The kit contains a bottle of sealant. The sealant can be used only once
to temporarily repair one tire without removing the nail or screw from
the tire.) Depending on the damage, this kit cannot be used to repair the
tire. (P. 533)
After temporarily repairing the tire with the kit, have the tire repaired or
replaced by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional. Repairs conducted using the
emergency tire puncture repair kit are only a temporary measure. Have
the tire repaired and replaced as soon as possible.
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
533
■ Before repairing the tire
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers. (P. 494)

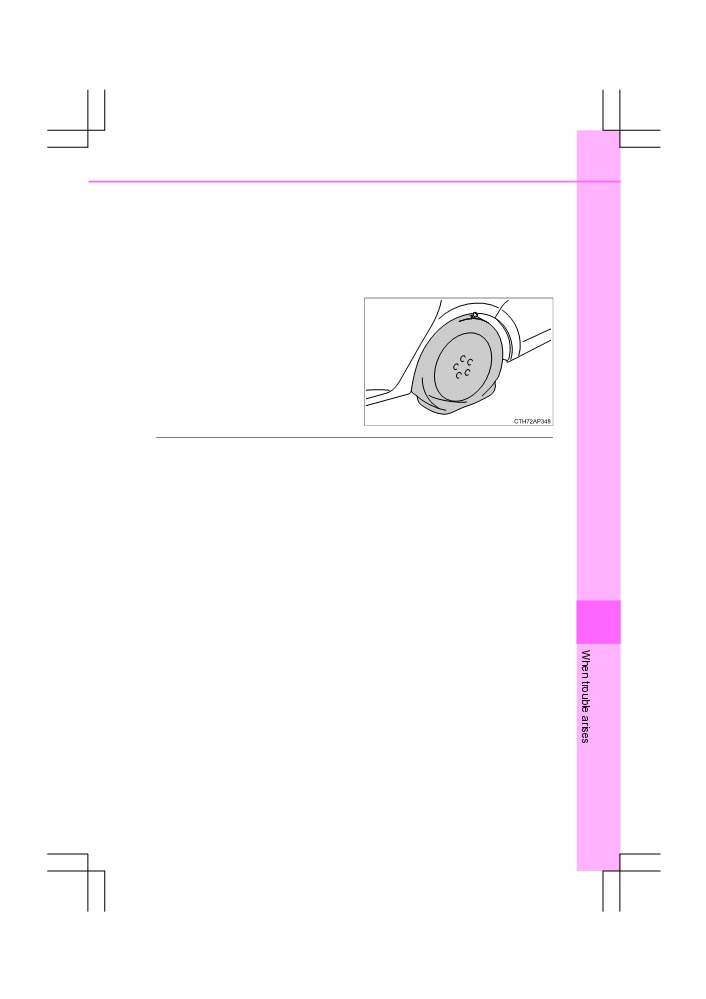

● Check the degree of the tire
damage.
Do not remove the nail or
screw from the tire. Remov-
ing the object may widen the
opening and prevent emer-
gency repair with the repair
kit.
■ A flat tire that cannot be repaired with the emergency tire puncture repair
kit
In the following cases, the tire cannot be repaired with the emergency tire
puncture repair kit. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
● When the tire is damaged due to driving without sufficient air pressure
● When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
● When the tire is visibly separated from the wheel
● When the cut or damage to the tread is 4 mm (0.16 in.) long or more
● When the wheel is damaged
● When two or more tires have been punctured
8
● When 2 or more sharp objects such as nails or screws have passed through
the tread on a single tire
● When the sealant has expired
AURIS HV Touring
Sports_EE
(OM12L18E)
534
8-2. Steps to take in an emergency

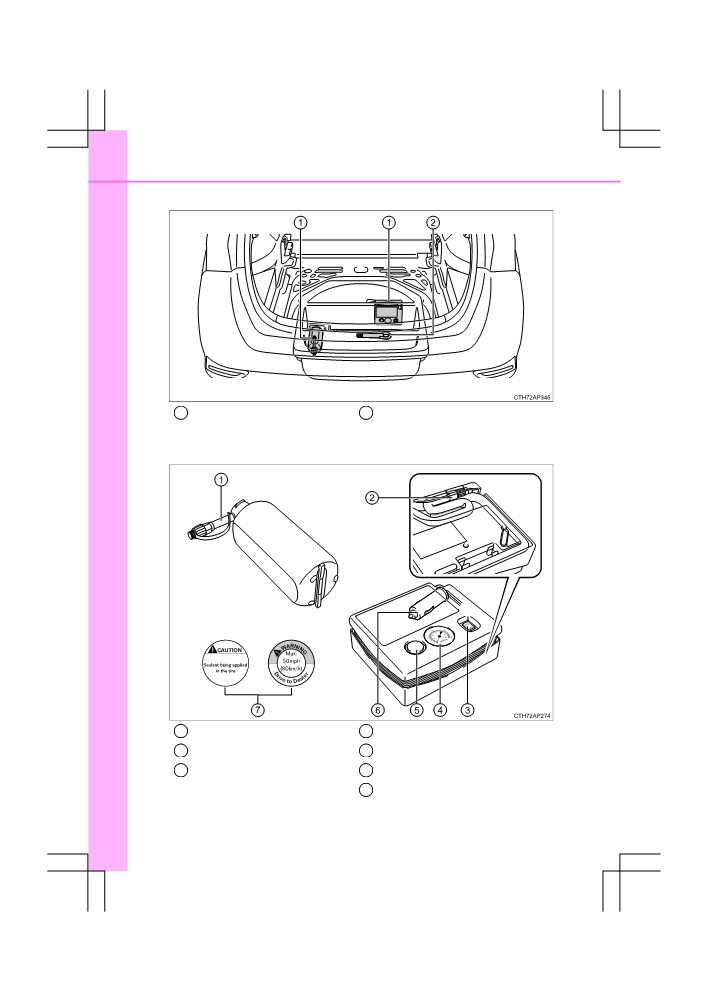

■ Location of the emergency tire puncture repair kit
1
Emergency tire puncture
2
Towing eyelet
repair kit
■ Emergency tire puncture repair kit components
1
Nozzle
4
Air pressure gauge
2
Hose
5
Pressure release button
3
Compressor switch
6
Power plug
7
Stickers
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
535

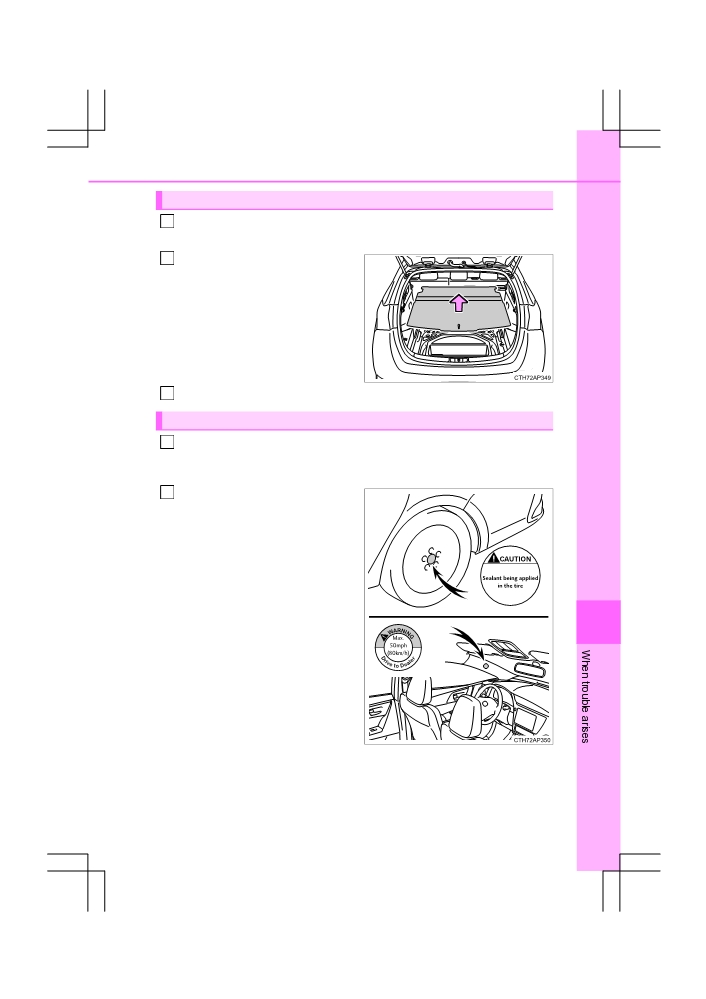

Taking out the emergency tire puncture repair kit
1
Vehicles with deck boards: Remove the center deck boards and the
storage box. (P. 407)
2
Remove the luggage floor
cover.
3
Take out the emergency tire puncture repair kit. (P. 534)
Emergency repair method
1
Take out the repair kit.
When taking out the bottle from the original bag, do not tear or discard the
bag.
Attach the 2 stickers as shown.
2
Remove any dirt and moisture from
the wheel before attaching the
label. If it is impossible to attach
the label, make sure to tell any
authorized Toyota dealer or
repairer, or other duly qualified and
equipped professional when you
have them repair and replace the
tire that sealant is injected.
8
AURIS HV Touring
Sports_EE
(OM12L18E)
536
8-2. Steps to take in an emergency

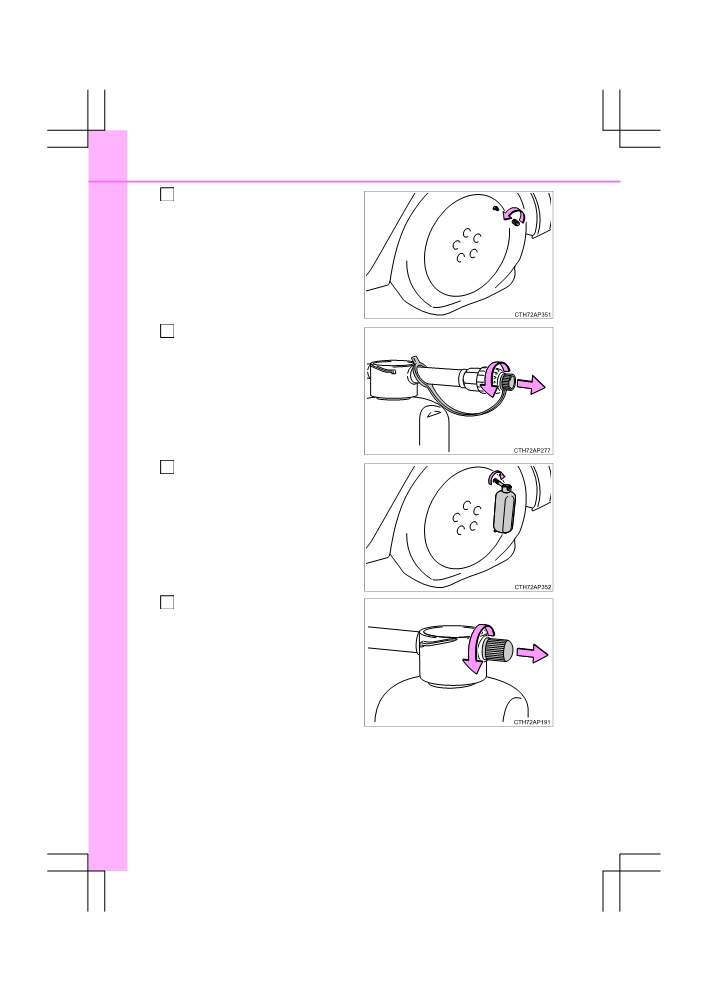

3
Remove the valve cap from the
valve of the punctured tire.
4
Remove the cap from the noz-
zle.
5
Connect the nozzle to the
valve.
Screw the end of the nozzle clock-
wise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang vertically,
move the vehicle so that the tire
valve is located properly.
6
Remove the cap from the bot-
tle.
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
537

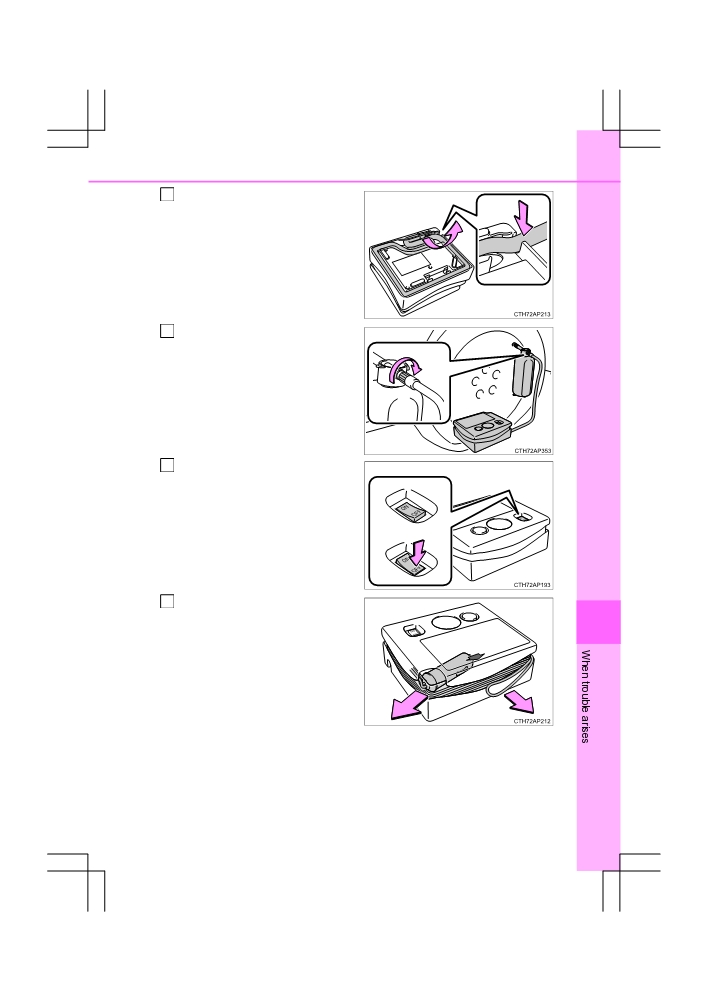

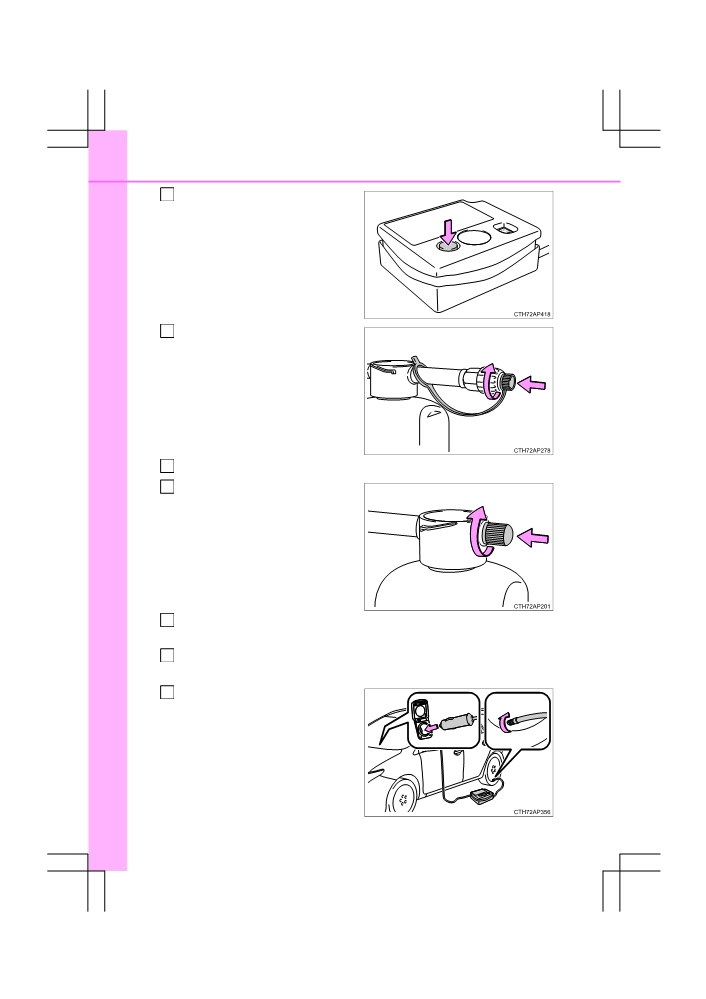

7
Pull the hose out from the com-
pressor.
8
Connect the bottle to the com-
pressor.
Screw the end of the nozzle clock-
wise as far as possible.
9
Make sure that the compressor
switch is off.
10
Remove the power plug from
the compressor.
8
AURIS HV Touring
Sports_EE
(OM12L18E)
538
8-2. Steps to take in an emergency

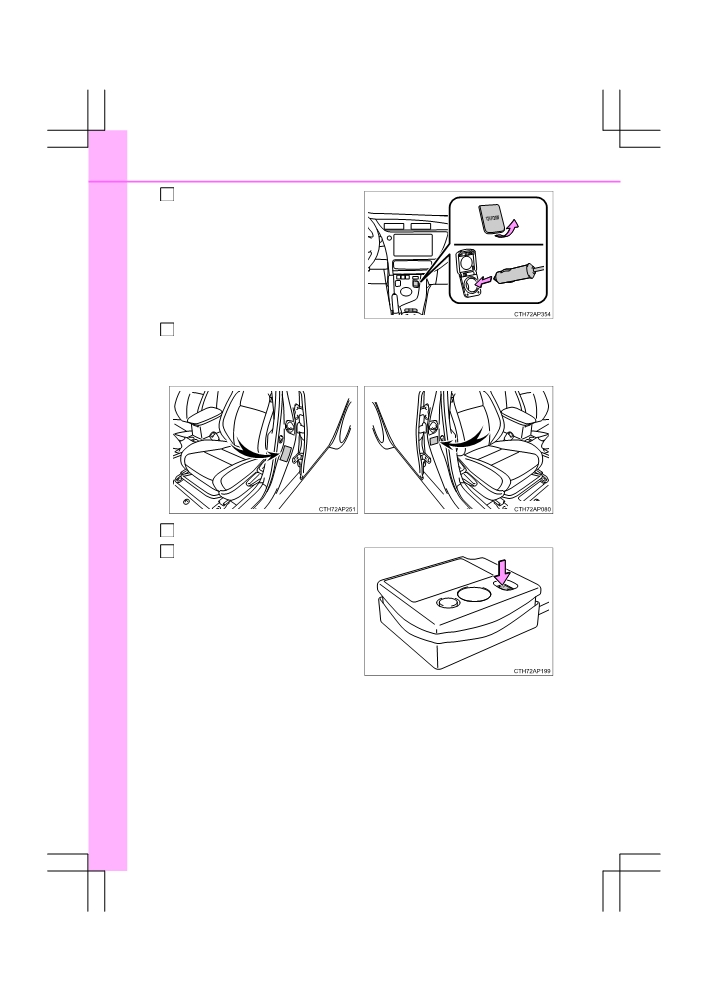

11
Connect the power plug to the
power outlet socket. (P. 419)
12
Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (P. 572)
Left-hand drive vehicles
Right-hand drive vehicles
13
Start the hybrid system.
14
To inject the sealant and inflate
the tire, turn the compressor
switch on.
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
539

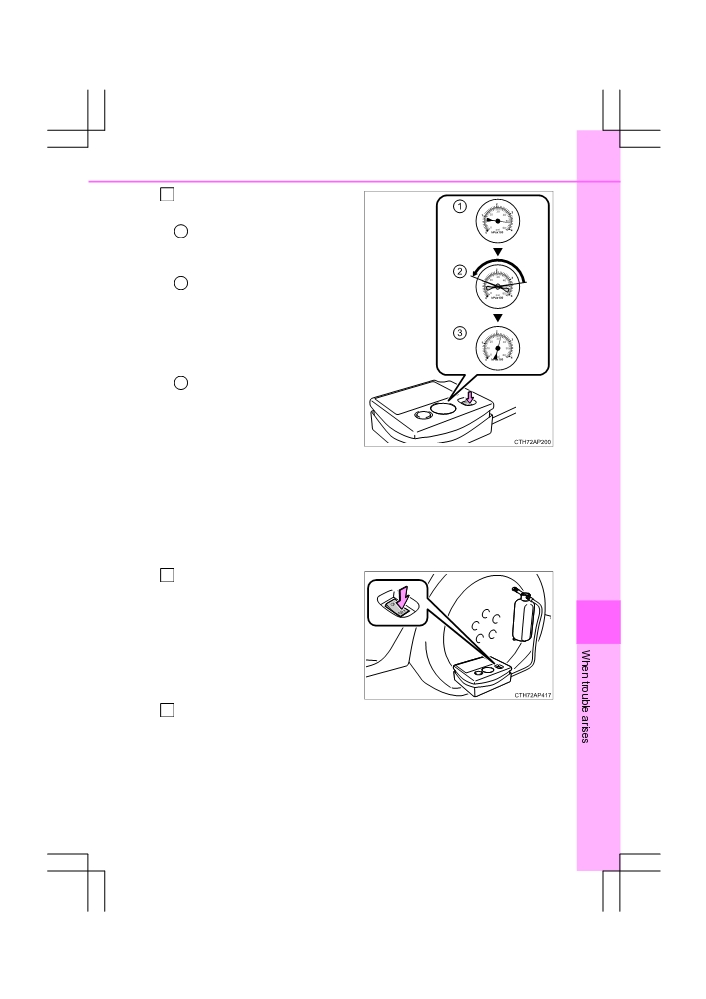

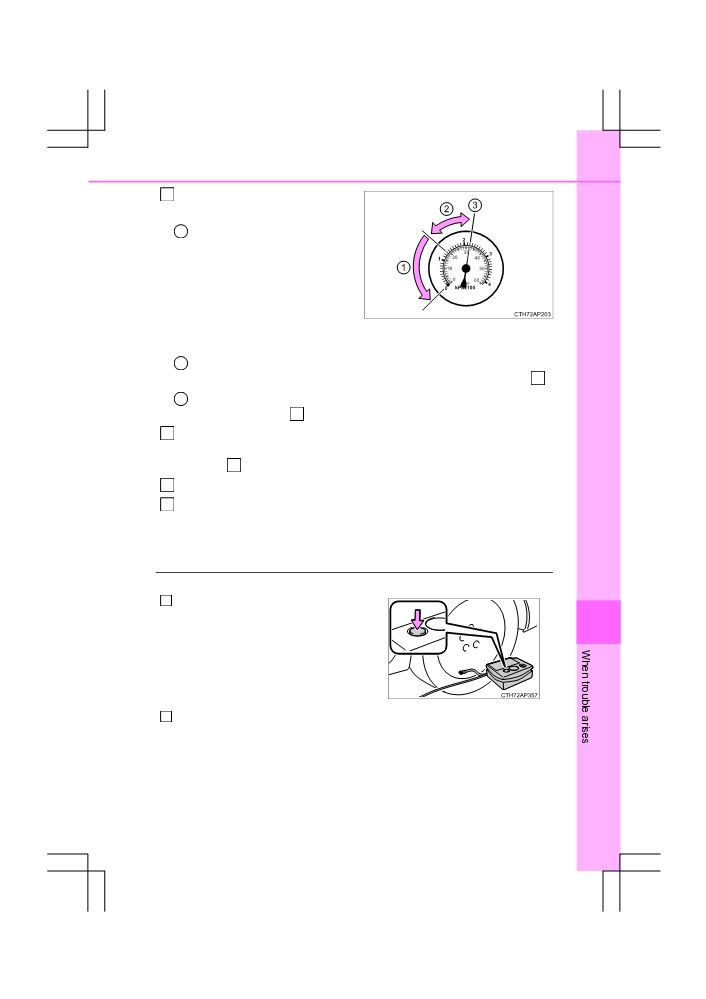

15
Inflate the tire until the specified
air pressure is reached.
The sealant will be injected
1
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
2
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned on.
3
Inflate the tire until the speci-
fied air pressure.
• If the tire inflation pressure is
still lower than the specified
point after inflation for 35 min-
utes with the switch on, the tire
is too damaged to be repaired.
Turn the compressor switch off
and contact any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
• If the tire inflation pressure exceeds the specified air pressure, let out
some air to adjust the tire inflation pressure. (P. 542, 572)
Turn the compressor off.
16
8
Disconnect the nozzle from the valve on the tire and then pull out
17
the power plug from the power outlet socket.
Some sealant may leak when the hose is removed.
AURIS HV Touring
Sports_EE
(OM12L18E)
540
8-2. Steps to take in an emergency
18
Press the button to release
pressure from the bottle.
Attach the cap to the nozzle.
19
20
Install the valve cap onto the valve of the repaired tire.
21
Disconnect the hose from the
bottle and attach the cap to the
bottle.
Place the bottle in the original bag
and zip it.
22
Temporarily store the bottle and compressor in the luggage com-
partment.
23
To spread the liquid sealant evenly within the tire, immediately drive
safely for about 5 km (3 miles) below 80 km/h (50 mph).
24
After driving for about 5 km (3
miles), stop your vehicle in a
safe place on a hard, flat sur-
face and connect the compres-
sor.
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
541
25
Check the tire inflation pres-
sure.
If the tire inflation pressure is
1
under 130 kPa (1.3 kgf/cm2
or bar, 19 psi): The puncture
cannot be repaired. Contact
any authorized Toyota dealer
or repairer, or another duly
qualified and equipped pro-
fessional.
2
If the tire inflation pressure is 130 kPa (1.3 kgf/cm2 or bar, 19 psi)
or higher, but less than the specified air pressure: Proceed to
26
3
If the tire inflation pressure is the specified air pressure (P.
572): Proceed to
27
Turn the compressor switch on to inflate the tire until the specified
26
air pressure is reached. Drive for about 5 km (3 miles) and then
perform
24
Store the compressor in the luggage compartment.
27
Taking precautions to avoid sudden braking, sudden acceleration
28
and sharp turns, drive carefully at under 80 km/h (50 mph) to the
nearest authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional for tire repair or replacement.
■ If the tire is inflated to more than the specified air pressure
Press the button to let some air out.
1
8
Check that the air pressure indicator shows the specified air pressure.
2
If the air pressure is under the designated pressure, turn the compressor
switch on again and repeat the inflation procedure until the specified air
pressure is reached.
AURIS HV Touring
Sports_EE
(OM12L18E)
542
8-2. Steps to take in an emergency
■ After a tire is repaired with the emergency tire puncture repair kit
● The tire pressure warning valve and transmitter should be replaced.
● Even if the tire inflation pressure is at the recommended level, the tire pres-
sure warning light may come on/flash.
■ Note for checking the emergency tire puncture repair kit
Check the sealant expiry date occasionally.
The expiry date is shown on the bottle. Do not use sealant whose expiry date
has already passed. Otherwise, repairs conducted using the emergency tire
puncture repair kit may not be performed properly.
■ Emergency tire puncture repair kit
● The sealant stored in the emergency tire puncture repair kit can be used
only once to temporarily repair a single tire. If the sealant has been used
and needs to be replaced, purchase a new bottle at any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional. The
compressor is reusable.
● The sealant can be used when the outside temperature is from -30°C
(-22°F) to 60°C (140°F).
● The repair kit is exclusively designed for size and type of tires originally
installed on your vehicle. Do not use it for tires that a different size than the
original ones, or for any other purposes.
● The sealant has a limited lifespan. The expiry date is marked on the bottle.
The bottle of sealant should be replaced with a new bottle before the expiry
date. Contact any authorized Toyota dealer or repairer, or another duly qual-
ified and equipped professional for replacement.
● If the sealant gets on your clothes, it may stain.
● If the sealant adheres to a wheel or the surface of the vehicle body, the stain
may not be removable if it is not cleaned at once. Immediately wipe away
the sealant with a wet cloth.
● During operation of the repair kit, a loud operation noise is produced. This
does not indicate a malfunction.
● Do not use to check or to adjust the tire pressure.
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
543
WARNING
■ Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
Driving with a flat tire may cause a circumferential groove on the side wall.
In such a case, the tire may explode when using a repair kit.
■ Caution while driving
● The repair kit is exclusively only for your vehicle.
Do not use repair kit on other vehicles, which could lead to an accident
causing death or serious injury.
● Do not use repair kit for tires that are different size than the original ones,
or for any other purpose. If the tires have not been completely repaired, it
could lead to an accident causing death or serious injury.
■ Precautions for use of the sealant
● Ingesting the sealant is hazardous to your health. If you ingest sealant,
consume as much water as possible, and then immediately consult a doc-
tor.
● If sealant gets in eyes or adheres to skin, immediately wash it off with
water. If discomfort persists, consult a doctor.
■ When fixing the flat tire
● Stop your vehicle in a safe and flat area.
● Do not touch the wheels or the area around the brakes immediately after
the vehicle has been driven.
After the vehicle has been driven, the wheels and the area around the
brakes may be extremely hot. Touching these areas with hands, feet or
other body parts may result in burns.
● To avoid risk of burst or severe leakage, do not drop or damage the bottle.
8
Visually inspect the bottle before use. Do not use a bottle with shock,
crack, scratch, leakage or any other damage. In such case, immediately
replace.
● Connect the valve and hose securely with the wheel installed to the vehi-
cle. If the hose is not properly connected to the valve, air leakage may
occur and sealant may be sprayed out.
● If the hose comes off the valve while inflating the tire, there is a risk that
the hose will move abruptly due to air pressure.
AURIS HV Touring
Sports_EE
(OM12L18E)
