510
8-2. Steps to take in an emergency
NOTICE
■ To ensure the tire pressure warning system operates properly (vehi-
cles with a tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
511

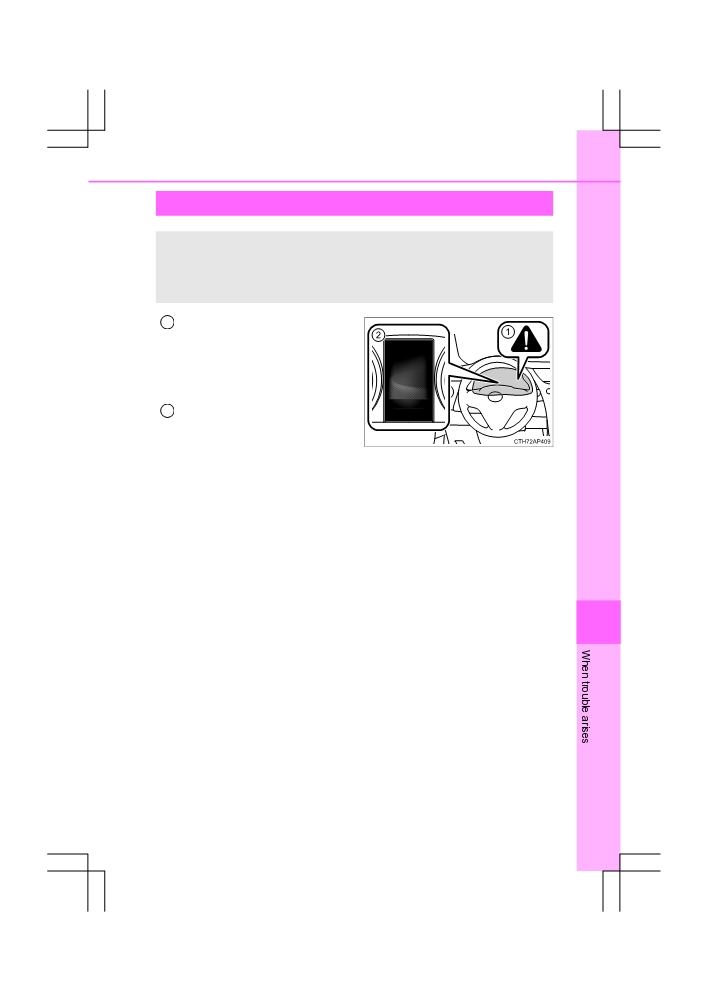

If a warning message is displayed
The multi-information display shows warnings of system mal-
functions, incorrectly performed operations, and messages that
indicate a need for maintenance. When a message is shown,
perform the correction procedure appropriate to the message.
Master warning light
1
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
2
If any of the message or indicator comes on again after the following
actions have been performed, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
8
AURIS HV Touring
Sports_EE
(OM12L18E)
512
8-2. Steps to take in an emergency
Messages and warnings
The warning lights and warning buzzers operate as follows depending
on the content of the message. If a message indicates the need for
inspection by a dealer, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional immediately.
System
warning
Warning buzzer*
Warning
light
Indicates an important situation,
such as when a system related to
Comes
Sounds
driving is malfunctioning or that
on
danger may result if the correction
procedure is not performed
Indicates an important situation,
Comes
Sounds or does
such as when the systems shown
on or
not sound
on the multi-information display
flashes
may be malfunctioning
Indicates a situation, such as
Flashes
Sounds
when damage to the vehicle or
danger may result
Indicates a condition, such as
Comes
malfunction of electrical compo-
Does not sound
on
nents, their condition, or indicates
the need for maintenance
Indicates a situation, such as
when an operation has been per-
Does not sound
formed incorrectly, or indicates
how to perform an operation cor-
rectly
*: A buzzer sounds the first time a message is shown on the multi-informa-
tion display
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
513
If the shifting operation of the hybrid transmission is rejected
The following messages may be displayed. Take the appropriate
action as shown below:
■ If “12-volt battery low. Shifting unavailable. Read Owner’s
Manual.” is displayed
Indicates that an attempt was made to change the shift position
when the voltage of the 12-volt battery was low.
Charge or replace the 12-volt battery.
■ If “Shifting temporarily unavailable. Wait a moment and try
again.” is displayed
Indicates that the shift lever and P position switch were operated
repeatedly in quick succession.
Wait approximately 20 seconds and then change the shift position.
■ If “Switched to N. To engage P mode, stop car then press P
switch.” is displayed
Indicates that the P position switch has been pressed while driving
and that the shift position has been changed to N automatically.
To enable shifting to P, stop the vehicle completely and press the P
position switch. To continue driving, change the shift position to D or
R.
8
AURIS HV Touring
Sports_EE
(OM12L18E)
514
8-2. Steps to take in an emergency
If caution about parking is necessary
If any of the following messages are displayed, have the vehicle
inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional as soon as possible.
When parking, park the vehicle on level ground and firmly set the
parking brake.
■ If “P lock malfunction. When parking, park in flat place and
apply parking brake securely” is displayed
Indicates the following:
● The parking lock mechanism may not operate. Also, changing
the shift position to P may not be possible.
● The hybrid system may not be able to be started.
● The power switch may not be able to be turned off.
If the power switch cannot be turned off, set the parking brake and
then operate the power switch to turn it off.
■ If “Shift system failure. When parking, apply parking brake.
Read Owner’s Manual.” is displayed
Refer to “P lock malfunction. When parking, park in flat place and
apply parking brake securely.”.
■ If “Shift system comm. failure. When parking, apply parking
brake. Read Owner’s Manual.” is displayed
Indicates that the automatic P position selection function may not
be operating.
Before turning the power switch off, press the P position switch.
Verify that the shift position has been changed to P by checking the
shift position indicators.
■ If “12-volt battery low. When parking, apply parking brake.
Read Owner’s Manual.” is displayed
Indicates the following:
● 12-volt battery may not be charged sufficiently.
● Changing the shift position to P may not be possible.
● The hybrid system may not be able to be started.
Charge or replace the 12-volt battery. After charging the 12-volt bat-
tery, the message may be displayed until the shift position is
changed from P.
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
515
If a message about the hybrid system or hybrid battery (traction
battery) is displayed
If any of the following messages are displayed, take the appropriate
actions as shown below:
■ If “Press brake when vehicle is stopped. Hybrid system may
overheat.” is displayed
Message is displayed when the accelerator pedal is depressed to
maintain the vehicle position when stopped on an upward slope,
etc.
If this continues, the hybrid system may overheat. Release the
accelerator pedal and depress the brake pedal.
■ If “Hybrid battery low. Hybrid system stopped. Shift to P and
restart.” is displayed
Message is displayed when the remaining charge for the hybrid
battery (traction battery) is low, because vehicle has been shifted N
for a long period of time.
When operating the vehicle, restart the hybrid system.
■ If
“Hybrid system malfunction. Stop in a safe place. See
owner’s manual.” is displayed
Refer to “If a message instructing to refer to the Owner’s Manual is
displayed”. (P. 517)
8
AURIS HV Touring
Sports_EE
(OM12L18E)
516
8-2. Steps to take in an emergency
■ If “Hybrid battery low. Shift out of N to recharge.” is displayed
Message is displayed when the remaining charge for the hybrid
battery (traction battery) is low.
As the hybrid battery (traction battery) cannot be charged when the
shift position is in N, when stopped for long periods of time change
the shift position to P.
■ If “Hybrid system overheated. Reduced output power.” is dis-
played
This message may be displayed when driving under severe operat-
ing conditions.
(For example, when driving up a long steep hill.)
Handling method: P. 556
■ If “Maintenance required for hybrid battery cooling parts at
your dealer.” is displayed
The filter may be clogged, the air intake vent may be blocked or
there may be a gap in the duct. Have maintenance performed on
the hybrid battery
(traction battery) cooling component at any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
517
If a message instructing to refer to the Owner’s Manual is dis-
played
● If any of the following messages are displayed, take the appropriate
actions as shown on the following pages in this Owner’s Manual:
•
“12-volt battery low. Shifting unavailable. Read Owner’s Man-
ual.”: P. 513
•
“Shift system failure. When parking, apply parking brake. Read
owner’s manual.”: P. 514
•
“Shift system comm. failure. When parking, apply parking brake.
Read owner’s manual.”: P. 514
•
“12-volt battery low. When parking, apply parking brake. Read
Owner’s Manual.”: P. 514
● If the following messages are displayed, there may be a malfunc-
tion.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
•
“Brake effectiveness is reduced due to failure, please stop in a
safe area and check manual.”
•
“Hybrid system malfunction. Stop in a safe place. See owner’s
manual.”
● If the following message is displayed, there may be a malfunction.
Immediately have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
•
“Shift system failure. Read Owner’s Manual.”
8
AURIS HV Touring
Sports_EE
(OM12L18E)
518
8-2. Steps to take in an emergency
Other messages displayed on the multi-information display
Take the appropriate actions as instructed in the message displayed.
If any of the following messages are displayed, also refer to this
Owner’s Manual.
■ If “Check charging system.” is displayed
Indicates a malfunction in the vehicle's charging system.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ If “Engine oil pressure low.” is displayed
Indicates that the engine oil pressure is too low.
Immediately stop the vehicle in a safe place and contact any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ When “Headlight system malfunction. Visit your dealer.” is
displayed on the multi-information display (if equipped)
The following systems may be malfunctioning. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
● The LED headlight system
● The automatic headlight leveling system
● Automatic High Beam
■ If “Front sensor systems are temporarily unavailable due to
inappropriate temp. Wait a moment.” or “Front Camera Vision
Blocked Clean and Demist Windshield.” is displayed
(if
equipped)
The following systems may be suspended until the problem shown
in the message is resolved.
● PCS (Pre-Crash Safety system)
● LDA (Lane Departure Alert)
● Automatic High Beam
● RSA (Road Sign Assist)
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
519
■ If “Shift to P before exiting vehicle.” is displayed
Message is displayed when the driver’s door is opened without
turning the power switch to off with the shift position in any position
other than P.
Change the shift position to P.
■ If “Shift is in N. Release accelerator before shifting.” is dis-
played
Message is displayed when the accelerator pedal has been
depressed and the shift position is in N.
Release the accelerator pedal and change the shift position to D or
R.
■ System warning lights
In the following situations, the master warning light will not come on or flash.
Instead, a separate system warning light will come on along with a message
displayed on the multi-information display.
● Malfunction of the brake system
The brake system warning light will come on. (P. 503)
● High engine coolant temperature
The high engine coolant temperature warning light will be displayed.
(P. 504)
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
8
AURIS HV Touring
Sports_EE
(OM12L18E)
520
8-2. Steps to take in an emergency
If you have a flat tire (vehicles with a spare
tire)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 451
WARNING
■ If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers. (P. 494)
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
521

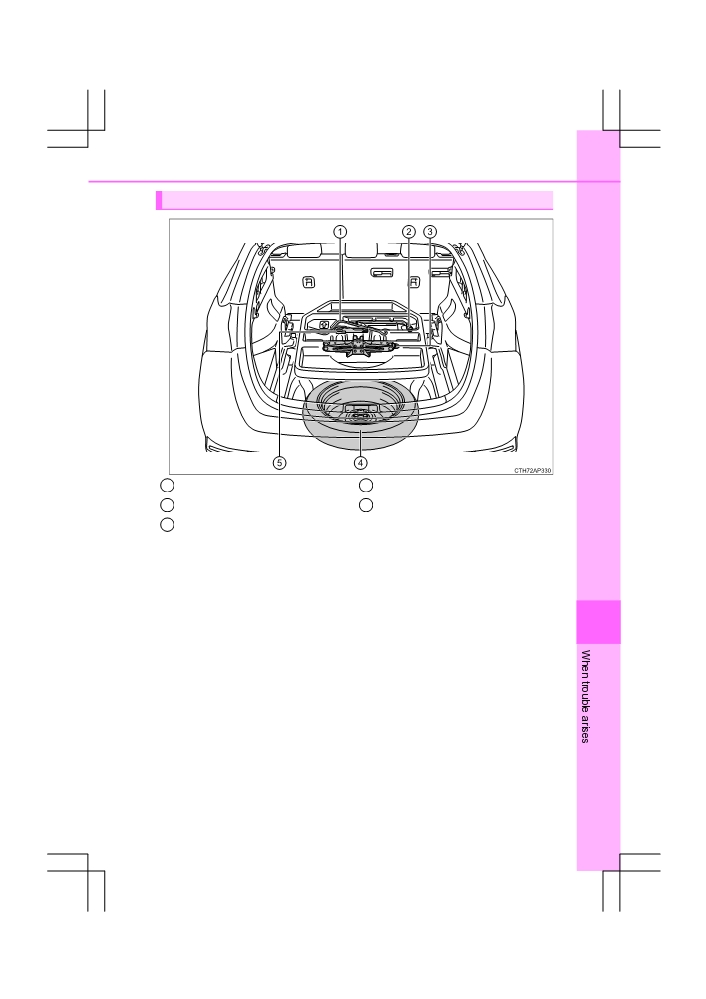

Location of the spare tire, jack and tools
1
Jack handle
4
Spare tire
2
Wheel nut wrench
5
Towing eyelet
3
Jack
8
AURIS HV Touring
Sports_EE
(OM12L18E)
522
8-2. Steps to take in an emergency
WARNING
■ Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
● Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
● Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
● Put the jack properly in its jack point.
● Do not put any part of your body under the vehicle while it is supported by
the jack.
● Do not start the hybrid system or drive the vehicle while the vehicle is sup-
ported by the jack.
● Do not raise the vehicle while someone is inside.
● When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to replace
the tire.
● Use a jack stand if it is necessary to get under the vehicle.
● When lowering the vehicle, make sure that there is no-one near the vehi-
cle. If there are people nearby, warn them vocally before lowering.
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
523

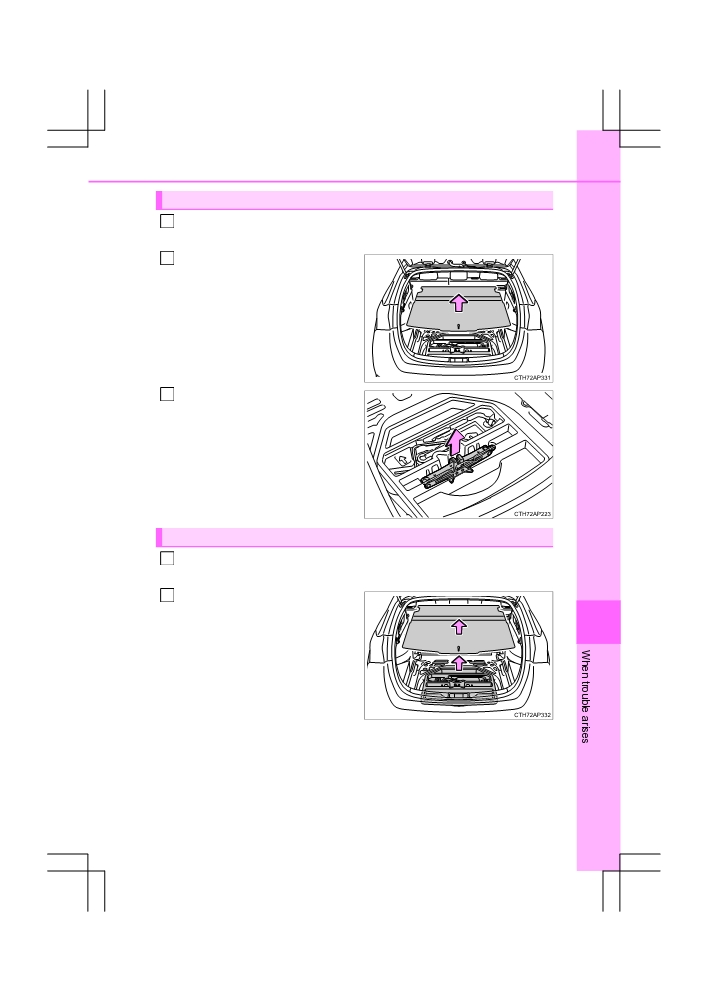

Taking out the jack
1
Vehicles with deck boards: Remove the center deck boards and the
storage box. (P. 407)
2
Remove the luggage floor
cover.
Take out the jack.
3
Taking out the spare tire
1
Vehicles with deck boards: Remove the center deck boards and the
storage box. (P. 407)
Remove the luggage floor
2
cover and the tool box.
8
AURIS HV Touring
Sports_EE
(OM12L18E)
524
8-2. Steps to take in an emergency

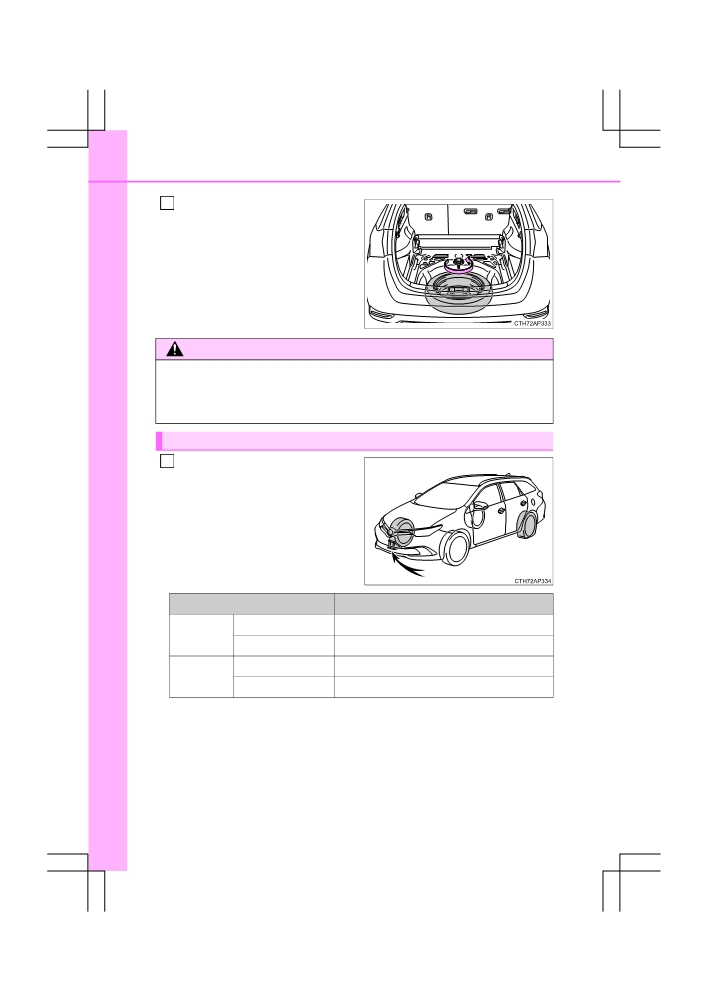

3
Loosen the center fastener that
secures the spare tire.
WARNING
■ When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire
and the body of the vehicle.
Replacing a flat tire
1
Chock the tires.
Flat tire
Wheel chock positions
Left-hand side
Behind the rear right-hand side tire
Front
Right-hand side
Behind the rear left-hand side tire
Left-hand side
In front of the front right-hand side tire
Rear
Right-hand side
In front of the front left-hand side tire
AURIS HV Touring
Sports_EE
(OM12L18E)
8-2. Steps to take in an emergency
525

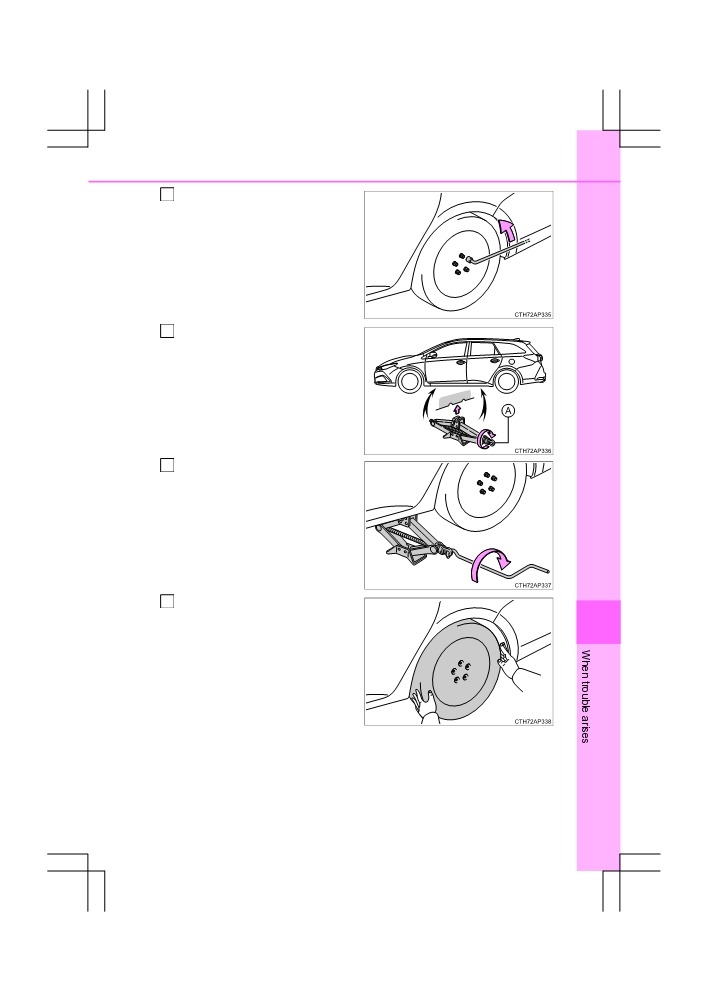

2
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
3
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They indi-
cate the jack point positions.
4
Raise the vehicle until the tire is
slightly raised off the ground.
5
Remove all the wheel nuts and
the tire.
8
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
AURIS HV Touring
Sports_EE
(OM12L18E)
526
8-2. Steps to take in an emergency
WARNING
■ Replacing a flat tire
● Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or
other body parts while changing a tire, etc. may result in burns.
● Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing a
serious accident. Remove any oil or grease from the wheel bolts or
wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 103 N•m
(10.5 kgf•m, 76 ft•lbf) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
• When installing the wheel nuts, be sure to install them with the tapered
ends facing inward. (P. 468)
AURIS HV Touring
Sports_EE
(OM12L18E)
