476
7-3. Do-it-yourself maintenance

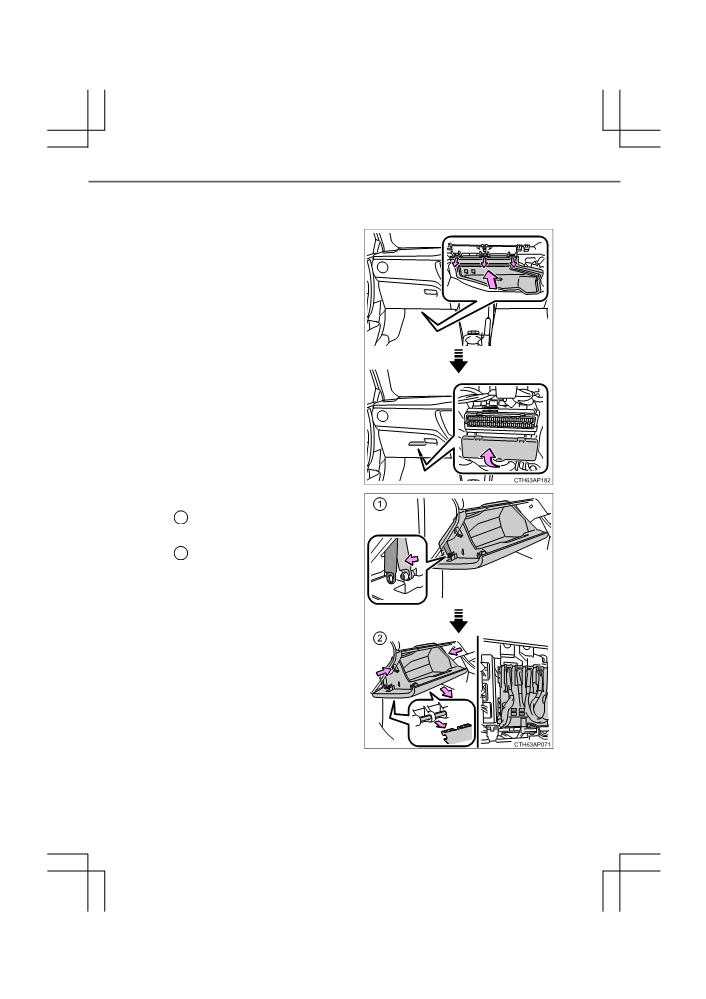

Under the passenger’s side instrument panel (right-hand drive vehi-
cles)
Type A:
Remove the cover and the lid.
Type B:
1
Open the glove box. Slide off
the damper.
Push in each side of the
2
glove box disconnect the
upper claws. Then pull out
the glove box and disconnect
the lower claws.
AURIS HV Touring
Sports_EE
(OM12L18E)
7-3. Do-it-yourself maintenance
477

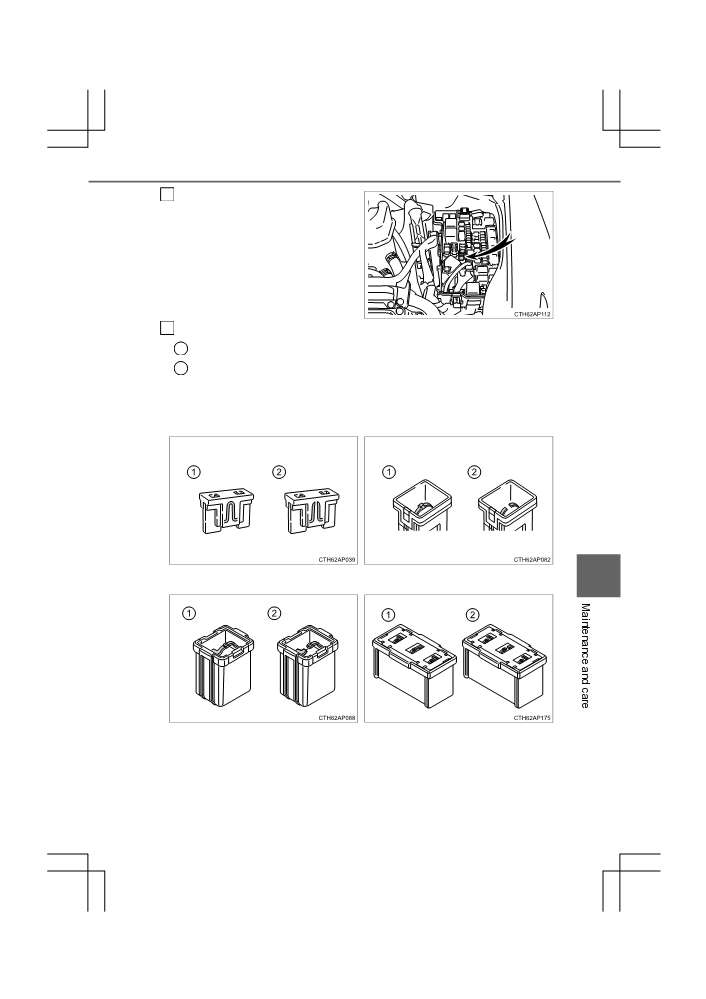

3
Remove the fuse with the pull-
out tool.
Only type A fuses can be removed
using the pullout tool.
4
Check if the fuse is blown.
1
Normal fuse
2
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type A
Type B
7
Type C
Type D
AURIS HV Touring
Sports_EE
(OM12L18E)
478
7-3. Do-it-yourself maintenance
■ After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 479)
● If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
■ Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional as soon as possible.
AURIS HV Touring
Sports_EE
(OM12L18E)
7-3. Do-it-yourself maintenance
479

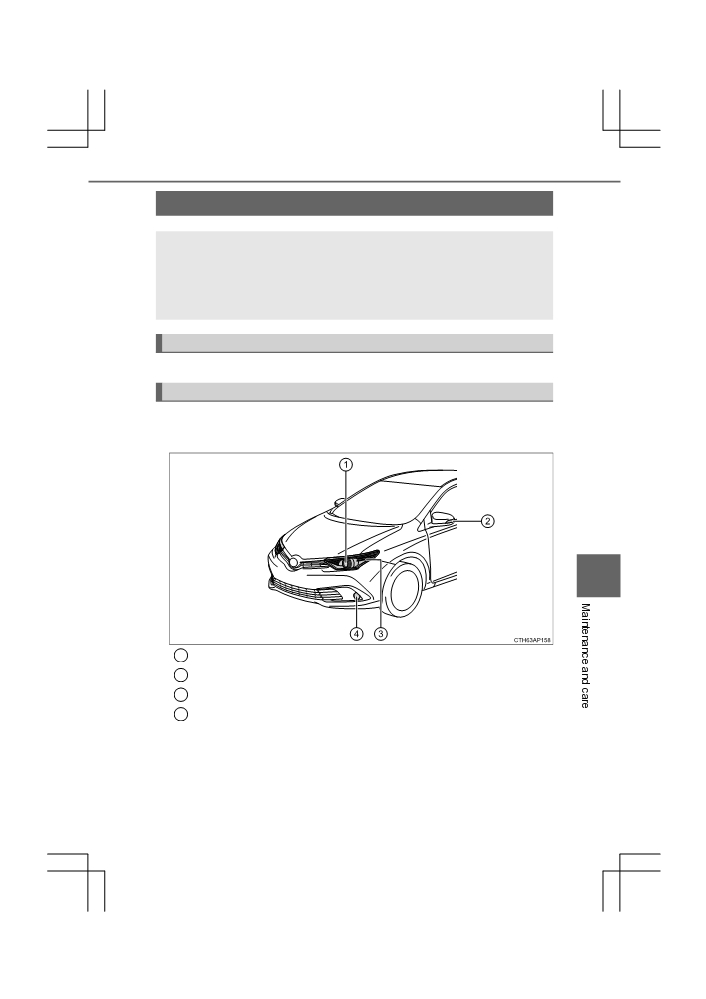

Light bulbs
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (P. 575)
Bulb locations
■ Front
Vehicles with halogen headlights
7
1
Headlights
2
Side turn signal lights
3
Front turn signal lights
4
Front fog lights (if equipped)
AURIS HV Touring
Sports_EE
(OM12L18E)
480
7-3. Do-it-yourself maintenance

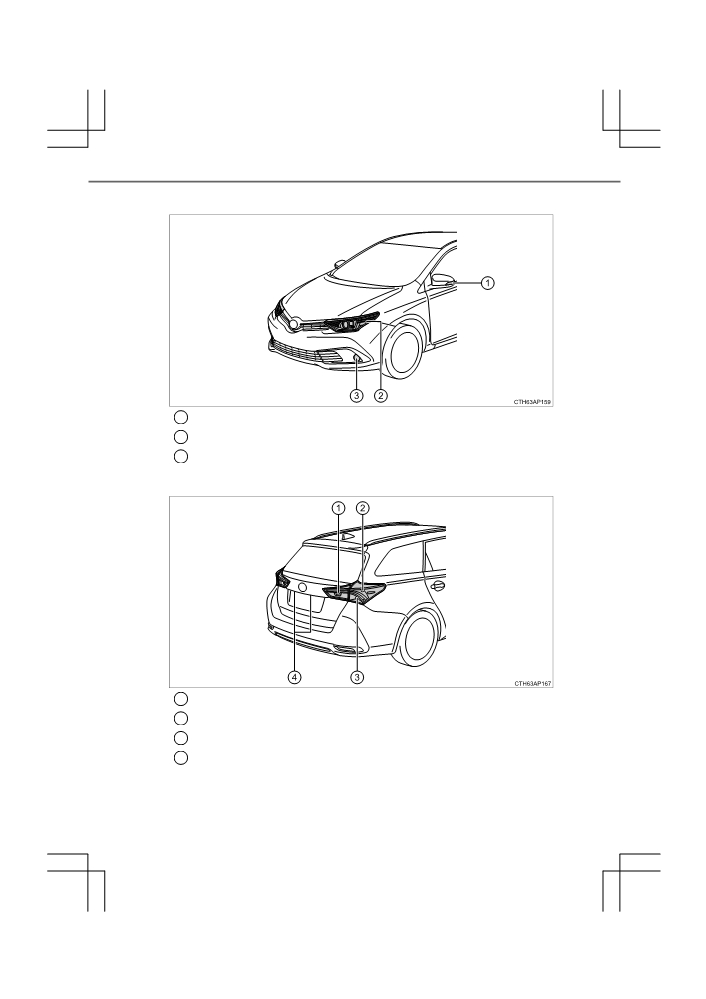

Vehicles with LED headlights
1
Side turn signal lights
2
Front turn signal lights
3
Front fog lights (if equipped)
■ Rear (left-hand drive vehicles)
1
Back-up light
2
Stop lights
3
Rear turn signal lights
4
License plate lights
AURIS HV Touring
Sports_EE
(OM12L18E)
7-3. Do-it-yourself maintenance
481

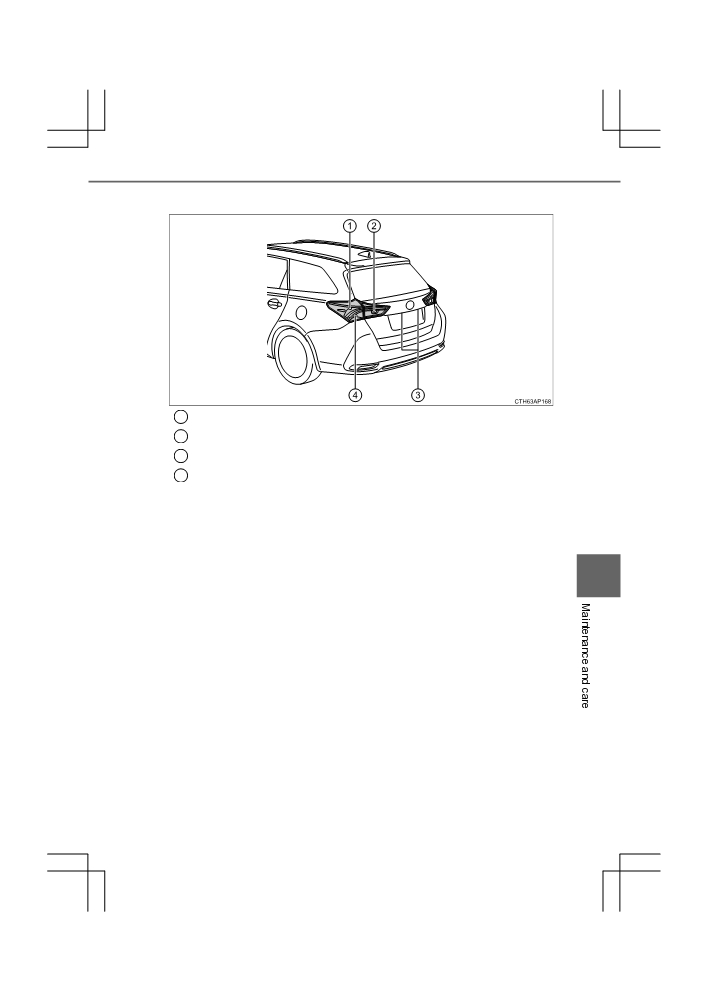

■ Rear (right-hand drive vehicles)
1
Stop lights
2
Back-up light
3
License plate lights
4
Rear turn signal lights
7
AURIS HV Touring
Sports_EE
(OM12L18E)
482
7-3. Do-it-yourself maintenance

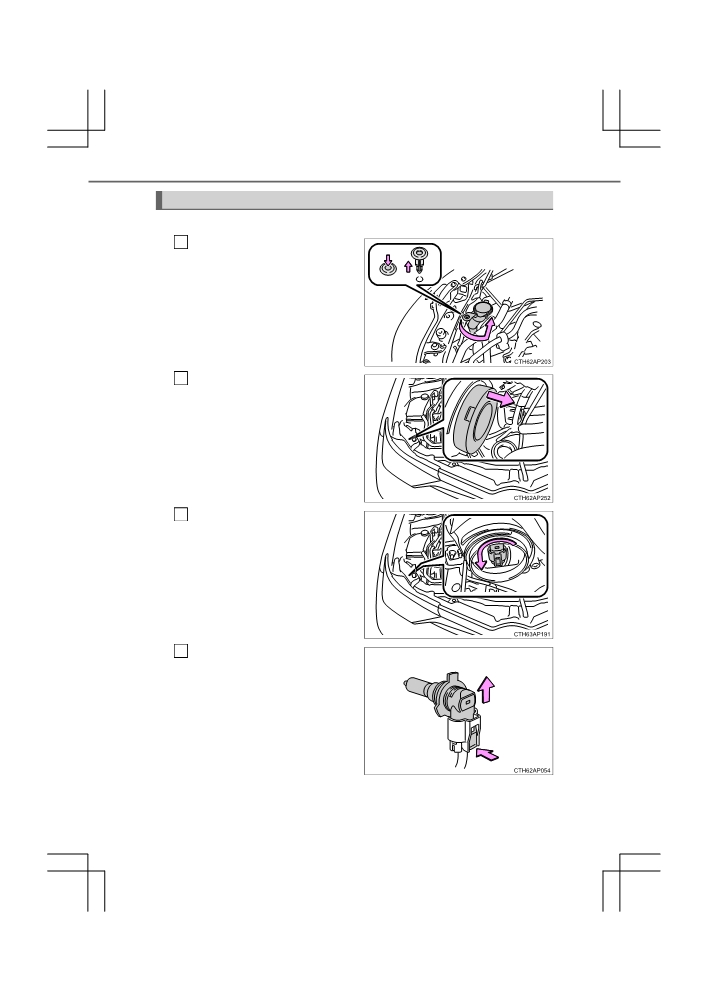

Replacing light bulbs
■ Headlights (vehicles with halogen headlights)
Remove the securing clip.
1
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
Remove the cover.
2
3
Turn
the
bulb
base
counterclockwise
and
remove it.
Unplug the connector while
4
pressing the lock release.
AURIS HV Touring
Sports_EE
(OM12L18E)
7-3. Do-it-yourself maintenance
483
5
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting and insert.
6
Turn and secure the bulb
base.
Shake the bulb base gently to
check that it is not loose, turn
the headlights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
7
Install the cover.
B
To make sure the cover is
A
installed securely, align the pro-
truding part (A) with the center
of the area
(B) shown in the
illustration and push the perime-
ter of the cover firmly.
7
Install the washer fluid filler
8
opening by inserting and
turning it. Install the securing
clip.
(When replacing right
side bulb only.)
AURIS HV Touring
Sports_EE
(OM12L18E)
484
7-3. Do-it-yourself maintenance

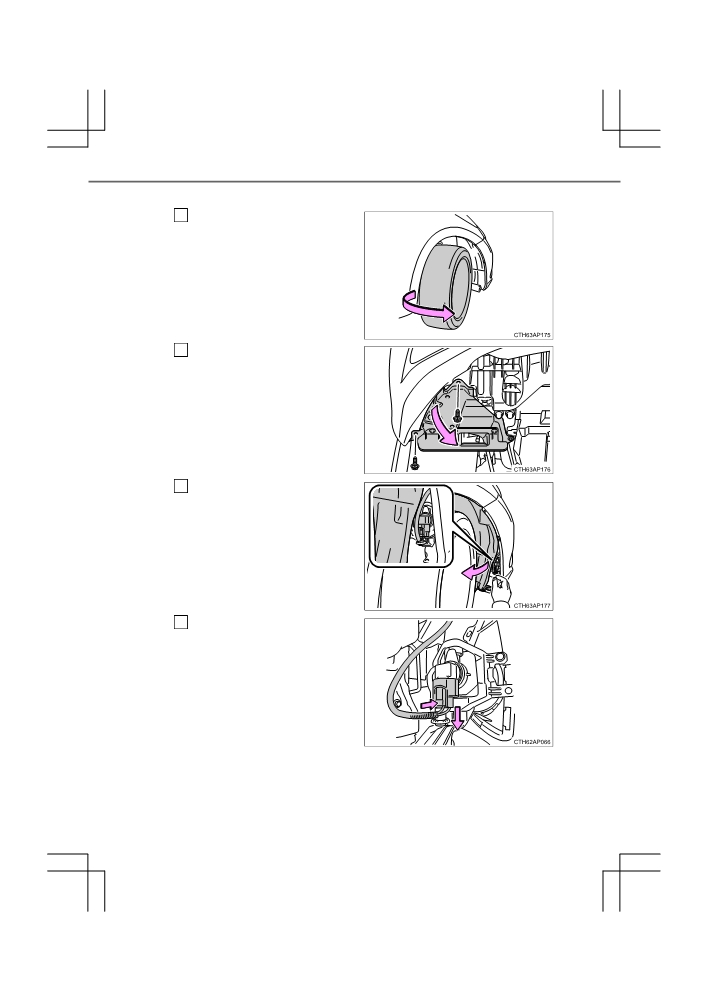

■ Front fog lights (if equipped)
Turn the steering wheel in
1
the opposite direction of the
light to be replaced.
Turn the steering wheel to a
point that allows your hand to
easily fit between the tire and
fender liner.
Remove the 2 screws and
2
partly remove the fender
liner.
Partly remove the fender
3
liner until the bulb is visible.
Unplug the connector while
4
pressing the lock release.
AURIS HV Touring
Sports_EE
(OM12L18E)
7-3. Do-it-yourself maintenance
485

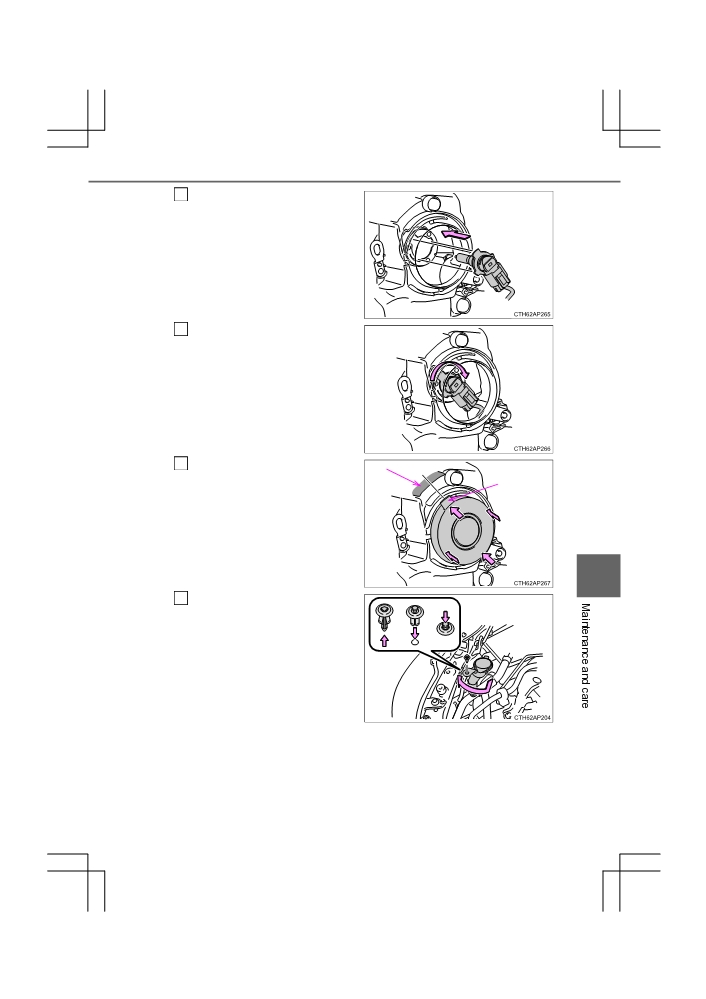

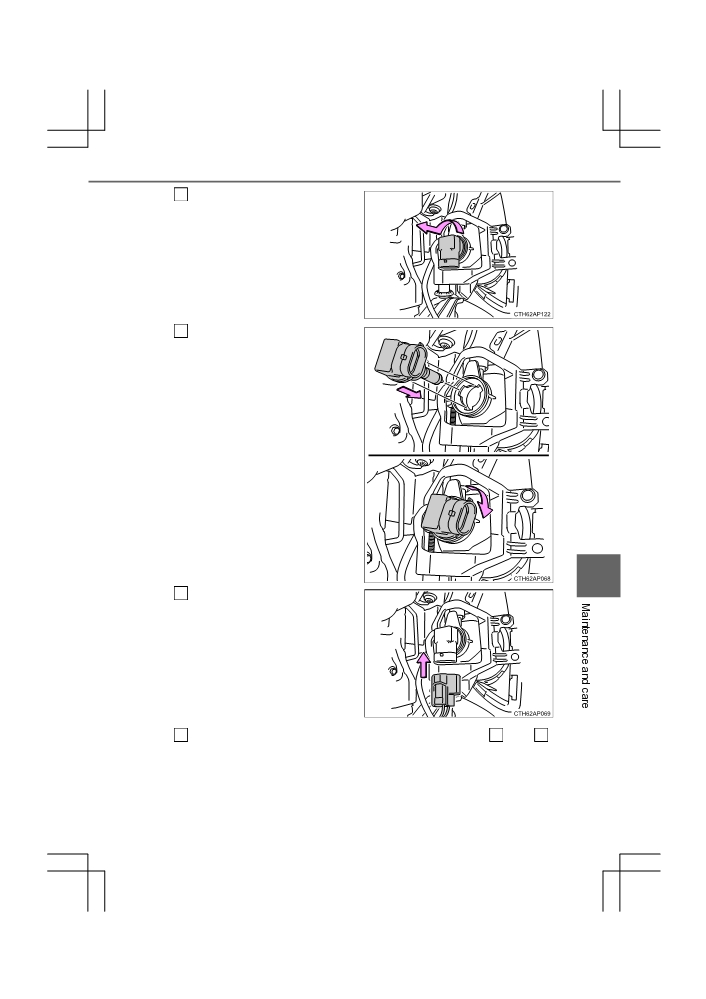

5
Turn
the
bulb
base
counterclockwise
and
remove it.
Install a new light bulb.
6
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
7
Install the connector.
7
Shake the connector gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
8
When installing the fender liner, install by conducting
3
and
2
with the directions reversed.
Make sure that the fender liner is attached to the inside of the bumper.
AURIS HV Touring
Sports_EE
(OM12L18E)
486
7-3. Do-it-yourself maintenance

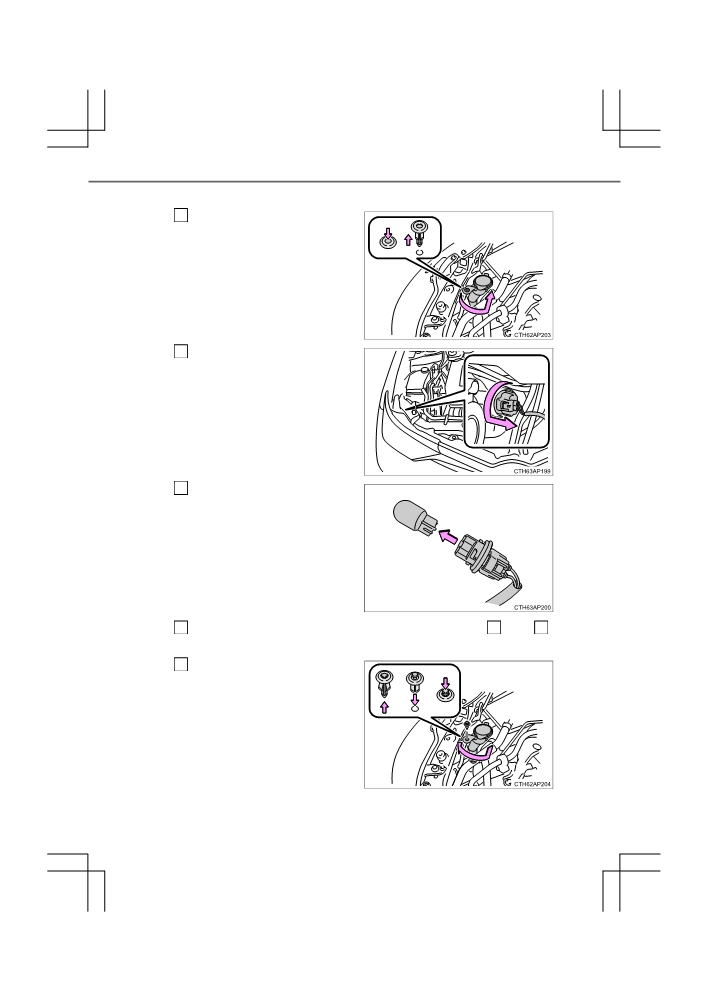

■ Front turn signal lights
Remove the securing clip.
1
Pull out the washer fluid filler
opening after turning it.
(When replacing right side
bulb only.)
2
Turn
the
bulb
base
counterclockwise.
Remove the light bulb.
3
4
When installing the light bulb, install by conducting
3
and
2
with the directions reversed.
Install the washer fluid filler
5
opening by inserting and
turning it. Install the securing
clip.
(When replacing right
side bulb only.)
AURIS HV Touring
Sports_EE
(OM12L18E)
7-3. Do-it-yourself maintenance
487

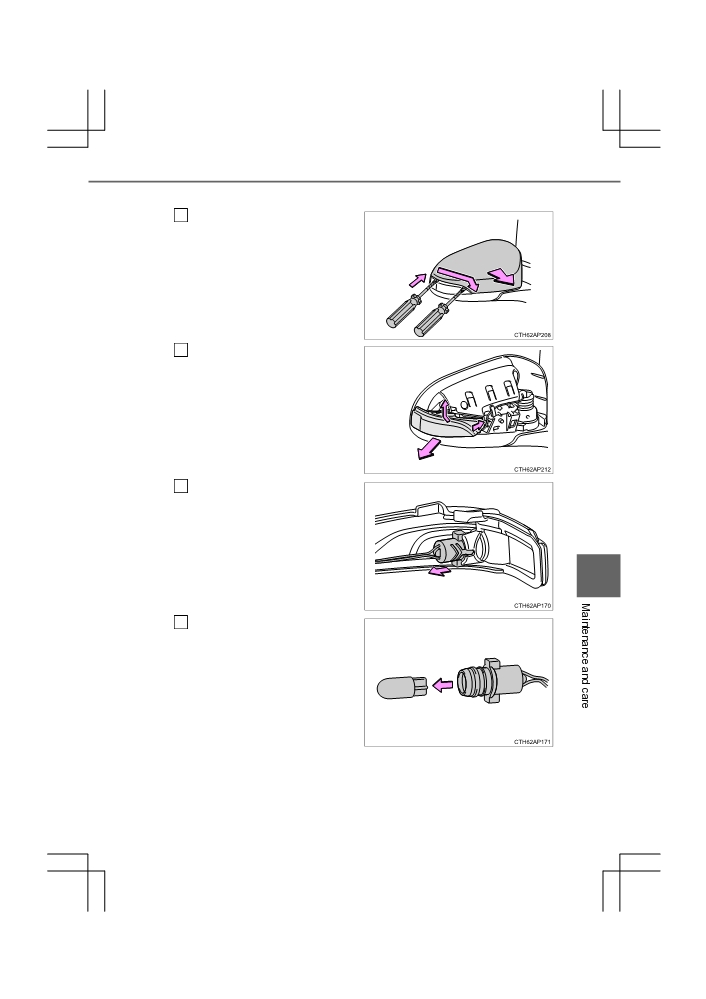

■ Side turn signal lights
Remove the cover
1
Insert the flathead screwdriver
and slide along the side turn sig-
nal light.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
2
Press on the
2 clips and
remove the side turn signal
light from the visor housing.
Remove the socket from the
3
side turn signal light housing.
7
Remove the bulb.
4
AURIS HV Touring
Sports_EE
(OM12L18E)
488
7-3. Do-it-yourself maintenance

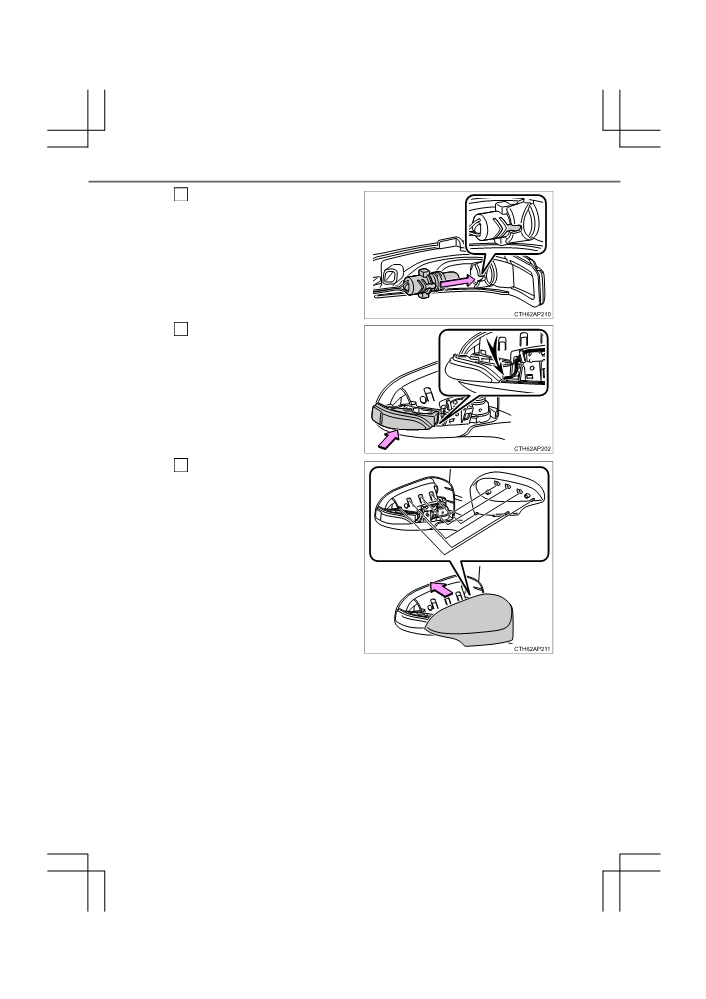

5
Replace the bulb and install
the socket to the side turn
signal light housing.
Align the grooves of the socket
to the side turn signal light hous-
ing.
With the wire harness pass-
6
ing through the lower part of
the side turn signal light,
install it to the visor housing.
7
Align the 6 tabs and install
the cover.
After hearing a click sound, con-
firm that the cover is secure.
AURIS HV Touring
Sports_EE
(OM12L18E)
7-3. Do-it-yourself maintenance
489

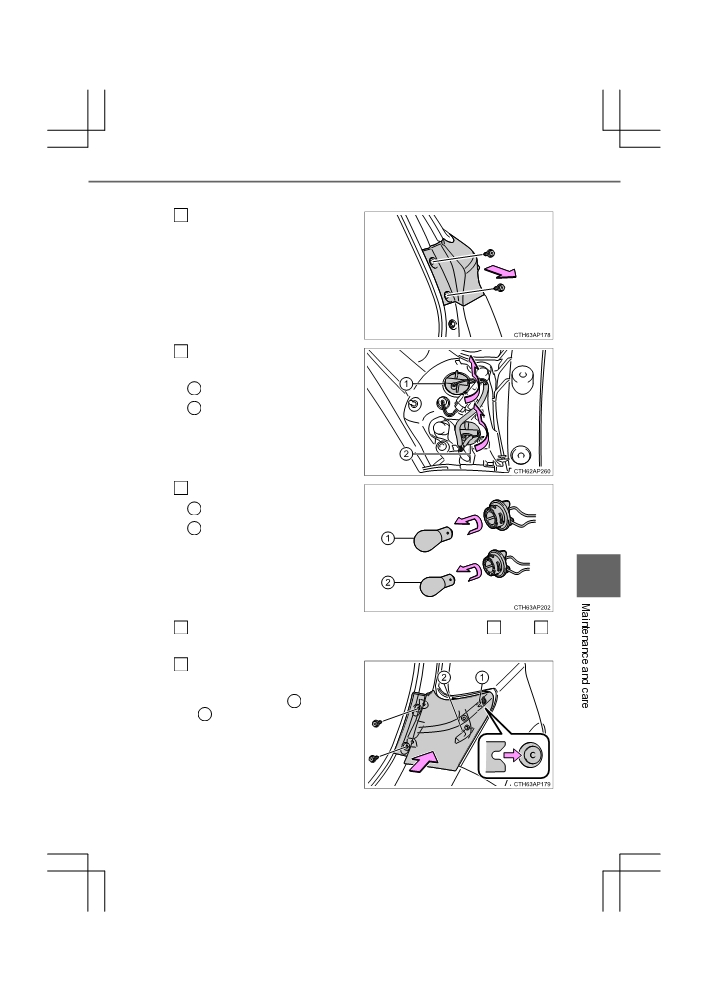

■ Stop lights and rear turn signal lights
1
Open the back door and
remove the
2 screws.
Remove the lamp assembly
by pulling it straight back.
2
Turn
the
bulb
base
counterclockwise.
1
Stop lights
2
Rear turn signal lights
3
Remove the light bulb.
1
Stop lights
2
Rear turn signal lights
7
4
When installing the light bulb, install by conducting
3
and
2
with the directions reversed.
5
Install the lamp assembly
and then install the 2 screws.
Align the guide
(
1
) and pin
(
2
) on the lamp assembly with
the mounting when installing it.
AURIS HV Touring
Sports_EE
(OM12L18E)
490
7-3. Do-it-yourself maintenance

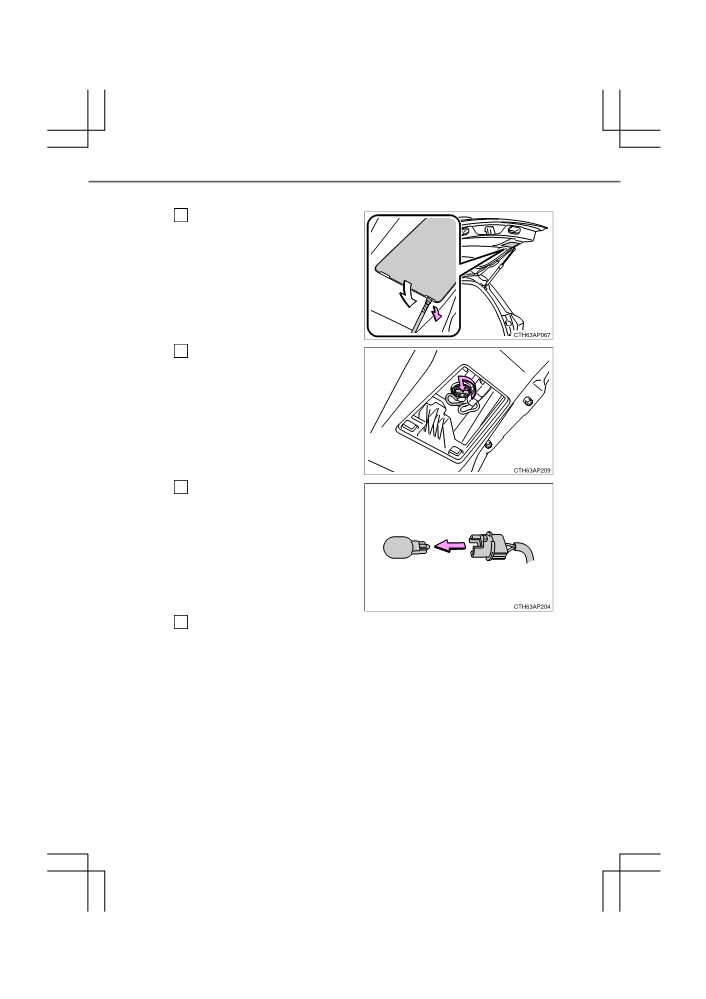

■ Back-up light
Open the back door and
1
remove the cover.
Insert a flathead screwdriver or
similar into the hole at the top of
the cover and remove it as
shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
2
Turn
the
bulb
base
counterclockwise
and
remove it.
3
Remove the light bulb.
4
When installing, reverse the steps listed.
AURIS HV Touring
Sports_EE
(OM12L18E)
7-3. Do-it-yourself maintenance
491

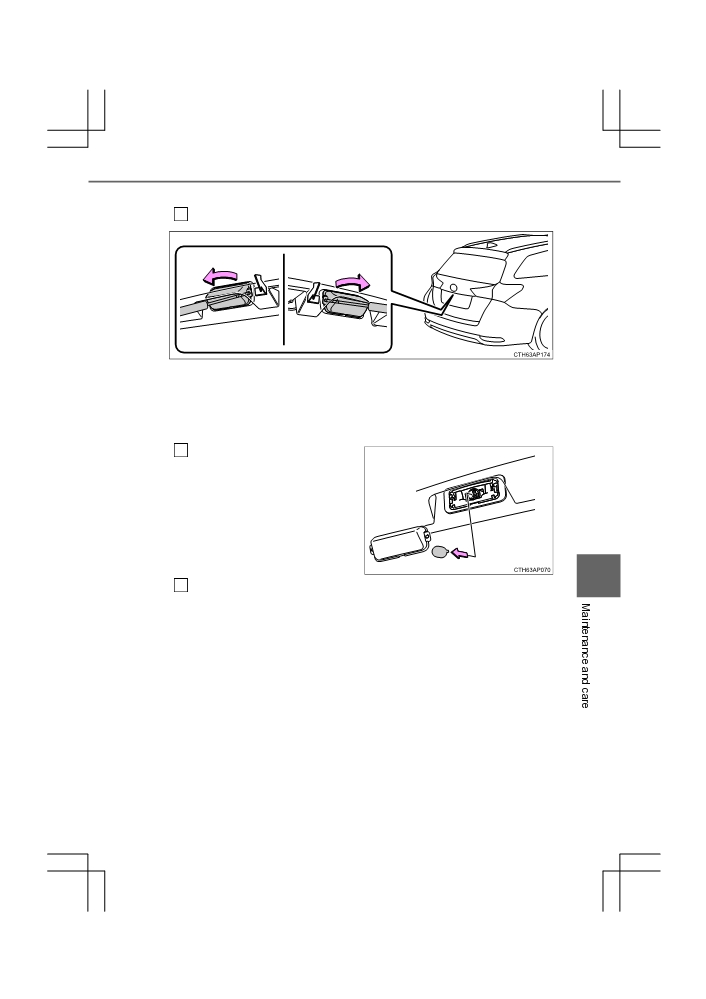

■ License plate lights
Remove the cover.
1
Insert a properly sized flathead screwdriver into the hole of the
cover on the inner side and disengage the claw and pry the cover
toward the outer side as shown in the illustration.
To prevent damaging the vehicle, wrap the tip of the screwdriver with
tape.
Remove the light bulb.
2
7
When installing, reverse the steps listed.
3
AURIS HV Touring
Sports_EE
(OM12L18E)
492
7-3. Do-it-yourself maintenance
■ Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● Headlights (vehicles with LED headlights)
● Front position lights/daytime running lights
● High mounted stoplight
● Tail lights
● Rear fog light
■LED light bulbs
The headlights (vehicles with LED headlights), rear fog light, high mounted
stoplight, front position lights/daytime running lights and tail lights consist of a
number of LEDs. If any of the LEDs burns out, take your vehicle to any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped profes-
sional to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
P. 478
WARNING
■ Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
AURIS HV Touring
Sports_EE
(OM12L18E)
