102
2. Instrument cluster

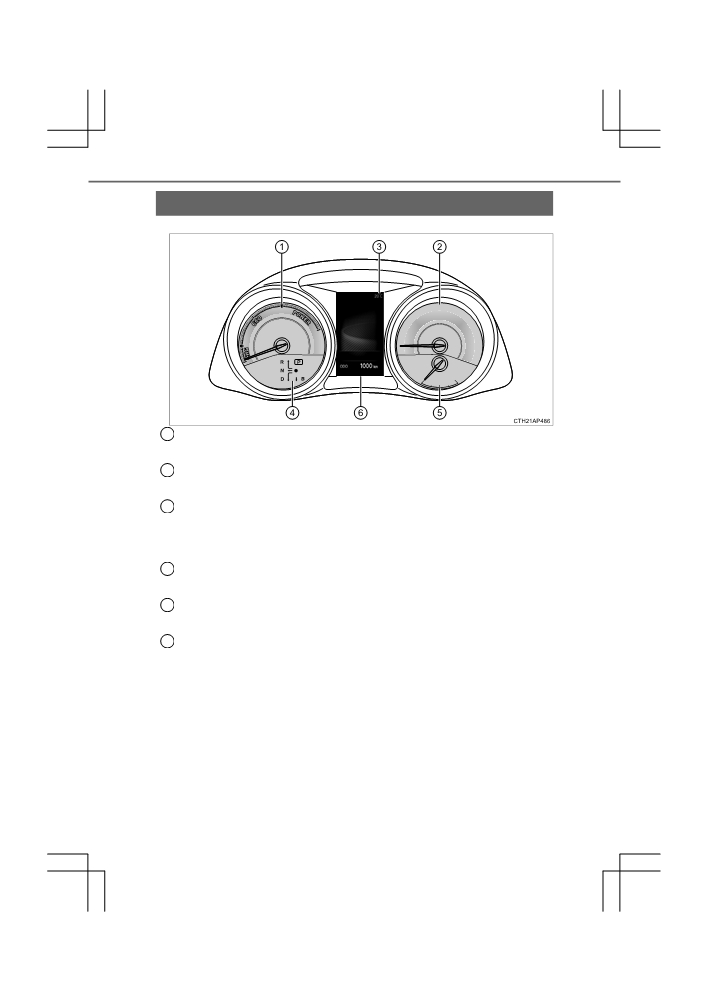

Gauges and meters
Hybrid System Indicator
1
Displays hybrid system output or regeneration level (P. 103)
2
Speedometer
Displays the vehicle speed.
Outside temperature
3
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the ambient
temperature is 3°C (37°F) or lower.
4
Shift position indicators
Displays the shift position. (P. 224)
5
Fuel gauge
Displays the quantity of fuel remaining in the tank.
6
Multi-information display
P. 105
AURIS HV Touring
Sports_EE
(OM12L18E)
2. Instrument cluster
103
■ The meters and display illuminate when
The power switch is in ON mode.
■ Outside temperature display
● In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 15 km/h [9 mph])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● If “” is displayed continuously, the system may be malfunctioning. Take
your vehicle to any authorized Toyota dealer or repairer, or another duly
2
qualified and equipped professional.

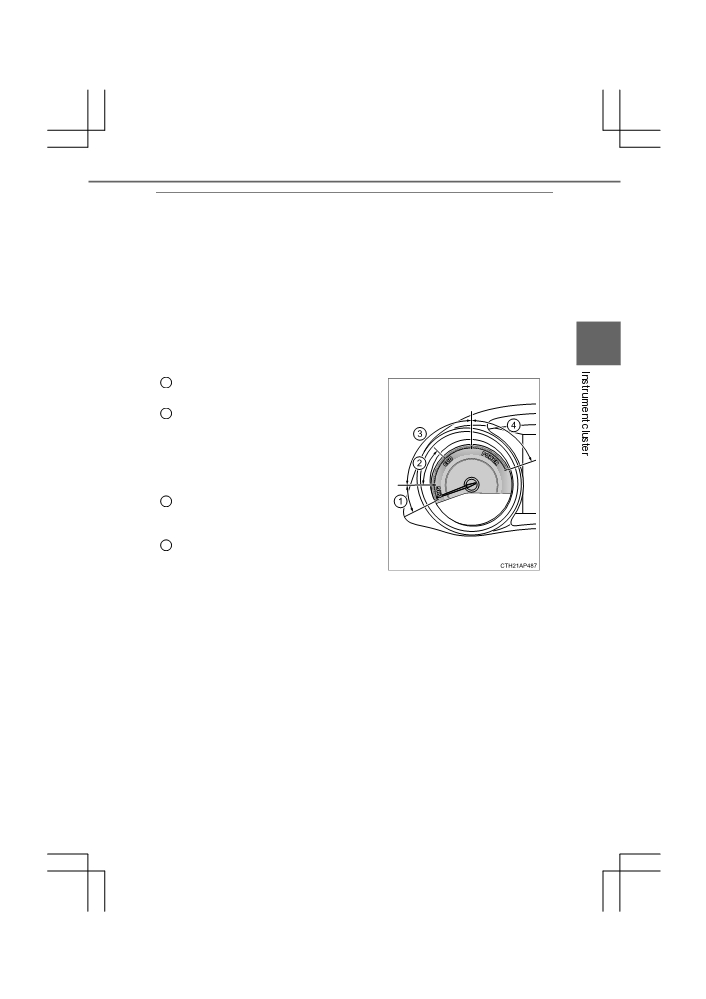

■ Hybrid System Indicator
1
Charge area
Shows regenerative charging.
2
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
3
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
4
Power area
Shows that an Eco-friendly driving
range is being exceeded
(during full
power driving etc.)
● By keeping the indicator needle within Eco area, more Eco-friendly driving
can be achieved.
● Charge area indicates regeneration* status. Regenerated energy will be
used to charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.
AURIS HV Touring
Sports_EE
(OM12L18E)
104
2. Instrument cluster
NOTICE
■ To prevent damage to the engine and its components
If the high engine coolant temperature warning light is shown, the engine
may be overheating. In this case, immediately stop the vehicle in a safe
place, and check the hybrid system after it has cooled completely.
(P. 556)
AURIS HV Touring
Sports_EE
(OM12L18E)
2. Instrument cluster
105

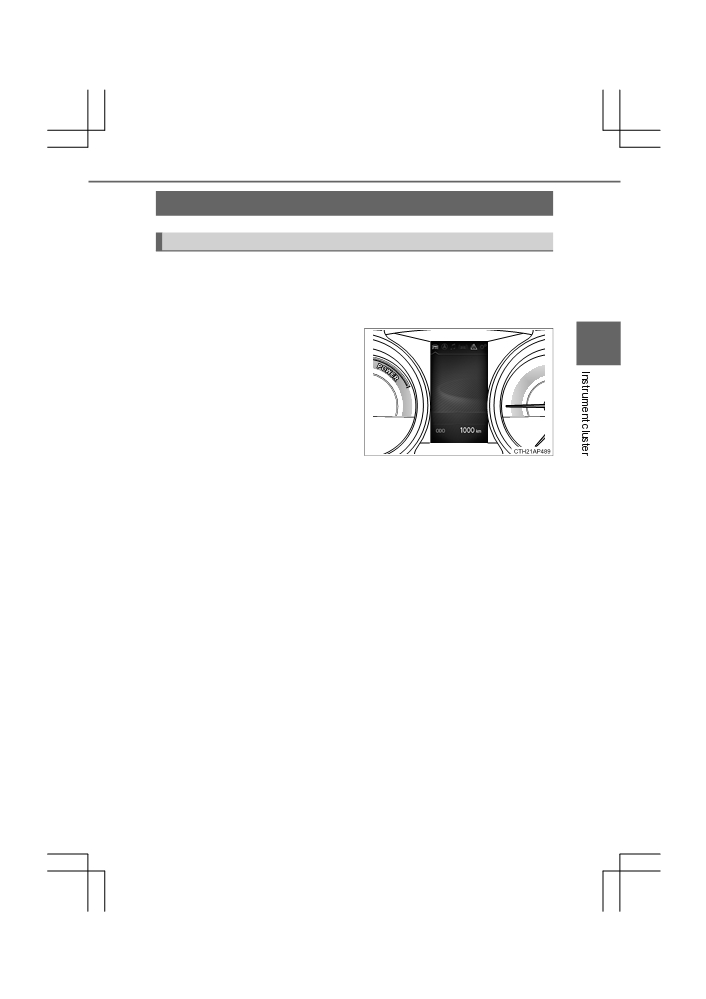

Multi-information display
Display content
The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display can also be used to change the display settings
and other settings.
● Outside temperature (P. 102)
2
● Pop-up display
In some situations a warning
message or the operation sta-
tus of a system will be tempo-
rarily displayed on the multi-
information display.
On some models: Some pop-up
displays can be set on/off.
(P. 111)
● Trip information (P. 107)
Displays the following items:
• Odometer
• Trip meter
AURIS HV Touring
Sports_EE
(OM12L18E)
106
2. Instrument cluster
● Menu icons (P. 108)
Select a menu icon to display its content.
To display the menu icons, press the
or
switch on the
steering wheel.
Drive information (P. 109)
Select to display various drive data.
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the meter
using the meter control switches.
Driving assist system information (if equipped)
Select to display the operational status of the following systems
• LDA (Lane Departure Alert) (P. 270)
• RSA (Road Sign Assist) (P. 279)
Warning message display (P. 511)
Select to display warning messages and measures to be taken if a
malfunction is detected.
Settings display (P. 111)
Select to change the meter display settings and other settings.
AURIS HV Touring
Sports_EE
(OM12L18E)
2. Instrument cluster
107
Trip information

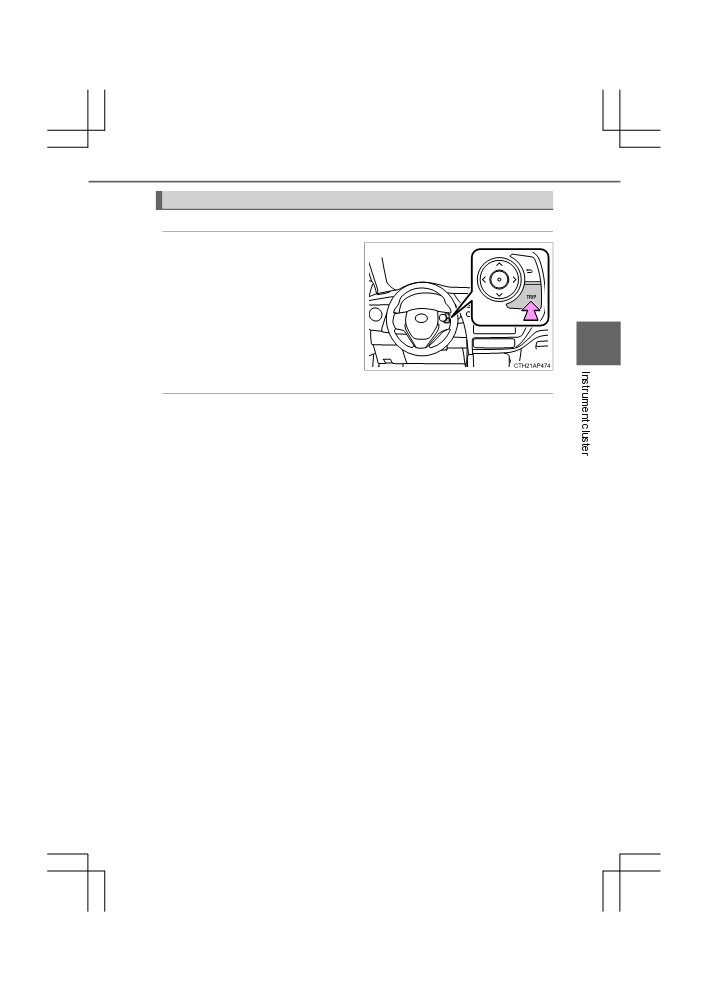

◆ Changing the display
To change the displayed item,
press the “TRIP” switch.
Each time the switch is pressed,
the displayed item will be
changed.
2
◆ Display items
■ Odometer
Displays the total distance the vehicle has been driven.
■ Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
To reset, display the desired trip meter and press and hold the “TRIP”
switch.
AURIS HV Touring
Sports_EE
(OM12L18E)
108
2. Instrument cluster

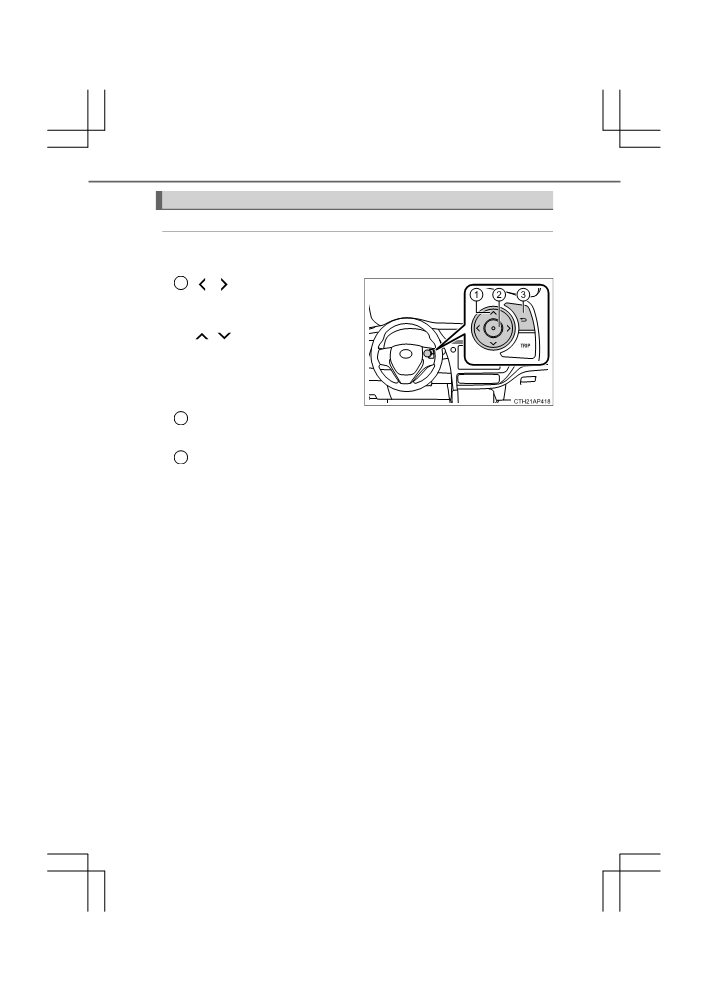

Menu icons
◆ Operating the meter control switches
The multi-information display is operated using the meter control
switches.
1
: Display the menu
icons/select menu
icons
: Change displayed
item, scroll up/down
the screen and
move the cursor up/
down
2
Press: Enter/Set
Press and hold: Reset
3
Return to the previous screen
AURIS HV Touring
Sports_EE
(OM12L18E)
2. Instrument cluster
109
◆ Drive information
■ Drive information 1/Drive information 2/Drive information 3
Displays drive information such as the following:
● Drive information 1
• Current fuel consumption (gauge display)
• Average fuel economy (after reset)
● Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset)
2
● Drive information 3
• Average fuel economy (after start)
• Distance (after start)
Displayed items (listed below) can be changed on the settings dis-
play. (P. 111)

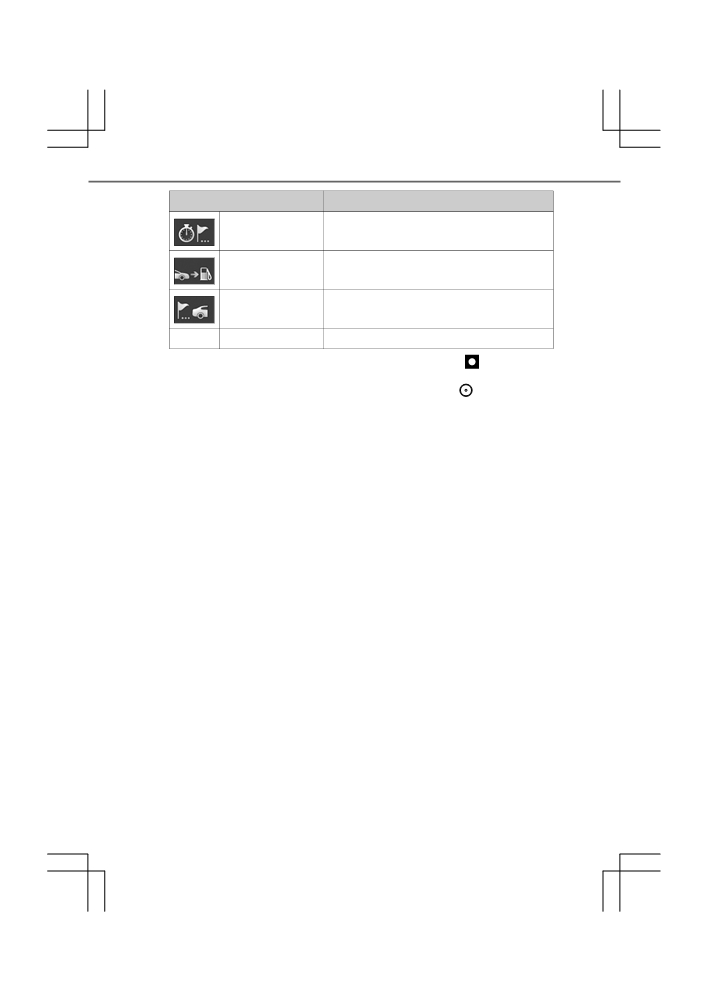

Item
Content
Current fuel con-
Displays the current rate of fuel consump-
sumption
tion on a gauge display
(gauge display)
Current fuel con-
Displays the current rate of fuel consump-
sumption
tion as a number
(numeric display)
Average
fuel
Displays average fuel consumption since
economy
display reset*1, 2
(after reset)
Average
fuel
Displays average fuel consumption since
economy
hybrid system start*2
(after start)
Average
fuel
Displays average fuel consumption since
economy
refuel*2, 3
(after refuel)
Average vehicle
Displays average vehicle speed since dis-
speed (after reset)
play reset*1
Average vehicle
Displays average vehicle speed since
speed (after start)
hybrid system start
Elapsed
time
Displays elapsed time since display reset*1
(after reset)
AURIS HV Touring
Sports_EE
(OM12L18E)
110
2. Instrument cluster
Item
Content
Elapsed
time
Displays elapsed time since hybrid system
(after start)
start
Distance
Displays driving range with remaining
(driving range)
fuel*3, 4
Distance
Displays drive distance since vehicle start
(after start)
Blank
No item
*1: Values that can be reset will be displayed with a circle (
) in the upper
right corner.
To reset, display the desired item and press and hold
switch. If both
displayed items are resettable, a reset selection screen will appear.
*2: Use the displayed fuel consumption as a reference.
*3: When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the power switch off. If the vehicle is refueled without
turning the power switch off, the display may not be updated.
*4: This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that dis-
played.

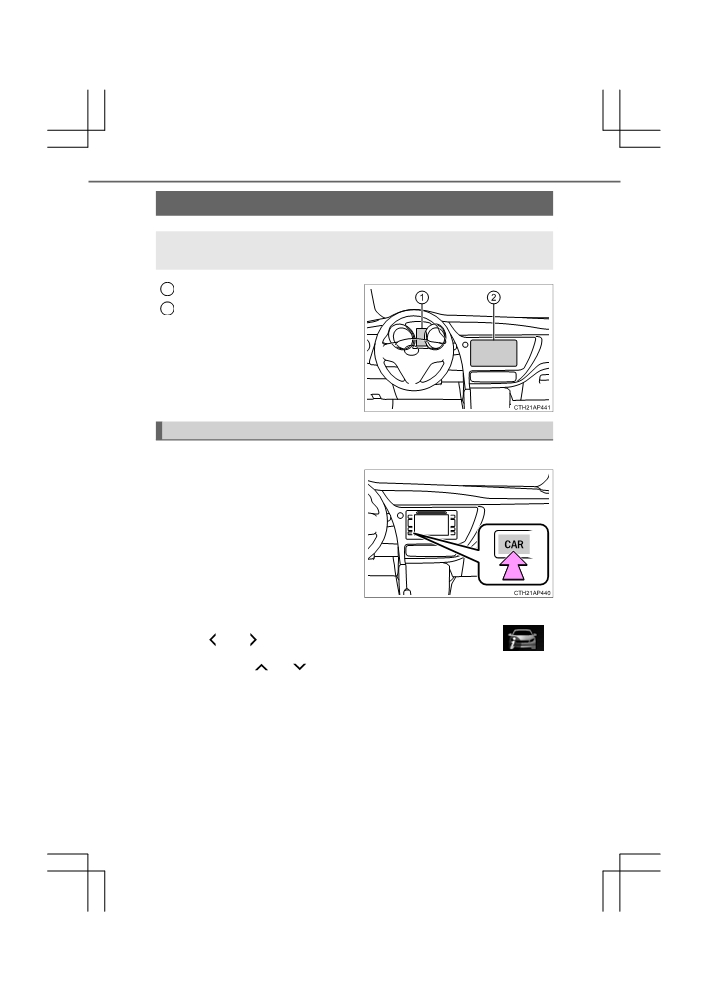

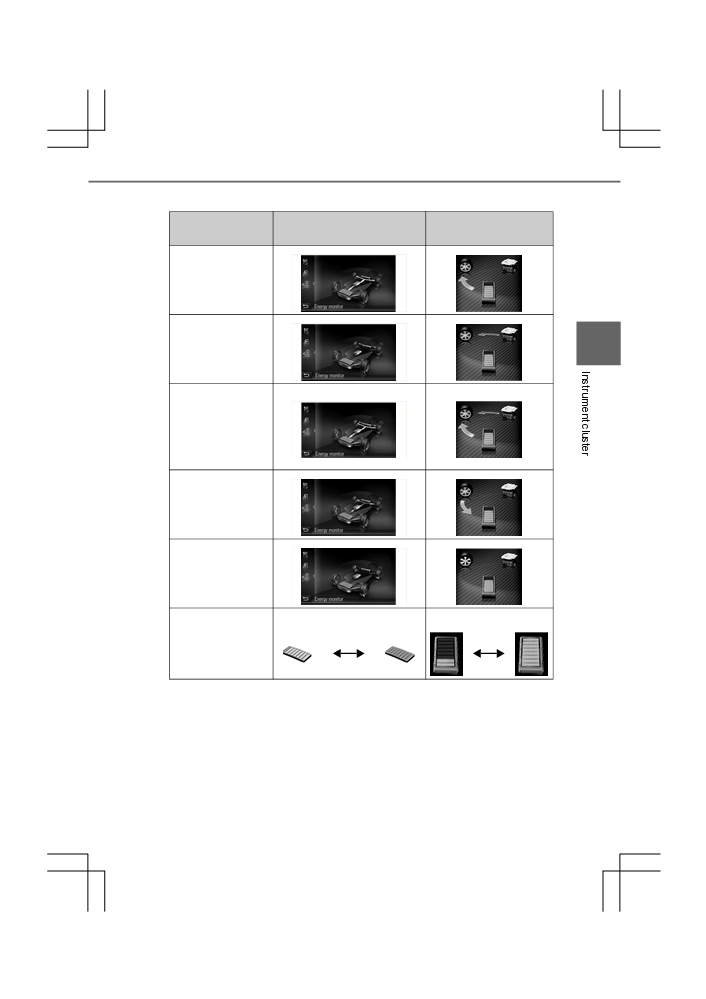

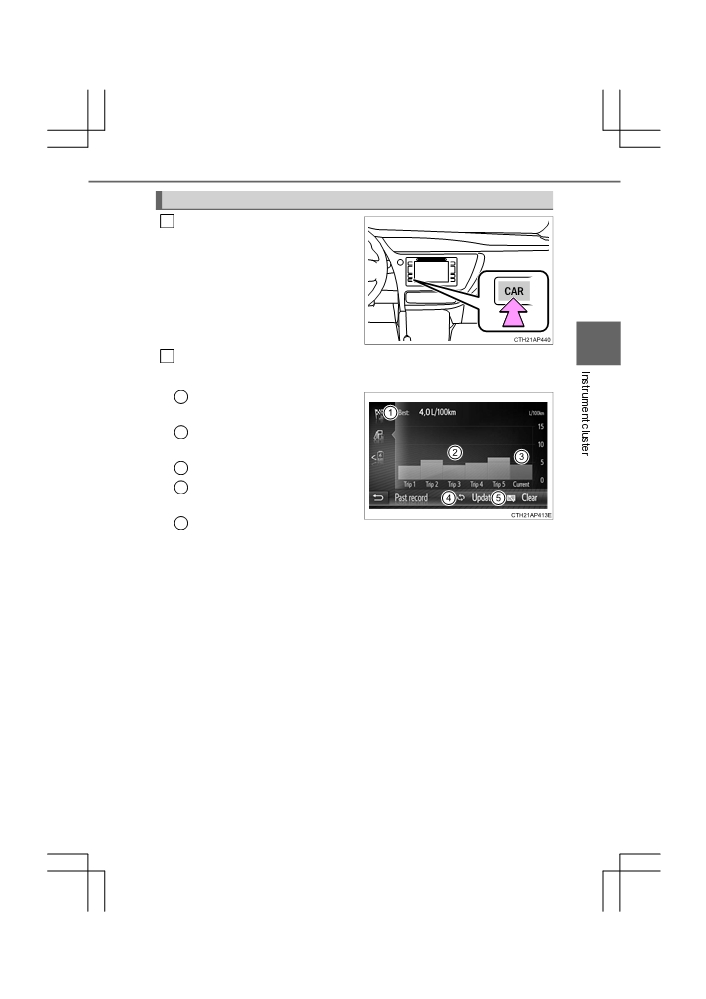

■ Energy monitor
P. 114
■ Digital speedometer
Displays vehicle speed as a number.
AURIS HV Touring
Sports_EE
(OM12L18E)
2. Instrument cluster
111

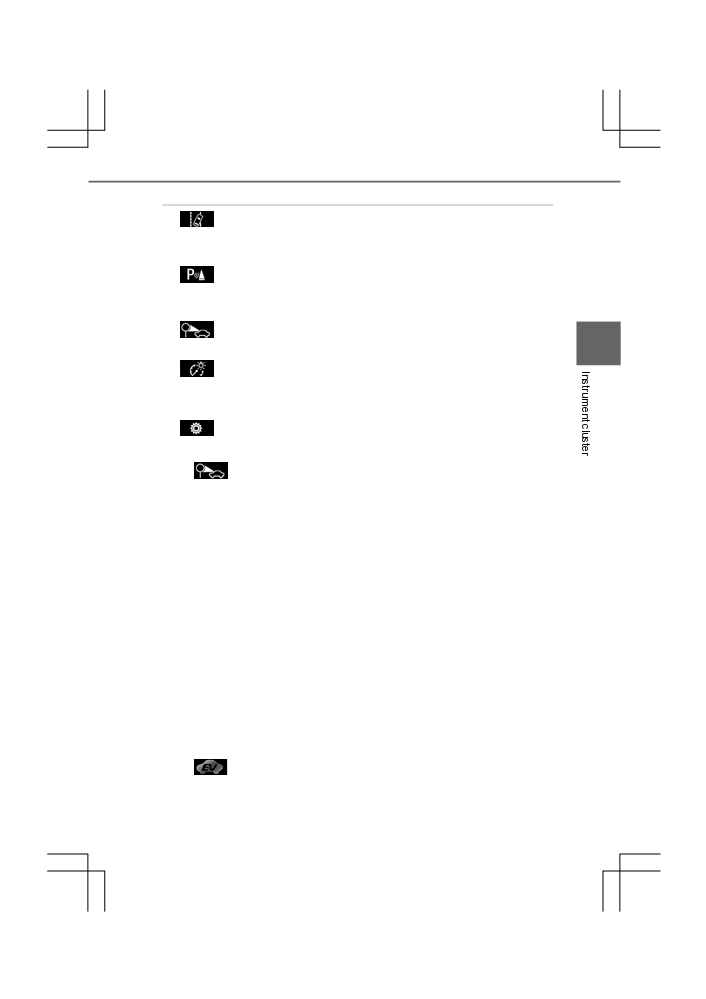

◆ Settings display
■
LDA (Lane Departure Alert) warning sensitivity
(if
equipped)
LDA warning sensitivity can be set to 2 different levels.
■
Toyota parking assist-sensor (if equipped)
Select to activate/deactivate the Toyota parking assist-sensor sys-
tem.
■
RSA (Road Sign Assist) (if equipped)
2
Select to activate/deactivate the RSA system.
■
Meter light control
Select to adjust the brightness of the meters when in night mode*.
*: Night mode: P. 112
■
Other settings
Select to change the following settings:
●
RSA (Road Sign Assist) setting (if equipped)
• Notification method (excess speed/other warnings)
Select to change the notification method of the following warn-
ings to no notification/display only/display and buzzer.
Excess speed warning:
Warns the driver if the vehicle exceeds the speed displayed on
the speed limit sign on the multi-information display.
Other warnings:
Warns the driver if the system determines that the vehicle is
overtaking when a no overtaking sign is displayed on the multi-
information display.
• Excess speed notification level
Select to set the speed threshold over which the excess speed
warning starts to operate when a speed limit sign is displayed
on the multi-information display.
● Units
Select to change the units of measure displayed on the multi-
information display.
●
EV indicator
Select to set the EV indicator on/off.
AURIS HV Touring
Sports_EE
(OM12L18E)
112
2. Instrument cluster
● Drive information 1/Drive information 2/Drive information 3
Select to select up to 2 items that will be displayed on the Drive
information 1 screen, Drive information 2 screen and Drive infor-
mation 3 screen respectively. (P. 109)
● Pop-up display
Select to set the following pop-up displays on/off.
• Incoming call display of the hands-free phone system
(if
equipped)
• Route guidance display of the navigation system-linked sys-
tem (if equipped)
● Initialization
Select to reset the meter display settings. (P. 579)
■
Language
Select to change the language on the display.
■ Brightness of the meters (day mode and night mode)
● The brightness of the meters is changed between day mode and night
mode.
Vehicles without automatic light control system
• Day mode: When the tail lights are off
• Night mode: When the tail lights are on
Vehicles with automatic light control system
• Day mode: When the tail lights are off or when the tail lights are on but
the surrounding area is bright
• Night mode: When the tail lights are on and the surrounding area is dark
● When in night mode, the brightness will be reduced slightly unless the
meters are set to the maximum brightness level.
■ Suspension of the settings display
● While driving, the multi-information display cannot be changed to setting
mode. Before changing the settings, stop the vehicle in a safe place.
● In the following situations, operation of some of the settings display may be
temporarily suspended.
• When a warning message appears on the multi-information display
• When the vehicle begins to move
AURIS HV Touring
Sports_EE
(OM12L18E)
2. Instrument cluster
113
■ When disconnecting and reconnecting 12-volt battery terminals
The drive information data will be reset.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ Ending display
When the power switch is turned off, the following information about the cur-
rent trip will be temporarily displayed on the multi-information display.
● Elapsed time (after start)
2
● Distance (after start)
● Average fuel economy (after start)
WARNING
■ Caution for use while driving
● When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
■ Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■ The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
■ While setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.
AURIS HV Touring
Sports_EE
(OM12L18E)
114
2. Instrument cluster
Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-infor-
mation display and the navigation/multimedia system.
1
Multi-information display
2
Navigation/multimedia system
(if equipped)
Energy monitor
Navigation/multimedia system
Press the
“CAR” button on the
navigation/multimedia system.
Select “Energy monitor”.
Multi-information display
Press
or
of the meter control switches and select
,
and then press
or
to select the energy monitor display.
: If equipped
AURIS HV Touring
Sports_EE
(OM12L18E)
2. Instrument cluster
115
■ Energy monitor screen
Navigation/multimedia
Multi-information
system
display
When the vehicle
is powered by the
electric
motor
(traction motor)
When the vehicle
2
is powered by the
gasoline engine
When the vehicle
is
powered by
both the gasoline
engine and the
electric
motor
(traction motor)
When the vehicle
is charging the
hybrid
battery
(traction battery)
When there is no
energy flow
Low
Full
Low
Full
Hybrid
battery
(traction battery)
status
AURIS HV Touring
Sports_EE
(OM12L18E)
116
2. Instrument cluster
Trip information (navigation/multimedia system)
Press the “CAR” button on the
1
navigation/multimedia system.
Select “Trip information”.
2
■ Trip information screen
1
Displays the average vehicle
speed since the hybrid sys-
tem was started.
2
Cruising range (P. 118)
3
Fuel consumption in the past
15 minutes
4
Regenerated energy in the
past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.
5
Displays the elapsed time since the hybrid system was started.
6
Resetting the consumption data
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
The image is an example only.
AURIS HV Touring
Sports_EE
(OM12L18E)
2. Instrument cluster
117
Past record (navigation/multimedia system)
Press the “CAR” button on the
1
navigation/multimedia system.
2
2
Select “Past record”.
■ Past record screen
1
Best recorded fuel consump-
tion
2
Previous fuel consumption
record
3
Average fuel consumption
4
Updating the average fuel
consumption data
5
Resetting the past record
data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only.
AURIS HV Touring
Sports_EE
(OM12L18E)
118
2. Instrument cluster
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.
AURIS HV Touring
Sports_EE
(OM12L18E)
