1-1. For safe use

Installing child restraints using a seat belt

■ Rear facing  Baby seat/child seat

1

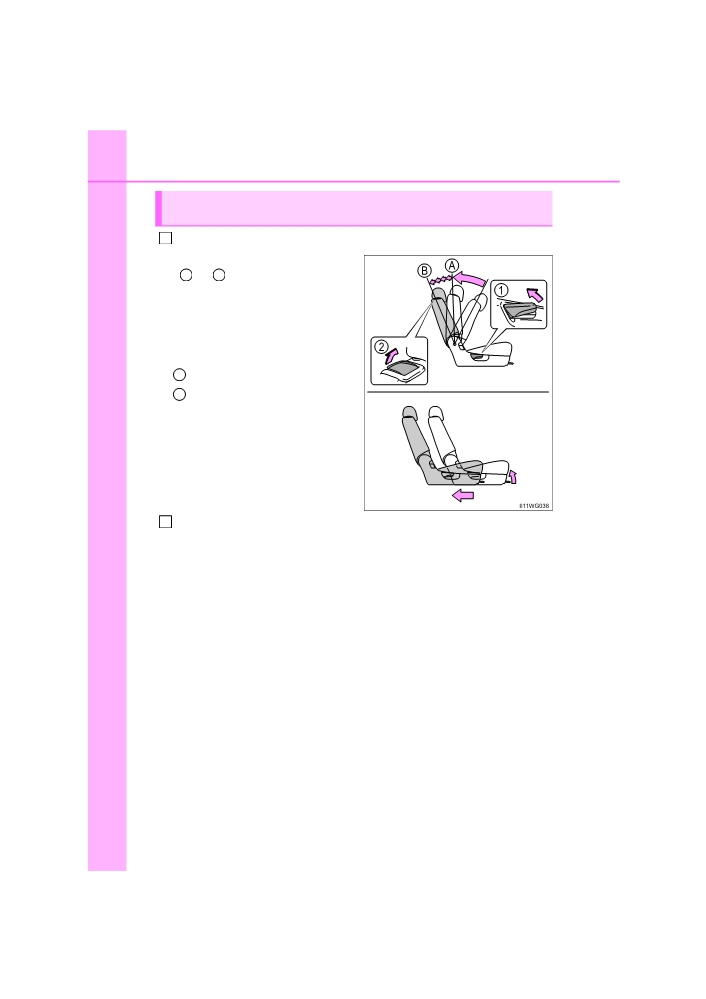

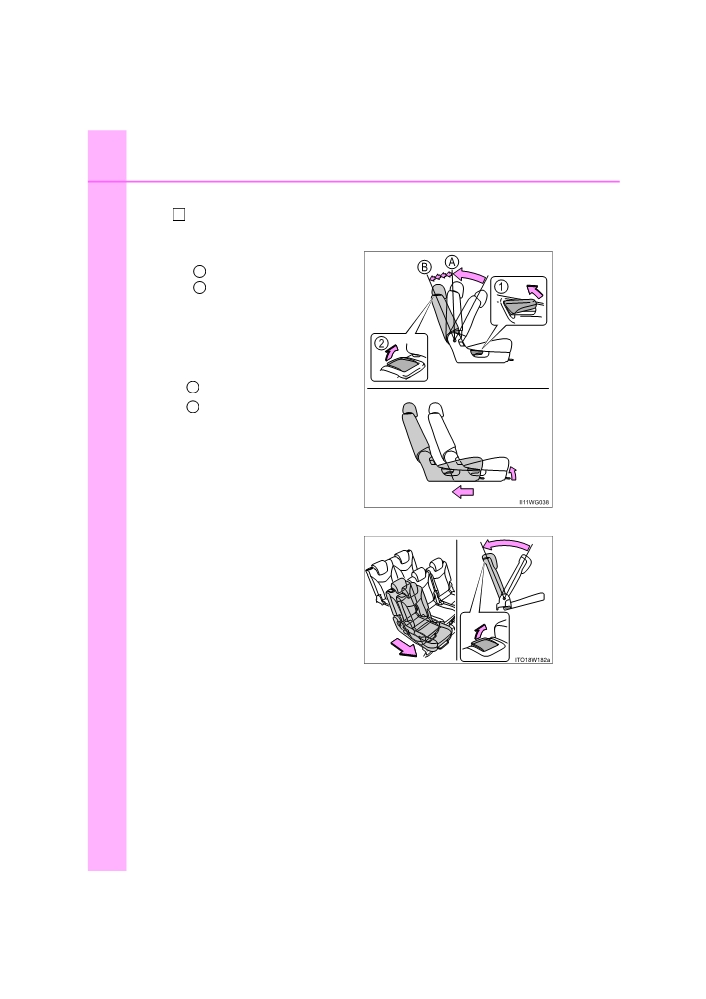

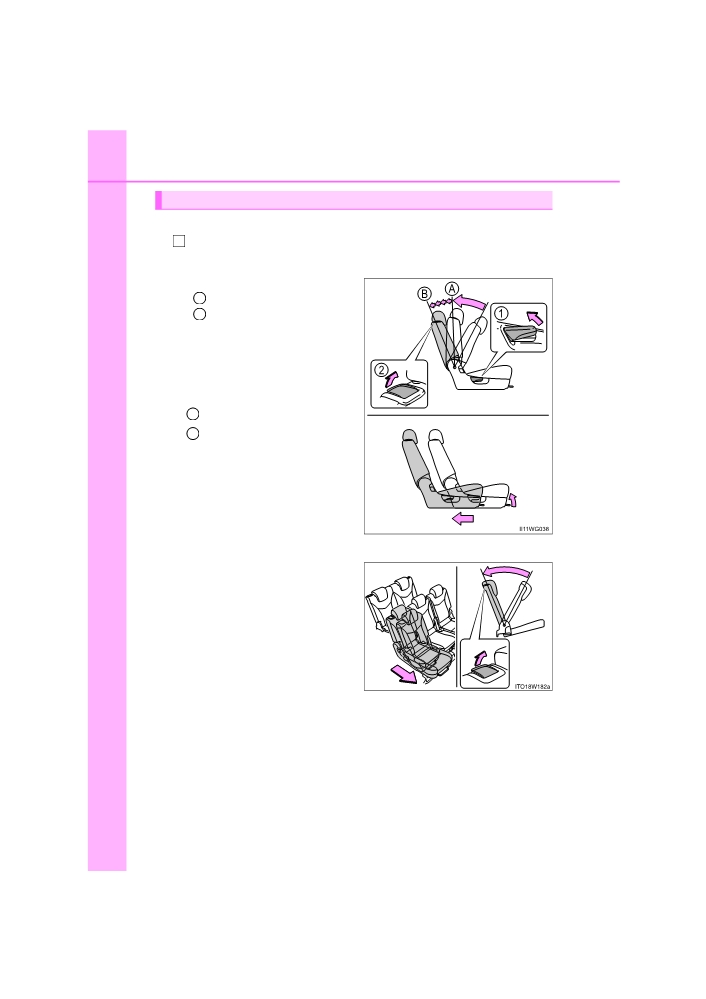

Adjusting the angle of the seatback.

X Second seats

While pulling the lever (either

1

[outboard seats only] or

2

), fold the seatback for-

ward and then back to the 1st

lock position

(most upright

position) until it locks into

place. Adjust the seatback to

the 5th lock position.

A

1st lock position

B

5th lock position

Move the seat as far back as

possible.

X Third seats

Adjust the second seat for-

ward so that it does not inter-

fere with the child restraint

system.

While pulling the lever, fold

the seatback forward and

then back to the

1st lock

position

(most upright posi-

tion) until it locks into place.

PRIUS +_OM_OM47B24E_(EE)

1-1. For safe use

69

2

Remove the head restraint. (→P. 183)

3

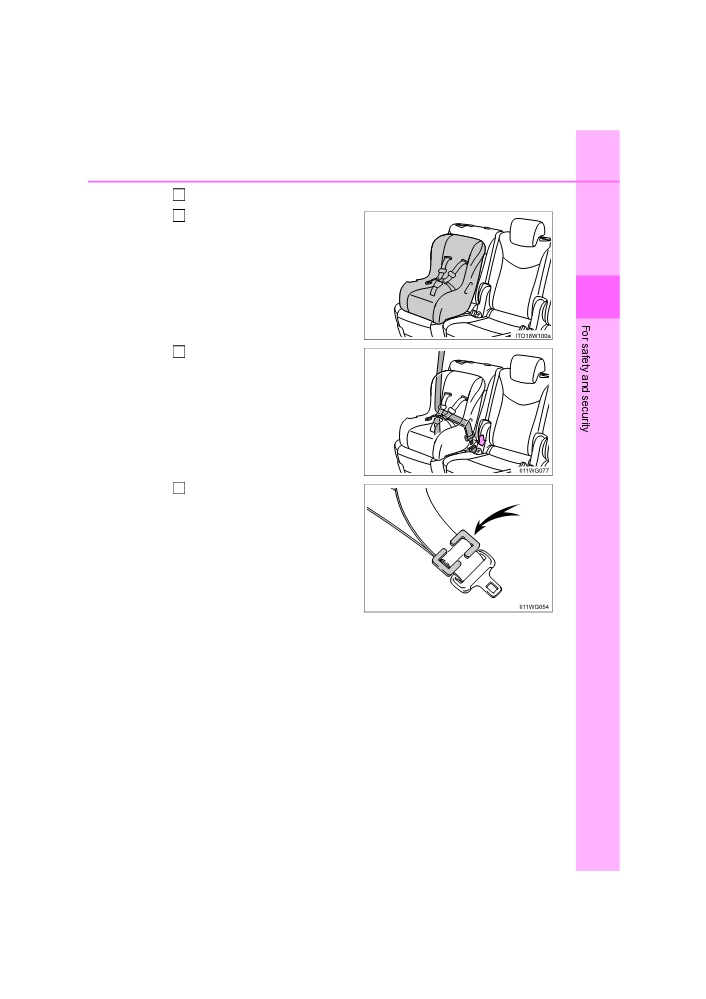

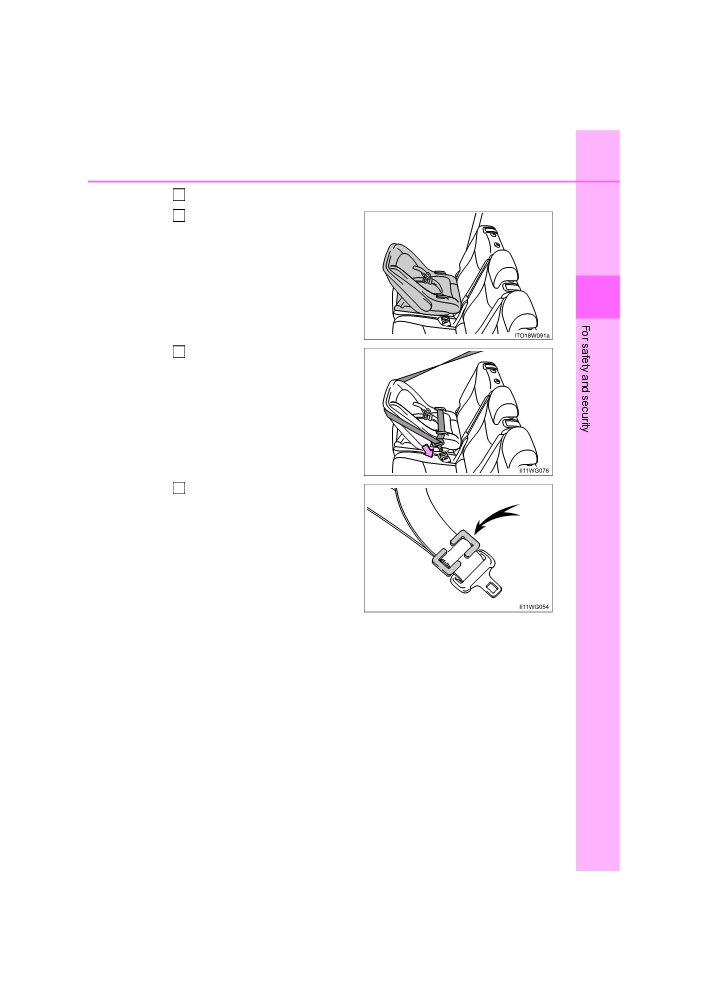

Place the child restraint sys-

tem on the seat facing the

rear of the vehicle.

1

Run the seat belt through the

4

child restraint system and

insert the plate into the

buckle. Make sure that the

belt is not twisted. Keep the

lap portion of the belt tight.

Install a locking clip near the

5

tab of the lap and shoulder

belt by inserting the lap and

shoulder webbing through

the recesses of locking clip.

PRIUS +_OM_OM47B24E_(EE)

70

1-1. For safe use

■ Forward-facing  Child seat

1

Adjusting the angle of the seatback.

X Second seats

While pulling the lever (either

1

[outboard seats only] or

2

), fold the seatback for-

ward and then back to the 1st

lock position

(most upright

position) until it locks into

place. Adjust the seatback to

the 5th lock position.

A

1st lock position

B

5th lock position

Move the seat as far back as

possible.

X Third seats

Adjust the second seat for-

ward so that it does not inter-

fere with the child restraint

system.

While pulling the lever, fold

the seatback forward and

then back to the

1st lock

position

(most upright posi-

tion) until it locks into place.

PRIUS +_OM_OM47B24E_(EE)

1-1. For safe use

71

2

Remove the head restraint. (→P. 183)

3

Place the child restraint sys-

tem on the seat facing the

front of the vehicle.

1

Run the seat belt through the

4

child restraint system and

insert the plate into the

buckle. Make sure that the

belt is not twisted. Keep the

lap portion of the belt tight.

Install a locking clip near the

5

tab of the lap and shoulder

belt by inserting the lap and

shoulder webbing through

the recesses of locking clip.

PRIUS +_OM_OM47B24E_(EE)

72

1-1. For safe use

■ Junior seat

1

Adjusting the angle of the seatback.

X Second seats

While pulling the lever (either

1

[outboard seats only] or

2

), fold the seatback for-

ward and then back to the 1st

lock position

(most upright

position) until it locks into

place. Adjust the seatback to

the 5th lock position.

A

1st lock position

B

5th lock position

Move the seat as far back as

possible.

X Third seats

Adjust the second seat for-

ward so that it does not inter-

fere with the child restraint

system.

While pulling the lever, fold

the seatback forward and

then back to the

1st lock

position

(most upright posi-

tion) until it locks into place.

PRIUS +_OM_OM47B24E_(EE)

1-1. For safe use

73

2

Place the child restraint sys-

tem on the seat facing the

front of the vehicle.

1

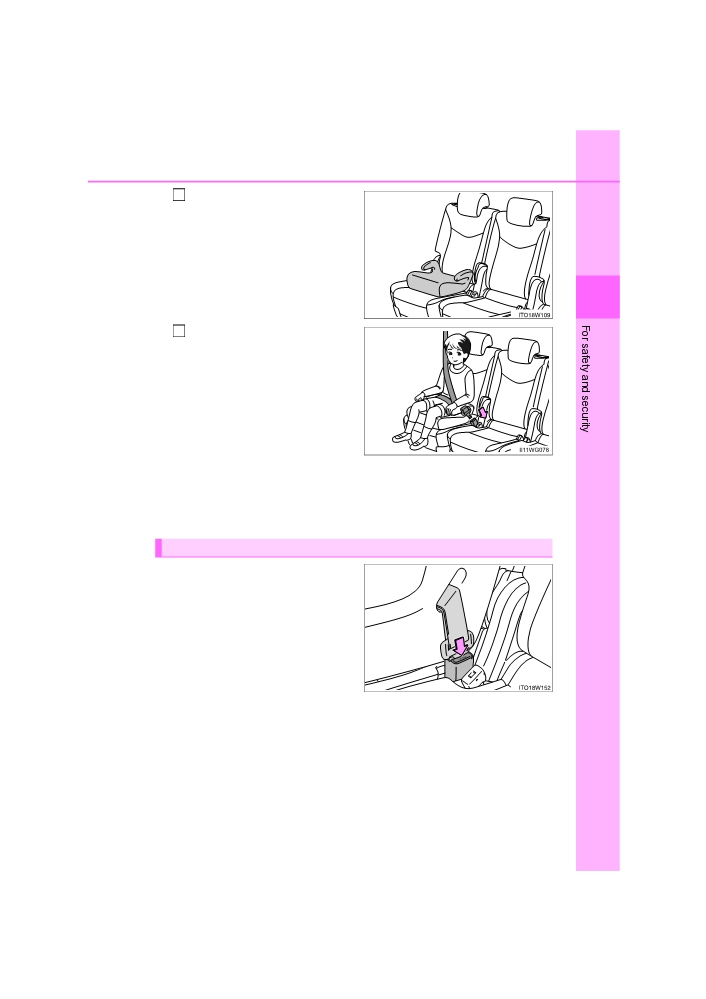

Sit the child in the child

3

restraint system. Fit the seat

belt to the child restraint sys-

tem according to the manu-

facturer’s instructions and

insert the plate into the

buckle. Make sure that the

belt is not twisted.

Check that the shoulder belt is

correctly positioned over the

child’s shoulder and that the lap

belt is as low as possible.

(→P. 38)

Removing a child restraint installed with a seat belt

Press the buckle release button

and fully retract the seat belt.

PRIUS +_OM_OM47B24E_(EE)

74

1-1. For safe use

Installation with ISOFIX rigid anchor (ISOFIX child restraint sys-

tem) (second outboard seats only)

1

Adjusting the angle of the seatback.

While pulling the lever

(either

1

or

2

), fold the seatback for-

ward and then back to the 1st

lock position (most upright posi-

tion) until it locks into place.

Adjust the seatback to the 5th

lock position.

A

1st lock position

B

5th lock position

Move the seat as far back as

possible.

Remove the head restraint. (→P. 183)

2

PRIUS +_OM_OM47B24E_(EE)

1-1. For safe use

75

3

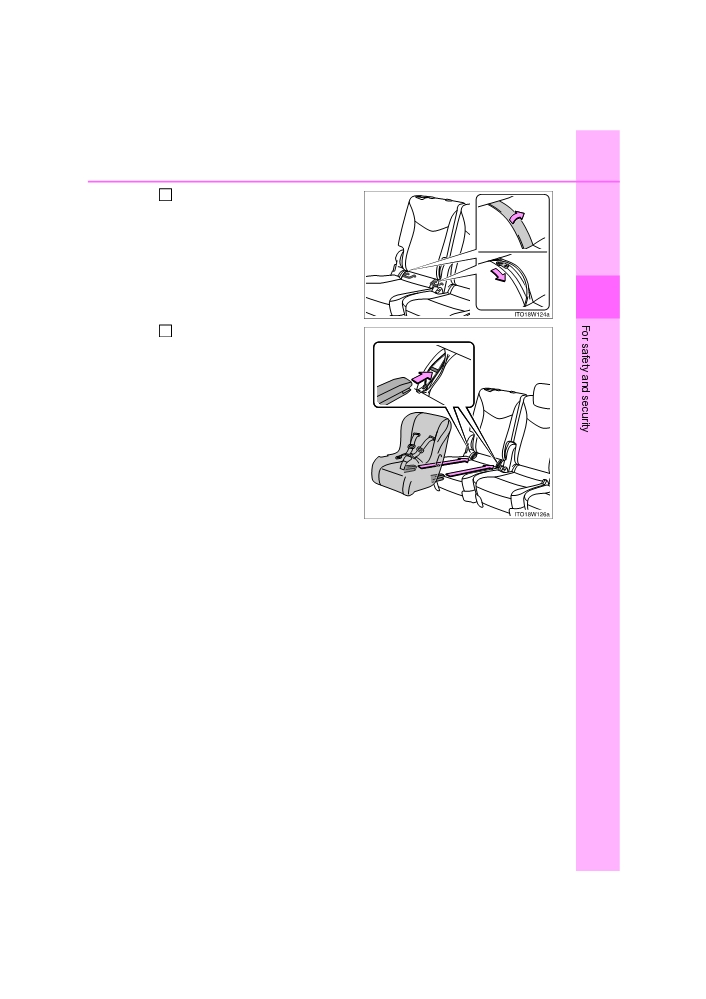

Open the fasteners on the

lower part of the seatback.

1

Check the positions of the

4

exclusive fixing bars, and install

the child restraint system to the

seat.

The bars are installed in the clear-

ance between the seat cushion

and seatback.

If the child restraint has a top strap,

the top strap should be latched

onto the anchors.

PRIUS +_OM_OM47B24E_(EE)

76

1-1. For safe use

Child restraint systems with a top strap (second outboard seats

only)

Latch the hook onto the anchor

bracket and tighten the top strap.

Make sure the top strap is securely

latched.

■ When installing a child restraint system

You need a locking clip to install the child restraint system. Follow the instruc-

tions provided by the manufacturer of the system. If your child restraint sys-

tem does not provide a locking clip, you can purchase the following item from

any authorized Toyota dealer or repairer, or another duly qualified and

equipped professional:

Locking clip for child restraint system

(Part No. 73119-22010)

PRIUS +_OM_OM47B24E_(EE)

1-1. For safe use

77

WARNING

■ When installing a child restraint system

Follow the directions given in the child restraint system installation manual

and fix the child restraint system securely in place.

If the child restraint system is not correctly fixed in place, the child or other

passengers may be seriously injured or even killed in the event of sudden

braking, sudden swerving or an accident.

1

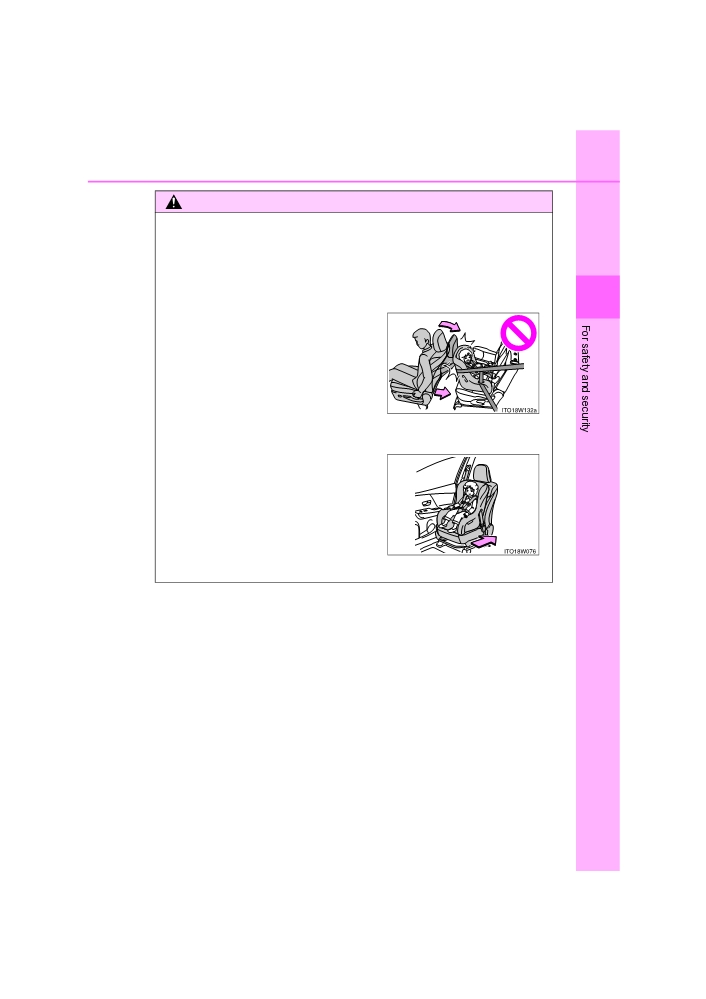

● If the driver’s seat interferes with the

child restraint system and prevents it

from being attached correctly, attach the

child restraint system to the right-hand

rear seat (left-hand drive vehicles) or

the left-hand rear seat (right-hand drive

vehicles).

● Adjust the front passenger seat so that

it does not interfere with the child

restraint system.

●Only put a forward-facing child restraint

system on the front seat when unavoid-

able. When installing a forward-facing

child restraint on the front passenger

seat, move the seat as far back as pos-

sible.

Failing to do so may result in death or

serious injury if the airbags deploy

(inflate).

PRIUS +_OM_OM47B24E_(EE)

78

1-1. For safe use

WARNING

■ When installing a child restraint system

●Never use a rear-facing child restraint

system on the front passenger seat

when the airbag manual on-off switch is

on. (→P. 56)

The force of the rapid inflation of the

front passenger airbag can cause

death or serious injury to children in the

event of an accident.

●There is a label(s) on the passenger

side sun visor, indicating it is forbidden

to attach a rear-facing child restraint

system to the front passenger seat.

Details of the label(s) are shown in the

illustration below.

PRIUS +_OM_OM47B24E_(EE)

80

1-1. For safe use

Exhaust gas precautions

Harmful substance to the human body is included in exhaust

gases if inhaled.

WARNING

Exhaust gases include harmful carbon monoxide (CO), which is colorless and

odorless. Observe the following precautions.

Failure to do so may cause exhaust gases enter the vehicle and may lead to

an accident caused by light-headedness, or may lead to death or a serious

health hazard.

■ Important points while driving

● Keep the back door closed.

● If you smell exhaust gases in the vehicle even when the back door is

closed, open the windows and have the vehicle inspected at any autho-

rized Toyota dealer or repairer, or another duly qualified and equipped pro-

fessional as soon as possible.

■ When parking

● If the vehicle is in a poorly ventilated area or a closed area, such as a

garage, stop the hybrid system.

●Do not leave the vehicle with the hybrid system on for a long time.

If such a situation cannot be avoided, park the vehicle in an open space

and ensure that exhaust fumes do not enter the vehicle interior.

●Do not leave the hybrid system operating in an area with snow build-up, or

where it is snowing. If snowbanks build up around the vehicle while the

hybrid system is operating, exhaust gases may collect and enter the vehi-

cle.

■ Exhaust pipe

The exhaust system needs to be checked periodically. If there is a hole or

crack caused by corrosion, damage to a joint or abnormal exhaust noise, be

sure to have the vehicle inspected and repaired by any authorized Toyota

dealer or repairer, or another duly qualified and equipped professional.

PRIUS +_OM_OM47B24E_(EE)

1-2. Hybrid system

81

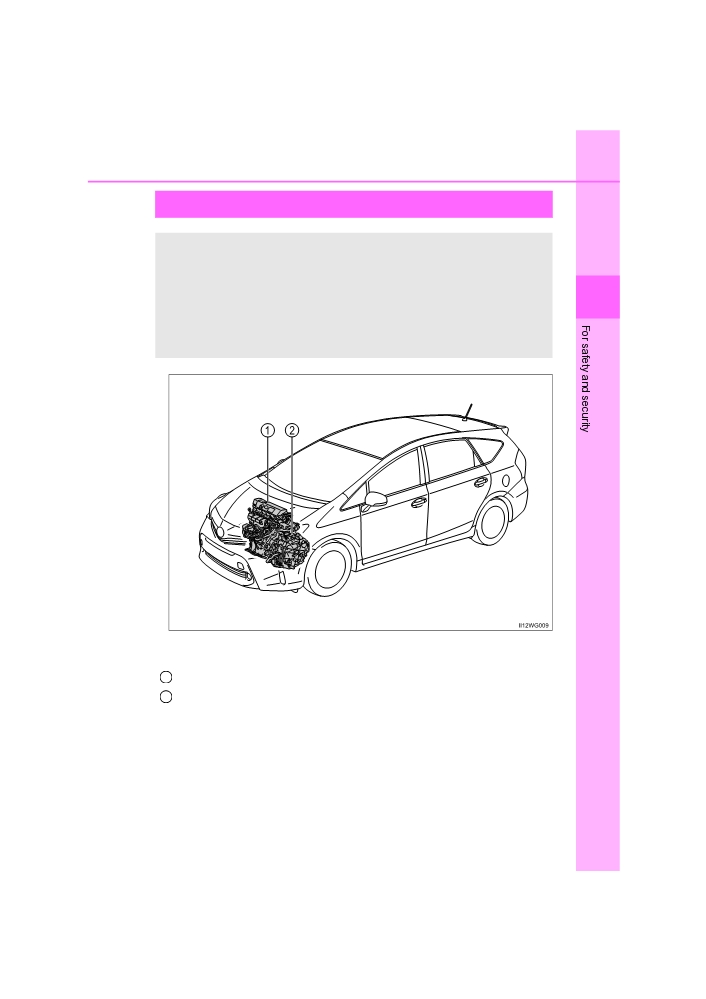

Hybrid system features

Your vehicle is a hybrid vehicle. It has characteristics different

from conventional vehicles. Be sure you are closely familiar with

the characteristics of your vehicle, and operate it with care.

1

The hybrid system combines the use of a gasoline engine and

an electric motor (traction motor) according to driving condi-

tions, improving fuel efficiency and reducing exhaust emis-

sions.

The illustration is an example for explanation and may differ from the

actual item.

1

Gasoline engine

2

Electric motor (traction motor)

PRIUS +_OM_OM47B24E_(EE)

1-2. Hybrid system

83

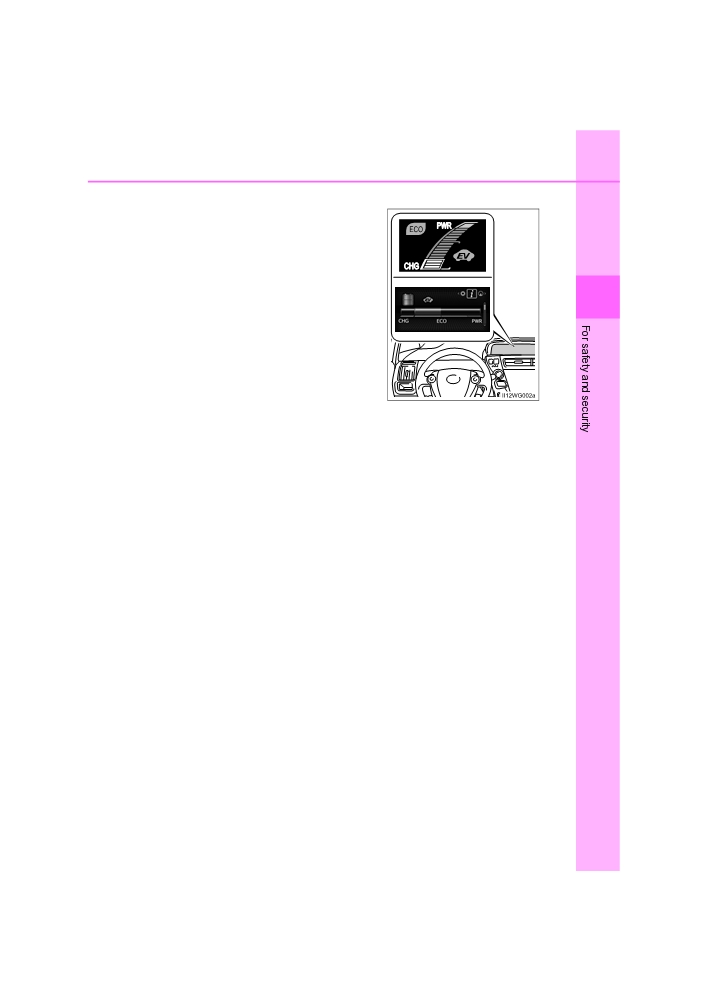

■ Hybrid System Indicator

Hybrid System Indicator represents the

hybrid system power output and regener-

ative charging. (→P. 118)

1

■ Conditions in which the gasoline engine may not stop

The gasoline engine starts and stops automatically. However, it may not stop

automatically in the following conditions:

● During gasoline engine warm-up

● During hybrid battery (traction battery) charging

● When the temperature of the hybrid battery (traction battery) is high or low

● When the heater is switched on

■ Charging the hybrid battery (traction battery)

As the gasoline engine charges the hybrid battery (traction battery), the bat-

tery does not need to be charged from an outside source. However, if the

vehicle is left parked for a long time the hybrid battery (traction battery) will

slowly discharge. For this reason, be sure to drive the vehicle at least once

every few months for at least 30 minutes or 16 km (10 miles). If the hybrid

battery (traction battery) becomes fully discharged and you are unable to start

the hybrid system, contact any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

■ Charging the 12-volt battery

→P. 455

■ After the 12-volt battery has discharged or when the terminal has been

removed and installed during exchange, etc.

The gasoline engine may not stop even if the vehicle is being driven by the

hybrid battery (traction battery). If this continues for a few days, contact any

authorized Toyota dealer or repairer, or another duly qualified and equipped

professional.

PRIUS +_OM_OM47B24E_(EE)

Content   ..  3  4  5  6   ..
