1-1. For safe use
Before driving
Floor mat

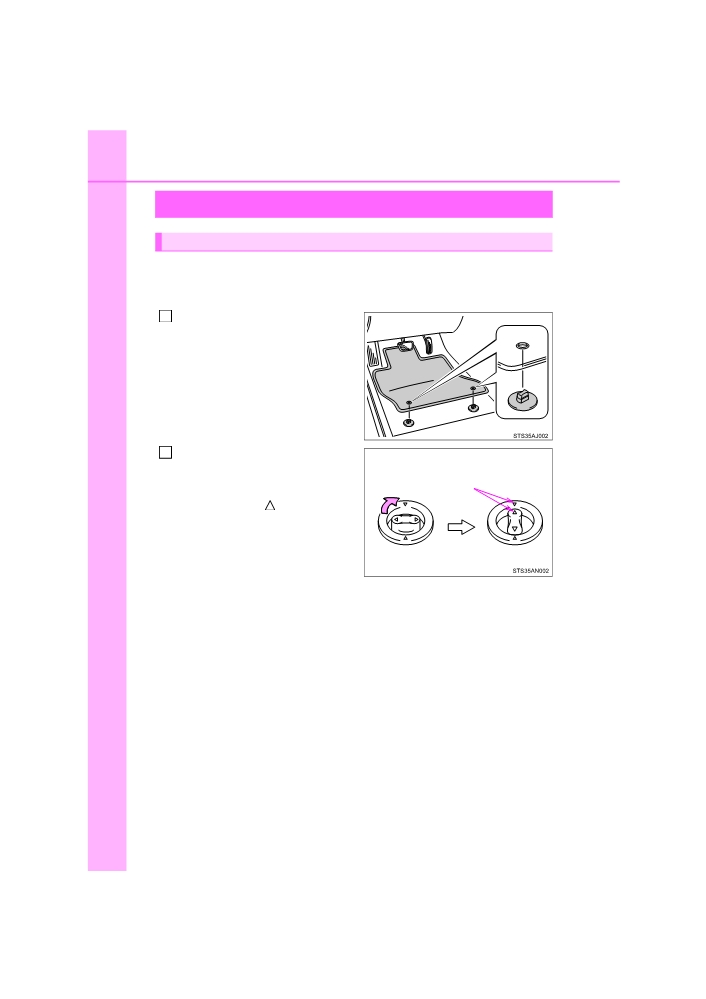

Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
1
into the floor mat eyelets.
Turn the upper knob of each
2
retaining hook (clip) to secure
the floor mats in place.
*
*: Always align the
marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
PRIUS +_OM_OM47B24E_(EE)
1-1. For safe use
35
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
1
■ When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.

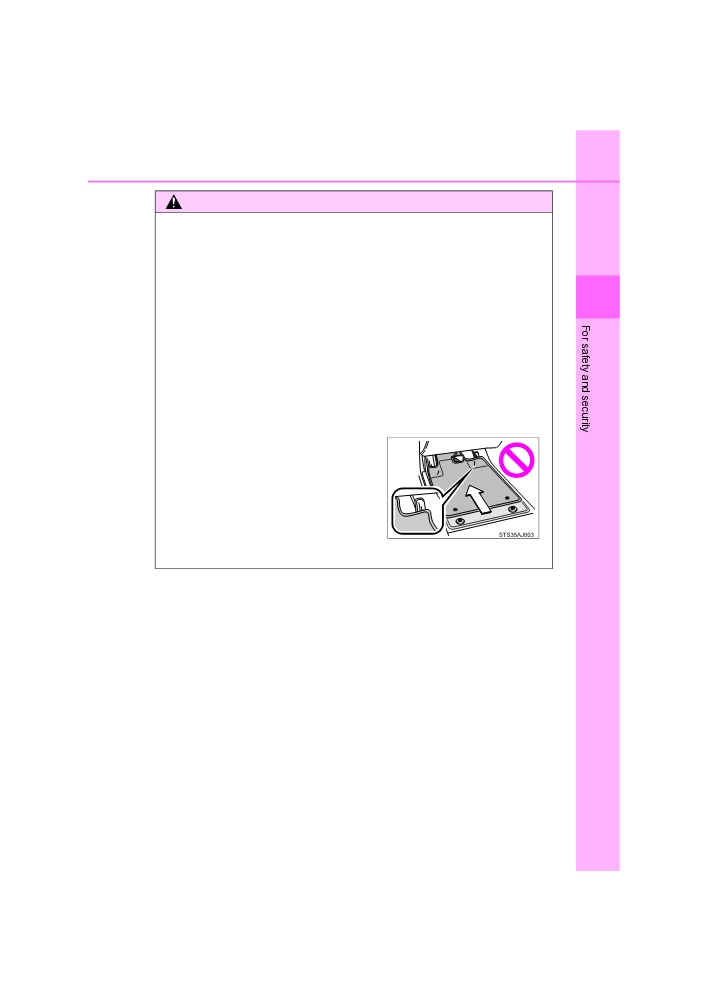

■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks
(clips). Be
especially careful to perform this check
after cleaning the floor.
●With the hybrid system stopped and the
shift position in P, fully depress each
pedal to the floor to make sure it does
not interfere with the floor mat.
PRIUS +_OM_OM47B24E_(EE)
36
1-1. For safe use
For safety drive
For safe driving, adjust the seat and mirror to an appropriate
position before driving.

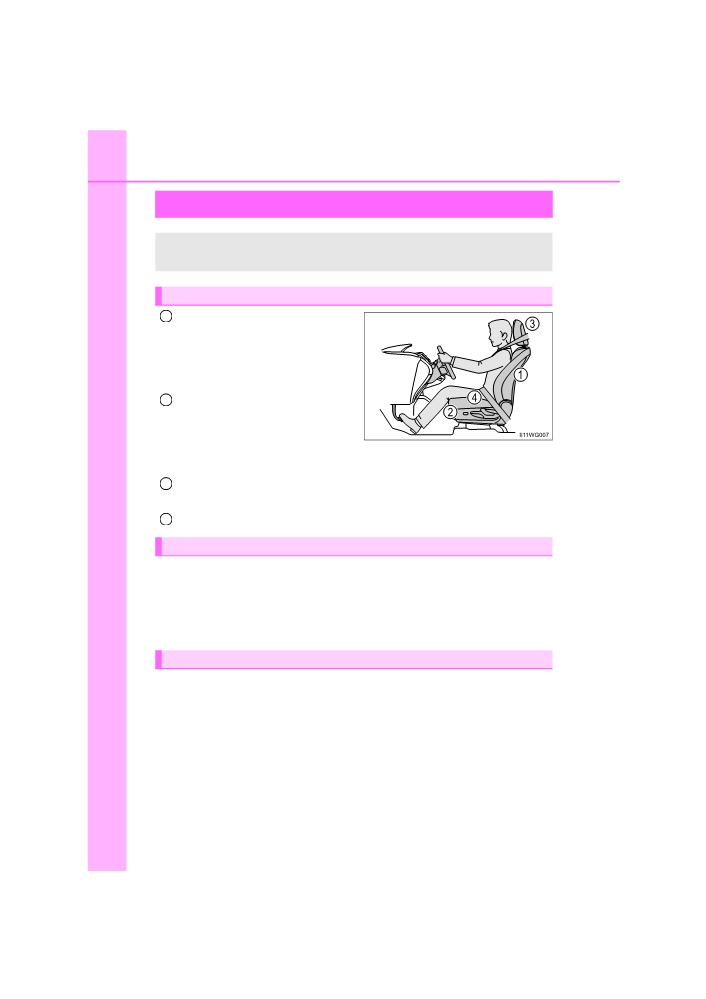

Correct driving posture
Adjust the angle of the seat-
1
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (→P. 170)
Adjust the seat so that you can
2
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. (→P. 170)
Lock the head restraint in place with the center of the head restraint
3
closest to the top of your ears. (→P. 182)
Wear the seat belt correctly. (→P. 38)
4
Correct use of the seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. (→P. 38)
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(→P. 59)
Adjusting the mirrors
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. (→P. 187, 189)
PRIUS +_OM_OM47B24E_(EE)
1-1. For safe use
37
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
1
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
PRIUS +_OM_OM47B24E_(EE)
38
1-1. For safe use
Seat belts
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts

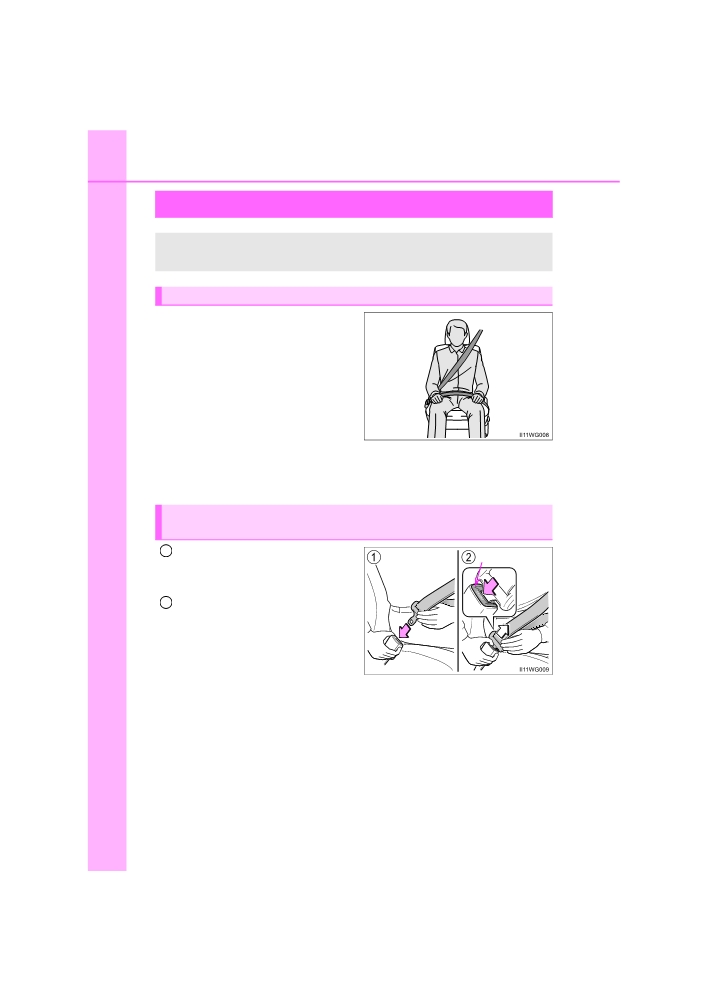

● Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the seat-
back. Sit up straight and well
back in the seat.
● Do not twist the seat belt.
Fastening and releasing the seat belt (except second center
seat)
1
To fasten the seat belt, push the
Release button
plate into the buckle until a click
sound is heard.
To release the seat belt, press
2
the release button with a hand
on the plate.
PRIUS +_OM_OM47B24E_(EE)
1-1. For safe use
39

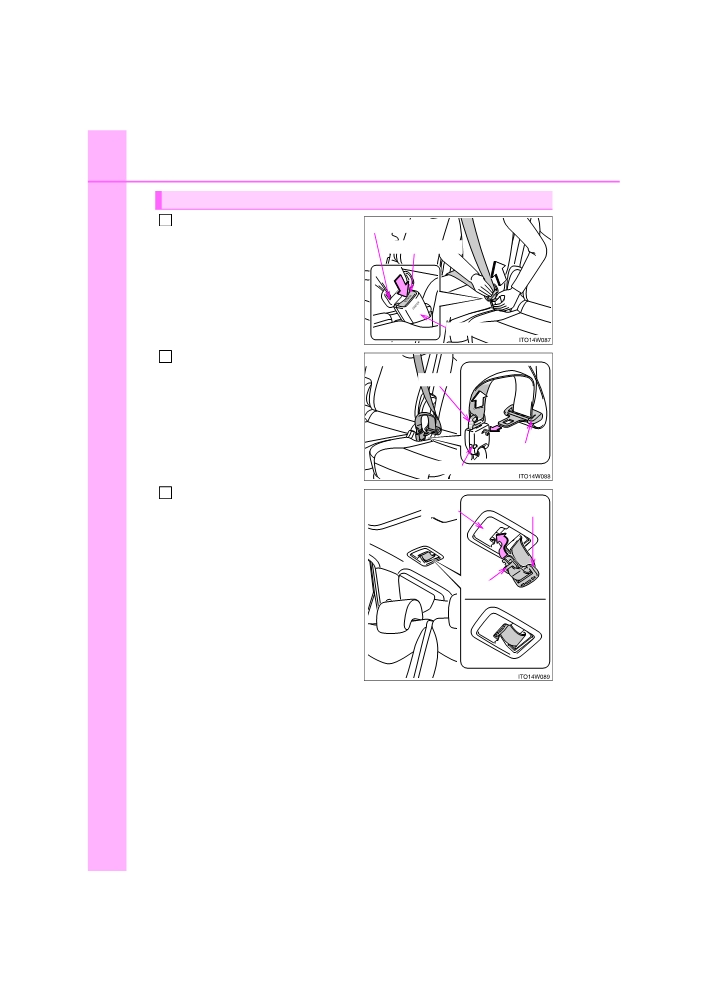

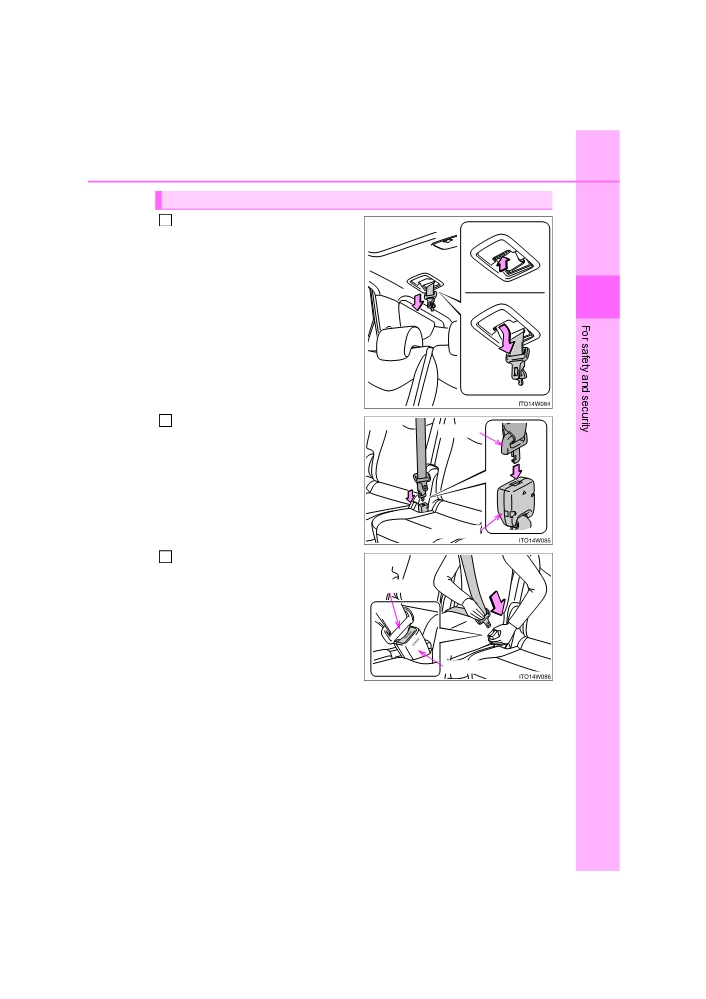

Fastening the seat belt (second center seat)
Press the plate to release, and
1
pull out the seat belt.
1
2
Connect by inserting plate B
Plate B
into buckle B until a click sound
is heard.
Buckle B
Secure the belt by inserting
3
plate A into buckle A until a
Plate A
click sound is heard.
Buckle A
PRIUS +_OM_OM47B24E_(EE)
40
1-1. For safe use
Releasing the seat belt (second center seat)
Press the release button on
1
Plate A
buckle A with a hand on the
Release button
plate A and release the belt.
Buckle A
Use plate A etc. to push the
2
button on buckle B, and uncou-
Plate B
ple plate B.
Plate A
Buckle B
3
Put plates A and B on top of
each other and insert them into
Holder
Plate A
the holder.
Insert the plates firmly.
Plate B
PRIUS +_OM_OM47B24E_(EE)
1-1. For safe use
41

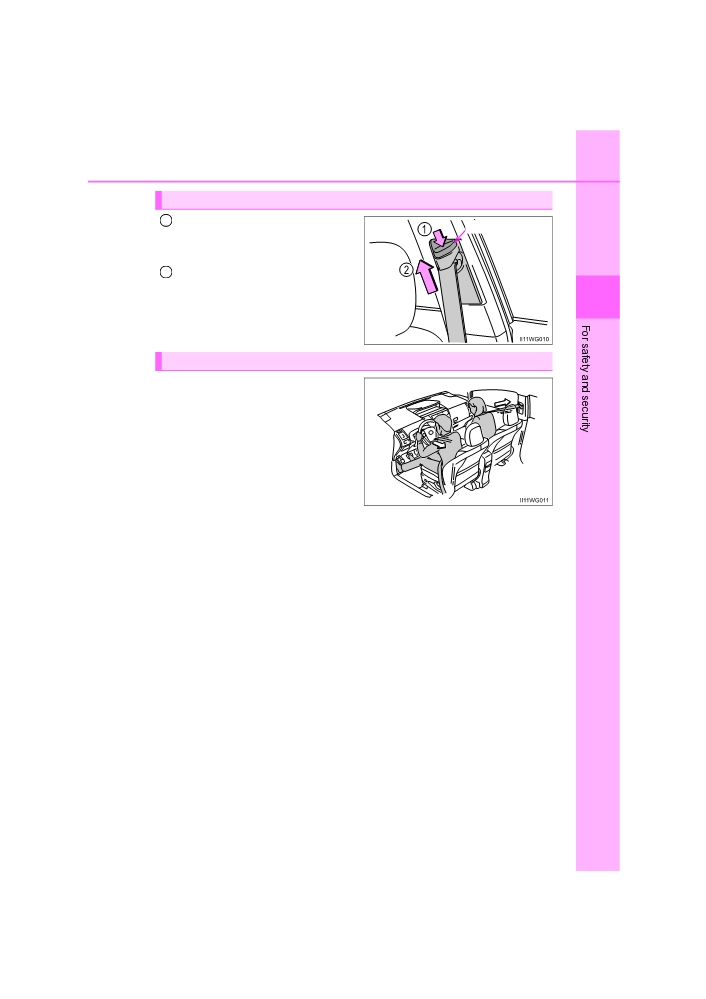

Adjusting the seat belt shoulder anchor height (front seats)
Push the seat belt shoulder
1
Release button
anchor down while pressing the
release button.
2
Push the seat belt shoulder
anchor up.
1
Move the height adjuster up and
down as needed until you hear a
click.
Seat belt pretensioners (front seats)
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision.
The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact, a rear
impact or a vehicle rollover.
PRIUS +_OM_OM47B24E_(EE)
42
1-1. For safe use
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
●Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (→P. 59)
● When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. (→P. 38)
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.
■ Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for seat belt replacement or installation.
PRIUS +_OM_OM47B24E_(EE)
1-1. For safe use
43
WARNING
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failing to do so may cause death or serious injury.
■ Wearing a seat belt
● Ensure that all passengers wear a seat belt.
1
● Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
● Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.

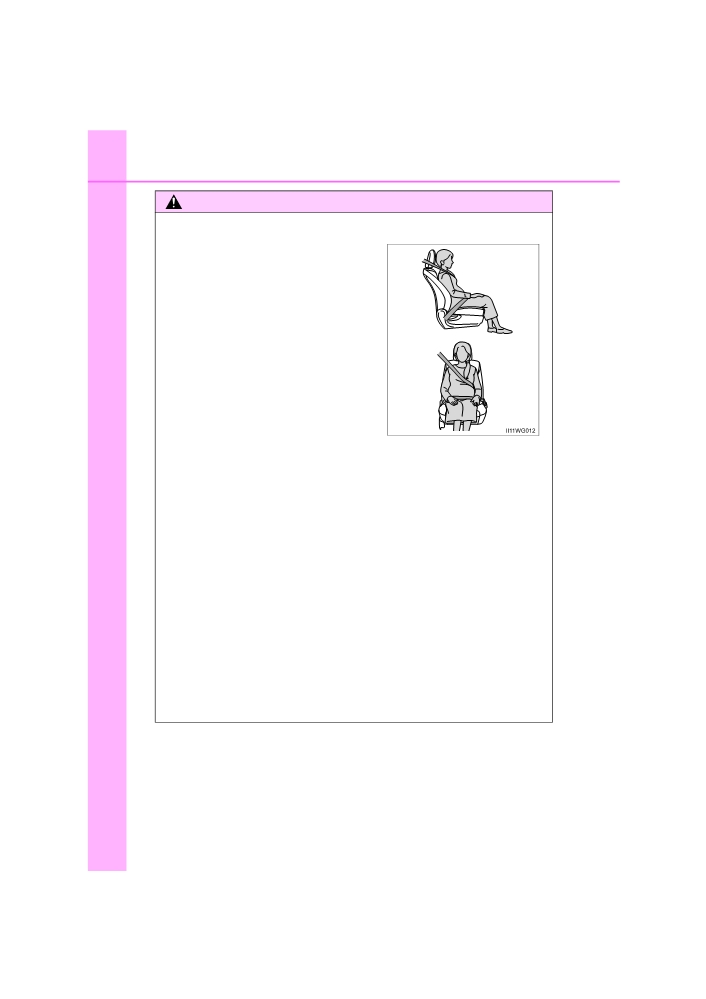

● To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
●Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
● When using the seat belts of the second outboard seats and third seats,
ensure that the seat belts are not in the seat belt hangers. (→P. 176, 180)

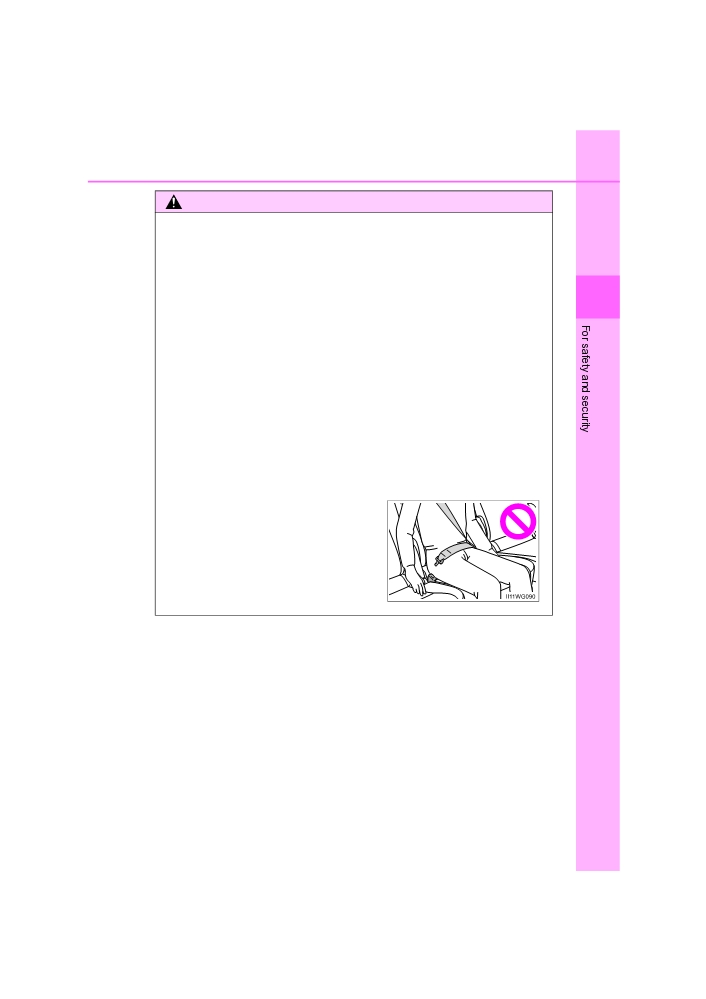

■ When using the rear center seat belt
Do not use the rear center seat belt with
either buckle released.
PRIUS +_OM_OM47B24E_(EE)
44
1-1. For safe use
WARNING
■ Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. (→P. 38)
Women who are pregnant should posi-
tion the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoid-
ing belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (→P. 38)
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that
case, the seat belt cannot be used again and must be replaced at any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional.
■ Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or accident. (→P. 41)
PRIUS +_OM_OM47B24E_(EE)
1-1. For safe use
45
WARNING
■ Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
1
belts cannot protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
●Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there’s no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. Inappropriate handling of the pretensioner may prevent it from
operating properly, resulting in death or serious injury.
PRIUS +_OM_OM47B24E_(EE)
46
1-1. For safe use

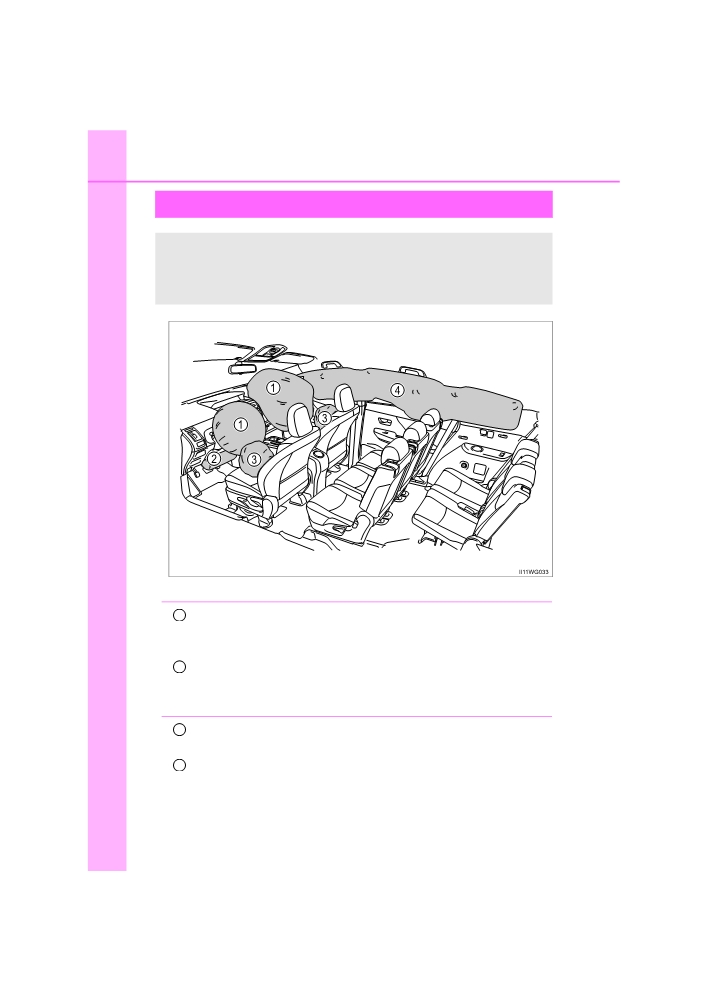

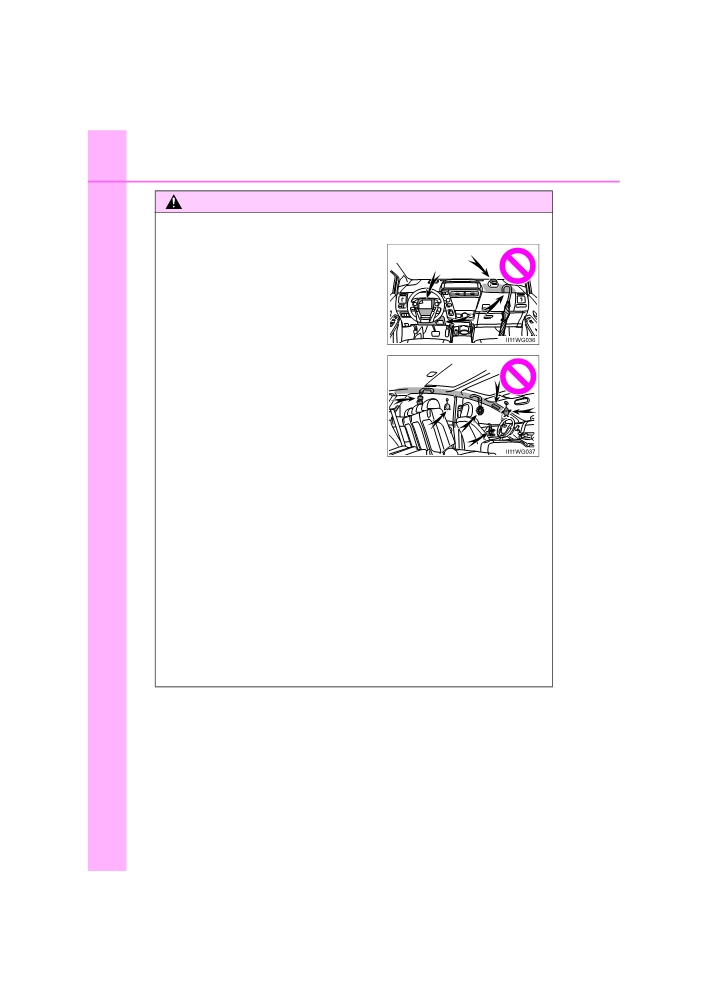

SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce
the risk of death or serious injury.
◆ SRS front airbags
SRS driver airbag/front passenger airbag
1
Can help protect the head and chest of the driver and front pas-
senger from impact with interior components
2
SRS driver’s knee airbag
Can help provide driver protection
◆ SRS side and curtain shield airbags
3
SRS side airbags
Can help protect the torso of the front seat occupants
4
SRS curtain shield airbags
Can help protect primarily the head of occupants in the outer
seats
PRIUS +_OM_OM47B24E_(EE)
1-1. For safe use
47

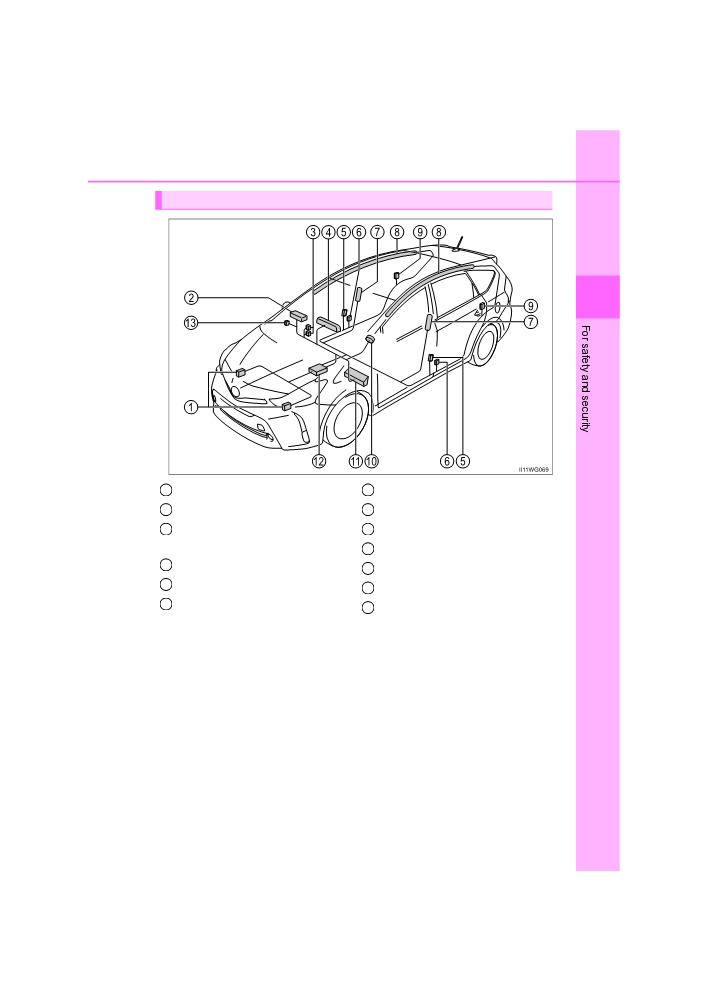

SRS airbag system components
1
1
Front impact sensors
7
Side airbags
2
Front passenger airbag
8
Curtain shield airbags
3
“PASSENGER AIR BAG”
9
Side impact sensors (rear)
indicator
10
Driver airbag
4
SRS warning light
11
Driver’s knee airbag
5
Side impact sensors (front)
12
Airbag sensor assembly
6
Seat belt pretensioners and
13
Airbag manual on-off switch
force limiters
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. As
the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occu-
pants.
PRIUS +_OM_OM47B24E_(EE)
48
1-1. For safe use
WARNING
■ SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.)
of inflation, placing yourself 250 mm (10 in.) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than
250 mm (10 in.) away now, you can change your driving position in sev-
eral ways:
• Move your seat to the rear as far as you can while still reaching the ped-
als comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 250 mm
(10 in.) distance, even with the driver seat all the way forward, simply by
reclining the back of the seat somewhat. If reclining the back of your
seat makes it hard to see the road, raise yourself by using a firm, non-
slippery cushion, or raise the seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the air-
bag toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintaining
control of the foot pedals, steering wheel, and your view of the instrument
panel controls.
●The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the air-
bag as possible with the seatback adjusted, so the front passenger sits
upright.
● Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint sys-
tem. Toyota strongly recommends that all infants and children be placed in
the rear seats of the vehicle and properly restrained. The rear seats are
safer for infants and children than the front passenger seat. (→P. 59)
PRIUS +_OM_OM47B24E_(EE)
1-1. For safe use
49
WARNING

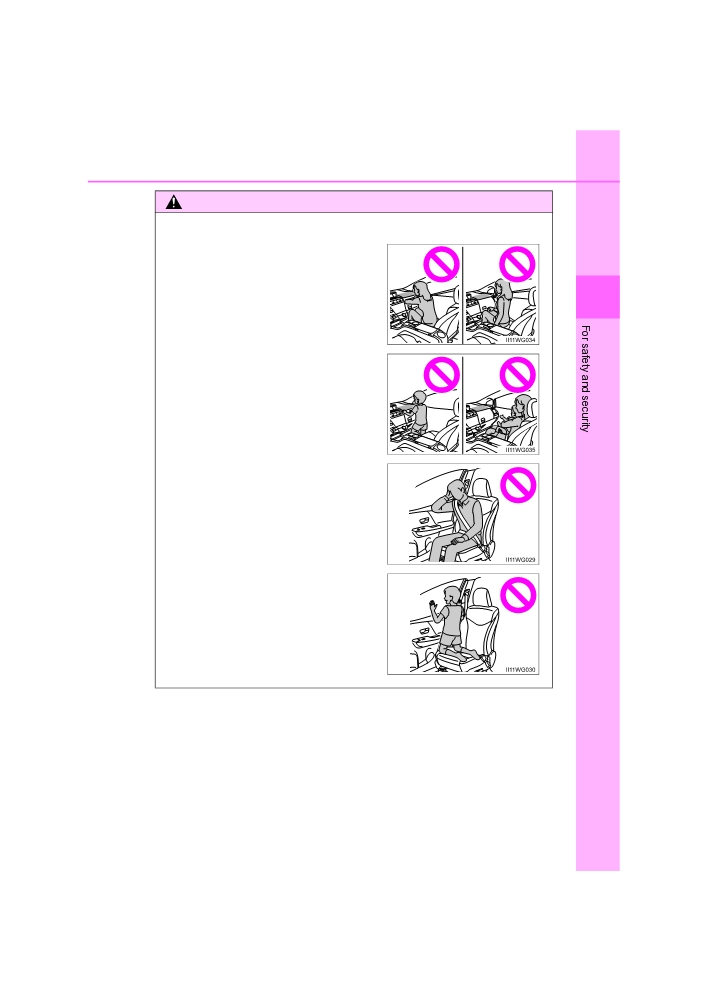

■ SRS airbag precautions
●Do not sit on the edge of the seat or
lean against the dashboard.
1
●Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
●Do not allow the front seat occupants to
hold items on their knees.
●Do not lean against the door, the roof
side rail or the front, side and rear pil-
lars.
●Do not allow anyone to kneel on the
passenger seat toward the door or put
their head or hands outside the vehicle.
PRIUS +_OM_OM47B24E_(EE)
50
1-1. For safe use
WARNING
■ SRS airbag precautions
●Do not attach anything to or lean any-
thing against areas such as the dash-
board, steering wheel pad and lower
portion of the driver’s side instrument
panel.
These items can become projectiles
when the SRS driver, front passenger
and knee airbags deploy.
●Do not attach anything to areas such as
a door, windshield glass, side door
glass, front or rear pillar, roof side rail,
and assist grip. (Except for the speed
limit sticker: →P. 437)
●Do not hang coat hangers or hard objects on the coat hooks. All of these
items could become projectiles and may cause death or serious injury,
should the SRS curtain shield airbags deploy.
●If a vinyl cover is put on the area where the SRS knee airbag will deploy,
be sure to remove it.
●Do not use seat accessories which cover the parts where the SRS side
airbags inflate as they may interfere with inflation of the airbags. Such
accessories may prevent the side airbags from activating correctly, disable
the system or cause the side airbags to inflate accidentally, resulting in
death or serious injury.
●Do not strike or apply significant levels of force to the area of the SRS air-
bag components.
Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component parts immediately after the SRS air-
bags have deployed (inflated) as they may be hot.
PRIUS +_OM_OM47B24E_(EE)
