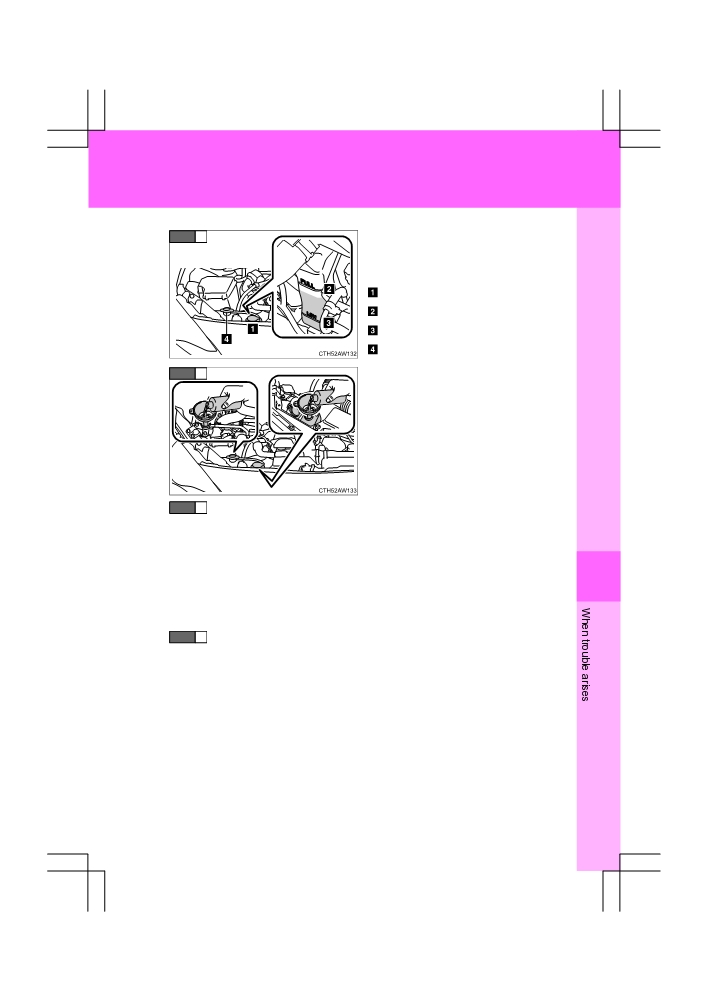

Toyota GT86 (2016 year). Instruction - part 32
5-2. Steps to take in an emergency
STEP
4
The coolant level is satisfactory if
it is between the
“FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL”
“LOW”
Radiator cap
STEP
5
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
STEP
6
Start the engine and turn the air conditioning system on to
check that the radiator cooling fans operate and to check for
coolant leaks from the radiator or hoses.
The fans operate when the air conditioning system is turned on
immediately after a cold start. Confirm that the fans are operating by
5
checking the fan sound and air flow. If it is difficult to check these,
turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
STEP
7
If the fans are not operating:
Stop the engine immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and
equipped professional.
If the fans are operating:
Have the vehicle inspected at the nearest authorized
Toyota dealer or repairer, or another duly qualified and
equipped professional.
465
86_EE (OM18071E)
5-2. Steps to take in an emergency
WARNING
■ To prevent an accident or injury when inspecting under the hood of
your vehicle
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fans and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
●Do not loosen the radiator cap and the coolant reservoir cap while the
engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■ When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
●Do not use any coolant additives.
466
86_EE (OM18071E)
5-2. Steps to take in an emergency

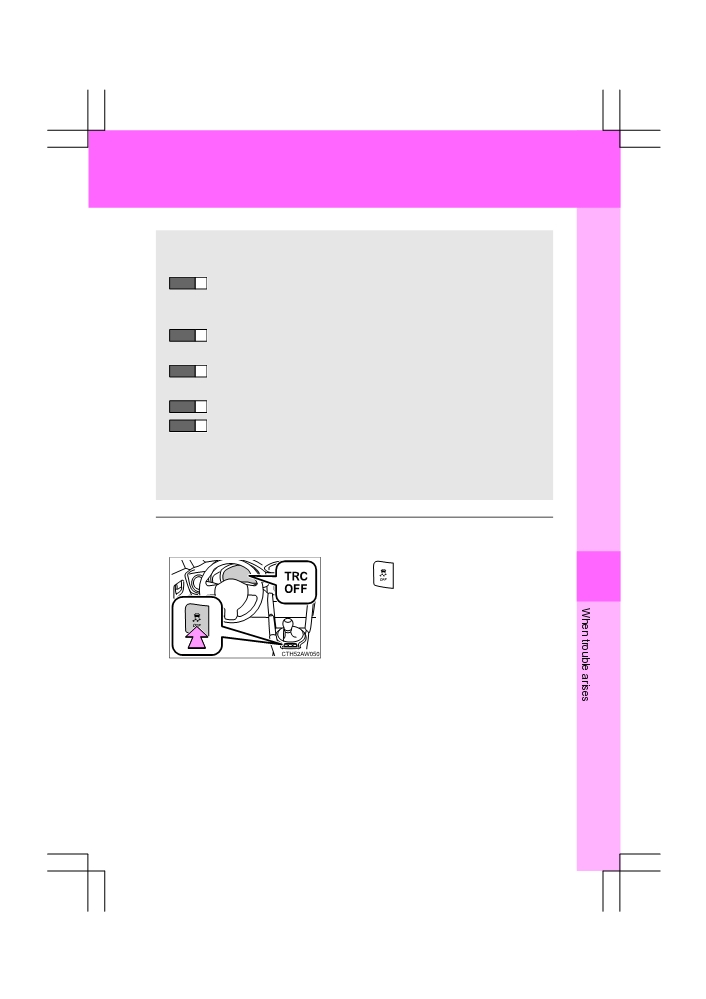

If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow:
STEP
1
Stop the engine. Set the parking brake and shift the shift
lever to P (vehicles with an automatic transmission) or N
(vehicles with a manual transmission).
STEP
2
Remove the mud, snow or sand from around the rear
wheels.
STEP
3
Place wood, stones or some other material under the rear
wheels to help provide traction.
STEP
4
Restart the engine.
STEP
5
Shift the shift lever to the D or R position (vehicles with an
automatic transmission) or 1 or R position (vehicles with a
manual transmission) and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.
■ When it is difficult to free the vehicle
Press
to turn off TRC.
5
467
86_EE (OM18071E)
5-2. Steps to take in an emergency
WARNING
■ When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
■ When shifting the shift lever
For vehicles with an automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the transmission and other components
● Avoid spinning the rear wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
468
86_EE (OM18071E)
5-2. Steps to take in an emergency

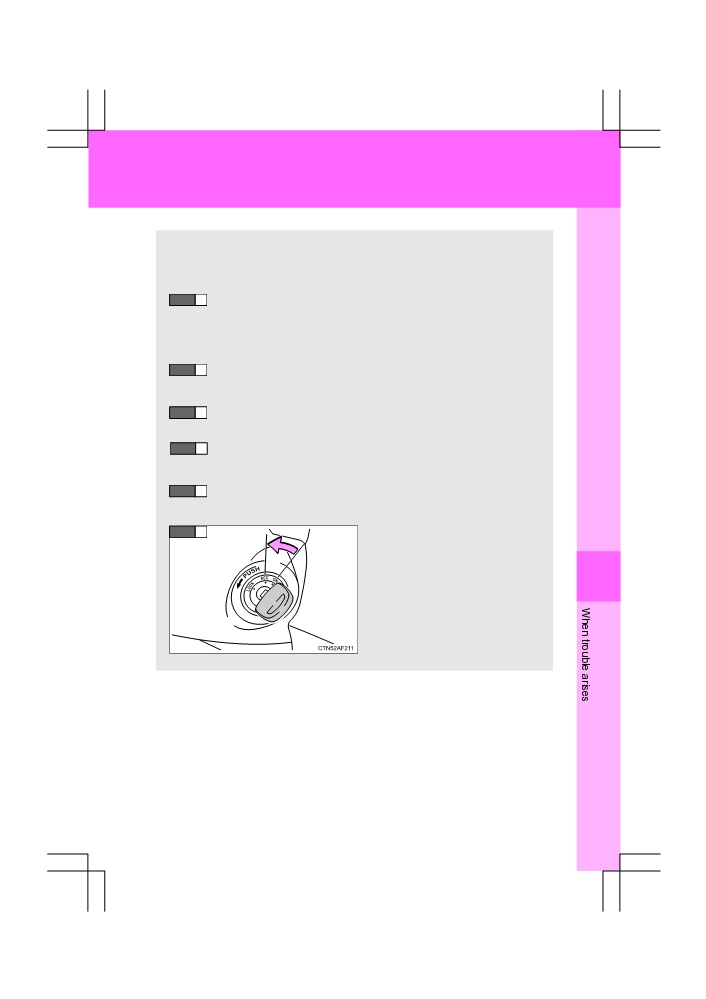

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
STEP
1
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
STEP
2
Shift the shift lever to N.
If the shift lever is shifted to N
STEP
3
After slowing down, stop the vehicle in a safe place by the
road.
STEP
4
Stop the engine.
If the shift lever cannot be shifted to N
STEP
3
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
STEP
4
Vehicles without a smart entry
& start system: Stop the
engine by turning the engine
5
switch to the “ACC” position.
469
86_EE (OM18071E)
5-2. Steps to take in an emergency
STEP
4
Vehicles with a smart entry &
start system: To stop the
engine, press and hold the
“ENGINE START STOP”
switch for 2 consecutive sec-
Press and hold for 2 seconds or more,
onds or more, or press it
or press briefly 3 times or more
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
STEP
5
WARNING
■ If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without a smart entry & start system: Never attempt to remove
the key, as doing so will lock the steering wheel.
470
86_EE (OM18071E)
Vehicle specifications
6
6-1. Specifications
Maintenance data
(fuel, oil level, etc.)
472
Fuel information
485
6-2. Customization
Customizable features
487
471
86_EE (OM18071E)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length
4240 mm (166.9 in.)
Overall width
1775 mm (69.9 in.)
Overall height*
1320 mm (52.0 in.)
Wheelbase
2570 mm (101.2 in.)
Front
1520 mm (59.8 in.)
Tread
Rear
1540 mm (60.6 in.)
Details are described on the manufac-
Gross vehicle mass
turer’s label. (→P. 473)
Maximum permissi-
Front
876 kg (1931 lb.)
ble axle capacity
Rear
943 kg (2079 lb.)
*: Unladen vehicle
472
86_EE (OM18071E)
6-1. Specifications

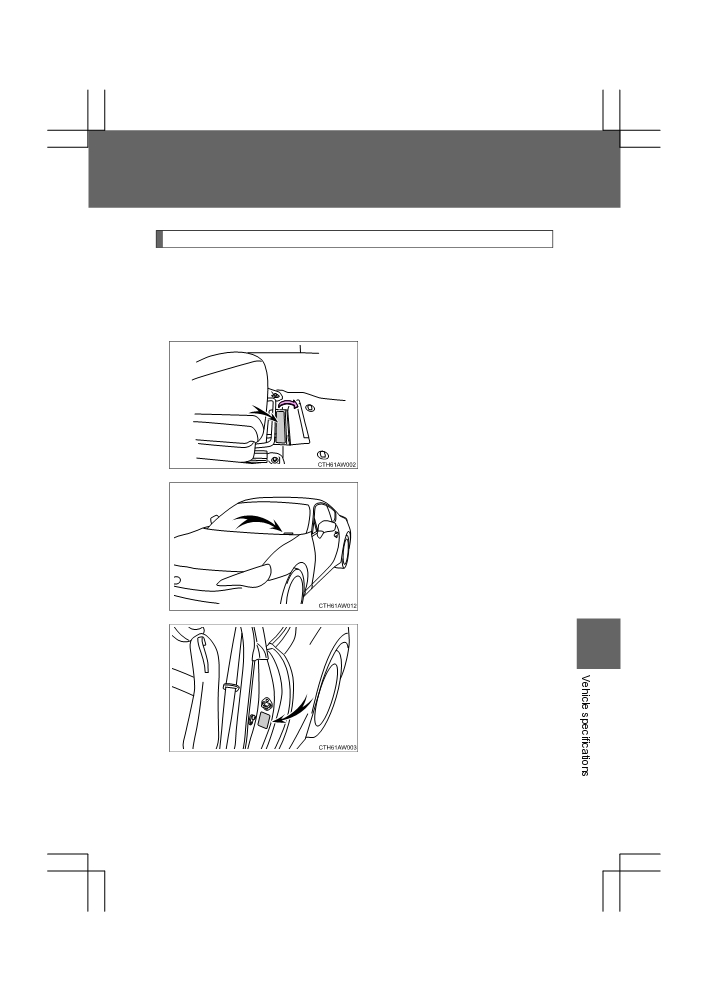

Vehicle identification
■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is located on the
top left of the body panel.
This number is also on the man-
6
ufacturer’s label.
473
86_EE (OM18071E)
6-1. Specifications

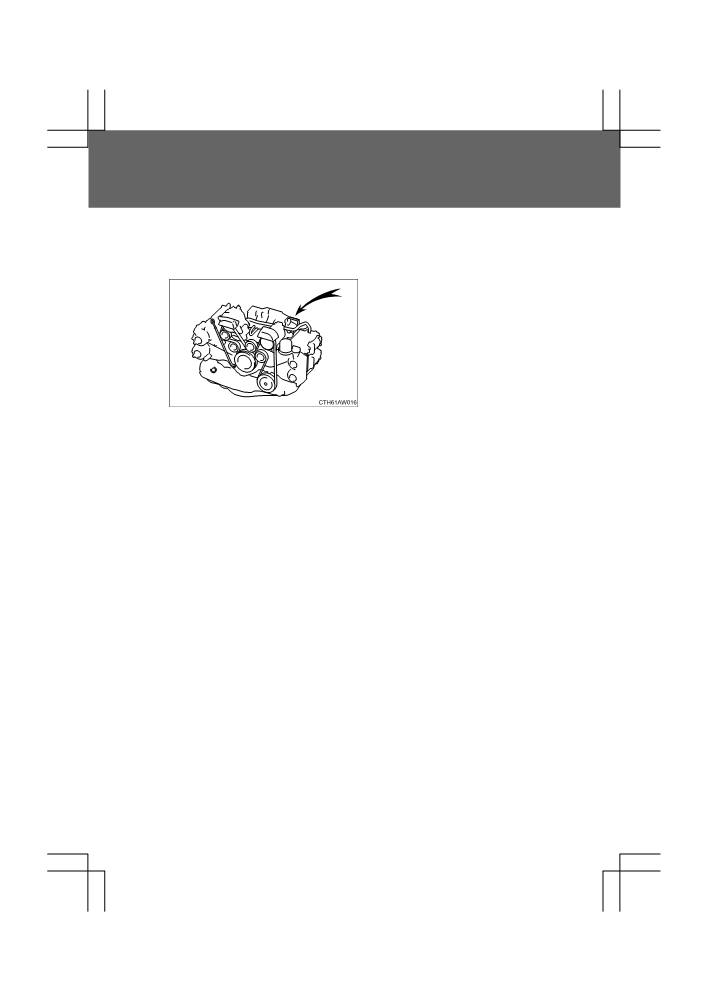

■ Engine number
The engine number is stamped on the engine block as shown.
474
86_EE (OM18071E)
6-1. Specifications
Engine
Model
FA20
Horizontally opposed, liquid cooled 4 cylinder, 4-
Type
stroke gasoline
Bore and stroke
86.0 × 86.0 mm (3.39 × 3.39 in.)
Displacement
1998 cm3 (121.93 cu.in.)
Drive belt tension
Automatic adjustment
Fuel
EU area:
Unleaded gasoline conforming to European stan-
Fuel type
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane num-
98 or higher*
ber
Fuel tank capacity
50 L (13.2 gal., 11.0 Imp. gal.)
(Reference)
*: If unleaded gasoline with an octane rating of 98 RON is not available,
unleaded gasoline with an octane rating of 95 RON may be used with no
detriment to engine durability or driveability.
6
475
86_EE (OM18071E)
6-1. Specifications
Lubrication system
Oil capacity
(Drain and refill
reference*)
Without filter
5.2 L (5.5 qt., 4.6 Imp. qt.)
With filter
5.4 L (5.7 qt., 4.8 Imp. qt.)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20 and 5W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or ILSAC multigrade engine oil
476
86_EE (OM18071E)
6-1. Specifications

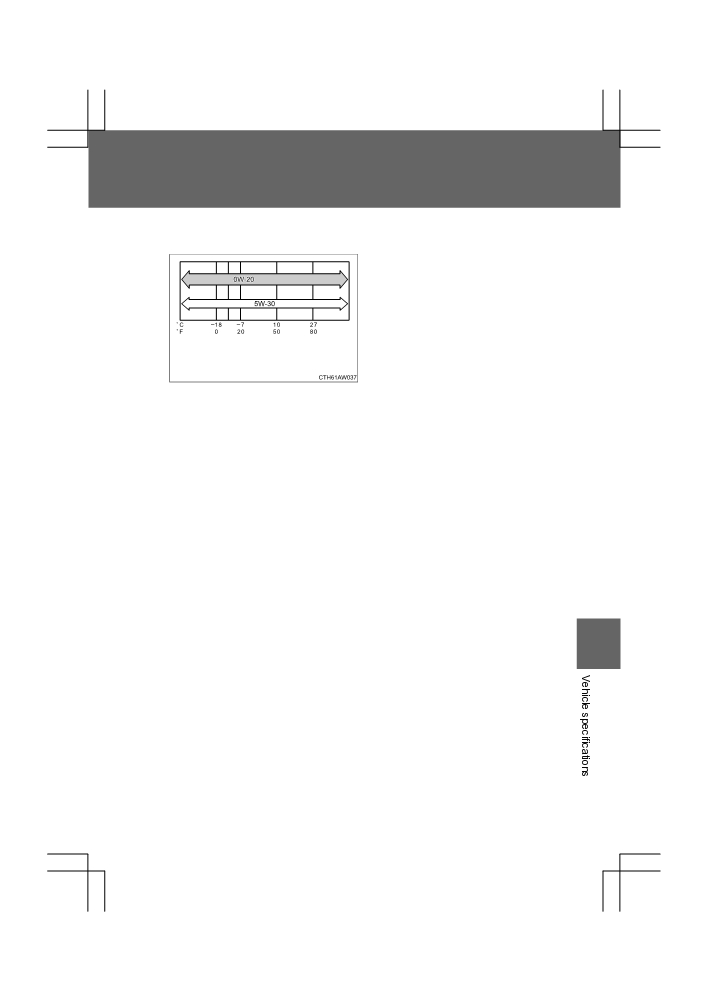

Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Preferred
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
Temperature range anticipated before
If SAE 0W-20 oil is not available,
next oil change
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
6
477
86_EE (OM18071E)
6-1. Specifications

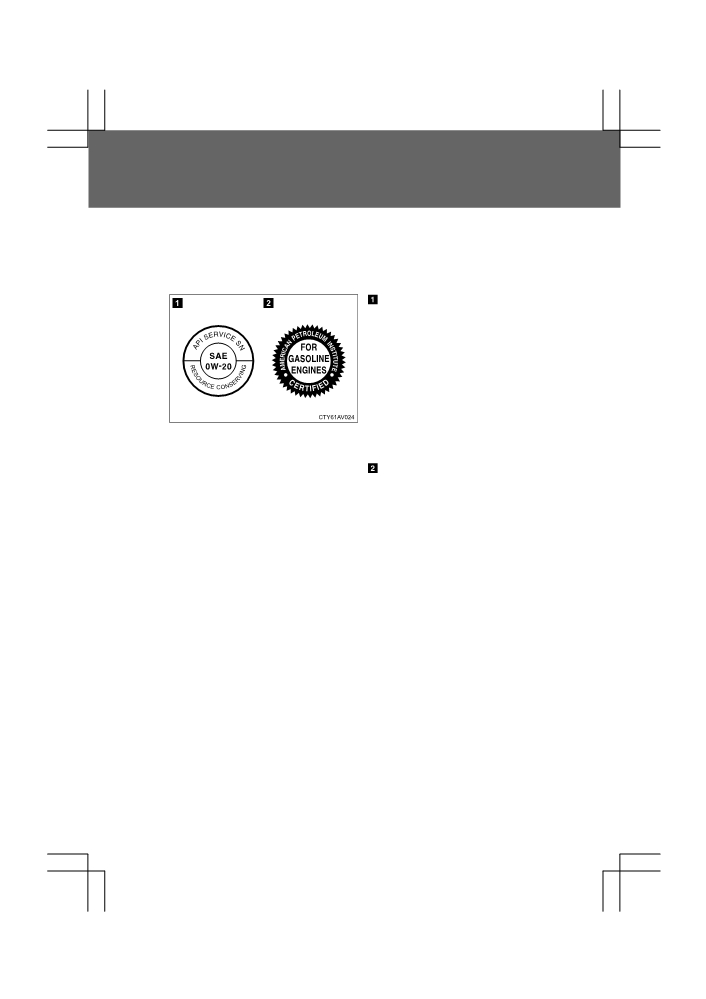

How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality desig-
nation by API (American Petro-
leum Institute) (SN)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion:
“Resource-Con-
serving” means that the oil has
fuel saving and environmental
protection.
ILSAC Certification Mark
The ILSAC (International Lubri-
cant Specification Advisory Com-
mittee) Certification Mark is
displayed on the front of the con-
tainer.
478
86_EE (OM18071E)
6-1. Specifications
Cooling system
Vehicles with an automatic transmission
7.5 L (7.9 qt., 6.6 Imp. qt.)
Capacity
Vehicles with a manual transmission
7.2 L (7.6 qt., 6.3 Imp. qt.)
Use either of the following.
• “TOYOTA Genuine 50/50 Pre-mixed Super Long
Life Coolant BLUE”
• Similar high-quality ethylene glycol-based non-
Coolant type
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Ignition system
Spark plug
Make
DENSO ZXE27HBR8
Gap
0.8 mm (0.031 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
6
479
