5-2. Steps to take in an emergency
WARNING
■ When fixing the flat tire
● After inflation of the tire has completed, the sealant may splatter when the
hose is disconnected or some air is let out of the tire.
●Follow the operation procedure to repair the tire. If the procedures not fol-
lowed, the sealant may spray out.
●Keep back from the tire while it is being repaired, as there is a chance of it
bursting while the repair operation is being performed. If you notice any
cracks or deformation of the tire, turn off the compressor switch and stop
the repair operation immediately.
●The repair kit may overheat if operated for a long period of time. Do not
operate the repair kit continuously for more than 10 minutes.
● Parts of the repair kit become hot during operation. Be careful when han-
dling the repair kit during and after operation. Do not touch the metal part
around the connecting area between the bottle and compressor. It will be
extremely hot.
●Do not attach the vehicle speed warning sticker to an area other than the
one indicated. If the sticker is attached to an area where an SRS airbag is
located, such as the pad of the steering wheel, it may prevent the SRS air-
bag from operating properly.
■ Driving to spread the liquid sealant evenly
5
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
●Drive the vehicle carefully at a low speed. Be especially careful when turn-
ing and cornering.
● If the vehicle does not drive straight or you feel a pull through the steering
wheel, stop the vehicle and check the following.
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If the tire inflation pressure is 130 kPa (1.3
kgf/cm2 or bar, 19 psi) or less, the tire may be severely damaged.
435
86_EE (OM18071E)
5-2. Steps to take in an emergency
NOTICE
■ When performing an emergency repair
● A tire should only be repaired with the emergency tire puncture repair kit if
the damage is caused by a sharp object such as nail or screw passing
through the tire tread.
Do not remove the sharp object from the tire. Removing the object may
widen the opening and disenable emergency repair with the repair kit.
●The repair kit is not waterproof. Make sure that the repair kit is not
exposed to water, such as when it is being used in the rain.
●Do not put the repair kit directly onto dusty ground such as sand at the
side of the road. If the repair kit vacuums up dust etc., a malfunction may
occur.
●Do not put the valve core on dirty ground or in the sand.
Store it in a clean place.
●Do not remove the inside cap of the sealant bottle.
● Turn the valve core tool with your hand when screwing it in. If you use
another tool in conjunction with the valve core tool, damage may occur.
■ Precautions for the emergency tire puncture repair kit
●The repair kit power source should be 12 V DC suitable for vehicle use. Do
not connect the repair kit to any other source.
● If gasoline splatters on the repair kit, the repair kit may deteriorate. Take
care not to allow gasoline to contact it.
● Place the repair kit in a storage to prevent it from being exposed to dirt or
water.
● Store the repair kit in the trunk out of reach of children.
●Do not disassemble or modify the repair kit. Do not subject parts such as
the air pressure indicator to impacts. This may cause a malfunction.
436
86_EE (OM18071E)
5-2. Steps to take in an emergency
NOTICE
■ To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional or other qualified service shop as soon as possible.
After use of liquid sealant, make sure to replace the tire pressure warning
valve and transmitter when repairing or replacing the tire. (→P. 343)
5
437
86_EE (OM18071E)
5-2. Steps to take in an emergency
If you have a flat tire (vehicles with a spare tire)
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
■ Before jacking up the vehicle
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (vehicles with an automatic transmis-
sion) or R (vehicles with a manual transmission).
● Stop the engine.
● Turn on the emergency flashers. (→P. 384)

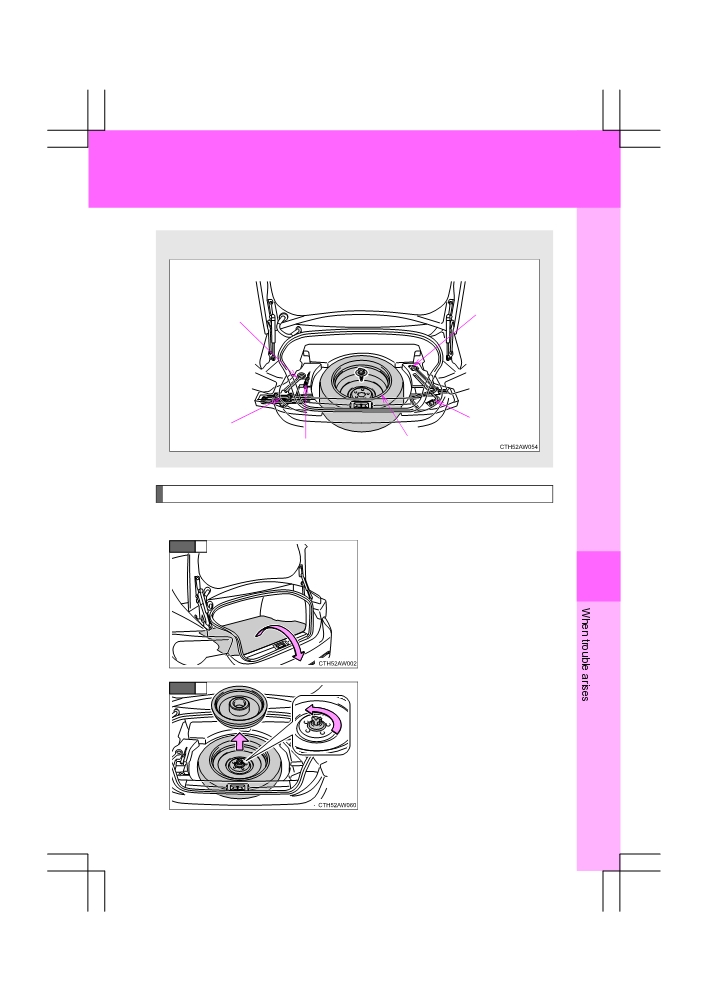

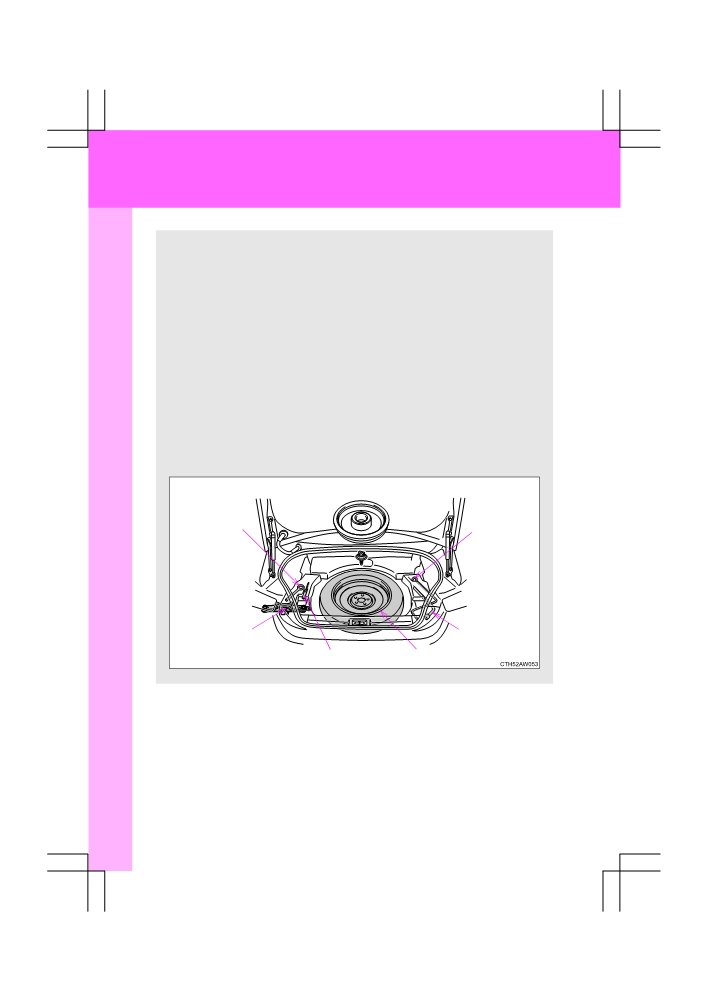

■ Location of the spare tire, jack and tools
Vehicles with a compact spare tire
Towing eyelet
Jack handle
Wheel nut
Jack
wrench
Screwdriver
Spare tire
438
86_EE (OM18071E)
5-2. Steps to take in an emergency
Vehicles with a full-size spare tire
Jack handle
Towing eyelet
Wheel nut
Jack
wrench
Screwdriver
Spare tire

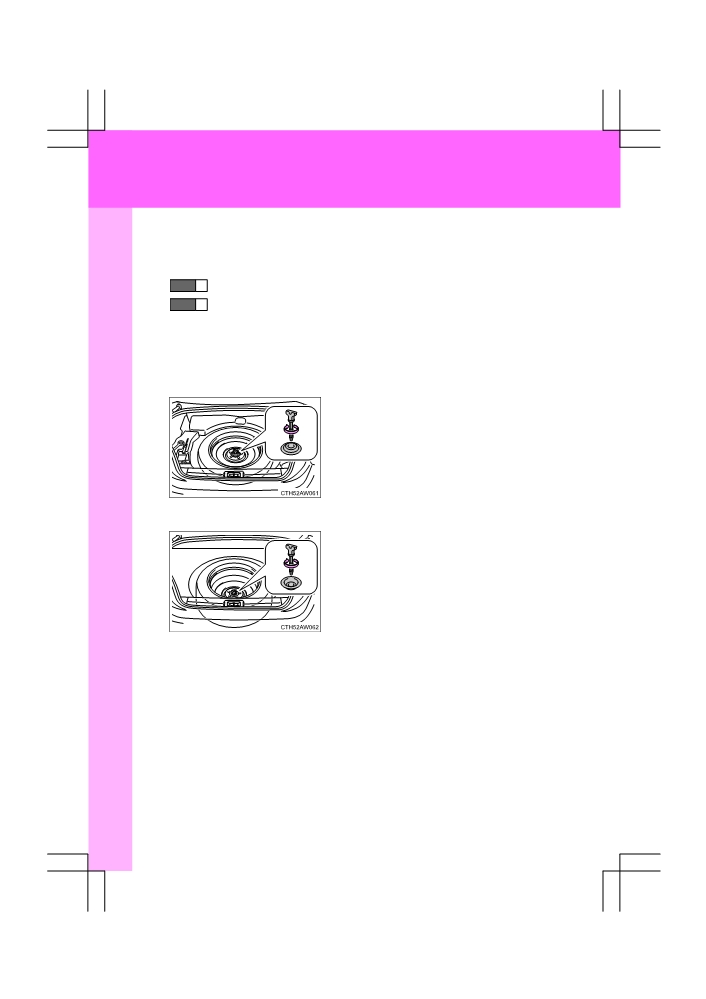

Taking out the spare tire
Vehicles with a compact spare tire

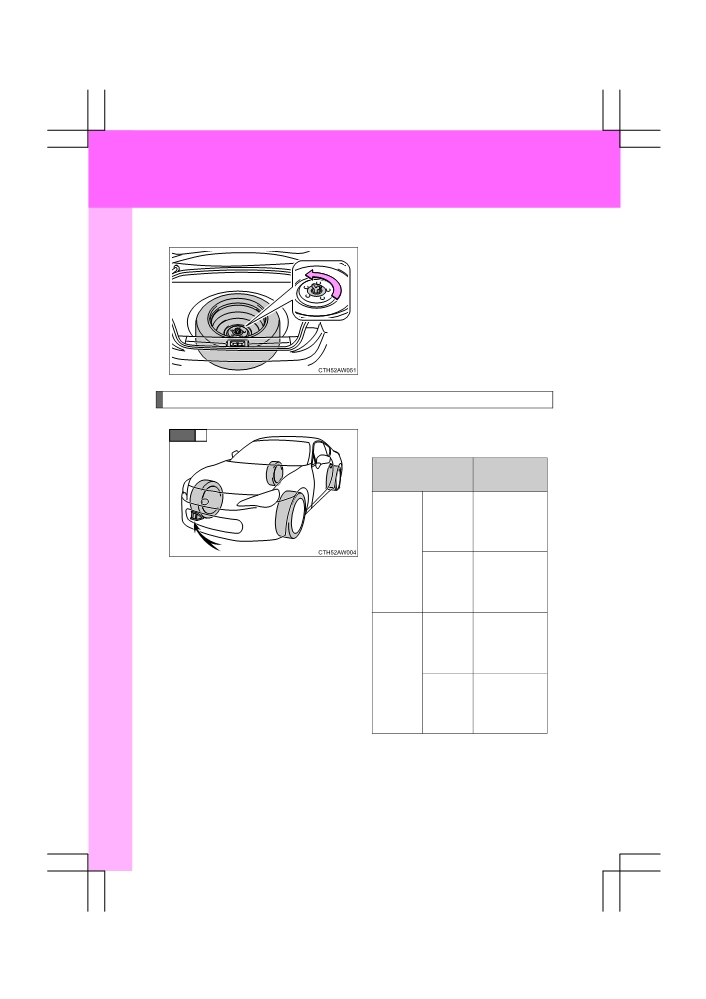

STEP
1
Remove the luggage mat.
5
STEP
2
Remove the cover and loosen
the center fastener that secures
the spare tire.
439
86_EE (OM18071E)
5-2. Steps to take in an emergency
Vehicles with a full-size spare tire
Loosen the center fastener that
secures the spare tire.
Replacing a flat tire
STEP
1
Chock the tires.
Wheel chock
Flat tire
positions
Behind the
Left-
rear right-
hand
hand side
side
tire
Front
Behind the
Right-
rear left-
hand
hand side
side
tire
In front of
Left-
the front
hand
right-hand
side
side tire
Rear
In front of
Right-
the front
hand
left-hand
side
side tire
440
86_EE (OM18071E)
5-2. Steps to take in an emergency
STEP
2
Slightly loosen the wheel nuts
(one turn).

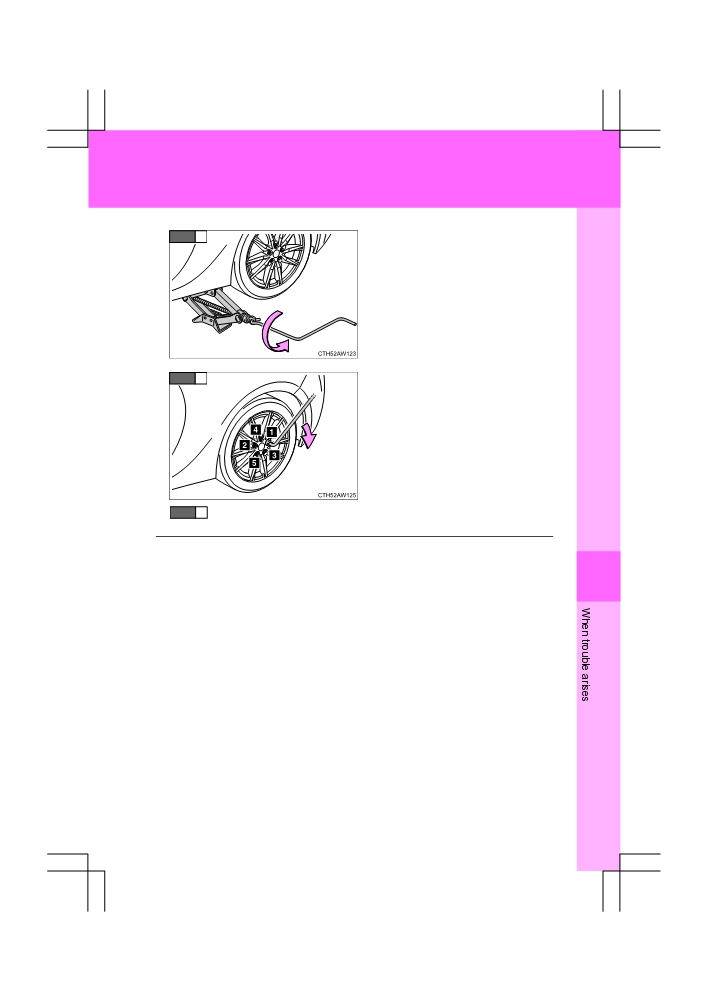

STEP
3
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
STEP
4
Raise the vehicle until the tire is
slightly raised off the ground.
5
STEP
5
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
441
86_EE (OM18071E)
5-2. Steps to take in an emergency

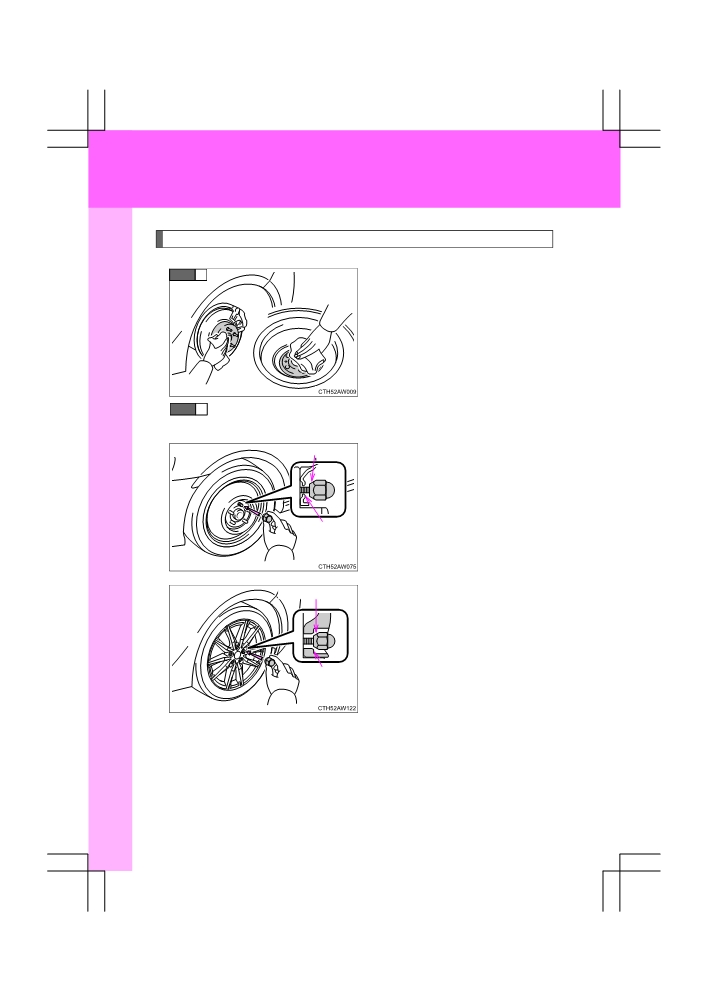

Installing the spare tire
STEP
1
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.
STEP
2
Install the spare tire and loosely tighten each wheel nut by
hand to approximately the same amount.
Vehicles with a compact spare
Tapered portion
tire: Tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc wheel
seat.
Disc wheel
seat
Vehicles with a full-size spare
Tapered portion
tire: Tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc
wheel.
Disc wheel
442
86_EE (OM18071E)
5-2. Steps to take in an emergency
STEP
3
Lower the vehicle.
STEP
4
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
120 N•m (12.2 kgf•m, 89 ft•lbf)
Stow the flat tire, tire jack and all tools.
STEP
5
■ The compact spare tire (vehicles with a compact spare tire)
●The compact spare tire is identified by the label “TEMPORARY USE
5
ONLY” on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.
● Make sure to check the tire pressure of the compact spare tire.
(→P. 483)
■ When using the compact spare tire
As the compact spare tire is not equipped with the tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
warned. Also, if you replace the compact spare tire after the tire pressure
warning light comes on, the light remains on.
443
86_EE (OM18071E)
5-2. Steps to take in an emergency
■ If you have a flat rear tire (vehicles with a compact spare tire)
Install the compact spare tire on the front of the vehicle. Perform the follow-
ing steps.
STEP
1
Replace a front tire with the compact spare tire.
STEP
2
Replace the flat rear tire with the tire removed from the front of the
vehicle.
■ Storing the tire
Always install the center fastener as shown in the illustration below.
Compact spare tire
Except compact spare tire
■ After completing the tire change
The tire pressure warning system must be reset. (→P. 343)
444
86_EE (OM18071E)
5-2. Steps to take in an emergency

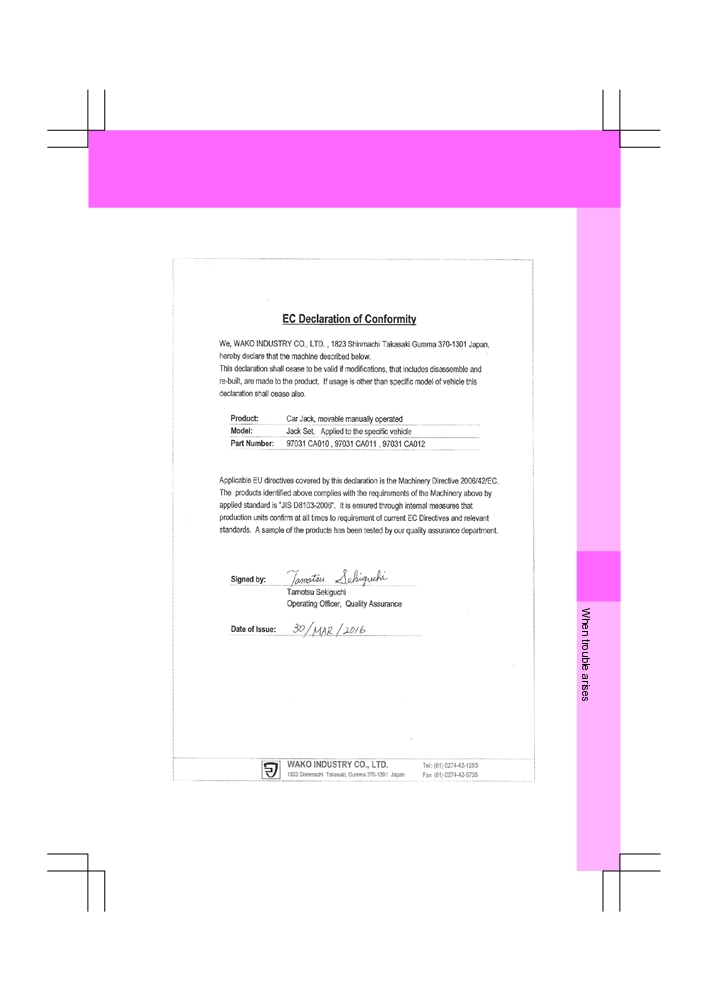

■ Certification for the jack
5
445
86_EE (OM18071E)
5-2. Steps to take in an emergency
WARNING
■ Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
●Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the jack.
●Do not raise the vehicle while someone is in it.
● When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace
the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working
on or near the vehicle may be injured.
446
86_EE (OM18071E)
5-2. Steps to take in an emergency
WARNING
■ Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or
other body parts while changing a tire, etc. may result in burns.
●Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
●Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 120 N•m (12.2
kgf•m, 89 ft•lbf) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads
or bolt holes of the wheel, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
• When installing the wheel nuts, be sure to install them with the tapered
ends facing inward. (→P. 355)
5
■ When using the compact spare tire (vehicles with a compact spare tire)
●Remember that your compact spare tire is specifically designed for use
with your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use two compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Install the compact spare tire on a front wheel.
447
86_EE (OM18071E)
5-2. Steps to take in an emergency
WARNING
■ When storing the compact spare tire (vehicles with a compact spare
tire)
Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.
■ Speed limit when using the compact spare tire (vehicles with a com-
pact spare tire)
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare
tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to
observe this precaution may lead to an accident causing death or serious
injury.
■ When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
●ABS & Brake assist
●VSC
●TRC
●EPS
●Cruise control (if equipped)
●LSD (if equipped)
448
86_EE (OM18071E)
5-2. Steps to take in an emergency
NOTICE
■ Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■ Be careful when driving over bumps with the compact spare tire
installed on the vehicle. (vehicles with a compact spare tire)
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
■ Driving with tire chains and the compact spare tire (vehicles with a
compact spare tire)
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.
■ Stowing the jack
When stowing the jack in the jack holder, make sure that the part that the
jack handle attaches to is pointing towards the inside of the trunk. Failure to
do so may damage the vehicle body.
■ When replacing the tires
5
When removing or fitting the wheels, tires or the tire pressure warning valve
and transmitter, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional as the tire pressure warning valve
and transmitter may be damaged if not handled correctly.
■ To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional or other qualified service shop as soon as possible.
Make sure to replace the tire pressure warning valve and transmitter when
replacing the tire. (→P. 343)
449
86_EE (OM18071E)
