216

3. Instrument cluster

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/

exit of a garage, tunnel, etc.)

●

When “-” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.

■

Electricity consumption
When the unit is set to “MPH”:
Electricity  consumption  is  the  consumption  rate  of  the  electricity  when  EV
driving is performed and equivalent to the fuel consumption for the gasoline
vehicles.  For  this  vehicle,  driven  distance  per  kWh  of  electricity  consumed
(“miles/kWh”) is displayed as electricity consumption on each screen.
When the unit is set to “km/h”:
Electricity  consumption  is  the  consumption  rate  of  the  electricity  when  EV
driving is performed and equivalent to the fuel consumption for the gasoline
vehicles. For this vehicle, electricity consumed per 100 km (“kWh/100 km”) is
displayed as electricity consumption on each screen.

■

EV driving range
P. 108

■

Distance to empty

●

This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.

●

When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the power switch off. If the vehicle is refueled without
turning the power switch off, the display may not be updated.

217

3. Instrument cluster

3

Instrument clus

ter

■

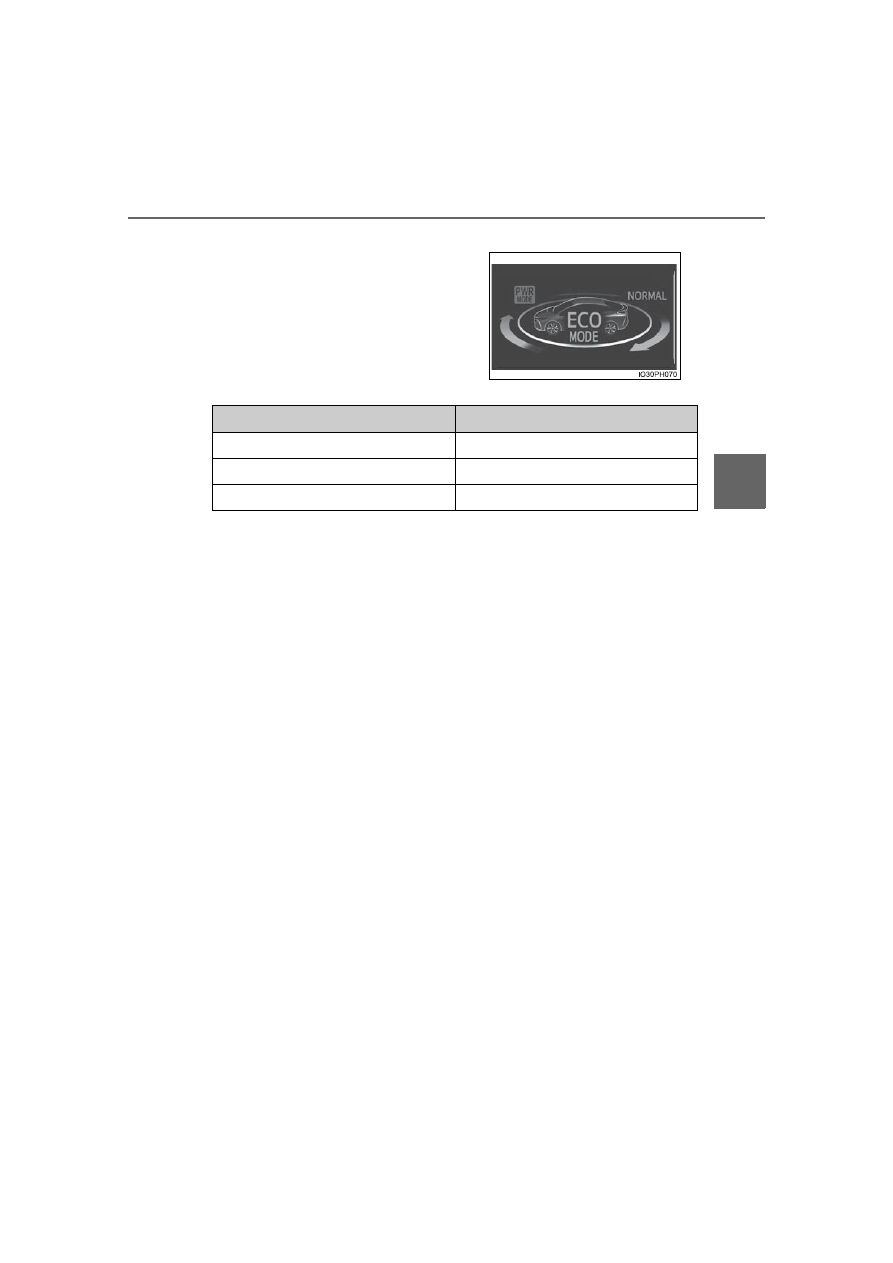

Switching the driving mode (

P. 419)

*

: The animation displayed when the driving mode is switched can be turned

off in the “Meter Customize” settings. (

P. 246)

When  the  driving  mode  is  switched,  the
driving  mode  indicator  changes  and  an
animation

*

 is displayed on the multi-infor-

mation display.
Also,  the  background  color  of  the  main
display,  energy  monitor  (

P.  221)  and

Hybrid  System  Indicator  (

P.  223)

change as follows.

Driving modes

Background color

Normal mode

Green

Power mode

Red

Eco drive mode

Blue

218

3. Instrument cluster

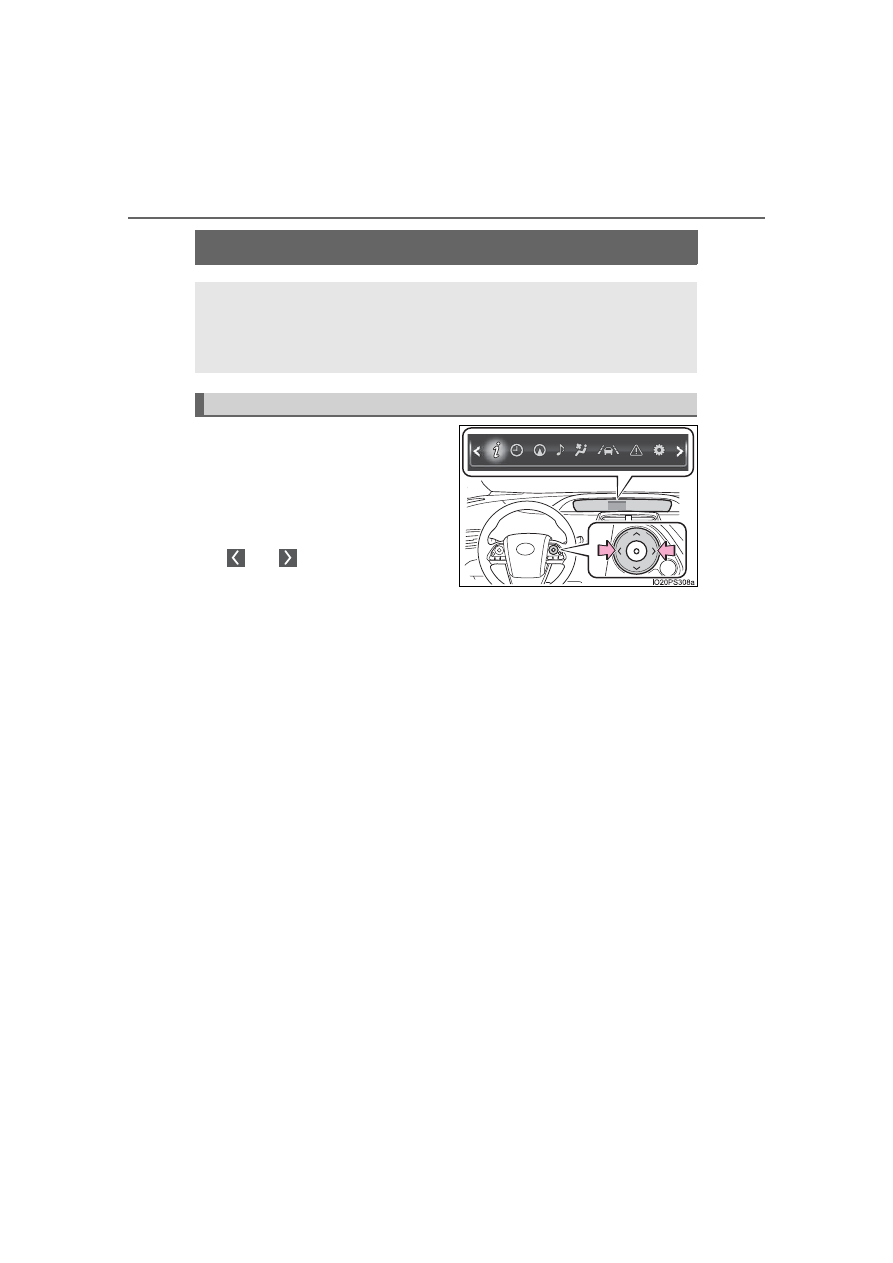

Multi-information display

Information  related  to  each  icon
on the upper portion of the multi-
information  display  can  be  dis-
played  by  operating  the  meter
control switches to select the icon.

Icons are displayed when pressing

  or

  of  the  meter  control

switches  and  turn  off  shortly  after
pressing the switch.
Screens  linked  with  vehicle  functions  may  be  automatically  displayed
according to the operation status of the corresponding functions.

A variety of information related to the vehicle can be displayed,
including the operation status of each system and data related
to Eco driving, and the settings of each system can be changed
according to user preference.

Display contents

219

3. Instrument cluster

3

Instrument clus

ter

*

: When there is a warning message that can be displayed, the color of

changes to amber.

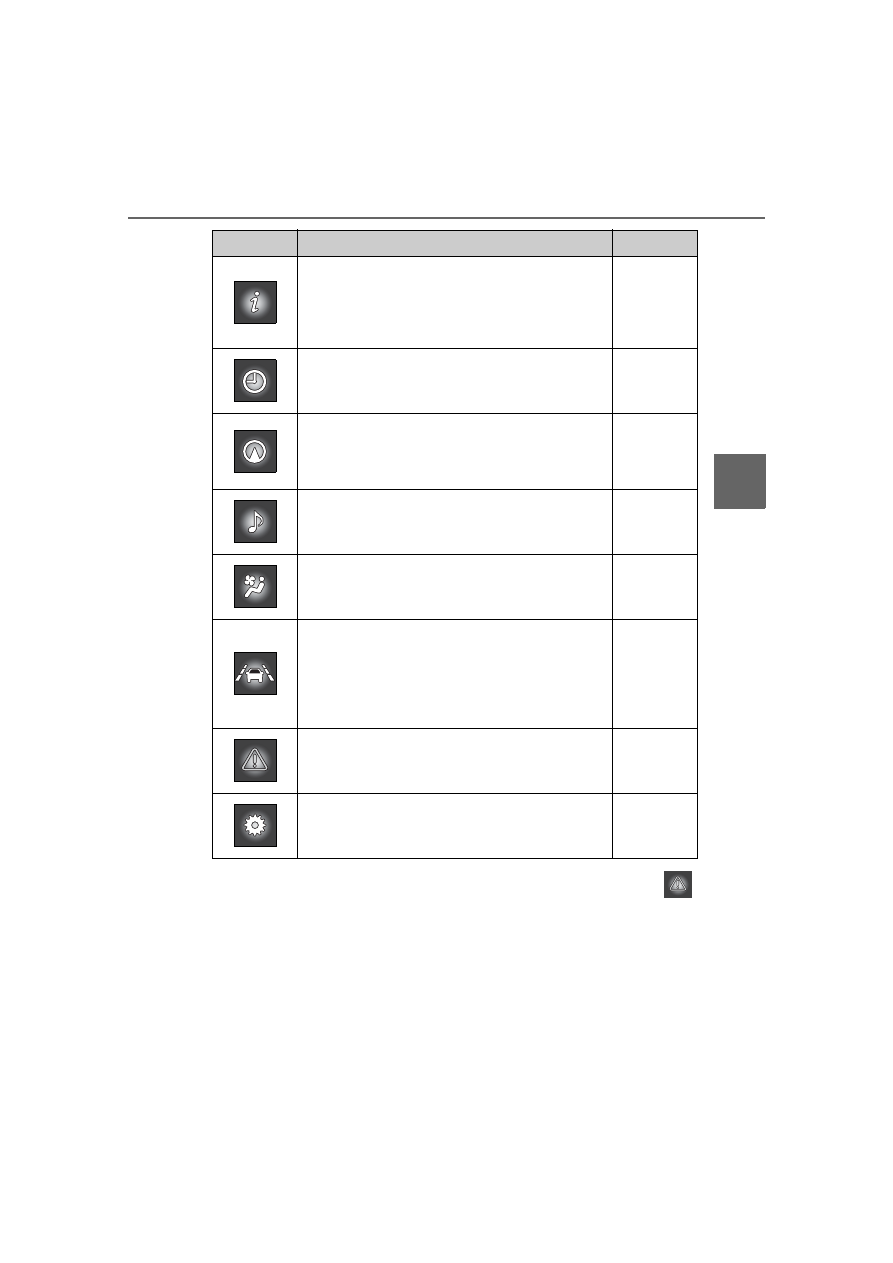

Menu icons

Contents

Pages

Drive information

The energy monitor that shows the operation
status of the hybrid system, or other informa-
tion  such  as  electricity  consumption  and  fuel
consumption are displayed.

P. 220

Clock setting display

The clock settings can be changed.

P. 237

Navigation

system-linked

display

(if

equipped)

The information related to the navigation sys-
tem is displayed.

P. 238

Audio system-linked display

The audio system settings can be changed.

P. 238

Air conditioning system settings screen

The  air  conditioning  system  settings  can  be
changed.

P. 239

Driving assist system information

The  information  related  to  driving  assist  sys-
tems such as the LDA  (Lane Departure Alert
with  steering  control)  and  dynamic  radar
cruise  control  with  full-speed  range  is  dis-
played.

P. 243

Warning message display

*

The warning messages are displayed.

P. 243

Settings display

The  settings  of  the  vehicle  functions,  meter
display, etc. can be changed.

P. 244

220

3. Instrument cluster

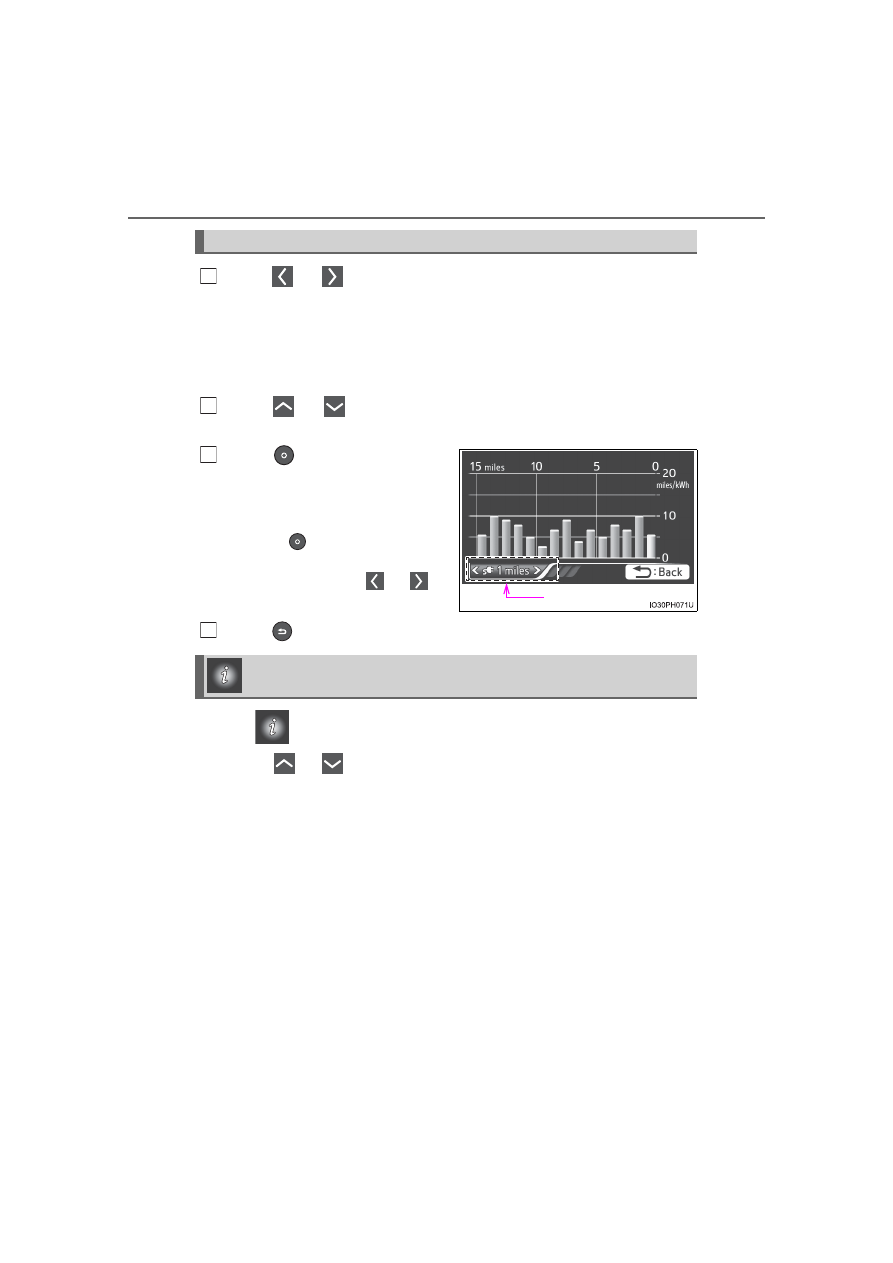

Press

 or

 of the meter control switches and select the icon

of the desired item.

The selected icon is highlighted and the display switches to the information
screen.
When split screen display is selected for the main display, the sub-screen
of the main display can also be selected. (

P. 214)

Press

 or

 of the meter control switches to switch the con-

tents of the display.
Press

  on  screens  where  it

is  necessary  to  select  or  con-
firm an item.

On  screens  with  tab  displays,
pressing

  selects  the  tab  dis-

play, and the screen display can be
changed by pressing

 or

 of

the meter control switches.

Press

 to return to the previous screen.

When

 is selected, the following information can be displayed by

pressing

 or

 of the meter control switches.

● Energy monitor (P. 221)
● Hybrid System Indicator (P. 223)
● “Fuel Consumption Record” (P. 231)
● “Drive Monitor” (P. 234)
● “Drive Monitor 2” (P. 235)
● “Eco-Diary” (P. 236)

Basic Operations

1

2

Tab display

3

 Drive information

4

221

3. Instrument cluster

3

Instrument clus

ter

◆

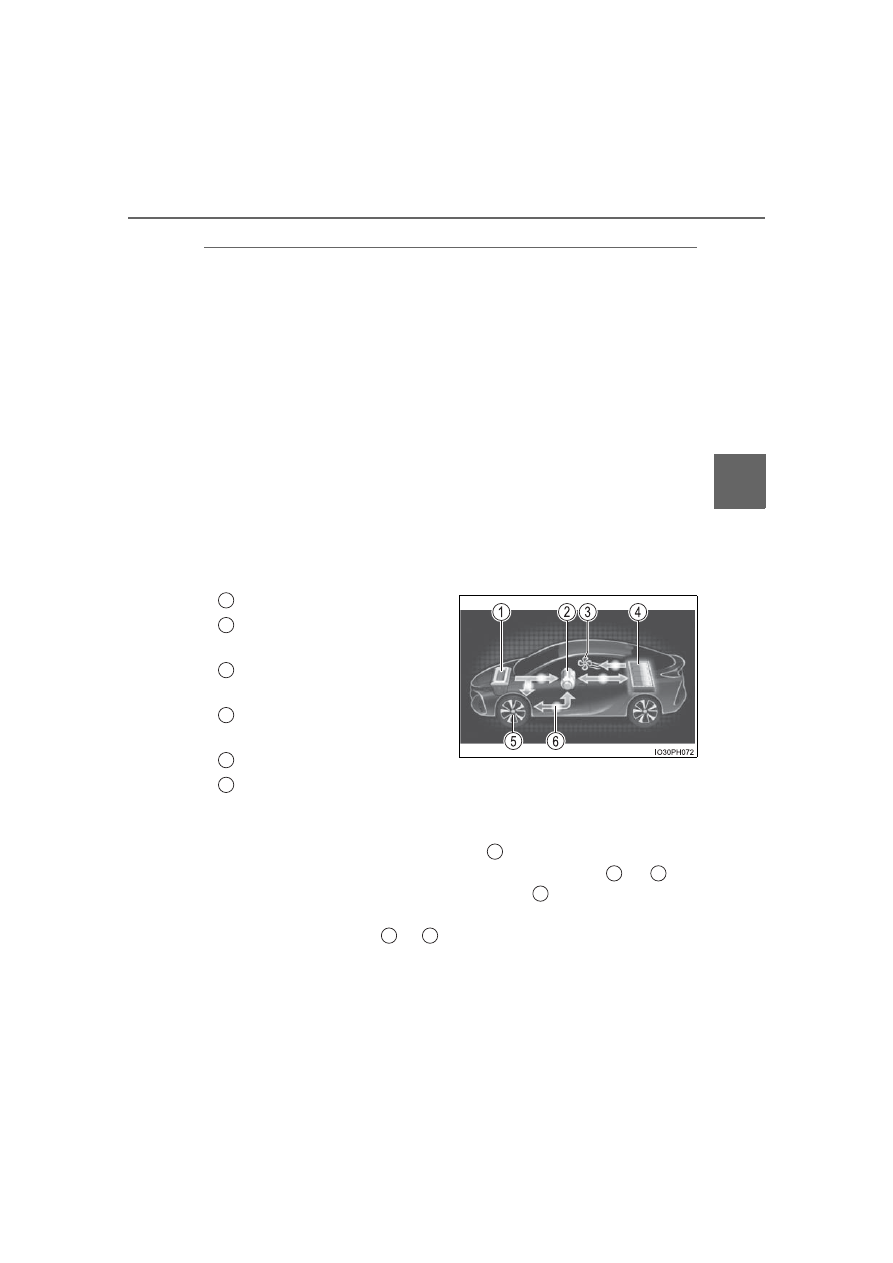

Energy monitor

The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.

While  charging  from  the  external  power  source,  the  flow  of  electrical
energy while charging is displayed.

When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light is not displayed.
● The arrows from the image of the engine to that of the electric

motor (traction motor) or tires are displayed in red.

● The arrow indicating energy consumption is displayed in yellow,

and the arrow indicating energy regeneration or charging is dis-
played in green. Also, the color around the image of the hybrid
battery (traction battery) is changed.

As an example, all arrows are shown in the illustration, but the actual
contents of the display will differ.

■

Except when charging

Gasoline engine
Electric motor
(traction motor)
Air conditioning system oper-
ation

*

1

Hybrid battery
(traction battery)
Tire
Bright point of light showing the flow of energy

(Display example)
● When the hybrid battery (traction battery) is being charged, the

bright point of light moves towards

.

● During driving, the bright point of light moves from   or   (or

both depending on the situation) towards

.

*

2

● When the air conditioning compressor is operating, a bright point

of light moves from

 to

.

● During driving, the image of the tires rotates.

*

1

: It is displayed while the air conditioning system is operating.

*

2

: The display may differ depending on the driving status.

1
2

3

4

5
6

4

1

2

5

4

3

222

3. Instrument cluster

■

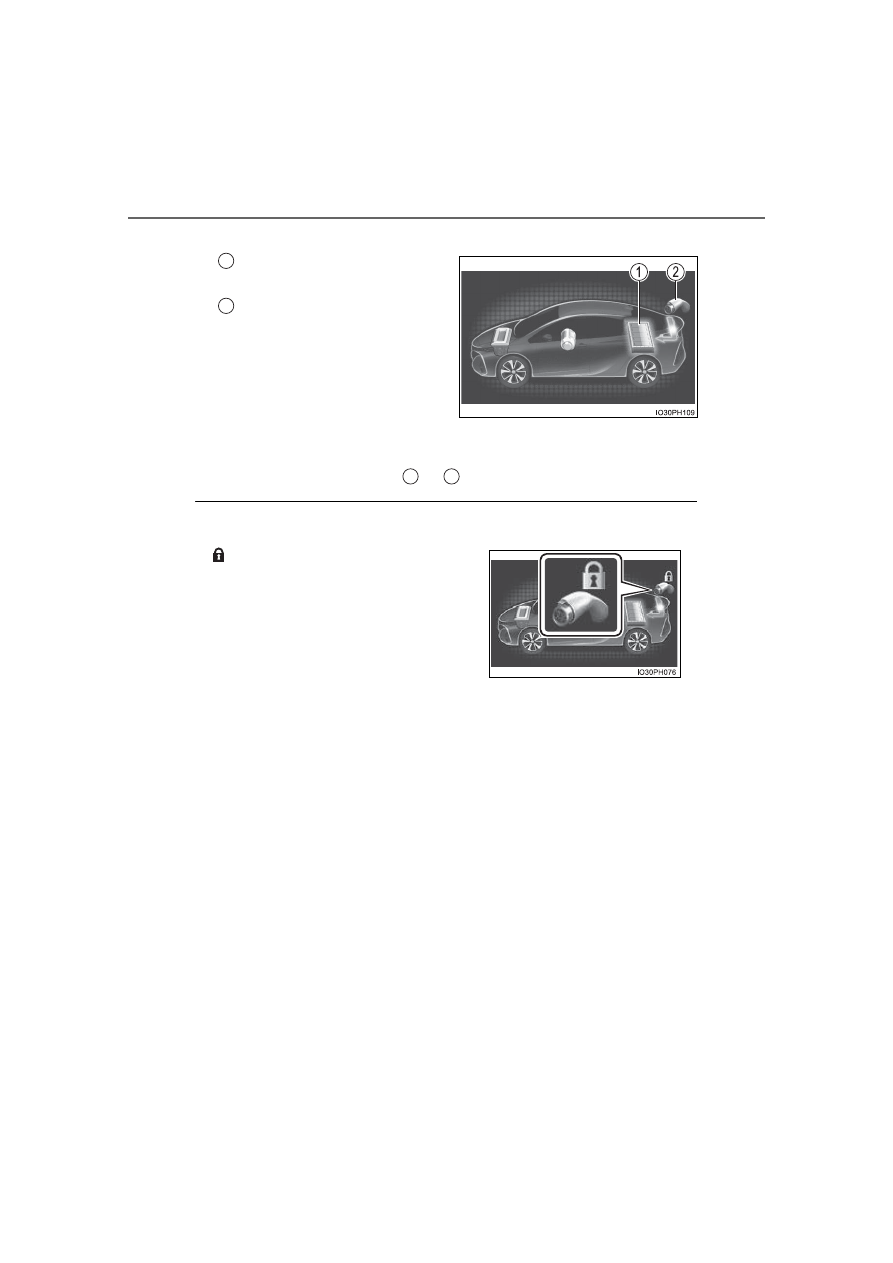

While charging

Hybrid  battery  (traction  bat-
tery)
Charging connector

(Display example)
When the hybrid battery (traction battery) is being charged, a bright
point of light moves from

 to

.

■

When the charging connector is locked (vehicles with smart lid & con-
nector locking system) (

P. 148)

1

2

 is displayed in the charging connector

display portion on the energy monitor.

2

1

223

3. Instrument cluster

3

Instrument clus

ter

◆

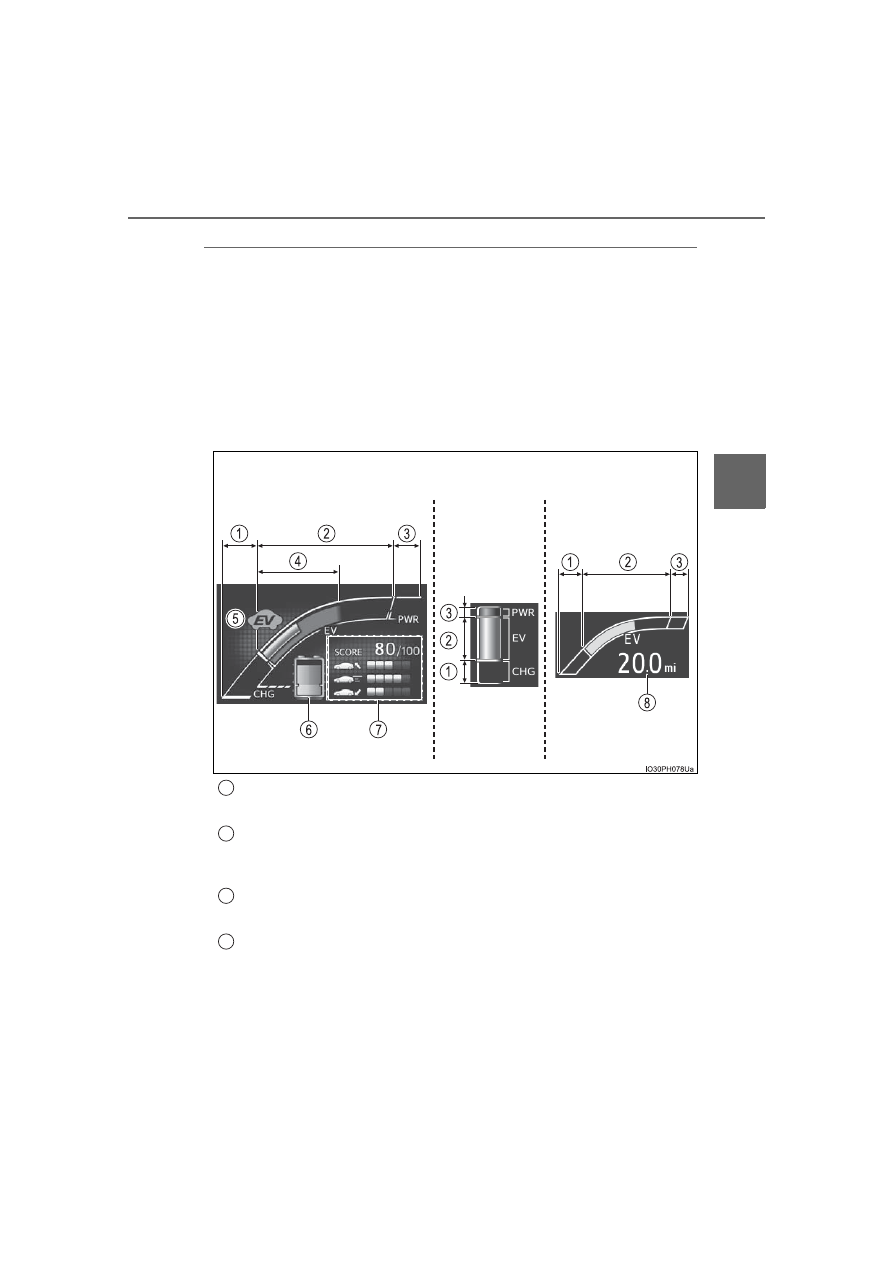

Hybrid System Indicator

The display changes according to accelerator pedal operation and
displays the current driving status and energy regeneration status.

The display contents of the Hybrid System Indicator are different in EV
mode and HV mode.
The Hybrid System Indicator can be displayed on the sub-screen of the
main display (

P. 215) and the head-up display (if equipped)

(

P. 252).

■

How to read the display



In EV mode

Charge area

Shows that energy is being recovered via the regenerative charging.

EV driving area

Shows that the vehicle is driven using only the electric motor (traction
motor).

Gasoline engine running area

Shows that the gasoline engine is used as auxiliary power.

Eco area

Shows that the vehicle is being driven in an Eco-friendly manner.
Changed within the “ECO Accelerator Guidance” range. (

P. 226)

*

1

Head-up display

(if equipped)

Sub-screen

Multi-information

display

1

2

3

4

224

3. Instrument cluster

EV indicator

*

1, 2

The  EV  indicator  comes  on  when  the  vehicle  is  driven  using  only  the
electric motor (traction motor) or the gasoline engine is stopped.

Hybrid battery (traction battery) status

P. 229

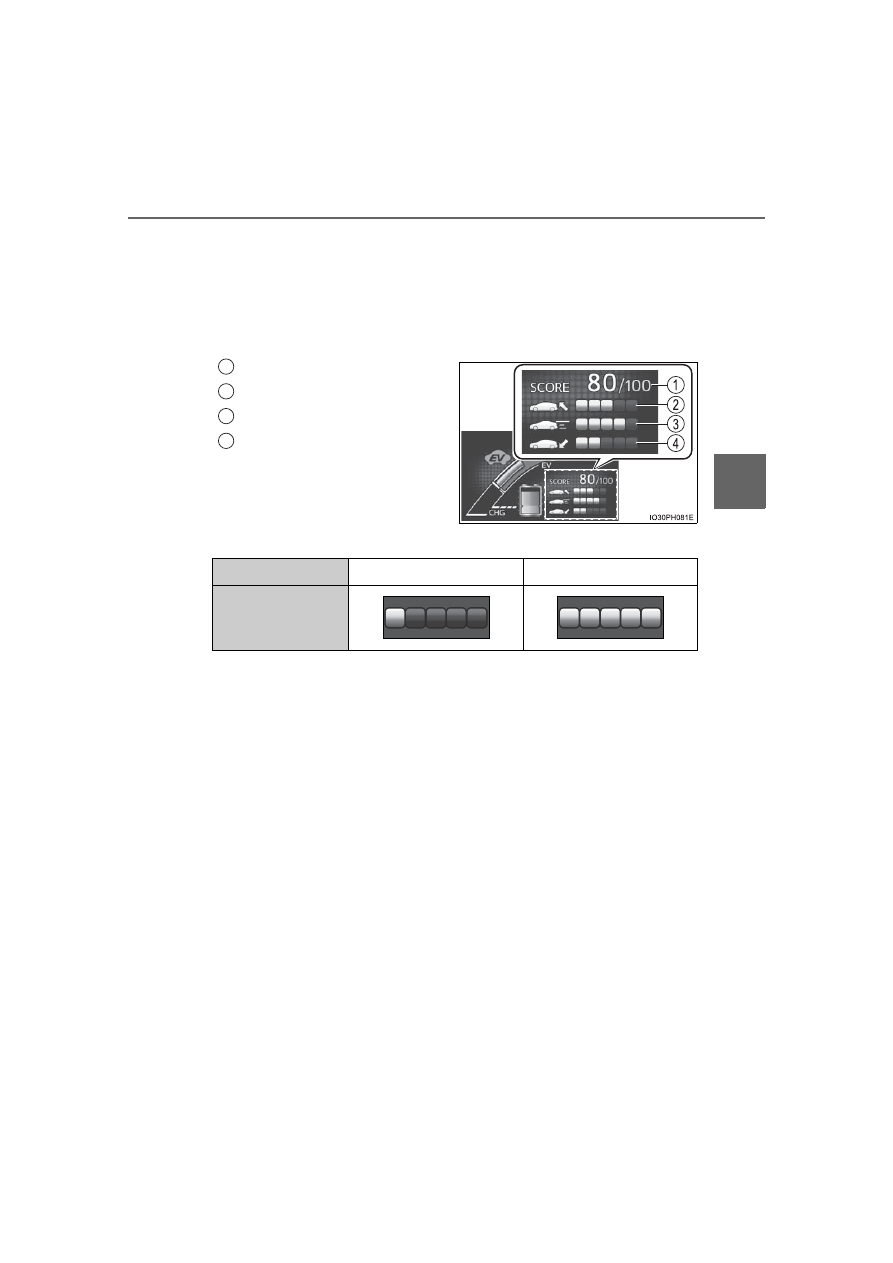

Eco score

P. 227

EV driving range

P. 252

● By keeping the indicator within Eco area, more Eco-friendly driv-

ing can be achieved.

● Charge  area  indicates  regeneration

*

3

  status.  Regenerated

energy will be used to charge the hybrid battery (traction battery).

*

1

: Not displayed on the sub-screen or head-up display.

*

2

: The  EV  indicator  function  can  be  turned  off  in  the  “Meter  Customize”

settings. (

P. 246)

*

3

: When  used  in  this  manual,  “regeneration”  refers  to  the  conversion  of

energy created by the movement of the vehicle into electrical energy.

5

6

7

8

225

3. Instrument cluster

3

Instrument clus

ter



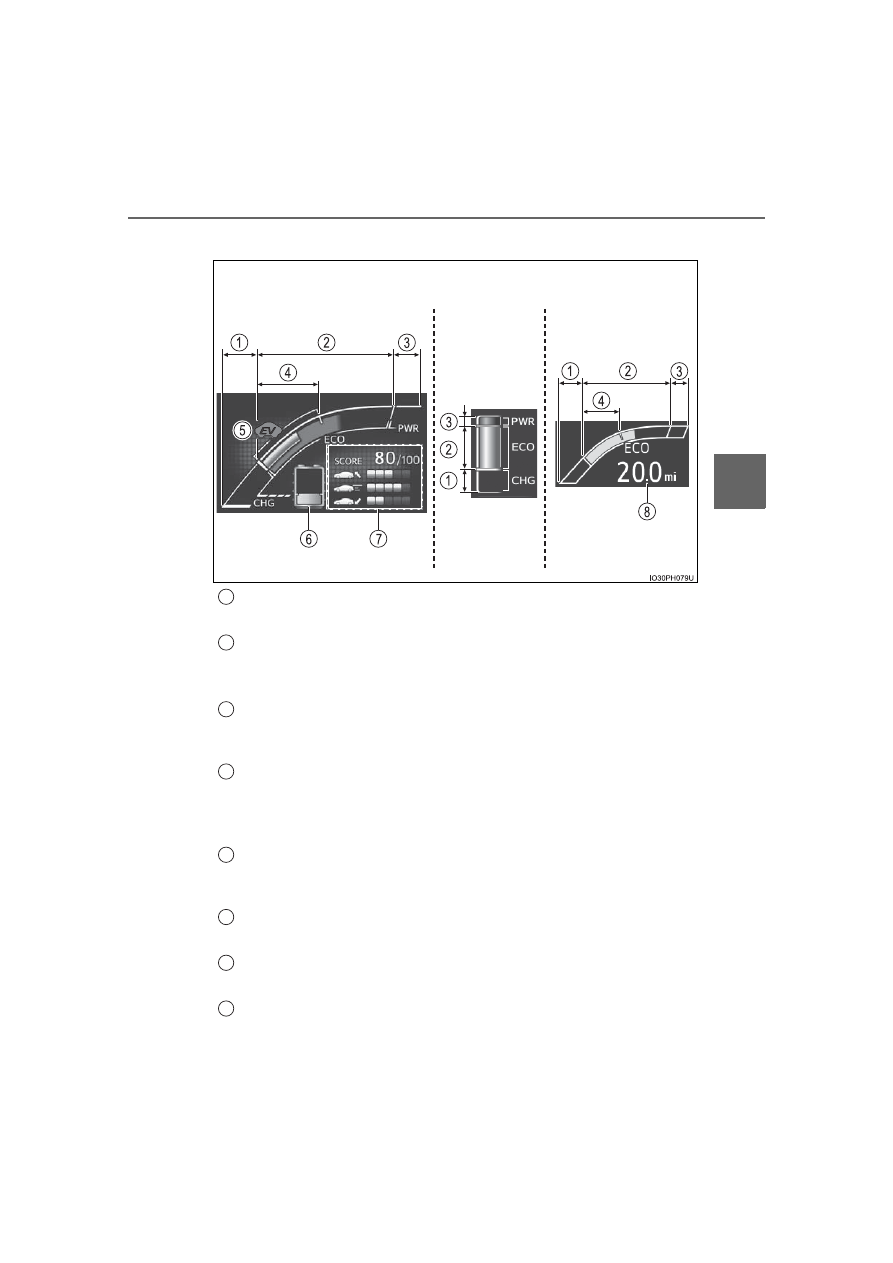

In HV mode

Charge area

Shows that energy is being recovered via the regenerative charging.

Eco area

Shows that the vehicle is being driven in an Eco-friendly manner.
Changed within the “ECO Accelerator Guidance” range. (



P. 226)

*

1

Power area

Shows that an Eco-friendly driving range is being exceeded (during full
power driving etc.)

Hybrid Eco area

*

2

Shows that gasoline engine power is not being used very often.
The  gasoline  engine  will  automatically  stop  and  restart  under  various
conditions.

EV indicator

*

1, 3

The  EV  indicator  comes  on  when  the  vehicle  is  driven  using  only  the
electric motor (traction motor) or the gasoline engine is stopped.

Hybrid battery (traction battery) status

P. 229

Eco score

P. 227

EV driving range

P. 252

Head-up display

(if equipped)

Sub-screen

Multi-information

display

1

2

3

4

5

6

7

8

226

3. Instrument cluster

● By keeping the indicator within Eco area, more Eco-friendly driv-

ing can be achieved.

● Charge  area  indicates  regeneration

*

4

  status.  Regenerated

energy will be used to charge the hybrid battery (traction battery).

*

1

: Not displayed on the sub-screen or head-up display.

*

2

: Not displayed on the sub-screen.

*

3

: The  EV  indicator  function  can  be  turned  off  in  the  “Meter  Customize”

settings. (

P. 246)

*

4

: When  used  in  this  manual,  “regeneration”  refers  to  the  conversion  of

energy created by the movement of the vehicle into electrical energy.

■

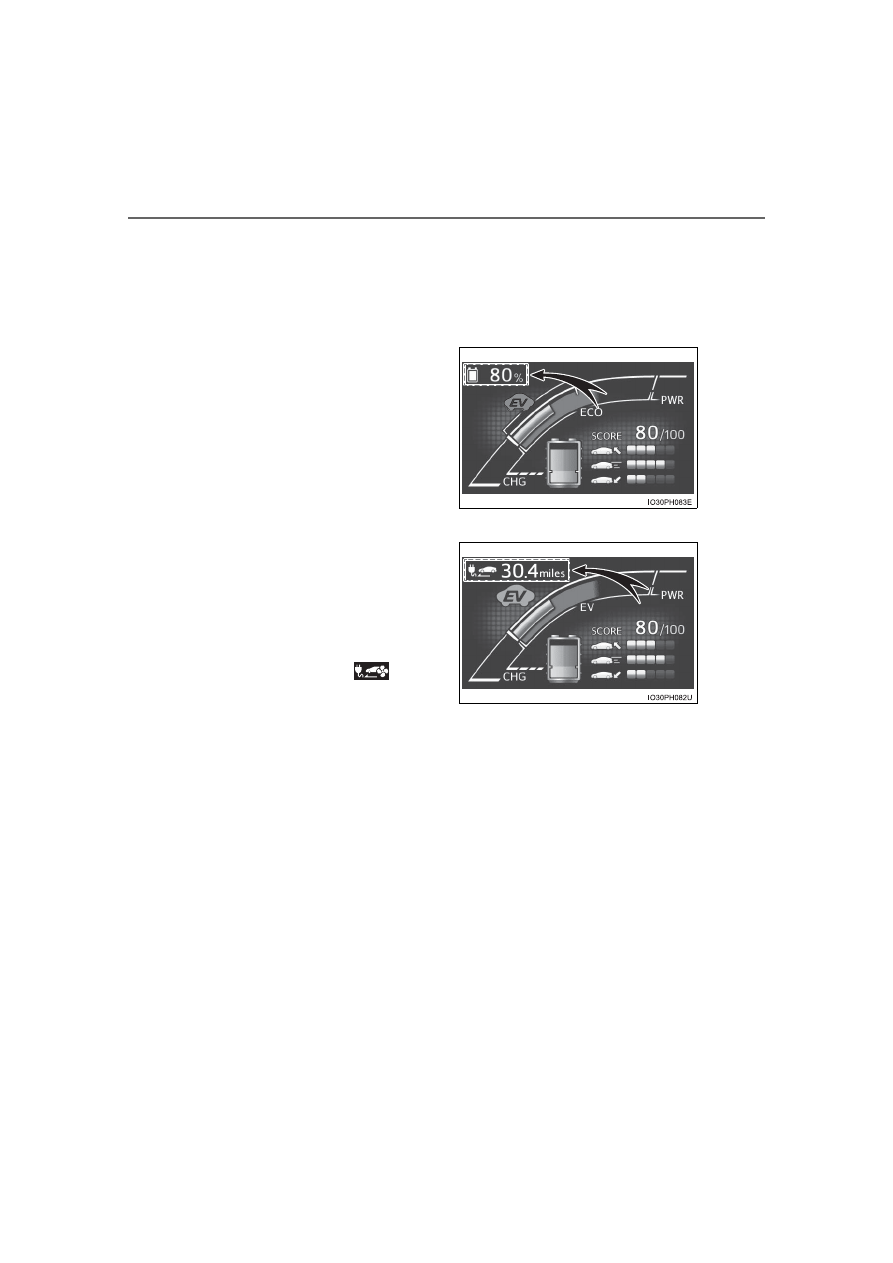

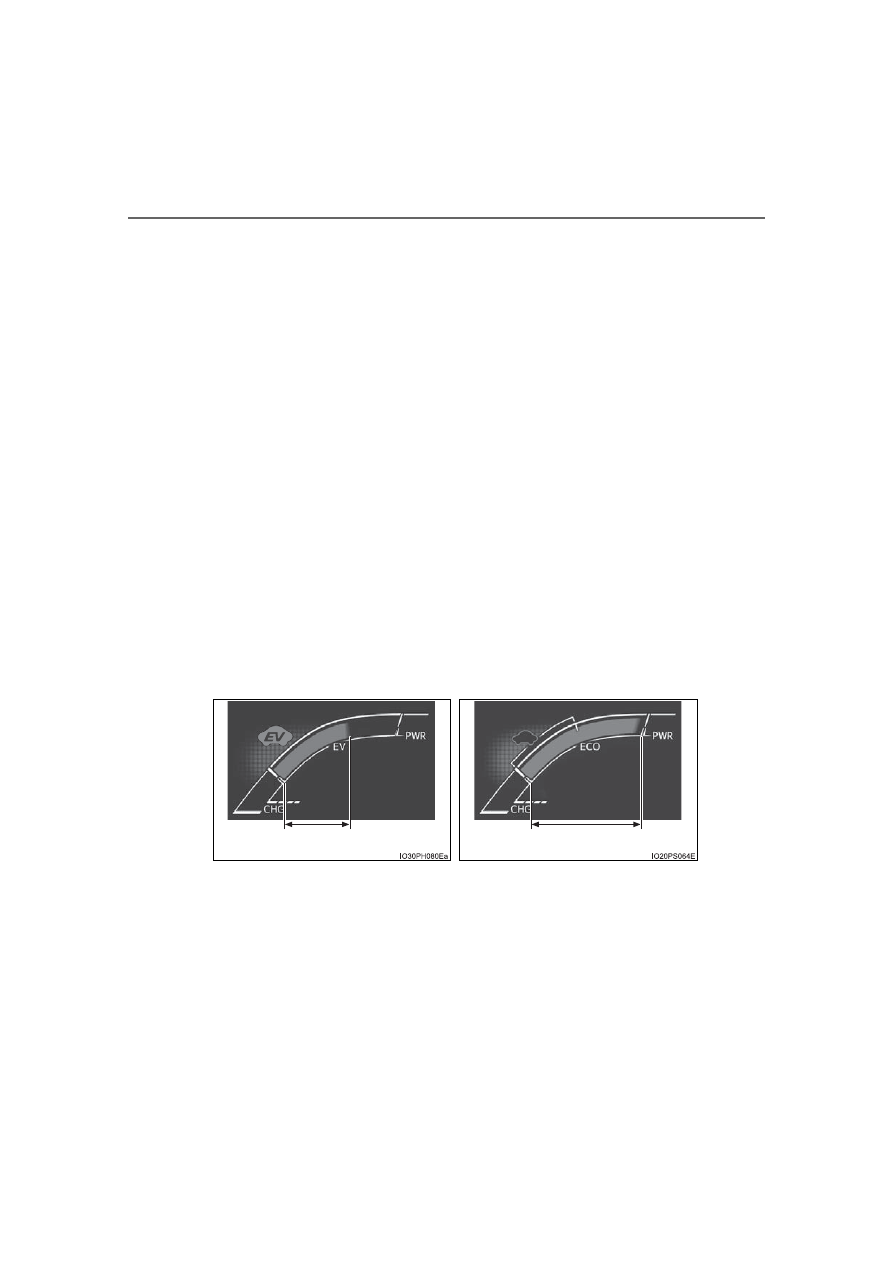

“ECO Accelerator Guidance”
A blue zone is displayed in the Eco area which can be used as a
reference operation range for using the accelerator pedal according
to driving conditions such as starting off and cruising.

The “ECO Accelerator Guidance” display changes according to the driv-
ing status, such as when starting off or cruising.
It is easier to drive in an Eco-friendly manner by driving according to the
display showing the accelerator pedal operations and staying within the
“ECO Accelerator Guidance” range. (

P. 320)

The  “ECO  Accelerator  Guidance”  function  can  be  turned  off  in  the
“Meter Customize” settings. (

P. 246)



In EV mode



In HV mode

“ECO Accelerator Guidance”

“ECO Accelerator Guidance”

227

3. Instrument cluster

3

Instrument clus

ter

■

Eco score
The driving status for the following 3 situations are evaluated in 5
levels:  Smooth  start-off  acceleration  (“Eco-Start”),  driving  without
sudden  acceleration  (“Eco-Cruise”)  and  smooth  stopping  (“Eco-
Stop”). Each time the vehicle is stopped, a score result is displayed
out of a perfect score of 100 points.

Score result
“Eco-Start” status
“Eco-Cruise” status
“Eco-Stop” status

How to read the bar display:

*

: For items not currently evaluated, the display reads 0.

● The Eco score is reset each time the vehicle starts off to start a new

evaluation.

● When  the  shift  position  is  P,  only  the  Eco  score  display  area  is

enlarged and displayed. When the shift position is shifted from P,
the display returns to normal.

● When  the  hybrid  system  stops,  the  current  total  score  result  and

advice on how to increase the score are displayed. (

P. 196)

1
2
3
4

Score

Low

*

High

Bar display

228

3. Instrument cluster

■

Information display of EV driving
One of the following 2 information in the items of “HV System Indi-
cator” in “Meter Customize” settings can be selected to display in
the left upper corner of the Hybrid System Indicator. (

P. 246)



“EV Energy”

The  percentage  of  the  remain-
ing  hybrid  battery  (traction  bat-
tery)  that  can  be  used  for  EV
driving is displayed.

Becomes 100% when the hybrid
battery  (traction  battery)  is  fully
charged.



“EV Distance”

The  approximate  distance  that
can  be  driven  using  only  the
electric motor (traction motor).
(

P. 108)

When  the  air  conditioning  sys-
tem  is  operating,  the  icon  dis-
play  changes  to

  and  the

driving range with the air condi-
tioning system on is displayed.

229

3. Instrument cluster

3

Instrument clus

ter

■

When operation of each function stops

●

The Hybrid System Indicator stops operating in the following situations.
• The “READY” indicator is not illuminated.
• The shift position is not D or B.

●

The Eco score and “ECO Accelerator Guidance” stop operating in the fol-
lowing situations.
• The Hybrid System Indicator is not operating.
• Dynamic radar cruise control with full-speed range is being used.

■

Display of the remaining hybrid battery (traction battery)

●

The current amount of the remaining hybrid battery (traction battery) is dis-
played in the Hybrid System Indicator or the sub-screen on the main display.
(

P. 215)

• The remaining battery for EV driving in EV mode is displayed in green,

and the remaining battery used in HV mode is displayed in blue.

• The amount of the remaining battery displayed decrease as the vehicle is

driven and increase when the hybrid battery (traction battery) is charged,
electrical energy is regenerated using the regenerative braking (

P. 94)

or electricity is generated by the gasoline engine.

• If the remaining battery is not displayed in green, HV mode is automati-

cally  selected  and  EV  mode  cannot  be  used.  To  enable  EV  driving,
charge the hybrid battery (traction battery). (

P. 110)

●

The amount of the hybrid battery (traction battery) in HV mode is automati-
cally controlled by the hybrid system. The amount of remaining hybrid battery
(traction battery) in HV mode may not reach the top line

*

 even if electrical

energy is regenerated using the regenerative braking (

P. 94) or electricity

is generated by the gasoline engine. However, this does not indicate a mal-
function. Also,  even  if  the  display  of  the  remaining  hybrid  battery  (traction
battery) exceeds the top line, the display is shown in blue until the vehicle
returns to EV mode.

*

: The position of the boundary line between EV mode and HV mode on the

display of the remaining hybrid battery (traction battery).

●

Depending  on  the  charging  situation,  when  the  display  of  the  remaining
hybrid battery (traction battery) is shown during charging, charging contin-
ues even after the display of the remaining hybrid battery (traction battery)
shows a fully charged state. However, this does not indicate a malfunction.
Please wait until charging is finished.

The hybrid battery (traction battery)
is fully charged
The hybrid battery (traction battery)
for EV mode is not remaining

1

2

230

3. Instrument cluster

■

Remaining charge amount warning of hybrid battery (traction battery)

●

The buzzer sounds intermittently when the hybrid battery (traction battery)
remains  without  charging  while  the  shift  position  is  in  N,  or  the  remaining
charge amount drops below a certain level.
If  the  remaining  charge  amount  drops  further,  the  buzzer  sounds  continu-
ously.

●

When a warning message is shown on the multi-information display and the
buzzer  sounds,  follow  the  instructions  displayed  on  the  screen  to  perform
troubleshooting.

■

About the Eco score

●

After  starting  off,  Eco  score  display  does  not  start  until  the  vehicle  speed
exceeds approximately 12 mph (20 km/h).

●

In addition to the vehicle driving status, the Eco score also evaluates the air
conditioning system usage condition (

P. 241). The score displayed when

the  hybrid  system  stops  is  the  total  result  of  the  driving  status  after  the
hybrid system starts and the air conditioning usage condition.

■

“EV Energy” and “EV Distance” display
The  rate  at  which  the  “EV  Energy”  and  “EV  Distance”  remaining  amount
decreases  depends  on  the  driving  conditions  of  the  vehicle. Also,  the  “EV
Energy” and “EV Distance” remaining amount may decrease due to system
power consumption even though the vehicle is not being driven.

■

Predictive Efficient Drive (Predictive Deceleration Support)
(vehicles with 11.6-inch display)
When a predictive deceleration support point registered in the navigation sys-
tem  is  approached,  the  system  turns  off  the  Eco  accelerator  guide  and
informs the driver of releasing the accelerator pedal early.
For details about Predictive Efficient Drive (Predictive Deceleration Support),
refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.

231

3. Instrument cluster

3

Instrument clus

ter

◆

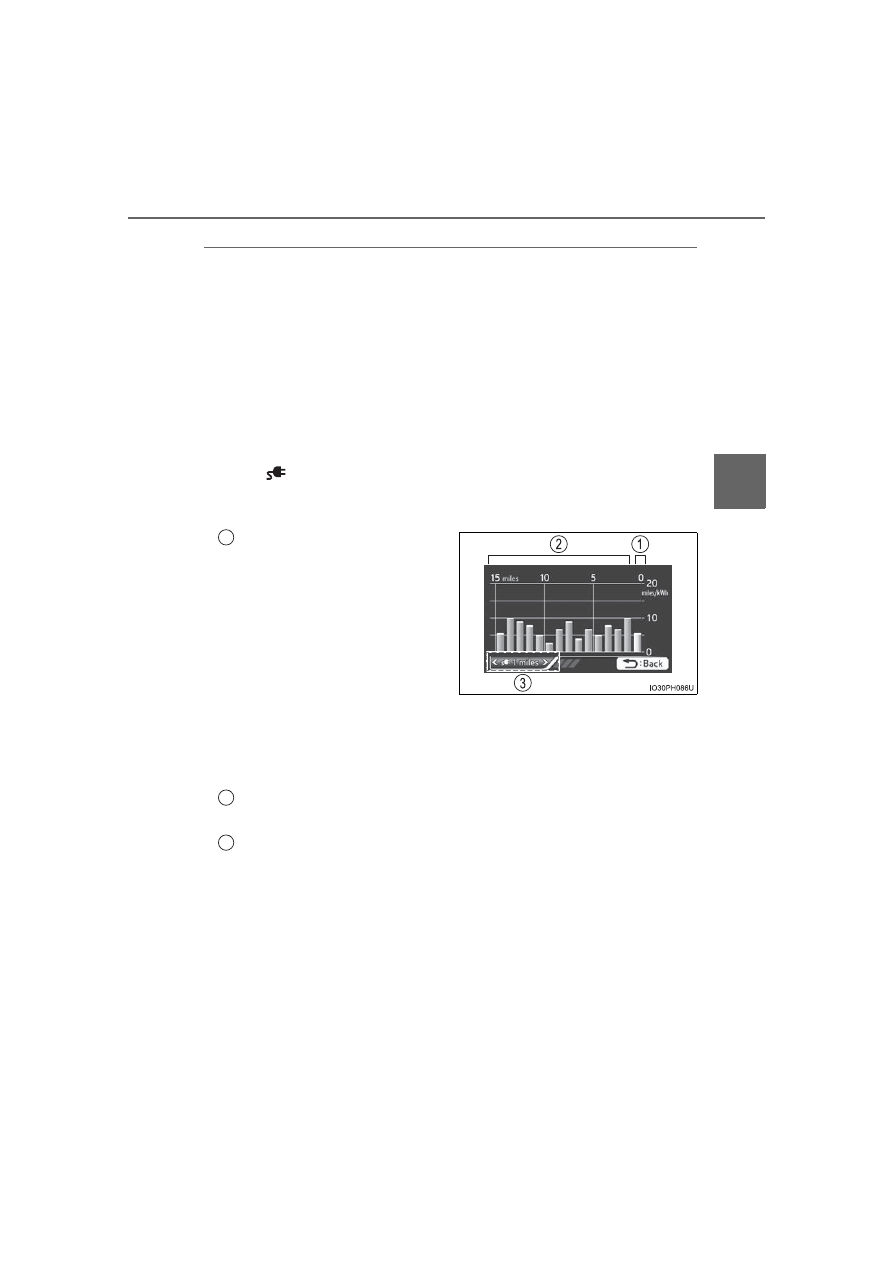

“Fuel Consumption Record”



When the unit is set to “MPH”

The  transitions  of  the  average  fuel  consumption  after  the  hybrid
system starts can be checked in units of 1 mile (1.6 km) or 5 miles
(8 km) of driving.



When the unit is set to “km/h”

The  transitions  of  the  average  fuel  consumption  after  the  hybrid
system starts can be checked in units of 1 km (0.6 mile) or 5 km
(3.1 miles) of driving.

■

How to read the screen
The “

 1  miles” display is shown as an example. However, the

basic method for how to read the screen is the same for each fuel
consumption history screen.

Current  average  electricity
and  fuel consumption  record
(yellow display)

When the unit is set to “MPH”:
When  the  recorded  unit  is
exceeded (every 1 mile [1.6 km]
or  5  miles  [8  km]  the  currently
displayed

history

moves

towards the left side and the old-
est record is deleted.
When the unit is set to “km/h”:
When the recorded unit is exceeded (every 1 km [0.6 mile] or 5 km [3.1
miles]) the currently displayed history moves towards the left side and
the oldest record is deleted.

Past average electricity and fuel consumption record (green dis-
play)
Tab display

Displays types of “Fuel Consumption Record”.

1

2

3
