3. Instrument cluster

■

When the menu screen on the navigation system is operated (vehicles
with 11.6-inch display)

■

Liquid crystal display
Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Pop-up display
Some functions, such as the driving mode select switch and air conditioning
system, are operation-linked and display pop-up screens on the multi-infor-
mation display. If the pop-up screens of these functions are not desired, they
can be turned off in the “Meter Customize” settings. (

P. 246)

A pop-up display of the menu screen icon
is  displayed  on  the  multi-information  dis-
play.

*

*

: The  pop-up  display  on  the  navigation

system  can  be  turned  off  in  the  “Meter
Customize” settings. (

P. 247)

WARNING

■

To prevent an accident

■

Caution for use while driving
For safety, avoid operating the meter control switch while driving as much
as  possible,  and  do  not  look  continuously  at  the  multi-information  display
while driving. Stop the vehicle and operate the meter control switch. Failure
to do so may cause a steering wheel operation error, resulting in an unex-
pected accident.

NOTICE

■

The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

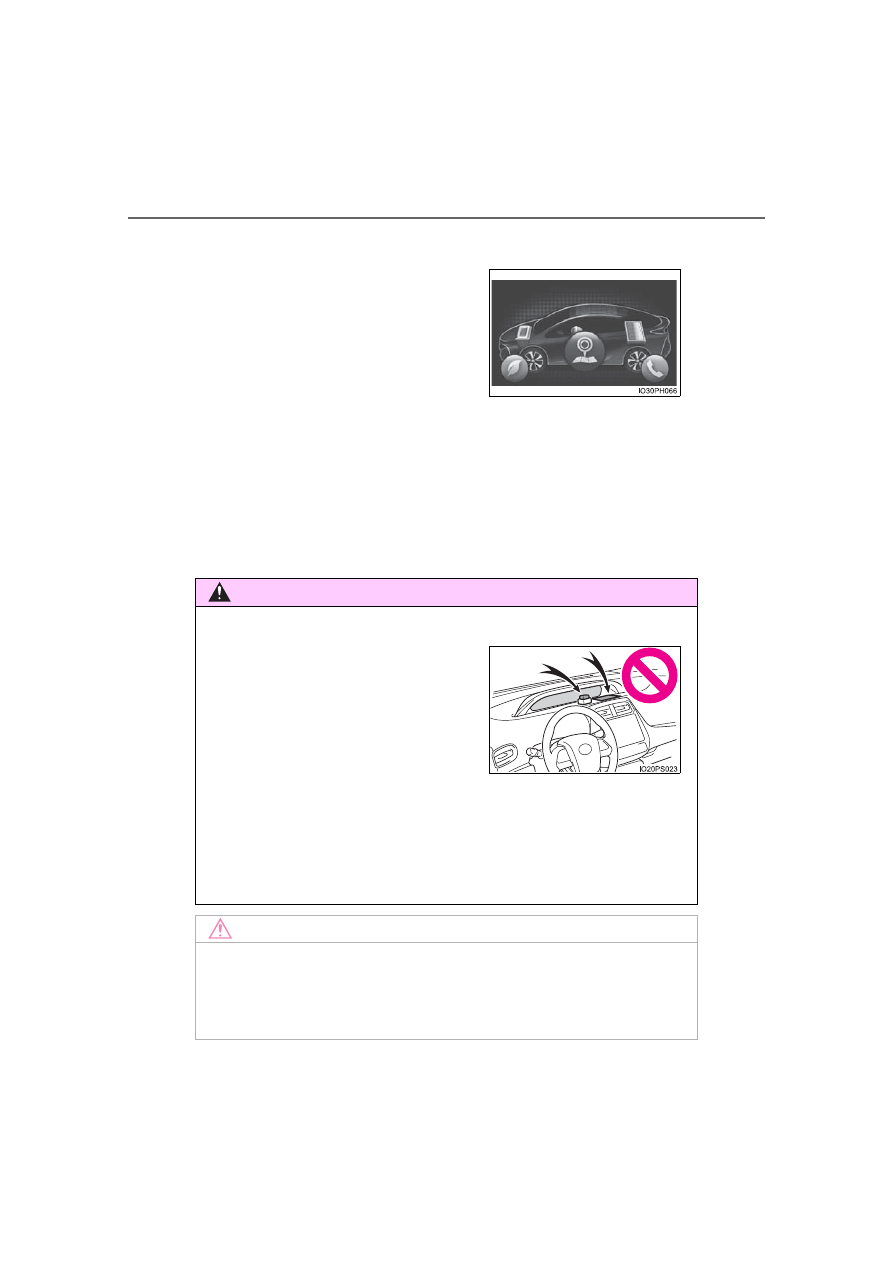

Do not place anything or attach a sticker
in front of the instrument cluster. The item
may  obscure  or  obstruct  the  display,  or
could  reflect  off  the  display,  possibly
causing an accident.

201

3. Instrument cluster

3

Instrument clus

ter

Warning lights and indicators

The warning lights and indicators inform the driver of the status
of the vehicle’s various systems.

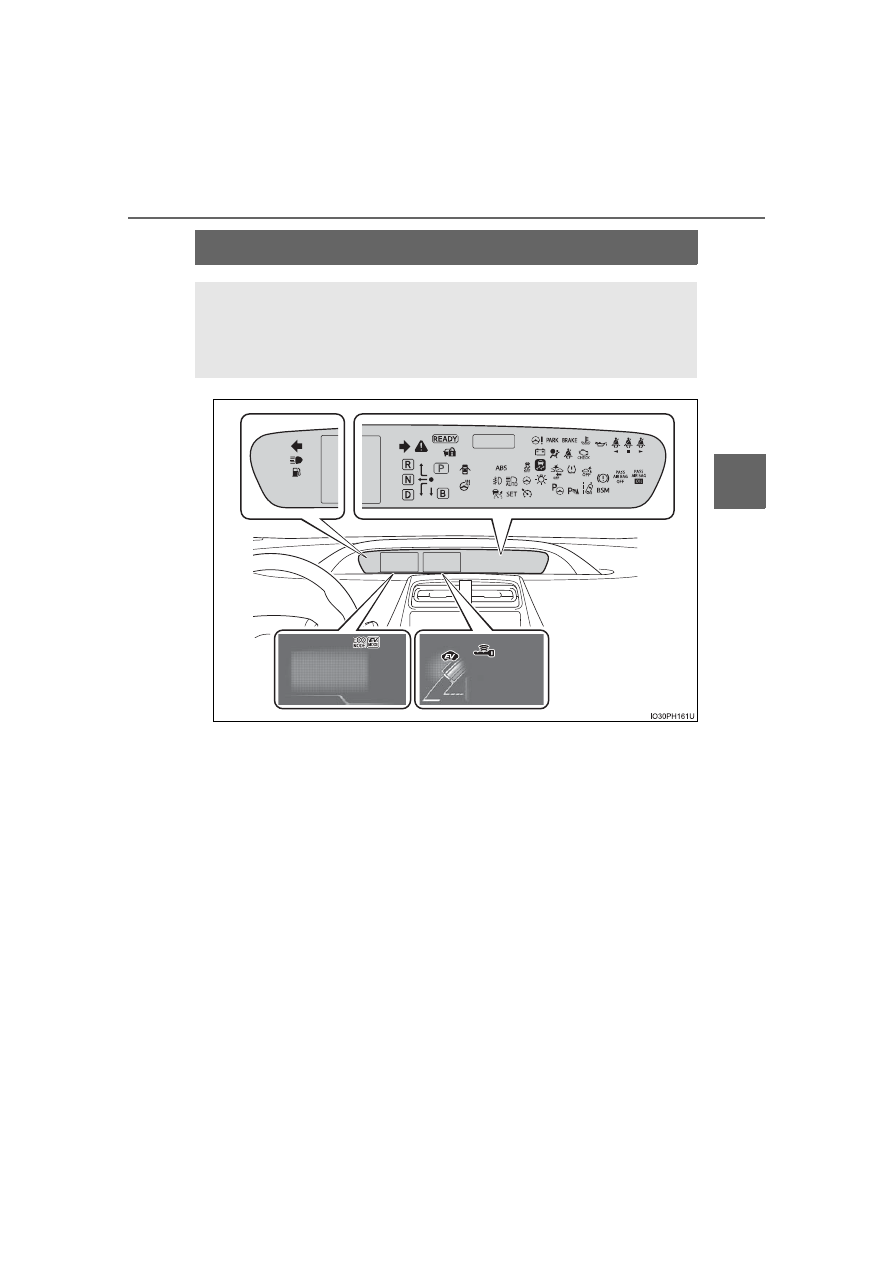

For  the  purpose  of  explanation,  the  following  illustration  dis-
plays all indicators and warning lights illuminated.

202

3. Instrument cluster

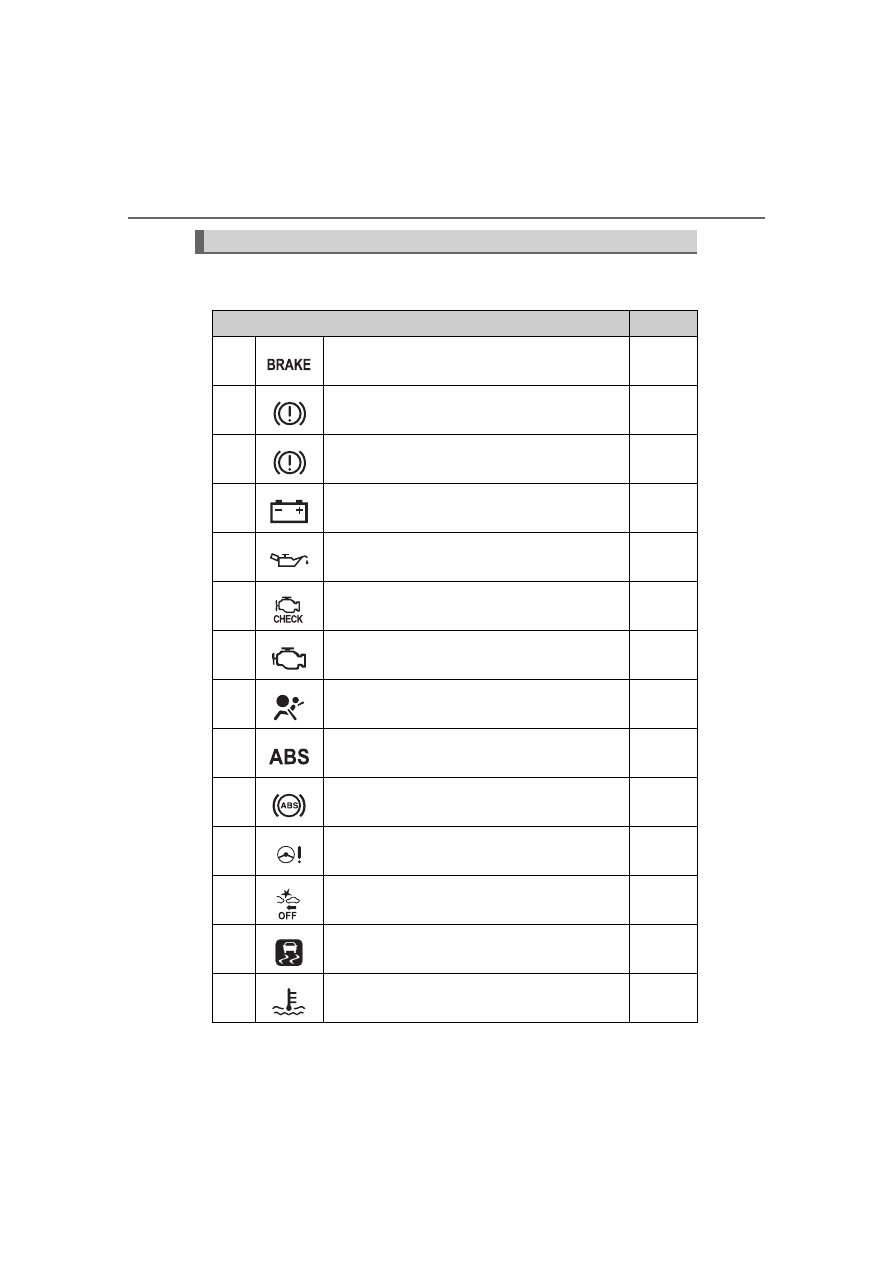

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.

Warning lights

Warning lights

Pages

*

1

Brake system warning light (U.S.A.)

P. 662

*

1

Brake system warning light (Canada)
(Red)

P. 662

*

1

Brake system warning light
(Yellow)

P. 662

*

1

Charging system warning light

P. 662

*

1

Low engine oil pressure warning light

P. 662

*

1

Malfunction indicator lamp (U.S.A.)

P. 662

*

1

Malfunction indicator lamp (Canada)

P. 662

*

1

SRS warning light

P. 663

*

1

ABS warning light (U.S.A.)

P. 663

*

1

ABS warning light (Canada)

P. 663

*

1

Electric power steering system warning light
(Red/yellow)

P. 663

*

1, 2

PCS warning light

P. 663

*

1

Slip indicator light

P. 663

*

1

High coolant temperature warning light

P. 664

203

3. Instrument cluster

3

Instrument clus

ter

*

1

: These lights turn on when the power switch is turned to ON mode to indi-

cate  that  a  system  check  is  being  performed. They  will  turn  off  after  the
hybrid system is on, or after a few seconds. There may be a malfunction in
a  system  if  a  light  does  not  come  on,  or  turn  off.  Have  the  vehicle
inspected by your Toyota dealer.

*

2

: The light flashes or illuminates to indicate a malfunction.

*

3

: The light flashes to indicate a malfunction.

*

1, 3

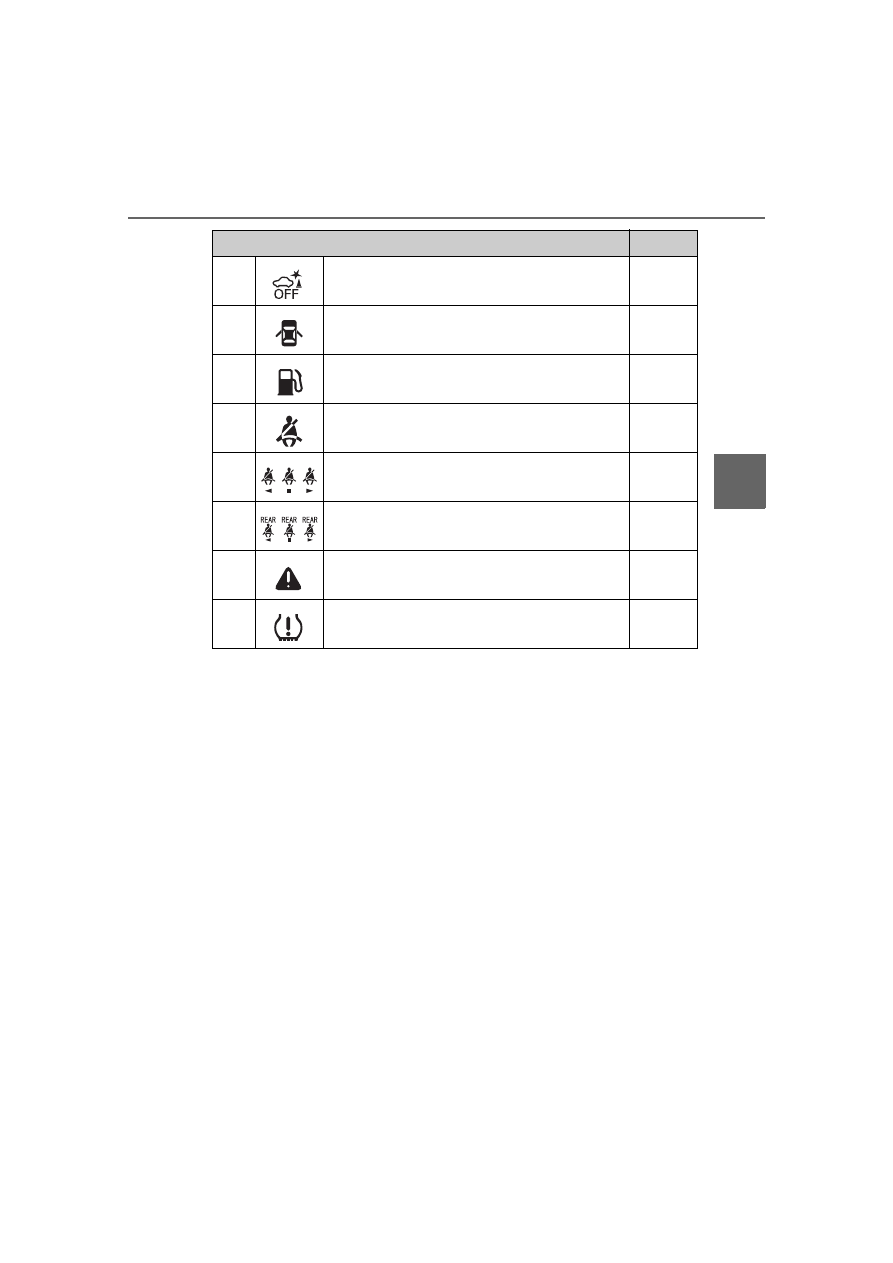

PKSB OFF indicator (if equipped)

P. 664

Open door warning light

P. 664

Low fuel level warning light

P. 664

Driver’s  and  front  passenger’s  seat  belt
reminder light

P. 664

Rear passengers’ seat belt reminder light
(U.S.A.)

P. 665

Rear passengers’ seat belt reminder light
(Canada)

P. 665

*

1

Master warning light

P. 665

*

1

Tire pressure warning light

P. 665

Warning lights

Pages

204

3. Instrument cluster

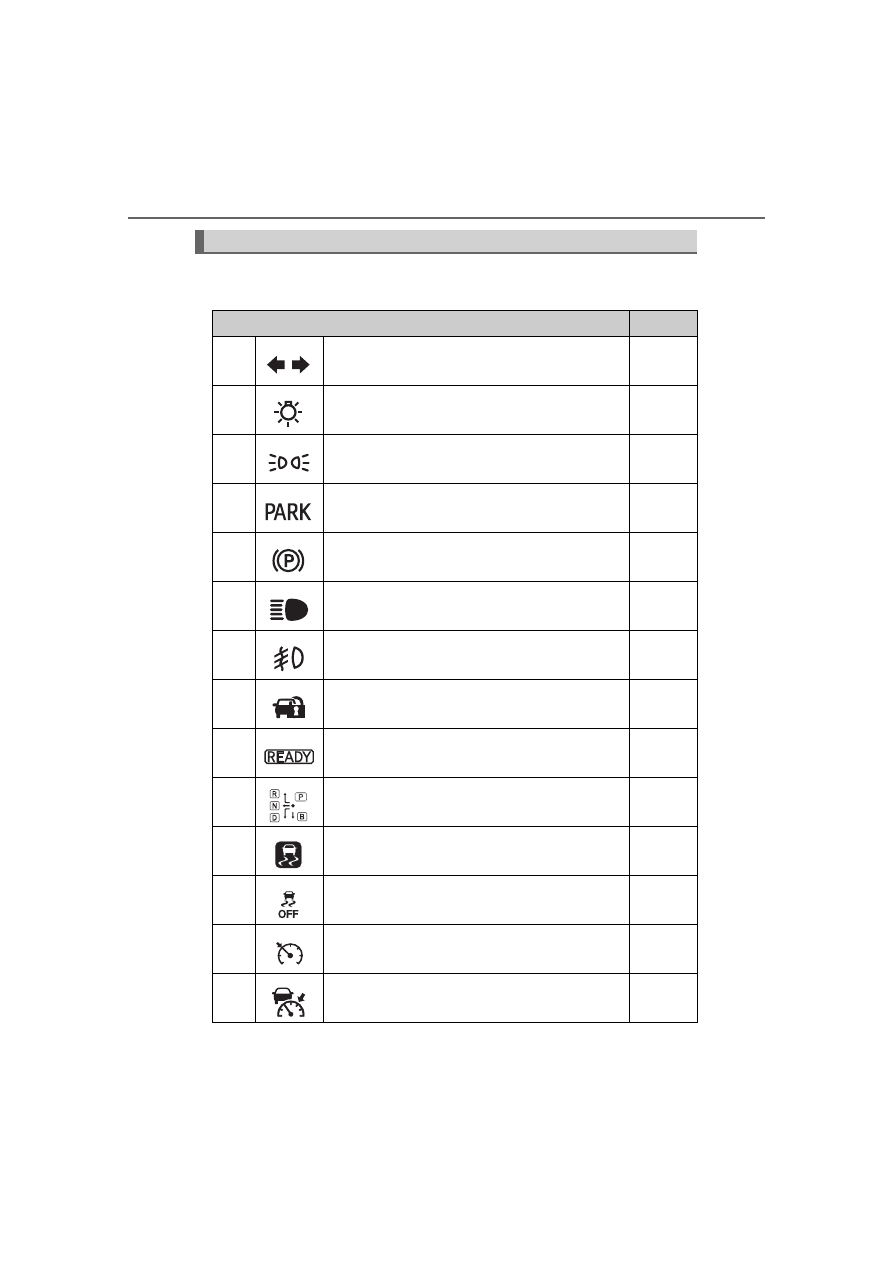

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Indicators

Pages

Turn signal indicator

P. 348

Headlight indicator (U.S.A.)

P. 350

Tail light indicator (Canada)

P. 352

Parking brake indicator (U.S.A.)

P. 349

Parking brake indicator (Canada)

P. 349

Headlight high beam indicator

P. 352

Fog light indicator (if equipped)

P. 360

Security indicator

P. 83

“READY” indicator

P. 336

Shift position indicators

P. 342

*

1, 2

Slip indicator light

P. 490

*

1, 3

VSC OFF indicator

P. 491

Cruise control indicator

P. 414

Dynamic radar cruise control indicator

P. 409

205

3. Instrument cluster

3

Instrument clus

ter

*

1

: These lights turn on when the power switch is turned to ON mode to indi-

cate  that  a  system  check  is  being  performed. They  will  turn  off  after  the
hybrid system is on, or after a few seconds. There may be a malfunction in
a  system  if  a  light  does  not  come  on,  or  turn  off.  Have  the  vehicle
inspected by your Toyota dealer.

*

2

: The light flashes to indicate that the system is operating.

*

3

: The light comes on when the system is turned off.

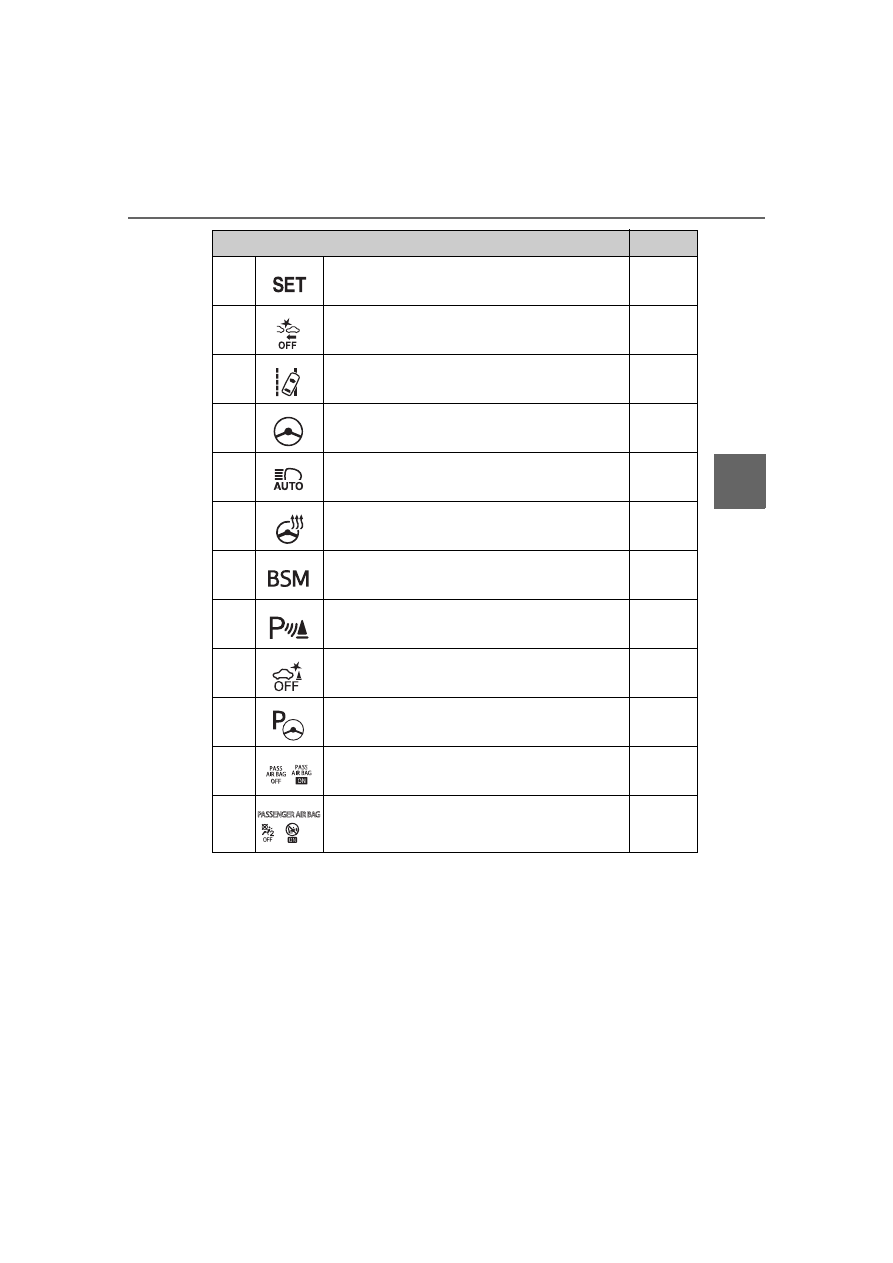

Cruise control “SET” indicator

P. 409

*

1, 3

PCS warning light

P. 385

LDA indicator

P. 396

Steering control indicator

P. 397

Automatic High Beam indicator

P. 355

Heated steering wheel indicator (if equipped)

P. 527

“BSM” indicator (if equipped)

P. 421

Intuitive parking assist indicator (if equipped)

P. 433

*

1, 3

PKSB OFF indicator (if equipped)

P. 444

*

1

S-APGS indicator (if equipped)

P. 459

*

1

“AIR BAG ON/OFF” indicator (U.S.A.)

P. 50

*

1

“AIR BAG ON/OFF” indicator (Canada)

P. 50

Indicators

Pages

206

3. Instrument cluster

■

Main display and multi-information display

*

1

: The  displayed  indicator  changes  according  to  the  current  plug-in  hybrid

system operation mode.

*

2

: The displayed indicator changes according to the current driving mode.

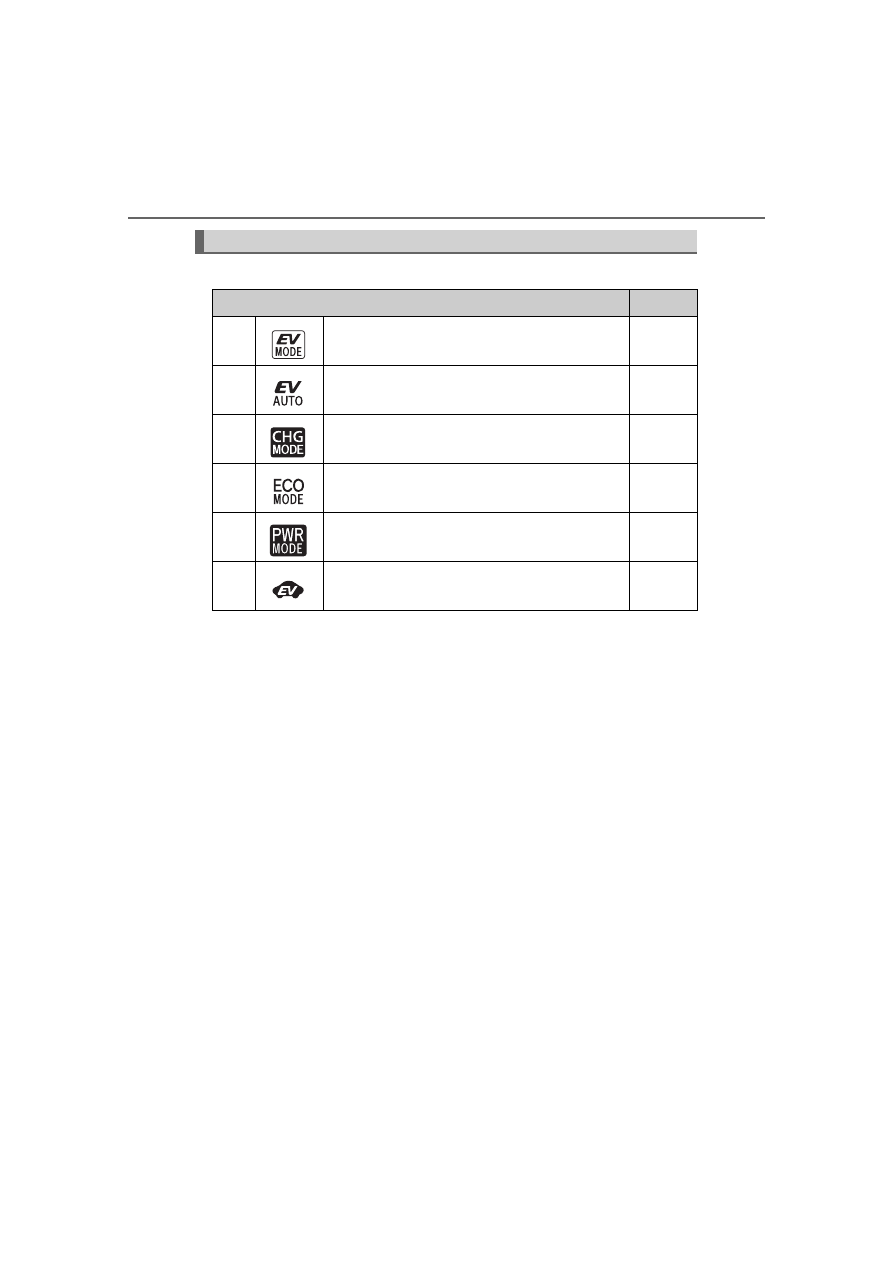

Indicators and symbols displayed on the display

Indicators

Pages

*

1

EV drive mode indicator

P. 90

*

1

EV auto mode indicator

P. 90

*

1

Hybrid battery charge mode indicator

P. 91

*

2

“ECO MODE” indicator

P. 419

*

2

“PWR MODE” indicator

P. 419

EV indicator

P. 225

207

3. Instrument cluster

3

Instrument clus

ter

■

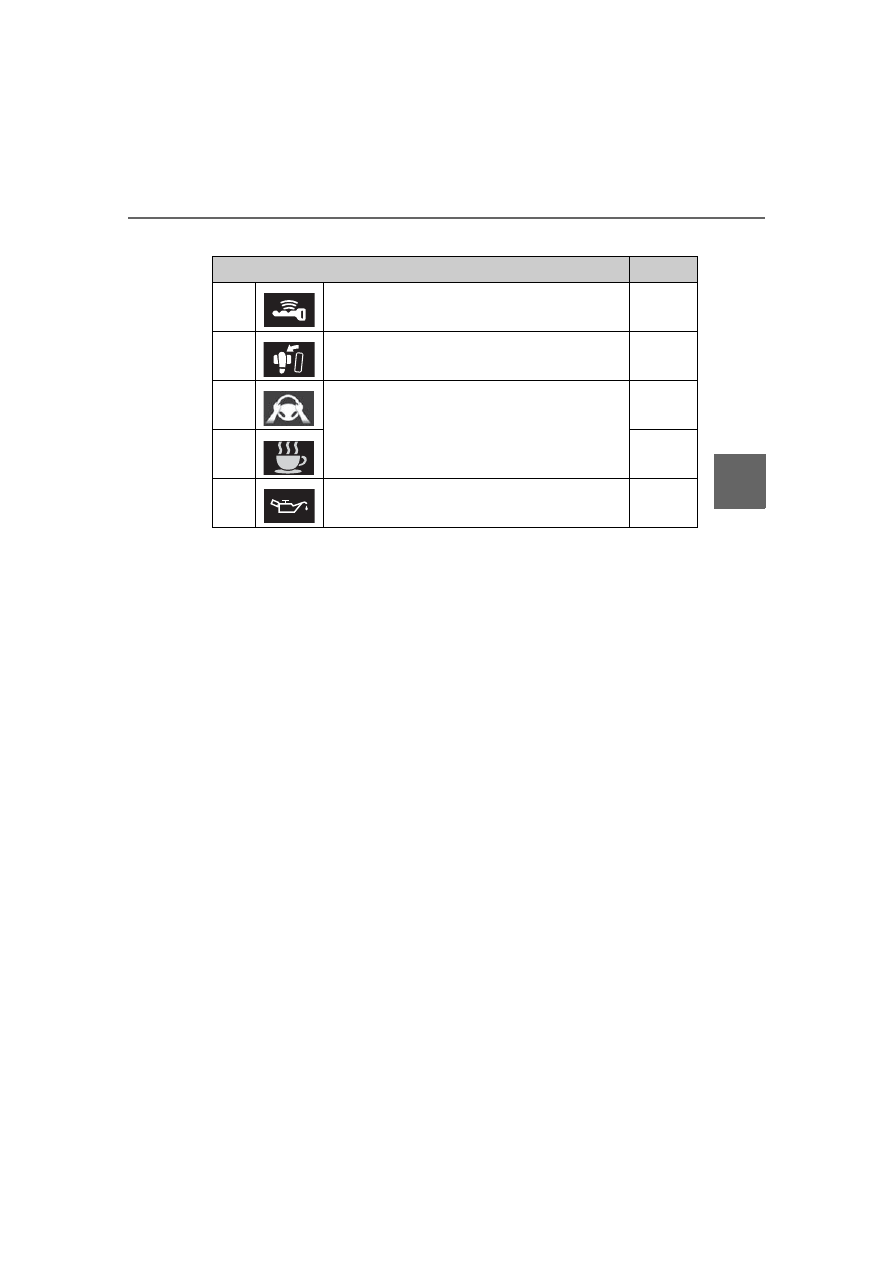

Multi-information display (symbol display

*

)

*

: These symbols are displayed along with a message. Also, the symbol dis-

plays listed here are only an example, and different symbols may be dis-
played according to the contents of the multi-information display.

Symbol display

Pages

Smart key system

P. 336

Brake Override System/Drive-Start Control/
Parking Support Brake function (if equipped)

P. 666

LDA  (Lane  Departure Alert  with  steering  con-
trol) system

P. 399

P. 399

Low engine oil pressure warning
(Canada only)

P. 666

208

3. Instrument cluster

■

BSM (Blind Spot Monitor) outside rear view mirror indicators
(if equipped) (

P. 421)

• When the BSM function is enabled on the

 screen of the multi-infor-

mation display, the power switch is turned to ON mode.

If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view  mirror  indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota dealer.

●

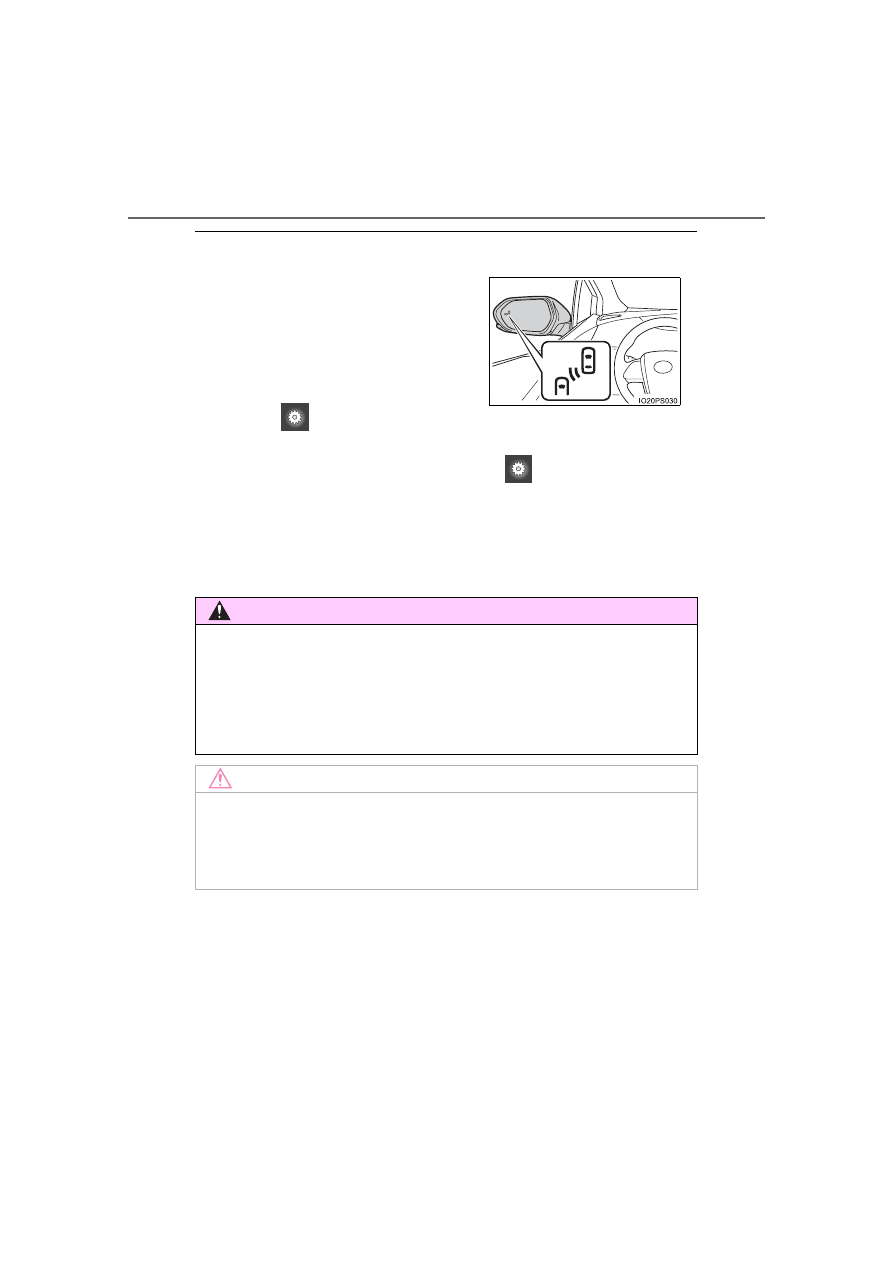

Indicators are also displayed on the out-
side rear view mirrors.

●

In  order  to  confirm  operation,  the  BSM
outside rear view mirror indicators illumi-
nate in the following situations:
• When  the  power  switch  is  in  ON

mode,  the  BSM  function  is  enabled

on the

 screen of the multi-infor-

mation display.

WARNING

■

If a safety system warning light does not come on
Should a  safety  system light  such as  the ABS and  SRS  warning  light  not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

NOTICE

■

To prevent damage to the engine and its components
The  engine  may  be  overheating  if  the  high  coolant  temperature  warning
light  comes  on  or  flashes.  In  this  case,  immediately  stop  the  vehicle  in  a
safe place, and check the engine after it has cooled completely. (

P. 709)

209

3. Instrument cluster

3

Instrument clus

ter

Main display

The units used on the display may differ depending on the target region.

The main display shows basic information, such as the vehicle
speed and remaining fuel amount. Also, the displayed informa-
tion can be switched according to user preference.

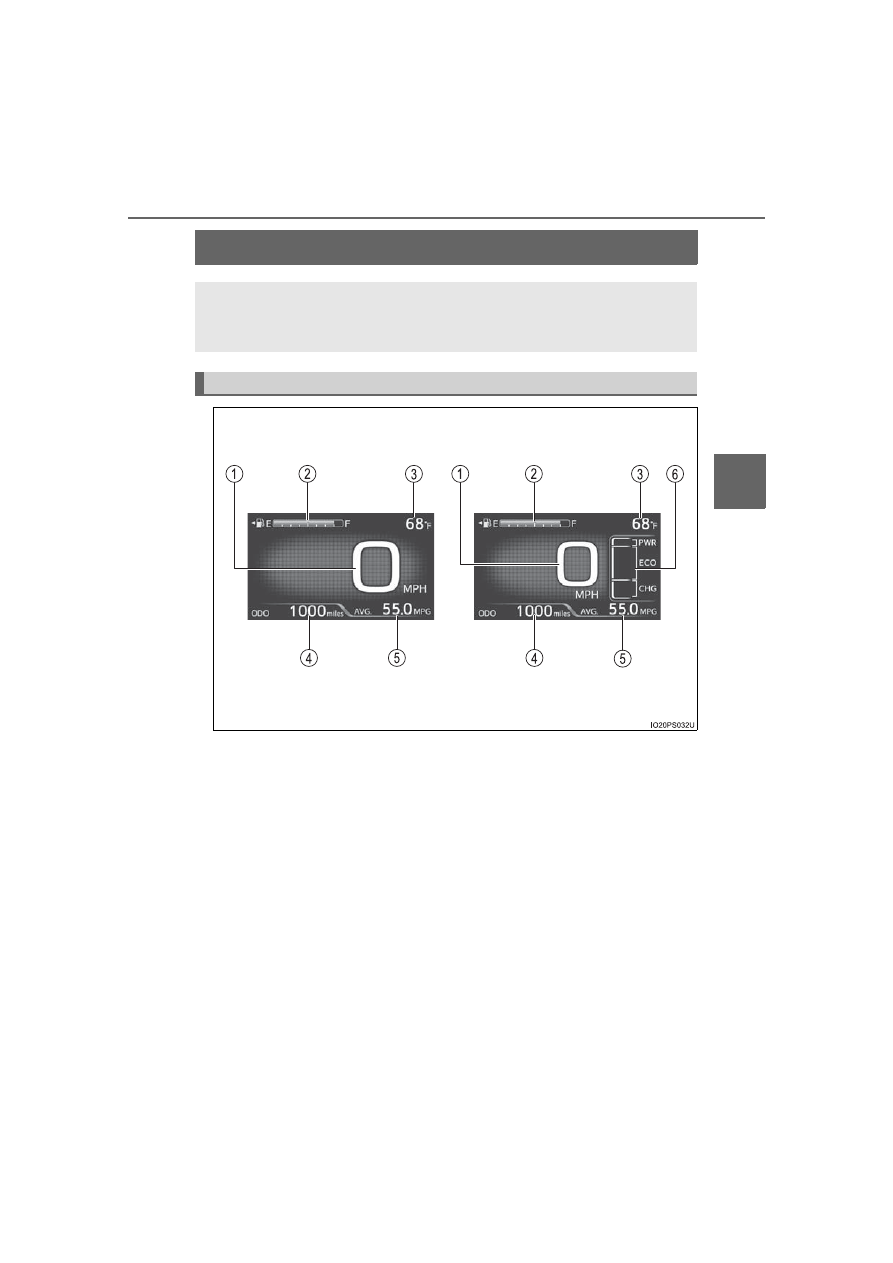

Display contents

Simple screen

*

Split screen

*

*

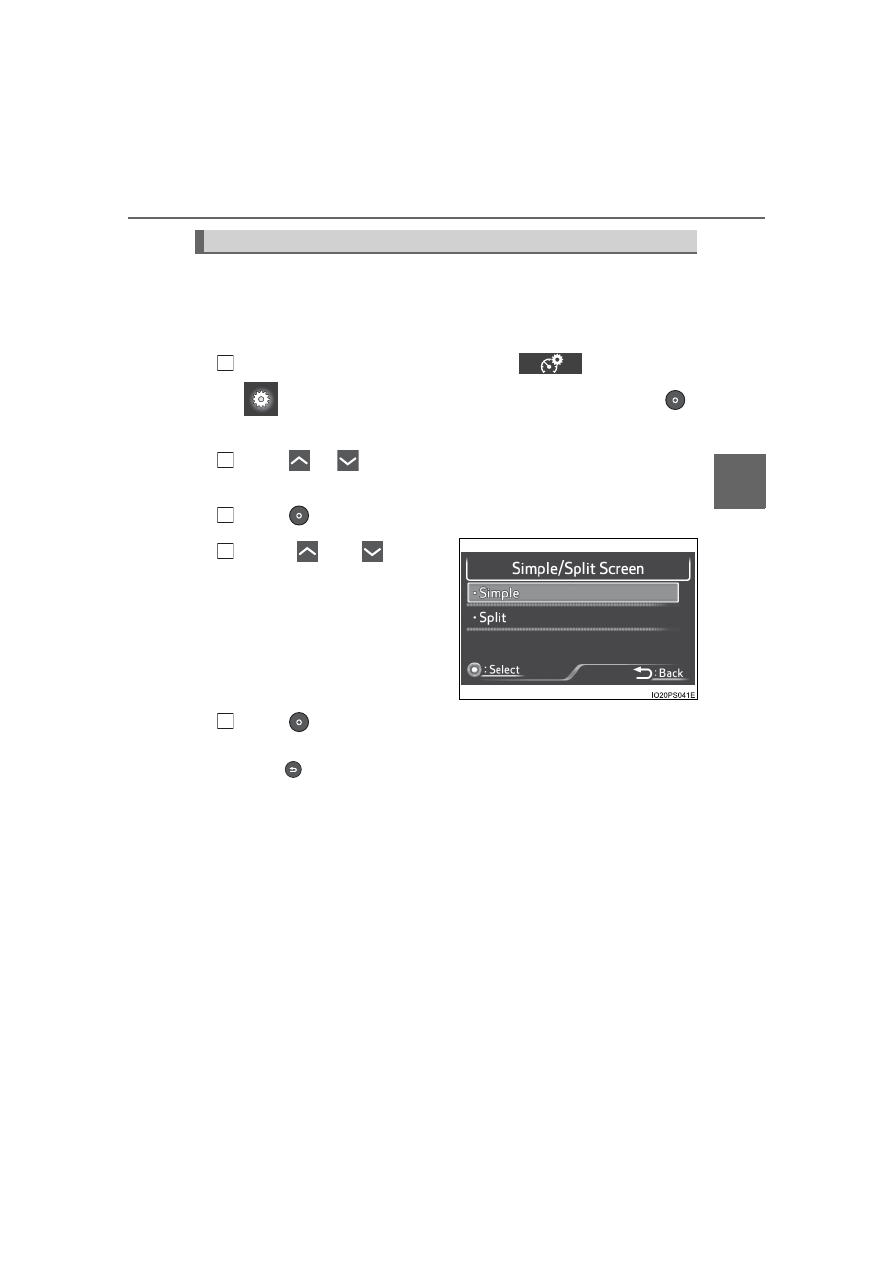

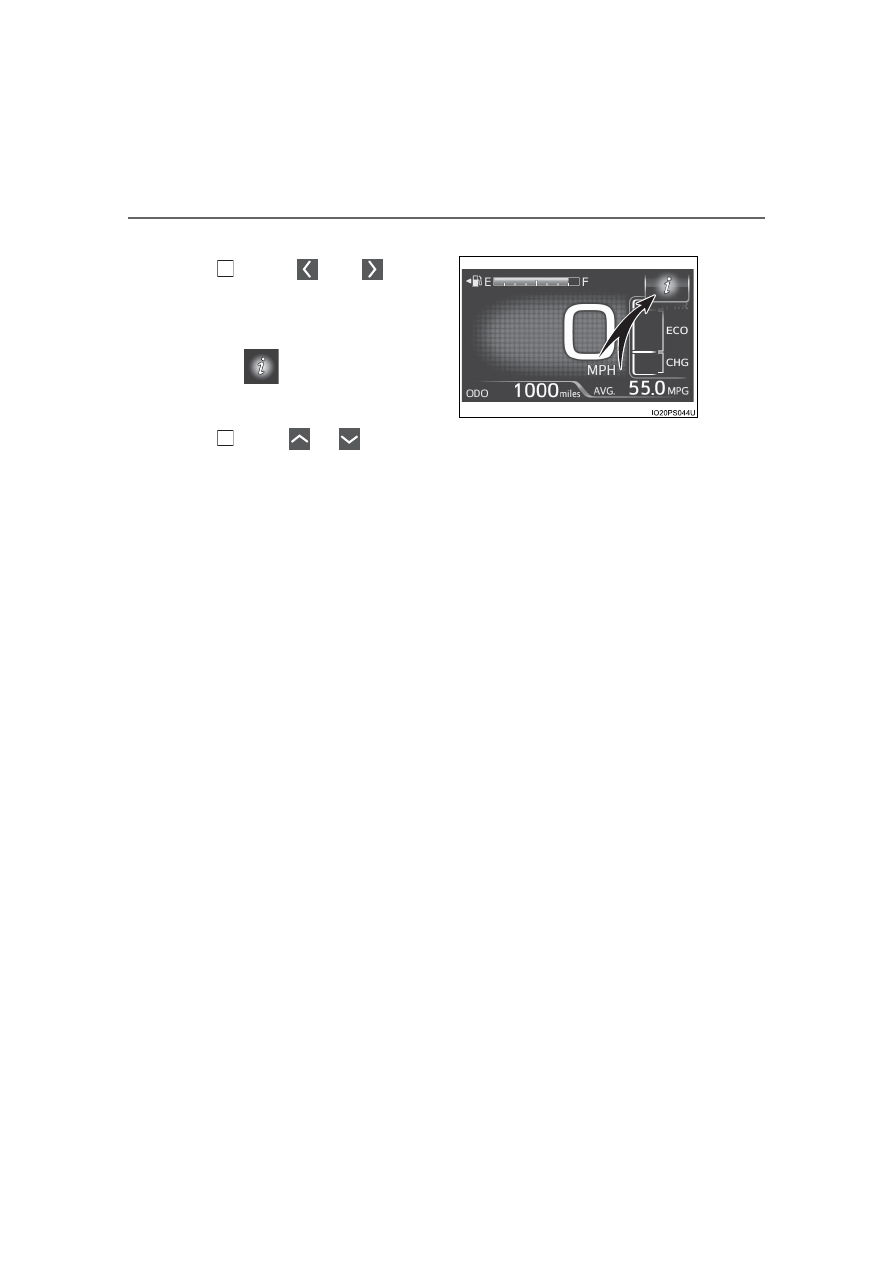

: Refer to P. 213 for details on how to change the screen display.

210

3. Instrument cluster

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Outside temperature

Displays  the  outside  temperature  within  the  range  of  -40°F  (-40°C)  to
122°F (50°C).
The temperature display flashes for approximately 10 seconds when the
outside temperature drops to approximately 37

F (3C) or less, and then

stops flashing.

Mileage display (odometer/trip meters/driving range)

The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. (

P. 211)

Average fuel consumption display

The average  electricity and  fuel  consumption  that is linked  with  the  con-
tents of the mileage display can be displayed. (

P. 211)

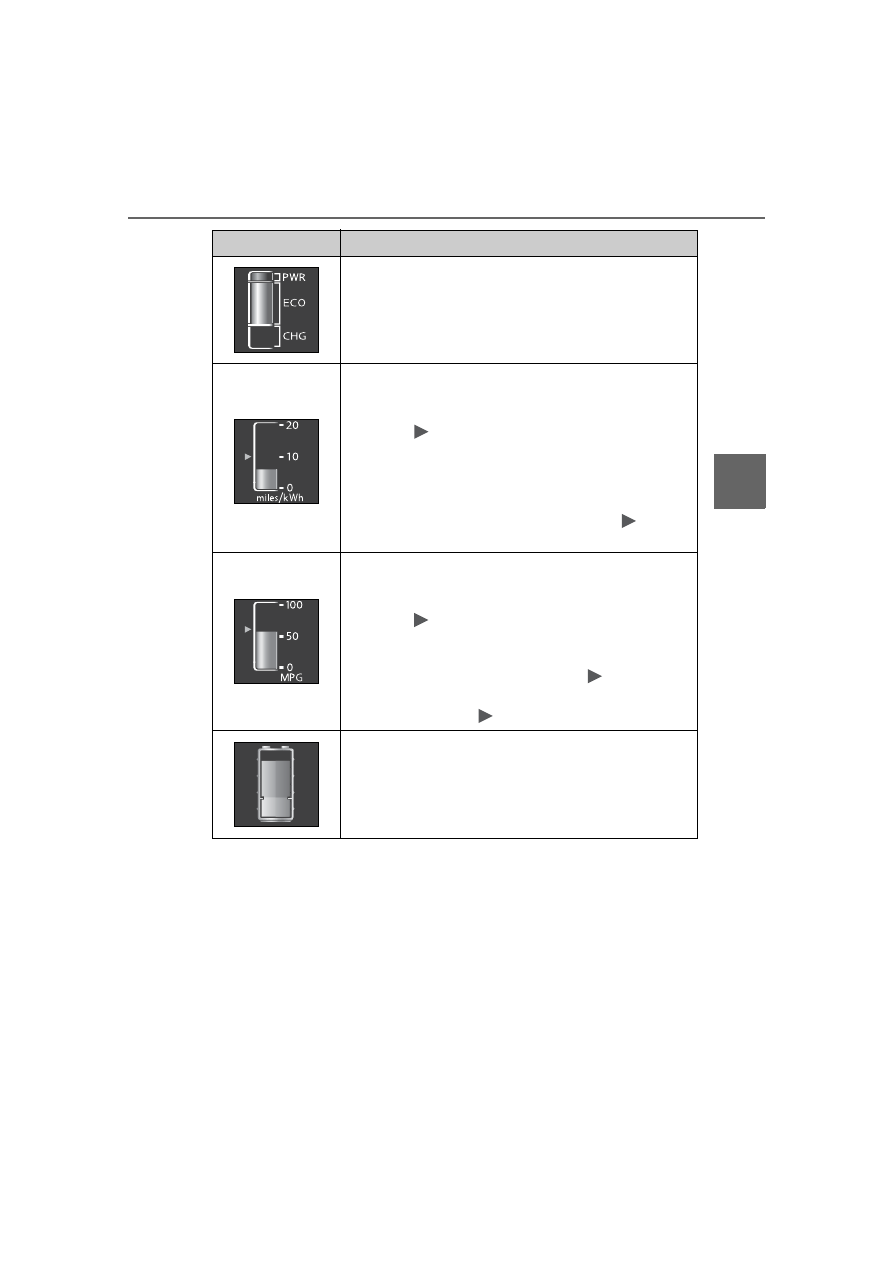

Sub-screen

When split screen is selected for the main display, information such as the
Hybrid  System  Indicator and  current  fuel consumption  can be  displayed.
(

P. 213)

1

2

3

4

5

6

211

3. Instrument cluster

3

Instrument clus

ter

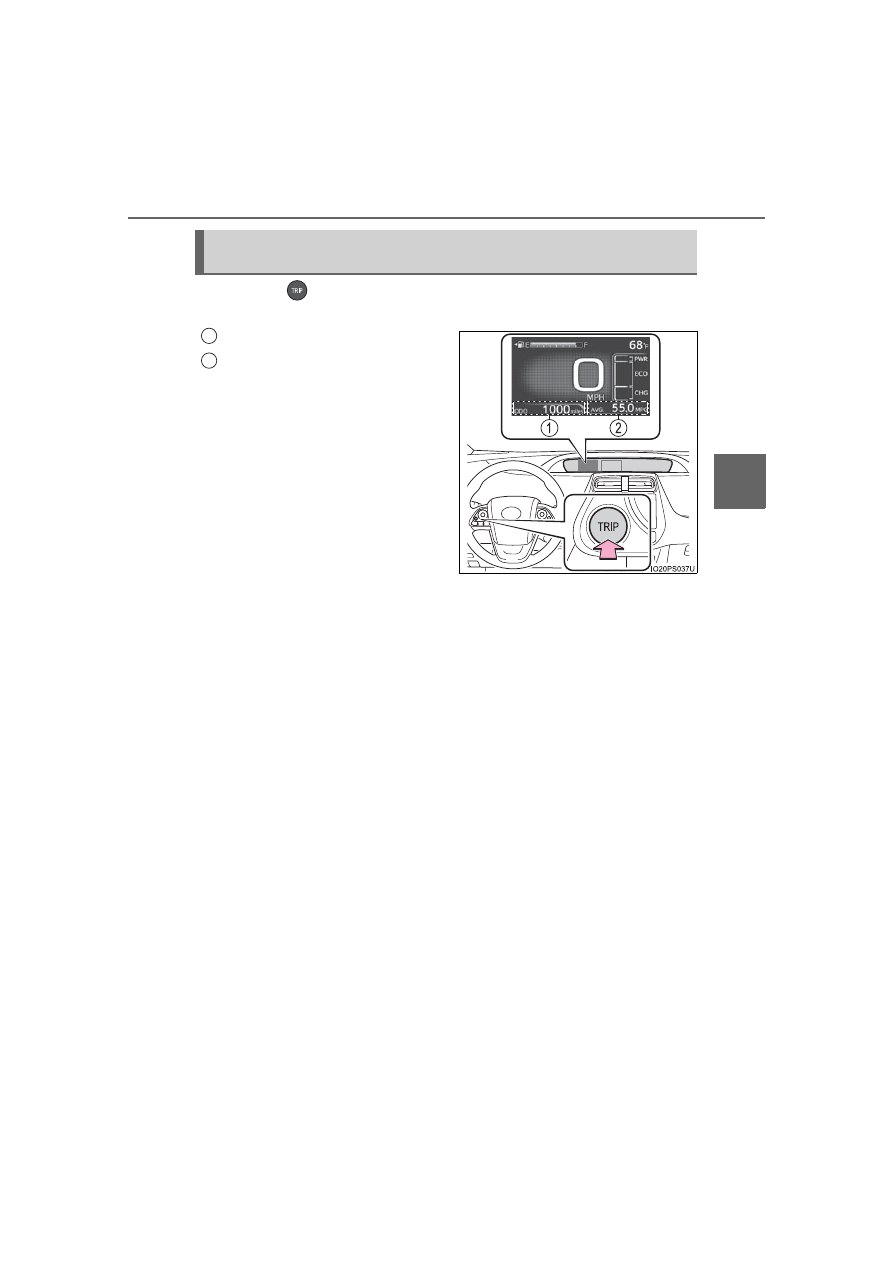

Each time

 is pressed, the mileage display and fuel consumption

display change in the following order from 1 to 7.

Mileage display
Average  fuel  consumption  dis-
play

After 1 to 7 are displayed, the dis-
plays return to 1.
Use  the  displayed  average  fuel
consumption as a reference.

Switching  the  mileage  display  and  average  fuel  consumption
display

1
2

212

3. Instrument cluster

*

1

: If

 is pressed and held while this item is displayed, the information is

reset.

*

2

: This item is reset each time the hybrid system starts.

*

3

: This value is not displayed if electricity needed for EV driving is not remain-

ing.

*

4

: When the air conditioning system is operating, the icon display changes to

  and  the  driving  range  with  the  air  conditioning  system  on  is  dis-

played.

*

5

: The  EV  driving  range  may  shorten  even  when  not  driving  due  to  power

consumption by the system.

 Mileage display

 Average fuel consumption display

1

ODO (Odometer)

Total mileage

Average fuel consumption since
last reset

Average fuel  consumption  since
last reset

*

1

2

TRIP A (Trip meter A)

Mileage since last reset

*

1

TRIP A average fuel consumption

Average fuel  consumption  since
TRIP A was reset

*

1

3

TRIP B (Trip meter B)

Mileage since last reset

*

1

TRIP B average fuel consumption

Average fuel  consumption  since
TRIP B was reset

*

1

4

 (Mileage since hybrid sys-

tem was started)

Mileage  since  hybrid  system
started

*

2

Average  fuel  consumption  after
hybrid system started

Average fuel  consumption  since
hybrid system was started

*

2

5

 (Distance to empty)

Approximate  distance  vehicle
can  travel  based  on  current
remaining fuel amount

Blank screen

6

 (EV driving range)

Approximate driving range using
only  the  electric  motor  (traction
motor) (

P. 108)

*

3, 4, 5

Blank screen

7 Blank screen

Blank screen

1

2

213

3. Instrument cluster

3

Instrument clus

ter

Simple screen or split screen can be selected for the main display.

When split screen is selected, a variety of information can be displayed on
a sub-screen in addition to the contents of the simple screen.

■

Setting procedure

Select the “Meter Customize” settings (

 ) screen on the

 screen of the multi-information display, and then press

.

(

P. 244)

Press

 or

 of the meter control switches to select “Simple/

Split Screen”.

Press

 to display the setting screen.

Press

  or

  of  the

meter  control  switches  to
select a display mode.

Press

.

The contents of the main display switch to the selected display mode.
Press

 to return to the previous screen.

Switching the display mode

1

2

3

4

5

214

3. Instrument cluster

■

Switching contents displayed on the sub-screen

Press

  or

  of  the

meter  control  switches  and
select the sub-screen.

When the sub-screen is selected,

  is  displayed  on  the  sub-

screen.

Press

 or

 of the meter control switches to select the dis-

play item.

One of the following 3 items can be displayed.

1

2

215

3. Instrument cluster

3

Instrument clus

ter

Display contents

Detail

Hybrid System Indicator

A convenient Hybrid System Indicator is displayed.
Refer to P. 223 for details on how to read the Hybrid
System Indicator.

Current electricity consumption

When  in  EV/EV  auto  mode,  the  current  electricity
consumption during driving is displayed.

• The

 mark indicates the total average electric-

ity  consumption  since  last  reset  until  it  is  reset
again.

• When “Electricity Consumption Reset” (

P. 248)

is performed, the data of the total average elec-
tricity consumption is deleted and the

 mark is

reset to 0.

Current fuel consumption

When  in  HV  mode,  the  current  fuel  consumption
during driving is displayed.

• The

 mark indicates the value displayed in the

average  fuel  consumption  display  (

P.  211).

Switching  the  average  fuel  consumption  display
also changes the position of the

 mark.

• When the average fuel consumption is reset, the

position of the

 mark is reset to 0.

Hybrid battery (traction battery) status

The  same  contents  as  the  hybrid  battery  (traction
battery)  status  on  the  Hybrid  System  Indicator  are
displayed. (

P. 223)
